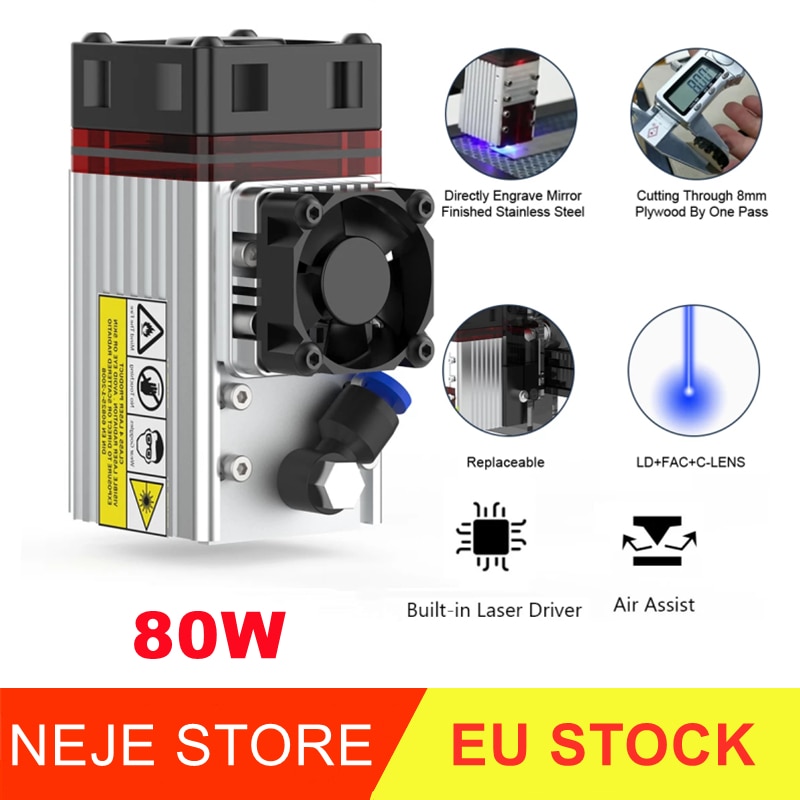

NEJE 80W/50W/40W Laser Head Module Kit High Power 450nm TTL Module for Laser Engraving Machine DIY Tools
0.0 (1 votes) | 8 orders
Price:
US $219.07 - 1052.42
/ piece
Discount Price:
US $
124.01 -
571.41
/ piece
-43%
- Ships From
- Color
-
-

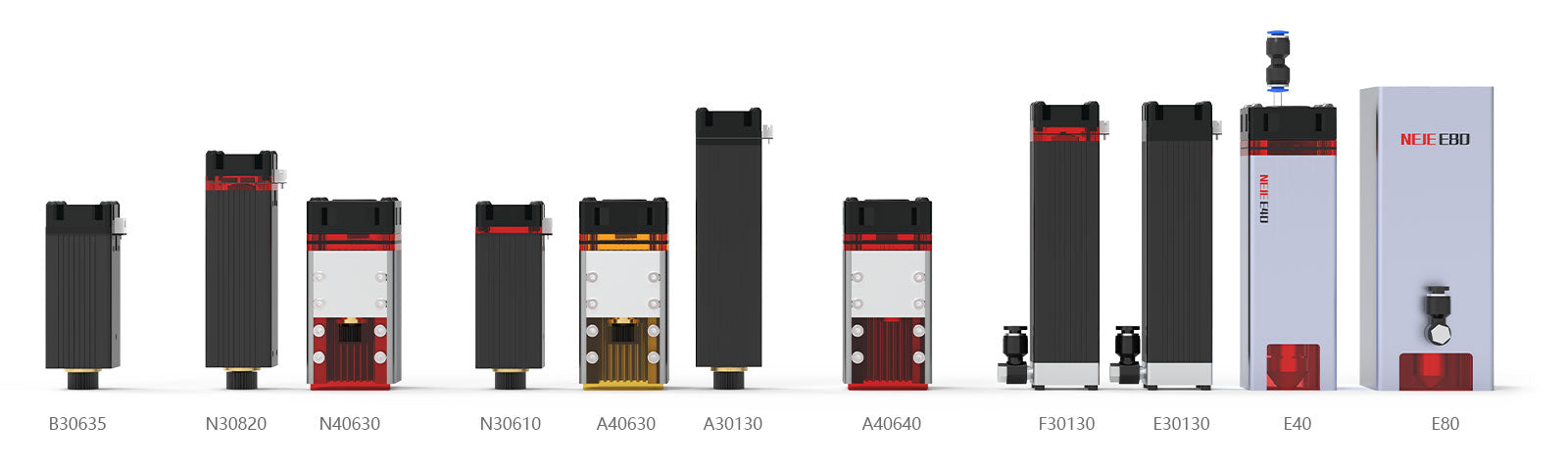

HOW TO CHOOSE NEJE LASER MODULE

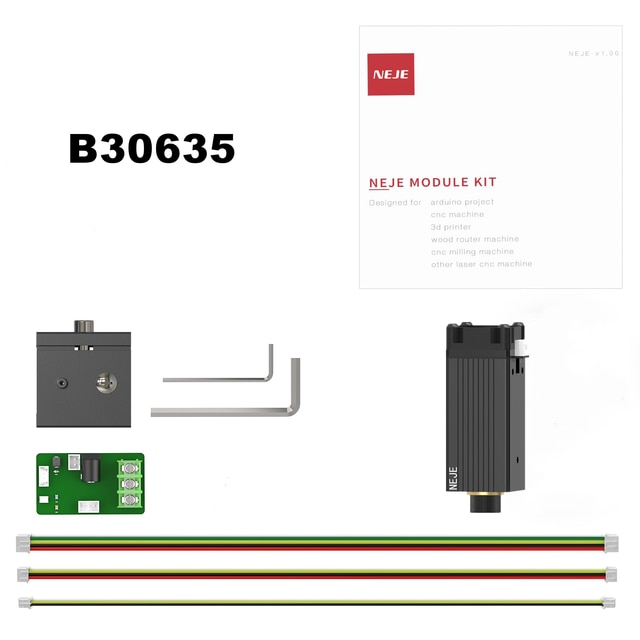

B30635is a module specially designed for wood grayscale images and micro-engraving.

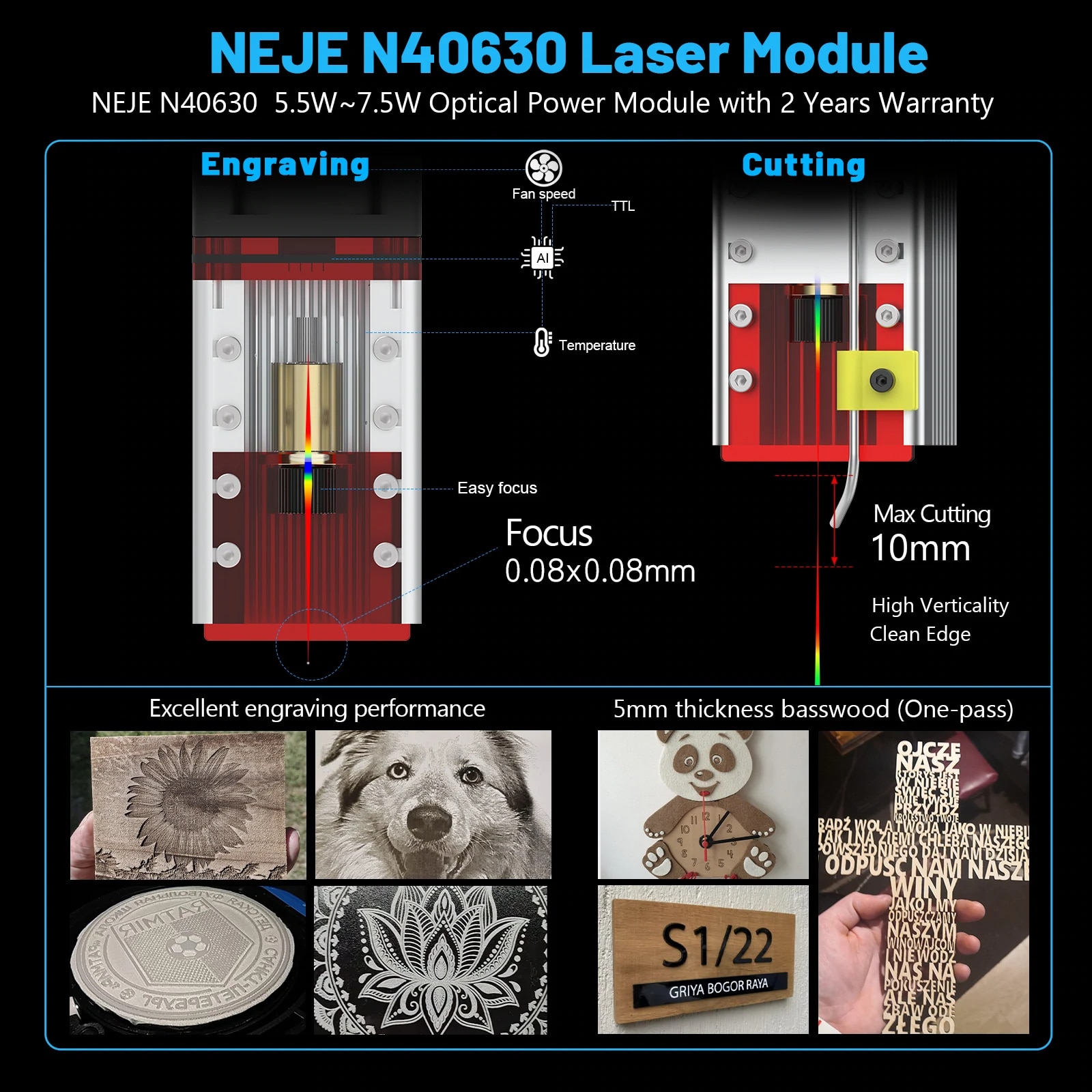

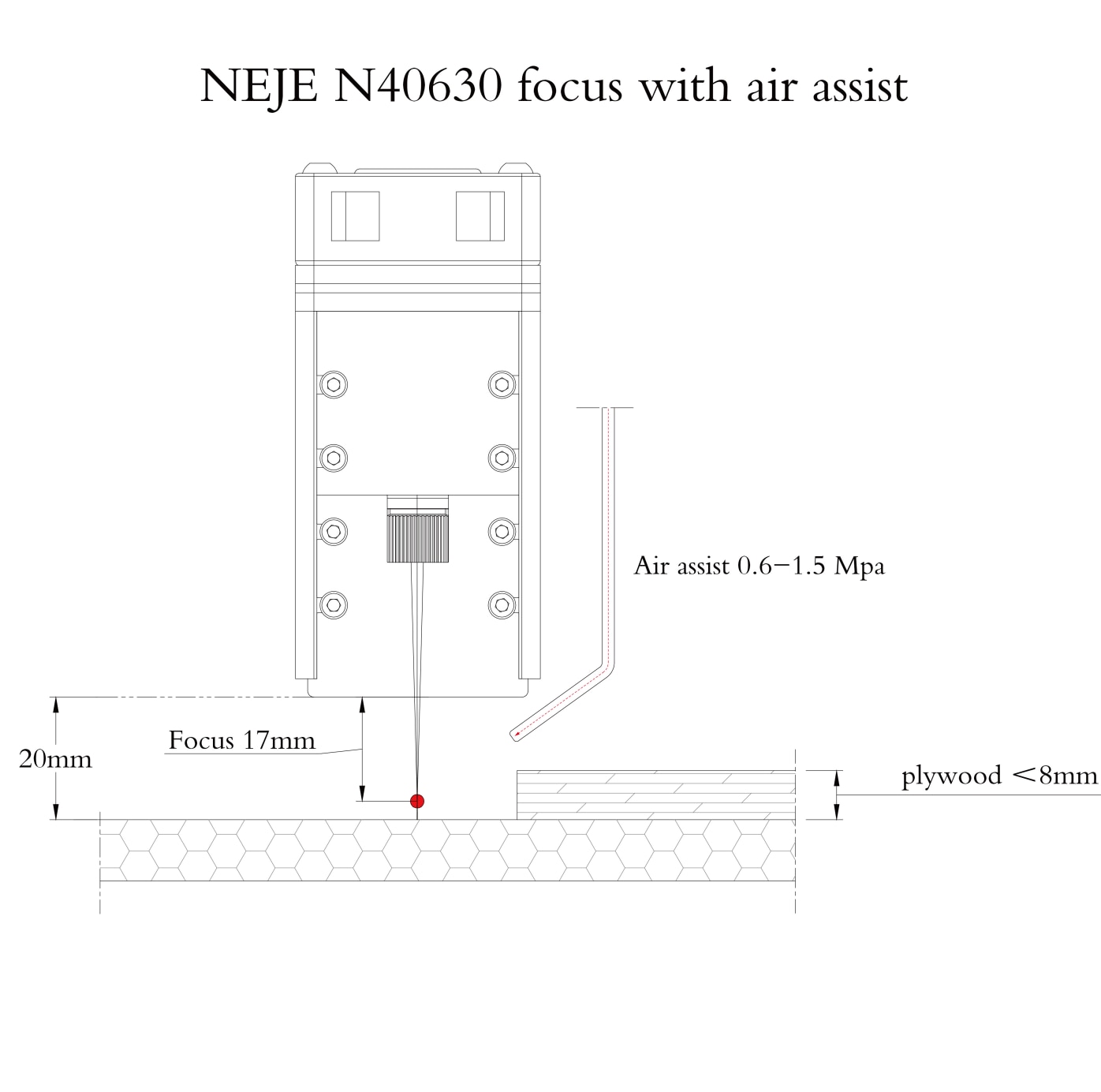

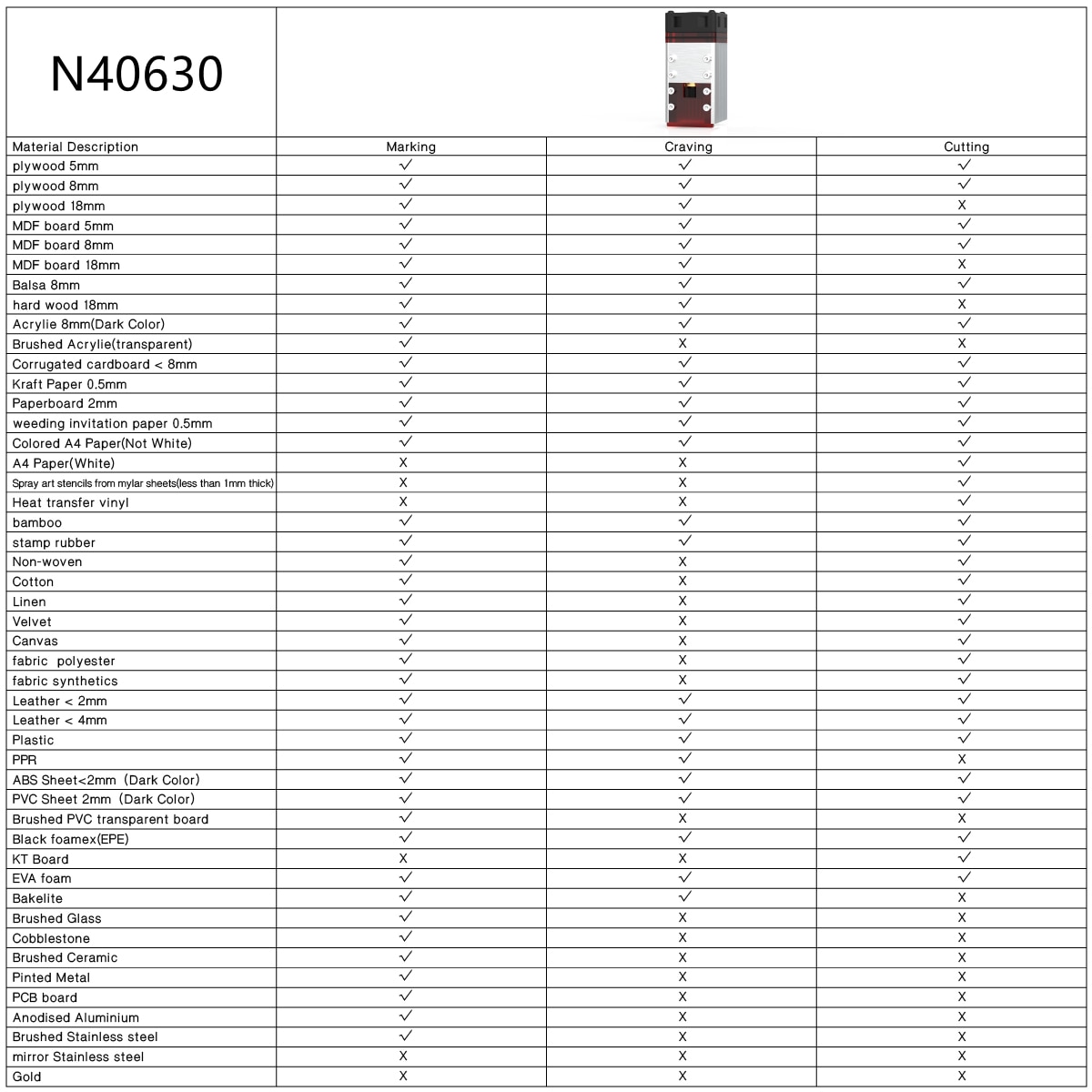

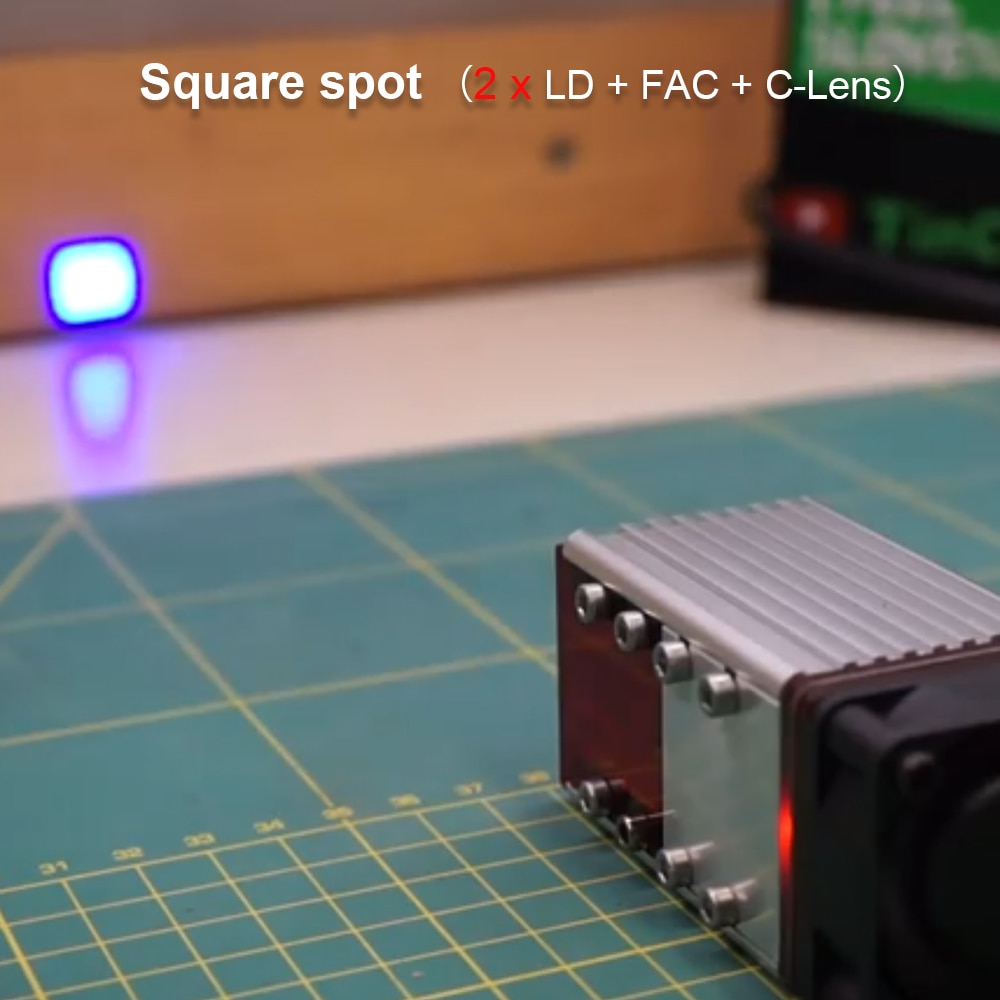

N30820andN40630have strong comprehensive capabilities, the optical power is 5.5 - 7.5W output, and the focus is square light spot, good at carving with wood , rubber stamping, glass, transparent acrylic and cutting Plywood, black acrylic, cloth, etc...These two modules are single-beam modules with comprehensive functions and high cost performance. They are the best choice for beginners. The difference between them is that N30820 can be used as air assist through a needle tube, not picky about the air pump. N40630 can install metal The air nozzle but air pump must be oil-free and water-free, so as to ensure that the lens is not damaged.

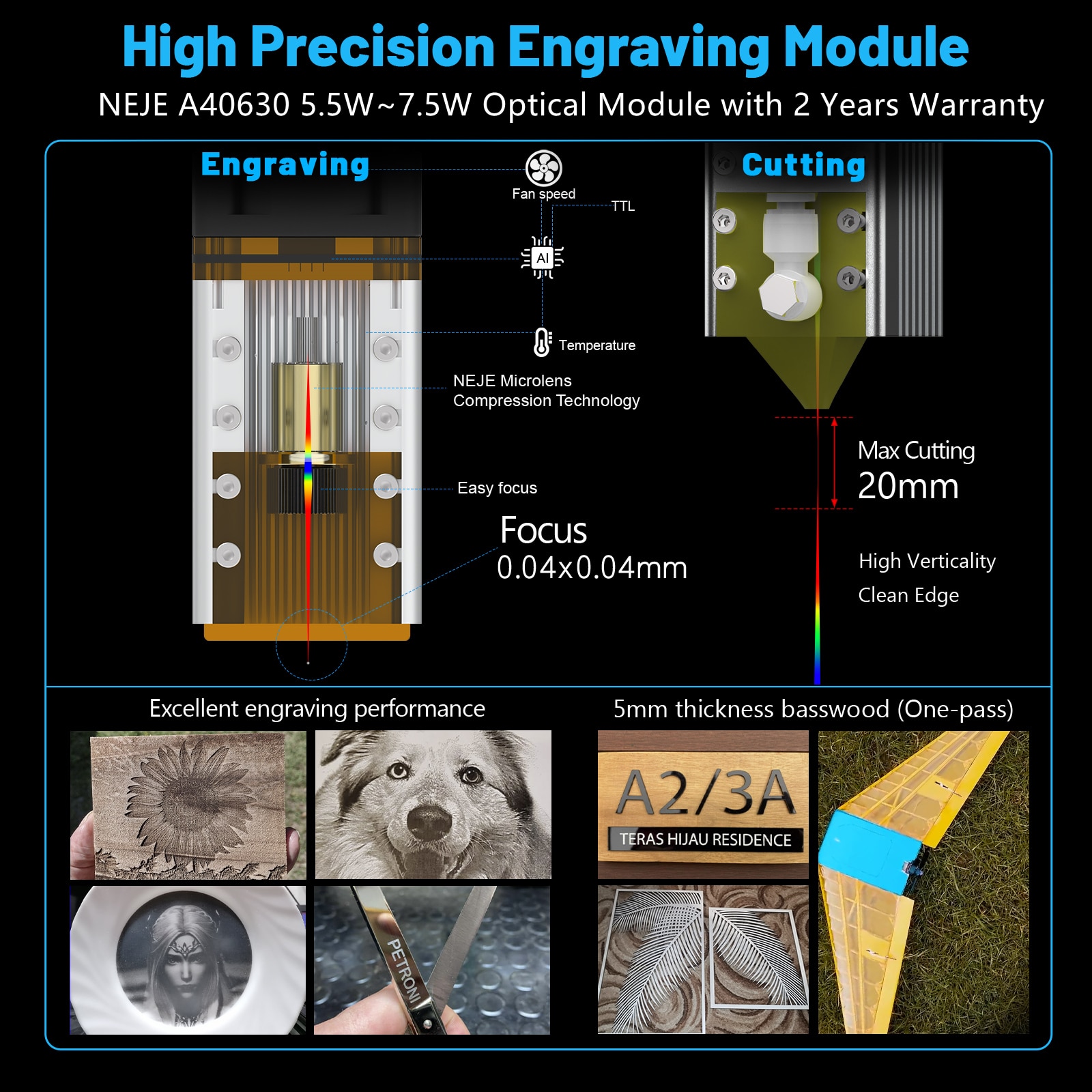

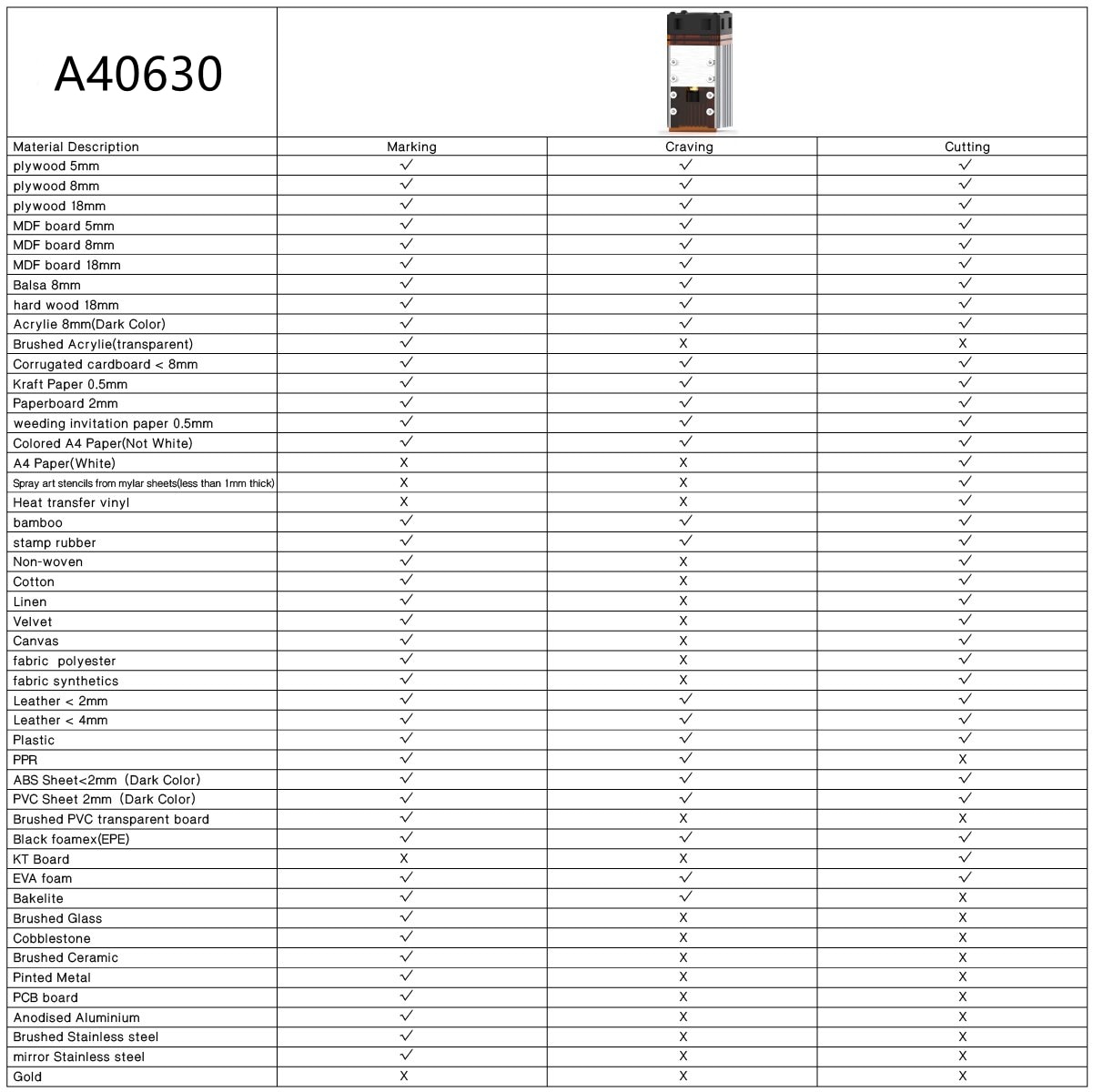

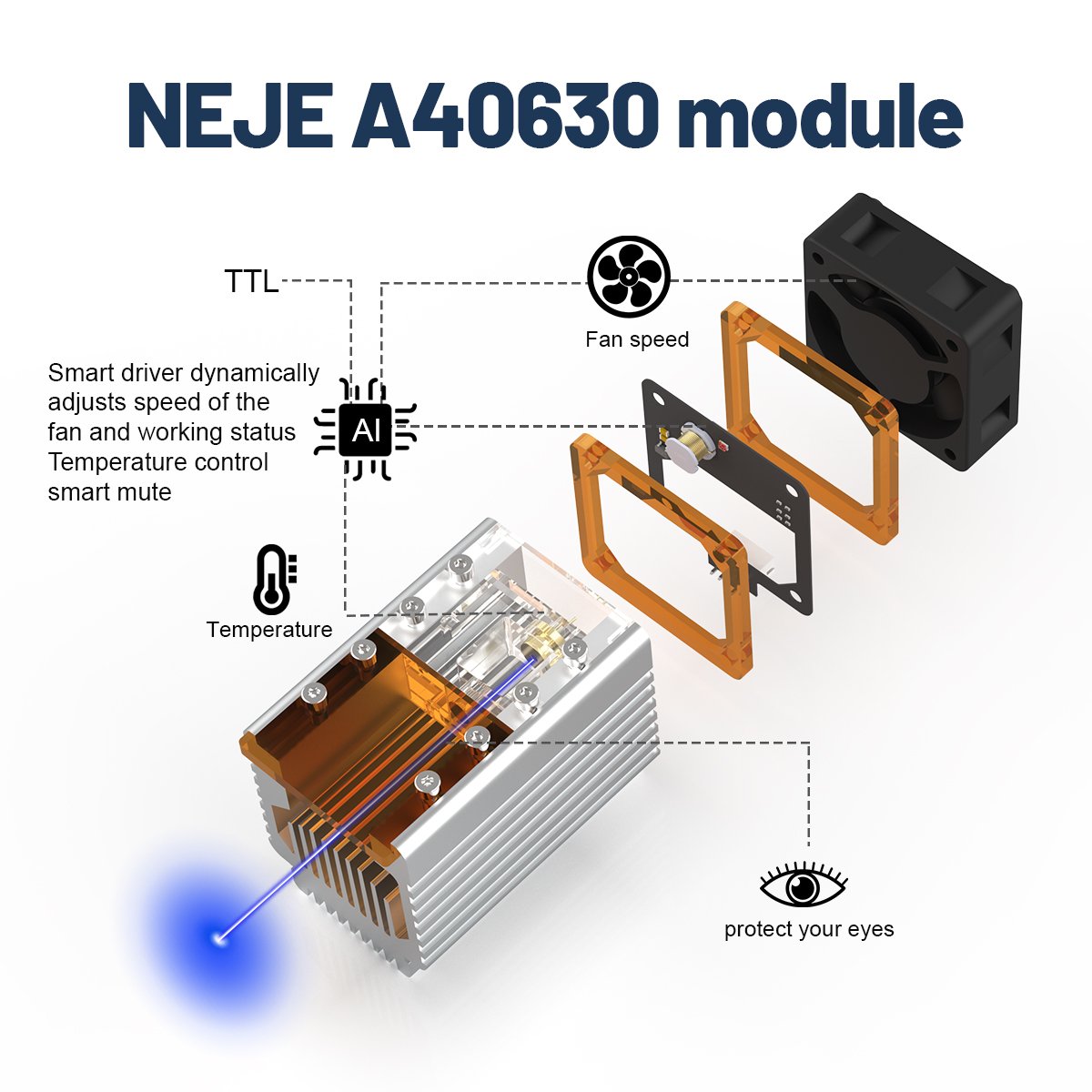

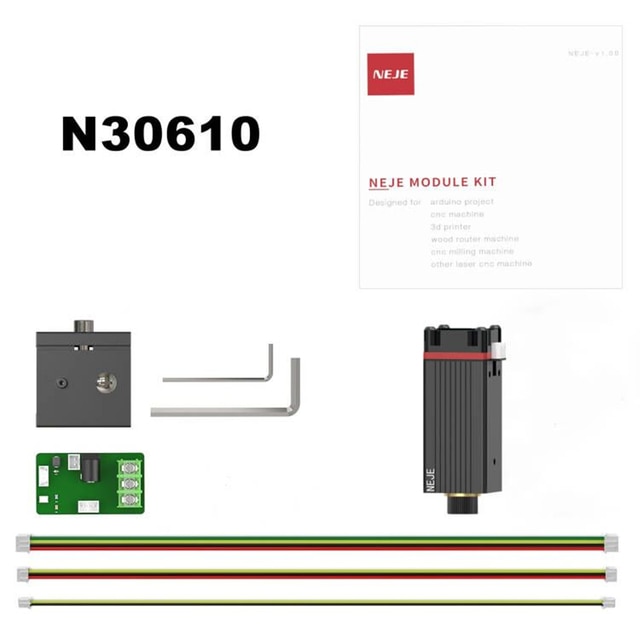

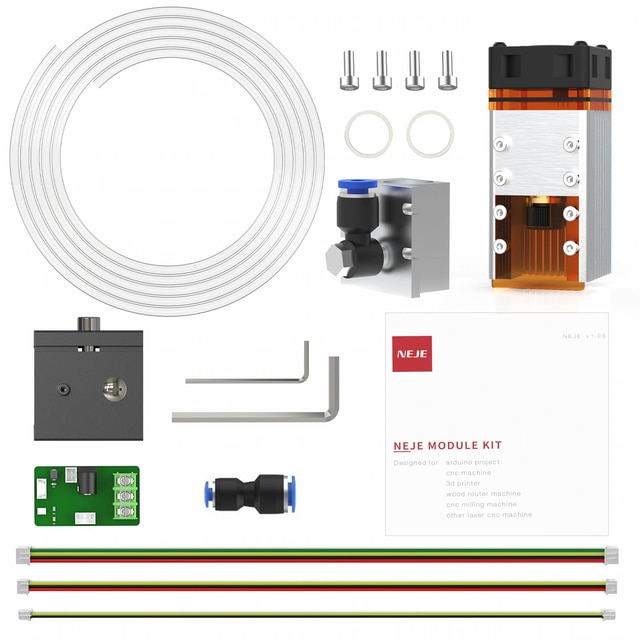

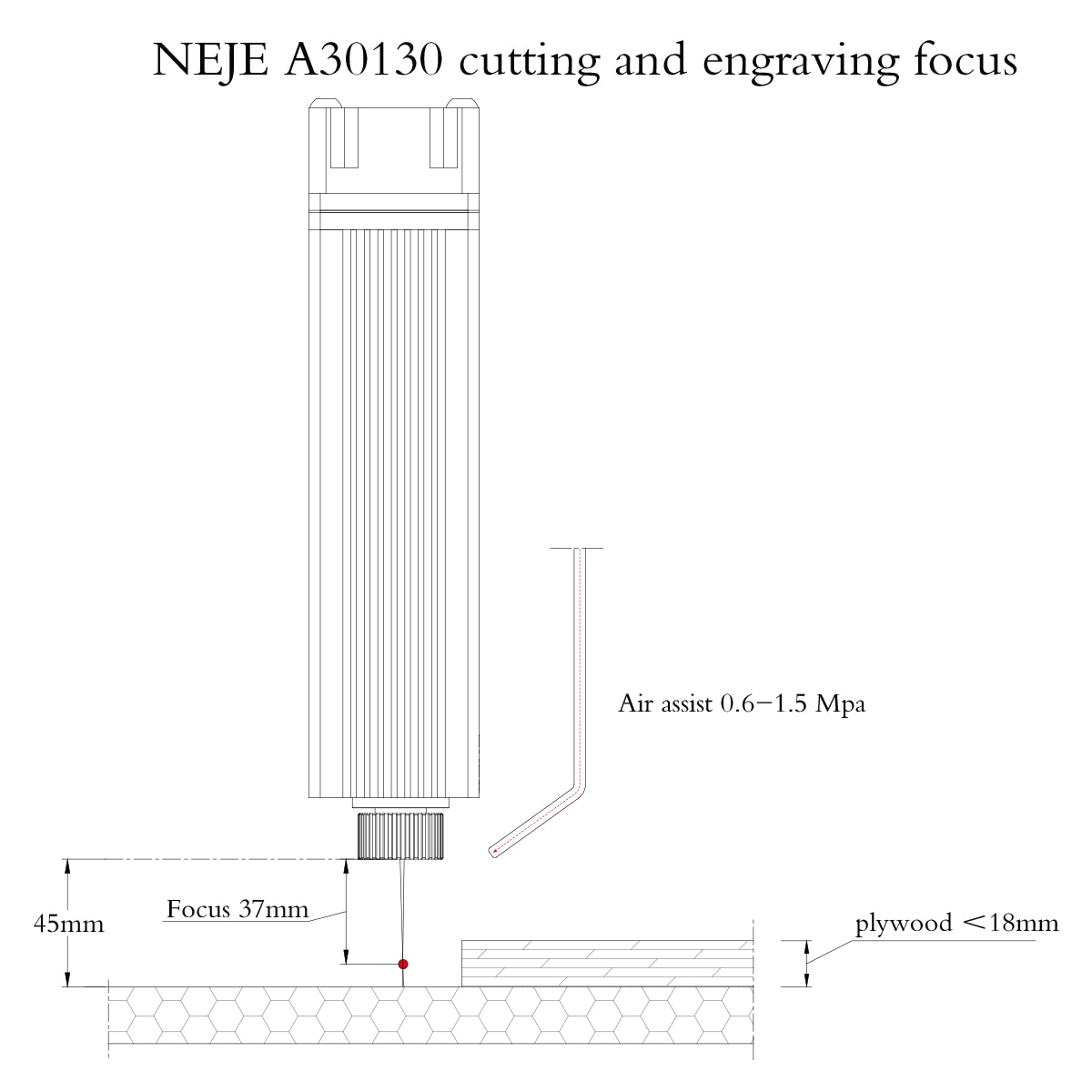

N30610, A40630, A30130modules have very fine square light spots, and are better at high-resolution engraving and grayscale engraving of hard materials, They are all zoom modules. A40630 and A30130 also have strong cutting ability and are suitable for cutting Plywood, mdf board and black acrylic. N30610 can present 0.02mm detail, A40630 and A30130 are the same optical features, focal point 0.04x0.04mm, the difference in the different air-assisted extension forms and compatible air pumps.
A40640(Artist's Choice) is a classic creative master 2 beam zoom laser module, it is the world's first 2 beam laser diode engraving and cutting module with zoom design, with the best metal engraving ability, fast groove engraving ability, perfect cutting compatibility. Better application on a wider range of materials, The strongest power density (0.04x0.06mm with 12W+ pulse and 11W continuous optical power, Use 80% power (9W+) when cutting for a long time)of enables the A40640 to have the top engraving ability, There are very special and top artistic expressions on the carvings of stainless steel grayscale carvings, stone carvings, Glass Carving, hardwood reliefs, canvas art, and other materials. The adjustable focal length design enables the A40640 module to have a uniform cutting thickness of 20mm and short-focus fast cutting capabilities. If you only consider 1 module to help you solve all the needs, it is the best choice.

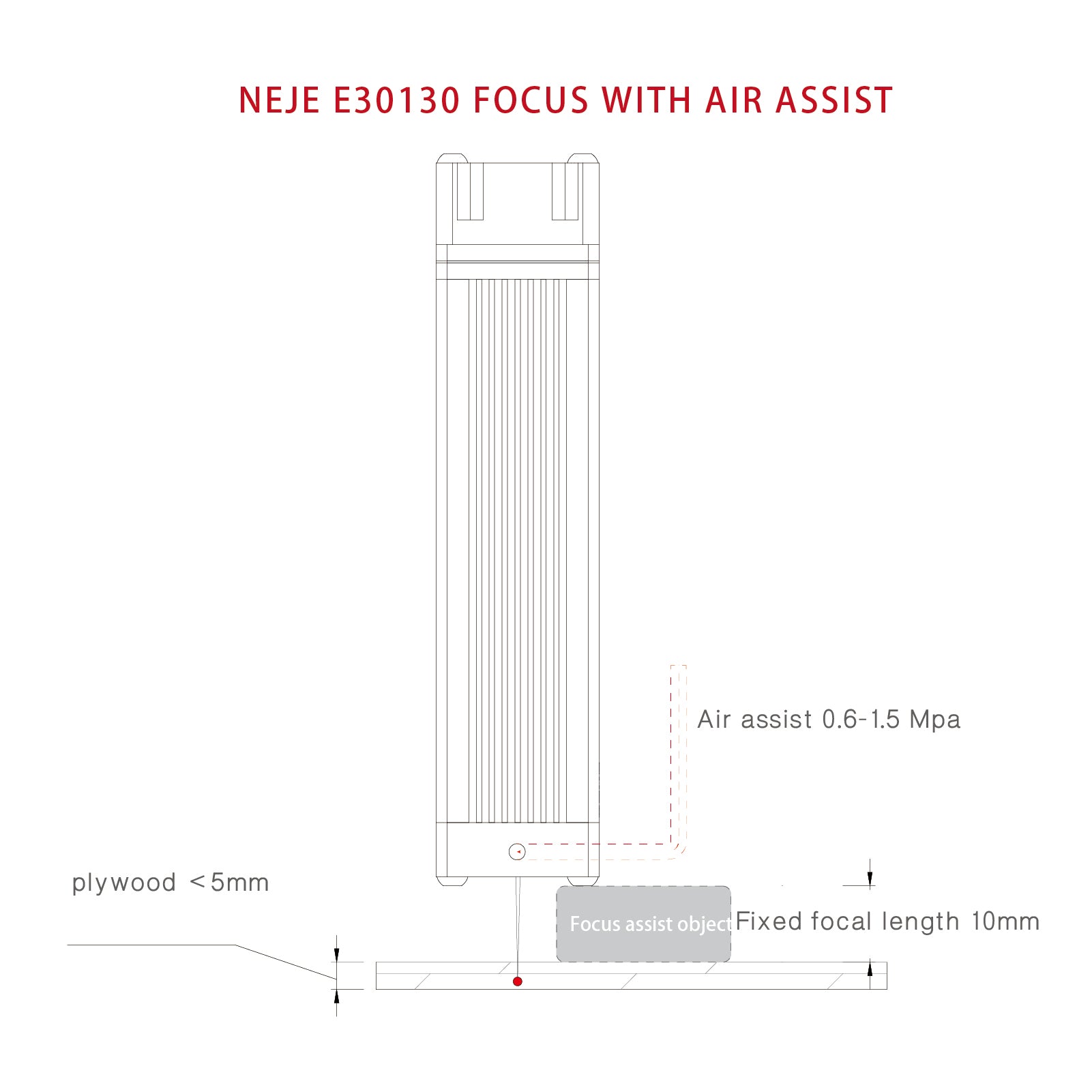

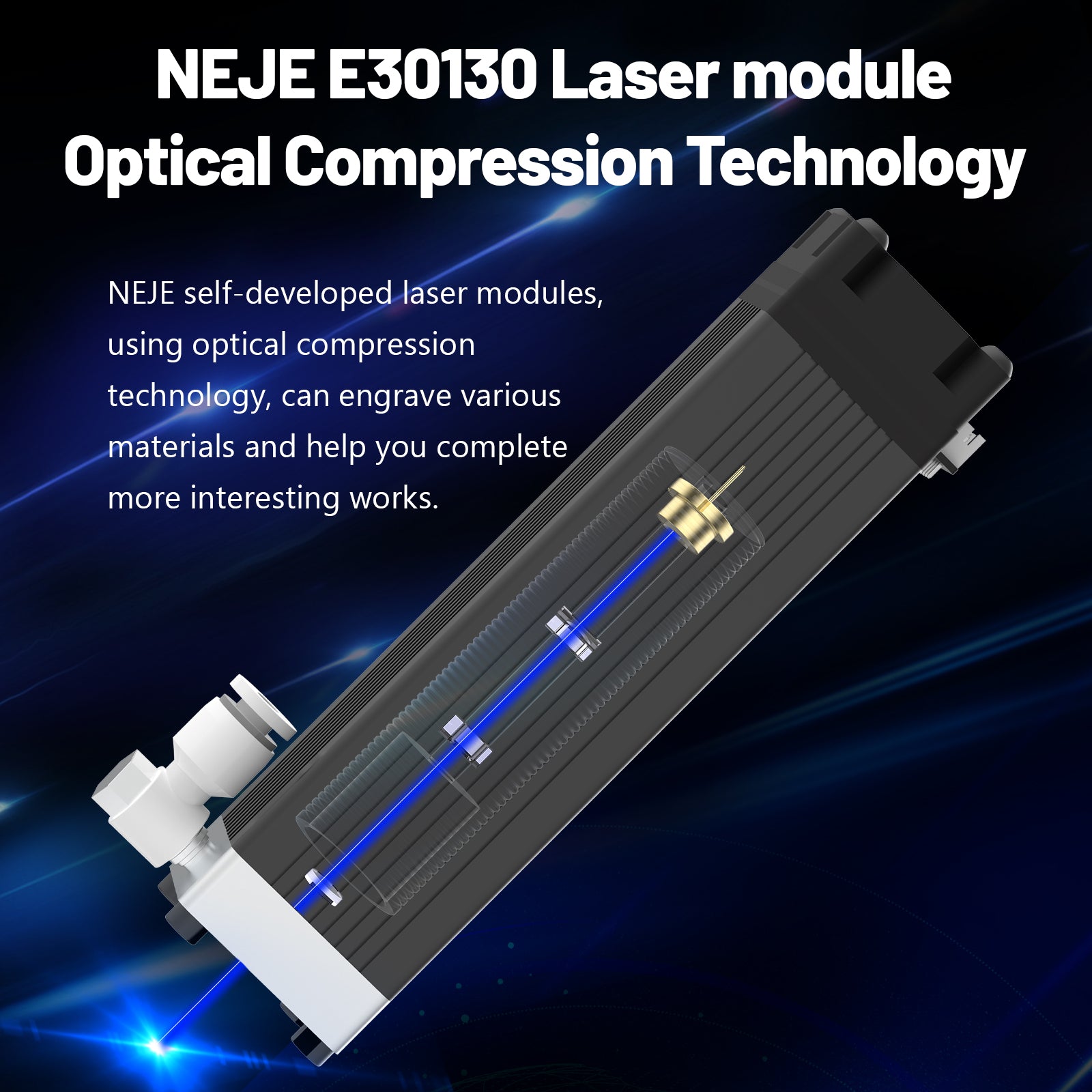

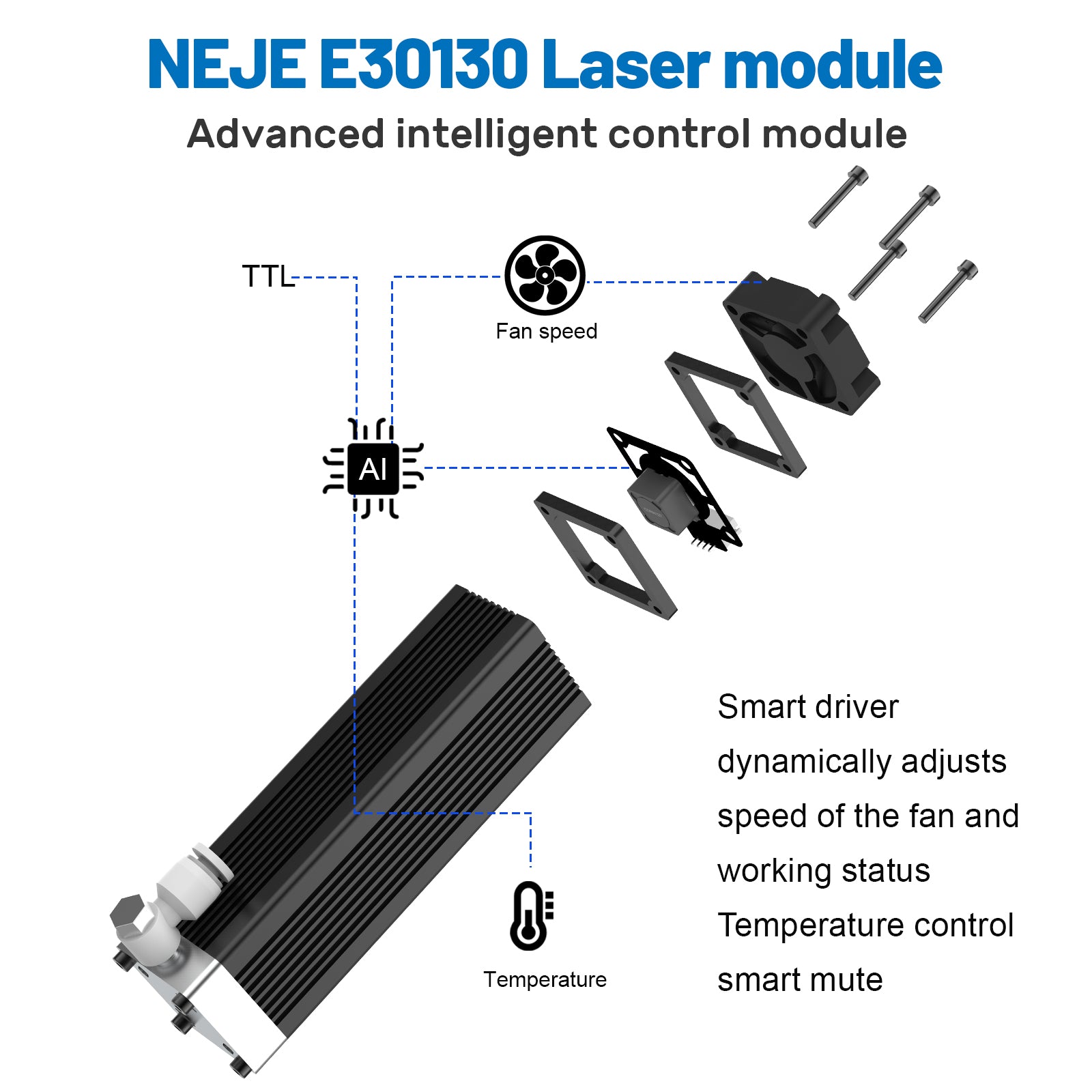

F30130, E30130, E40(Recomend), E80are the series of fixed focus modules specially designed by NEJE for cutting and directly use it for engraving with ACO air pump. These four modules are fixed focal length modules, which require clean air source support, F30130 is 10mm focal length, good at cutting plywood and metal engraving less than 4mm, E30130 is 20mm focal length, through internal NEJE optical processing, the spot shape is square, suitable for cutting materials with strong symmetry requirements such as model aircraft, E40 is 2 beam fixed module with 11W pulse and 10W+ continuous power output capability, Same engraving capability as A40640, It is a carving and cutting module with high cost performance and wide application. E80 is 4 beam module, 20W+ output, it is not recommended for engraving, the focus point is larger, heavy weight and the need to add air assist are the disadvantages of 4xLD. If you have requirements for cutting speed of 3-4mm materials, E80 is the right choice for you, Normally, 500mm/min can cut plywood cleanly, It should be noted that E80 is a 24V input module, which can only support the new NEJE-3-Max mainboard (v1.1.0 and above) .
E40‘S SPECIAL CAPABILITIES

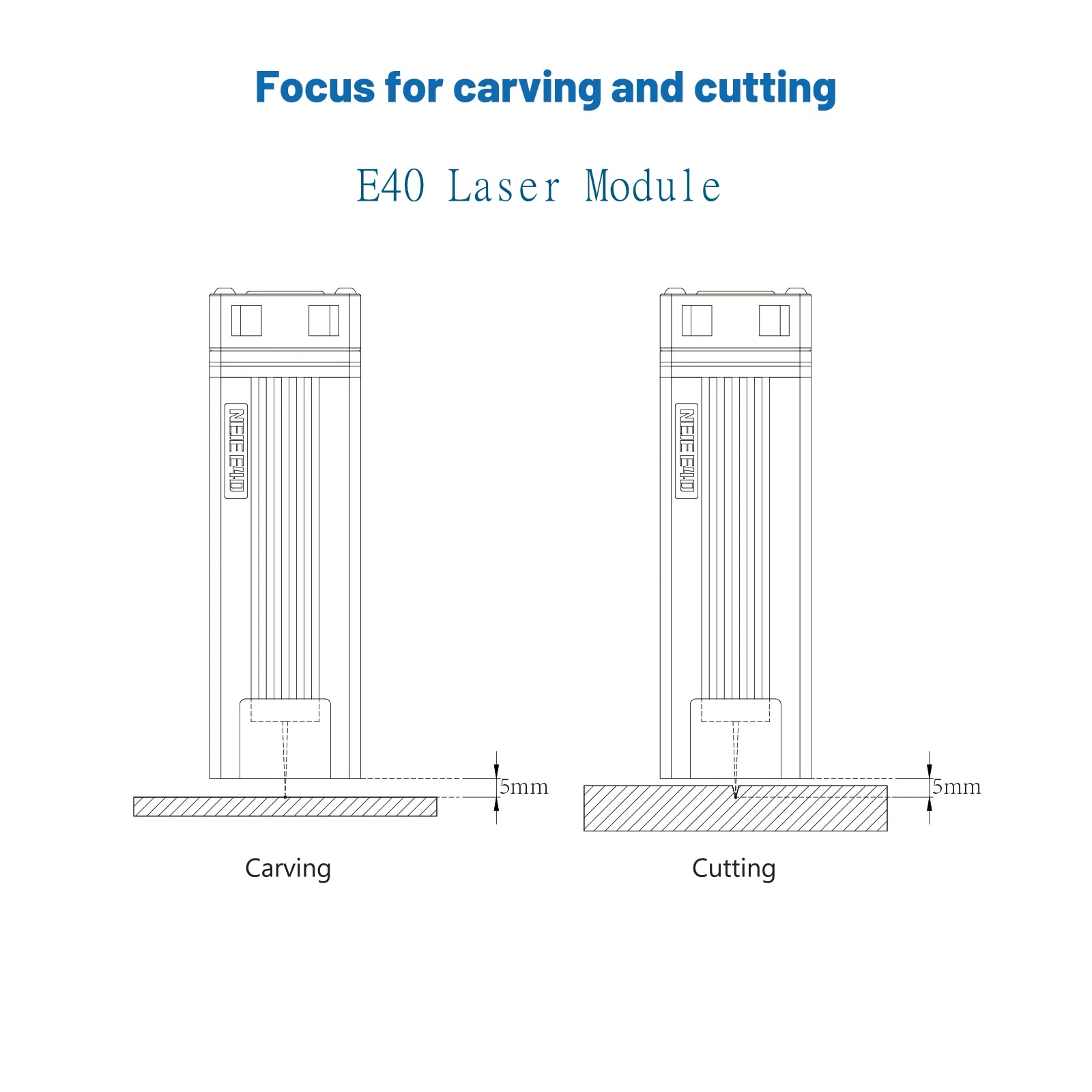

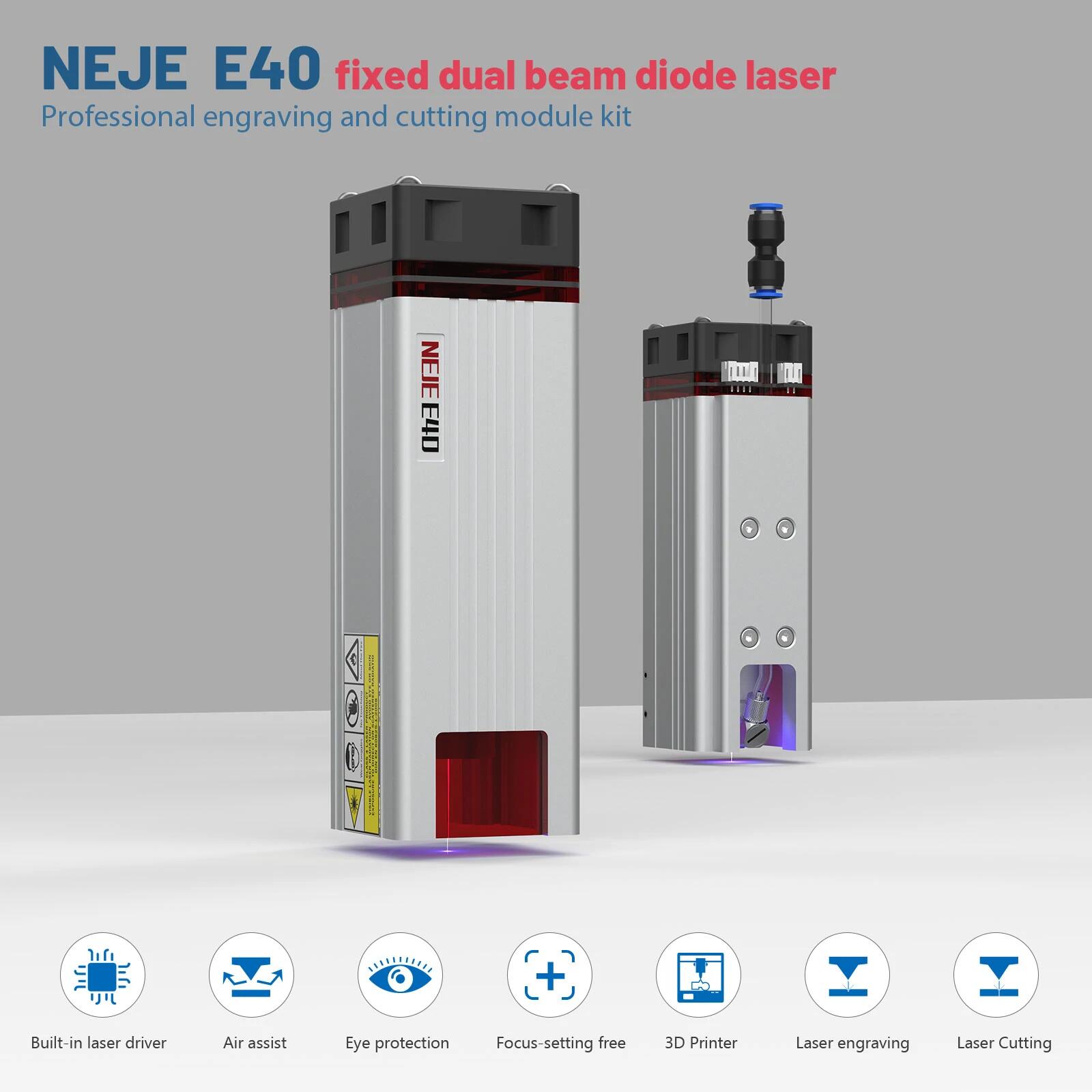

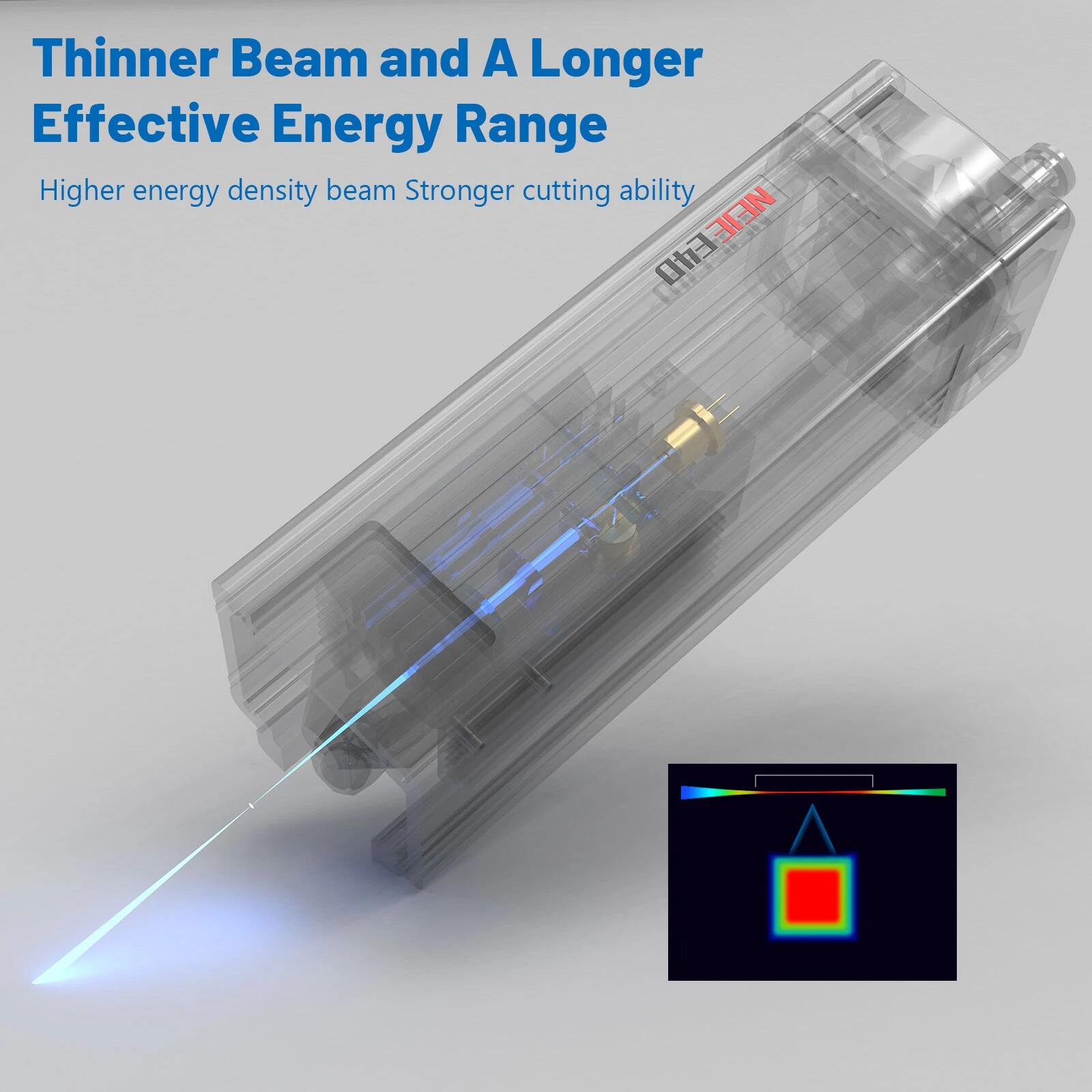

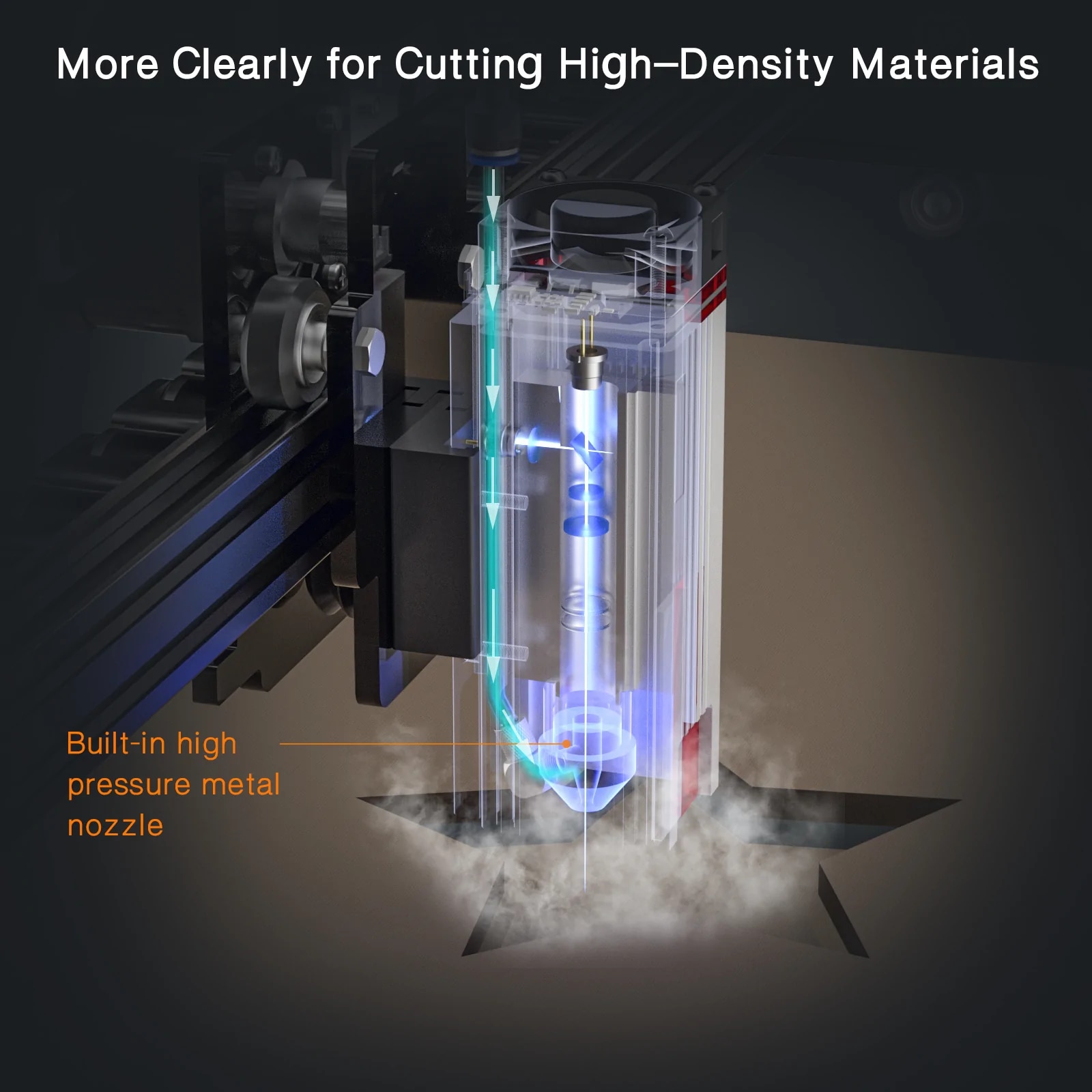

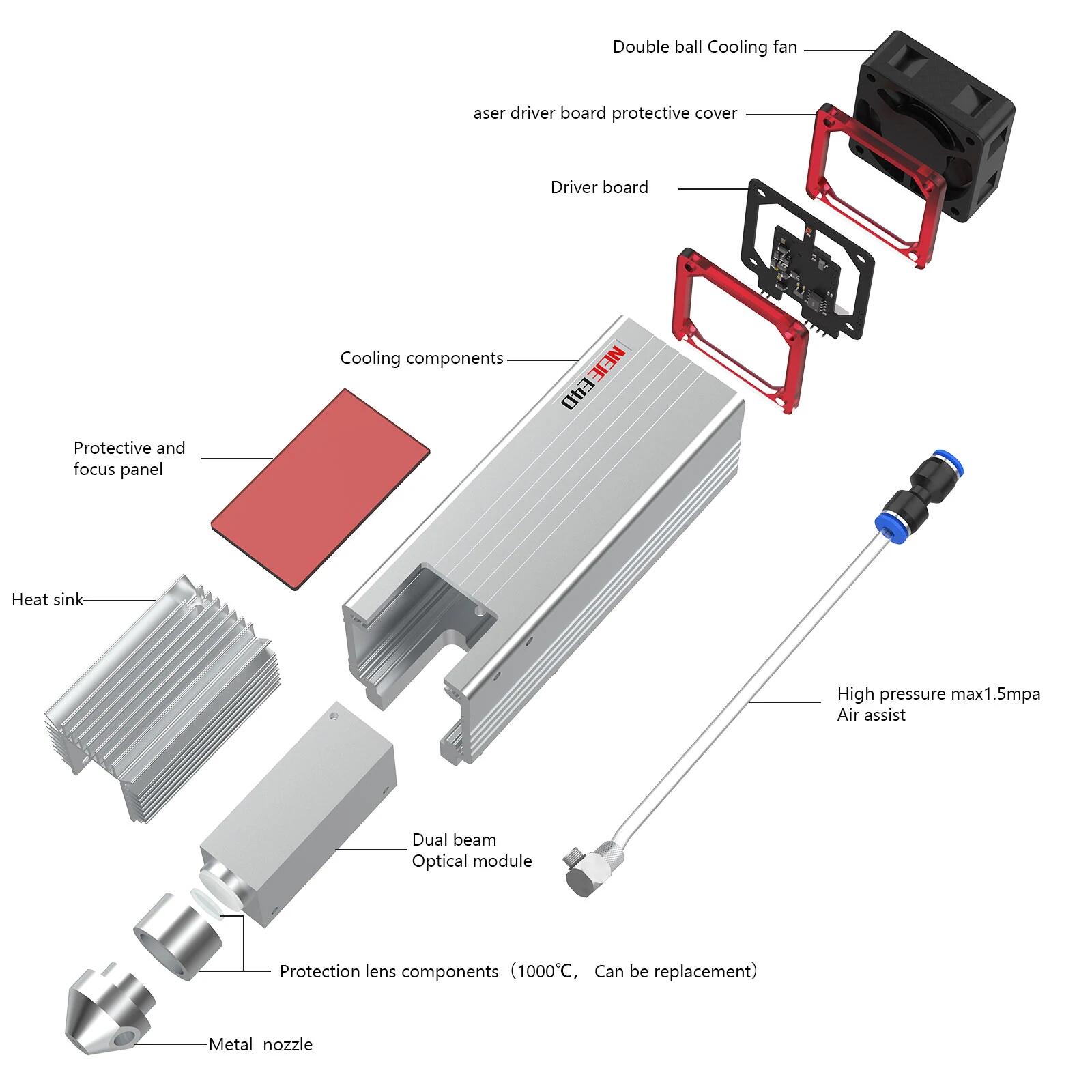

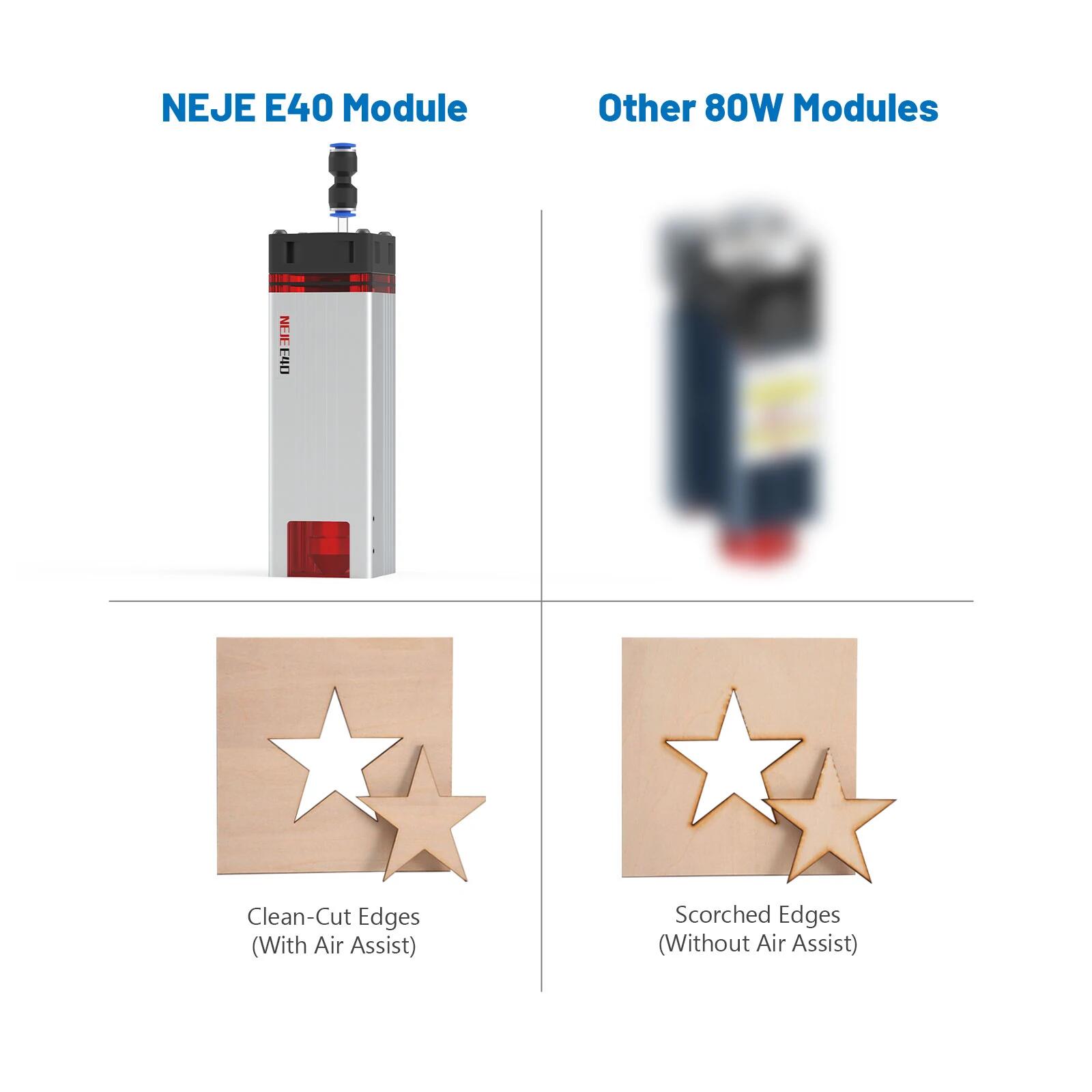

E40(High Precision multi-function module) is a high-power dual beam fixed focus high-precision module. E40 module has extremely small incisions when cutting MDF boards, leather, acrylic, fabric, cardboard and other high-density materials less than 4mm, and the minimum gap between incisions is less than 0.06mm, At the same time, it can carve stainless steel, stone, glass, ceramics and other high-resolution materials with high-precision rendering capability, and the imaging effect is meticulous and accurate. It is a perfect high-power image rendering module. The NEJE E40 module adopts NEJE's unique external lens optical compression technology, which makes the focus energy density amazing, The energy density is 2 times higher than that of the 20W optical power module, so it has faster speed and precision in the actual engraving process. The incision in XY direction tends to be uniform, Therefore, you will get a more even effect when drawing lines. E40 module adopts more stable and reliable optical solution, which makes the service life of the E40 continuous cutting mode 40% longer than that of the ordinary laser module, and the service life of the E40 normal working mode (8 hours per day) even reaches 7 years. The NEJE team's goal for E40 is to become the next classic, You can always believe that it will constantly brings you more amazing projects.

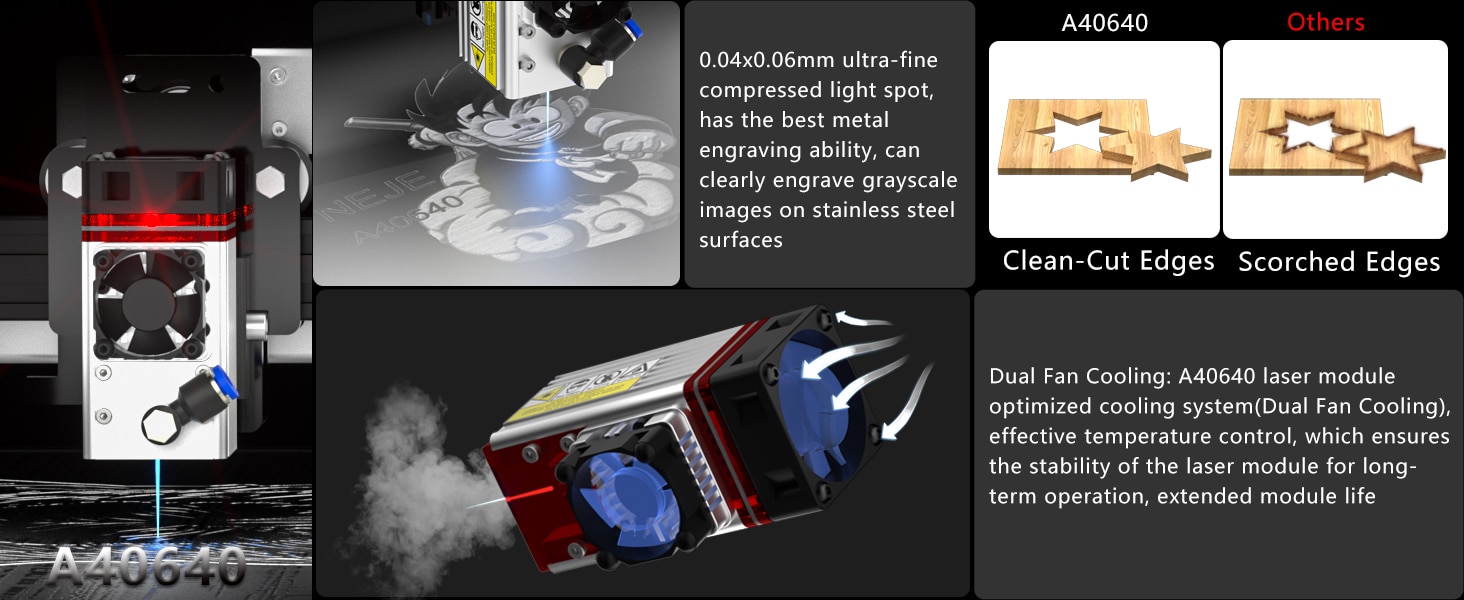

WHAT NEJE A40640 CAN BRING TO YOU?

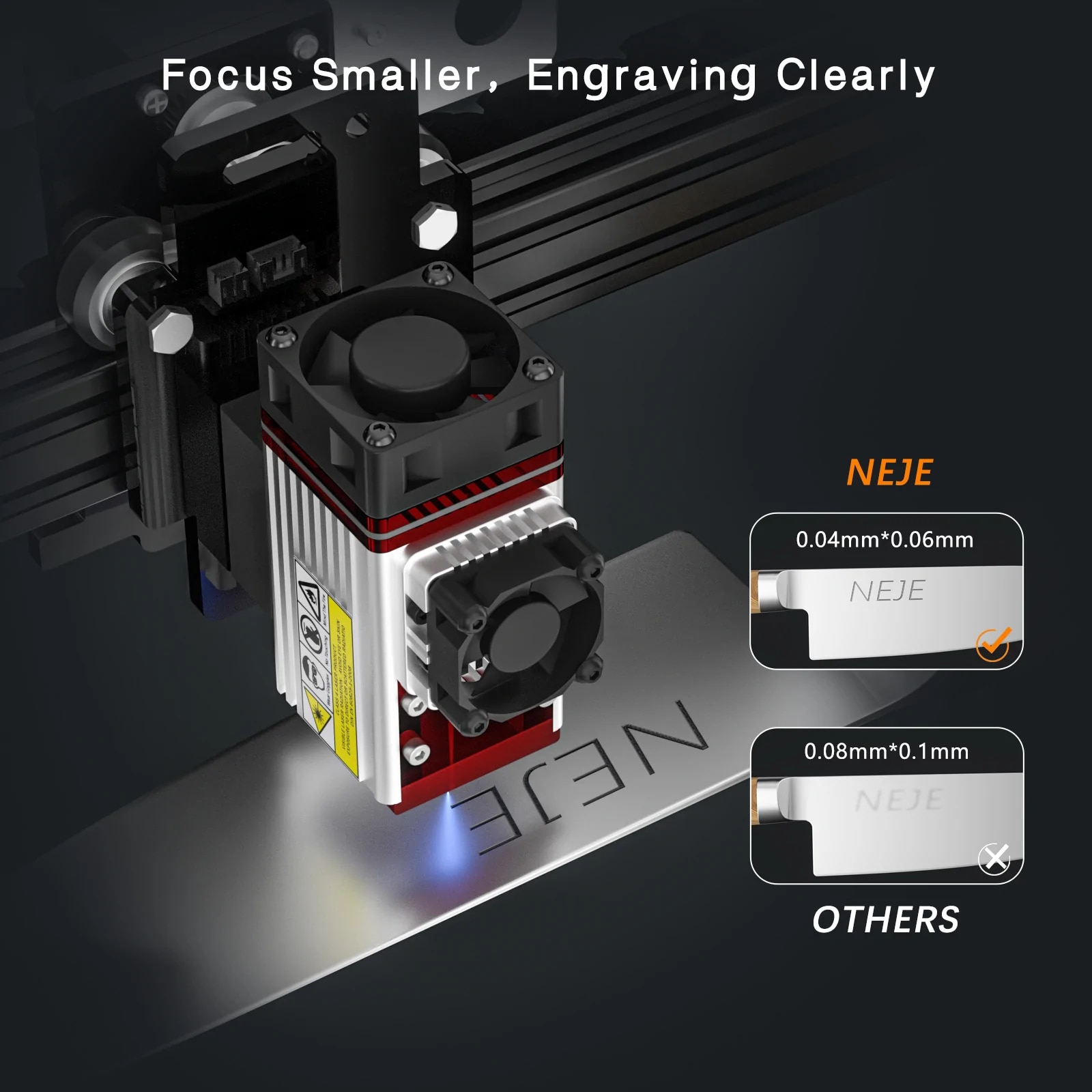

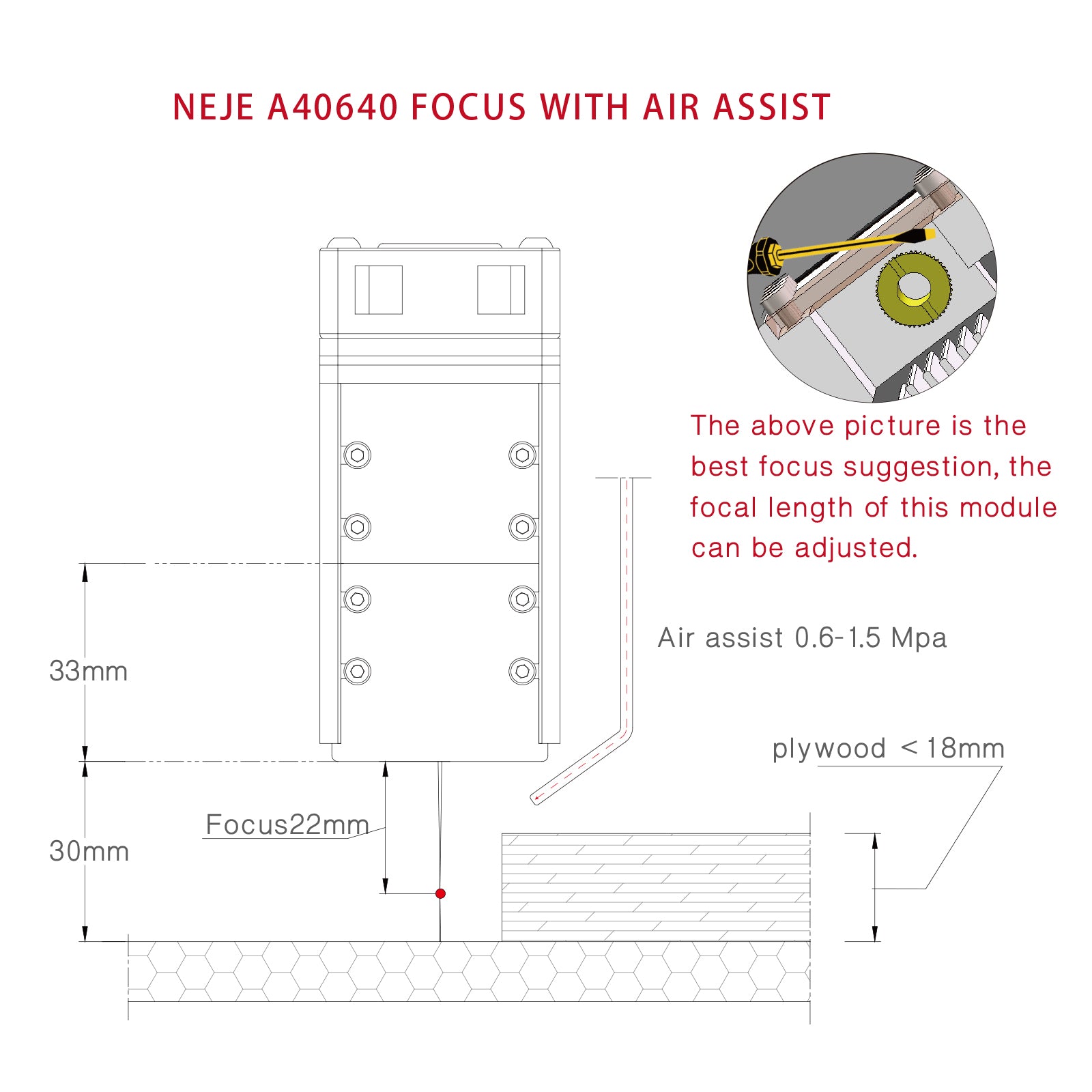

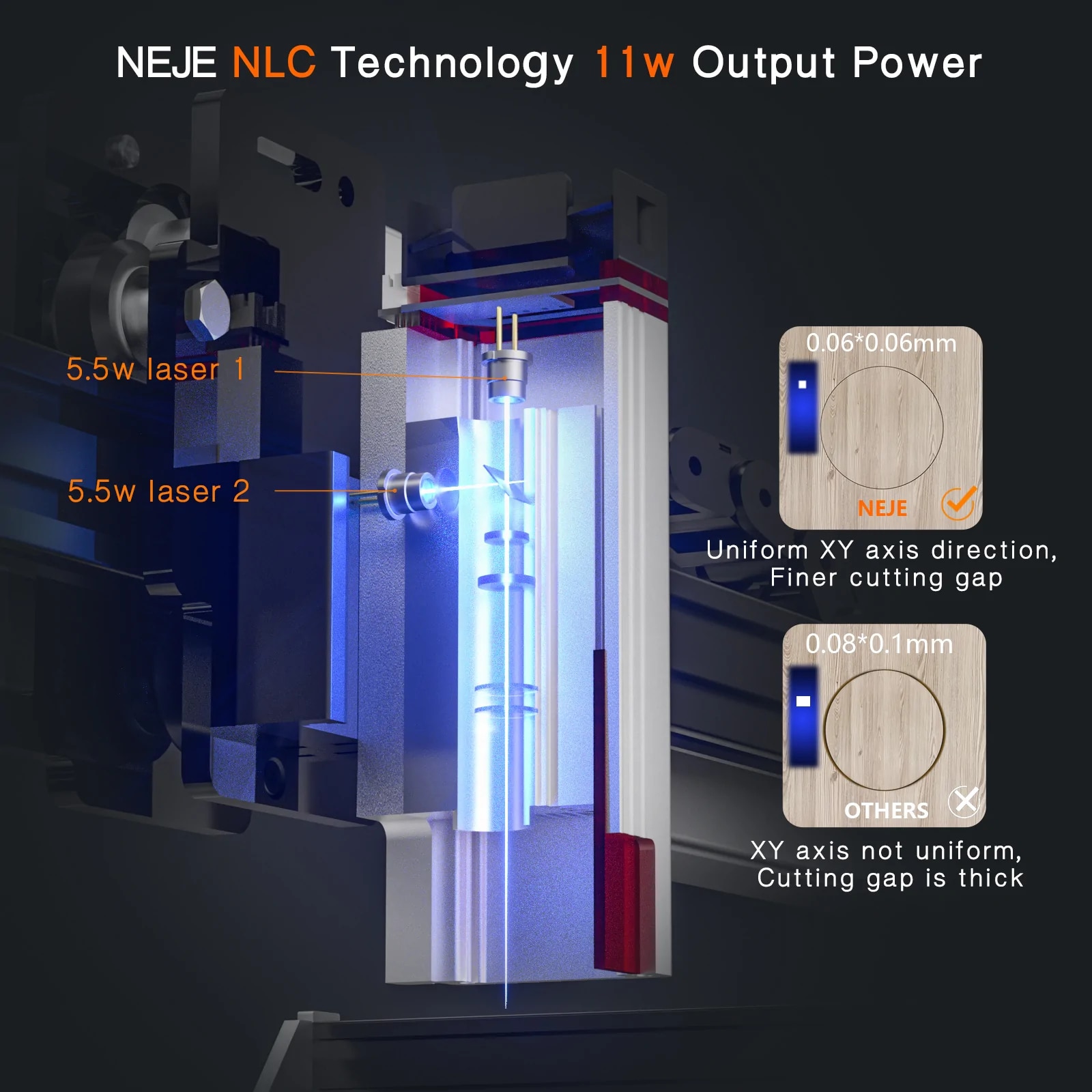

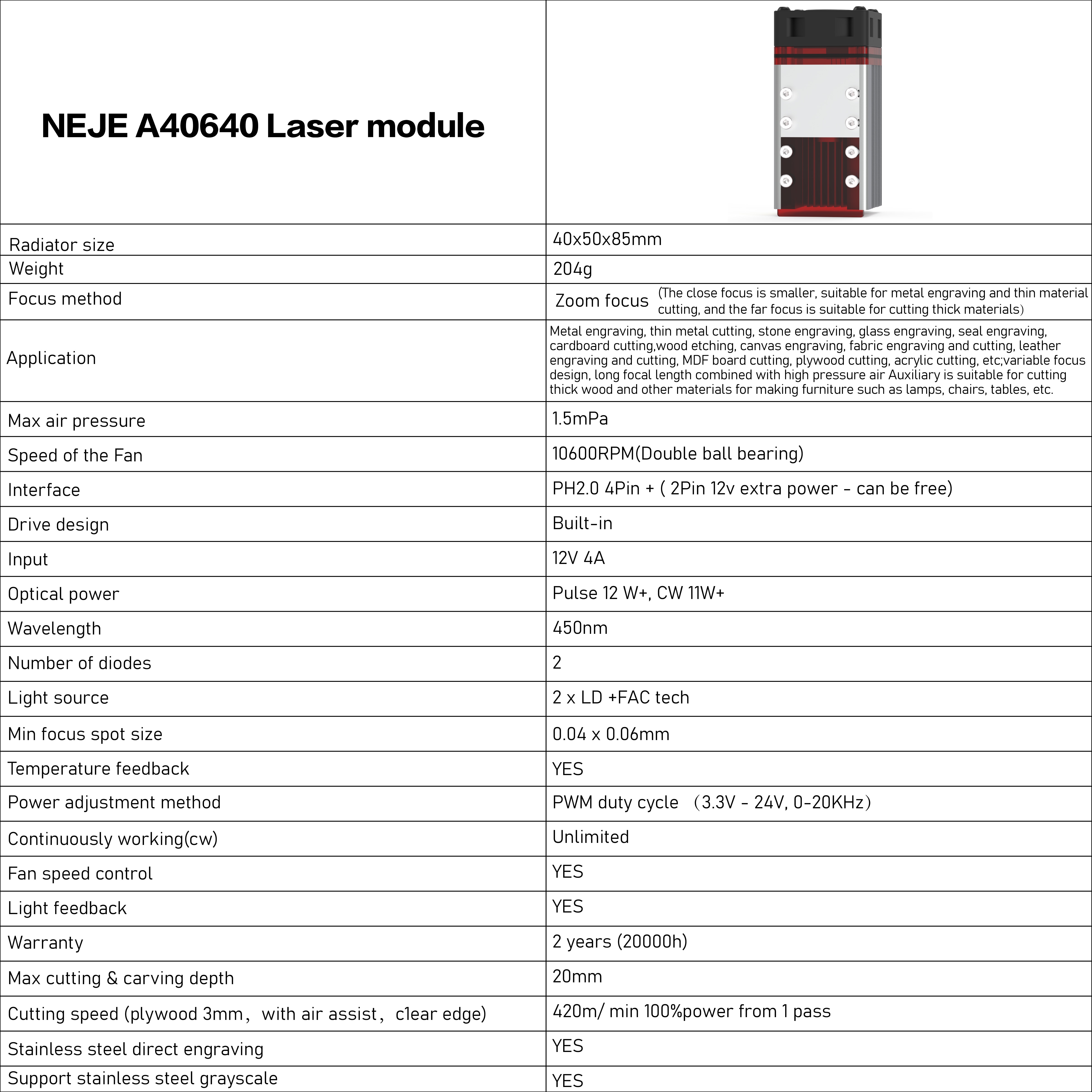

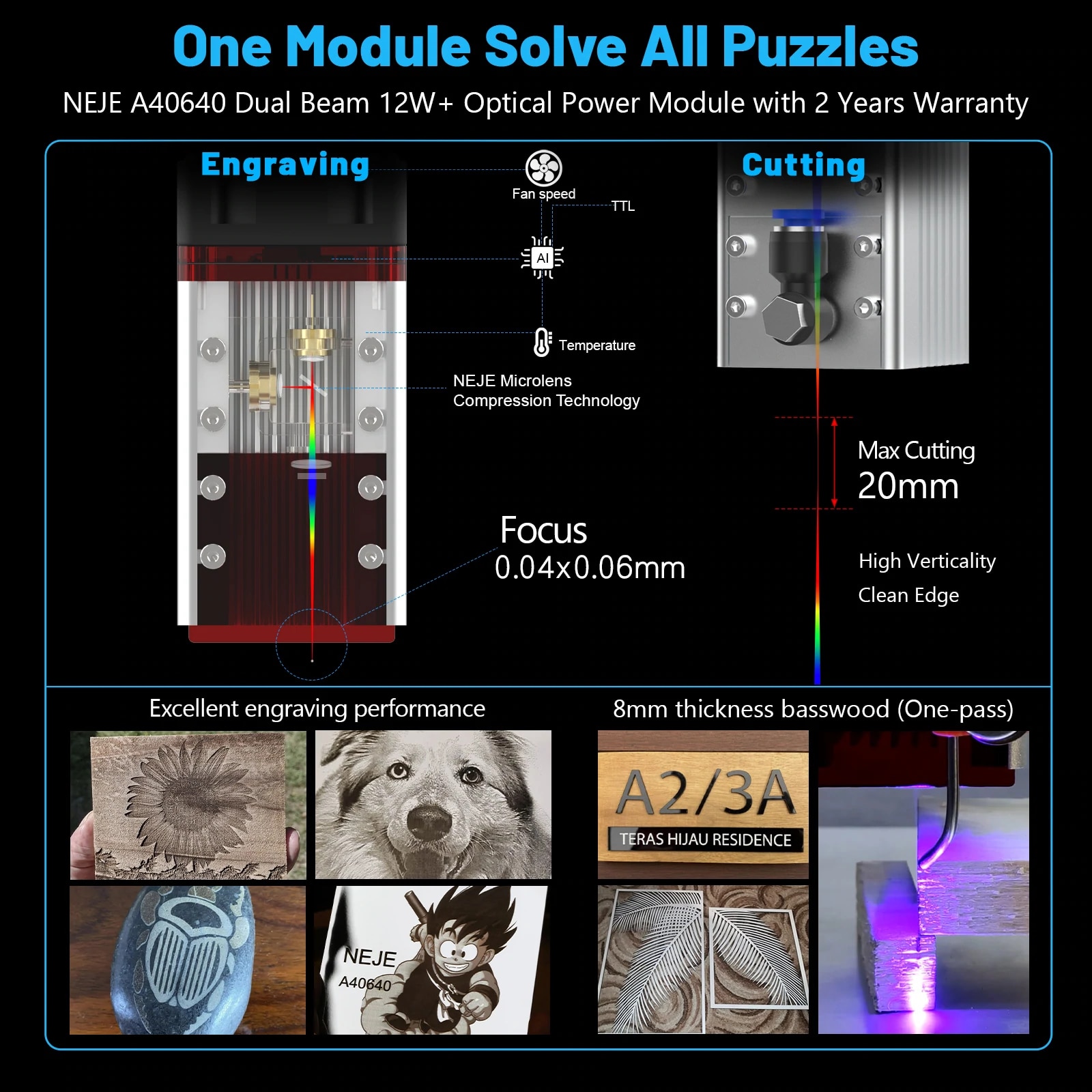

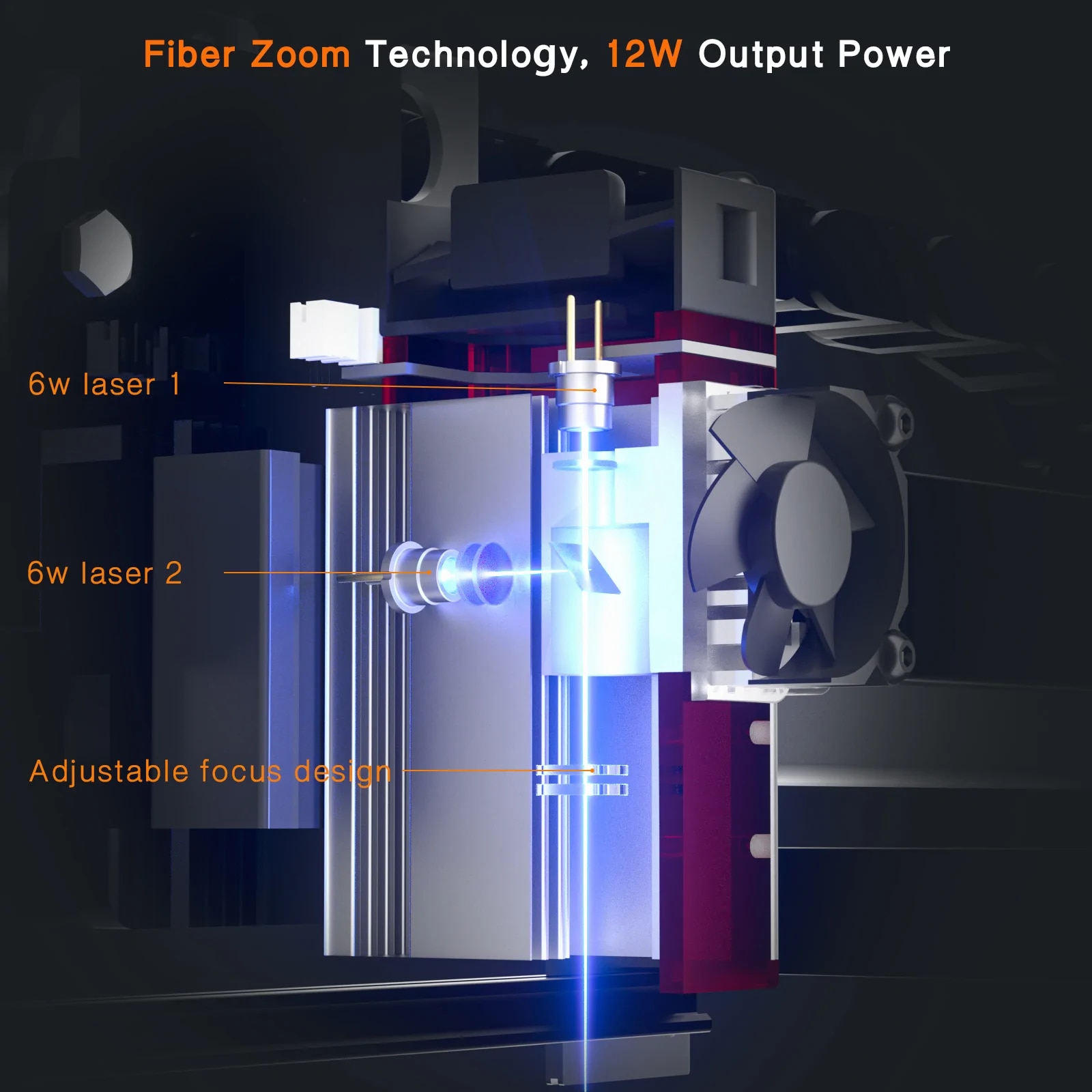

A40640 (The most widely used module) is a classic creative master dual beam zoom laser module, it is the world's first 2 beam laser diode engraving and cutting module with zoom design, with the best metal engraving ability, fast groove engraving ability, thick material cutting compatibility, Make it the most widely used module. Due to the built-in NEJE unique fiber compression technology, It has a very strong energy density (0.04x0.06mm with 12W+ pulse and 11W continuous optical power), There are very special and top artistic expressions on the carvings of stainless steel grayscale carvings, stone carvings, Glass Carving, hardwood reliefs, canvas art, and other materials. The A40640 is the only high-power module with variable focus section, The optimized A40640 II has higher cutting reliability, The short focus is suitable for carving hard materials such as metal stone and cutting materials with high density such as mdf, The long focus has better depth of field and smaller included angle for cutting thick wood and other materials. The excellent design makes the A40640 have a very strong vitality from the first creator of high-power diode laser to today, Due to the high power density, it has an equivalent application higher than 20W (optical power) laser in large area image engraving, If you only consider 1 module to help you solve all the needs, it is the best choice.

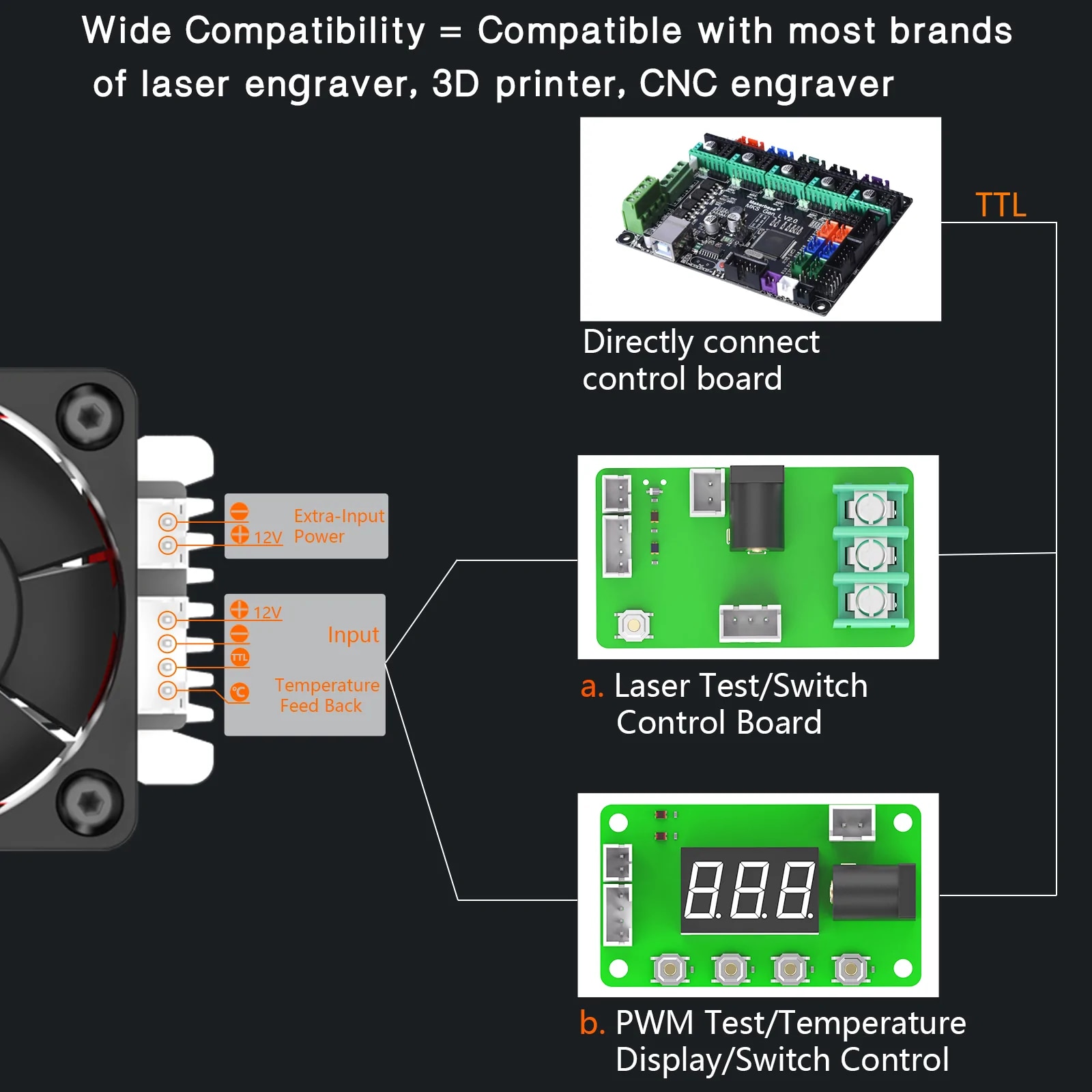

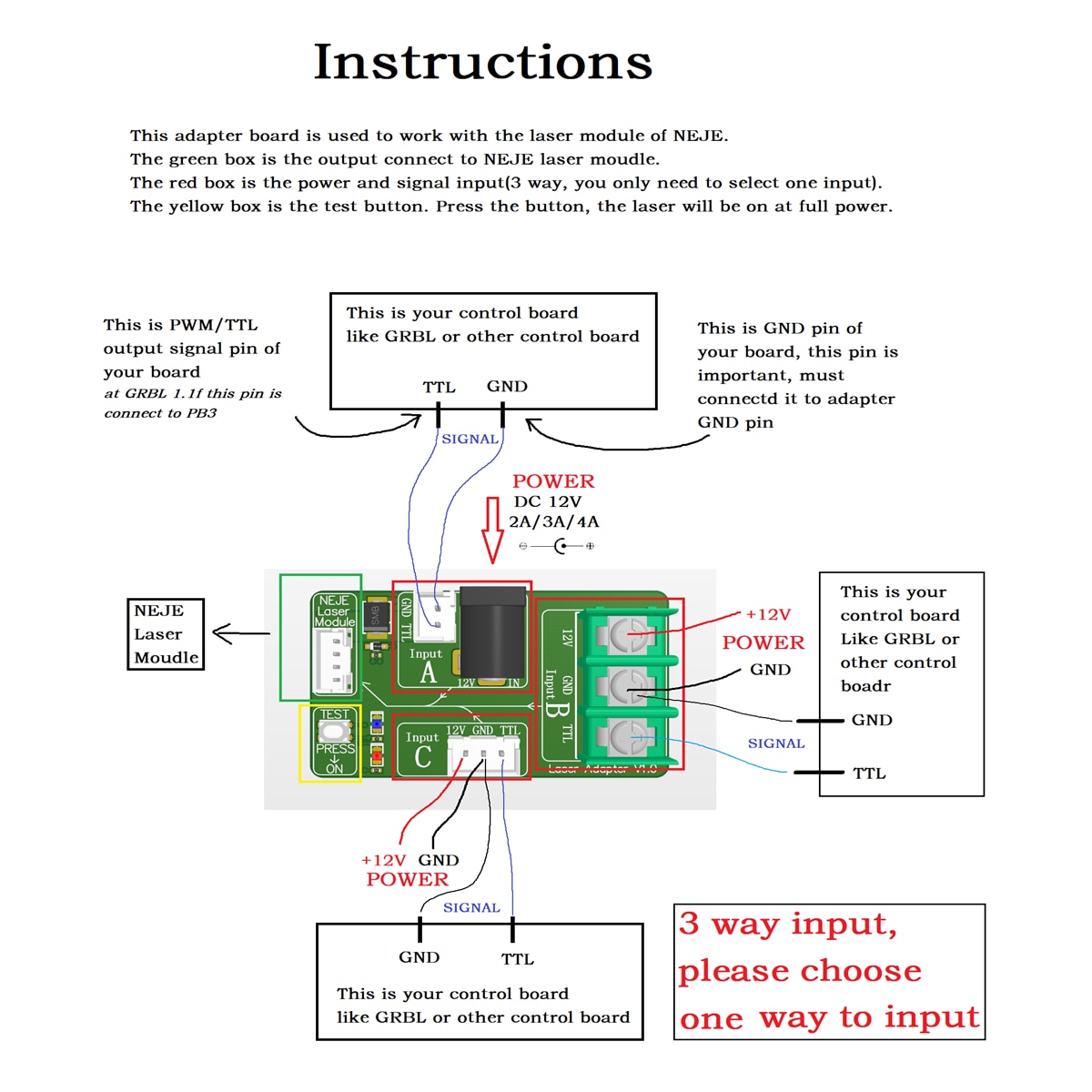

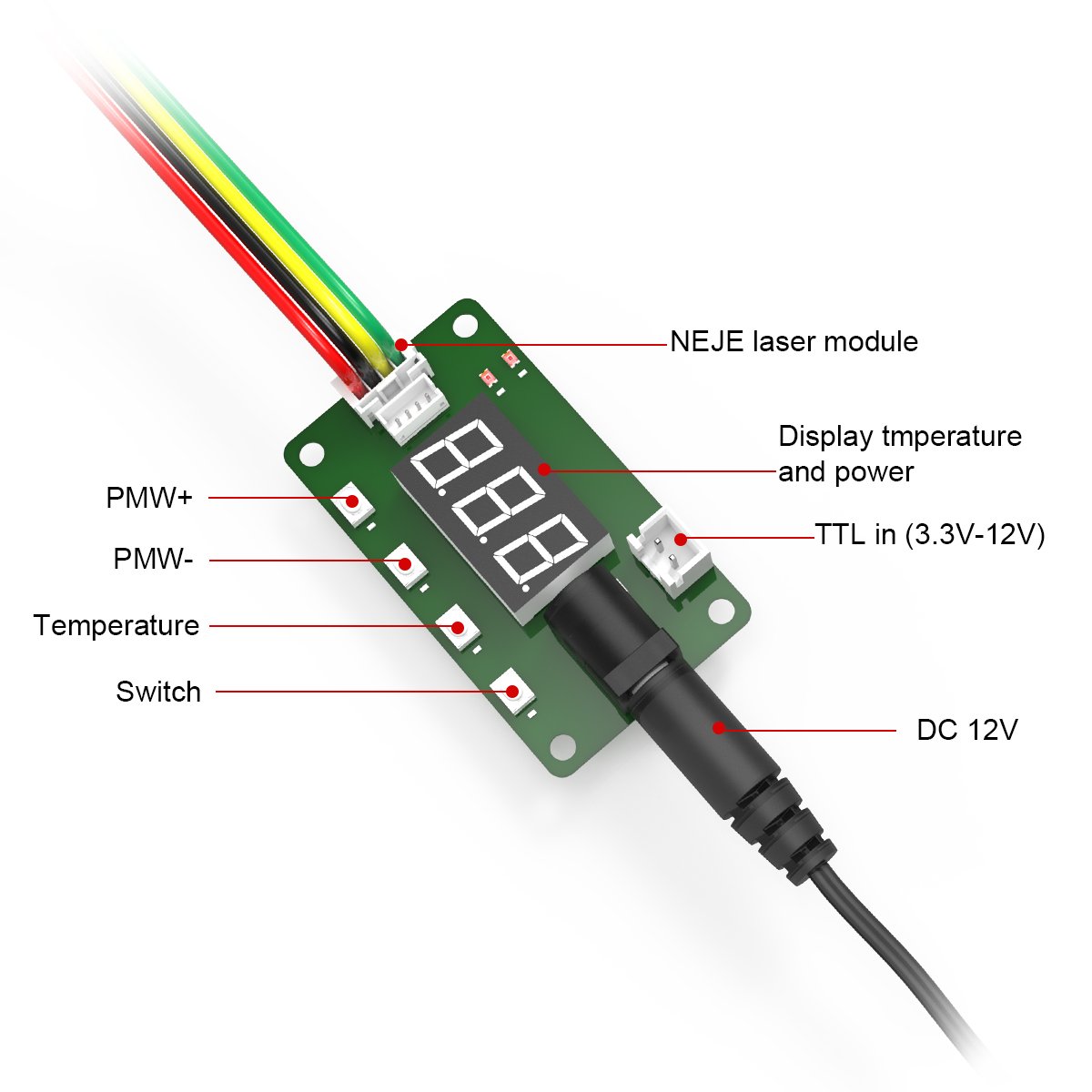

Digital PWM Wave Pulse Signal Generator Adjustable Frequency Duty Cycle for NEJE Laser Module tester board Specification
Power input: DC 12V
Output: PH2.0 4pin (12v,GND,PWM/TTL,Temperature)
mode: 3 modes (off, manual pwm, pwm / ttl in)
temperature display: YES
pwm display: yes
Manual PWM control: YES
Note(Please pay attention)

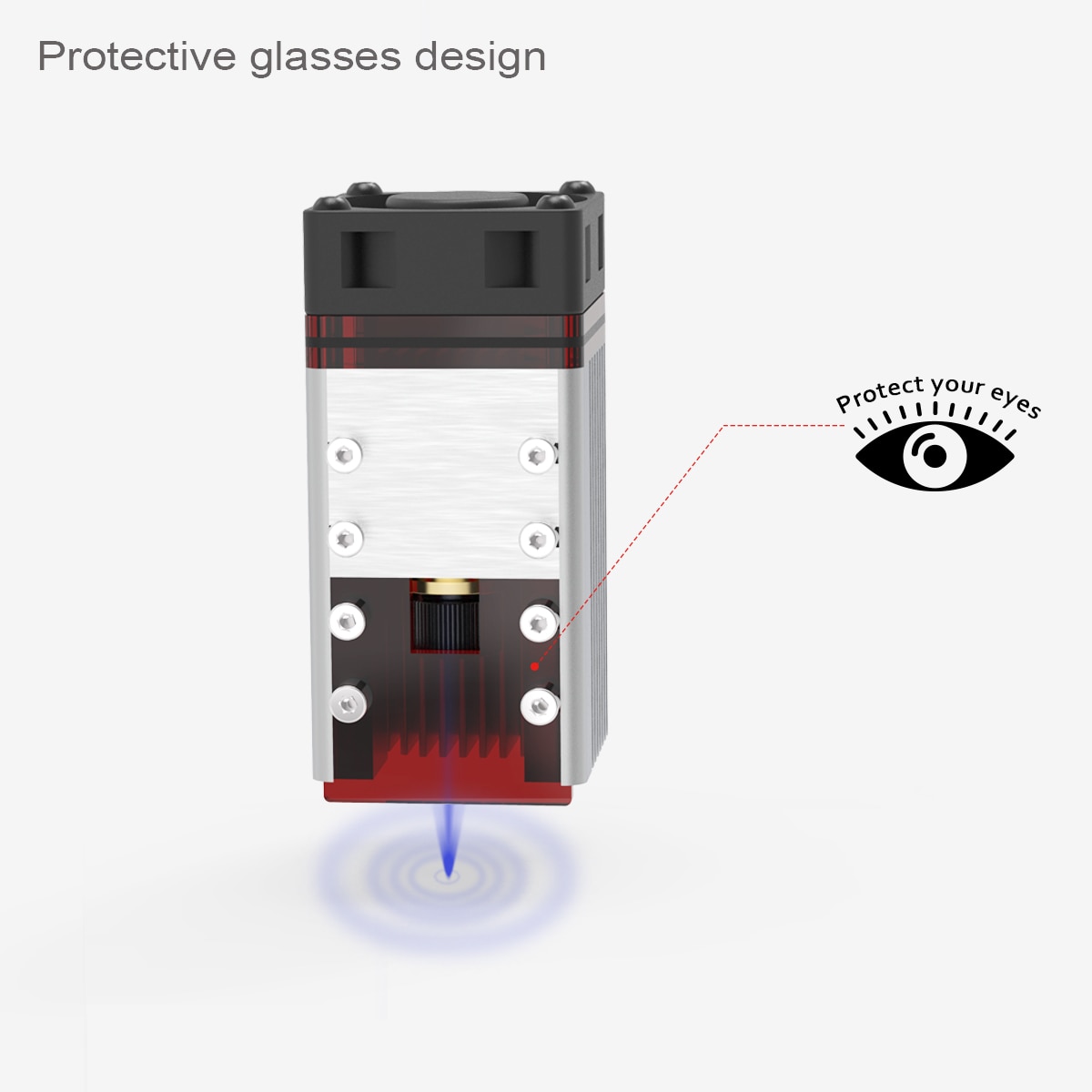

1. Please wear laser goggles during usage and avoid touching the laser directly with your eyes and skin!
2. Do not engrave mirror objects，Pay attention to fire，Pay attention to pets when working！
3. Smoke will be generated when burned, please pay attention to smoke exhaust indoors.
4. The warranty period of laser module is one year. If you have any quality problem(Except individual situation like using the laser module more than 30 minutes per time and casue the damage ), please feel free to ask our customer service for a help.
5. If your laser module has any problem, please DO NOT dismantle it without our permission. It will destroy the laser module.
6. If you have any quality problem about the machine, please feel free to contact us. Many operative problem can be solved according to your video and problem description. Thank you in advance.
7. This laser module is compatible with our NEJE Master 2 Plus and Master 2 Max machine .
8. It can also be compatible with other cnc equipment, such as 3d printers, CNC MIlling, etc., but you need to master a certain knowledge of pwm waveform control.

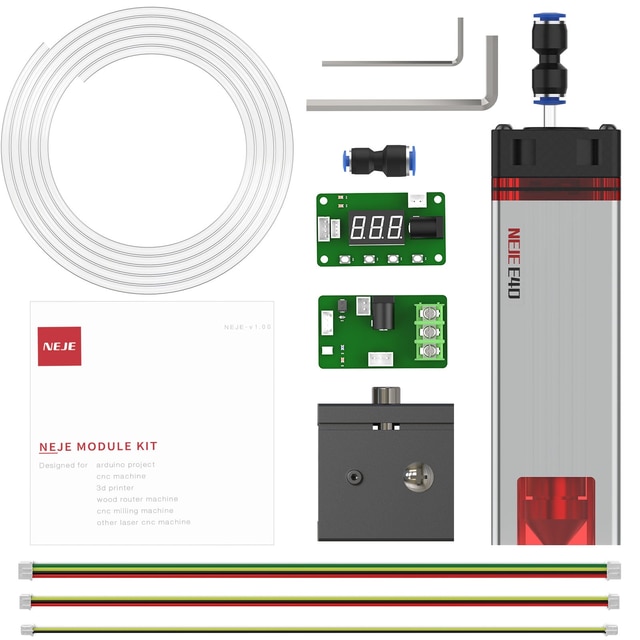

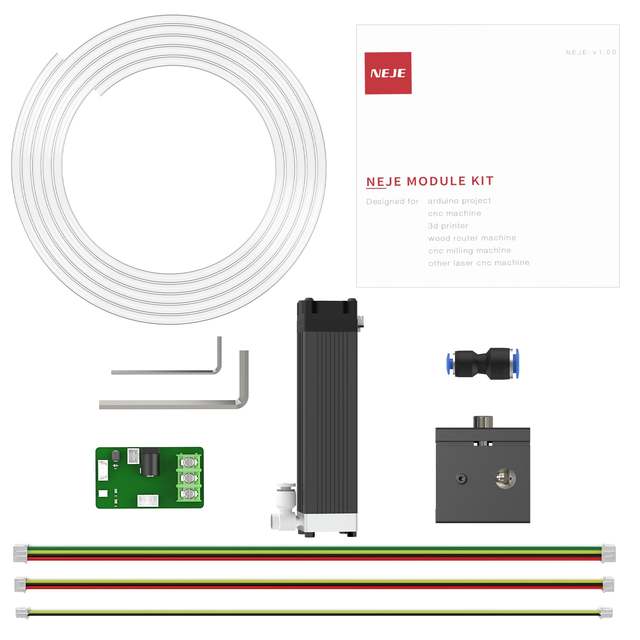

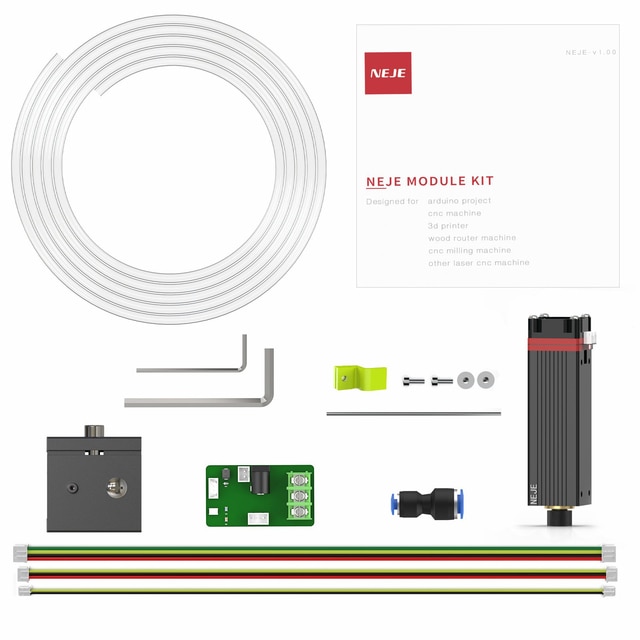

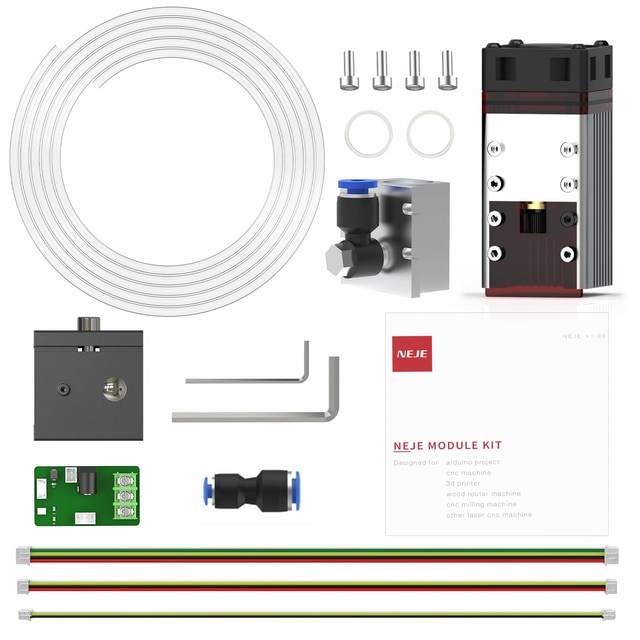

N40630 Laser Module small Kits Package List
1 * N40630 Laser Engraving Module

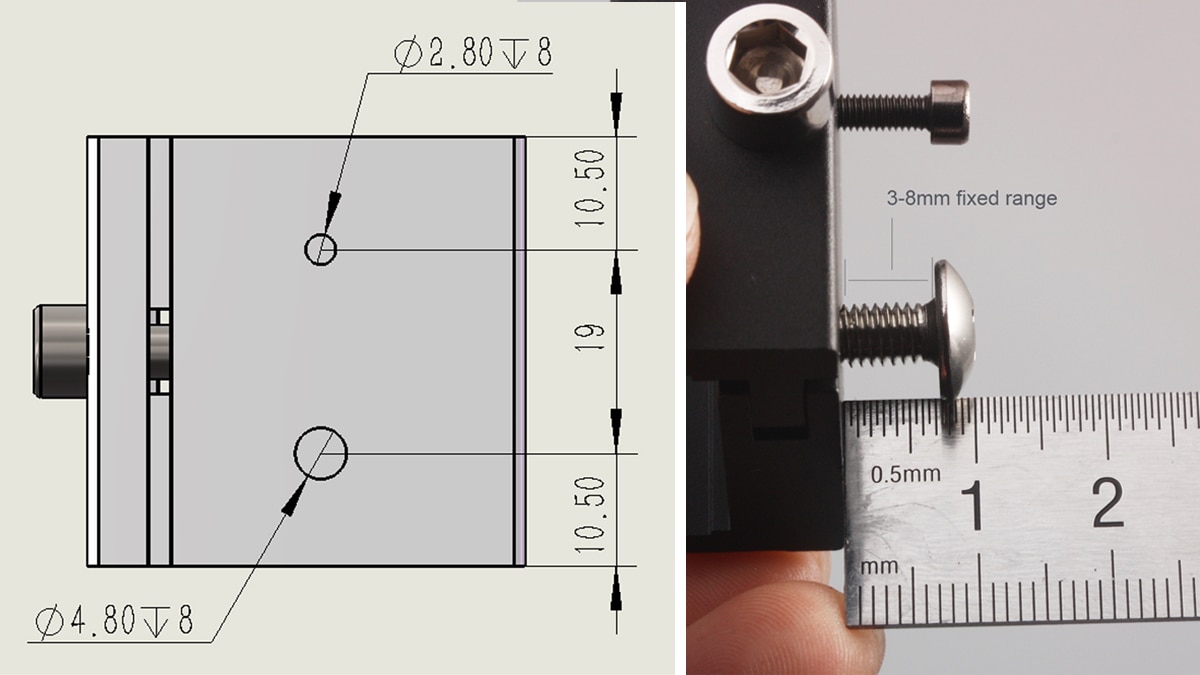

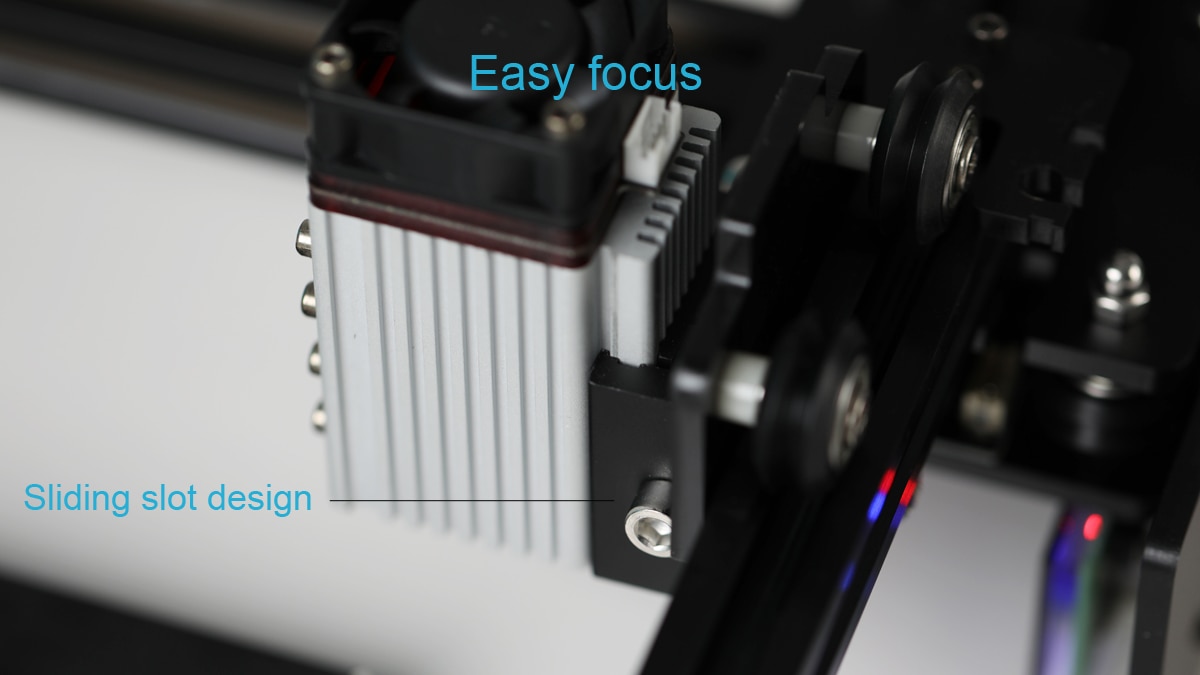

1 * Laser Module Sliding fixture
1 * 4 Pin Cable(300mm Sports Cable)
1 * NEJE Digital PWM Wave Pulse Signal Generator Adjustable board
1 * 2.5mm L-shaped wrench
1 * 5mm L-shaped wrench
(This kit does not include 12V3A power supply and goggles)

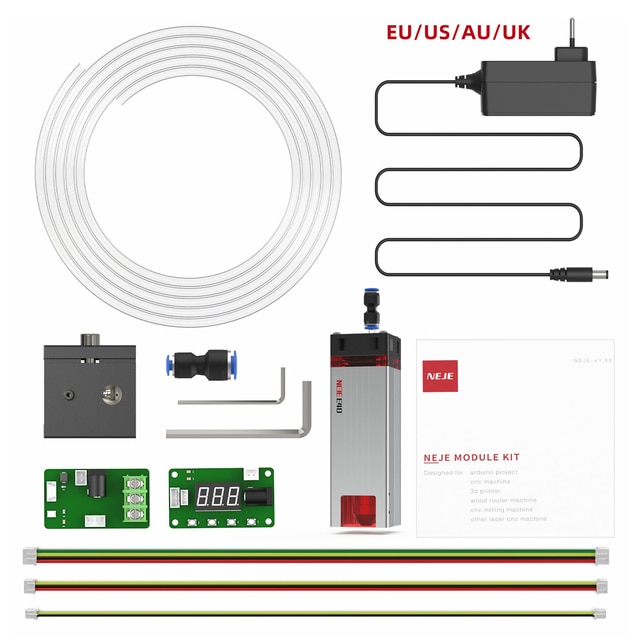

N40630 Laser Module Kits Package List
1 * N40630 Laser Engraving Module
1 * Laser Module Sliding fixture
1 * 4 Pin Cable(1000mm)
1 * NEJE Digital PWM Wave Pulse Signal Generator Adjustable board
1 * 12V3A UL Certified Power Adapter (UP to 50W)
1 * Euro adapter
1 * 2.5mm L-shaped wrench
1 * 5mm L-shaped wrench

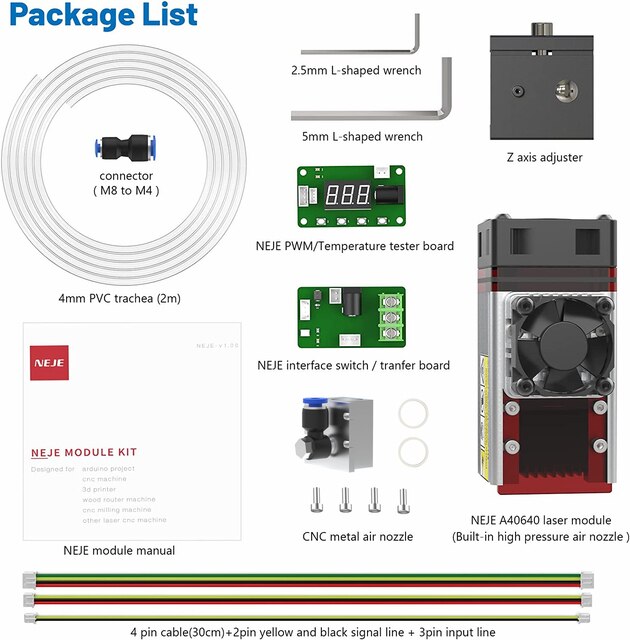

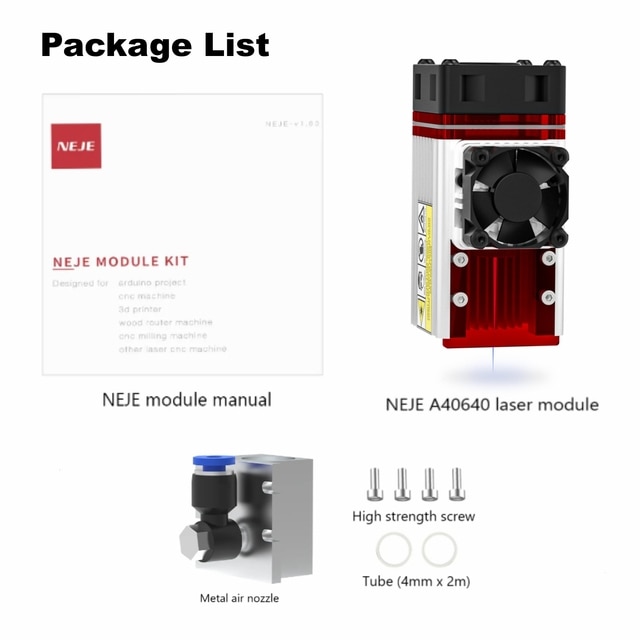

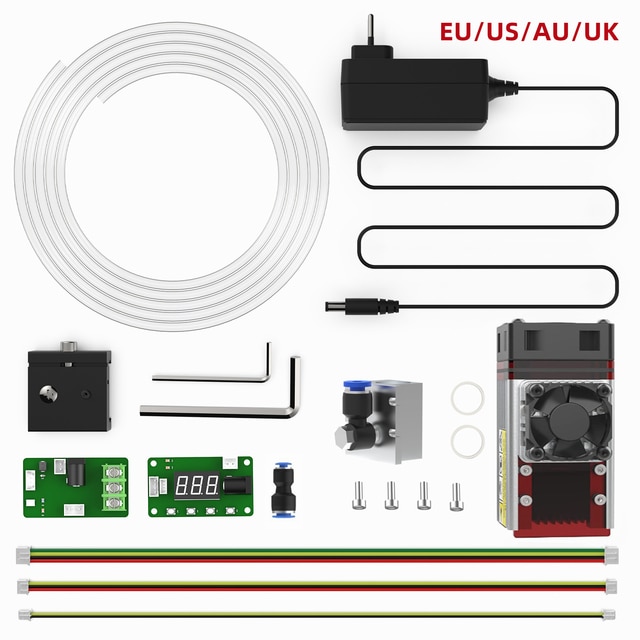

A40640 Laser Module Kits Package List
1 * A40640 Laser Engraving Module
1 * Laser Module Sliding fixture
1 * 4 Pin Cable(1000mm)
1 * NEJE Digital PWM Wave Pulse Signal Generator Adjustable board
1 * 12V4A UL Certified Power Adapter (UP to 50W)
1 * Euro adapter
1 * 2.5mm L-shaped wrench
1 * 5mm L-shaped wrench

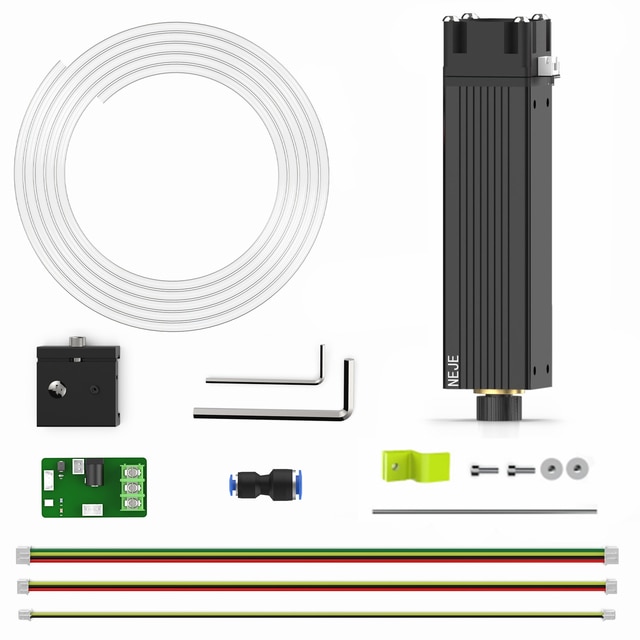

A30130 Package List
1 x laser module
1 x sliding card slot
1 x L wrench
1 x L-shaped small wrench
1 x interface adapter board
1 x 4pin laser line
1 x 3pin 2.54 interface output cable
1 x 2pin TTL control line
- Model Number: AM-30W-40W
- Brand Name: NEJE
- Certification: CE,RoHS,UL
- Origin: Mainland China
- Brand: NEJE
- Power: 80W
- Laser Module: A40640/A40630/N40630
