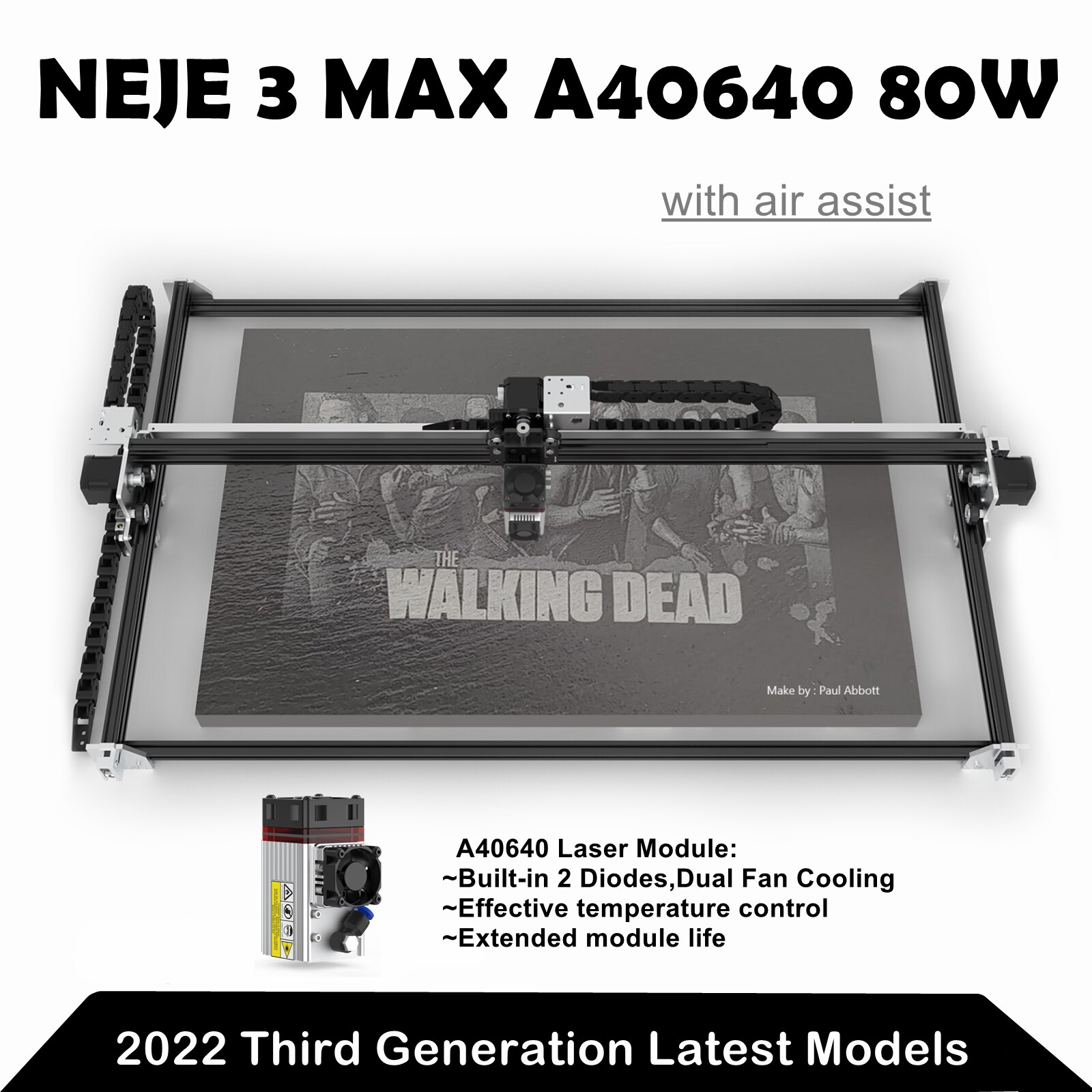

NEJE 3 Max A40640/E40 80W CNC Laser Engraver Cutter Printer Wood Cutting Engraving Machine DIY Mark Tools APP+Windows Software

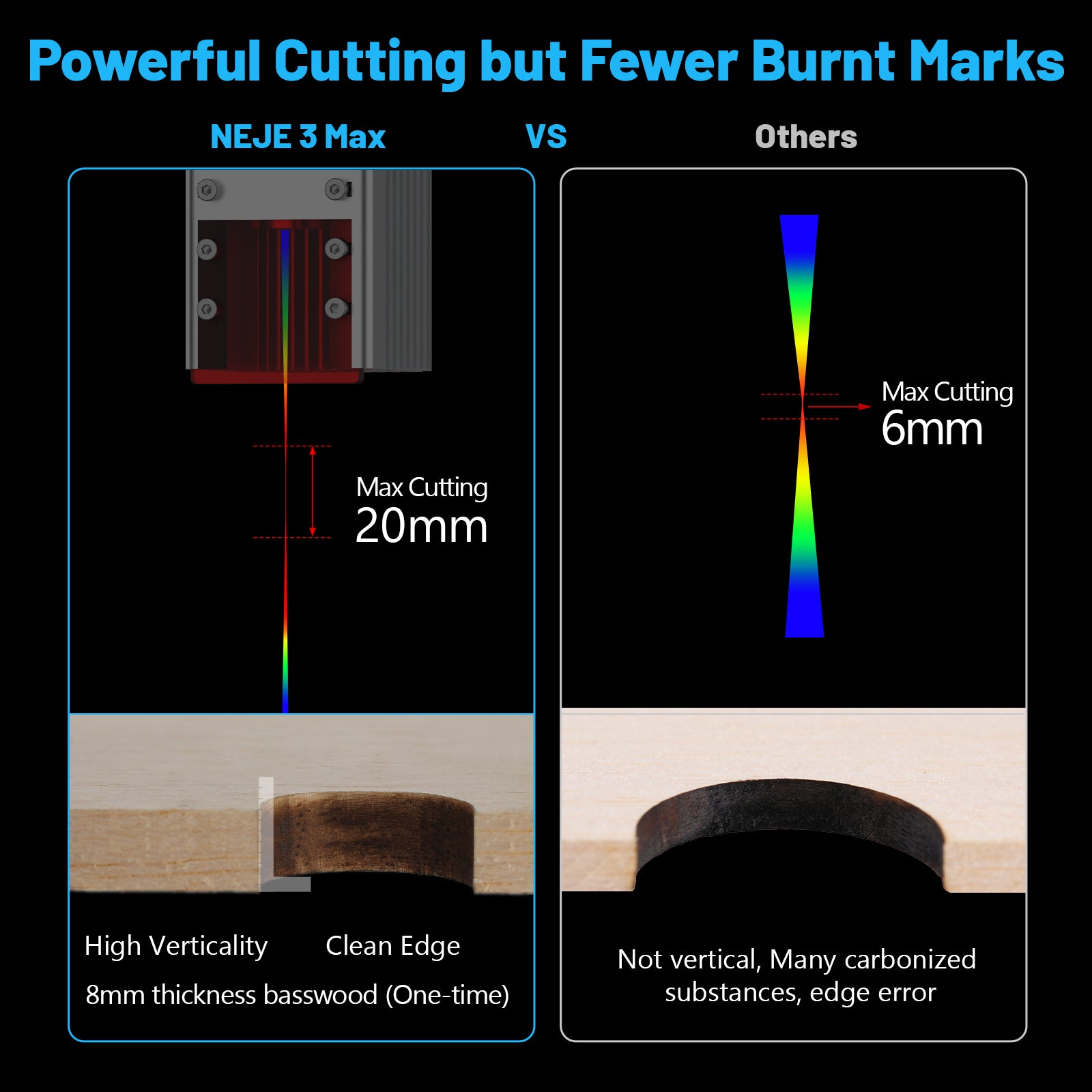

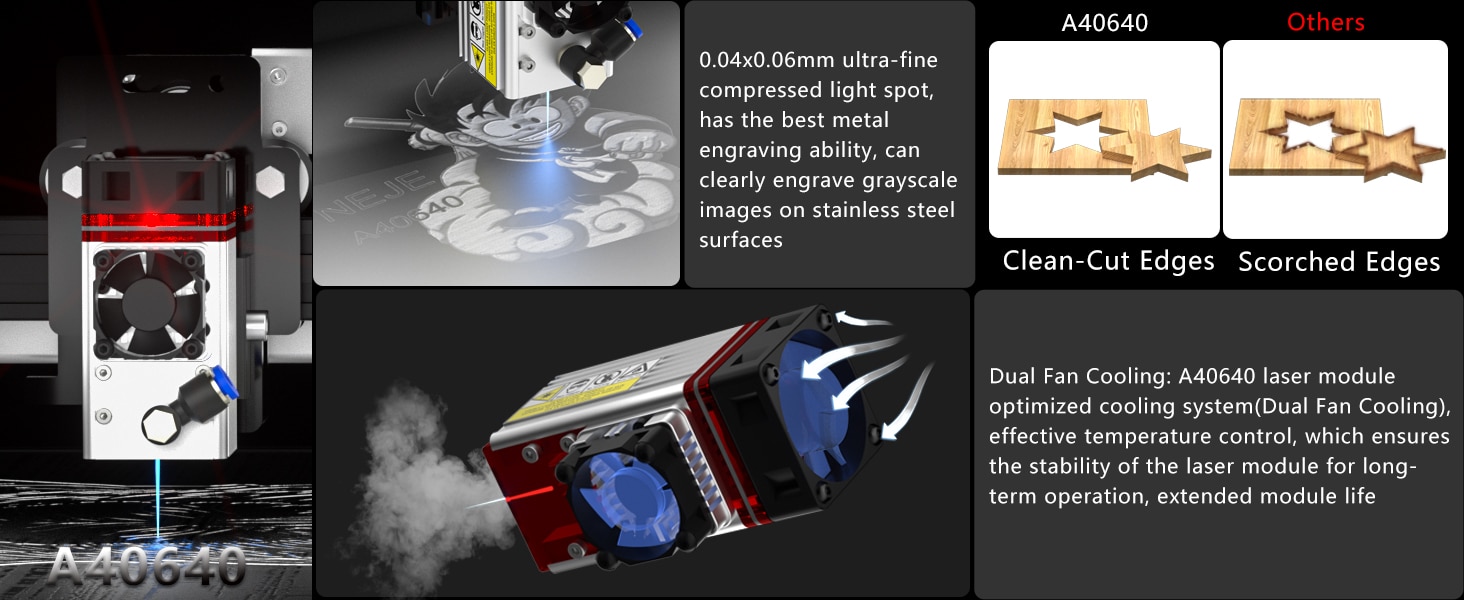

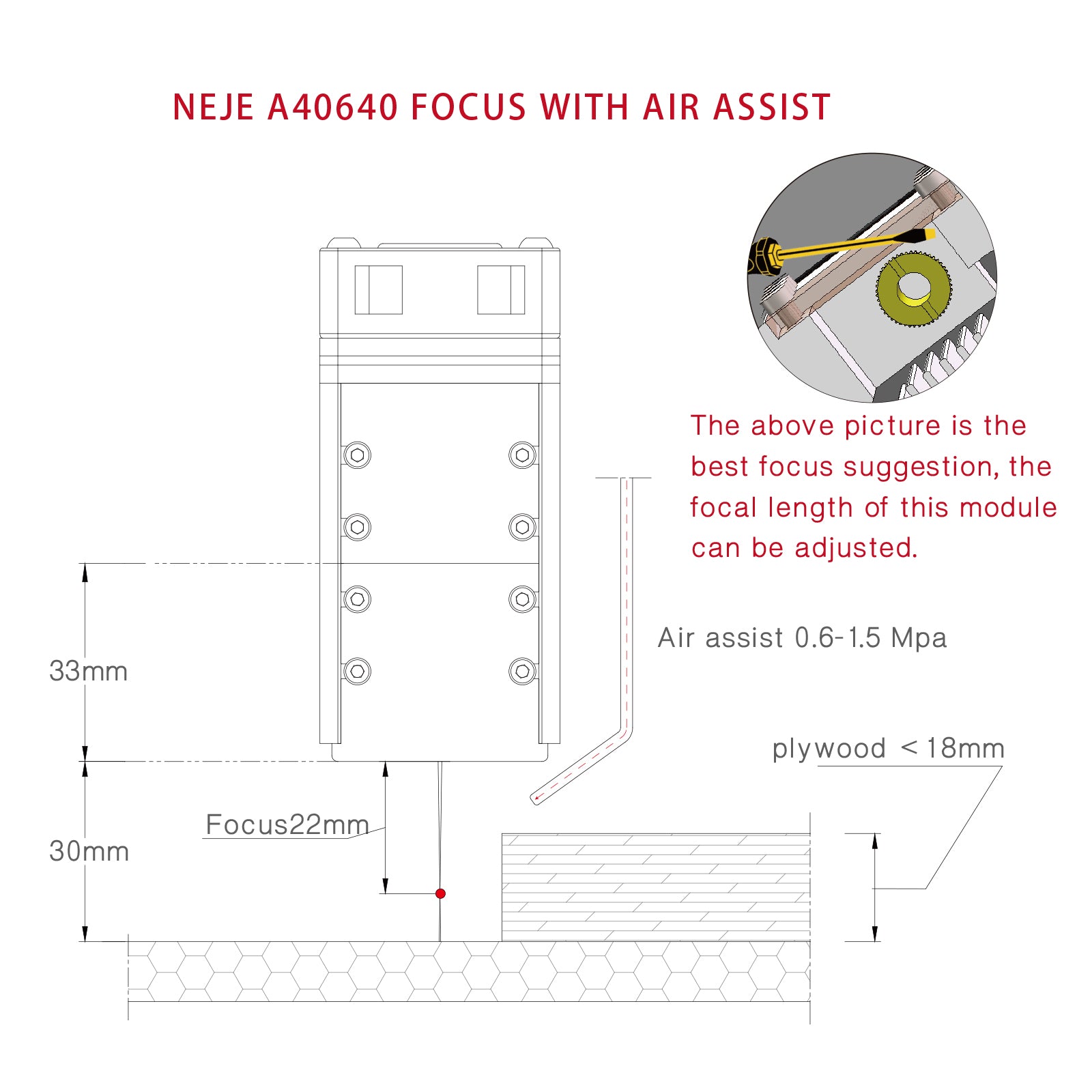

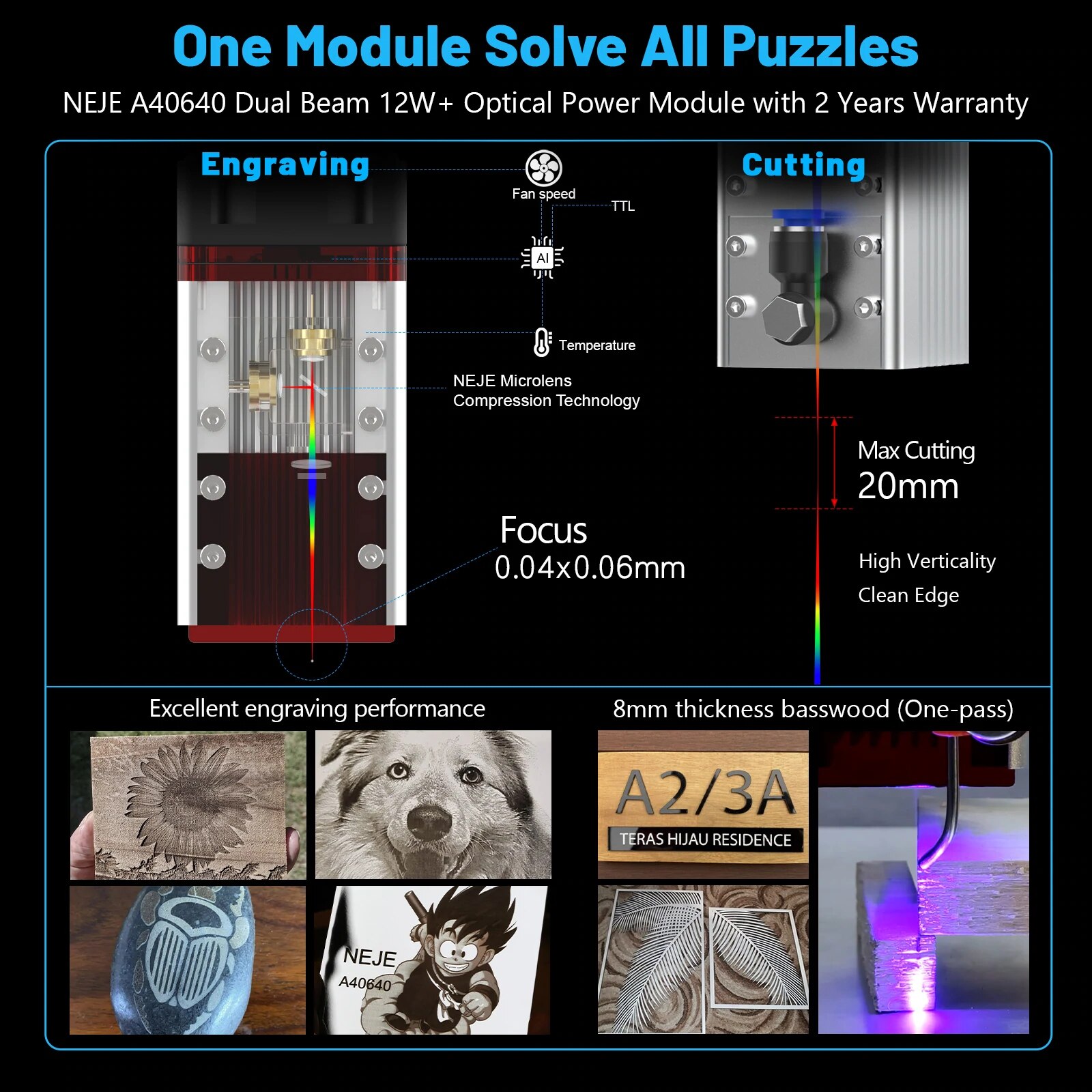

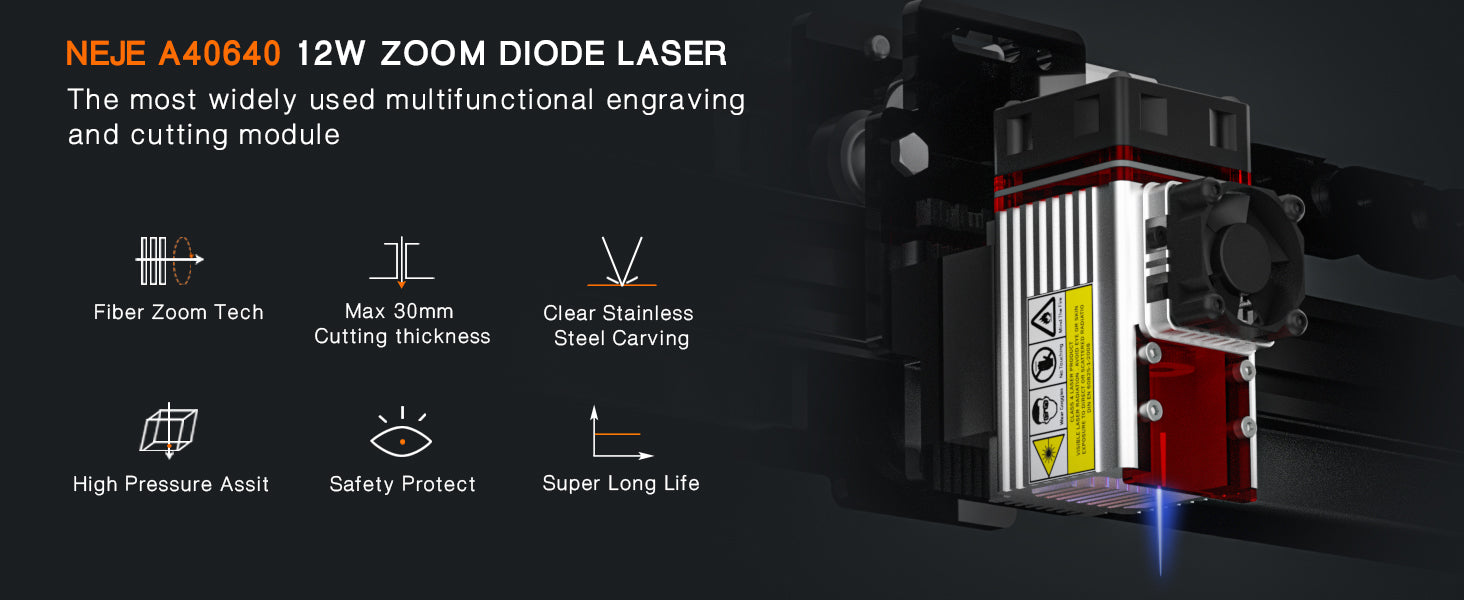

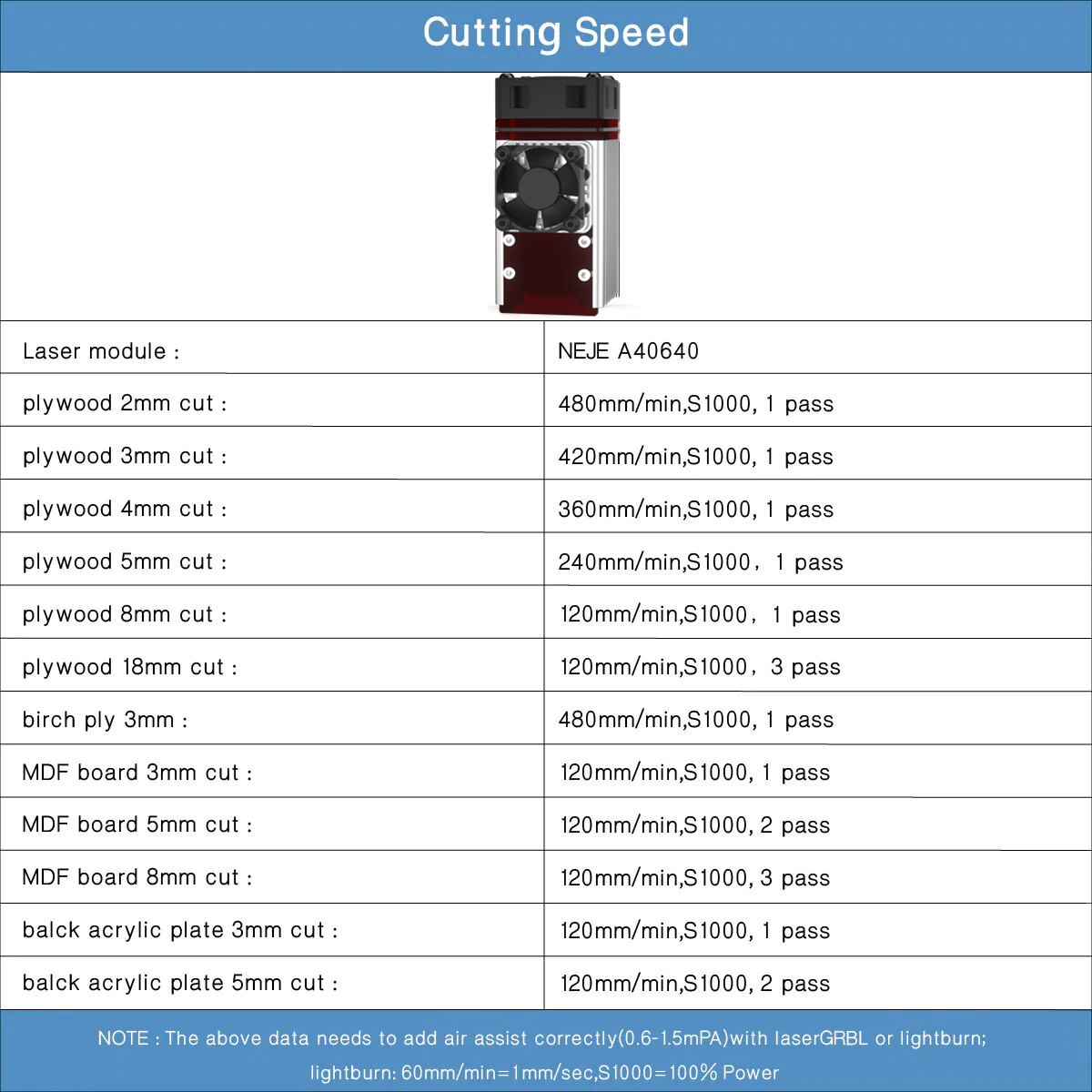

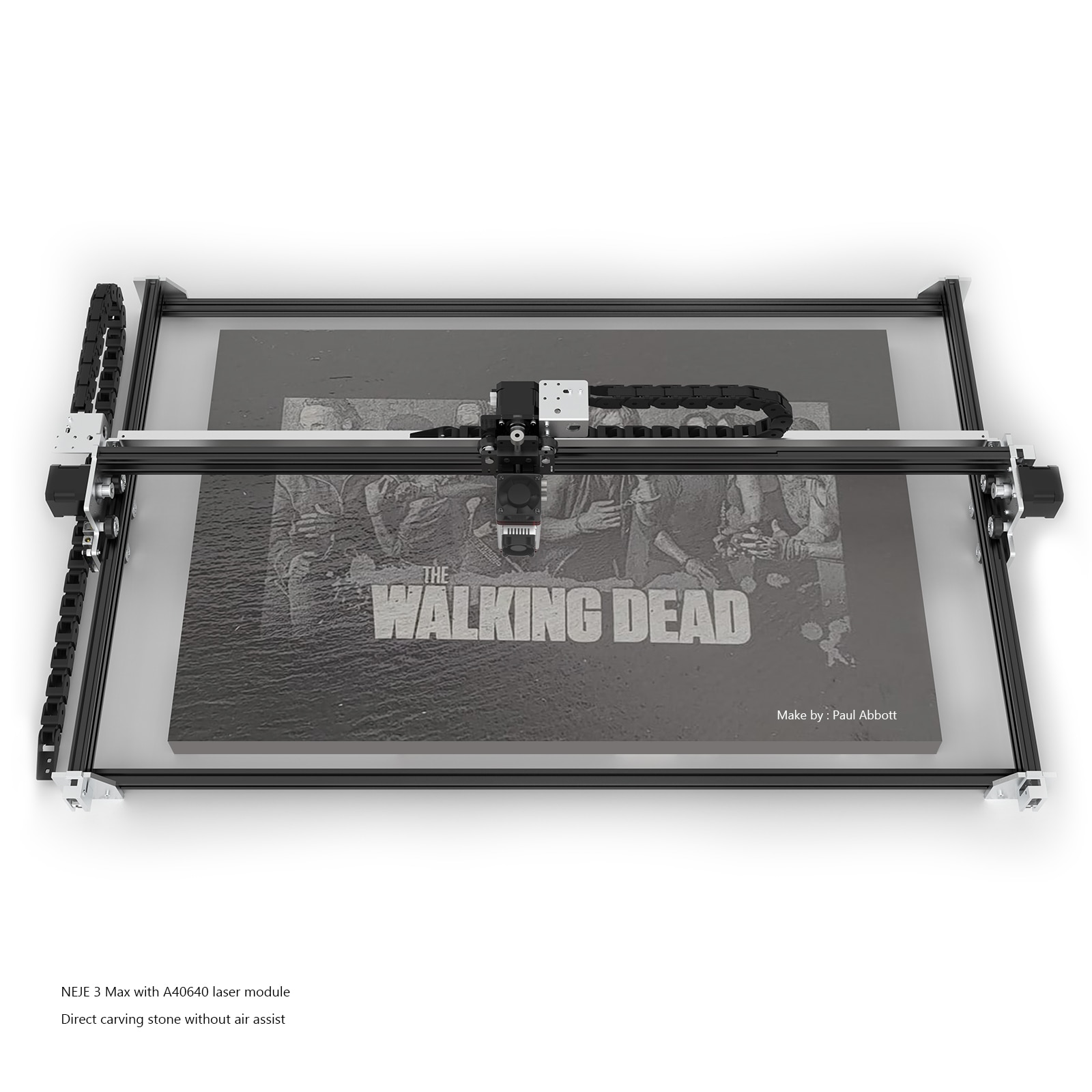

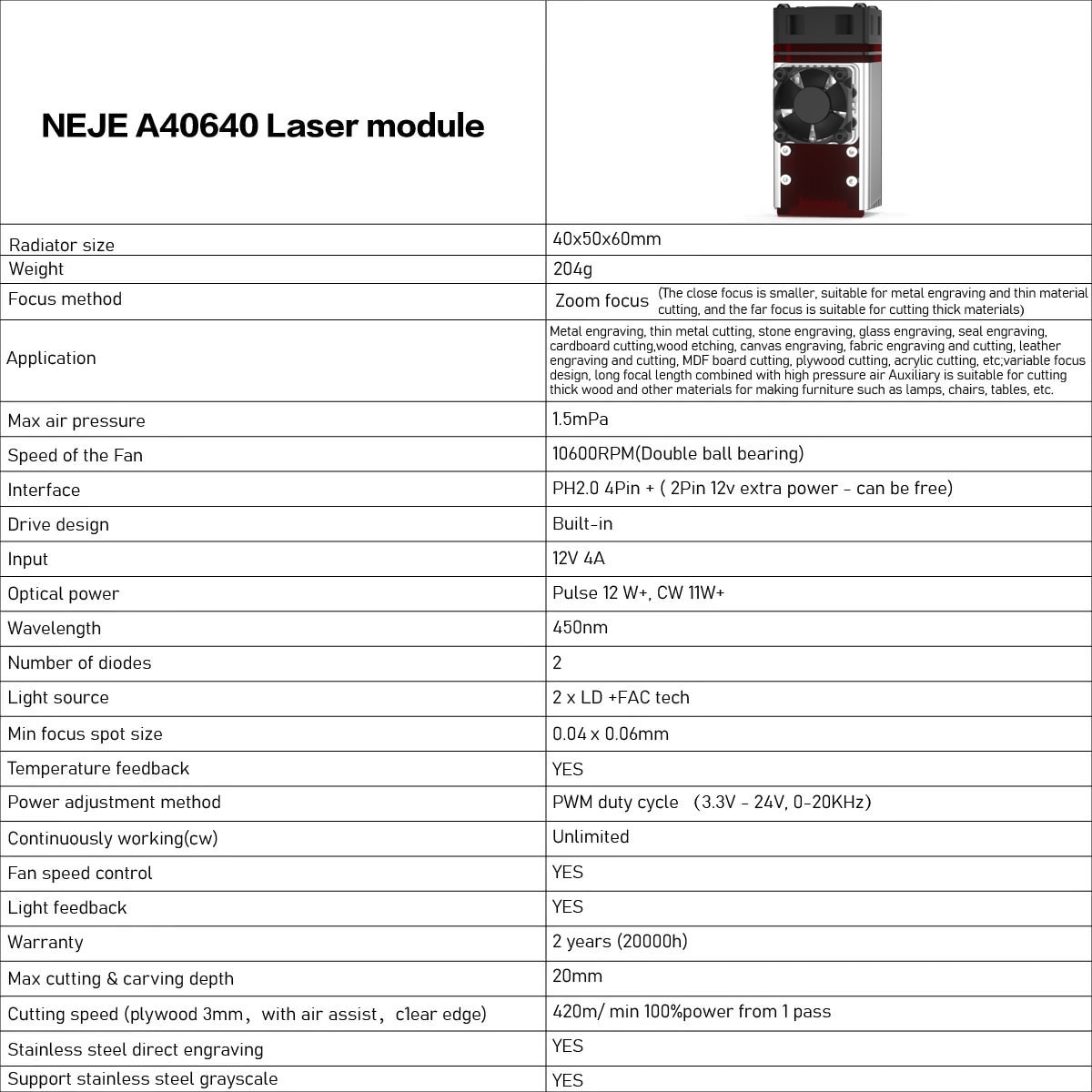

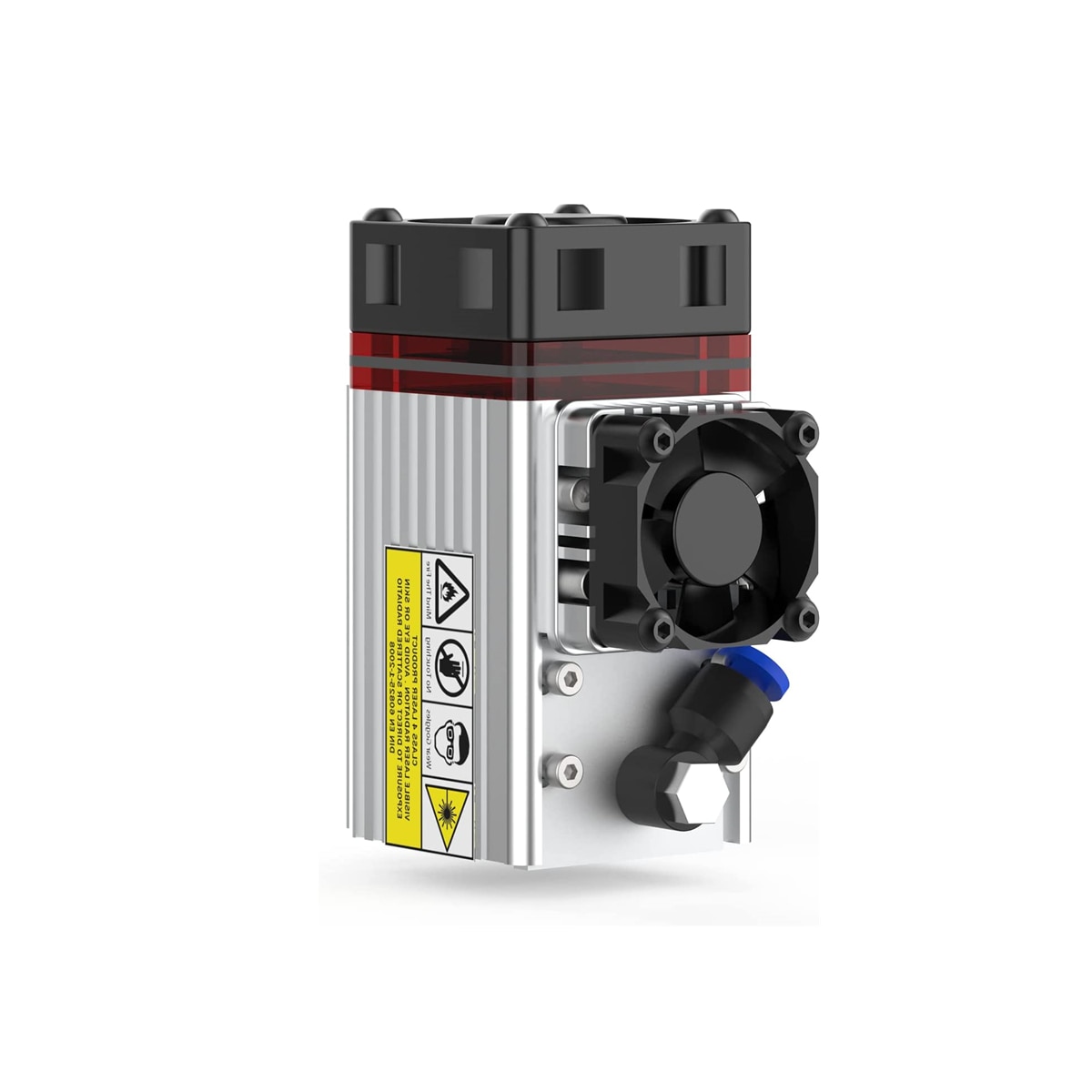

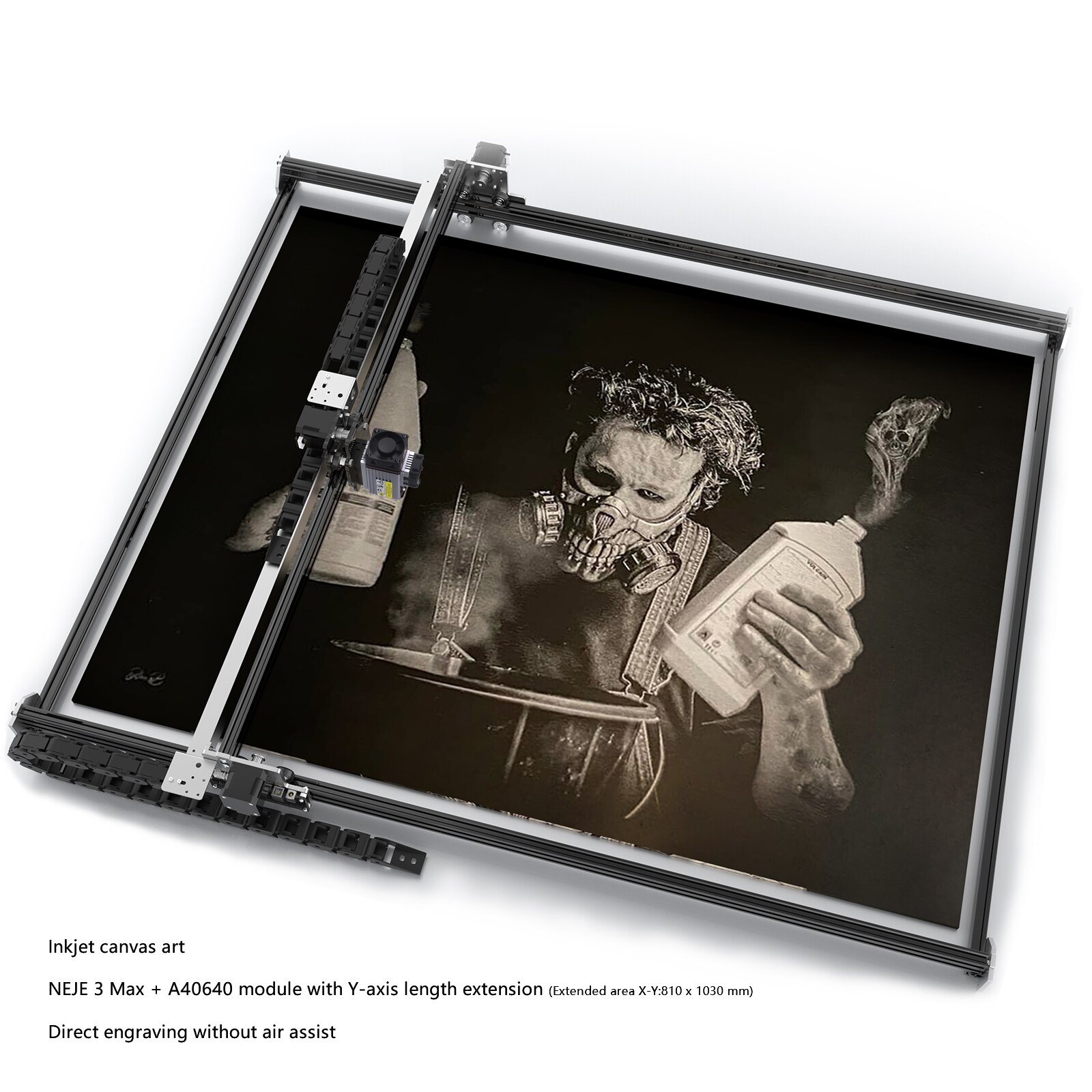

A40640 (The most widely used module) is a classic creative master dual beam zoom laser module, it is the world's first 2 beam laser diode engraving and cutting module with zoom design, with the best metal engraving ability, fast groove engraving ability, thick material cutting compatibility, Make it the most widely used module. Due to the built-in NEJE unique fiber compression technology, It has a very strong energy density (0.04x0.06mm with 12W+ pulse and 11W continuous optical power),  There are very special and top artistic expressions on the carvings of stainless steel grayscale carvings, stone carvings, Glass Carving, hardwood reliefs, canvas art, and other materials.  The A40640 is the only high-power module with variable focus section, The optimized A40640 II has higher cutting reliability, The short focus is suitable for carving hard materials such as metal stone and cutting materials with high density such as mdf, The long focus has better depth of field and smaller included angle for cutting thick wood and other materials. The excellent design makes the A40640 have a very strong vitality from the first creator of high-power diode laser to today, Due to the high power density, it has an equivalent application higher than 20W (optical power) laser in large area image engraving, If you only consider 1 module to help you solve all the needs, it is the best choice.

E40‘S SPECIAL CAPABILITIES

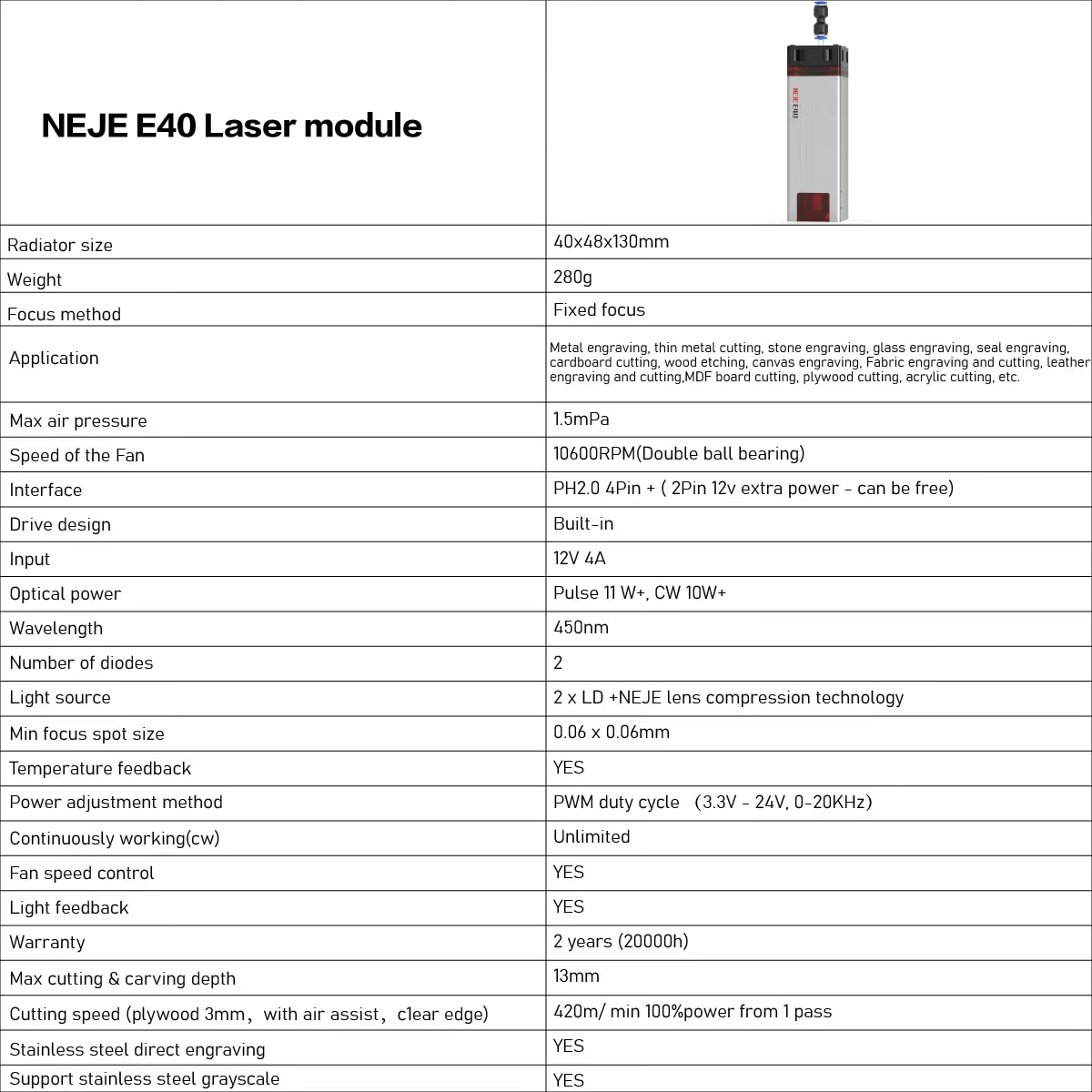

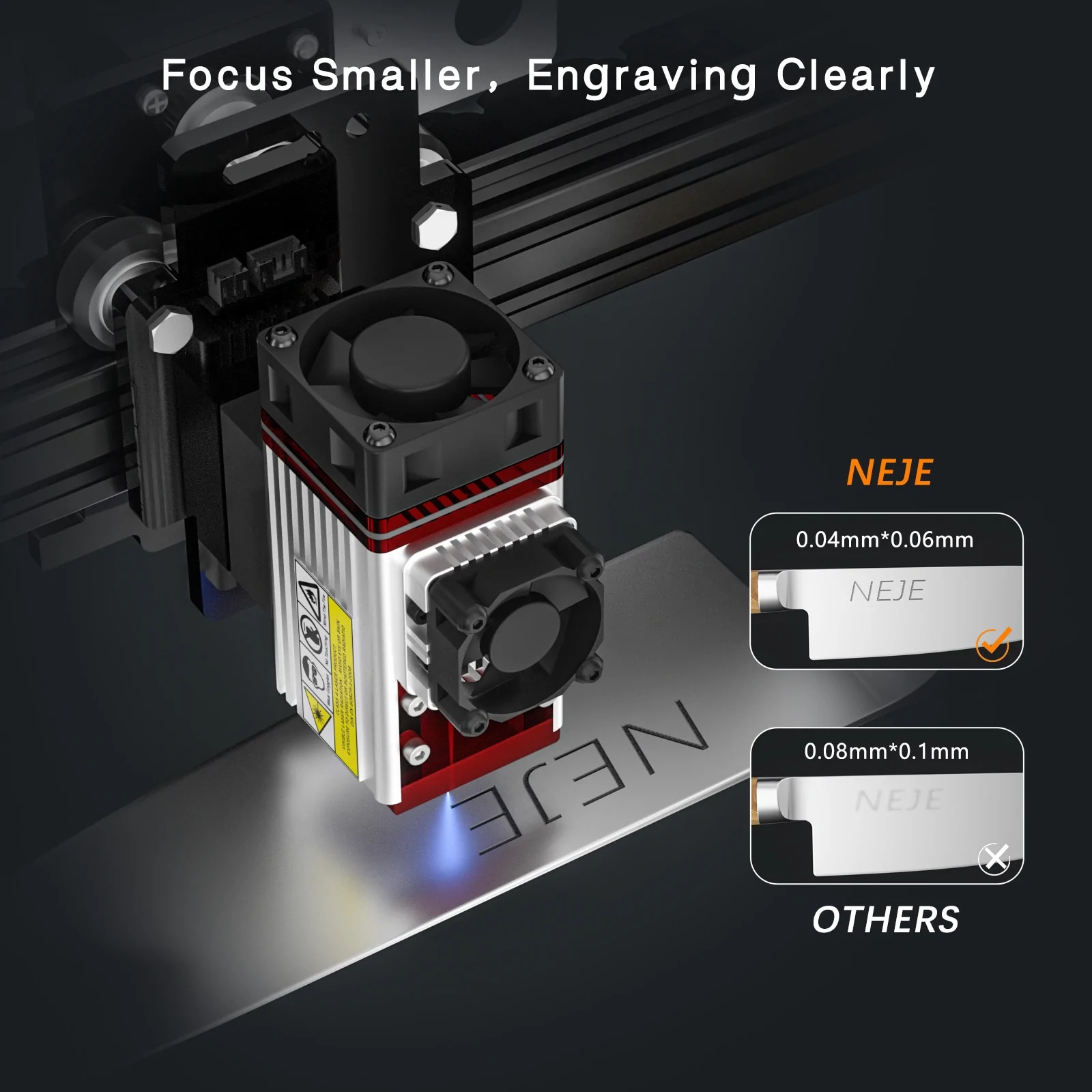

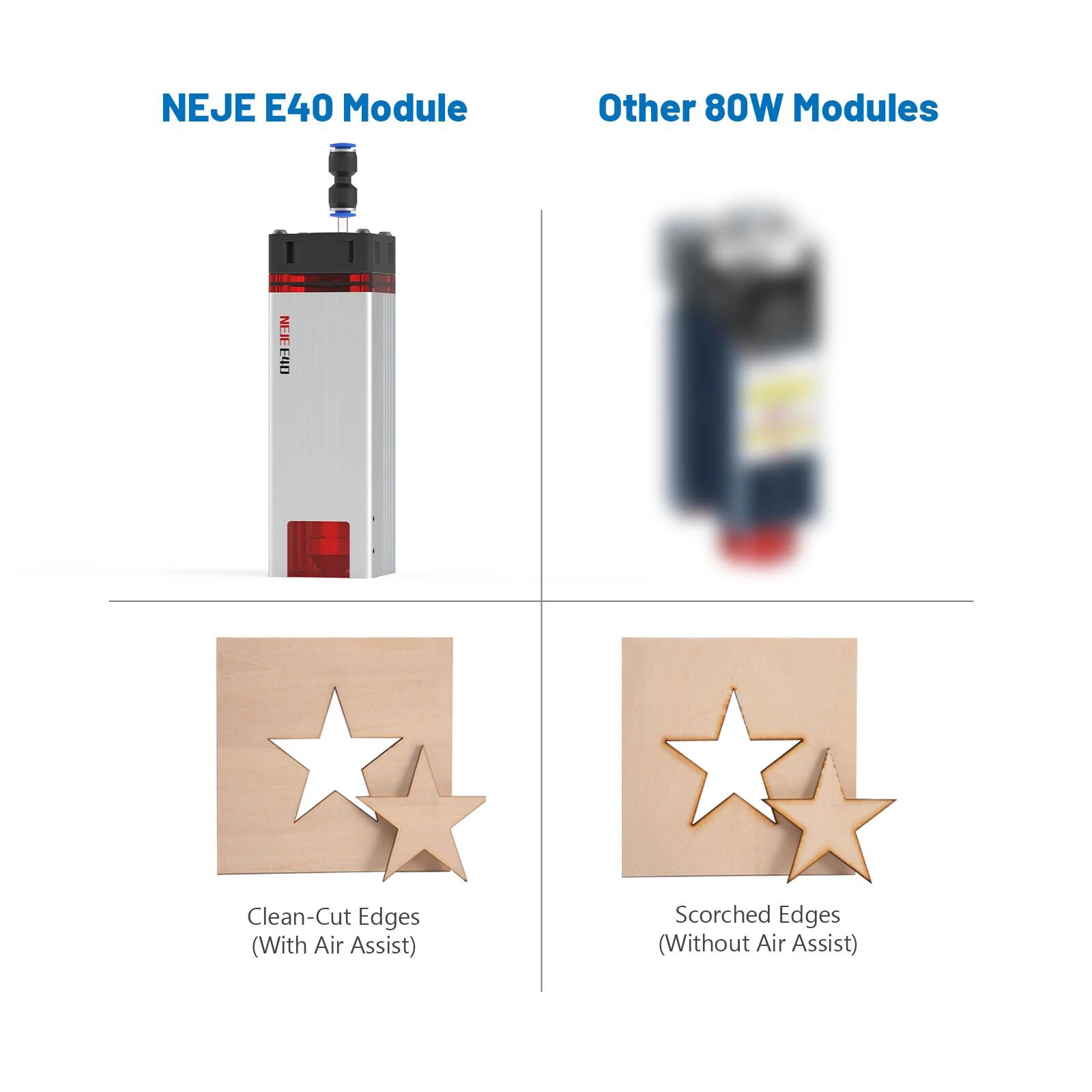

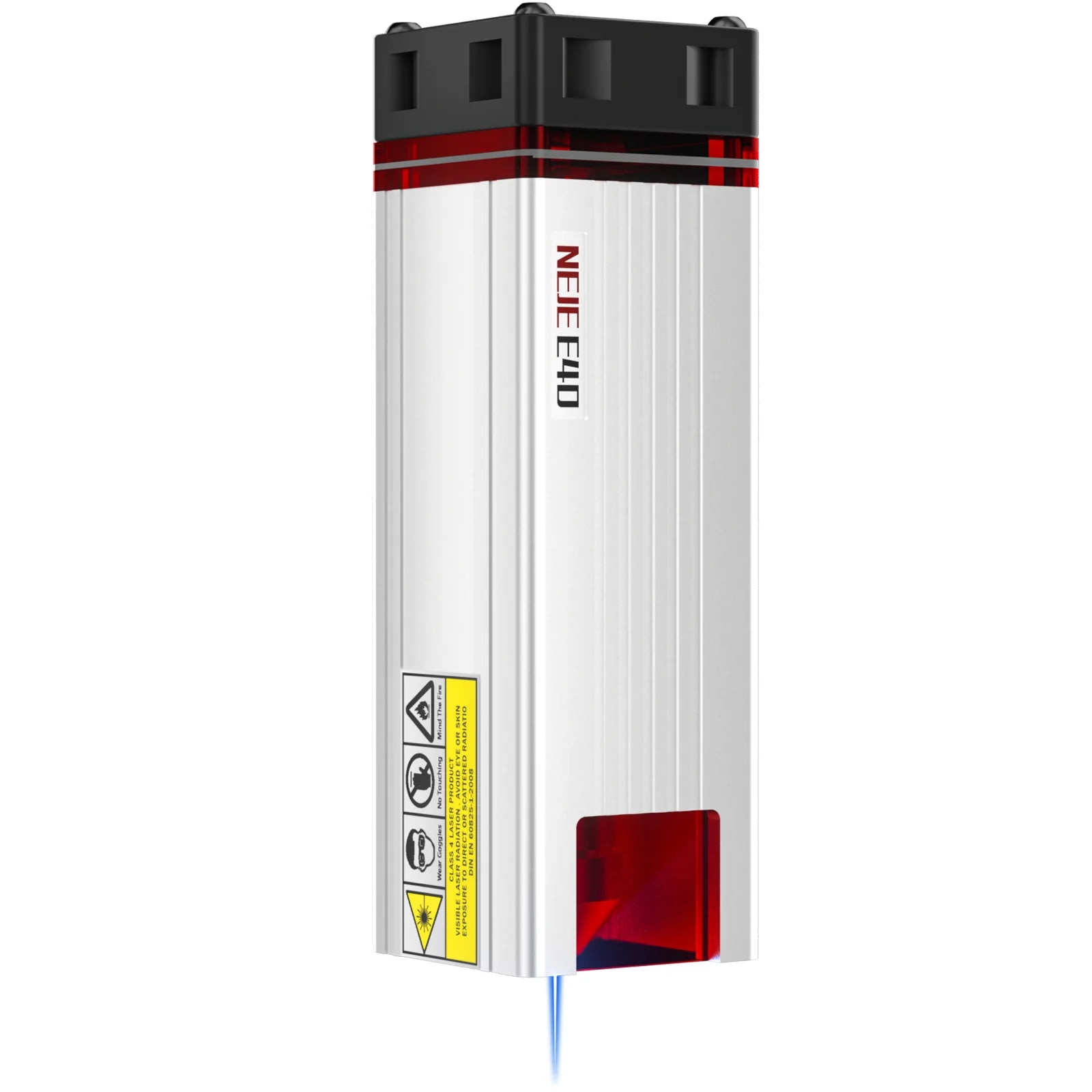

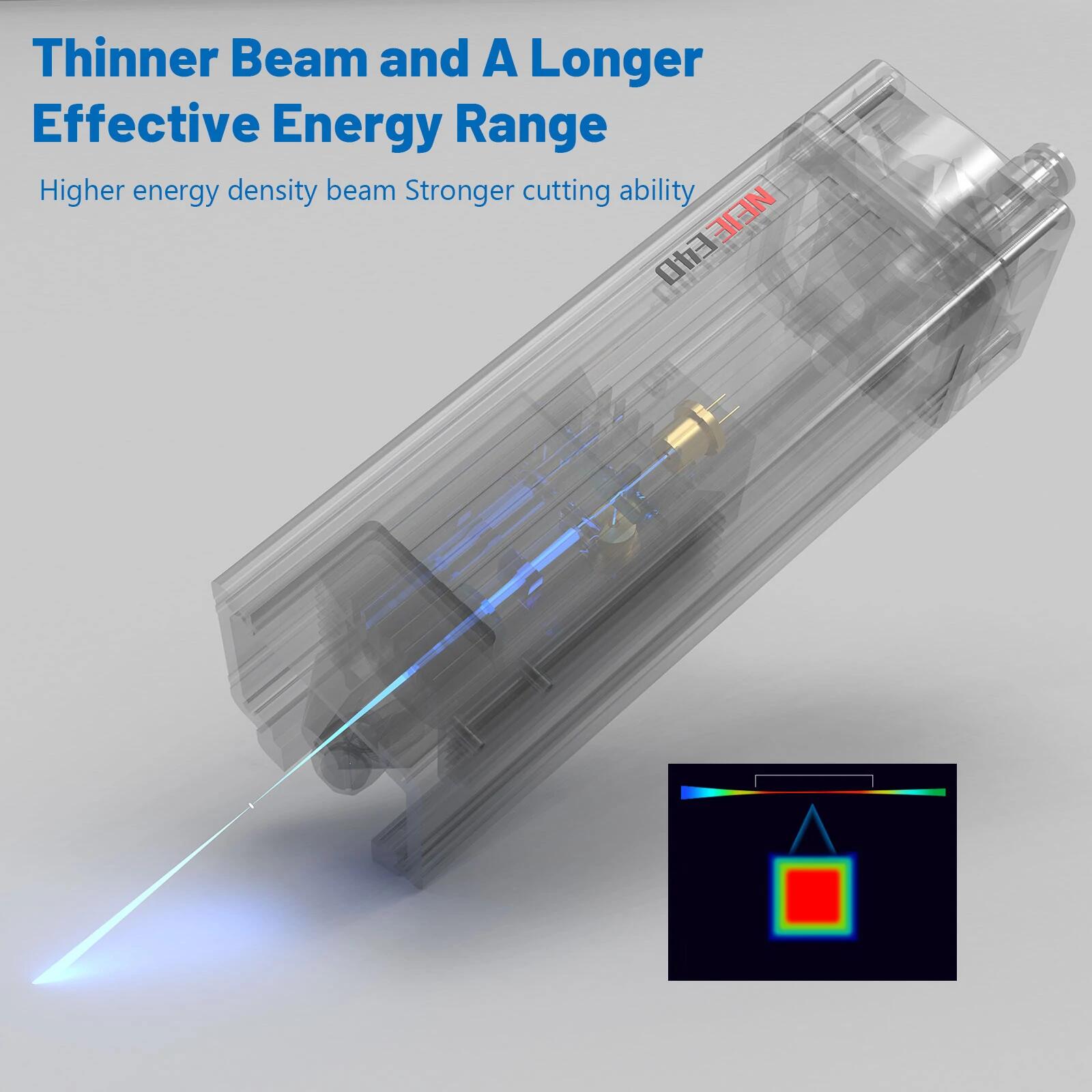

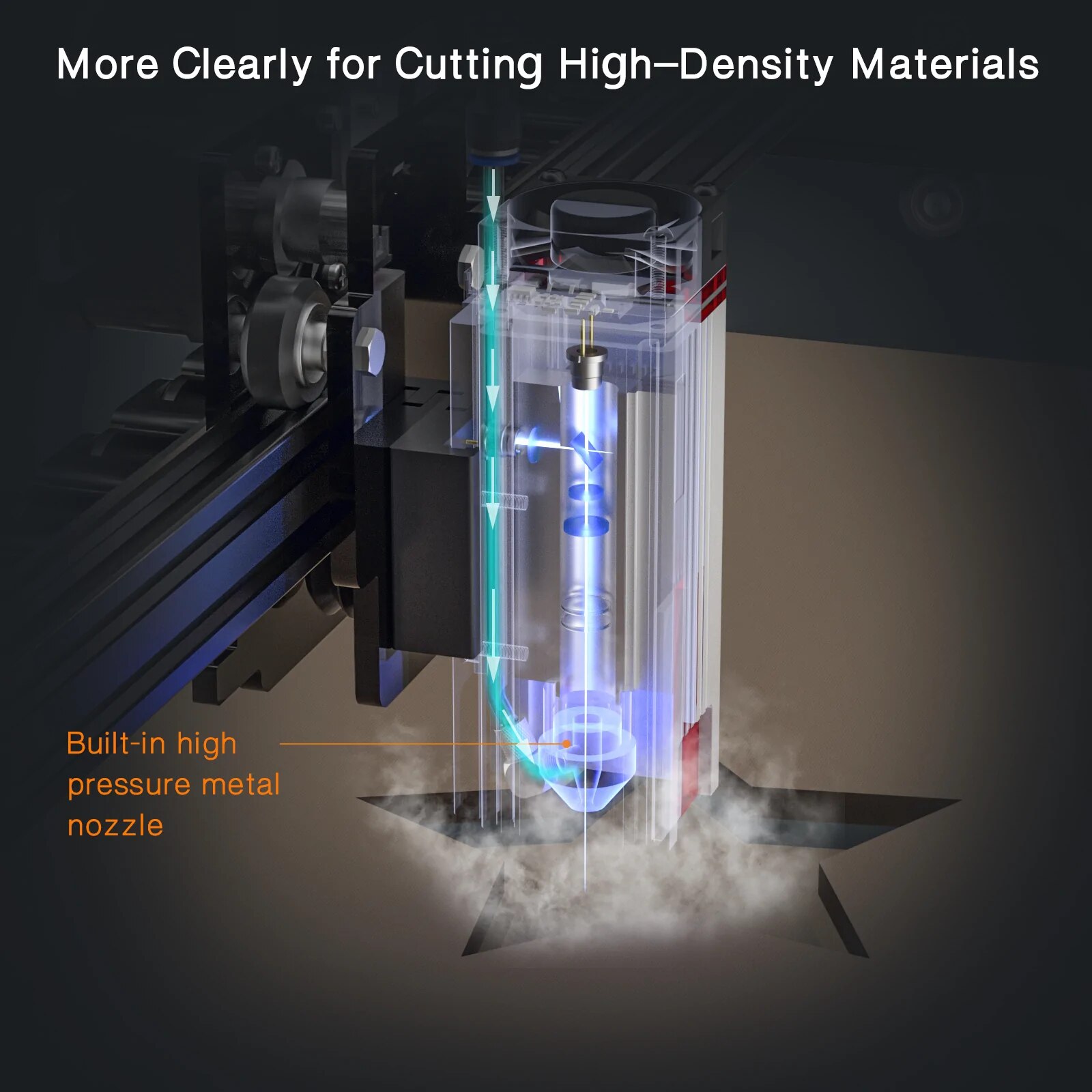

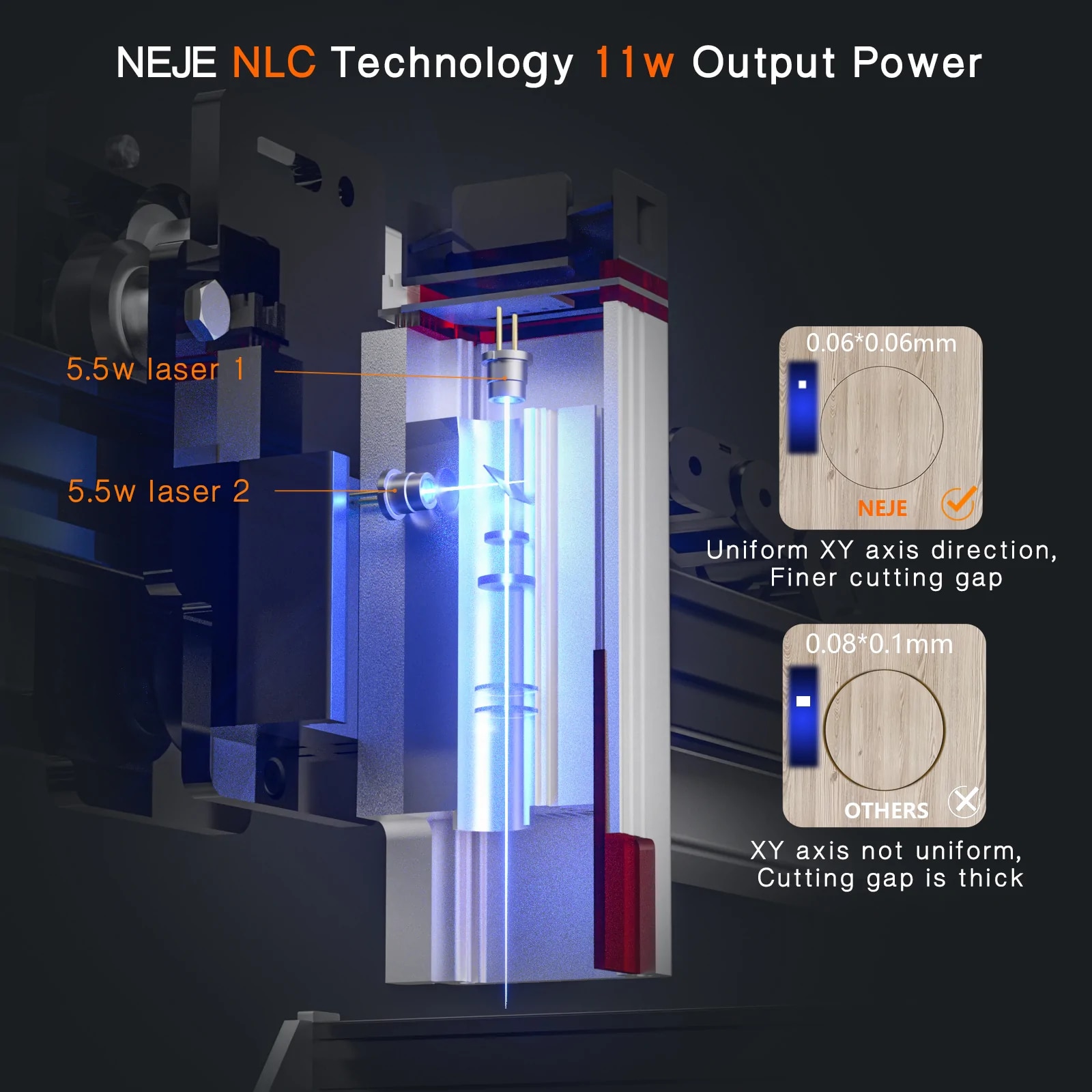

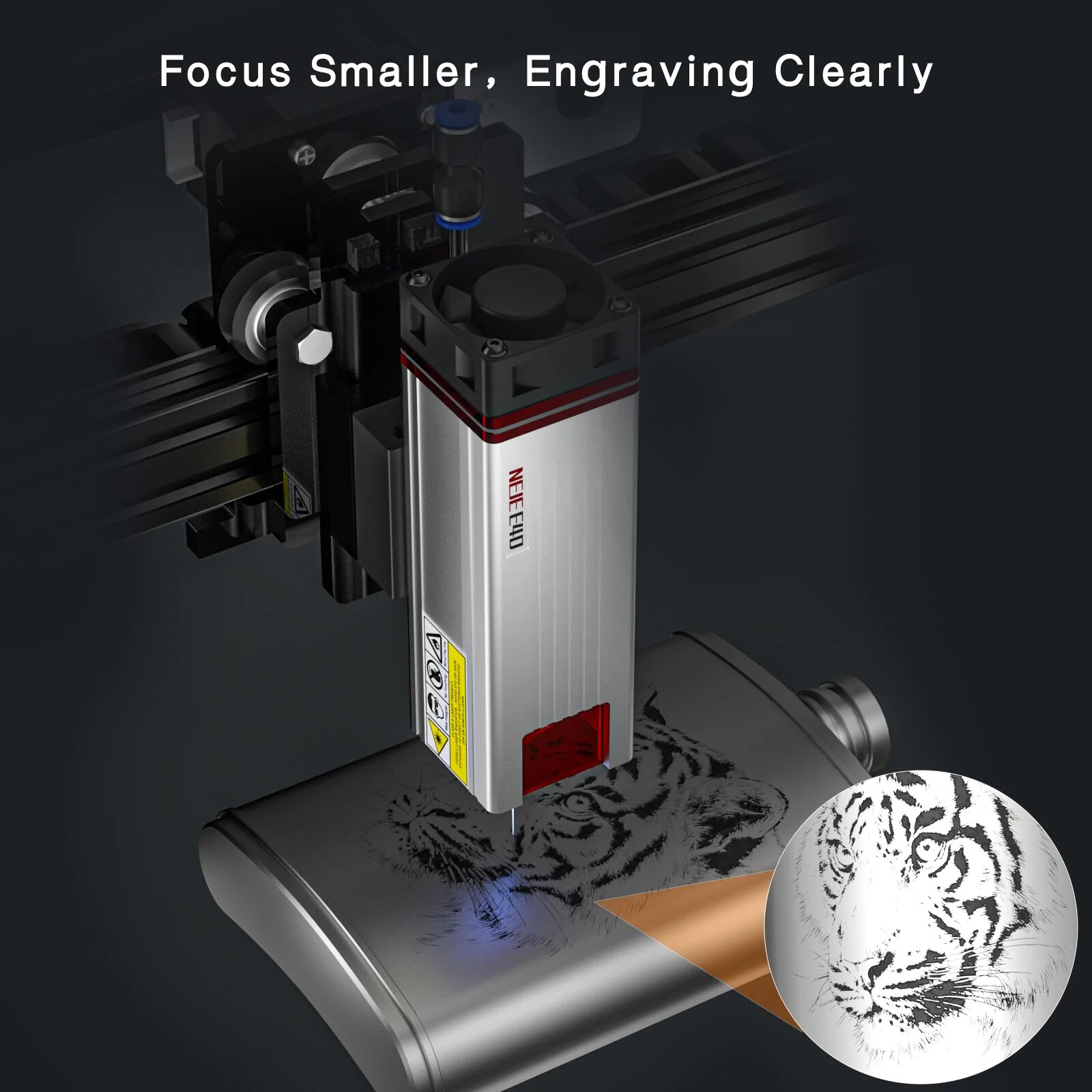

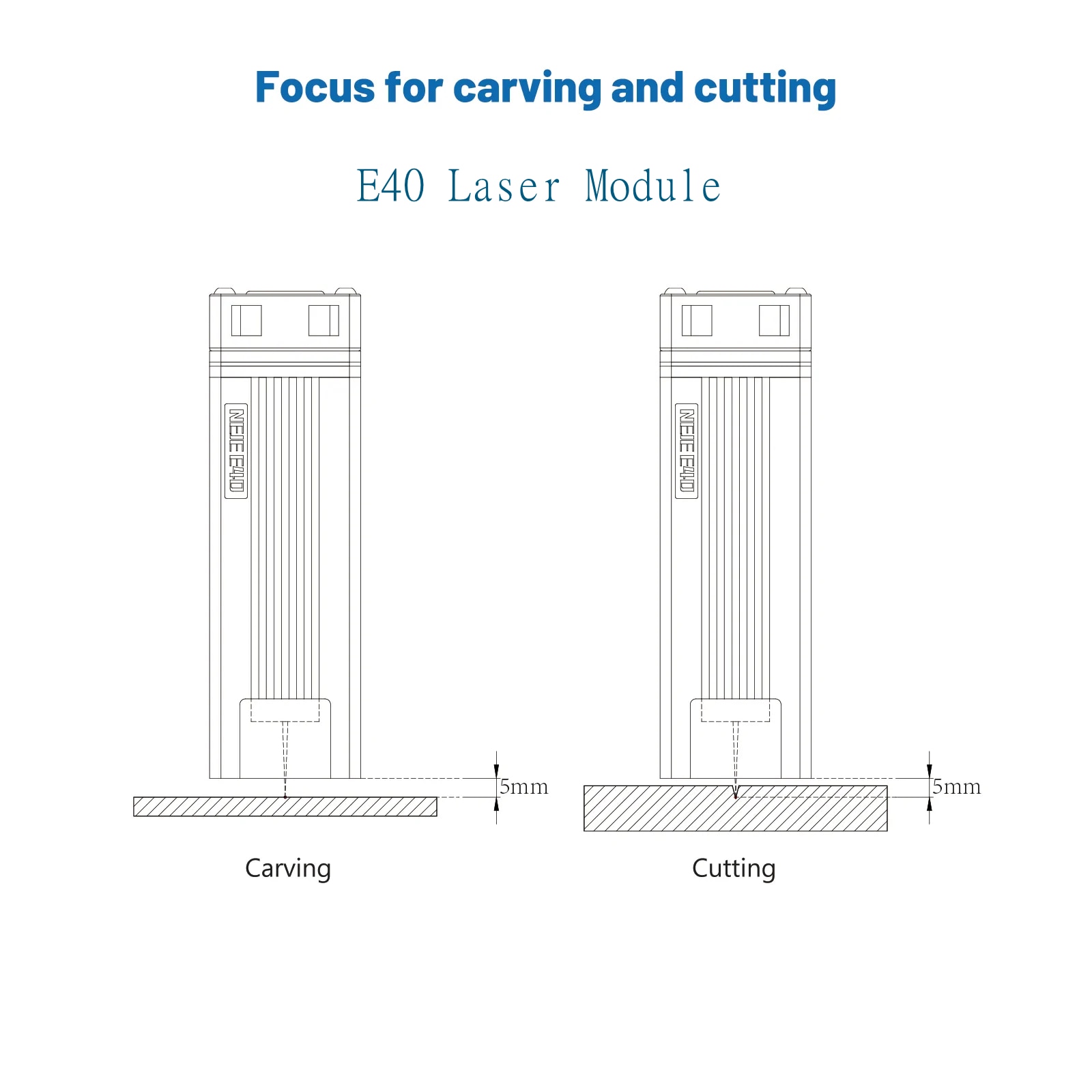

E40(High Precision multi-function module) is a high-power dual beam fixed focus high-precision module. E40 module has extremely small incisions when cutting MDF boards, leather, acrylic, fabric, cardboard and other high-density materials less than 4mm, and the minimum gap between incisions is less than 0.06mm, At the same time, it can carve stainless steel, stone, glass, ceramics and other high-resolution materials with high-precision rendering capability, and the imaging effect is meticulous and accurate. It is a perfect high-power image rendering module. The NEJE E40 module adopts NEJE's unique external lens optical compression technology, which makes the focus energy density amazing, The energy density is 2 times higher than that of the 20W optical power module, so it has faster speed and precision in the actual engraving process. The incision in XY direction tends to be uniform, Therefore, you will get a more even effect when drawing lines. E40 module adopts more stable and reliable optical solution, which makes the service life of the E40 continuous cutting mode 40% longer than that of the ordinary laser module, and the service life of the E40 normal working mode (8 hours per day) even reaches 7 years. The NEJE team's goal for E40 is to become the next classic, You can always believe that it will constantly brings you more amazing projects.

BUILD A POWERFUL LASER SYSTEM

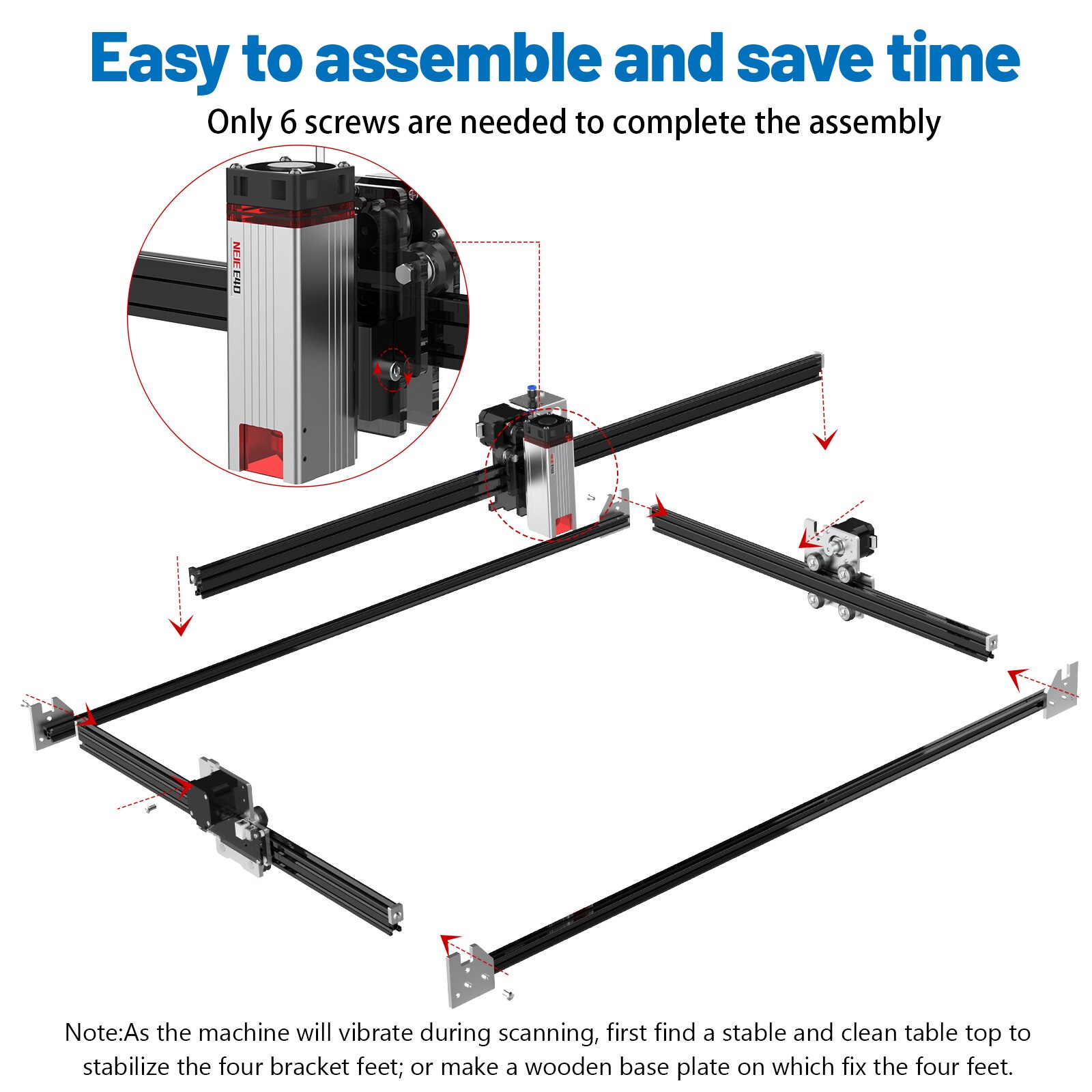

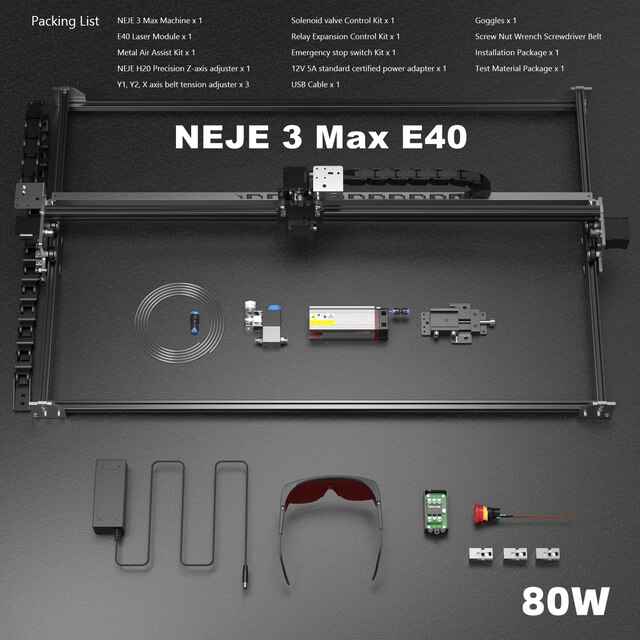

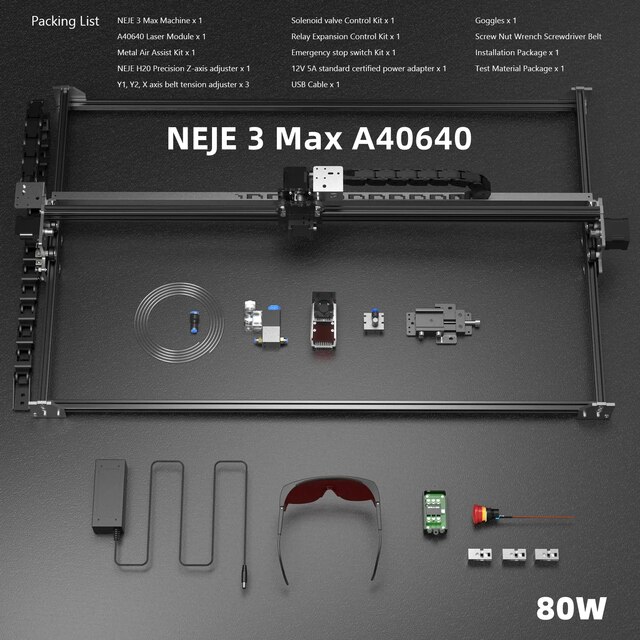

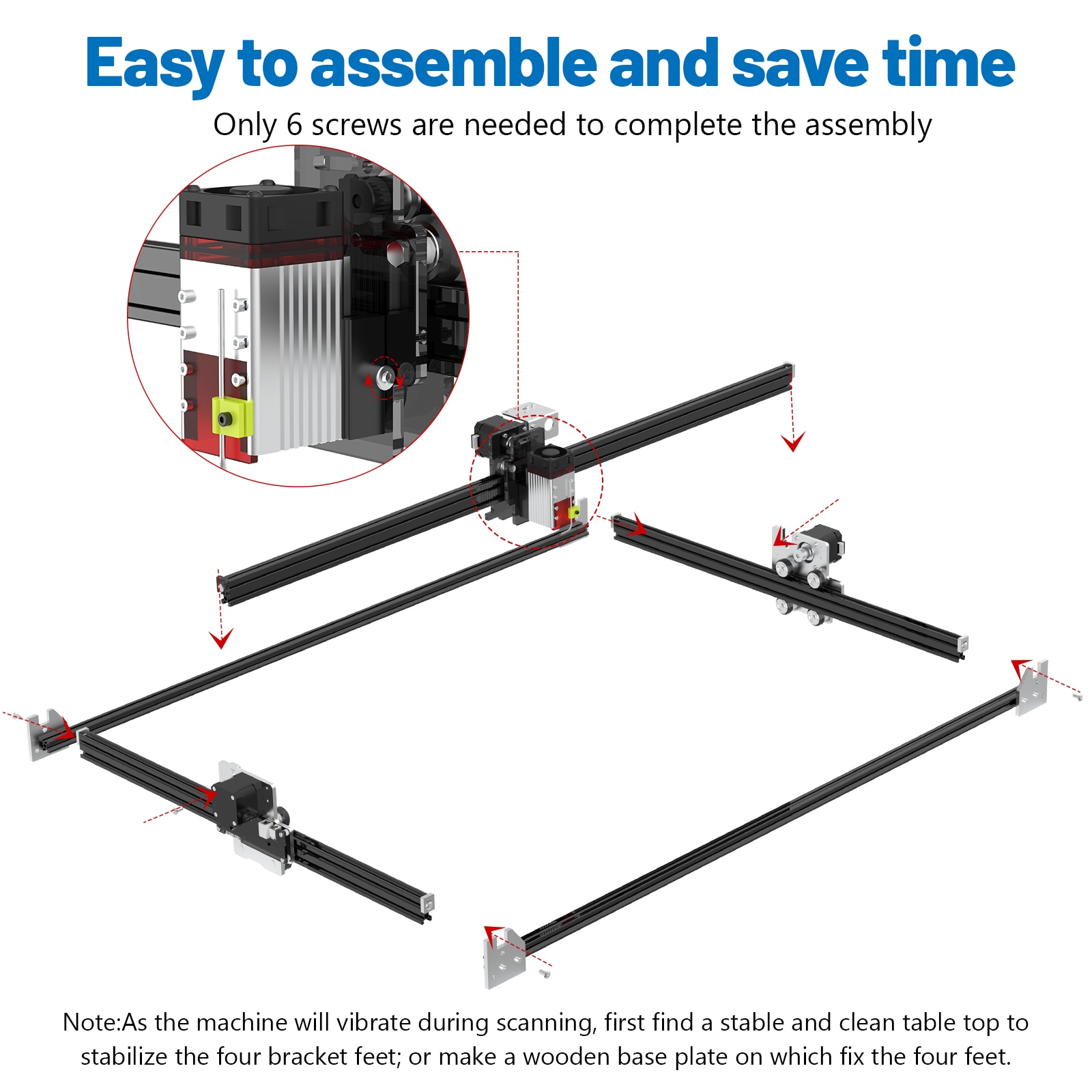

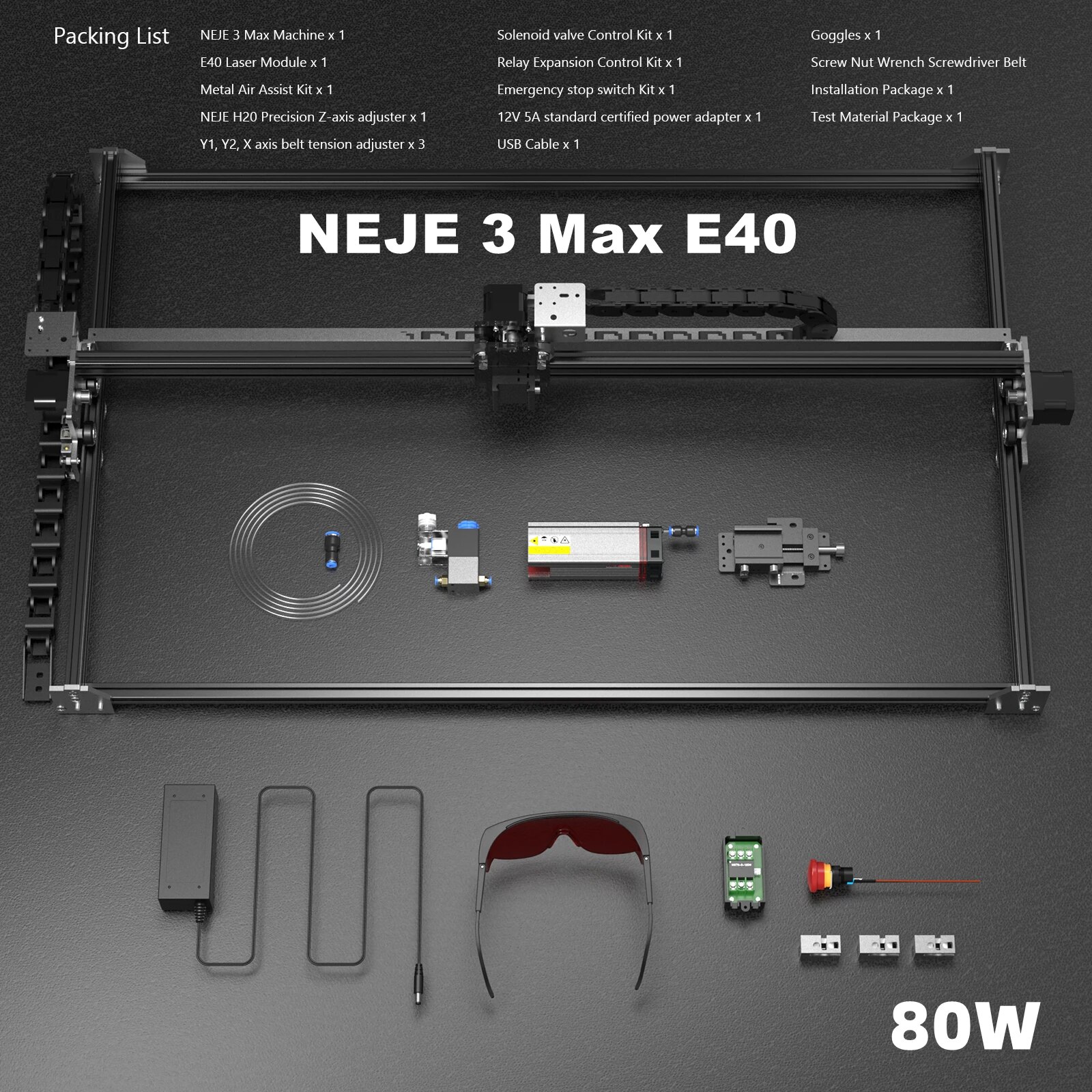

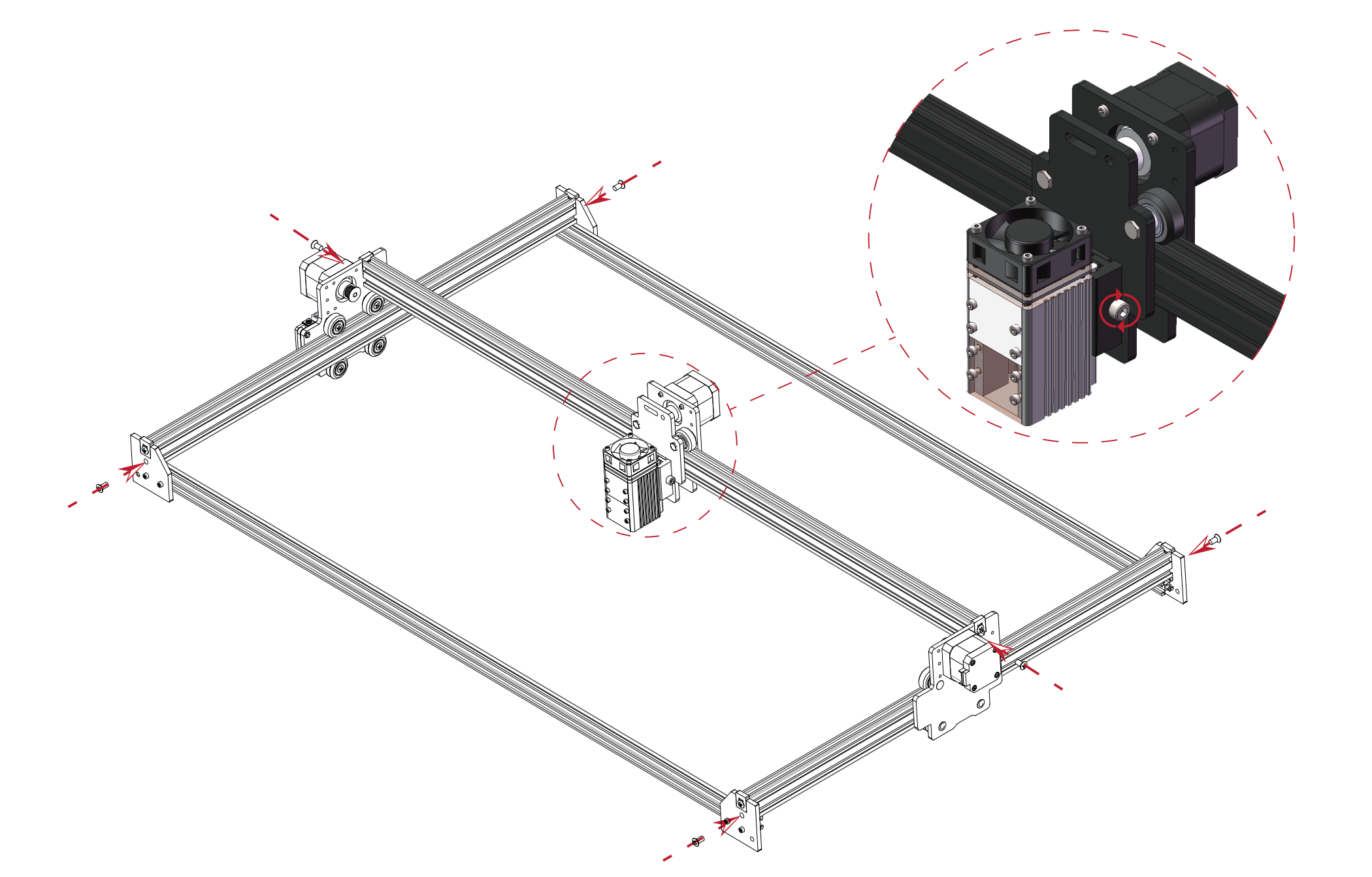

In order to ensure that the product is absolutely reliable after each user receives the product, NEJE has done a complete machine test for each device, you only need to simply install 6 screws to complete the initial assembly.

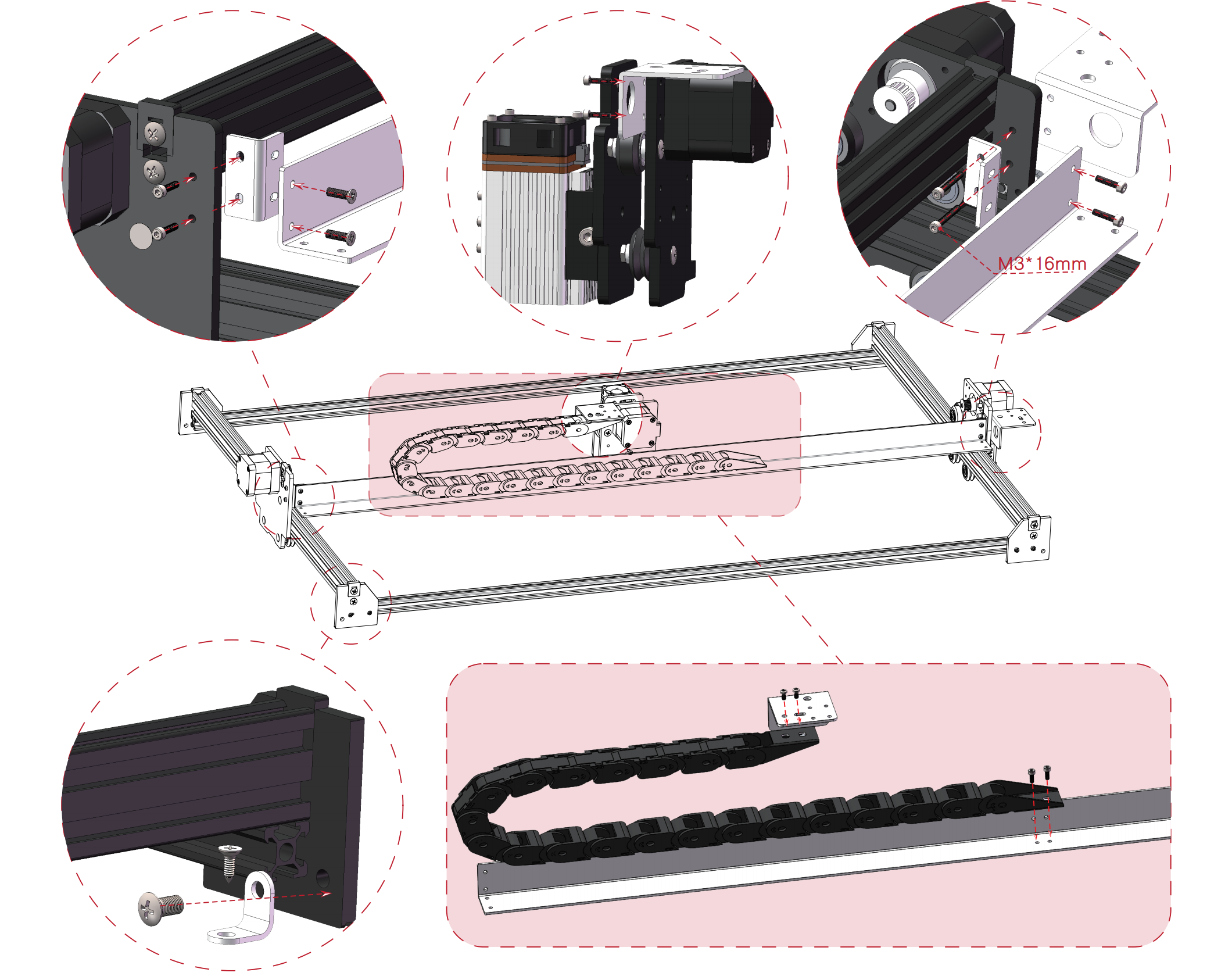

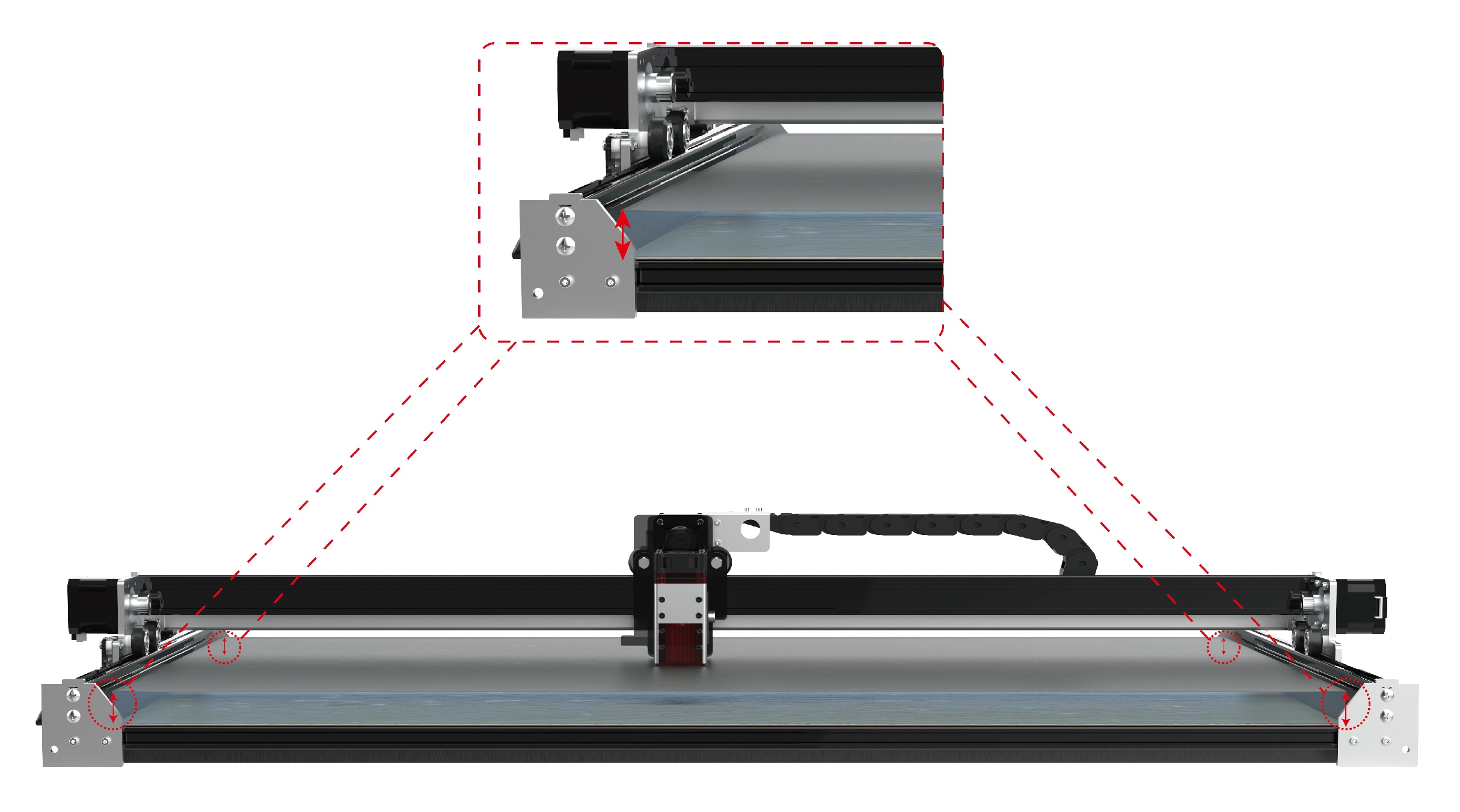

It is recommended to install the X-axis drag chain support frame first, and then install the X sliding assembly;

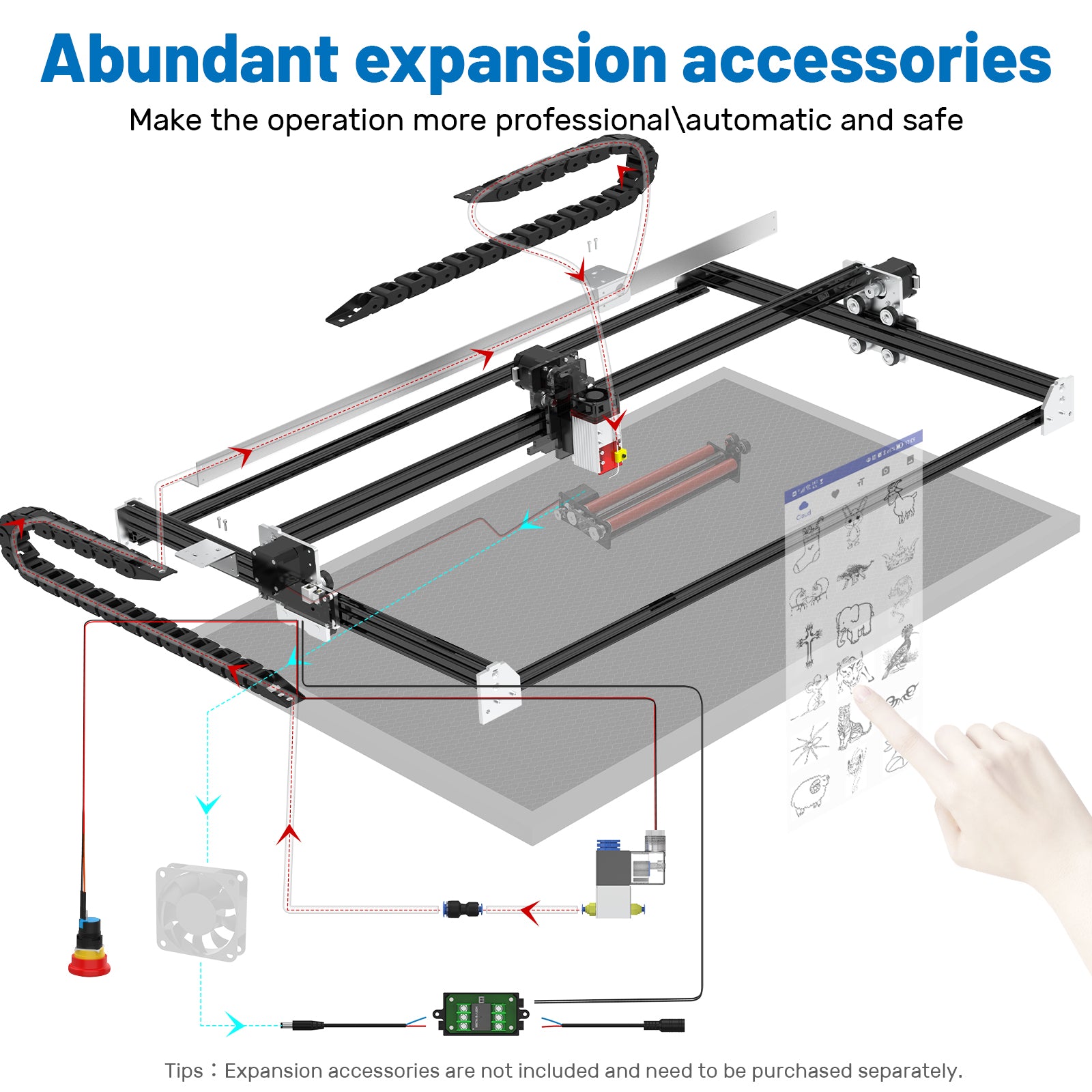

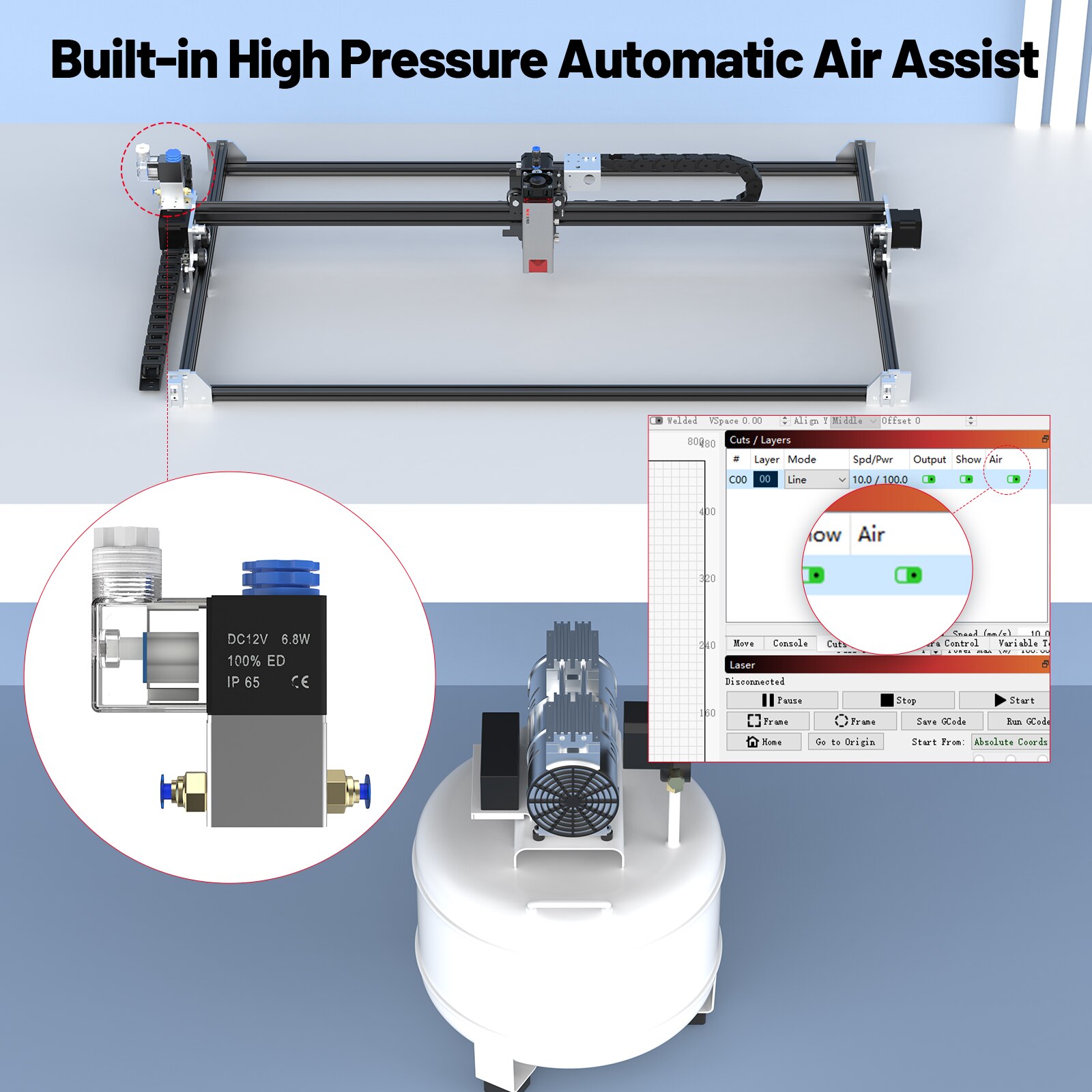

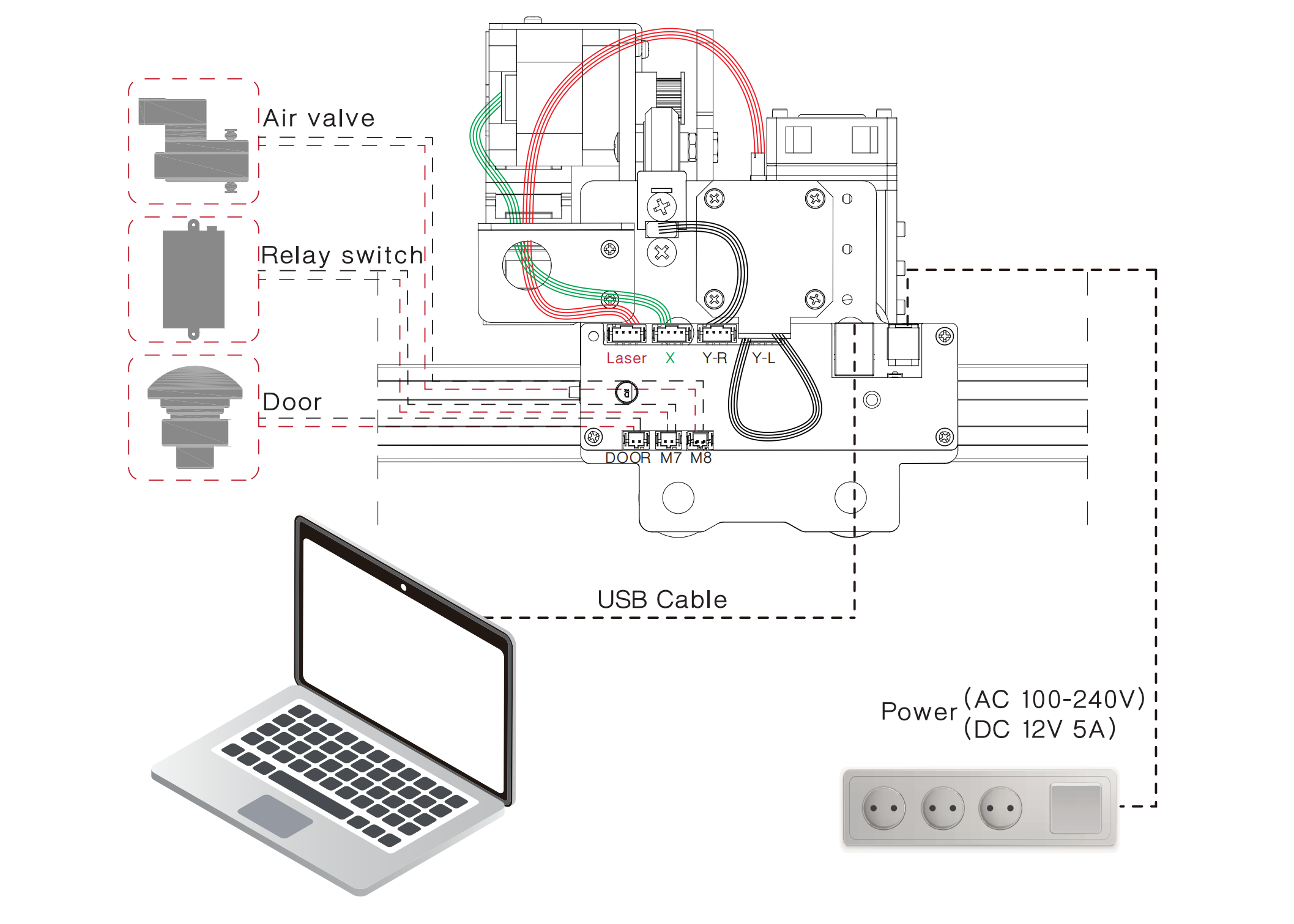

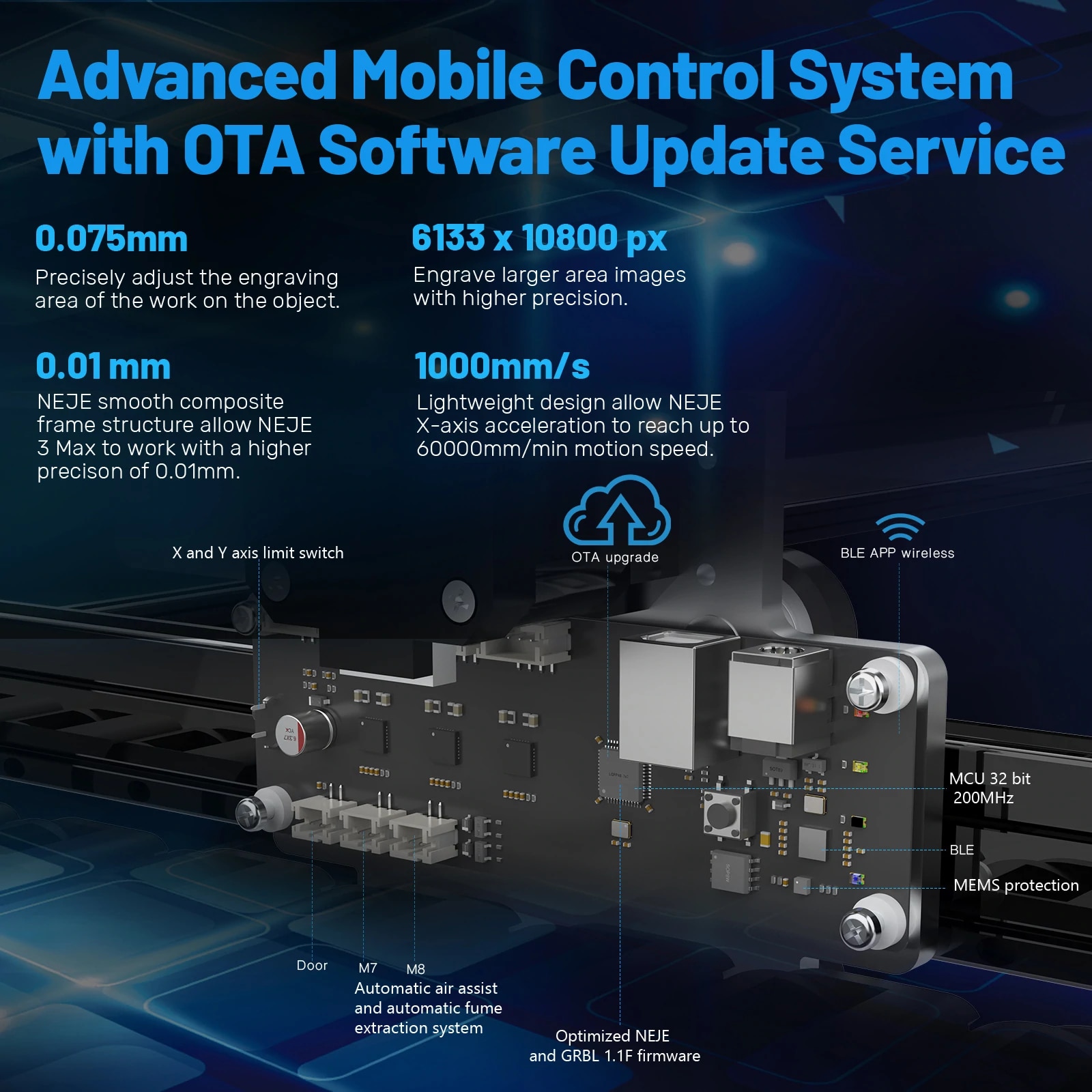

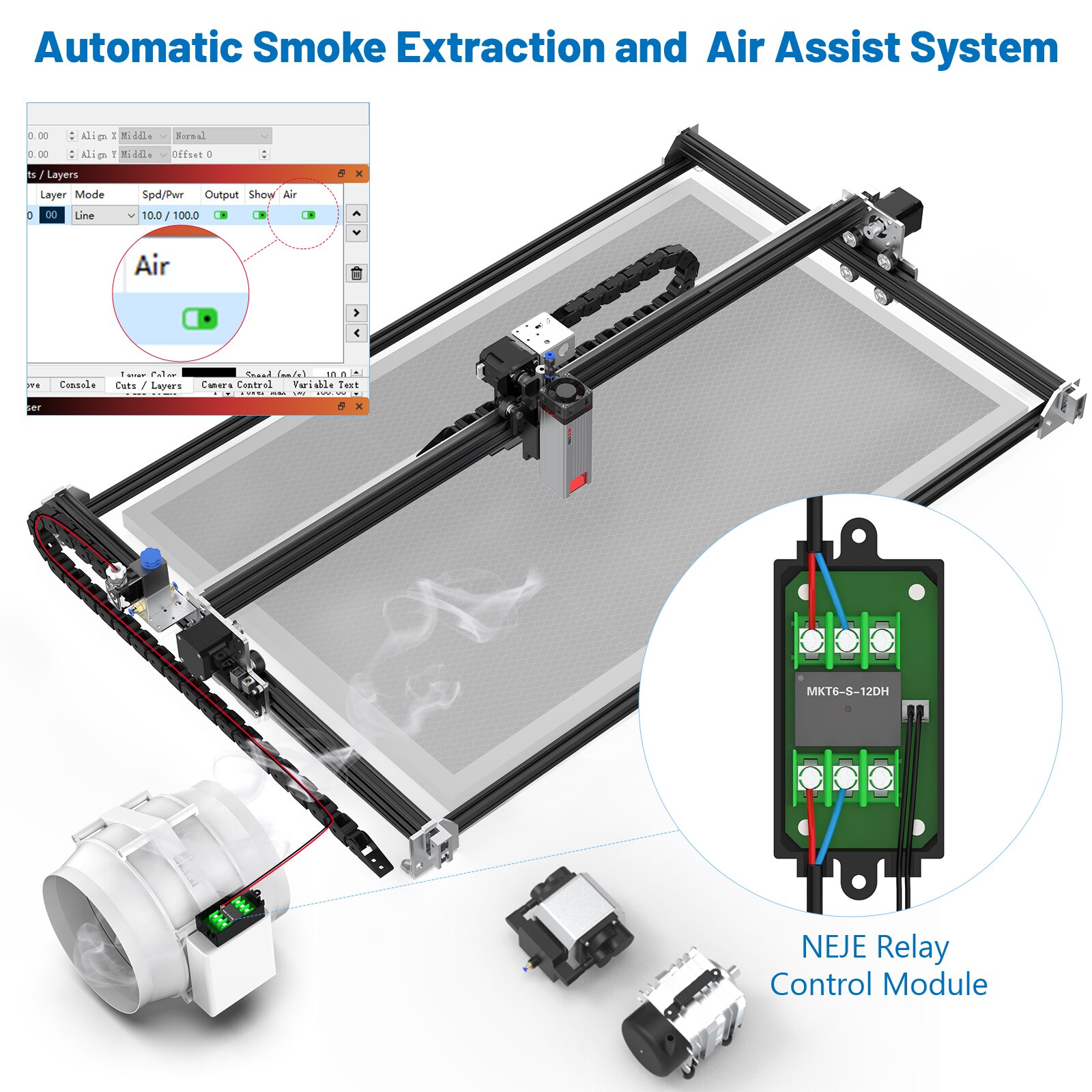

The M7 relay module is generally used for the control of the smoke exhaust system. Some users also use it to control the oxygenator, which is not very safe! M8 air valve is generally used to control the air circuit of the user. You need to cut the air pipe according to the actual situation, and connect the other end to the air compressor or other air source; Y-R motor don't forget to connect.

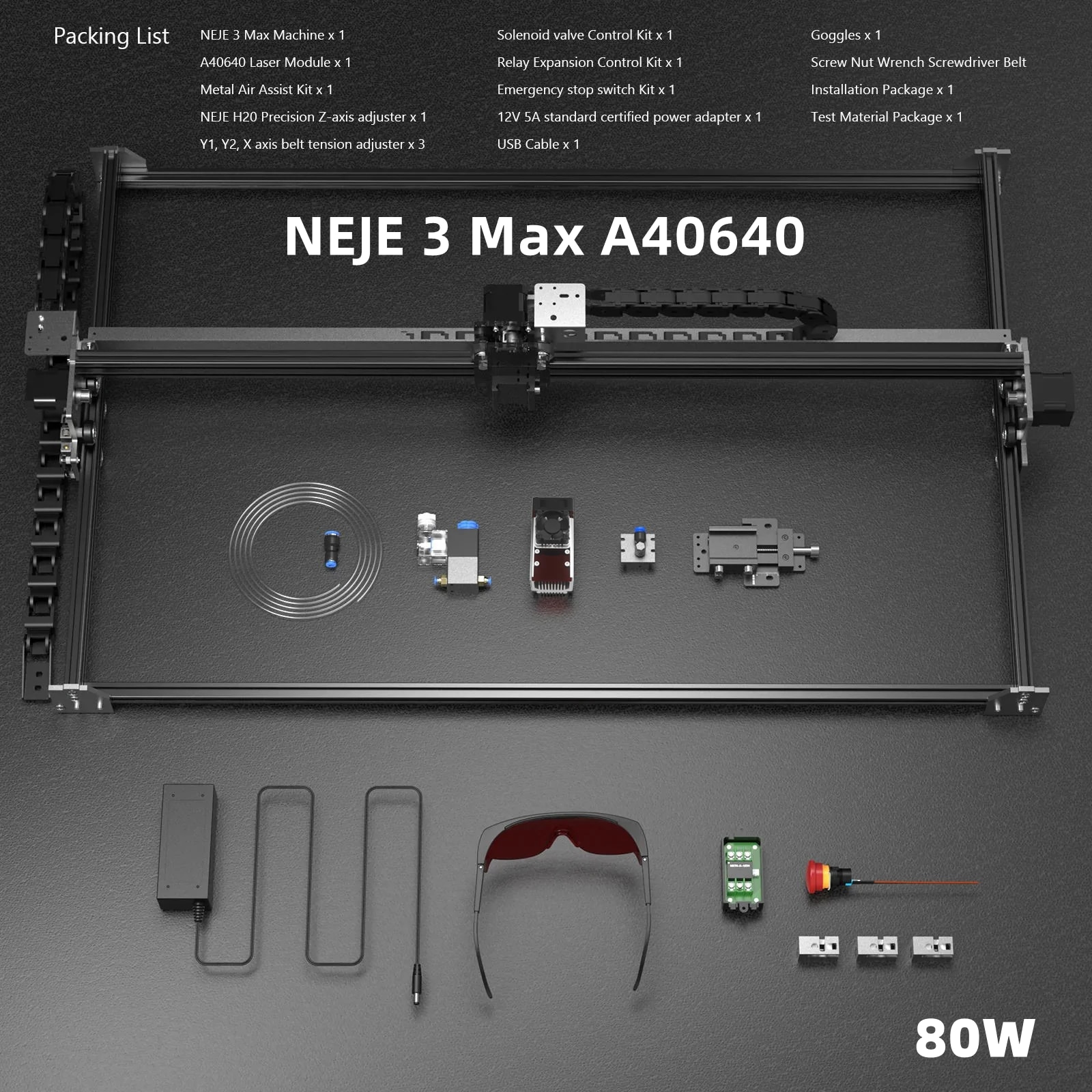

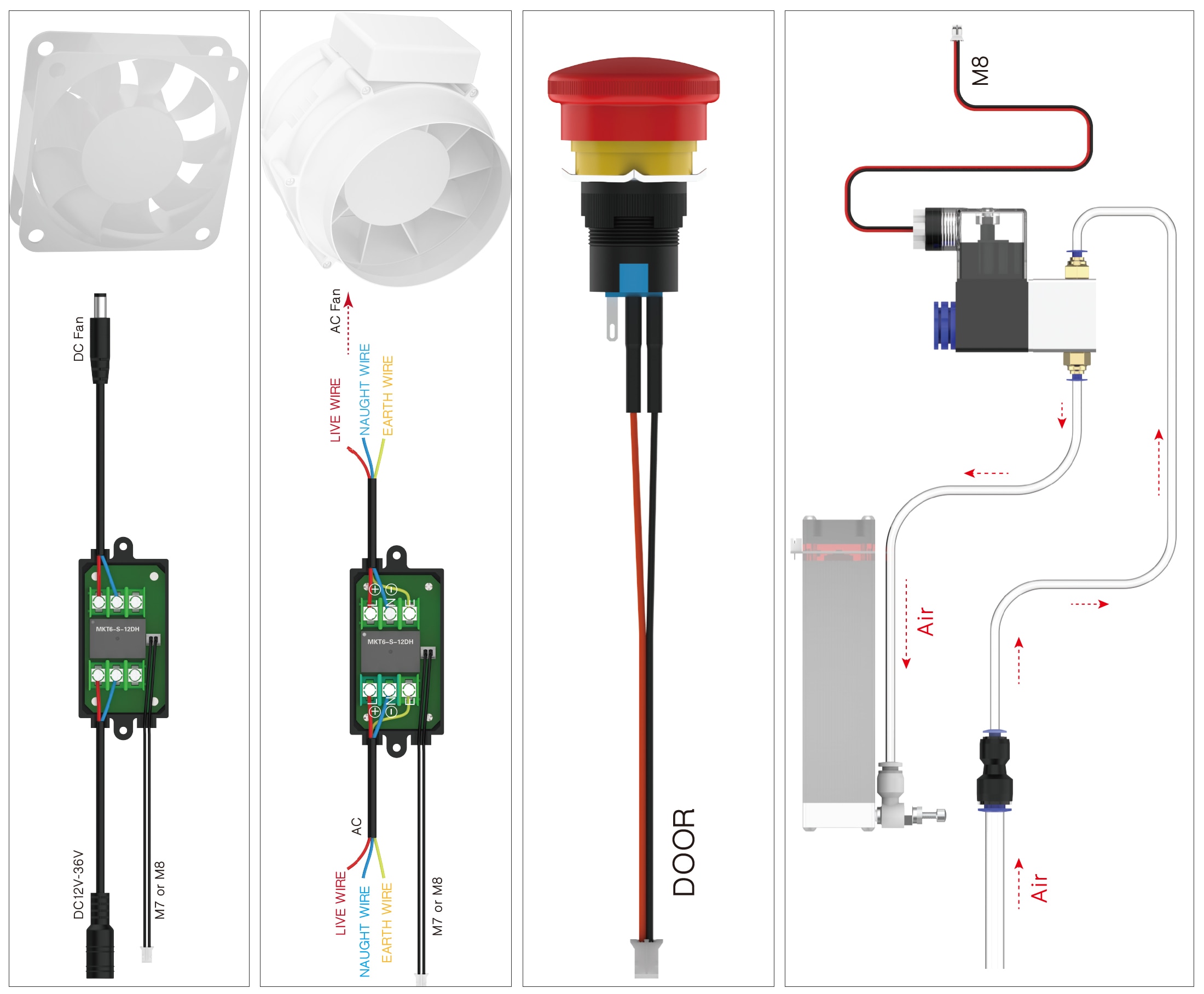

M7 relay expansion accessories, can be used to control AC or DC power supply smoke exhaust system, can also be used to control other circuits, used as M8, there are safety risks when operating high-voltage circuits, requiring professional operation; M8 valve expansion accessories, can be used To control the air compressor switch;
