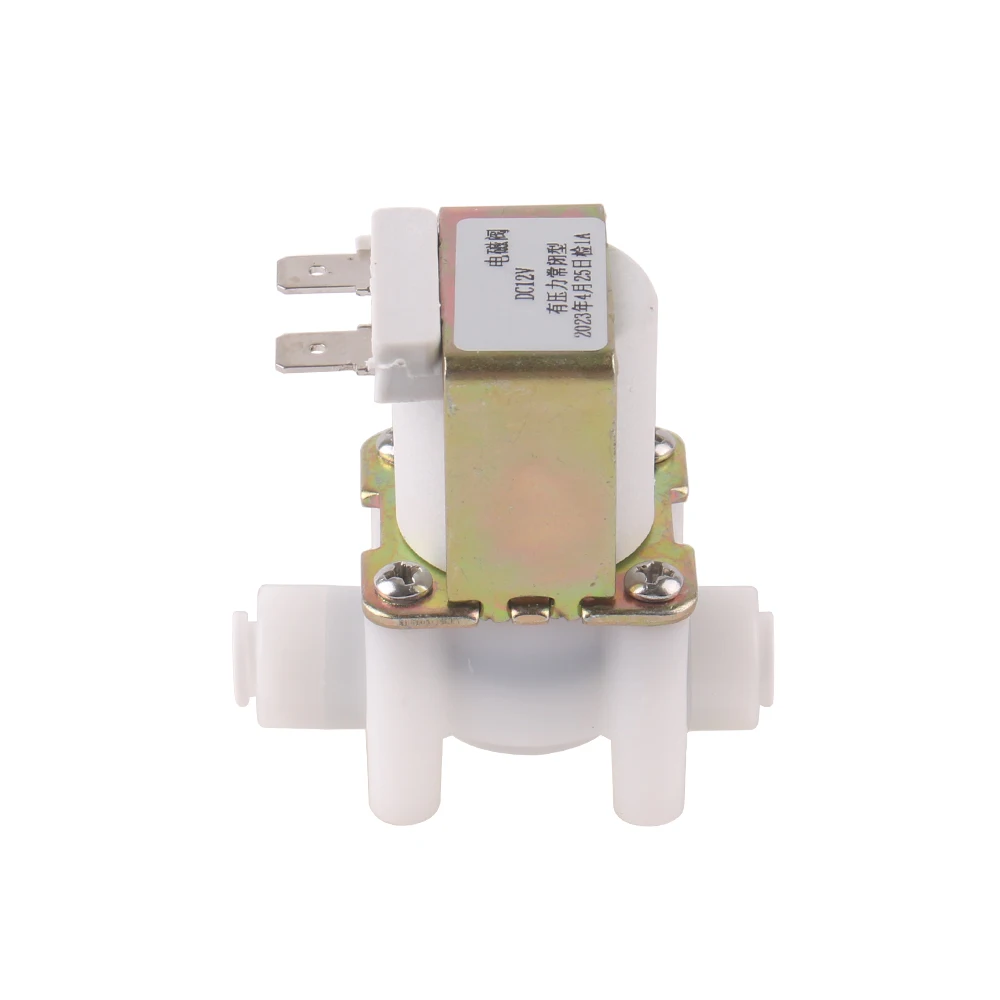

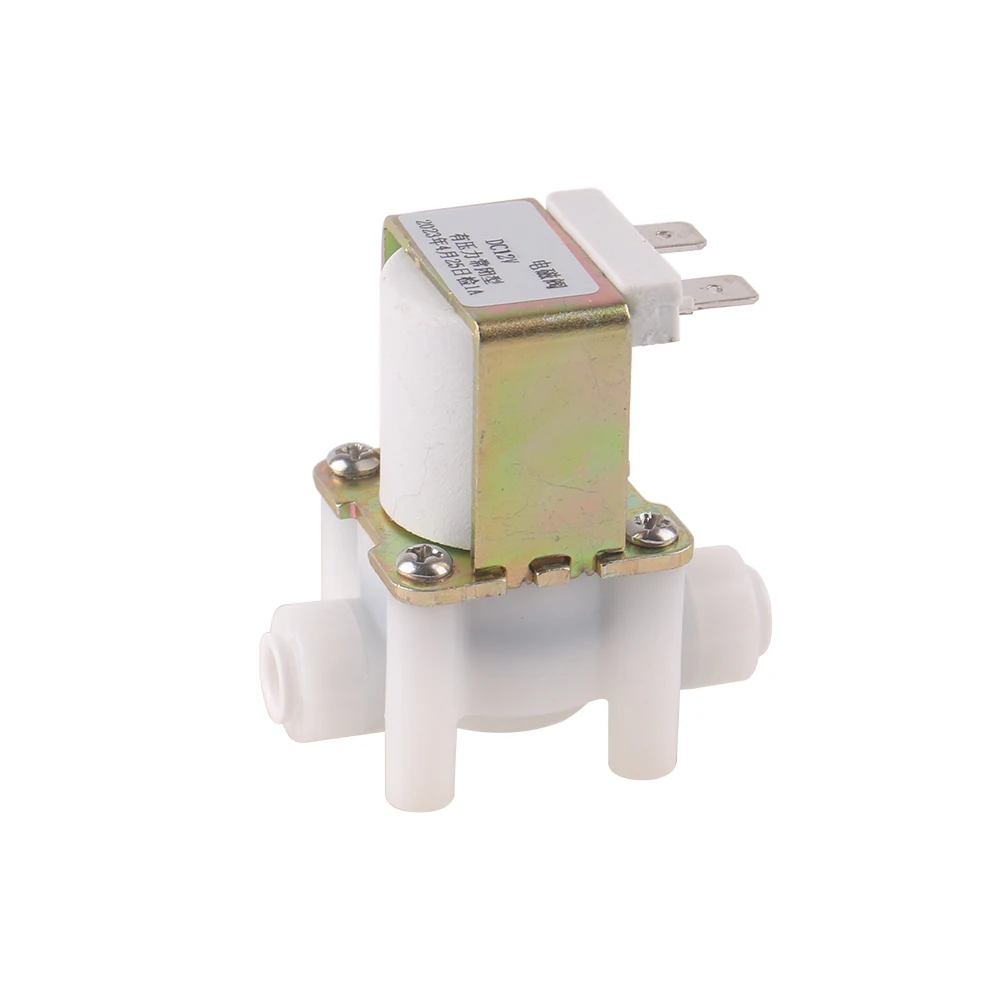

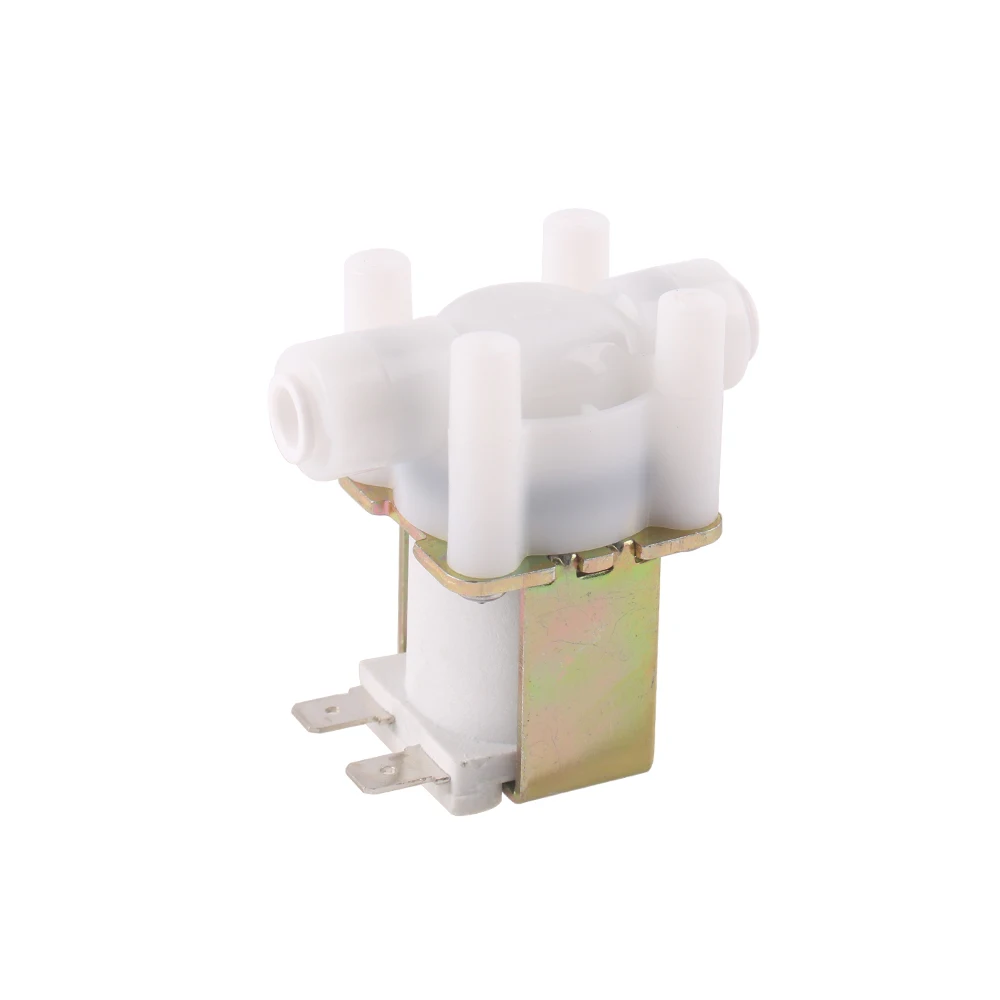

NC Electric Solenoid Valve Magnetic DC 12V Water Air Inlet Flow Switch 1/4
SALE
NEW
ID: 28370

NC Electric Solenoid Valve Magnetic DC 12V Water Air Inlet Flow Switch 1/4 " 12V 24V 220V Magnetic Washing Machine Dispenser

4.8 (124 votes) | 405 orders
Price: US $23.54 / piece
Discount Price:
US $20.09 / piece
-15%
Specification
Voltage
Quantity

63060

Water Level Controller Switch



PRODUCT SPECIFICS:

  • Name: Quick access water solenoid valve
  • Accessories Type :Water Purifier Valve
  • Material: Copper POM housing
  • Capacity :1
  • Model :1/4quick access
  • Use location :outside
  • Water Machine :Water Purifier Water Purifie



Material: Metal + plastic
Voltage:DC 12V
Product Usage:
   ①water solenoid valve and high pressure water pump connected in parallel on  the computer board.
   ② in the system of water or rinse, the water solenoid valve open at the same time high-pressure pump work; in standby, the water solenoid valve closed at the same time high-pressure pump  to stop.
   ③the role of the water solenoid valve is in the water or rinse, open the water, and in the standby or power off when the closure of water,it can work in the pure water machine and  not waste water.

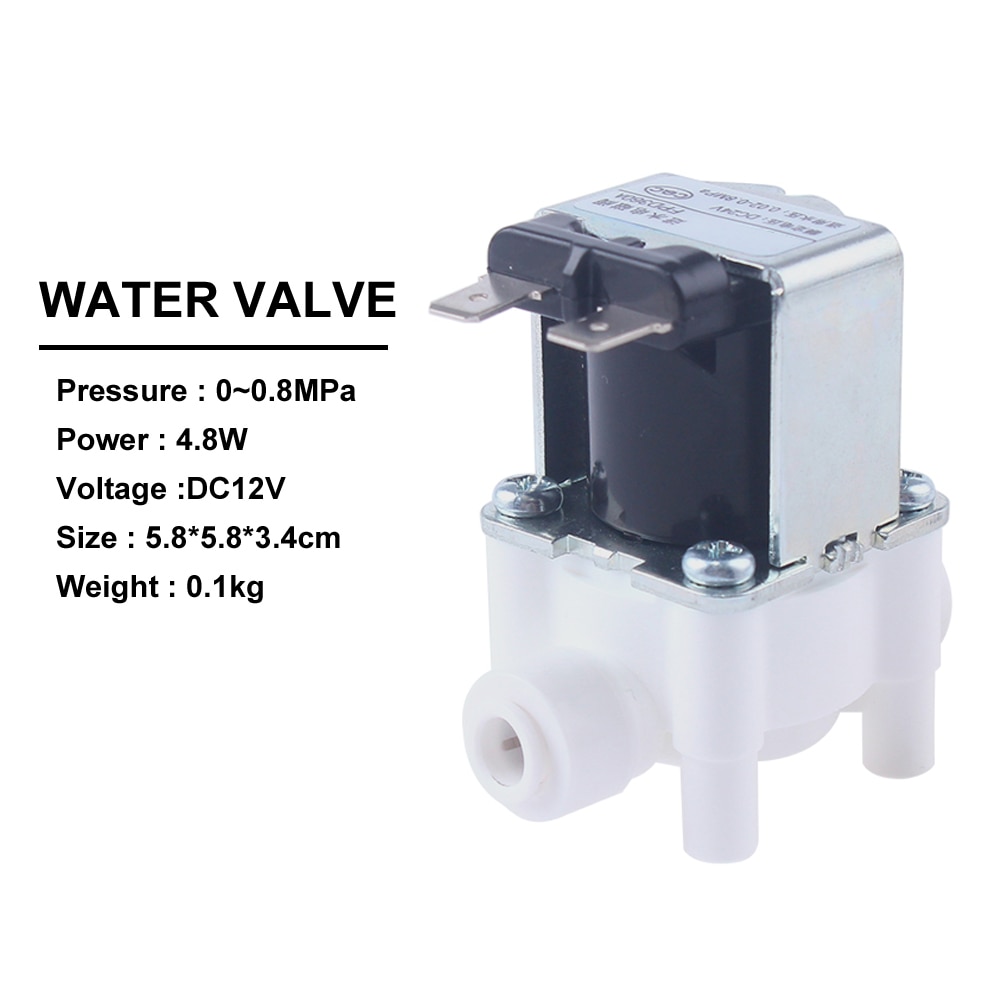

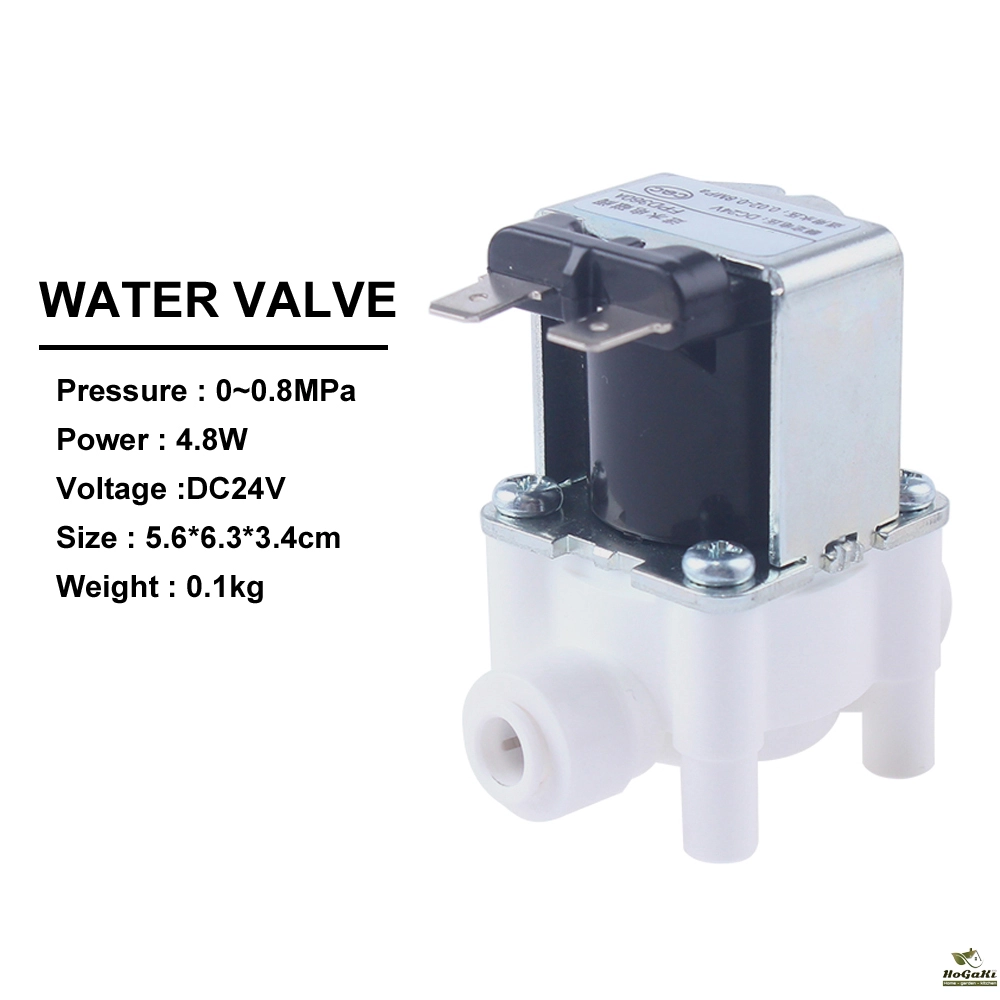

Technical Parameters:
              Rated voltage: DC24V
              Coil resistance :37Ω ± 0.25Ω (at 20 ° C)
              Switch type :DC continuous type

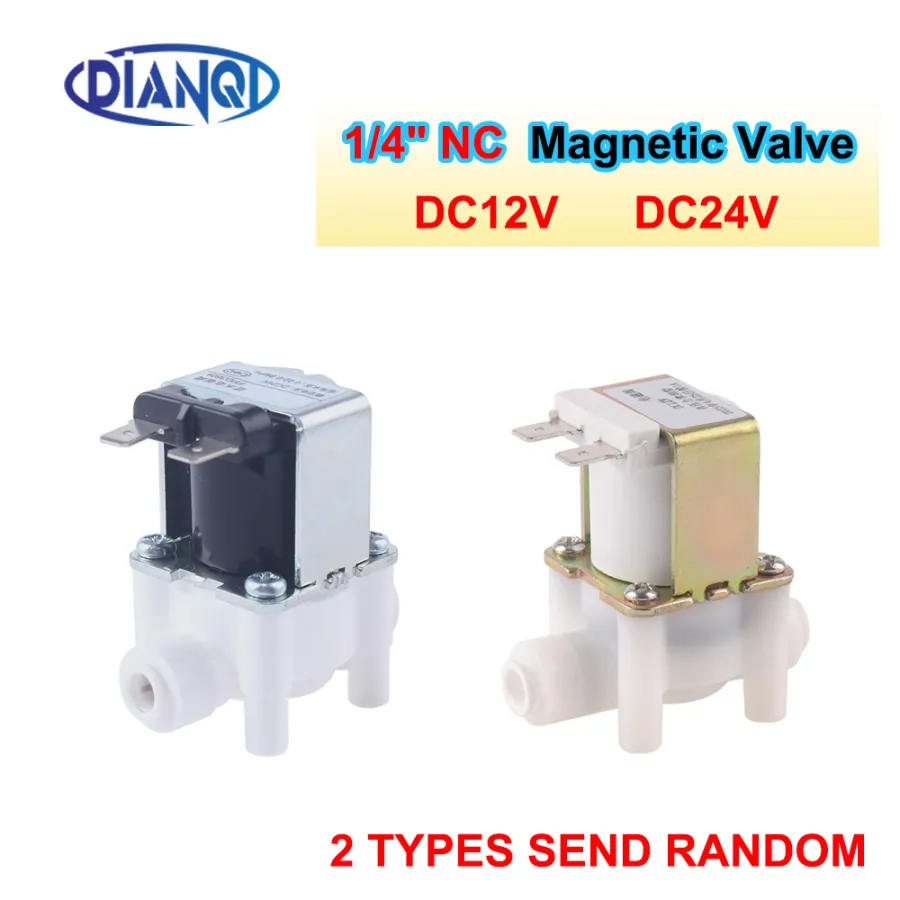

              Working pressure: 0Mpa-0.8Mpa  /  0Mpa-0.5Mpa (send randomly )
              Medium temperature :1 ° -75 °
              Response time to open: ≤ 0.15s off ≤ 0.3s
              Electrical strength between the conductor and non-conductor should be able to withstand AC2500V voltage, 1min without breakdown and produce arcing and other phenomena
              Flow characteristics 0.02Mpa ≥ 3 L / min 0.1Mpa ≥ 12 L / min 0.8Mpa ≥ 35 L / min
              The number of coils is 2500 laps
              Life of 200,000 times
Usage:water
Please note it is not suitable for use with  gravity fed systems

1



















  • Structure: Regulating
  • Certification: NONE
  • Origin: CN(Origin)

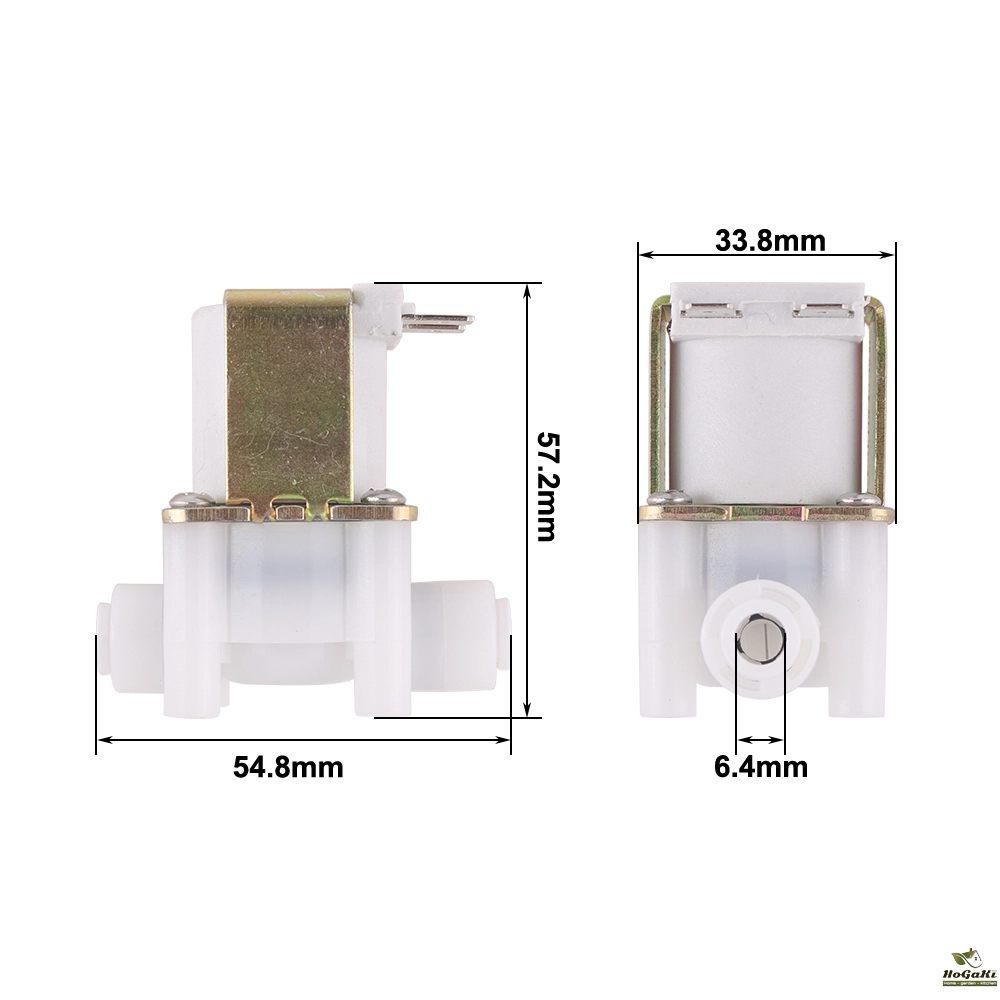

  • Port Size: 1/4 Interface diameter 6.5 mm
  • Pressure: Low Pressure
  • Power Source: DC
  • Standard or Nonstandard: Standard
  • Actuator Mode: Without Manual And Instruction
  • Media: Water
  • Power: HYDRAULIC
  • Material: Plastic
  • Model Number: ZFY034SC
  • Temperature of Media: Normal Temperature
