MZG 2 Flute Cutting HRC50 2mm 3mm 4mm Alloy Carbide Milling Tungsten Steel Milling Cutter End Mill
4.9 (58 votes) | 221 orders
Price:
US $11.44 - 57.00
/ piece
Discount Price:
US $
9.95 -
41.04
/ piece
-13%
- Cutting Edge Diameter
MZG 2 Flute Cutting HRC50 2mm 3mm 4mm Alloy Carbide Milling Tungsten Steel Milling Cutter End Mill
1.MZG End Mill Item Specifics
MZG End Mills Specification Parameter

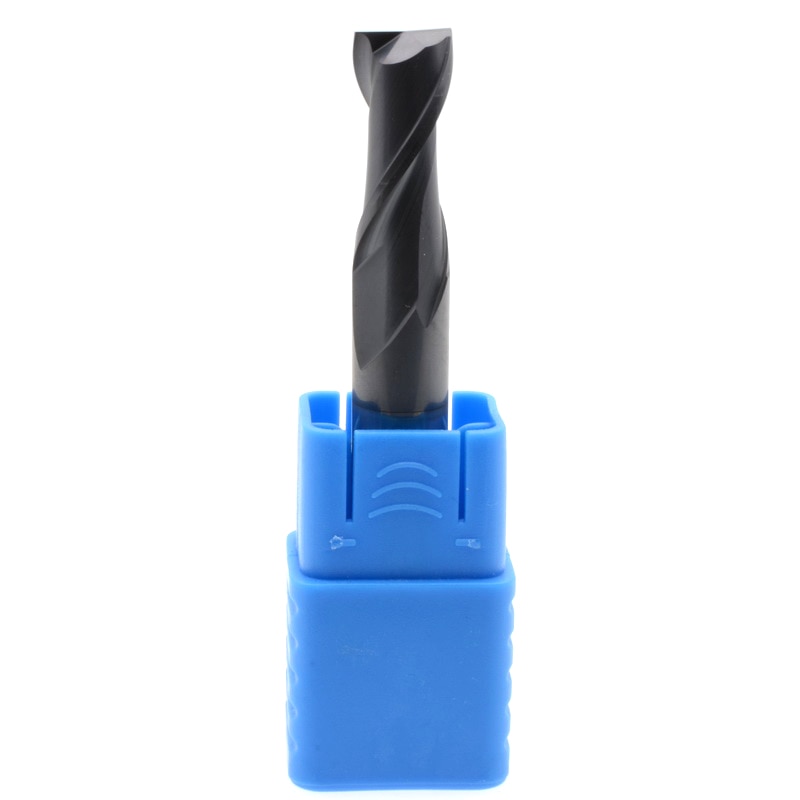

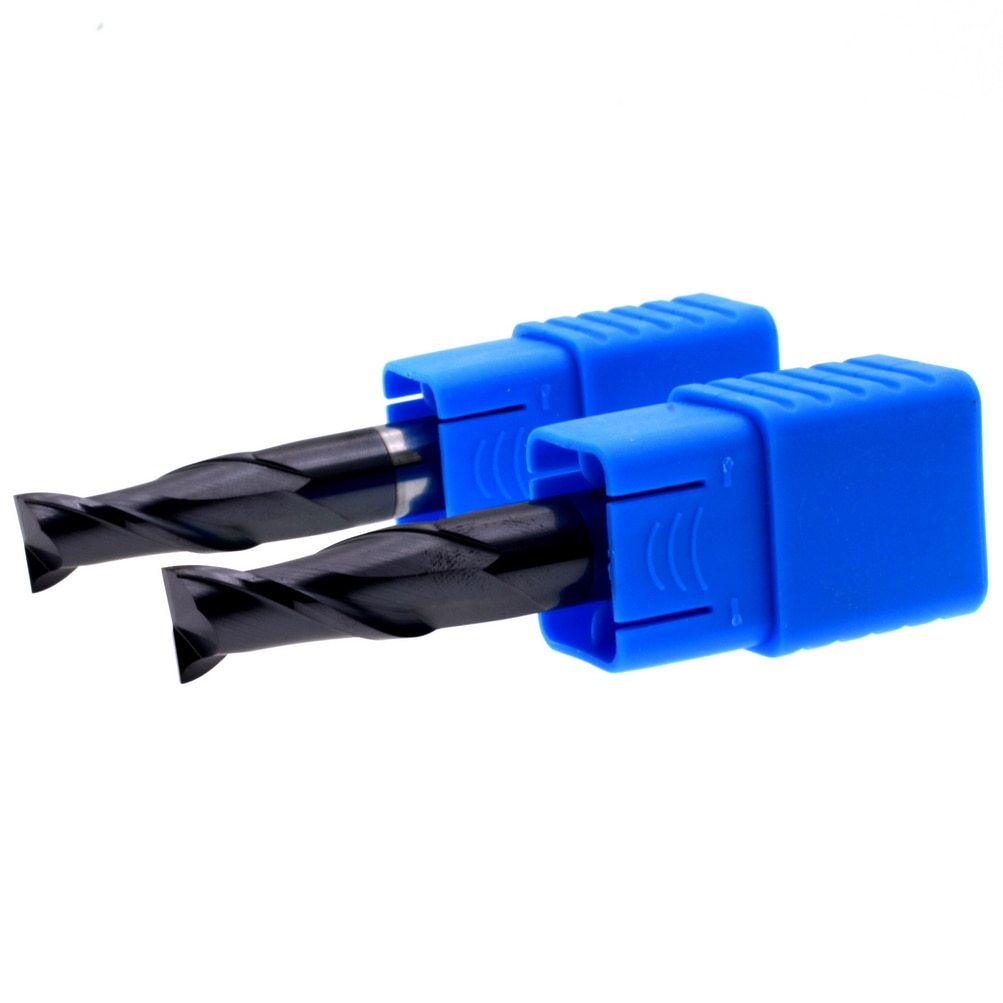

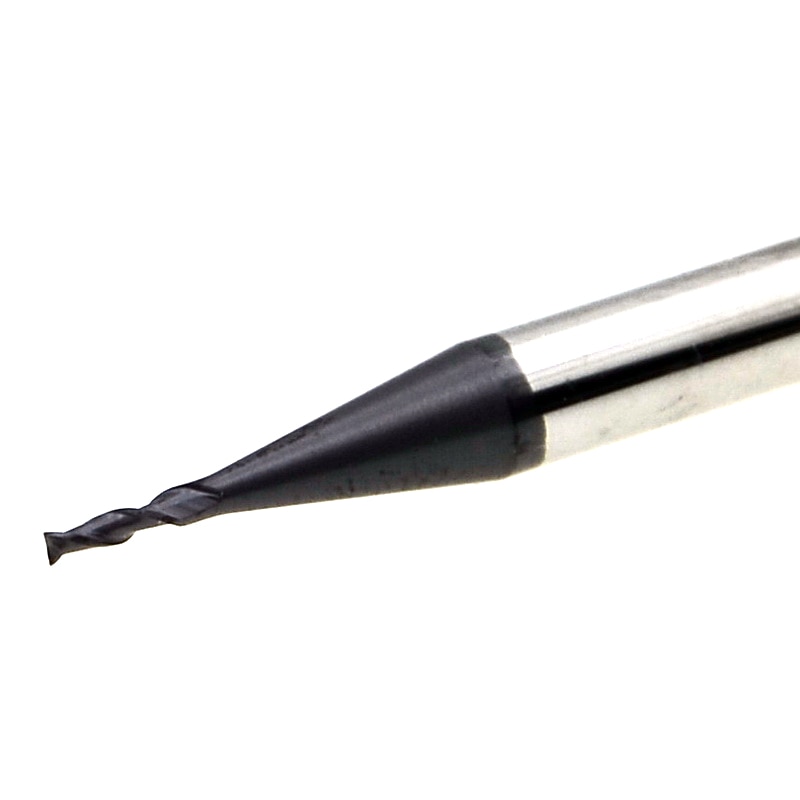

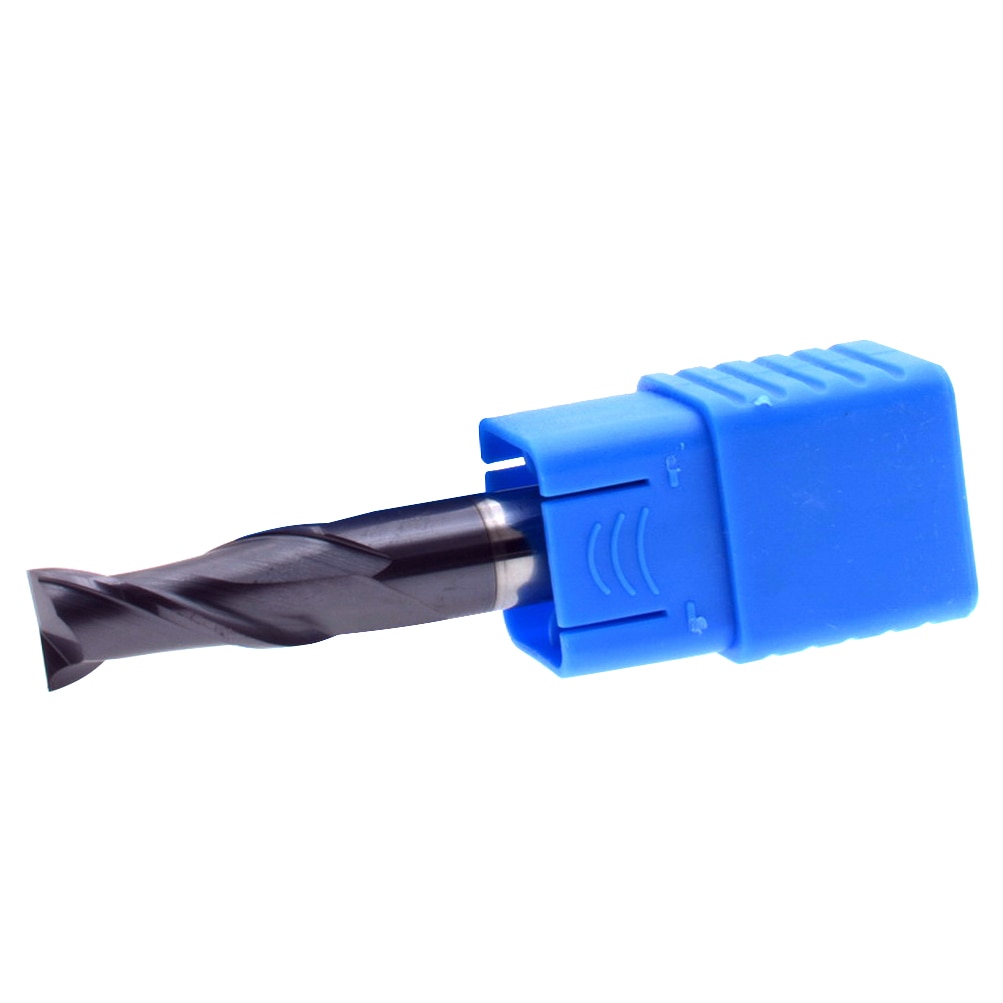

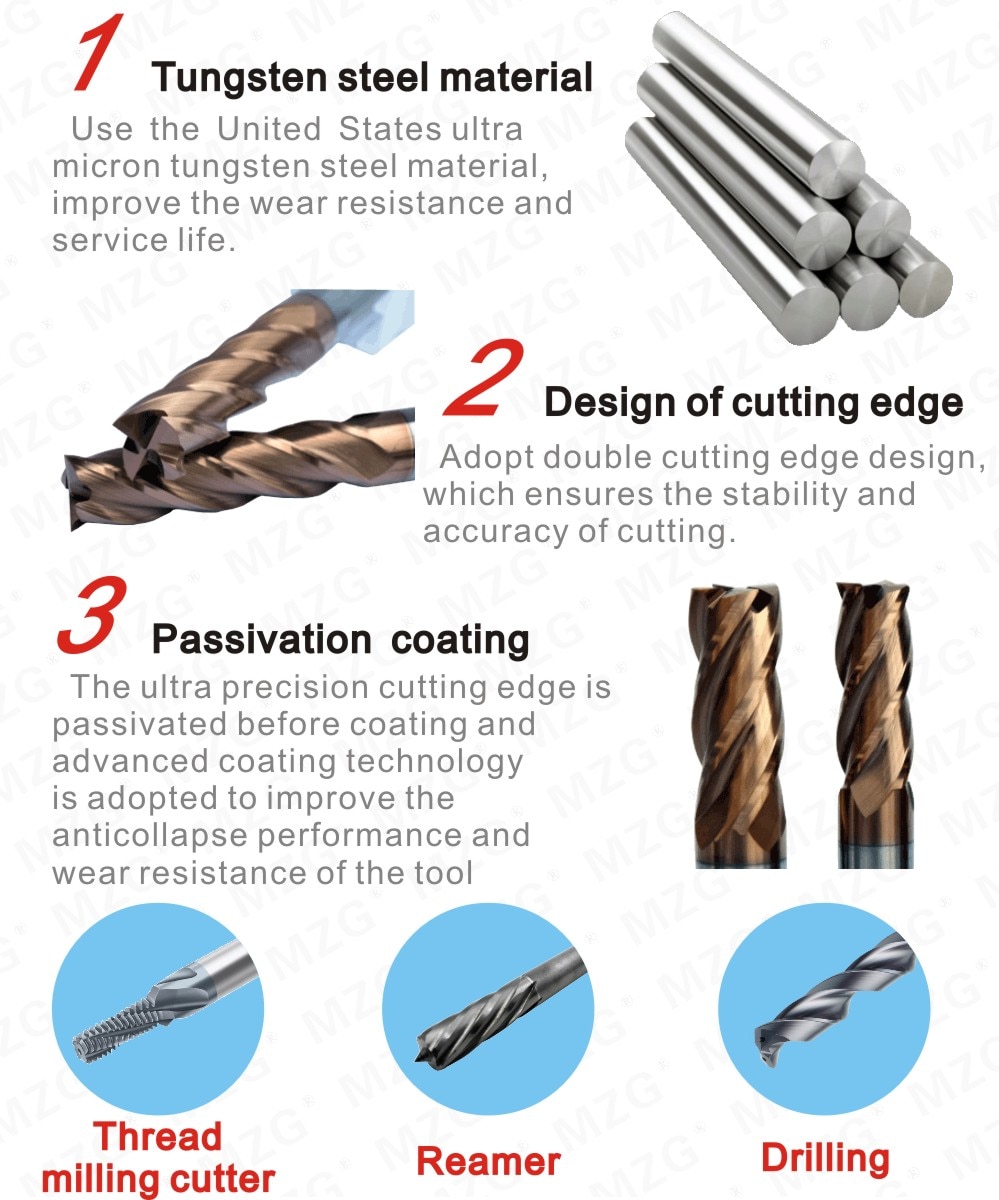

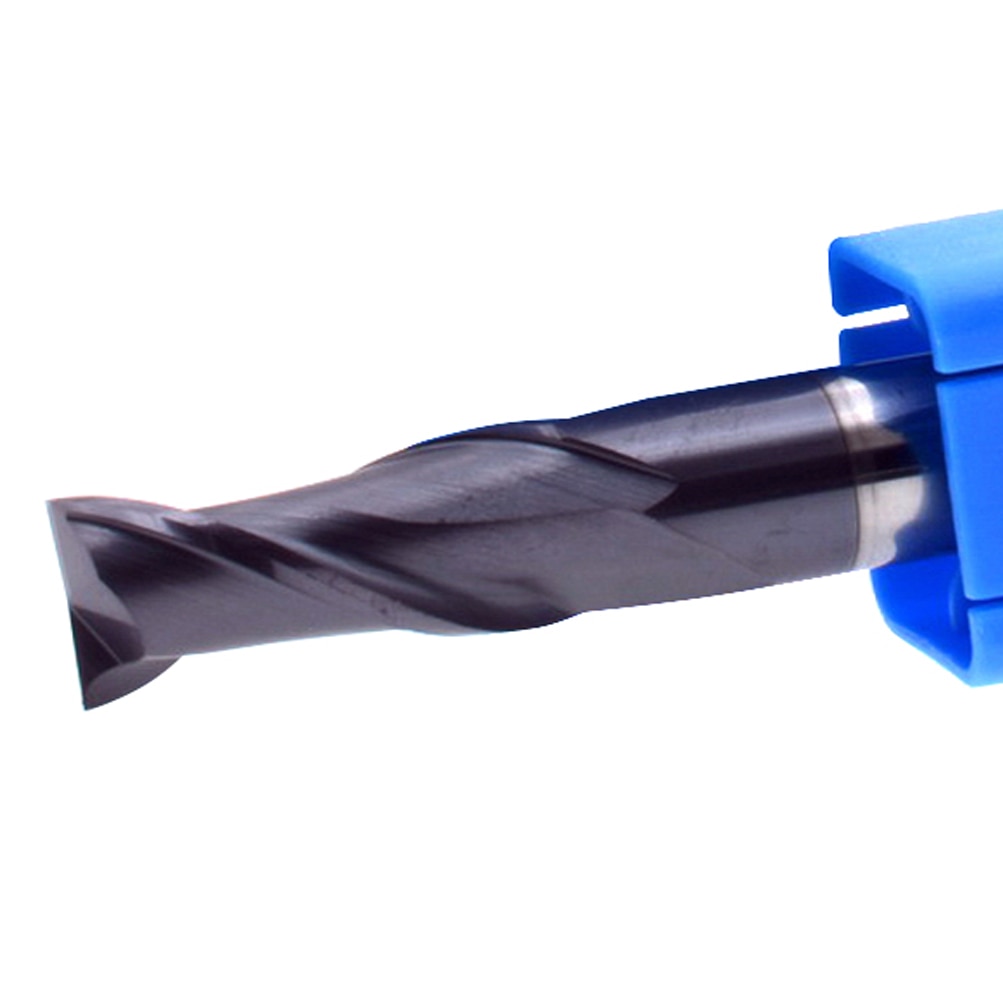

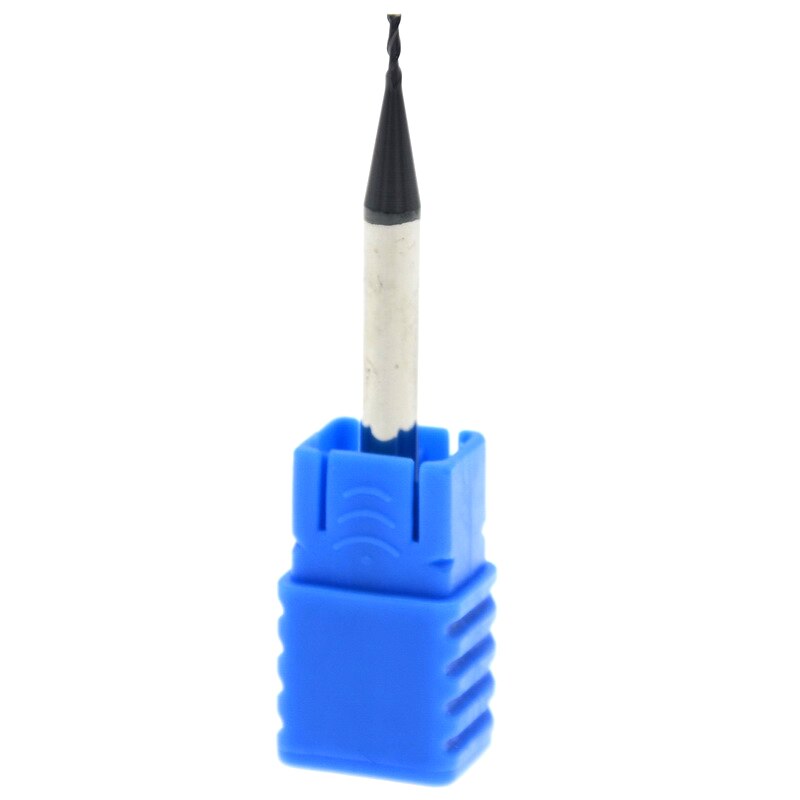

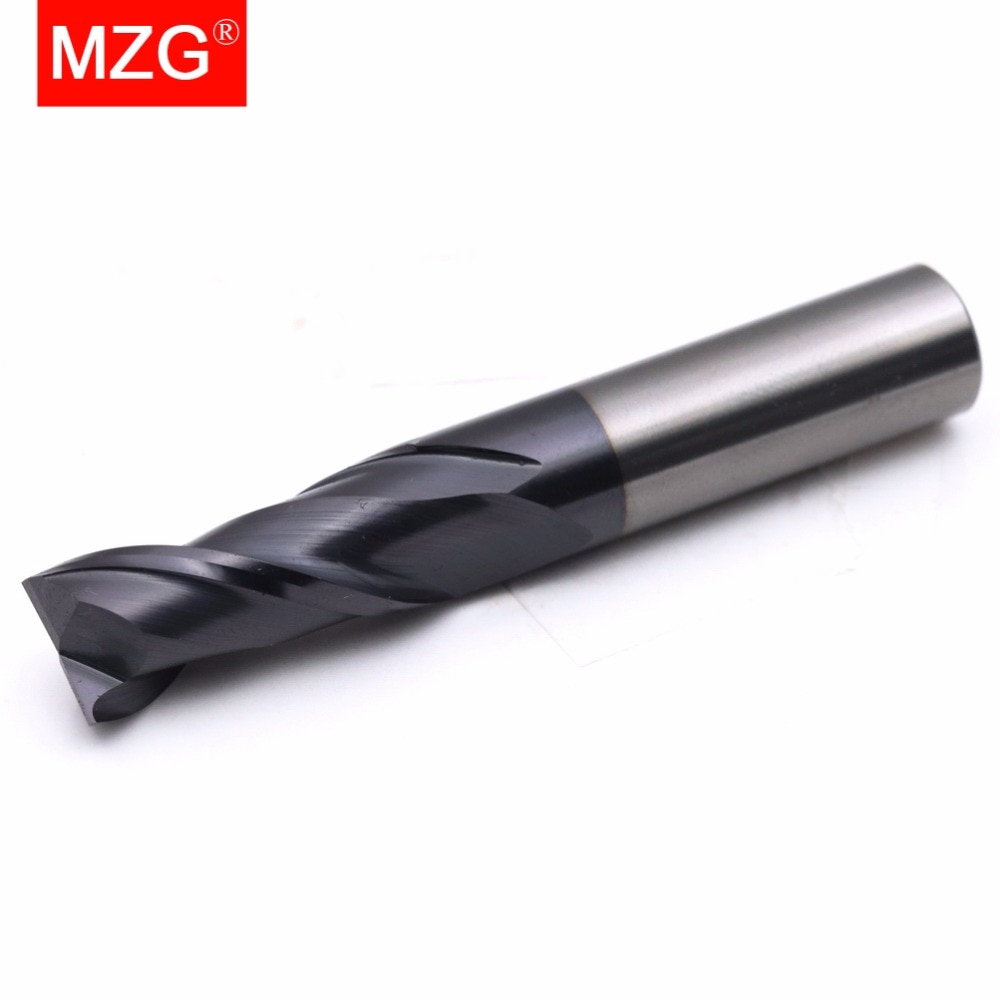

2.MZG End Mill Product Photo

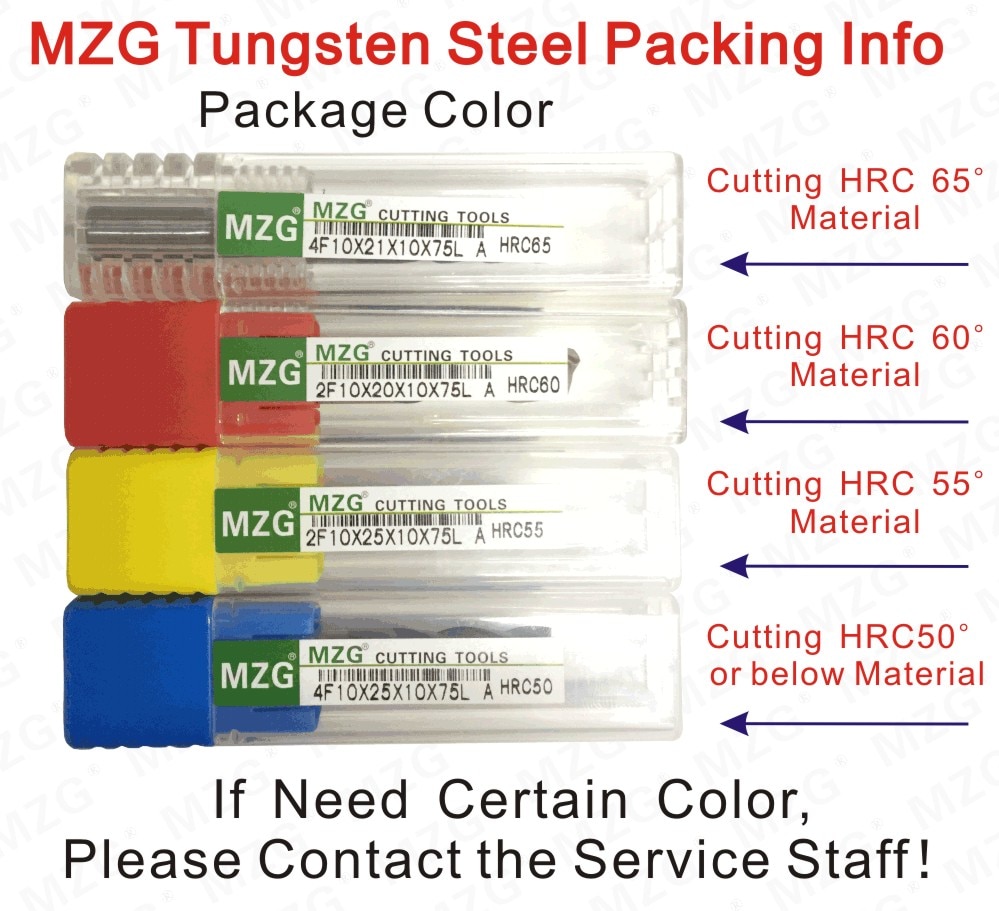

3.MZG End Mill Packing Info
End Mill Packing Info

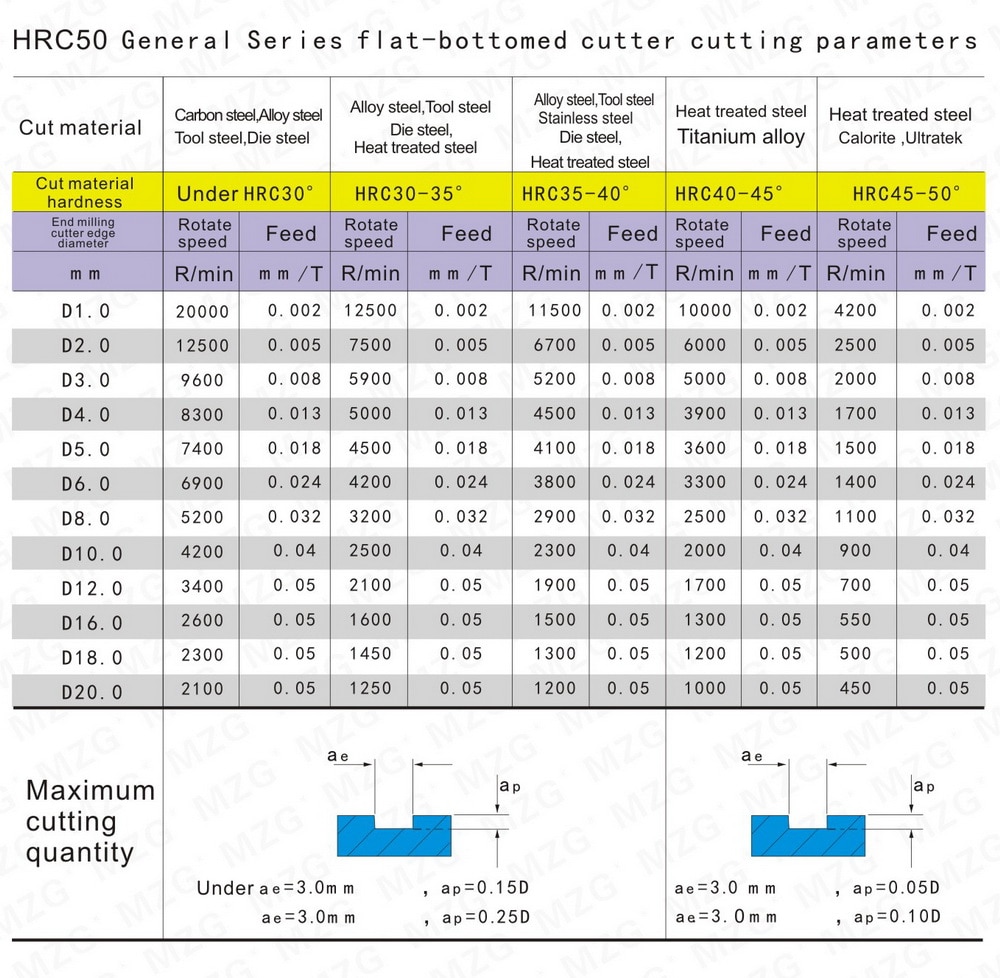

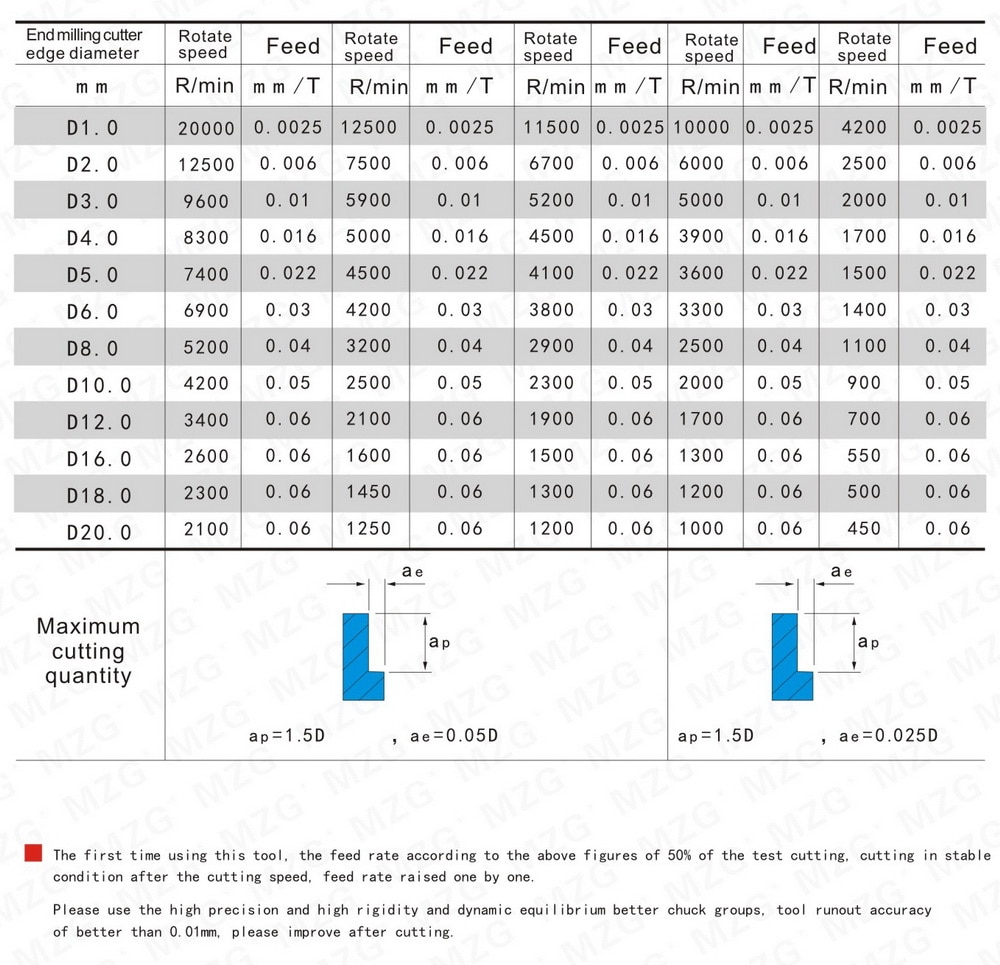

4.MZG End Mill Parameter
5.MZG End Mill Instruction
Safety Notes for Cutting Tool
1 Introduction
MZG has put a "caution" or a "warning" label on the package of the cutting tool products, but it is not on the tool itself.
Before using and handling any cutting tool products and cutting tool materials, be sure to read this guideline so they are used correctly.
Also, as part of your safety education,please make sure to familiarize all of your actual operators with the contents of this guideline.
2 Basis Information for Cutting Tool Materials
2-1 Technical Terms
Cutting Tool Material: Terminology for cutting tool materials,such as Cemented Carbide, Coated Carbide,Cermet, Coated Cermet,Ceramics, CBN and PCD.
Carbide Material: Cement Carbide with WC(Tungsten Carbide) as the main component.
2-2 Physical Properties
Apprearance: Depends on materials(e.g. Grey,Black,Gold,ect.)
Smell:None
Hardness:Carbide/Cermet 5~30GPaHV, Ceramic 10-40 GPaHV
CBN 20~50GPaHV,PCD 80~120 GPaHV
Sp.Gr.:Carbide 9~16, Cermet 5~9, Ceramic 2~7,CBN/PCD 3~5
2-3 Composition
Carbide, Nitride,Carbon-nitride and Oxide with W,Ti, Al, Si, Ta,B, ect. and additionally,metal such as Co, Ni, Cr,Mo are included in some cutting material.
Precaution for using cutting tool
1.General Cutting Tools
Precaution for using cutting tools
Precariousness: Direct touch to a sharp cutting edge may cause injury.
Countermeasures: When you set up tools to the machine or take tools out of the case, please wear protective gloves.
Precariousness: Misuse or inappropriate working conditions may cause tool breakage or dispersion of broken pieces.
Countermeasures:Please use safety item, such as safety glasses and protective gloves
Please use in the range of our recommended cutting condition. See our catalog or instruction manuals.
Precariousness: Excessive impact or heavy wear will increase cutting resistance and may cause tool breakage and dispersion of broken pieces.
Countermeasures: Please use safety item, such as safety glasses and protective gloves
Early exchanging tools is preferable.
Precariousness: Dispersion of heated or prolonged chips may cause injury or burn.
Countermeasures: Please use safety item, such as safety glasses and protective gloves
For chips removal, please stop the machine beforehand and use safety items, such as safety glasses and protectives gloves.
Precariousness: Tools and materials reach high temperatures during cutting operation. Direct touch to the tools and materials shortly after cutting may cause burn.
Countermeasures:Please use safety item, such as safety glasses and protective gloves
Precariousness: Sparks, generation of heat or chips in high temperature during operation may cause file.
Countermeasures: Please do not operate around Hazardous zone, in which there is some possibility of fire or explosion.
In case of using oil-coolant, please make sure there is sufficient fire-protection equipment.
Precariousness: Lack of dynamic balance during high-speed revolutions leads to vibrations which can make the tool break.
Countermeasures: Please use safety item, such as safety glasses and protective gloves
Please conduct test-operation before cutting, and confirm that there is no vibration or unusual sound.
Precariousness: Direct touch to the burs which were generated on the rough surface of the workpiece may cause injury.
Countermeasures: Do not touch the workpiece with bare hand.
2.Indexable Cutting Tools
Precariousness: If the insert or other tool parts are not installed properly, they can fall down or break which may cause injuries.
Countermeasures: Please clean up insert pockets or clamping parts before setting insert.
Please set up inserts with supplied wrench only, and confirm that the inserts or parts are clamped completely. Never use inserts or parts other than those prescribed.
Precariousness: If inserts are clamped too tightly by supplementary tools like pipe etc. inserts or body may break.
Countermeasures: Do not use aids such as pipes. Please set up using supplied wrench only.
Precariousness: When tools are used in high-speed revolution, inserts or parts may burst out of the body due to centrifugal force. When handling, please pay special handling to safety.
Countermeasures: Please use in the range of our recommended cutting condition. Accuracy and balance of machine spindle should be checked and adjusted regularly to prevent wear of the bearing due to eccentric rotation.
3.Milling Cutters and other Cutting Tools
Precariousness: Since milling cutter have sharp edged, direct contact with bare hands may cause injury
Countermeasures: Please use safety item, such as safety glasses and protective gloves
Precariousness: If a cutter lack balance, the tool can start to vibrate. The dispersion of broken piece can cause injuries.
Countermeasures: Please use in the range of our recommended cutting condition.
Accuracy and balance of machine spindle should be checked and adjusted regularly to prevent wear of the bearing due to eccentric rotation.
4.Drilling
Precariousness: When drilling a through-bore, it is possible that a disc is created during the drilling procedure that can fly out of the workpiece at a high speed.
This is very dangerous since the disc has sharp edges.
Countermeasures: Please use safety items, such as safety glasses and protective gloves. Also attach a cover on a chuck part.
5.Brazed Tools
Precariousness: Dispersion of falling down of broken inserts may cause injury.
Countermeasures:Please Check that the cutting inserts are brazed firmly before use.
Please do not use brazed tools in the condition that requires high cutting temperature.
6.Others
Precariousness: If Brazing is carried out many times, the strength of carbide insert is deteriorated and can break easily during cutting
Countermeasures: Please do not use tools that have brazed several times. The quality of the tool deteriorates.
Precariousness: The tools can only be used for the appropriate application. It may damage tools and machines.
Countermeasures: Please follow our recommended usage for the tools.
6.MZG End Mill Application

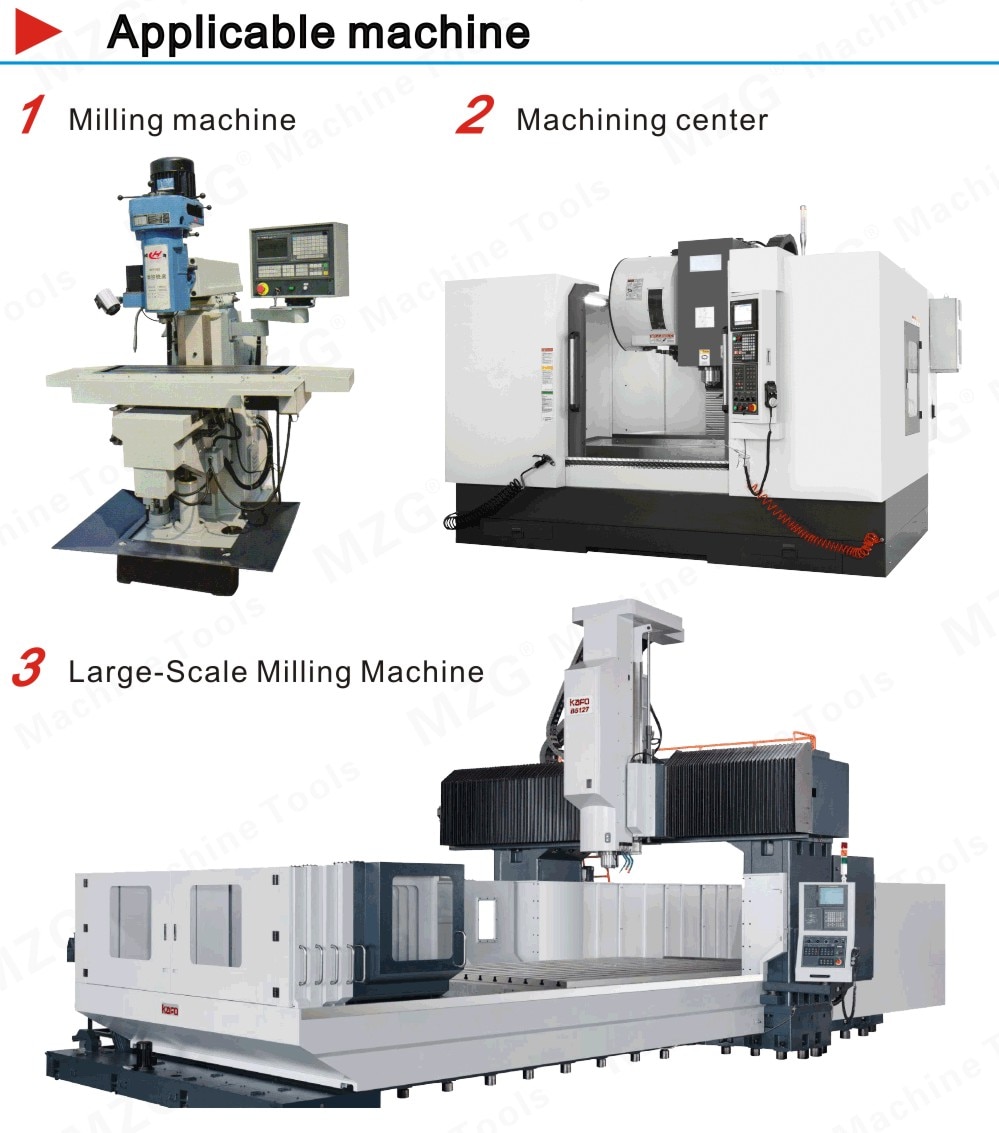

Application Machine:
Milling machine
Milling Center
Large-scale Milling machine

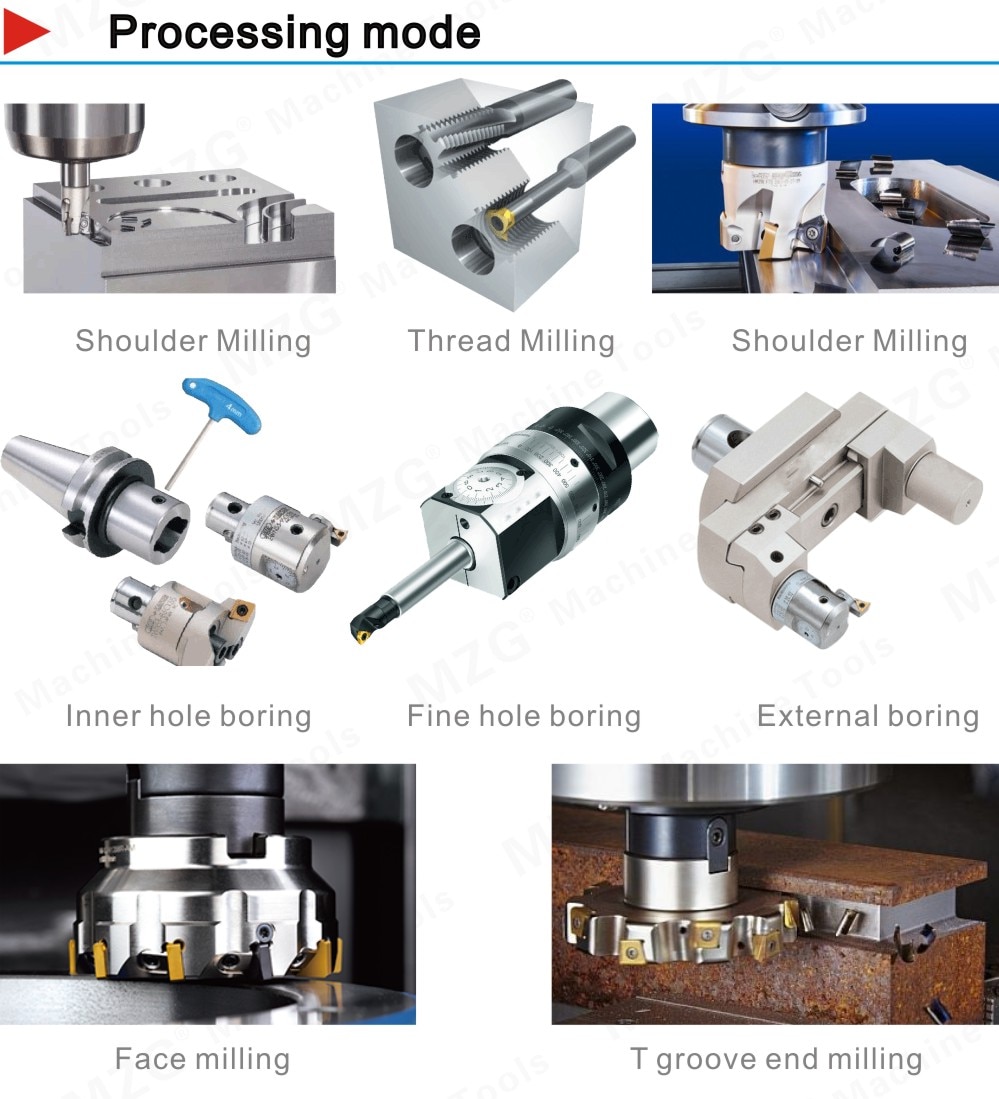

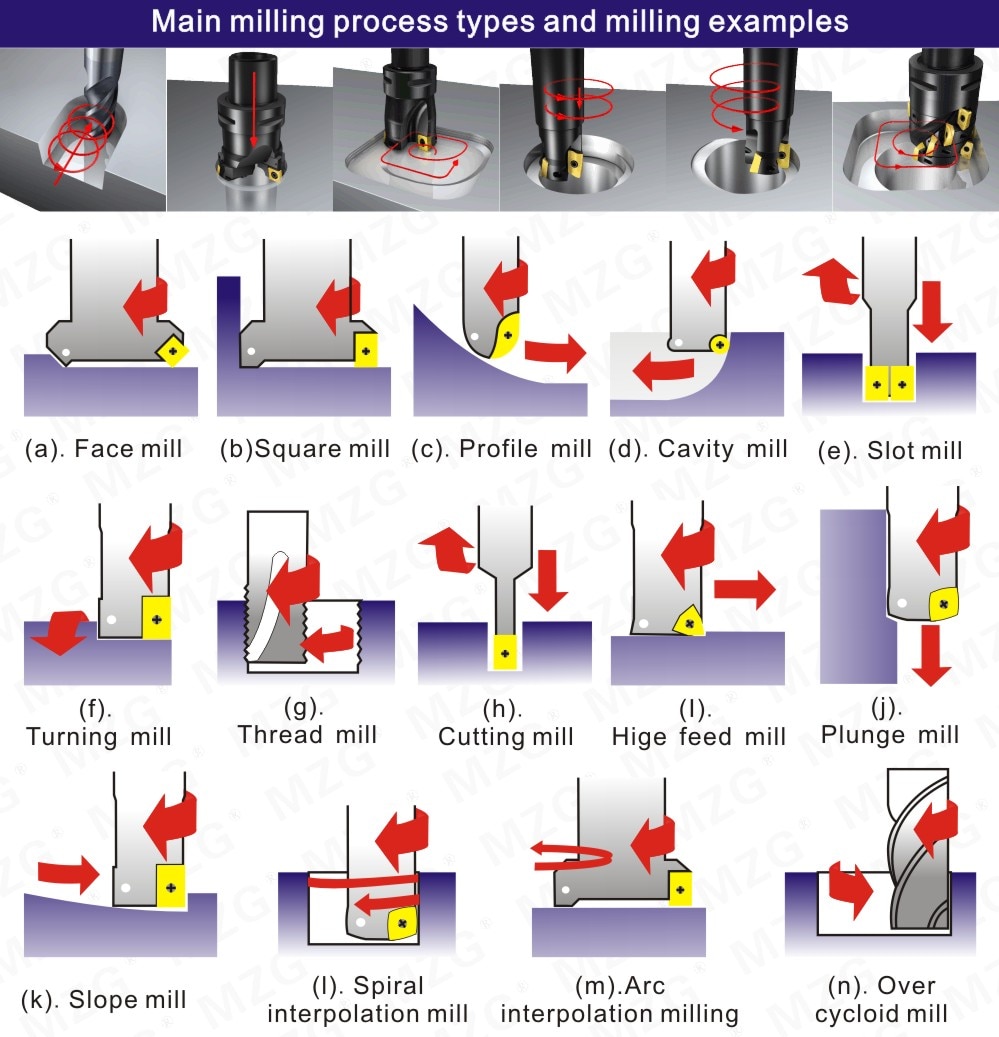

Processing mode and Finished product samples
Shoulder Milling
Thread Milling
Inner Hole Boring
Fine Hole Boring
External Boring
Face Milling
T Groove End Milling
- Overall Length: 75mm 100mm
- Coating: AlTiN
- Diameter: 2mm 4mm 8mm 10mm 12mm
- Model Number: 2F50C
- Type: End Mill
- Material: Carbide
- Brand Name: MZG
- Origin: Mainland China
- Certification: NONE
