Mobile Signal Booster Band 5/3/1 2G 3G 4G Cellular Repeater GSM LTE 850/1800/2100 MHz 70dB 850 WCDMA Mobile Amplifier for Voice
0.0 ( votes)
Price:
US $506.98
/ Set
Discount Price:
US $
430.93
/ Set
-15%
2G 3G 4G Triple band Cell Phone Signal Booster 70dB 850 LTE Repeater gsm 1800 WCDMA 2100mhz Mobile Cellular Repeater Antenna Set
Note:

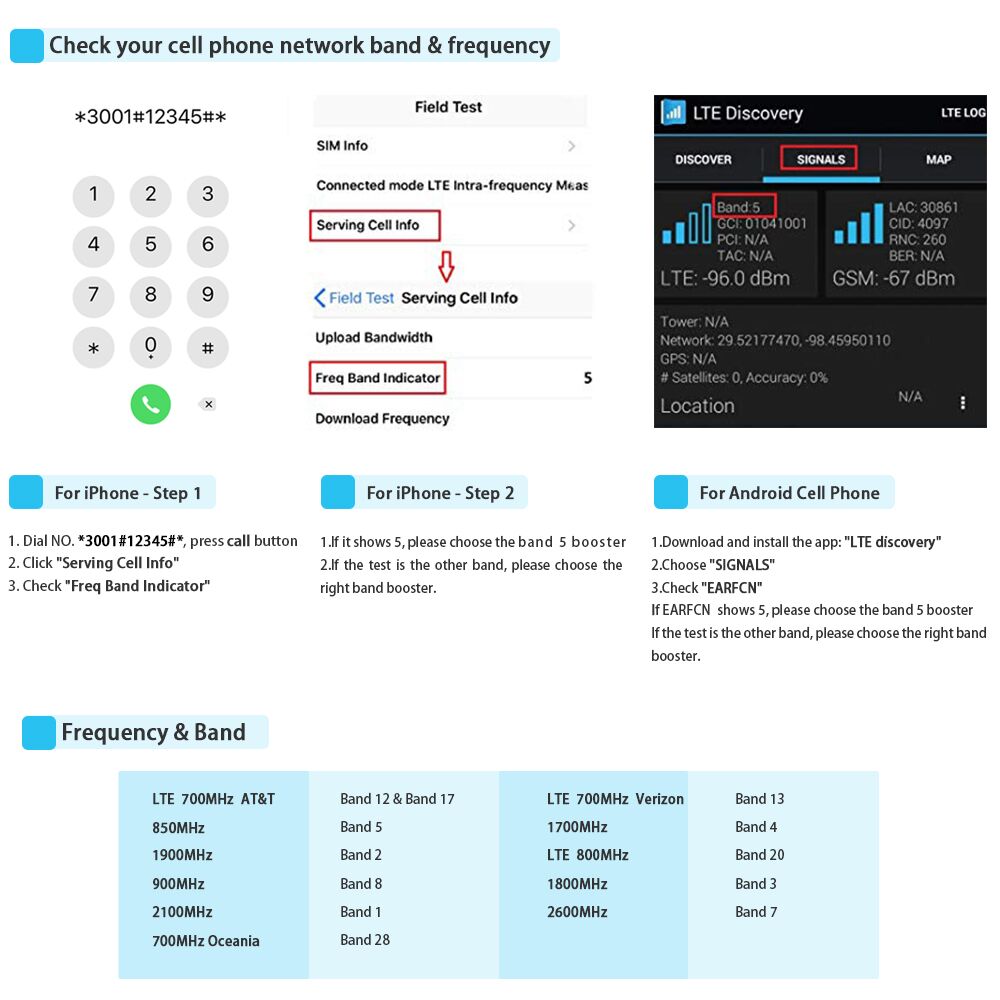

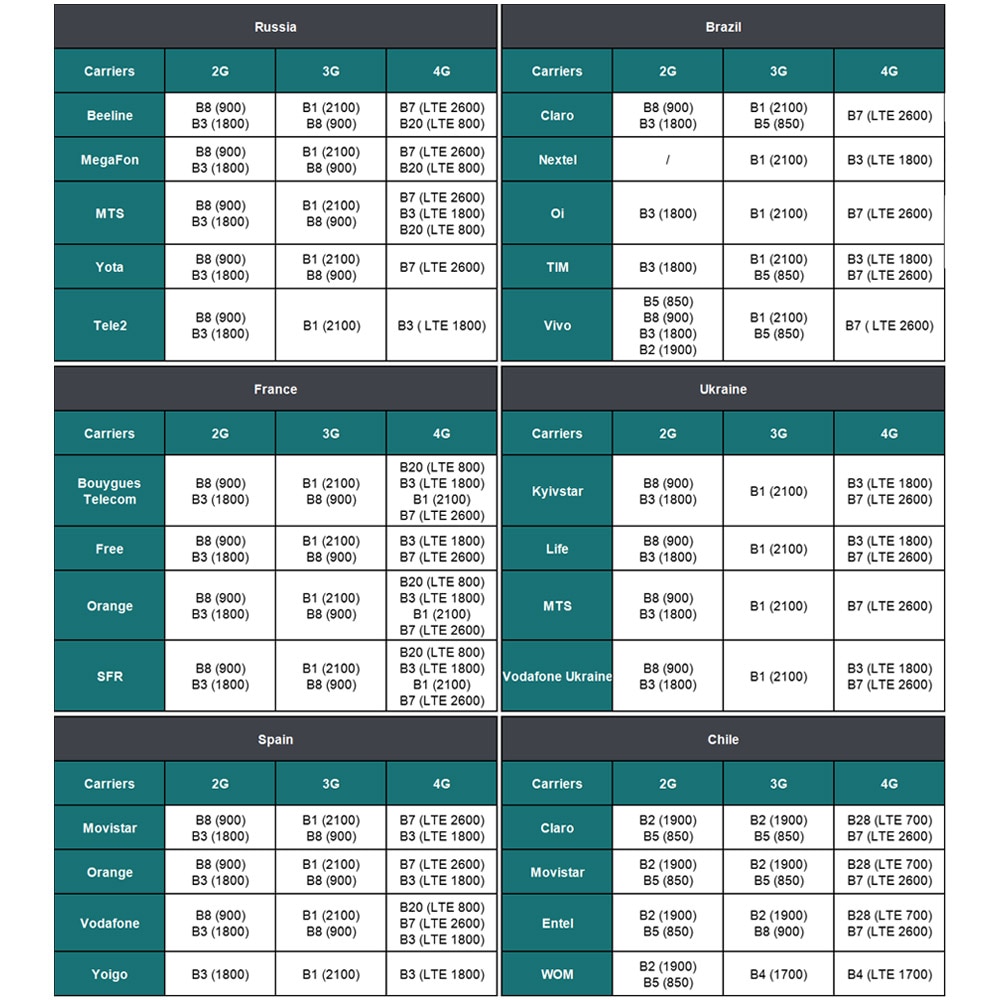

1. This booster works for 850/1800/2100MHz. 0-1 bar outside signal may not be suitable for using it.Before ordering,please check your local signal frequency.

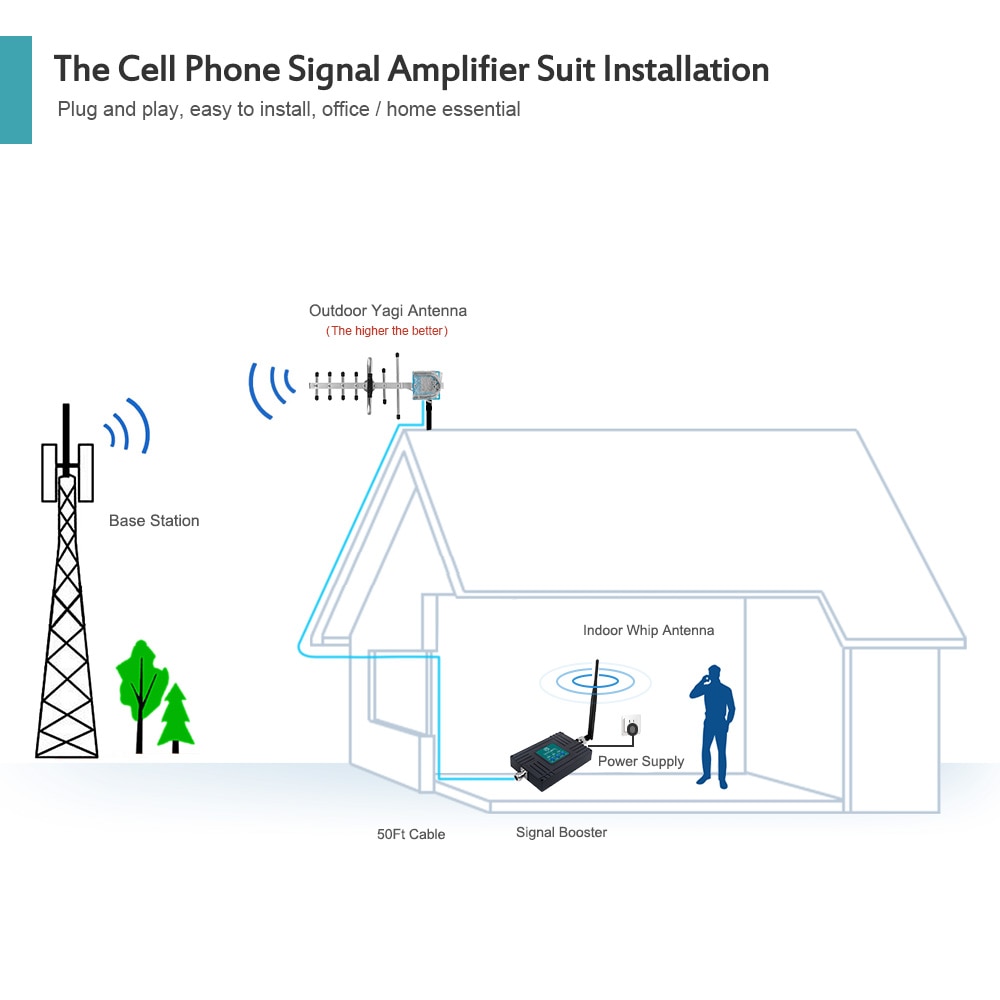

2. For installation, you are supposed to pay attention to the following.
3. There is seperate wall between indoor and outdoor antennas to make two antenna signal not interfere with each other.
4. To avoid interference, please make the distance of indoor and outdoor antenna more than 10 meters, let them not pointed at each other.
Guarantee:
1. Three Months Free Replacement
2. 3 Years Manufacturer Warranty
3. Fast Handle time & Free Shipping
4. Support Wholesales,More Units More Discount
Benefited:

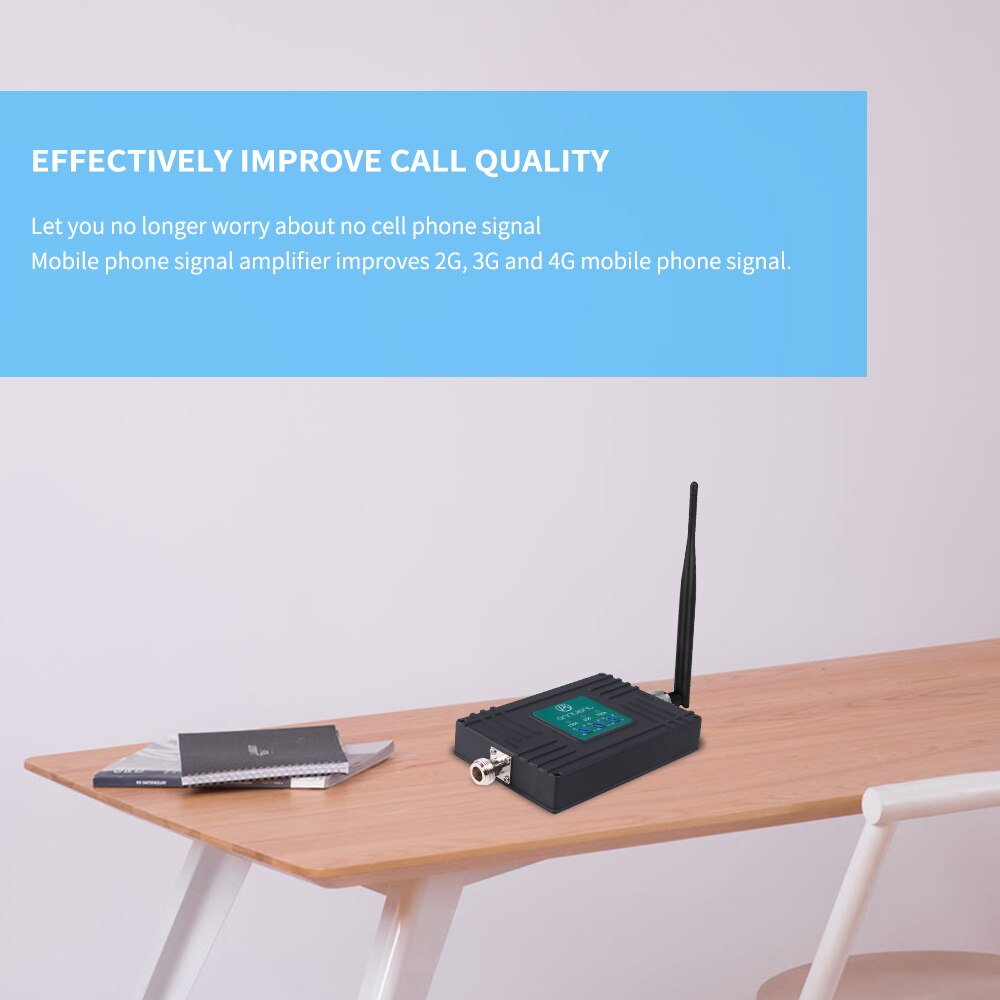

1. Significantly improves voice and data quality
2. Greatly reduces disconnects and drops call
3. Works wirelessly with multiple cell phones and data cards simultaneously
4. Receives and transmits better than your cell phone
5. Extends cell phone battery life
6. Easy to install and operation
| 850/1800/2100MHz | ||||||
| Model:AN-CDW70PLUS | ||||||
| Specification: | ||||||
| Electrical specification | Uplink | Downlink | ||||
| Frequency Range | Cellular (Band 5) | 824~849 MHz | 869~894 MHz | |||
| DCS(Band 3) | 1710～1785 MHz | 1805～1880 MHz | ||||
| WCDMA(Band 1) | 1920 ~ 1980MHz | 2110 ~ 2170MHz | ||||
| Max .Gain | Cellular (Band 5) | ≤ 60dB | ≤ 65dB | |||
| DCS(Band 3) | ≤ 70dB | ≤ 70dB | ||||
| WCDMA(Band 1) | ≤ 70dB | ≤ 70dB | ||||
| Max. Output power | ≤20dBm | ≤10dBm | ||||
| Gain Flatness | ≤10dB(P-P) @Band 1,8 ; ≤15dB(P-P) @Band 3 | |||||
| MGC (Step Attenuation) | ≧20dB / 1dB step | |||||
| Automatic Level Control | ≧20dB | |||||
| Automatic shut down | When self-oscillation happen or attenuation value reaches 20dB, power supply is shut down | |||||
| Spurious Emission | 9KHz~1GHz | ≦-36dBm @ 3KHz | ||||
| 1GHz~12.75GHz | ≦-30dBm @ 3KHz | |||||
| Noise Figure | ≦8dB | |||||
| VSWR | ≦1.8 | |||||
| Group Delay | ≦1.5μs | |||||

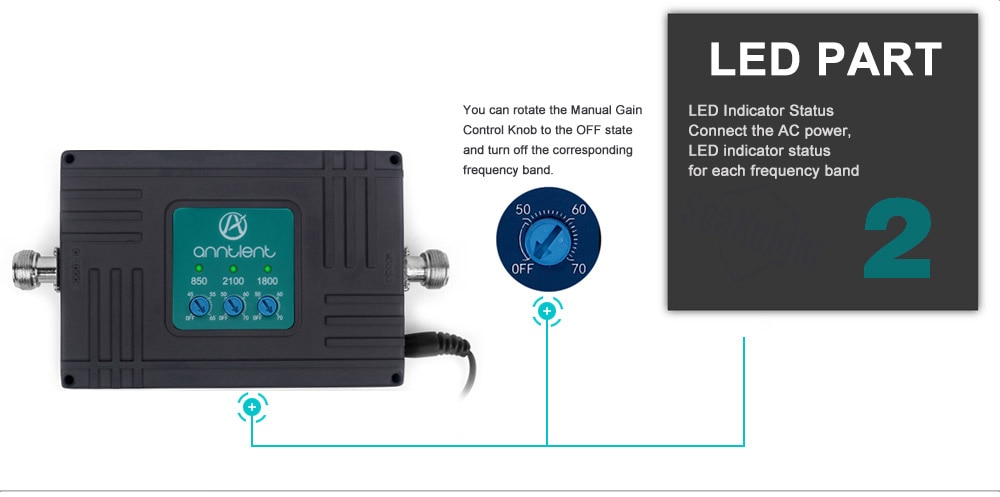

| LED Indicator | Standard | |||||
| LED Indicator | Continuous GREEN @normal; | |||||
| Twinkly GREEN @input signals may be not enough. | ||||||
| Continuous YELLOW @ stronger input signals, AGC is working; | ||||||
| Twinkly YELLOW@ self-oscillation happen ,AGC is working,the attenuation value is more than 12dB . | ||||||
| Continuous RED@ power supply is shut down. | ||||||
| Mechanical Specifications | Standard | |||||
| I /O Port | N-Female | |||||
| Impedance | 50ohm | |||||
| Operating Temperature | -25ºC~+55ºC | |||||
| Environment Conditions | IP40 | |||||

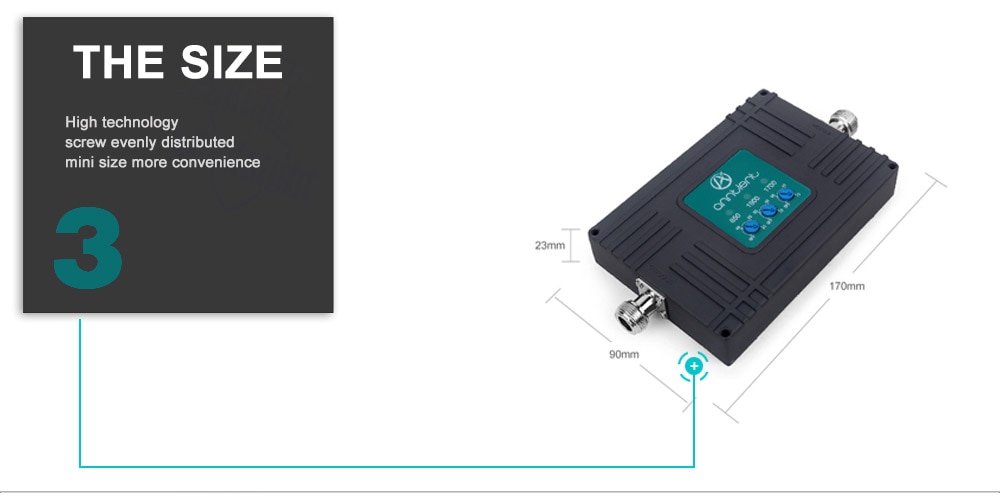

| Dimensions | 170mm*90mm*23mm | |||||
| Weight | 0.56Kg | |||||
| Power Supply | Input AC100~240V 50/60Hz,output DC 5V 2A | |||||
| Consumed Power | 3.6W | |||||
- Model Number: Mobile Signal Booster-AN-CDW70PLUS-AYW-K1
- Condition: New
- Compatible Network: Optus, Telstra, Vodafone;TIM; Orange; Free Mobile; Telekom; O2
- Connectivity: Wireless Repeater/Multi-User
- Remote Antenna: Indoor/Outdoor
- Frequency: 850/1800/2100MHz
- Booster Color: Black
- Gain: 70dB
- Booster I/O Port: N-female
- Band: Band 5/3/1
- Type: 2G 3G 4G LTE
