Mini Spot Welding Machine For 18650 Battery Spot Welder 20 Gears Adjustable Spot Welding Machine with Charge-pal OLED Display

5.0 (1 votes) | 5 orders
Price: US $180.49 - 272.76 / piece
Discount Price:
US $ 119.45 - 162.00 / piece
-34%
Ships From
Color
Quantity




10600mAh Battery-2

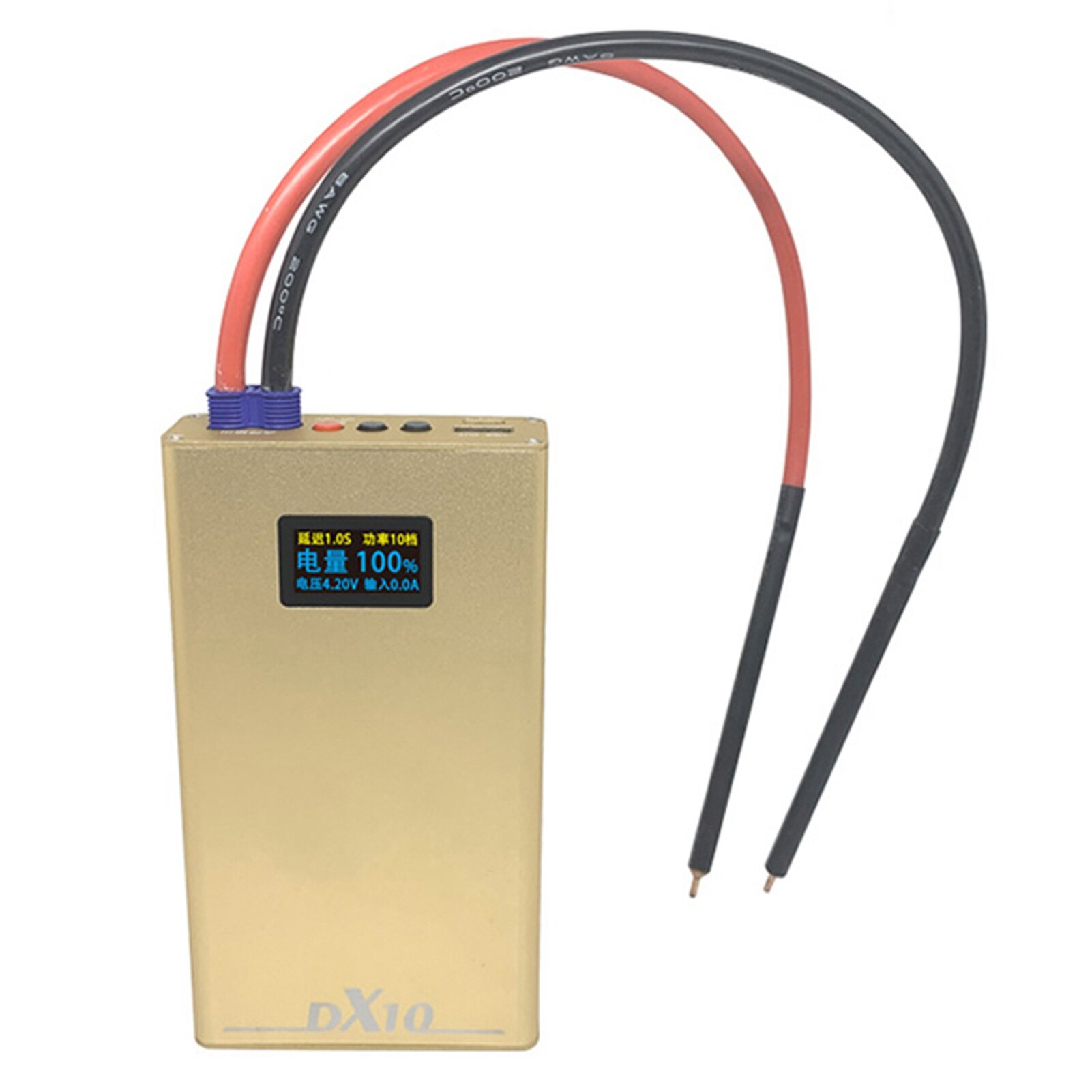

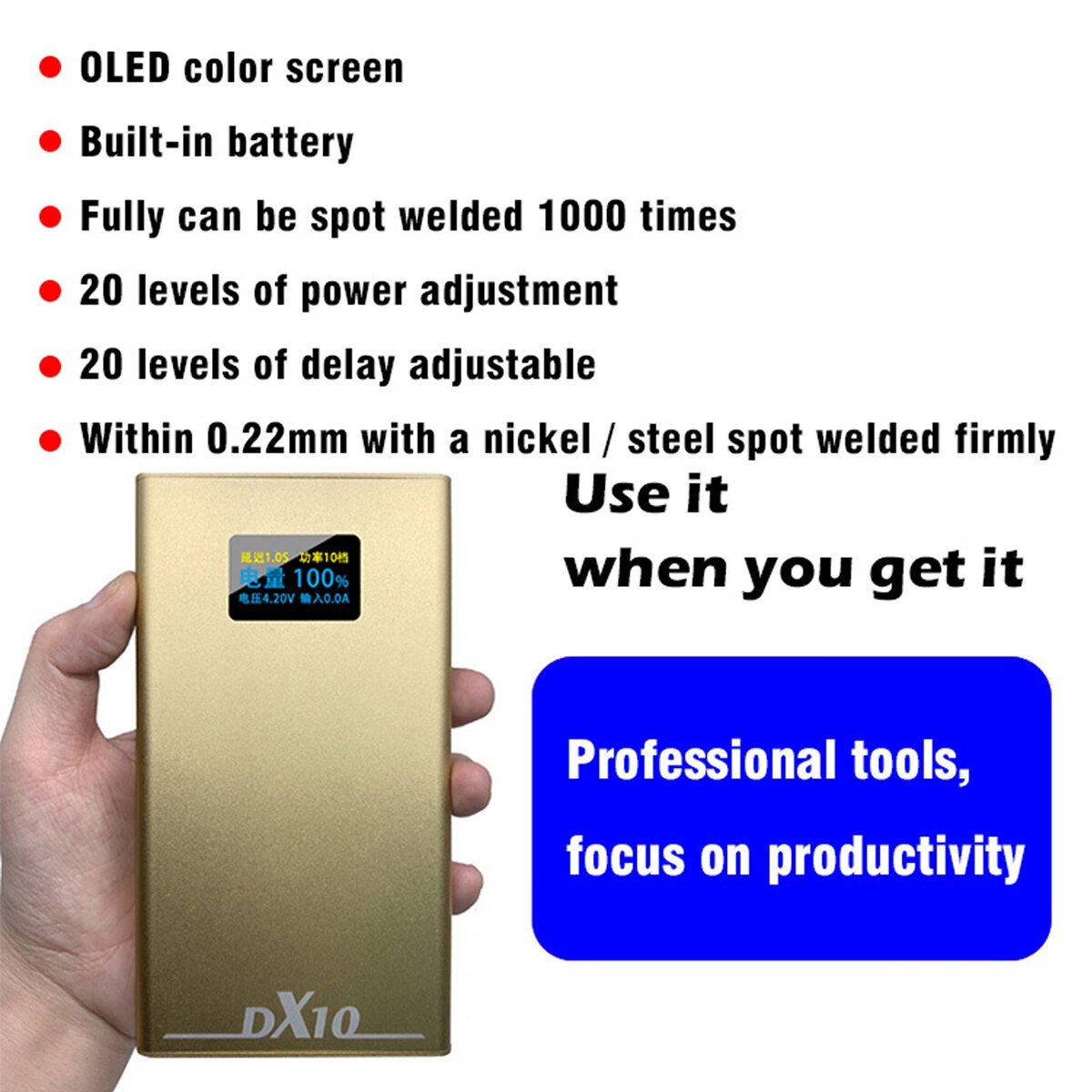

Made of hard aluminum alloy material, with 2 pieces of 5300mAh battery, this 10600mAh spot welding machine can be used more than 1000 times after full charged, featuring 20 gears of delay time adjustment, 20 gears of adjustable power, memory function and 5-minute automatic power off function. With the OLED color screen, you can see the delay time, power gear, remaining electric quantity, battery voltage and charging input current.


Features:

Compact size and light weight, the spot welding machine is portable to carry and store.

The housing is made of hard aluminum alloy material, with fine workmanship, featuring wear resistance and long service life.

Built-in 6*300A high-power MOS tube on both sides, the theoretical maximum can withstand 1800A peak current, large margin & low failure rate.

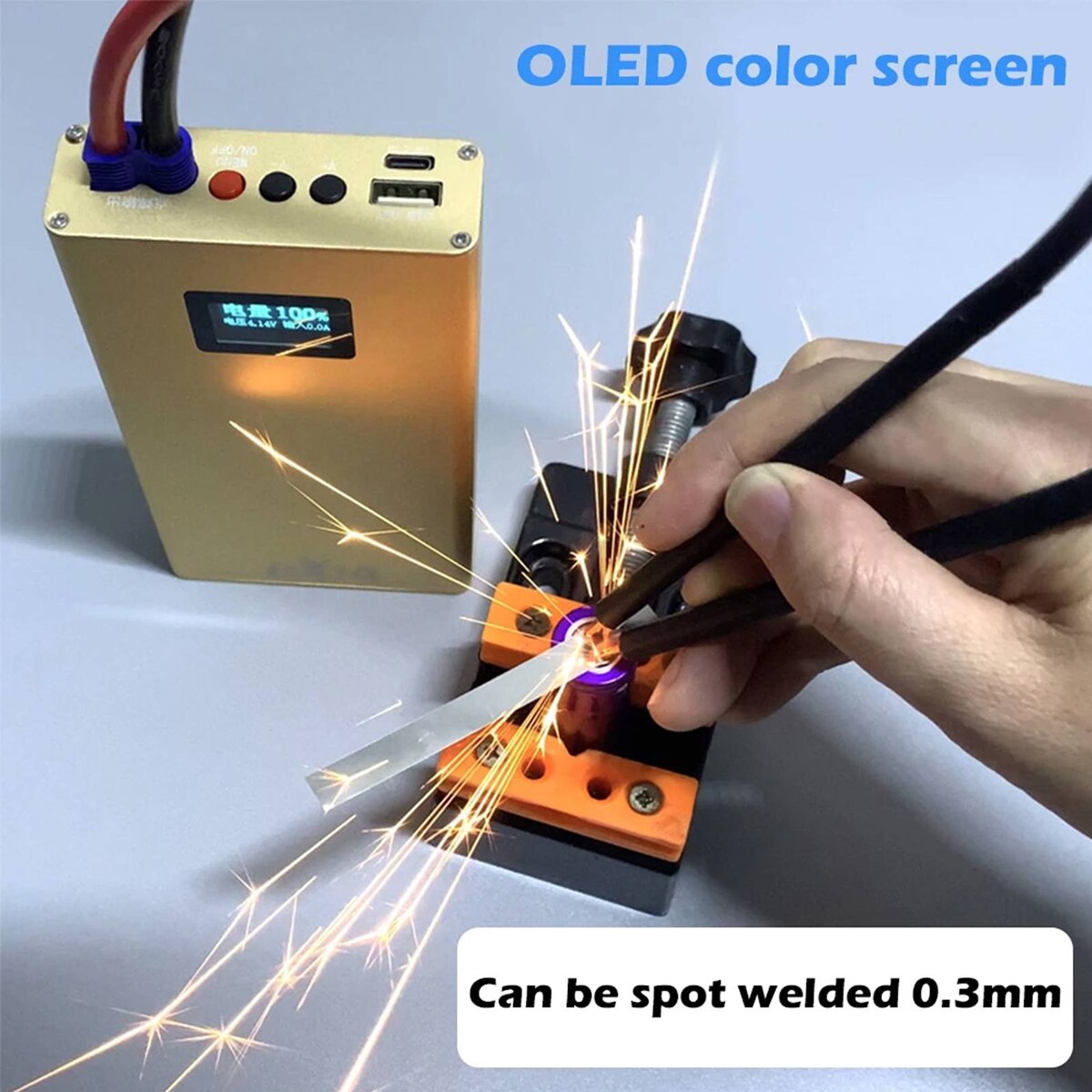

The OLED color screen displays delay time, power gear, remaining electric quantity, battery voltage and charging input current.

Each welding pen is consist of 8awg 300mm cable and 6mm diameter solid aluminum oxide copper penhead, low resistance & fine electrical conductivity & support large current.

It is recommended to use 0.1~0.15mm nickel strip or nickel-plated steel strip for spot welding, with good effect and high strength.

The product will automatically power off to save power if it is not used for 5 minutes.


20-Gear Delay Time Adjustment:

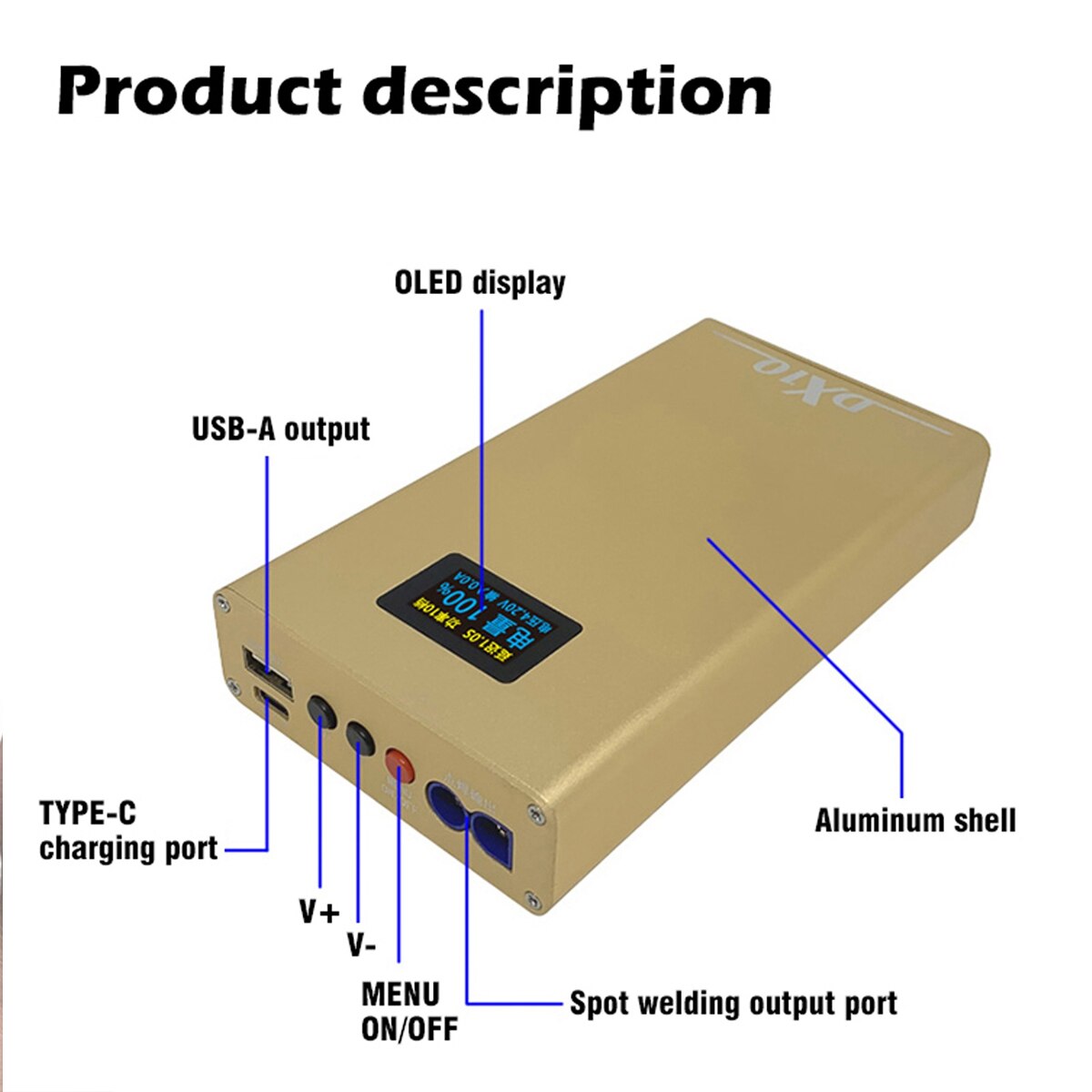

The range is 0.5 seconds to 2.5 seconds. In the power-on state, press MENU (red button) until the delay number is highlighted, and then press V+/V- (black button) to adjust the delay time. It determines the delay time when the soldering pen automatically welds the metal.


20-Gear Power Adjustment:

The range is 1-20. In the power-on state, press MENU (red button) until the power number is highlighted, and then press V+/V- (black button) to adjust the power range. The larger the number, the higher the spot welding power.


Specifications:

Material: Aluminium

Color: Gold

Battery Capacity: 10600mAh

Internal Resistance of Battery: 0.5 milliohm

Spot Welding Current: 600A~800A

Suitable Thickness: 0~0.3mm

Item Size: Approx. 148*82*27mm / 5.83*3.23*1.06in

Item Weight: Approx. 430g / 15.17oz

Package Size: Approx. 26*14*6cm / 10.24*5.51*2.36in

Package Weight: Approx. 600g / 21.16oz

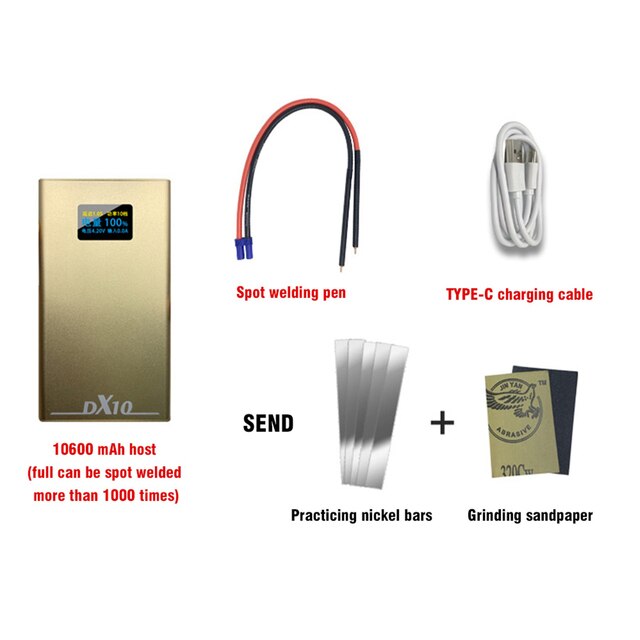

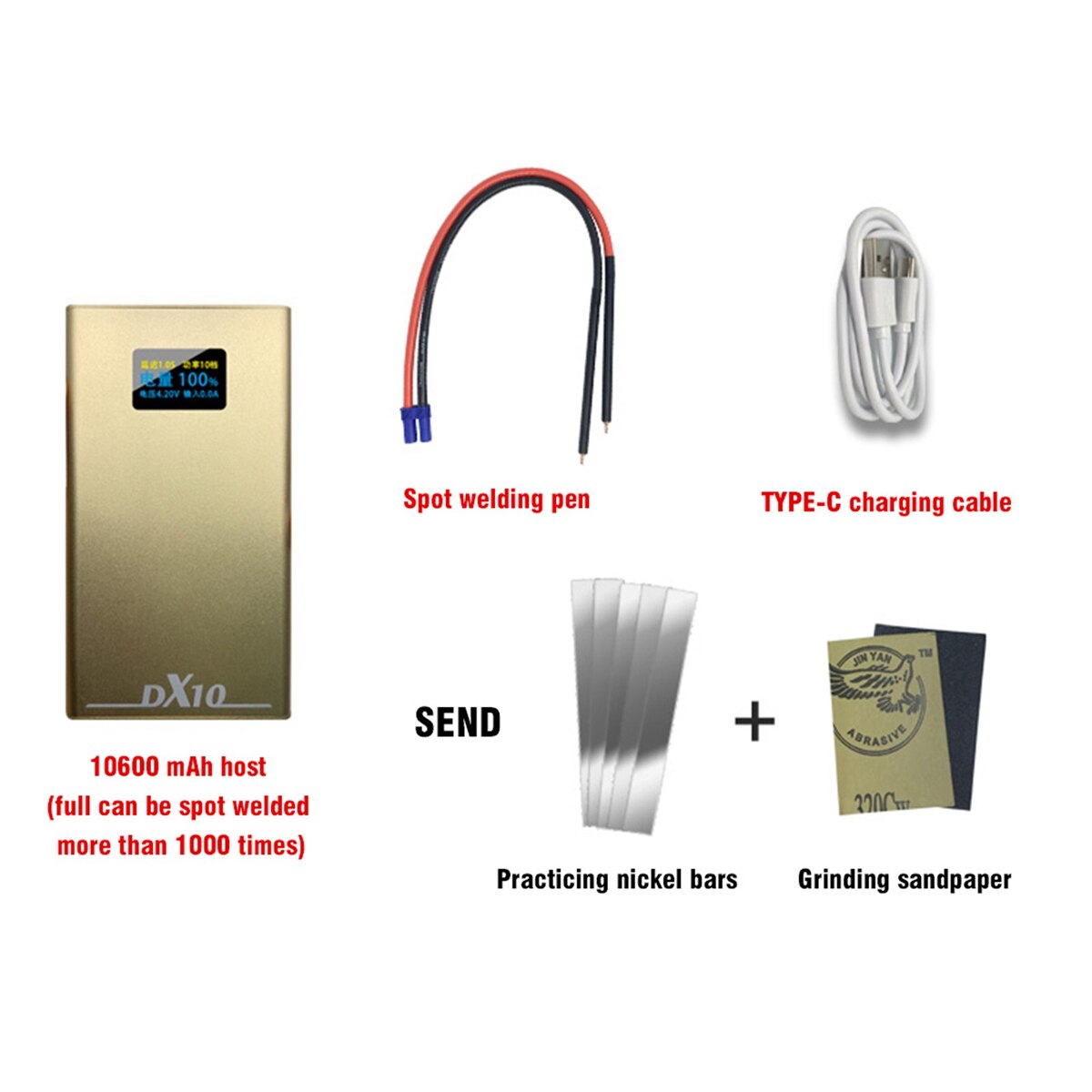

Packing List:

1 * Spot Welding Machine

1 * Pair of Welding Pen

1 * Nickel Strip

1 * Grinding Sandpaper

1 * Type-C USB Cable



Shipping:

1.We guarantee to ship goods out within 24-72 hour after payment confirmation except holiday.
2.We ship by China post,HKpost EMS,DHL,Fedex,according to your choice when placing orders .
3.If you didn't receive the item after 45 days,please feel free to contact us.We will make all our effort to resolve the problem.
4.We are not responsible for delays causedby the customs,Import duties,taxes or other customscharges.

Warranty:

1.All items have 1 year guarantee.IF your purchase do not meet merchantable quality, fitness for purpose or match the description, We can make sure your issues are resolved .
2.For wrongly-shipped items, Please contact us in 48 hours after delivery.We will arrange to deliver the correct items or return all your payment.
3.For defective or faulty products,please take photos or videos,we would resend or refund after confirmation.




  • Usage: Mini Spot Welding Machine For 18650 Battery Spot Welder
  • Rated Capacity: Mini Spot Welding Machine For 18650 Battery Spot Welder
  • Model Number: 10600mAh Battery Spot Welding Machine
  • Origin: Mainland China
  • Certification: NONE
  • Name: Mini Spot Welding Machine For 18650 Battery Spot Welder
