DZ47 1-4 Pole 3A/6A/10A/16A/20A/32A/40A/50A/63A 400V C Type Mini Circuit Breaker MCB 35mm Din Rail Mount Breaking Capacity 6KA
11.44 9.95 $
SALE
ID: 9959
Quantity
Mini Circuit breaker DPN DZ30-32 DZ30LE-32 1P+N 10A 16A 20A 25A 32A 220V 230V 50HZ 60HZ Breaker DIN RAIL RCB RCCB
5.0 (1 votes) | 1 orders
Price:
US $12.36 - 19.81
/ piece
Discount Price:
US $
10.76 -
16.34
/ piece
-13%

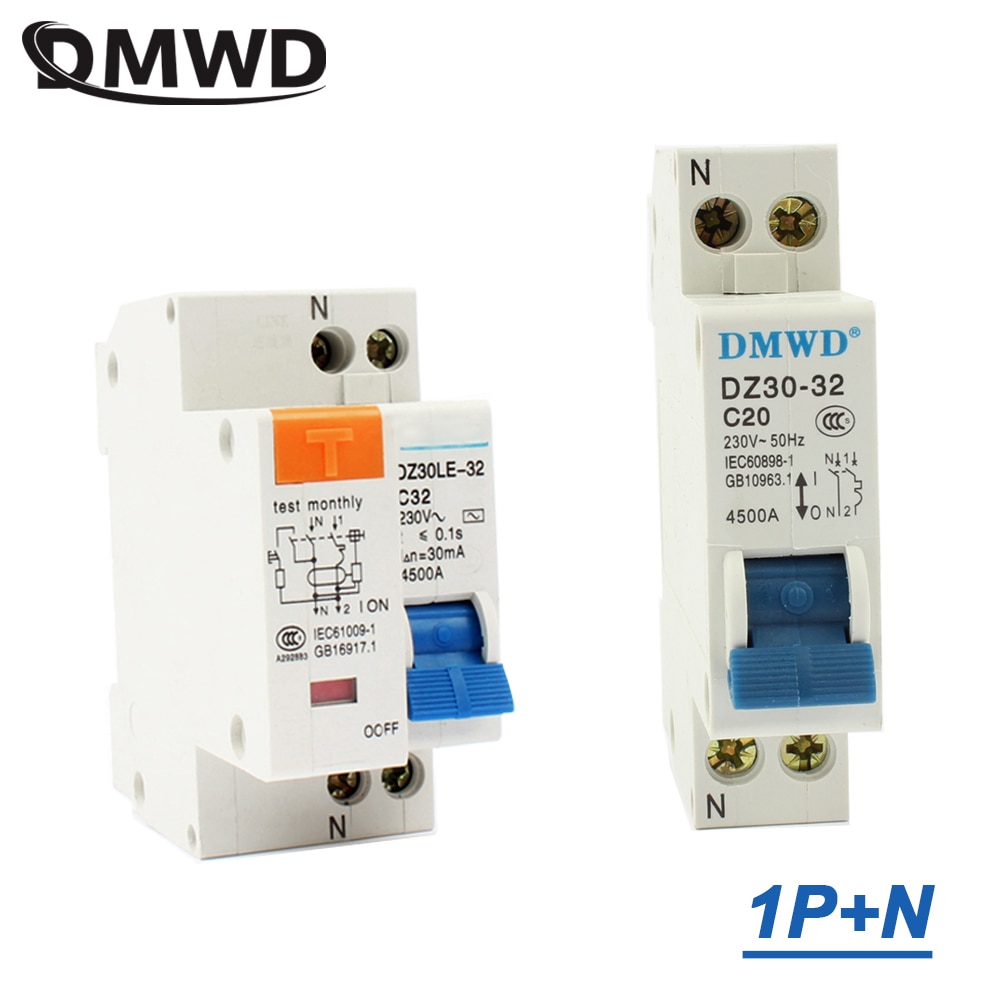

DPN DZ30-32 DZ30LE-32 1P+N 20A 220V 230V 50HZ/60HZ Residual Current Circuit Breaker
Specifications:
DZ30-32
1P+N with 1Poles size 18mm width
4.5KA Breaking Capacity
IEC60898 ,CE
OEM and CKD are welcome
DZ30LE-32
AC 50Hz/60Hz
rated voltage 230V
used as electron shock protection
It can protect circuit form overload and short circuit

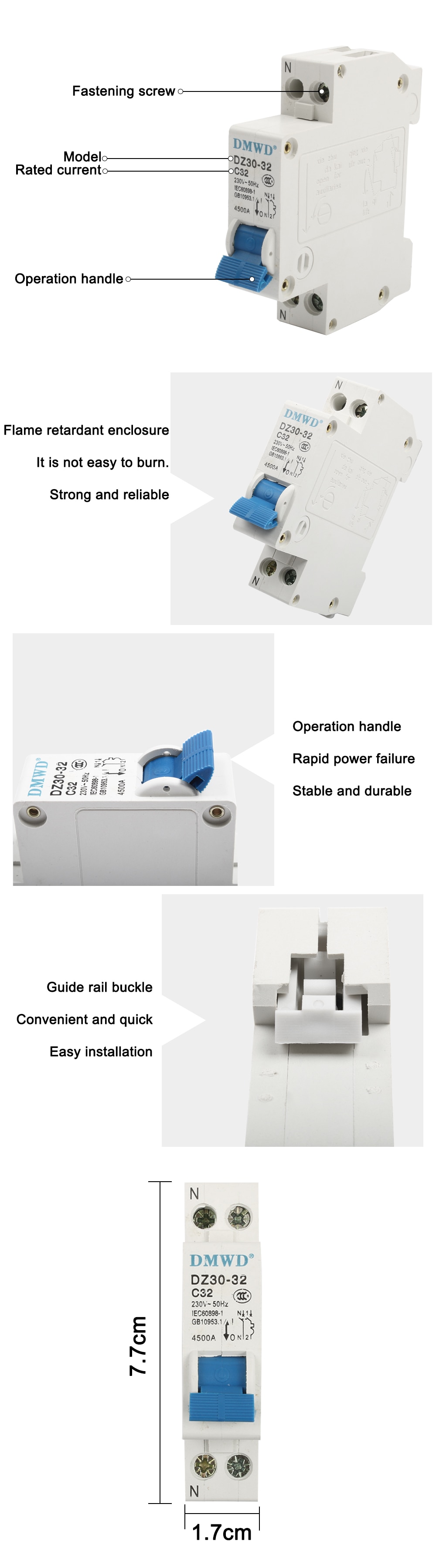

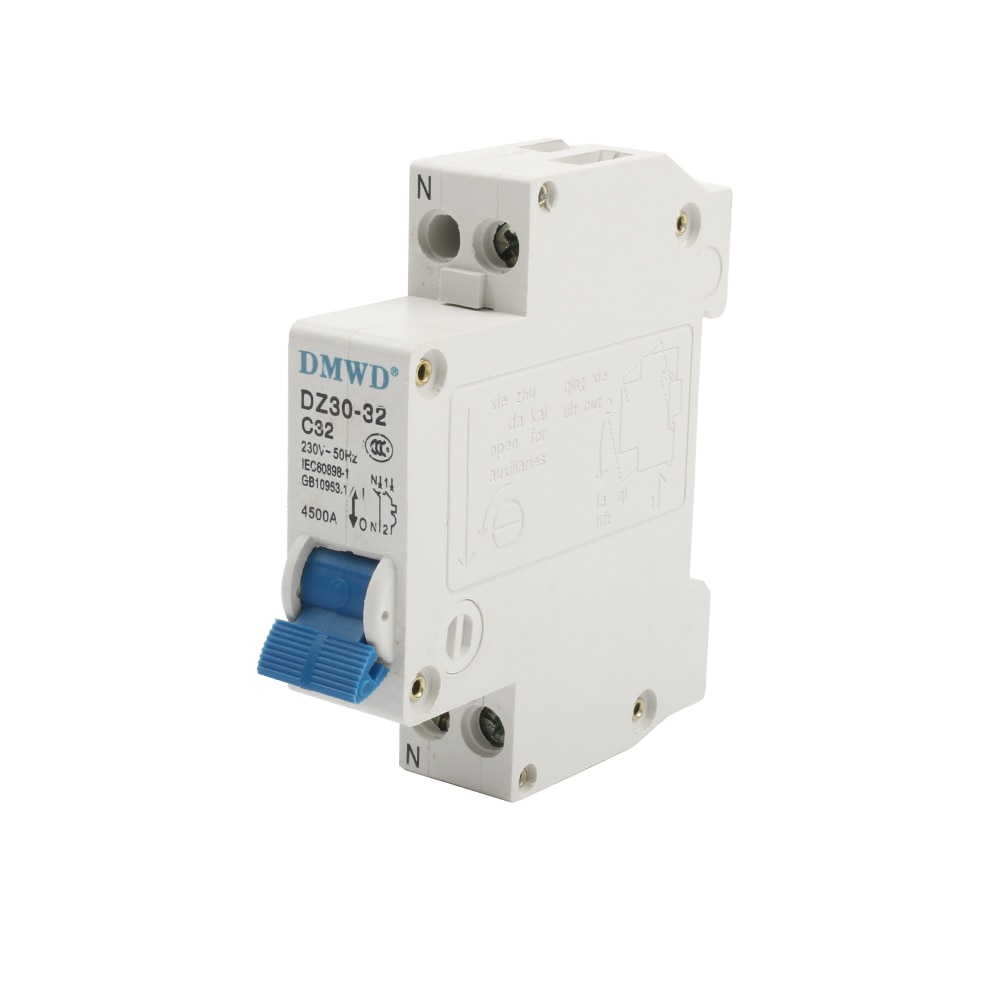

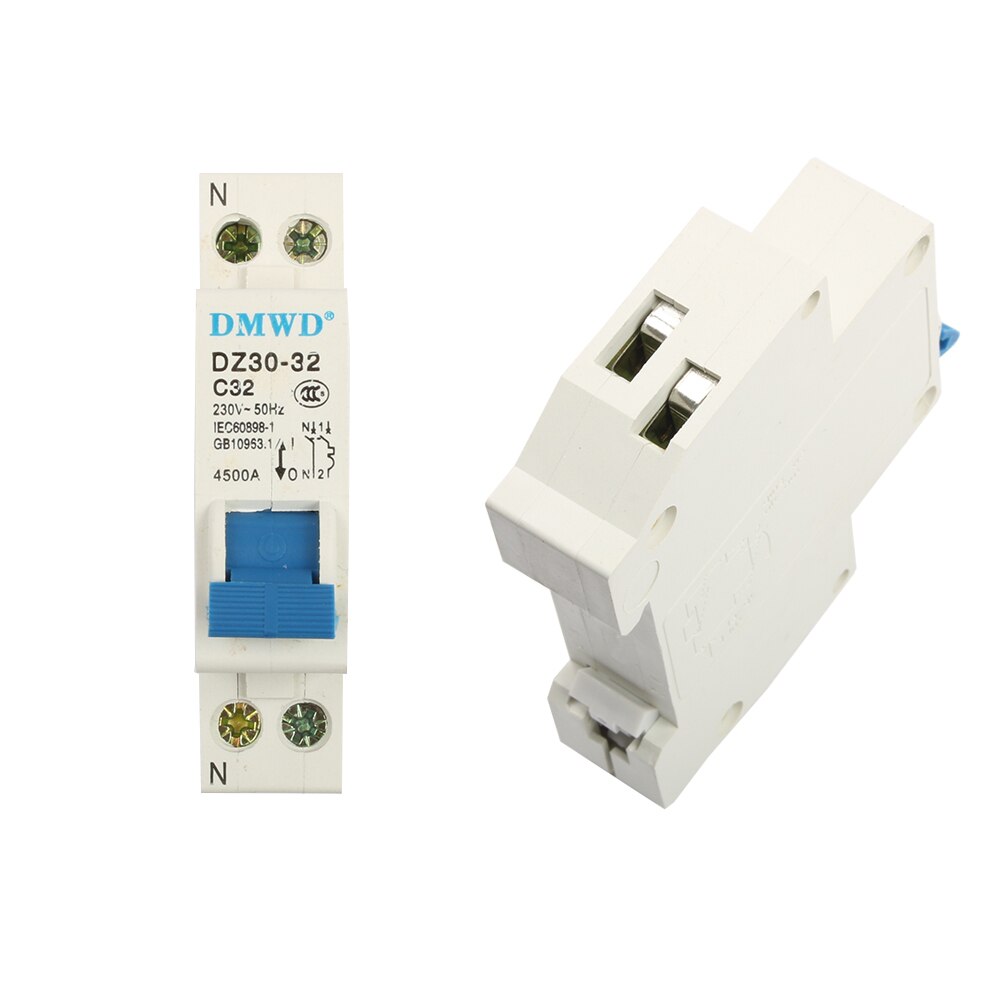

DZ30-32
DZ30 miniature circuit breaker is used in the single phase residual current of AC50/60Hz, rated voltage 220V or below for protecting electron circuit from overload and short circuitl This product has advantages of high breaking capacity, small volume, width is only 18mm. Zero and live wire are cut off at the same time, preventing the person and fire danger. It is the idealest distribution protective switch in the civil residence field at present. This product conforms to the requiremetn of IEC60898.

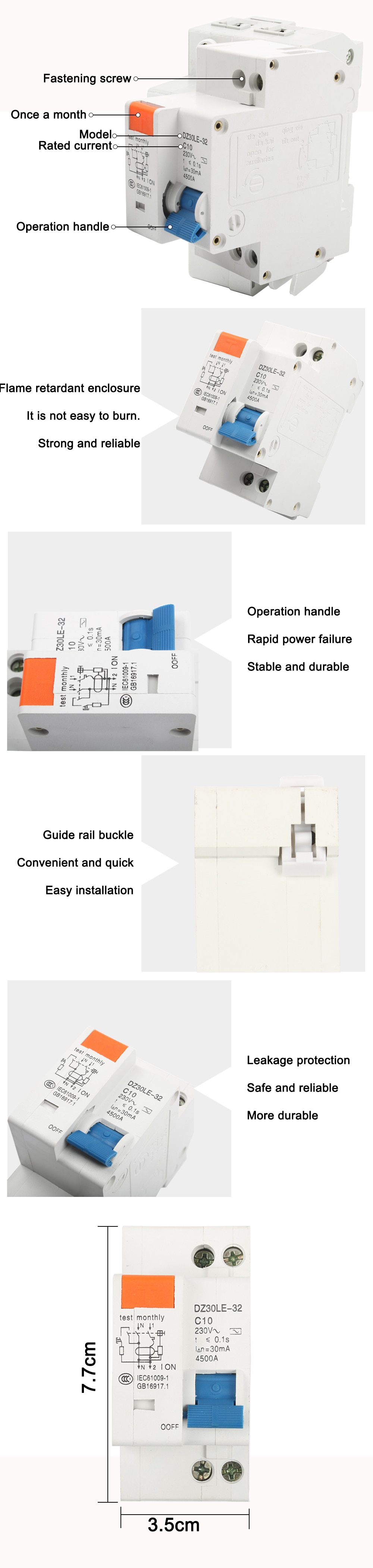

| DZ30LE-32 is used in the single phase circuit of AC 50Hz/60Hz, rated voltage 230V, used as electron shock protection. It can protect circuit form overload and short circuit. This product has advantages of small volume, high breaking capacity, live and zero wire are cut off at the same time, also protecting person from electric shock when the live wire connected opposite. It conforms with the standards of IEC61009. Main Technical Parameter
|
DZ30-32
| Rated current(A) | No.of pole | Rated voltage(V) | Rated curret of frame | Rated capacity of short circuit | Mechanical life |
| 6,10,16,20,25,32 | 1+N | 230 | 3000 | 0.65~0.70 | 20000 |
- is_customized: Yes
- Model Number: DZ30-32 DZ30LE-32 1P+N 20A DPN BREAKER
- Type: Residual Current
- Brand Name: DMWD
- Origin: Mainland China
- Certification: CE
