MINCO HEAT 10 to 100 Meters 12K Floor Warm Heating Cable 33ohm/m Carbon Fiber Heating Wires
4.9 (407 votes) | 1029 orders
Price:
US $25.74 - 73.46
/ piece
Discount Price:
US $
18.74 -
50.26
/ piece
-27%
MINCO HEAT 10 to 100 Meters 12K Floor Warm Heating Cable 33ohm/m Carbon Fiber Heating Wires
Product Details:
Product Name: Carbon fiber heating wire

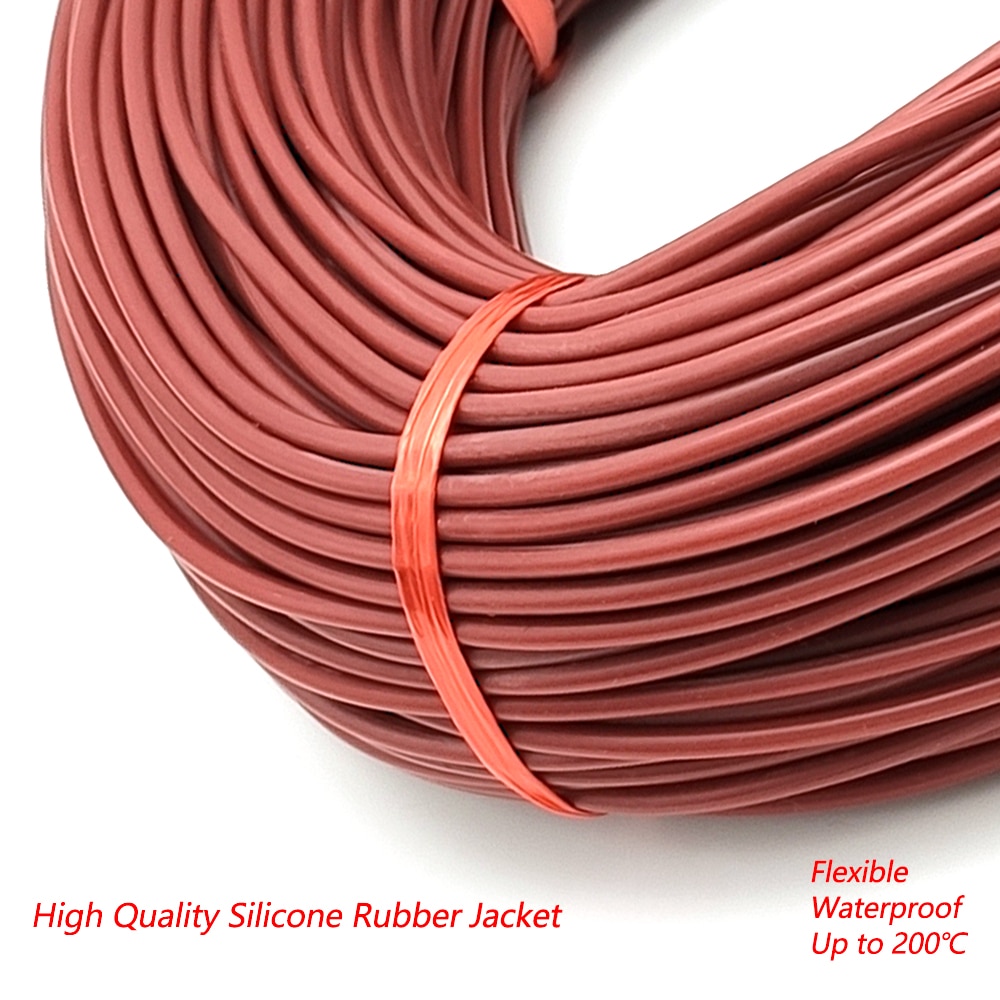

Insulating materials: Silicone rubber
Temperature: 200 degrees celsius limit
Heating conductor: 12K
High voltage test: 3000V
Leakage current: 0.05mA/m
The product can withstand the power of power: 25W/M
Diameter: 3±0.2 MM
Optional colors: Red and Yellow, please leave a message for the desired color
Infrared wavelength: 8UM-18UM
Conductor resistance: 33±10%Ω / M
Length: (custom, not less than 10 meters)

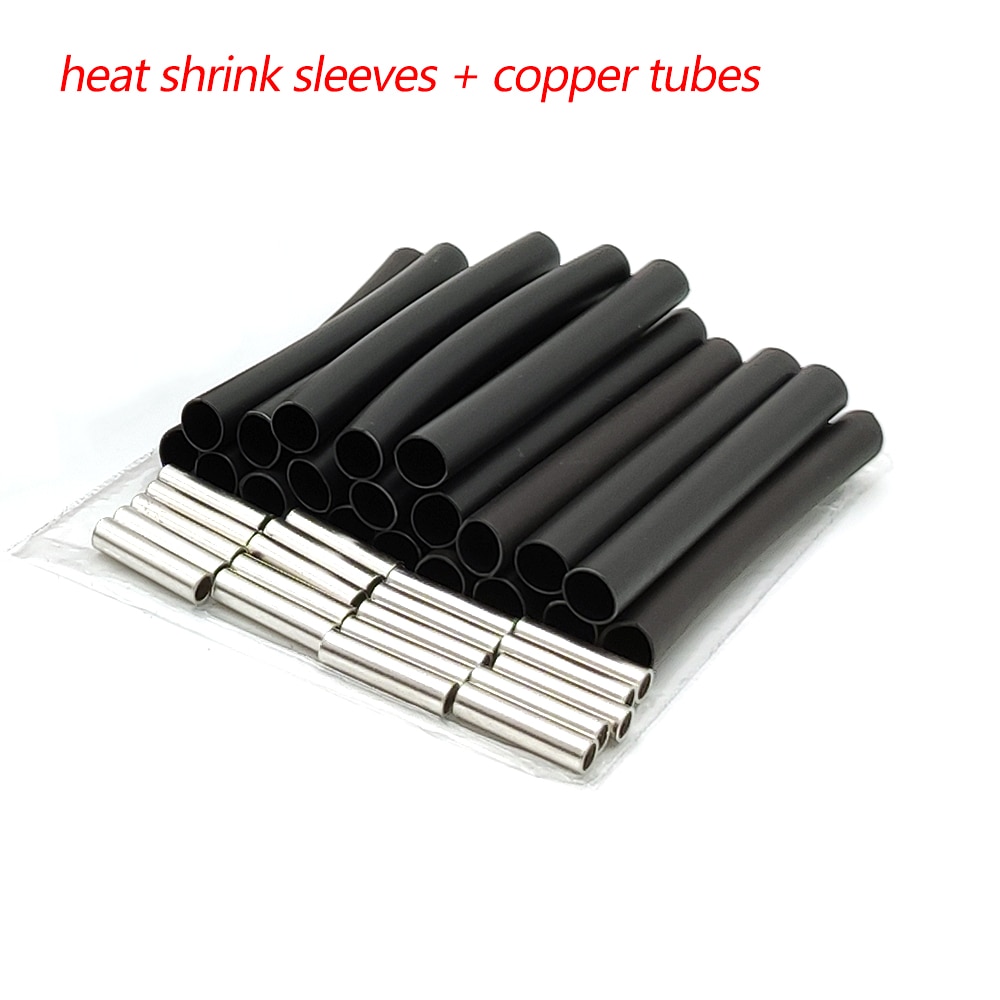

Package Includes:

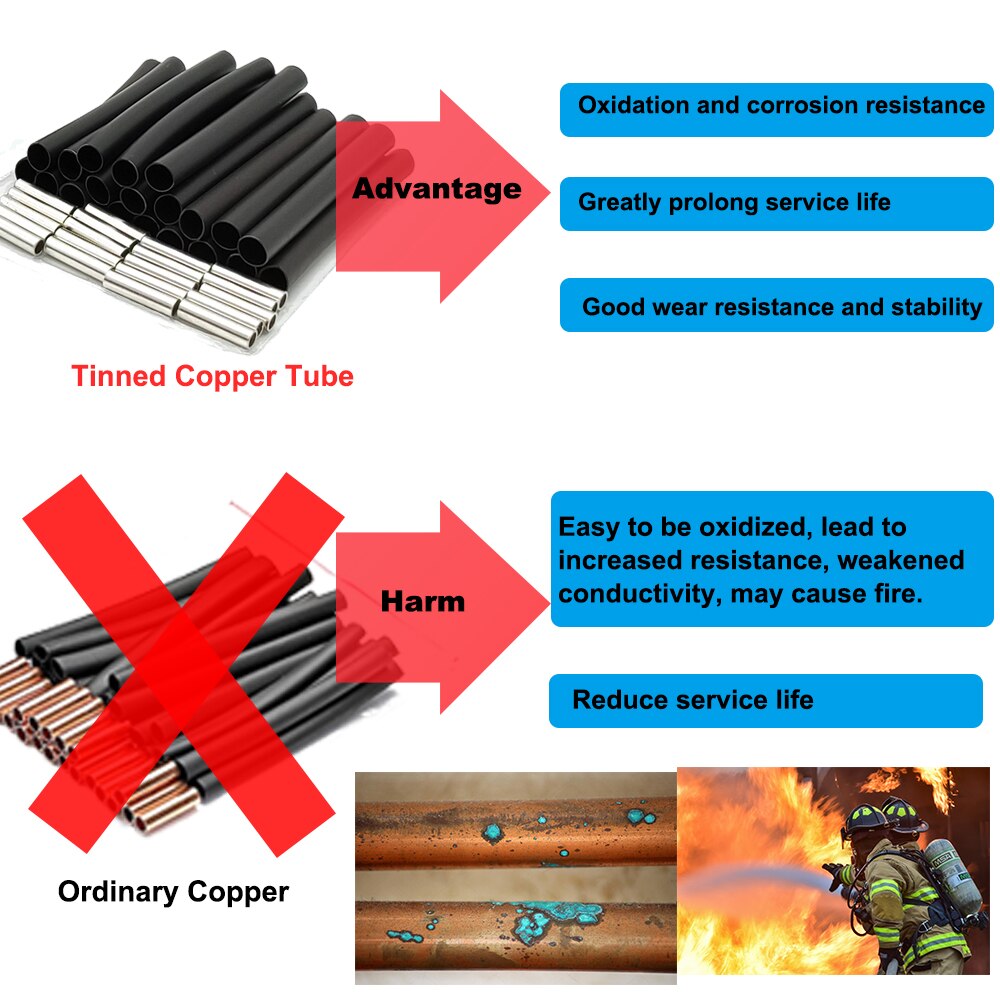

Buy 100m = 100m cable + 20 pcs copper tube + 20 pcs sleeves
Buy 50m = 50m cable + 10 pcs copper tube + 10 pcs sleeves
Buy 30m = 30m cable + 6 pcs copper tube + 6 pcs sleeves
Buy 20m = 20m cable + 4 pcs copper tube + 4 pcs sleeves
Buy 15m = 15m cable + 4 pcs copper tube + 4 pcs sleeves
Buy 10 m = 10m cable + 2 pcs copper tube + 2 pcs sleeves
How to calculate power?
Voltage*Voltage÷resistance=electric power
12K=33ohm/meter
For example, using 10m 12K carbon fiber cable on 220V, the power is:
220V*220V÷(10meters*33Ω)=150W
For example, using 15m 12K carbon fiber cable on 220V, the power is:
220V*220V÷(15meters*33Ω)=100W
The longer length, the smaller power, and lower heating temperature.
What is the power of the cable? And what is heating temperature?
1. The power of the cable is based on the length that you use, you can calculate the power according to above examples.
2. Power = 5W/m, the temperature is about 30~40C degrees;
Power = 10W/m, the temperature is about 40~50C degrees;
Power = 15W/m, the temperature is about 50~60C degrees;
Power = 20W/m, the temperature is about 60~70C degrees;
Power = 25W/m, the temperatuee is about 70~90C degrees. Please notice that this is for your reference, not exactly right because of different test conditions.

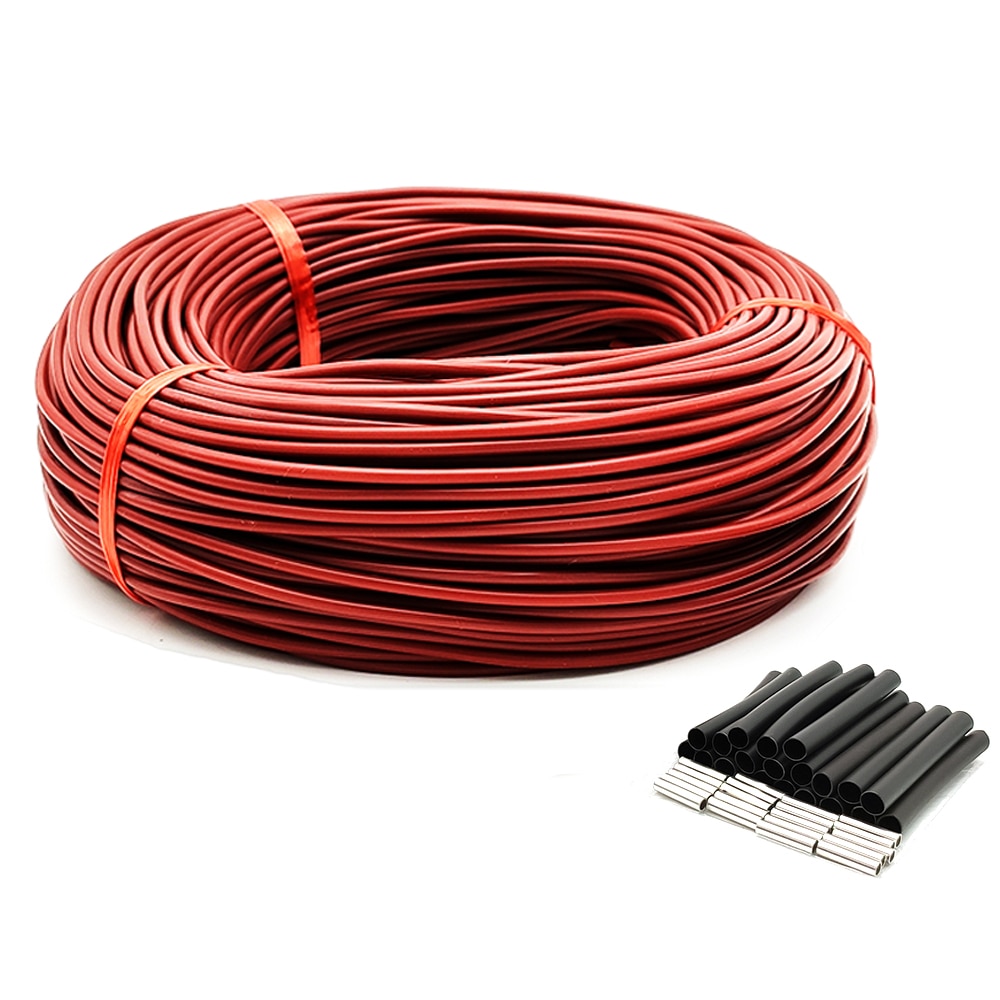

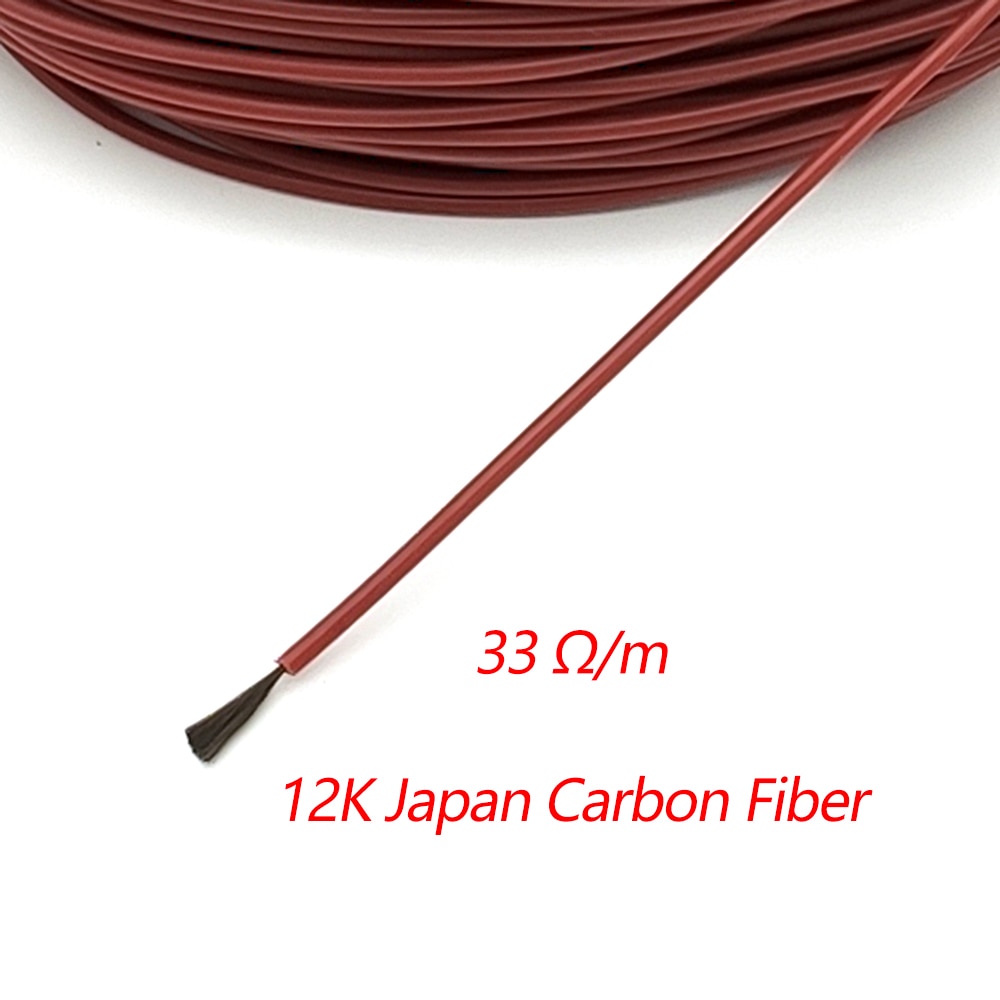

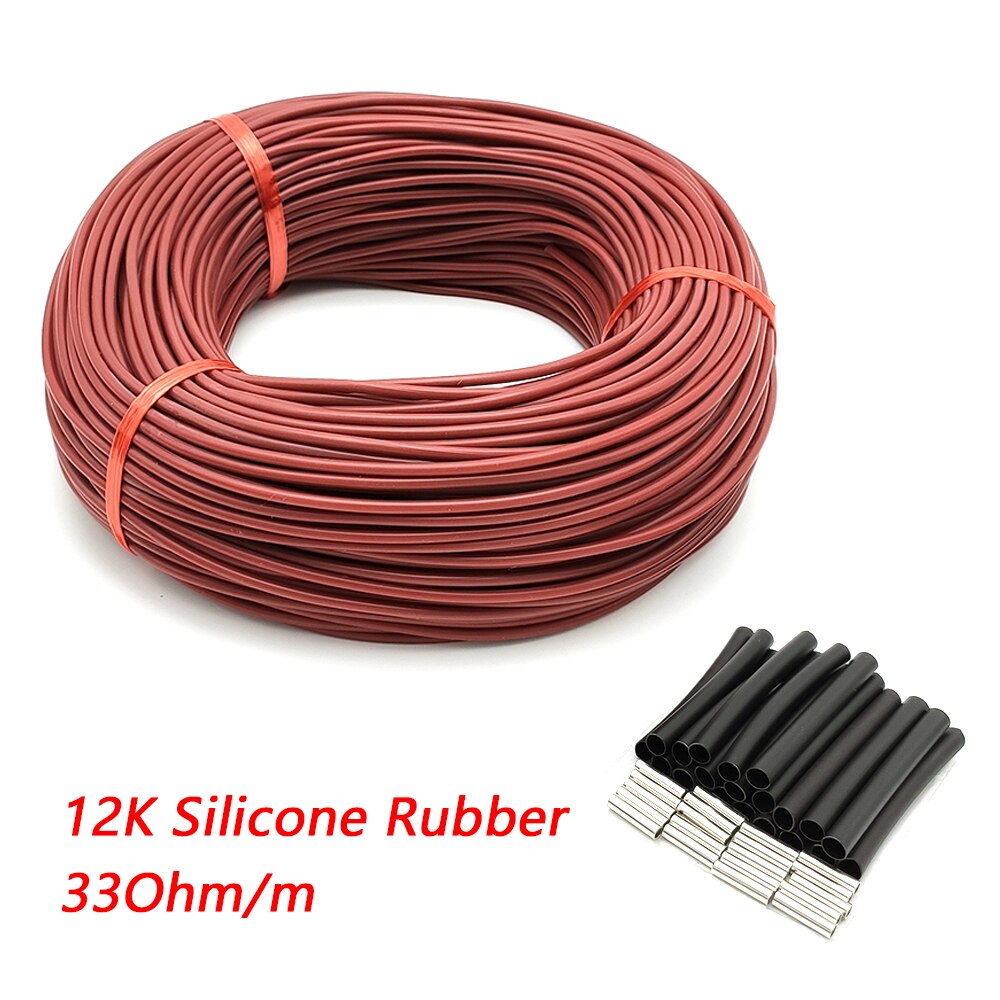

Product Photos:

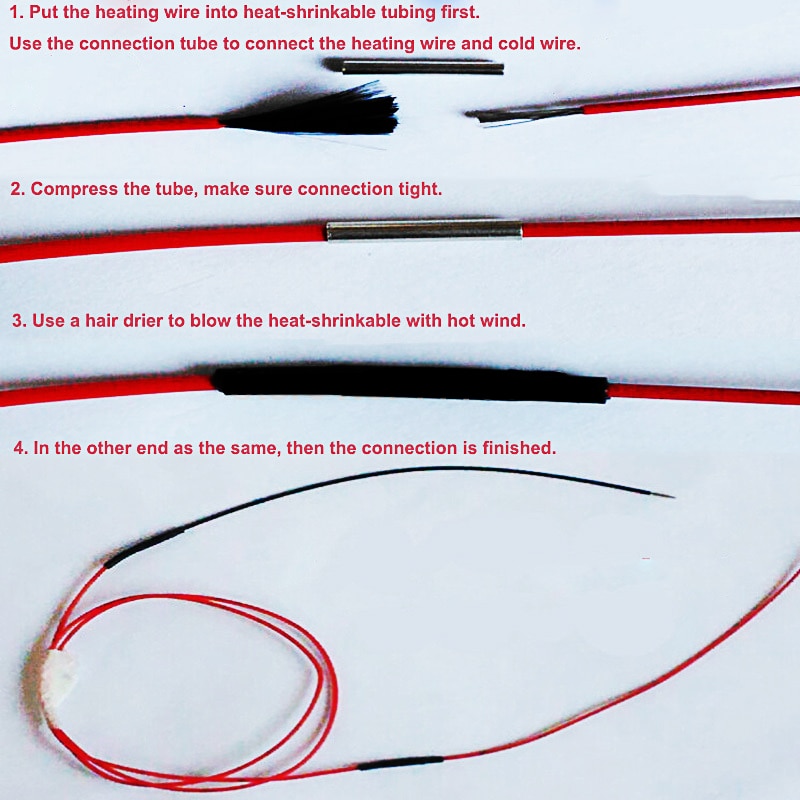

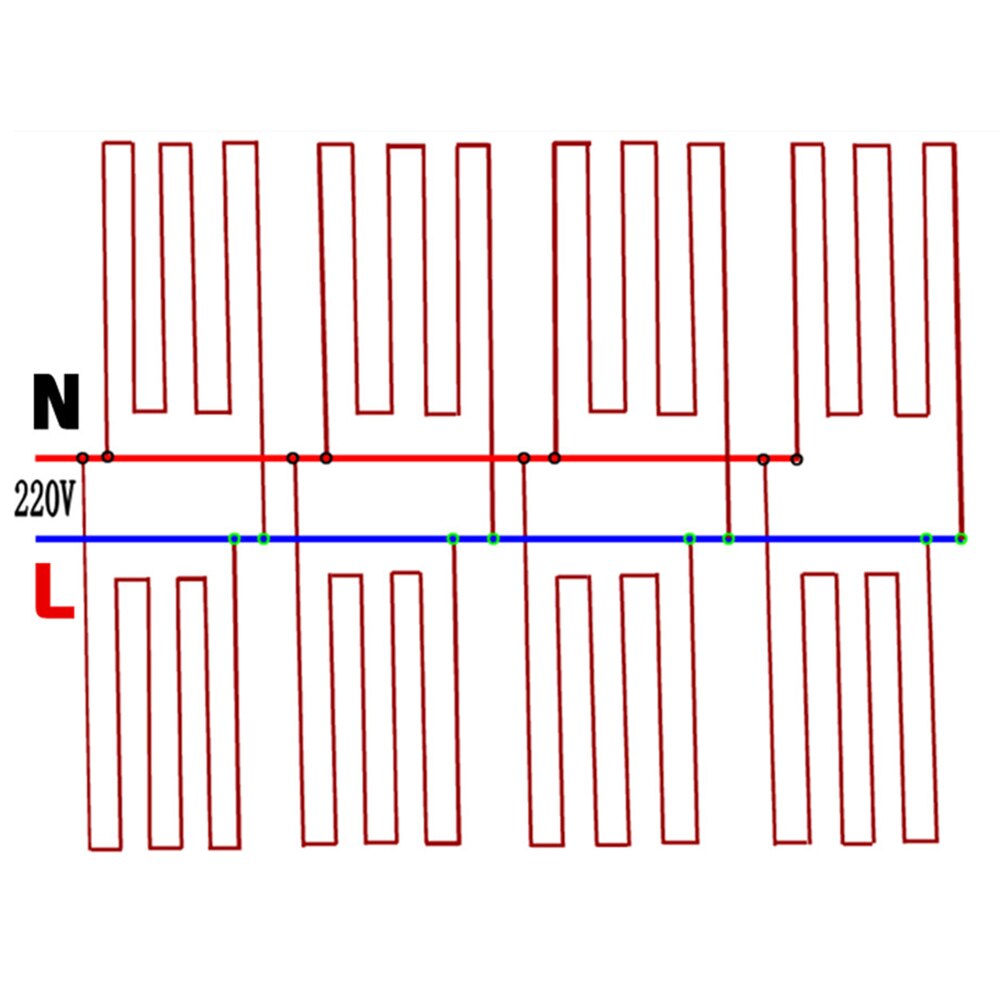

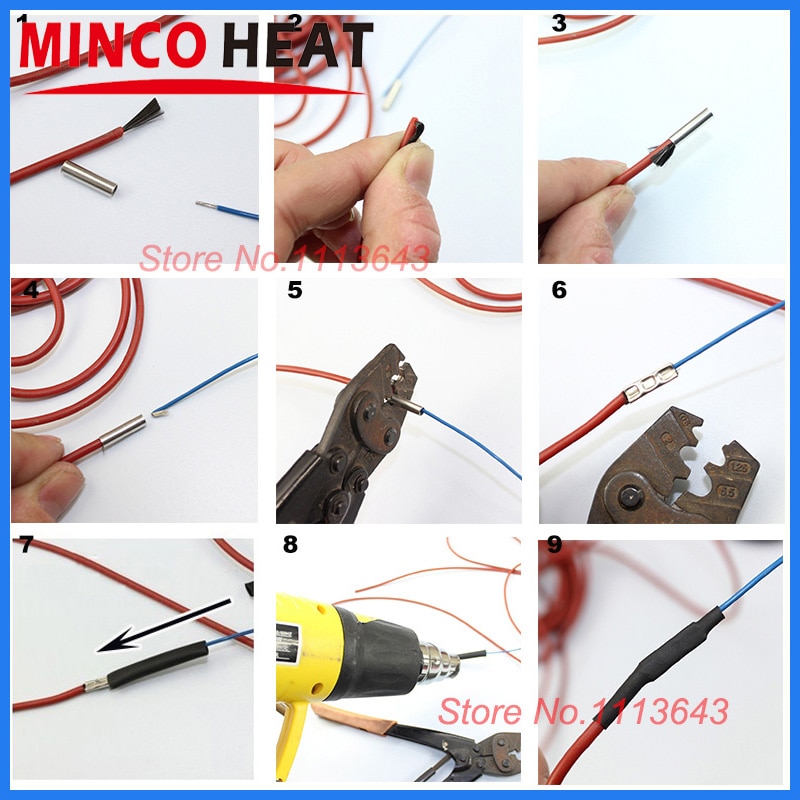

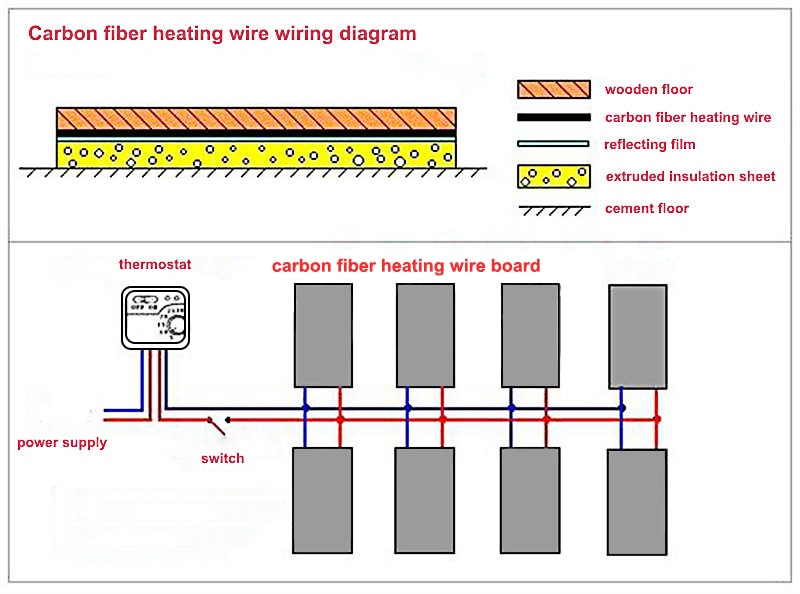

How to wiring?
Product Applications:

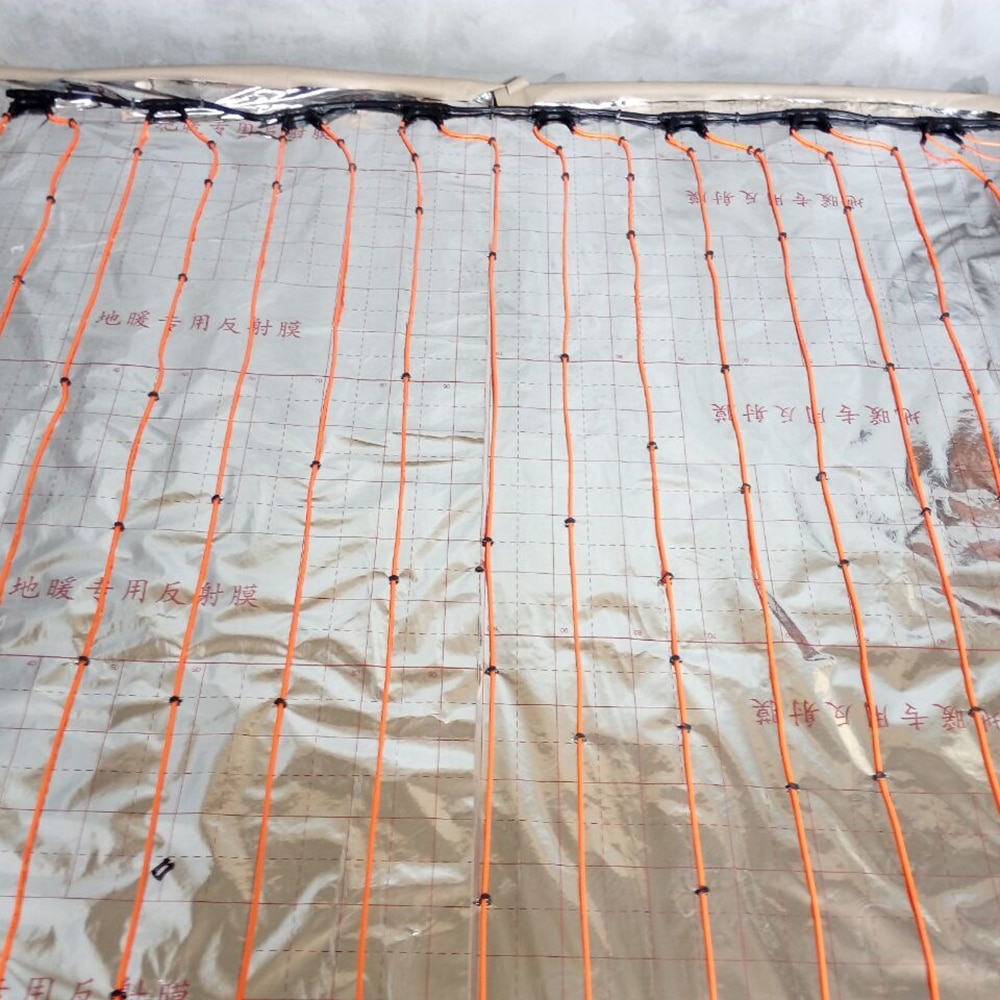

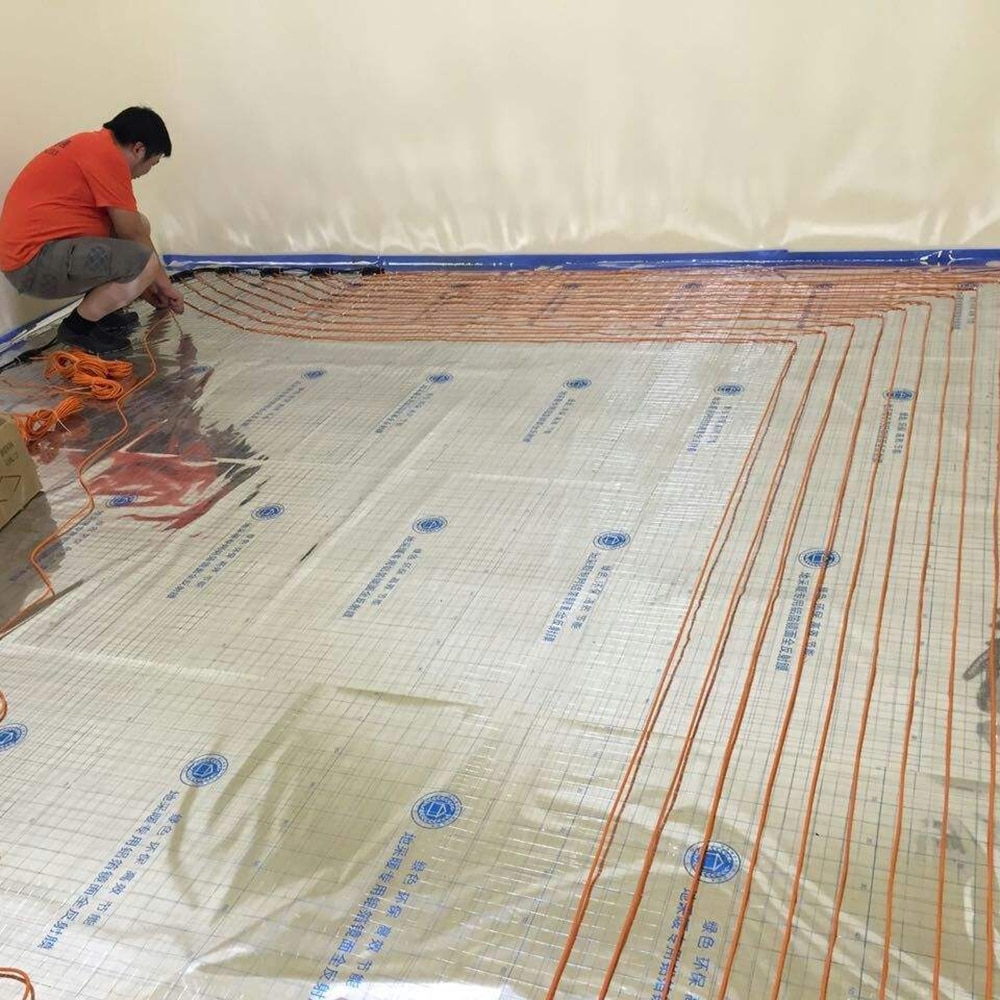

1. Floor heating for Home and office: Homes, villas, hotels, office buildings, hospitals, shopping malls
2. Floor heating for public areas: Swimming pool, soccer field, gymnasium, museum, memorial hall, the kindergarten
3. Floor heating for large public facilities: Bus terminal, parking lot, airport, highways
4. Floor heating for professional field: Botanical garden, greenhouse, laboratory
And other heating applications..etc...
Product Advantages:
1.High energy-efficient: Don't need other transmission medium, the electrothermal conversion efficiency is above 98%.
2.Comfortable and healthy: New infrared floor heating, make the temperature uniformity, promote blood circulation.
3.Easy to install: The carbon fiber heating wire cost a little, and has a long life span, an investment, life-long benefit, low maintenance costs.
And etc...
- is_customized: Yes
- Insulation Material: Rubber
- Conductor Type: Stranded
- Conductor Material: Carbon
- Application: Heating
- Type: Insulated
- Model Number: CF-12-R
- Brand Name: MINCO HEAT
- Origin: Mainland China
- Certification: CE,RoHS
- Product name: Carbon fiber heating wire
- Resistance: 33 Ohm/m
- Core size: 12K
- Outer jacket: Silicone rubber
- Diameter: 3±0.2 mm
- Voltage: 7~300 V
