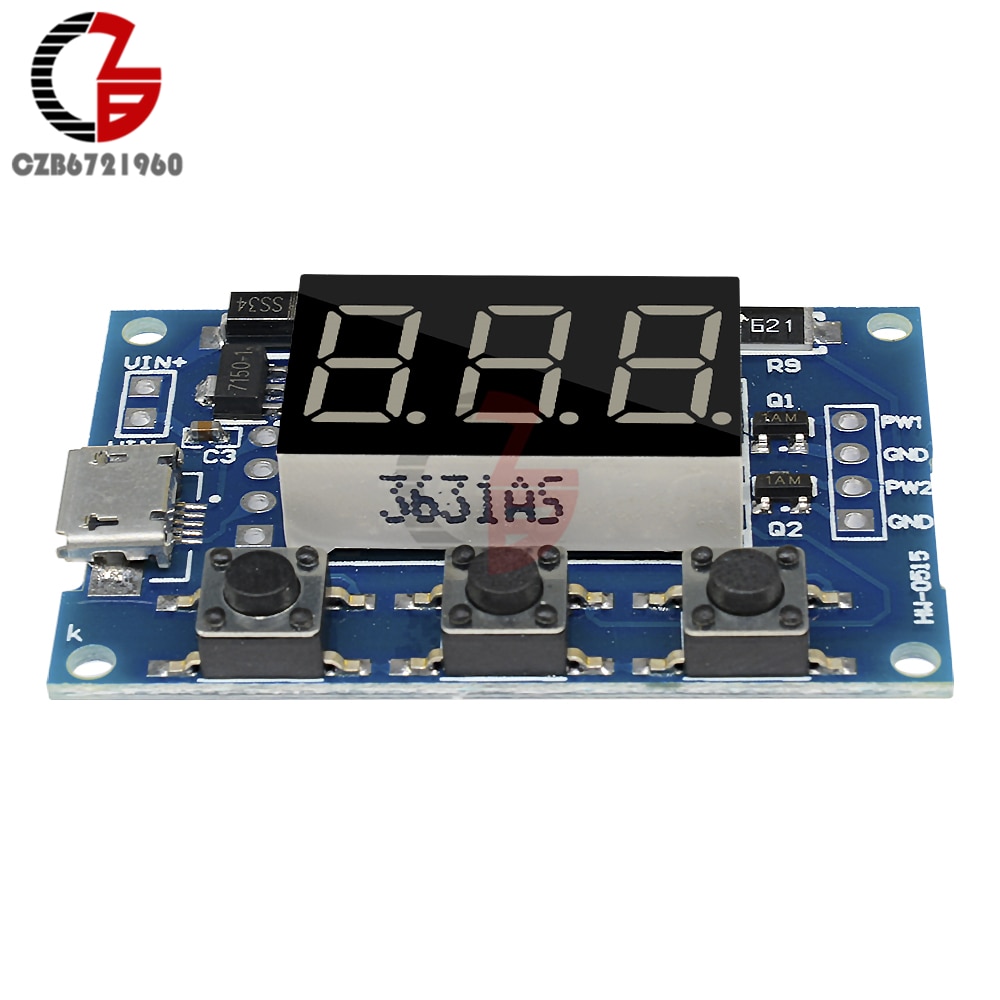

Micro USB DC 2CH Adjustable PWM Signal Generator Duty Cycle Pulse Frequency Module Digital LED Display Tube DC 5V 12V 24V DIY
4.8 (54 votes) | 17 orders
Price:
US $11.44
/ piece
Discount Price:
US $
9.95
/ piece
-13%

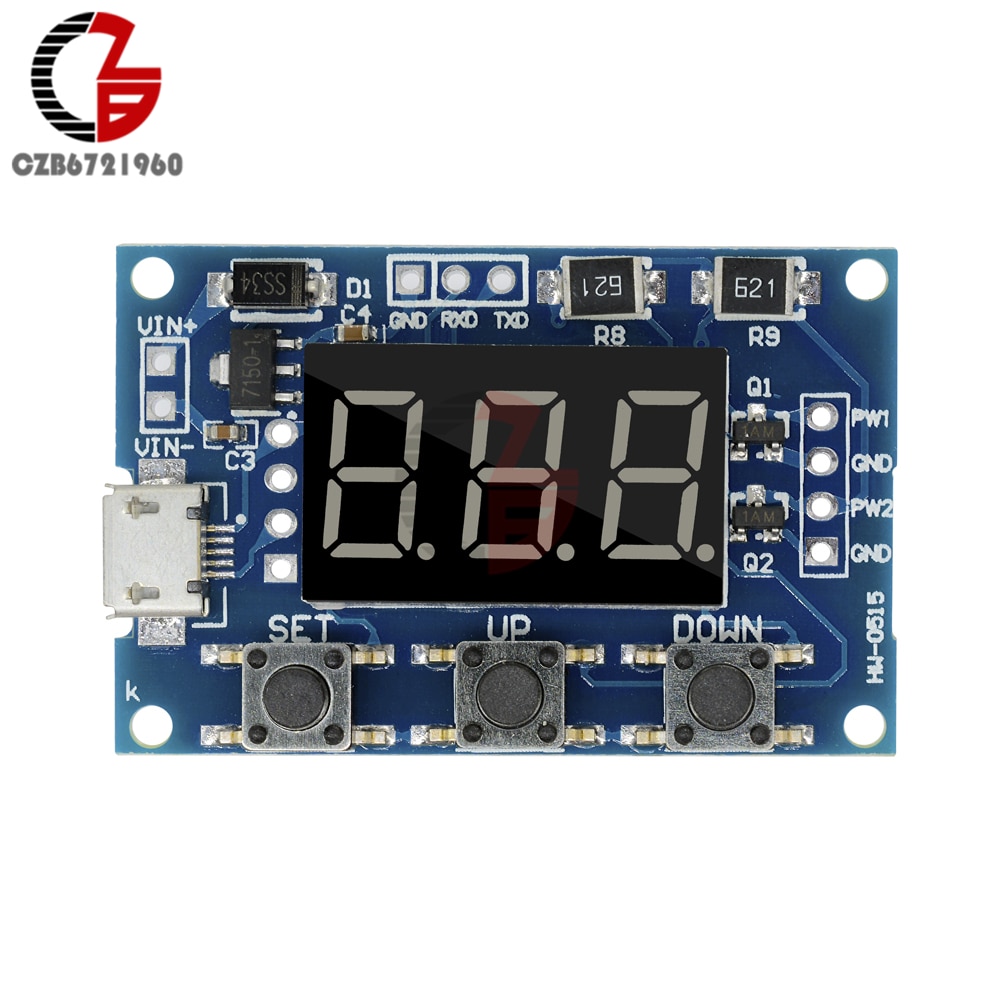

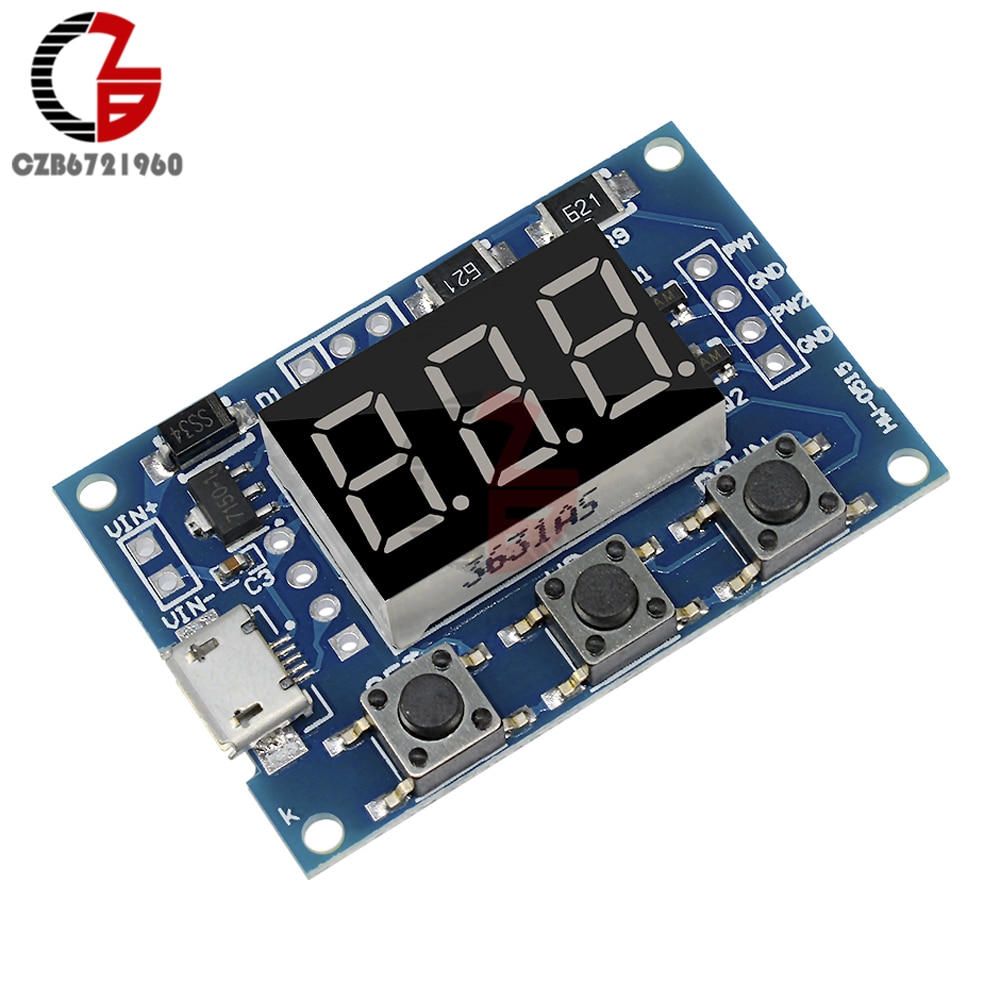

Micro USB DC 2CH Adjustable PWM Signal Generator Duty Cycle Pulse Frequency Module Digital LED Display Tube DC 5V 12V 24V DIY
2-way PWM, pulse frequency, duty cycle adjustable modules, square wave rectangular wave signal generator ,stepper motor driver
Features:
1. Two independent PWM generators can set the frequency, duty cycle
2. The wide frequency range, high accuracy
3. Can serial communication.
Frequency is divided into three ranges:
1. XXX (no decimal point): the smallest unit is 1Hz, the range 1Hz ~ 999Hz
2. XX.X (decimal point in ten): The minimum unit is 0.1Khz the range of 0.1KHz ~ 99.9KHz
3. X.X.X. (there are three decimal point): the smallest unit is 1Khz the range 1KHz ~ 150KHz

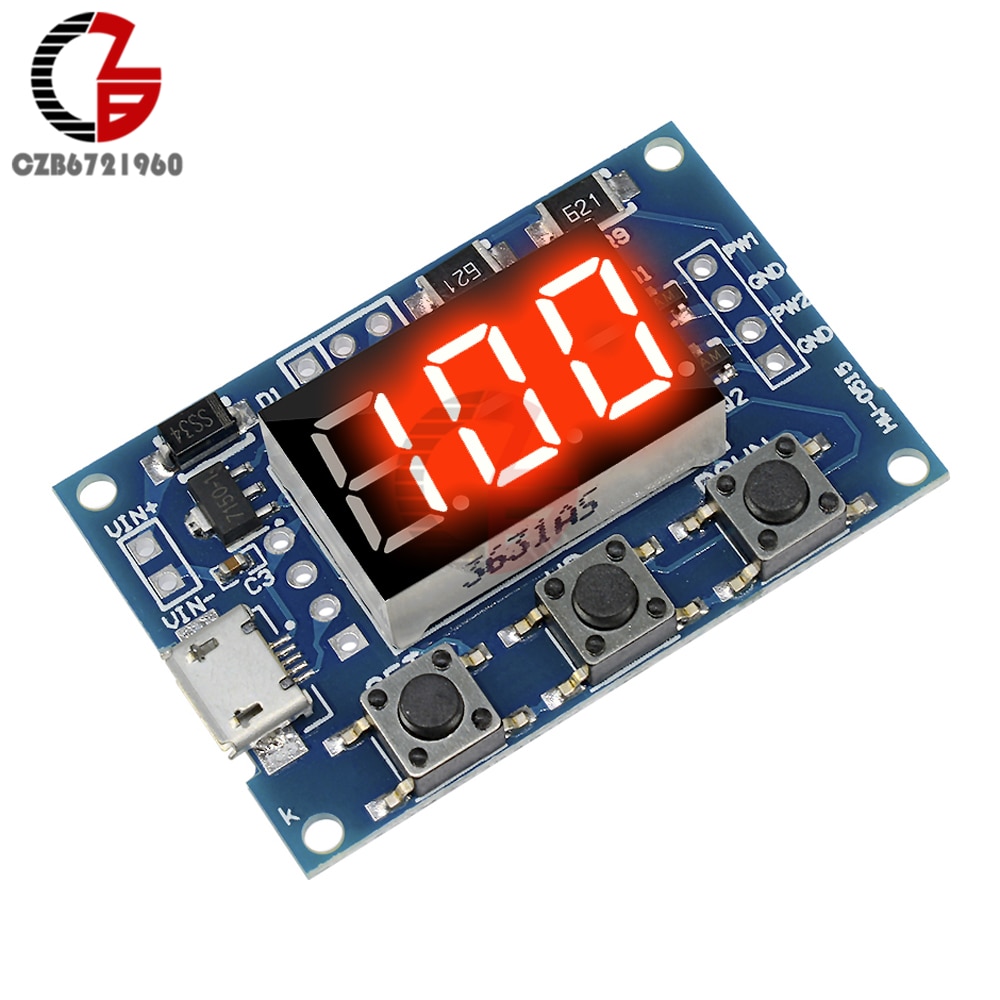

Frequency display example:
"100" indicates that the PWM output pulse of 100Hz
"54.1" indicates that the PWM output pulse of 54.1KHz
"1.2.4." Indicates that the PWM pulse output 124KHz
Duty Cycle in the range: 0 to 100
Three frequencies duty cycle is the same, all the parameters non-volatile.
Specifications:
1. Working voltage: 5--30V, support micro USB 5.0V power supply
2. Frequency range: 1Hz ~ 150KHz
3. The frequency accuracy: ± 2%
4. Output Current: <30mA

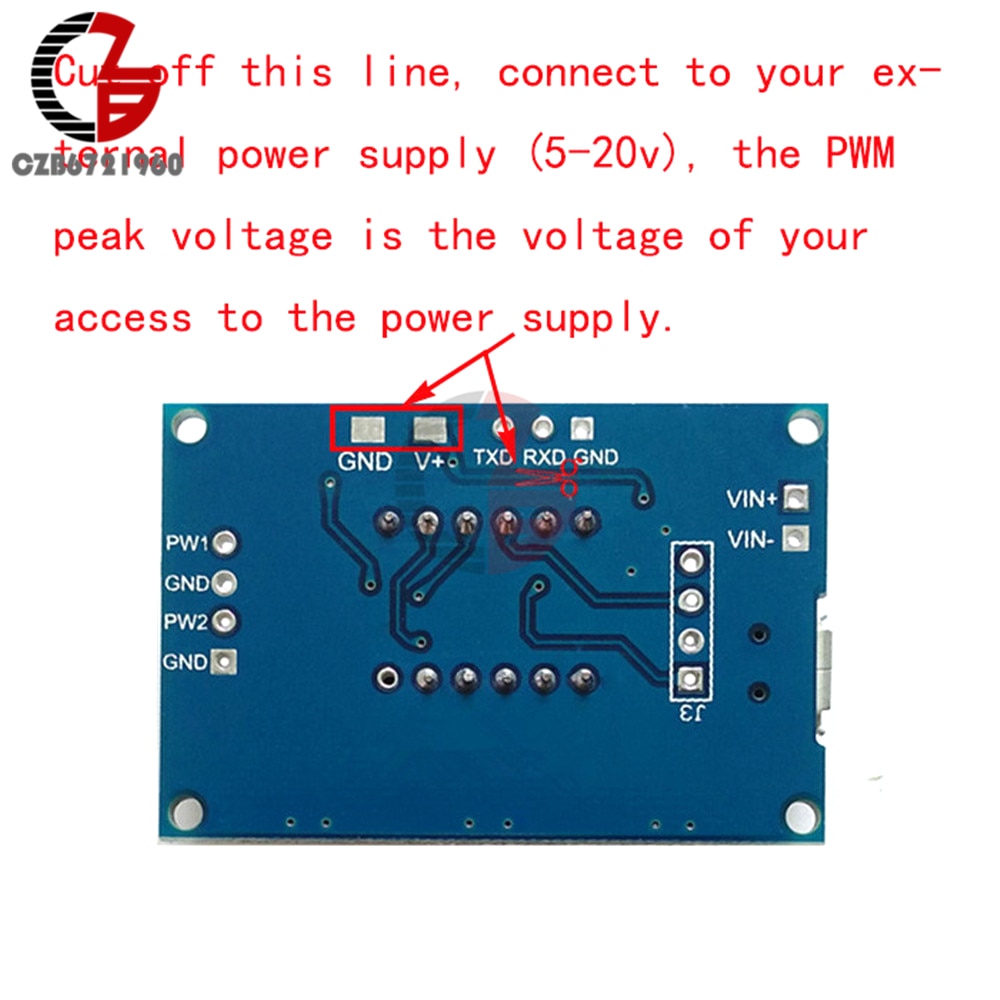

5. Output amplitude: Default 5Vp-p (settable)
6. Operating temperature range: -30 ~ + 70 ℃.
Setting Instruction:

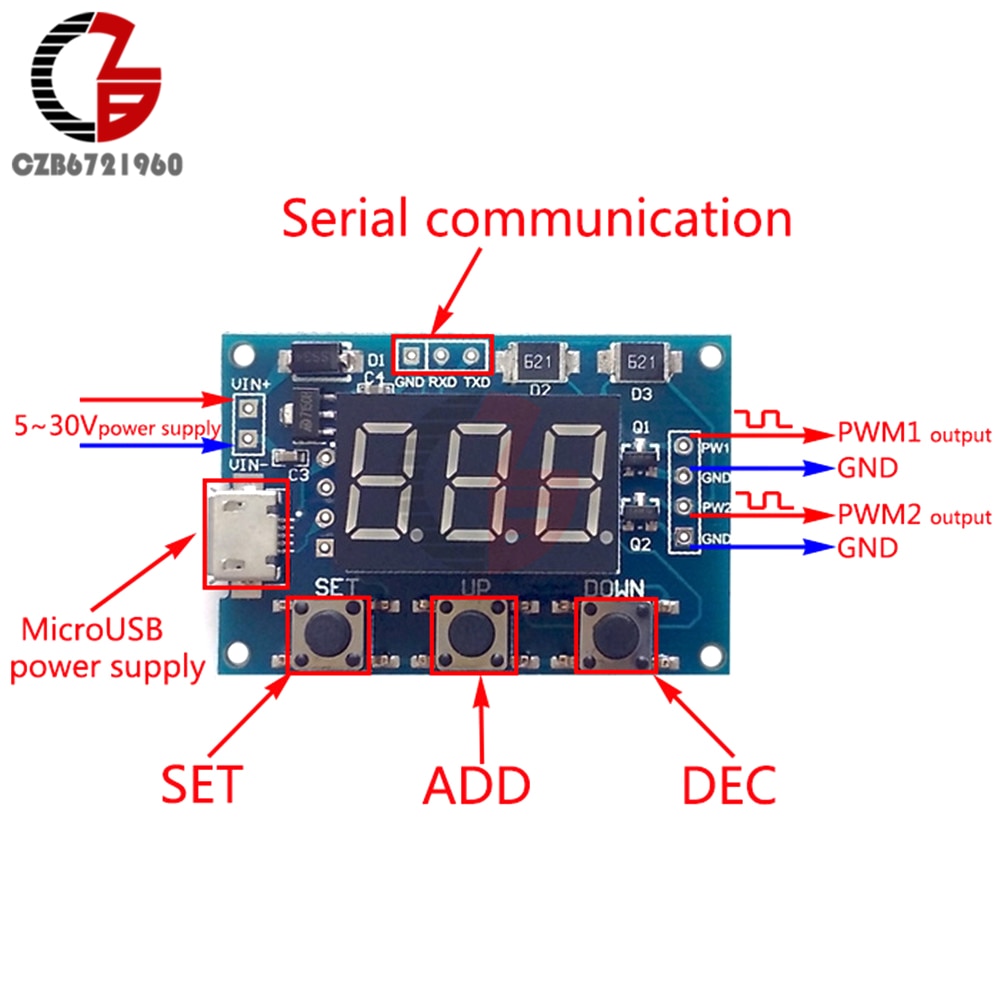

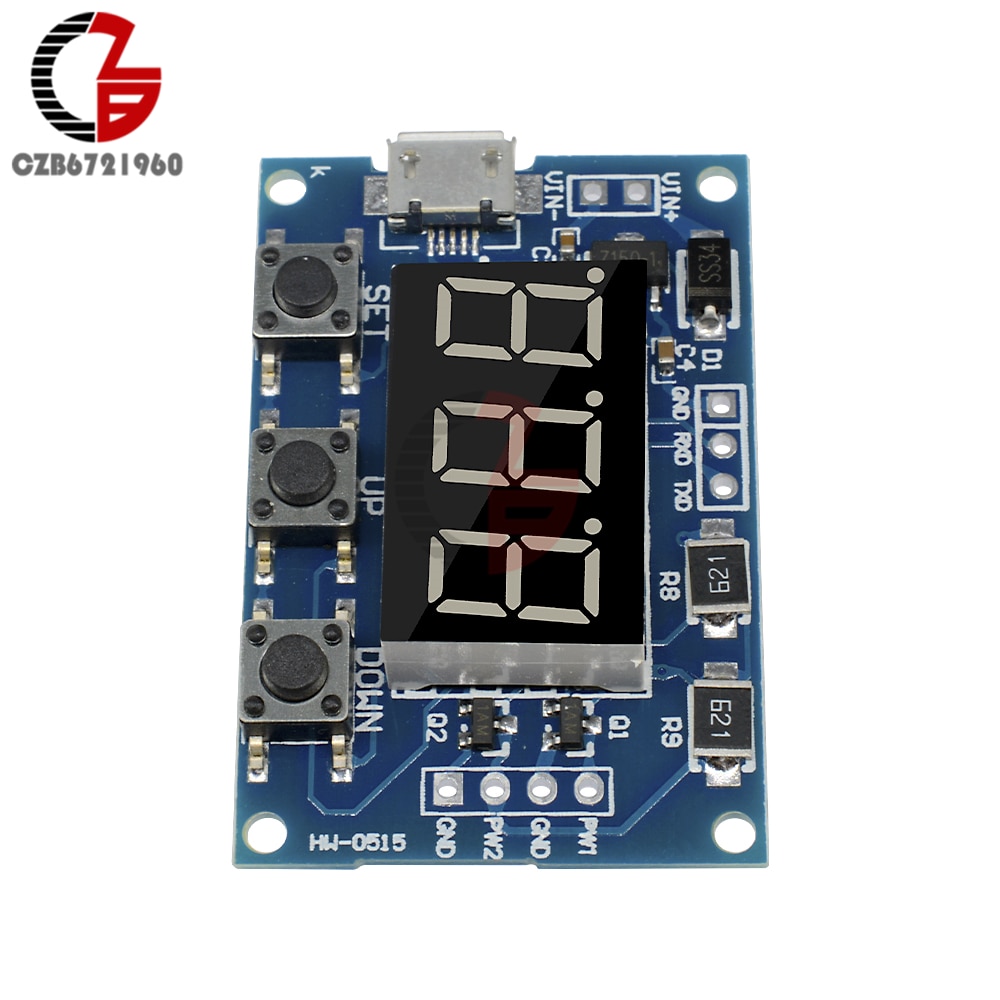

Module has three buttons [Set], [Up], [Down]
1. Press [Set] key to switch the display four parameters (FR1: PWM1 frequency dU1: PWM1 duty cycle FR2: frequency of PWM2 dU2: PWM2 duty cycle), before the handover parameters, there will be corresponding parameter name flash.
2. Press [Up], [Down] keys to modify the current parameter value (long press can quickly add or subtract fast).
3. Two PWM each have three preset frequency, the frequency display interface, long press [SET] key to switch between three types of frequencies, three kinds of frequency duty cycle is the same value. (XXX: range 1Hz ~ 999Hz XX.X: range 0.1Khz ~ 99.9Khz X.X.X .: range 1Khz ~ 150Khz,).
Function:
1. As square wave signal generator which generates a square wave signal
2. to provide a signal to the stepping motor driver
3. Adjustable pulse generation for chip use
4. produce variable pulse signal, the control-related circuit (PWM dimming, speed).

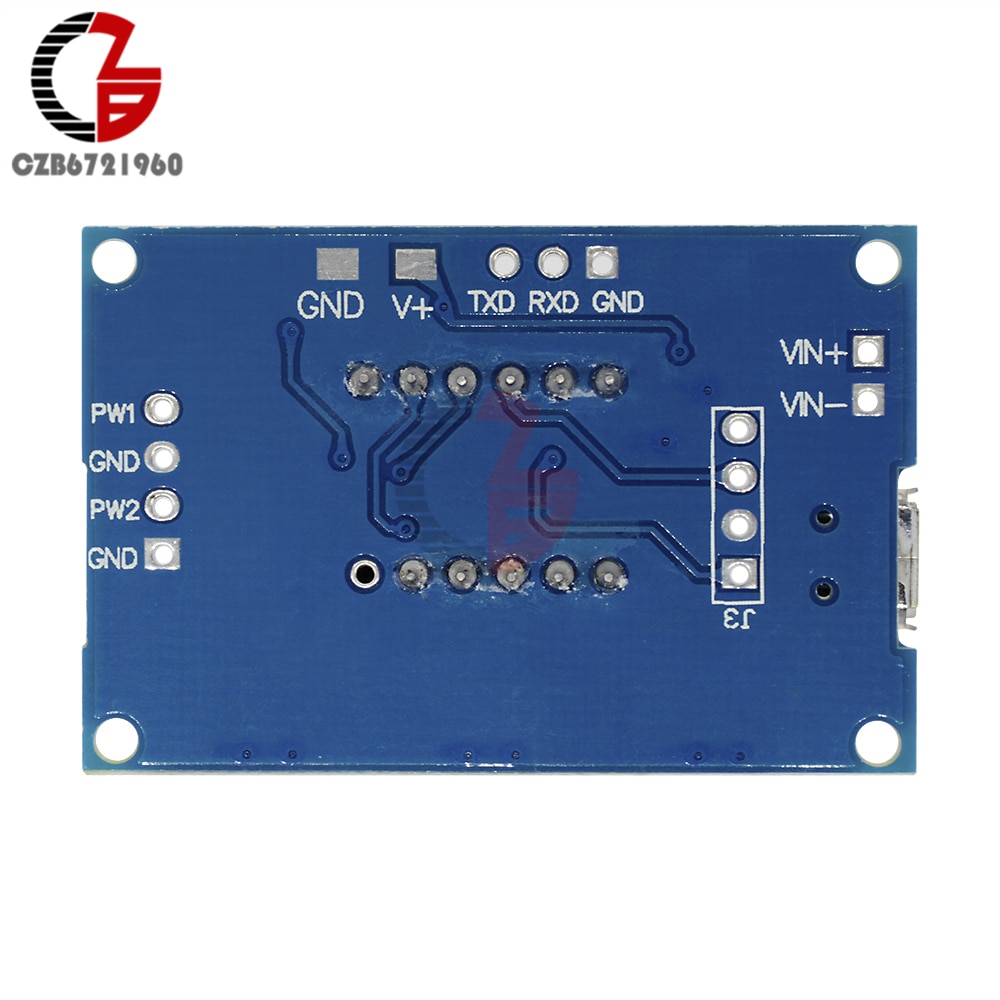

Baud rate: 9600 bps
Data bits: 8
Stop bits: 1
Parity bit: none
Flow control: none
1, set the PWM frequency
"S1FXXXT": setting PWM1 frequency of XXX HZ (001 ~ 999)
"S1FXX.XT": set the frequency of PWM1 XX.X KHZ (00.1 ~ 99.9)
"S1F: X.X.X.T": setting PWM1 frequency of XXX KHZ (0.0.1 ~ 1.5.0..)
'S1': PWM1
'S2': PWM2
'F': Frequency
'D': Duty Cycle
'T' is the end flag
2. Set the PWM duty cycle
"S1DXXXT": setting PWM1 duty cycle XXX (001 ~ 100)
"S2DXXXT": set PWM2 duty cycle XXX (001 ~ 100)
Setting successful return: DOWN
Setting failback: FALL.
Features:
1. Brand new and high quality.
2. Suitable for serial communication.
3. Wide frequency range, high accuracy.
4. Two independent PWM generators can set the frequency and duty cycle.
Highlights:
1.Two independent PWM generators can set the frequency, duty cycle;
2.The wide frequency range, high accuracy;
3.Can serial communication.
Module Parameters:
1. Working voltage: 5--30V, support micro USB 5.0V power supply.
2. Frequency range: 1Hz ~ 150KHz.
3. The frequency accuracy: ± 2%.
4. Output current: <30mA.
5. Output amplitude: Default 5Vp-p (settable).
6. Operating temperature range: -30 ~ + 70 °.

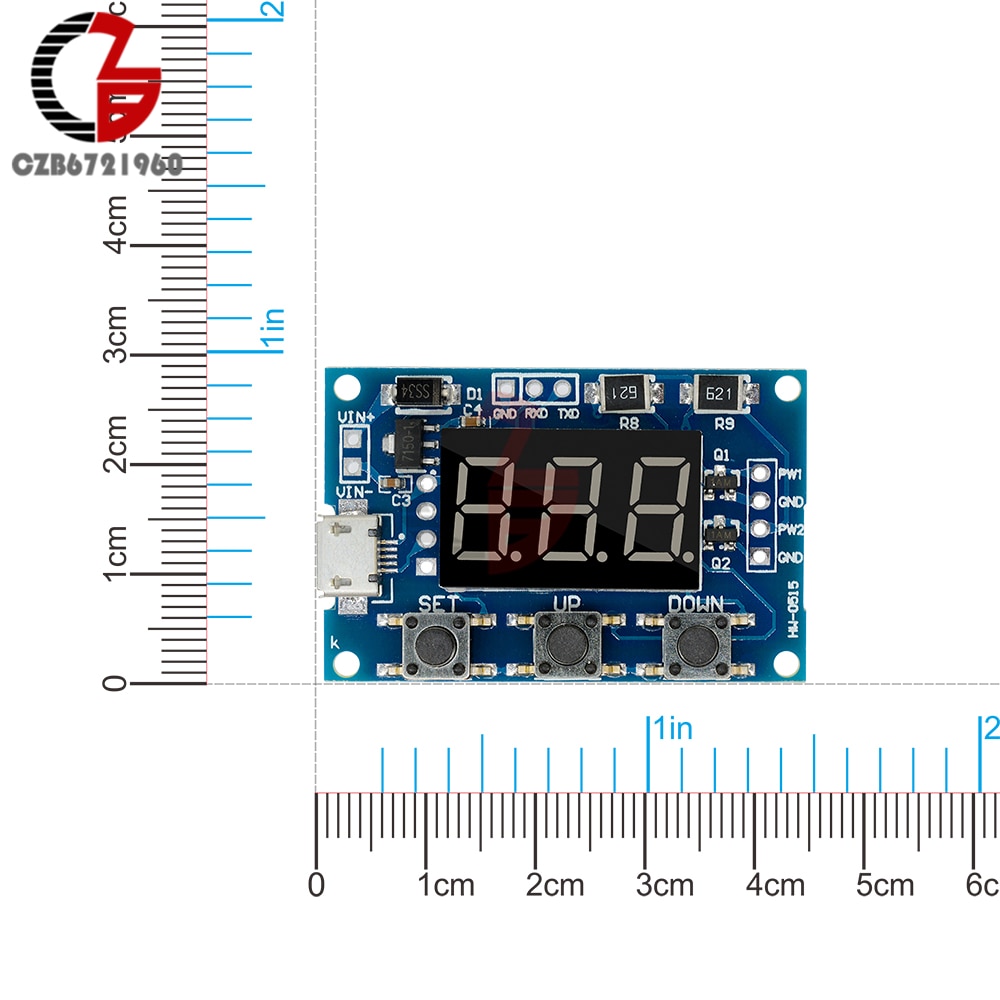

7. Product size: 4.3x2.9x0.9cm - 1.69x1.14x0.35in
Parameter Settings:
1. Module has three buttons: [Set], [Up], [Down].
2. Press [Set] key to switch the display of four parameters (FR1: PWM1 frequency; dU1: PWM1 duty cycle; FR2: frequency of PWM2; dU2: PWM2 duty cycle), before the handover parameters, there will be corresponding parameter name flashing.
3. Press [Up], [Down] keys to modify the current parameter value (long press can quickly add or subtract fast).
4. Two PWM each have three preset frequency, and in the frequency display interface, long press [SET] key to switch between three types of frequencies, three kinds of frequency duty cycle is the same. (XXX: range 1Hz ~ 999Hz; XX.X: range 0.1Khz ~ 99.9Khz; X.X.X .: range 1Khz ~ 150Khz,).
First, the module description:
Frequency is divided into three ranges:
1.XXX (no decimal point): the smallest unit is 1Hz, the range 1Hz ~ 999Hz;
2.XX.X (decimal point in ten): The minimum unit is 0.1Khz; the range of 0.1KHz ~ 99.9KHz
3.X.X.X. (there are three decimal point): the smallest unit is 1Khz; the range 1KHz ~ 150KHz
Frequency display example:
"100" indicates that the PWM output pulse of 100Hz;
"54.1" indicates that the PWM output pulse of 54.1KHz;
"1.2.4." Indicates that the PWM pulse output 124KHz
Duty Cycle in the range: 0 to 100;
Three frequencies duty cycle is the same, all the parameters non-volatile.
Applicable Scopes:
1. To generate a square wave signal for experimental development as a square wave signal generator.
2. To generate a square wave signal for stepping motor driver.
3. To generate adjustable pulse generation for chip use.
4. To generate variable pulse signal for controlling related circuit (PWM dimming, speed).
Fourth, the scope:
1.As square wave signal generator which generates a square wave signal;
2.To provide a signal to the stepping motor driver;
3.Adjustable pulse generation for chip use;
4.Produce variable pulse signal, the control-related circuit (PWM dimming, speed).
Fifth, the serial control
Baud rate: 9600 bps
Data bits: 8
Stop bits: 1
Parity bit: none
Flow control: none
1, set the PWM frequency
"S1FXXXT": setting PWM1 frequency of XXX HZ (001 ~ 999)
"S1FXX.XT": set the frequency of PWM1 XX.X KHZ (00.1 ~ 99.9)
"S1F: X.X.X.T": setting PWM1 frequency of XXX KHZ (0.0.1 ~ 1.5.0..)
'S1': PWM1
'S2': PWM2
'F': Frequency
'D': Duty Cycle
'T' is the end flag
Set the PWM duty cycle
"S1DXXXT": setting PWM1 duty cycle XXX; (001 ~ 100)
"S2DXXXT": set PWM2 duty cycle XXX; (001 ~ 100)
Setting successful return: DOWN;
Setting failback: FALL.
Package Included:
1 x Signal Generator
- Model Number: Signal Generator
- Display Size: 3.0 - 4.9 Inches
- DIY Supplies: ELECTRICAL
- Brand Name: diymore
- Origin: Mainland China
- Certification: CE
