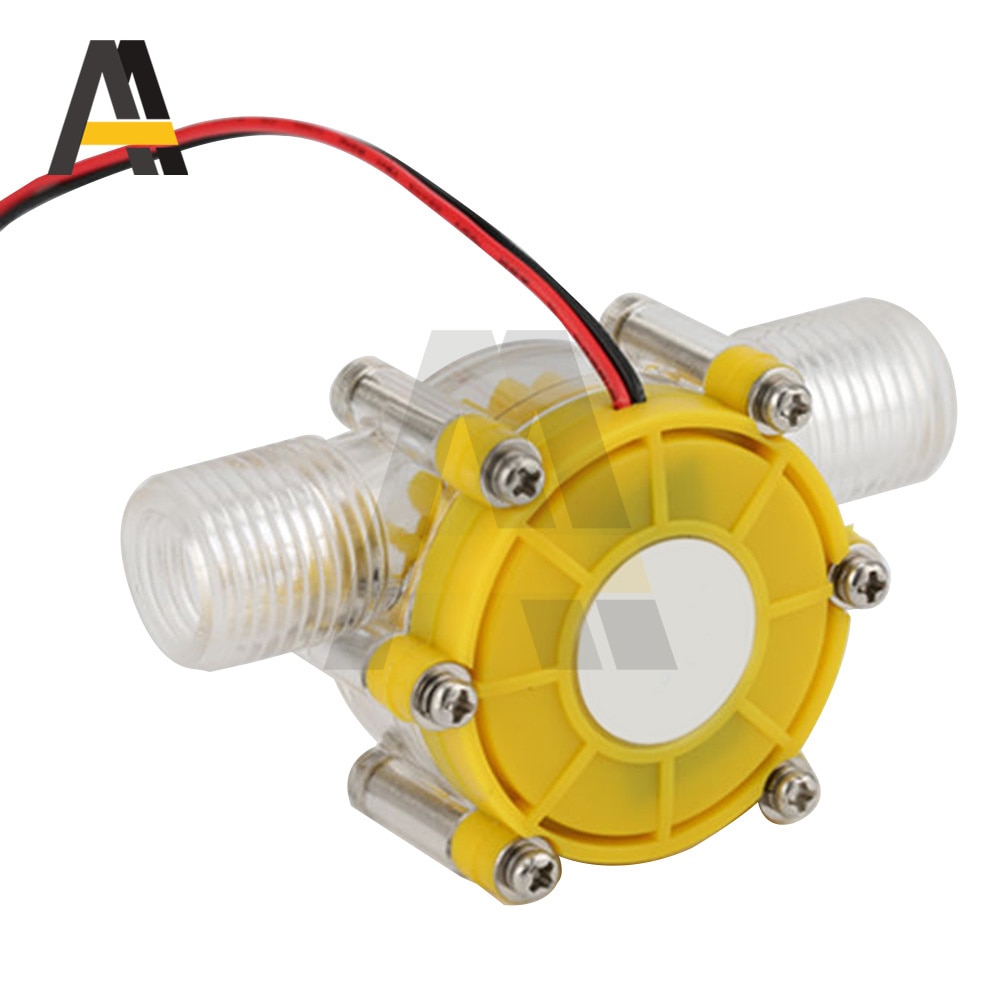

Micro Generator F50 Micro-hydro DC Water Flow Pump 5V 12V 0-80V Turbine Hydroelectric Power Energy Generator 1.2Mpa Water Phase
4.9 (82 votes)
Price:
US $22.35 - 22.74
/ piece
Discount Price:
US $
20.65 -
20.98
/ piece
-8%

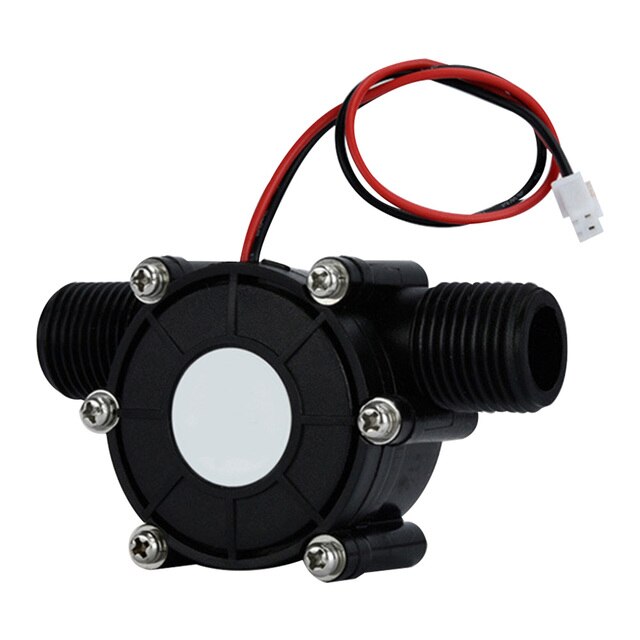

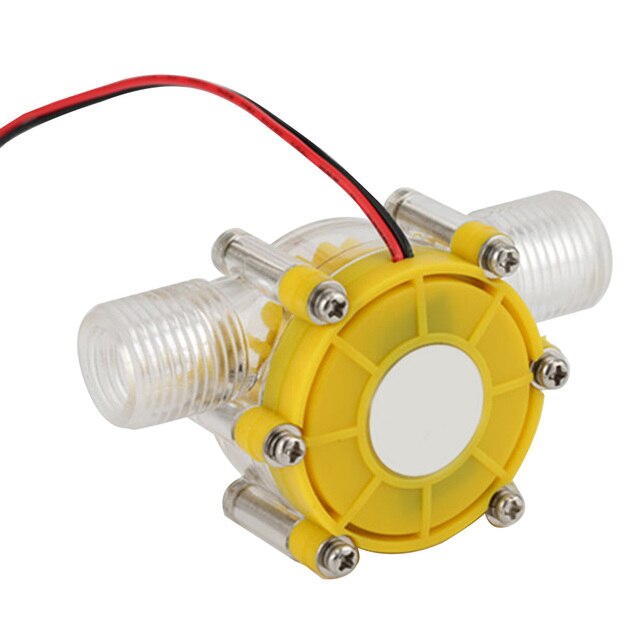

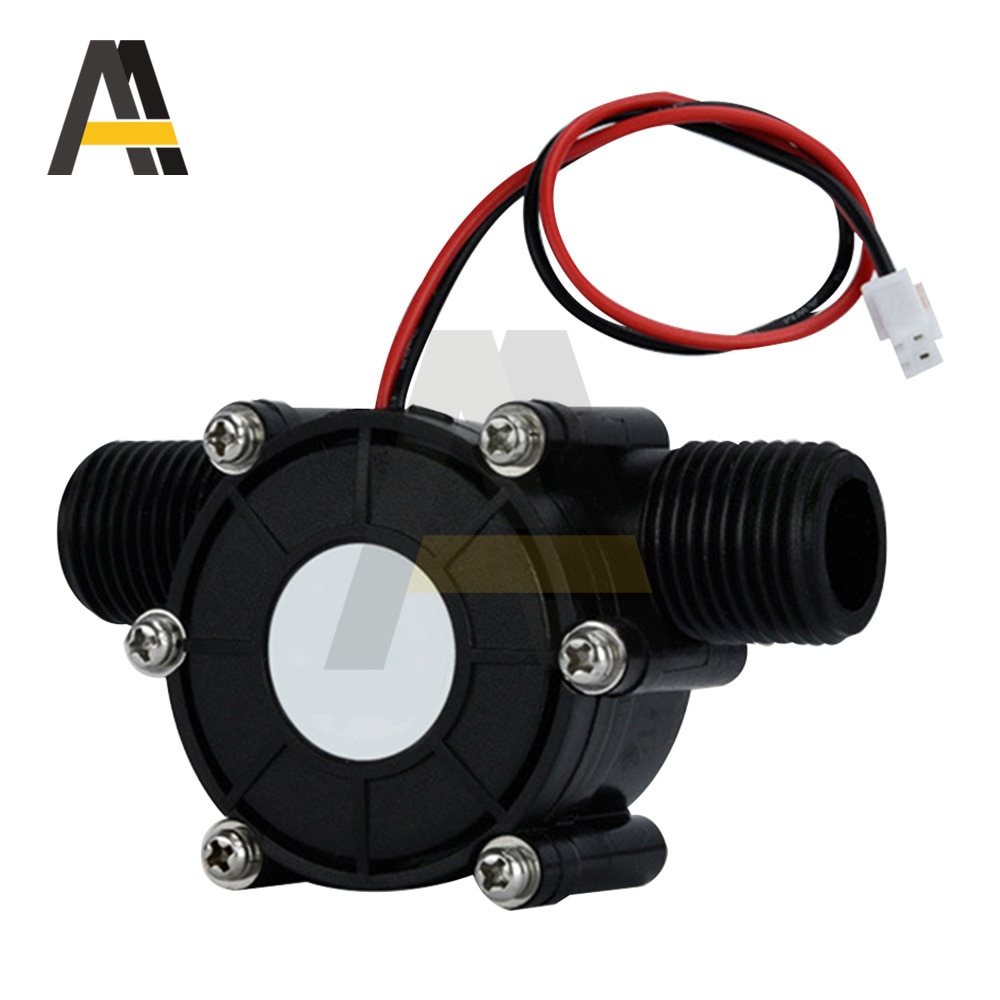

Micro Generator F50 Micro-hydro DC Water Flow Pump 5V 12V 0-80V Turbine Hydroelectric Power Energy Generator 1.2Mpa Water Phase
Features:
1. Stainless steel machine wire screws, choose better materials.

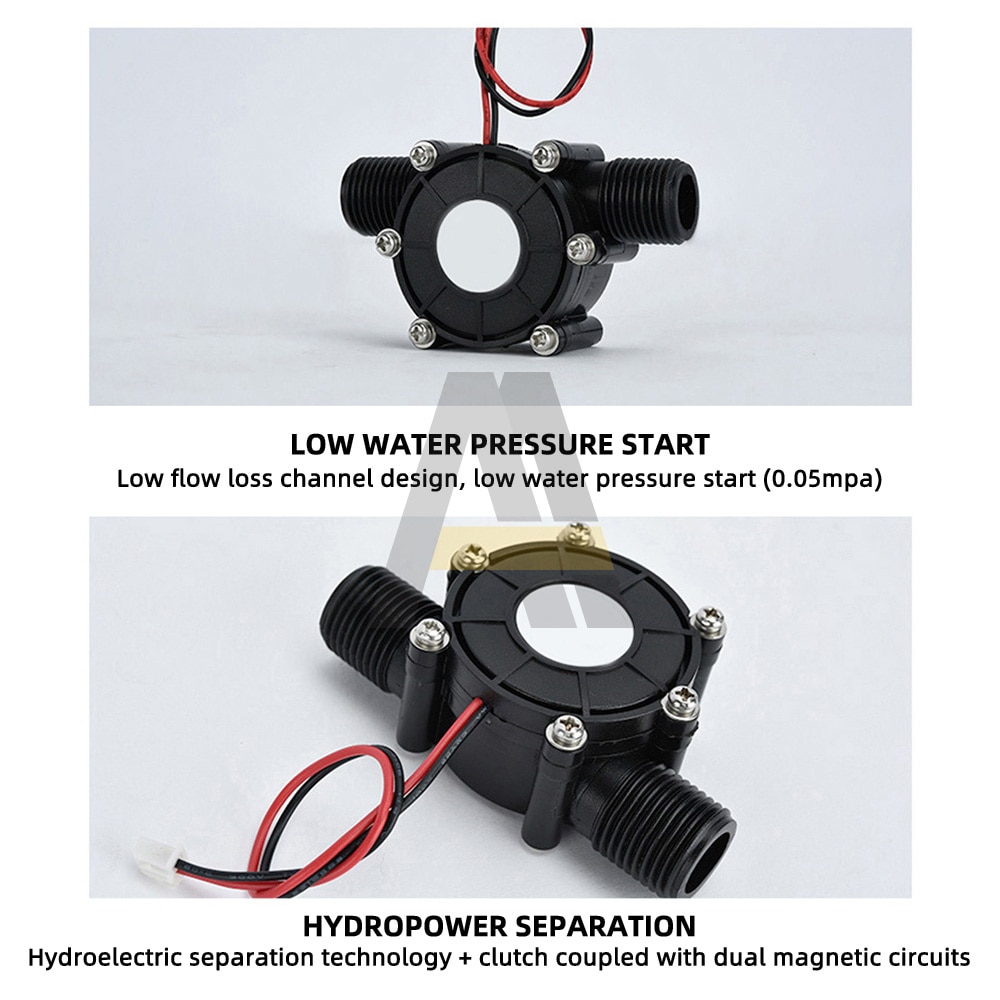

2. Low water pressure start, water channel design with low flow loss, low water pressure start (0.05mpa).
3. Water and electricity separation, water and electricity separation technology + double magnetic circuit coupling clutch.

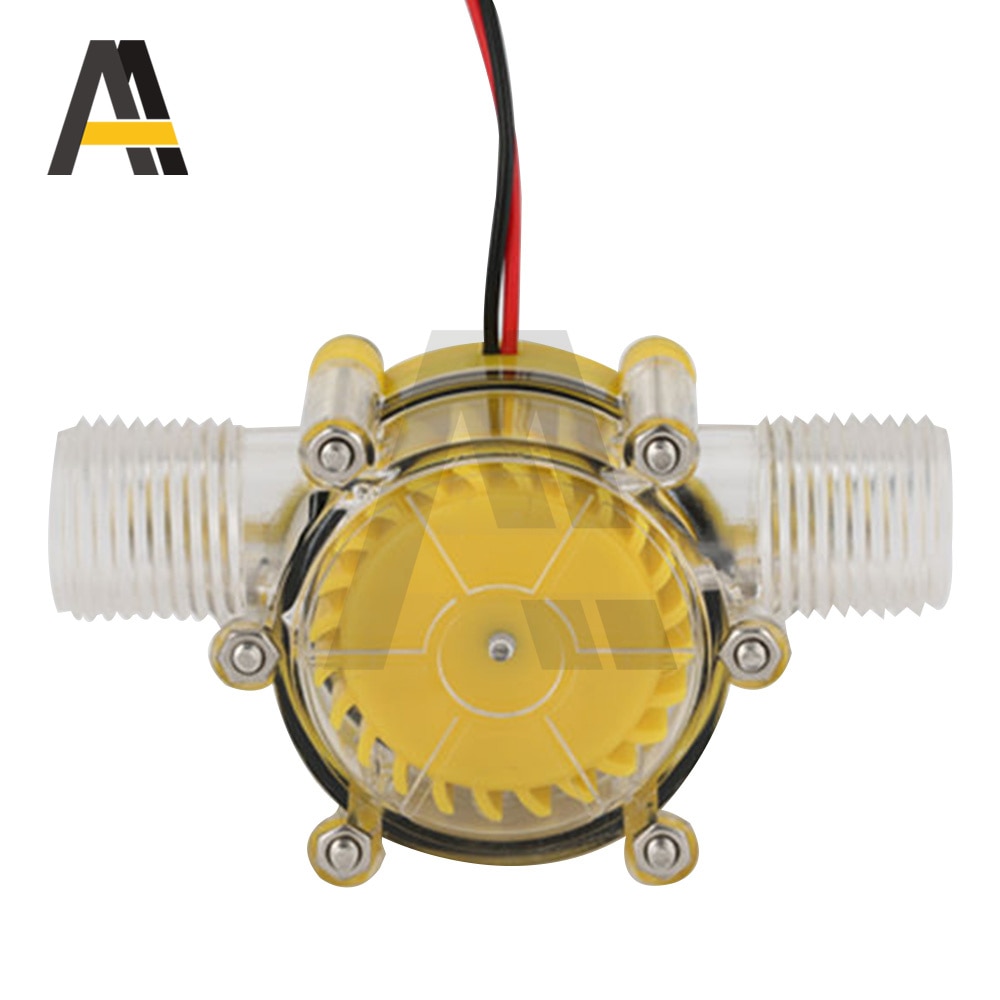

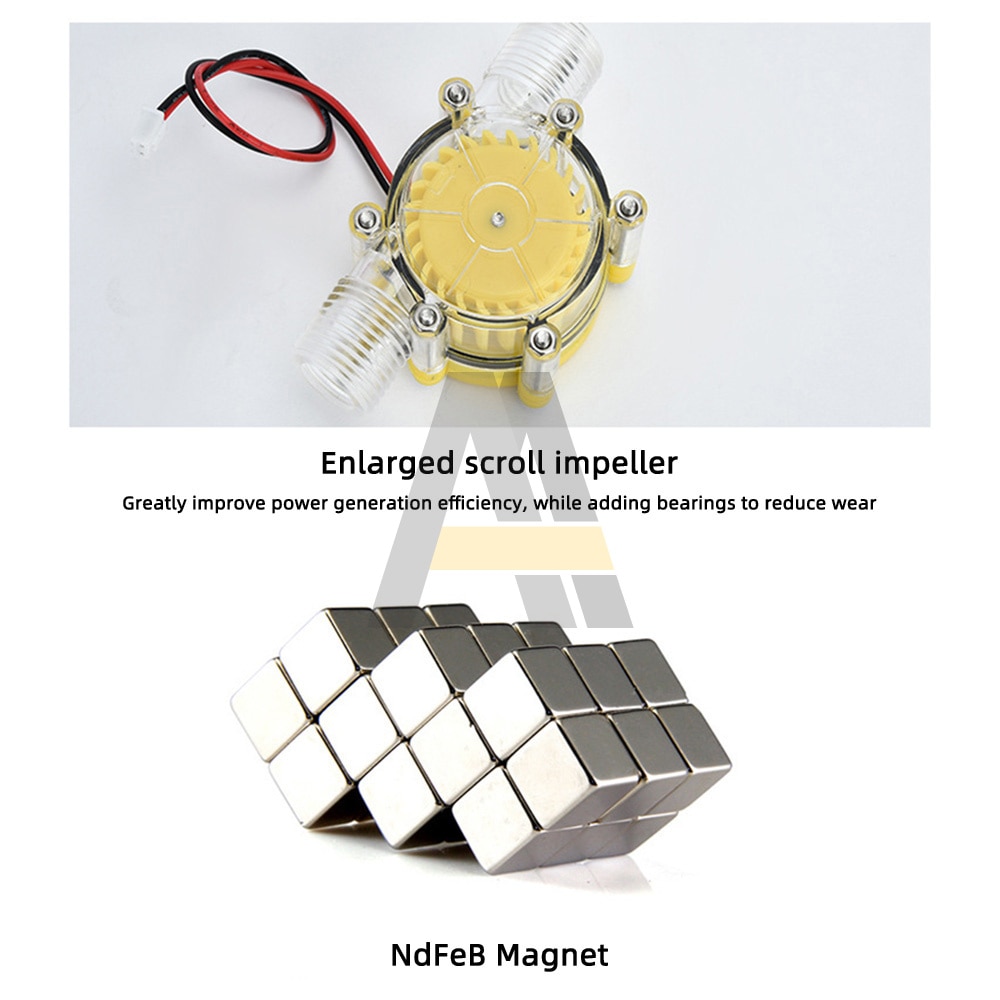

4. Enlarge the vortex impeller to greatly improve the power generation efficiency, and at the same time add bearings to reduce wear.
5. Chin-iron-boron strong magnetism, using Chin-iron-boron strong magnetism, greatly improves the power generation capacity.

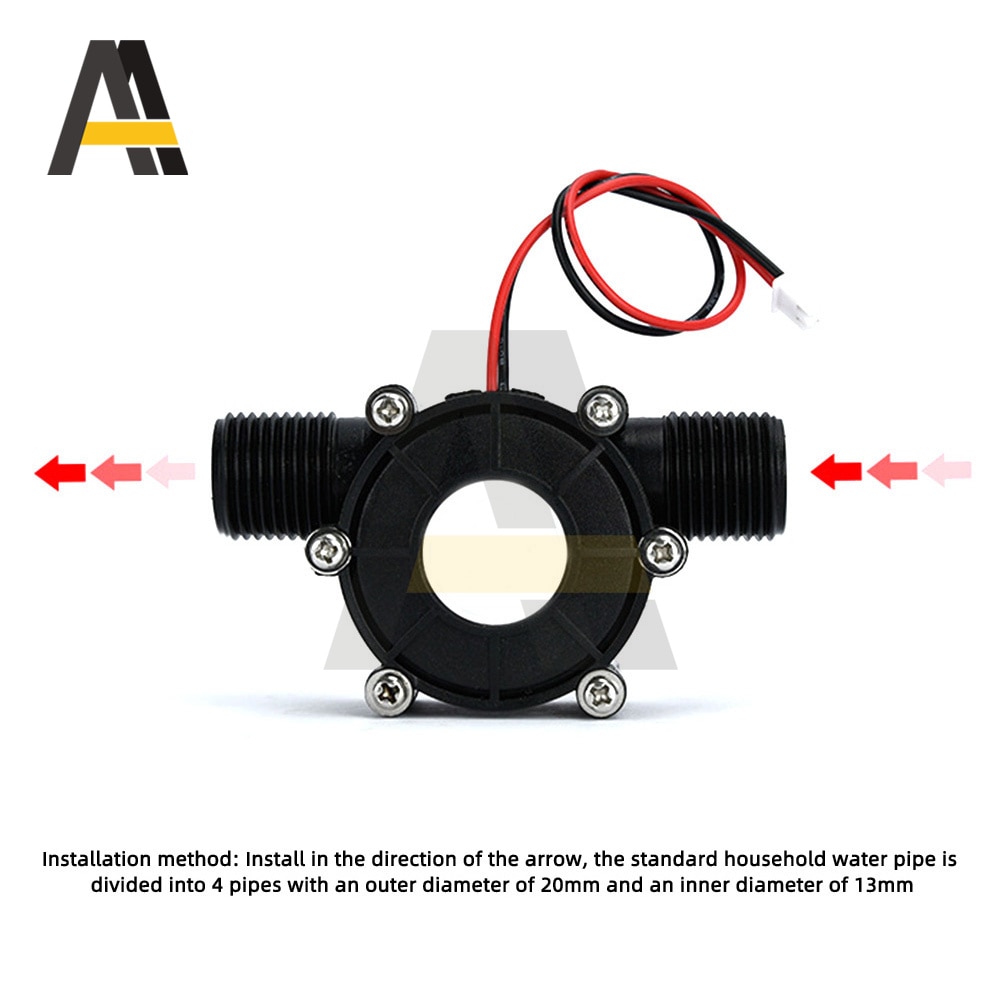

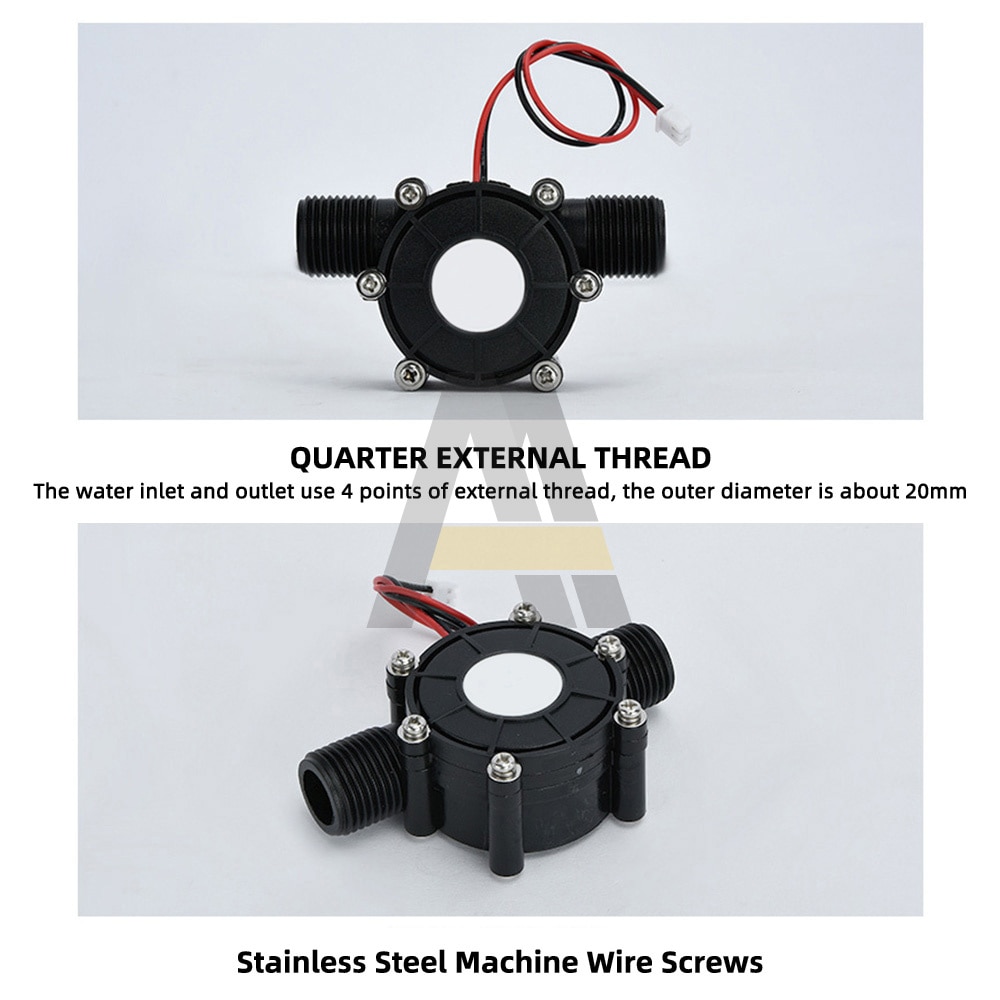

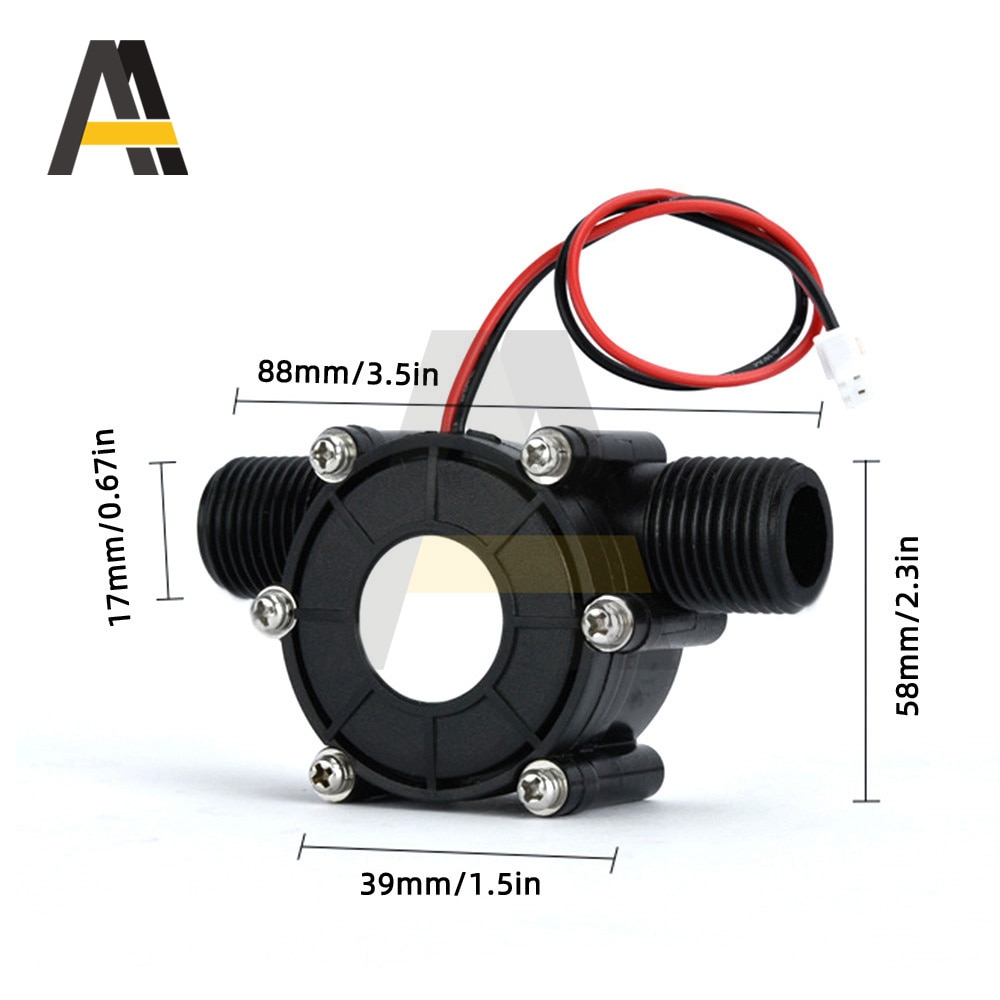

6. Four-point external screw thread: 4-point external screw thread is used for the water inlet and outlet, and the outer diameter is about 20mm.
Specification:
Terminal: 2pin
Generator life: ≥3000h
Mechanical noise: ≤55dB
Axial clearance: 0.2—1.0mm
Start water pressure: 0.05Mpa
Line-to-line resistance: 10.5±0.5Ω
Output peak voltage: 80V (1.2Mpa)
Output peak current: ≥220mA (12V)
Water outlet closed peak pressure: 0.6Mpa
Insulation resistance: 10MΩ (DC100 megohmmeter)
The opening peak pressure of the water outlet: 1.2Mpa
Output characteristics: The output voltage without a voltage regulator circuit is proportional to the water pressure

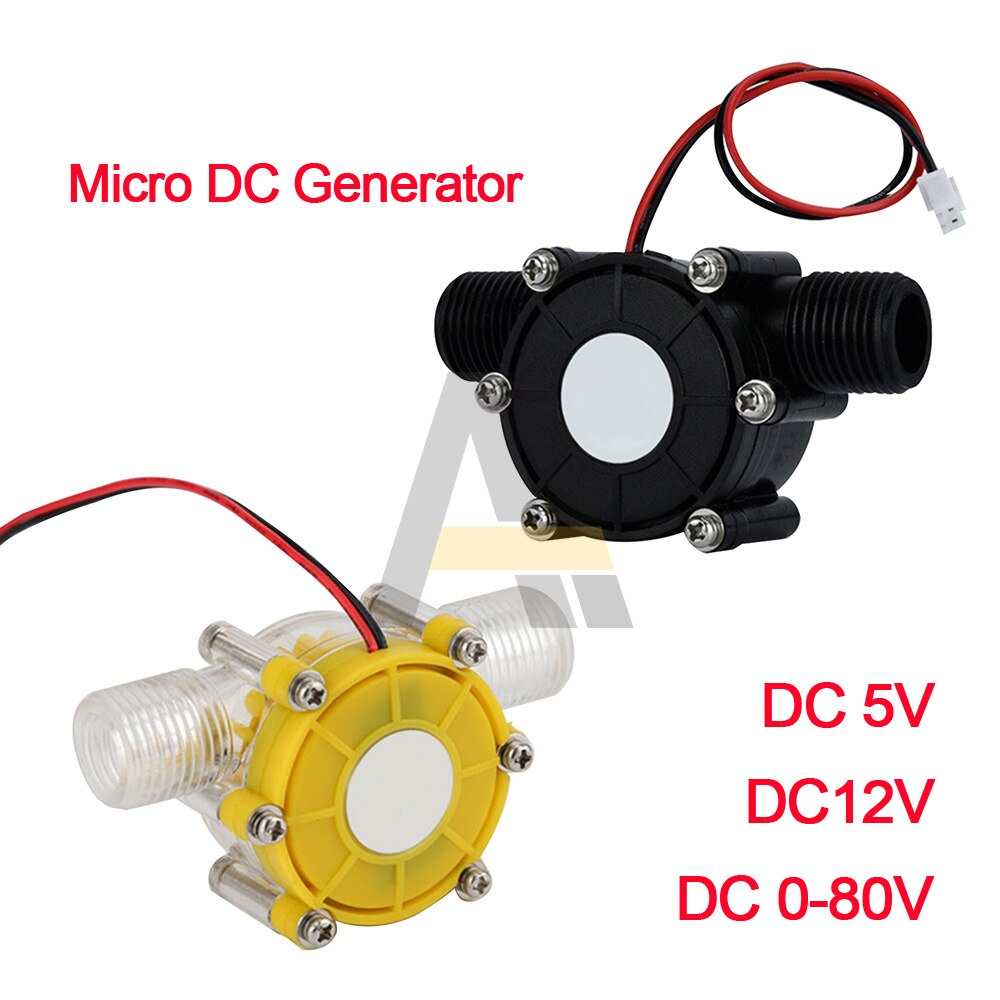

The model corresponds to the power generation output type:
5V: DC 5V regulated output, which can charge mobile phones, and can also charge lithium batteries with charge management chips.
12V: DC 12V regulated output, which can power and charge 12V radios, and power LED lights.
0-80V: DC 0-80V output, the generator does not have a voltage regulator circuit, the peak voltage reaches 80V, can directly charge 3-12V 10W LED lights, and can directly charge small batteries, the peak charging current is about 220mA, because when charging The generated electricity is used up in time, so the voltage will be automatically maintained at about 14V, and the appropriate voltage will be maintained so that all the generated electricity can be used to charge the small battery.
Shipping list:
Water phase generator*1
Notice:
DC5V /DC12V with voltage regulator, DC0-80V without voltage regulator
- Mounting Base: Without Mounting Base
- Shaft Material: iron
- is_customized: Yes
- Model Number: Micro Generator F50 Micro-hydro DC Water Flow Pump 5V 12V 0-80V
- Type: Wind Power Generator
- Origin: Mainland China
- Certification: CE
