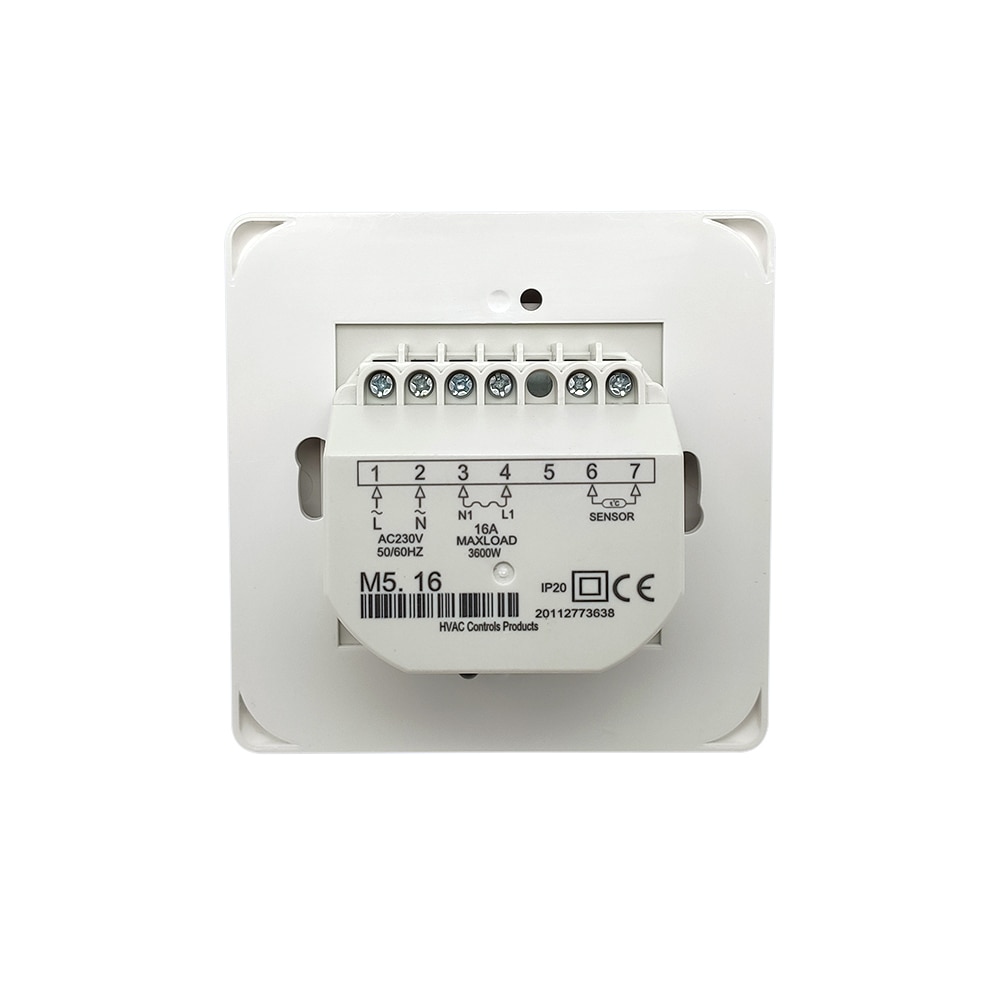

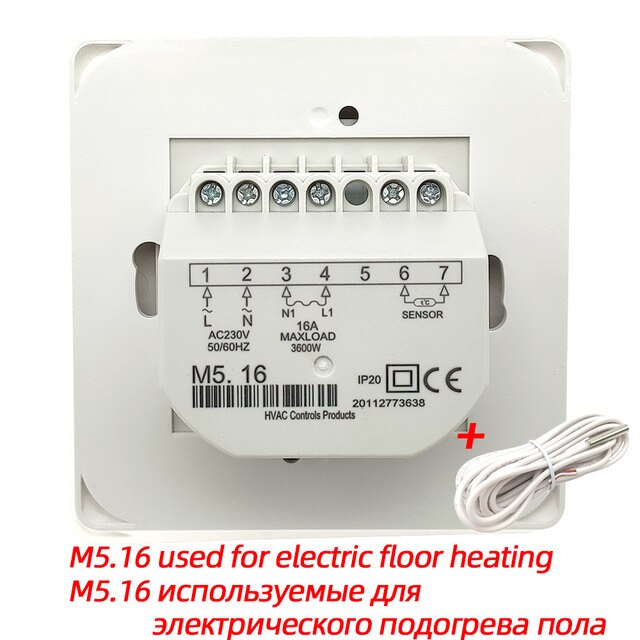

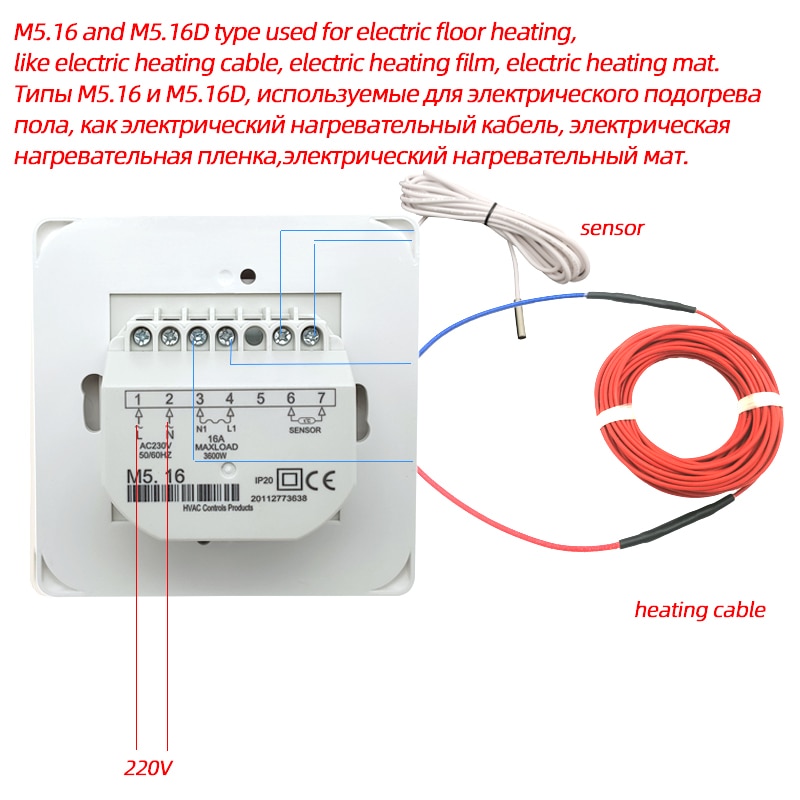

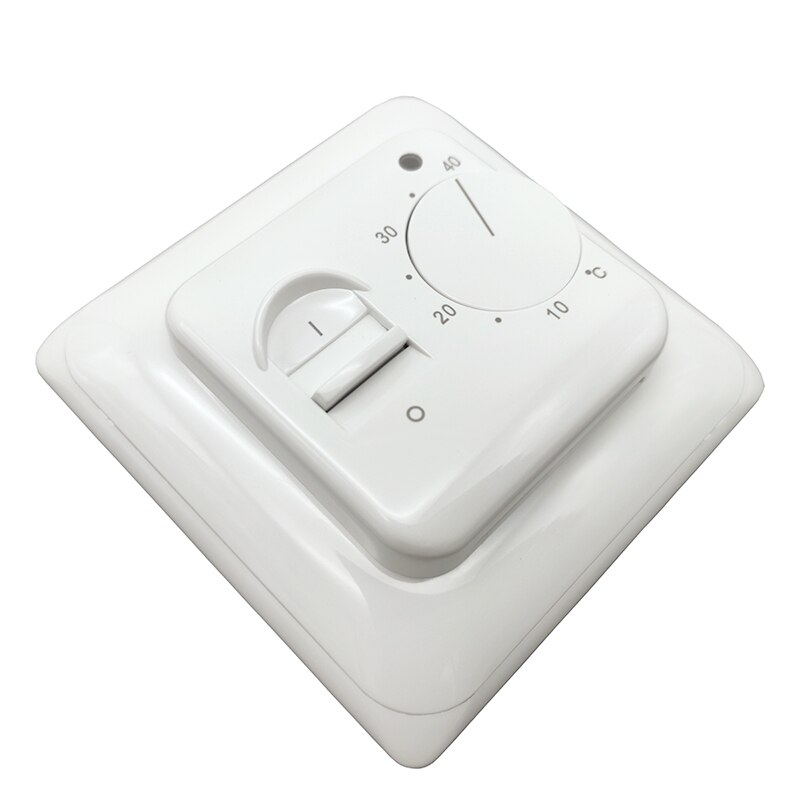

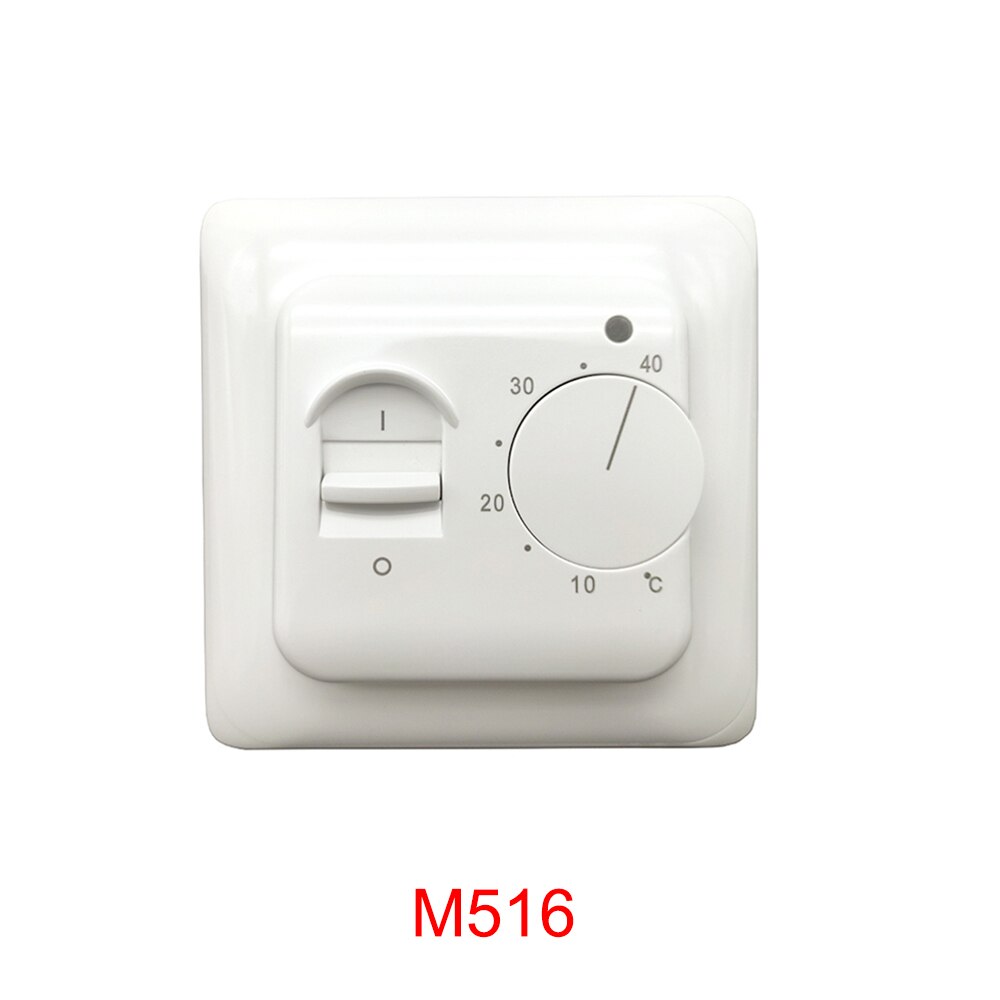

M5.16 type used forelectric floor heating, like electric heating cable, electric heating film, electric heating mat and other electric heaters.

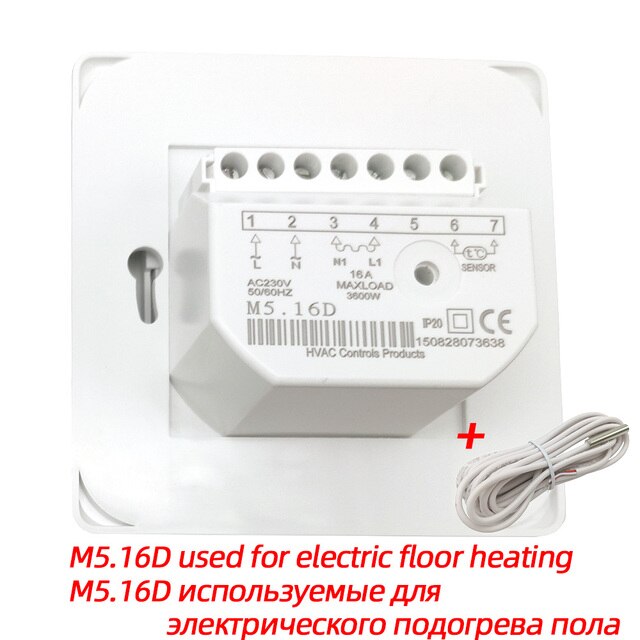

M5.16D type also used for electric floor heating, like electric heating cable, electric heating film, electric heating mat and other electric heaters.

It have both outside sensor and inside sensor:the inside sensor can detect the room temperature and control by the set temperture; the outside sensor can detect the ground temperature, it will stop heating when the ground temperature reach about 35℃.

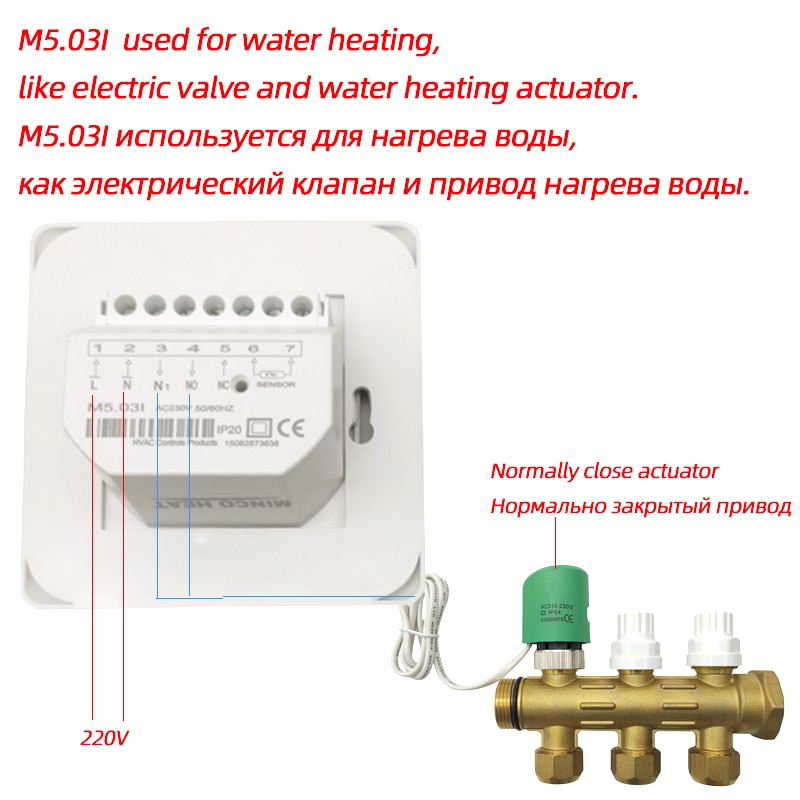

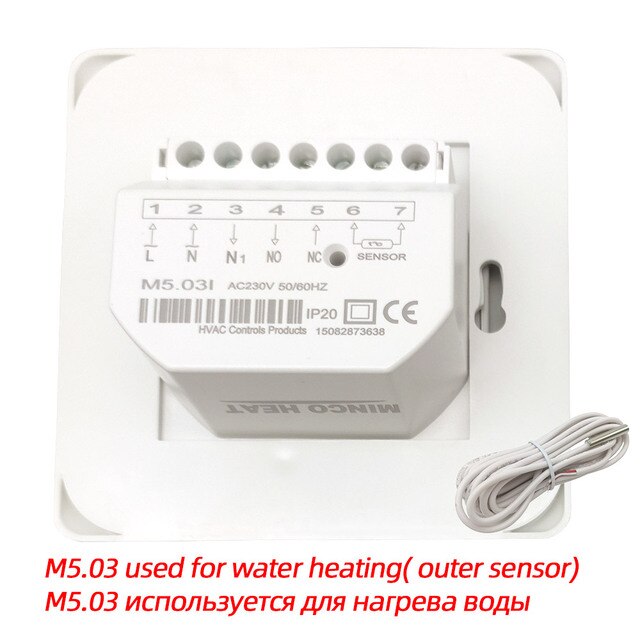

M5.03I and M5.03 type used for water heating, like electric valve and water heating actuator.

Charactristics

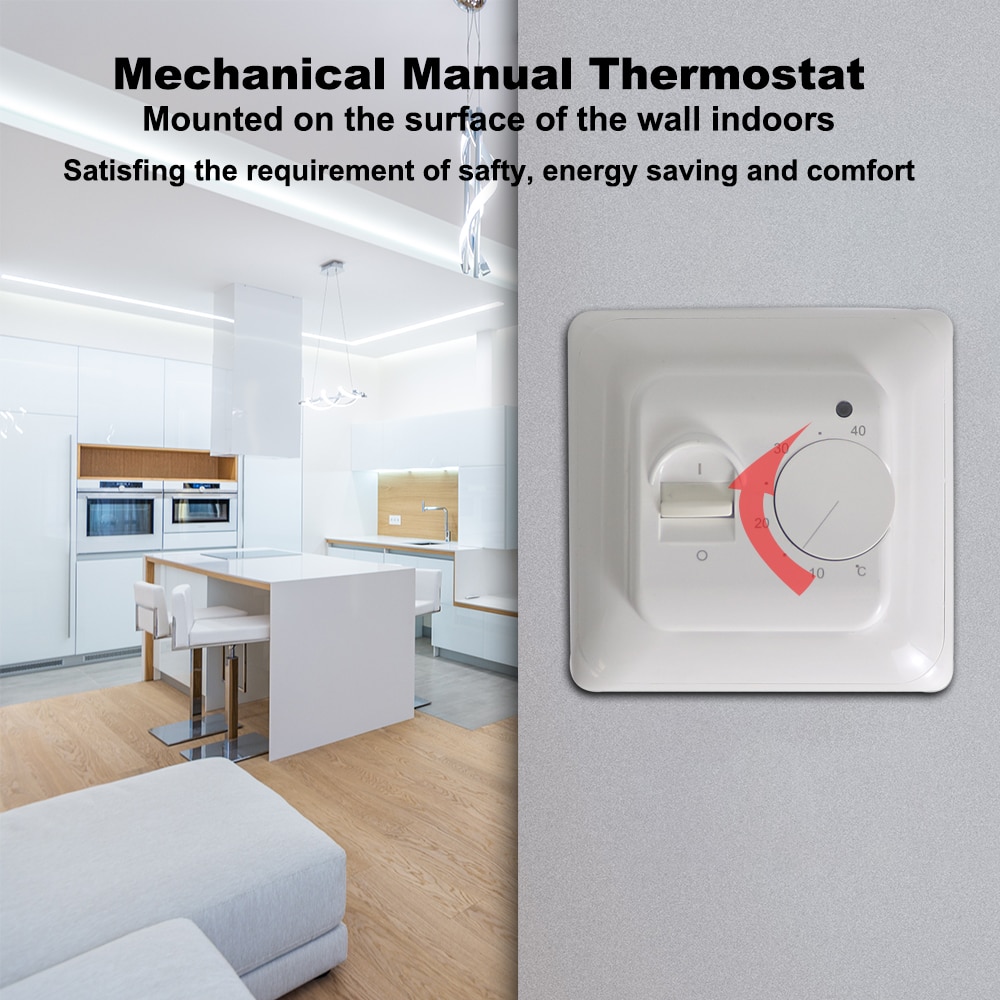

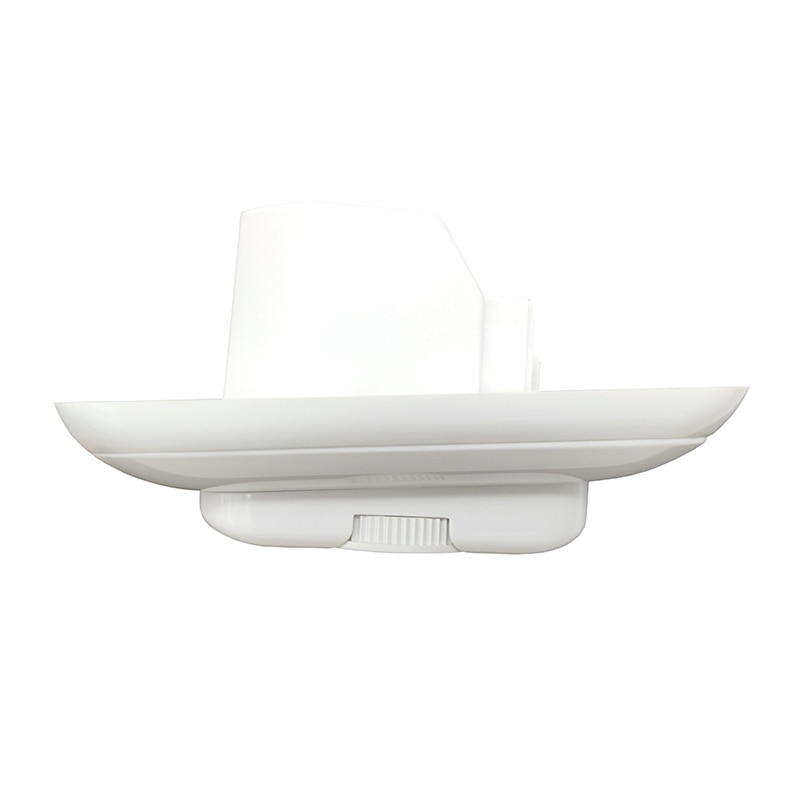

• Mounted on the surface of the wall indoors

• Temperature range: +5/+40 degree centigrade

• Applied in the auto-control system of space heating

• LED turned on while heating

• Satisfing the requirement of safty, energy saving and comfort

Specification

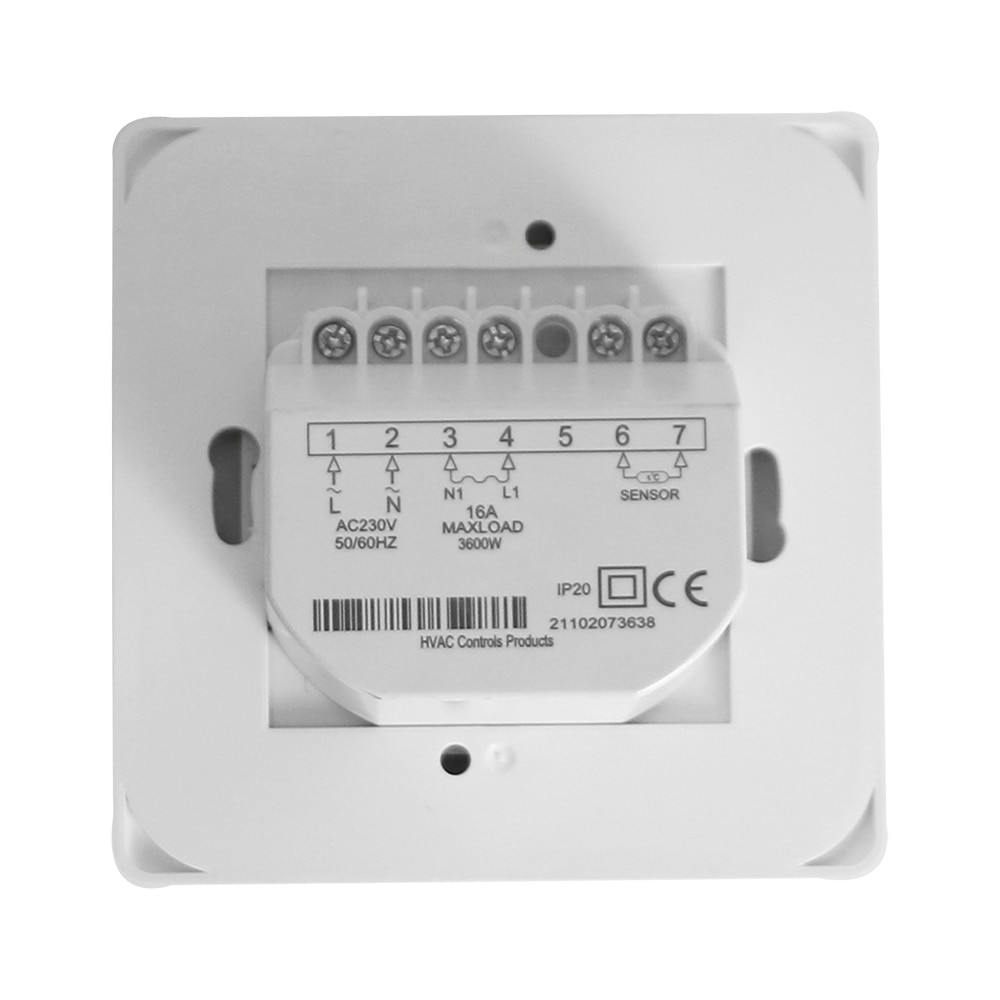

• Voltage: 220VAC

• Power consumption: 5VA

• Temperature control range: 5~40 degree centigrade

• Temperature limit range:  25~55 degree centigrade

• Power save mode temperature: 5 degree centigrade

• Temperature deviation: ±0.5K

• Ambient temperature: -5~50 degree centigrade

• Degree of protection provided by enclosure: IP20

• Outer sensor: Length of cable: 3M

Tips: M5.03i don't include the outer sensor, if you need outer sensor, please buy M5.03 type.

If you want the M503I thermostat and the actuator, please click the picture below, it's cheaper than buy separately.

FAQ

1. If I order this product now, when will I receive it?

Uusually we will send out your product within 3 working days. The shipping days needs 15~60 working days to arrive. If you need it urgently, please contact us before you pay, we could use quicker shipping method but price will higher.

2. I need this for my bedroom forfloor heating, will it work?

This thermsotat can control 3500W max. Please calculate the cable total power and compare. It is ok if power is less than 3500W.

3. Why it doesn't work when I receive it?

All thermostats before sent out are severely tested. If there is really any thermostat that does't work, please contact us within 7 days since you receive it. If turned out to be our responsbility, we will send you a new one for free or negotiate partial refund or full refund(excluding freight).

4. I saw the same one from other suppliers, why yours are expensive?

Firstly, our thermostat has been sold for 6 years, the quality is highly promised. The material we use are imported PC fire-resistant material, which is the best one for thermostat.

Secondly, there exists a batch of same thermostats as ours, which are fake and inferior goods.The surface will turn yellow after using a time and have potential safity problems. So please pay attention when you make choice.

5. What if I don't like it when I get it?

We accept you send it back but you need pay the both ways freight and any cost during the way, like the tax.

6. Will this thermostat come with the sensor or I should buy separately?

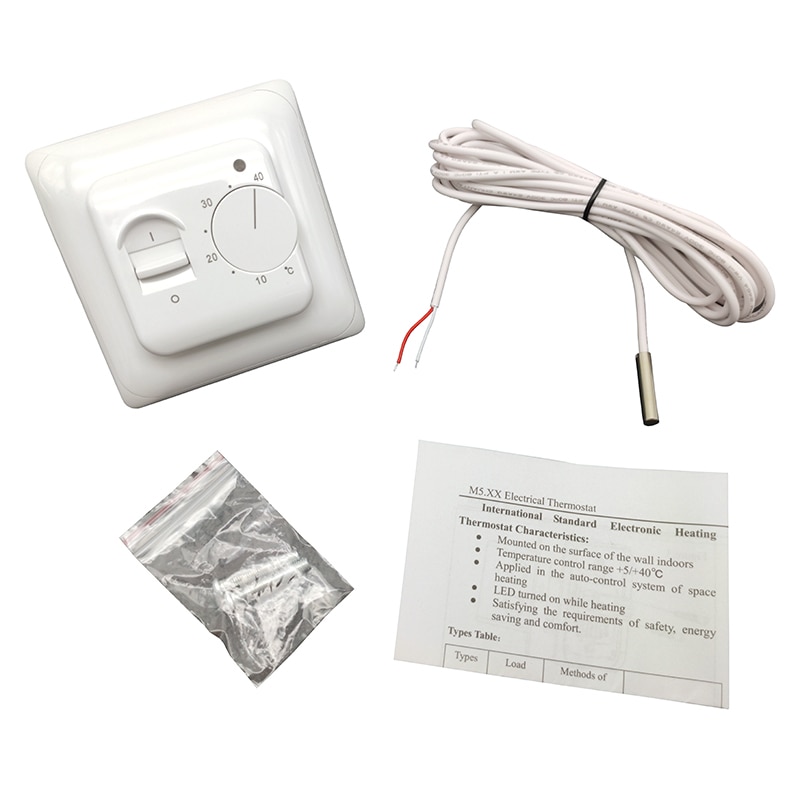

All the thermostats will come with matched sensor. Also, we could offer only thermstat or only sensor if you need.

7. I don't want my order now, please cancel it.

If you order it but haven't pay, it will cancel itself at last. If you have paid already, there is two situations:

1) if we have already sent out your product and it is on the way, and we are not able to get it back, we will not refund fully (will calculate our loss and then decide how much refund is ok)

2) If we haven't sent out your product or it has been sent out but we are able to get it back without any cost, we will make full refund.

8. Hi, I want to order 100pcs, what is the price?

We will calcuate the price with special discount and choose a suitable shipping method (like FEDEX, DHL, UPS, or SF) .
