LPSECURITY GSM Gate Opener Relay Switch Remote On/Off Switch Access Control Free Call SMS 850/900/1800MHz y 3m antenna
0.0 ( votes) | 3 orders
Price:
US $47.39 - 121.23
/ piece
Discount Price:
US $
41.57 -
104.30
/ piece
-12%
- Color
-
-
What's included:
for kit1, 1pcs RTU5024 2G version +1pcs user manual+1pcs basic short antenna
for kit2, 1pcs RTU5024 2G version +1pcs user manual+1pcs basic short antenna + power adaptor
for kit3, 1pcs RTU5024 2G version +1pcs user manual+1pcs antenna 3M

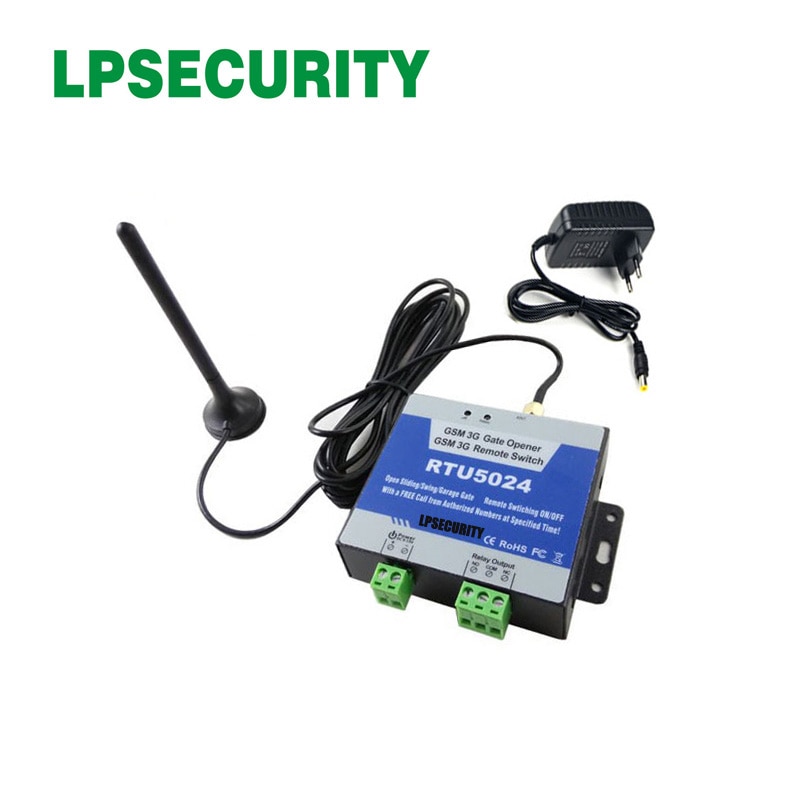

for kit 4, 1pcs RTU5024 2G version +1pcs user manual+1pcs antenna 3M + power adaptor

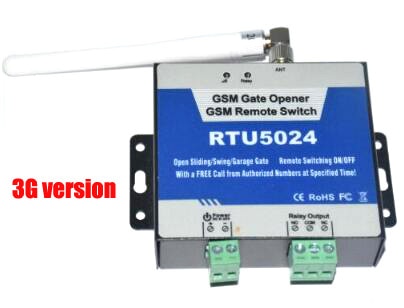

for kit5, 1pcs RTU5024 3G version +1pcs user manual+1pcs basic short antenna

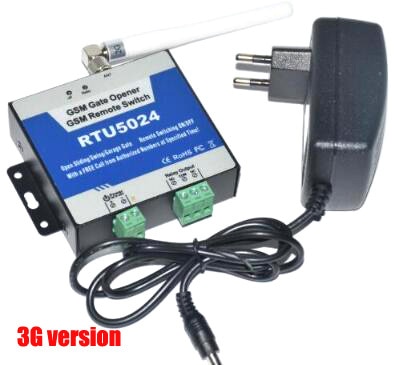

for kit6, 1pcs RTU5024 3G version +1pcs user manual+1pcs basic short antenna + power adaptor
for kit7, 1pcs RTU5024 3G version +1pcs user manual+1pcs antenna 3M
for kit8, 1pcs RTU5024 3G version +1pcs user manual+1pcs antenna 3M + power adaptor
If you are from New Zealand, Australia, etc , do choose 3G version, otherwise, it might not work in your country. thanks
2015 New GSM Gate Opener,a new door opener.

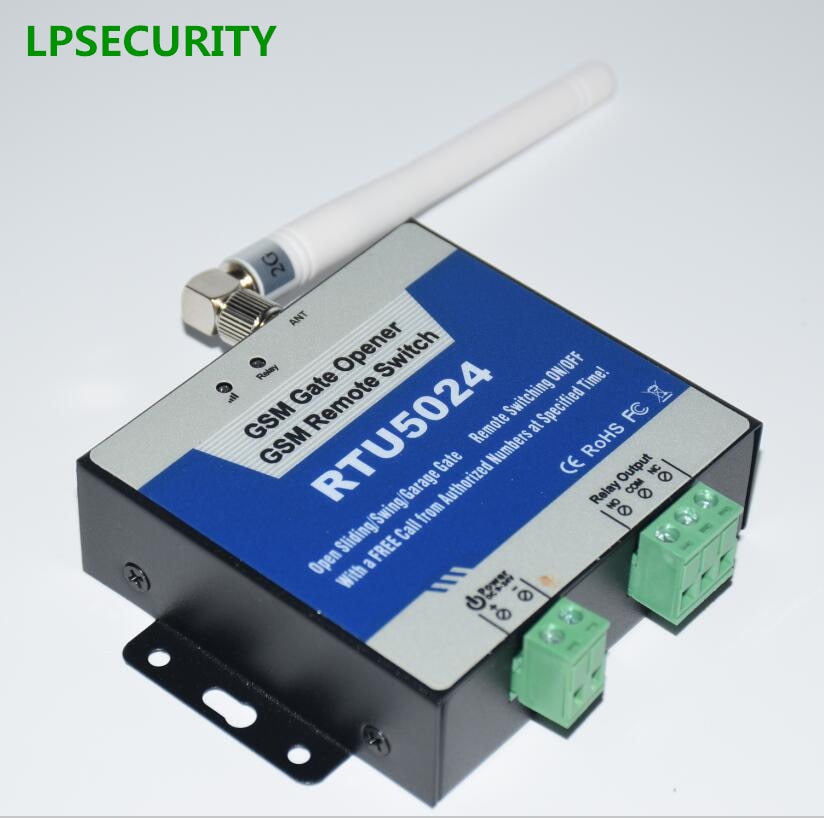

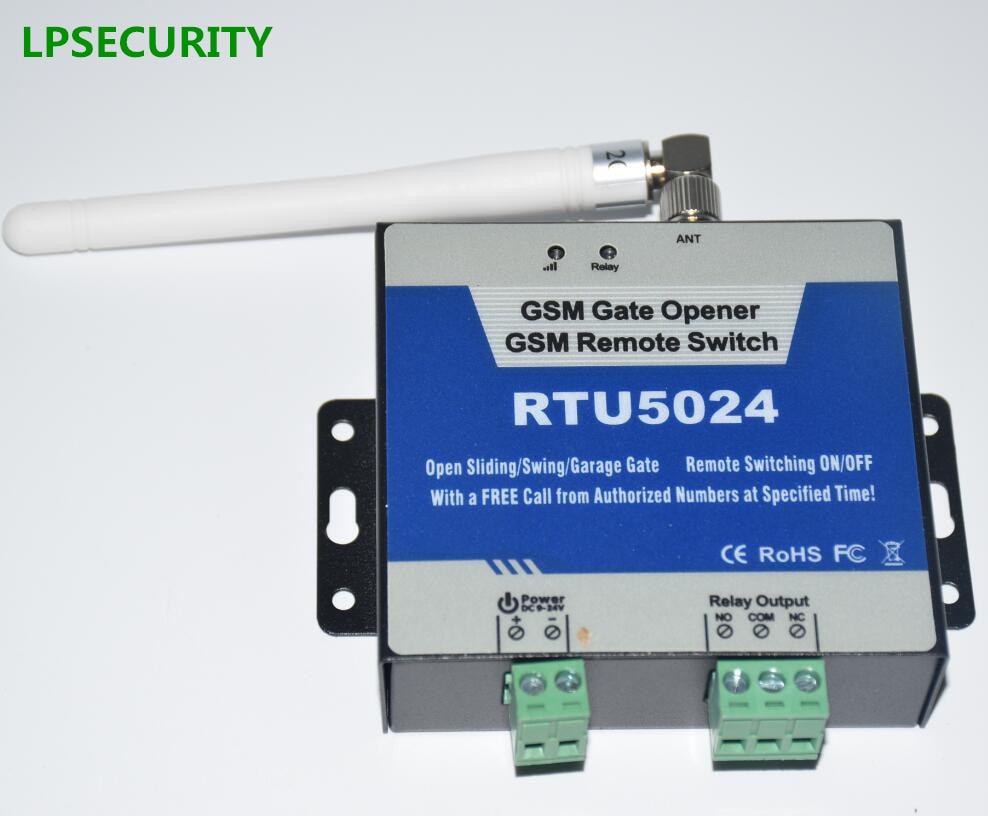

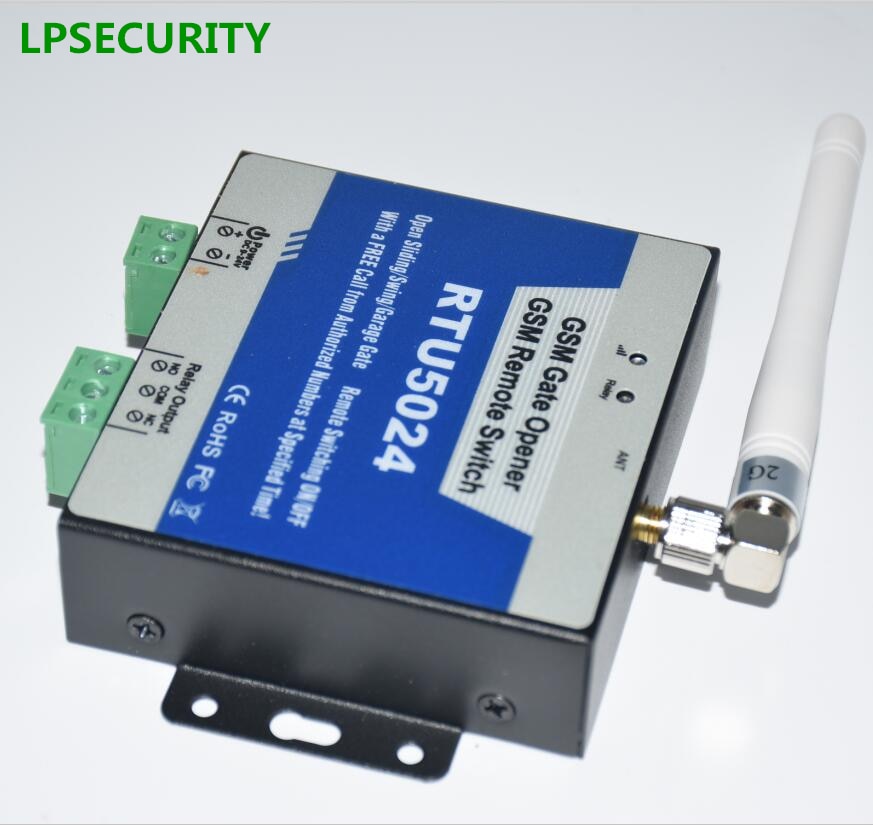

RTU5024 GSM Remote access control unit
1. Advantages
> Quad-band, can work in the worldwide GSM Networks;
> No call charges. the GSM GPRS Relay Switch rejects the call from authorized number then carries out the turn ON/OFF action on the first 'ring';
> Multiple applications. (gates, bollards, barriers, garage doors, shutters and access doors or machines);
> Secure - Using caller-ID for identification, unknown callers are ignored;
> Can be operated from anywhere, no distance limit;
> Add or remove users by SMS Text command;
> No need to provide a remote control or keys for different users;
> Up to 200 authorized phone numbers can be configured at the specified time;
> One output with relay rating 3A/240VAC for connecting the switch of the door or machines;
> The relay action will return a SMS confirmation to the owner or authorized call in number, this function is editable by user;
> The relay close or open time is programmable;
> Multiple applications. (gates, bollards, barriers, garage doors, shutters and access doors or machines);
Setting:
> SMS command;
> Operate from anywhere anytime, no distance limitation;
2. Specifications:
GSM Frequency: Quad-band 850/900/1800/1900MHz

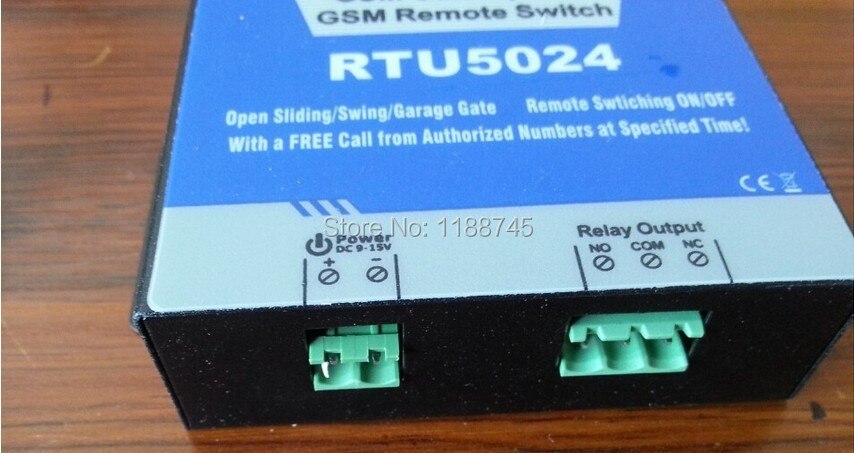

Digital Output: NC/NO dry contact, 3A/240VAC
DC Power supply: 9~24VDC/2A
Power consumption: 12V input Max. 50mA/Average 25mA
SIM Card: Support 3V SIM Card
Antenna: 50ohm SMA Antenna interface
Temperature range: -20~+60 C degree
Humidity range: Relative humidity 90%
Exterior dimension: W102*D76*H27 mm
Net Weight: 180 g
3. Applications:
> Remote open/close swing/sliding gates, doors, shutters, garage doors,locks with a free call!
> Residential: Door,gate,garage access control, electronic fan,microwave,air-conditioner control.
> Industry: Remote switch equipment, for example: street lights, solar power, motor, inverter, PLC, pumps, fans, etc.
> Agriculture: Remote control pumps, etc.
> Business: Remote control electronic boxes,bright billboards,LED signs,etc.

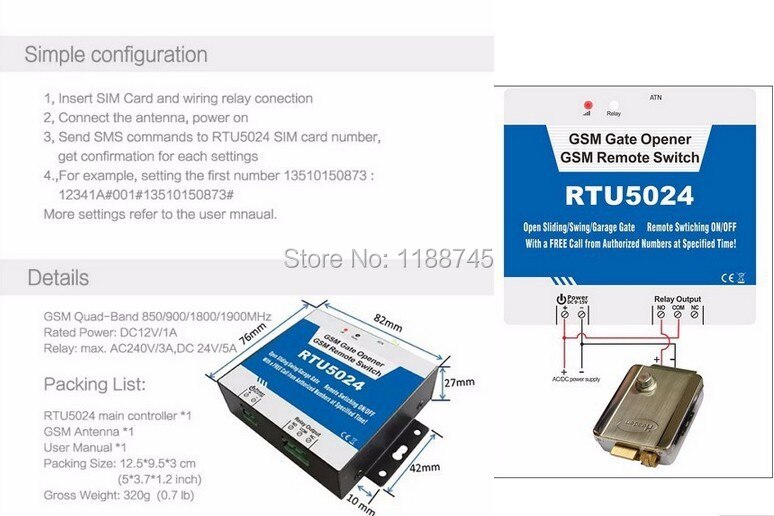

RTU5024 GSM Gate opener Wiring connection with door lock 650RTU5024 GSM Gate opener Wiring connection with pump 650
4. How it works?
A) Wiring the RTU5024 Gate opener with your door locks or other machines.
B) Insert SIM card to RTU5024 Gate Opener, Power up.
C) Send few SMS commands to RTU5024 Gate opener, to assign the authorized user list.

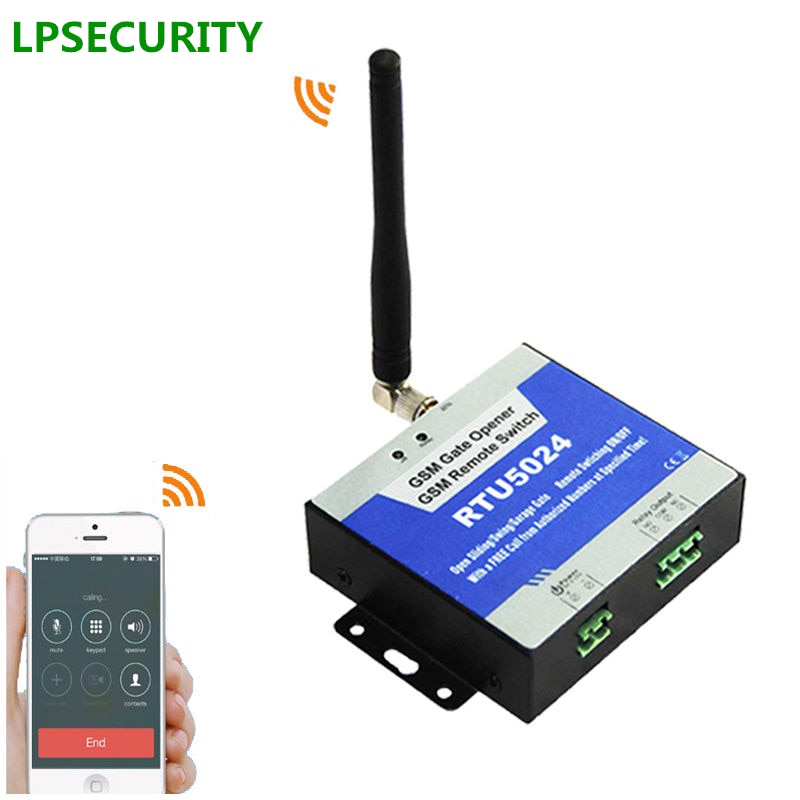

D) Make a phone call from the authorized user's phone number, RTU5024 Gate Opener reject phone call and door open or close.
For example,If you are using the RTU5024 GSM gate opener for open/close your garage door by your family memebers, what you need is just 2~5 SMS commands only.
More photos
- Model Number: 5024
- Brand Name: LPSECURITY
- Origin: Mainland China
- Certification: CE
