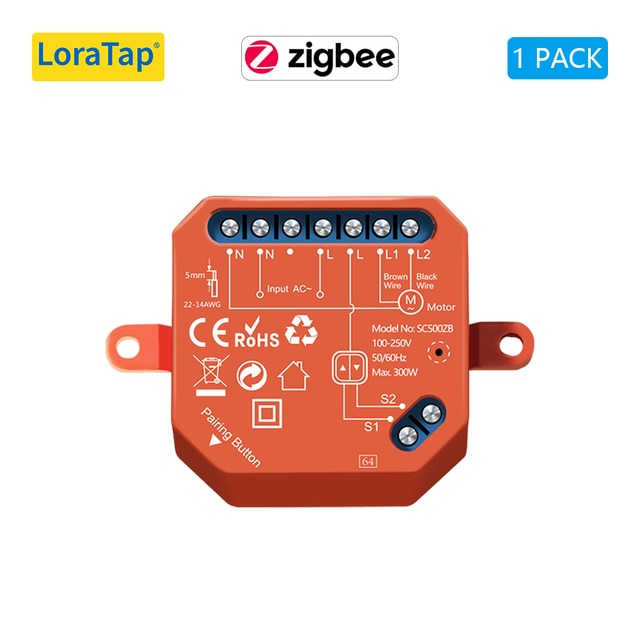

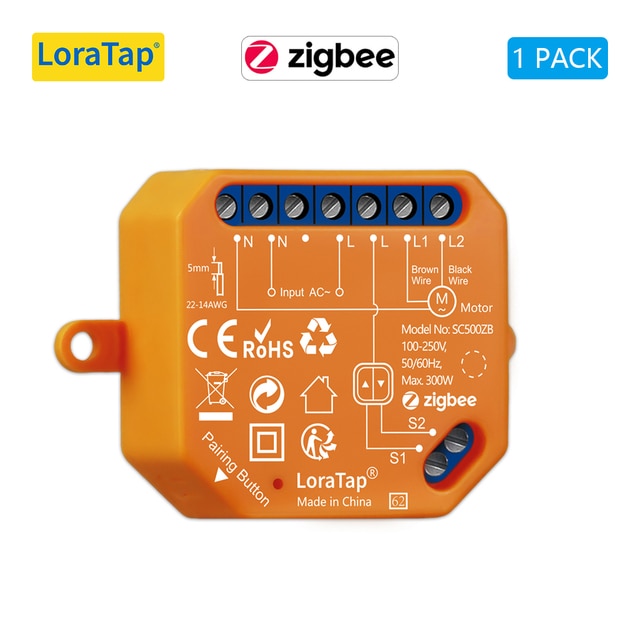

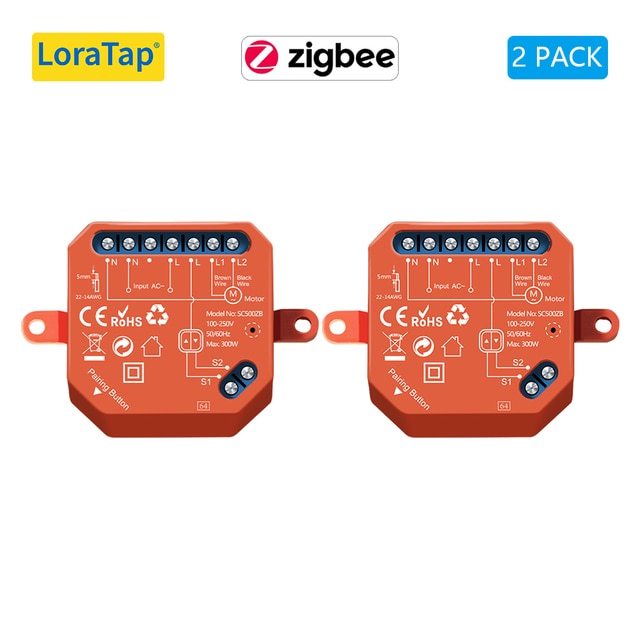

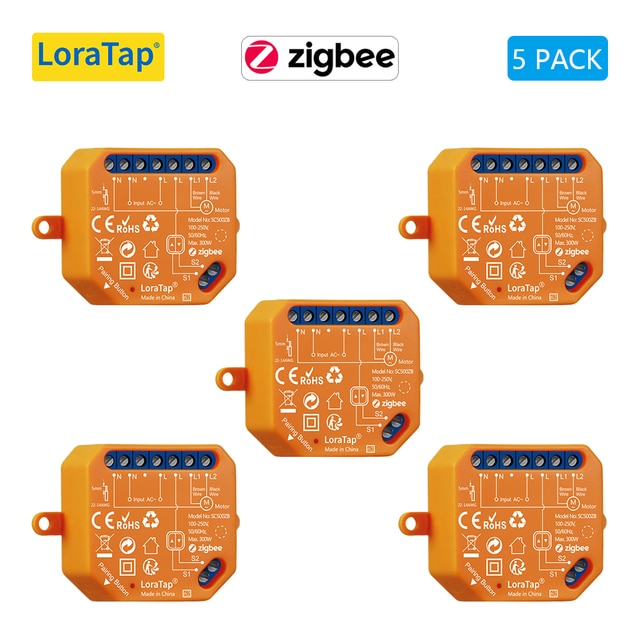

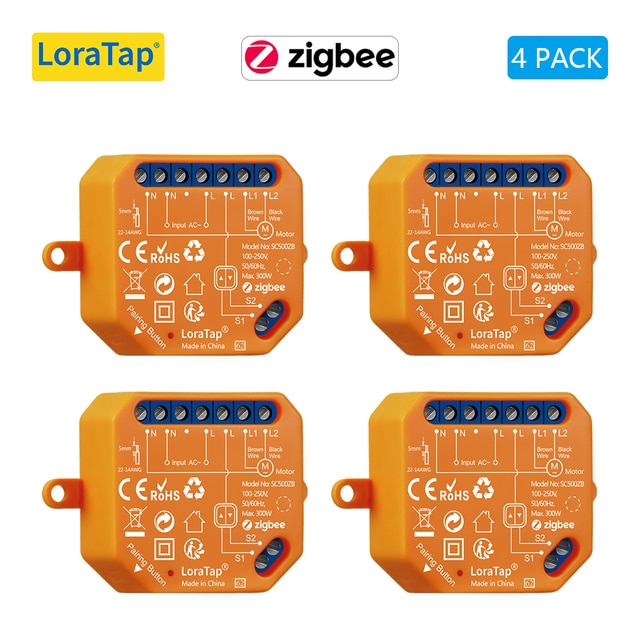

LoraTap ZigBee Shutter Switch Module For Electric Motorized Curtain Blind Tuya Smart Life Roller Alexa Google Home

4.6 (230 votes) | 826 orders
Price: US $41.76 - 273.37 / piece
Discount Price:
US $ 21.43 - 133.09 / piece
-49%
Color
Ships From
Quantity

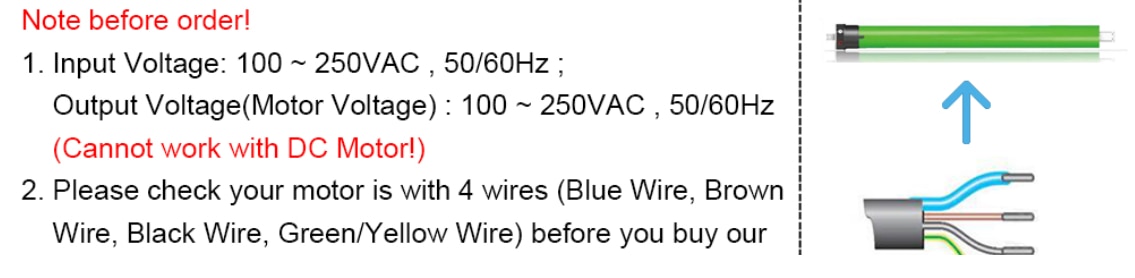

Note before order!

- The module can be compatible with any electric shutter motor with 4 wires,(Live Wire 1, Live Wire 2, Neutral Wire, Earth Wire), and 100-250 VAC voltage input, But the live wire 1, live wire 2 (for open and close )and neutral wire these 3 wires must be required for installation, otherwise it can't connect with our switch.
- This module can't work with any DC Motor.

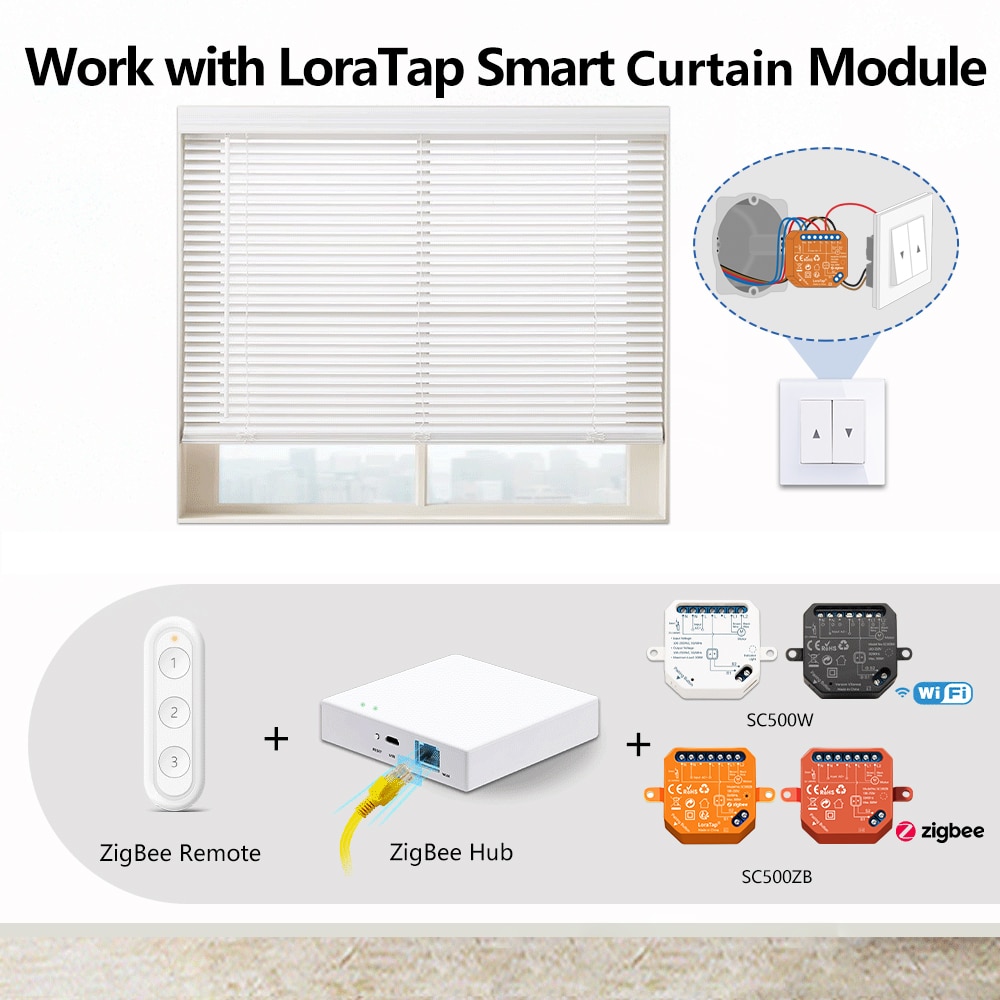

Comparison of LoraTap Curtain Switch

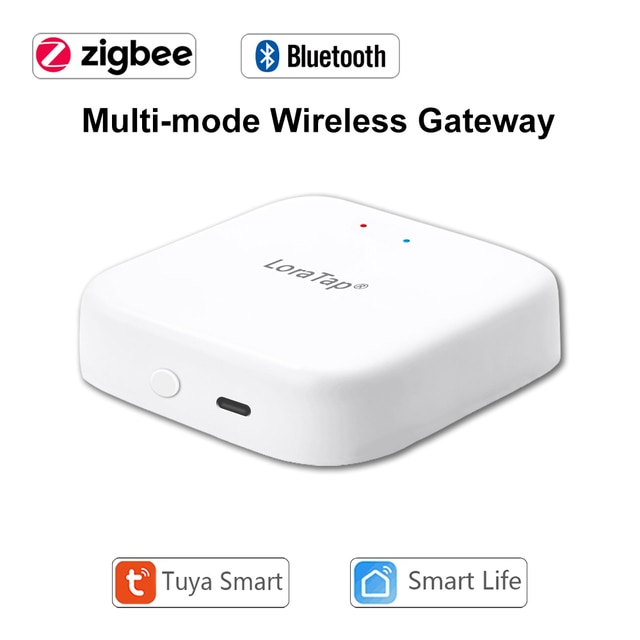

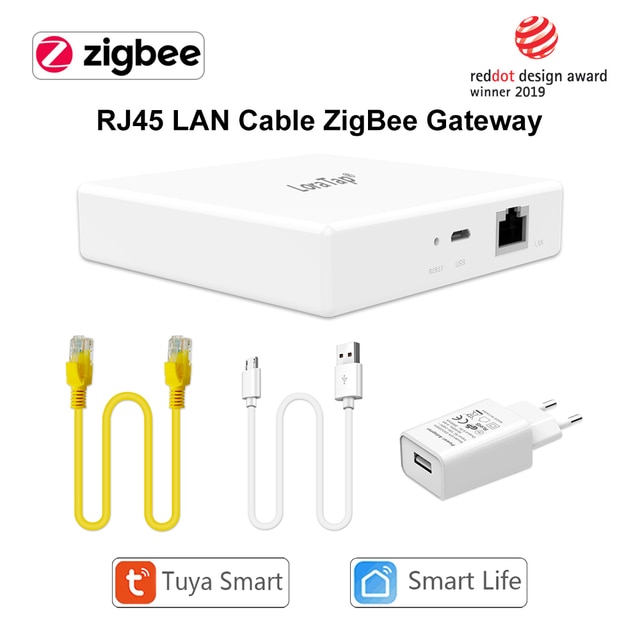

ZigBee Hub is Required

- Tuya ZigBee 3.0 curtain switches need work with Tuya ZigBee Hub, please make sure you already have a Tuya ZigBee Hub, if not, you can click the link in the picture below to buy the zigbee hub.
- This ZigBee curtain switch can't work with other brands' ZigBee Hub, please make sure your ZigBee Hub is from Tuya.

ZigBee Curtain Switch Module characteristics

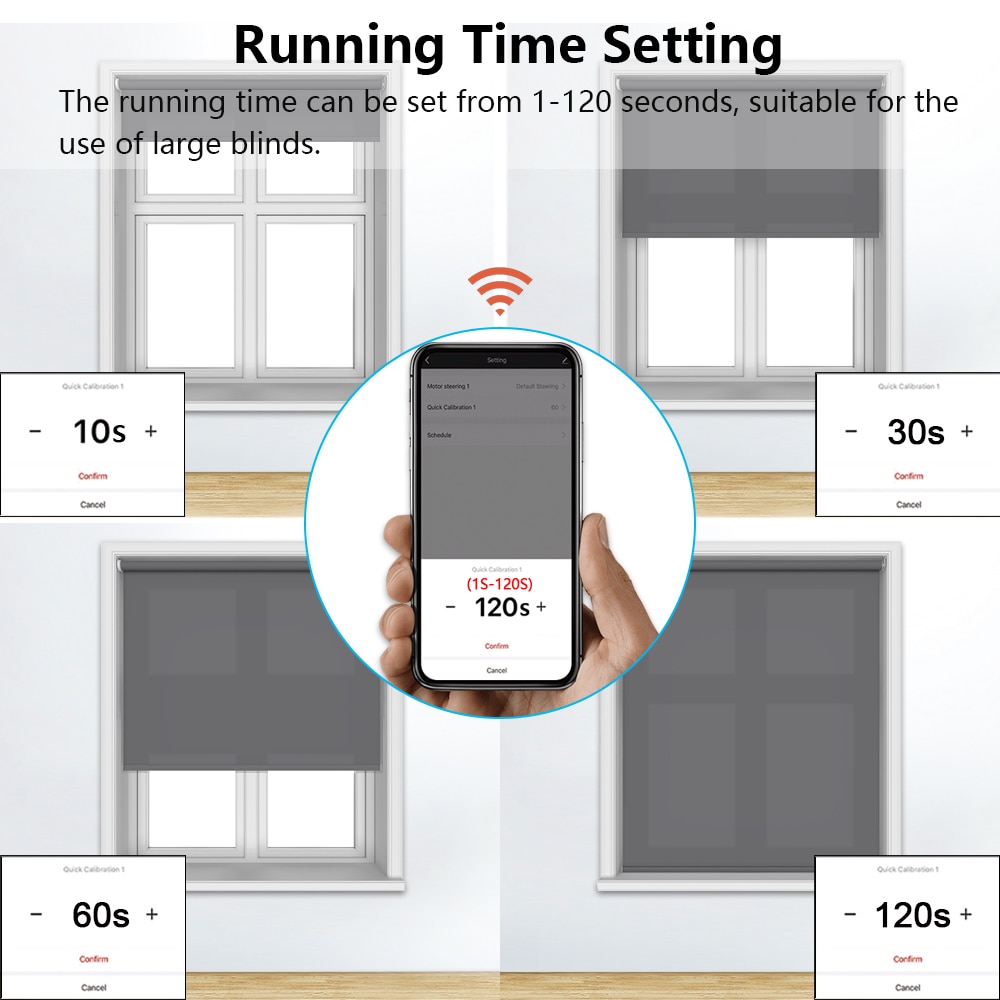

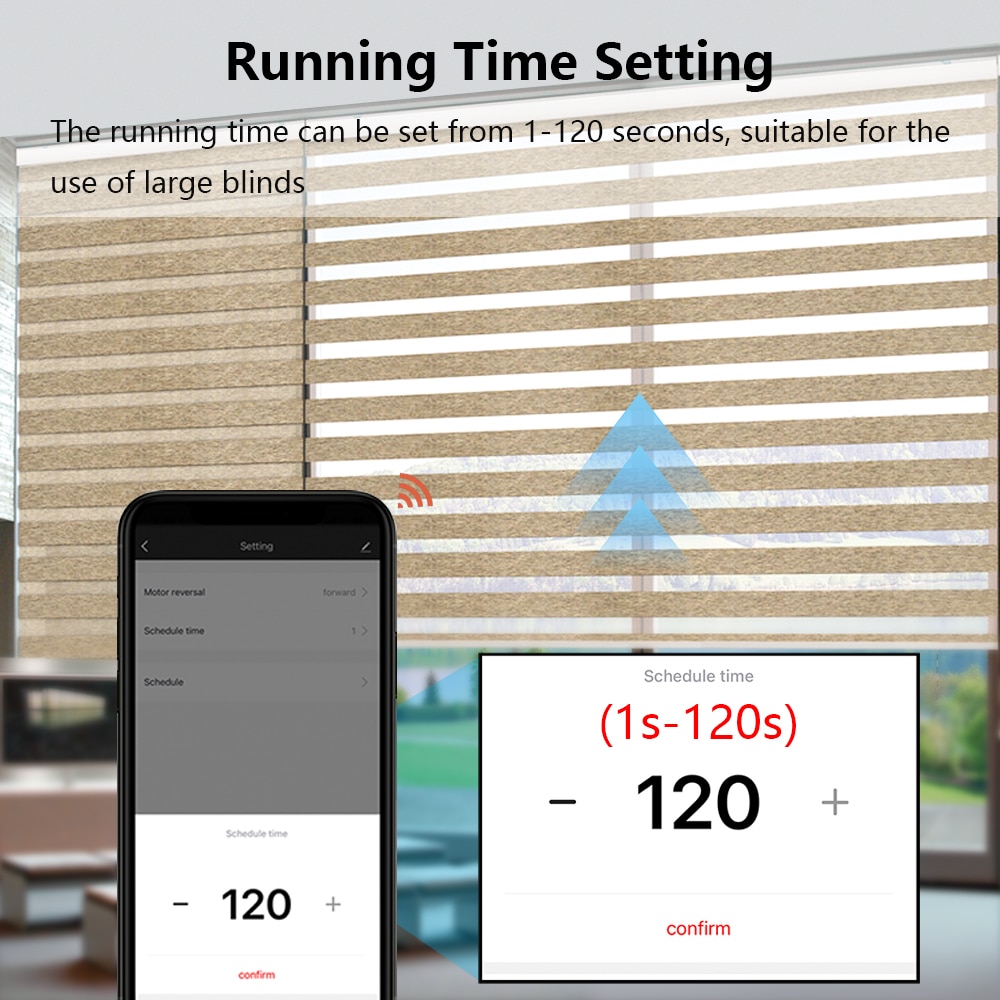

Running Time Setting

The running time can be set from 1-120 seconds, suitable for the use of large blinds.

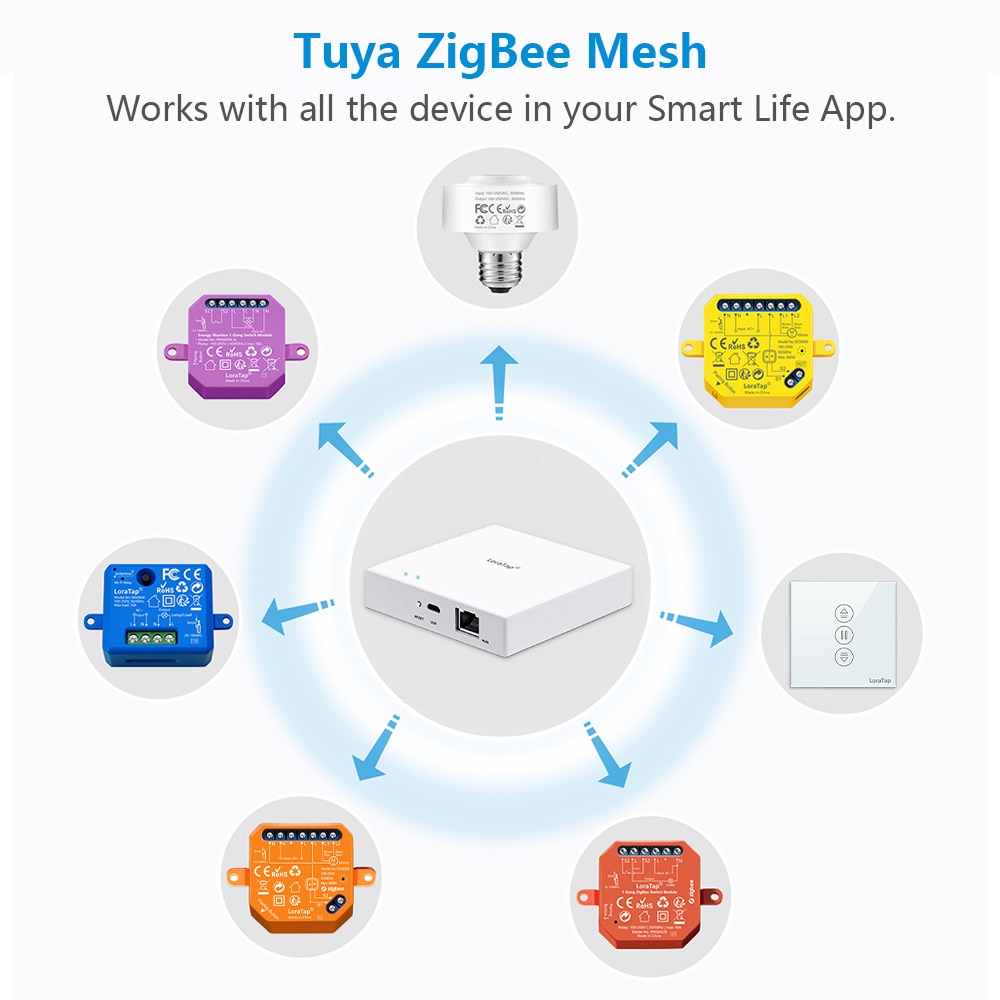

Tuya ZigBee Mesh Curtain Module

- You can add up to 256pcs Sub ZigBee devices in Tuya ZigBee Mesh Network.
- Please make sure you already have a Tuya ZigBee Hub, it's a must for all the Tuya/Smart Life ZigBee devices.

Hands free- Voice Control

Voice Control with Google Home, Amazon Alexa

Set Timer Schedule for your curtain

Set timer on App for when to open, when to close your curtain, it will open or close automatically.

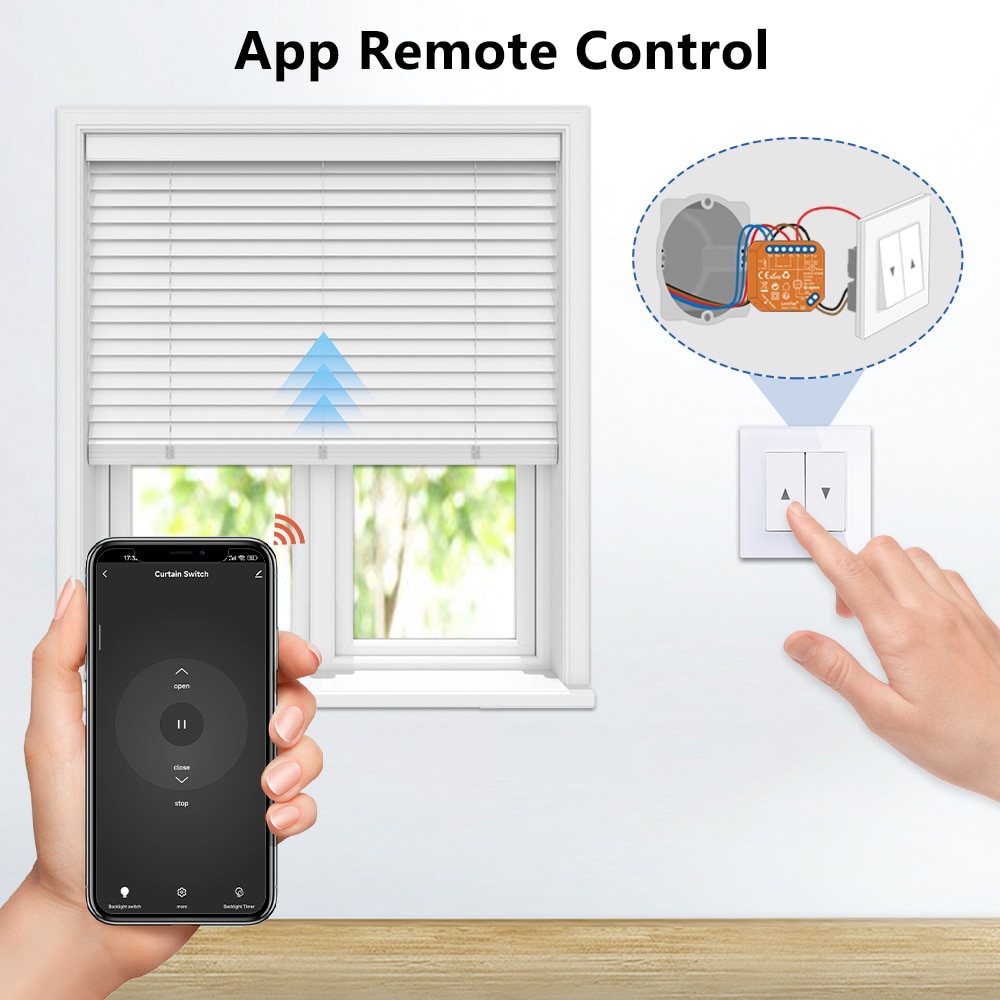

Remote control with your mobile anywhere even you are not at home

Remote control with your mobile anywhere even you are not at home

Group Function and Device Sharing

You can create group in the APP to manage all the blinds in your house and share the device to all your family members.

Compact Mini size

Tiny size design enable it can fit most junction box.

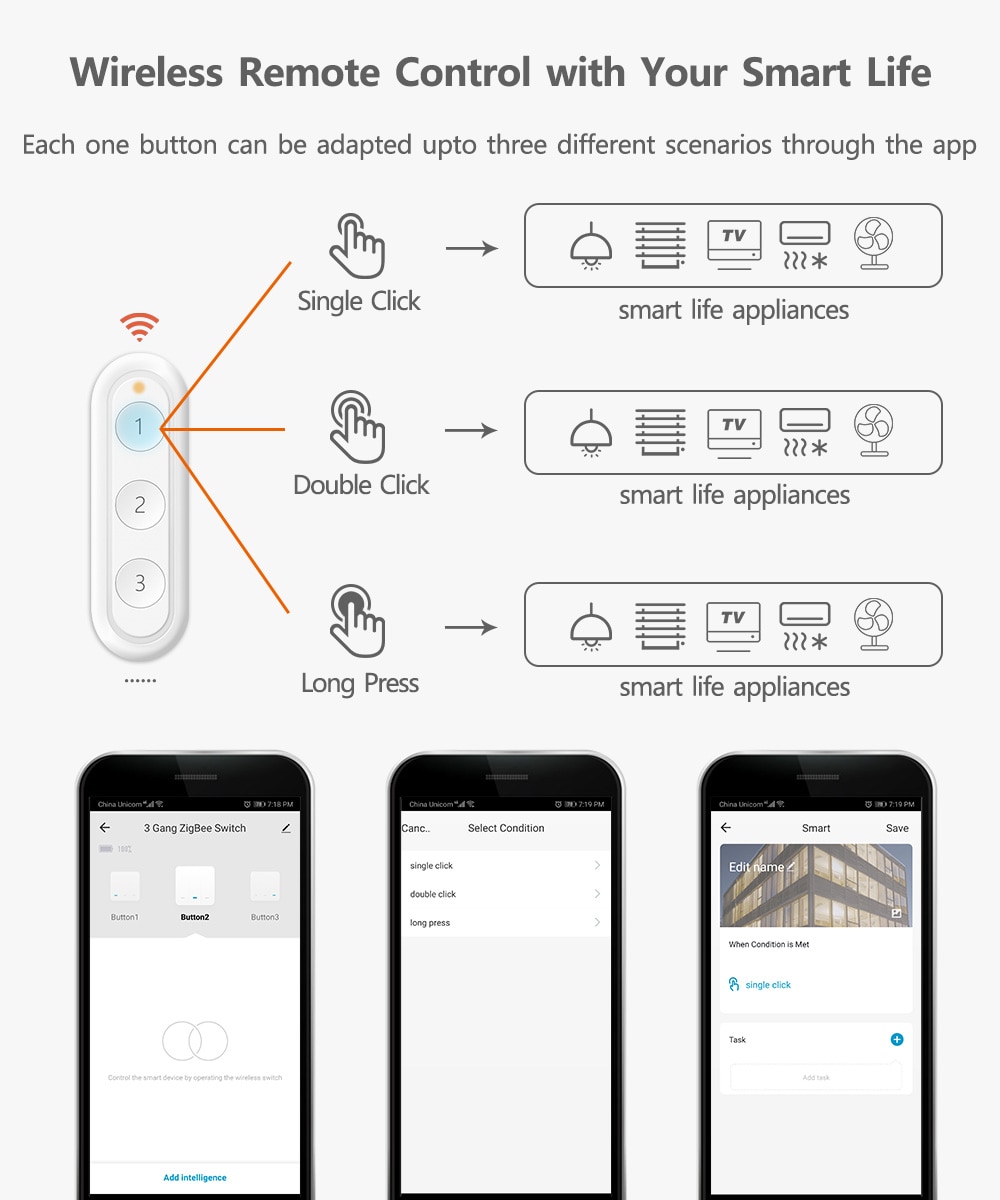

ZigBee remote control controls the device

By binding the Zigbee button function through the App, you can use the Zigbee remote control to control the device.

2 Wiring diagram according to your need, to connect with your manual switch or don't need a manual switch

- If you need to connect with your manual switch, please refer to below wiring diagram .
- If you need any help for how to connect the module, please be free to contact with seller.

- If you don't need to connect with your manual switch, please refer to below wiring diagram .
- If you need any help for how to connect the module, please be free to contact with seller.

Specification

Input voltage: 100-250VAC, 50/60Hz
Wiring: Neutral Wire, L1, L2, Earth Wire
Max Load: 300W(curtain switch module)/600W(curtain switch)
Wireless Protocol: Tuya ZigBee 3.0
Standby Consumption: below 0.5W
APP Name: Smart Life or Tuya
Voice Control: Google Assistant, Amazon Alexa
Plastic Material: Fireproof ABS
Certification: CE, EMC, RED, RoHS
Patented Product: Yes
Produced by ISO9001 Factory: Yes

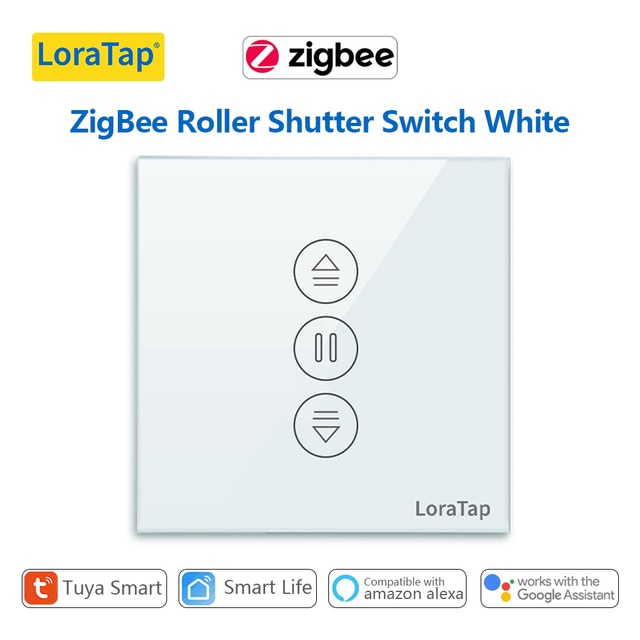

ZigBee Roller Shutter Switch

Features

- Voice Control: Compatible with Amazon Alexa, Google Home, and Yandex Alice.
- App Remote Control: Support Smart Life APP /Tuya APP.
- Touch Panel Control: Tempered glass touch panel, safe and high quality, moisture-proof, safe operation even with wet hands.
- Running Time Setting: The running time can be set from 1-120 seconds, suitable for the use of large blinds.
- Tuya ZigBee Mesh: It has a stable network performance with zigbee 3.0 mesh technology.
- Timer and Schedule: You can set a timer to open or close the curtains at a specified time.
- Sunrise/Sunset Automation: You can set the sunrise/sunset automation in the smart life app.
- Device Sharing: You can create group in the APP to manage all the blinds in your house and share the devices to all your family members.

More ZigBee Products

EU ZigBee Shutter Switch

US ZigBee Shutter Switch

3-Button ZigBee Remote

ZigBee E27 Lamp Holder

1 Gang ZigBee Switch Module

ZigBee In-Wall Socket Module

You May Like

Why us?

1. We are the direct manufacturer, competitive price and good quality, we have ISO9001 certified
2. We are popular top brand.



  • Wattage: 300W
  • is_customized: Yes
  • Voltage: 110-240V
  • Brand Name: LoraTap
  • Origin: Mainland China
  • Certification: CE,RoHS
  • ZigBee Smart Curtain Switch: DIY Smart Home
  • Works for: Smart blinds, Smart Curtain, Roller Blinds, Shutter
  • Certification: CE, Rohs, FCC
  • Voice Control: Google Home, Amazon Alexa
  • App Name: Tuya , Smart Life
  • Wireless Protocol: Tuya ZigBee 3.0
  • Works with: Blinds Shutter with electric motor
  • Switch type: Switch Module
  • Support System: Both Android & iOS
  • Compatible with: AC electic motor with 4 wires
  • connect with: Tubular motor, electric blind motor

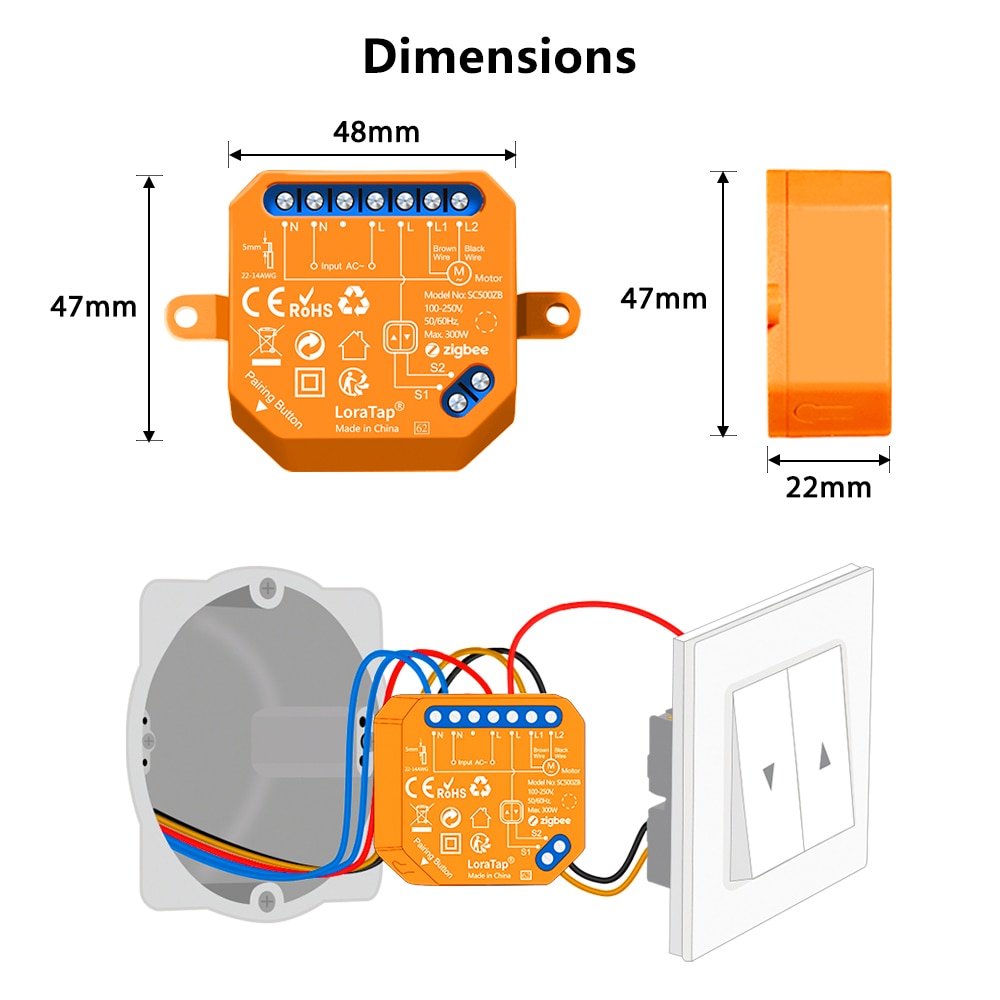

  • Dimensions: 48mm*47mm*22mm
  • Timer: App Timer schedule
  • Remote Control: App Remote Control
  • Manual Switch: Toggle, Rocker type
  • works with: toggle switches,back and forth switch,Home Assistant
  • Hub Needed: Tuya ZigBee Hub Gateway
