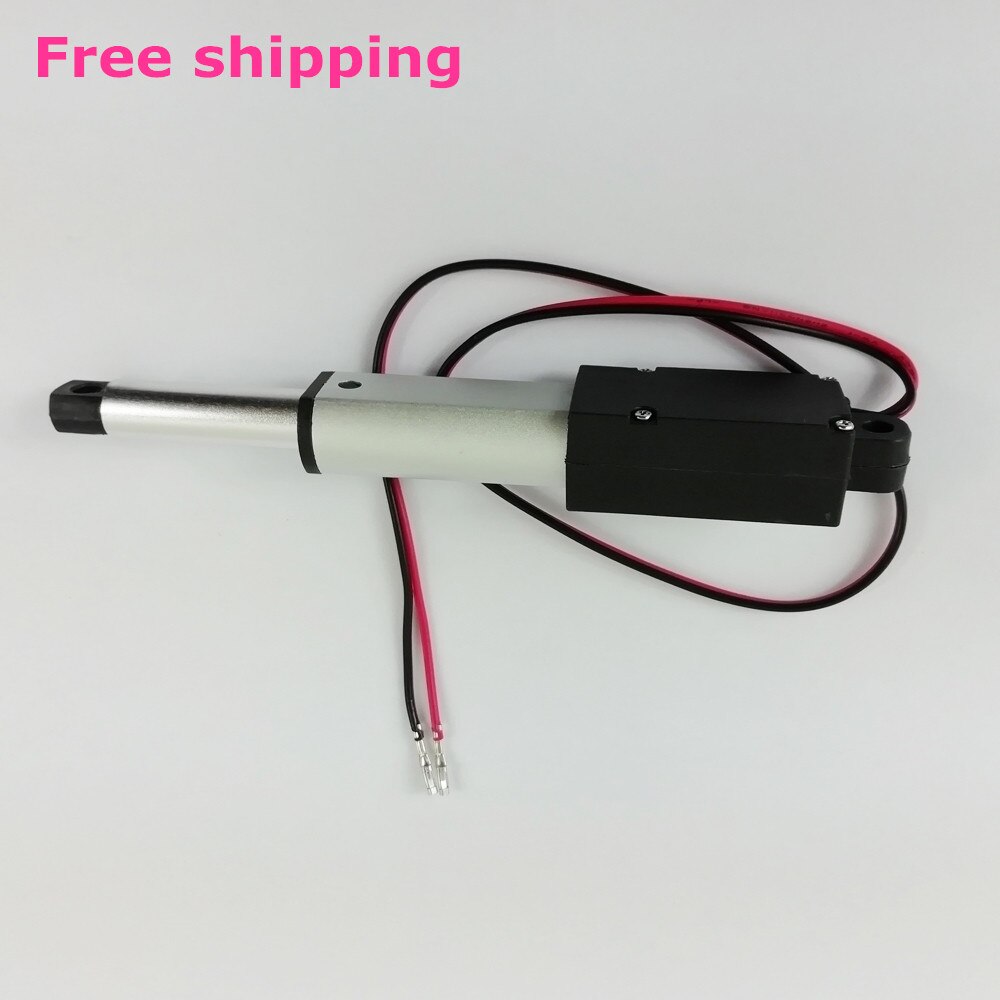

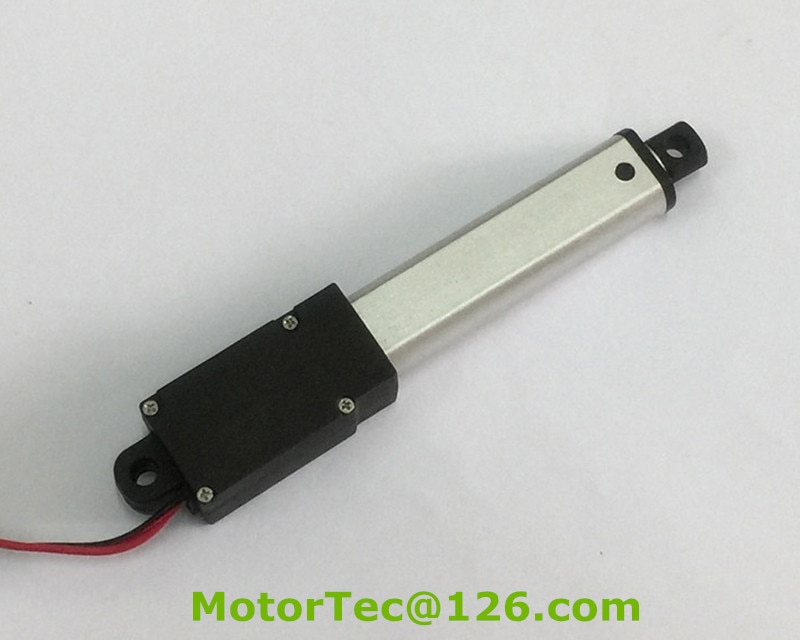

Linear Actuator 24V 12V 6V DC 10mm 30mm 50mm 100mm stroke 150mm/s speed free shipping
ID: 57051

Linear Actuator 24V 12V 6V DC 10mm 30mm 50mm 100mm stroke 150mm/s speed free shipping

5.0 (7 votes) | 13 orders
Price:
US $ 53.20 - 60.80 / piece
Quantity

Buy Now
Add to Cart


Spec:


Type                                    LV-11

Input                                   6V 12V 24V DC

Load                                    Max 188N/18.8KG/41.36LBS

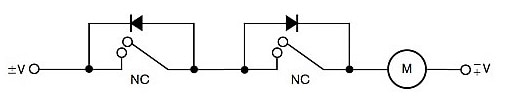

Limited switch                       With

Duty cycle                            10%

Poduct Material                     Metal and plastic

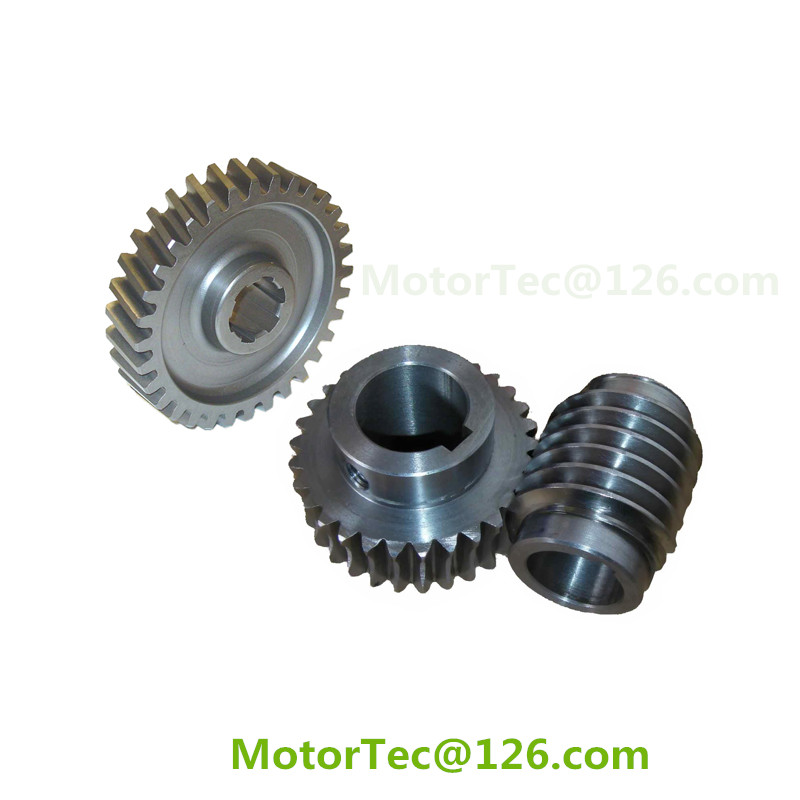

Worm Gear                           Metal gear

Color                                   Black

Operation temperature         -26 ~ +65 degree

IP                                         IP55

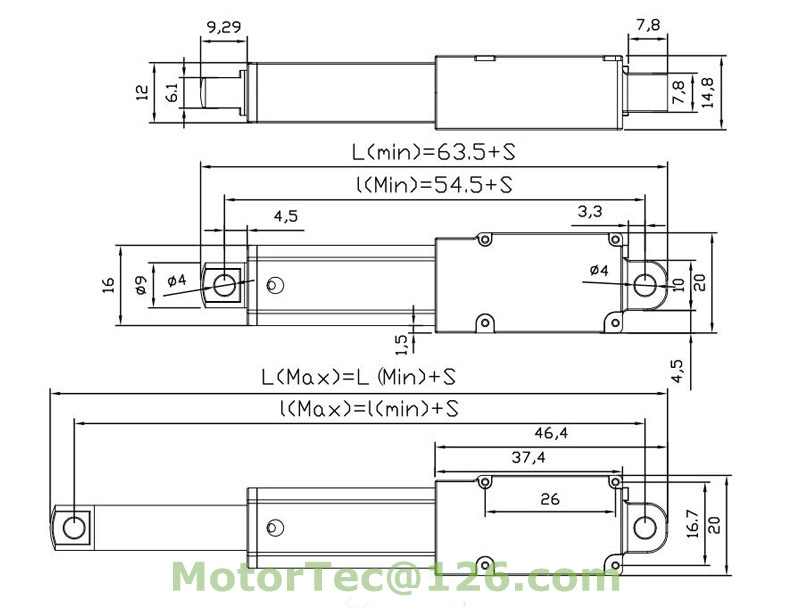

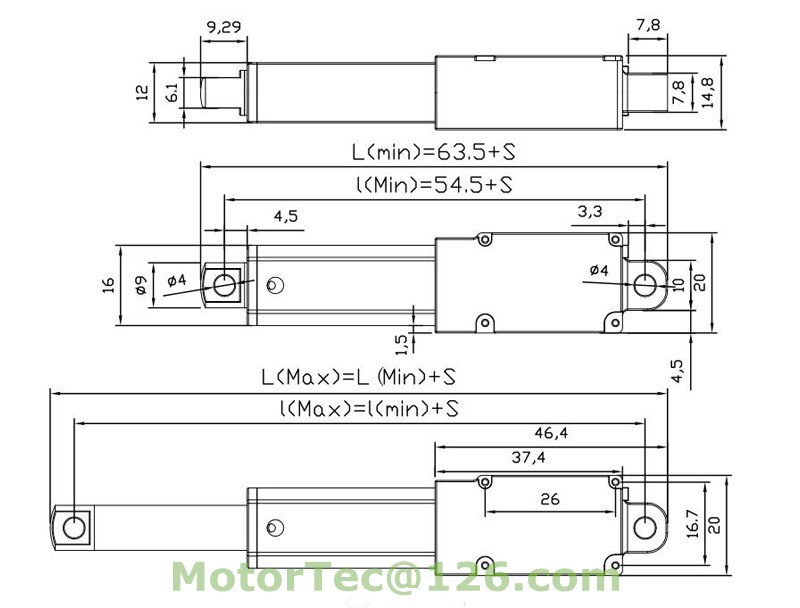

Drawing

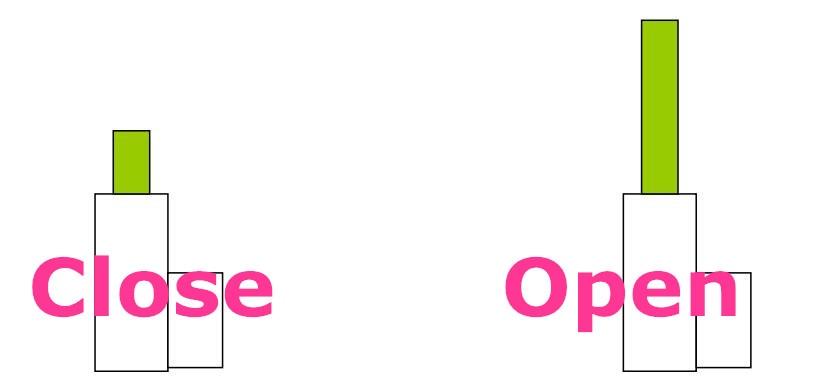

Mini retract length

Lmin means the length when linear actuator 100% fully retracts, meanwhile,it will touch the tail limited switch,stop automatically.

When it is fully retracted,from head hole to tail hole center=54.5+Stroke

For 10mm stroke    Lmin=54.5+10=64.5MM

For 17.5mm stroke Lmin=54.5+17.5=72MM

For 21mm stroke    Lmin=54.5+21=75.5MM

For 25mm stroke    Lmin=54.5+25=79.5MM

For 30mm stroke    Lmin=54.5+30=84.5MM

For 50mm stroke    Lmin=54.5+50=104.5MM

For 75mm stroke    Lmin=54.5+75=129.5MM

For 100mm stroke  Lmin=54.5+100=154.5MM

For 150mm stroke  Lmin=54.5+150=204.5MM

Max extend length

Lmax means the length when linear actuator 100% fully extend, meanwhile,it will touch the head limited switch,stop automatically.

When it is fully extended,from head hole to tail hole center=Lmin+Stroke

Lmax=Lmin+stroke


For 10mm stroke    Lmax=64.5+10=74.5MM

For 17.5mm stroke Lmax=72+17.5=89.5MM

For 21mm stroke    Lmax=75.5+21=96.5MM

For 25mm stroke    Lmax=79.5+25=104.5MM

For 30mm stroke    Lmax=84.5+30=114.5MM

For 50mm stroke    Lmax=104.5+50=154.5MM

For 75mm stroke    Lmax=129.5+75=204.5MM

For 100mm stroke  Lmax=154.5+100=254.5MM

For 150mm stroke  Lmax=204.5+150=354.5MM



Other product link

About US

We offer 100% BRAND NEW product.

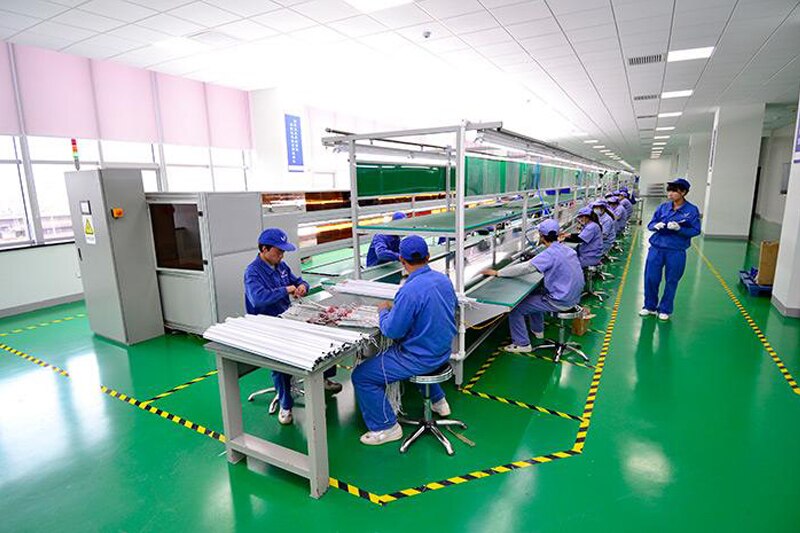

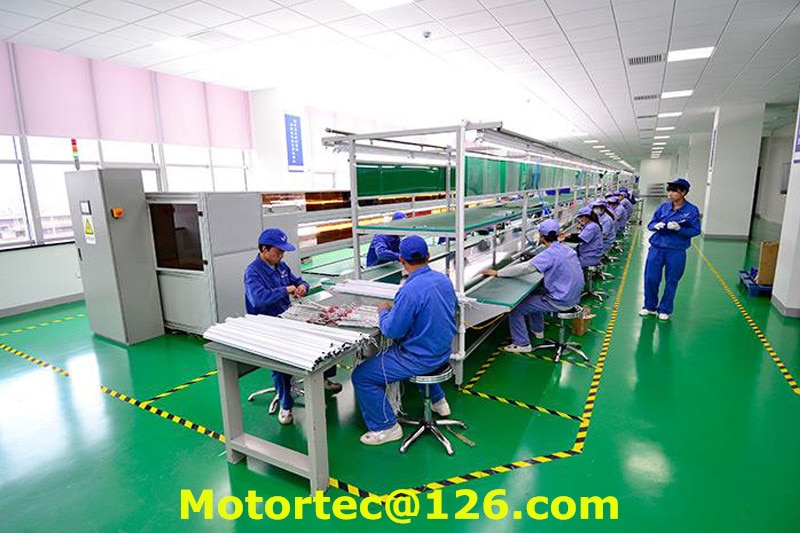

We are manufacturer,not trader or wholesaler or retailer,we focus on linear actuator for 8 years. We can offer PROFESSIONAL technical support,good factory price and convenient after-sales service.


Question:

1 Can you supply high IP protection? Yes.

2 Can you supply customized stroke,load,speed,cable length and connector? Yes

3 Can you supply synchronously control box,hand switch and remote? Yes

4 Can your add hall sensor,encoder and Potentiometer? Yes

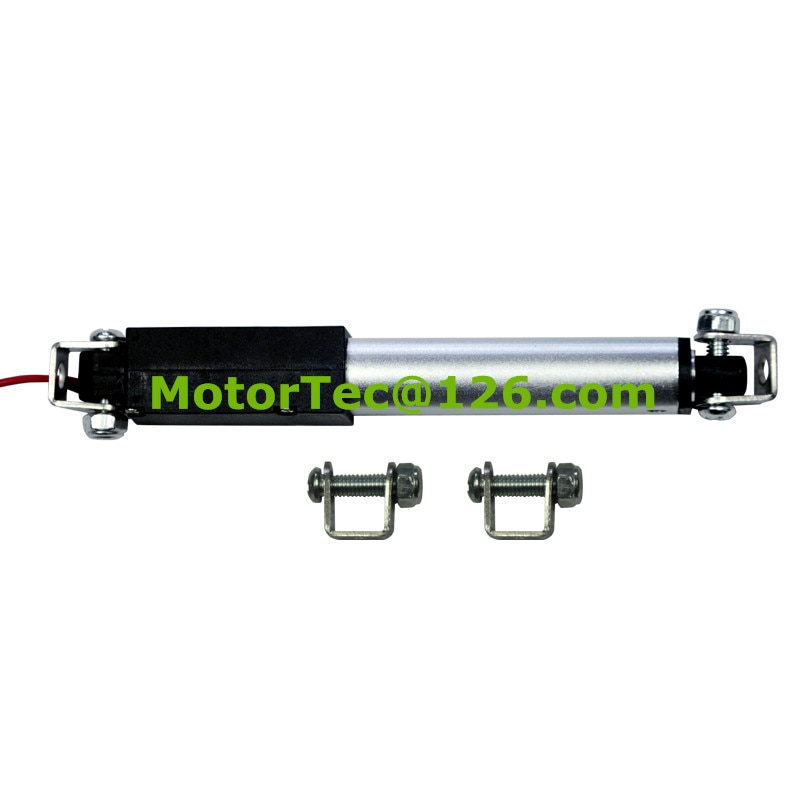

5 If I order linear actuator,can I get free bracket? Yes,but pay shipping cost.


Warranty

1. If you do not receive product, we will full refund you.

2. If the product has quality problem, we will full refund you.

3. If the product is damaged by express company, we will full refund you.


Payment

We accept paypal, Escrow,Western union and bank transfer.


Shipping

1. Order will be delivered soon

2. Please make sure your address and phone is correct.

3. We will try our best to save your total cost.

Thanks for visiting my store.


  • Torque: 188N/18.8KG/41LBS
  • Usage: BoAt
  • Model Number: LV-11
  • Output Power: 6W
  • Continuous Current(A): 0.4A
  • Protect Feature: Drip-proof
  • Commutation: Brush
  • Construction: Permanent Magnet
  • Efficiency: IE 4
  • Type: Gear Motor
  • Certification: ROHS,ce
  • Origin: Mainland China
  • Input: 6V 12V 24V DC
  • Name: MINI Linear actuator
  • Load: Max 188N 18.8KG 41LBS
  • Stroke: 10mm 30mm 50mm 100mm
  • Speed: Max 150mm per second
  • Original: China
  • is_customized: Yes
  • Duty Cycle: 10%
  • Color: black
  • Certificate: CE
