LED Lamp Beads XHP70 XHP90 XHP110 18W 24W 45W 72W LED Diodes DC3V DC6-8V DC24V LED For Flashlight Headlight DIY LED Accessories
4.6 (98 votes) | 210 orders
Price:
US $16.50 - 57.40
Discount Price:
US $
12.89 -
39.27
-22%
- Emitting Color
-
-
- Wattage
Product details

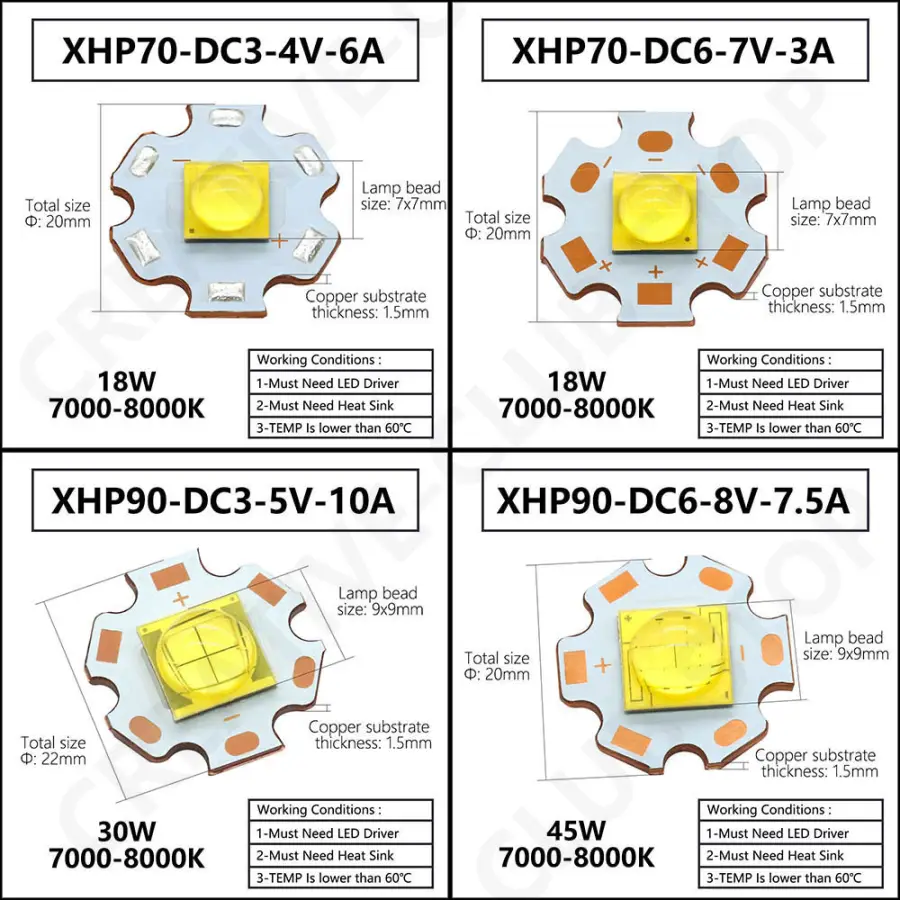

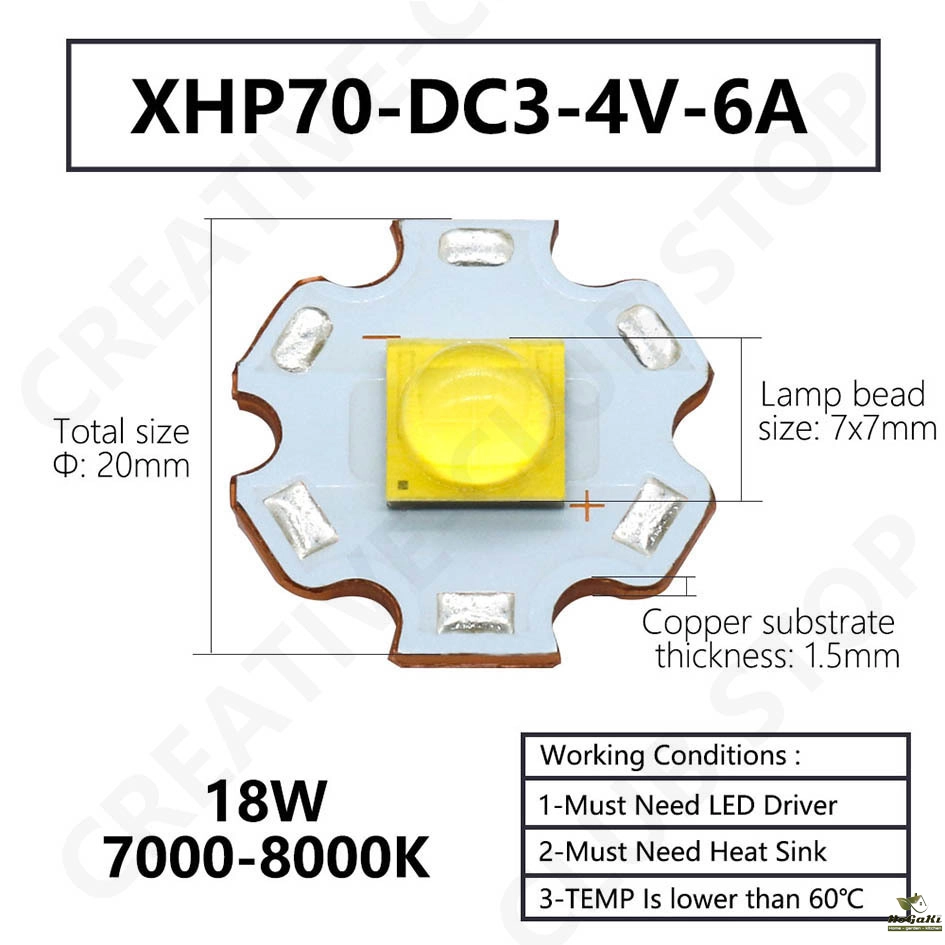

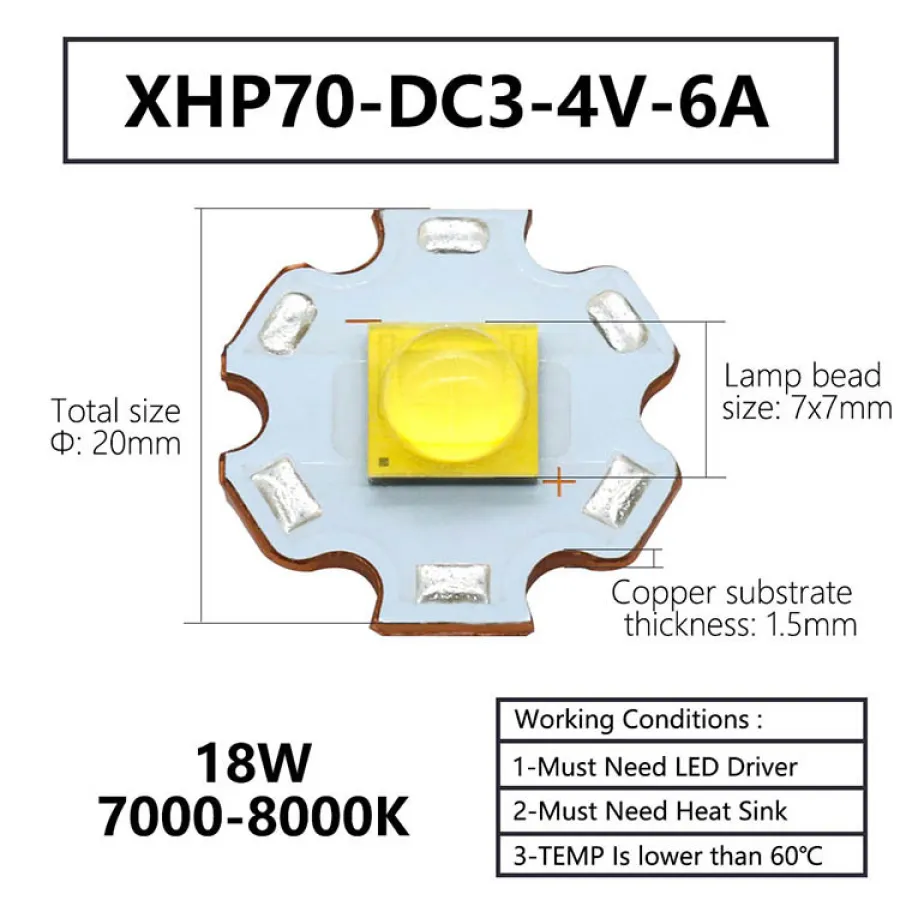

XHP70 DC3-4V 6A
Name: XHP70 DC3-4V 6A
Voltage: DC3-4V
Current: 6A
Lumens: 1800LM
Color temperature: cool white 7000-8000K
Total size: Φ20mm
Lamp bead size: 7x7mm
Copper substrate thickness: 1.5mm

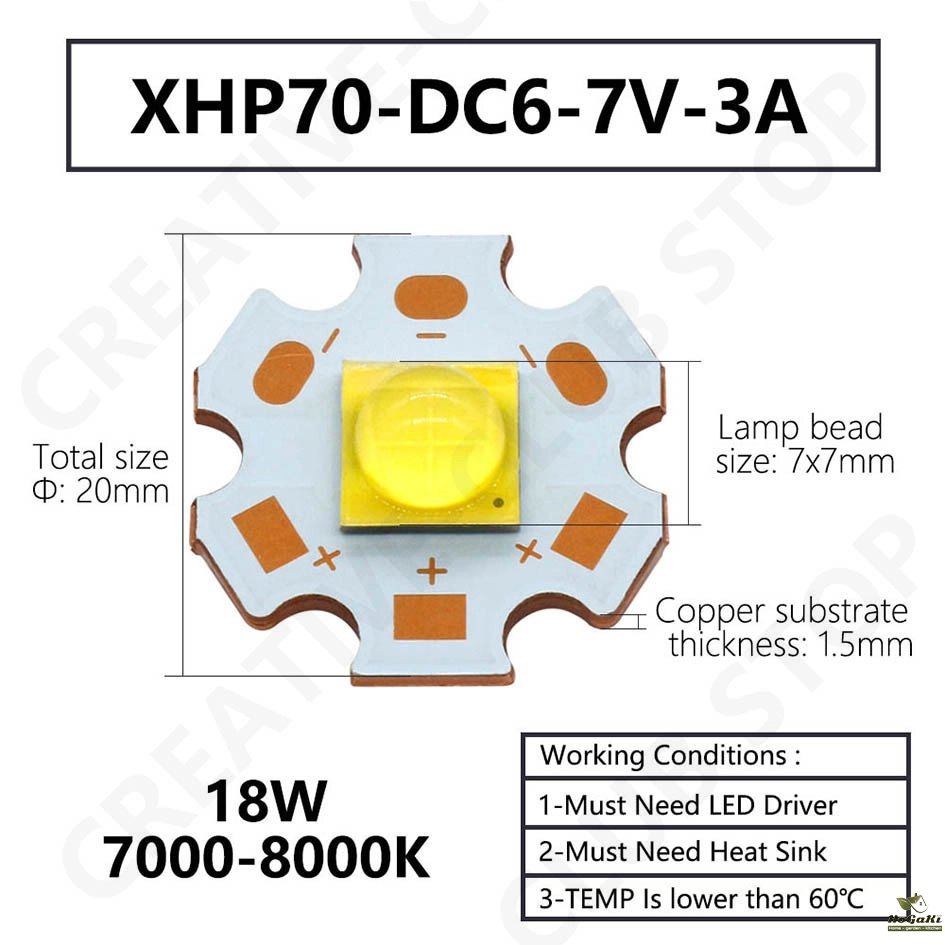

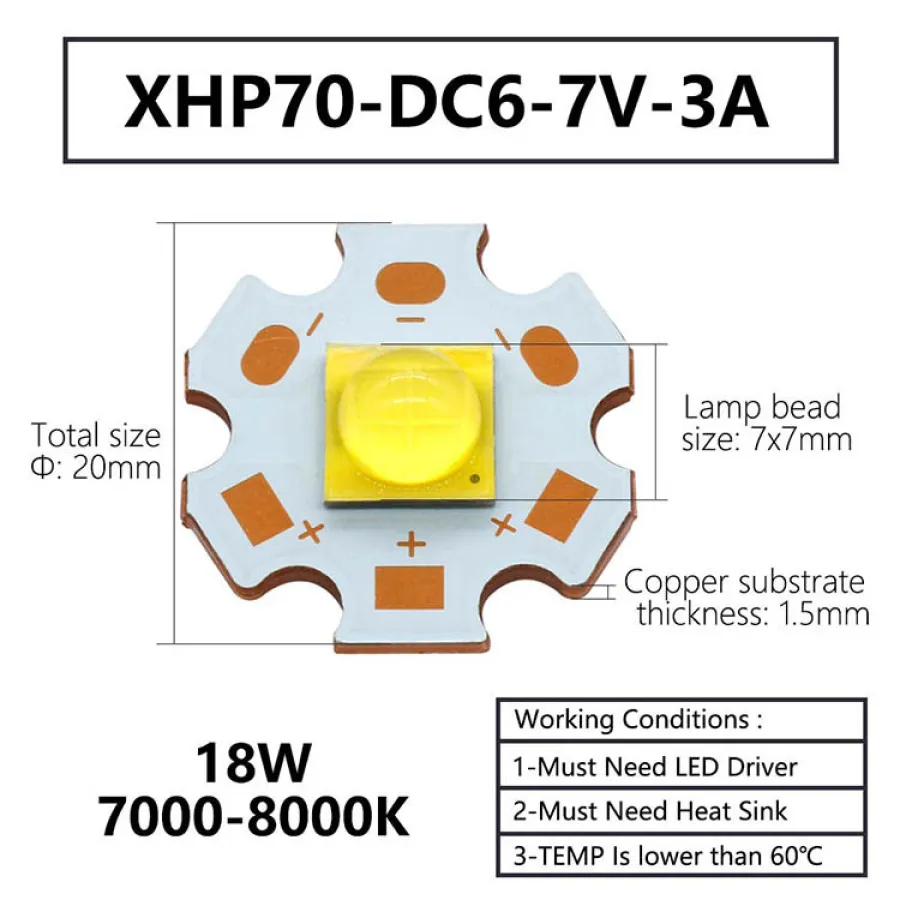

XHP70 DC6-7V 3A
Name: XHP70 DC6-7V 3A
Voltage: DC6-7V
Current: 3A
Lumens: 1800LM
Color temperature: cool white 7000-8000K
Total size: Φ20mm
Lamp bead size: 7x7mm
Copper substrate thickness: 1.5mm

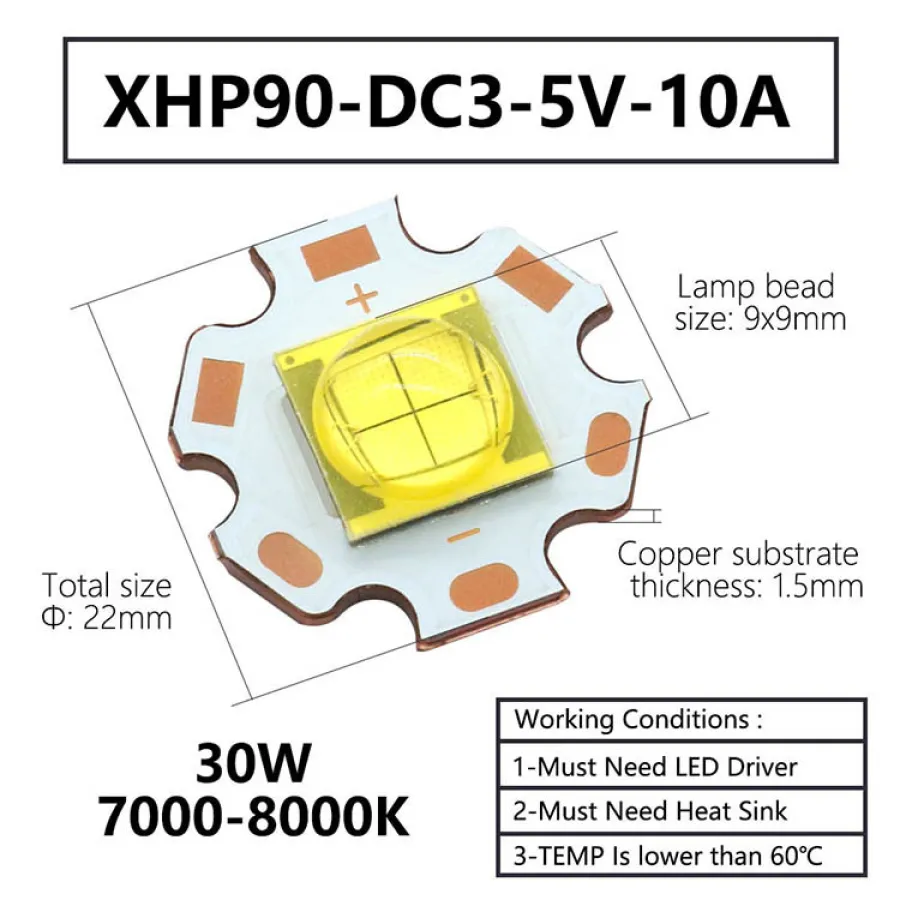

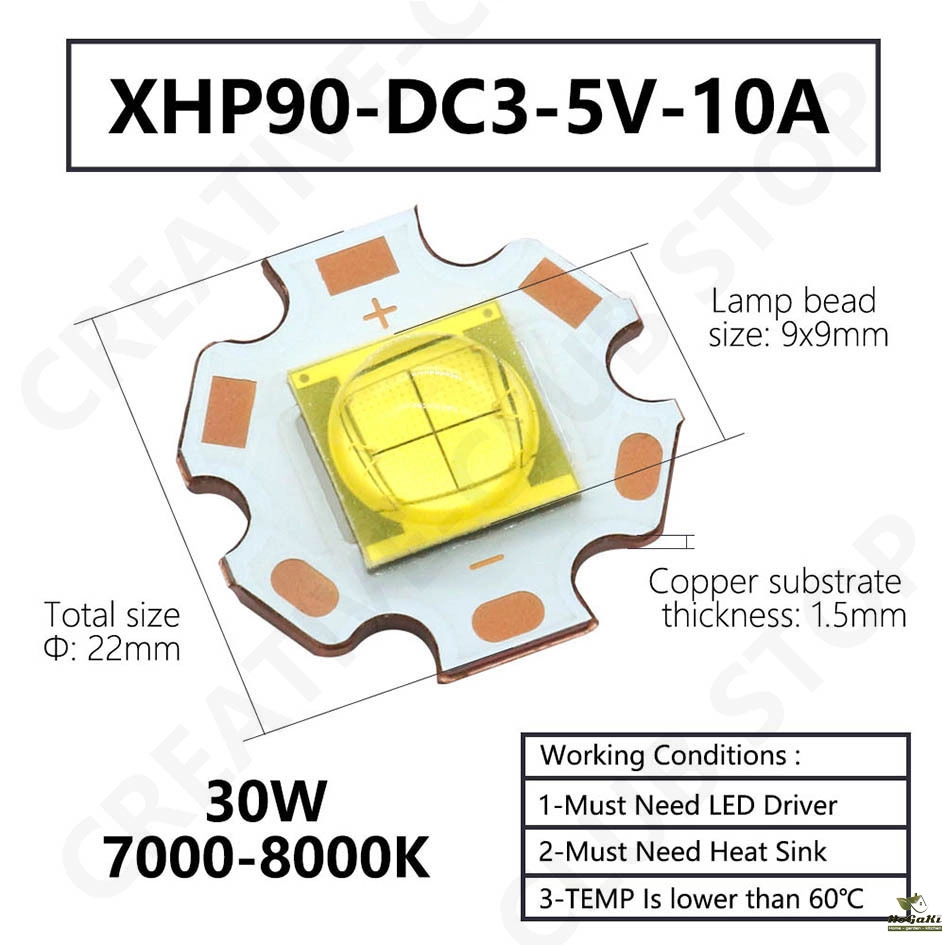

XHP90 DC3-5V 10A
Name: XHP90 DC3-5V 10A
Voltage: DC3-5V
Current: 10A
Lumens: 3000LM
Color temperature: cool white 7000-8000K
Total size: Φ20mm
Lamp bead size: 9x9mm
Copper substrate thickness: 1.5mm

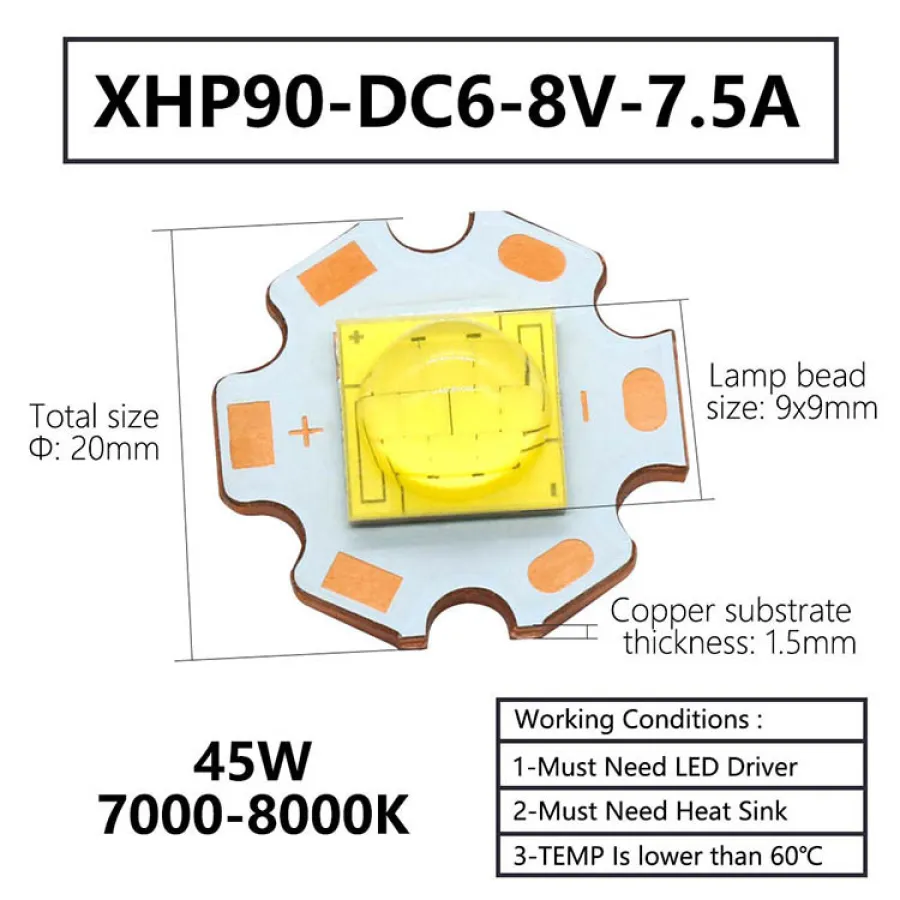

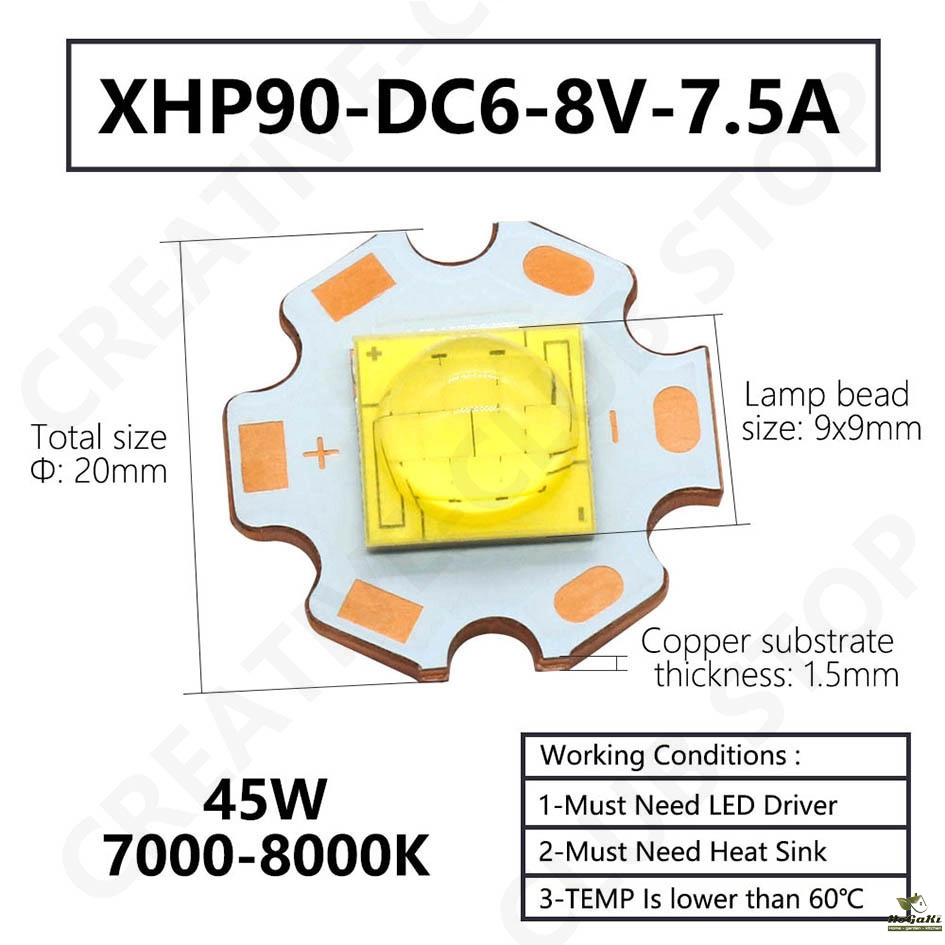

XHP90 DC6-8V 7.5A
Name: XHP90 DC6-8V 7.5A
Voltage: DC6-8V
Current: 7.5A
Lumens: 4500LM
Color temperature: cool white 7000-8000K
Total size: Φ20mm
Lamp bead size: 9x9mm
Copper substrate thickness: 1.5mm

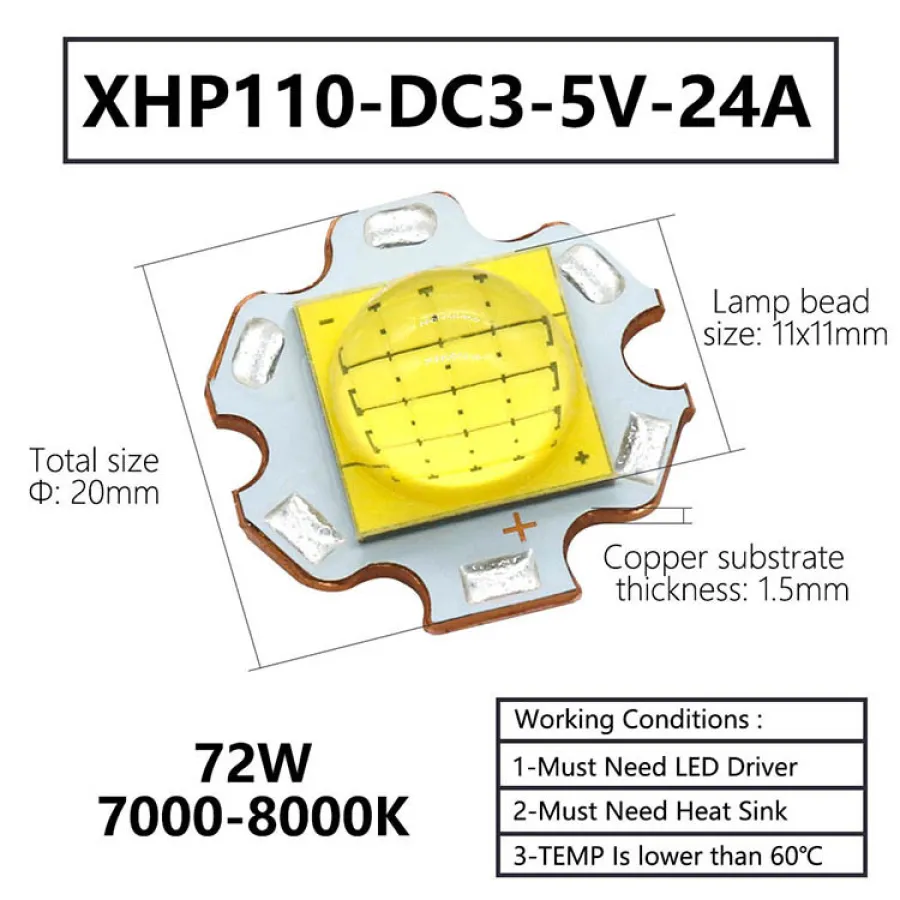

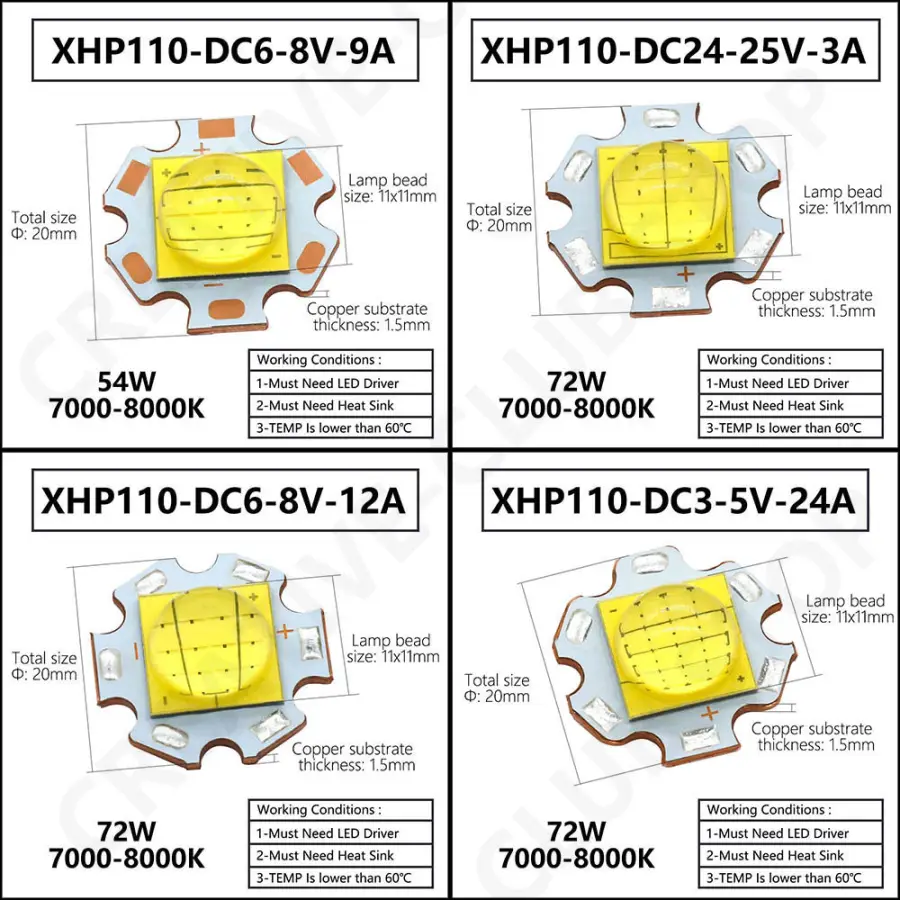

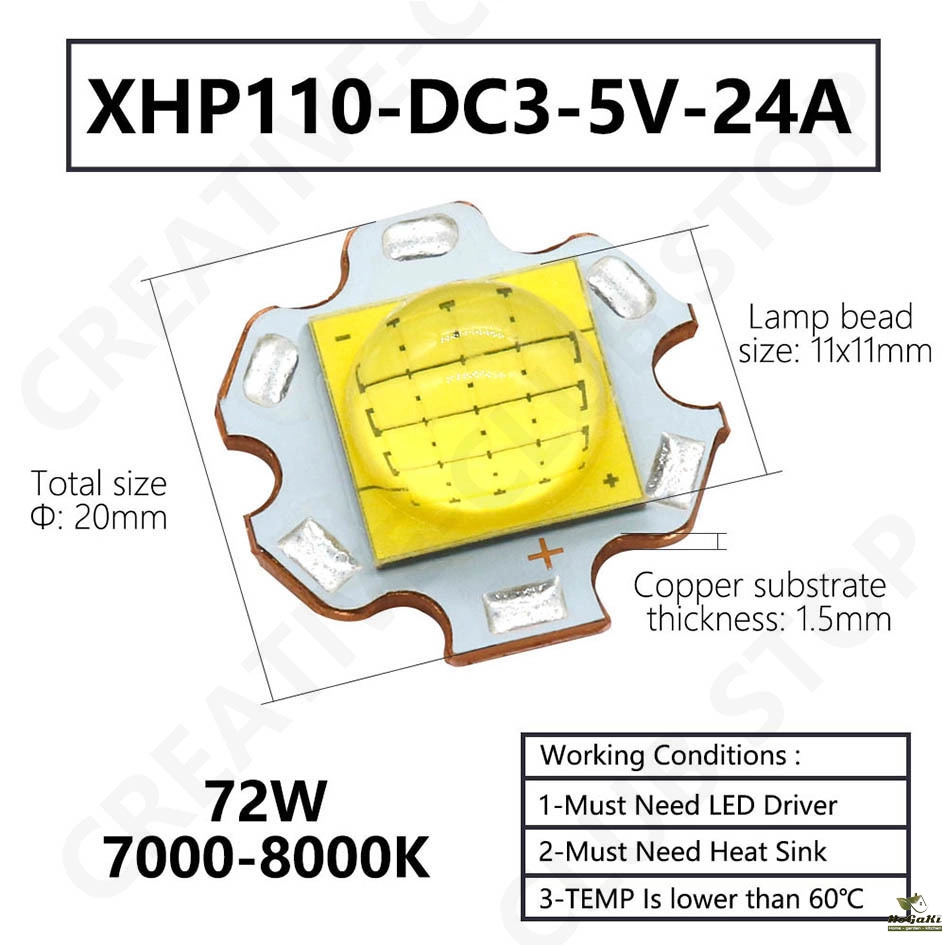

XHP110 DC3-5V 24A
Name: XHP110 DC3-5V 24A
Voltage: DC3-5V
Current: 24A
Lumens: 7200LM
Color temperature: cool white 7000-8000K
Total size: Φ20mm
Lamp bead size: 11x11mm
Copper substrate thickness: 1.5mm

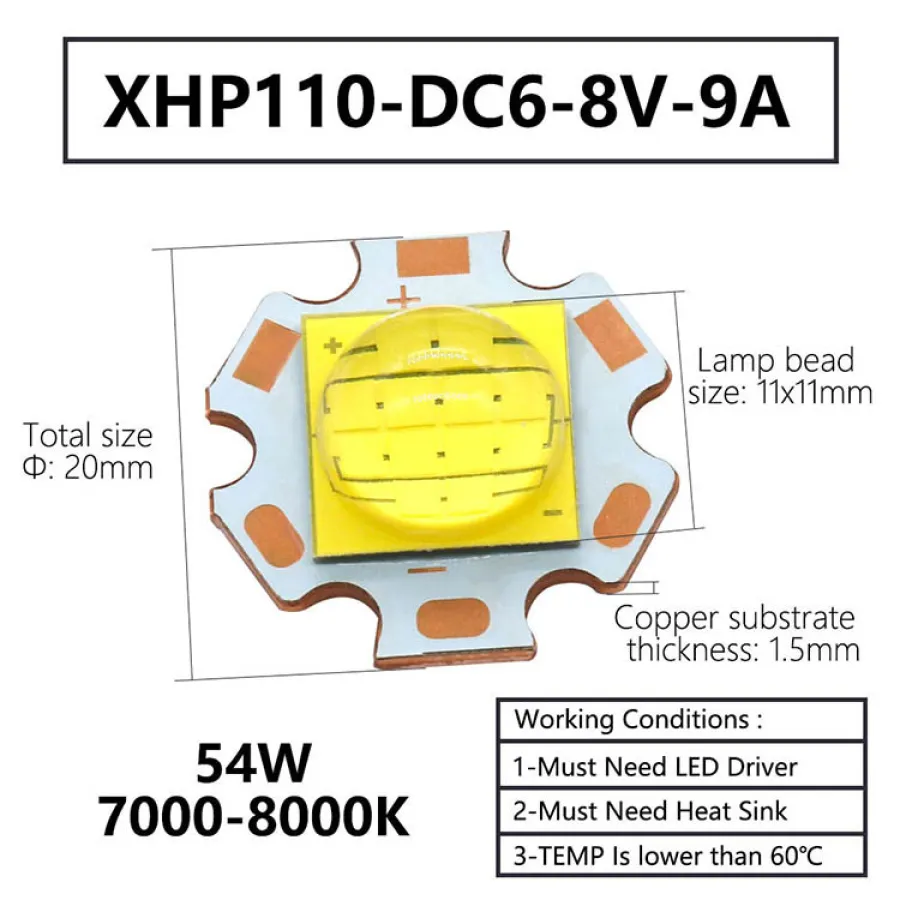

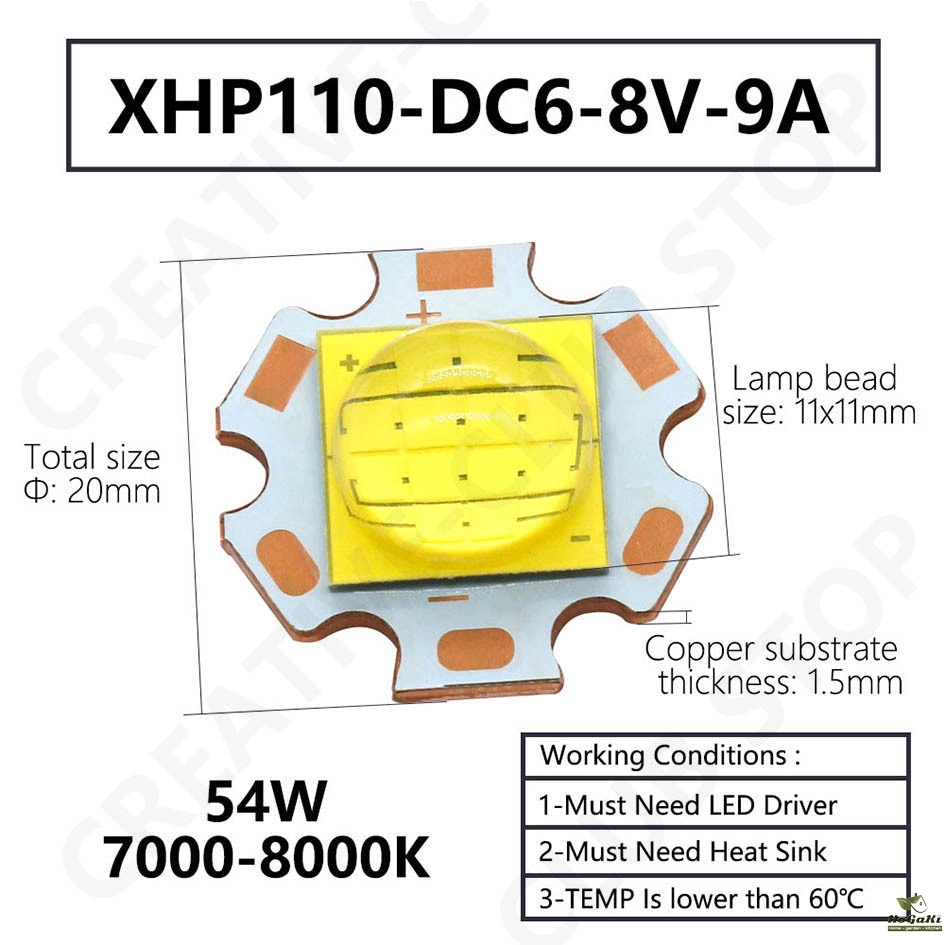

XHP110 DC6-8V 9A
Name: XHP110 DC6-8V 9A
Voltage: DC6-8V
Current: 9A
Lumens: 5400LM
Color temperature: cool white 7000-8000K
Total size: Φ20mm
Lamp bead size: 11x11mm
Copper substrate thickness: 1.5mm

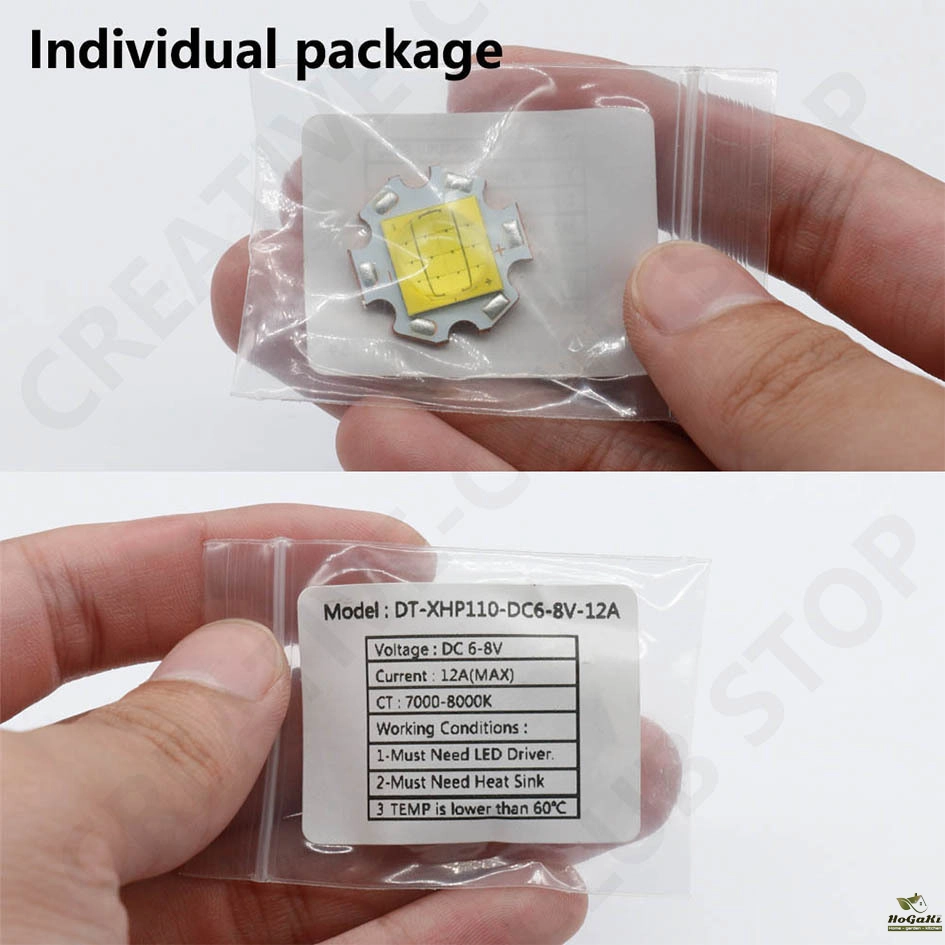

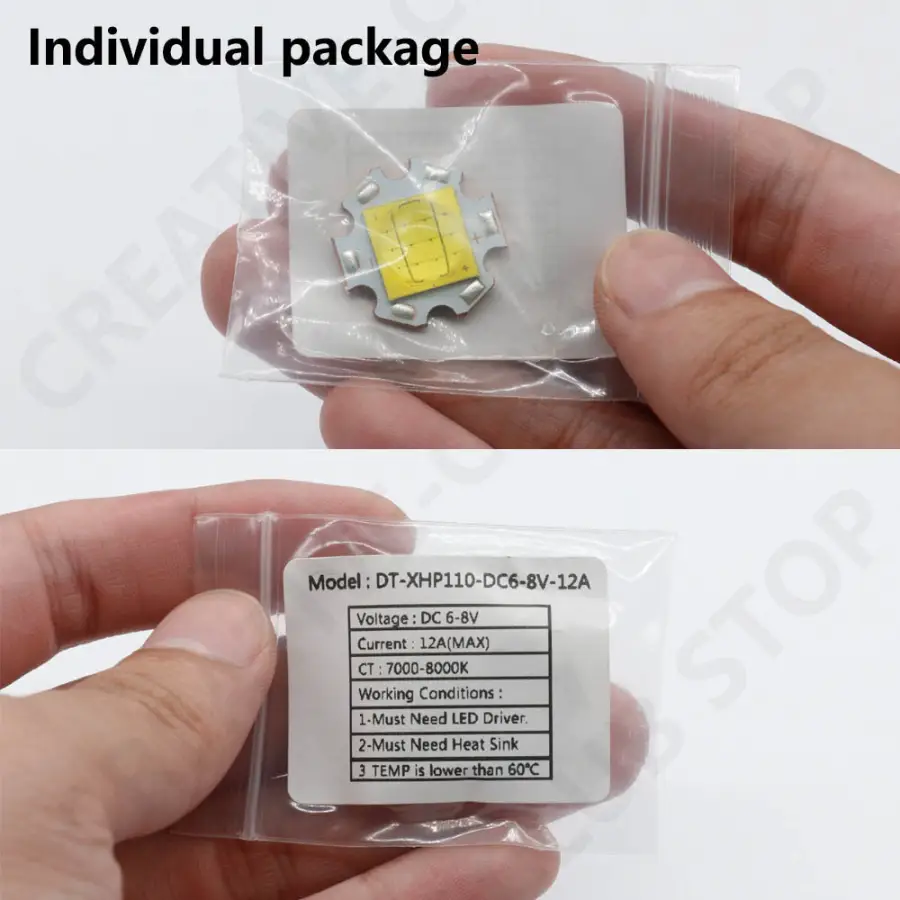

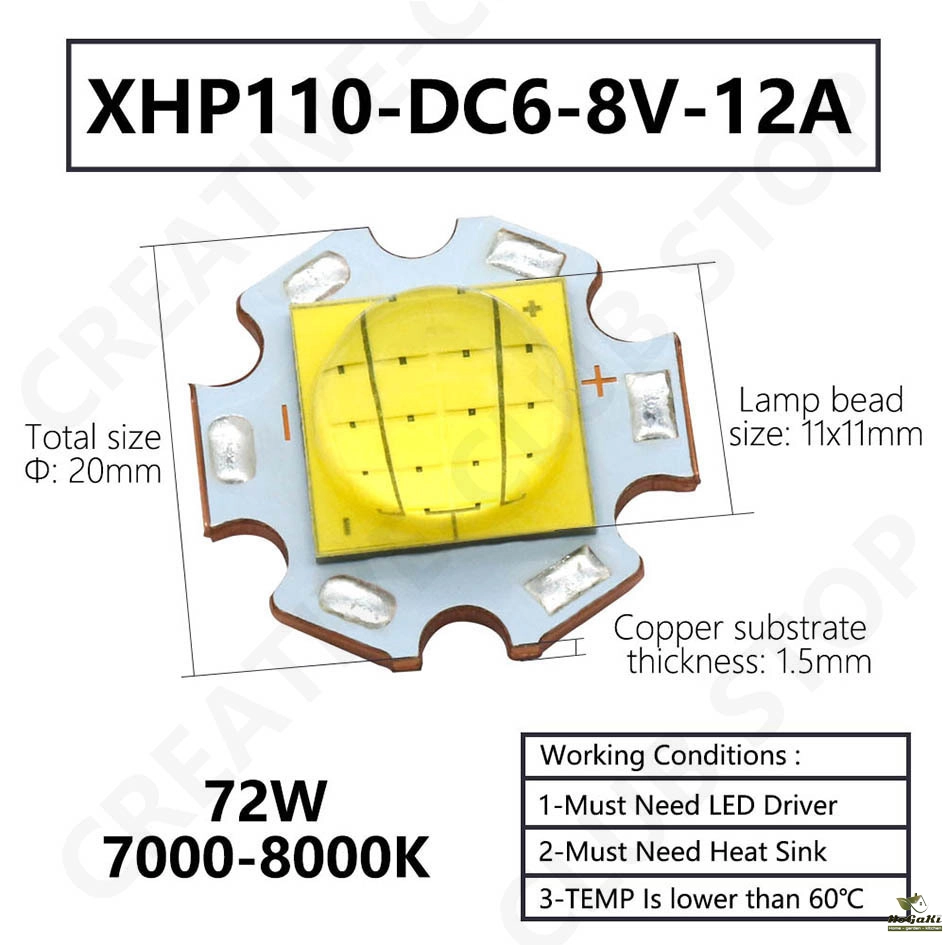

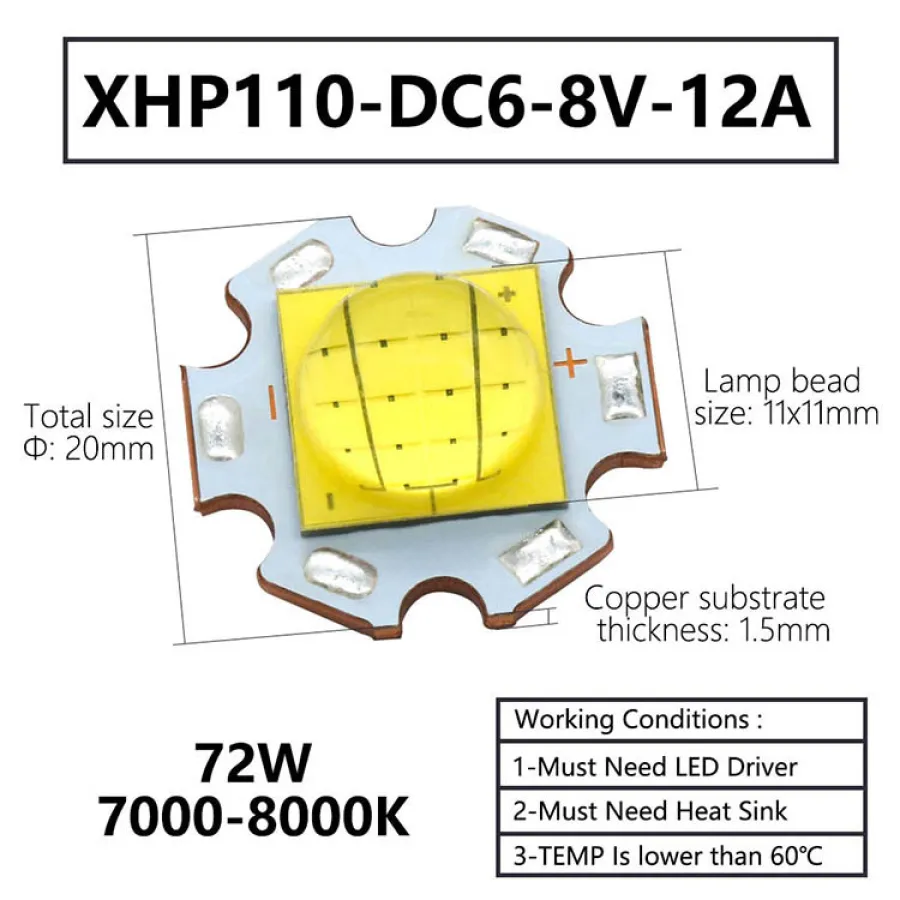

XHP110 DC6-8V 12A
Name: XHP110 DC6-8V 12A
Voltage: DC6-8V
Current: 12A
Lumens: 7200LM
Color temperature: cool white 7000-8000K
Total size: Φ20mm
Lamp bead size: 11x11mm
Copper substrate thickness: 1.5mm

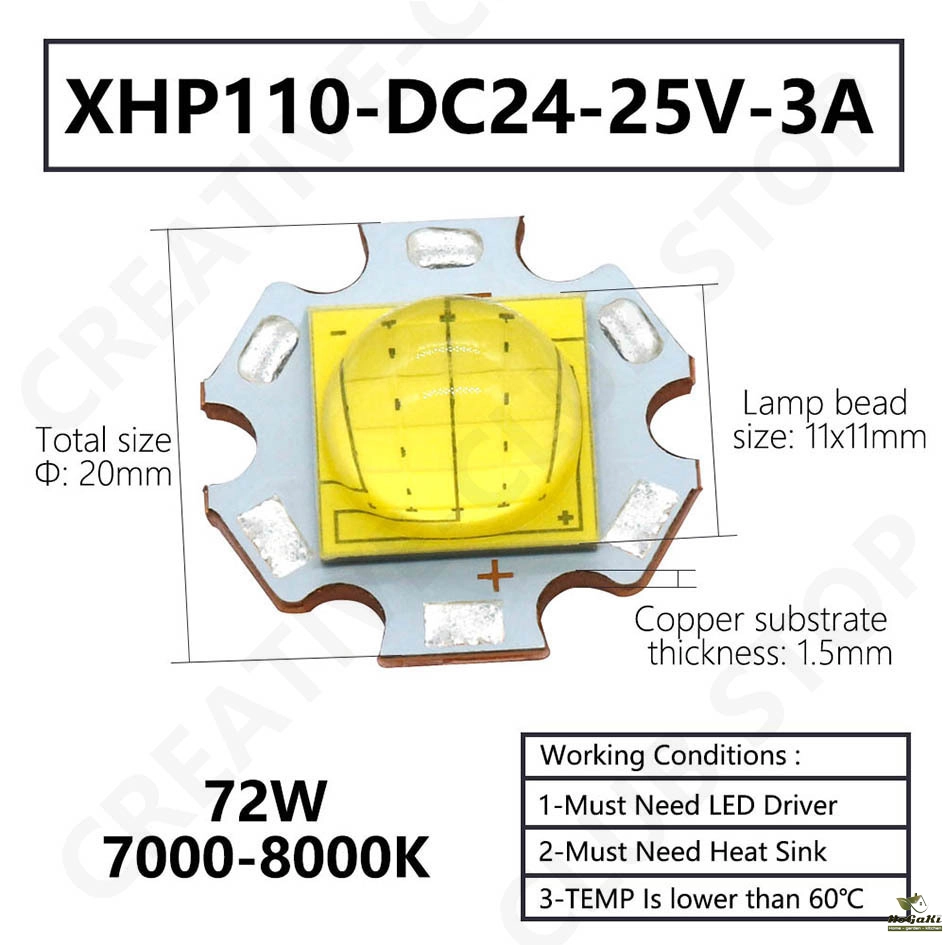

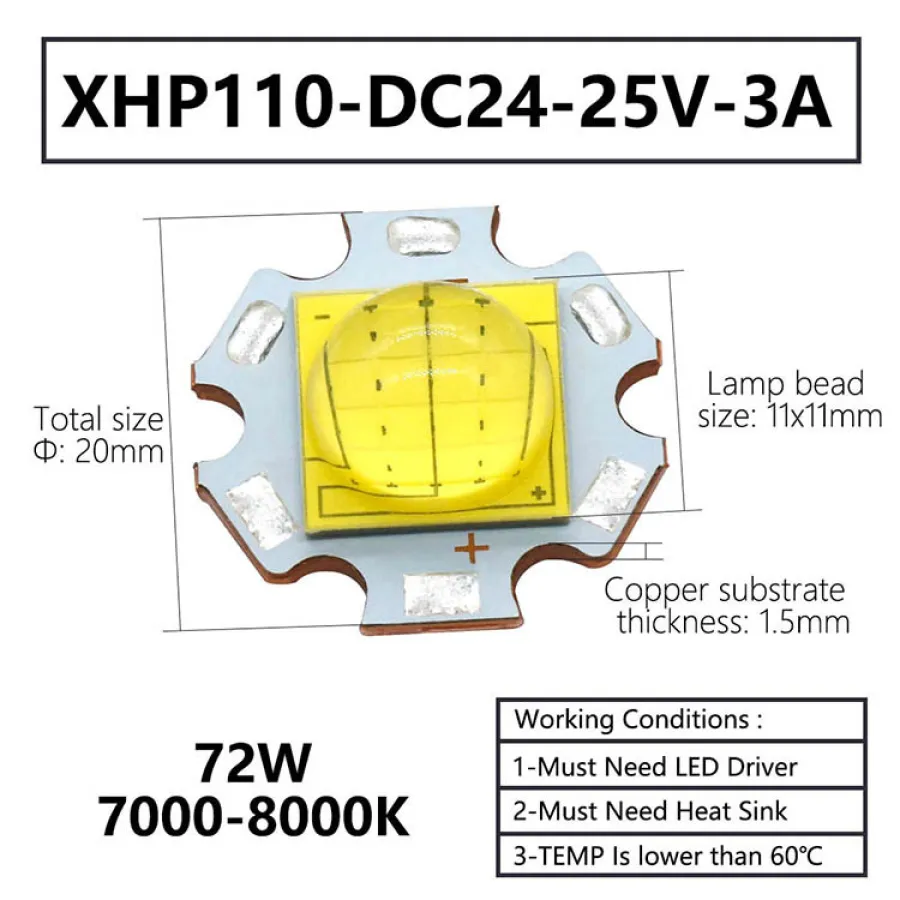

XHP110 DC24-25V 3A
Name: XHP110 DC24-25V 3A
Voltage: DC24-25V
Current: 3A
Lumens: 7200LM
Color temperature: cool white 7000-8000K
Total size: Φ20mm
Lamp bead size: 11x11mm
Copper substrate thickness: 1.5mm
Packaging Details
- Unit Type:
- Package Weight: 0.010
- Package Size: 10x1x10
- Brand Name: DT&ZM
- Hign-concerned Chemical: None
- Origin: Mainland China
- Certification: CCC
- Item Type: BALL
- XHP70 Voltage: DC3-4V/DC6-7V
- XHP90 Voltage: DC3-5V/DC6-8V
- XHP110 Voltage: DC3-5V/DC6-8V/DC24-25V
- XHP70 Current: 3A/6A
- XHP90 Current: 7.5A/10A
- XHP110 Current: 3A/9A/12A/24A
- Power: 18W24W/30W/45W/54W/72W
- XHP70 Luminous Flux: 1800LM/2400LM/3000LM
- XHP90 Luminous Flux: 4500LM/5400LM
- XHP110 Luminous Flux: 7200LM
- Color Temperature: Cool white 7000-8000K
- Occasion: Flashlight lamp beads
- Shape: Round
- Average Life (hrs): 50000
- Refer to: LED torch
- Beam angle: 120 degrees
- Copper substrate size: 20mm(0.79inch)
- Application scenario 1: Flashlight/Headlight/Searchlight
- Application scenario 2: Street lights/Diving lights/Car lights.
- Application scenario 3: Headlamps/Super Powerful lamp/Rechargeable Lamp
- Application scenario 4: Torchlight diy
- Model: XHP70 LED/7070/XHP90 LED/XHP110 LED
- Feature Voltage: DC3V/DC6V/DC24V
- Type: Dioda led
