LED Dimmer Triac 220V 110V 230V AC Dimmable Push Switch RF 2.4G Wireless Remote Smart Wifi Dimmer Switch for LED Bulb Light Lamp

4.8 (10 votes) | 46 orders
Price: US $25.60 - 79.69 / piece
Discount Price:
US $ 17.92 - 55.78 / piece
-30%
Color
Quantity

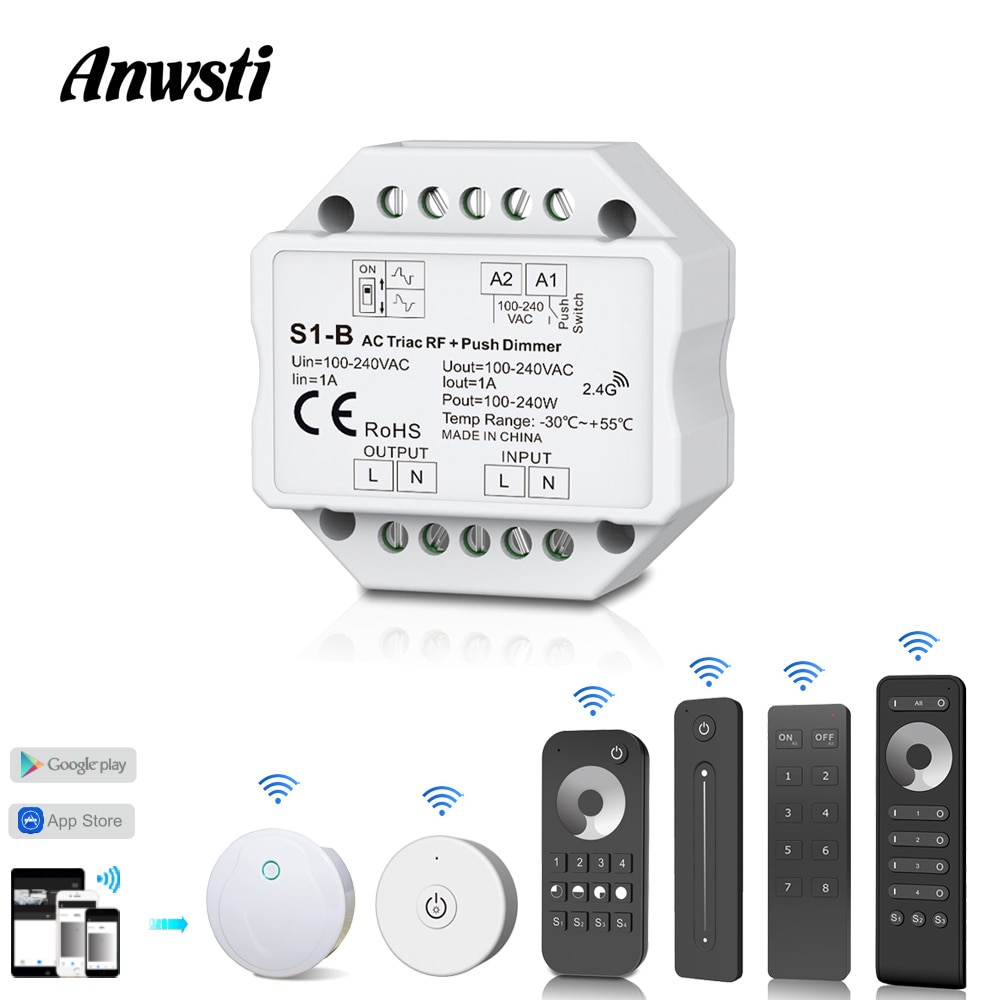

LED Dimmer Triac 220V 110V 230V AC Dimmable Push Switch RF 2.4G Wireless Remote Smart Wifi Dimmer Switch for LED Bulb Light Lamp



Features:


● RF + Push AC phase-cut dimmer, 1 channel output.
● To dim and switch single color dimmable LED lamps,traditional incandescent and halogen lights.
● Leading edge dimming or trailing edge dimming set by dip switch.
● Min brightness can be set by key.
● Compatibility with Skydance's 2.4G dimming remote control.
● Connect with external push switch to achieve on/off and dimming function.
● Easy to be inserted into standard 86*86mm wall box.
● Can be WiFi controlled by APP installed on IOS or Android mobile devices while working with WiFi-Relay controller

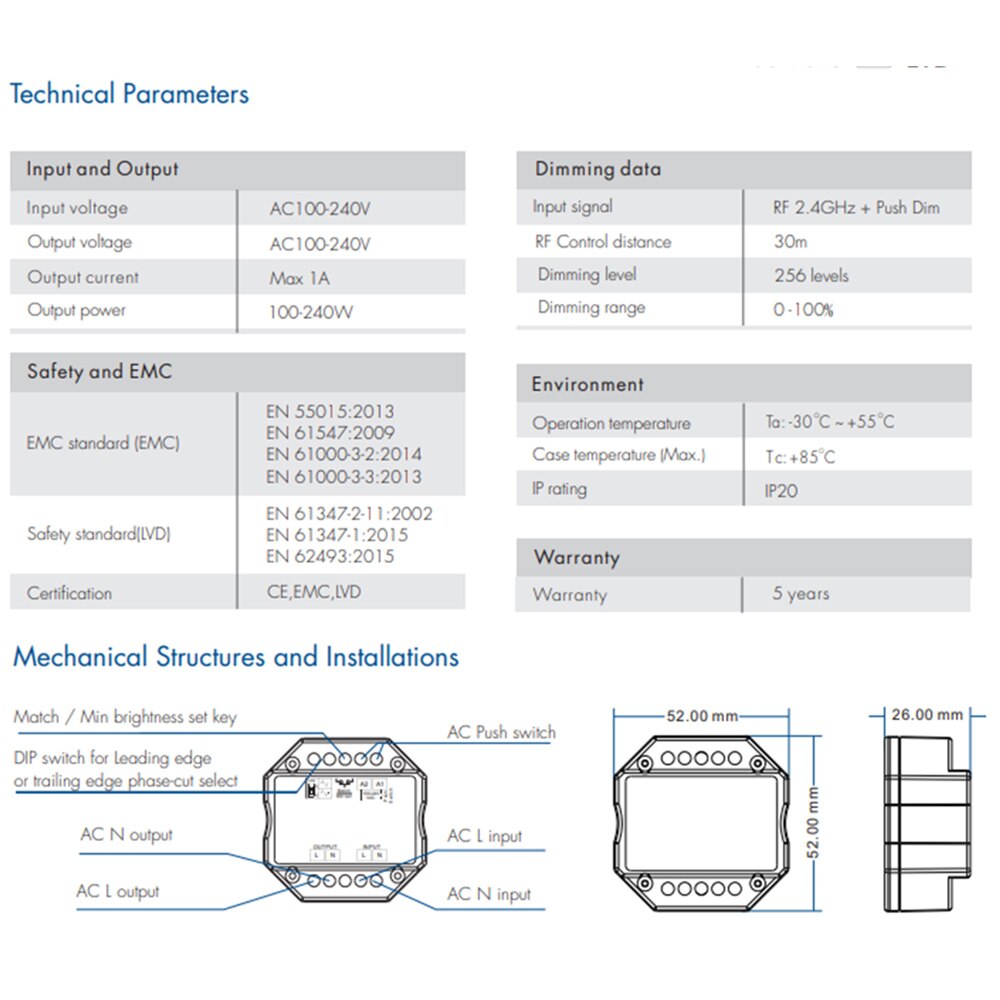

(Receiver) Specifications:

Product Name:2.4G Wireless RF Triac LED Dimmer with Push Dimmable Function
Receiver : AST-S1-B

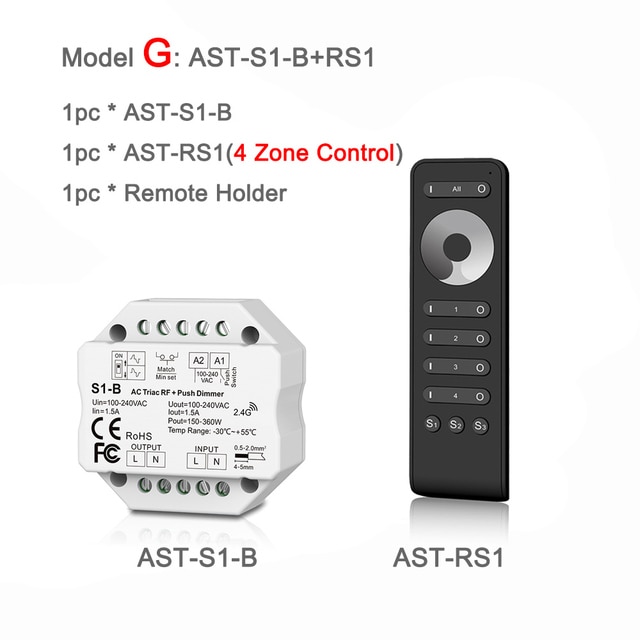

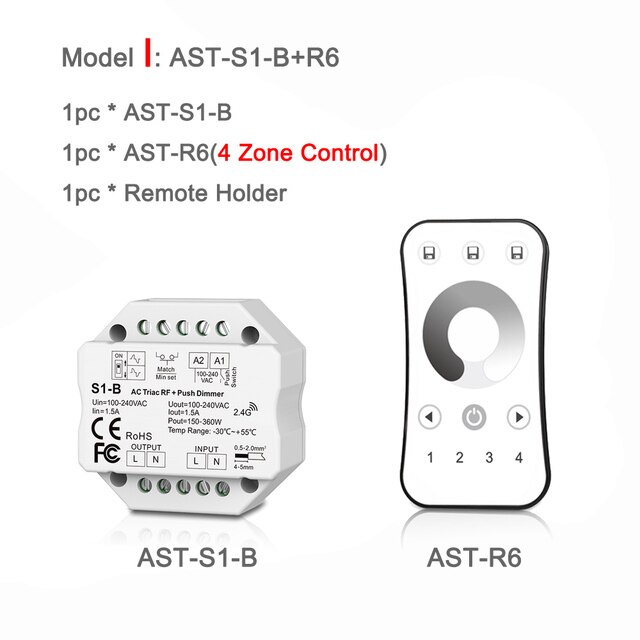

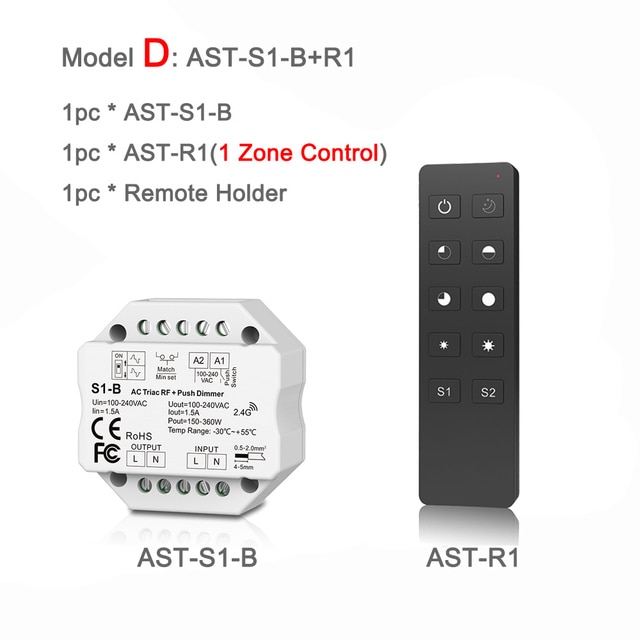

(Receiver and Sender): Model A: AST-S1-B+R1-1; Model B: AST-S1-B+PK1; Model C: AST-S1-B+R11; Model D: AST-S1-B+R1;Model E: AST-S1-B+RT1; Model F: AST-S1-B+R6-1;  Model G: AST-S1-B+RS1; Model H: AST-S1-B+RT6; Model I: AST-S1-B+R6; Model J: AST-S1-B+Wifi Relay; Model K: AST-S1-B+RU4; Model L: AST-S1-B+RU8
Input Voltage: 110V 220V 230V 240V AC
Output Voltage: 110V 220V 230V 240V AC
Working Temperature: -20-60centi-degree
Max load current :1.0A
Max Power Output: 100-240W
Output gray: 256 levels
Frequency of RF remote control: 2.4G MHz
RF Remote Distance: 30M
Net Weight: 48g/pc
Color: White Body
Product size:(Approx) L52x W52x H26mm
Match Remote Control (two match ways):
End user can choose the suitable match/delete ways. Two options are offered for selection:

1.Use the controller’s Match key
Match:
Short press match key, immediately press on/off key (single zone remote) or zone key (multiple zone remote) of the remote.
Delete:
Press and hold match key for 5s to delete all match,The light blinks 5 times means all matched remotes were deleted.

2.Use Power Restart
Match:
Switch off the power, then switch on power again,immediately short press on/off key (single zone remote) or zone key (multiple zone remote) 3 times on the remote.The light blinks 3 times means match is successful.
Delete:
Switch off the power, then switch on power again,immediately short press on/off key (single zone remote) or zone key (multiple zone remote) 5 times on the remote.The light blinks 5 times means all matched remotes were deleted.

(Sender/Remote Control)Specifications & Functions:

Output Signal: RF (2.4GHz)
Remote Distance: 30M

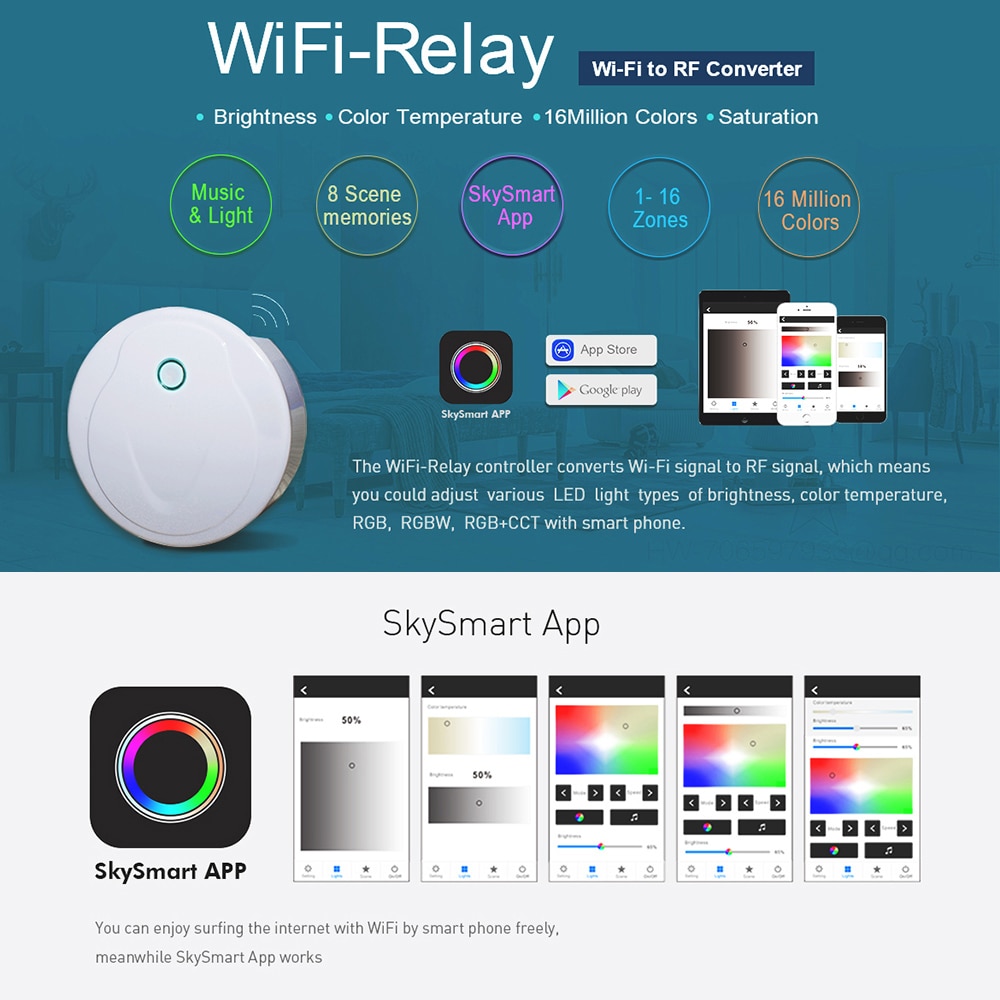

Wifi Relay

The WiFi-Relay controller converts WiFi signal to RF signal, also know as WiFi gateway or Wifi hub. it is compatible with multiple type of Skydance receivers. With WiFi-relay, you could control single color, dual color, RGB, RGBW, RGB+CCT LED lights by smart phone.

Note: This product can not be used alone,This wifi to RF converter need work with V1,V1-L, V2,V2-L, V3, V4, VP, KS,ST1,S1,S1-B,S1-K etc wireless receivers

Features

● Can mix load all Skydance RF 2.4G LED controllers, LED dimmable driver and smart lamp.
● Can realize dimming, color temperature, RGB, RGBW, RGB+CCT light effects.
● Load 1-16 zones, 8 scene memory.

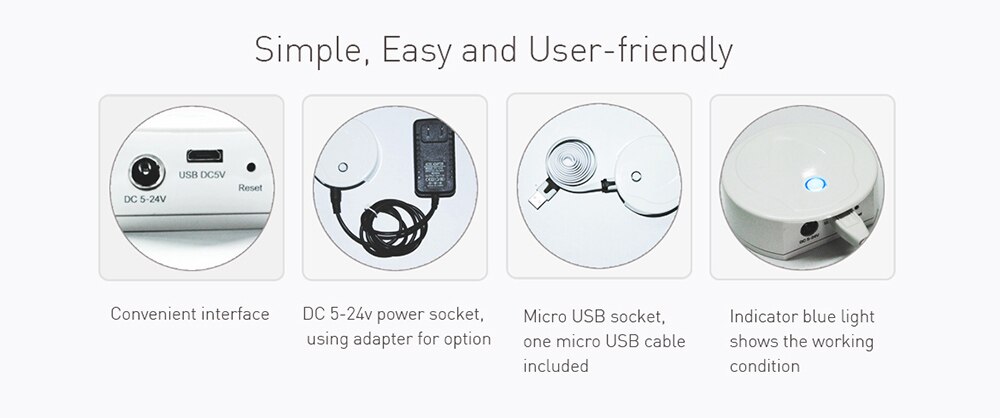

● Including one micro USB cable.

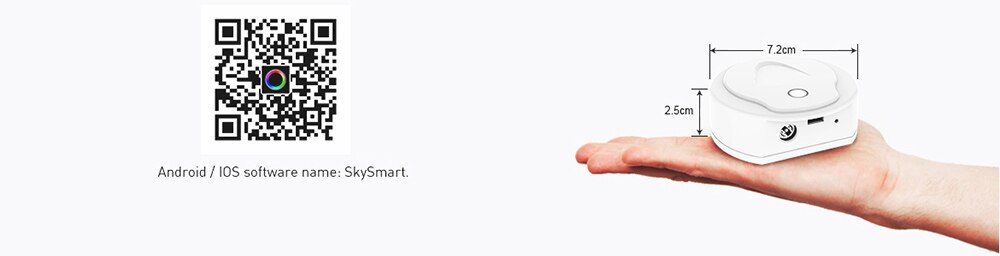

● Android / IOS software name: SkySmart.

Technical Parameters

● Input voltage : DC5-24V Input voltage
● Operation frequency: 2.4G
● Remote distance: 30m
● Working temperature: -30℃~55℃
● Product size : Φ72×25mm

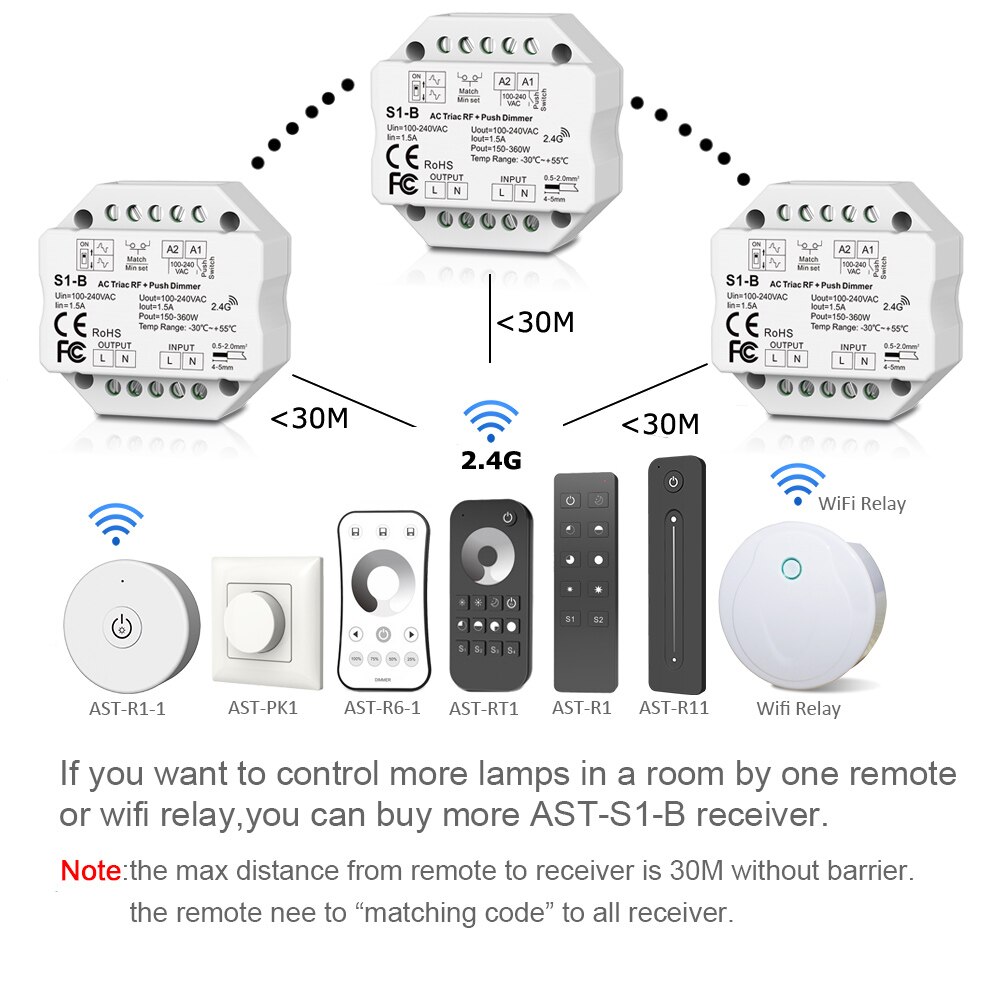

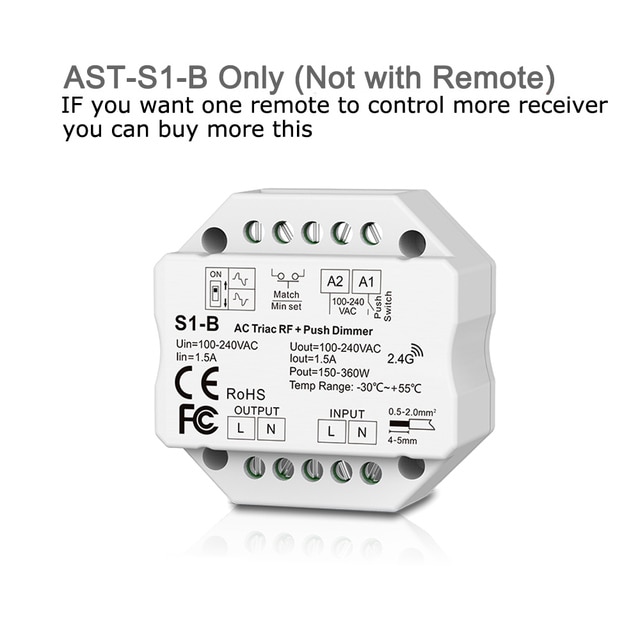

wifi dimmerIf you want to control more lamps by one remote, you need to buy more receiver (AST-S1-B). only do " Match Code" between Sender and receivers before using.

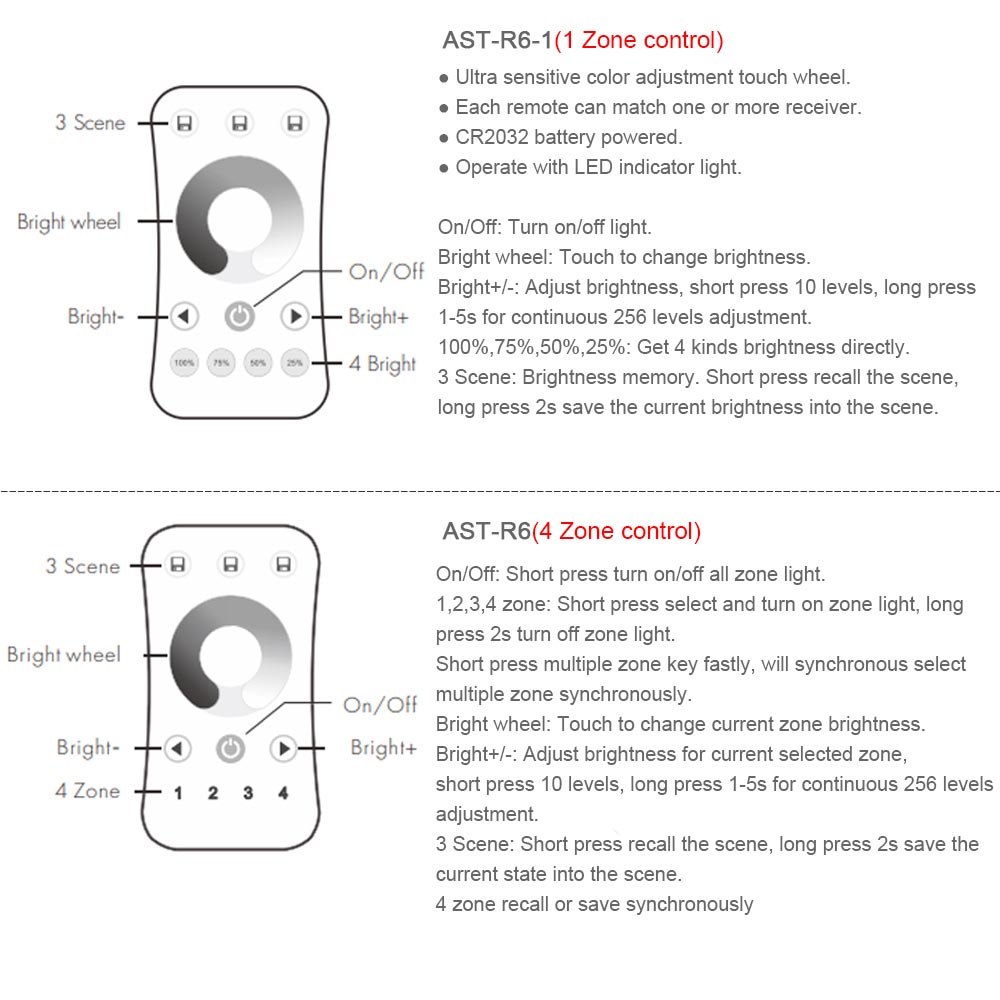

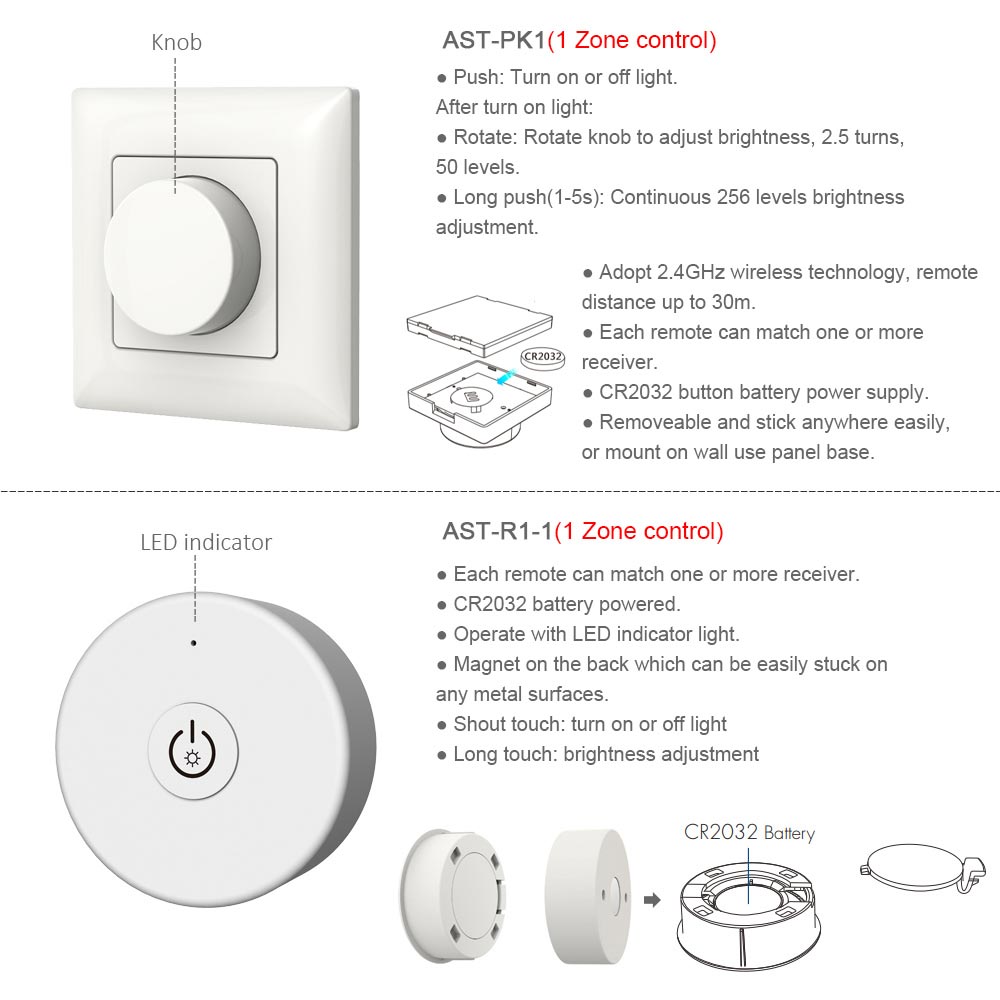

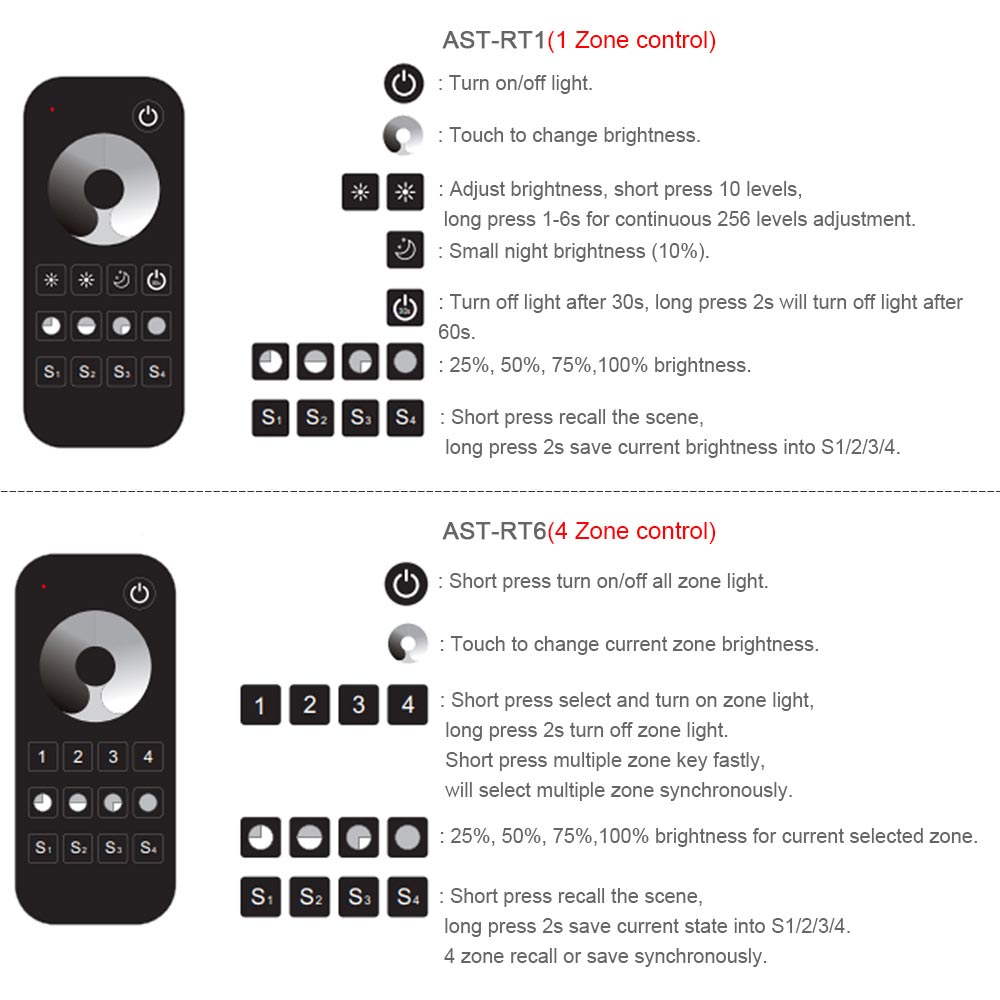

AST-R1-1,AST-R1,AST-R6-1, AST-RT1,AST-R11 are used for single zone control solution. ----- Only Synchronously Control.

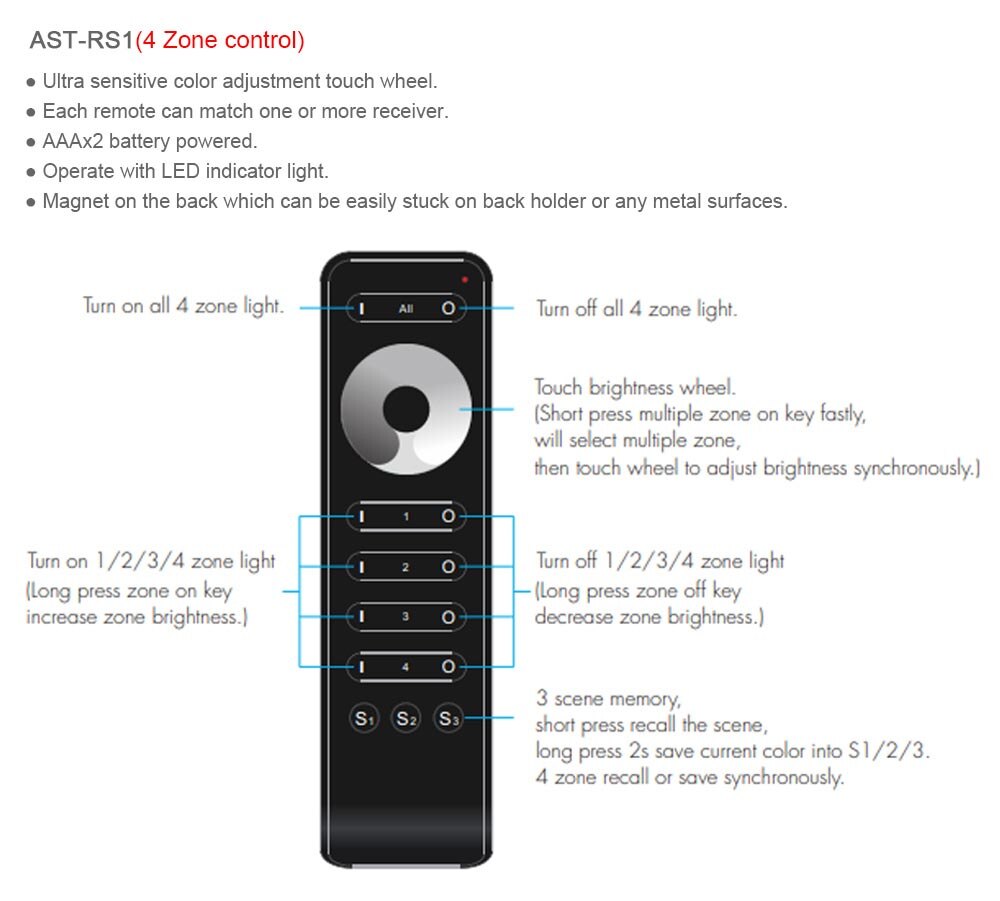

AST-RS1, AST-R6, AST-RT6,AST-RU4 are used for 4 zones control solution. ------- Synchronously & Independently Control.
AST-RU8 are used for 8 zones control solution. ------- Synchronously & Independently Control.
AST-Wifi relay are used for 1-16 zones control solution. ------- Synchronously & Independently Control.

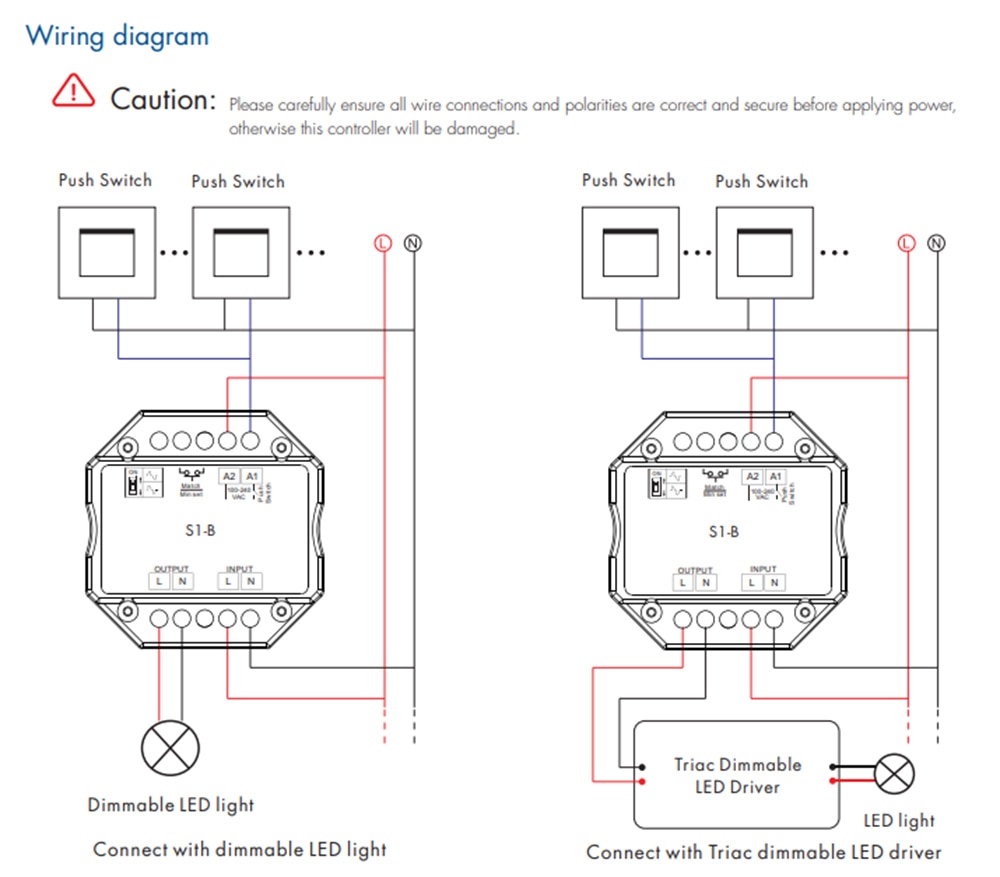

AST-S1-B can easily be placed in a junction box behind a pushbutton.
Note: When calculating the maximum number of load lamps or drivers, the input power or input current
parameters of a single lamp or driver must be used, the output power parameters can not be used,
otherwise, the product will be overloaded and damaged.

Application notes:

1. All the receivers in the same zone
wifi dimmer switch
Auto-transmitting: One receiver can transmit the signals from the remote to another receiver within 30m,
as long as there is a receiver within 30m, the remote control distance can be limitless.
Auto-synchronization: Multiple receivers within 30m distance can work synchronously when they are controlled
by the same remote.
Receiver placement may offer up to 30m communication distance. However, we recommend for indoor applications
that receiver placements should be no further apart than15m.

2. Each receiver(one or more) in a different zone, like zone 1, 2, 3 or 4.





  • Features: Triac Dimmable Controller
  • Model Number: Triac LED Dimmer
  • Certification: CCC,ce,EMC,LVD,ROHS
  • Material: ABS
  • Warranty: 5 Years
  • Max. Load Power: 240W
  • Brand Name: Anwsti
  • Item Type: Dimmers
  • Body Color: Black and White
  • Output Current: 1A
  • Working Voltage: AC 100-240V
  • Used for: Dimmer for LED Lamps
  • Remote Distance: 30 Meters
  • Output Signal: 2.4G
  • Type 1: Triac LED Dimmer
  • Type 2: Smart Dimmer
  • Type 3: Wifi Smart Dimmer
  • Type 4: Dimmer for LED Lamp 220V
  • Type 5: Triac Dimmer LED 220V
  • Type 6: Triac Dimmer
  • Type 7: LED Dimmer 220V
  • Type 8: Wifi LED Dimmer
  • Type 9: LED Dimmer Switch 220V
  • Type 10: AC Remote Dimmer
  • Type 11: Dimmable Light Switch
  • Type 12: Wireless Dimmer 220V
