LED Dimmer Switch Triac AC 220V 230V 110V 2.4G Wireless RF Remote Dimmable Push Switch Smart Wifi Dimmer for LED Bulb Light Lamp
Features:
● AC phase-cut RF dimmer with push-dim function.
● To dim and switch single color dimmable LED lamps or drivers, traditional incandescent and halogen lights.
● Suitable to insert standard panel bottom box.
● Adopt 2.4GHz wireless technology, remote distance up to 30m.
● One RF dimmer can accept up to 10 remote control.
● Leading edge dimming or trailing edge dimming set by dip switch.
● Great compatibility with a variety of dimming remote.
● Can be WiFi controlled by APP installed on IOS or Android mobile devices while working with WiFi-Relay controller
(Receiver) Specifications:

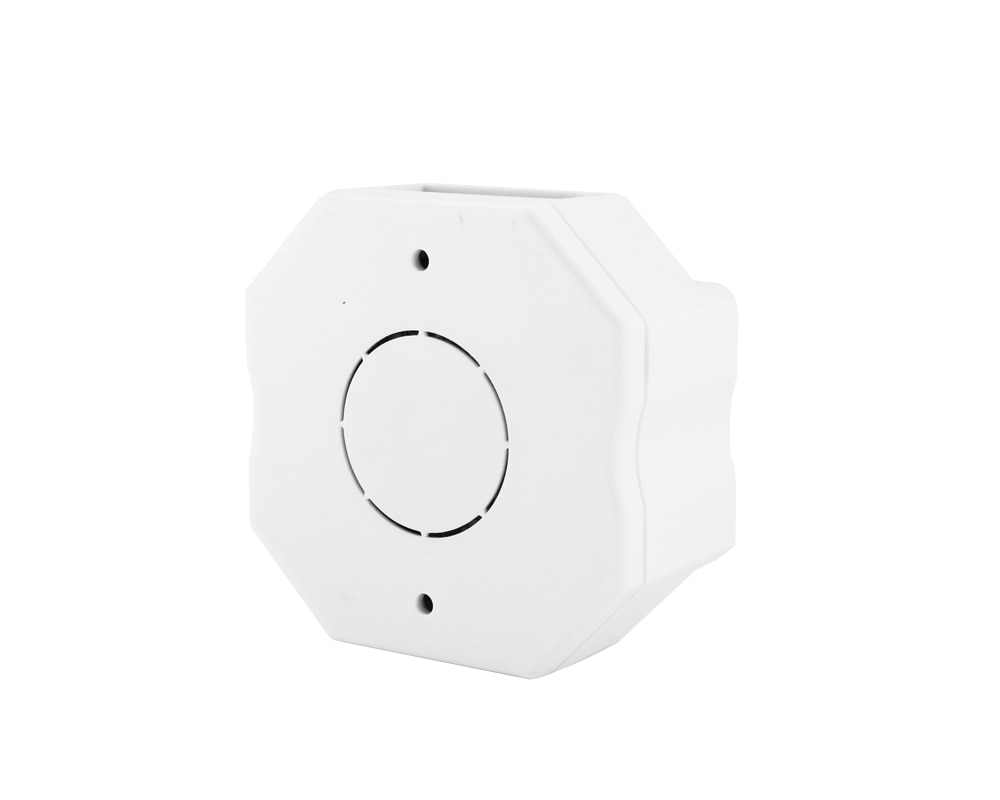

Product Name:2.4G Wireless RF Triac LED Dimmer with Push Dimmable Function
Receiver ： MJJC-S1-B

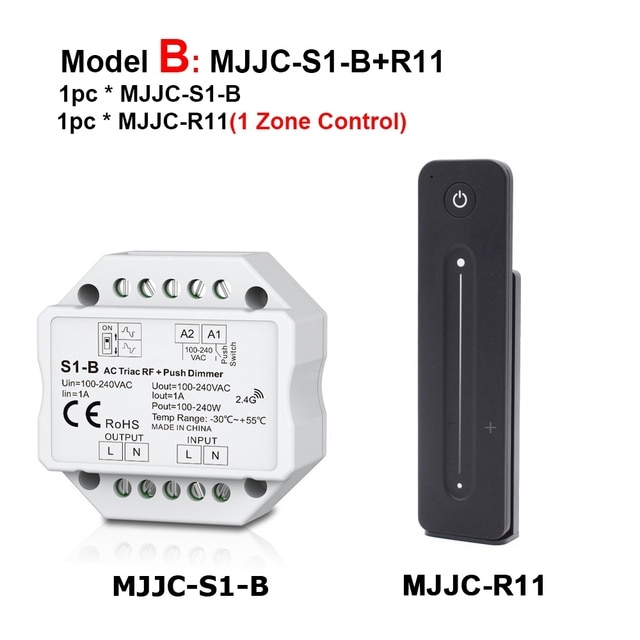

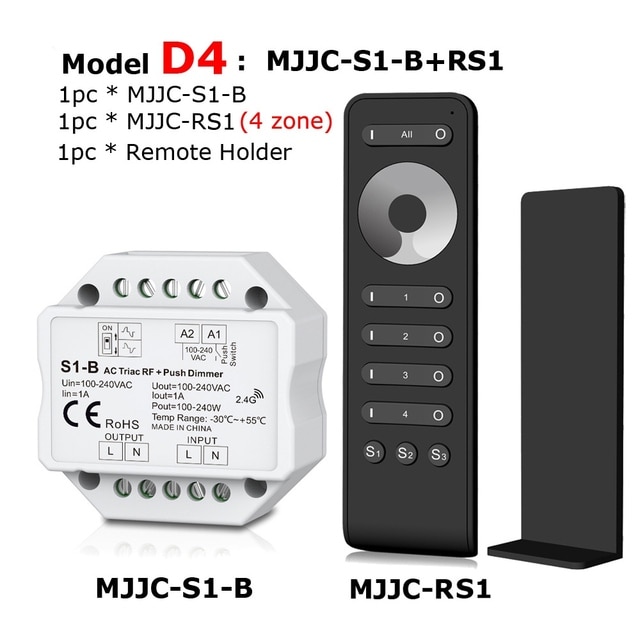

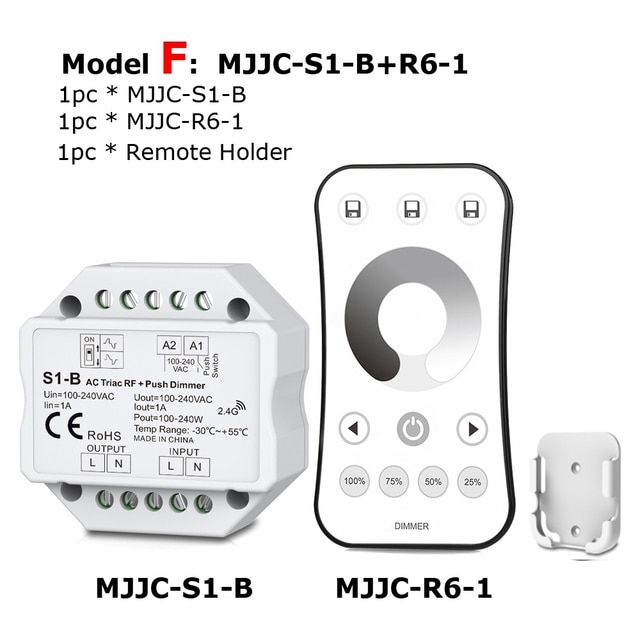

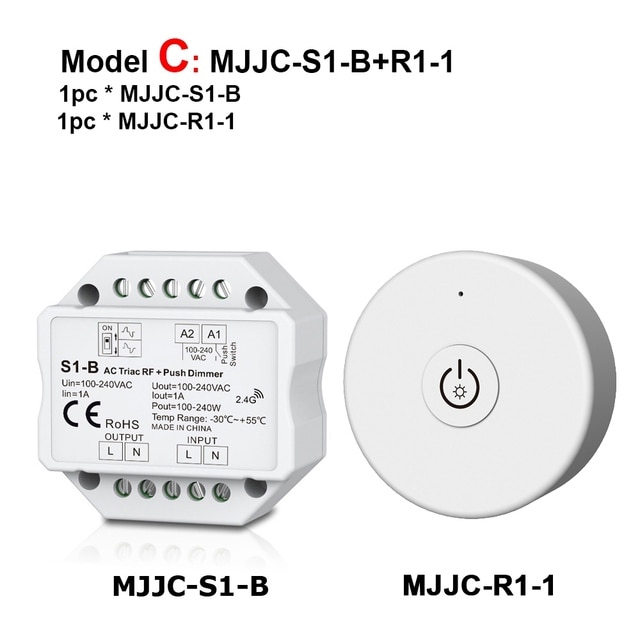

(Receiver and Sender): Model A: MJJC-S1-B+Wifi Relay; Model B: MJJC-S1-B+R11; Model C: MJJC-S1-B+R1-1; Model D: MJJC-S1-B+R1; Model F: MJJC-S1-B+R6-1; Model E: MJJC-S1-B+RT1; Model D4: MJJC-S1-B+RS1; Model E4: MJJC-S1-B+RT6; Model F4: MJJC-S1-B+R6
Input Voltage: 110V 220V 230V 240V AC
Output Voltage: 110V 220V 230V 240V AC
Working Temperature: -20-60centi-degree
Max load current :1.0A
Max Power Output: 100-240W
Output gray: 256 levels
Frequency of RF remote control: 2.4G MHz
RF Remote Distance: 30M
Net Weight: 48g/pc
Color: White Body

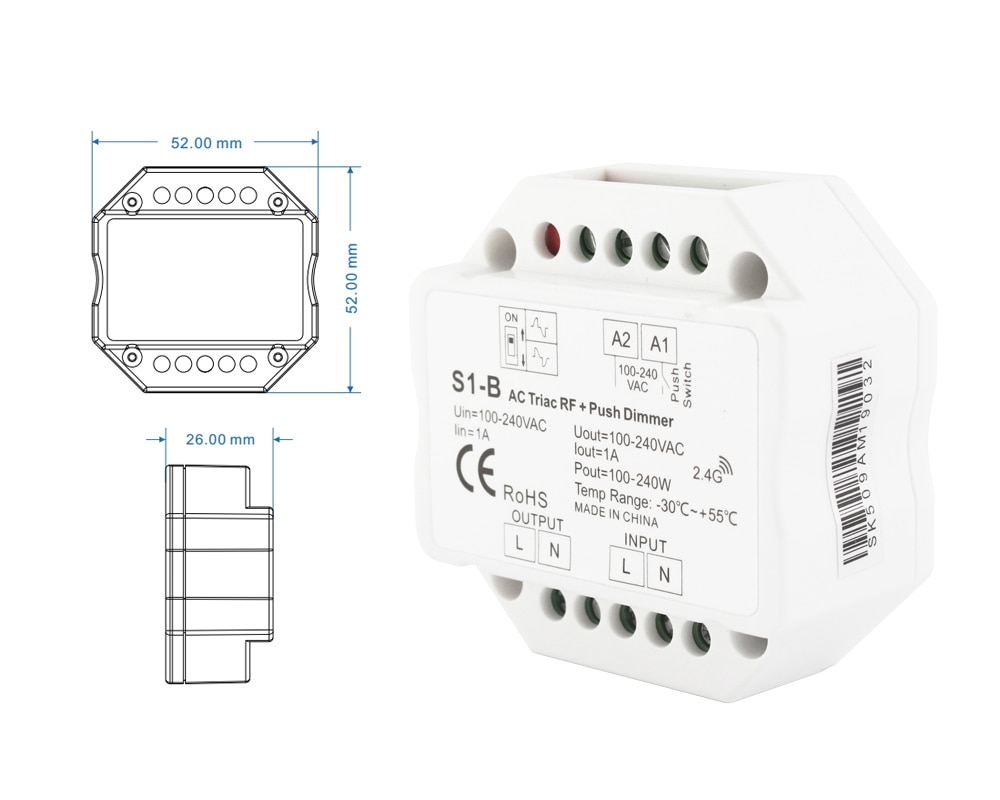

Product size:(Approx) L52x W52x H26mm
Match Guide:
1. Match: Switch off the power, then switch on power again,
short press on/off key or zone key 3 times on the remote quickly within 5s after power on,
the link is done once the light blinks 3 times.
2. Delete: Switch off the power, then switch on power again,
short press on/off key or zone key 5 times on the remote quickly within 5s after power on,
the unlink is done once the light blinks 5 times.

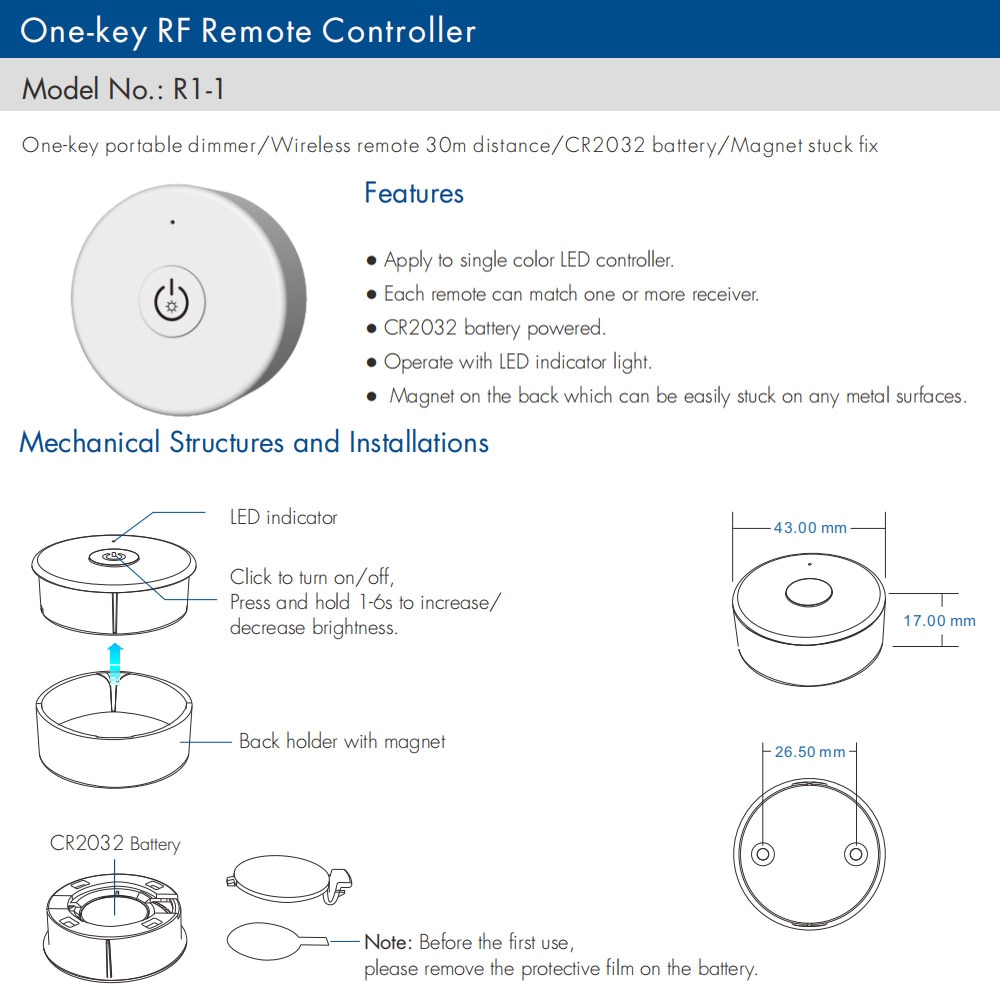

(Sender/Remote Control)Specifications & Functions:
Output Signal: RF (2.4GHz)
Working Voltage: 3V DC (CR2032 Button Cell Battery) , 2*AAA Batteries (MJJC-RT1)
Standby Time: 12 months (MJJC-R1)
Remote Distance: 30M
Dimension: L135 x W40 x H11mm(MJJC-R1); L107 x W58.5 x H9mm (MJJC-R6-1) L122 x W53 x H17.5mm(MJJC-RT1)
Weight:41g/pc(MJJC-R1) ; 35g/pc (MJJC-R6-1) ; 135g/pc (MJJC-RT6)

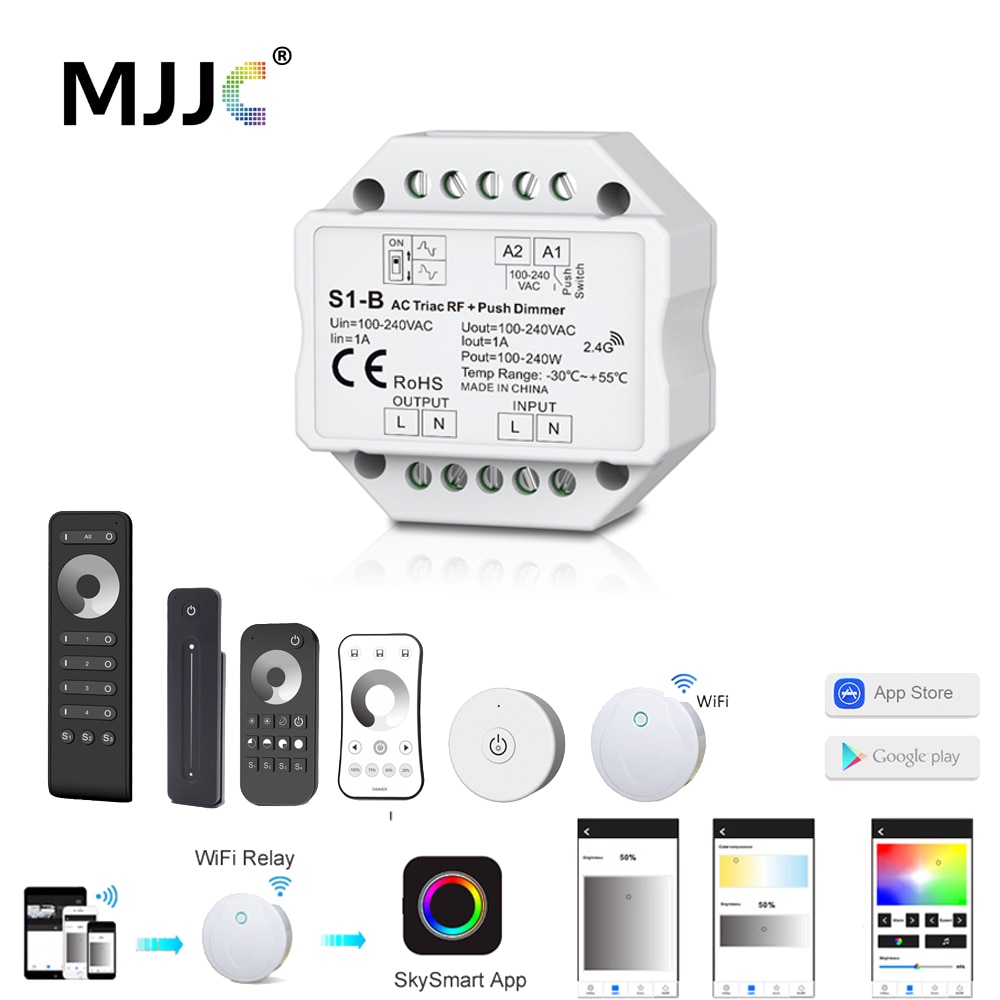

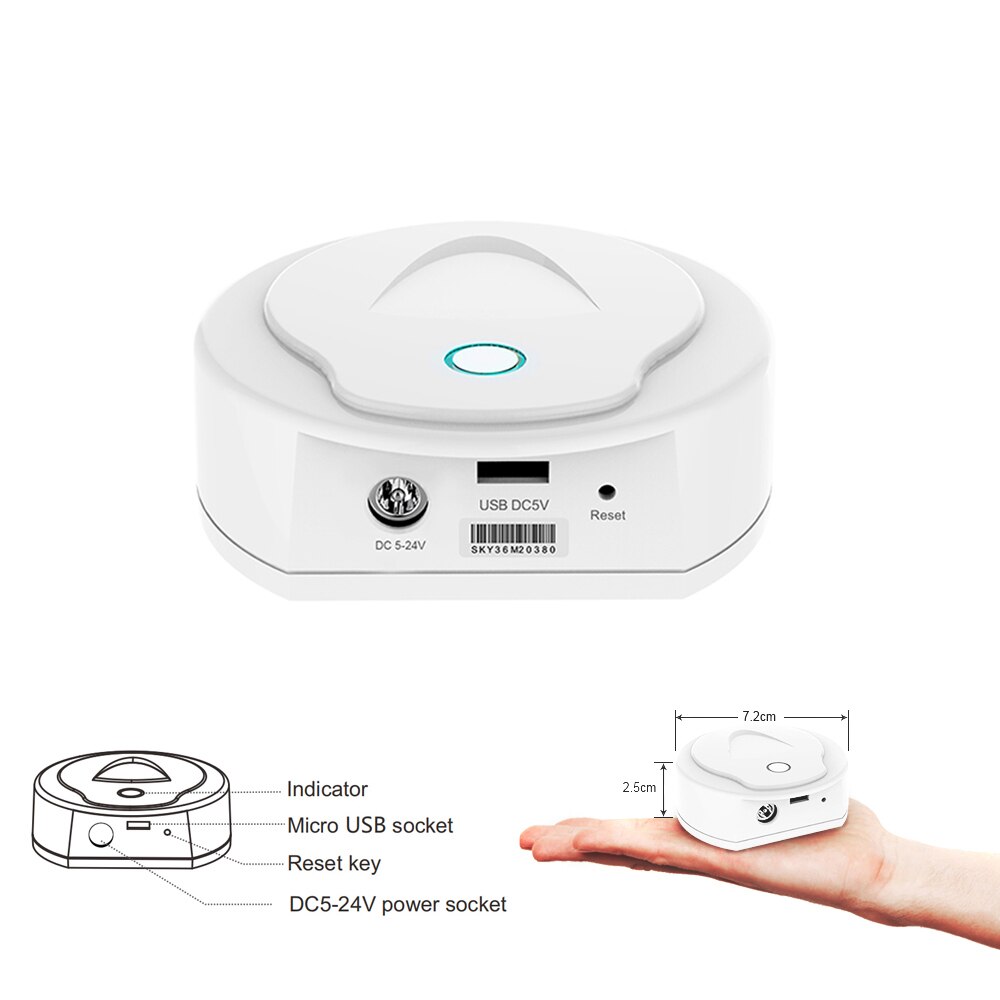

Wifi Relay
The WiFi-Relay controller converts WiFi signal to RF signal, also know as WiFi gateway or Wifi hub. it is compatible with multiple type of Skydance receivers. With WiFi-relay, you could control single color, dual color, RGB, RGBW, RGB+CCT LED lights by smart phone.
Note: This product can not be used alone,This wifi to RF converter need work with V1, V2, V3, V4, VP, KS, S1-B,S1-K etc wireless receivers

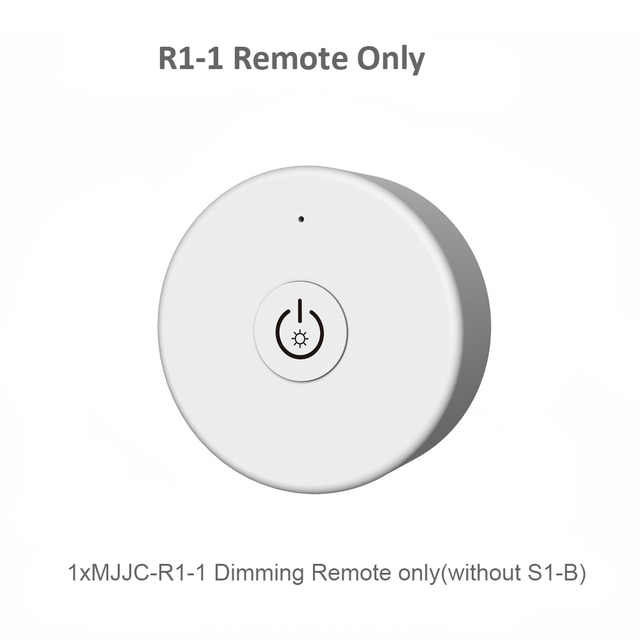

If you want order R1,R6-1,RT1 Remote Only and Wifi Relay only,Please click
Features
● Can mix load all Skydance RF 2.4G LED controllers, LED dimmable driver and smart lamp.
● Can realize dimming, color temperature, RGB, RGBW, RGB+CCT light effects.
● Load 1-16 zones, 8 scene memory.
● Including one micro USB cable.
● Android / IOS software name: SkySmart.
Technical Parameters
● Input voltage : DC5-24V Input voltage
● Operation frequency: 2.4G
● Remote distance: 30m
● Working temperature: -30℃~55℃
● Product size : Φ72×25mm

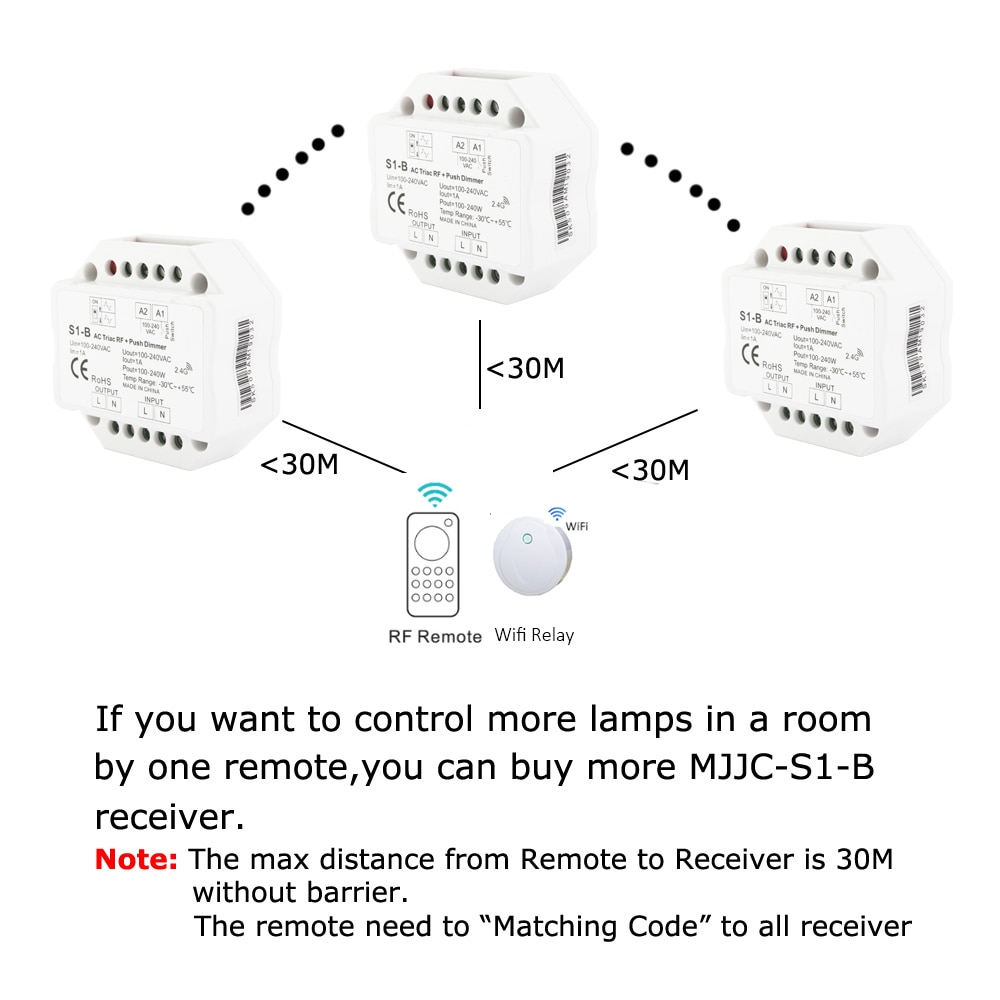

If you want to control more lamps by one remote, you need to buy more receiver (MJJC-S1-B). only do " Match Code" between Sender and receivers before using.

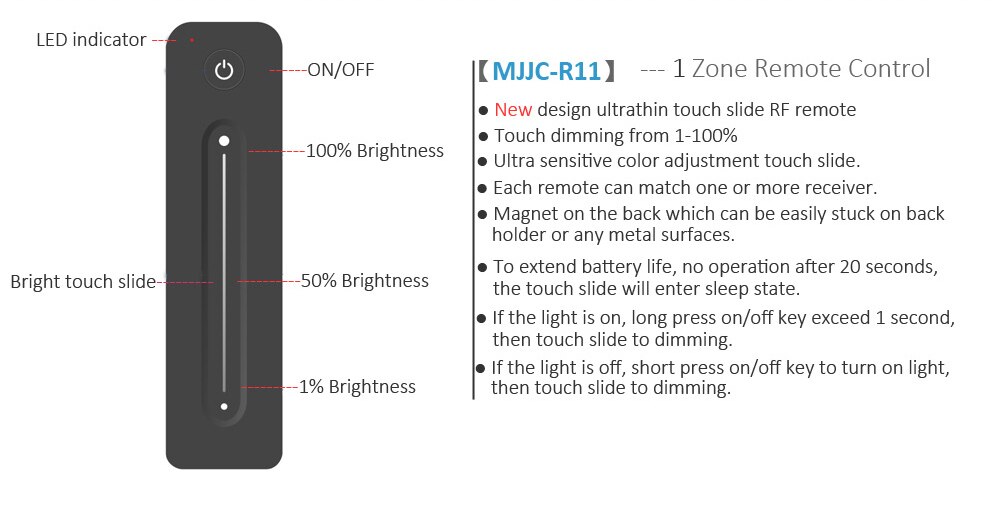

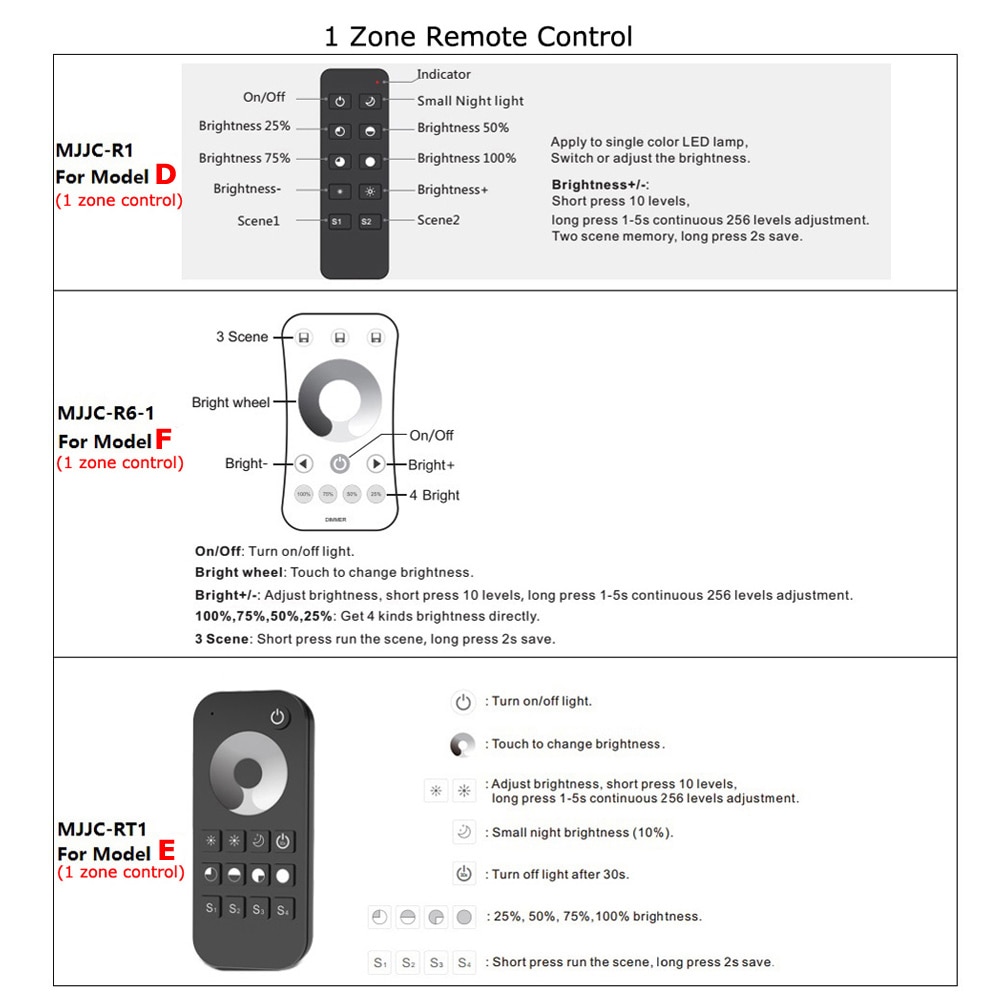

MJJC-R1,MJJC-R6-1, MJJC-RT1,MJJC-R11 are used for single zone control solution. ----- Only Synchronously Control.

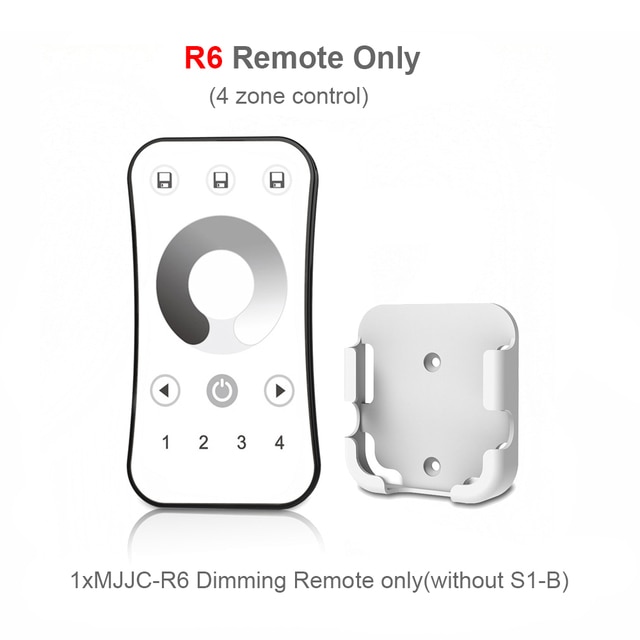

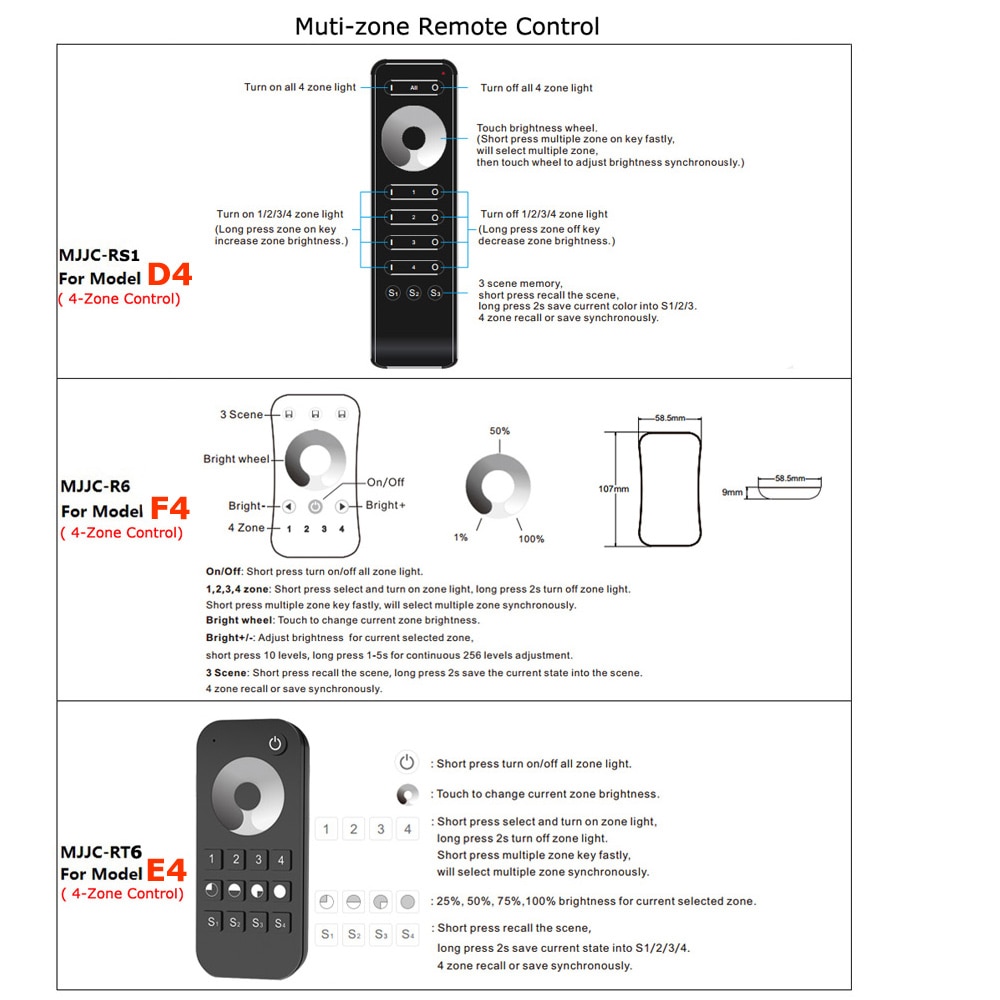

MJJC-RS1, MJJC-R6, MJJC-RT6 are used for 4 zones control solution. ------- Synchronously & Independently Control.

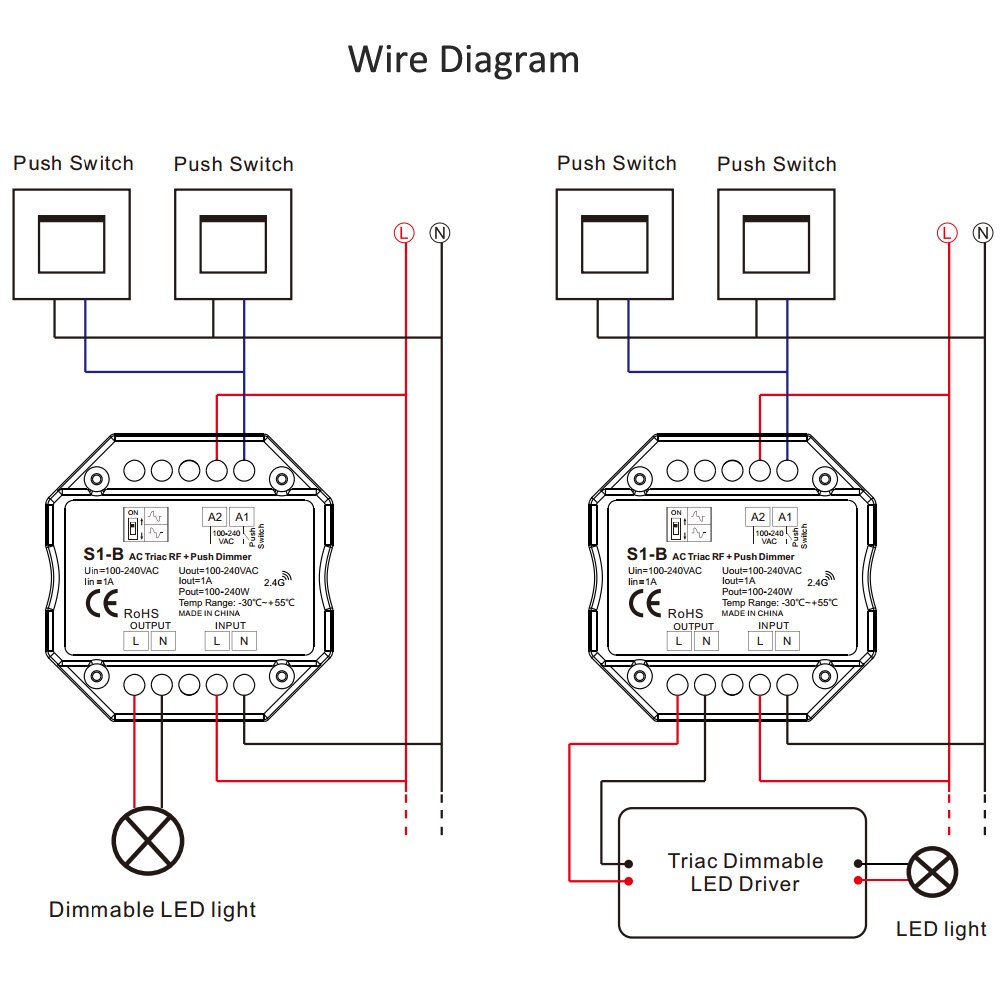

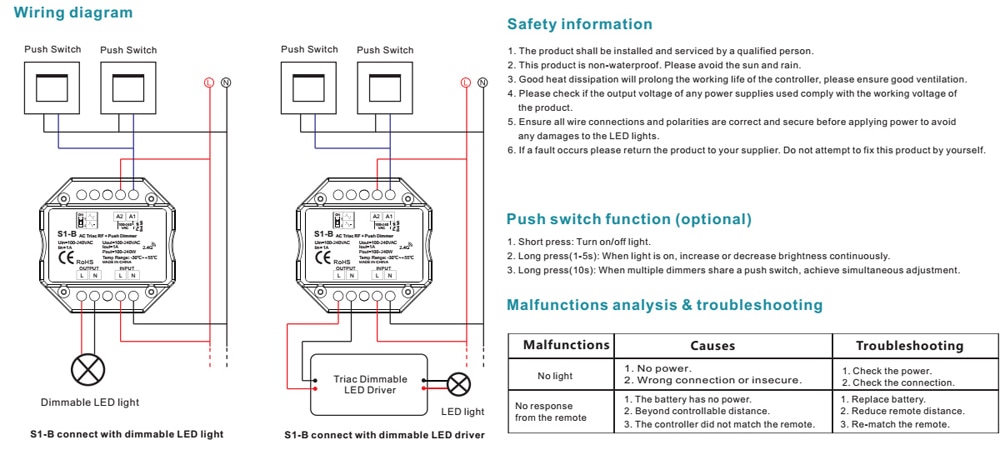

External push switch (You can install depends on your needs),we don't provide
1. Short press: Turn on/off light.
2. Long press(1-5s): When light is on, increase or decrease brightness continuously.
3. Long press(10s): When multiple dimmers share a push switch, achieve simultaneous adjustment.
Package Including:

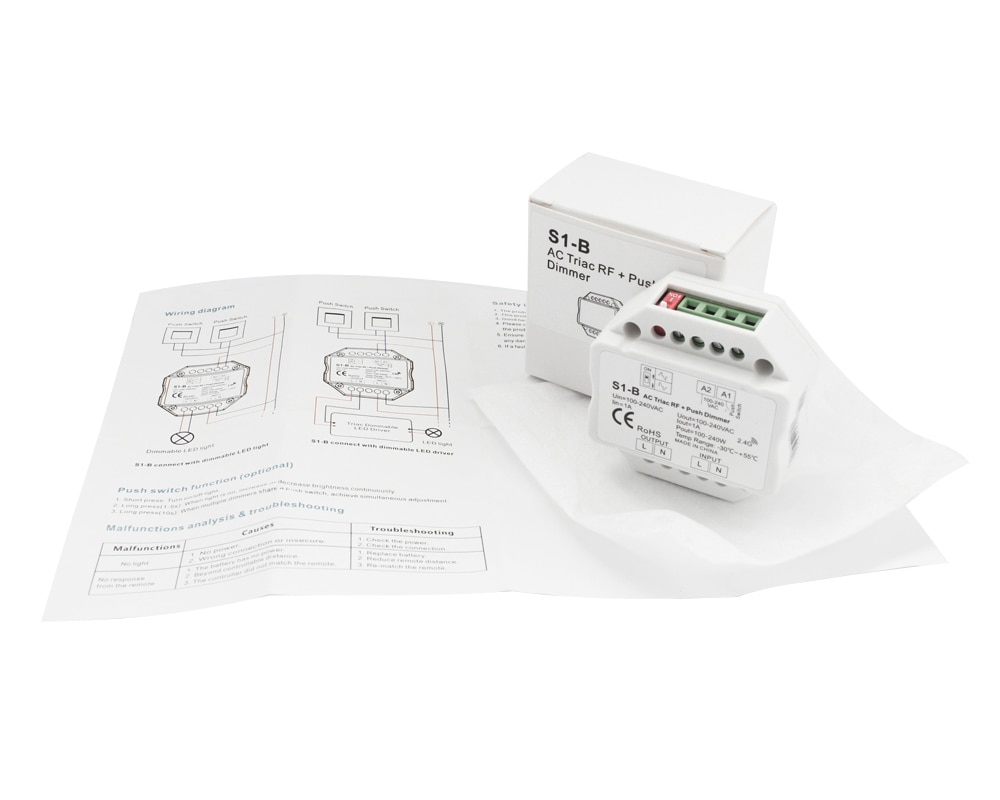

1 * Triac Dimmer
1 * Remote Controller or wifi relay( battery not included)
(there is not with CR2025/CR2032 button cell to some countries,if allowed, we will ship the battery with pacel).
1 * Remote Holder(wifi relay and R1-1 not holder)
1 * User Manual (English)

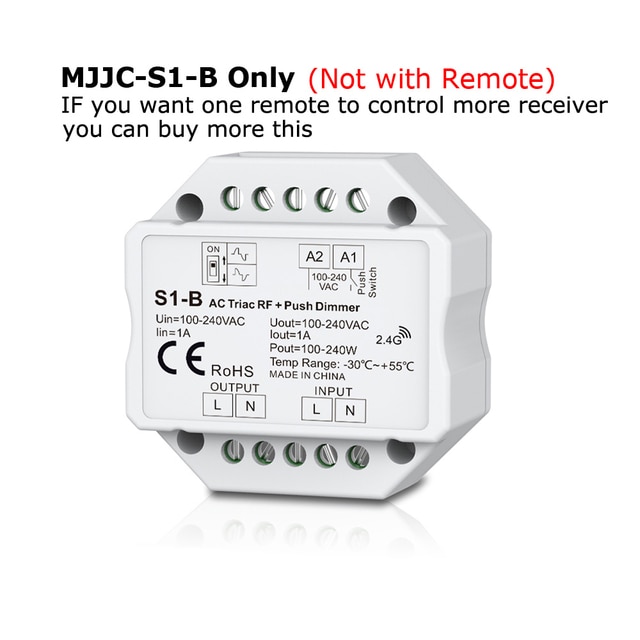

Remarks: If you order only MJJC-S1-B,which is not with remote controller and remote holde
If you order only Remote,which is not with MJJC-S1-B Dimmer
- Features: Triac Dimmable Controller
- Model Number: Triac LED Dimmer
- Certification: CCC,ROHS,ce,GS,FCC,LVD,EMC
- Material: Plastic
- Warranty: 5 Years
- Max. Load Power: 240W
- Brand Name: MJJC
- Origin: Mainland China
- Item Type: Dimmers
- Body Color: Black and White
- Output Current: 1A
- Working Voltage: AC 100-240V
- Used for: Dimmer for LED Lamps
- Remote Distance: 30 Meters
- Battery Type: CR2032 Button Cell
- Output Signal: 2.4G
- Features 1: Triac Dimmer
- Features 2: Triac LED Dimmer
- Features 3: led dimmer 220v
- Features 4: smart dimmer
- Features 5: Wifi LED Dimmer
- Features 6: Wifi Smart Dimmer
- Features 7: LED Dimmer Switch 220V
- Features 8: Dimmer for LED Lamp 220V
- Features 9: AC Remote Dimmer
- Features 10: Triac Dimmer LED 220V
- Features 11: Dimmable Light Switch
