LED Dimmer Switch 220V 230V 110V AC Triac RF Wireless 2.4G Remote Control PWM Dimmable Light Switch Dimmer Triac for LED Lamps
5.0 (4 votes) | 11 orders
Price:
US $12.17 - 46.28
/ piece
Discount Price:
US $
9.95 -
36.10
/ piece
-18%
- Color
-
-

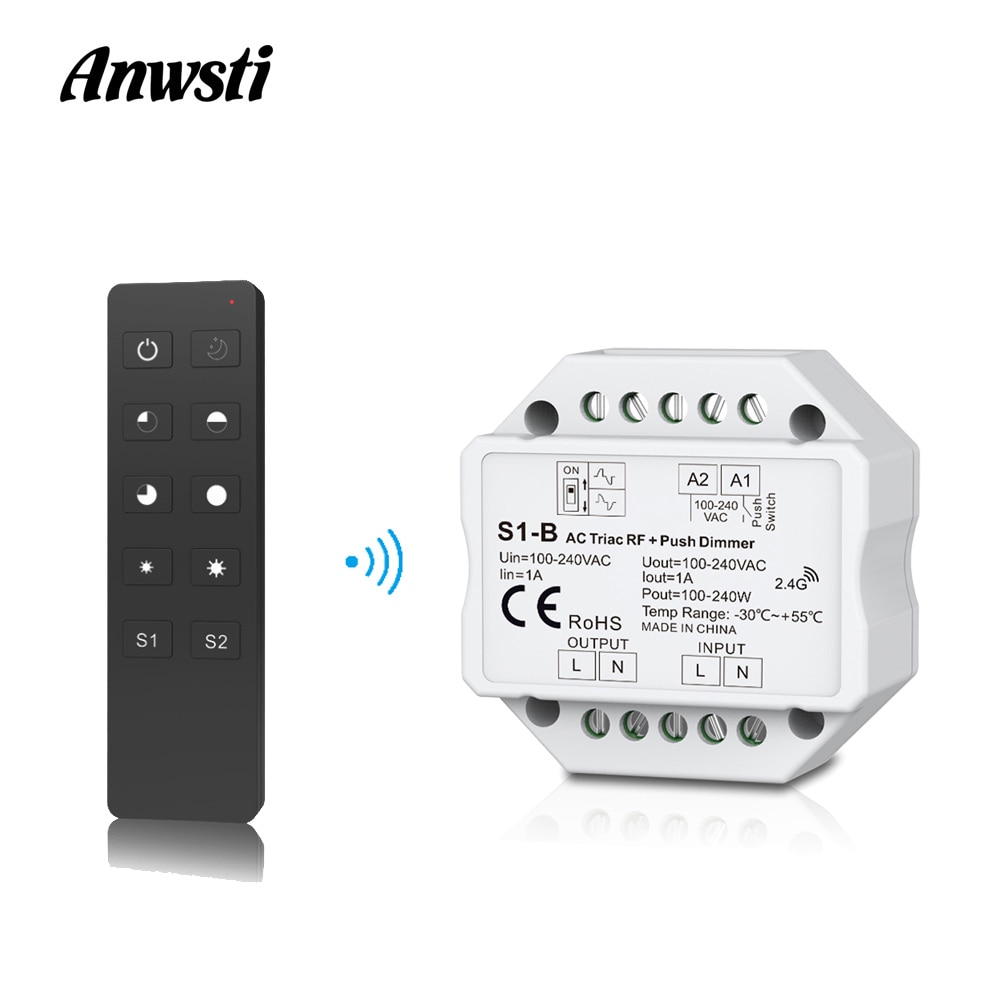

LED Dimmer Switch 220V 230V 110V AC Triac RF Wireless 2.4G Remote Control PWM Dimmable Light Switch Dimmer Triac for LED Lamps
Features:
● RF + Push AC phase-cut dimmer, 1 channel output.
● To dim and switch single color dimmable LED lamps, traditional incandescent and halogen lights.
● Leading edge dimming or trailing edge dimming set by dip switch.
● Min brightness can be set by key.

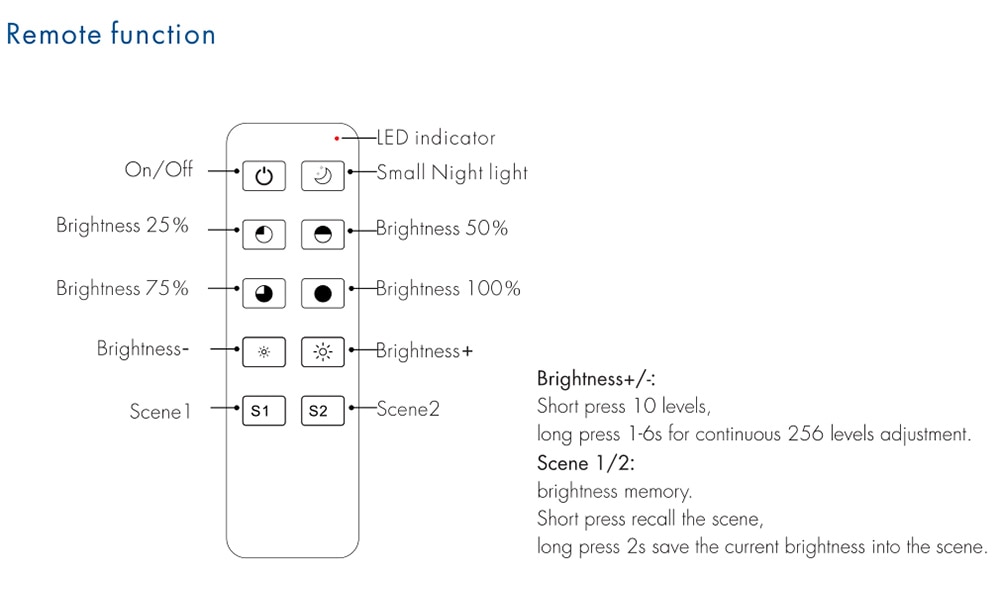

● Compatibility with Skydance’s 2.4G dimming remote control.

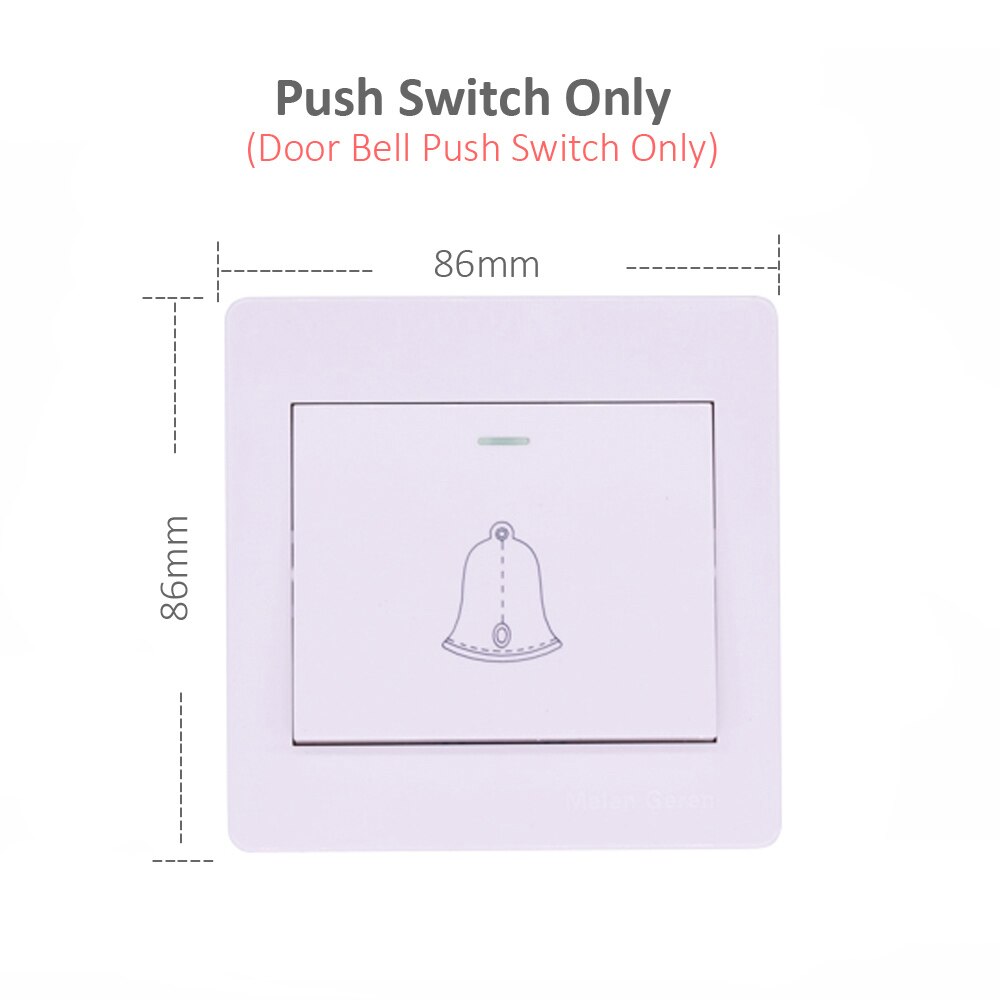

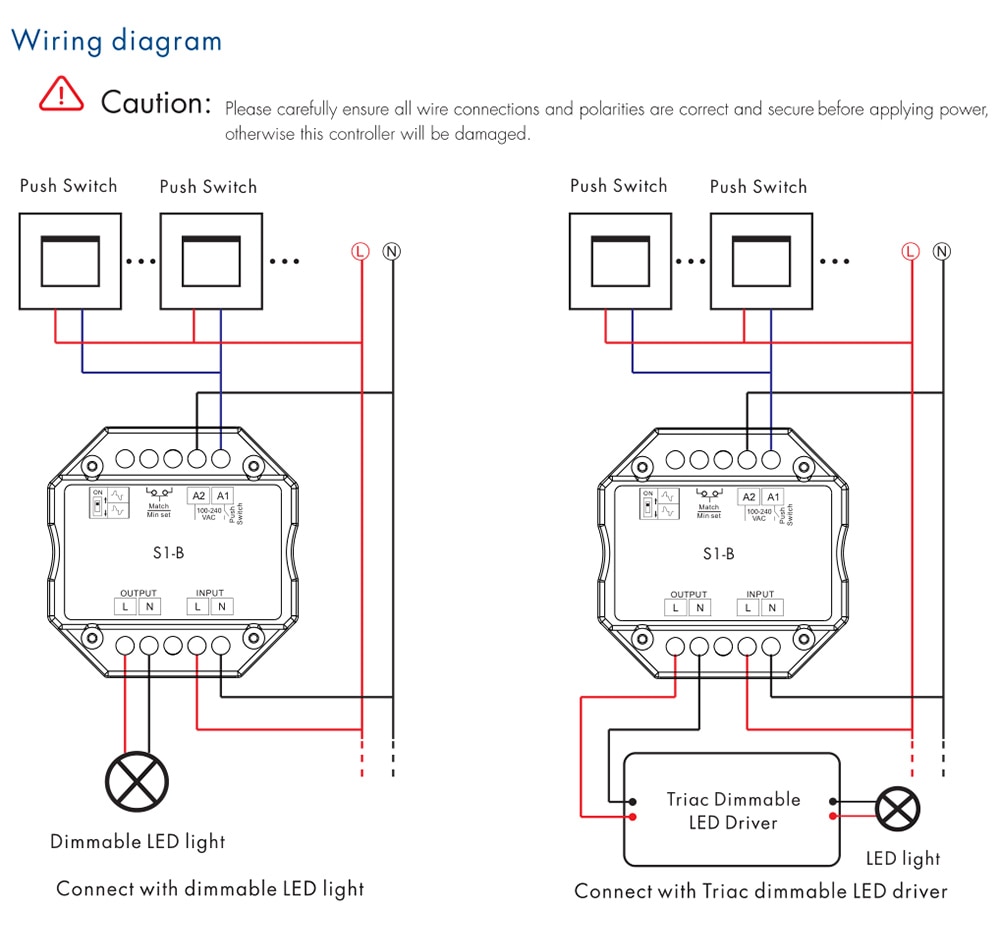

● Connect with external push switch to achieve on/off and dimming function.

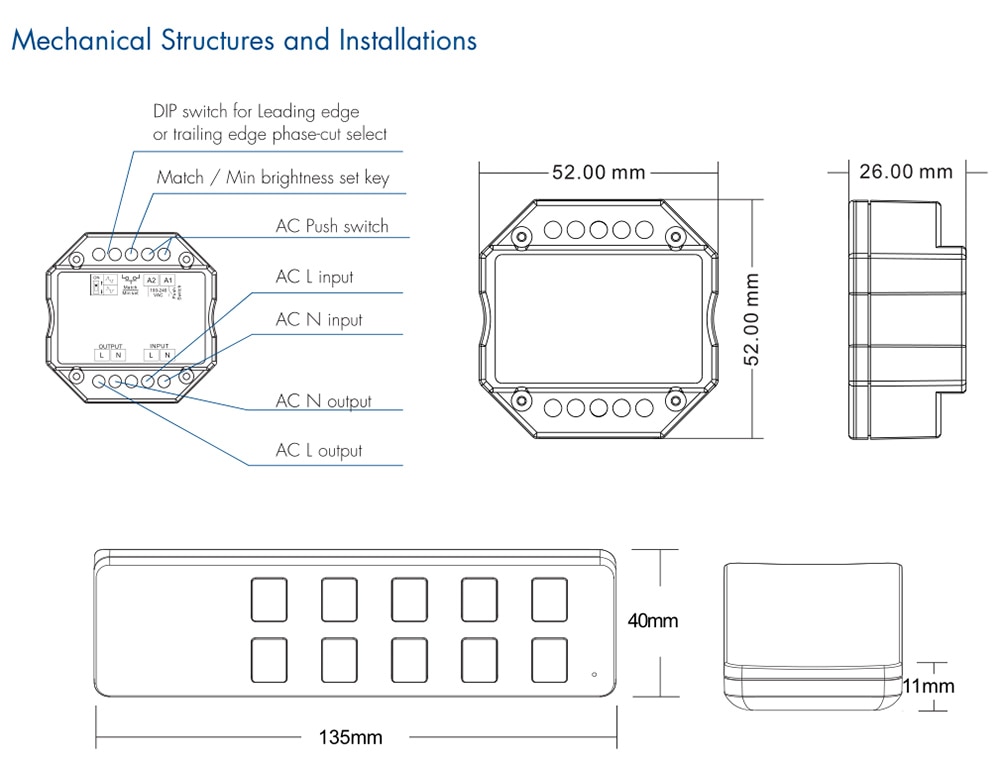

● Easy to be inserted into standard 86*86mm wall box.

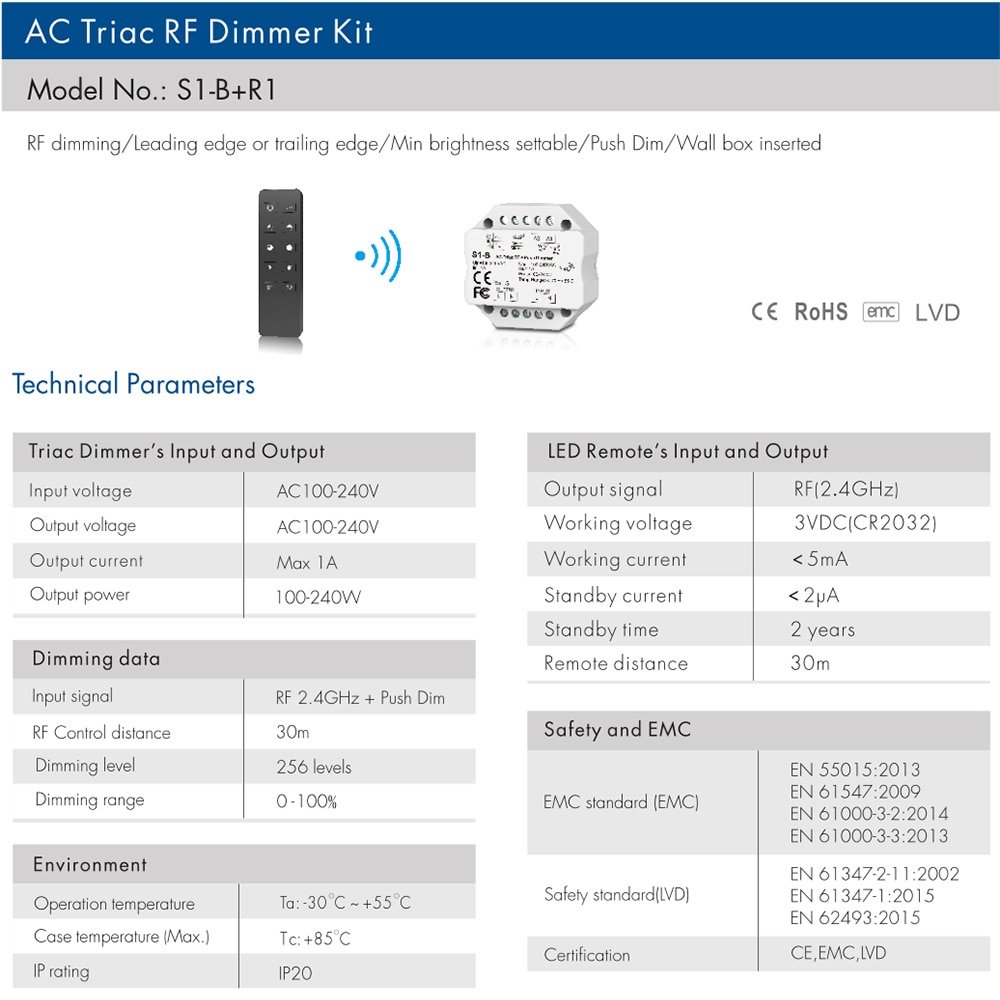

Technical Parameters:

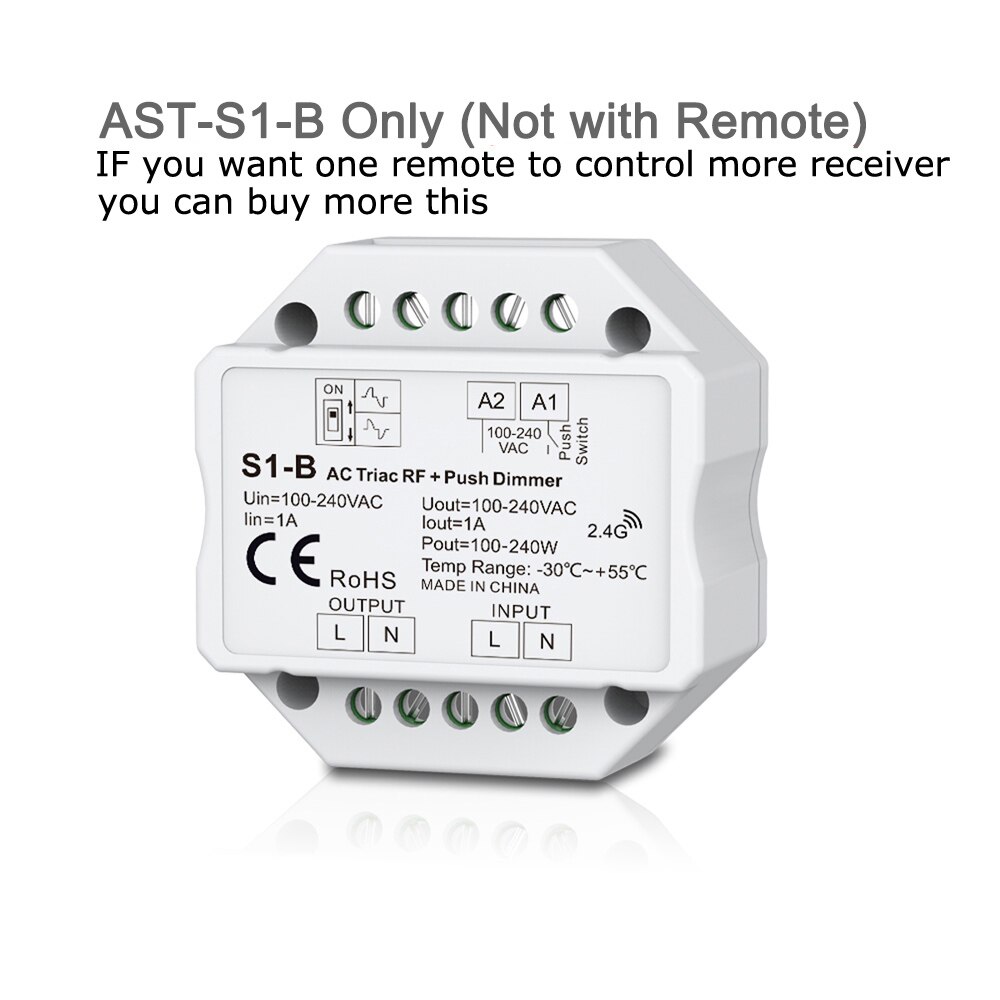

Triac LED Dimmer(S1-B)
Input voltage: AC100-240V
Output voltage: AC100-240V
Output current: Max 1A
Output power: 100-240W
Input signal: RF 2.4GHz + Push Dim
Dimming level: 256 levels
Dimming range: 0 - 100%
LED Remote(R1)
Output signal: RF 2.4GHz
Working voltage: 3VDC (CR2032)
Working current: ＜5mA
Standby current: ＜2μA
Standby time: 2 years
Remote distance: 30m
Note: When calculating the maximum number of load lamps or drivers, the input power or input current parameters of a single lamp or driver must be used, the output power parameters can not be used,otherwise, the product will be overloaded and damaged.

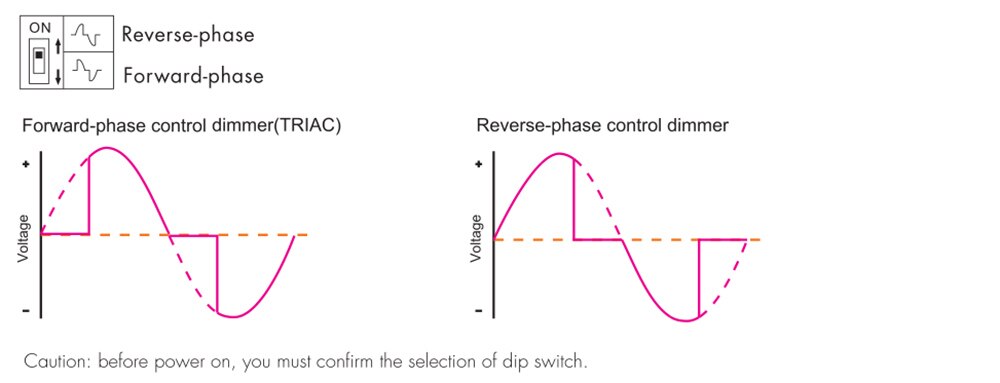

Leading edge or trailing edge dimming setting
Select leading edge(forward-phase) dimmer or trailing edge(reverse-phase) dimmer according to dimmable LED light or driver.
Min brightness setting
Long press Min set key for 2s, the light blink 2 times, ready for min brightness set,then short press Min set key 1-6 times, to get 6 min brightness: 5%, 10%, 15%, 20%, 25% or 30%,the light will output the current min brightness immediately ,Long press Min set key for 2s or wait 8s, quit min brightness set, the light will output 100% brightness automatically.
Match Remote Control (two match ways)
End user can choose the suitable match/delete ways. Two options are offered for selection:
1.Use the controller’s Match key
Match:
Short press match key, immediately press on/off key (single zone remote) or zone key (multiple zone remote) of the remote.
Delete:
Press and hold match key for 5s to delete all match,The light blinks 5 times means all matched remotes were deleted.
2.Use Power Restart
Match:
Switch off the power, then switch on power again,immediately short press on/off key (single zone remote) or zone key (multiple zone remote) 3 times on the remote.The light blinks 3 times means match is successful.
Delete:
Switch off the power, then switch on power again,immediately short press on/off key (single zone remote) or zone key (multiple zone remote) 5 times on the remote.The light blinks 5 times means all matched remotes were deleted.
Application notes
All the receivers are matched with one RF remote.

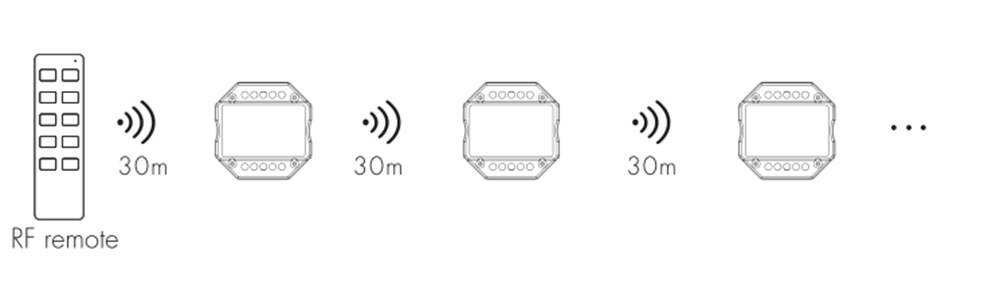

Auto-transmitting: One receiver can transmit the signals from the remote to another receiver within 30m,as long as there is a receiver within 30m, the remote control distance can be limitless.
Auto-synchronization: Multiple receivers within 30m distance can work synchronously when they are controlled by the same remote.
Receiver placement may offer up to 30m communication distance. However, we recommend for indoor applications that receiver placements should be no further apart than 15m.
- Features: Triac Dimmer 220V

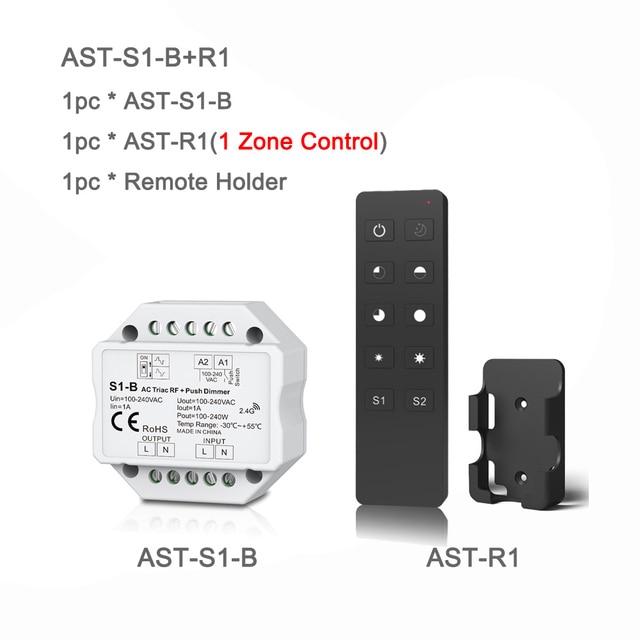

- Model Number: S1-B+R1
- Certification: CCC,ce,EMC,LVD,ROHS
- Material: ABS
- Warranty: 5 Years
- Max. Load Power: 240W
- Brand Name: Anwsti
- Item Type: Dimmers
- Output Current: 1A
- Working Voltage: AC 100-240V
- Remote Distance: 30M
- Output Signal: 2.4G
- Used for: Dimmer for LED Lamps
- Type 1: LED Dimmer Switch 220V
- Type 2: 220V LED Dimmer
- Type 3: RF Remote LED Dimmer
- Type 4: Triac LED Dimmer
- Type 5: Triac Dimmer
- Type 6: PWM LED Dimmer
- Type 7: Dimmer for LED Lamp 220V
