LED Dimmer Switch 12V 24V PWM 2.4G LED Touch RF Wireless Remote 5V 36V Smart Wifi Dimmer Controller for Single Color LED Strip

5.0 (4 votes) | 25 orders
Price: US $26.62 - 80.96 / piece
Discount Price:
US $ 18.10 - 55.06 / piece
-32%
Color
Quantity

LED Dimmer Switch 12V 24V PWM 2.4G LED Touch RF Wireless Remote 5V 36V Smart Wifi Dimmer Controller for Single Color LED Strip


MJJC-V1

Features:


* RF dimmer match with a variety of dimming remote, realize functions of switch and dimming.

* Smooth dimming and switch without any flickering

* Adopt 2.4GHz wireless technology, remote distance up to 30m, one RF dimmer can accept up to 10 remote control.

* Auto-transmitting function, one receiver can transmit the signal from the remote to another receiver

* Within 15m, so the remote control distance can be beyond 100m.

* Can connect with external push switch to achieve on/off and dimming function.

* Work with power repeater to expand output unlimitedly.

* Mini-style RF dimmer, one channel constant voltage output.

* Can be WiFi controlled by APP installed on IOS or Android mobile devices while working with WiFi-Relay controller



(Receiver) Specifications:

Product Name:2.4G Wireless RF LED Dimmer

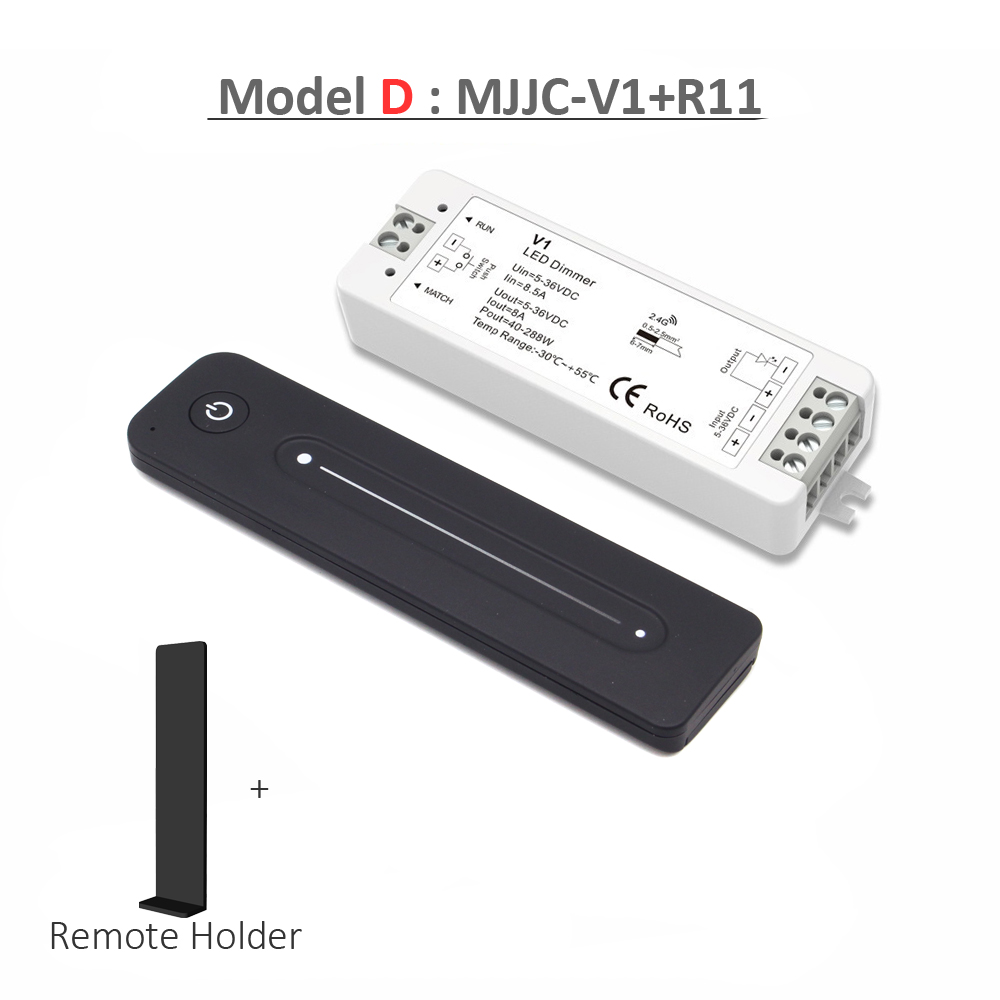

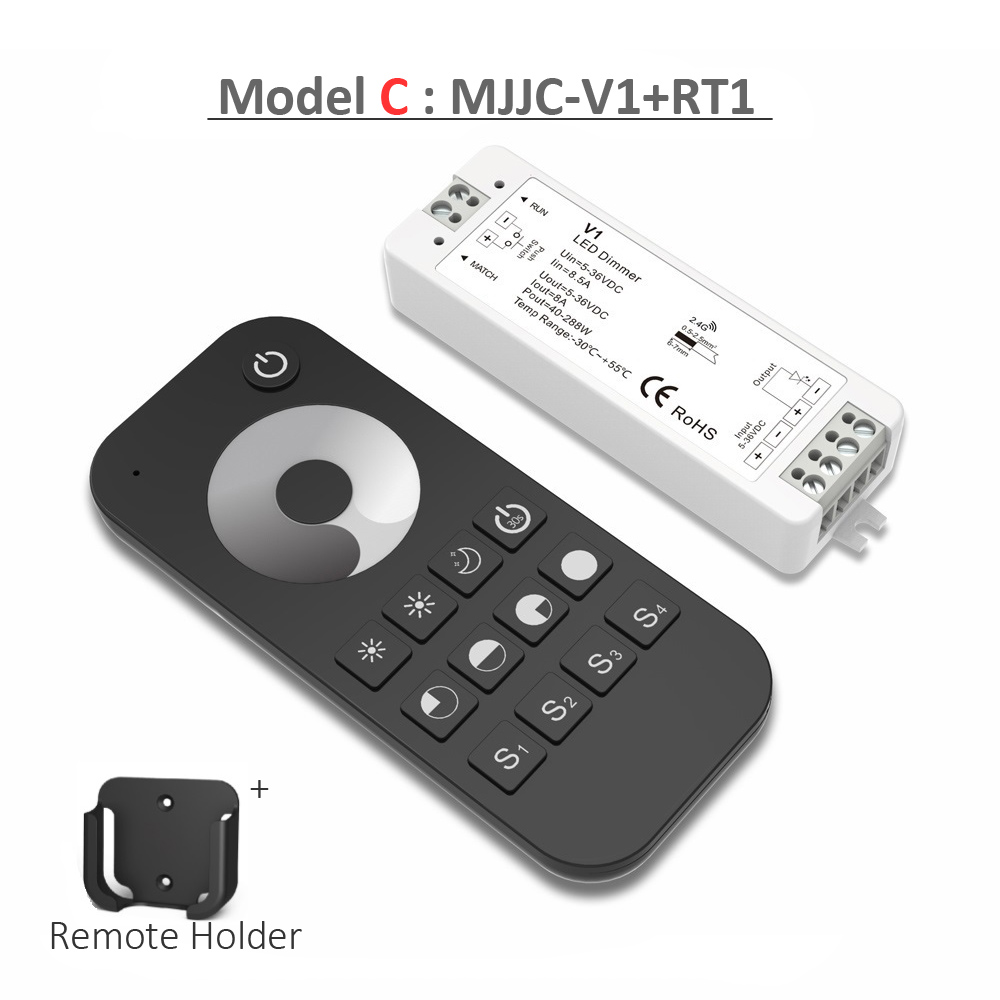

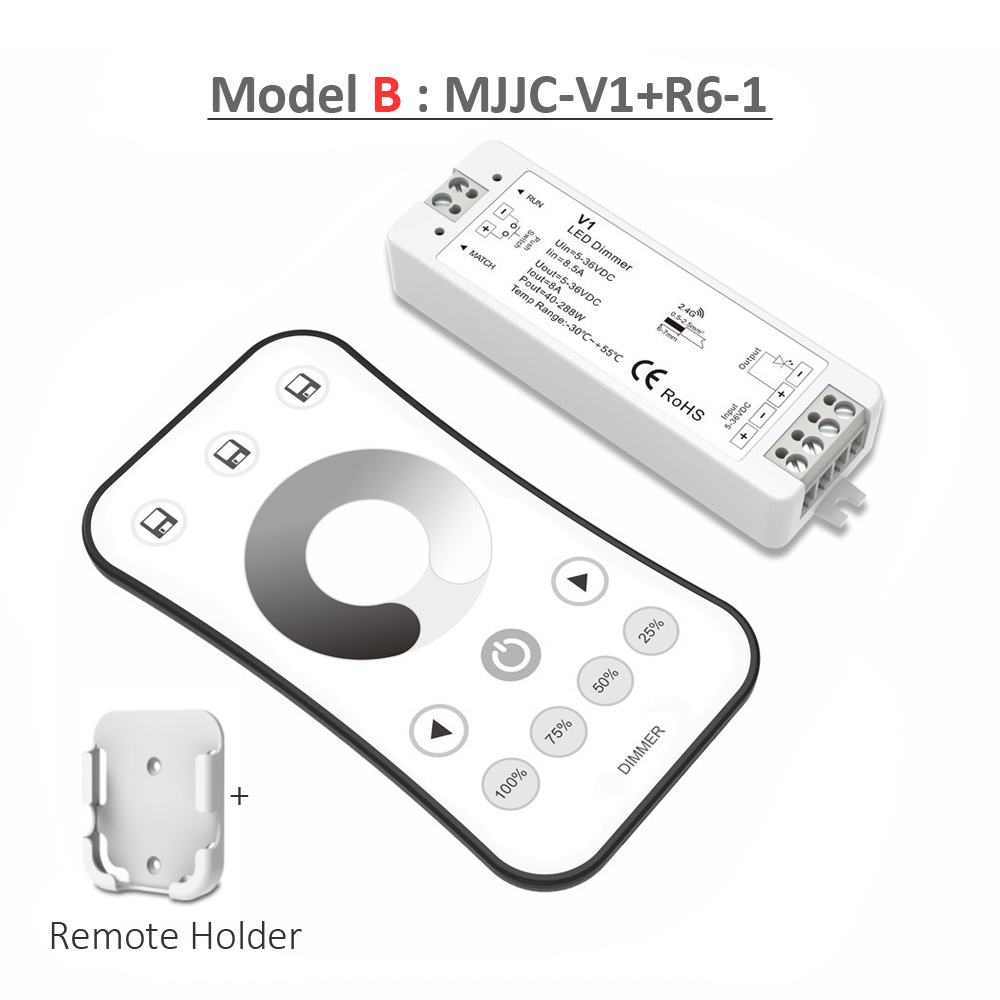

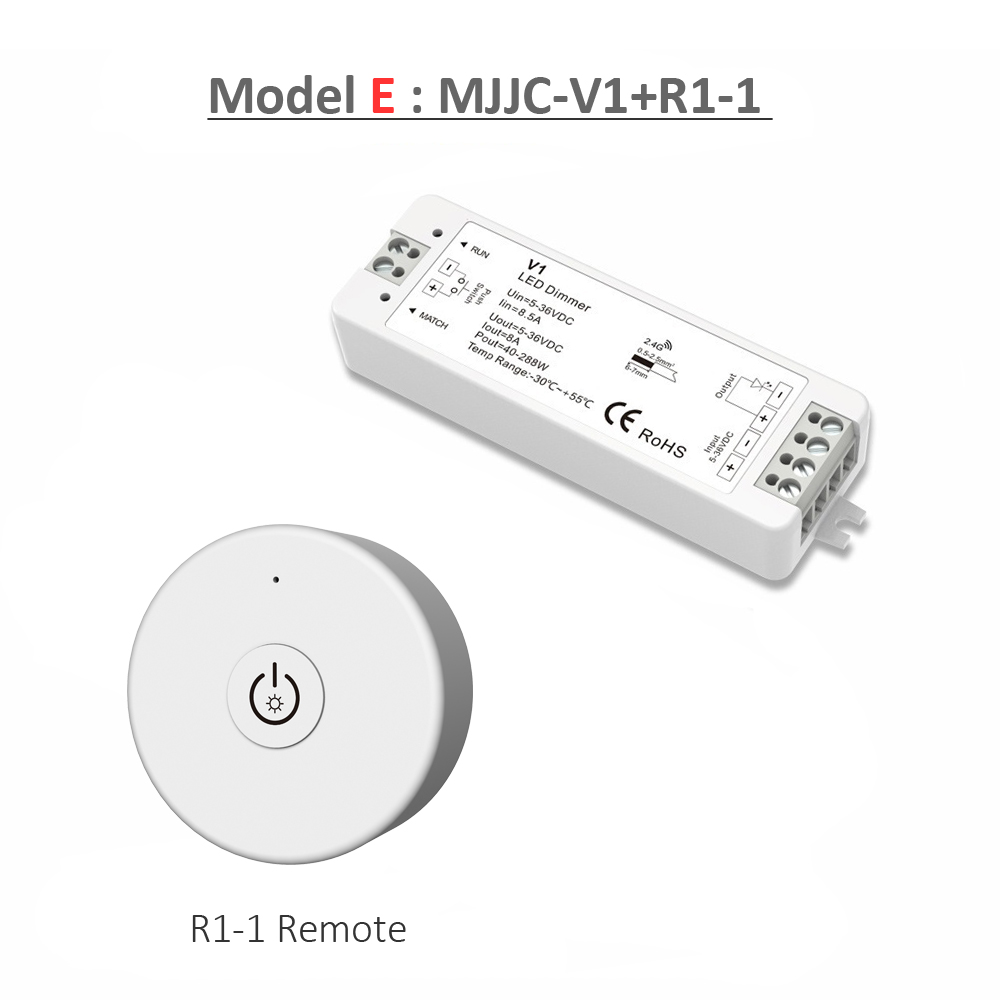

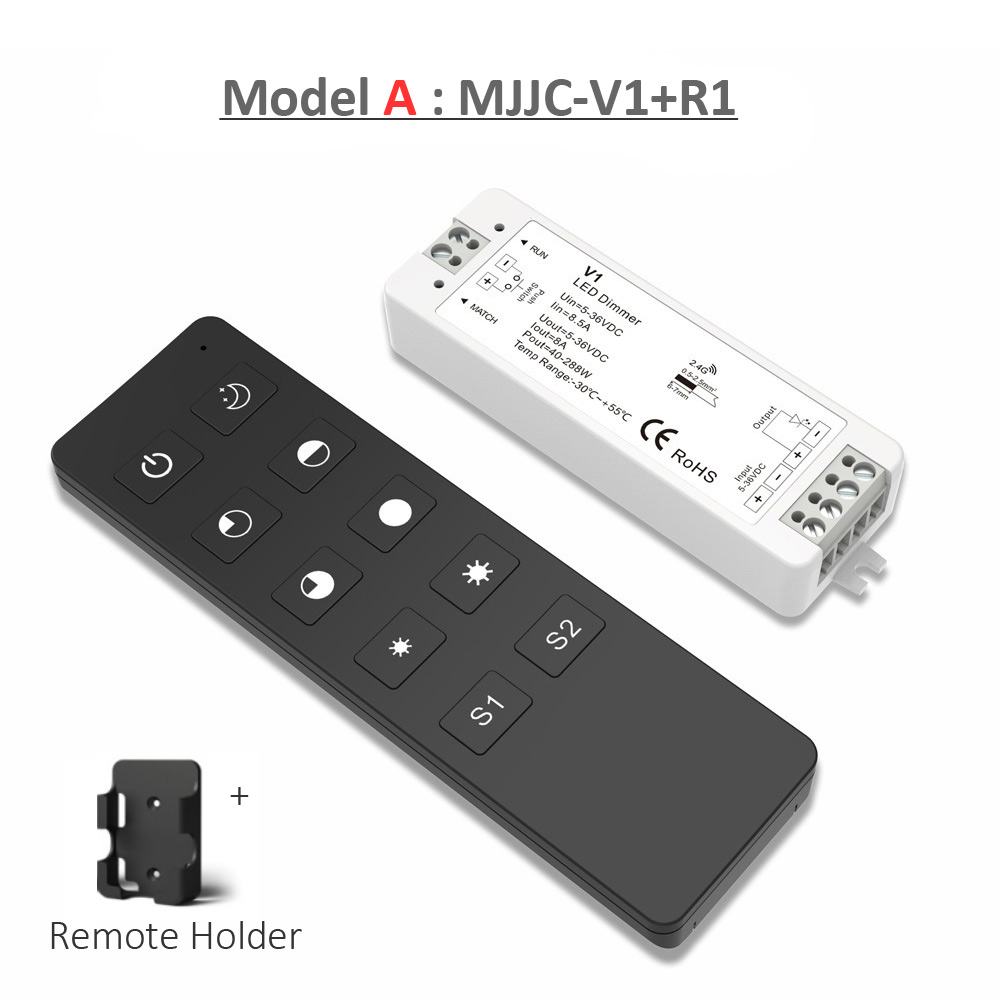

Model A:MJJC-V1+R1; Model B: MJJC-V1+R6-1; Model C: MJJC-V1+RT1; Model D: MJJC-V1+R11; Model E: MJJC-V1+R1-1

Input: DC 5V- 36V

Working Temperature: -20-60centi-degree

Max load current :8A/Channel ( 1 Channel)

Max Power Output: 5V Max 40W, 12V Max 96W,  24V Max 192W, 36V Max 288W

Output gray: 256 levels

Frequency of RF remote control: 2.4G MHz

RF Remote Distance: 30M

Product size:(Approx) L97x W33x H18mm

Match Guide:

Choice 1: Use Match key

1. Match: Short press match key, within 5s, press on/off key of the remote.
2. Delete: Long press match key for 5s, delete all matched remote.

Choice 2: Use Power-up

1. Match: Switch off the power, then switch on power again,short press on/off key 3 times on the remote quickly within 5s after power on, the link is done once the light blinks 3 times.
2. Delete: Switch off the power, then switch on power again,short press on/off key or zone key 5 times on the remote quickly within 5s after power on,the unlink is done once the light blinks 5 times.


(Sender/Remote Control)Specifications & Functions:

Output Signal: RF (2.4GHz)
Working Voltage: 3V DC (CR2032 Button Cell Battery)
Remote Distance: 30M

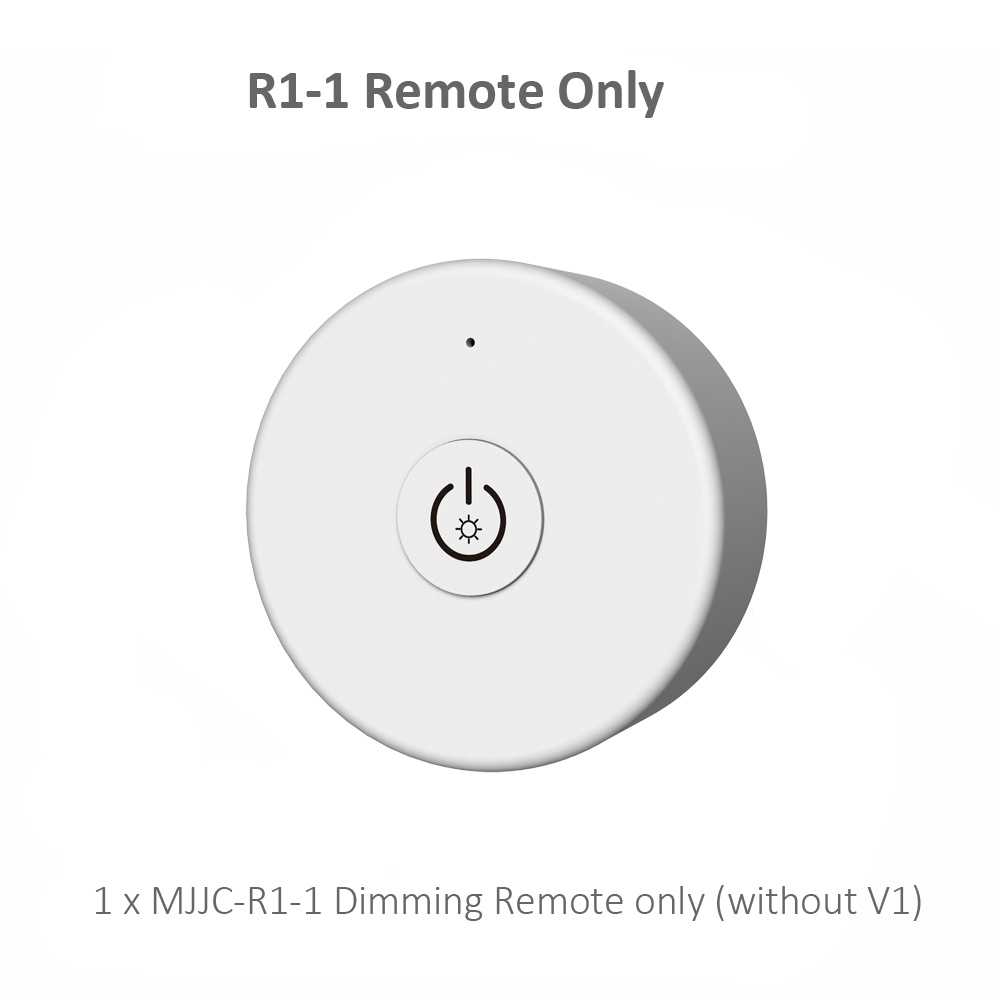

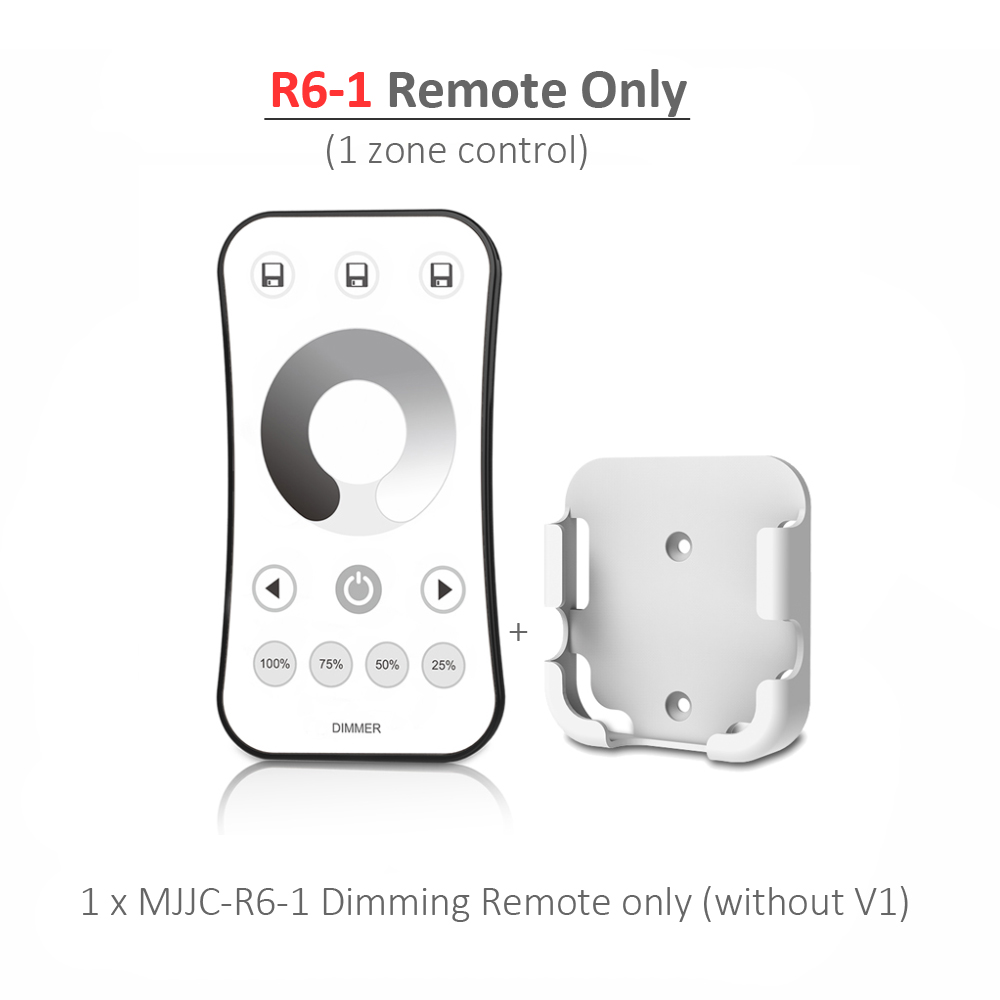

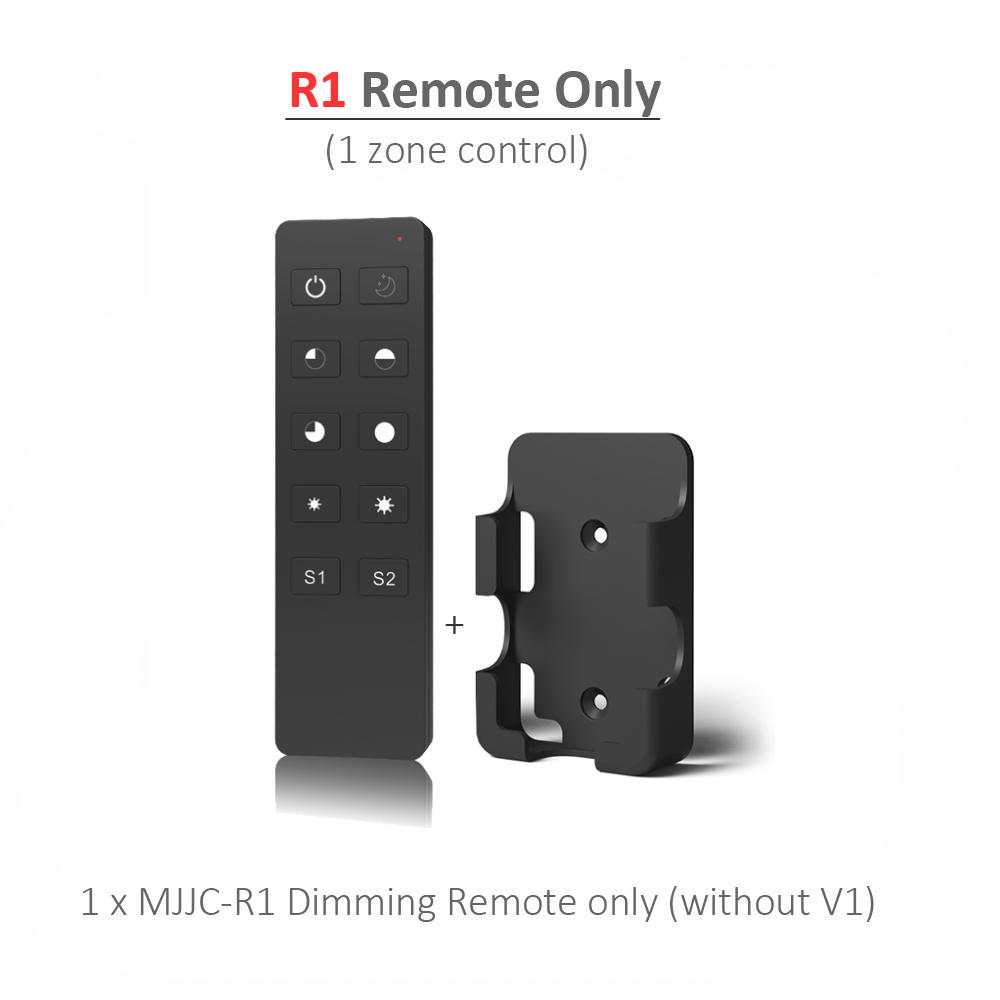

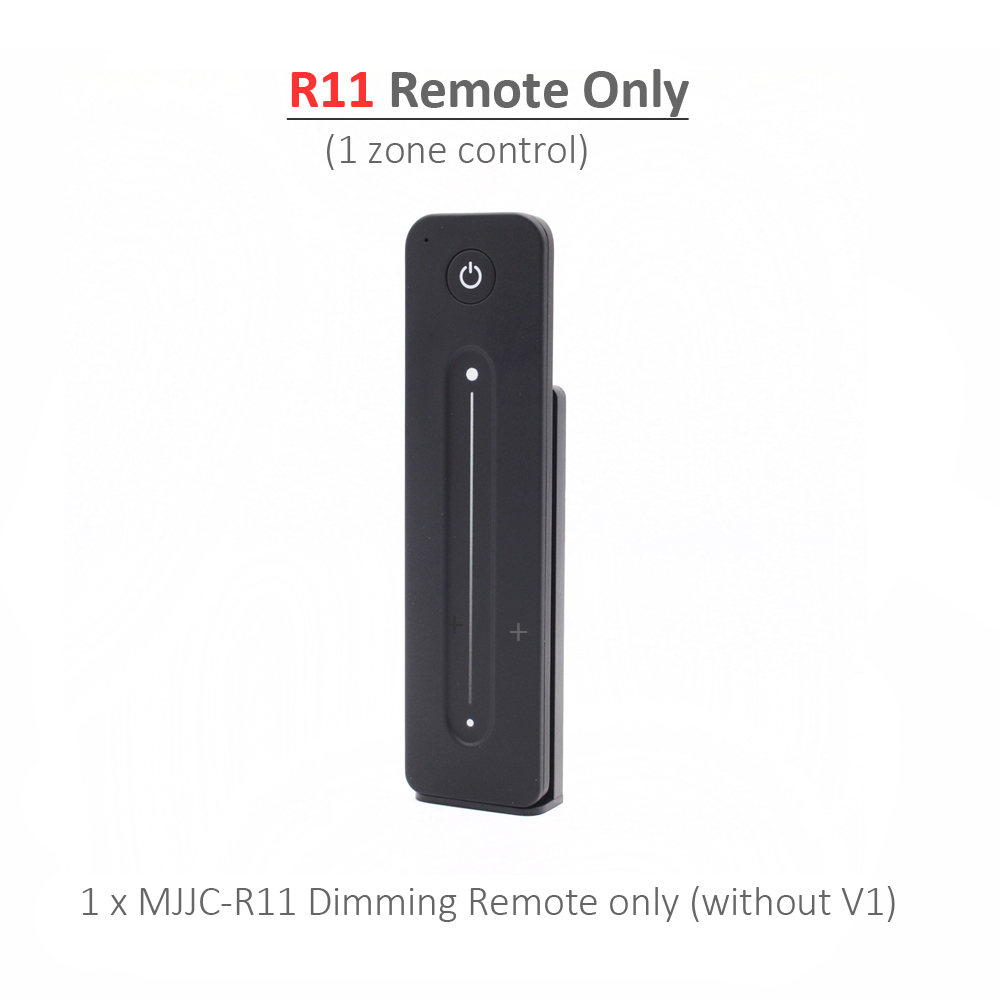

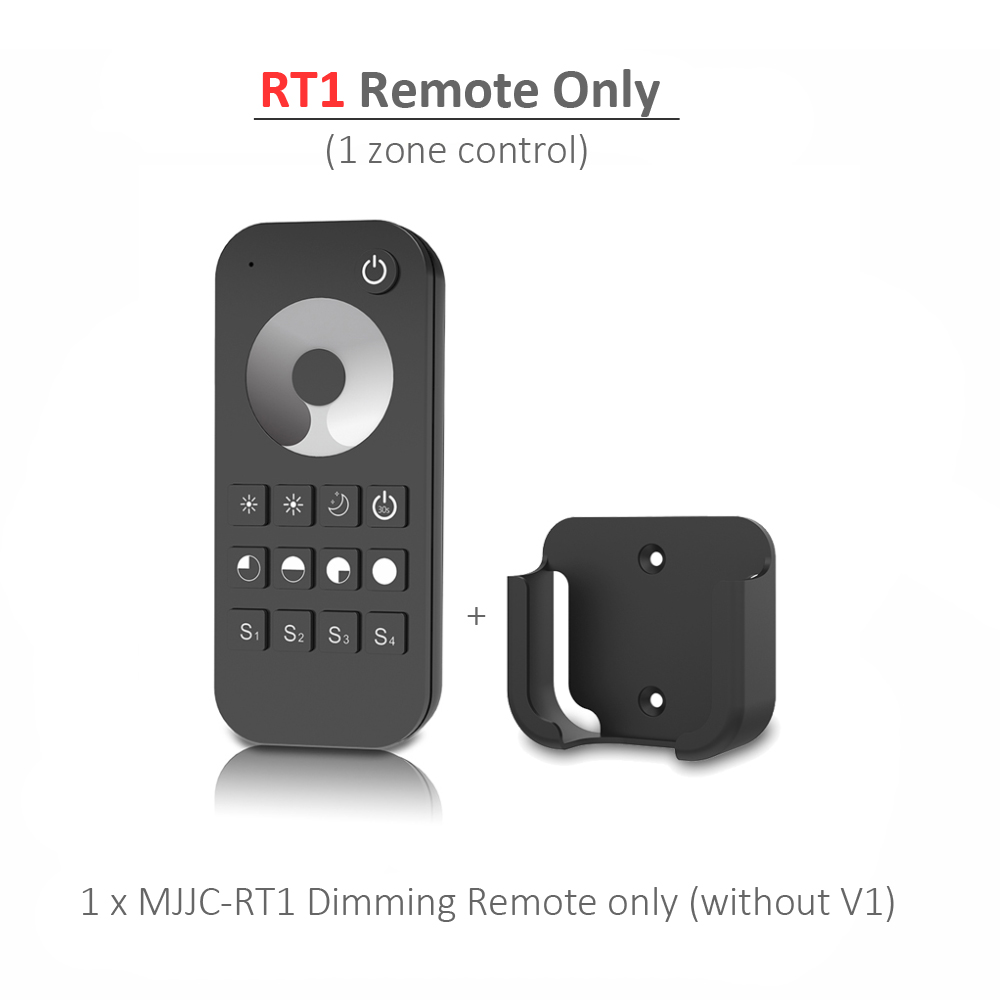

Remote Type: MJJC-RI; MJJC-R6-1; MJJC-RT1; MJJC-R11 ; MJJC-R1-1


The WiFi-Relay controller converts WiFi signal to RF signal, also know as WiFi gateway or Wifi hub. it is compatible with multiple type of Skydance receivers. With WiFi-relay, you could control single color, dual color, RGB, RGBW, RGB+CCT LED lights by smart phone.

Note: This product can not be used alone,This wifi to RF converter need work with V1, V2, V3, V4, VP, KS, S1-B,S1-K etc wireless receivers



Features

● Can mix load all Skydance RF 2.4G LED controllers, LED dimmable driver and smart lamp.
● Can realize dimming, color temperature, RGB, RGBW, RGB+CCT light effects.
● Load 1-16 zones, 8 scene memory.
● Including one micro USB cable.
● Android / IOS software name: SkySmart.

Technical Parameters

● Input voltage : DC5-24V Input voltage
● Operation frequency: 2.4G
● Remote distance: 30m
● Working temperature: -30℃~55℃
● Product size : Φ72×25mm


External push switch (You can install depends on your needs),we don't provide

1. Short press: Turn on/off light.
2. Long press(1-5s): When light is on, increase or decrease brightness continuously.
3. Long press(10s): When multiple controllers share a on/off key, achieve simultaneous adjustment

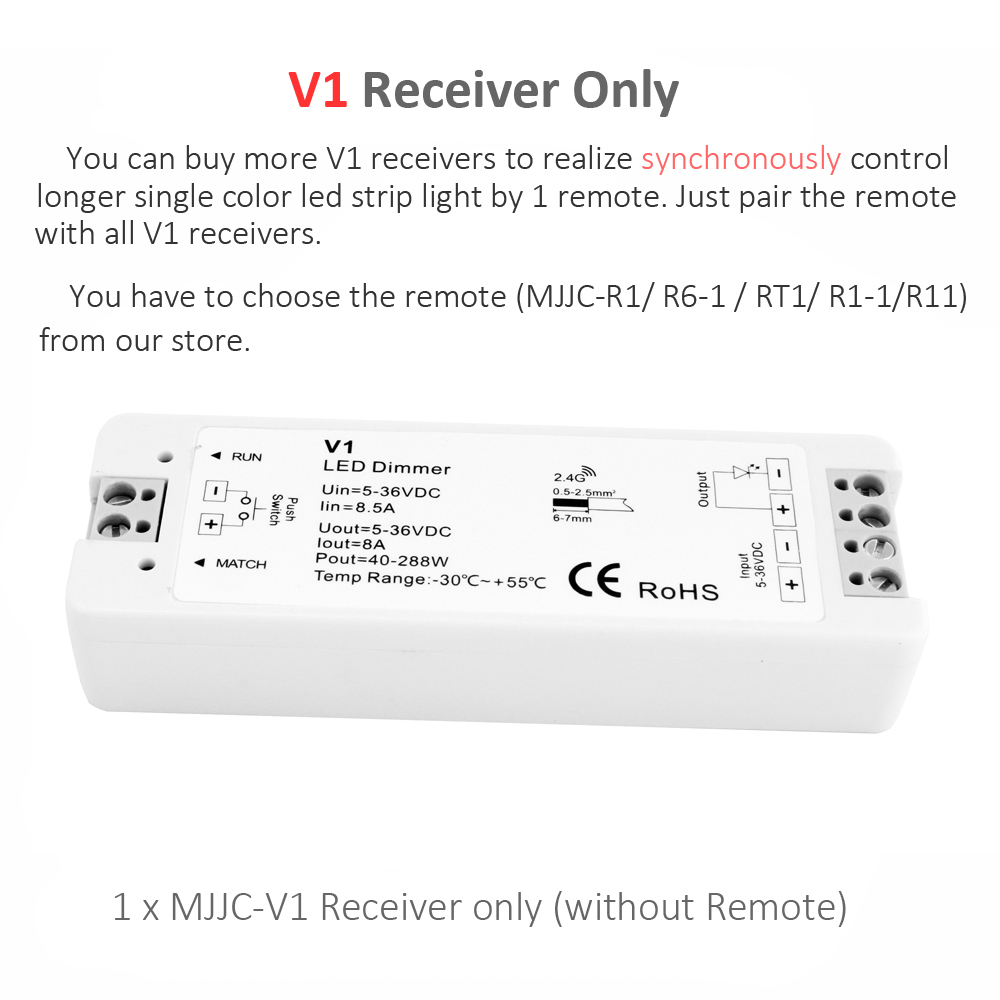

IF you want to realize synchronously control all single color led strip lights,you can buy some more MJJC-V1 receivers,wireless control all of them within 30 meters,without barrier.
You can use only one remote to Dimming brightness and color.



  • Features: 12V LED Dimmer Wireless
  • Model Number: 2.4G LED Controller
  • Certification: CCC,ce,CQC,EMC,FCC,LVD,ROHS
  • Material: Plastic
  • Warranty: 5 Years
  • Max. Load Power: 288W
  • Brand Name: MJJC
  • Origin: Mainland China
  • Item Type: Dimmers
  • Body Color: Black and White
  • Output Current: 1CH,8A
  • Working Voltage: 5V 12V 24V 36V
  • Used for: Single Color LED Strip Light
  • Battery Type: CR2032 Button Cell
  • output Signal: RF(2.4G)
  • Remote Distance: 30 Meters
  • Switch ON/OFF: Wifi control
  • Type 1: LED Dimmer 12V
  • Type 2: Wireless PWM
  • Type 3: Wifi LED Dimmer 12V
  • Type 4: LED Dimmer Switch
  • Type 5: LED Dimmer 24V
  • Type 6: LED Dimmer 36V
  • Type 7: Wifi Switch Dimmer
  • Type 8: Smart Dimmer Switch
  • Type 9: Touch LED Dimmer
