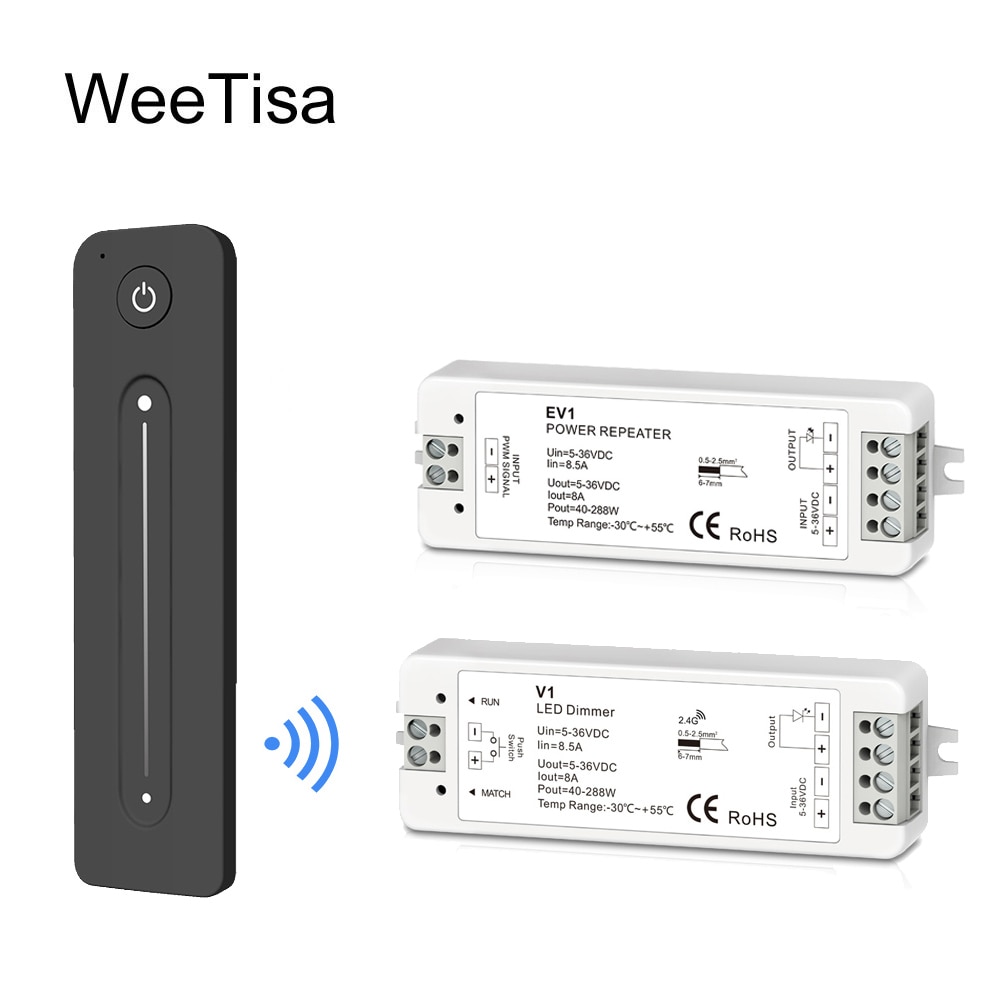

LED Dimmer Amplifier 12V 5V 24V 36V 8A PWM Wireless RF 2.4G Touch Remote Brightness Adjustment Switch for Single Color LED Strip

5.0 (1 votes) | 2 orders
Price: US $12.97 - 41.27 / piece
Discount Price:
US $ 9.95 - 30.13 / piece
-23%
Color
Quantity

LED Dimmer Amplifier 12V 5V 24V 36V 8A PWM Wireless RF 2.4G Touch Remote Brightness Adjustment Dimmer Switch for Single Color LED Strip

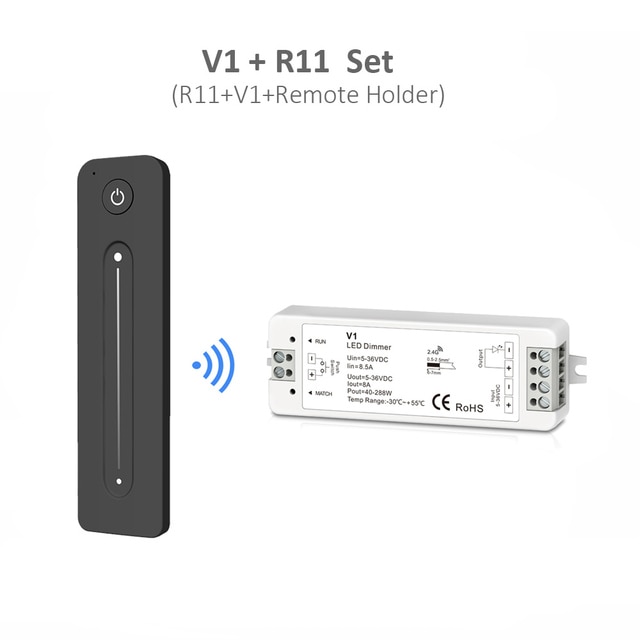

V1+R11

1 channels constant voltage/Touch color slide/Step-less dimming/Wireless remote 30m distance


Features

● Remote control or connected with external push switch to achieve on/off and dimming function
● Ultra sensitive brightness adjustment touch slide
● Smooth dimming and switch without any flickering
● Auto-transmitting function: Controller automaticly transmit signal to another controller with 30m control distance
● Synchronize on multiple number of controllers
●  Magnet on the back which can be easily stuck on back holder or any metal surfaces

Match Guide:
The dimmer can match with all kinds of single or multiple zone 2.4G RF dimming remote controller.

Choice 1: Use Match key
1. Match: Short press match key, within 5s, press on/off key of the remote.
2. Delete: Long press match key for 5s, delete all matched remote.

Choice 2: Use Power-up
1. Match: Switch off the power, then switch on power again,short press on/off key 3 times on the remote quickly within 5s after power on, the link is done once the light blinks 3 times.
2. Delete: Switch off the power, then switch on power again,short press on/off key or zone key 5 times on the remote quickly within 5s after power on,the unlink is done once the light blinks 5 times.

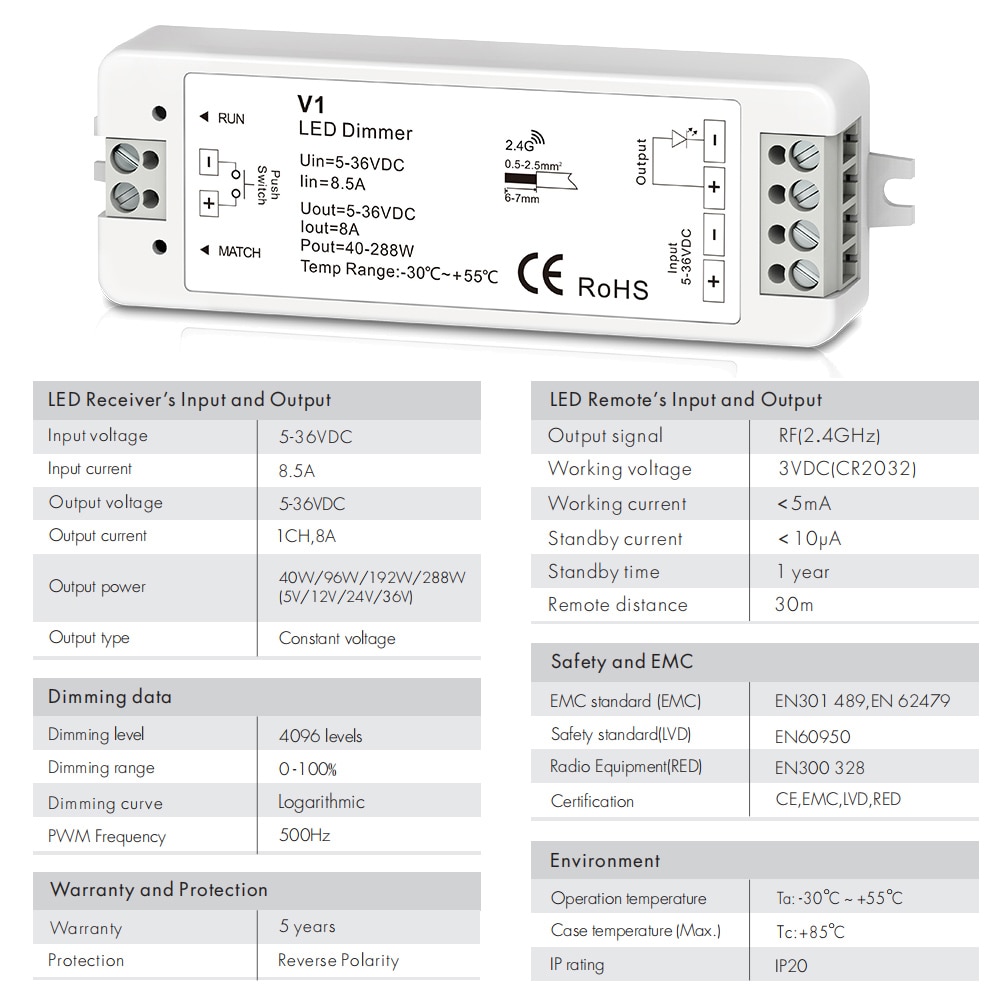

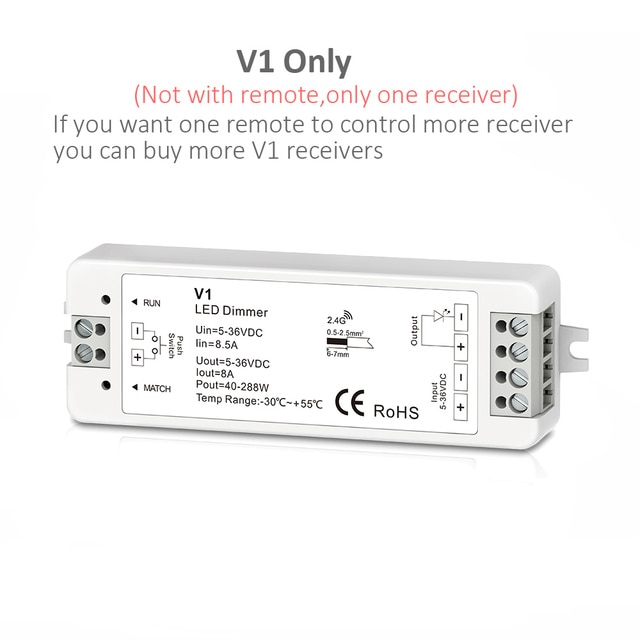

V1 Dimmer
Features:

* RF dimmer match with a variety of dimming remote, realize functions of switch and dimming.
* Smooth dimming and switch without any flickering

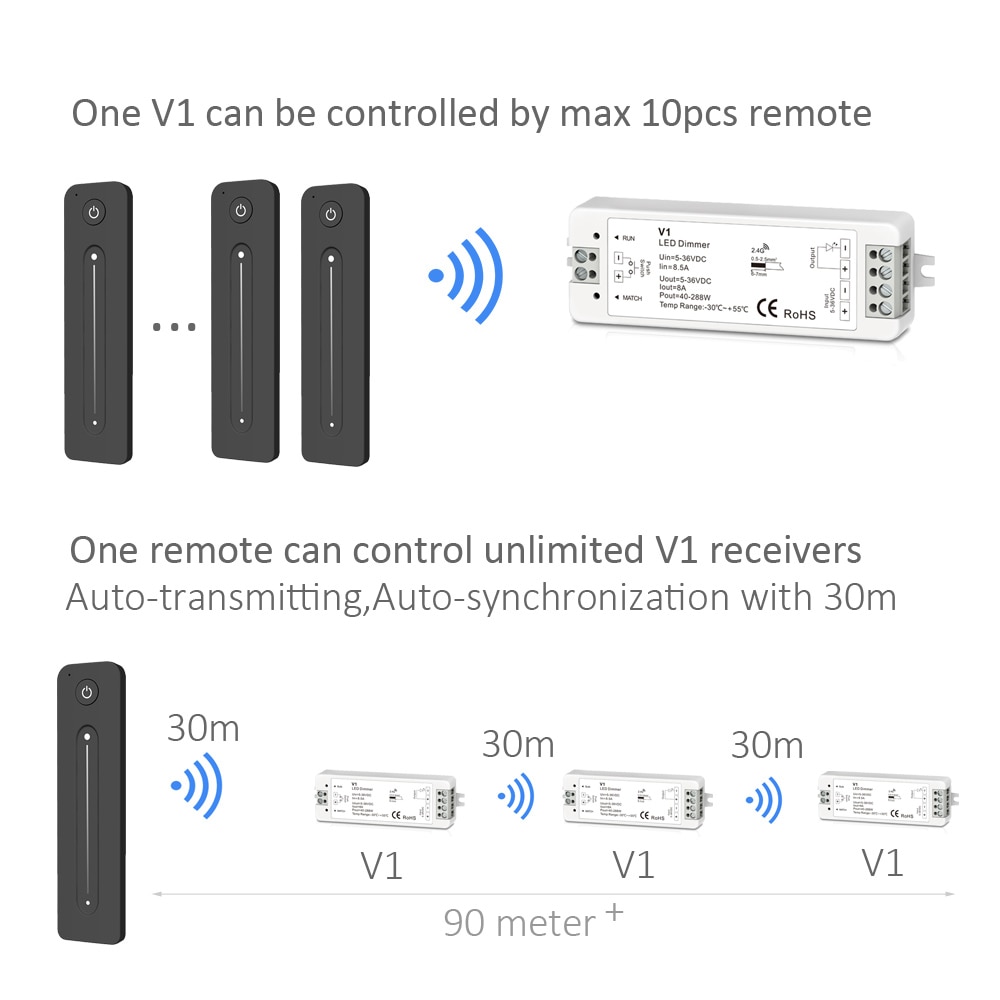

* Adopt 2.4GHz wireless technology, remote distance up to 30m, one RF dimmer can accept up to 10 remote control.
* Auto-transmitting function, one receiver can transmit the signal from the remote to another receiver
* Within 15m, so the remote control distance can be beyond 100m.

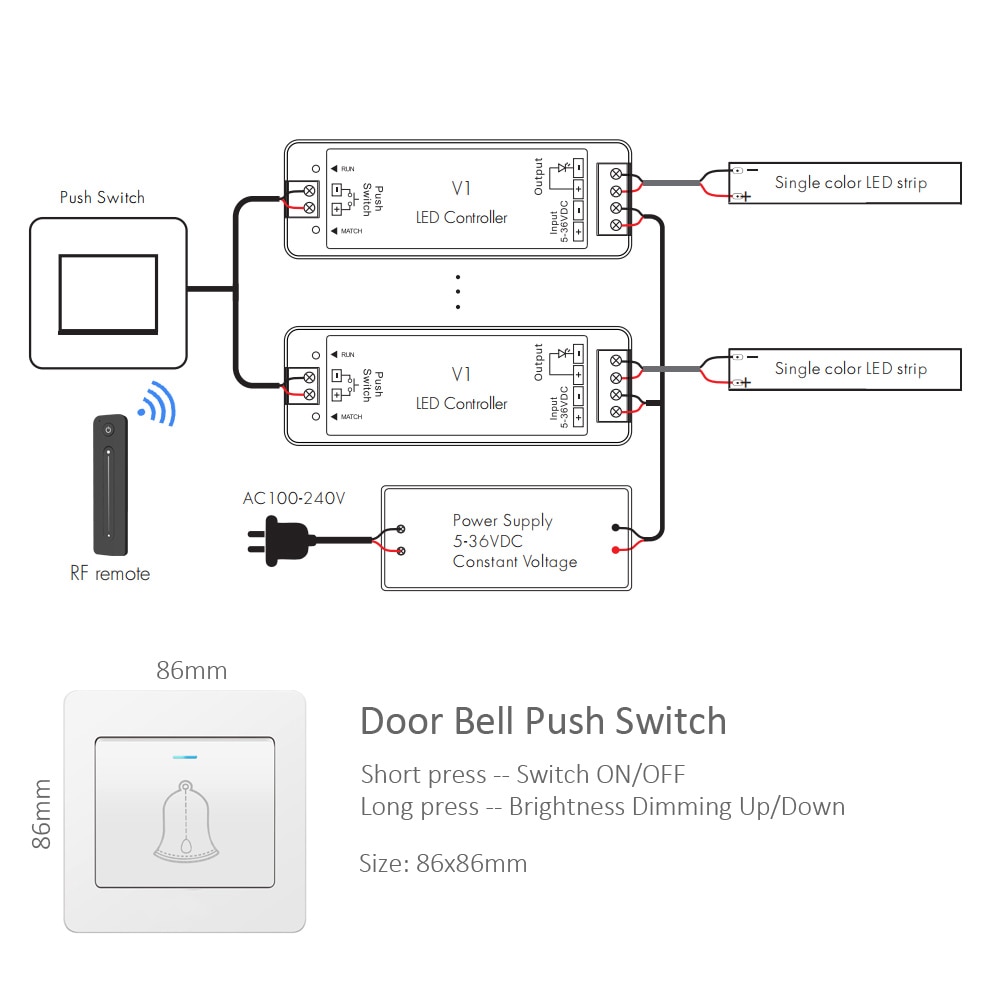

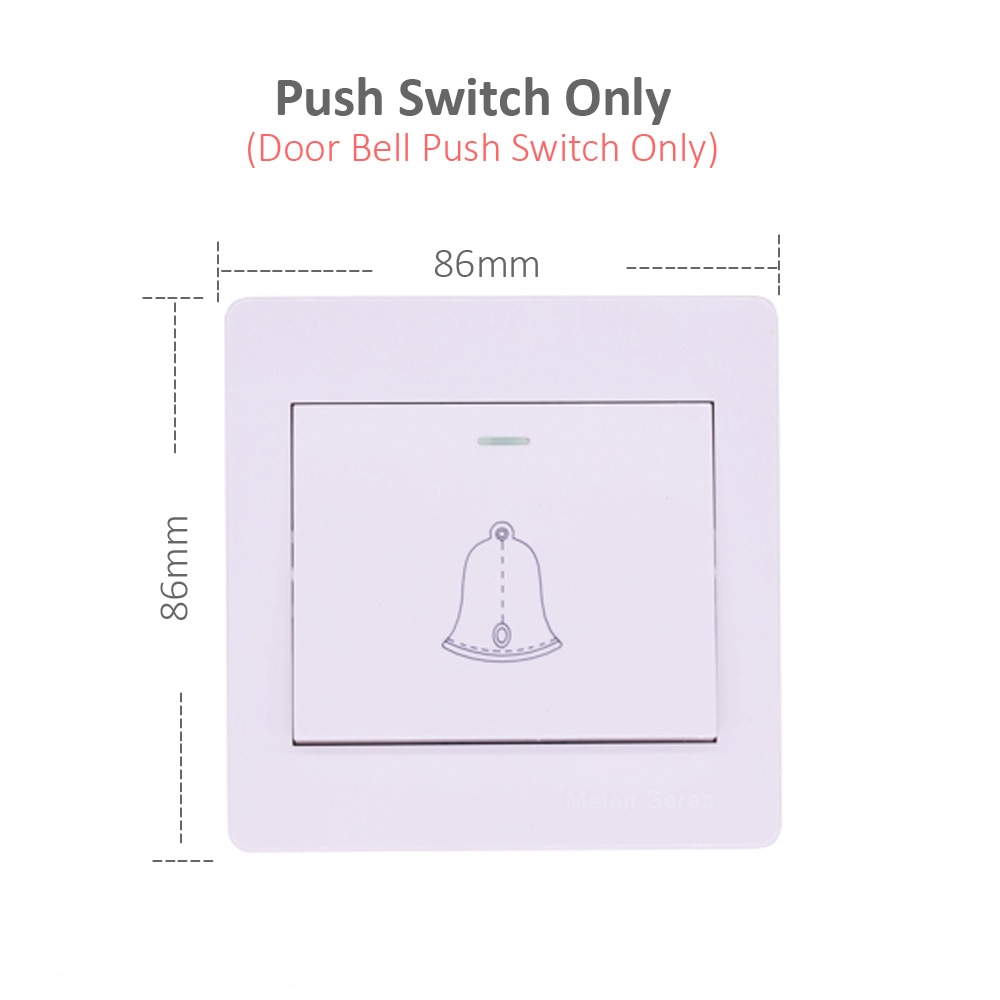

* Can connect with external push switch to achieve on/off and dimming function.
* Work with power repeater to expand output unlimitedly.
* Mini-style RF dimmer, one channel constant voltage output.
* Can be WiFi controlled by APP installed on IOS or Android mobile devices while working with WiFi-Relay controller

Specifications:

Product Name:2.4G Wireless RF LED Dimmer
Input: DC 5V- 36V
Working Temperature: -20-60centi-degree
Max load current :8A/Channel ( 1 Channel)
Max Power Output: 5V Max 40W, 12V Max 96W,  24V Max 192W, 36V Max 288W
Output gray: 256 levels
Frequency of RF remote control: 2.4G MHz
RF Remote Distance: 30M

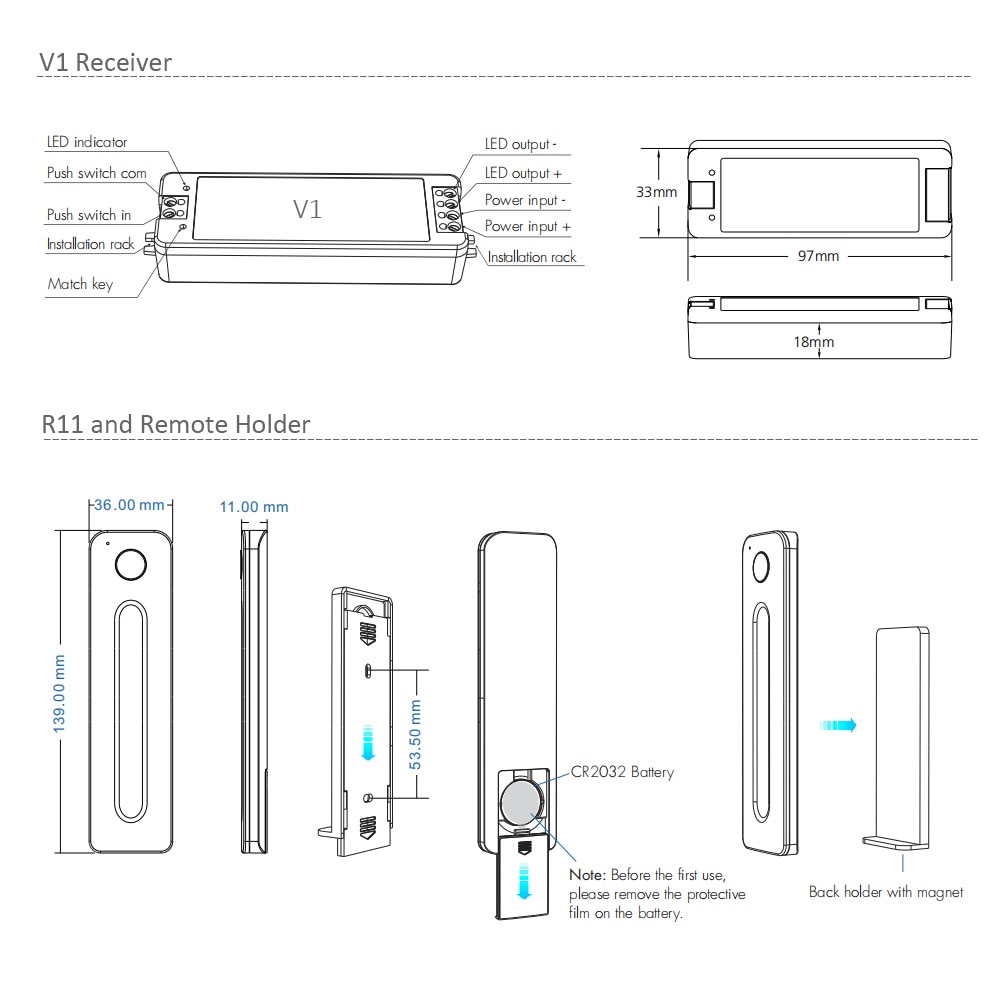

Product size:(Approx) L97x W33x H18mm

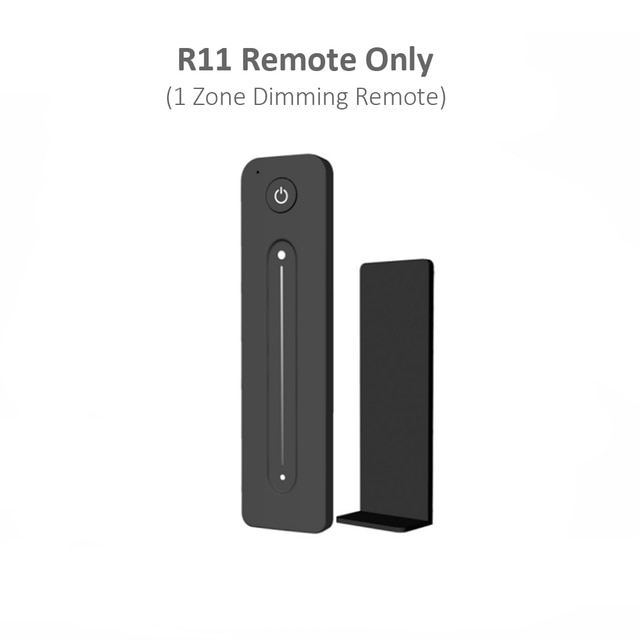

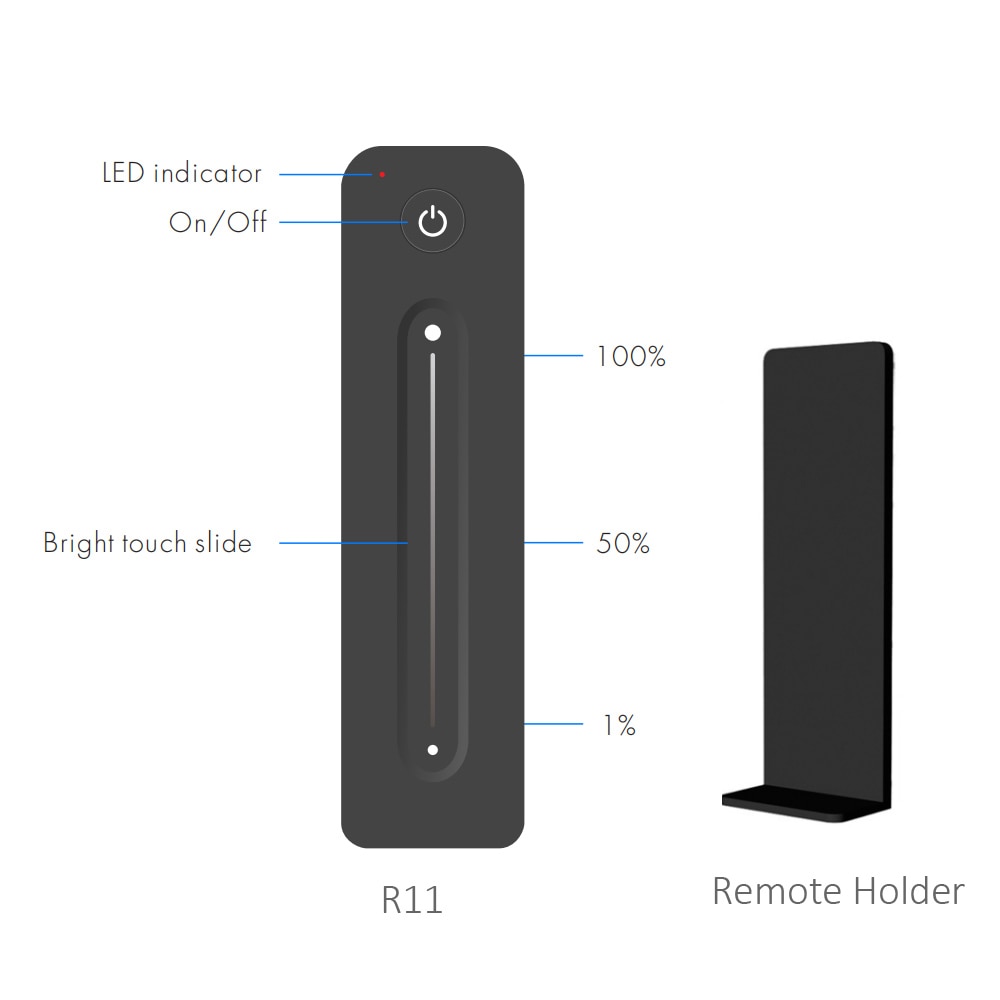

R11 Remote
Features:

● Apply to single color, dual color or RGB LED controller.
● Ultra sensitive color adjustment touch slide.
● Each remote can match one or more receiver.
● CR2032 battery powered.
● Operate with LED indicator light.
●  Magnet on the back which can be easily stuck on back holder or any metal surfaces.

Specifications:

Product name: R11 Remote
Output signal: RF(2.4GHz)
Working voltage: 3VDC(CR2032)
Working current: <5mA
Standby current: <10μA
Standby time: 1 year
Remote distance: 30m

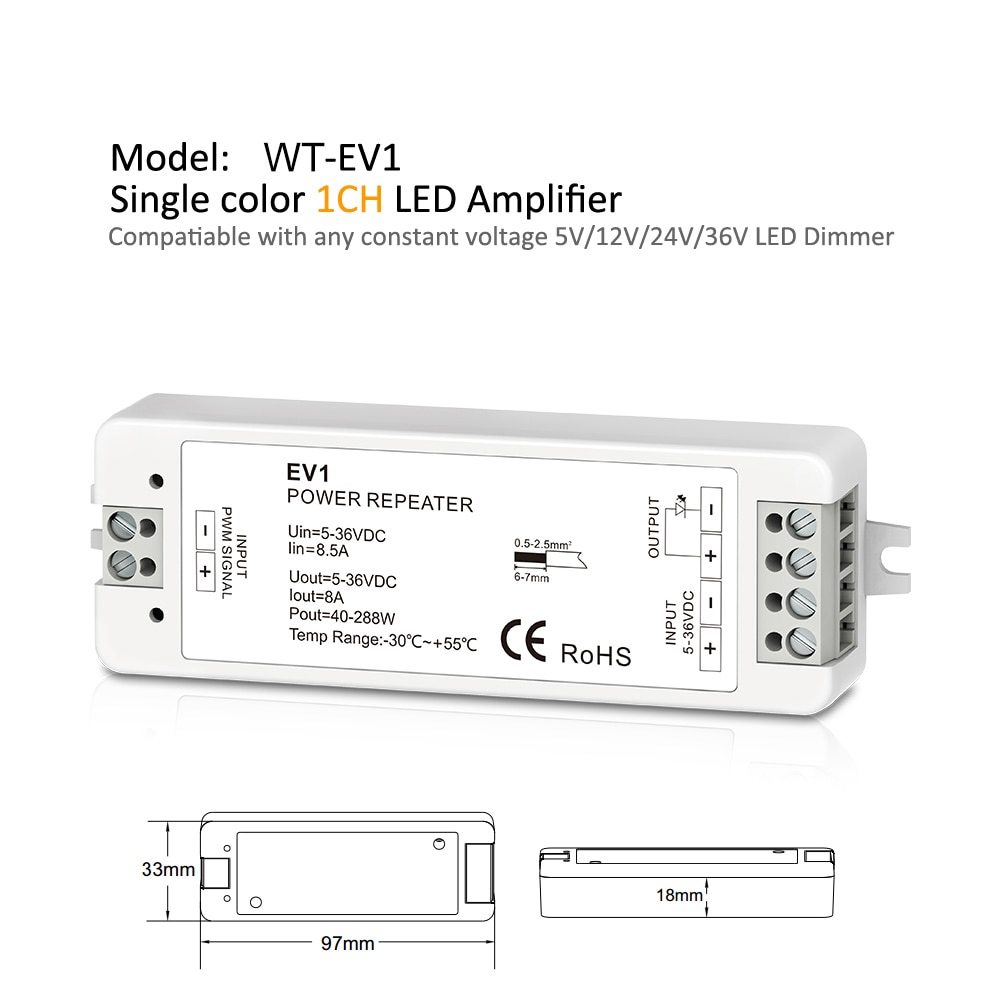

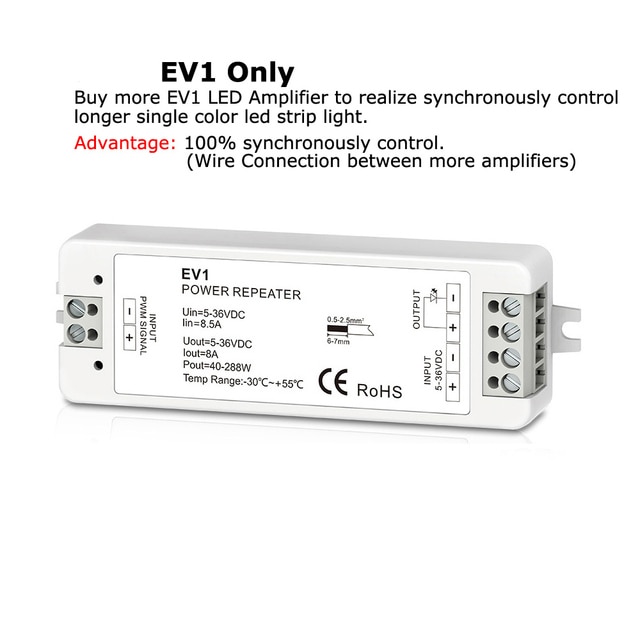

EV1 Amplifier
Specifications:

● Used with various LED PWM constant voltage controller, expand output power of the controller to control more lamps.

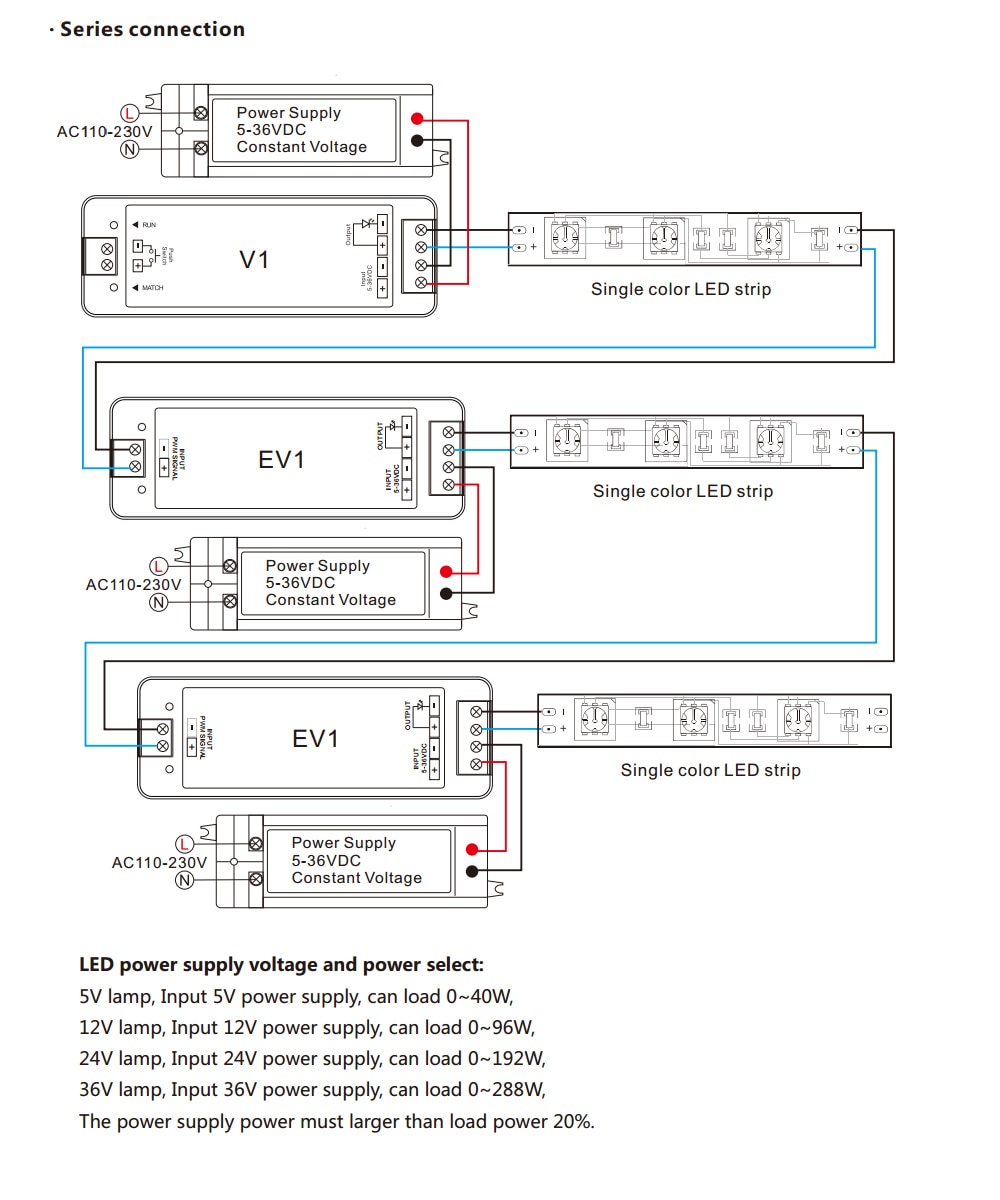

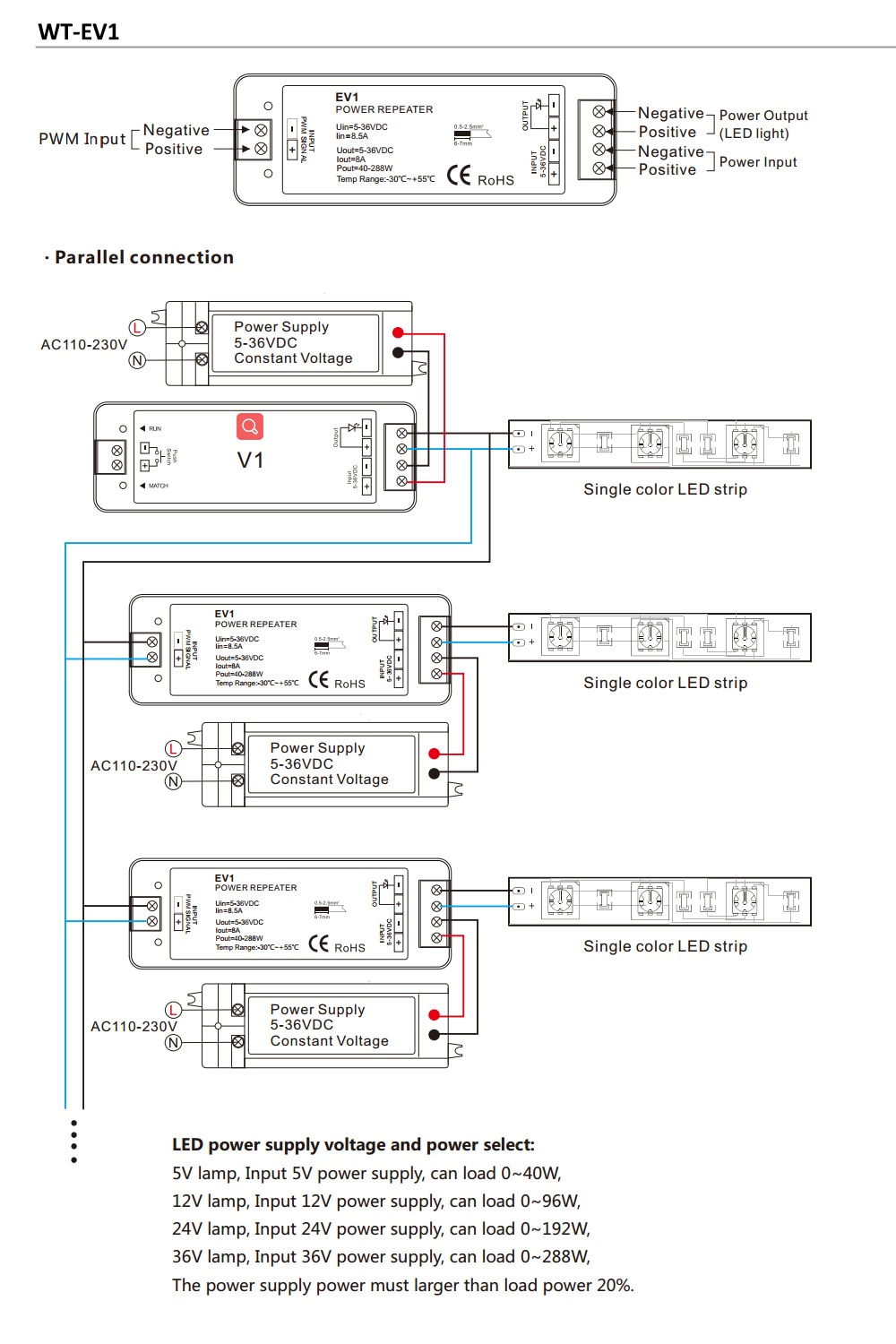

● A controller can connect unlimited number of LED power repeaters in series or in parallel,and achieve the synchronous control effects.

EV1 Amplifier (Used for Single Color LED Strip only)

● Input voltage: 5-36VDC
● Output current: 1CH, 8A
● Output power: 40-288W
● Working temperature: -30℃~55℃
● Product size: L97×W33×H18mm


  • Features: LED Dimmer 12V
  • Model Number: 12V LED Dimmer Wireless
  • Certification: CCC,ce,EMC,LVD,ROHS
  • Material: Plastic
  • Warranty: 5 Years
  • Max. Load Power: 288W
  • Brand Name: WeeTisa
  • Origin: Mainland China
  • Item Type: Dimmers
  • Body Color: Black and White
  • Output Current: 1CH,8A
  • Working Voltage: 5V 12V 24V 36V
  • Used for: Single Color LED Strip Light
  • Output Signal: RF(2.4G)
  • Remote Distance: 30 Meters
  • Type 1: LED Dimmer 12V
  • Type 2: LED Dimmer Switch
  • Type 3: LED Dimmer 24V
  • Type 4: 24V LED Amplifier
  • Type 5: Touch LED Dimmer
  • Type 6: 12V LED Amplifier
