LED COB Chip 50W 100W 150W 200W 200-240V Smart IC No Need Driver LED Lamp Light Source For Flood Light Spotlight DIY Lighting
15.11 9.95 $
ID: 165919
Quantity
LED COB Lamp Bead 10W 20W 30W 50W 100W 150W 200W AC 220V Smart IC No Need Driver DIY Flood light Led Bulb Spotlight Chip Lamp
4.8 (47 votes) | 192 orders
Price:
US $
9.95 -
50.22
- Emitting Color
-
-
- Voltage
Product details

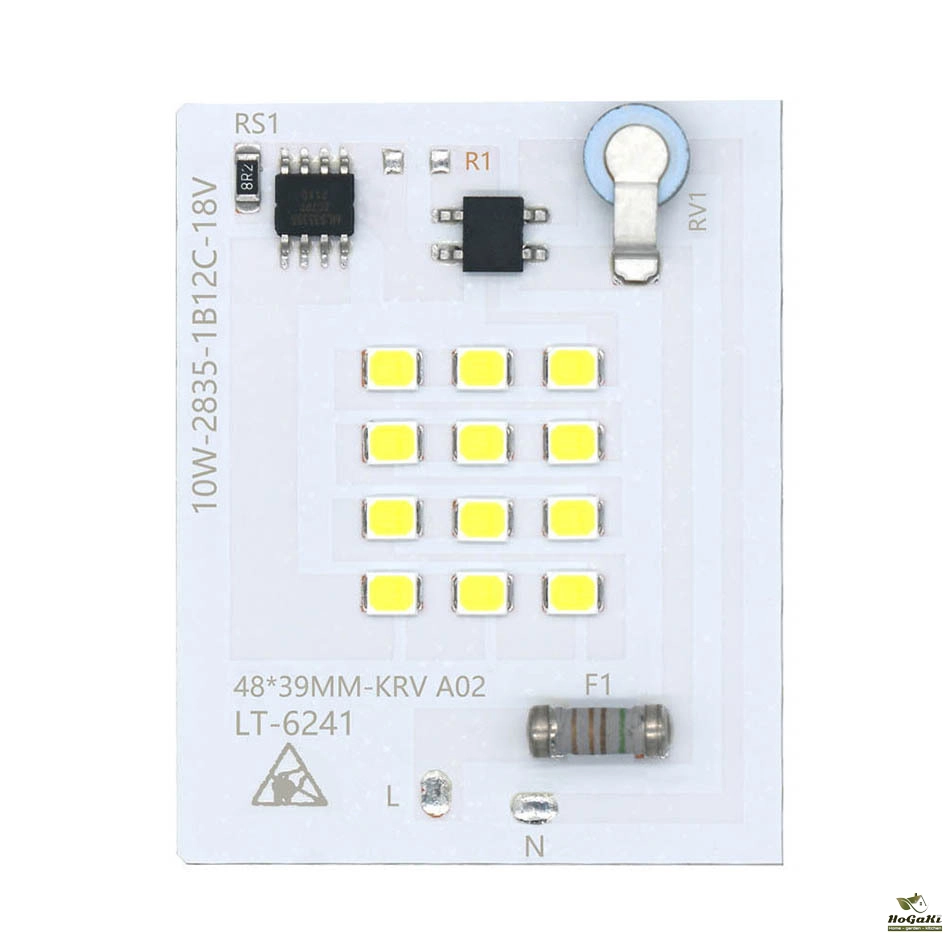

10W
Power: 10W
Voltage: AC220V
Serial and parallel circuit: 4 series and 3 parallel
Size: 48*39mm (1.89*1.54inch)
Light-emitting surface size: 15*17mm (0.59*0.66inch)
Crystal size: 15*30mil
Number of crystals: 12pcs
Crystal name: Epistar chip
Lumens: 1100LM
Aluminum substrate thickness: 1mm (0.06inch)
Thermal conductivity of aluminum substrate: 2.0W/(m·K)
Application place: Flood light

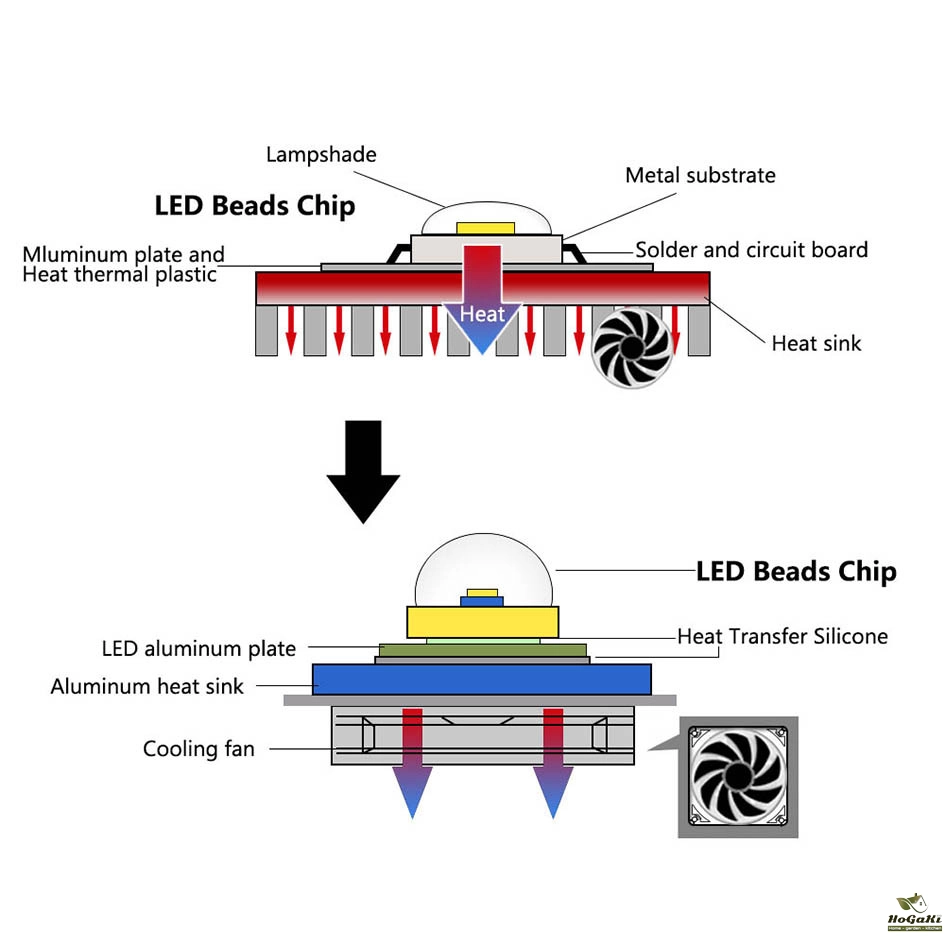

Conditions of use: radiator required
Chip temperature does not exceed 65℃

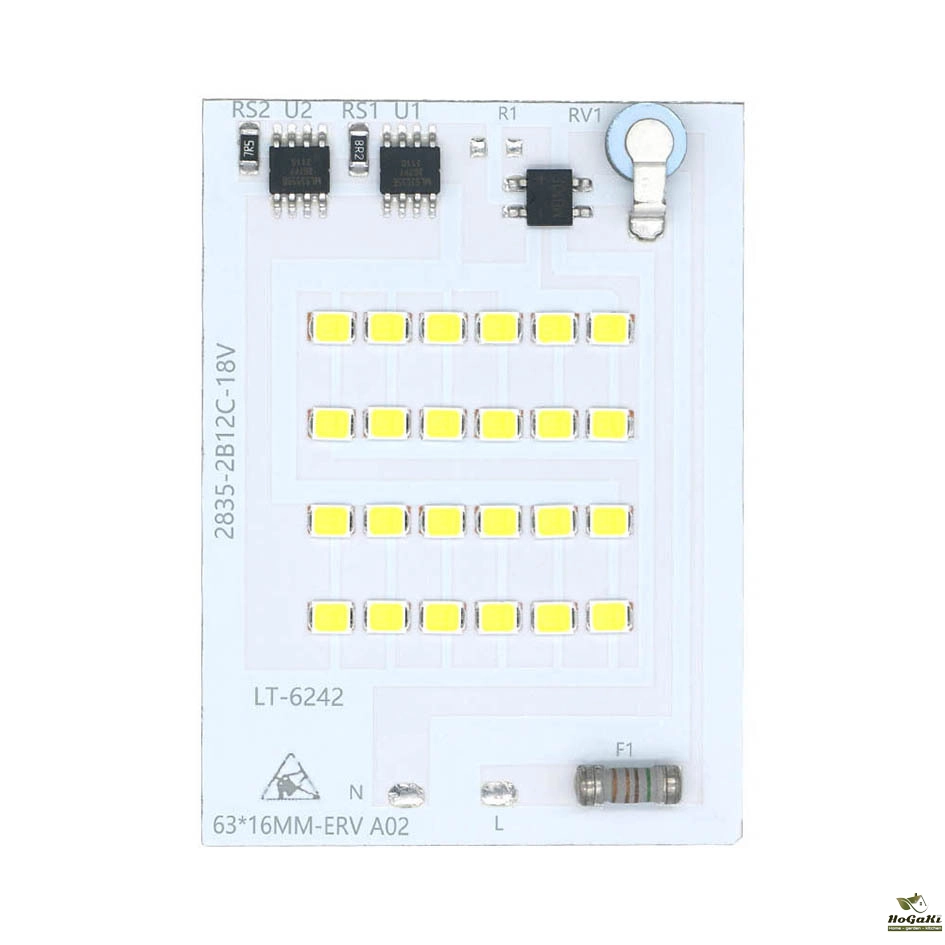

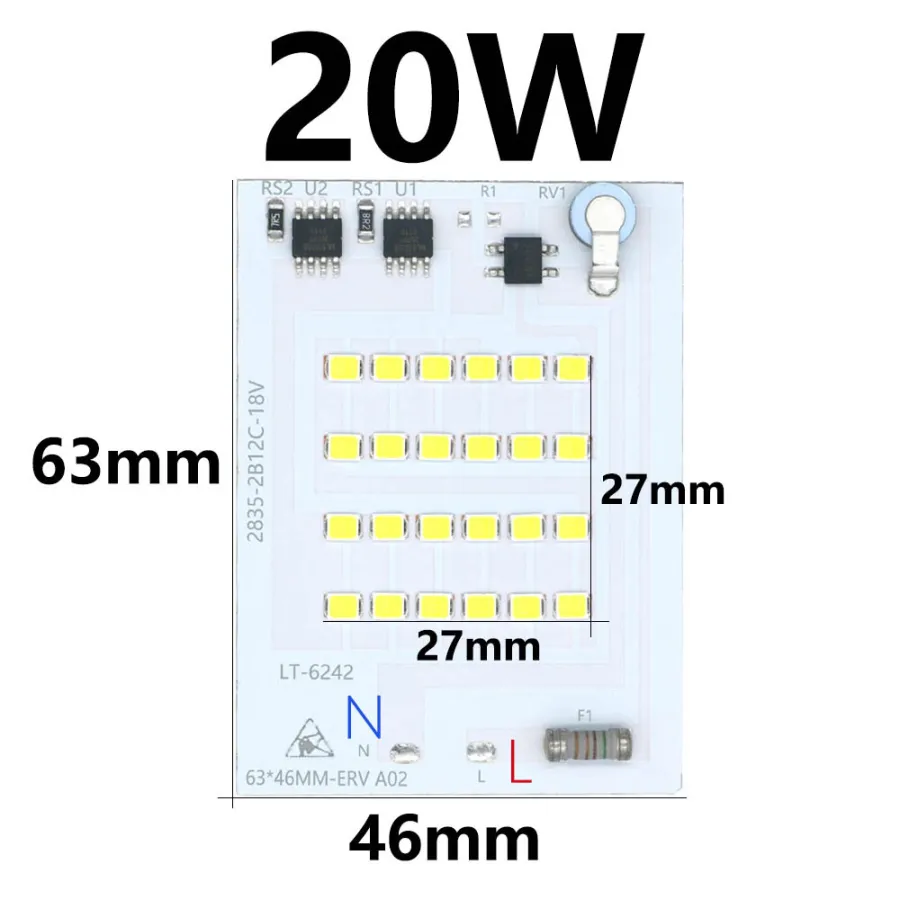

20W
Power: 20W
Voltage: AC220V
Series and parallel circuit: 6 series and 4 parallel
Size: 63*46mm(2.48*1.81inch)
Light-emitting surface size: 27*27mm (1.06*1.06inch)
Crystal size: 15*30mil
Number of crystals: 24
Crystal name: Epistar chip
Lumens: 2200LM
Aluminum substrate thickness: 1mm (0.06inch)
Thermal conductivity of aluminum substrate: 2.0W/(m·K)
Applicable place: floodlight
Conditions of use: radiator required
Chip temperature does not exceed 65℃

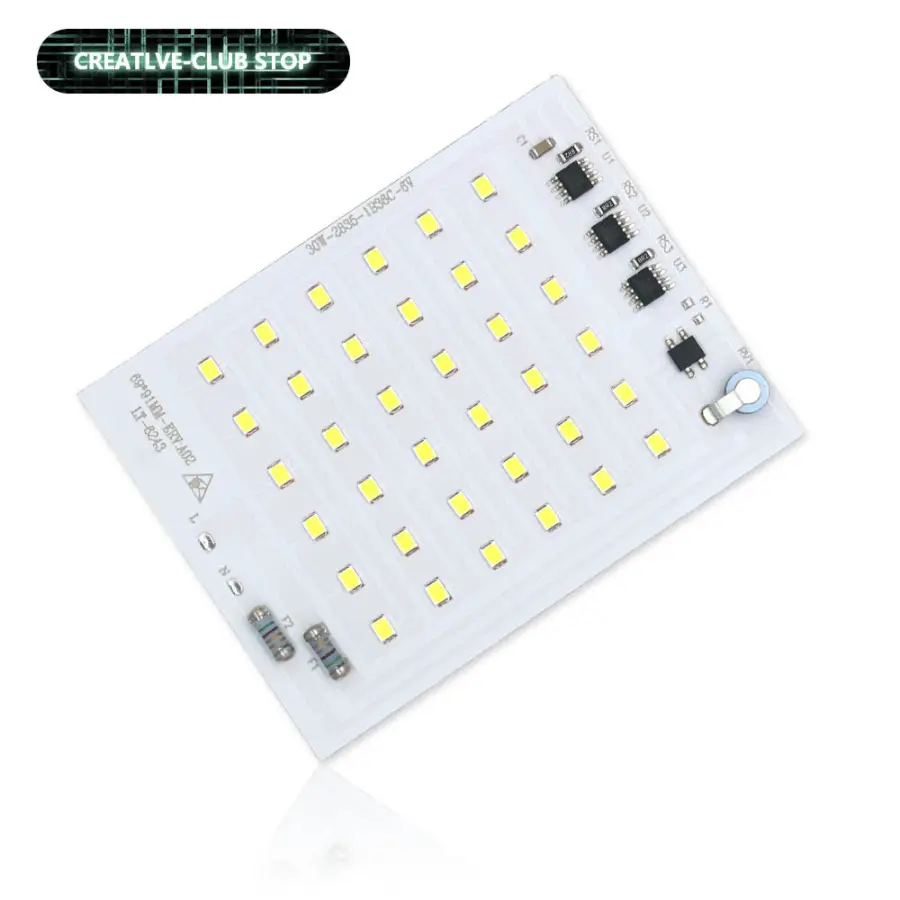

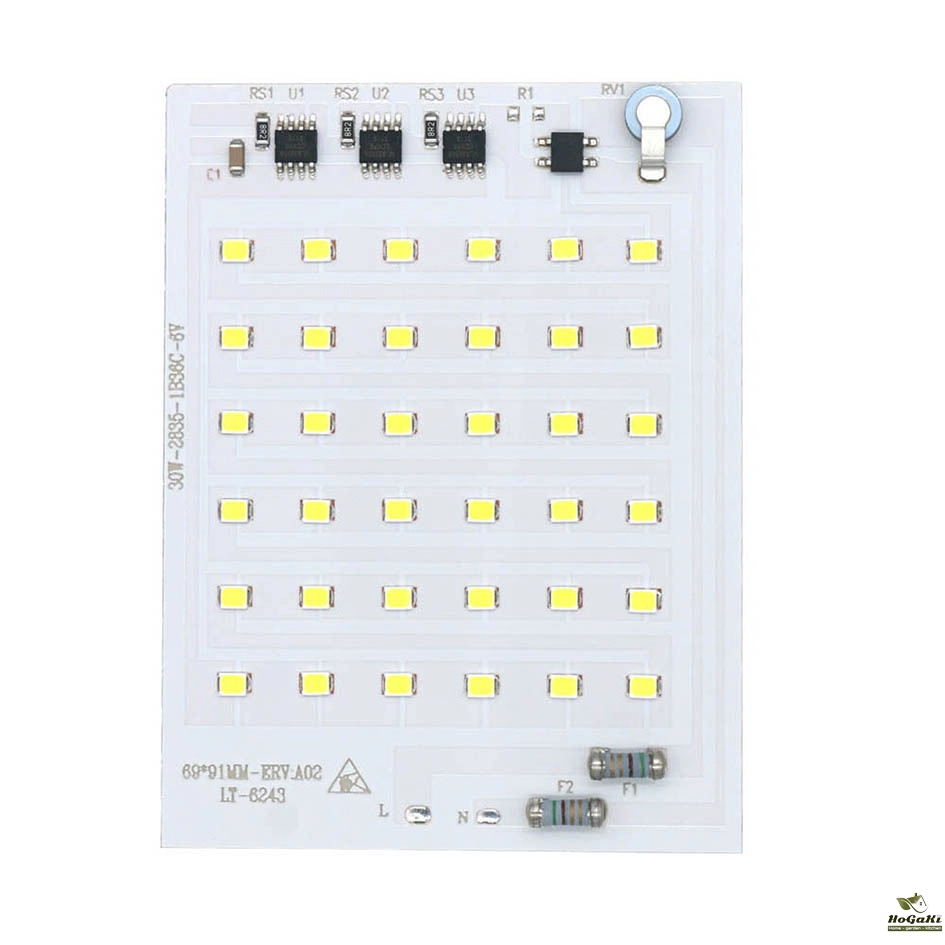

30W
Power: 30W
Voltage: AC220V
Serial and parallel circuit: 6 series and 6 parallel
Size: 91*69mm (3.58*2.72inch)
Light-emitting surface size: 54*52mm (2.12*2.04inch)
Crystal size: 15*30mil
Number of crystals: 36pcs
Crystal name: Epistar chip
Lumens: 3300LM
Aluminum substrate thickness: 1mm (0.06inch)
Thermal conductivity of aluminum substrate: 2.0W/(m·K)
Application place: Flood light
Conditions of use: radiator required
Chip temperature does not exceed 65℃

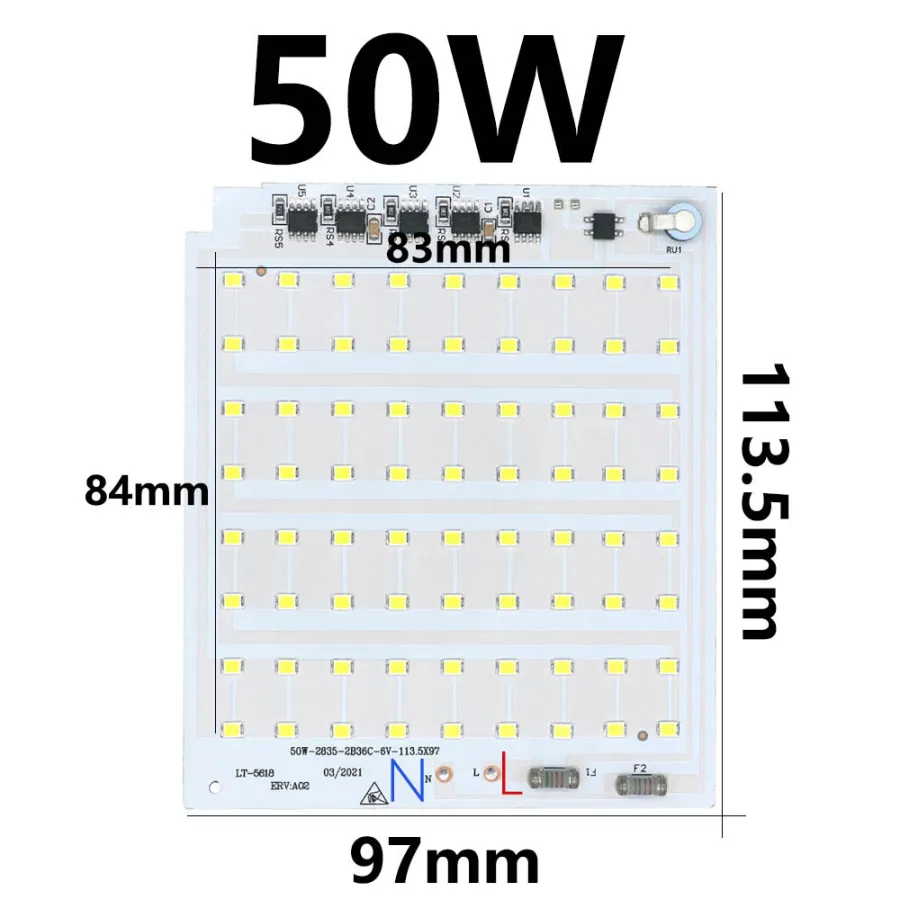

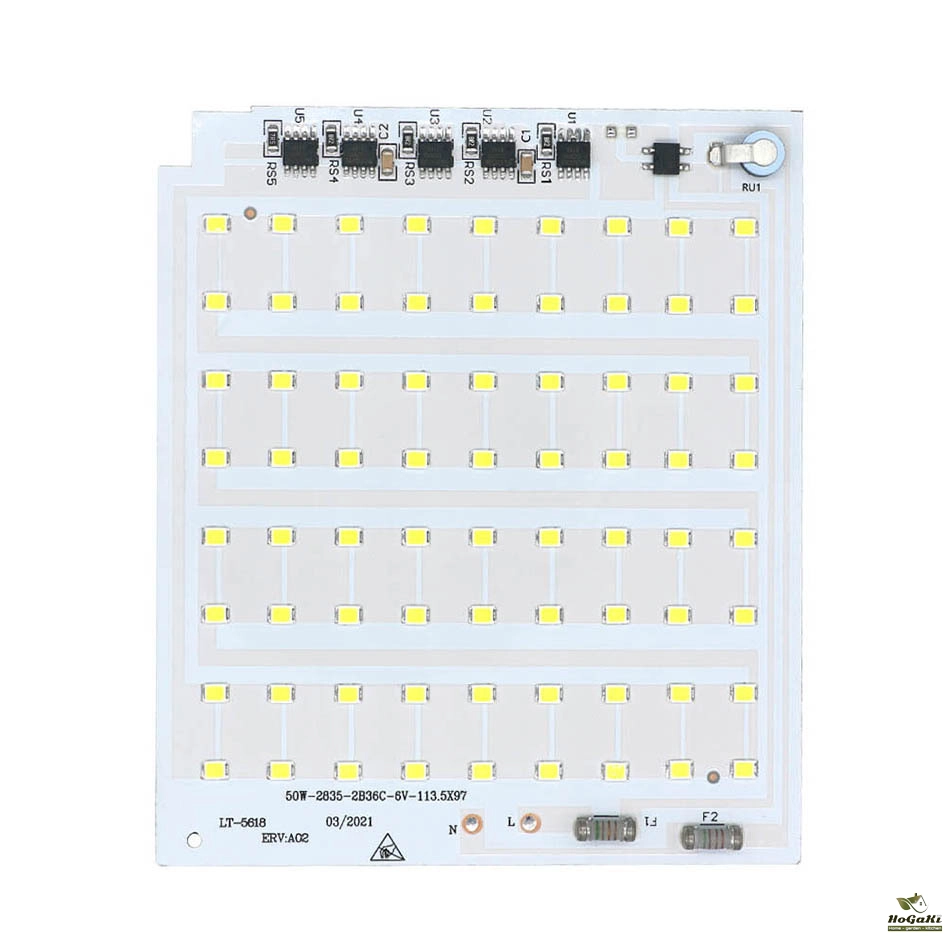

50W
Power: 50W
Voltage: AC220V
Serial and parallel circuit: 8 series and 9 parallel
Size: 113.5*97mm (4.47*3.81inch)
Light-emitting surface size: 84*83mm (3.30*3.27inch)
Crystal size: 15*30mil
Number of crystals: 72pcs
Crystal name: Epistar chip
Lumens: 5500LM
Aluminum substrate thickness: 1mm (0.06inch)
Thermal conductivity of aluminum substrate: 2.0W/(m·K)
Application place: Flood light
Conditions of use: radiator required
Chip temperature does not exceed 65℃

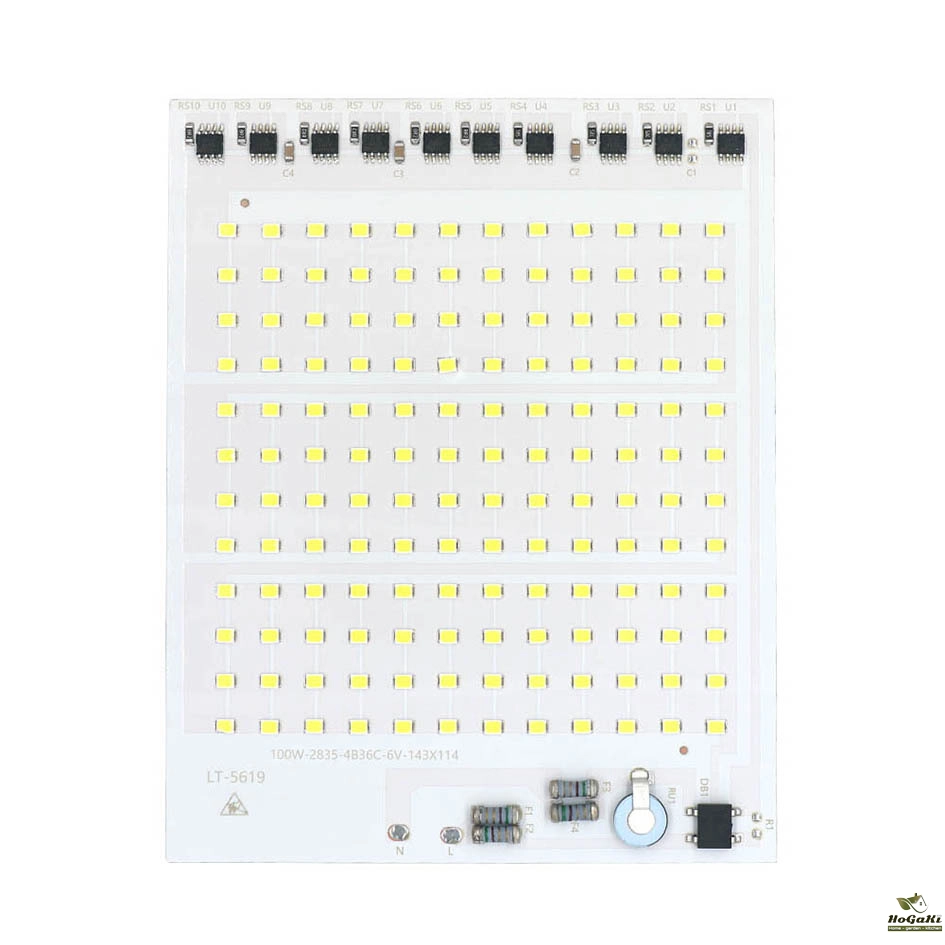

100W
Power: 100W
Voltage: AC220V
Serial and parallel circuit: 12 series and 12 parallel
Size: 143*114mm(5.62*4.48inch)
Light-emitting surface size: 95*95mm (3.74*3.74inch)
Crystal size: 15*30mil
Number of crystals: 144pcs
Crystal name: Epistar chip
Lumens: 11000LM
Aluminum substrate thickness: 1mm (0.06inch)
Thermal conductivity of aluminum substrate: 2.0W/(m·K)
Application place: Flood light
Conditions of use: radiator required
Chip temperature does not exceed 65℃

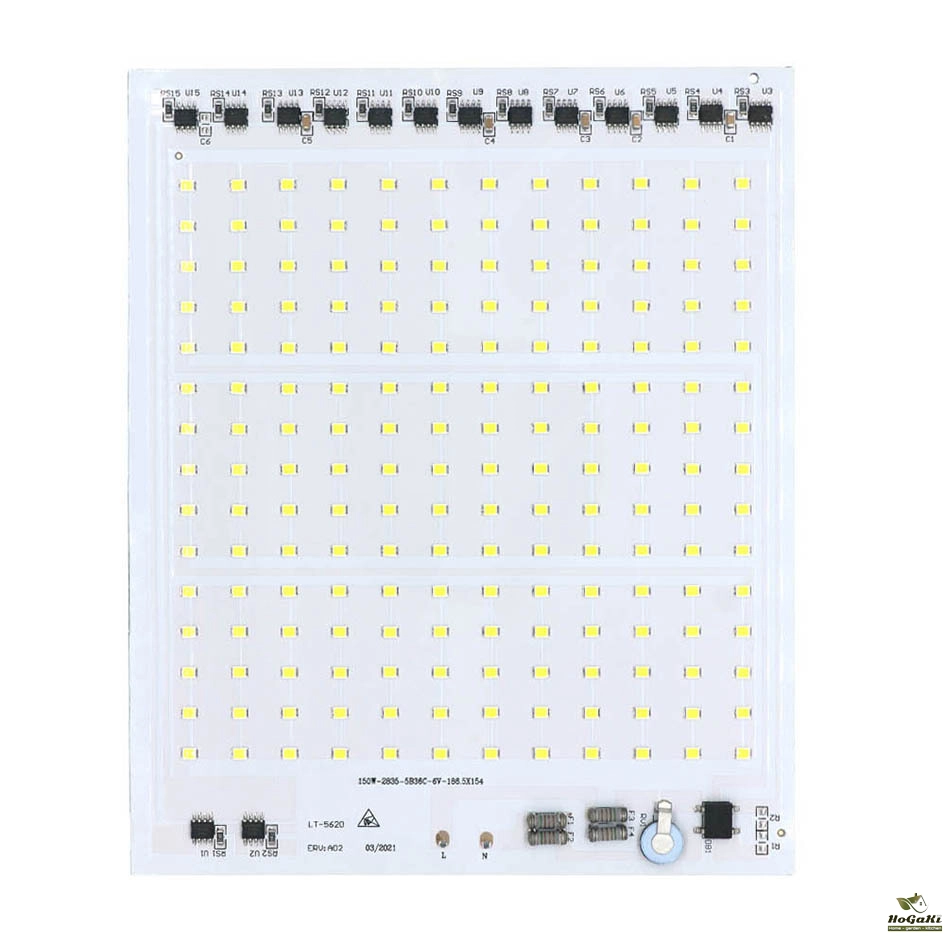

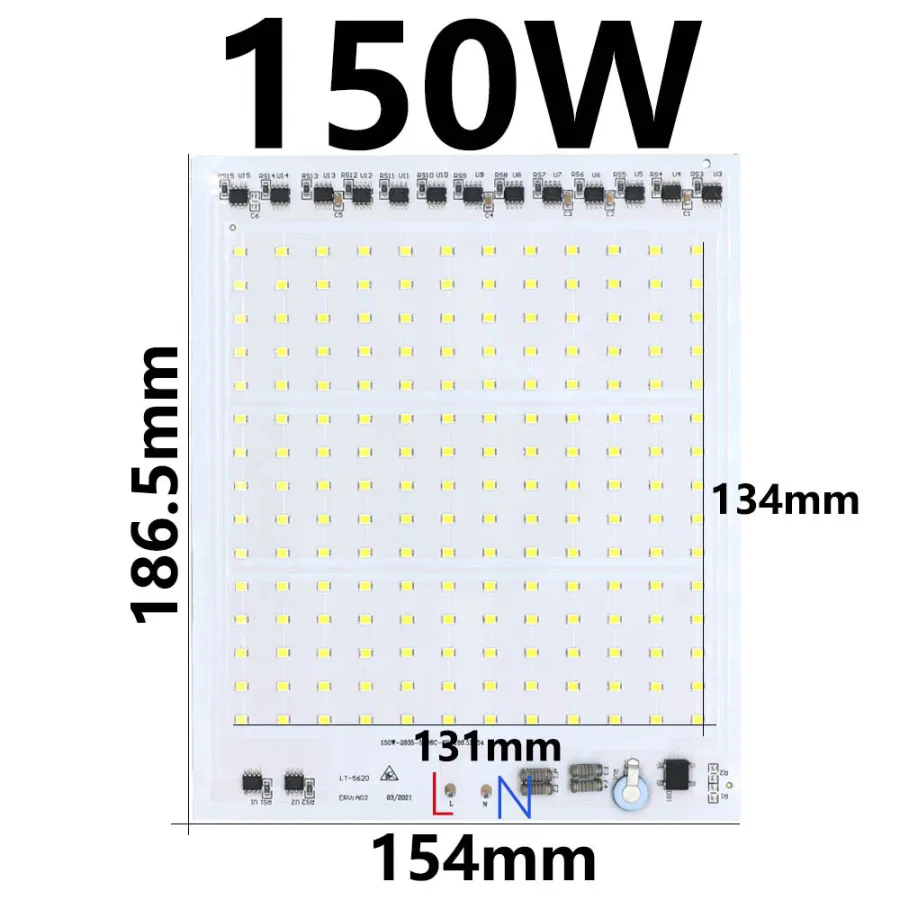

150W
Power: 150W
Voltage: AC220V
Serial and parallel circuit: 15 series and 12 parallel
Size: 186.5*154mm(7.34*6.60inch)
Light-emitting surface size: 134*131mm (5.27*5.16inch)
Crystal size: 15*30mil
Number of crystals: 180pcs
Crystal name: Epistar chip
Lumens: 15000LM
Aluminum substrate thickness: 1mm (0.06inch)
Thermal conductivity of aluminum substrate: 2.0W/(m·K)
Application place: Flood light
Conditions of use: radiator required
Chip temperature does not exceed 65℃

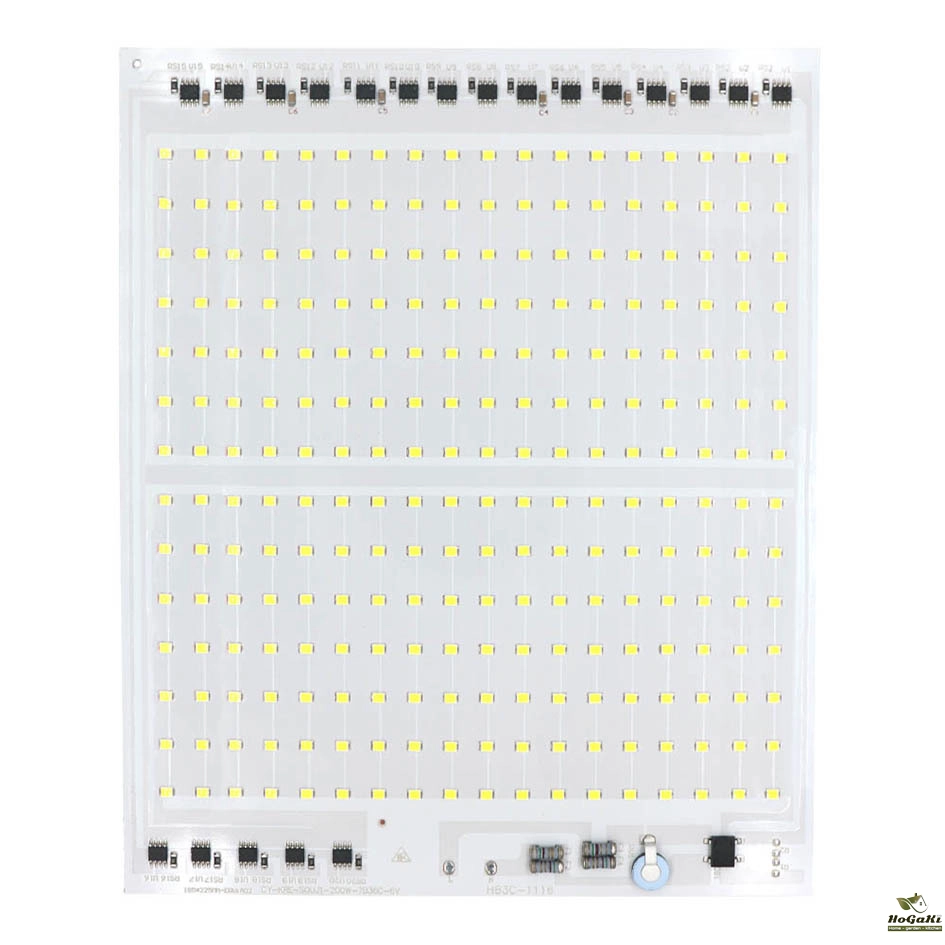

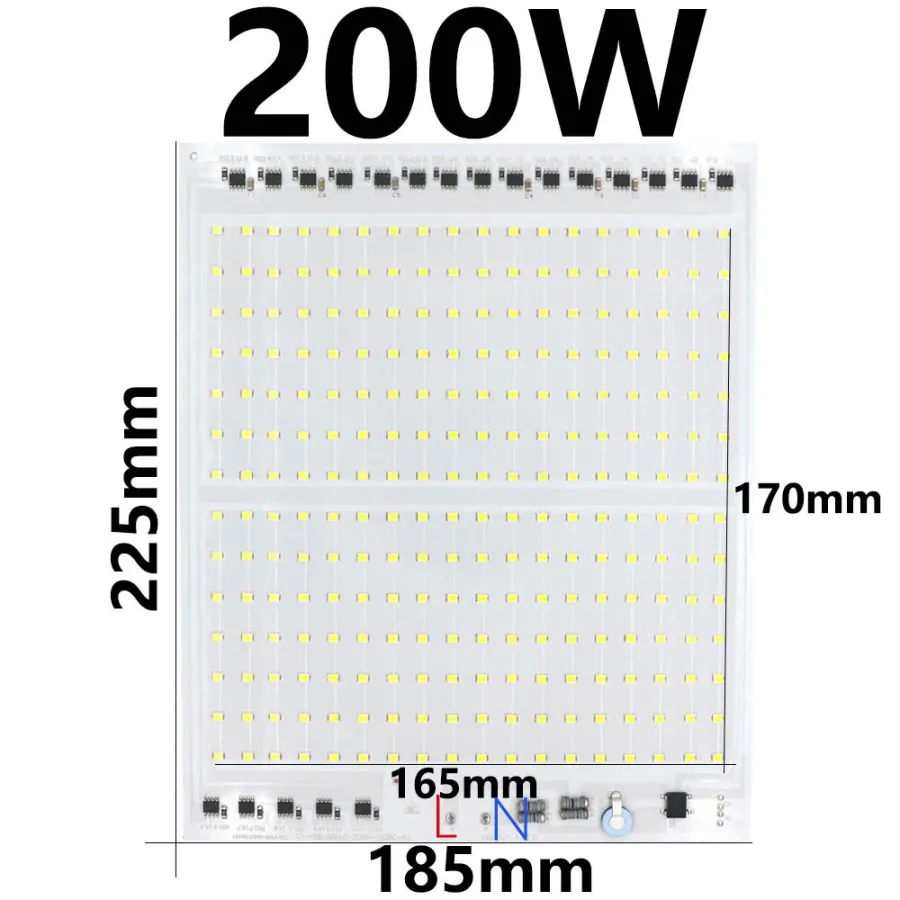

200W
Power: 200W
Voltage: AC220V
Serial and parallel circuit: 14 series and 18 parallel
Size: 225*185mm (8.85*7.28inch)
Light-emitting surface size: 170*165mm (6.69*6.49inch)
Crystal size: 15*30mil
Number of crystals: 252pcs
Crystal name: Epistar chip
Lumens: 20000LM
Aluminum substrate thickness: 1mm (0.06inch)
Thermal conductivity of aluminum substrate: 2.0W/(m·K)
Application place: Flood light
Conditions of use: radiator required
Chip temperature does not exceed 65℃
Packaging Details
- Unit Type:
- Package Weight: 0.070
- Package Size: 10x1x10
- Brand Name: DT&ZM
- Hign-concerned Chemical: None
- Origin: Mainland China
- Shape: SQUARE
- Certification: CCC
- LED Chip Model: 2835
- Voltage: AC220V

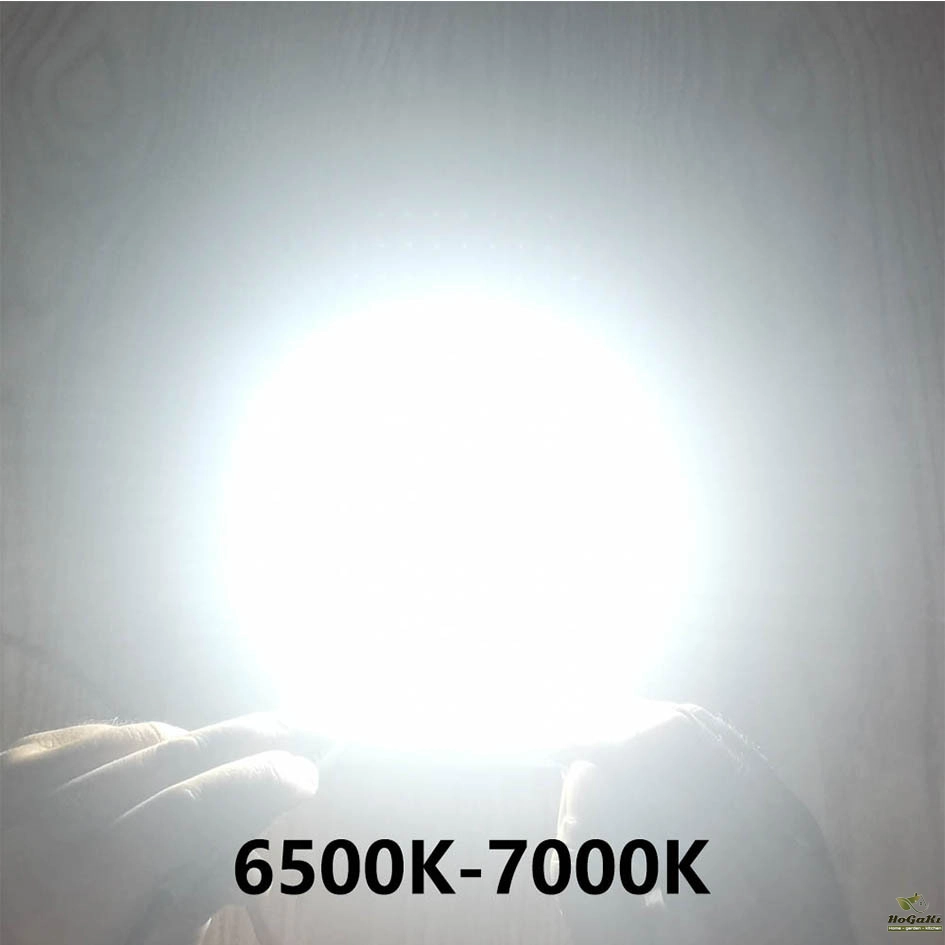

- Color Temperature: Cool white 6500K-7000K
- Average Life (hrs): 50000
- Item Type: LED Bulbs
- Warranty: 3years
- LED Chip Brand: Epistar
- Power: 10W/20W/30W/50W/100W/150W/200W
- Aluminum substrate thickness: 1mm (0.06inch)
- Led Application: Led Floodlight Replace Chip
- Suitable For: DIY LED Flood light
- Feature: No Driver / Smart IC/Easy to DIY
- Crystal name: Epistar chip
- Thermal conductivity of aluminum substrate: 2.0W/(m.K)
- Occasion: Garden/Square/Highway
- Led Bulb: Led Spotlight
- Crystal size: 15*30mil
- Choice: yes
- semi_Choice: yes
