Lathe DRO 2 Axis Digital Readout Display with 2pcs 50-1000mm Linear Glass Scale Encoder Measuring Ruler Milling Machines

How to choose the scale length ?

There are 2 methods.
1.Send a message to tell us at message center,there are 100,150,200,250,300,350,400,450,500,550,600,650,700,750,800,850,900,950,1000mm working length for choose from.
2.Leave a noted when making payment.
We will send the travel by default, instead of the total length of the scale, so please tell us working length ! thank you

Free shipping 2 Axis digital readout with 2pcs 50-1020mm linear scale / linear encoder / linear ruler for milling lathe machine
Please leave a massage what travel length do you request and what machine do you install on when place an order.
Our advantage:

1.Fast reply and deal with any problems (usually reply within 1 hour at woring time).
2.High precision linear scale.
3.Easy opperation of the digital readout.
4.Good packing safe for international shipping.
5.USA,EUR,UK power plug for choose from.
6.Include full accessories for installation.
7.Technical support and best service.
Digital readout Basic Functions
1:zero clearing
2:reset
3:mm/inch mode
4:ABS/INC
5: 200sets sub datum
6:power off Memory;
7:center of 1/2
8:liner error compensation
9:sleepping mode
10:Clear 200 sets Sdm datum;
11:calculator
12:drilling of circumference
13:drilling of oblique line
14:machining of inclined plane
15:machining of circular arc
16:lathe function(match)
17:Rectangular lumen gradual processing
18:digital filtering (grinder machine )
19.R function
20.Radius/Diameter function (lathe machine )
21.Z+Y sum (lathe machine)

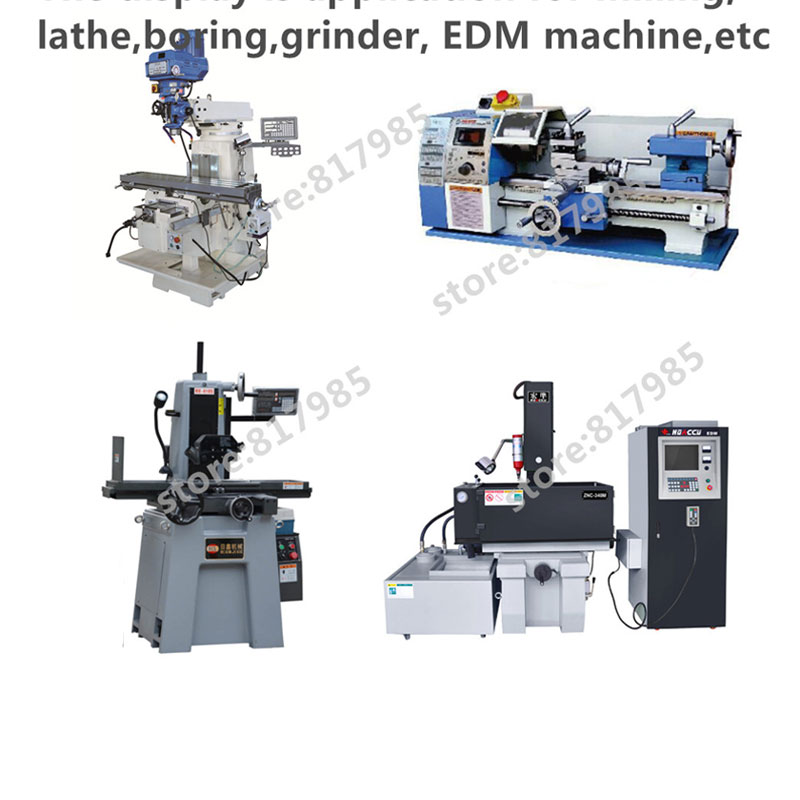

In total ,it is a mutlifunctional 2 axis DRO can be use on lathe, milling, wire cutting,spark and other machines.
Digital readout / DRO Technical Parameters
1.Voltage Range: AC 85V~250V/50HZ~60HZ (can be use all over the world)
2.Power Consumption: 25VA
3.Input Signal: TTL square / RS422 (option)
4.Input Signal frequency: 100KHZ
5.Reading resolution: 10um ,5um ,2um ,1um , 0.5um

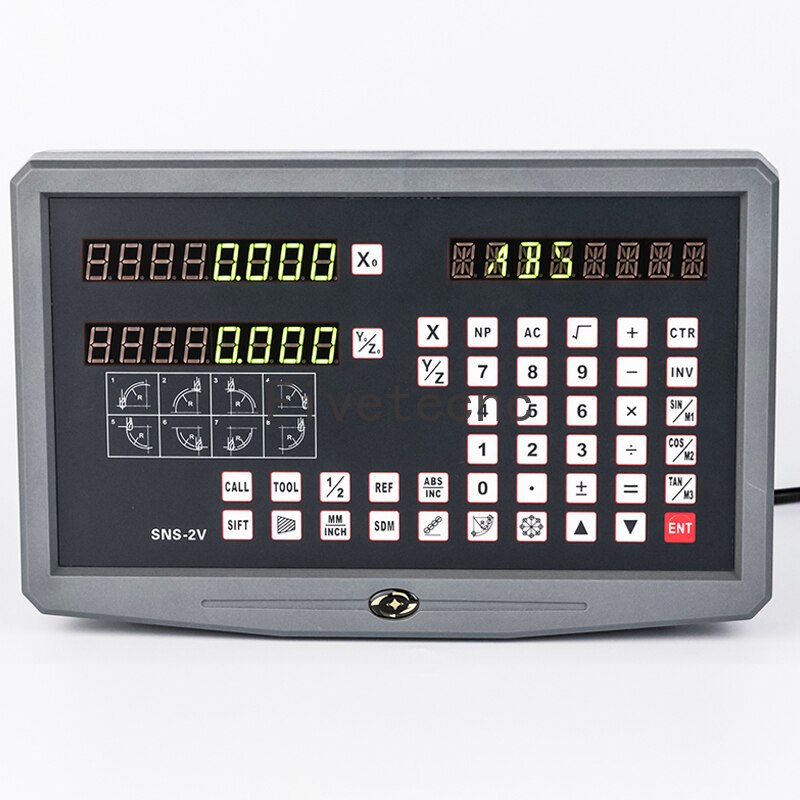

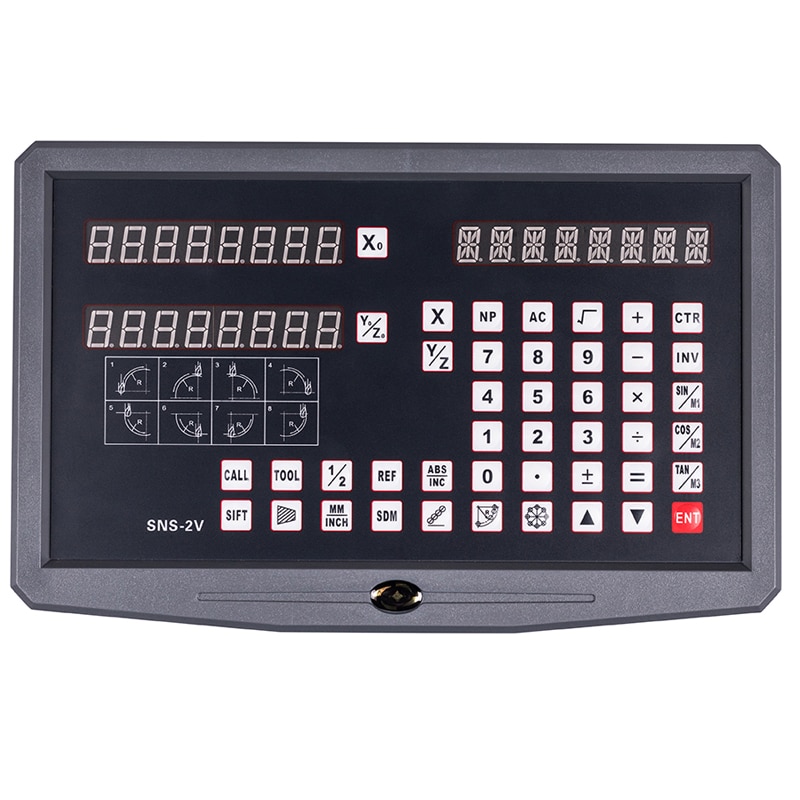

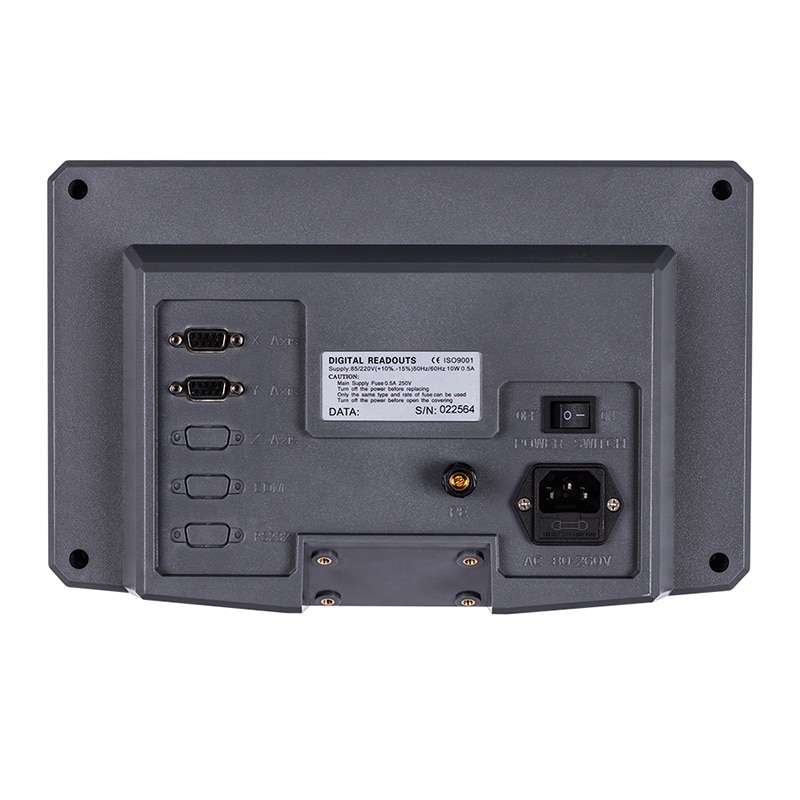

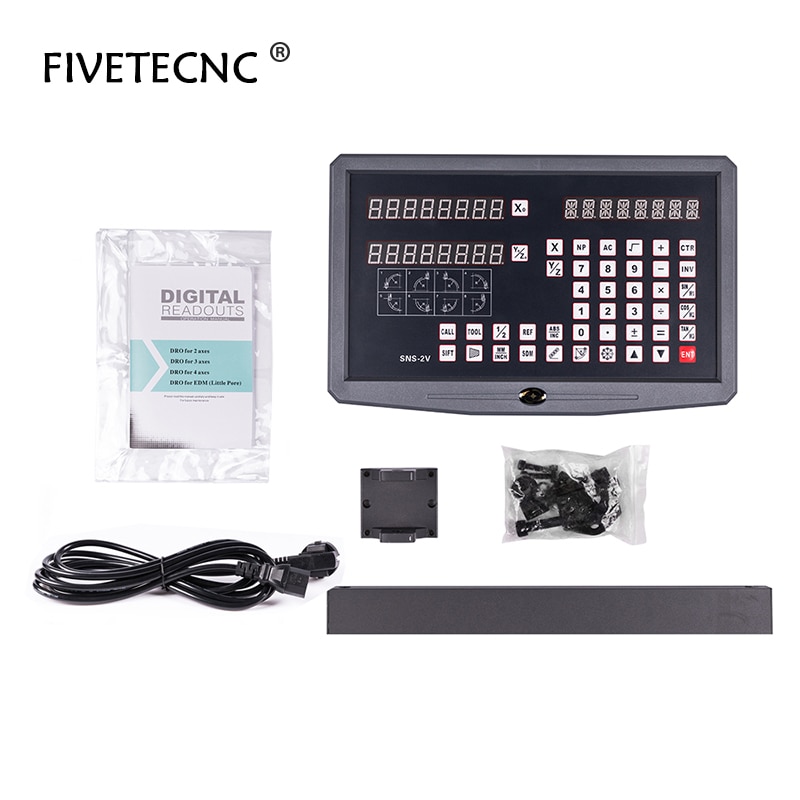

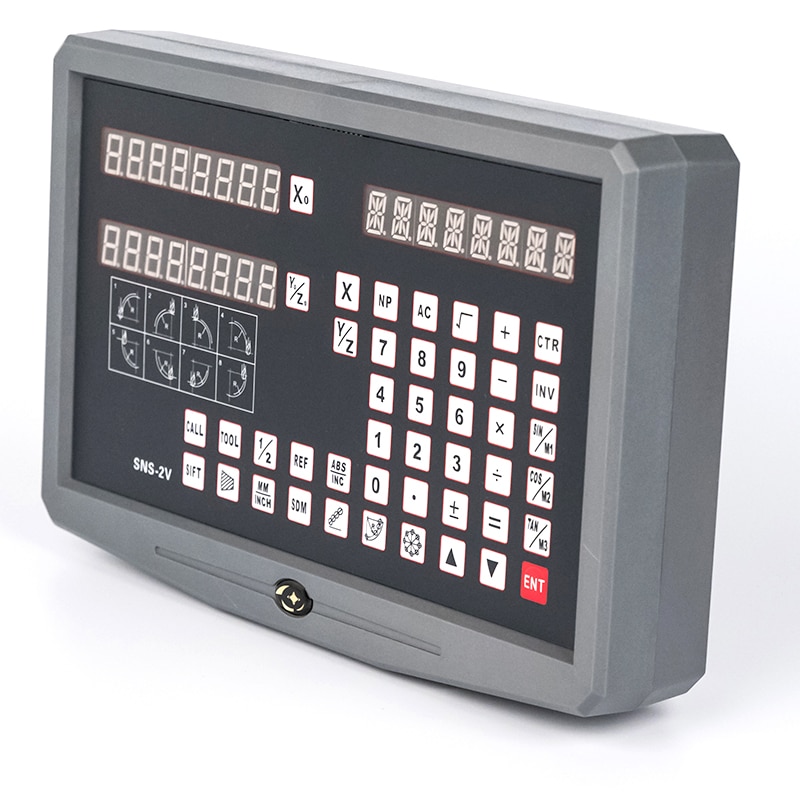

DRO photos:

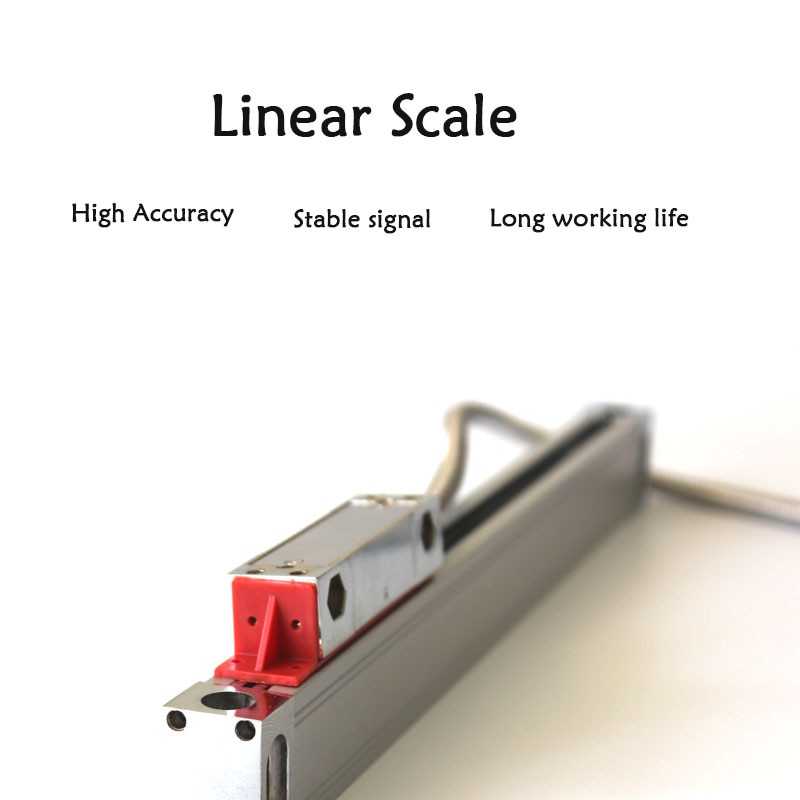

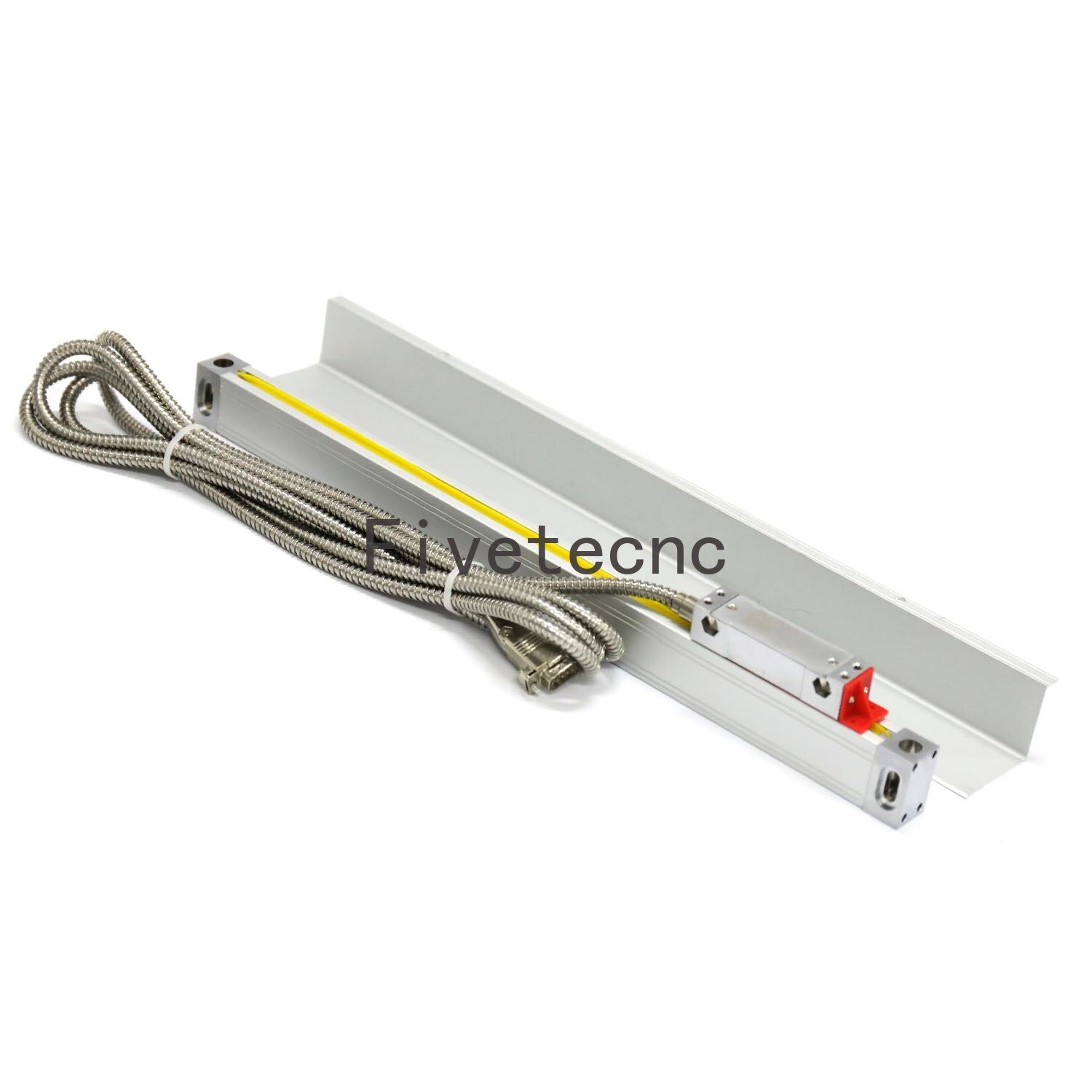

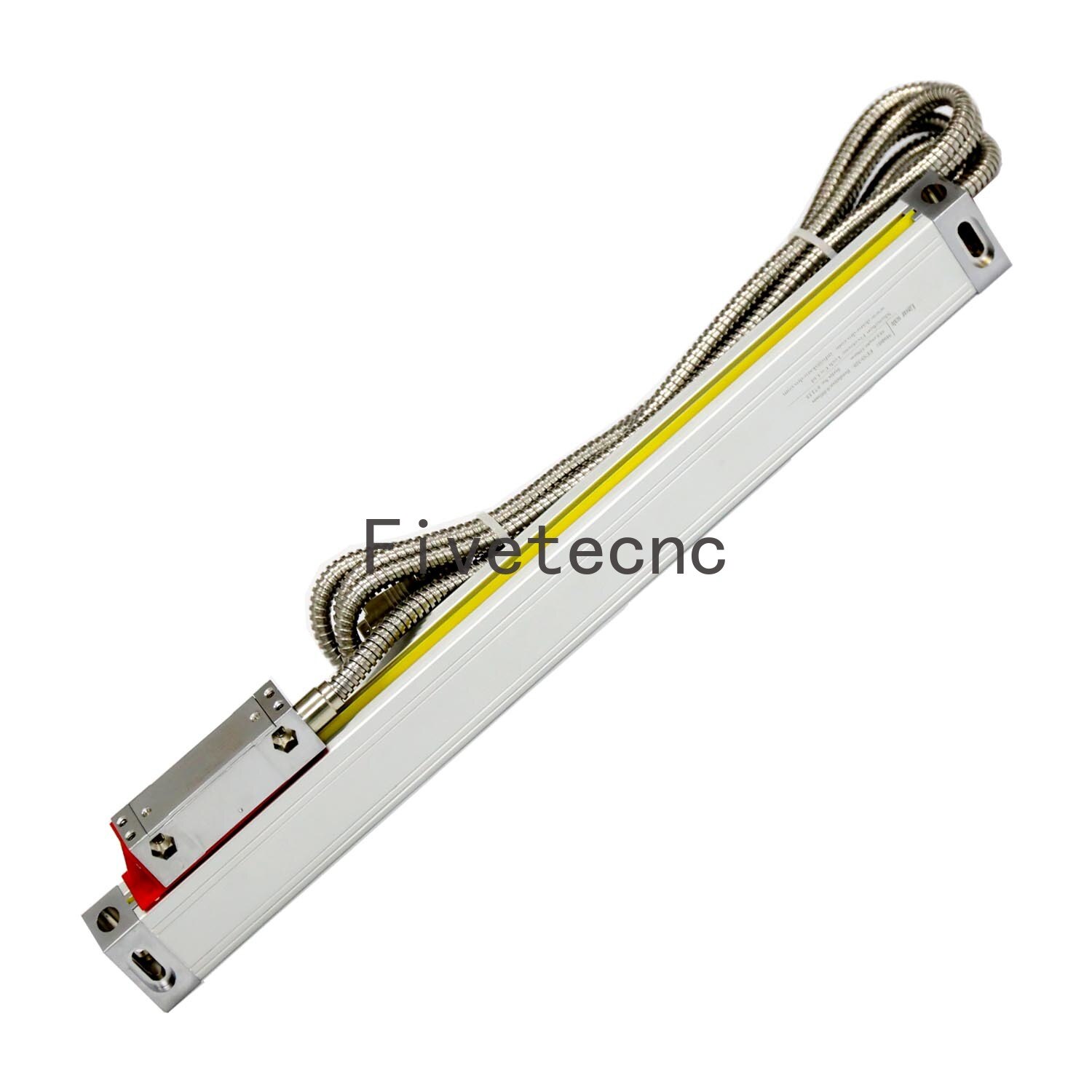

Linear Glass Scales Features
Linear encoder resolution : 5micron /0.005mm
Travel length:0-1020mm / 0-40 inch

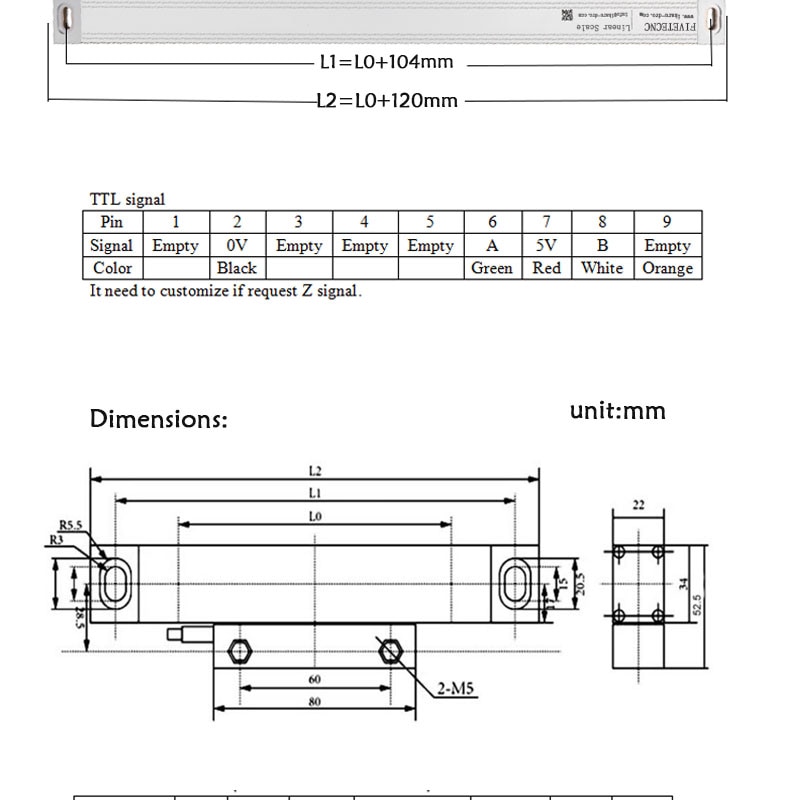

Total lenght: Travel length + 120mm (0-1140mm)
Output signal :TTL square wave (RS422 avalible for option )
Accuracy: +-3/5/8um

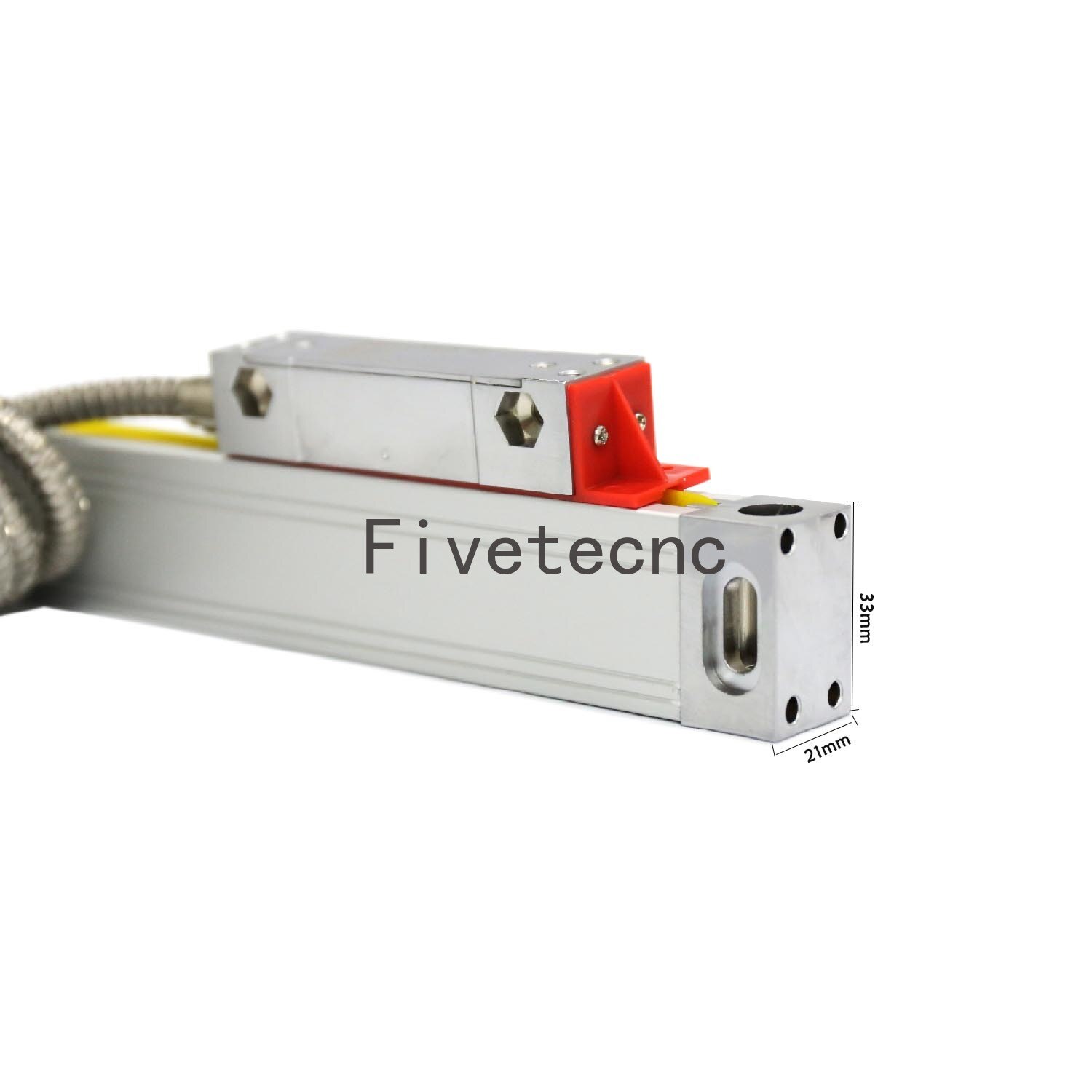

Linear scale size:21*33mm (slim scale avaible for option but cost extra)

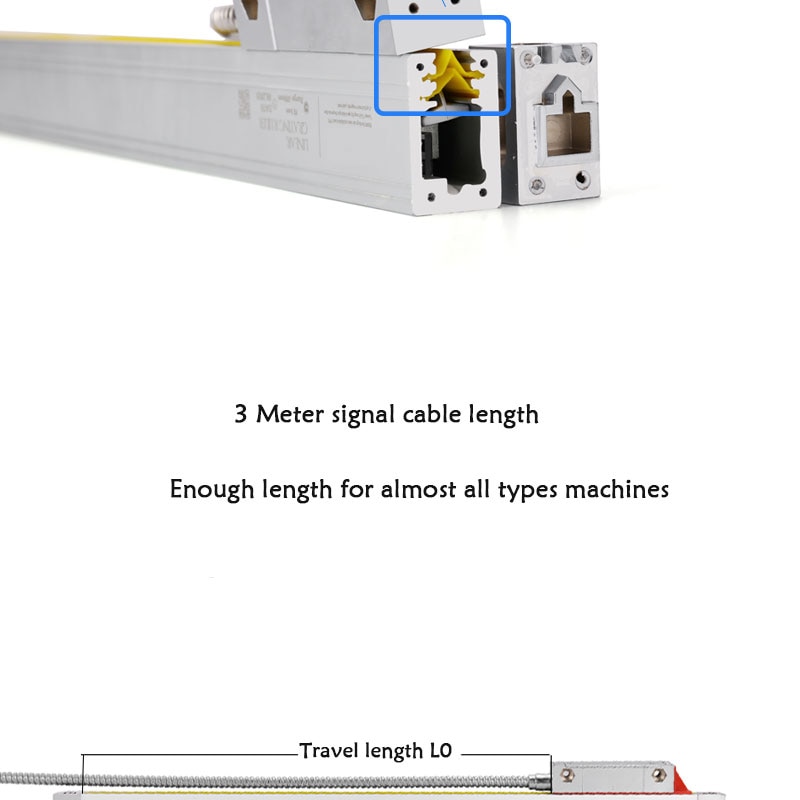

Scale cable length: 3 meter

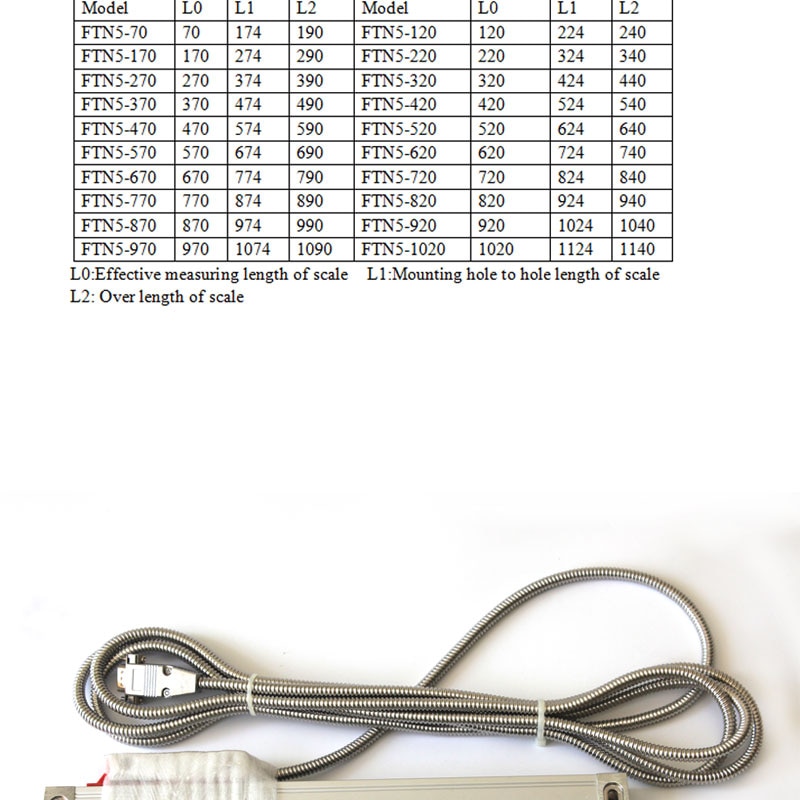

Scale measuring (L0) length as follows:
Buyers may choose any scale measuring / travel length under 1020mm at this price. Scale length above refers to the real travel of the linear scale. Actual physical length is longer than travel.

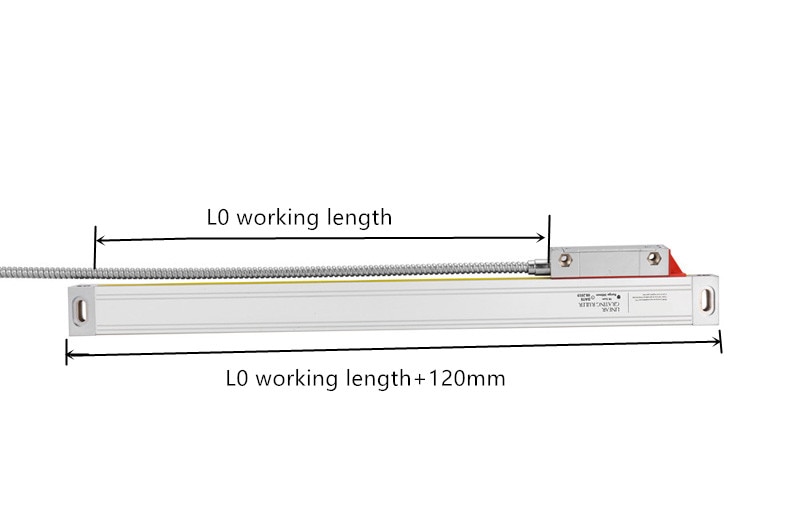

What is the different between 100mm and 120mm, 150mm and 170mm, 200mm and 220mm.....1000mm and 1020mm ?

They are same scale, because it can read 20mm more. For example, 100mm can read to 120mm, 150mm can read to 170mm, and its total length is same. So we called it 100mm or 120mm, same linear scale.

Important ! Buyer may choose any scale travel(L0) 70,120,170,220,270,320,370,420,470,520,570,620,670,720,770,820,870,920,970,1020mm with same price!

Please provide the measure length (L0) to us when order, we will not ship it without provide it. thank you !
We supply 1um resolution scale, each 1um scale costs an extra 18 USD.
For the details, please contact the seller. We believe that good communication can ensure a happy and smooth transaction.

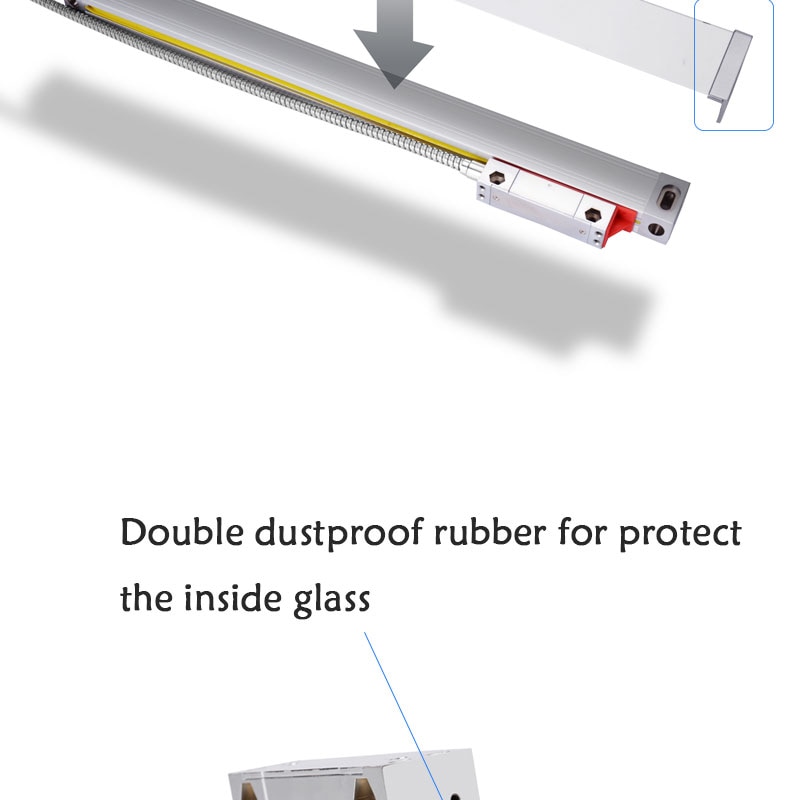

Our scale advantage:

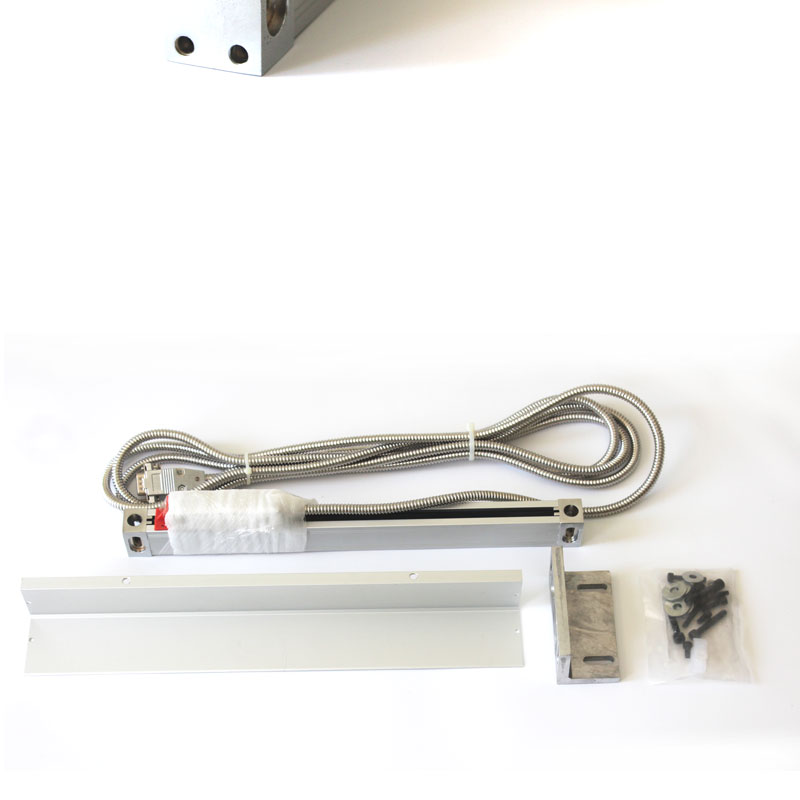

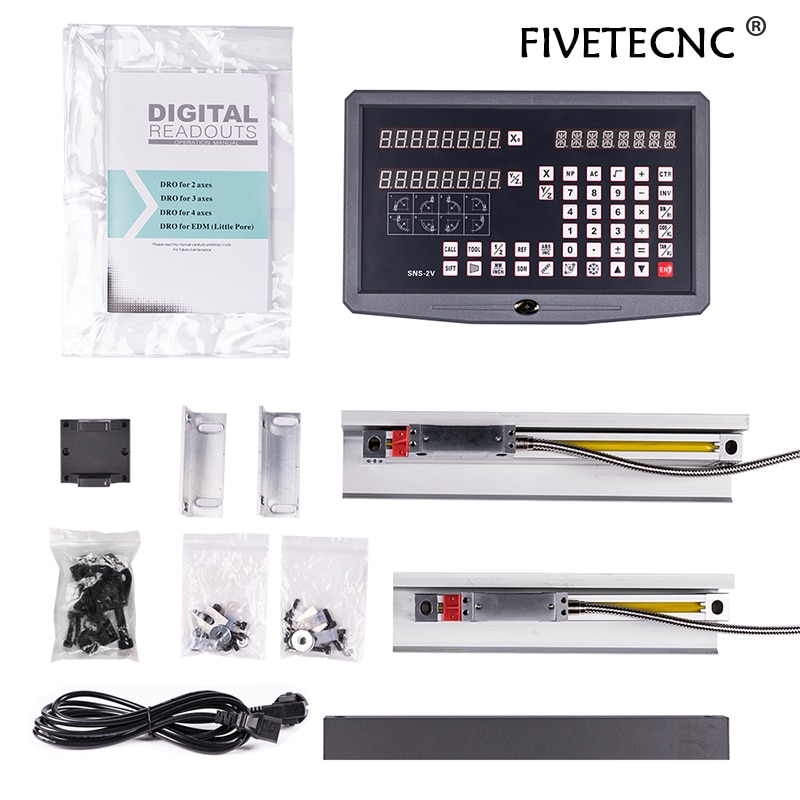

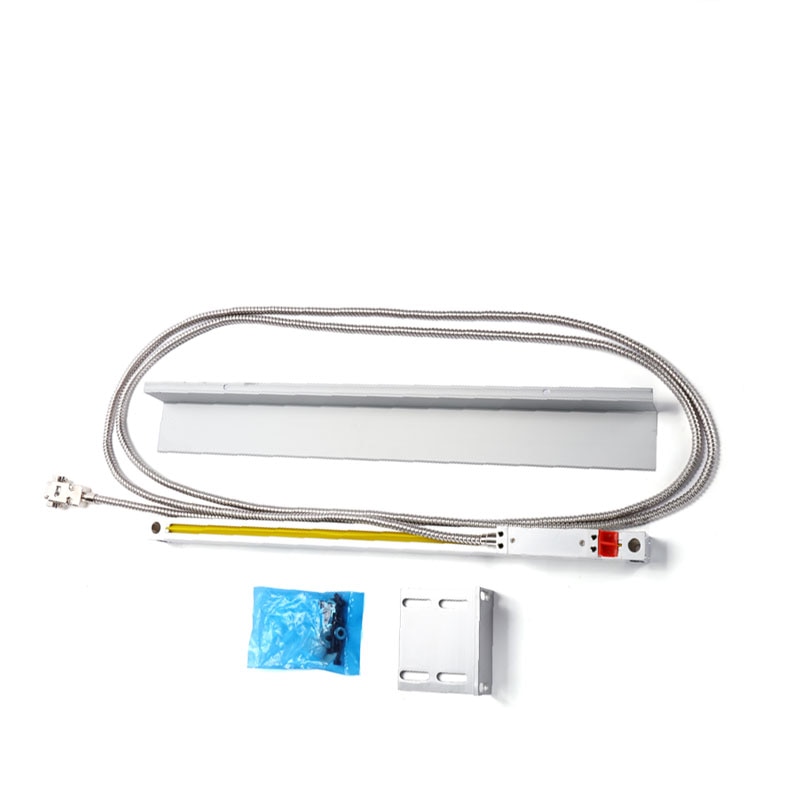

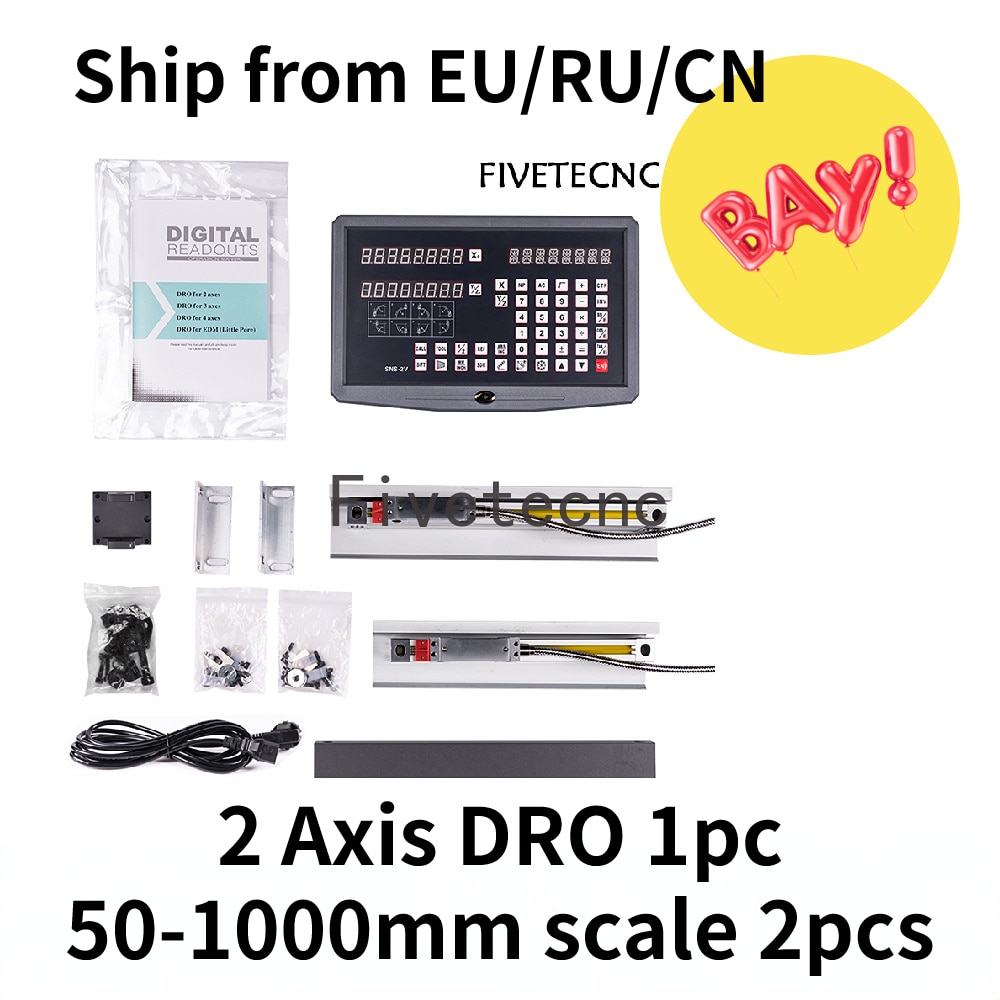

Package include:
2 axis digital readout*1pc
linear scale *2 pcs
accessories 1 lot for installation

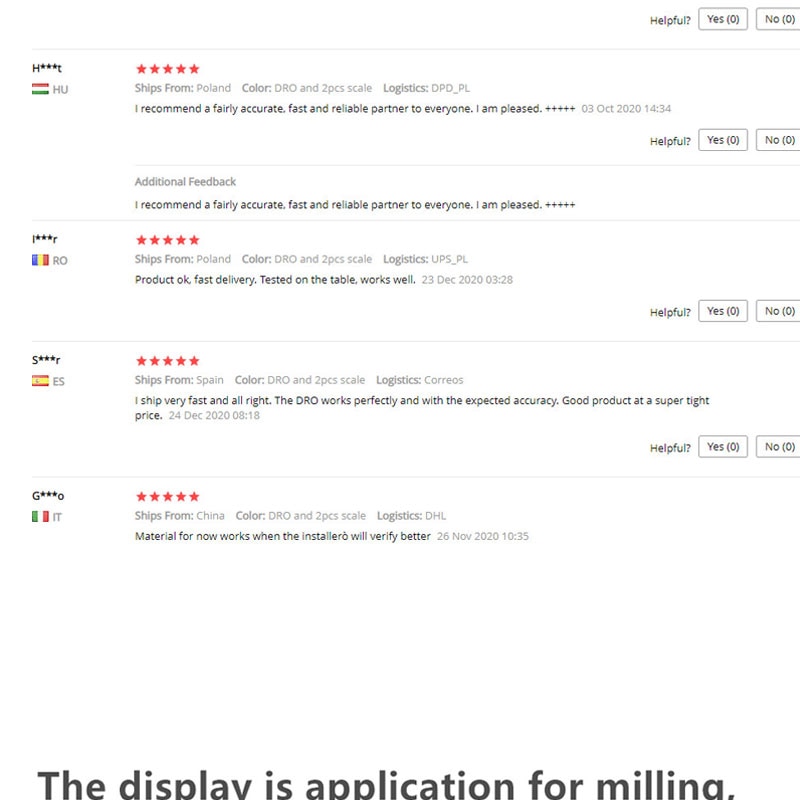

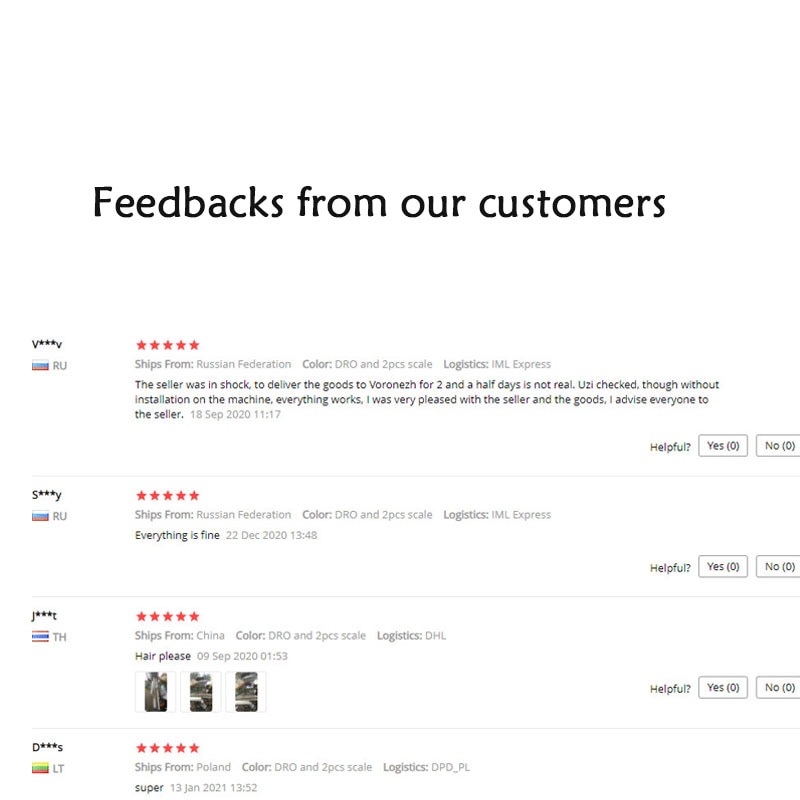

How are customers saying ?

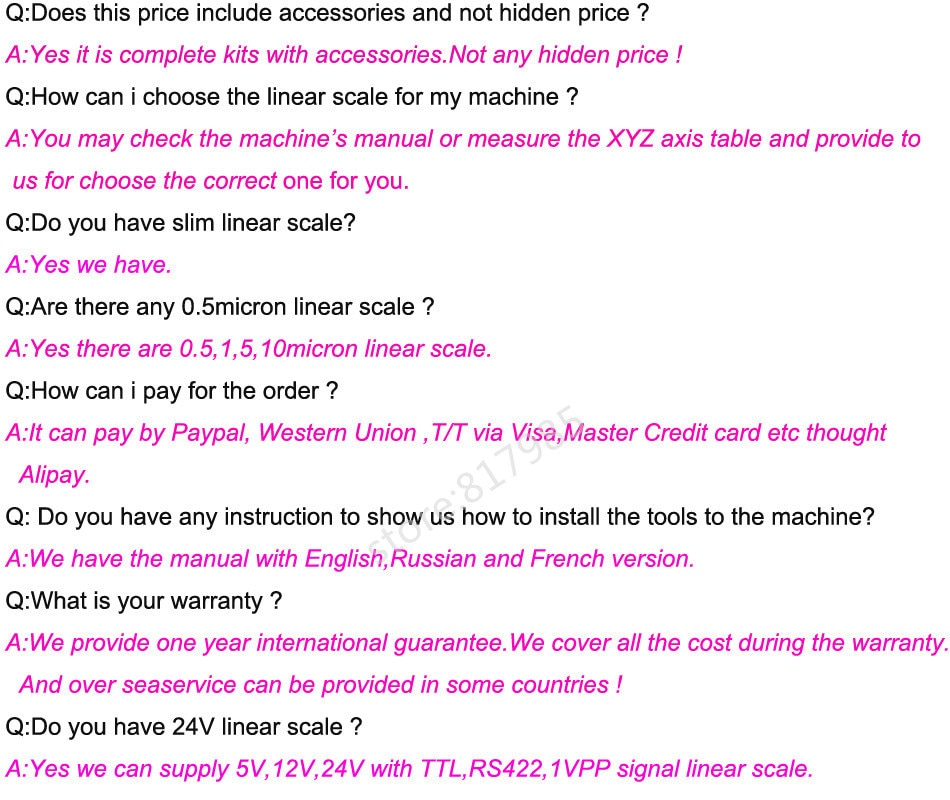

FAQ

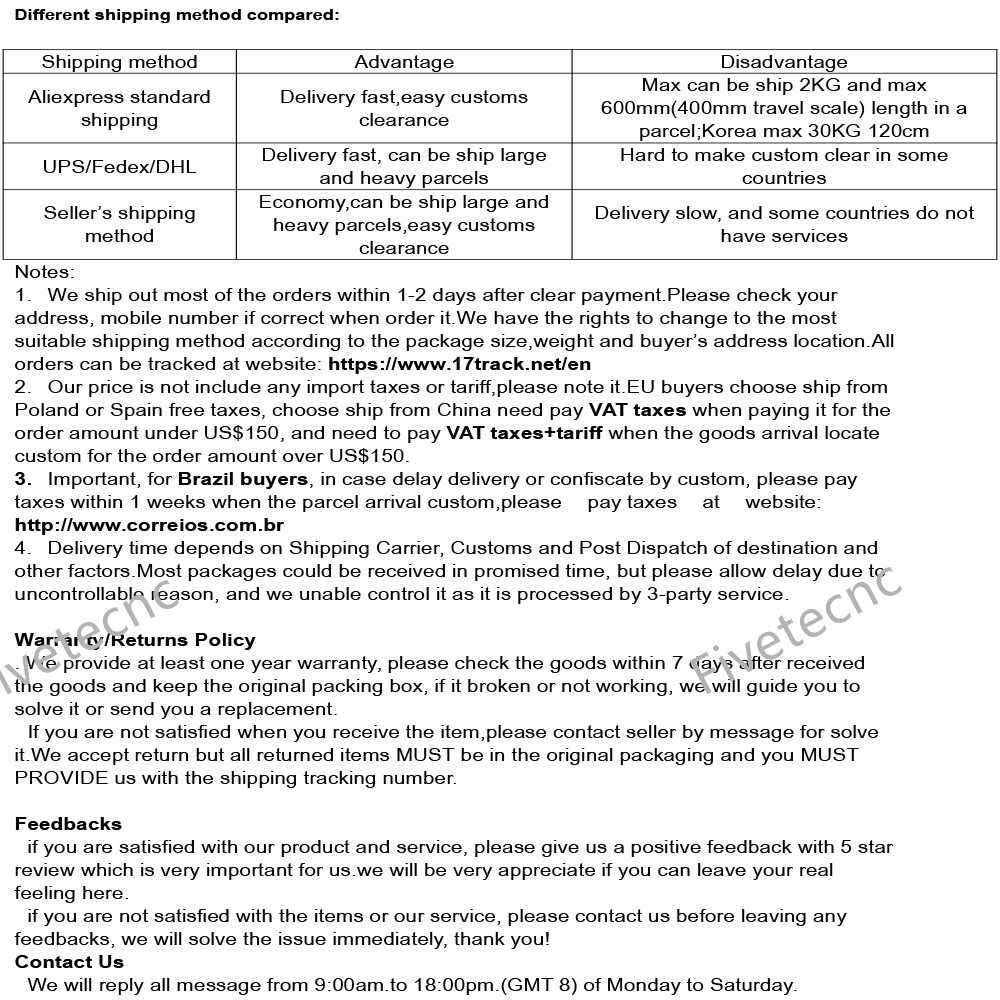

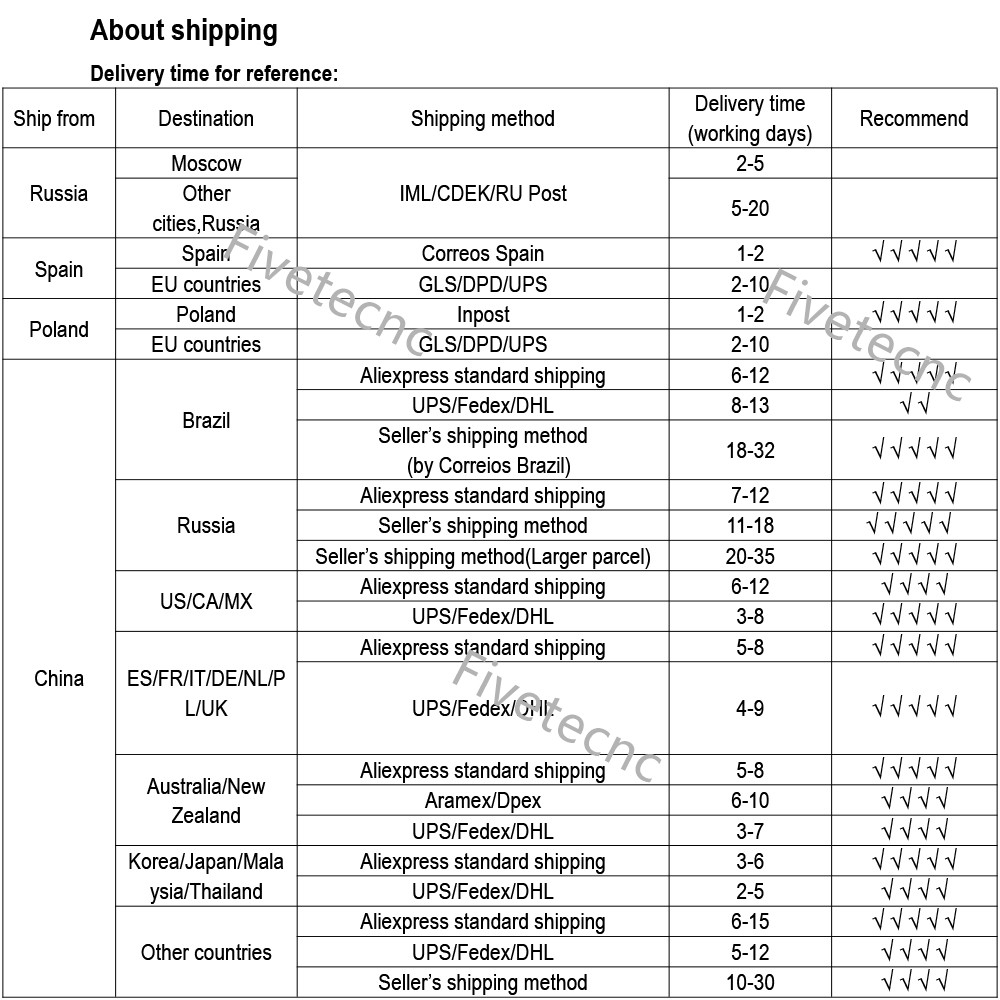

Shipping
Ship From China,Door to Door express,DHL,Fedex, EMS from China,and the package will reach your workshop 3-5 working days; Ship From Europe,it will ship by our courier and takes 4-13 working day. Please allow delay as we can not control the goods after ship it.

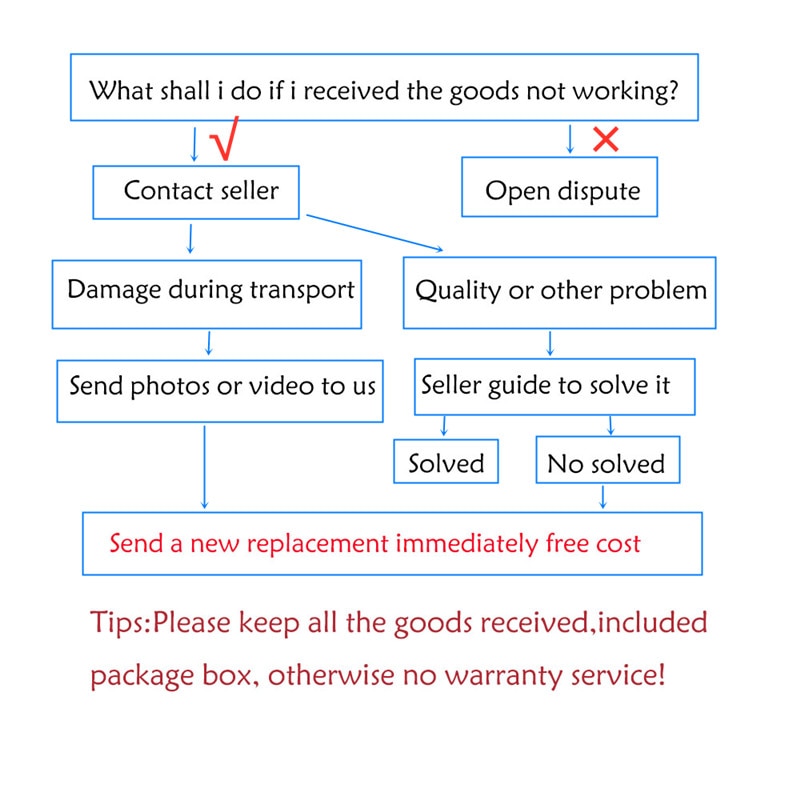

Warranty& After-sale service
We provide one year internation warranty.

Please write if you have any questions. We would be more than happy to provide detailed information about our products.
