Stuka Hand Remote Box Controller for LNS XT320/326 SN542 S2 BN4460101 Fedek Automatic Bar Feeder Parts
76.43 $

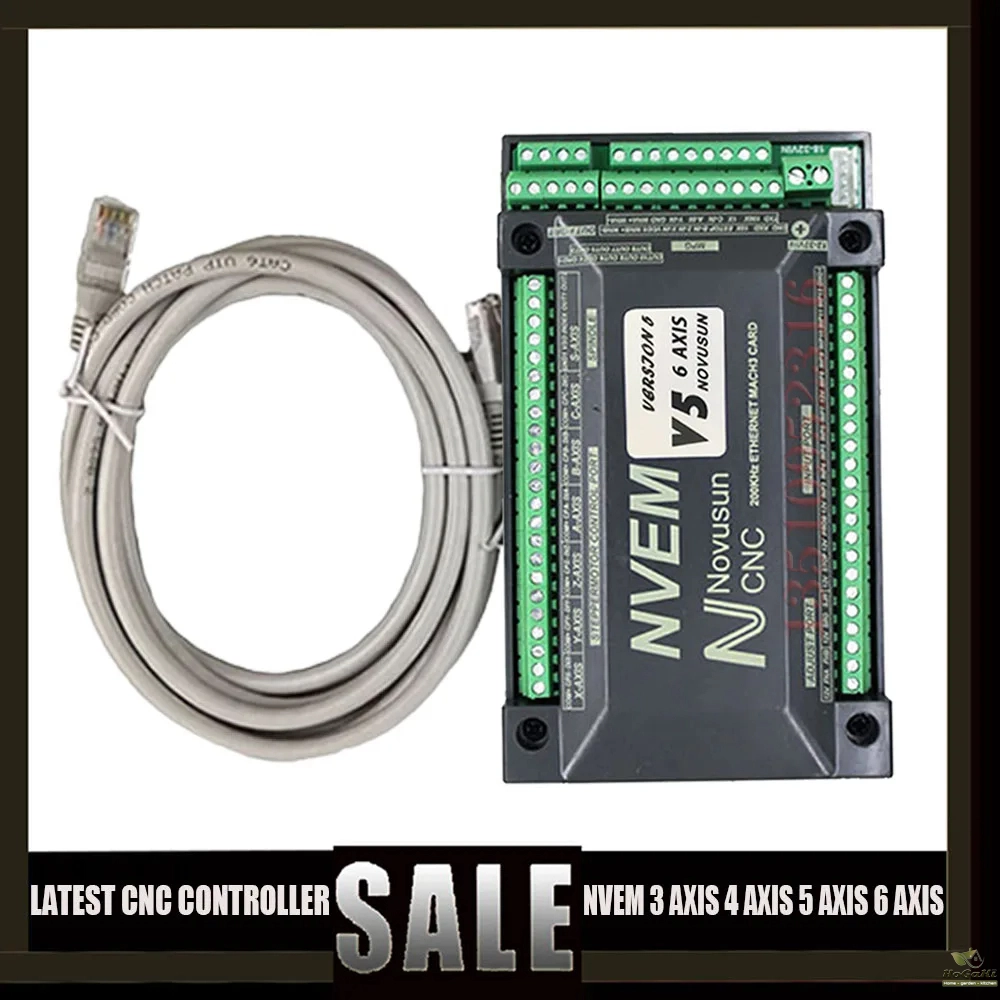

Product Content:
1 control card
1 Ethernet cable
Product introduction:

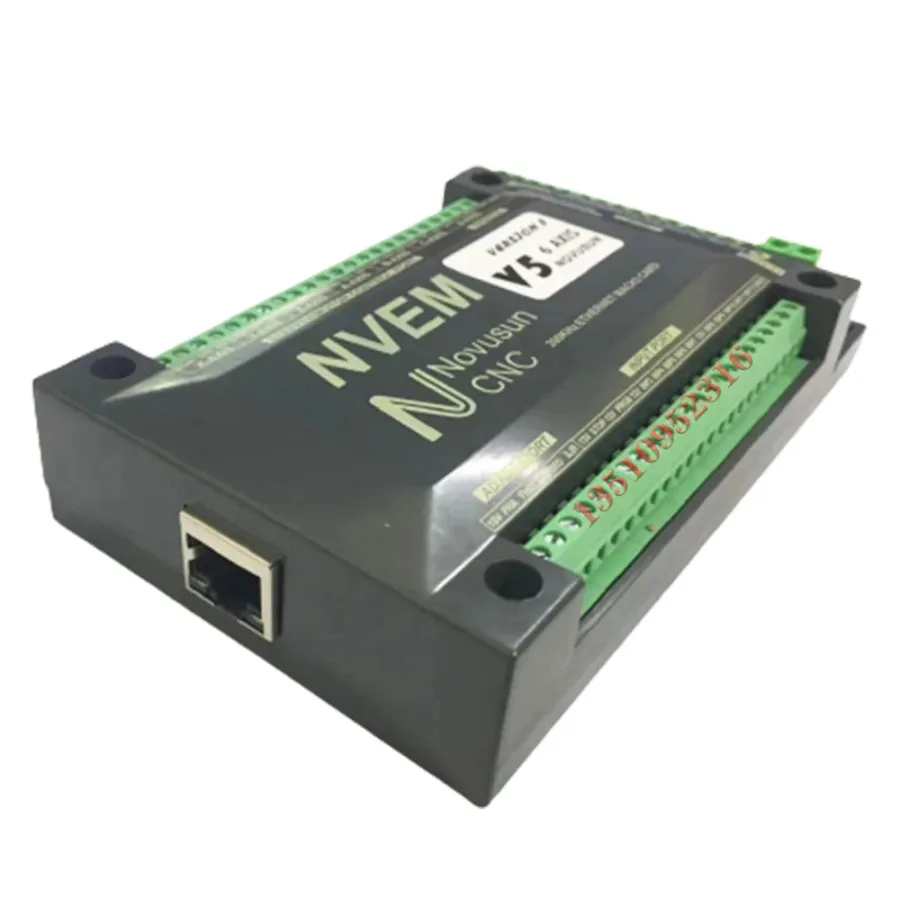

NVEMV5 is the 3-6 axis motion controller we spend 4 years to design.
NVEMV5 support Mach3 software and standard MPG,through Ethernet to
communicate with computer,just use the Twine to connect directly or transfer with router.
NVEMV5 motion controller adopts the ARM design framework.The ARM design
includes communication,codeanalytic,underlying algorithm and pulse gerneration. Rational
design,reliablecontrol,convenient operation.
Performance parameters:
Support Ethernet;
12 ports photoelectric isolated input interface for ordinary digital data；
10 ports photoelectric isolated output interface for ordinary digital data；
1 port 0-10V spindle speed analog output interface(can change to PWM output)；
can support 3-6 axis stepper systems,200KHz pulse output for every axis；
ARM motion control chip；
main device is 12V-32VDC power supply input,current should higher than 0.5A；
Compatible with MPG input,support the digital display MPG from our company。

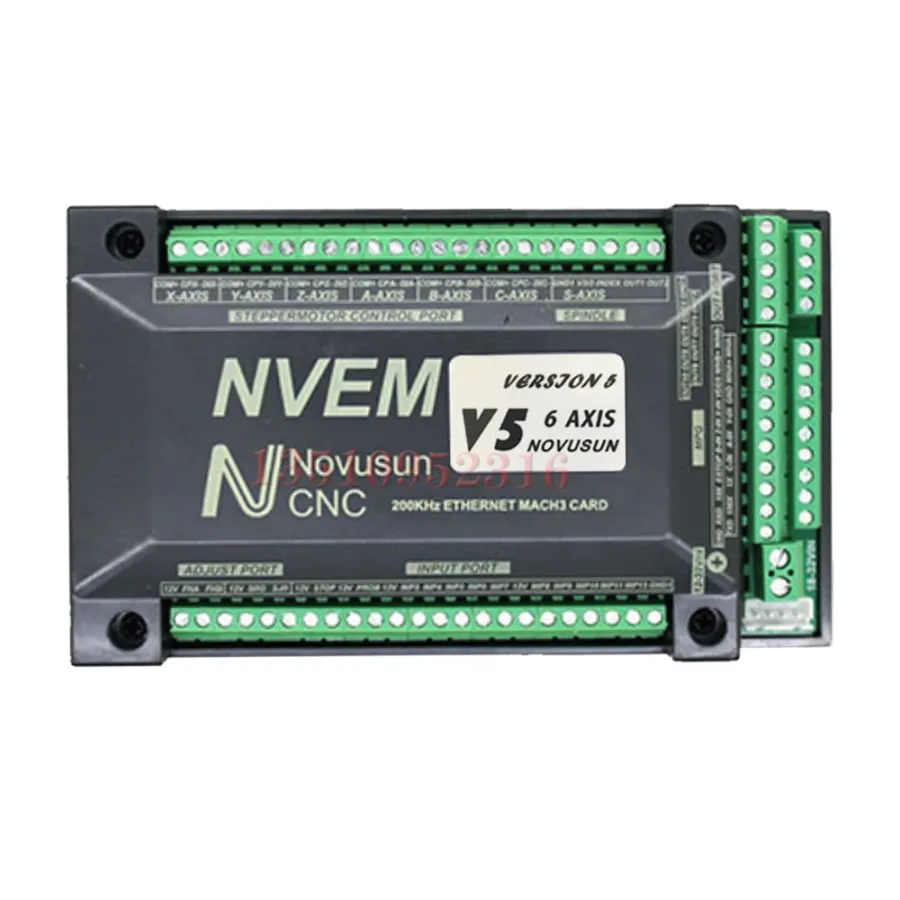

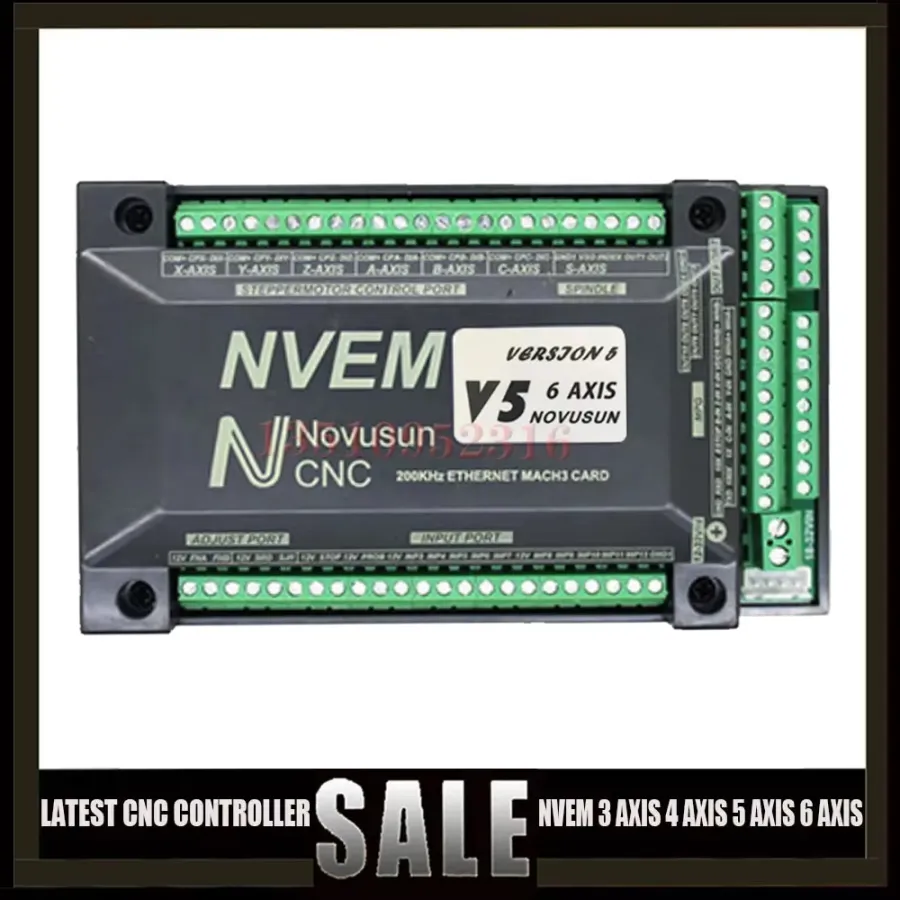

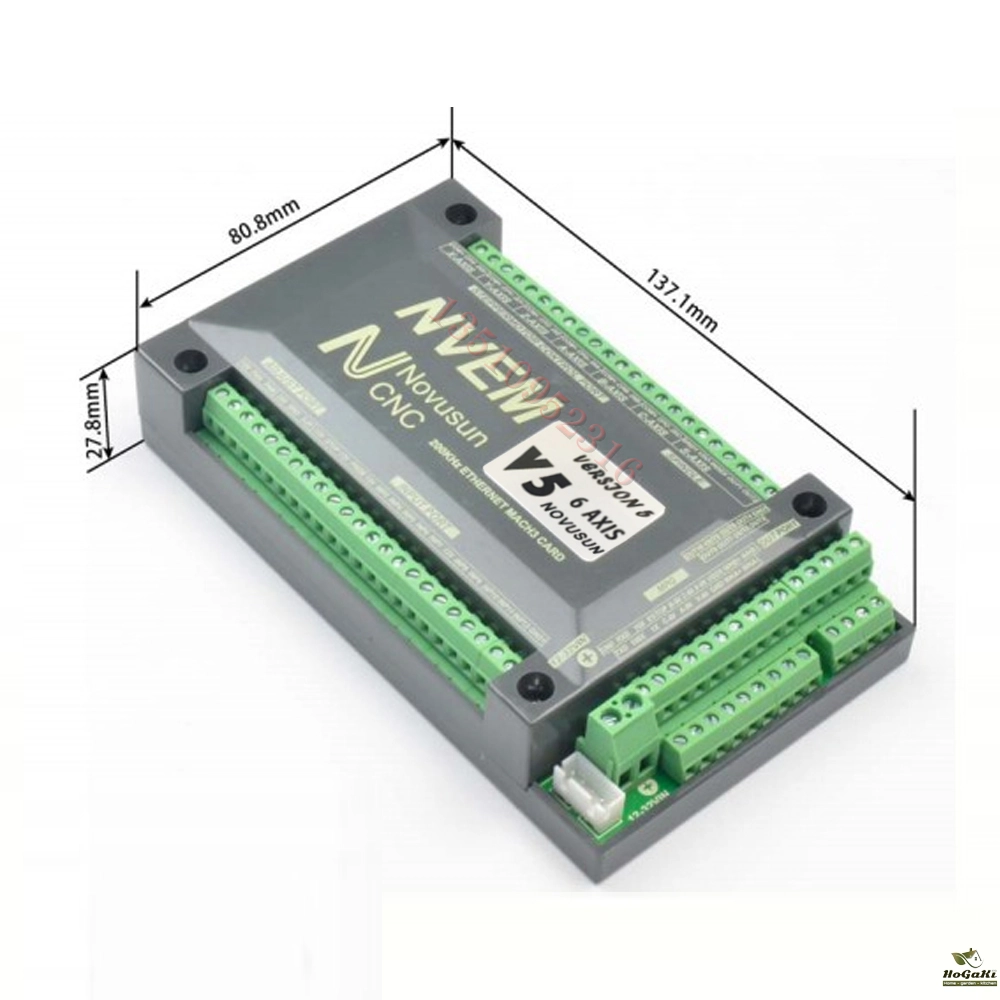

Appearance and size:

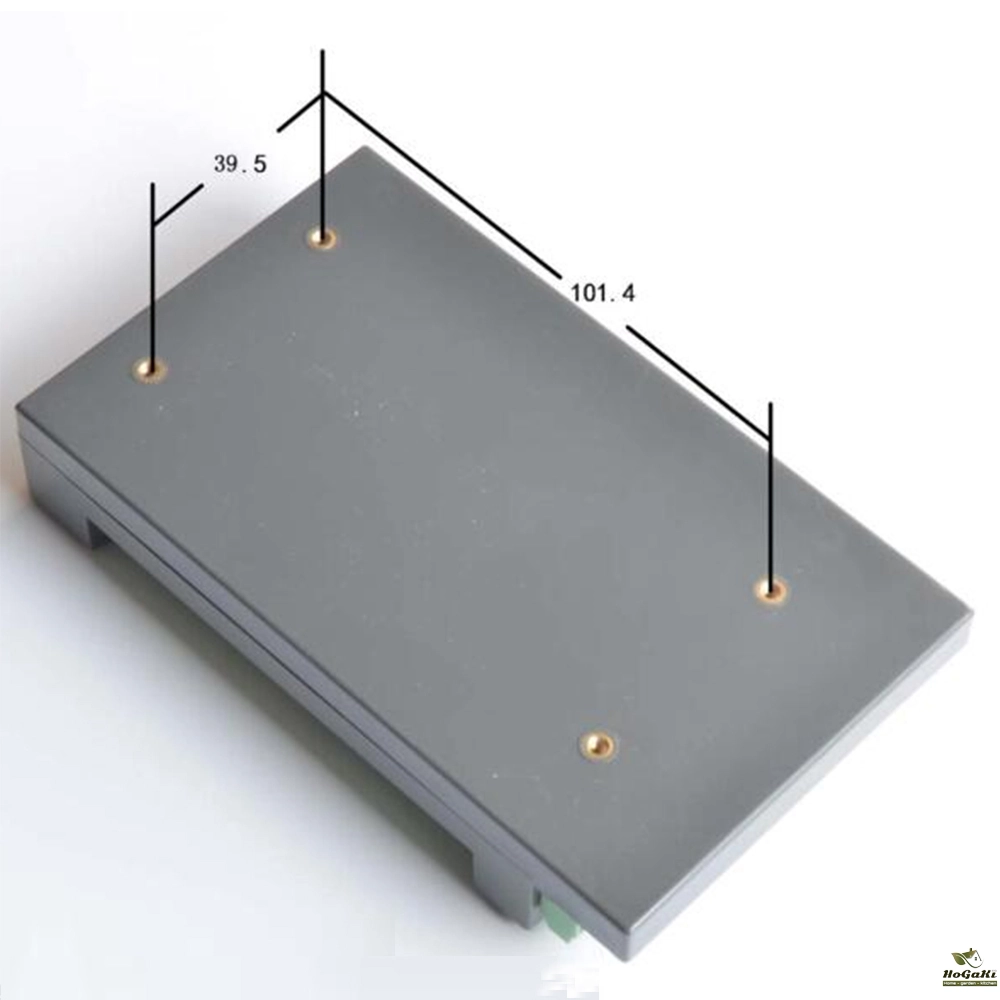

NVEMV5 motion controller is with the sealed shell structure,there are 4pcs setting holes
at the bottom.We can fix 4pcs 4mm diameter holes at the cabinet,and install the controller into
the cabinet.
The products overall size is 163.1mm*80.8mm*27.8mm；
The bottom install size is 101.4mm*39.5mm。

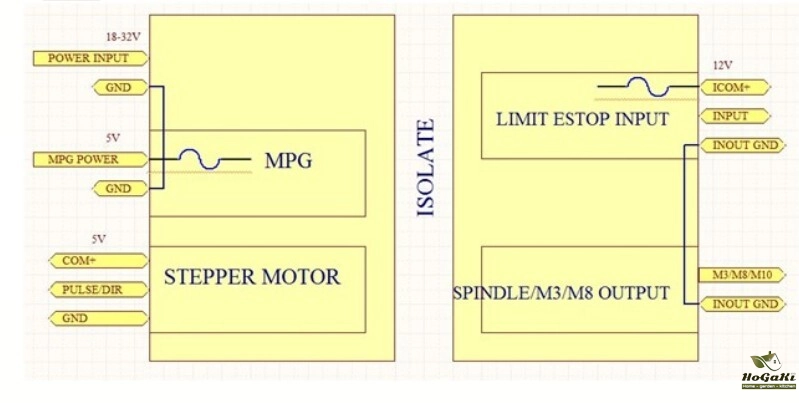

Power scheme:

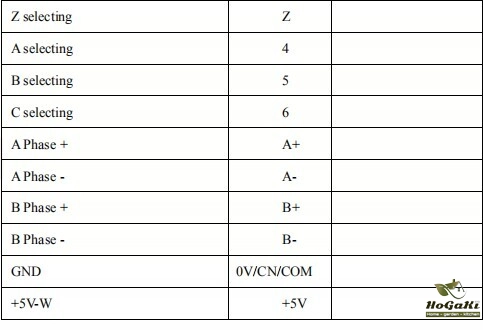

Wiring definition:

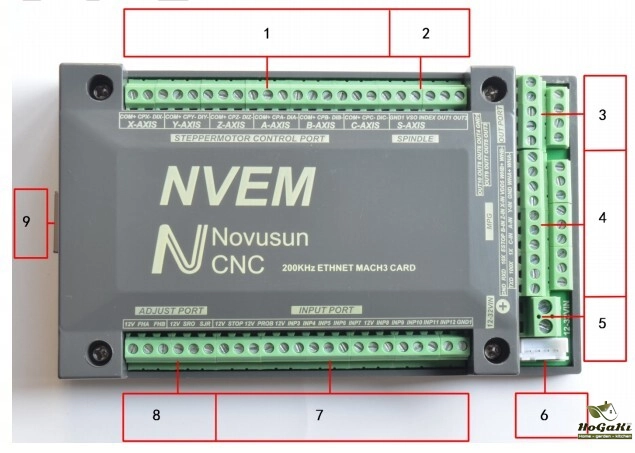

the connection of the controller includes power supply

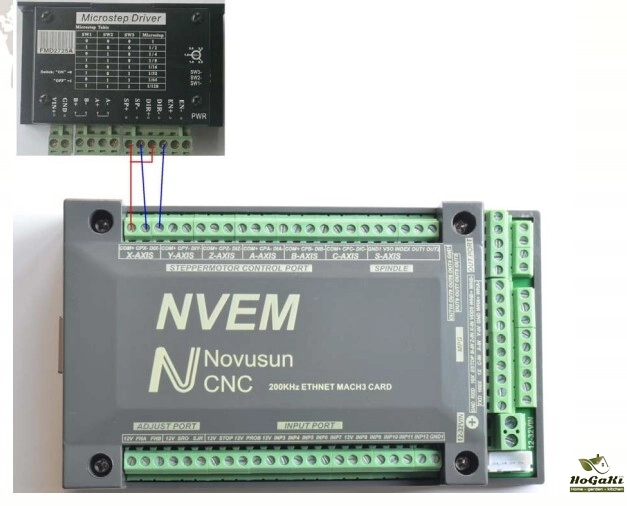

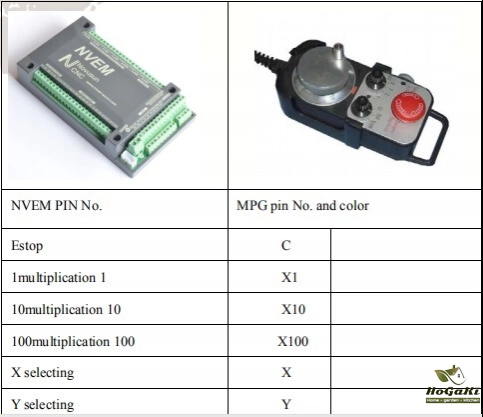

interface,Ethernet connection interface,MPGinterface,Stepper/Servo control output

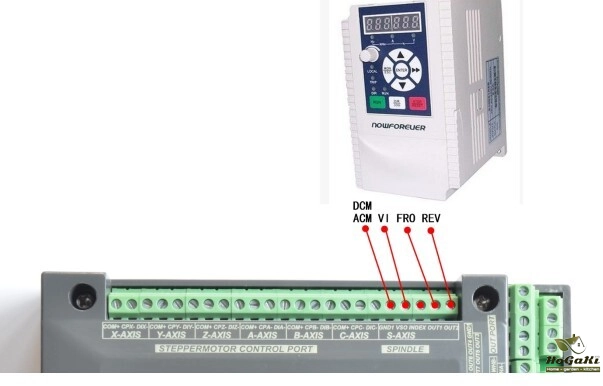

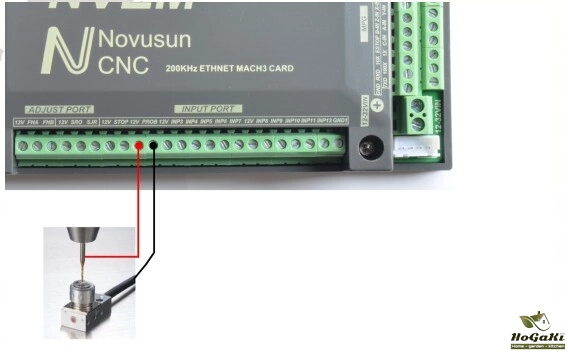

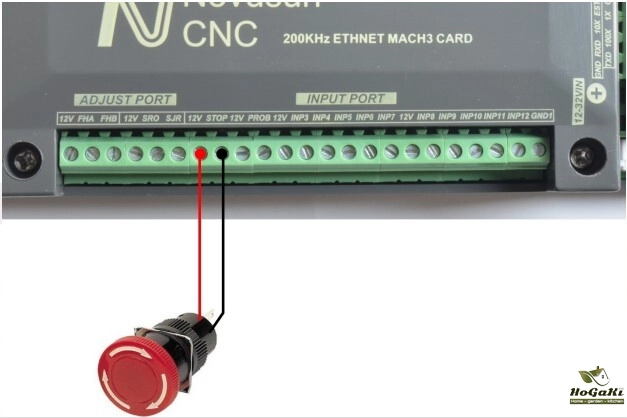

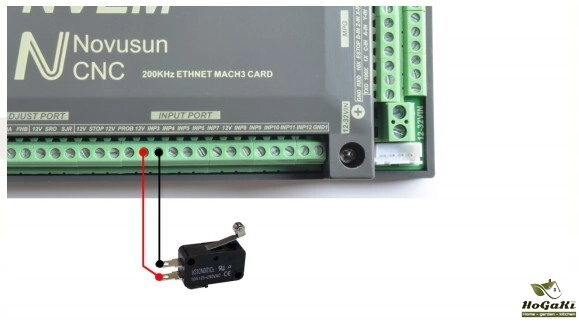

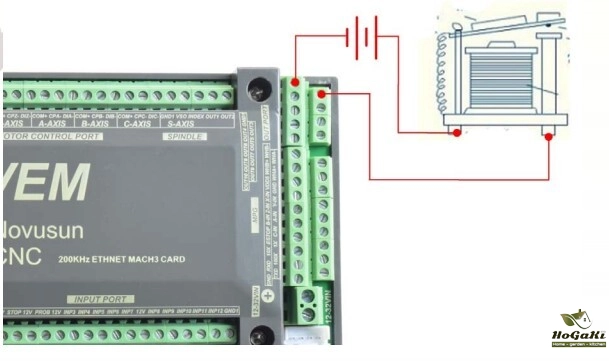

interface,spindle control output interface, Estop and limited switch and tool setting input interface
and so on. Now we descript them in details as below.
Packaging Details
- Unit Type:
- Package Weight: 0.400
- Package Size: 12x10x15
- Brand Name: NoEnName_Null
- Origin: Mainland China
- Hign-concerned Chemical: None
- Application: Milling Machine
- Model Number: NVEM
- Choice: yes
- semi_Choice: yes
