2D 3D Fiber Laser Marking Machine 20W 30W 50W For Metal
7,698.56 7,260.56 $
ID: 62380
Quantity
Laser 30w Stretch Marks Machine Hand Held Marking Machine Colour Laser Marking Machine
0.0 ( votes) | 1 orders
Price:
US $
6220.00
/ piece

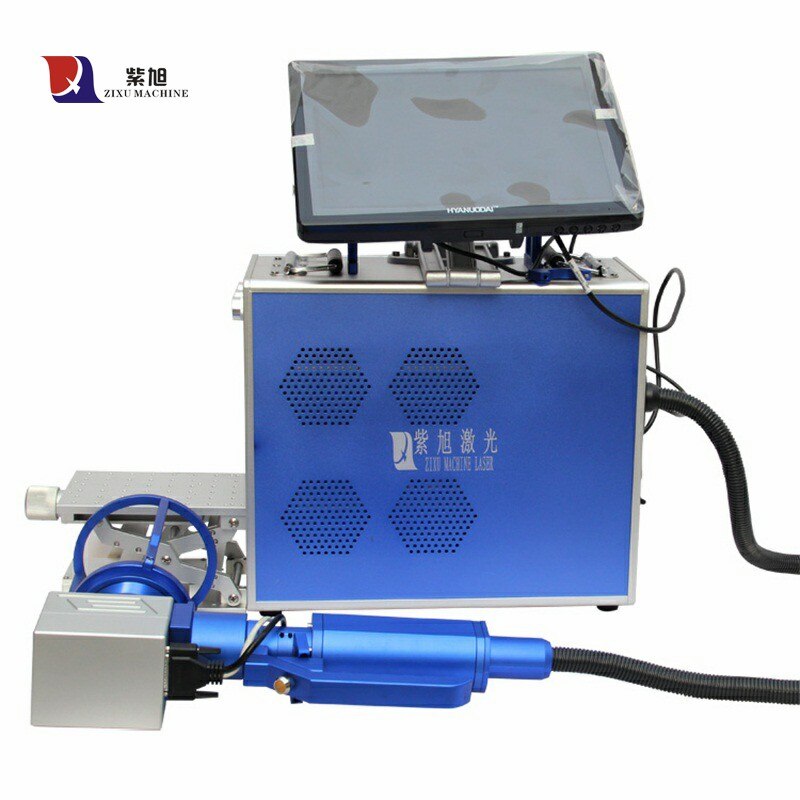

Laser 30w Stretch Marks Machine Hand Held Marking Machine Colour Laser Marking Machine
Hot sale product

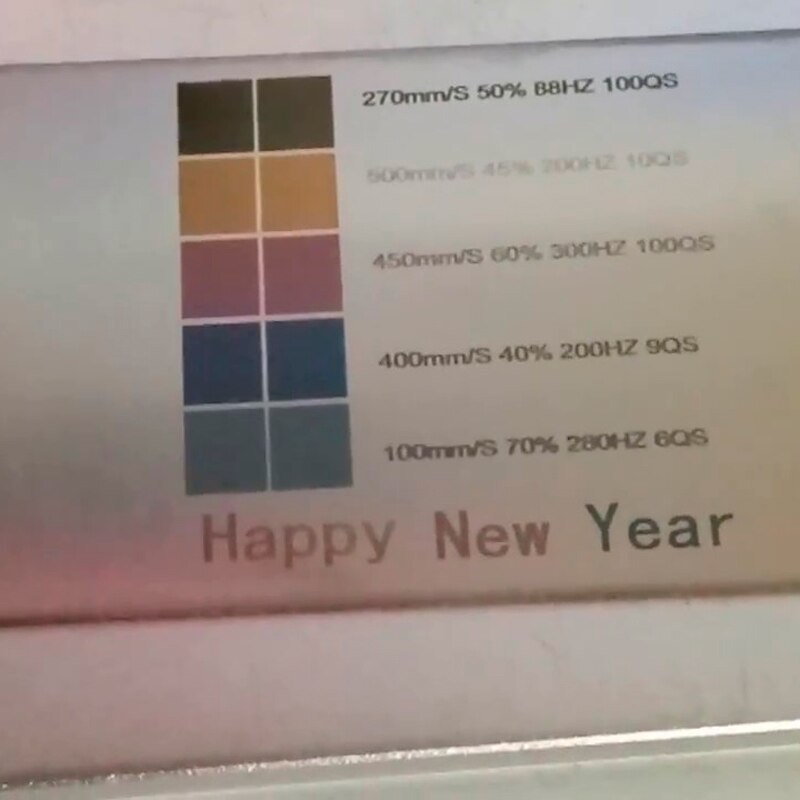

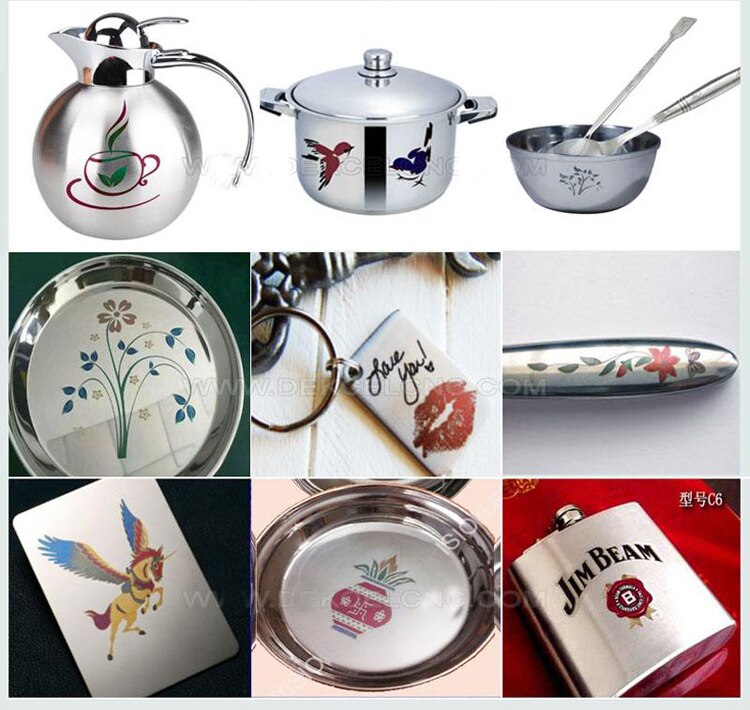

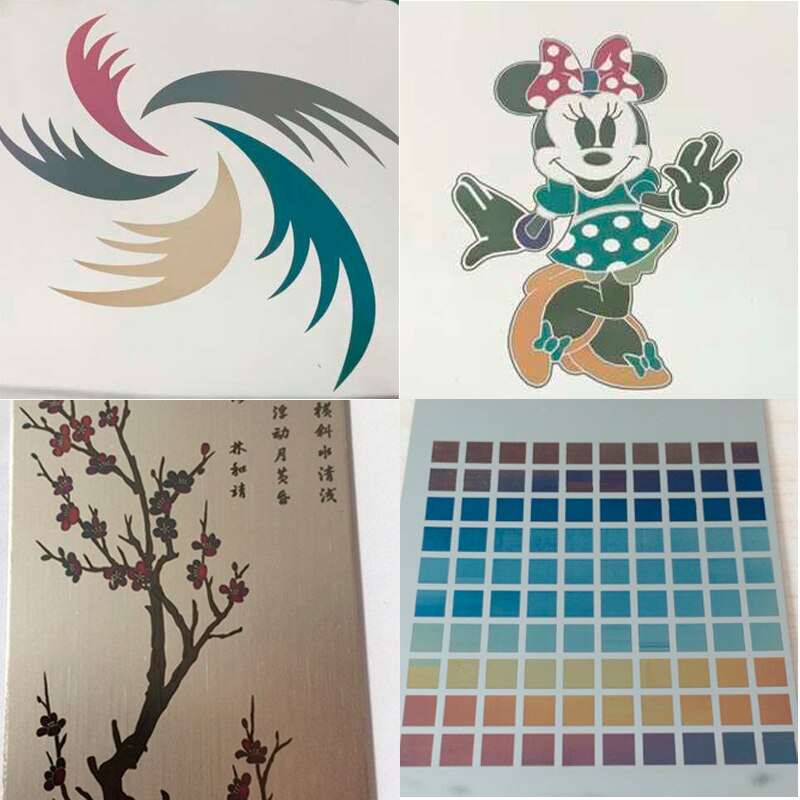

Fiber laser marking machine Application:(Sample picture)
The mechanism of blackening the anodized aluminum is to further oxidize the anodized aluminum layer with a thickness of 5-20 um in a short time by using a high energy density laser after focusing, using a special frequency and density and an adjustable pulse width. Change the color of the surface material.
The thickness of the film directly determines the effect and efficiency of blackening, and the film thickness is generally easy to blacken at 10-20 um. When the film thickness is less than 8 um, the oxide film is too thin, it is easy to break, and white spots appear, and it is necessary to increase the pulse frequency and increase the packing density. In addition, the surface treatment process of anodized aluminum will directly affect the blackening effect. Sandblasting and surface drawing are common processes. The thickness of sandblasting will have different effects on the marking effect. The finer the sandblasting particles, the better the blackening effect . It is recommended that the film thickness of the anode aluminum be 10-15 μm, so that the overall blackness effect is better.

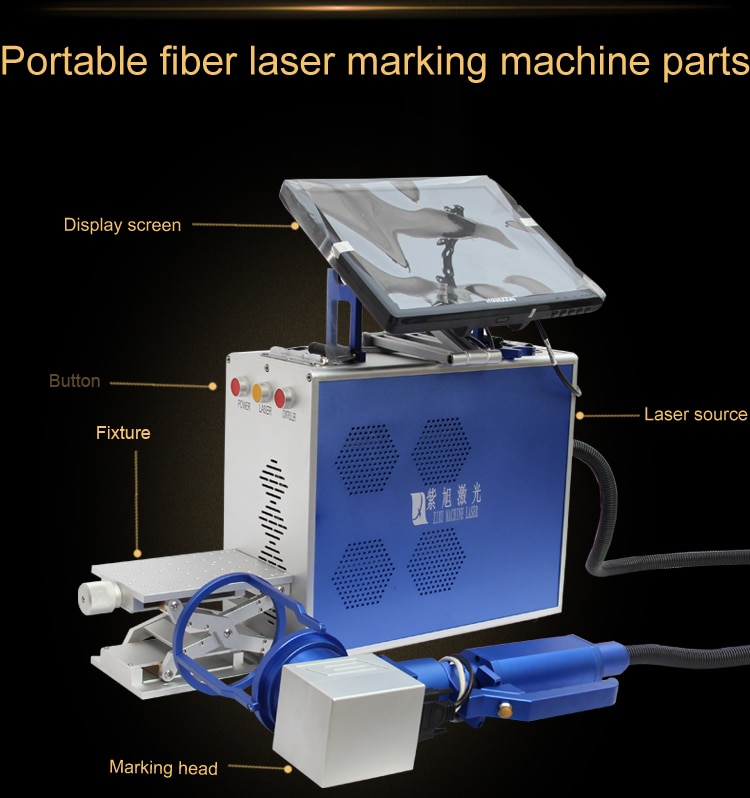

Fiber laser marking machinee Features:
MOPA laser marking machine is a new generation of laser marking machine system developed by our company using advanced laser technology in the world. The optical fiber MOPA laser is used to output the laser, and the high-speed scanning galvanometer system is used to realize the marking function. The fiber laser marking electromechanical light conversion efficiency is high, and it is cooled by air cooling method. The whole machine is small in size, the output beam quality is good, and the reliability is high. It can engrave metal materials and some non-metal materials. The fiber laser adopts integrated whole structure, no optical pollution and power coupling and loss, air cooling, high efficiency, long life and low maintenance.

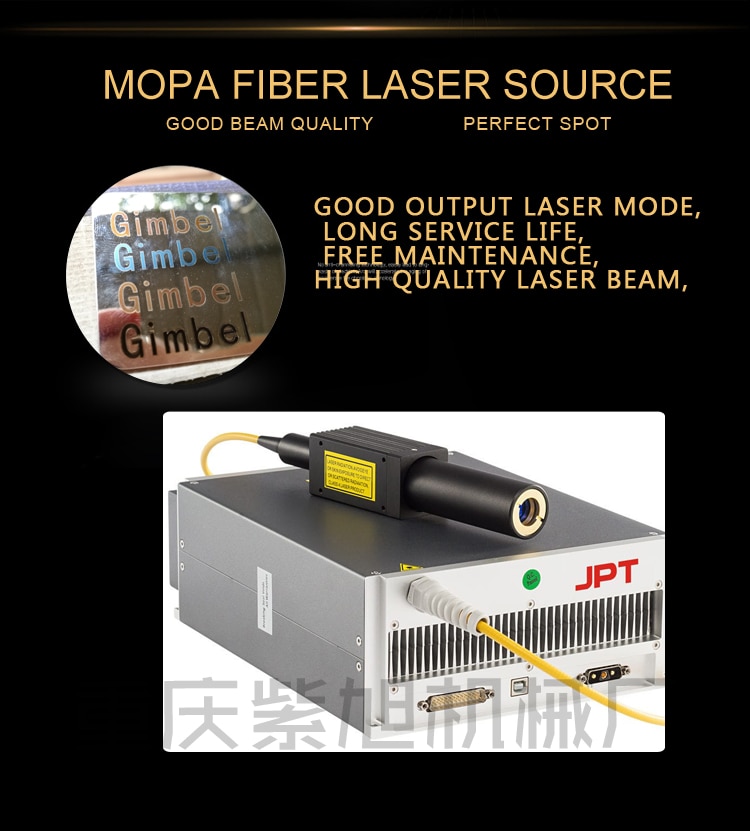

laser device
We use Germany band IPG laser source or Chinese brand Raycus laser source.The laser source two year
warranty,life long maintenance.Can be good to shorten the length of the working substance,by changing laser
cavity length to adjust.still can prolong service life,make it more durable.

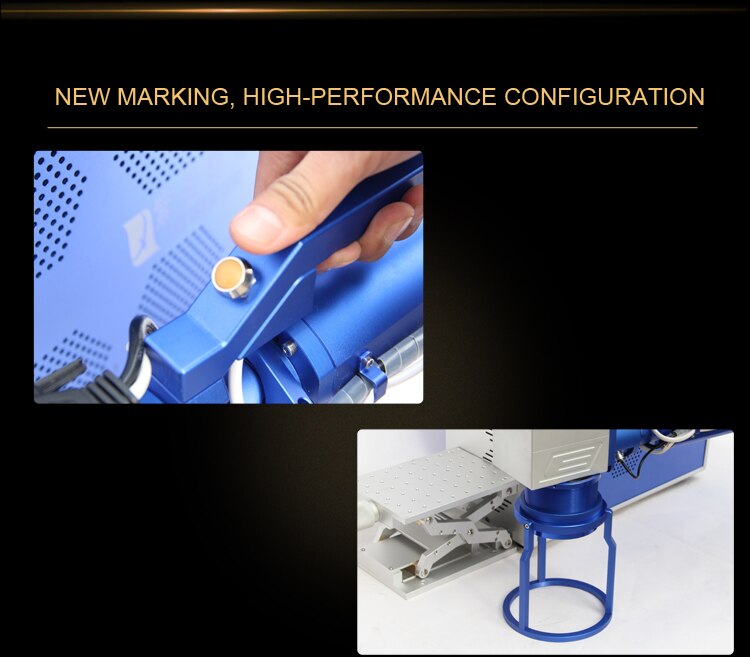

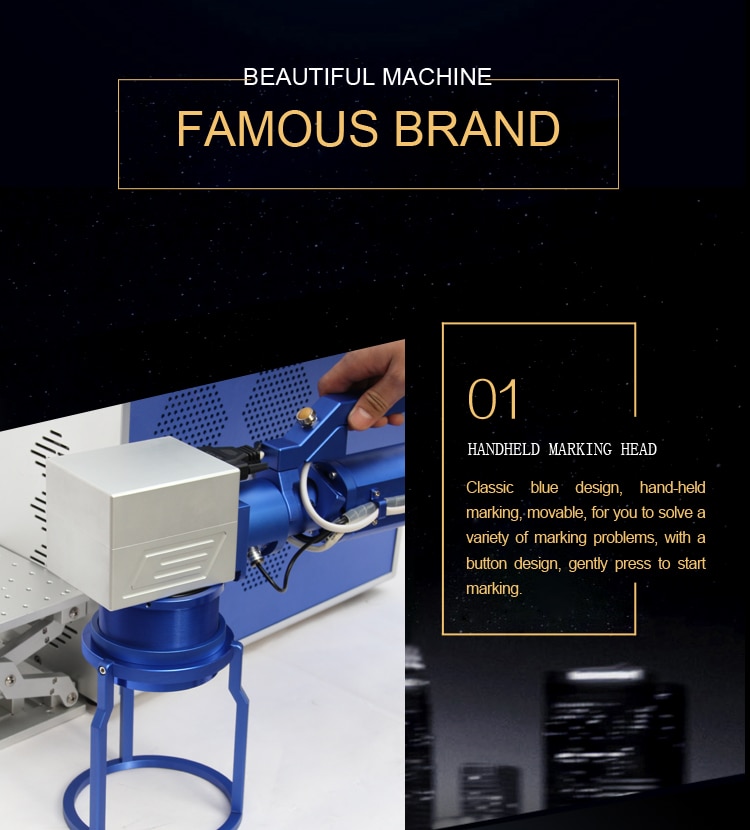

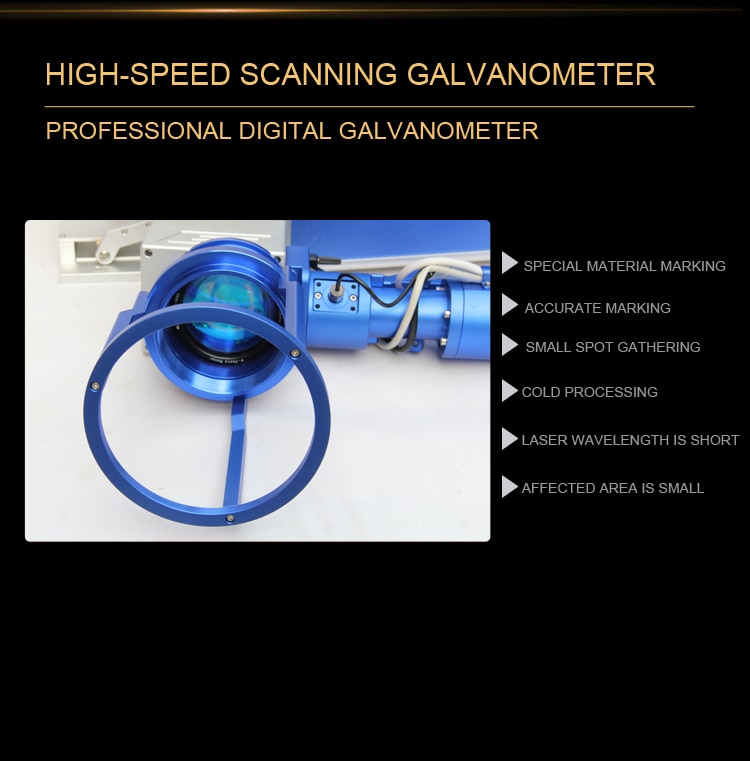

Marking head
The Marking head is SINO-GALVO,SUNNY or SCANLAB .Fast response ability <0.7ms,can realize high
speed marking and high precision,if you need flying marking,can custom made the marking head.

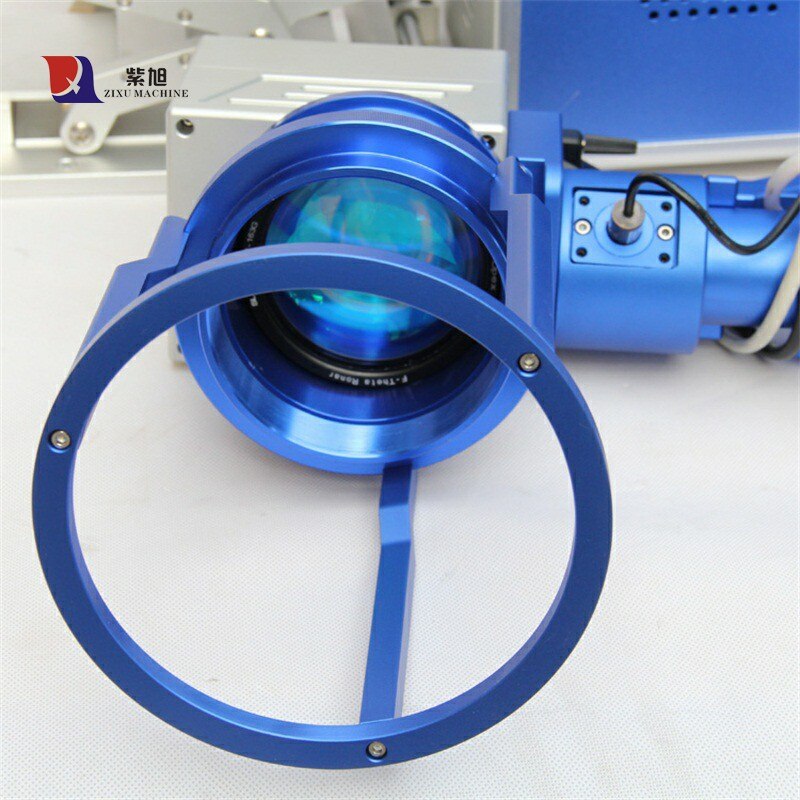

Field Lens
Improve the ability of edge beam incident to the detector,detector photosensitive non-uniform illumination on
the surface of the homogenization.The field lens area is 100x100,175x175,300x300mm.

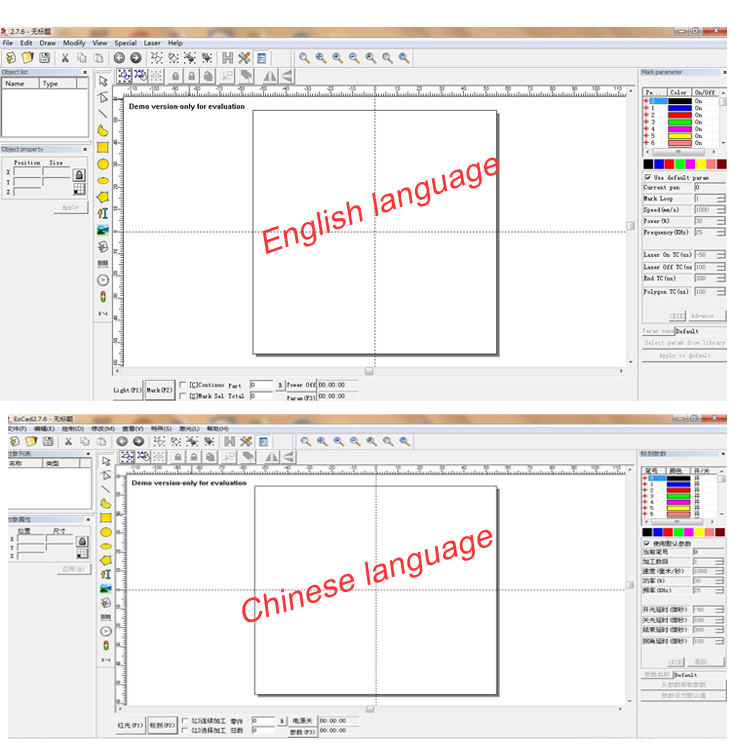

Mother card
EZ CAD control system with stable performance and hight reliability,Shield-utilizing part of complex functions,
ensuring higher stability.The software have the English,russian,Arabic Chinese,language.
Power supply
Control system use famous TAIWAN MW power supply with stable performance,professional technology and
long lifetime.
Foot switch
Press by foot,the machine can do marking,so easy to use.Dont need the hand.
Parameter
type | Fiber laser marking machine |
Size | 75x55x83cm |
Gross Weight | 75kg |
Laser power | 10/20/30/50 w |
Laser wavelength | 1064nm |
Power supply | 220V±10%/50Hz/4A |
Repeating precision | ±0.002 |
Repeating frequency | ±0.002 |
Marking range | 110x110mm(customize) |
Marking depth | 0.01~1mm |
Marking speed | 7000mm/s |
Minimum character | 0.15mm |
Minimum line width | 0.01mm |
Marking content | Graphics, text, bar codes, two-dimensional code, date, batch number, serial number |
Packing and shipping
The machine gross is 1-75KG, you can use express delivery. If more than 75KG, you can choose sea
transportation.
Delviery time | 3-10days |
Type of shipping | Express,air or sea |
Terms of payment | T/T,credit card,western union,paypal |
package size | 75x55x83cm |
Gross weight | 75KG |
After service
A: How to install and run the machine?
Our technician have installed the machine before shipping. For some small parts installation, we will send
detail training video, user’s manual along with the machine. 95% customers can learn by themselves.
B:How can I do if the machine goes wrong?
If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone
else. We will response within 24 hours as quick as we can to solve it for you.
- Power (W): 20W
- Rated Voltage: 220V
- Dimensions: 77X65X145CM
- Max. Output Power: 20W
- Focal Spot Diameter: 0.15MM
- Wavelength: 1057-1070MM
- Pulse Width: 0.01MM
- Single Pulse Energy: 30 W
- Model Number: FLMM-B01
- Usage: Marking logo
- Origin: Mainland China
- Software: Ezcad
- Colour: Blue
- Drive type: Fiber laser
- Product name: Colour Laser Marking Machine
- printing material: plastic
- Application: Metal and nonmetal
- Minimum character: 0.15mm
- Minnimum line width: 0.01mm
- power: 20w
- printing content: logo,number ,letter
