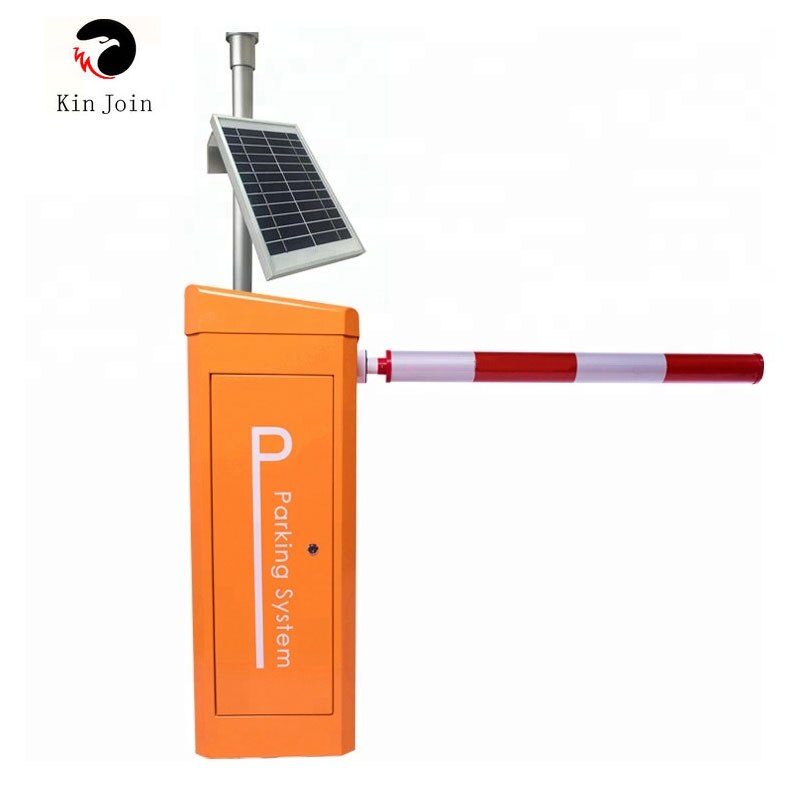

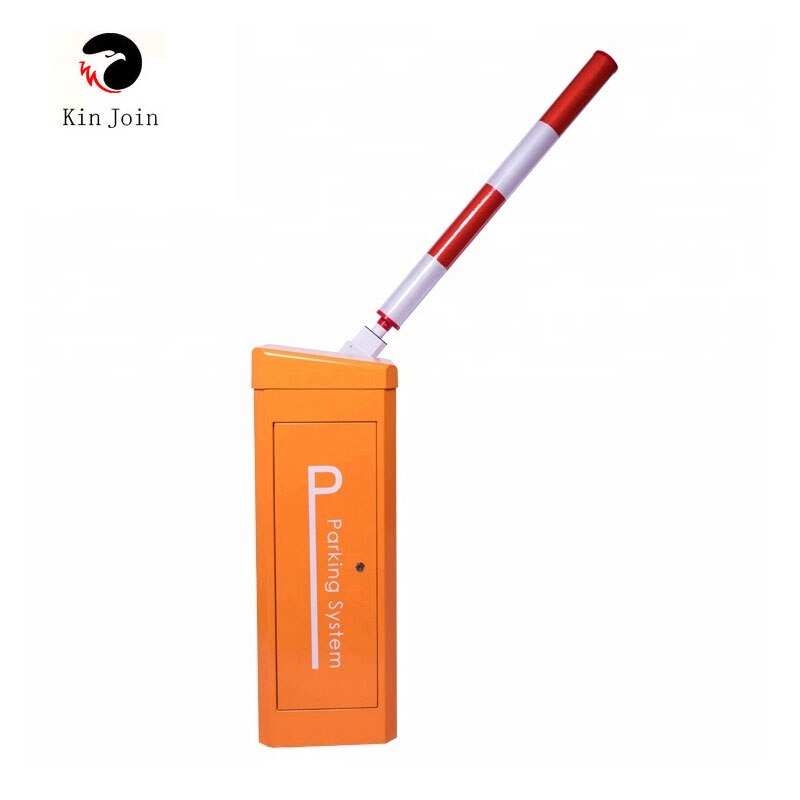

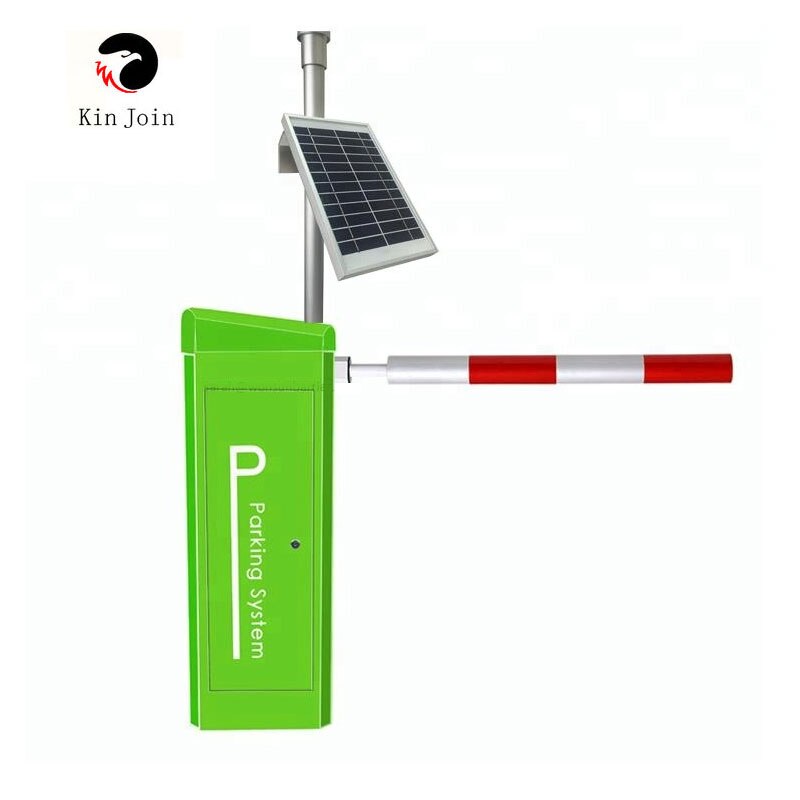

KinJoin Solar Power Parking Boom Barrier Gate Arm Barrier Gate Barrier System For Parking System Control/Gate Arm Barrier
0.0 ( votes)
Price:
US $2465.48
/ Set
Discount Price:
US $
2431.68
/ Set
-1%

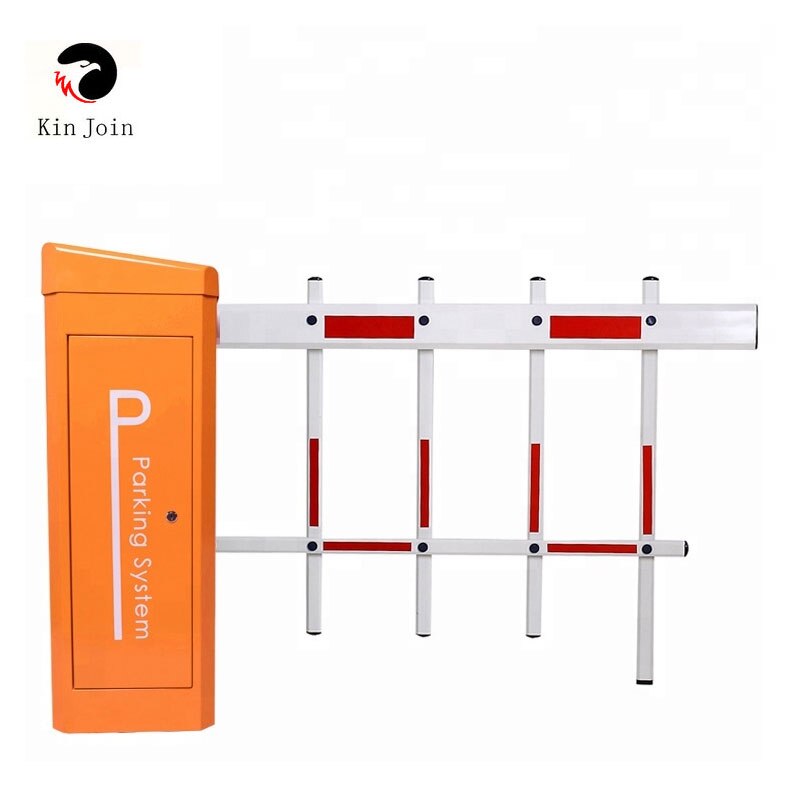

KinJoin Solar Power Parking Boom Barrier Gate Arm Barrier Gate Barrier System For Parking System Control/Gate Arm Barrier
Dc 24v Servo Motor Toll Gate Barrier Automatic Barrier Gate Support solar system
The length of the pole is less than 4.5 meters by default, if you need more than 4.5 meters, please contact sales

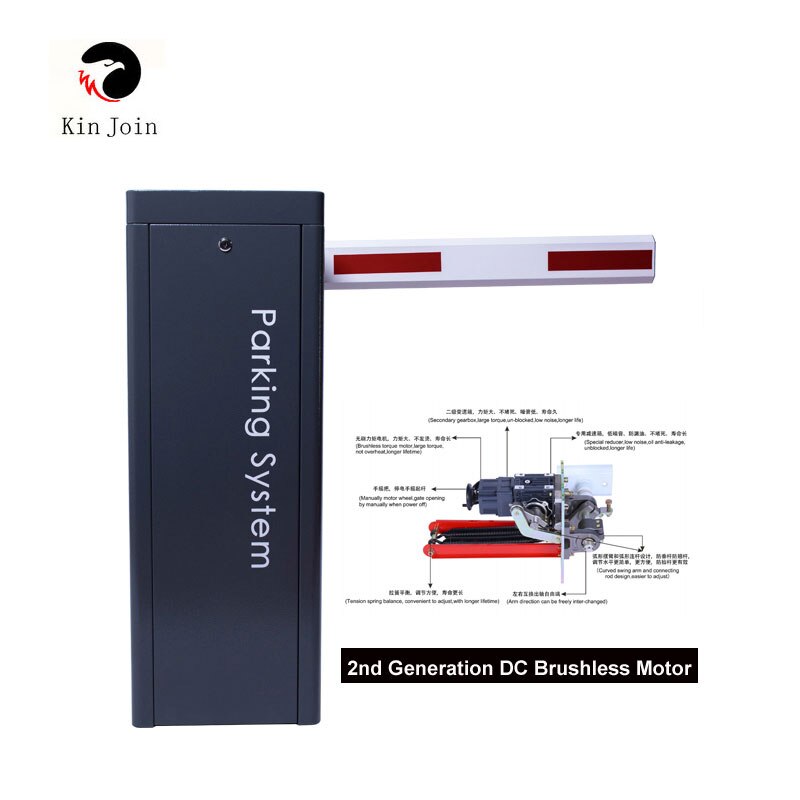

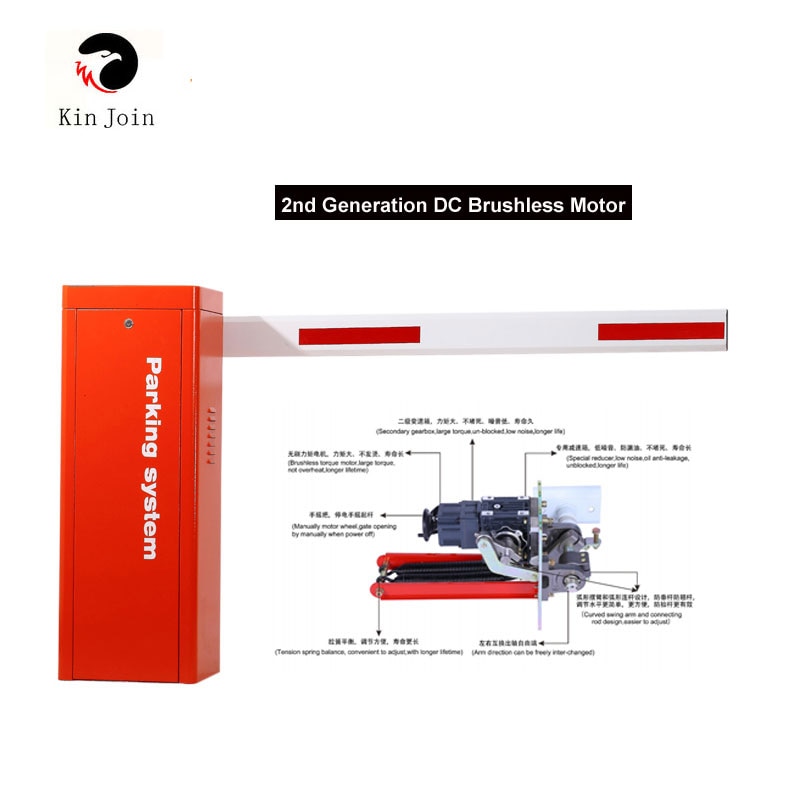

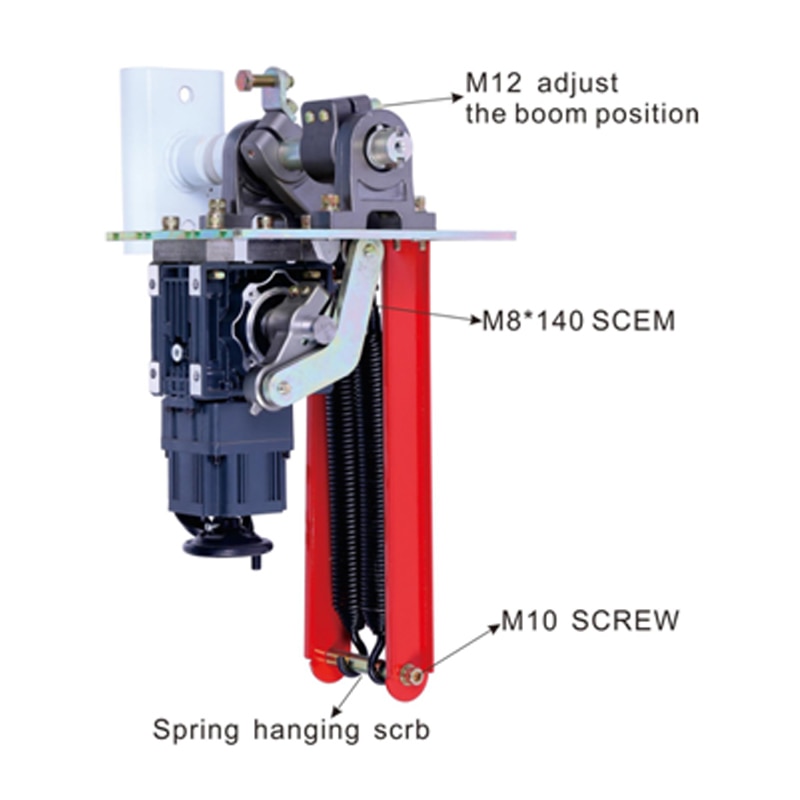

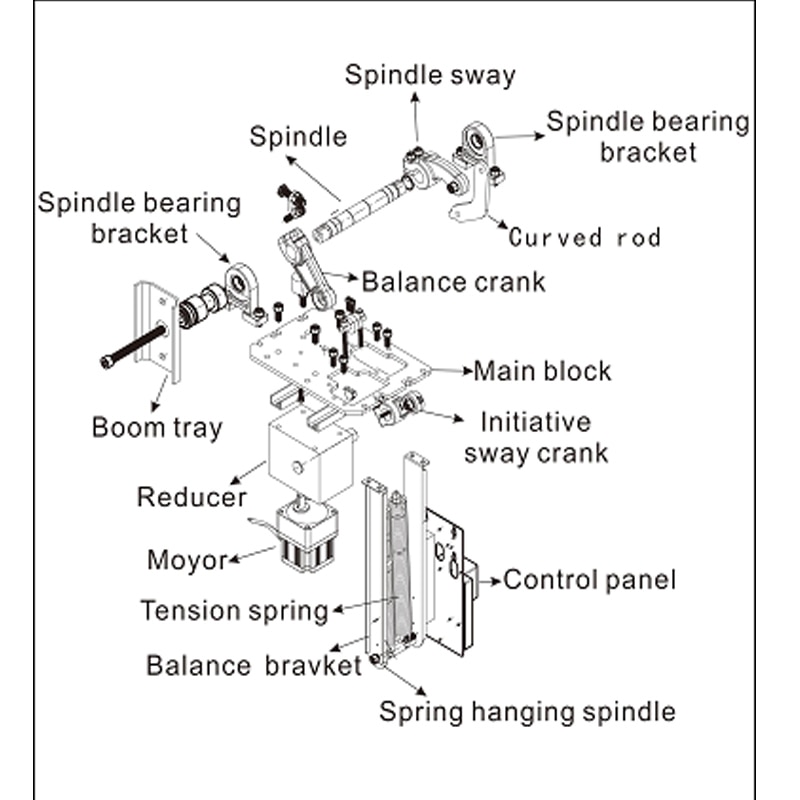

Thank you for purchasing the 2nd generation brushless barrier gate from KINJOIN . This product adopts the latest mold design technology, mold die-casting manufacturing technology, brushless control speed technology, and can be quickly interchanged, noclutch design , more reliable quality and more convenient use. The movement adopts two-stage worm gear transmis sion and curved crank arm three-link structure, and the landing rod is fast and stable. Easy maintenance and long service life .
Features:
1. The running speed can be adjusted from 1.5s to 3s

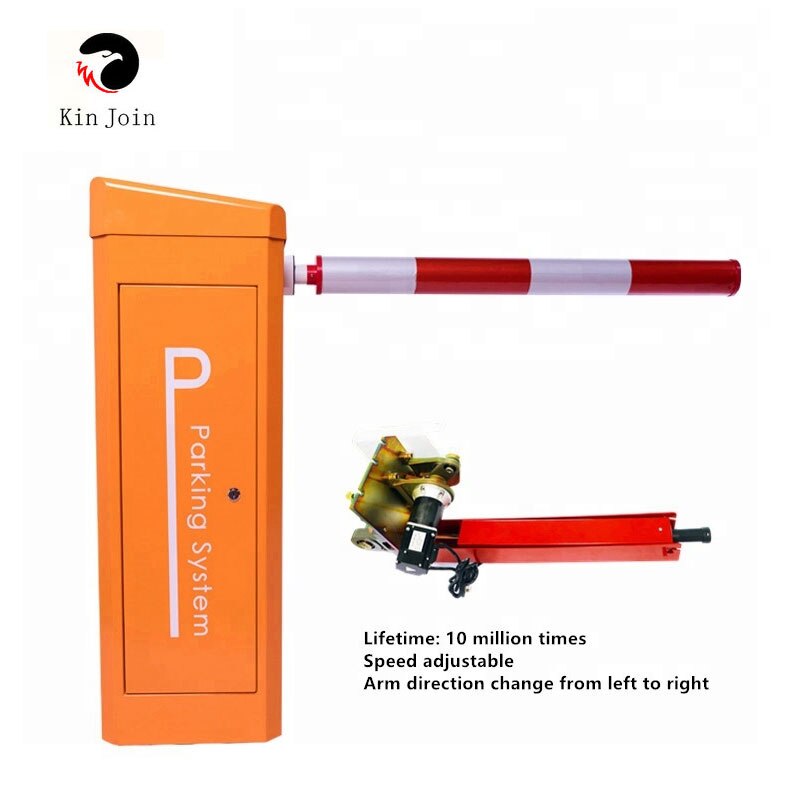

2.Can be quickly interchanged
3.Open the barrier gate by motor wheel when power off ,automatically reset after power on

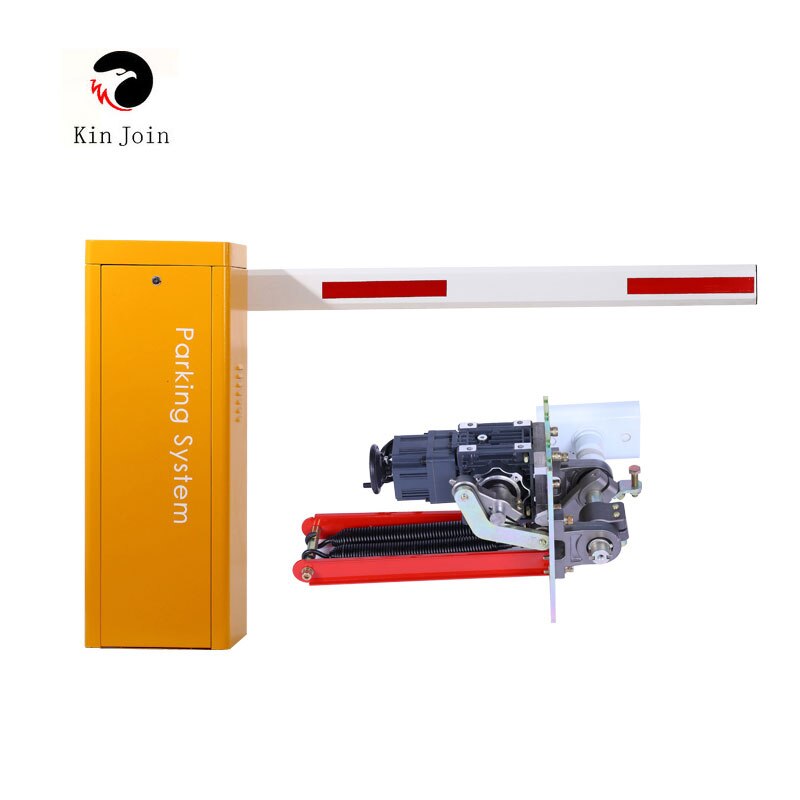

4.Curved crank arm three-link movement structure, the operation is stable.
5.Wireless remote control control open/close
6. Auto reverse function （ force adjustable ）
7.Infrared photocells connector is available
8.Loop detector connector is available.
9.Well-integrated with car parking system equipment,with wire control(must be switch signal)
10.Connector for traffic light(AC220V,power less than 40W)
11.Offering dry contact signal for car parking system(COM,NC,NO) 12Auto-delay when closing(adjustable)
13.RS485 or CAN network communication interface（ no need to install module ）
14.Counting interface
15.24V backup battery interface （ Can be charged by using solar energy ）
Technical parameters
1.Working temperature(motor): -35℃~+85℃
2.Rated voltage:DC24 V
3.Running speed :1.5s -3s
4. Rated current :8. 58A
5. Rated power :14 0W
6.No-load speed ： 1850 rp m
7. Rated speed ： 1400 rp m
8. Output Power ： 56.8 N. m
9 .Relative humidity ： ≤90%
10. Remote control distance: ≤100M （ in the open place）
11.IP Degree : IP44
12. Max length of arm ： 5M
- Model Number: DZ-116
- Brand Name: Kin Join
- Origin: Mainland China
- Straight arm: 3 s
- Rated voltage: DC24 V
- input power: AC110V/AC220V
