K202+R503 DC12V Low Power Consumption Fingerprint Control Board + R503 Fingerprint Module
5.0 (26 votes) | 194 orders
Price:
US $51.34
/ piece
Discount Price:
US $
47.69
/ piece
-7%
User manual for control board K202
Technical parameter:
Power supply: DC12V
Output: Relay(Max. current:10A)
Standby current: 15uA
Fingerprint capacity: 120 pieces
Size: 64.4*25.4mm

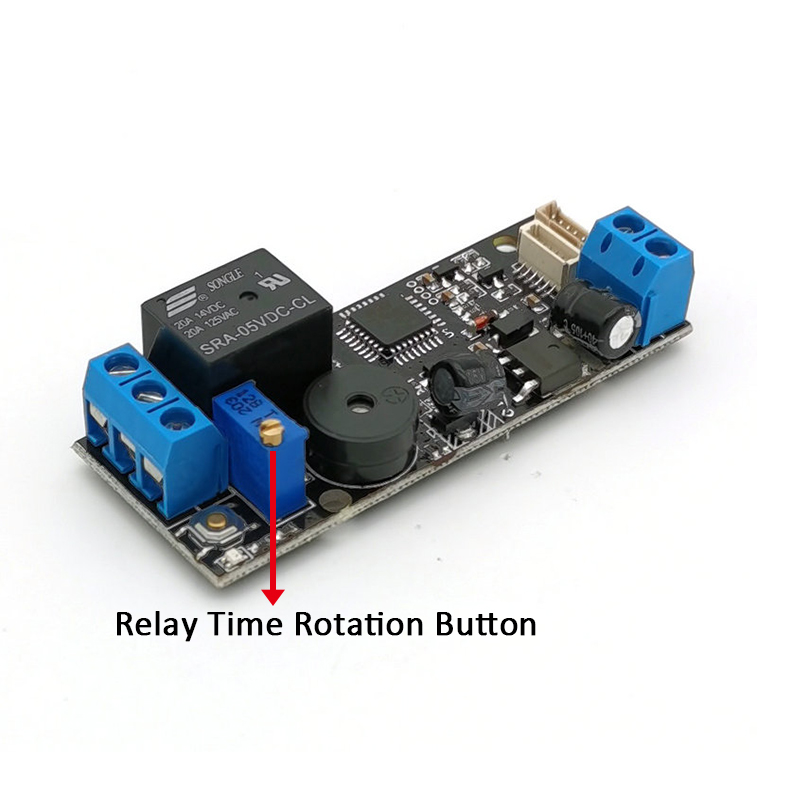

Relay Function: 0.5-30 second,it can be adjusted by rotating the relay time button.
K202 is designed for low power consumption and added the admin/user function.

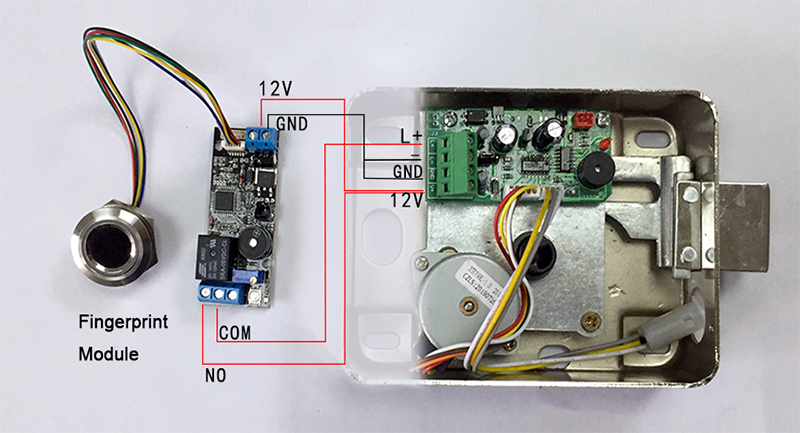

K202 Connection reference diagram:
Instructions for K202 control board:
1. Register Administrator Fingerprint: Press SET button shortly,blue indicator light flash fast and system in register state, put the same admin finger with multiple times in fingerprint collection area until hearing music means fingerprint register successful. Fingerprint can be registered continuously when system in register state; if no need adding fingerprint more, waiting a few seconds.
2. Register User Fingerprint: Press the administrator fingerprint until the blue indicator light flash fast and hear the music,means can add user fingerprint. Put the same user finger with multiple times in fingerprint collection area until hearing music means fingerprint register successful.Fingerprint can be registered continuously when system in register state; if no need adding fingerprint more, waiting a few seconds.
3. Delete User Fingerprint: Press the administrator fingerprint about 12 seconds until hear “Di-” and music,means user fingerprints are deleted.
4. Back to Factory Default: Press SET button until hear “Di” long beep and music,means initialization operation successful.
5. Set Relay Time: Rotate K2 to set the closing time of the relay from 0.5 to 30 seconds. The relay is contact output, switch signal, no voltage output.
6. Usage: Press the finger,the relay closes after the fingerprint passes, and the closing time is determined by K2.
Note:Any fingerprint can be used in the factory state, but the function will be invalid after the fingerprint is registered.

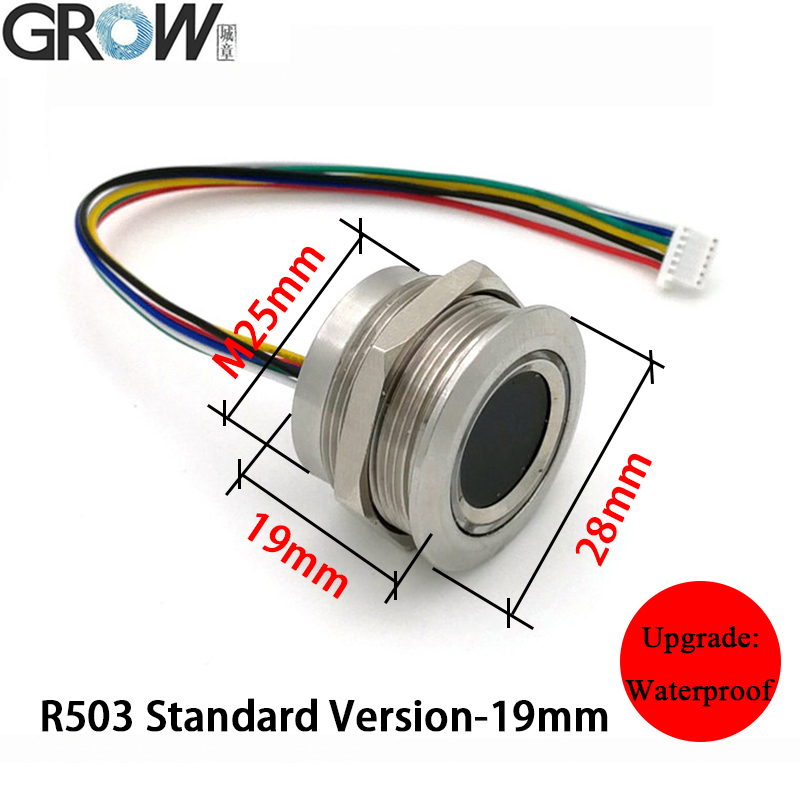

●R503 Upgrade to waterproof version, waterproof level: IP65
When the temperature of the use environment fluctuates greatly, it may affect the glue, thus affecting the waterproof effect.
●You can dowload K202 user manual from the following website:
https://www.dropbox.com/sh/9itshhkx0r9mdyt/AABPH-Dhleve3A1Mn5ZA34pCa?dl=0
●You can download the R503 user manual from this website link:
https://www.dropbox.com/sh/epucei8lmoz7xpp/AAAmon04b1DiSOeh1q4nAhzAa?dl=0
●K202+R503 Operation video for how to register fingerprint on Youtube: https://youtu.be/I_JdB_nY6xs
●K202+R503 Operation video for how to adjust relay time on Youtube: https://youtu.be/4VDyL9OCjsM
K202 Details:

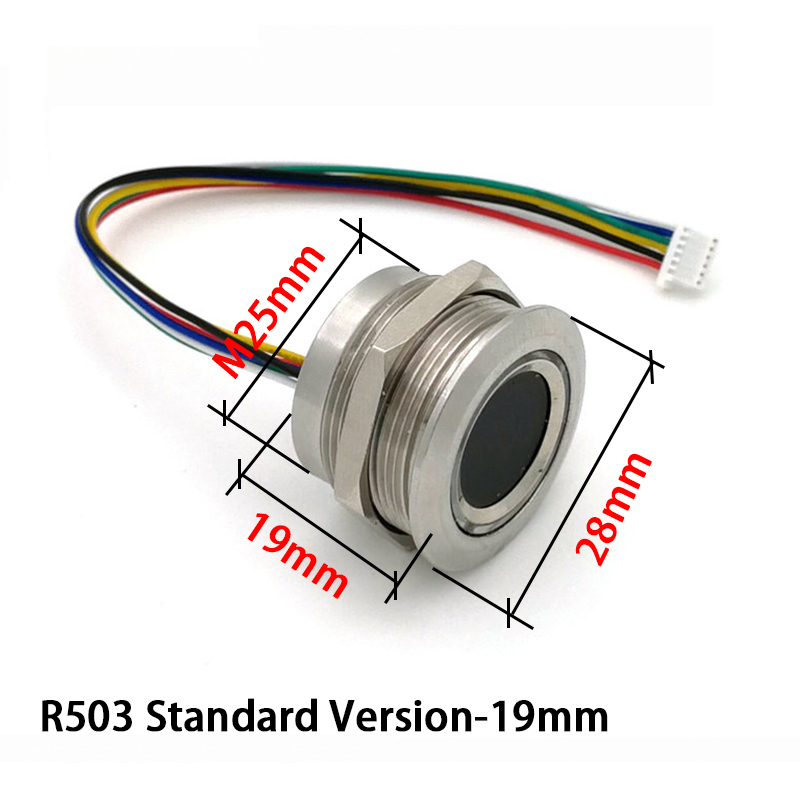

R503 Details:
For shipping list, please see the following photo:
K202 Fingerprint Control Board+R503 Fingerprint module
If need plastic enclosure for R503 fingerprint module, pls check this link:
Note: The enclosure can rain and dust resistant, but not waterproof.
If need zinc alloy enclosure for R503 fingerprint module, pls check this link:
- Model Number: K202+R503
- Brand Name: grow
- Origin: Mainland China
- Smart home platform: Other
- Certification: CE
- Power Supply: DC 12V
- Fingerprint capacity: 120
- Standby current: 15uA
- Output: Relay(Max. current:10A)
- K202 Size: 64.4*25.4mm
- R503 Size: Diameter 28mm
