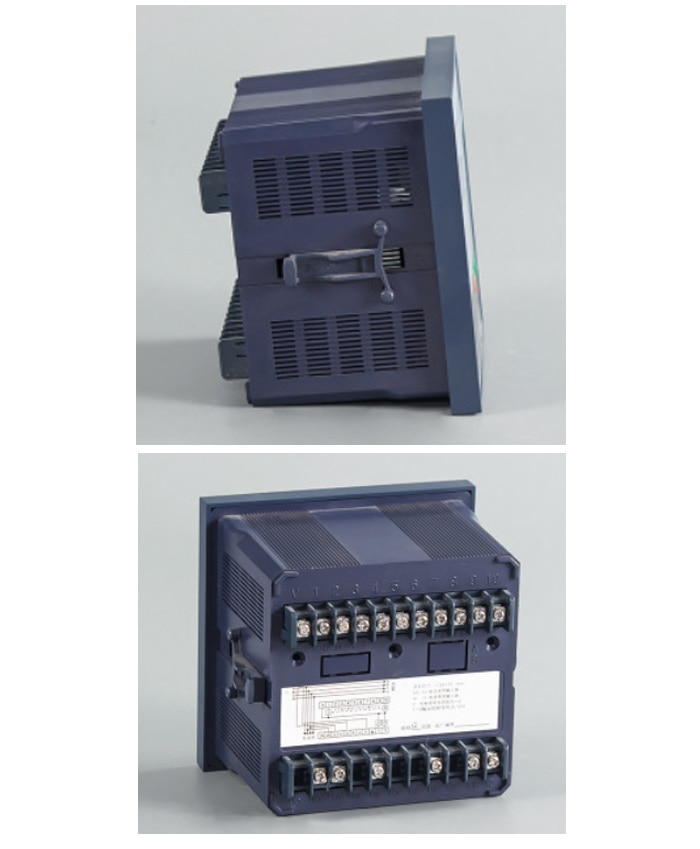

JKW2C/JKL2C  220V 4/6/8/10/12 Steps Reactive Power Factor Controller Automatic Compensation for Switchgear Switchboard Panel
SALE
ID: 27829

JKW2C/JKL2C 220V 4/6/8/10/12 Steps Reactive Power Factor Controller Automatic Compensation for Switchgear Switchboard Panel

0.0 ( votes)
Price: US $3252.72 / piece
Discount Price:
US $ 2802.40 / piece
-14%
Quantity



JKW58 PFR-12 reactive power compensator controller for power factor capacitor  380v Reactive power compensation controller



The power factor approve state of user

To improve the utilization efficiency of electric transformer

Reducing line loss

To improve the voltage quality of power supply



Specification

Item

Name

JKW58 PFR Reactive power compensation controller

1

LED/LCD Display will show
a.three-phase voltage,current, active power, reactive
b.power factor and power network frequency, control parameter

2

Strong anti-interference ability can resist 2kv impulse test ,keep data

3

You can revise control data sheet ,it will save data no power

4

Auto analysis phase function

5

Current get signal resistor less than 0.05Ω

6

Over voltage ,under voltage lack phase protection function

7

Input way: static ,Dynamic ,compound

8

Rated voltage

AC 220V±10%  AC 380V±10%

9

 Rated current

AC 0-5A

10

Rated frequency

50Hz±5%

11

Sensitivity

100mA

12

COS φ Preset

 0.80-0.99; step length 0.01; Factory preset 0.98 input and cutoff time

13

Input Delay

dynamic state 100ms-30S; Static state 1-250S;Factory preset dynamic state 5S;
static state 30S.

14

Over-voltage protection

230-260V; step length 1V; Return difference 6V  reset 240V

15

Under-voltage protection

180V;return difference 6V

16

Auto Discriminating Phase

ON/OFF; factory preset ON(Auto discriminating ON)

17

Reactive threshold

OFF-4-100kvar; factory preset OFF (reactive threshold inefficiency)

18

CT variation

50/5A-3000/5A; step length 1; factory preset 500/5A

19

Capacitance capacity

0-99kvar factor preset of each branch 10kvar

20

Contact capacity

dynamic state output of each branch DC12V×50mA
Static state output of each branch 380V×7A/200V×5A

21

size

113*113   138*138



Advantage

1.20 years global leading profession manufacture of energy meter

2.the precision of measurement

The current identification: the controller can judge the sampling current polarity and automatic conversion.

3.the display of choice

4.parameter setting function

5.protection function

6.control strategy, capacitors

7.output circuit design

8.Fast delivery : you will get the order when you need it

9.OEM is warmly welcome

10.Convenient : 45 minutes to wenzhou airport



Function

1.Control signal: comprehensive control by using the power factor and reactive current of two physical quantities

2.Step :step number selected by the user

3.Data storage: after the loss of electricity parameter settings will not be lost, data save permanently

4.Adaptability: automatically adapt to the distribution system of different parameters of the controller, does not need to provide the transformation ratio of current transformer and capacitor compensation capacity

5.Overvoltage protection: the voltage is higher than the set value quickly over voltage, gradual resection capacitors have been put

6.Strong anti-interference: unique design, crash, indiscriminately, indiscriminate cutting phenomenon can not occur in operation

7.Switching shocks: can prevent the small current load and over voltage critical values appear repeated switching

8.High sensitivity: compensator can work normally in the input signal when the current is 0.10A

9.Display error: input signal power of current 0.10A to 5A changes due tonumerical error measurement showed minimal

10.The current identification: the controller can judge the sampling current polarity and automatic conversion



新的很舒服的详情模板_04新的很舒服的详情模板_05

JKW58 PFR-12 reactive power compensator controller for power factor capacitor  380v Reactive power compensation controller



The power factor approve state of user

To improve the utilization efficiency of electric transformer

Reducing line loss

To improve the voltage quality of power supply



Specification

Item

Name

JKW58 PFR Reactive power compensation controller

1

LED/LCD Display will show
a.three-phase voltage,current, active power, reactive
b.power factor and power network frequency, control parameter

2

Strong anti-interference ability can resist 2kv impulse test ,keep data

3

You can revise control data sheet ,it will save data no power

4

Auto analysis phase function

5

Current get signal resistor less than 0.05Ω

6

Over voltage ,under voltage lack phase protection function

7

Input way: static ,Dynamic ,compound

8

Rated voltage

AC 220V±10%  AC 380V±10%

9

 Rated current

AC 0-5A

10

Rated frequency

50Hz±5%

11

Sensitivity

100mA

12

COS φ Preset

 0.80-0.99; step length 0.01; Factory preset 0.98 input and cutoff time

13

Input Delay

dynamic state 100ms-30S; Static state 1-250S;Factory preset dynamic state 5S;
static state 30S.

14

Over-voltage protection

230-260V; step length 1V; Return difference 6V  reset 240V

15

Under-voltage protection

180V;return difference 6V

16

Auto Discriminating Phase

ON/OFF; factory preset ON(Auto discriminating ON)

17

Reactive threshold

OFF-4-100kvar; factory preset OFF (reactive threshold inefficiency)

18

CT variation

50/5A-3000/5A; step length 1; factory preset 500/5A

19

Capacitance capacity

0-99kvar factor preset of each branch 10kvar

20

Contact capacity

dynamic state output of each branch DC12V×50mA
Static state output of each branch 380V×7A/200V×5A

21

size

113*113   138*138



Advantage

1.20 years global leading profession manufacture of energy meter

2.the precision of measurement

The current identification: the controller can judge the sampling current polarity and automatic conversion.

3.the display of choice

4.parameter setting function

5.protection function

6.control strategy, capacitors

7.output circuit design

8.Fast delivery : you will get the order when you need it

9.OEM is warmly welcome

10.Convenient : 45 minutes to wenzhou airport



Function

1.Control signal: comprehensive control by using the power factor and reactive current of two physical quantities

2.Step :step number selected by the user

3.Data storage: after the loss of electricity parameter settings will not be lost, data save permanently

4.Adaptability: automatically adapt to the distribution system of different parameters of the controller, does not need to provide the transformation ratio of current transformer and capacitor compensation capacity

5.Overvoltage protection: the voltage is higher than the set value quickly over voltage, gradual resection capacitors have been put

6.Strong anti-interference: unique design, crash, indiscriminately, indiscriminate cutting phenomenon can not occur in operation

7.Switching shocks: can prevent the small current load and over voltage critical values appear repeated switching

8.High sensitivity: compensator can work normally in the input signal when the current is 0.10A

9.Display error: input signal power of current 0.10A to 5A changes due tonumerical error measurement showed minimal

10.The current identification: the controller can judge the sampling current polarity and automatic conversion


  • Rated Current: 5A
  • Rated Voltage: 220V
  • Brand Name: zjsihegf
  • Origin: Mainland China
  • Certification: CE
