JKL2CF-10 step 220V power factor controller cos for low voltage power capacitor power correction device

0.0 ( votes)
Price: US $205.45 / piece
Discount Price:
US $ 135.51 / piece
-34%
Quantity

this link only for

JKL2CF-10 step 220V  power factor controller cos for low voltage power capacitor power correction device

The power factor approve state of user
To improve the utilization efficiency of electric transformer
Reducing line loss
To improve the voltage quality of power supply

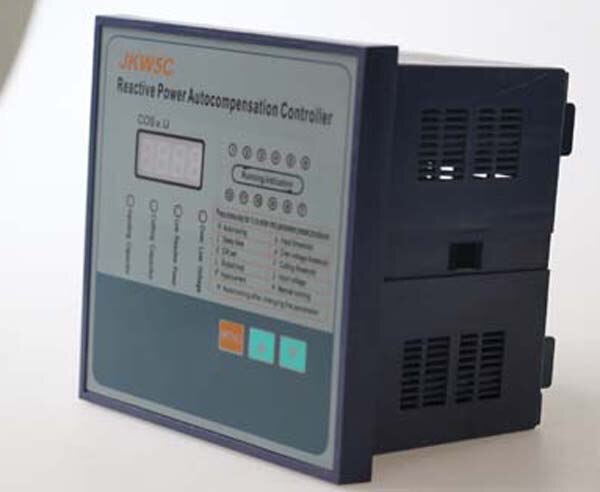

JKW5C power factor regulator compensation controller  for power factor capacitor 12step 380v PRCF Specification

Item

Name

JKW5C power factor regulator compensation controller  for power factor capacitor 12step 380v PRCF

1


LED/LCD Display will show

a.three-phase voltage,current, active power, reactive
b.power factor and power network frequency, control parameter

2

Strong anti-interference ability can resist 2kv impulse test ,keep data

3

You can revise control data sheet ,it will save data no power

4

Auto analysis phase function

5

Current get signal resistor less than 0.05Ω

6

Over voltage ,under voltage lack phase protection function

7

Input way: static ,Dynamic ,compound

8

Rated voltage

AC 220V±10%  AC 380V±10%

9

Rated current

AC 0-5A

10

Rated frequency

50Hz±5%

11

Sensitivity

100mA

12

COS φ Preset

0.80-0.99; step length 0.01; Factory preset 0.98 input and cutoff time

13

Input Delay


dynamic state 100ms-30S; Static state 1-250S;Factory preset dynamic state 5S;
static state 30S.

14

Over-voltage protection

230-260V; step length 1V; Return difference 6V  reset 240V,

15

Under-voltage protection

180V;return difference 6V

16

Auto Discriminating Phase

ON/OFF; factory preset ON(Auto discriminating ON)

17

Reactive threshold

OFF-4-100kvar; factory preset OFF (reactive threshold inefficiency)

18

CT variation

50/5A-3000/5A; step length 1; factory preset 500/5A

19

Capacitance capacity

0-99kvar factor preset of each branch 10kvar

20

Contact capacity

dynamic state output of each branch DC12V×50mA
Static state output of each branch 380V×7A/200V×5A

21

size

113*113   138*138




  • Rated Current: 5A
  • Rated Voltage: 220V
  • Origin: Mainland China
  • Certification: NONE
