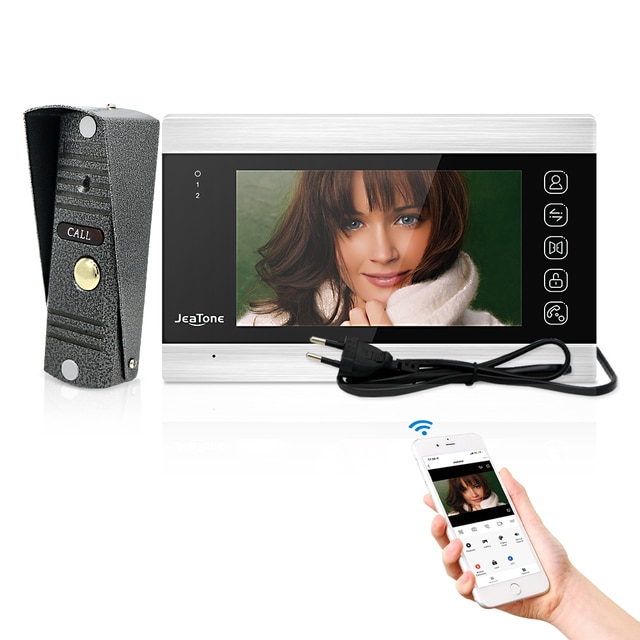

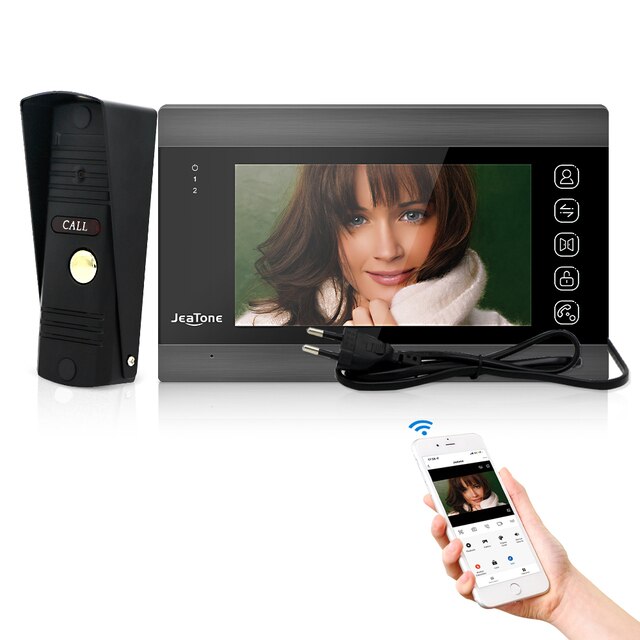

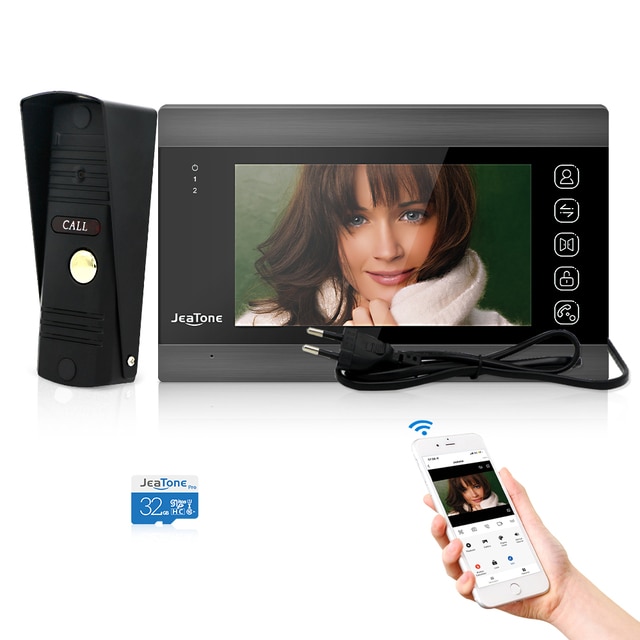

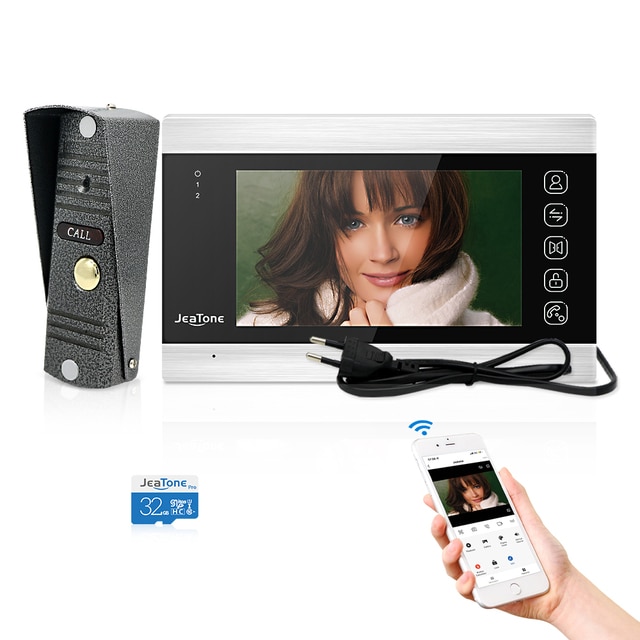

JeaTone Tuya Smart Home Video Intercom System 7 Inches Wireless WiFi Video Door Phone with 720P/AHD 110° Wired Doorbell Camera
4.6 (27 votes) | 237 orders
Price:
US $344.68 - 459.30
/ Set
Discount Price:
US $
206.82 -
268.51
/ Set
-40%
- Ships From
- Color
-
-
Restore factory settings
Doorbell Camera:
* Camera sensor: 1/3 CMOS,720P
* 110°wide angle camera
* Anti-oxidation aluminium alloy panel
* Simple 4-wire connection
* IR LED illumination for better night vision
* Keypad with blue LED backlight for night operation
* Rainproof,Dustproof,and Anti-vandal

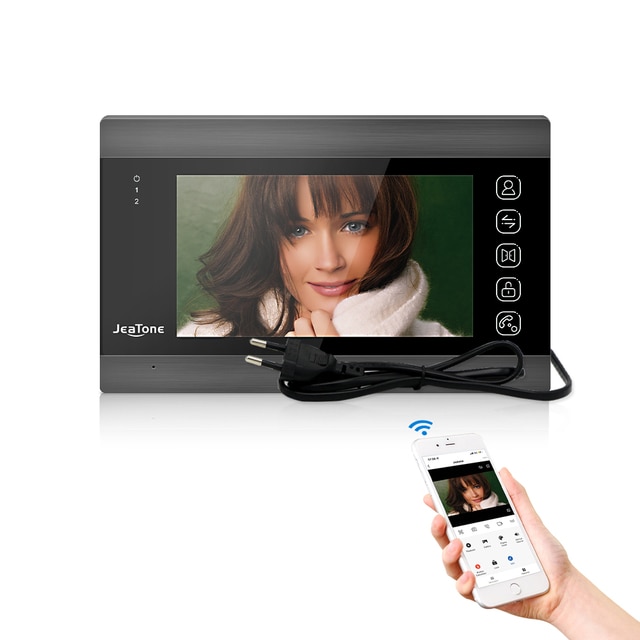

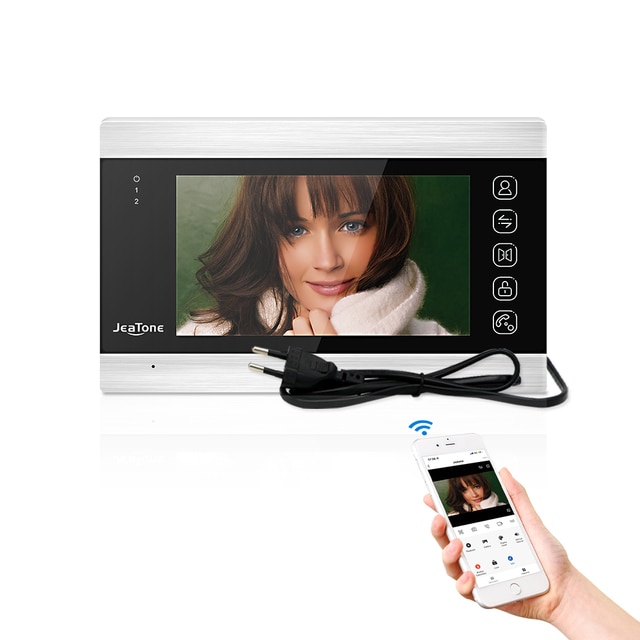

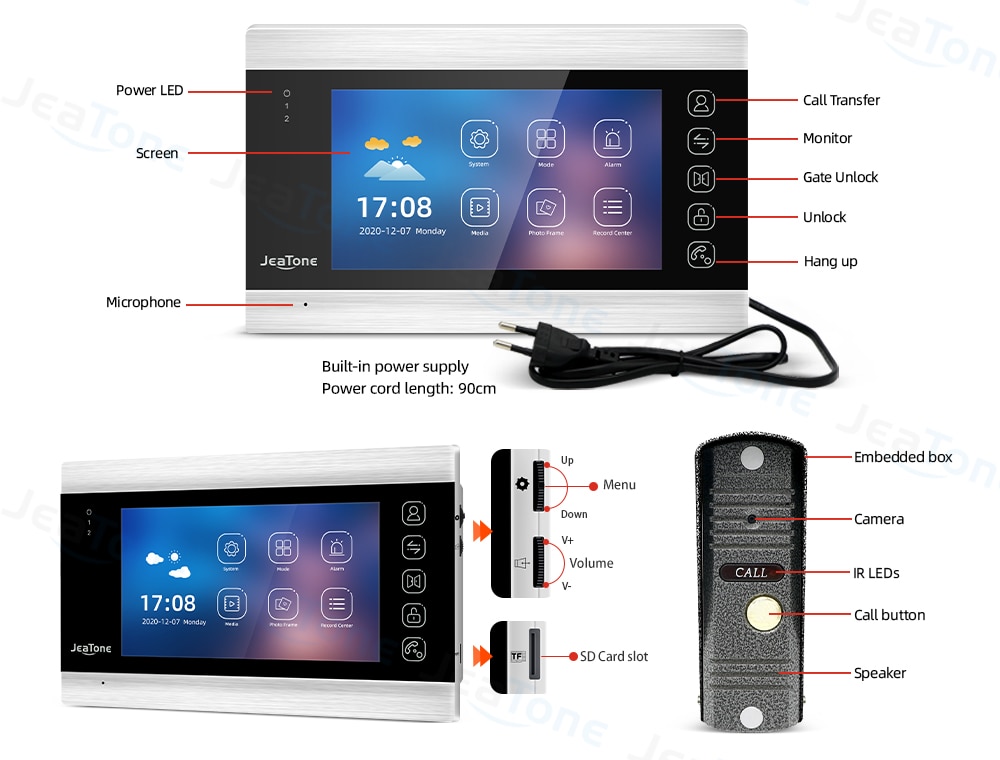

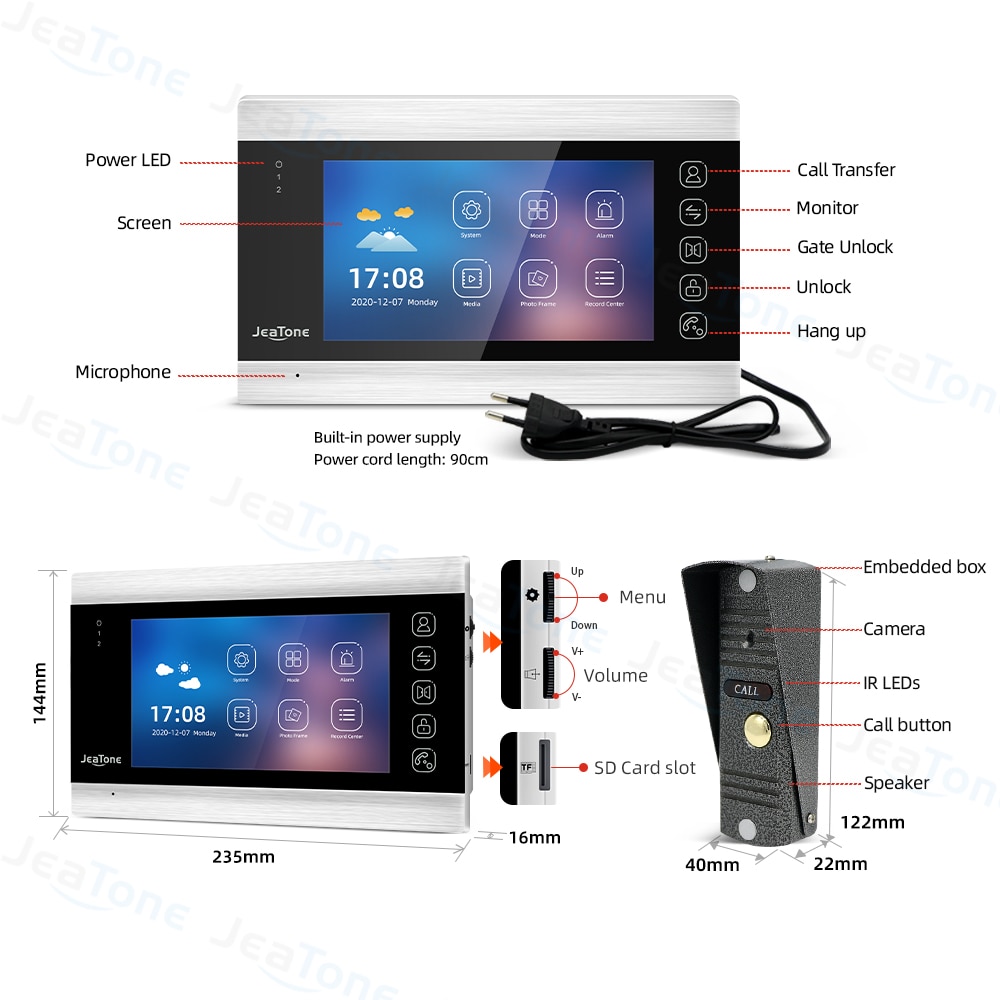

Monitor:
* Display:7" TFT LCD(16:9),1024(H)x600(V)
* Unlock: Monitor,smartphone and tablet unlock
* Memory: Micro SD Card (not include,32GB max.)
* Network: WIFI/RJ45 port
* Power Supply:Built-in(AC 100~240V),DC12V
* Multiple Intercom:Up to 6 monitors
* Multiple Doorbell:Up to 2 doorbells
* Ringtone:16 ringtones optional
* Made Of Acrylic wire drawing panel and TFT display
* Installation: Surface mount(Wall mount)

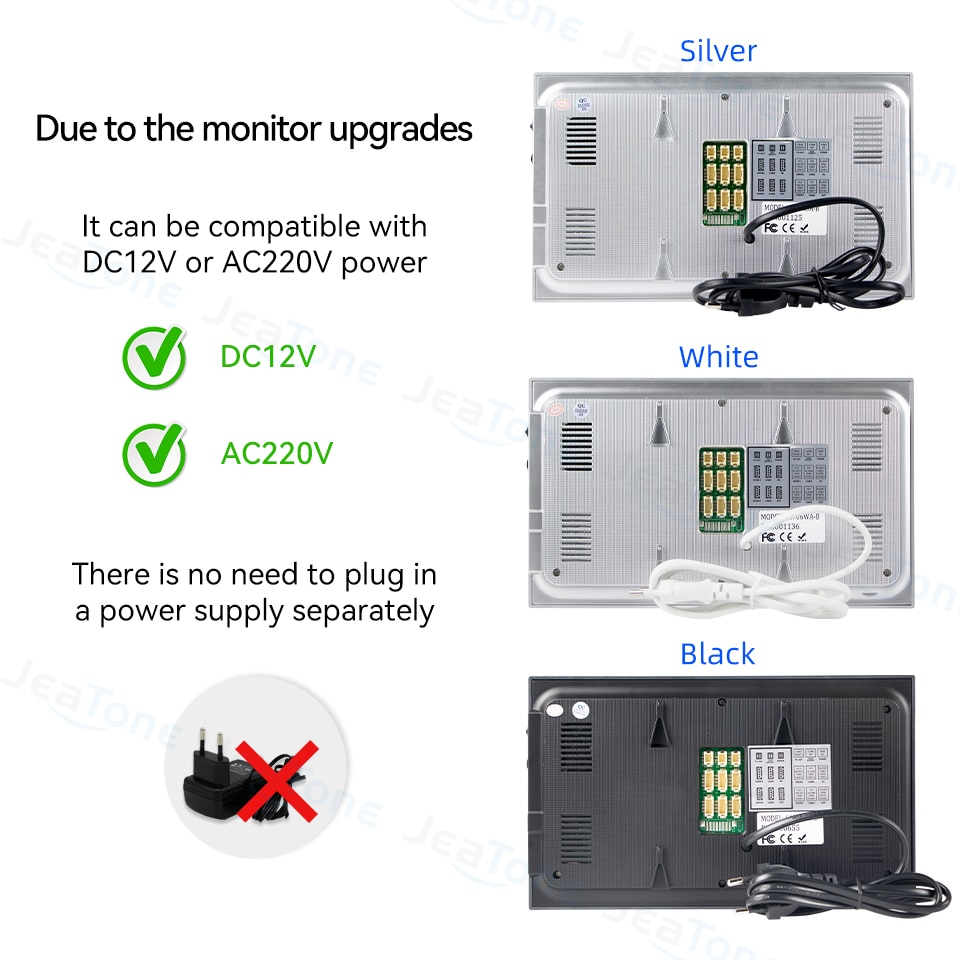

Noticed:
Because internal power kits support AC210V-240V and DC12V. Our company will send Internal Power adapter kit by Default from China Warehouse.

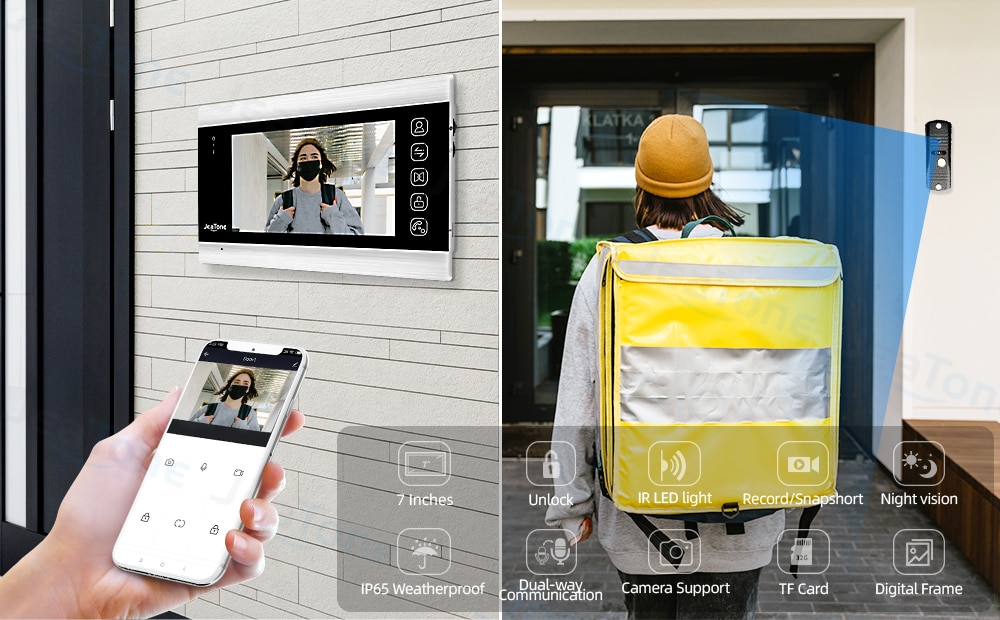

JeaTone Hot Tuya Smart Video Intercom for Villa
One-button hands-free two-way intercom
Hands-free intercom function, clear sound quality and no noise

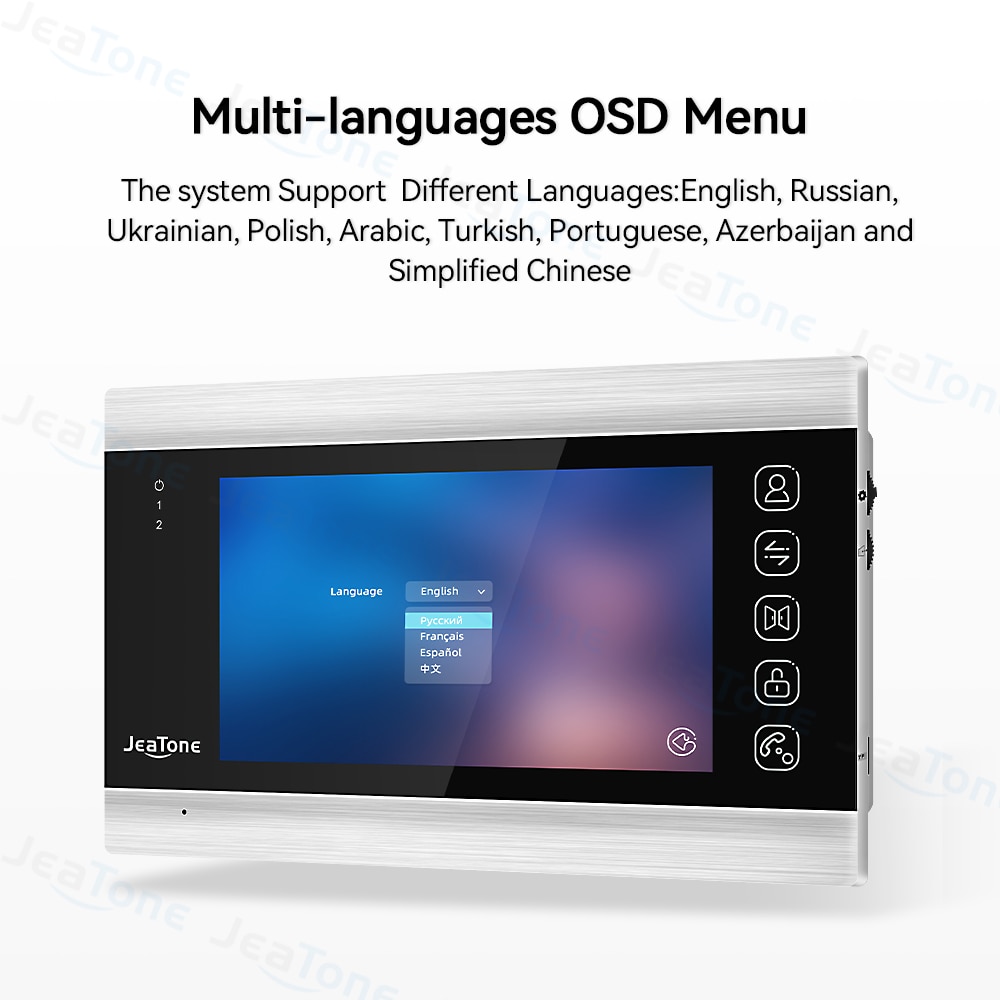

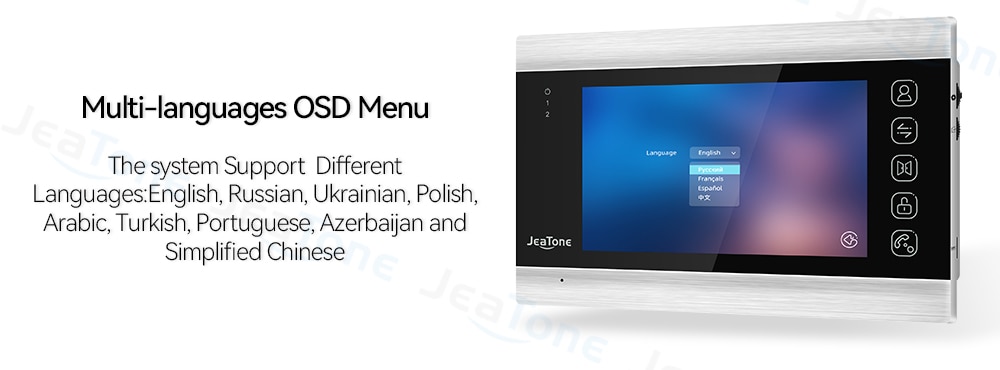

Multi-languages OSD Menu
The System Supports fourteen Different Languages: English, Russian, Ukrainian, Hebrew, Polish, Spanish, French, Italian, German, Portuguese, Portuguese, Turkish, Hungarian, Arabic and Azerbaijani.
Motion Detection Function
Built-in human body sensor (PIR), real-time perception of the dynamics in front of the door, dual induction protection, no error report, and alarm immediately when a person is sensed.

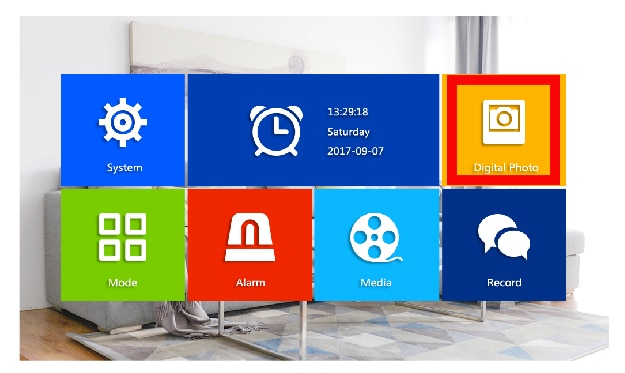

Digital photo frame mode
In Digital Photo Frame mode, the Monitor cycles through the photos in the \USER\Photo directory on the MicroSD card.
NOTE:
1.By default, the clock is displayed on standby mode. If the Digital Photo Frame is turned ON, then he images saved on the microSD card are displayed instead.
2.The \USER\photo directory on the MicroSD card must be manually created. Pictures stored in his directory will be displayed. Note: The directory name is case sensitive.

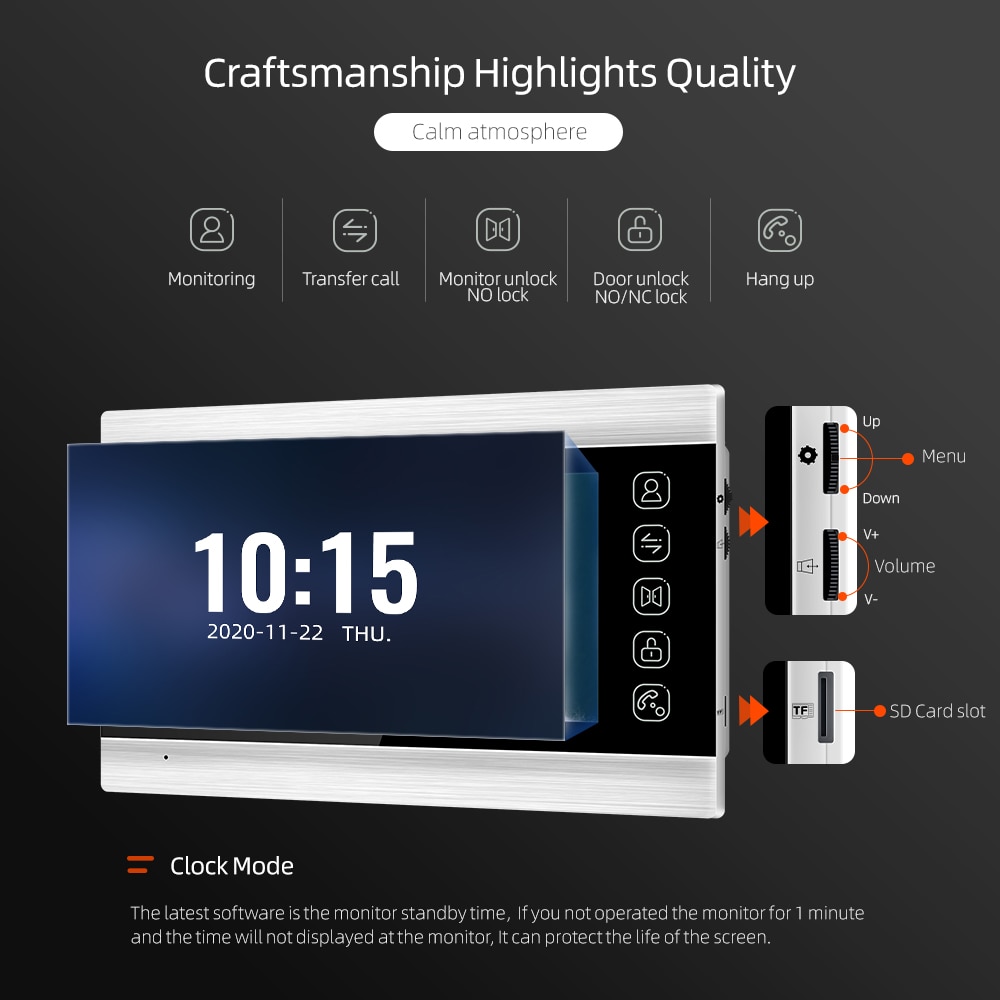

Clock & Date Mode
Clock/date display on standby mode within 60 second, after disappear enter black screen mode protect LCD.
Note: Message icon display on standby mode if visitor leave a message.
Video or Picture Record, SD Card Supported (Not Included)
When Someone Rings The Doorbell, The Monitor Inserted With SD Card Will Record Picture or Video Automatically. If The SD Card Doesn't Applied, The Monitor Will Just Only Record Picture. The Built-in Memory Could Save 86 Pictures, With SD Card, You Can Set The Recording Mode To Video. When The SD Card Is Fulled, The Earliest Recorded Video Will Be Deleted Automatically.

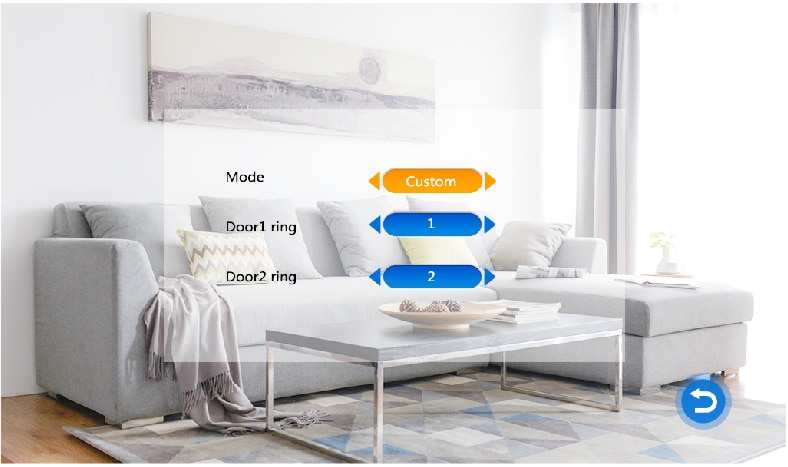

Multi Optional Ringtones
There are two mode for ring-tones: “Custom ”and“Default ”.There are 10 default inbuilt ringtones for selection. In the “Custom ”mode,user ringtones can be selected from the “\USER\Ring ”directory on the microSD card.
NOTE:
1.Create a “\USER\Ring ”directory on the microSD card. Only music stored in this ring folder an be used as Custom ringtones.
2.The ringtone name must be ring_1~ring_10.
3.The ringtone files must be in MP3 format.

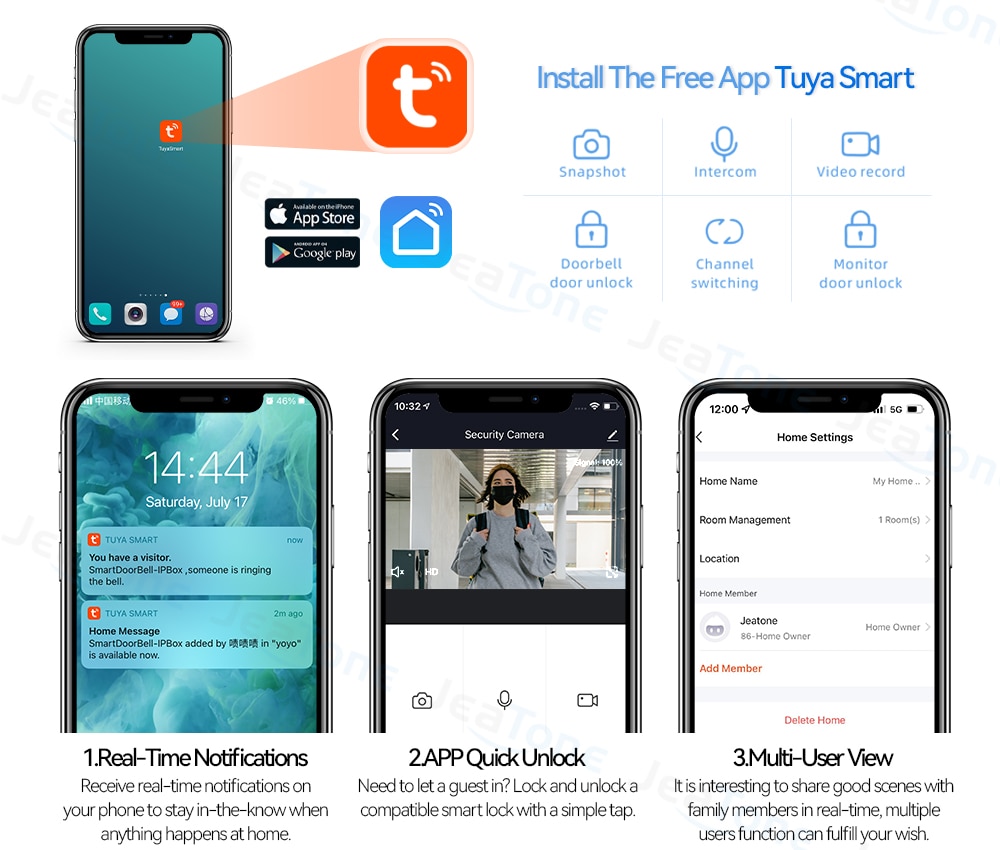

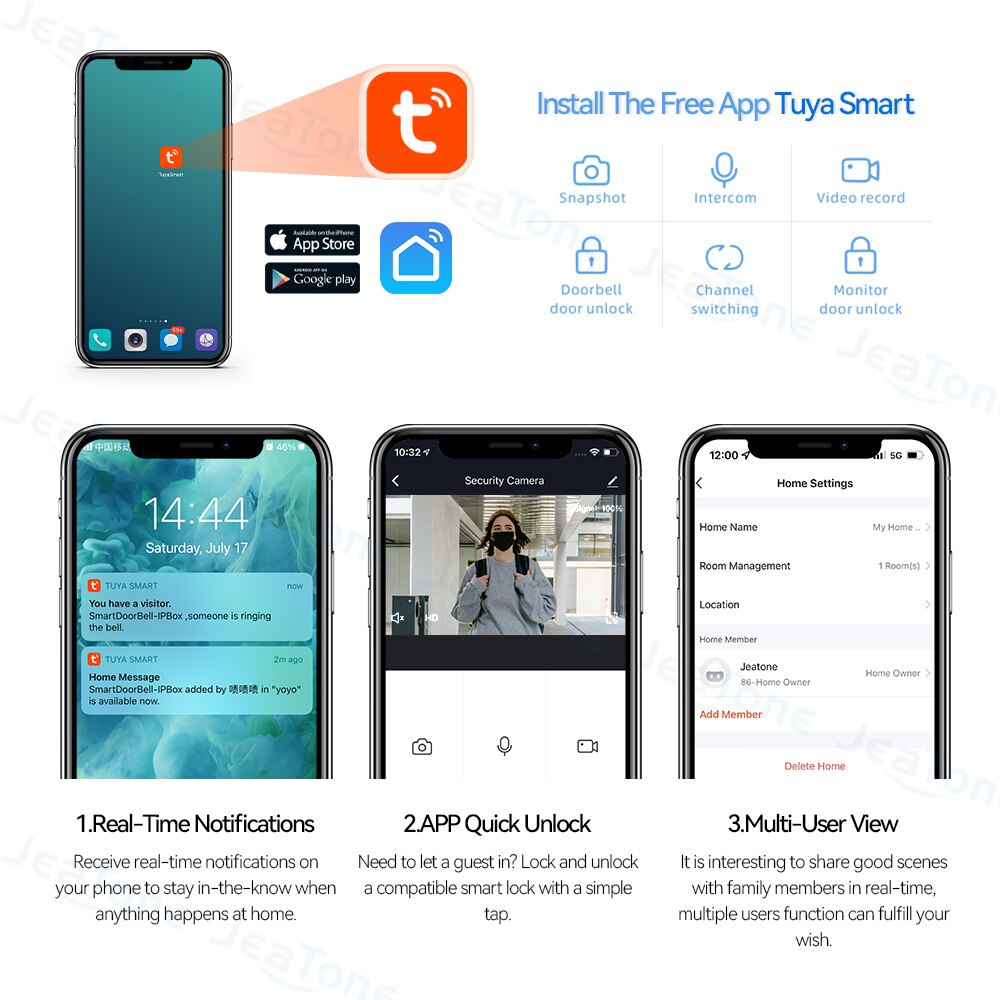

Complete control from the Phone App
1.Real-Time Notifications
Receive real-time notifications on your phone to stay in-the-know when anything happens at home.
2.APP Quick Unlock
APP remote unlocking saves time
3.Multi-User View
Sharing with other phone user, multiple users function can fulfill your wish.

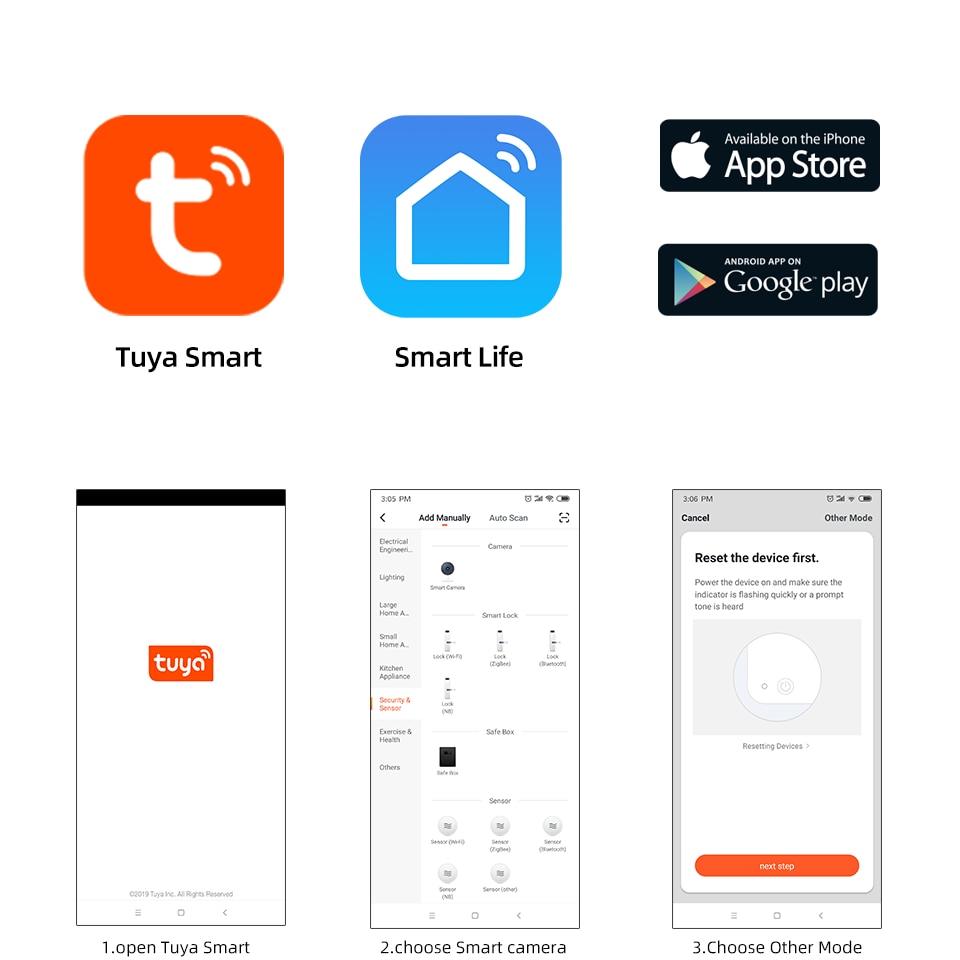

Tuya Smart APP Connection Method
There has two Application that we can use, one is Tuya Smart, another is Smart Life. After you connect the monitor to your phone, you can unlock and monitor the door anytime and anywhere.

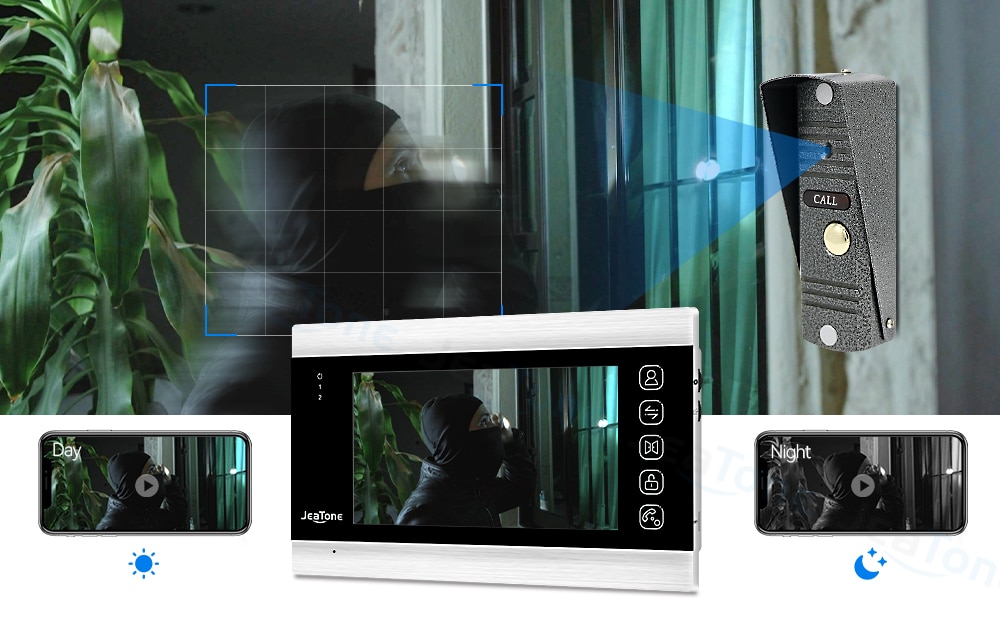

Rainproof and Night vision Video Doorbell Camera
IP65 waterproof design,work stable in rainy,cloudy,cold and snow day.
Built with 720P/1.0MP camera,Rainproof,Dustproof,and Anti-vandal.
IR LED illumination for better night vision.
Only supports connecting wired cameras, not wireless cameras

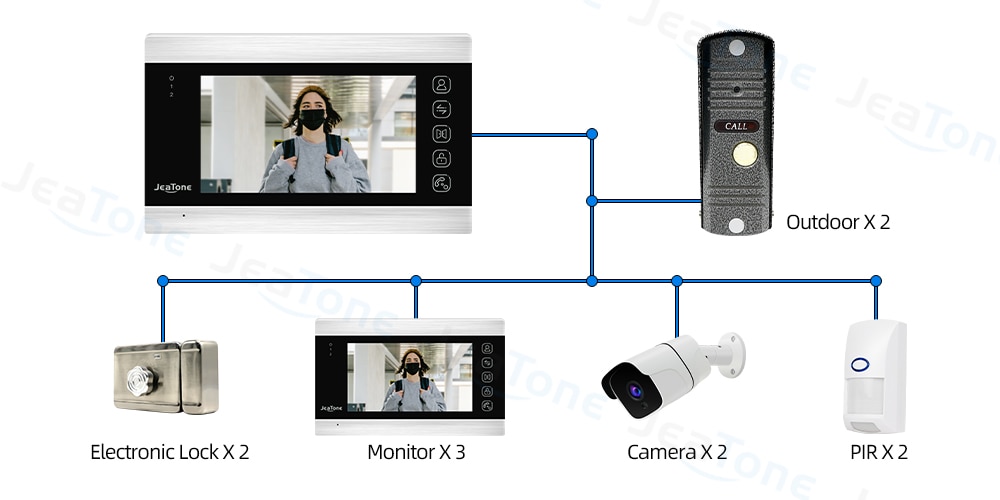

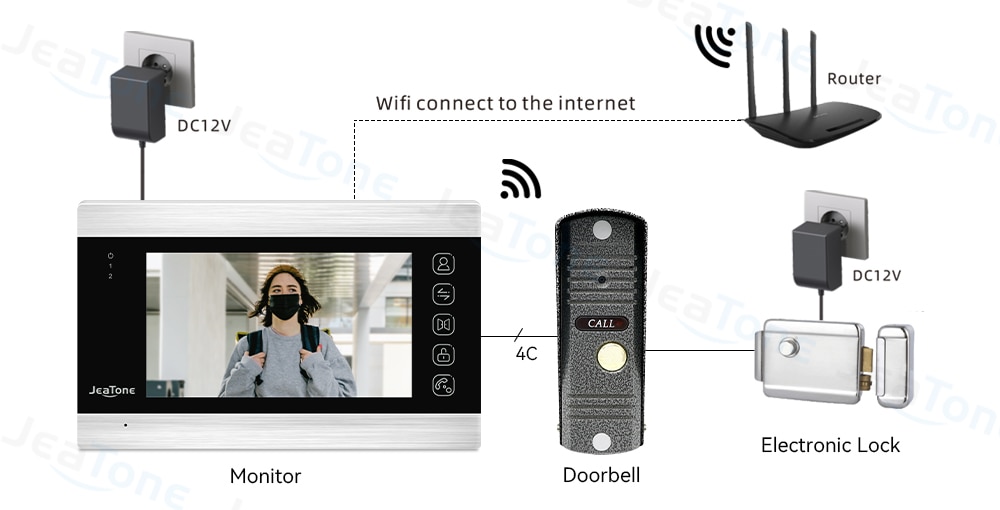

System Connection Wiring Diagram
Maximum support connect with 2 outdoor call panels + analog 2 cameras(or PIR detectors) + 6 monitors in one system. PIR sensor and CCTV camera installed to work together can alarm and video recording (Camera with individual power).

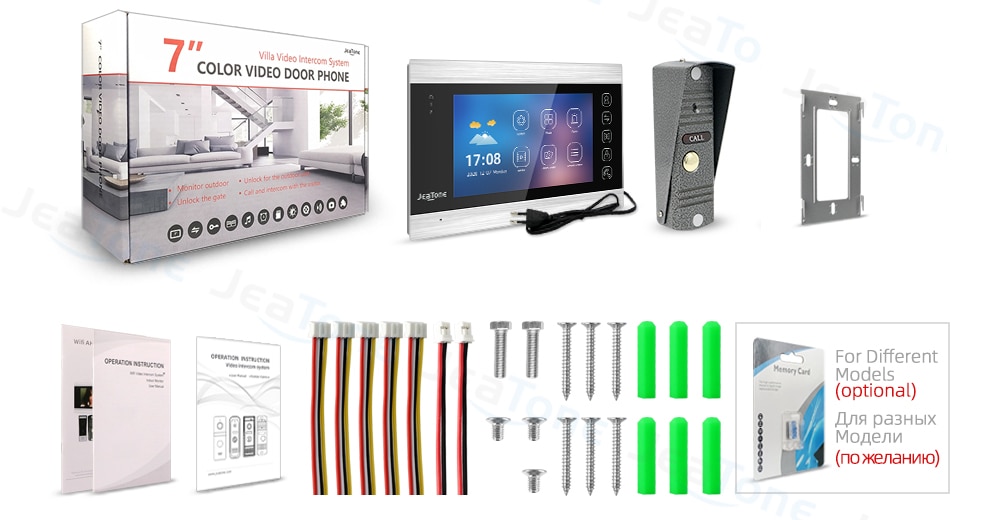

Package

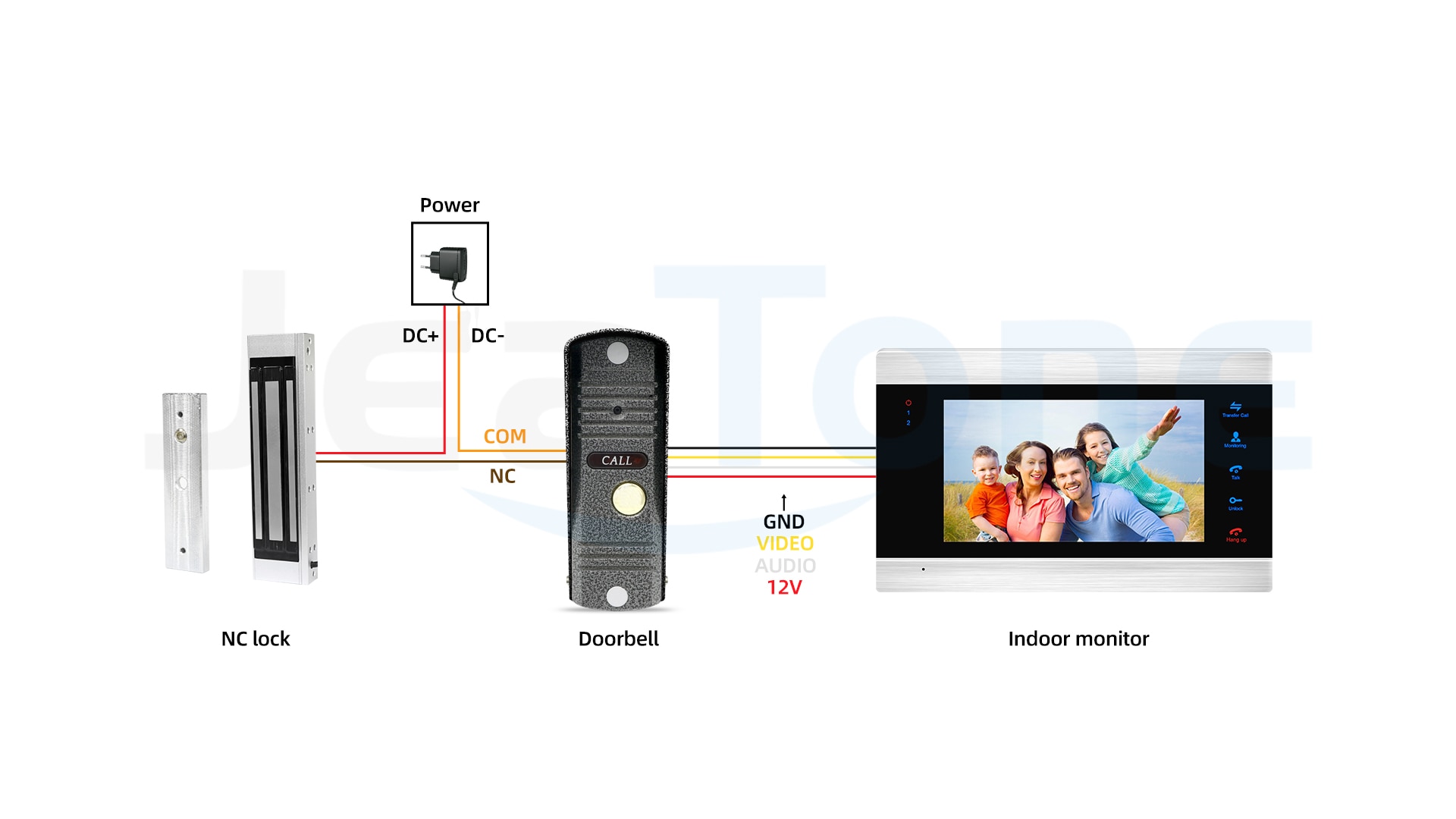

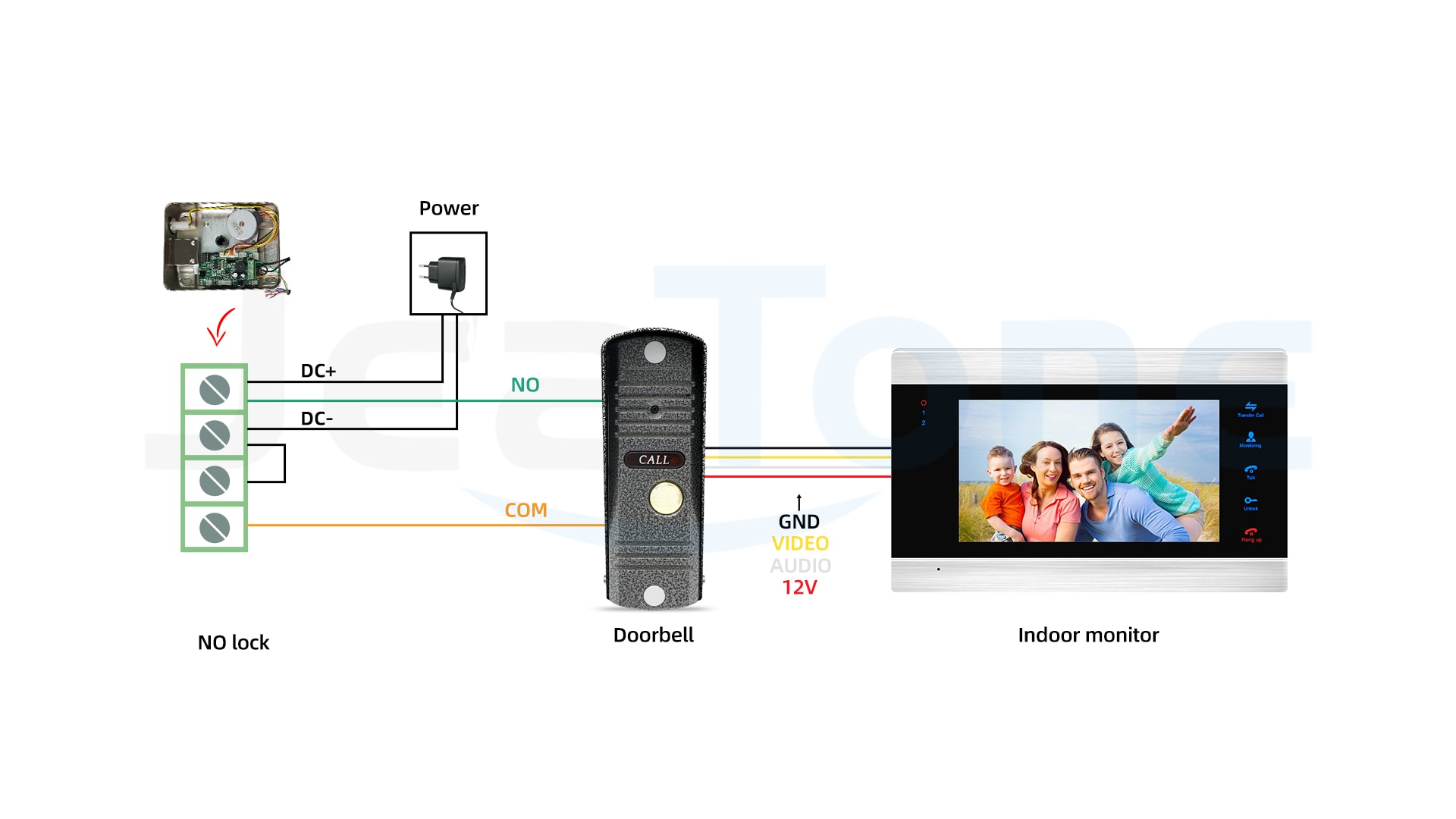

Connection Diagram
Please Notes：

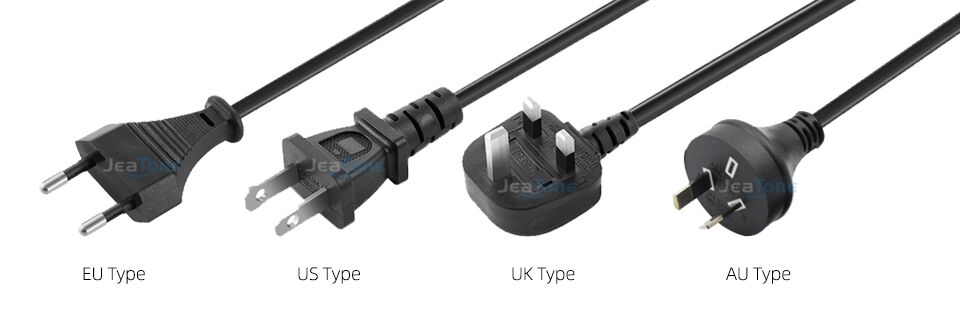

There are 4 types power adapters, We will send the applicable power adapter according to your country, if you have special order, please contact us as free.
FQA
Q: Is this set included Electric locks and CCTV Camera together?
A: Nope, this need to buy separately, please contact Seller to purchase.
Q: Is the screen will always on during standby mode?
A: Nope, the firmware has upgraded, and there will turn off the screen to protect the monitor during standby mode.
Q: Is it possible to turn off the backlight of the screen button?
A: Nope, the backlight will on when you power.
Q: Can it be connected to Tuya Smart APP to unlock remotely?
A: Yes, this support Tuya Smart/Smart Life APP.
Q: Is there has motion detection record?
A: Yes, it is. This can save video to the SD card.
Q: What kind of cable connection can be used for this set?
A: Ordinary RVV 4-core cable connection.
Q: How far is the connection distance supported?
A: It depends on the diameter and quality of the cable you use. Generally, there is no problem with the cable within 50 meters.
Q: Does the product support custom ringtones?
A: Yes, You can DIY your ringtones by sd card.
Q: Does the product have a Russian instruction manual?
A: Yes,it has.If you need manual in pdf, please contact us.
Q: Is this set can connect lock?
A: Yes, this supports all electric locks, no matter NO or NC one. But the lock need to buy separately.
Q:Do I need to buy any accessories?
A:You only need to prepare a 4-core cable that is enough for your connection distance, and other accessories needed to connect the product are included in the package, and you do not need to buy extra. (not included the lock)
домофон в частный дом\видеодомофон\видеодомофон для дома\
видеодомофон в квартиру\видеозвонок в квартиру\дверной звонок\видео домофон\video doorbell\video doorbell\porteiro eletrônico com câmera wi fi\campainha\interfone residencial\video intercom
video intercom for home、video intercom wifi、
video intercom doorbel、video intercom monitor、
video intercom access controvideo intercom kit、
video intercom system for home、
video intercome wireдверной звонок、видео домофон、видеозвонок в квартиру、видеодомофон wifi、домофоны для квартиры、видеодомофон в квартиру、видеодомофон для дома、видеодомофон、אינטרקום עם מצלמה וקודן、אינטרקום לשער חיצוני、אינטרקום לדלת כניסה、interphone maison video、sonnette sans fil extérieure、sonnette sans fil extérieur
- Plug Type: EU plug ,US plug,AU Plug,UK plug
- Size: 7 Inch Video Intercom System
- Doorbell: Yes
- Material: Acrylic Wire Drawing Panel
- Power: External power DC12V/AC220V
- Sensor Size(Inch): 1/3
- Resolution: > 420 TV Line
- Power: 220v
- Camera: color
- Model Number: P201S1M706S1-86-BIN
- IP Camera Interface: No
- Access Control: None
- Waterproof: Yes
- Samrt Home Interface: No
- Technology: Analog
- Installation: Wall Mounting
- Connection Type: Wireless
- Zone Input: 4
- Display Screen Type: color
- Type: Intercom System
- Viewing Angle (°): 110
- Kit Configuration: One to One video doorphone
- Display Size: 7
- Answering Mode: Hands-free
- Camera Sensor type: CMOS
- Connection Method: WIRED
- Brand Name: JEATONE
- Origin: Mainland China
- Smart home platform: Tuya
- Certification: CE,FCC,RoHS
- Name: Tuya Smart Home Camera System
- Monitor Languages: English, Russian, Ukrainian, Hebrew, Polish, Spanish, French,
- Intercom Mode: Hands-free Dual communication
- Motion Detection: Clock/date Mode and Digital Photo Frame Mode
- Memory: 86 Pictures, Support Max.32G SD Card
- Ringtone: Custom and Default
- Conversation Duration: 120s
- Resolution: LCD(16:9),1024(H)x600(V), 2.8MM HD CR Lens
- Volume: Adjustable Day/Night
- Support: 2 call panel + 6 indoor monitor+ 2 Analog camera & 2 PIR
- Power Source: Outdoor Doorbell Powered By Indoor Monitor
- Waterproof: IP65 Aluminum Panel
- Operation temp: -40~+50℃
- Camera Sensor: 1/3"CMOS, AHD/720P Camera
- Doorbell Power consumption: 150 mA max
- Monitor Color: Sliver, Black, White
- Doorbell Color: Sliver, Black, Copper
- Installation: Surface/Flush Mount
- Free APP: Tuya Smart/Smart Life
- Phone: IOS/Android System Phone
- function: video intercom monitor,video intercom doorbell,video intercom system for home,video intercom wifi,video intercom kit
