IP68 Waterproof RFID 125KHz Standalone Access Control Keypad with Touch Screen Panel + 10pcs RFID Keyfobs
0.0 ( votes)
Price:
US $37.60 - 37.98
/ piece
Discount Price:
US $
31.96 -
32.28
/ piece
-15%
- Color
-
-

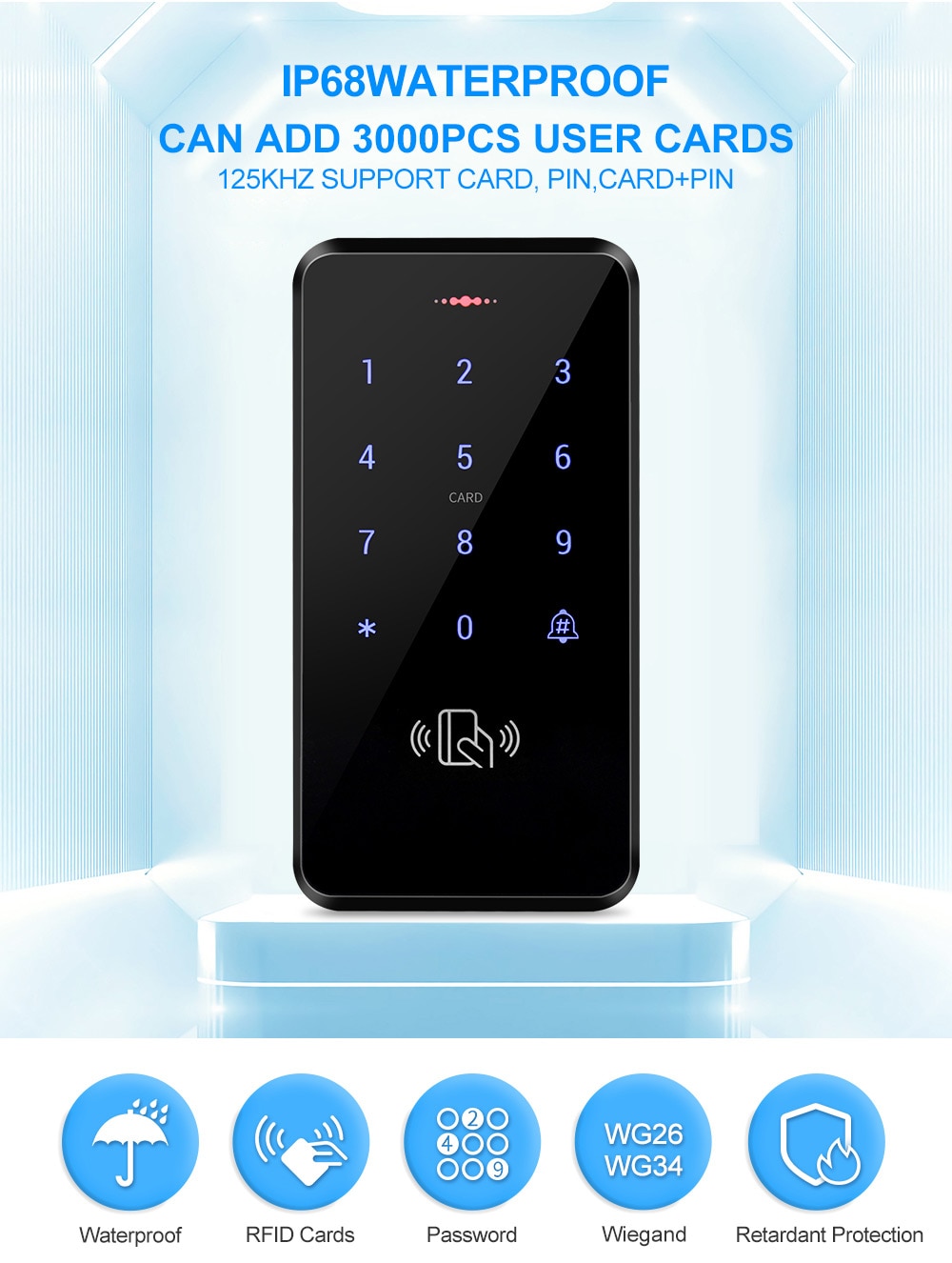

Waterproof IP68 RFID Card Door Access Controller With Wiegand 26 / 34 Output
High quality / 3000 user capacity / 3 unlock method
ProductIntroduction:

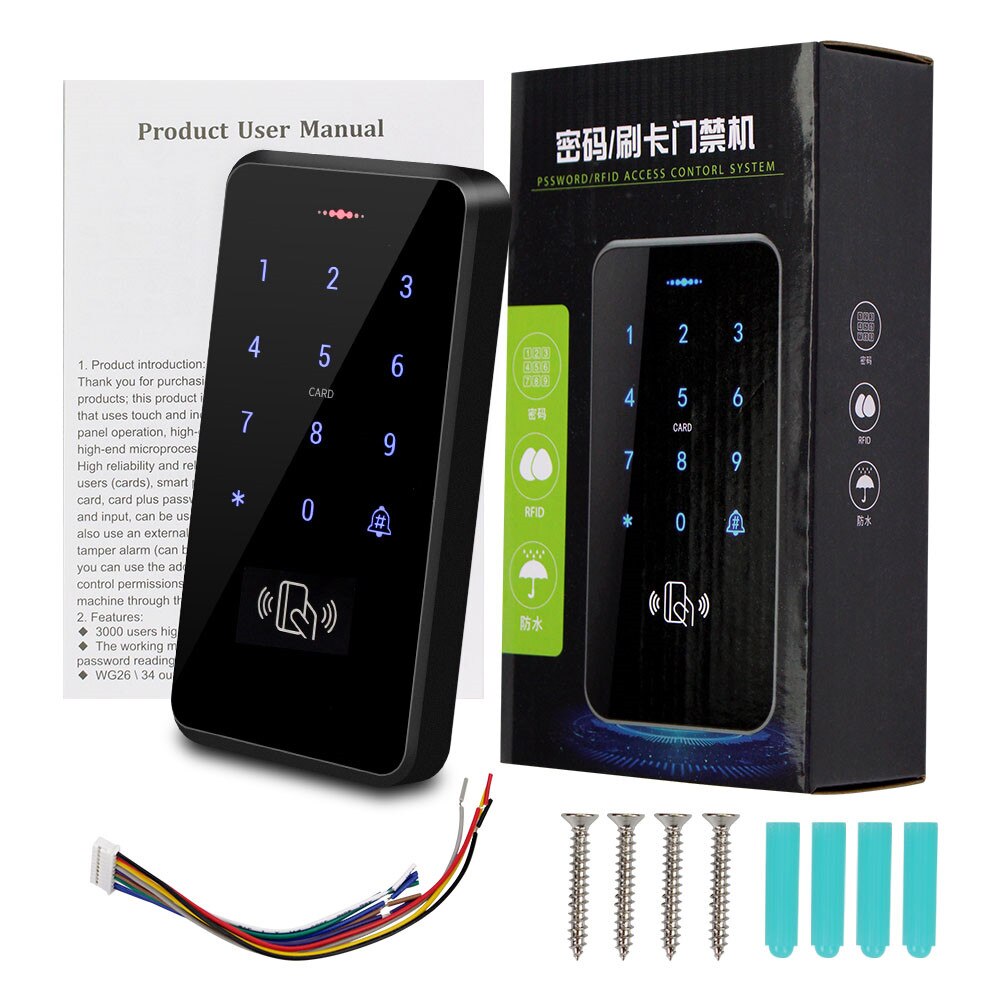

Thank you for purchasing our touch-control access control products; this product is an all-in-one access control machine that uses touch and induction card to open the door, smart panel operation, high-grade PVC acrylic anti-scratch, built-in high-end microprocessor, strong anti-interference ability, safe High reliability and reliability, can provide strong security for 3000users (cards), smart panel operation, support password, swipe card, card plus password to open the door, with WG26 / 34 output and input, can be used as the password reading head,You can also use an external password reading head, a light-sensitive tamper alarm (can be temporarily closed or permanently closed),you can use the add card and delete card to manage access control permissions, and you can initialize the access control machine through the management card.
Product Feature:
1) 3000 users high-speed capacity storage and reading
2) The working mode can be switched freely. It can be used as a password reading head or as an integrated machine.
3) WG26 \ 34 output and input
4) The management card can be set to easily operate the user authority
5) Active and passive electric lock signal output
6) Dual-node signal output of imported relay
Product Specification:
Working voltage: DC12V
Static current:≤30mA
Card reading distance: 5- 10cm
Storage capacity: 3000 user cards
Electic lock output: active or passive optional
Door opening time: 0-255 seconds
Ambient temperature: -20 C -70 C
Frequency: 125KHz

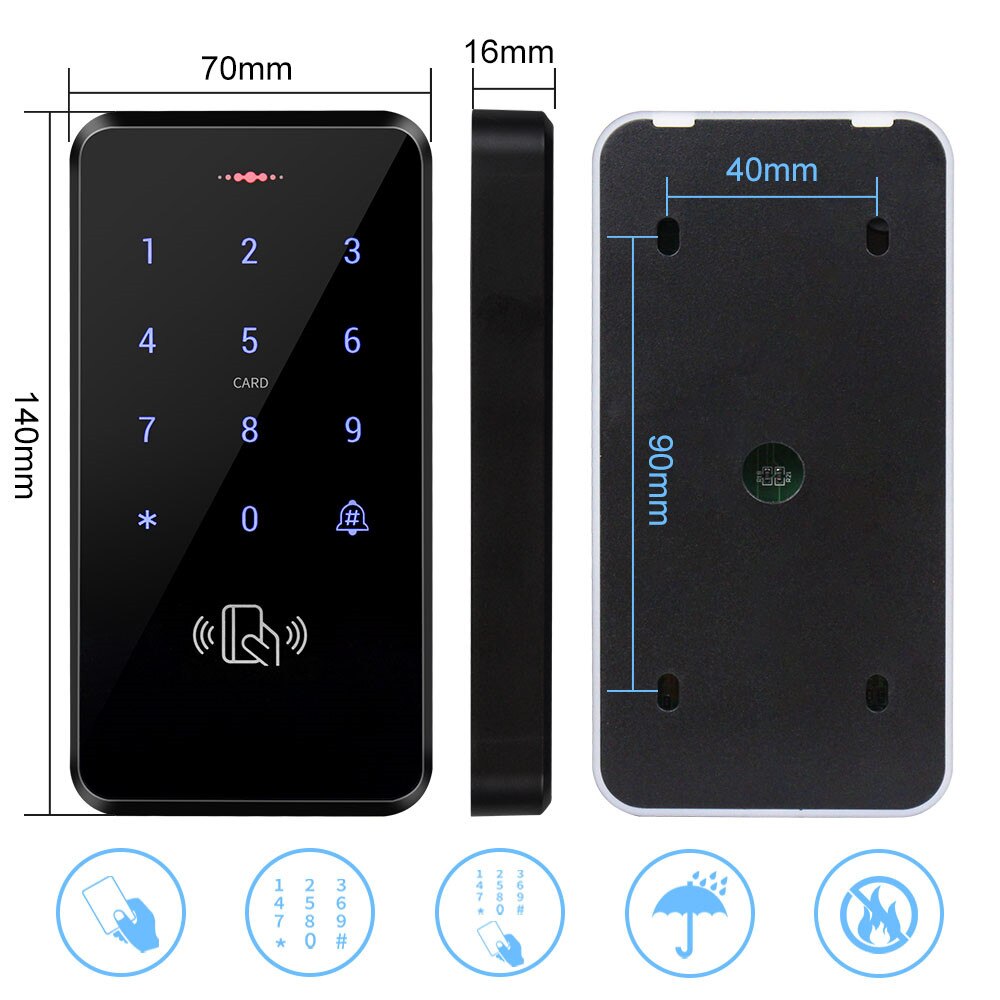

Dimensions: 140 x 70 x 16mm
Weight:0.2kg

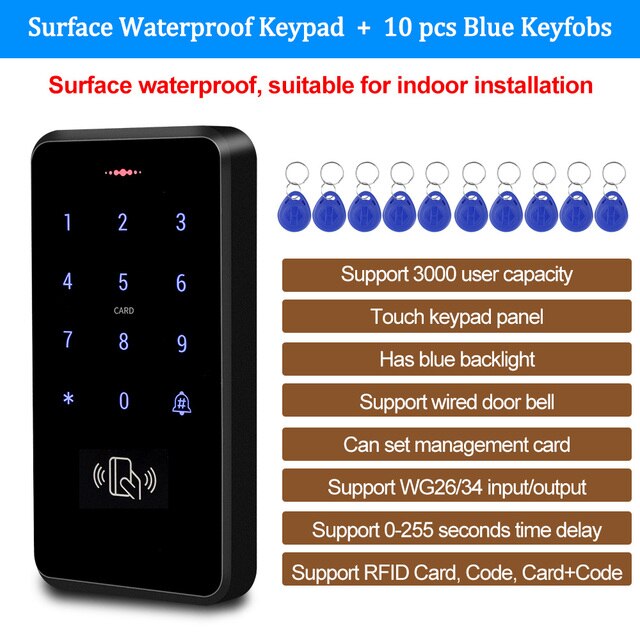

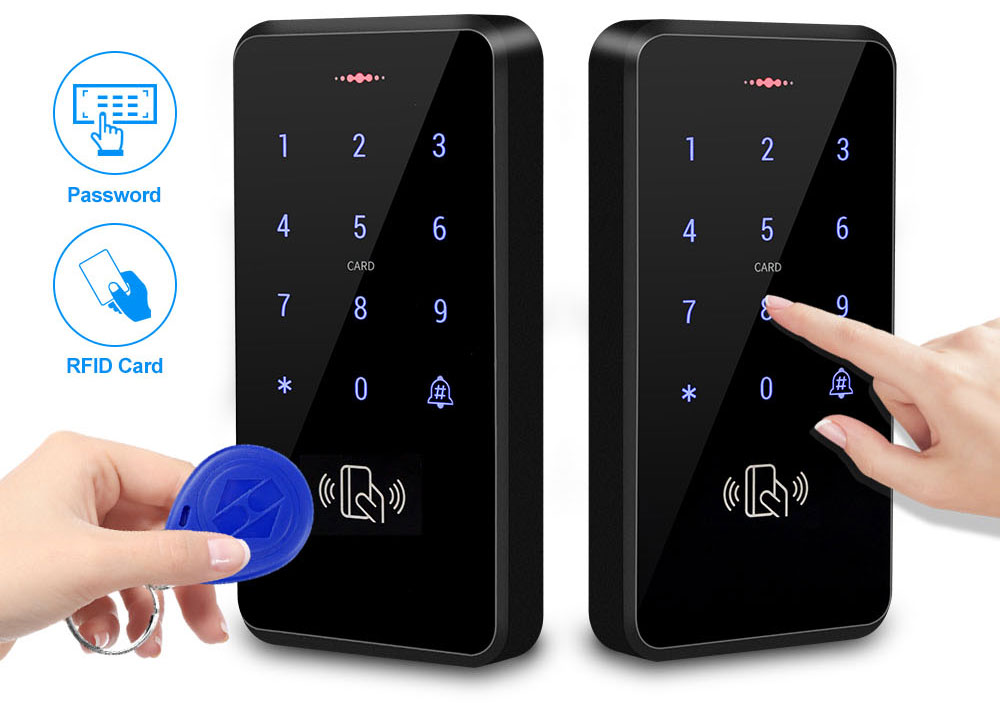

Support RFID Card, password, RFID card + password to open the door
Support 3000 card and password user capacity, can set card + password to open the door, more secure!
ABS fire retardant material shell
One-piece molding, hard plastic treatment. Fire retardant, impact resistant and wear resistant!

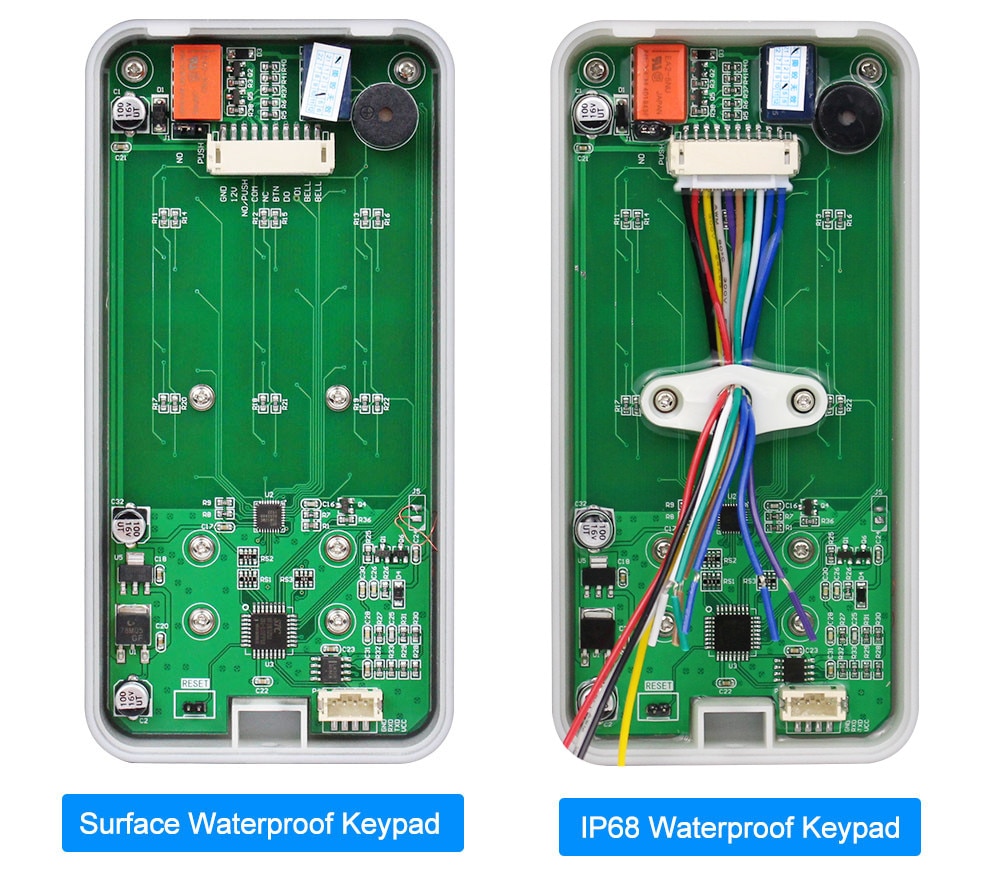

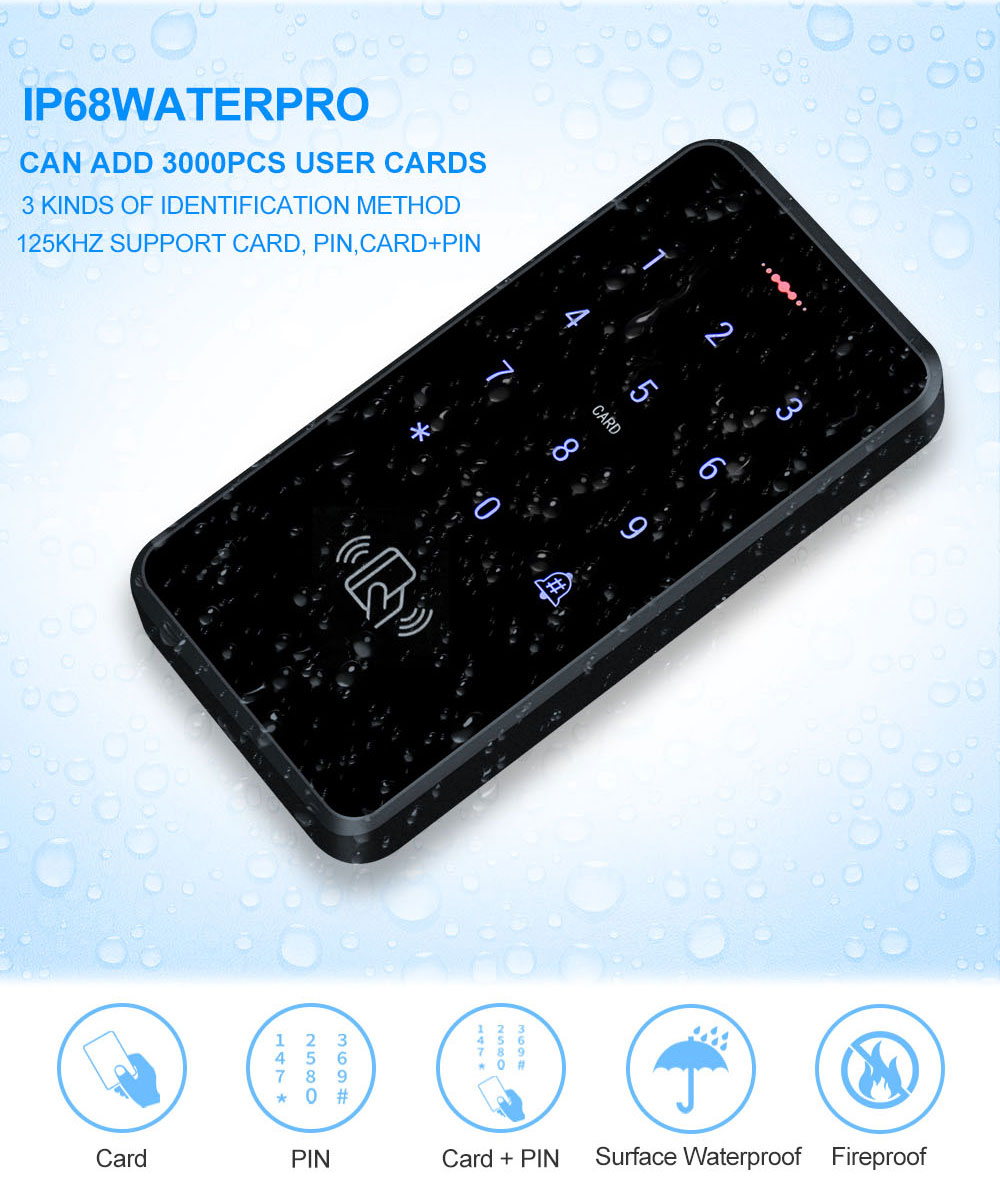

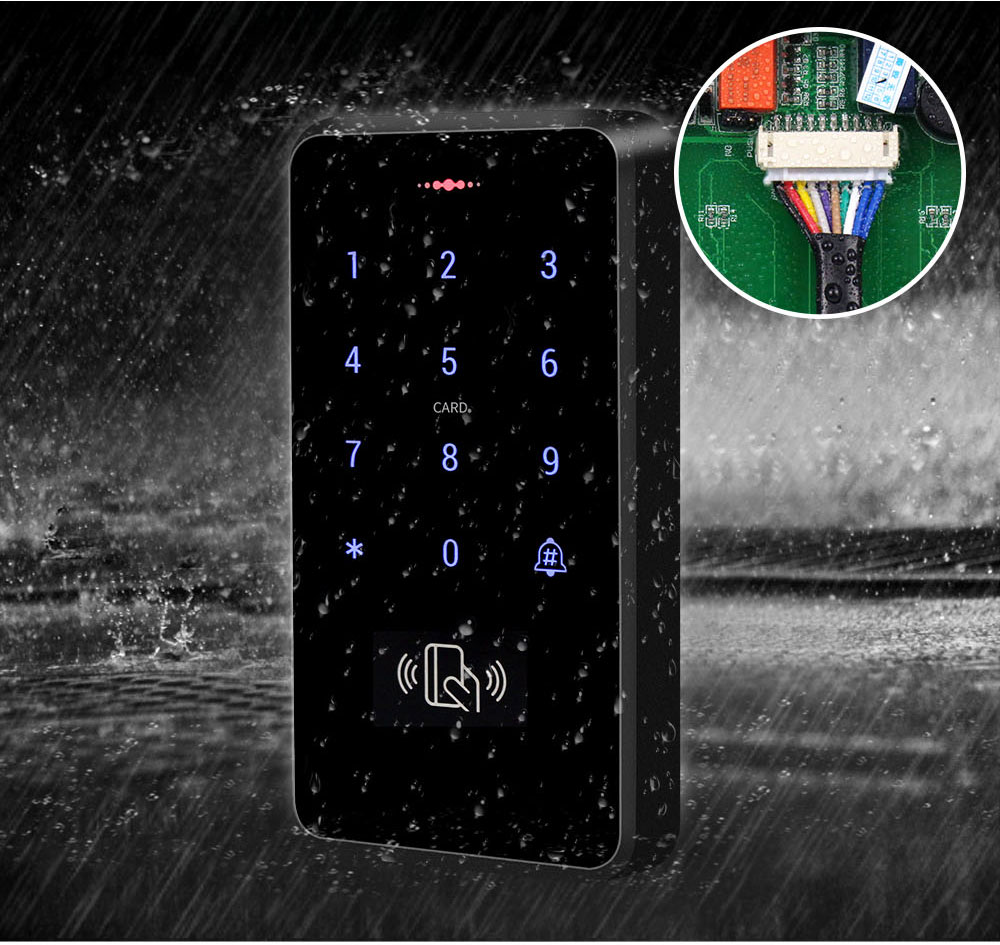

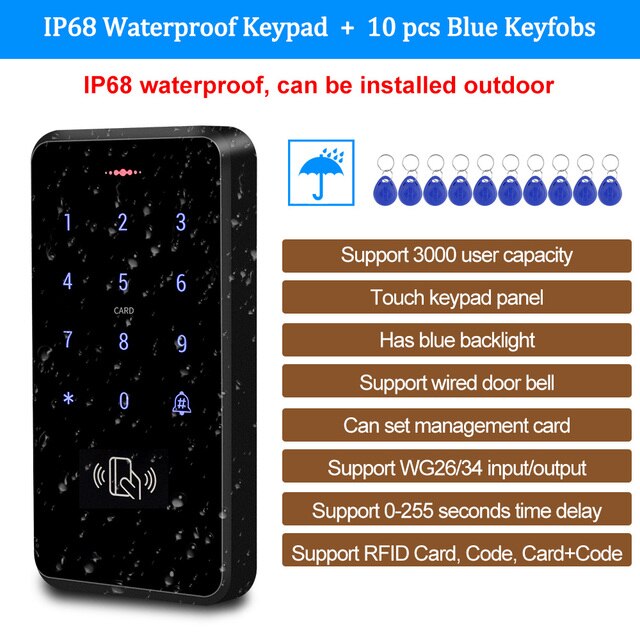

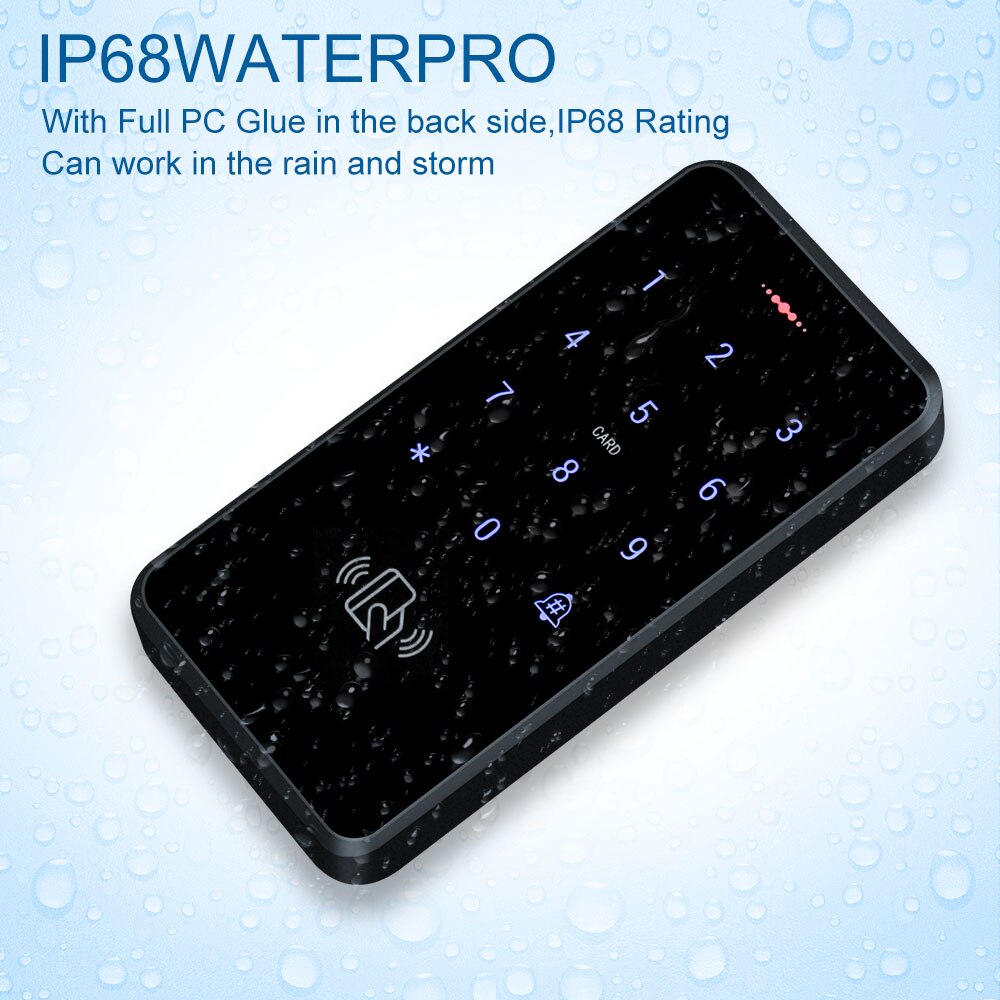

IP68 waterproof, Can be installed outdoor
With Full PC Glue in the back side, IP68 Rating, can work in the rain and storm
Backlight keypad
In the dark, you can also enter the password to unlock normally
Easy installation and operation
Based on advanced technology, fast recognition speed, high sensitivity. Suitable for most major access control solution.

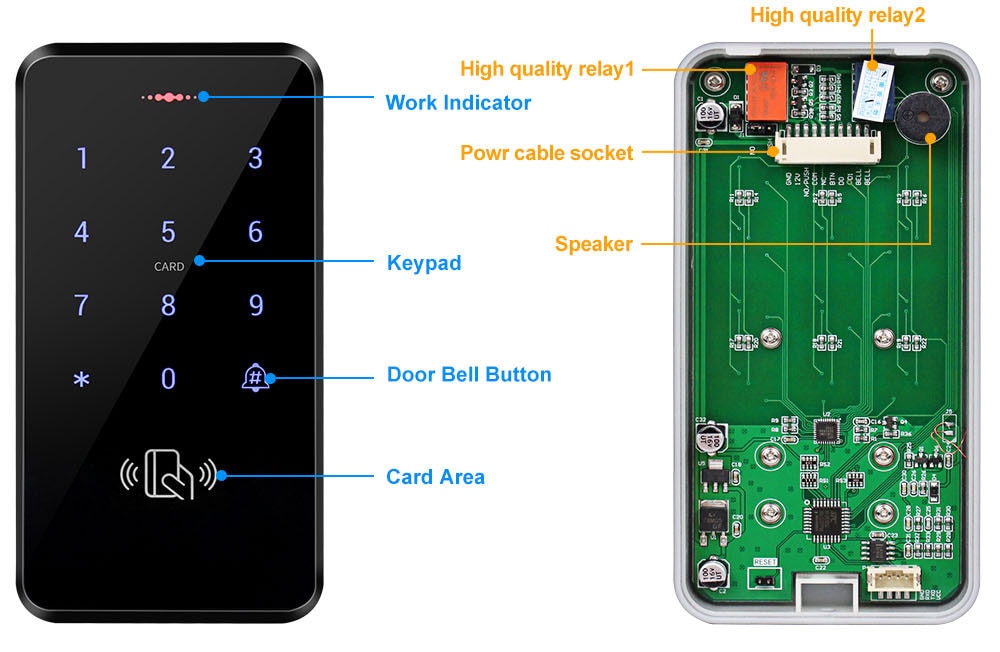

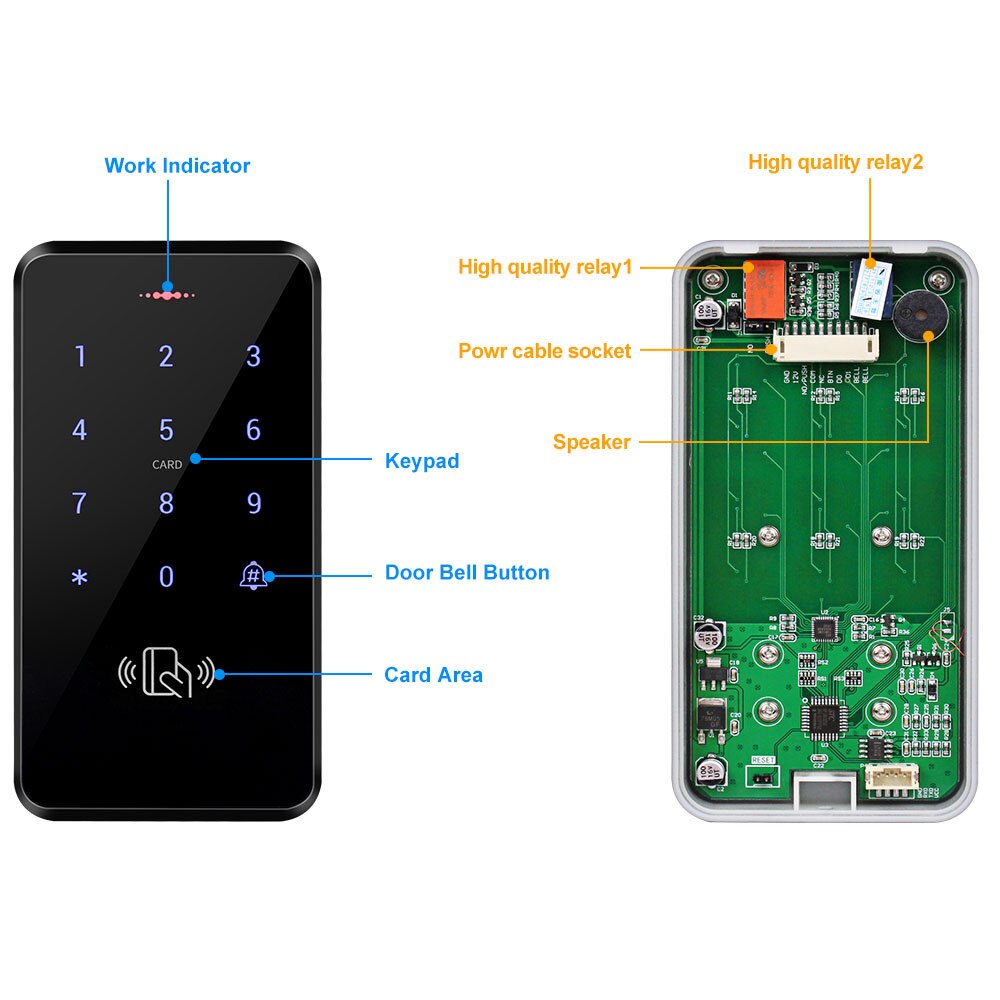

Product Analysis:

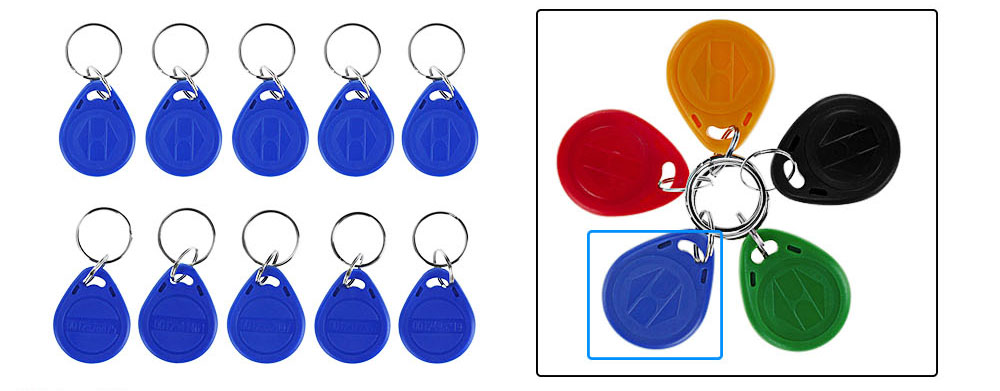

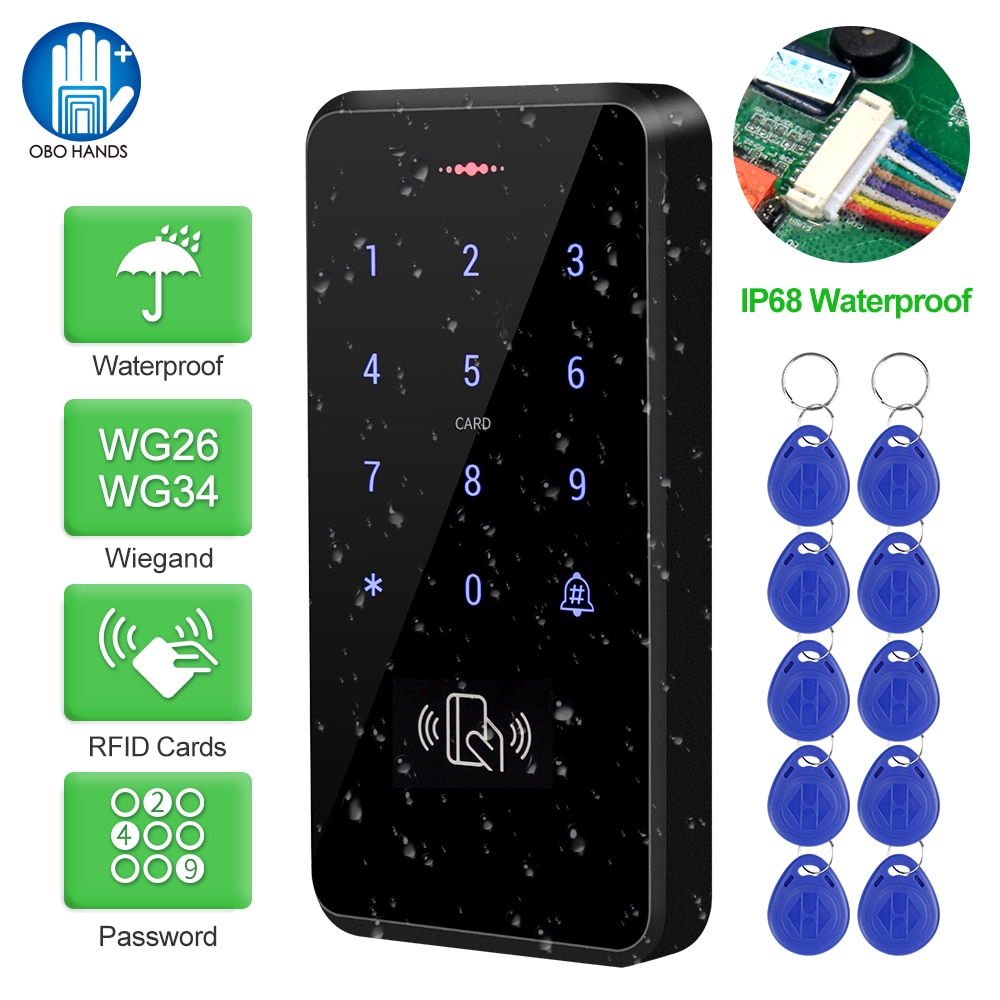

RFID Keyfobs (blue)
You can read these keys on the access controller keypad to open the door convenient.
Only the key finished programed with our instruction then can be open the door.
Working Frequency: 125KHz
With ABS high quality
Each one has unique ID number on it
Reading Range: 1-10cm
Color: Red, Blue, Yellow, Green, Black (We will send 10pcs BLUE color by default, if you want other color, please leave us a message)
Quantity: 10pcs ( If you want more, please contact us )

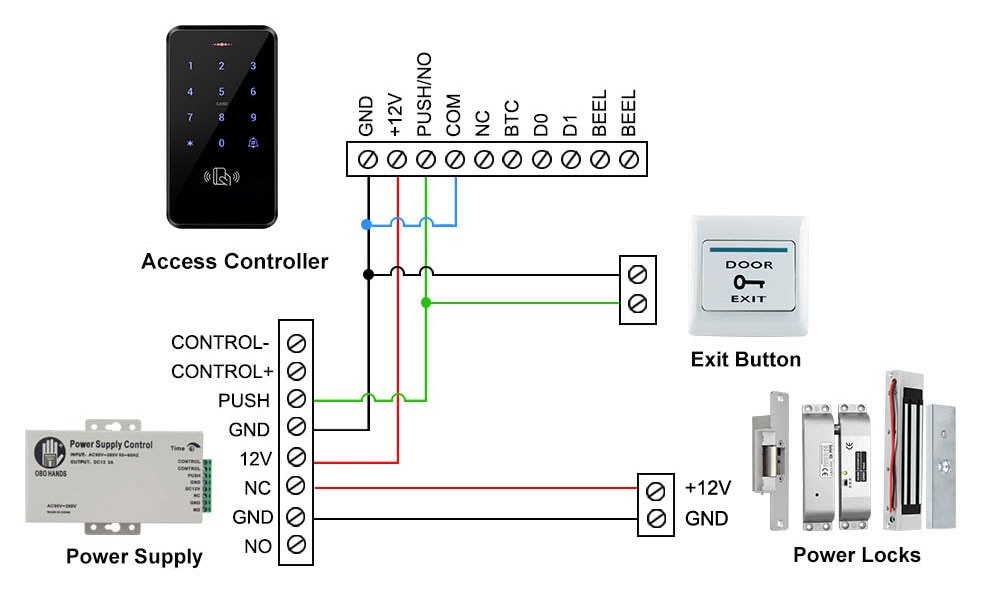

Wiring Diagram:
This Access Control Keypad is don't need to connected to the computer. You just connect it to the DC12V power supply, electric lock, exit button.
The power supply and electric lock, exit button, door bell is not included in the package, if you need it, please contact us. Thank you!
- Model Number: S20
- Brand Name: OBO HANDS
- Origin: Mainland China
- Certification: CE
- Smart home platform: NONE
- Memory capacity: 3000
- Supply Voltage: DC12V
- Card reading distance: 5- 10cm
- Dimension: 140*70*16mm
