IP68 Waterproof Outdoors Use Metal Stainless steel Reader 2000Users WG input and output security RF Access Control Keypad
0.0 ( votes) | 3 orders
Price:
US $75.60 - 151.70
/ piece
Discount Price:
US $
39.90 -
73.80
/ piece
-47%
- Color
-
-
I. Description

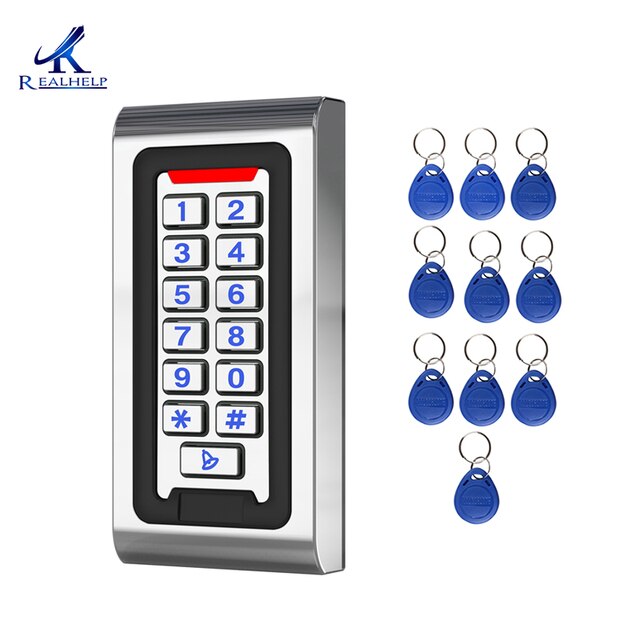

The unit is single door multifunction standalone access controller or a Wiegand output keypad or card reader.
It is suitable for mounting either indoor or outdoor in harsh environments.

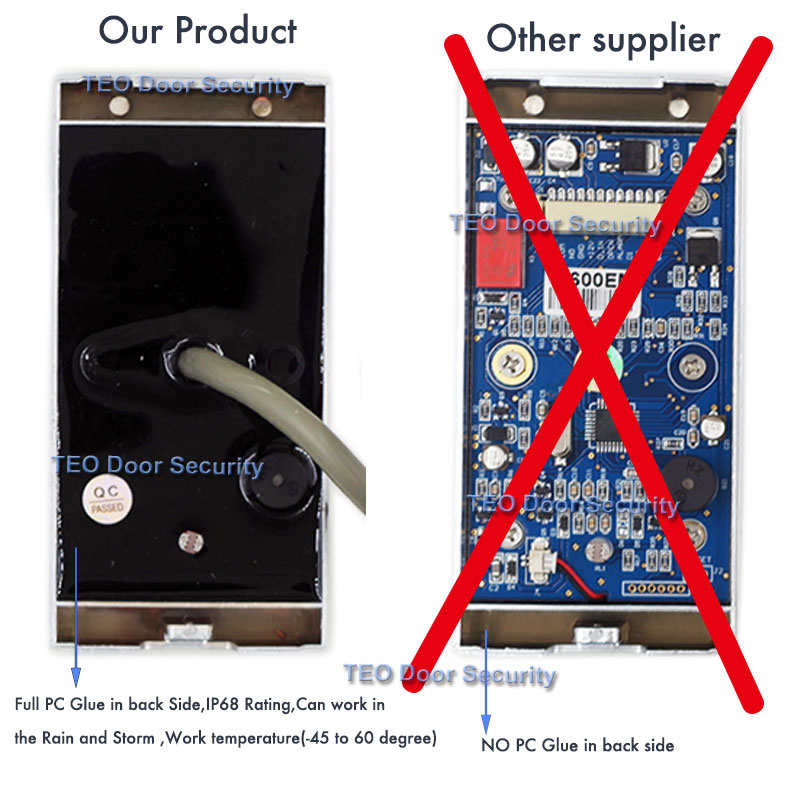

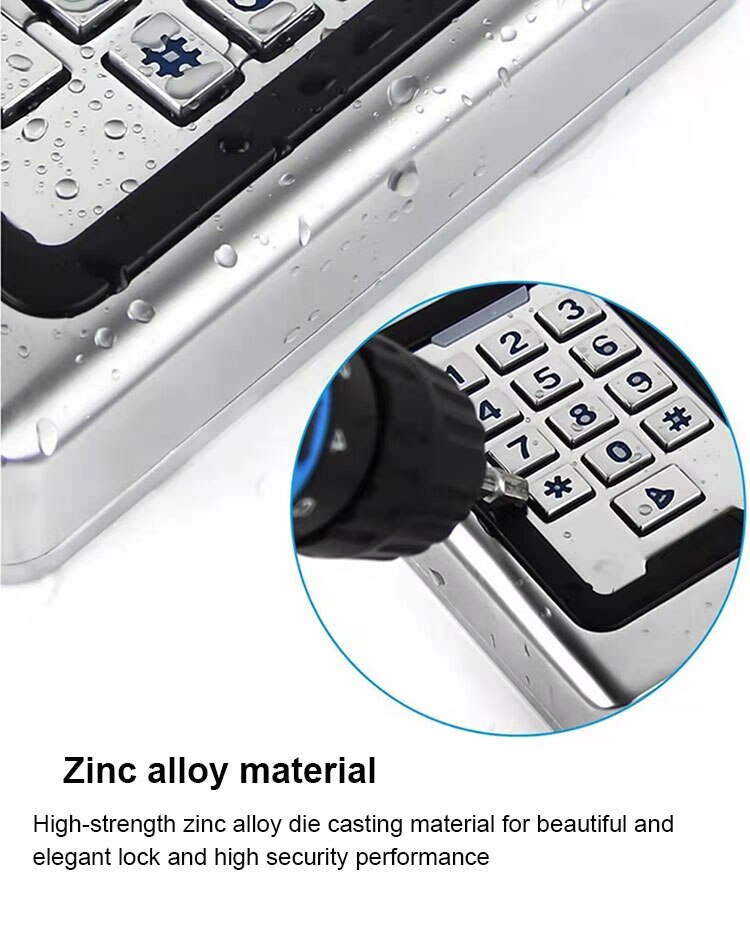

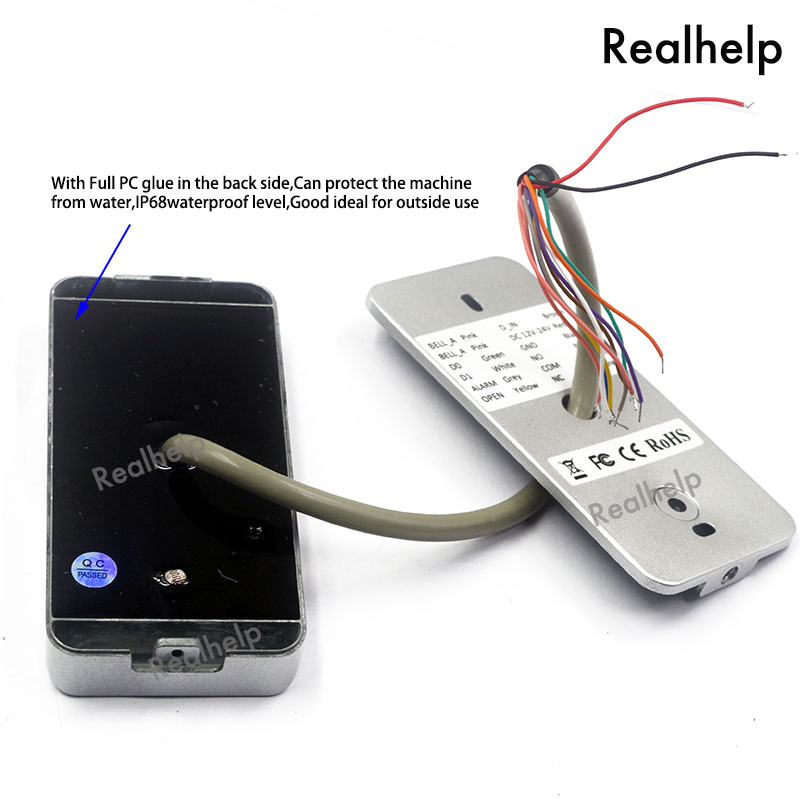

It is housed in a strong, sturdy and vandal proof Zinc Alloy electroplated case which is available in either a bright silver or matt silver finish. The electronics are fully potted so the unit is waterproof and conforms to IP68.

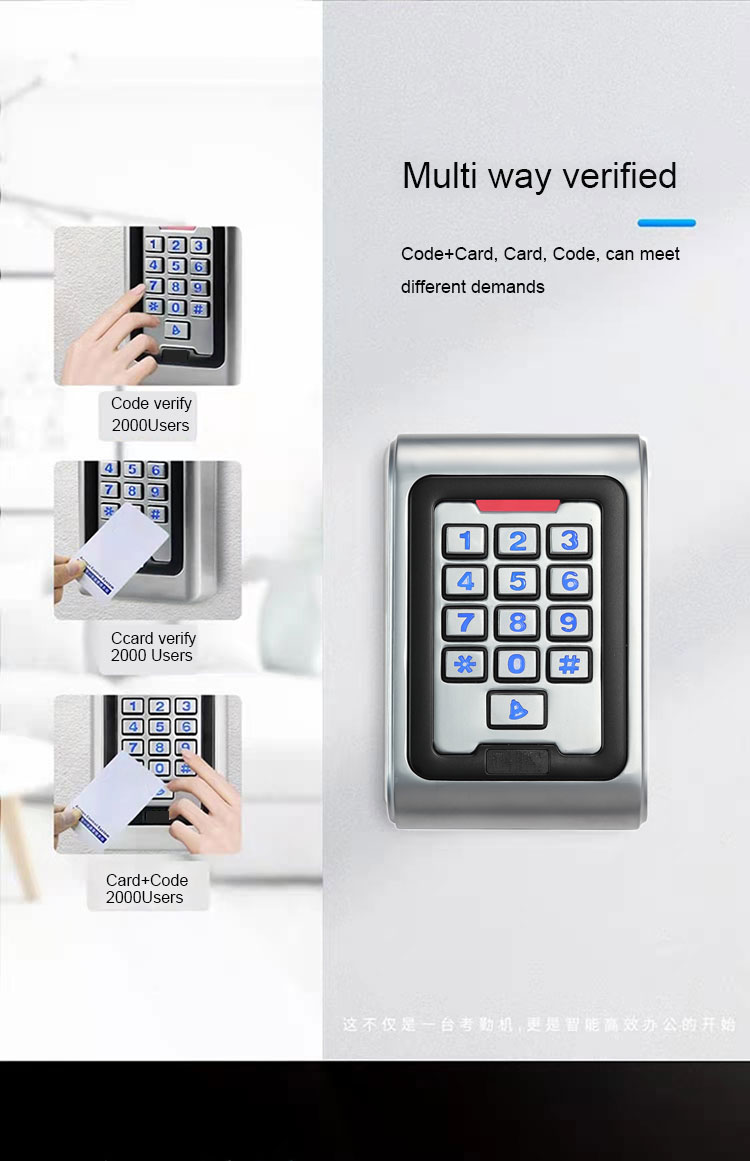

This unit supports up to 2000 users in either a Card, 4 digit PIN, or a Card + PIN option. The inbuilt card reader supports 125KHZ EM cards,13.56MHz Mifare cards.
The unit has many extra features including lock output current short circuit protection, Wiegand output , and a backlit keypad.
These features make the unit an ideal choice for door access not only for small shops and domestic households but also for commercial and industrial applications such as factories, warehouses, laboratories, banks and prisons.
II.Features

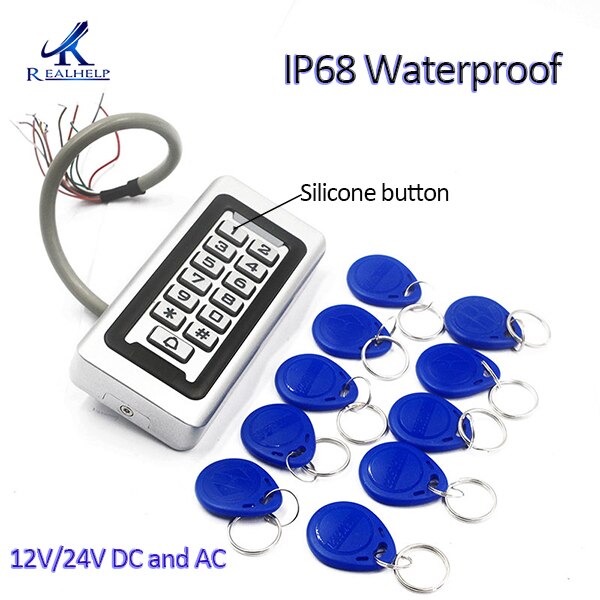

Waterproof, conforms to IP68
Strong Zinc Alloy Electroplated anti-vandal case
Full programming from the keypad
2000 uses, supports Card, PIN, Card + PIN
Can be used as a stand alone keypad
Backlight keys
Wiegand 26 input for connection to external reader
Wiegand 26 output for connection to a controller
Adjustable Door Output time, Alarm time, Door Open time
Very low power consumption (30mA)
Fast operating speed, <20ms with 2000 users
Lock output current short circuit protection
Easy to install and program
Built in light dependent resistor (LDR) for anti tamper
Built in buzzer
Red, Yellow and Green LEDS display the working status
III.Specifications
Operating Voltage | DC/AC 12V/24V |
User Capacity | 2000 |
Card Reading Distance | 3-6 cm |
Active Current | Less than 60mA |
Idle Current | 25mA |
Lock Output Load | Max 3A |
Alarm Output Load | Max 20A |
Operating Temperature | -45 to 60degree |
Operating Humidity | 10% to 90% RH |
Waterproof | Conforms to IP68 |
Adjustable Door Relay time | 0 -99 seconds |
Adjustable Alarm Time | 0- 3 minutes |
Wiegand Interface | Wiegand 26 bit |
Wiring Connections | Electric Lock, Exit Button, External Alarm,External reader |

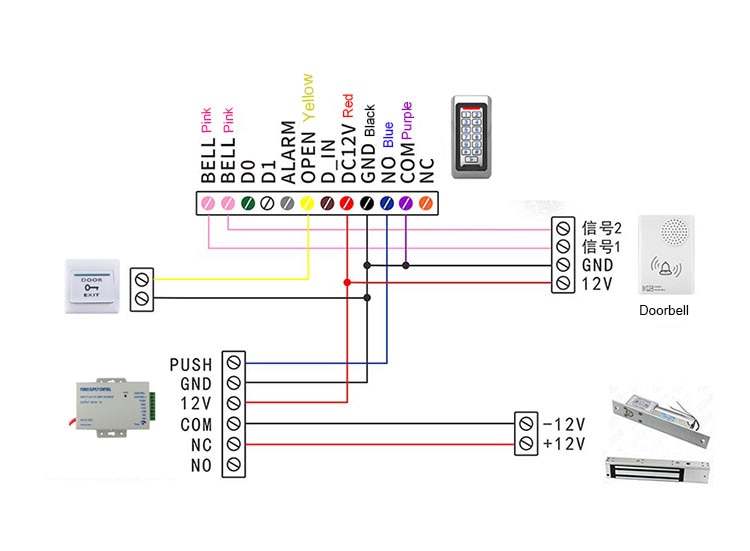

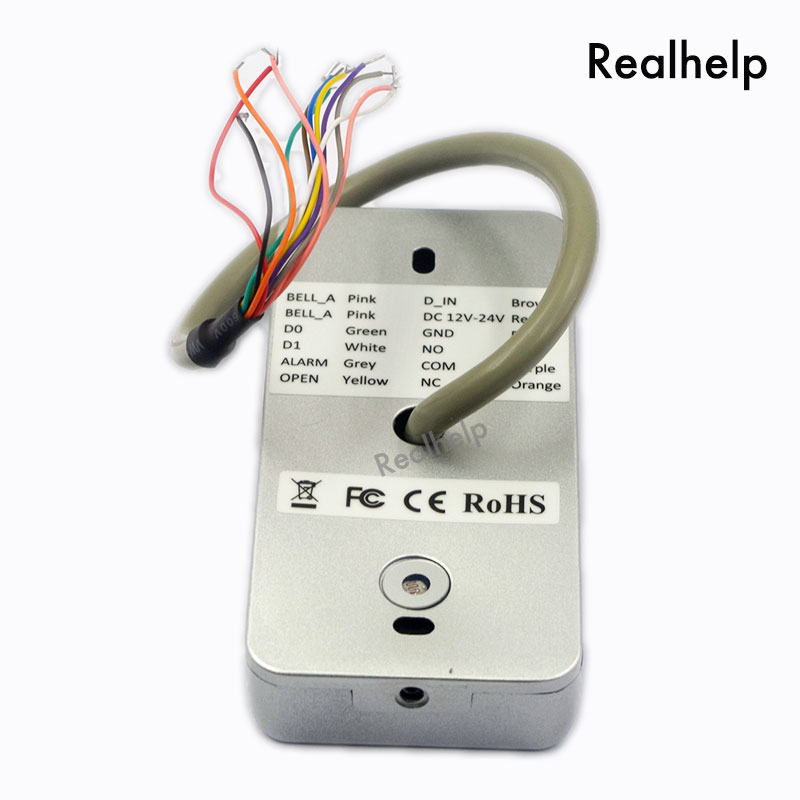

IV.Wiring
Colour | Function | Description |
Pink | BELL_A | Doorbell button one end |
Pale blue | BELL_B | Doorbell button to the other end |
Green | D0 | WG output D0 |
White | D1 | WG output D1 |
Grey | ALARM | Alarm negative(alarm positive connected 12 V+) |
Yellow | OPEN | Exit button one end(the other end connected GND) |
Brown | D_IN | Magnetic switch one end(the other end connected GND) |
Red | 12V+ | 12V + DC Regulated Power Input |
Black | GND | 12V - DC Regulated Power Input |
Blue | NO | Relay normally-on end(Connect positive electric lock "-") |
Purple | COM | Relay Public end, connect GND |
Orange | NC | Relay Closed end(connect negative electric lock "-") |

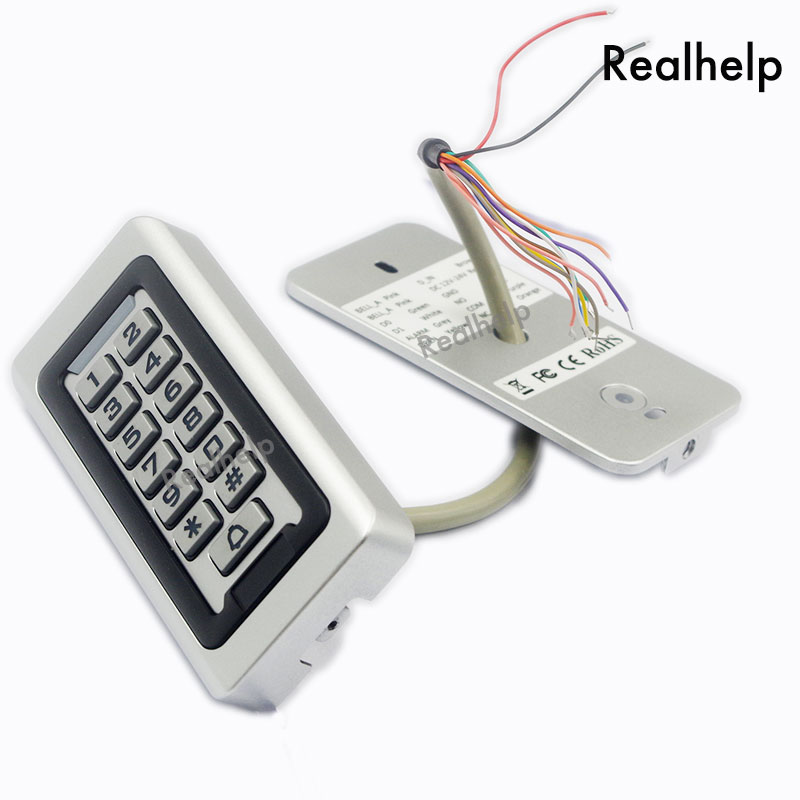

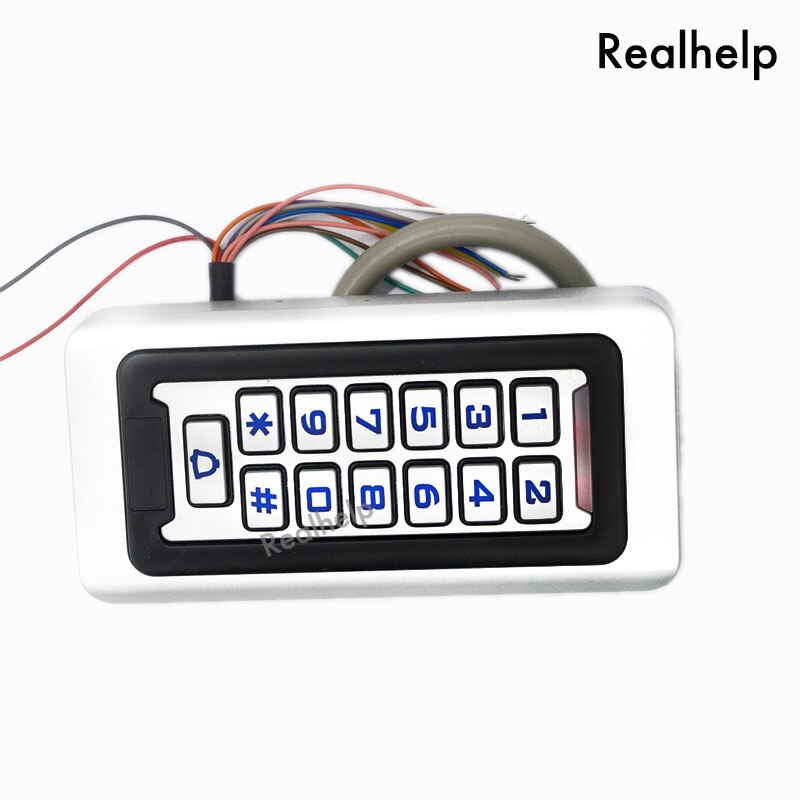

IV.Machine details

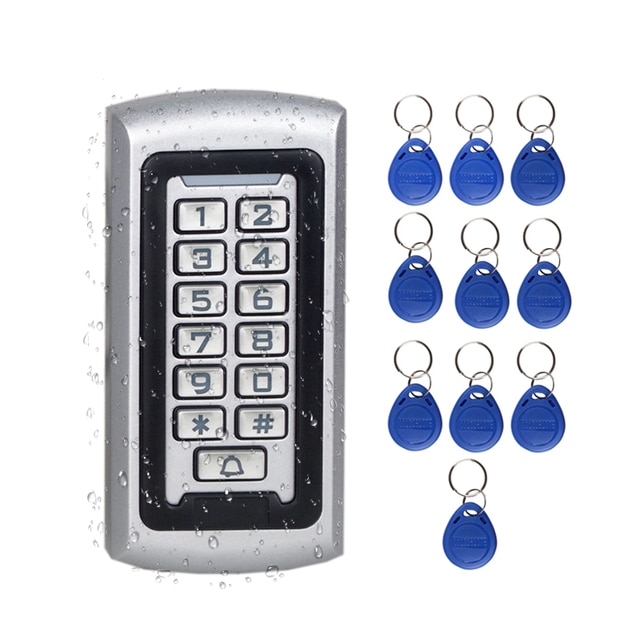

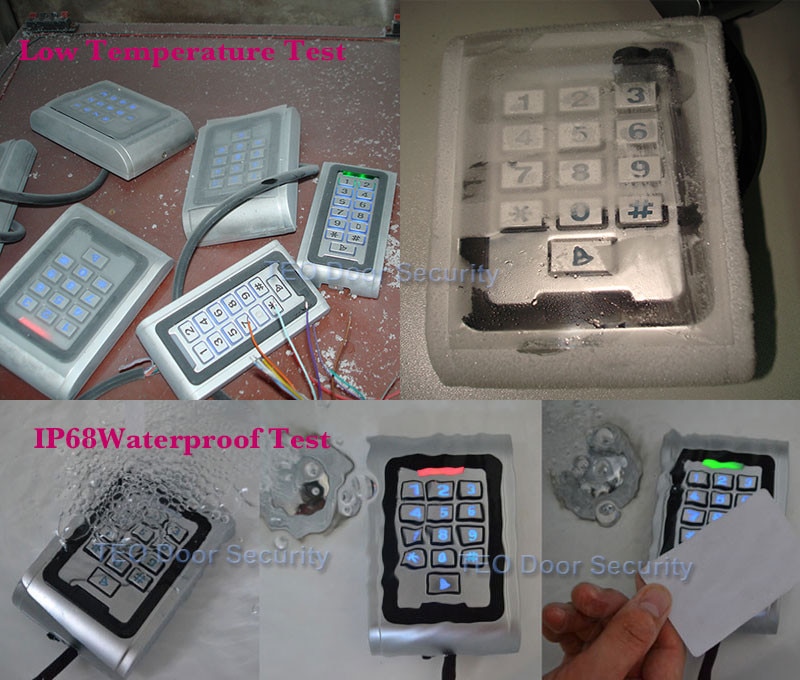

V.Waterproof Test and Low temperature test(Can work well in the -45degree and work in the rain and storm!)
VI. Anti Tamper Alarm
The unit uses a LDR (light dependent resistor) as an anti tamper alarm. If the keypad is removed from the cover then the tamper alarm will operate.
VII. The unit operating as a Wiegand Output Reader
In this mode the unit supports a Wiegand 26 bit output so the Wiegand data lines can be connected to any controller which supports a Wiegand 26 bit input.
Packing list
1PCS IP68Waterproof RFID Access Control
1Pcs English User manul
10PCS RFID Tag
Screw driver
- Direction: None
- Security Mode: Fail Safe
- Model Number: S602EMW
- Brand Name: Realhelp
- Certification: CE,FCC,RoHS
- Smart home platform: NONE
- Origin: Mainland China
- Operating Voltage: DC/AC 12V/24V
- User Capacity: 2000
- Card Reading Distance: 3-6 cm
- Active Current: less than 60mA
- Idle Current: 25mA
- Lock Output Load: Max 3A
- Waterproof: Conforms to IP68
- Adjustable Door Relay time: 0 -99 seconds
- Adjustable Alarm Time: 0- 3 minutes
- Wiring Connections: Electric Lock, Exit Button, External Alarm,External reader
