IP68 Waterproof Door Access Control System Biometrics RFID Keypad + Power Supply + 180KG Electric Magnetic Strike Locks for Home

5.0 (32 votes) | 271 orders
Price: US $65.23 - 173.42 / piece
Discount Price:
US $ 55.08 - 138.73 / piece
-16%
Color
Quantity

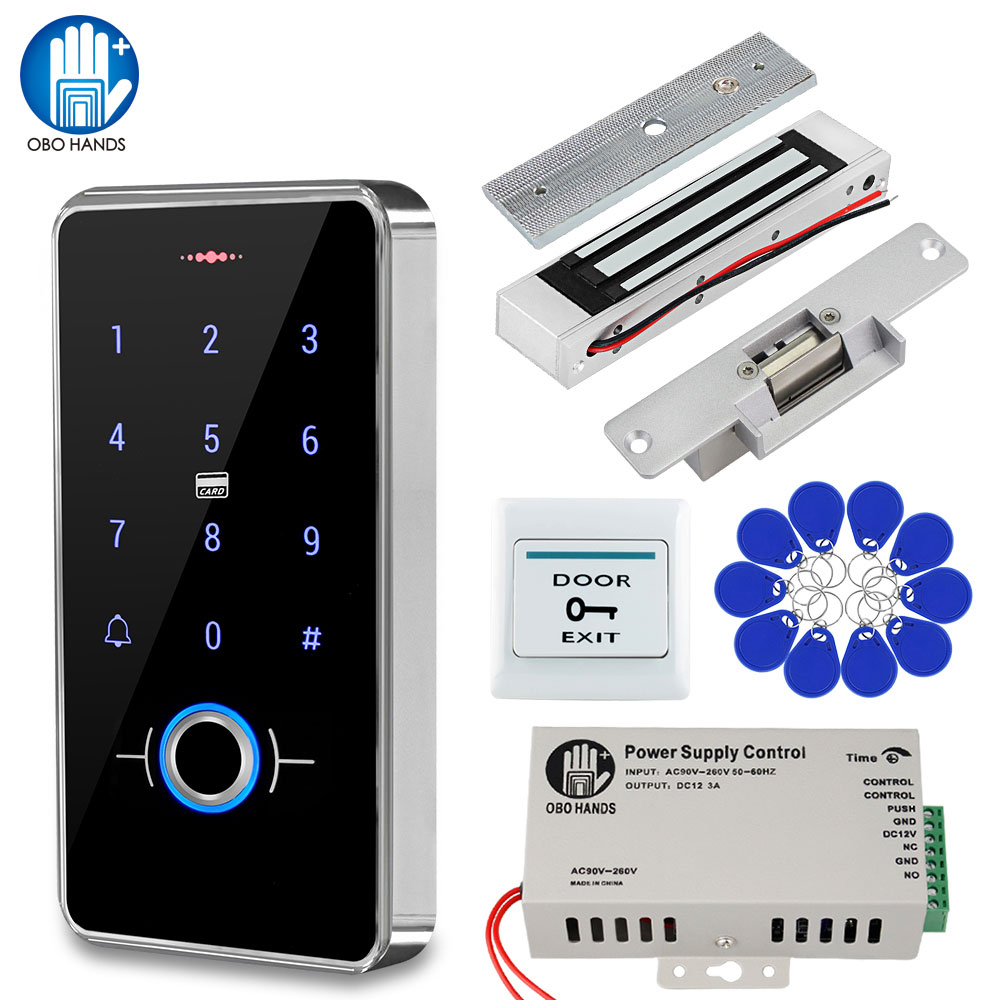

IP68 Waterproof Door Access Control System Biometrics RFID Keypad + Power Supply + 180KG Electric Magnetic Strike Locks for Home



A complete set of entrance guard system for wooden doors, iron doors and glass doors, which you can choose according to the type of your door. If you don't know how to choose, please contact us after taking a photo of the door, thank you.



Product Description

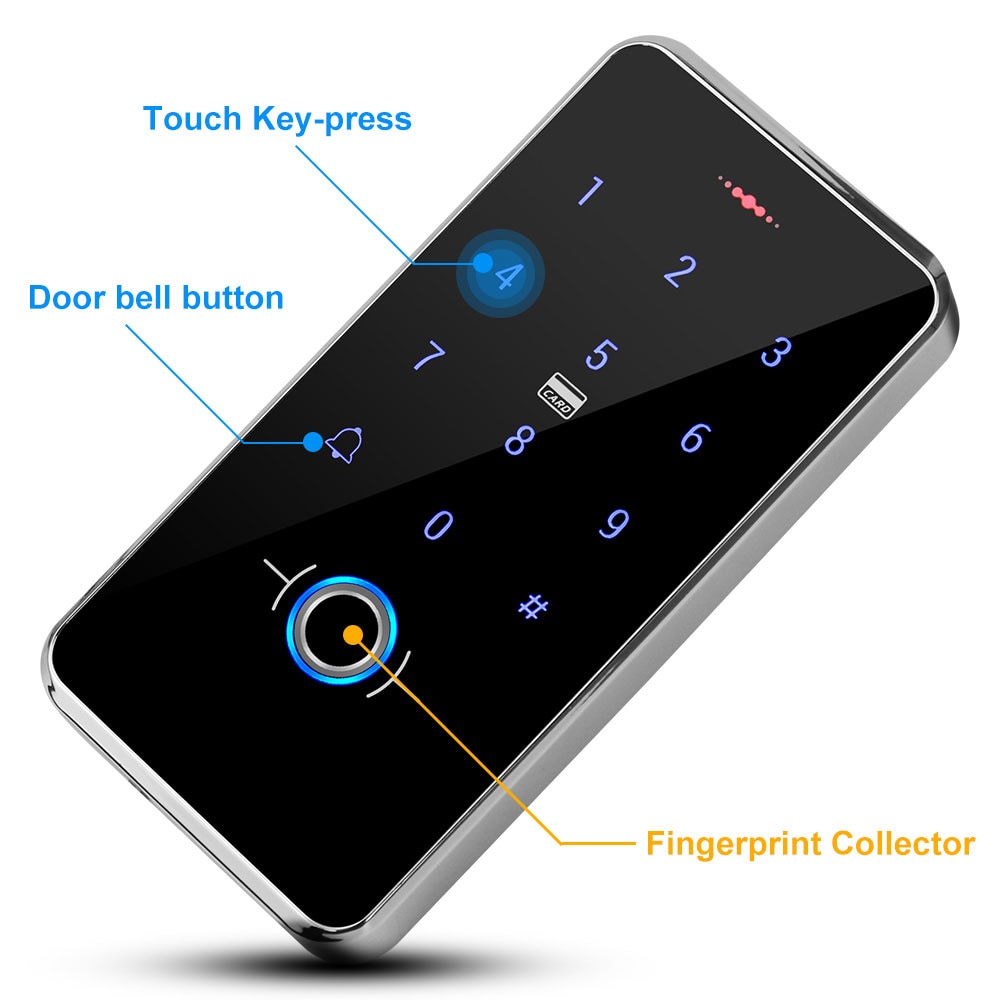

IP68 Waterproof Fingerprint RFID Access Controller

High quality / 120 user capacity / 3 unlock method



Product Specification:
  • User capacity: 120

  • Material: ABS high quality material

  • Panel: touch screen panel

  • Working frequency: 13.56MHz

  • Card reading type: support MF 1K compatible card

  • Card reading distance: 0-5CM

  • Identification method: Fingerprint, RFID card, password

  • Backlight: has blue backlight

  • Waterproof function: IP68 waterproof, can be installed outdoor

  • Doorbell button: support wired doorbell

  • Wiegand signal: WG26 input/output

  • Can set management card: yes

  • Working voltage: DC 12V

  • Working current: ≤ 30mA

  • Door opening time: 0-255 seconds

  • Working temperature: -20 ° C ~ 70 ° C

  • Working Humidity: 20% ~ 90%

  • Product size: 140*70*16mm

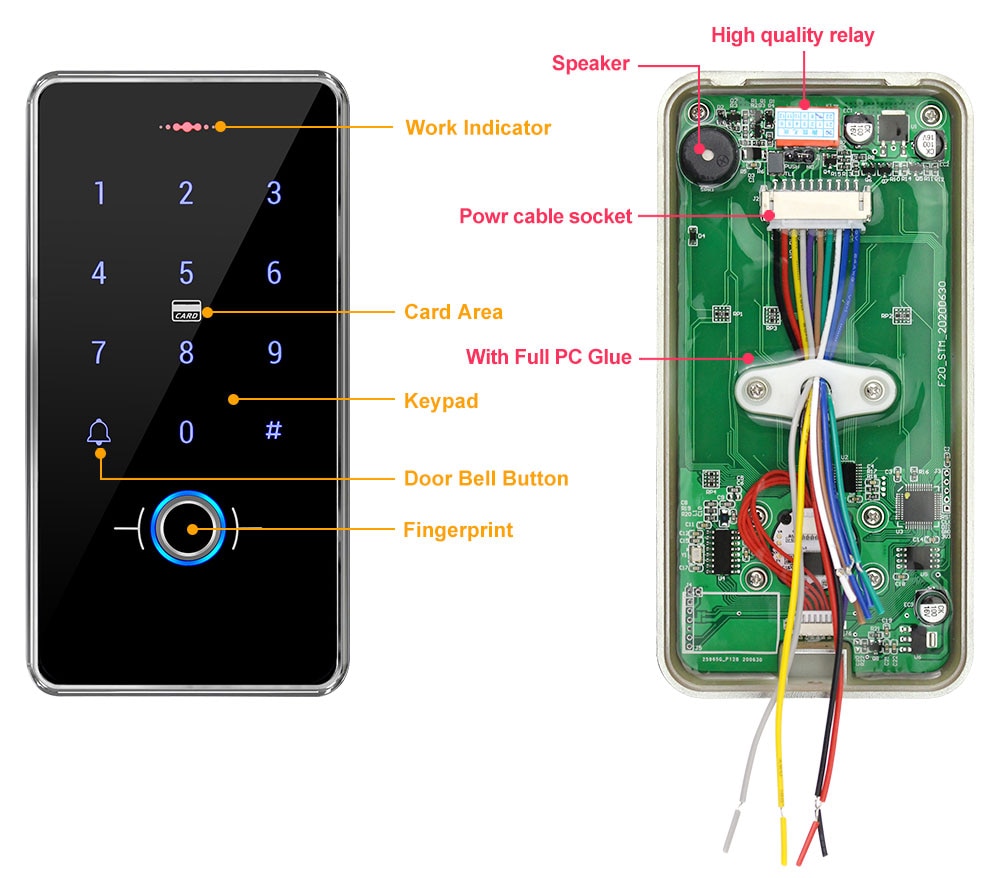

Product Details:

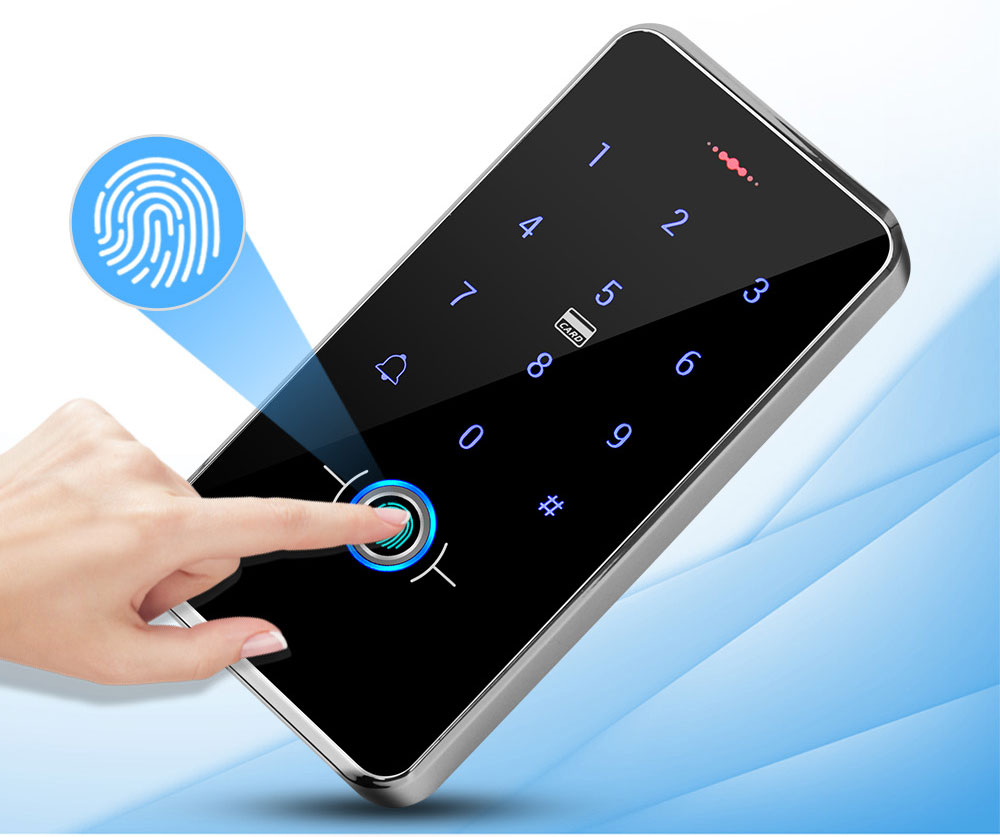

360 degree comprehensive fingerprint recognition, fast Identify Speed
For different angles of fingerprints, it can be quickly and accurately identified

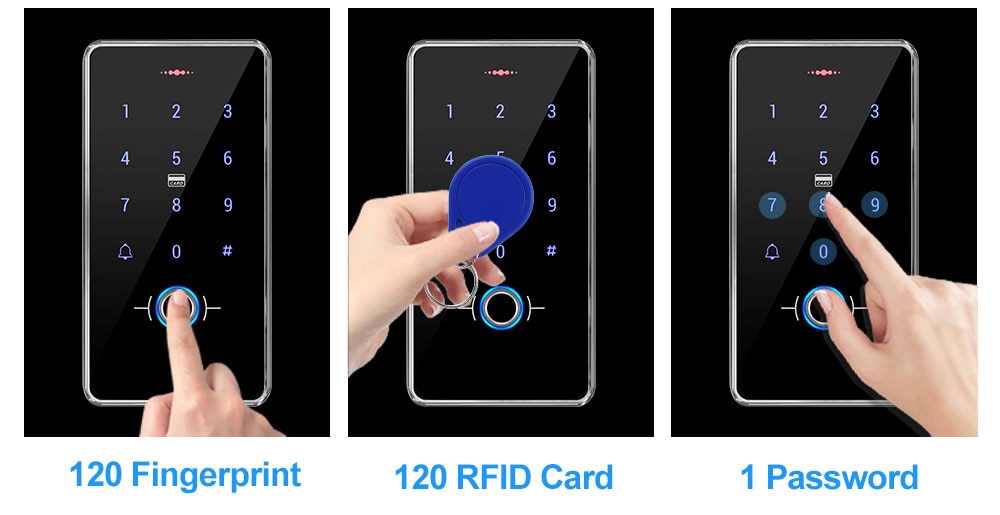

Support Fingerprint, RFID Card, Password to open the door

Support 120 fingerprints, 120 cards, 1 public password user capacity, more secure!


Can set Management card. Very easy to program!
Don't need to connect to computer.

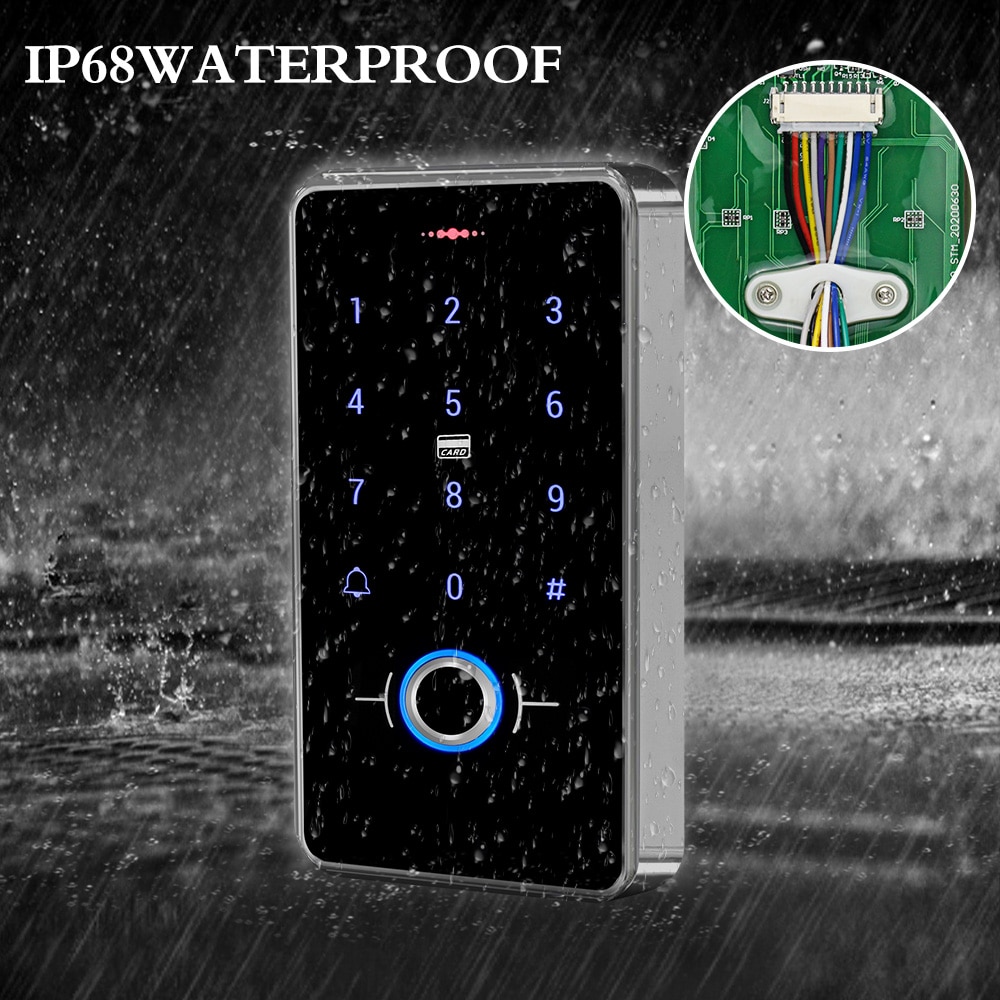

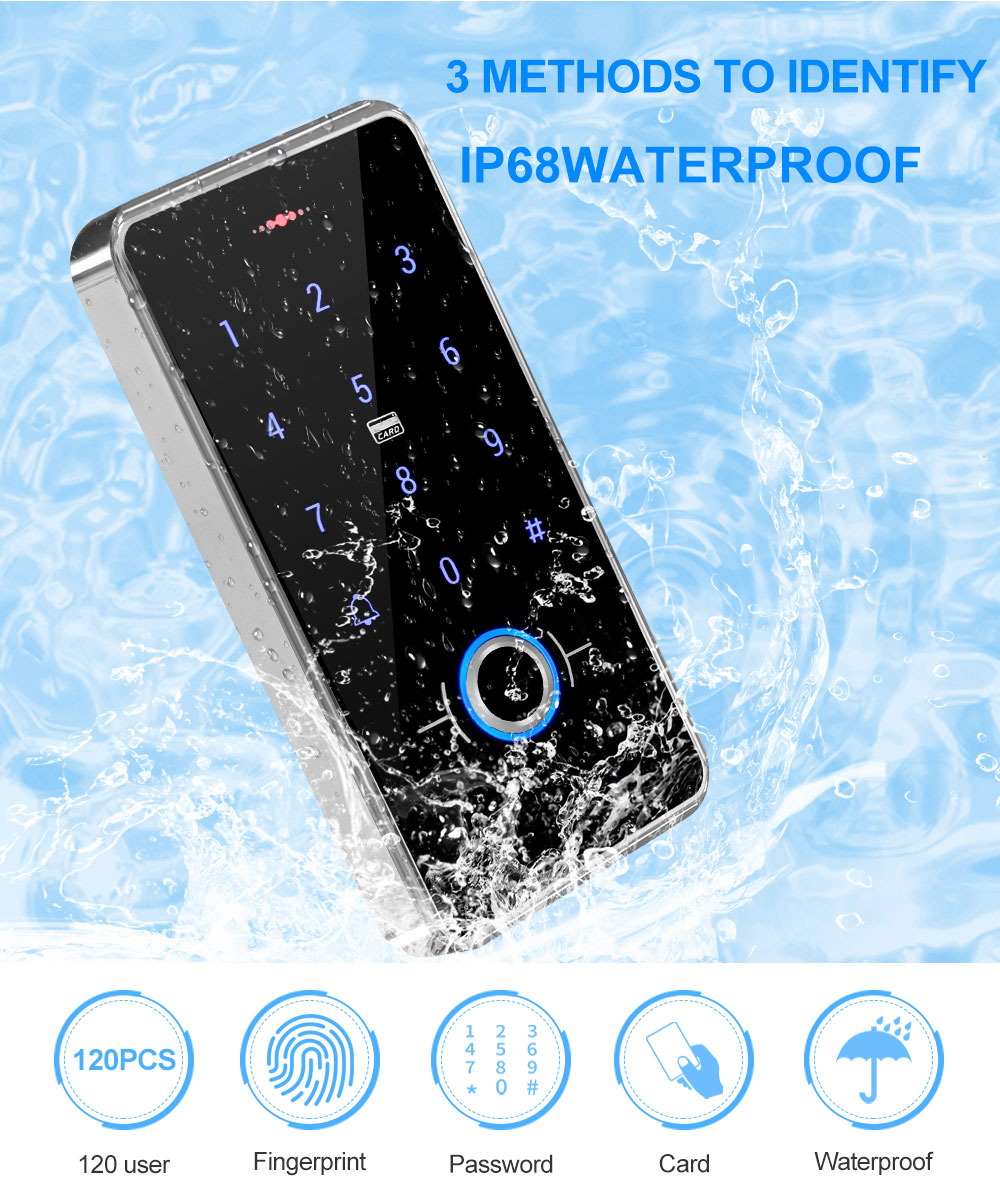

IP68 Waterproof. Can be installed outdoor

With Full PC Glue in the back side, IP68 Rating, can work in the rain and storm



Blue Backlight keypad

The digits number can be seen clearly even at dark

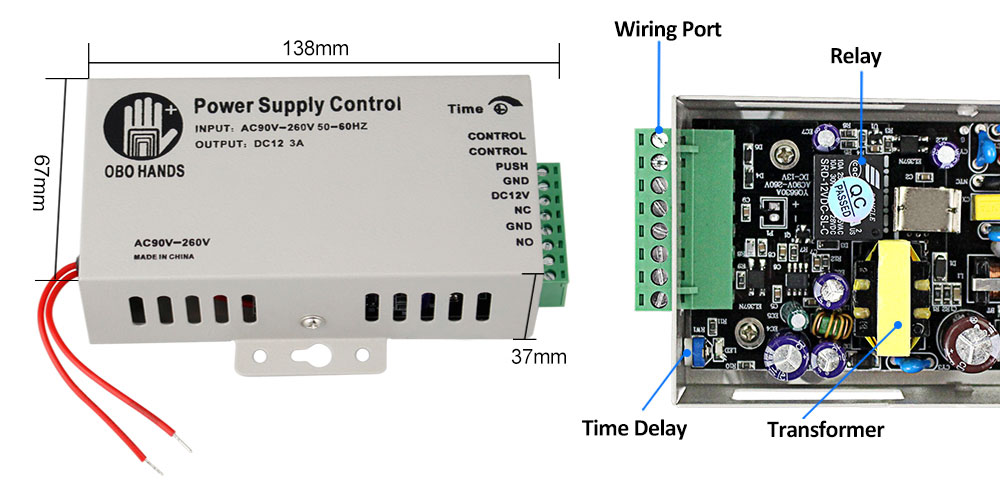

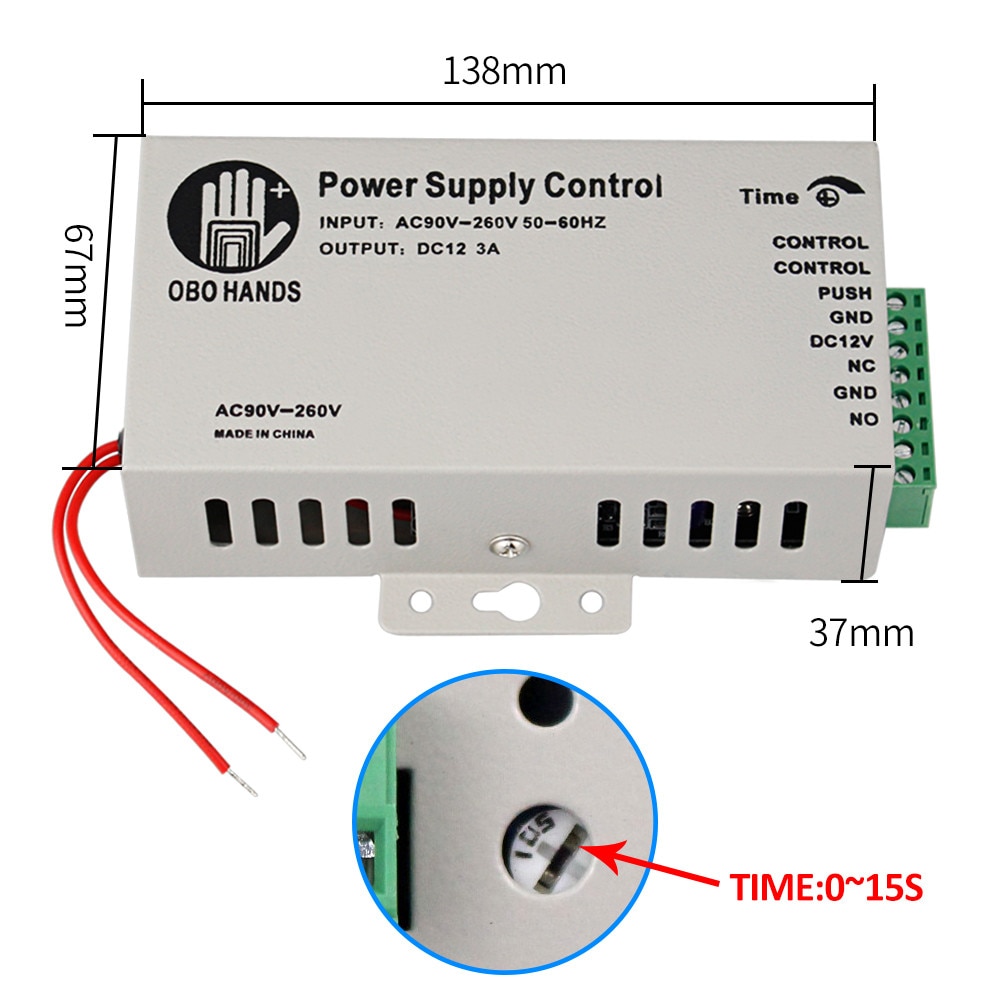

Power Supply:
Material: Steel
Output Power: 36W
Durability Test: 500000 times
Input Frequency: 50-60Hz
Input Voltage: 110-260VAC
Output Voltage: DC12V/3A
Working Temperature: -20 to +65
Time Delay: 0-15 seconds adjustable
Relative Humidity: 0%-90%
Dimension: 100*65*32mm


Door Exit Button:


Material:Hard Plastic
Maximum Power Rating:36V DC 3A—5A output
Support both NC Mode (Fail Safe Mode) &
NO Mode (Fail Secure Mode)
Dimension:86X86MM ( L / W  )

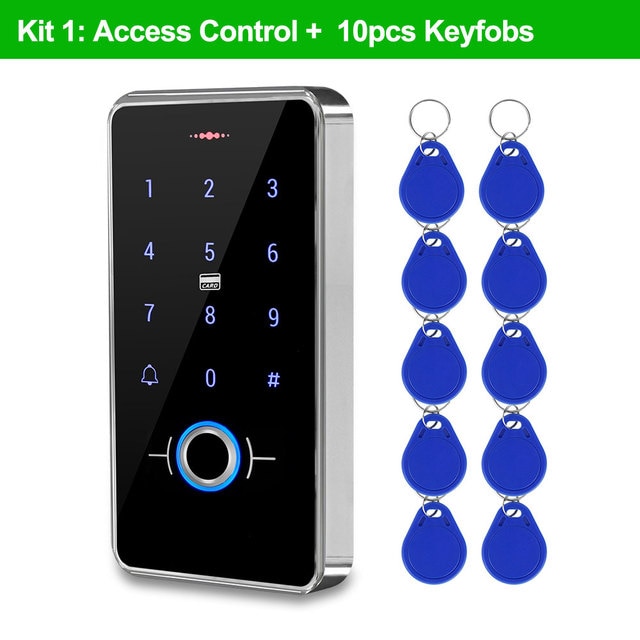

RFID Keyfobs:
13.56MHz frequency RFID key card
Operating frequency: 13.56MHz
Detection range: 0-10cm
Quantity: blue


Package List

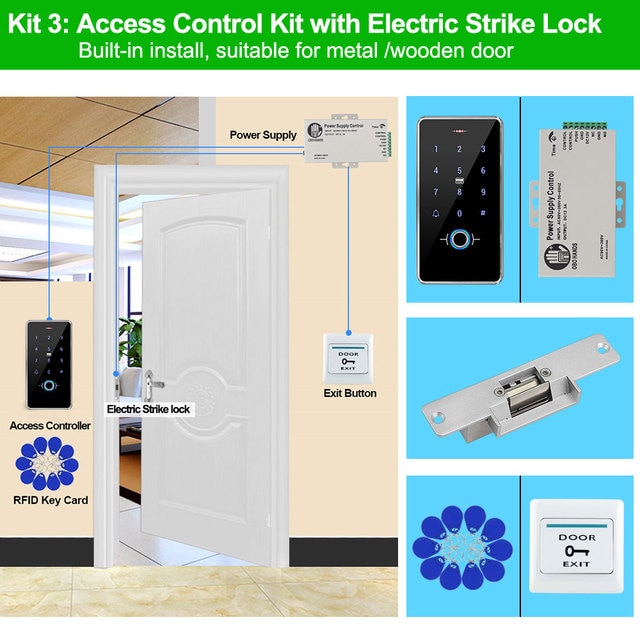

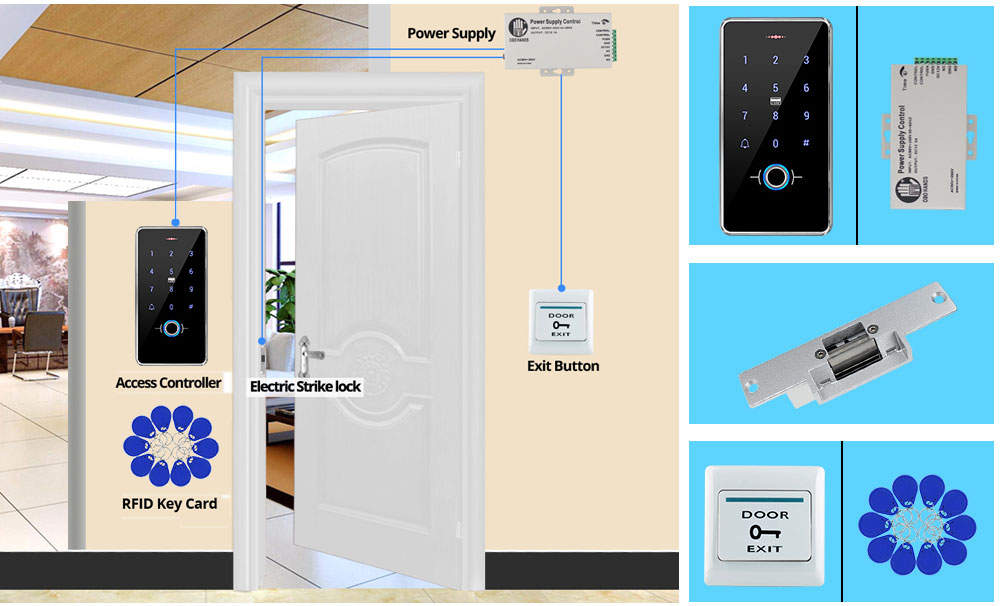

Kit3:  Suitable for wooden door, metal door. Convenient and beautiful. No need bracket
Package including: Access Control keypad + Power supply + NC type Electric Strike lock + Exit button + 10pcs Keyfobs
(We will send the NC type by default, if you want NO type, please leave us a message.)


Working Voltage: 12V ± 10%
Current: 200mA - 450mA
Holding Force: 500kg
Surface Temperature: Lower than room temperature +20
Working Temperature: -30-+60 Celsius Degree
Operating Humidity: 0~90%(non-condensing)
Feature:Fail secure (NO), Fail safe(NC)
Material: Stainless steel
NC type strike lock: Locked when power on, unlocked when power off
NO type strike lock: Locked when power off, unlocked when power on
Size: 150 x 28 × 34mm(L / W / H)

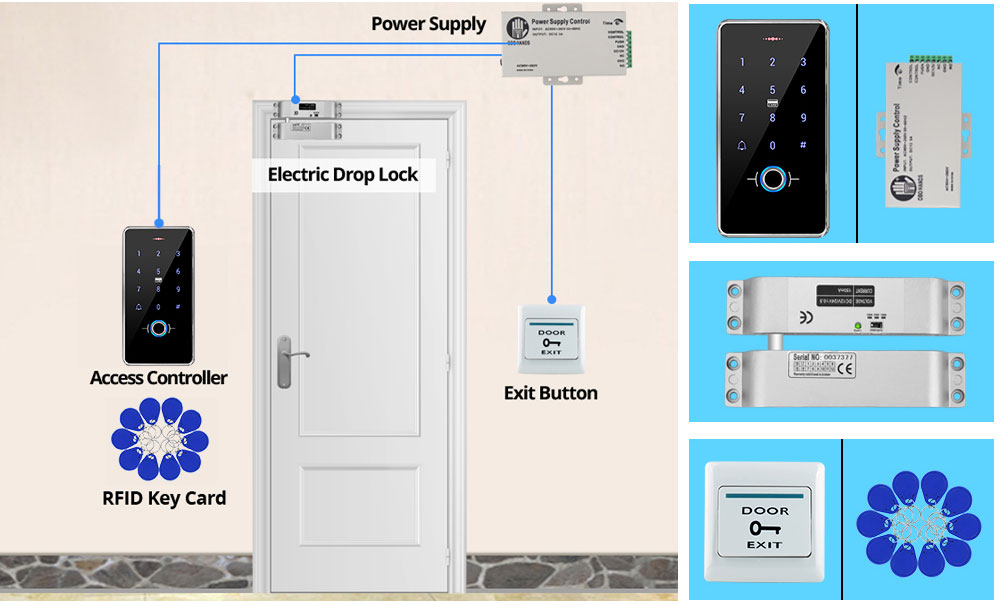

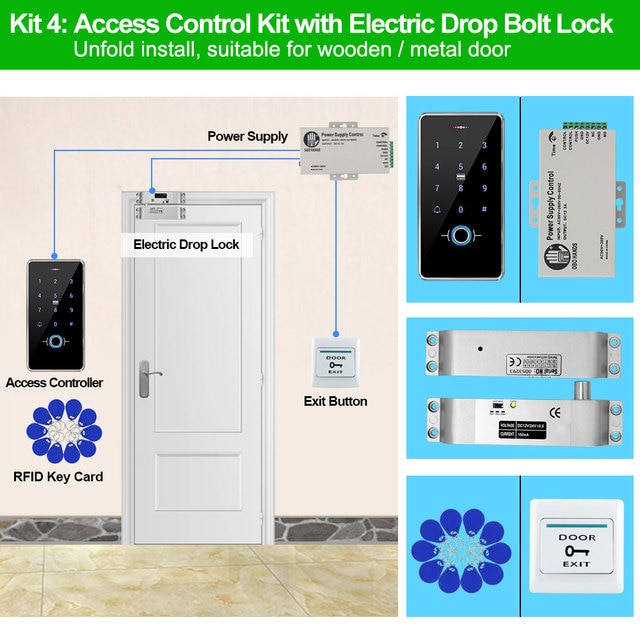

Kit4: Suitable for wooden, metal and Stainless steel door. No need bracket.
Package including: Access Control keypad + Power supply + Electric Drop bolt lock + Exit button + 10pcs Keyfobs


Working voltage: 12V
Time delay: 0s,3s,6s adjustable
Working current: Start state 1.2A ; Persistent state 120mA
Coil type: Continuous working
Security type: Electric power lock, unlock
Lock core: The diameter og 12.5MM stainless coer, exteding the lengh of 15MM
Locking mode: Magnetic induction
Unlock Mode: Fail Safe (Locked when power on, unlocked when power off)
Dimension: 150X34X28( L / W / H )

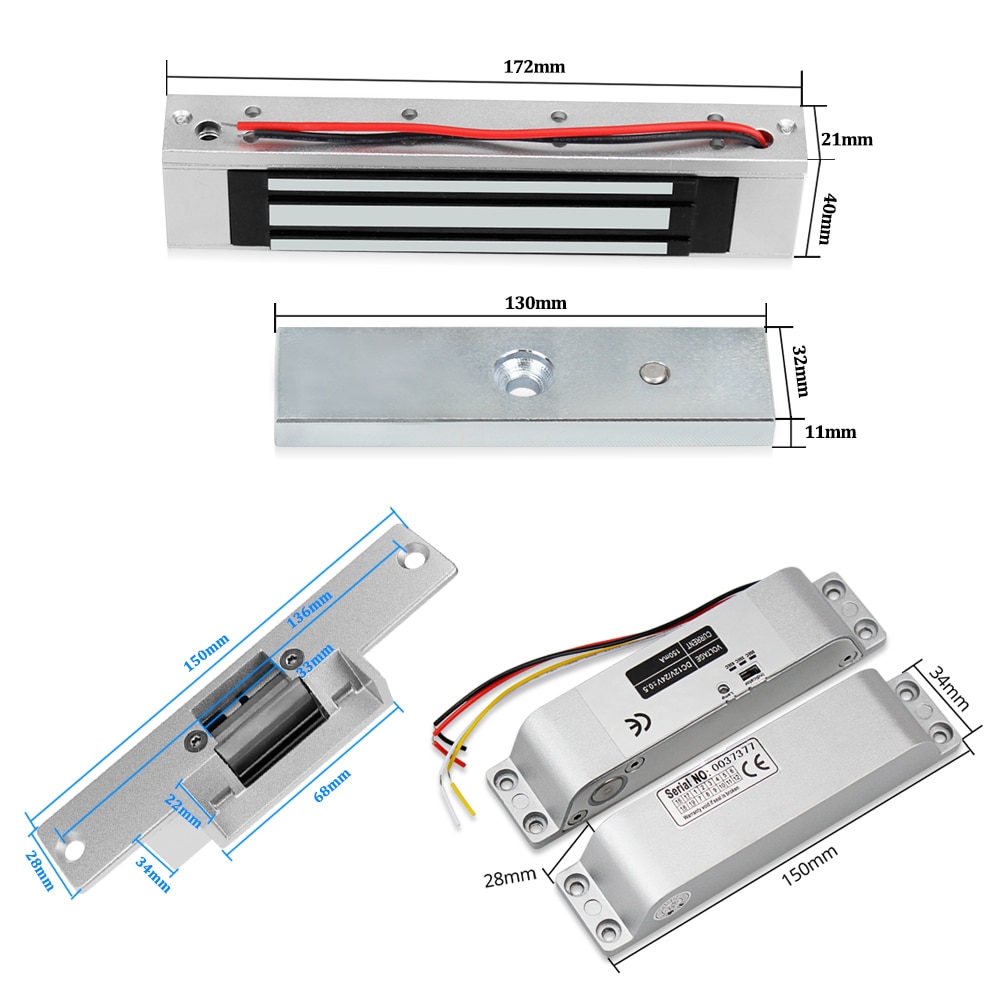

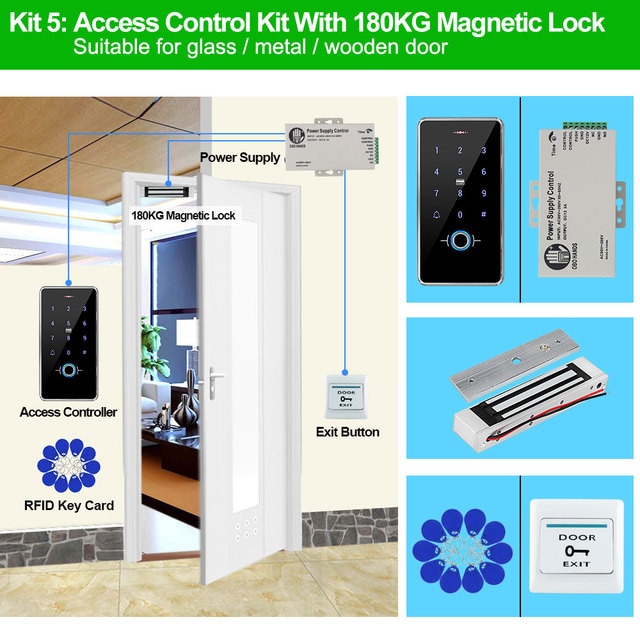

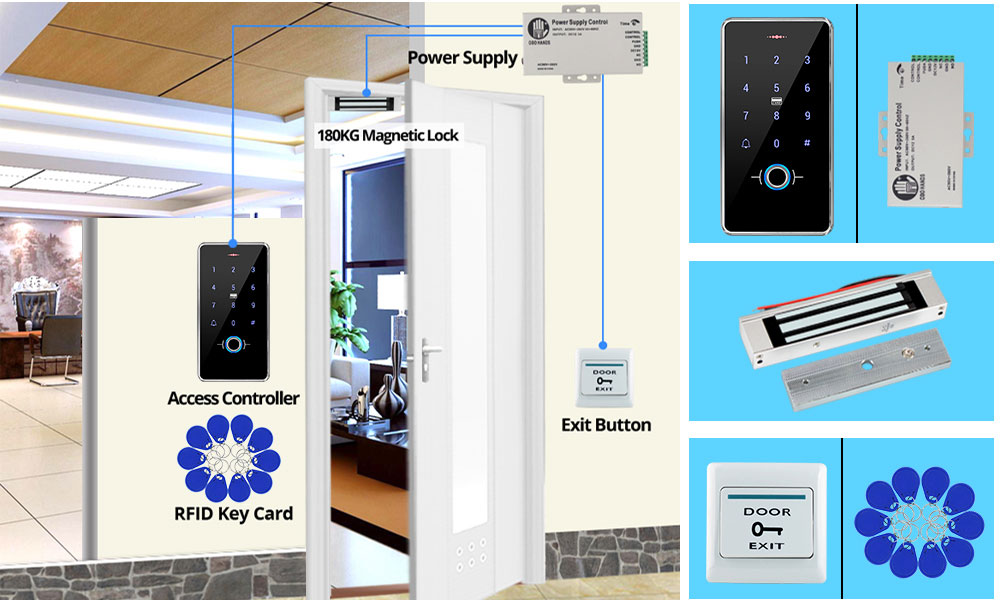

Kit5: Suitable for wooden, metal and glass frame door. No need bracket.
Package including: Access Control keypad + Power supply + 180KG Electric Magnetic Lock + Exit button + 10pcs Keyfobs


Material: Aluminum alloy shell + iron plate
Holding force: 180KG/350lbs
Working Voltage: DC12V
Working Current: 380-430mA
Humidity: 0 to 95%
Working Temperature: -10 to 55 Celsius degree
Working mode: power-on to lock, power-off to unlock
Waterproof: Yes. Can be install outside

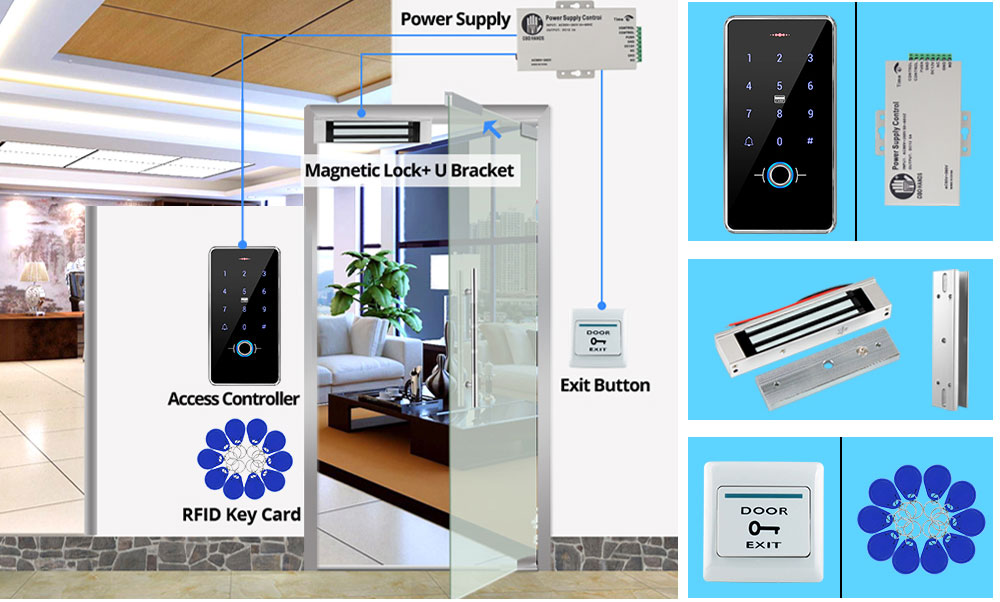

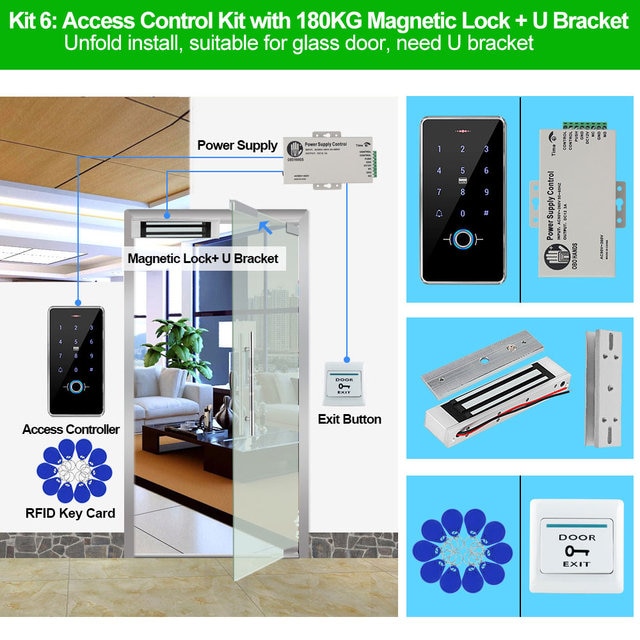

Kit6: Suitable for frameless glass door. Need U bracket.
Package including: Access Control keypad + Power supply + 180KG Magnetic Lock + U bracket + Exit button + 10pcs Keyfobs


If your door is frameless glass door, then will need a U bracket
Size of  U  Bracket:  130* 33 * 26mm (L/W/H)

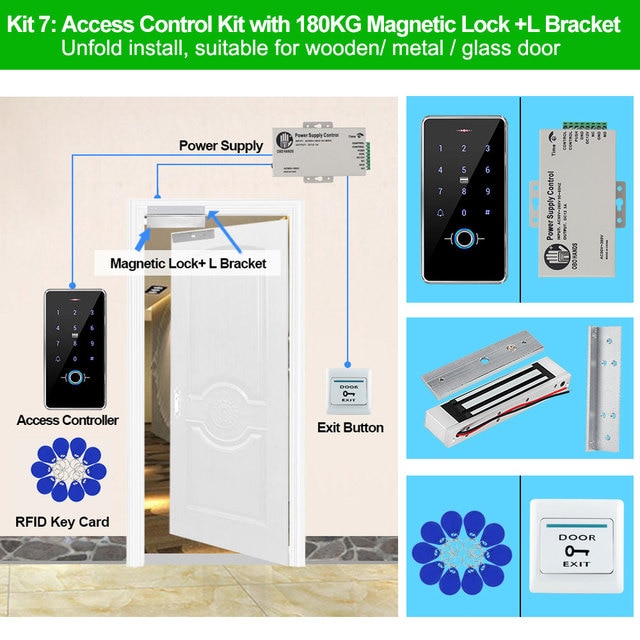

Kit7: Suitable for wooden, metal door. Need L bracket.
Package including: Access Control keypad + Power supply + 180KG Magnetic Lock + L bracket + Exit button + 10pcs Keyfobs


Look at the door from the indoor, if the door is flat or the door to door frame is less than 3cm, you need to add the L bracket.
Size of L Bracket:  170* 34 * 25mm (L/W/H)

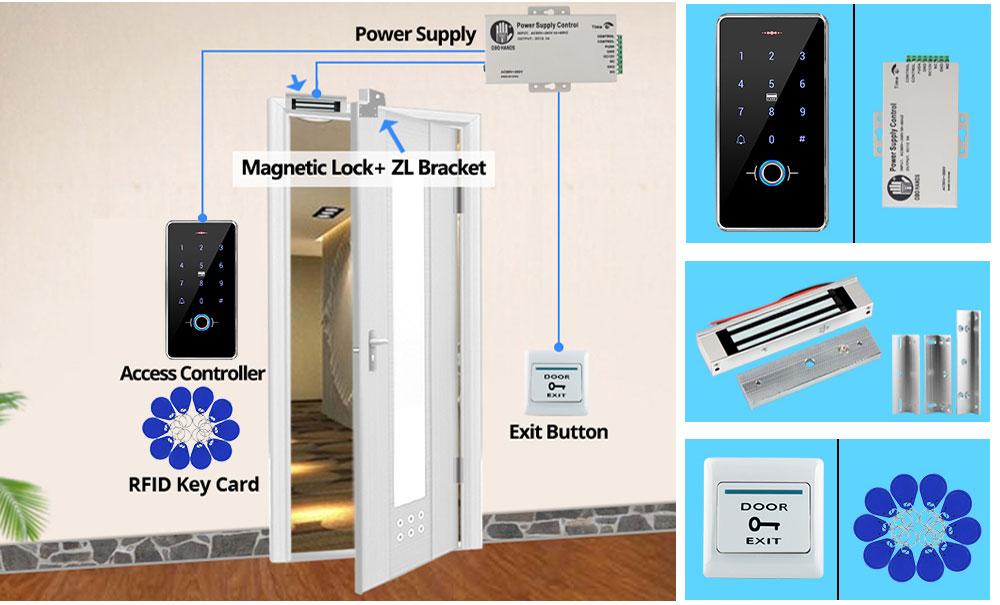

Kit8: Suitable for wooden, metal, glass door. Need ZL bracket.
Package including: Access Control keypad + Power supply + 180KG Magnetic Lock + ZL bracket + Exit button + 10pcs Keyfobs


If your door is open from indoor, then need to add the ZL bracket.
Size of L Bracket: 170*34*25mm (L/W/H) ,
Size of Z Bracket: 138*45*45mm (L/W/H)

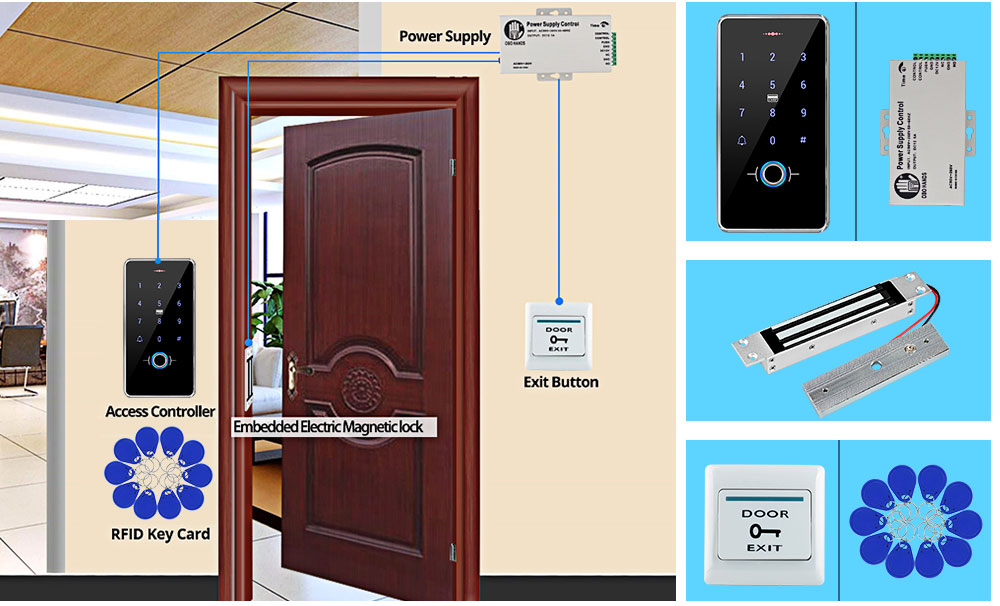

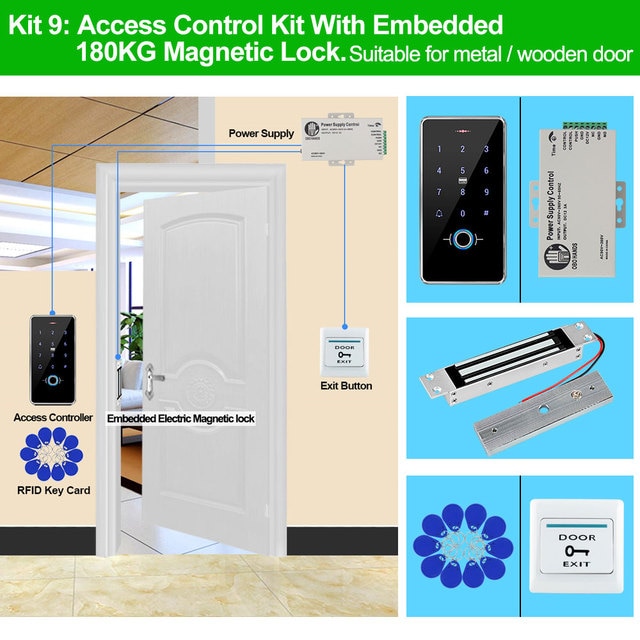

Kit9: Suitable for wooden, metal and glass frame door. No need bracket.
Package including: Access Control keypad + Power supply + Embedded180KG Electric Magnetic Lock + Exit button + 10pcs Keyfobs


Size of the Lock:            192Lx33Wx20H(mm)
Size of Armature Plate:  139Lx32x11H(mm)
Holding Force:                180kg(350Lbs)
Input Voltage:                  12VDC
Current:                           12V/120mA




Wiring Diagram




  • Direction: None
  • Security Mode: Fail Safe
  • Model Number: F20-IC kit
  • Brand Name: OBO HANDS
  • Certification: NONE
  • Origin: Mainland China
  • Type: Waterproof Access Control Kit
  • Working Voltage: DC12V
  • WG interface: WG26 input/output
  • User Capacity: 120 users
  • Unlock Mode: Fingerprint, RFID Card, Password
  • Working Frequency: 13.56MHz
  • Lock1: 180KG Magnetic Lock
  • Lock2: Electric strike lock
  • Lock3: Electric drop bolt lock
  • Bracket: L/U/ ZL Bracket
  • RFID Keypad: F20
  • Access control power supply: DC12V 3A
  • Type1: Door Access control system
  • Type2: RFID access control system
  • RFID Access control keypad: IP68 Waterproof
