HZXVOGEN 200A Aluminum AC/DC Pulse Tig 4 in 1 Welding Machine HVT250P MMA ARC Stick Welder IGBT Inverter HF TIG 2T 4T Soldador
ID: 158053

HZXVOGEN 200A Aluminum AC/DC Pulse Tig 4 in 1 Welding Machine HVT250P MMA ARC Stick Welder IGBT Inverter HF TIG 2T 4T Soldador

5.0 (2 votes) | 19 orders
Price: US $1711.40 - 2025.20
Discount Price:
US $ 1026.84 - 1215.12
-40%
Color
Voltage
Quantity

Buy Now
Add to Cart

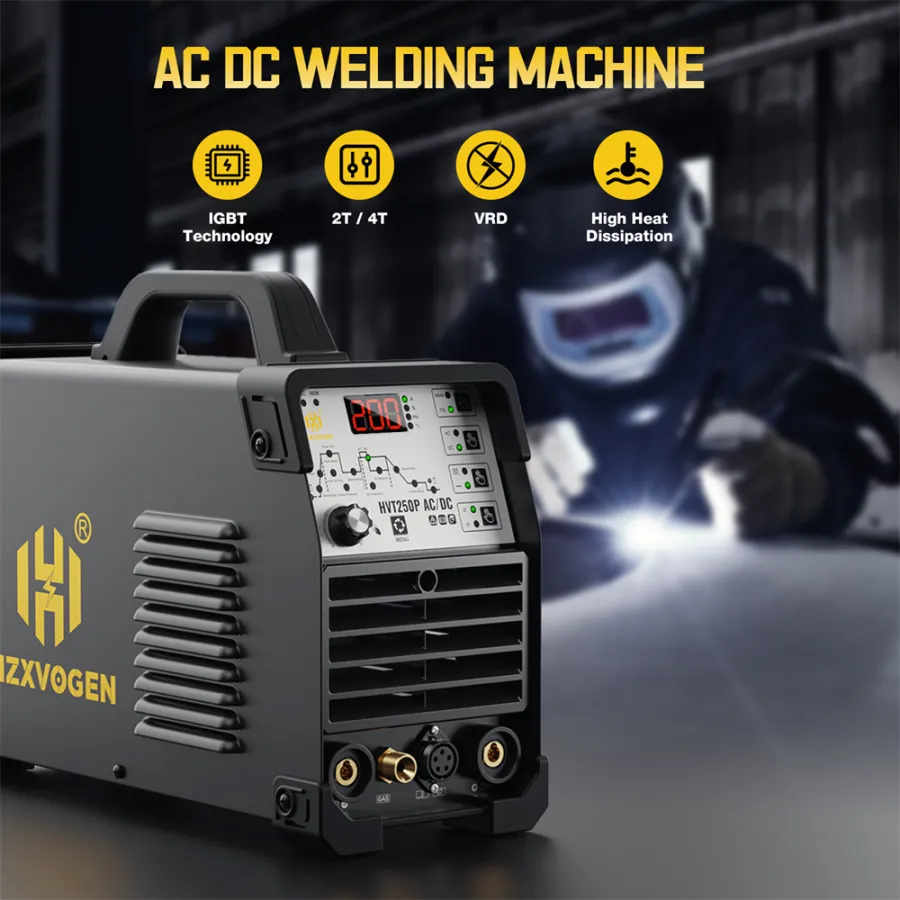

HZXVOGEN HVT250P AC/DC Tig Welding Machine Aluminum MMA ARC Stick Welder 200Amp Tools IGBT Inverter 2T 4T soldador With Pulse


Features:

  • The welding machine has the most advanced inverter technology.
  • Welding power source can offer stronger, more concentrated and more stable arc.
  • When stick and work piece get short, its response will be quicker. It means that it is easier to design welding machine with different dynamic characteristics, and it can even be adjusted specially to make arc softer and also harder

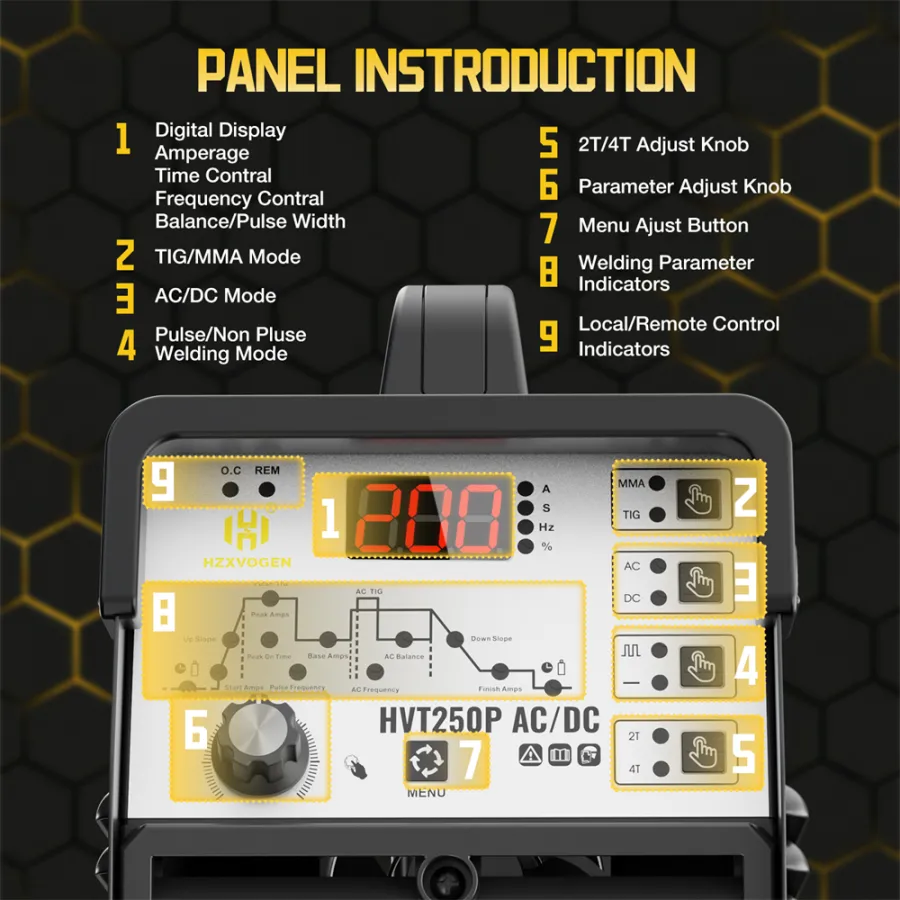

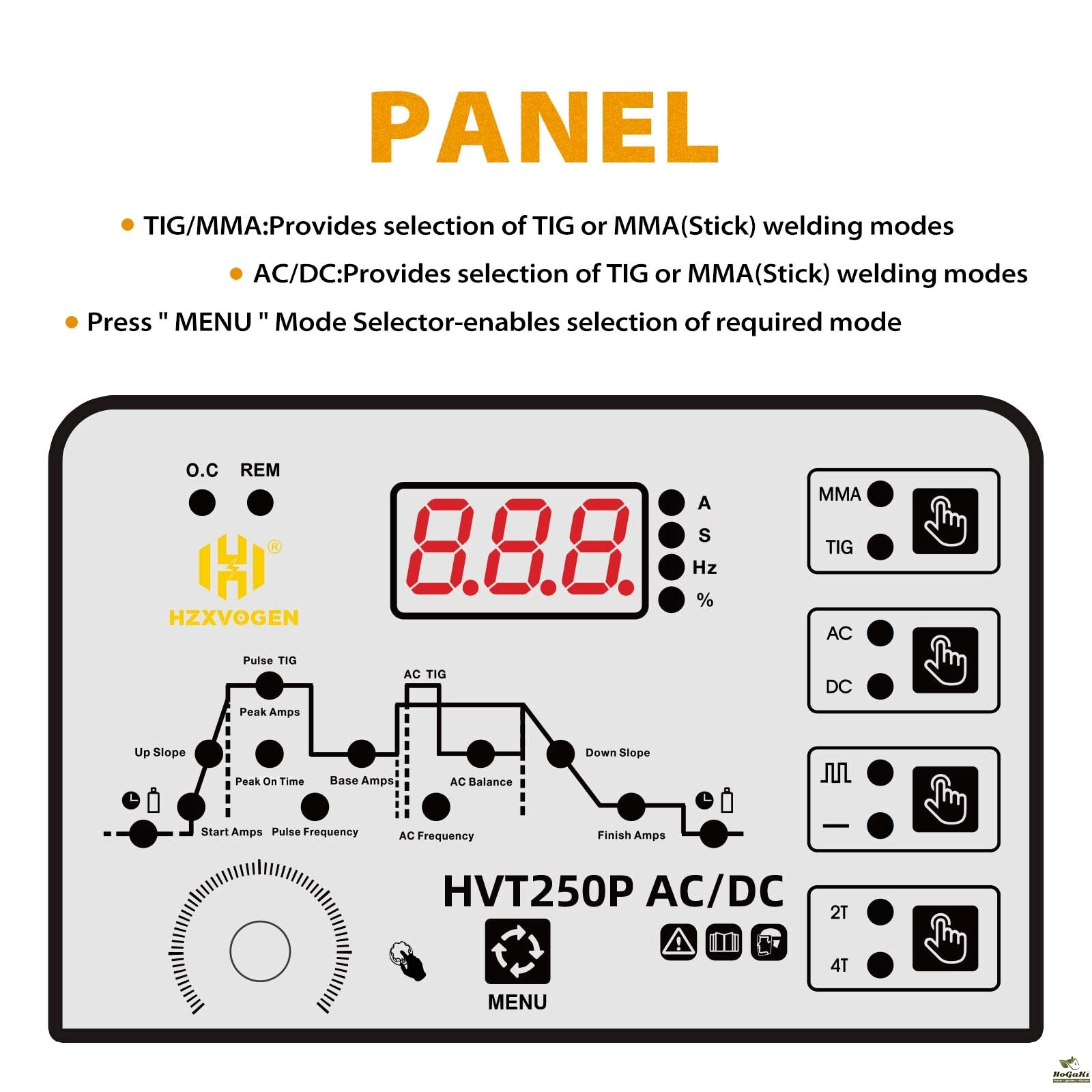

  • TIG welding machine is easy for arc initiation and has the functions of arc initiation current, arc stop current, welding current, basic value current, current ascending time, current descending time, gas delay time, continuous adjustment What’s more, pulse frequency and pulse duty can also be adjusted independently It has the characteristics of automatic control of arc initiation, arc stop and stable arc, which make the best result for shape and inner quality of the welding surface.
  • The machine can be for multi-use, and can weld stainless steel, carbon steel, copper and other color metal, and also can use for traditional electric welding
Specifications:

Brand name: HZXVOGEN

Model:VT250P ACDC

Rated Input Voltage(V) :AC220V:15%,50/60Hz

Rated Input Power(KVA):7.8

Rated Input Current(A):26.3

TIG Rated Output Current & Voltage:200/18V

MMA/ARC Rated Output Current & Voltage:180A/27.2V

TIG Output Current(A):10-200

MMA/ARC Output Current(A):20-120

MMA/ARC No-load voltage: 67V

TIG No-load voltage:65V

Rated Duty Cycle(%):60

Efficiency(%):85

Protection Class:IP21S

Insulation Class:F

Packing dimension: 480mm*270mm*365mm

Base material: carbon stainless, low-alloy steel,titanium,stainless steel ,aluminum

Welding process :AC DC TIG/ARC

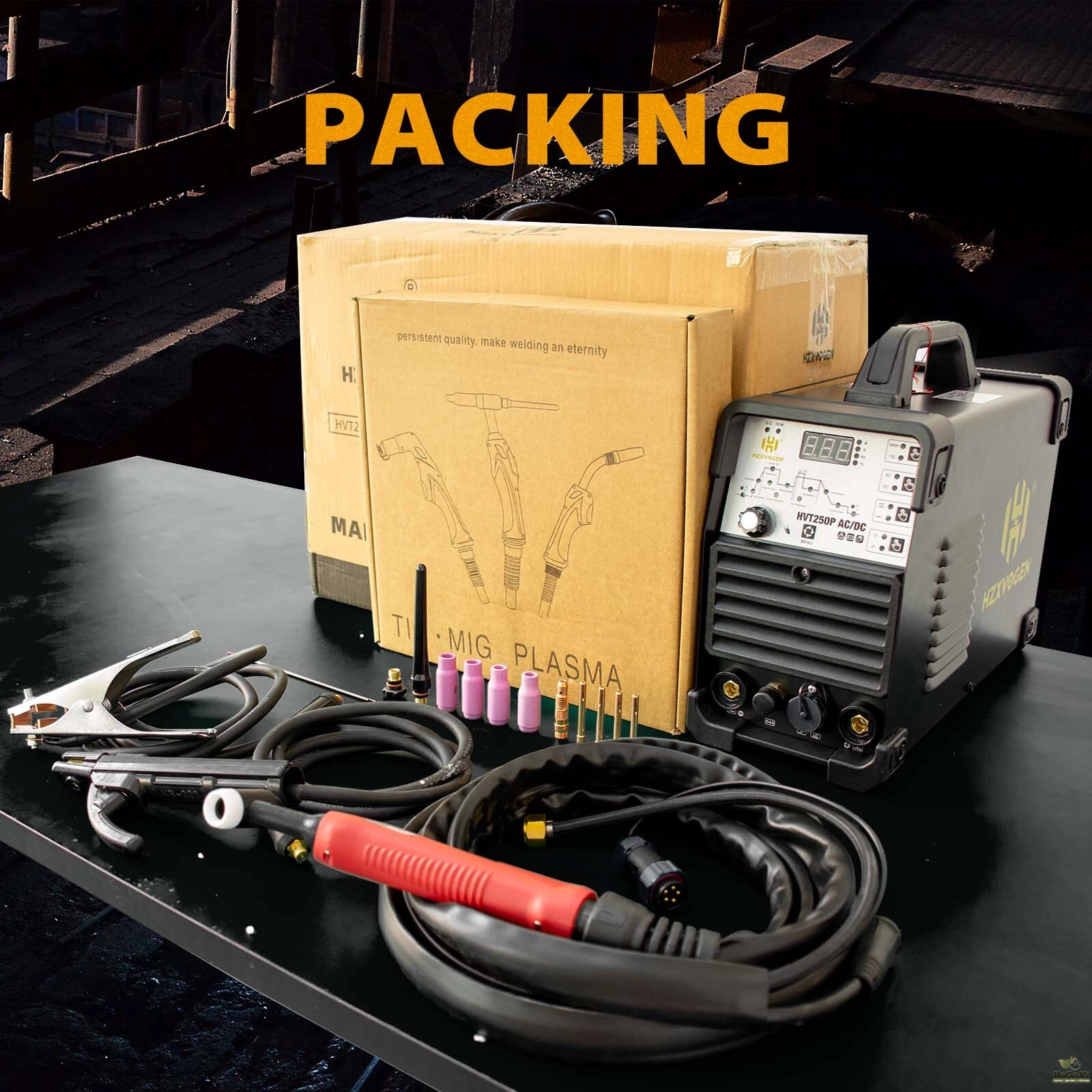

Package 1:

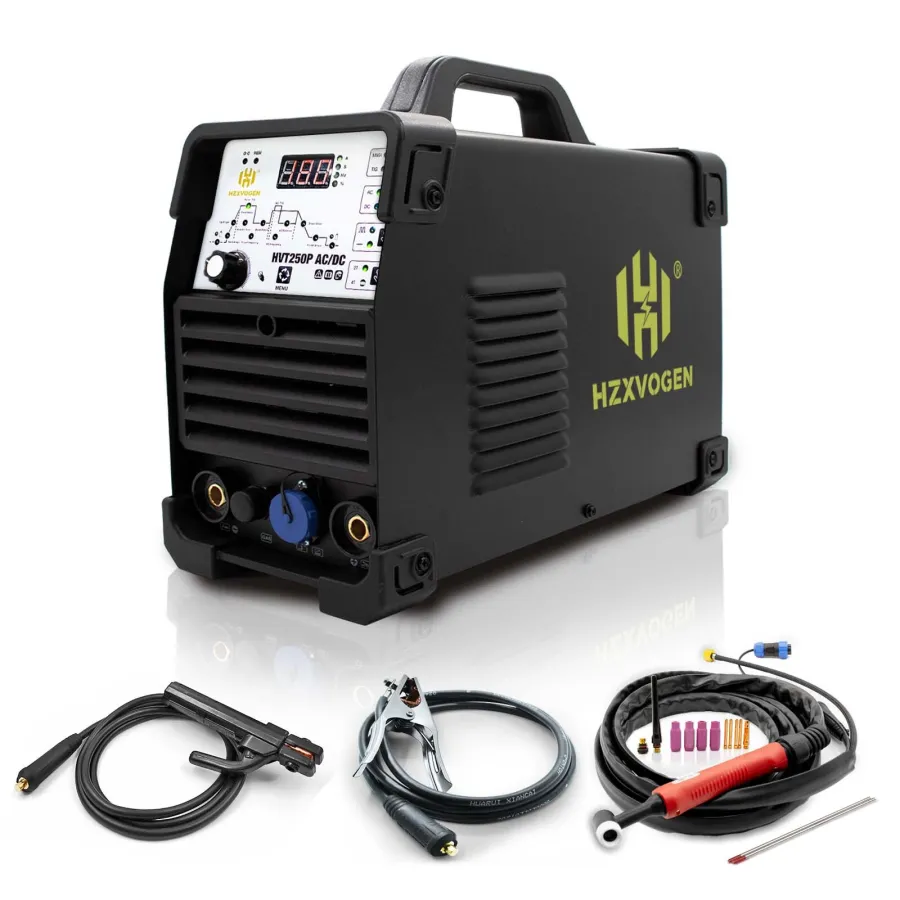

1* TIG Welding Machine
1* 17V Tig torch
1* Electrode holder
1* Earth clamp
1* Pack of tips and nozzles
2*Tungsten Electrodes
1*Manual

Package 2:
1* TIG Welding Machine
1* 17V Tig torch
1* Electrode holder
1* Earth clamp
1* Pack of tips and nozzles
2*Tungsten Electrodes
1*Manual
1*foot pedal

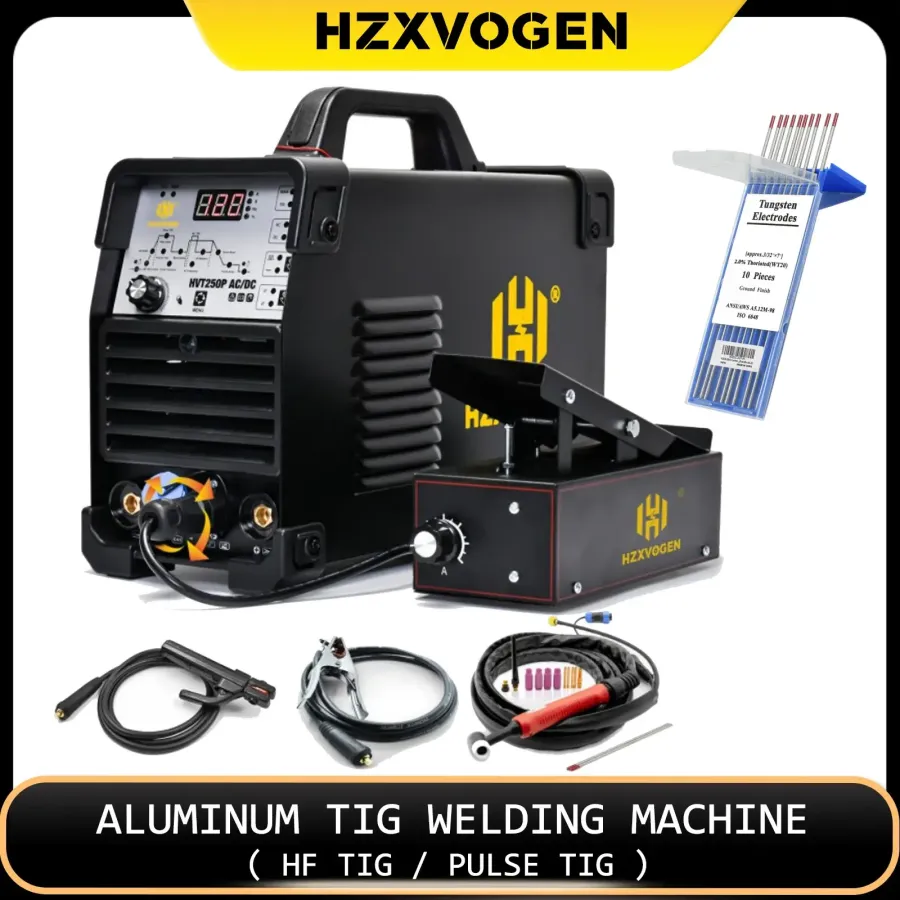

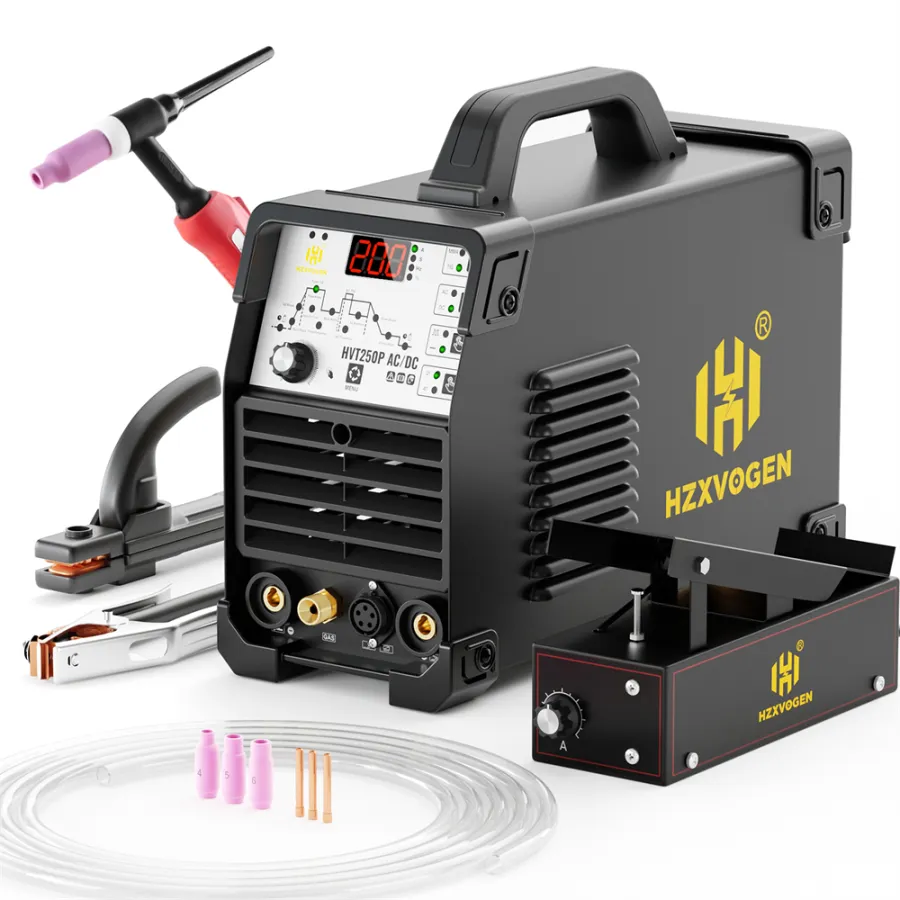

Package 3:
1* TIG Welding Machine
1* 17V Tig torch
1* Electrode holder
1* Earth clamp
1* Pack of tips and nozzles
2*Tungsten Electrodes
1*Manual
1*foot pedal
1*One box of Tungsten


Notice: We'd like you to confirm the type of plug with us, please kindly leave the note for it when place the order, thank you.

*Europe plug * American plug * UK plug* AU plug

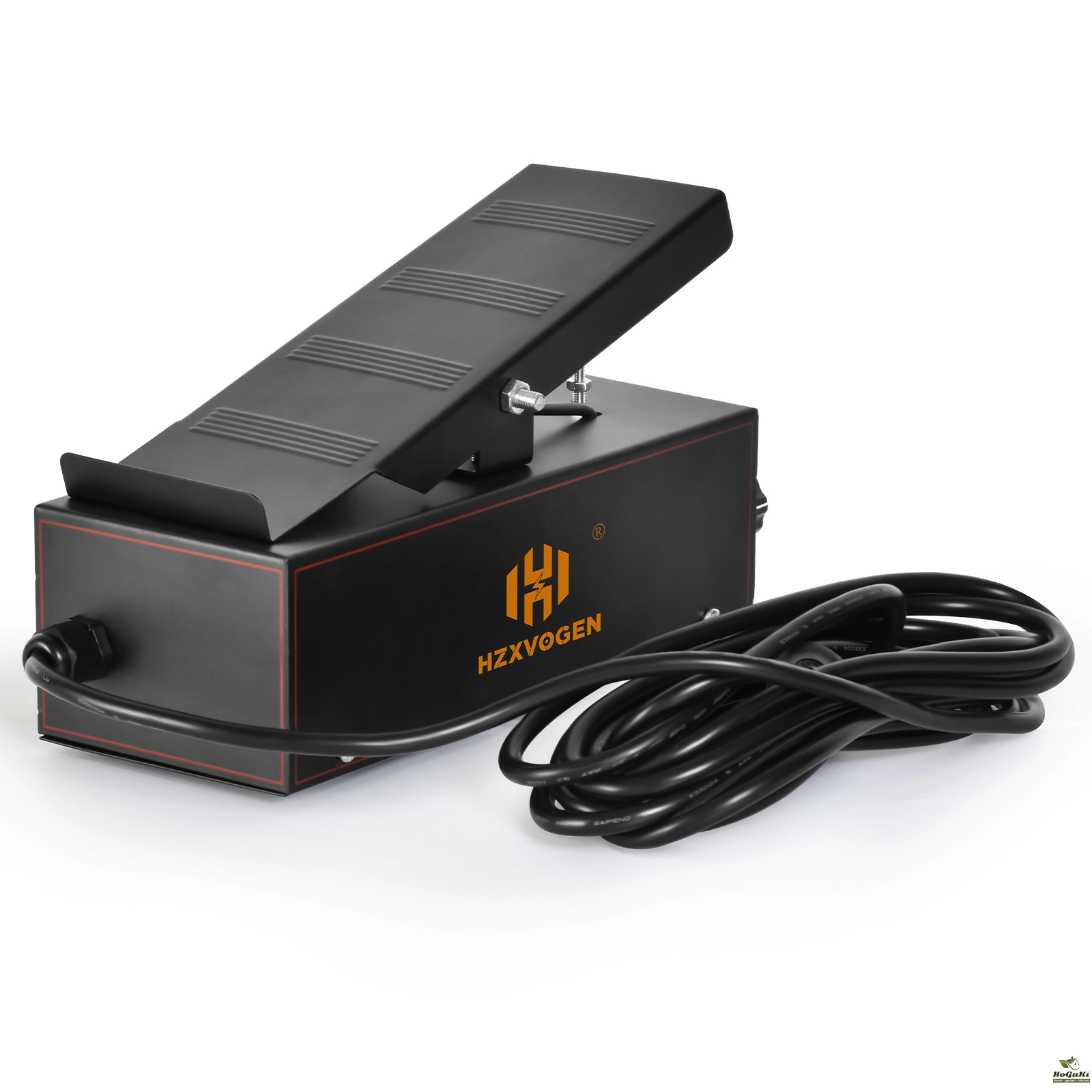

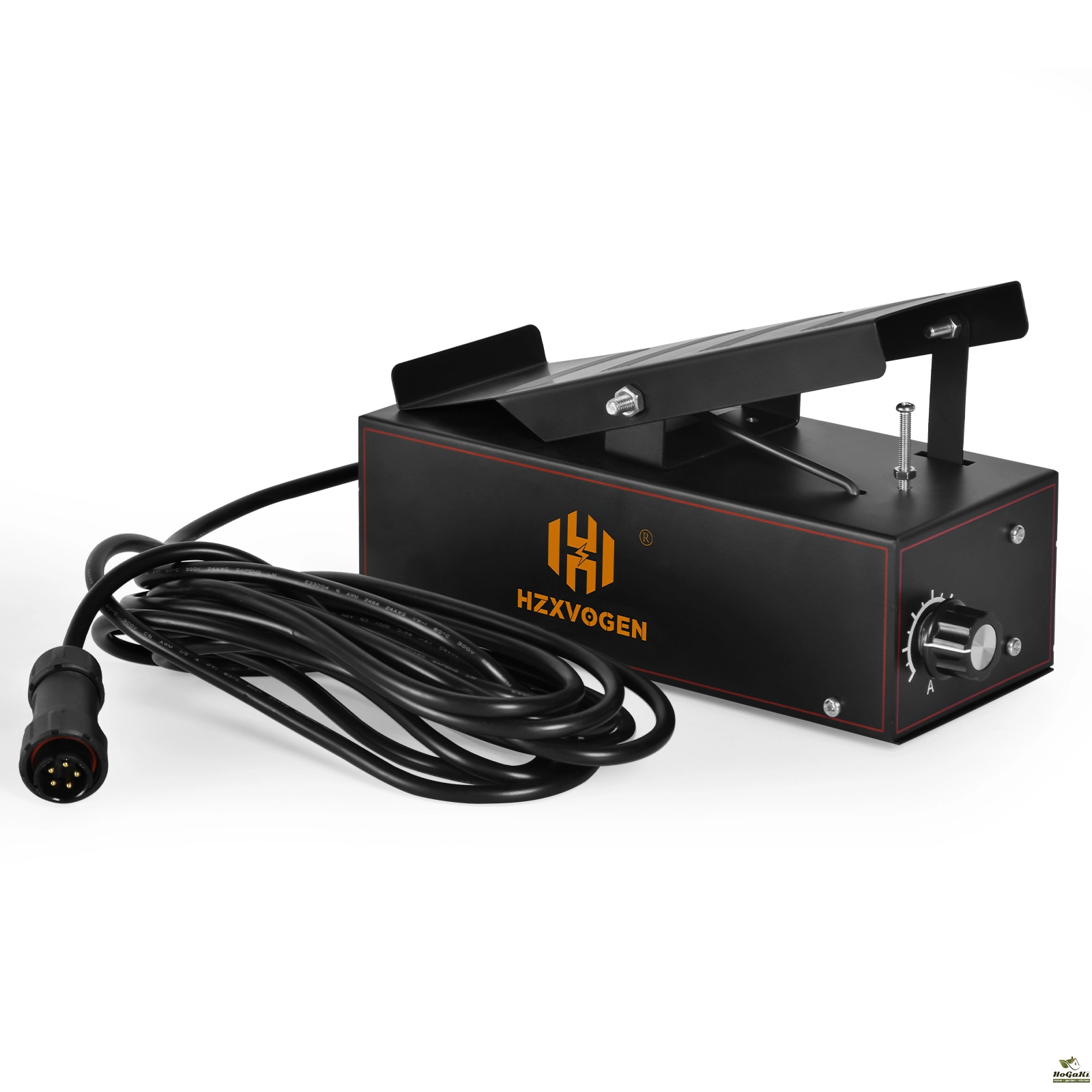

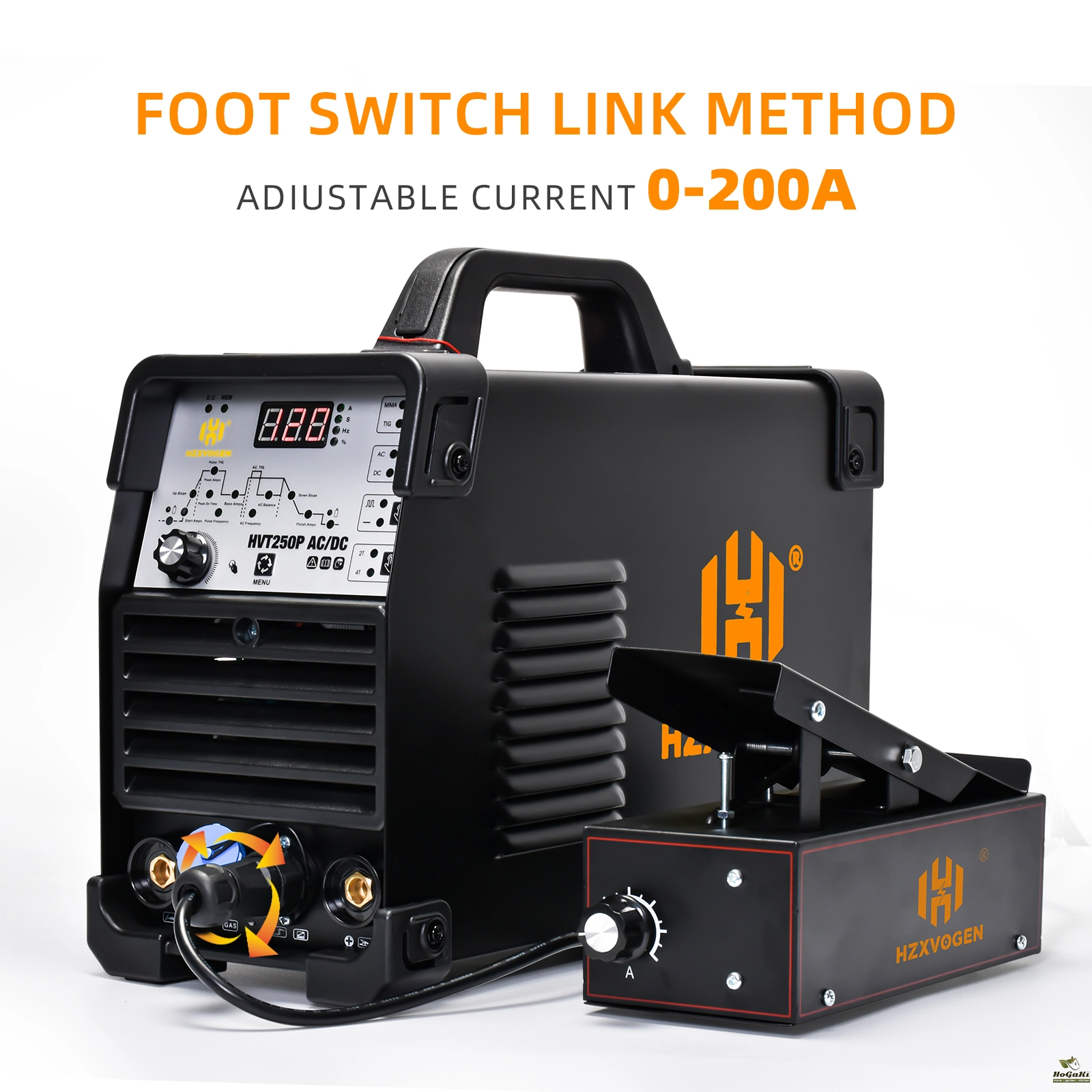

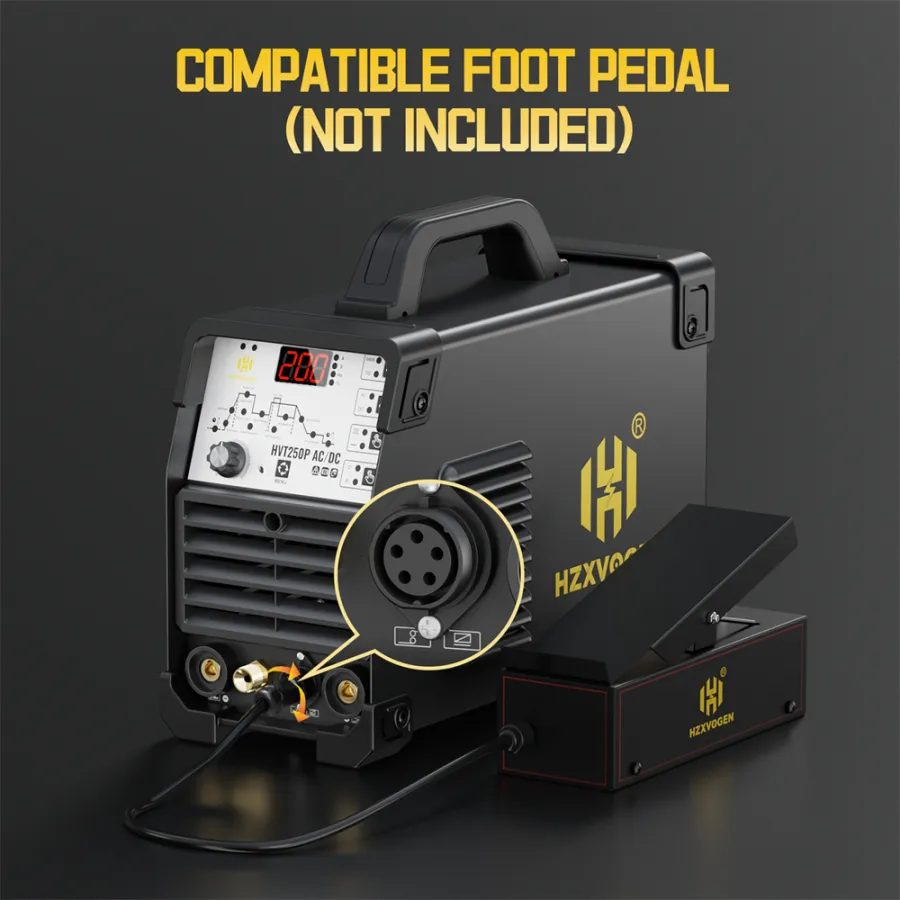

HZXVOEGN Foot Pedal for Plasma Cutter, TIG Welder ,10-200 Amp Control pedal

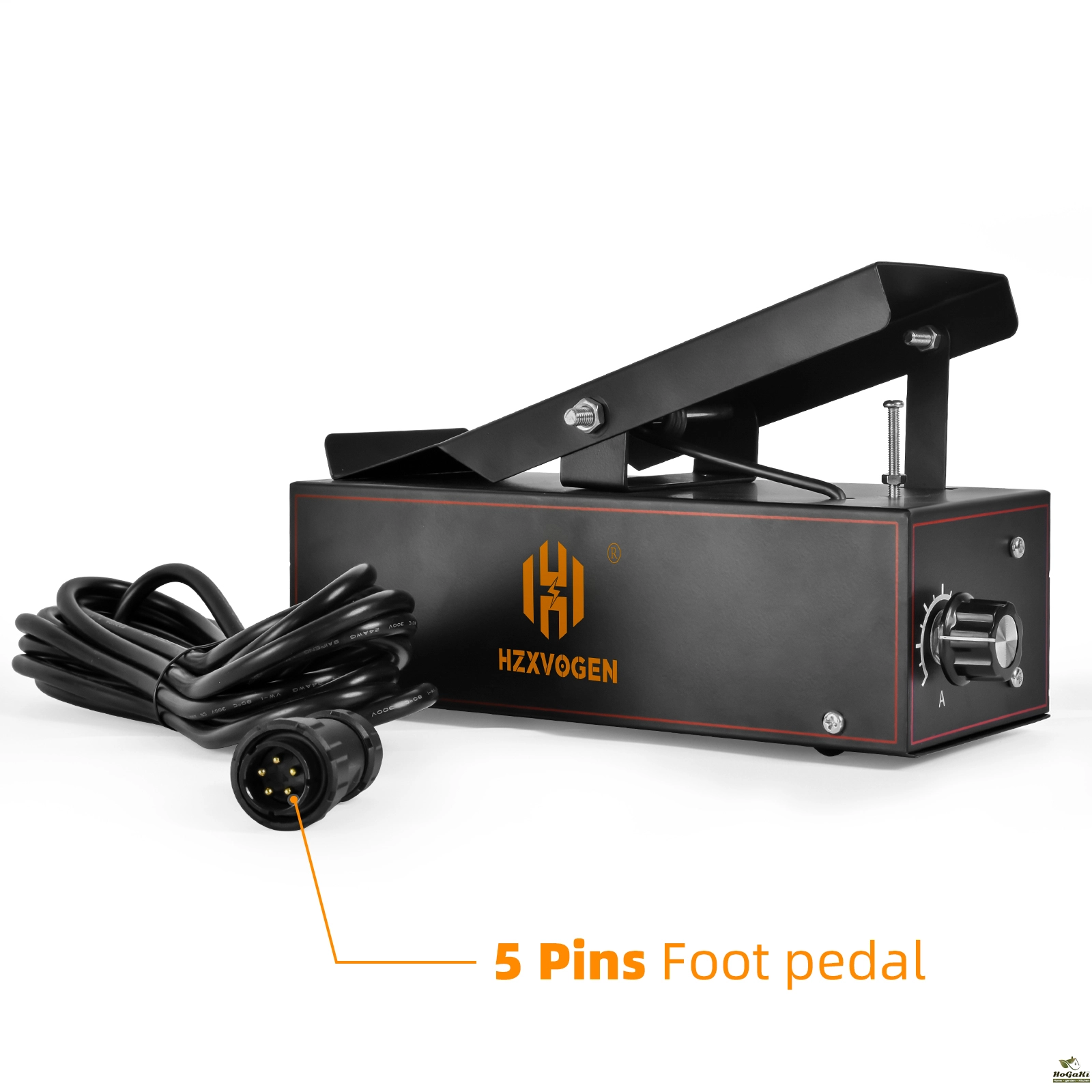

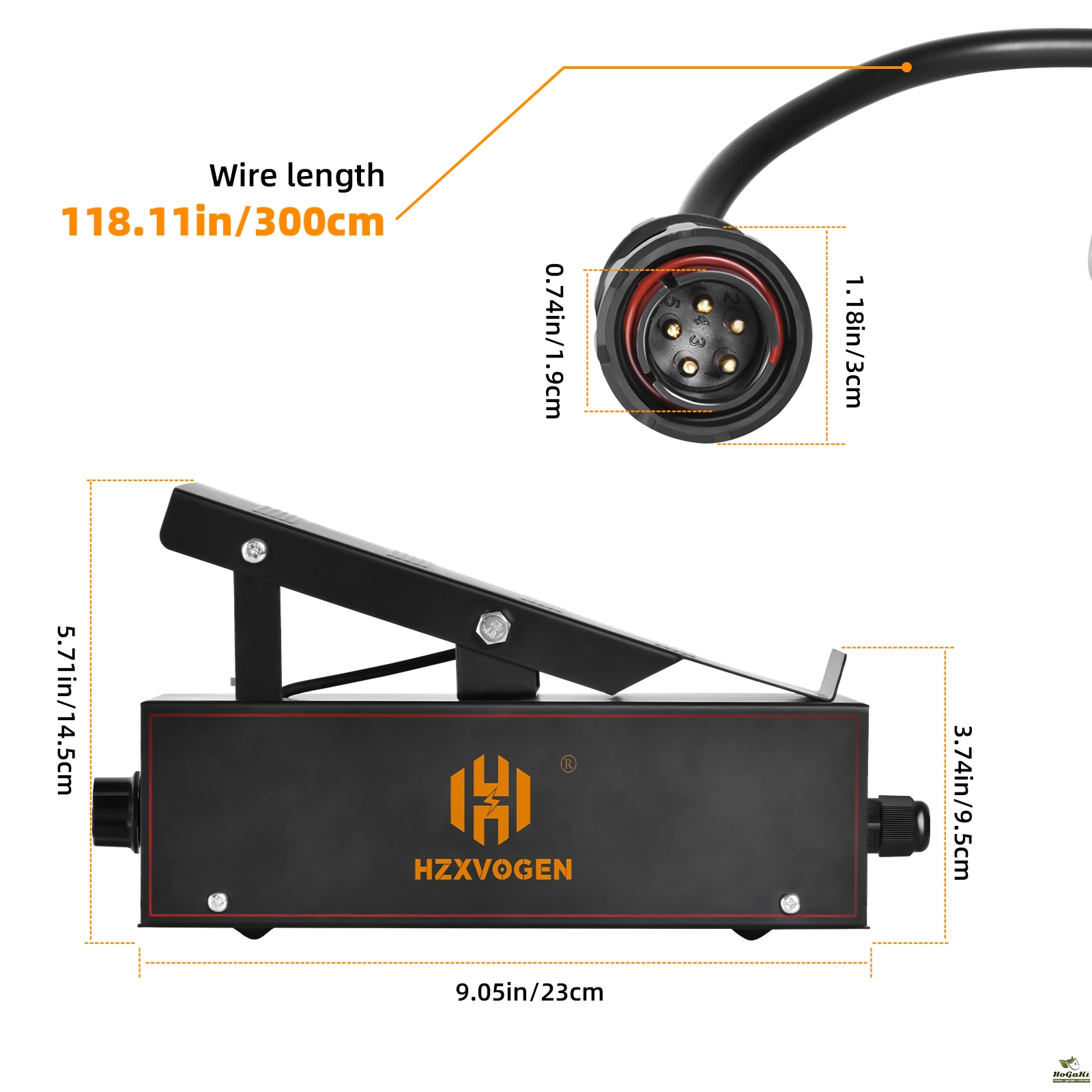

1.The tig welder foot control with 5Pins connector ,built in a current adjustable knob up to 200 Amps.Wire length 3 meters.

2.This foot switch has a wide range of applications and is used in a variety of welding machines and cutting machines, such as: HZXVOGEN HVT250P AC/DC

3.Hands-free: The plasma cutter/ welder foot pedal allows you to operate the machine without having to free a hand to hunt for current adjust switch, saving time and improving work efficiency

4.Durability: The welding foot amp control pedal with a rugged outer casing for long life, more efficient operation and high reliability

  • Applicable to various types of TIG Welding & Cutting Machine

  • TIG Foot Control Pedal Amp control

  • Adjusts amperage from 0-250 amps

  • Step to activate gas contactor and increase amperage; release to turn off and decrease amperage.

  • Using a foot switch ensures your safety and saves time looking for an off switch.

  • Simply plug the foot switch into the power outlet and plug the tool into the socket of the pedal.

Package contains.

1* 3m Foot Pedal



Packaging Details

  • Unit Type:
  • Package Weight: 13.000
  • Package Size: 27x35x45

  • Brand Name: HZXVOGEN
  • Hzxvogen Model: HVT250P
  • Origin: Mainland China
  • Hign-concerned Chemical: None
  • Is Smart Device: No
  • Plug Type: EU Plug
  • Certification: CE
  • Model Number: HVT250P ACDC

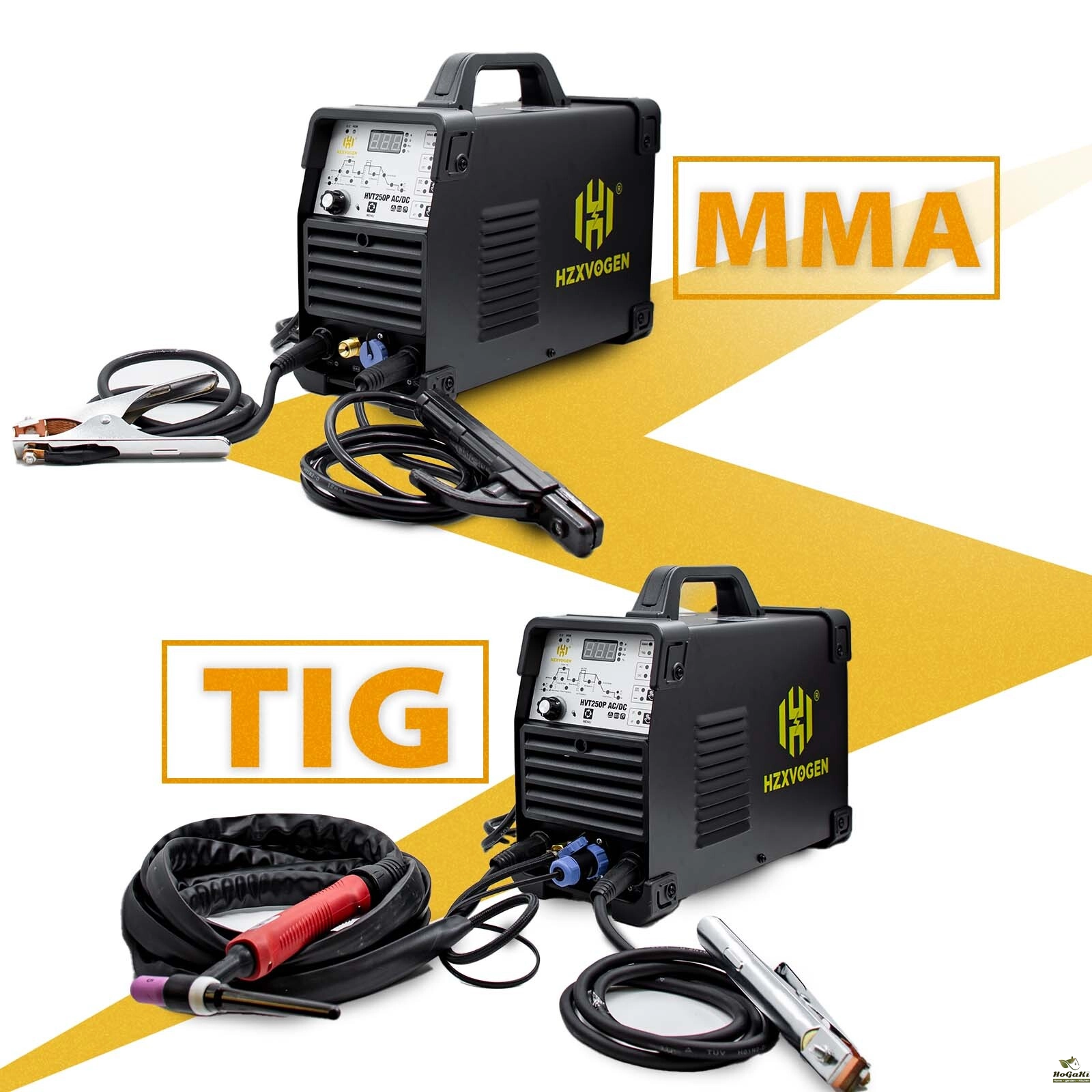

  • function 1: tig ACDC welding machine
  • function 2: Arc MMA Stick welding machine
  • function 3: tig pulse welding
  • Rated Input Voltage (V): AC 220V±10%,50/60Hz
  • Rated Input Power (KVA): 5.8
  • Rated Input Current (A): 26.3
  • ARC Rated Output Current & Voltage: 180A/27.2V
  • TIG Rated Output Current & Voltage: 200A/18V
