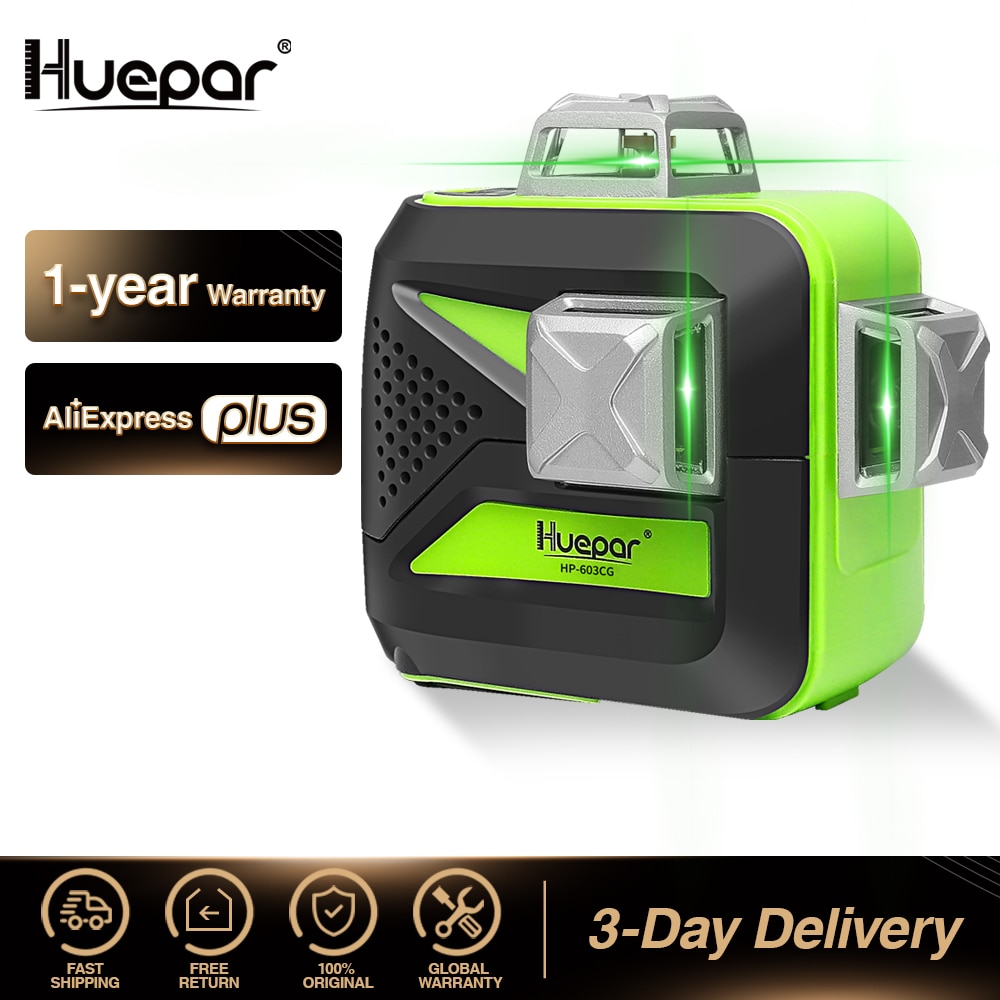

Huepar 12 Lines 3D Cross Line Laser Level Self-Leveling 360 Vertical & Horizontal Green Beam USB Charge Use Dry & Li-ion Battery
SALE
ID: 58634

Huepar 12 Lines 3D Cross Line Laser Level Self-Leveling 360 Vertical & Horizontal Green Beam USB Charge Use Dry & Li-ion Battery

4.9 (39 votes) | 309 orders
Price: US $571.95 - 829.16 / Set
Discount Price:
US $ 245.21 - 346.60 / Set
-57%
Ships From
Color
Quantity

Buy Now
Add to Cart


Huepar 12 Lines 3D Cross Line Laser Level Self-Leveling 360 Vertical & Horizontal Green Beam USB Charge Use Dry & Li-ion Battery


603CG 3 x 360 Green Laser Level Specifications:


  • Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output

  • Laser Wavelength: 505-520nm

  • Horizontal/Vertical Accuracy: ±1/9 inch at 33Ft

  • Leveling/Compensation Range: ±4°

  • Working Distance (Line): 130Ft (100 LUX), 200Ft with Huepar Laser Receiver LR-6RG

  • Operating Time with lithium battery: 7 hours with all laser beams on

  • Operating Time with AA batteries: 2 hours with all laser beams on

  • Power Source: Li-ion battery&4×˝AA˝ (LR6) batteries

  • IP Rating: IP54

  • Operation Temperature Range: 14℉ ~ 113℉ (-10℃~ 45℃)

  • Mount Size: 1/4"-20 and 5/8"-11

Warning:

Avoid direct exposure of the laser beam to the eyes.

The laser would be affected by strong sun light when work outside

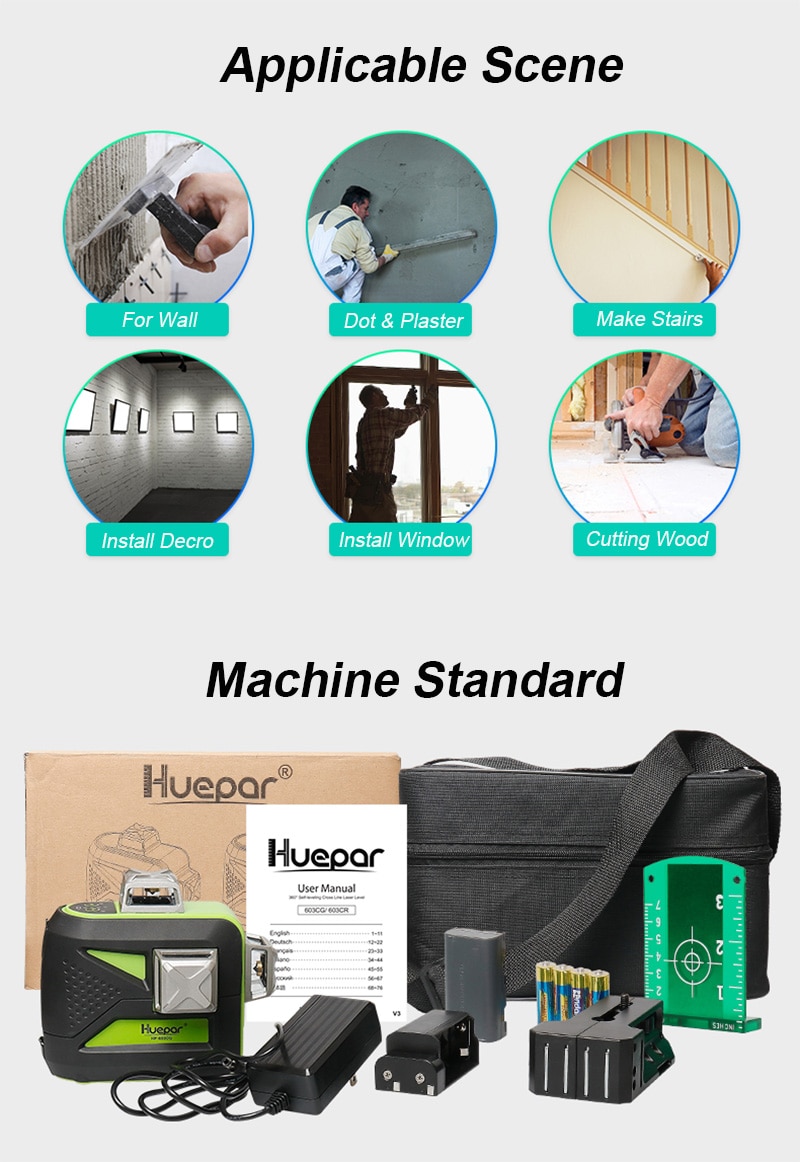

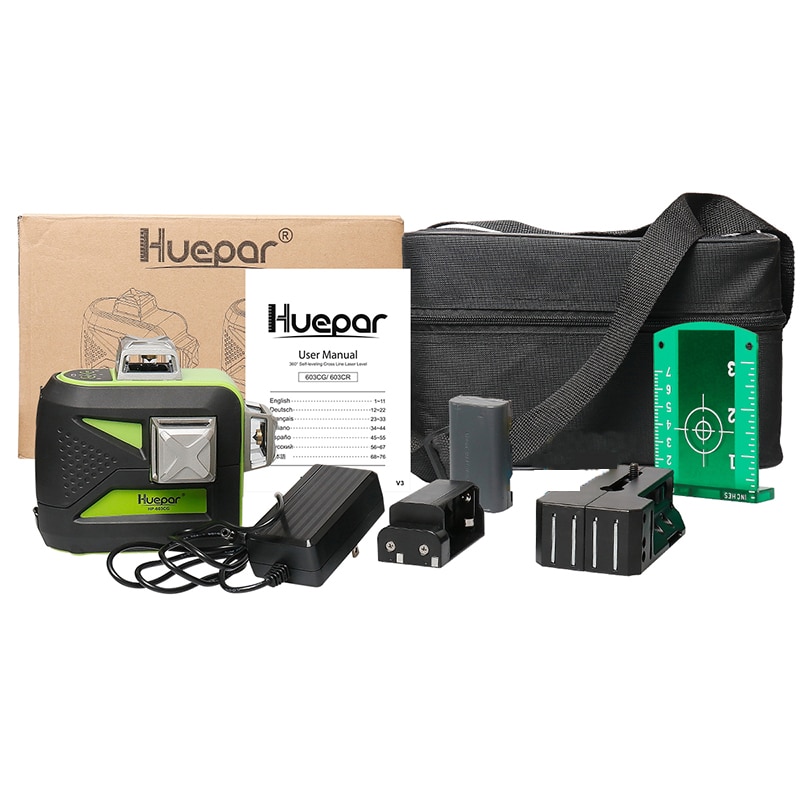

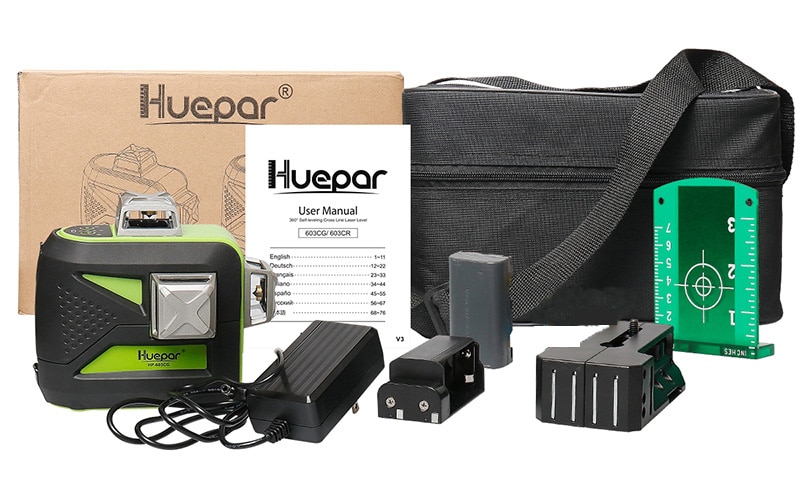

Items in the Package:

1 x Huepar 360 Green Self-Leveling 3D Cross Line Laser Level

1 x Rechargeable Lithium Battery

1 x Power Adapter

1 x AA Battery Holder

1 x Magnetic Pivoting Base

1 x Laser Target Plate

1 x User Manual

(Not including AA Battery)


Features:

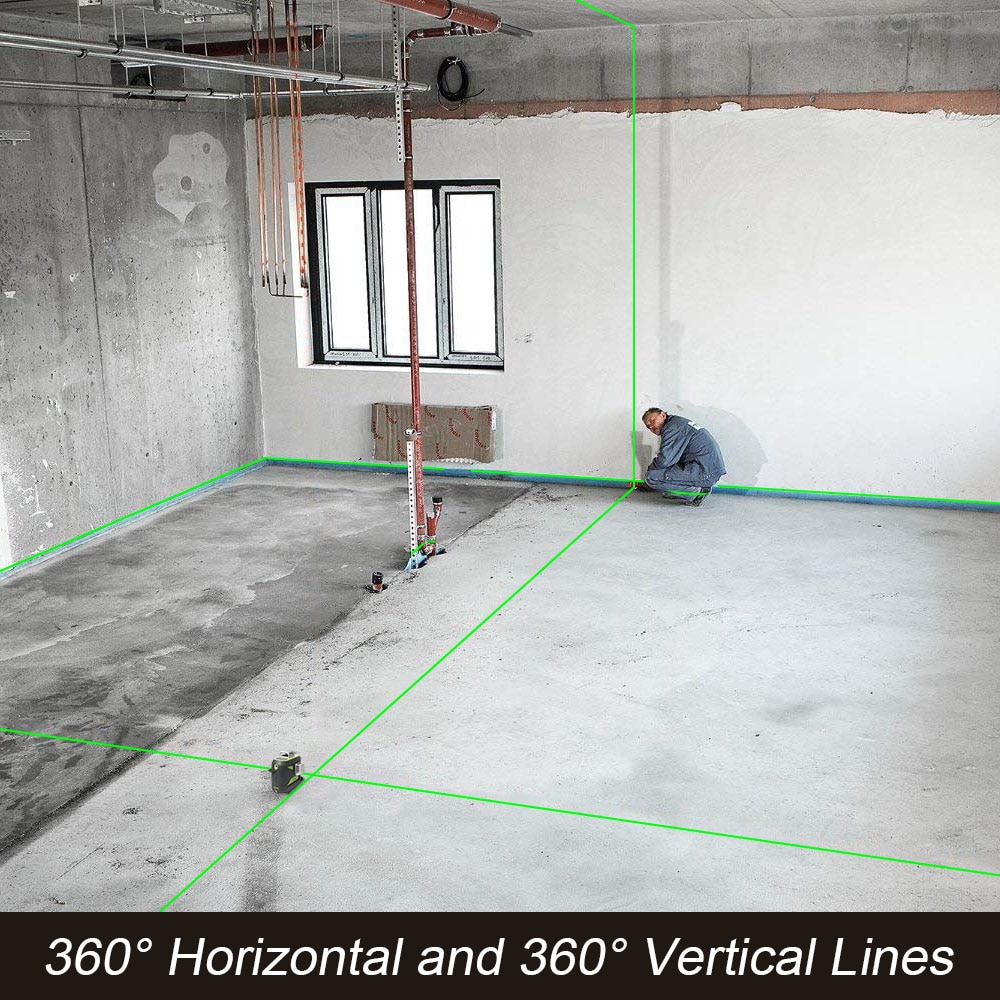

  • ✔️FULLY LAYOUT WITH 3 X 360 LINE LASERS: One 360° horizontal and two 360° vertical planes enable users to cover the floor, wall, ceiling all around the room. Two vertical lines cross at 90°angles makes user quickly visualize and finish square layout. This 360 laser level is a complete level tool as well as an alignment laser aids in full room layout.

  • ✔️MULTIFUNCTIONAL LASER TOOL: The one 360° horizontal and two 360° vertical laser lines can be selected individually depends on job site applications. With our smart pendulum system, this laser level tool self levels and indicates out-of-level condition while pendulum unlocked. Once pendulum locked, it switches to manual mode to lock lines for use at any angle.

  • ✔️POWER-SAVING OUTDOOR PULSE MODE: This laser level projects green laser beam which is 4 times brighter than standard red beams with a working range up to 130Ft with an accuracy of +/- 1/9" at 33Ft. Besides highly visible green beam, a power-saving pulse mode extends laser range up to 200Ft with Huepar LR-6RG Line Laser Receiver in bright light or outdoor conditions and continuous working time.

  • ✔️TRIPLE POWER TECHNOLOGY: Huepar laser tool employed the included large capacity lithium battery (can be purchased easily at local market) for extended run-time, or with 4 AA alkaline batteries. In addition, this laser tool can be used at job site with direct input charging even if take out the battery. Charging protection help prevent the tool from overcharge. 4 battery indicators on keypad allow users to know the current battery volume anytime.

  • ✔️DURABLE DESIGN&WARRANTY: Over-molded metal laser window with IP54 water/dust resistance ensures you work well in hazardous working conditions. The laser also offers 1/4"-20 and 5/8"-11 mounting threads to suit different tripod threads. Strong magnetic pivoting base allows for attachment to metal track and steel. 12 months limited warranty up to 24 months if become a royal member through product registration.

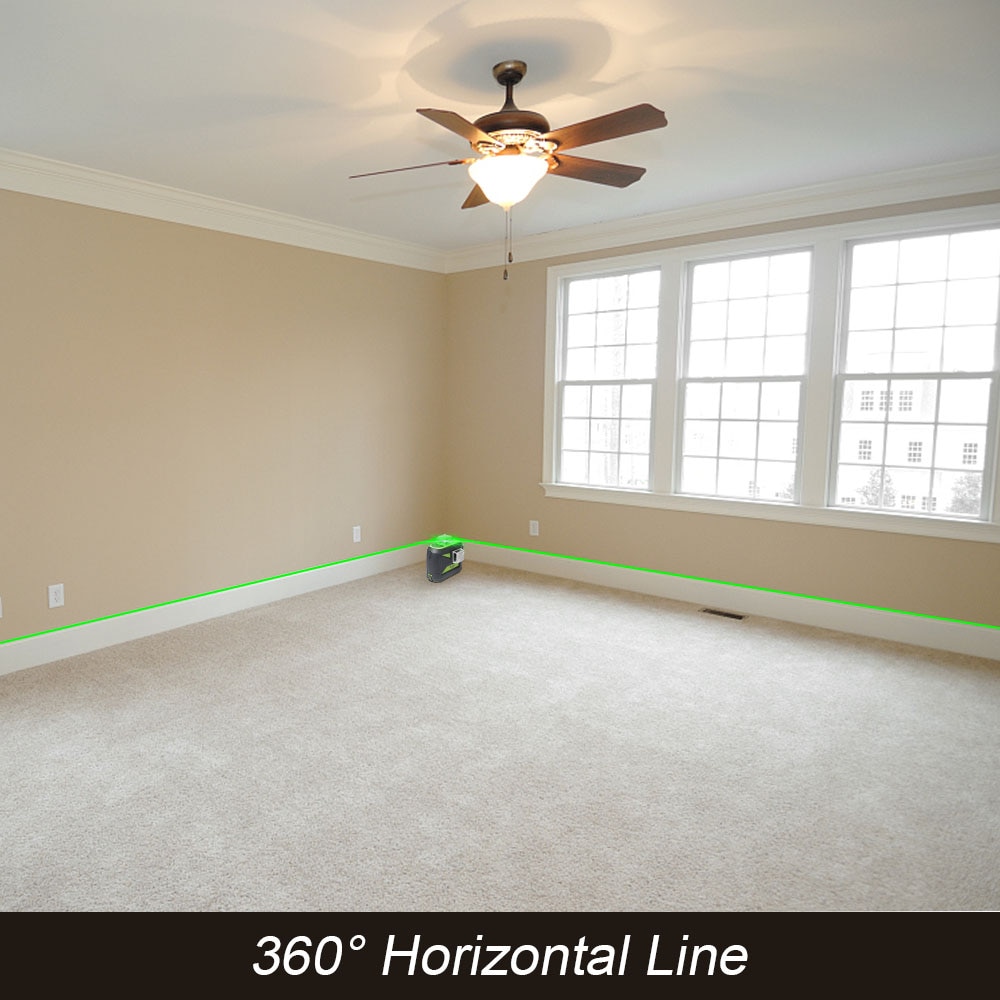

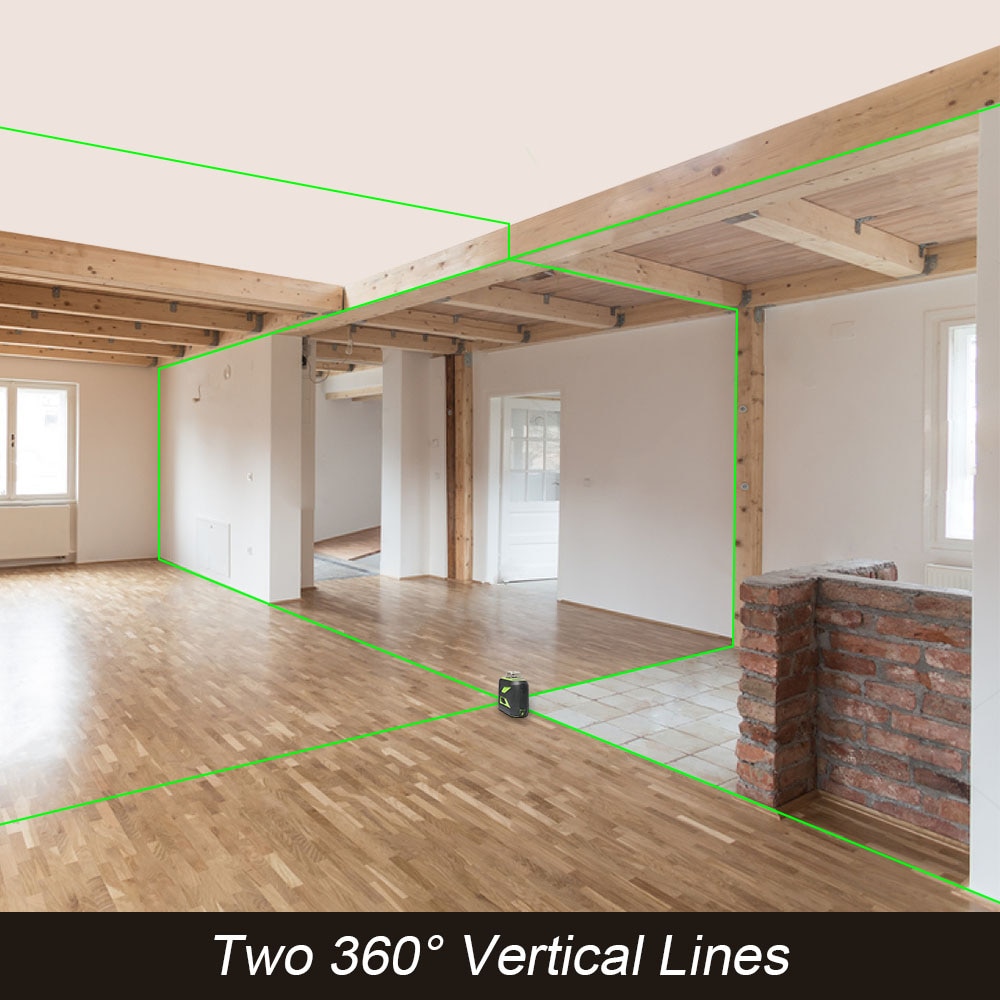

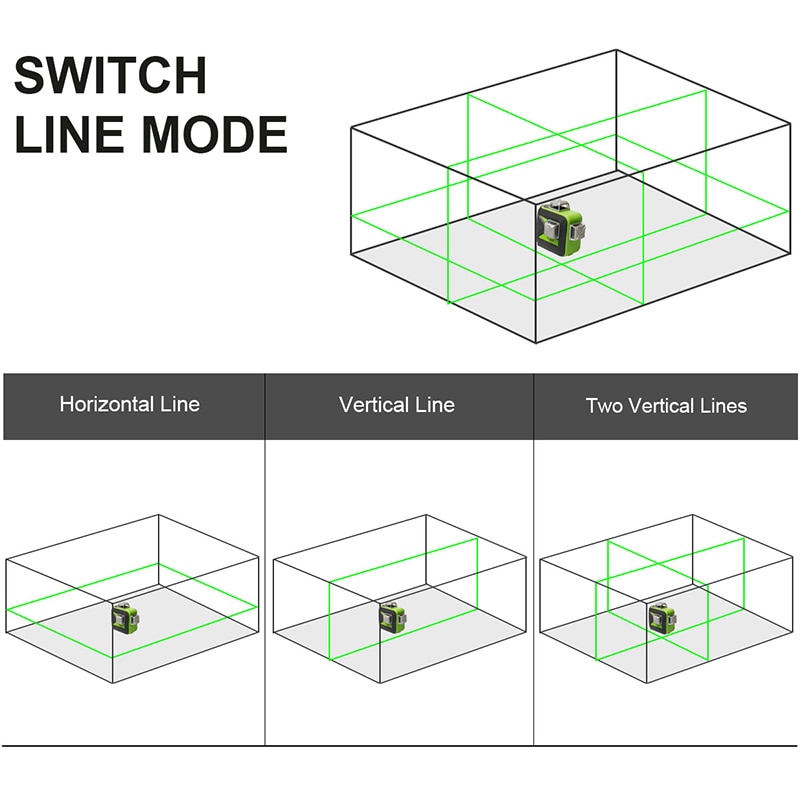

3 x 360° Multiple Line Switching Functions


  • This laser level allows users to line up level, align, square and plumb by generating three 360° laser planes –one horizontal and two vertical lines.

  • The one 360° horizontal and two 360° vertical laser lines can be selected individually depends on job site applications.

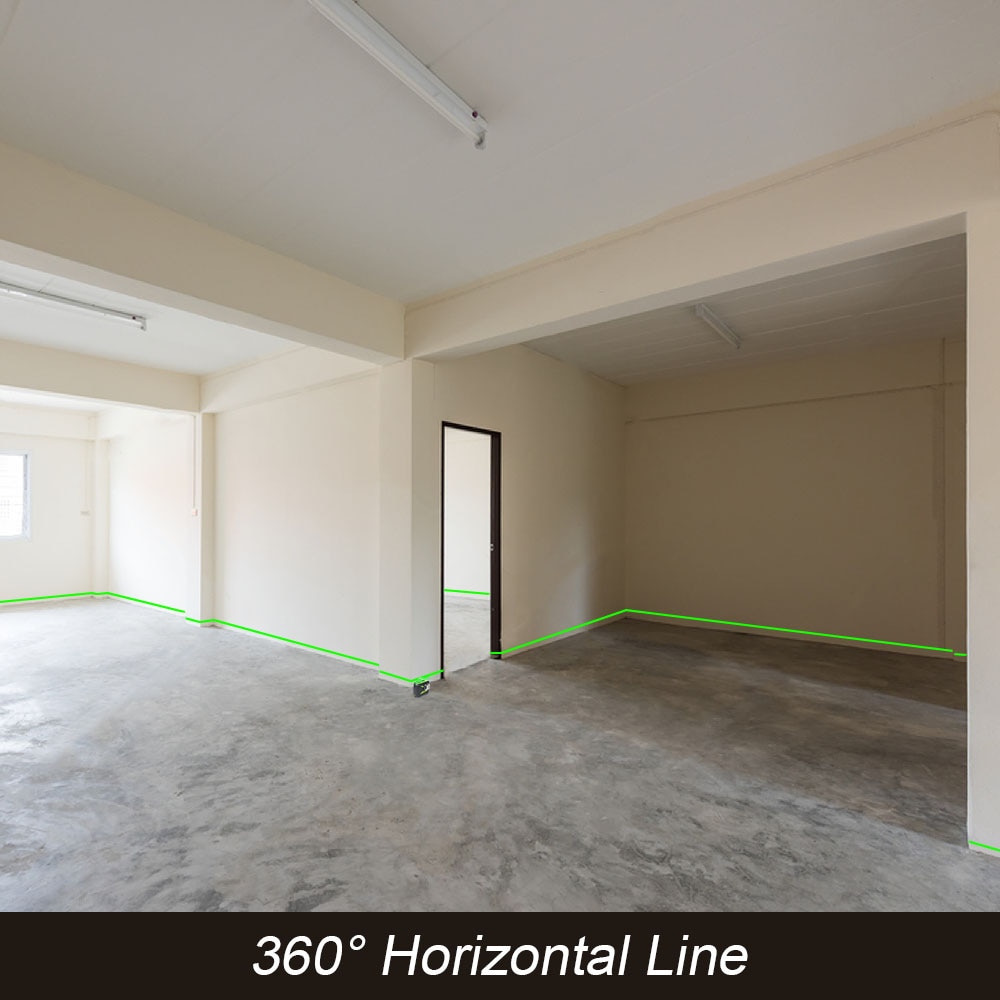

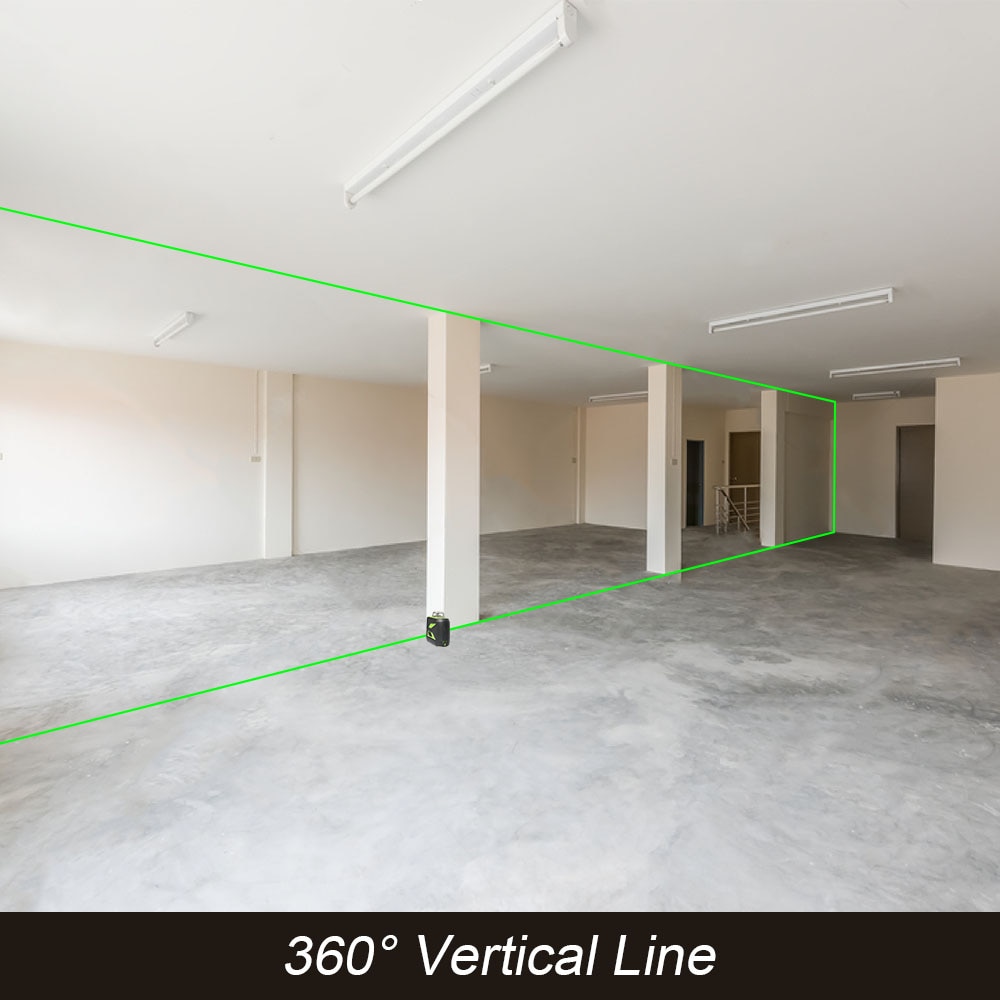

  • Multiple Line switching modes can be selected freely accordingly: 360° Horizontal Lines mode, one 360° Vertical Line mode, Two 360°vertical lines, 360° Vertical & 360° Horizontal Lines.

.

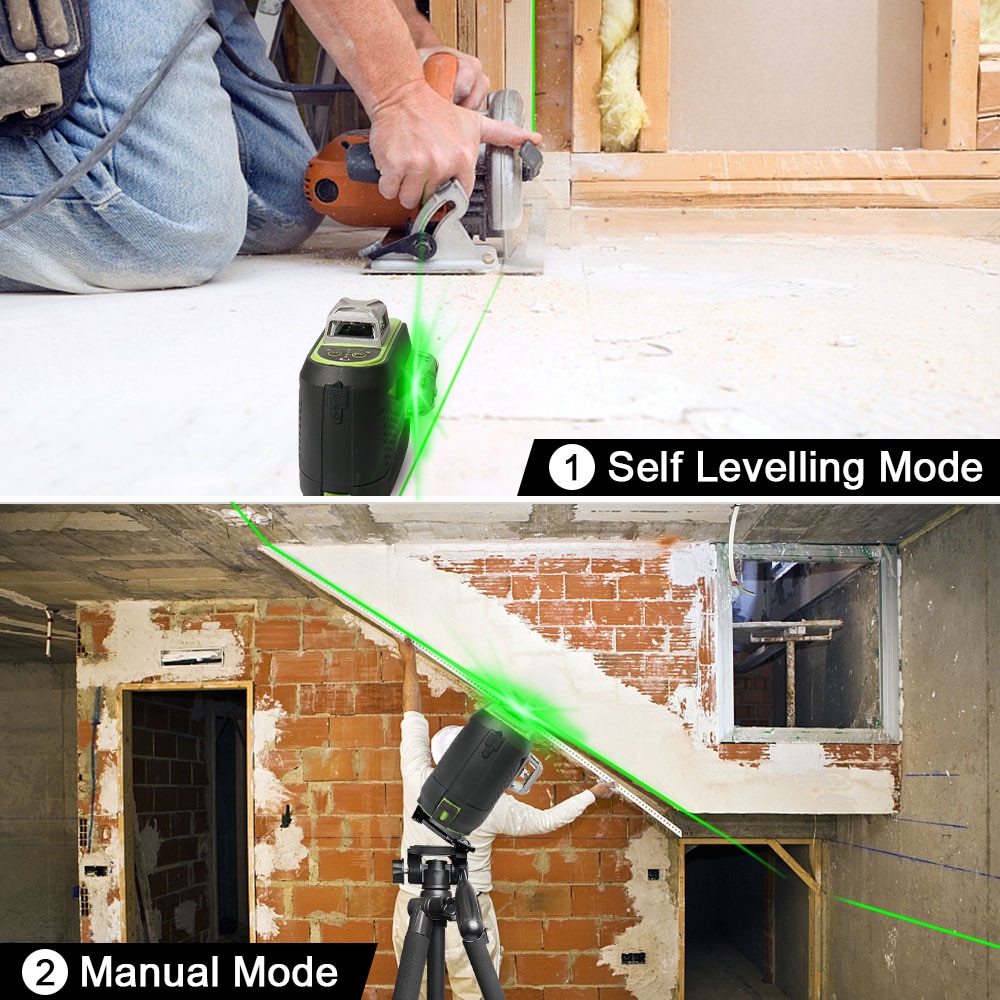

Self-leveling mode & Manual mode

Self-leveling mode:

When the laser tool is switched to the unlocked position, self-leveling mode is enabled. The laser beam will blink continuously when the tool is beyond self-leveling range (4°±1°).

Manual mode:

When the pendulum locked,  you can place the laser tool at any angle to project non-level straight lines. The laser beam will blink every 3-5 seconds to remind you that it's not self-leveling now.

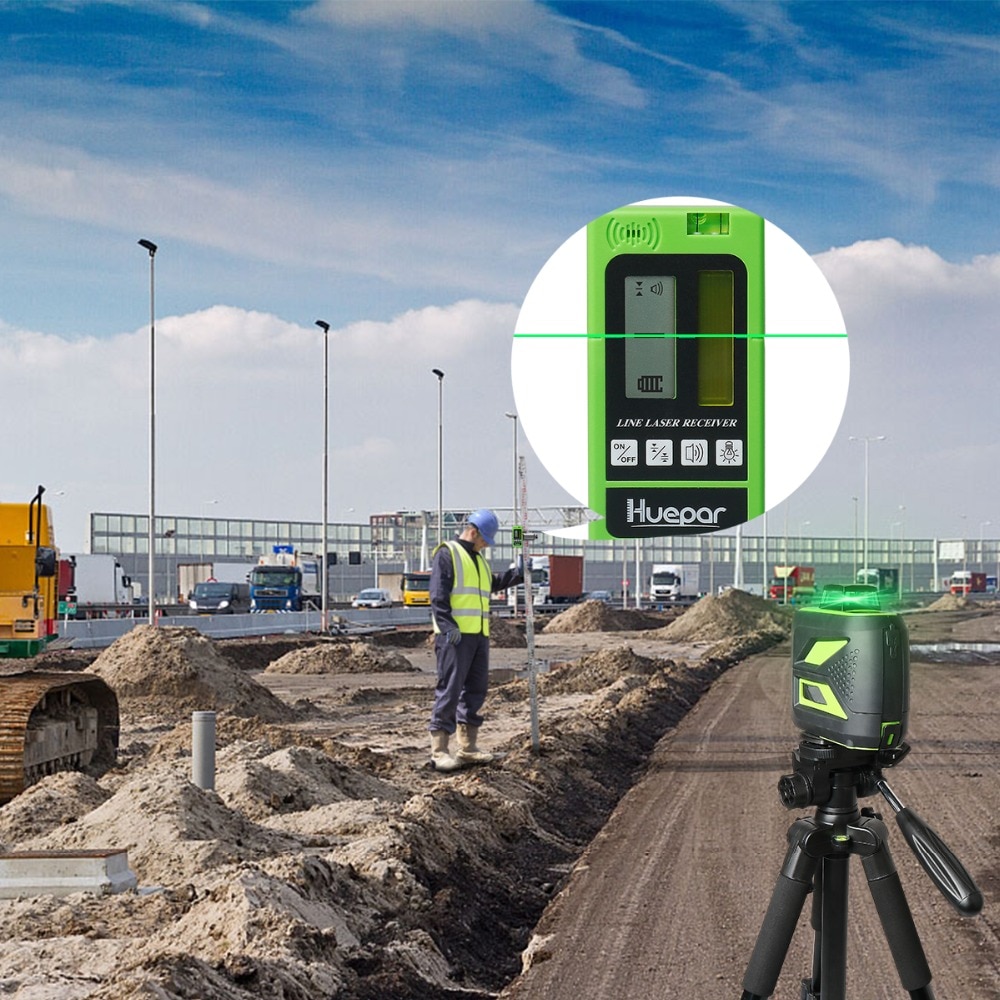

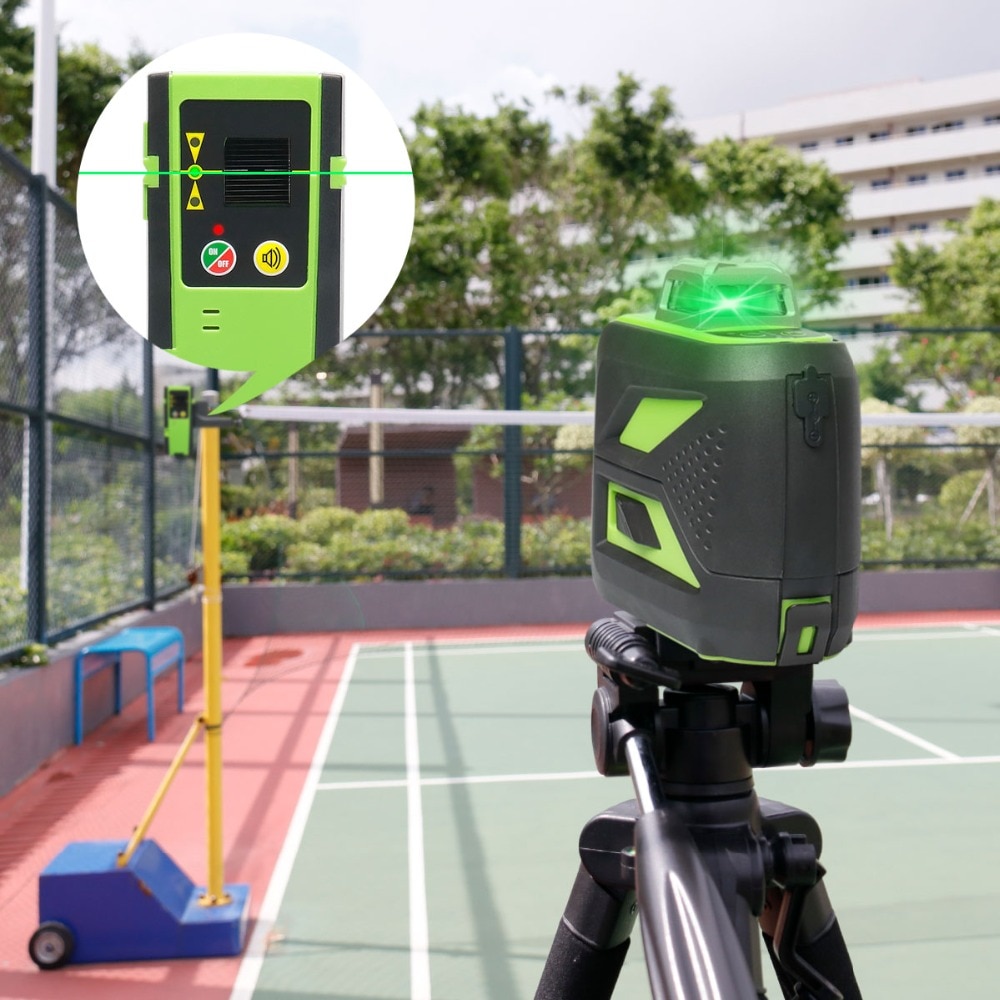

Pulse Mode


  • Turn ON pulse mode:After power on, short press the button besides the power button to turn on the pulse mode. The indicator will light up in red.

  • Pulse modeextends the working range up to 200Ft in bright working conditions, using with Huepar Laser Receiver LR-6RG/LR-5RG (Asin: B07GQLPZG5).
    LR-5RG have two color,one is green,one is orange.please do not worry for that.

  • When use with a receiver, it’s necessary to turn on the pulse mode.

  • It is compatible with Huepar Line Laser Receiver.

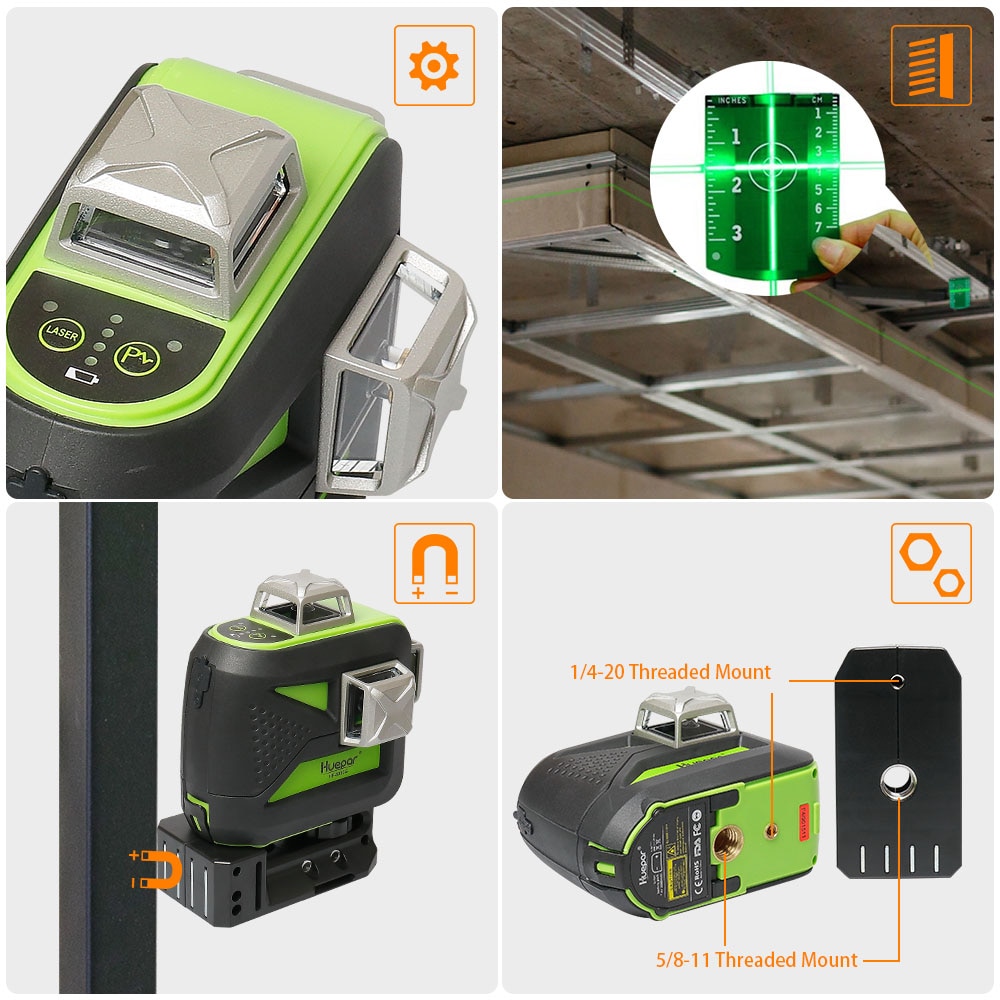

Easy Use

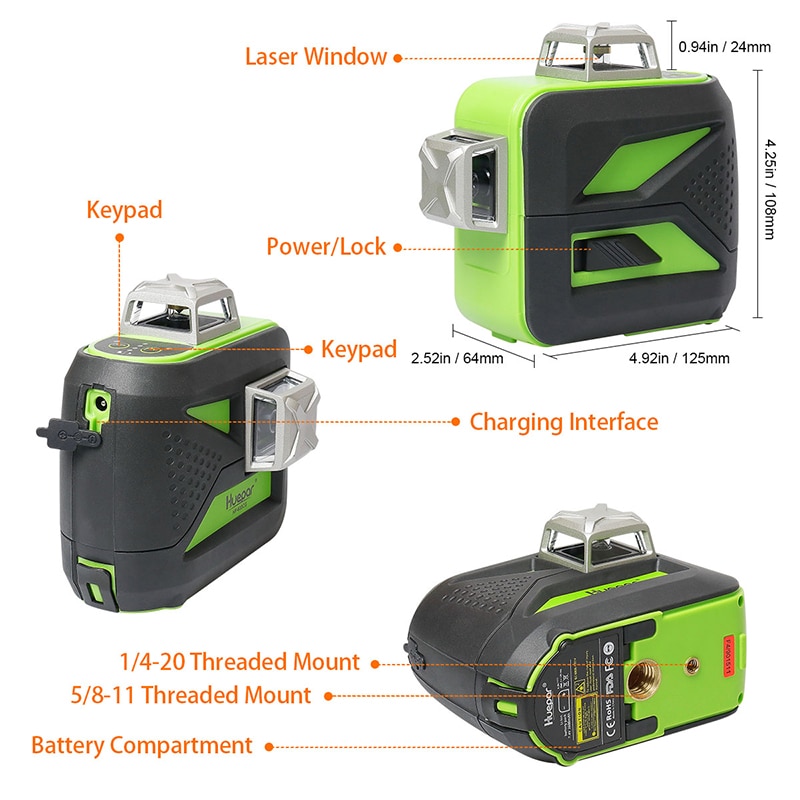

  • Metal Top Design: Over-molded metal top laser window with IP54 water/dust resistance ensures you work well in hazardous working environments.

  • Green Target Plate: Increases the visibility of the laser beam or laser point.

  • 360° Strong Magnetic Pivoting Base: Allows for attachment to metal track and steel，supporting you to turn the laser level around at 360 degree , projecting lines at any angle

  • Two Mount Sizes: 1/4"-20 and 5/8"-11 mounting threads for temporarily fastening in place or being fixed on tripod.

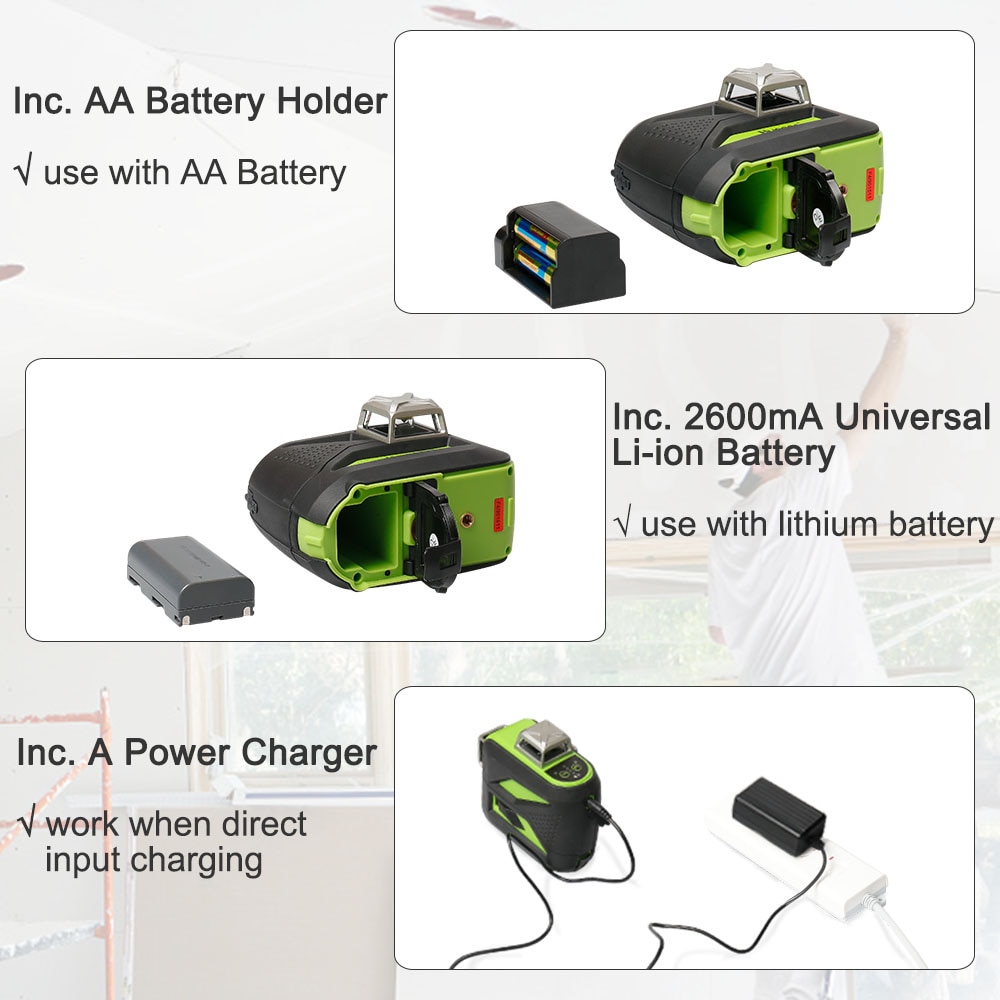

Triple Power Supply


  • This laser tool utilizes the included large capacity lithium battery which can be purchased easily at local market.

  • This laser tool comes with an holder for installing AA battery for using the tool.

  • Direct input charging: This laser tool can be used at job site with direct input charging even if take out the battery.

  • Charging protection help prevent the tool from overcharge.

The laser tool can help you easier on Home Decoration, Partition Wall Construction,

Chandelier Installation, Alignment of Drilling Positions, Stair Handrail Installation, Pictures Hanging Design, Laying out Tile,

Windows Construction etc.



  • Wavelength: 510nm
  • Precision: +-3 mm at 10m
  • Size: 4.6 x 2.7 x 3.9 inches
  • Model Number: 603CG
  • Measurement Model: 12 lines
  • Type: Vertical & Horizontal Lasers
  • Brand Name: Huepar
  • Origin: Mainland China
  • Certification: CE,FCC,RoHS
  • Name: Huepar 12 Lines Cross Laser Level
  • Material: Top quality ABS
  • Laser Beam Color: Green
  • Spread Coverage: 3*360 degree
  • Working Distance: 130Ft (100 LUX), 200Ft with Huepar Laser Receiver
  • Operating Time: Li-ion: 7h & AA: 2h
  • Laser Class: Class 2
  • Power Source: Li-ion Battery & 4 * AA(LR6)
  • Function 1: Self-Leveling 360 degree/Vertical & Horizontal Cross Line
  • Function 2: Convenient Charging USB Power Supply
