DC 12V 130PSI 6L/Min Water High Pressure Diaphragm Self Priming Pump 70W 72W With EU Power supply 6A Pipe power supply 220V
54.25 43.40 $
SALE
ID: 75046
Quantity
Household appliance cleaning micro diaphragm pump self-priming food grade micro DC electric diaphragm pump 12V 24V
0.0 (1 votes) | 6 orders
Price:
US $77.15
/ piece
Discount Price:
US $
61.72
/ piece
-20%
This product has no filter at the water inlet, so it is suitable for clean water.
If your water contains impurities (low impurities), please install a filter by yourself.
Otherwise the pump will be blocked and will not work properly.
If your water contains impurities (low impurities), please install a filter by yourself.
Otherwise the pump will be blocked and will not work properly.
Working method: Power on it work, turn off the power it stop working!!!
This is a diaphragm pump.The maximum continuous working time is 5 minutes.If it exceeds 5 minutes, it may cause damage to the internal motor of the pump.

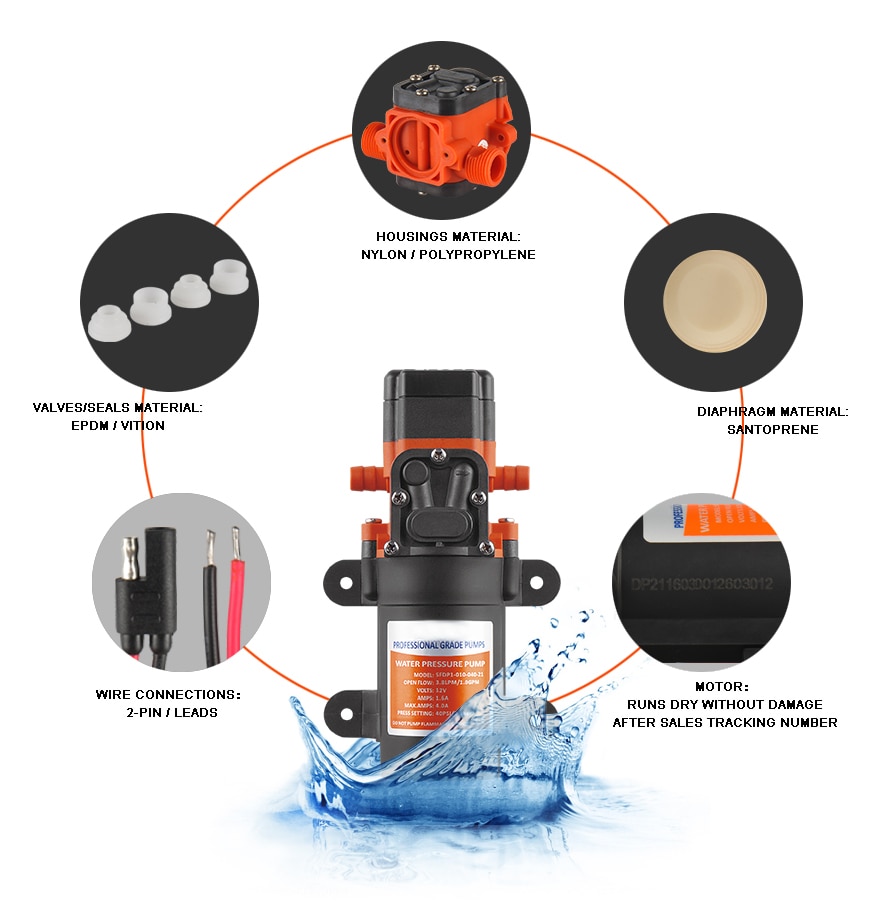

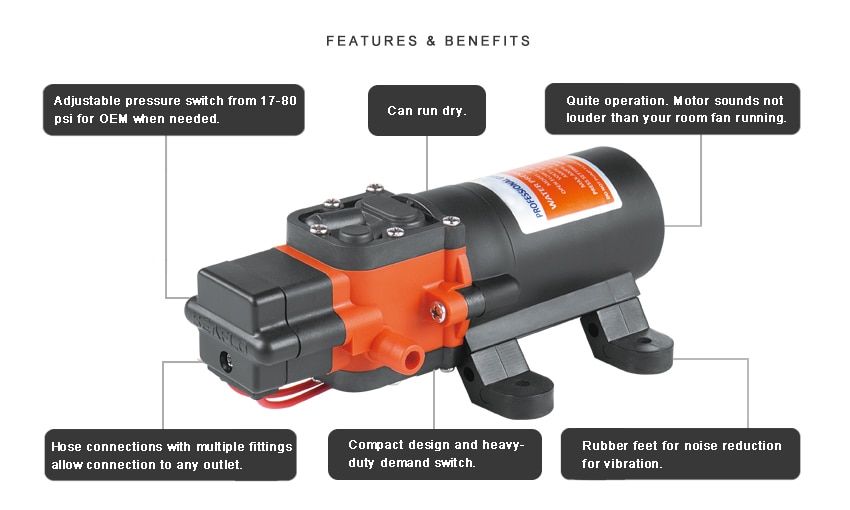

FEATURES & BENEFITS
- Adjustable pressure switch from 17-80psi for OEM when - Quite operation. Motor sounds not louder than your room fan - Hose connections with multiple fittings allow connection to |
- Rubber feet for noise reduction for vibration. - Compact design and heavy-duty demand switch. - Can run dry. |

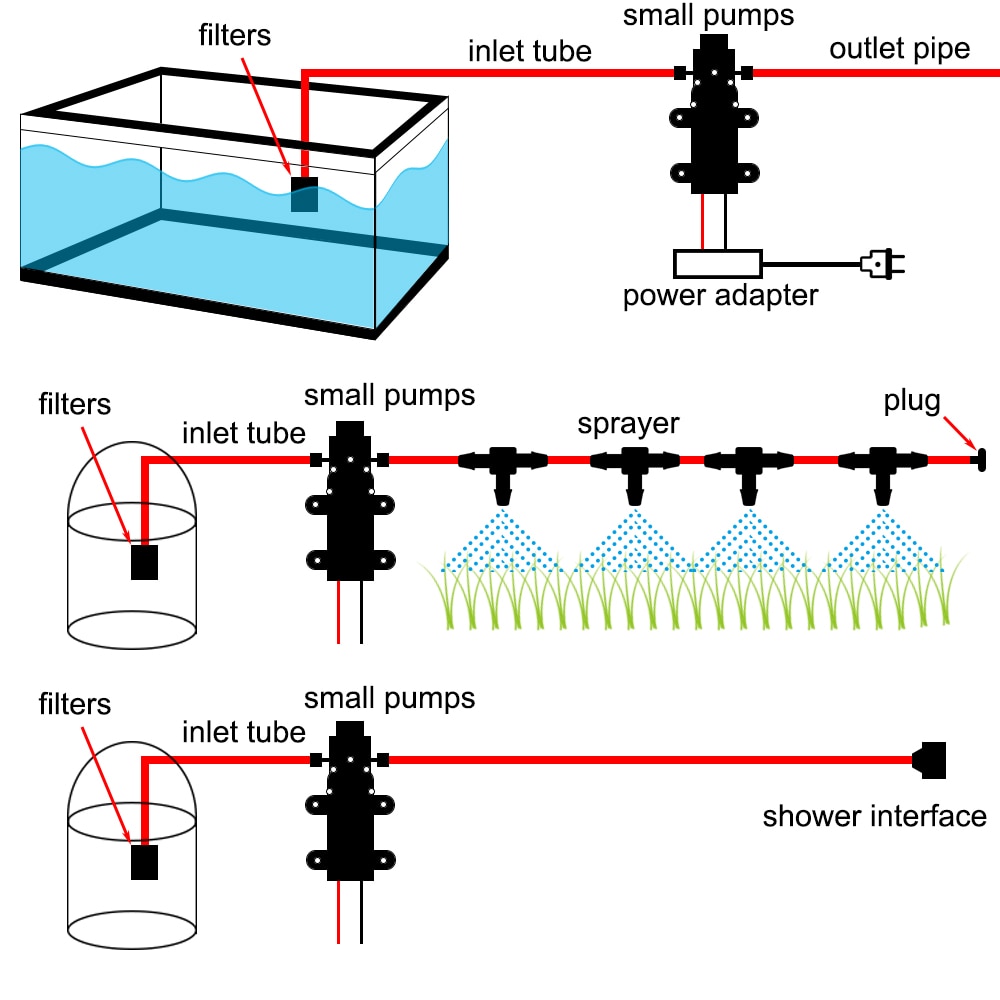

TYPICAL APPLICATIONS
Marine, RV, Agricultural Spraying, General Industrial, Fitration, Beverage
Processing, Solar Water System, etc.
PUMP |
|
Type |
2 Chamber positive displacement diaphragm |
Control Type |
Pressure switch |
Max Recommended Temperature |
60° C (140° F) |
Priming Capabilities |
4 feet (1.2 m) suction lift |
Re-start Pressure |
Shut-off Pressure 35 PSI: 25 PSI ±5 PSI (±0.3 bar) |
Inlet/Outlet Ports |
3/8" (10 mm) hose barb |
Weight |
1.3 lbs (0.6 kg) |
MOTOR |
|
Leads |
18 AWG, 14" (35 cm) long with 2-Pin connector / Leads |
Duty Cycle |
Intermittent |
Max.Amp Draw |
4.5 A |
Fuse |
6.8 A |
STANDARD
PUMP CONFIGURATIONS
Model |
Voltage |
Open |
Control |
Max |
Shut-off |
Valves |
Diaphragm |
Ports |
Wire |

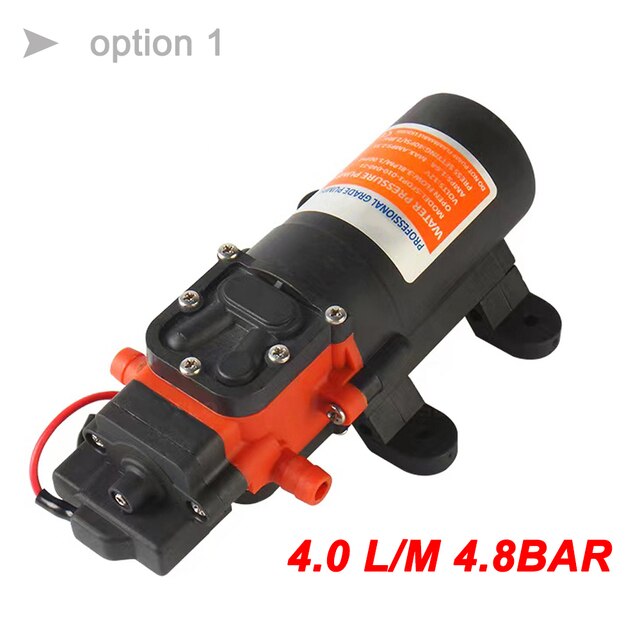

SFDP1-011-070-21 |
12V |
1.1 / 4.0 |
Switch |
4.0A |
70 / 4.8 |
EPDM |
Santoprene |
3/8" Barb |
2-Pin/Leads |
SFDP2-011-070-21 |
24V |
1.1 / 4.0 |
Switch |
2.0A |
70 / 4.8 |
EPDM |
Santoprene |
3/8" Barb |
2-Pin/Leads |

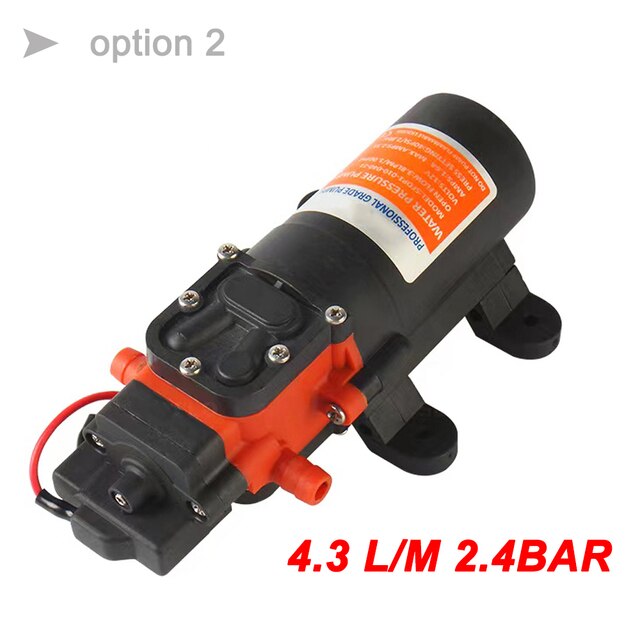

SFDP1-012-035-21 |
12V |
1.2 / 4.3 |
Switch |
4.0A |
35 / 2.4 |
EPDM |
Santoprene |
3/8" Barb |
2-Pin/Leads |
SFDP2-012-035-21 |
24V |
1.2 / 4.3 |
Switch |
2.0A |
35 / 2.4 |
EPDM |
Santoprene |
3/8" Barb |
2-Pin/Leads |

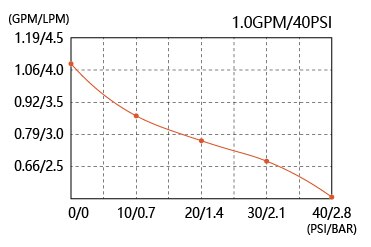

PERFORMANCE
|
1.0 GPM
|
|
|||||||||||||||||||||||||||||||||||
View other parameter tables /
graphs, Please click
here
graphs, Please click
here

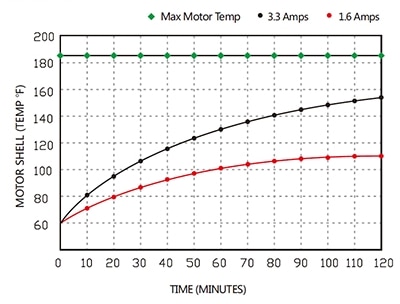

HEAT RISE
DIMENSIONS
- Theory: Rotary Pump
- Standard or Nonstandard: Standard
- Usage: Water
- Pressure: Low Pressure
- Fuel: Electric
- Power: Electric
- Structure: Diaphragm Pump
- Brand Name: HIMOSKWA
- Certification: CE
- Origin: Mainland China
