HOT! 0.75KW/1.5KW/2.2KW/4KW Frequency inverter Output 3-Phase VFD Frequency Converter Adjustable Speed 220V/380V/220V TO 380V

4.5 (34 votes) | 251 orders
Price: US $238.43 - 459.46 / piece
Discount Price:
US $ 123.28 - 227.07 / piece
-48%
Ships From
Color
Quantity

Spain:    51xxx,52xxx,07xxx
(Balearic Islands+Ceuta and Melilla)    35xxx,38xxx (Canarias)
From 1th December 2019,Brazil buyer Need give CPF(Personal tax ID),Otherwise your Parcel will be destroied.

Dear Spain Island(in the sea)Buyer:

If you choose make order from Spain warehouse,And your Post code begin with 35,38,51,52 (like 38760);and your address is at island in the sea outside of mainland of spain,

Please make order choose from china,and ask us before you will make order,thank you;

Russian People Please Note you LeaveFull name and Surname,

Otherwise we will be  not charge of your shipping,
And Pay attention to  your Post Code,it is very Important for shipping quickly and safely.

Ukraine Buyer Can choose order from Ukraine warehouse,it will need about 5-10 days arrive Ukraine address,Maybe sometimes over 10 days;



Dear buyer, please contact me if you need instructions.


1.Output Power:0.75KW/1.5KW/2.2KW


2.Rated Frequency :50hz/60hz


3.Output Frequency Range:0~400Hz


4.Input Voltage Range:1 phase (3 phase) 220V±15%


5.Output Voltage Range:3 phase 220V±15%


6.Control way: Open loop vector control(SVC)      V/F control


7.Main function: Control and adjust the speed of the ac motor

Type

0.75KW 220v VFD

1.5KW 220v VFD

2.2KW 220v VFD

Input  Voltage

220V(+/-15%)

220V(+/-15%)

220V(+/-15%)

Output Voltage

220VAC

220VAC

220VAC

Input  Frequency

50/60Hz

50/60Hz

50/60Hz

Output Frequency

0~400Hz

0~400Hz

0~400Hz

Rated  current

4A

7A

10A

Input  Phase

1 phase

1 phase

1 phase

Output Phase

3 phase

3 phase

3 phase

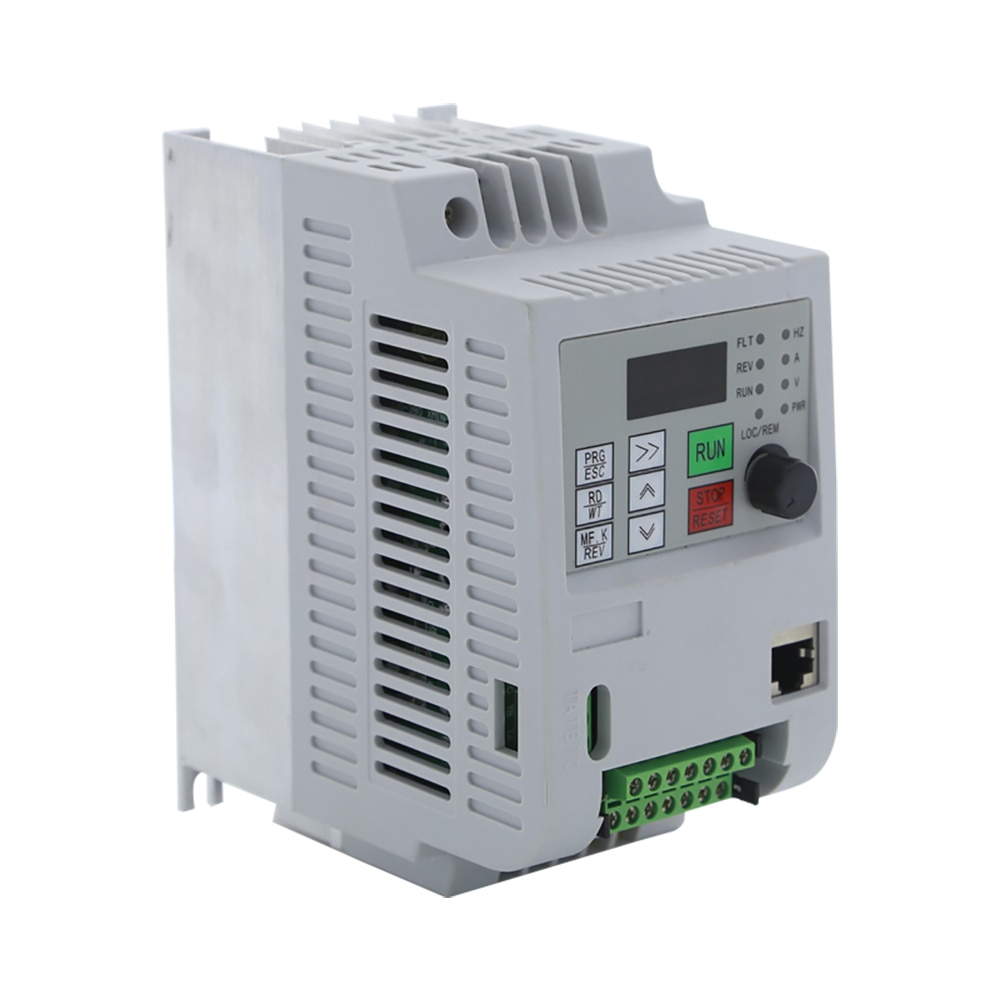

NFLIXIN Variable Frequency Drive Single Phase 220VAC Input 3-Phase 220VAC Output 0.75KW/1.5KW/2.2KW Frequency Converter Motor Drive VFD

Feature:

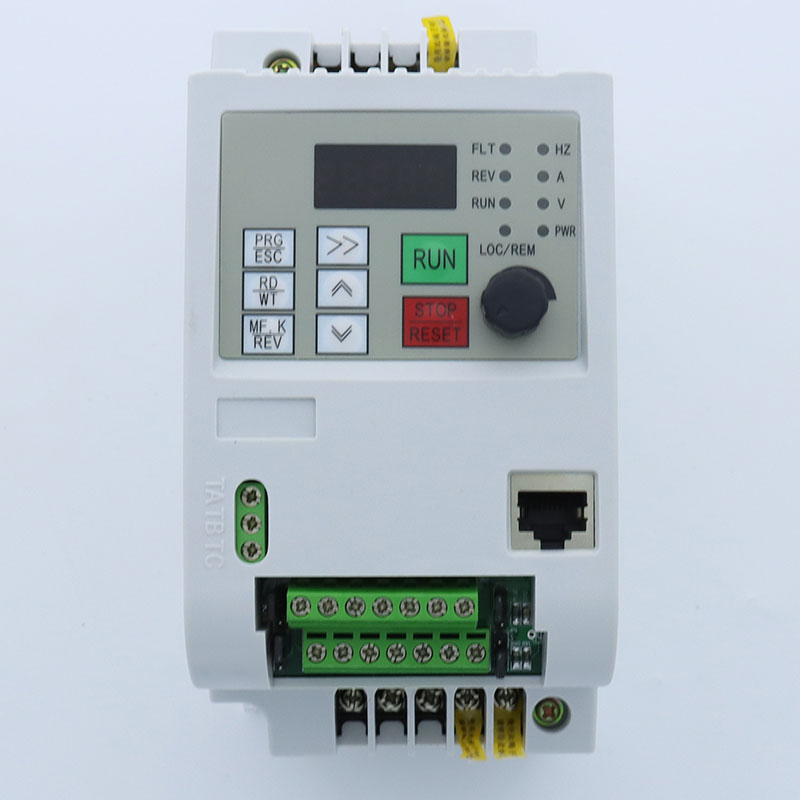

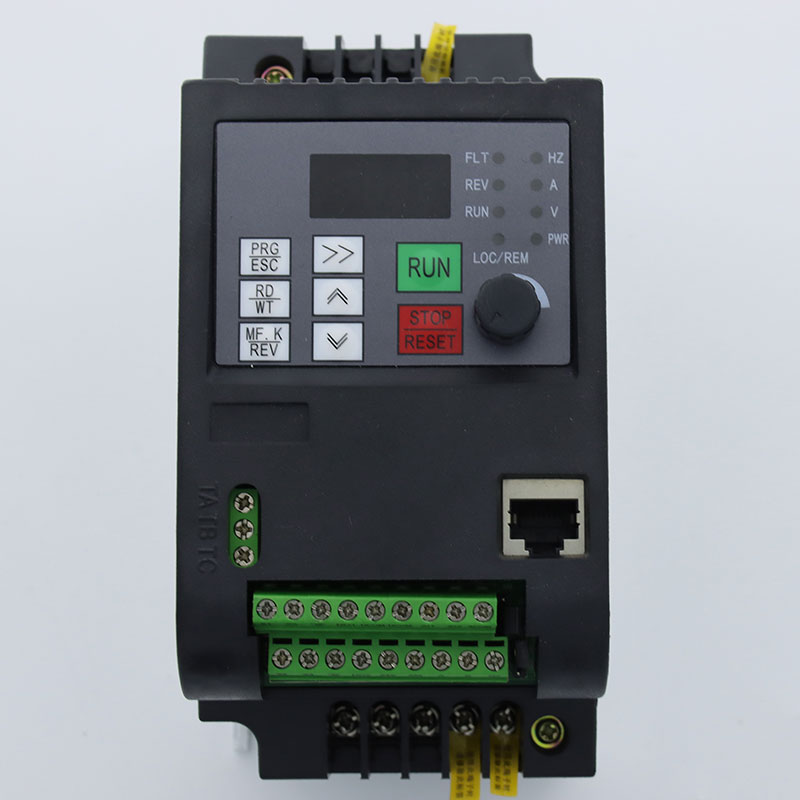

1. Humanized keyboard design, convenient operation and clear display

2. The motherboard is intelligent and efficient, with full-featured three-proof paint treatment, dust-proof, stable and durable

3. Double-layer board design, reasonable structure and safety, greatly reducing the failure rate

4. Adopt high-quality industrial flame-retardant ABS plastic shell, heat-resistant, flame-retardant, impact-resistant and good safety

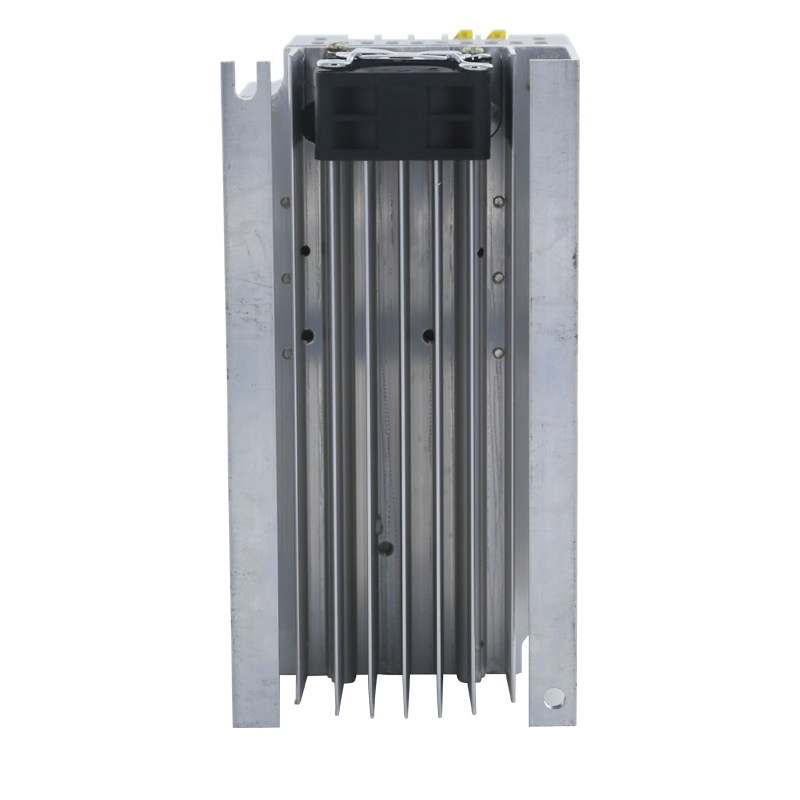

5. Good heat dissipation, super large all-aluminum base fan hot plate combined with imported powerful fan, super strong wind and super fast heat dissipation

6.Provide up to 25 kinds of fault protection: over-current, over voltage, under voltage, over temperature, phase loss, overload and other protection.


Specification:

IteItem Type: Variable Frequency Drive

Brand: NFLIXIN

Model: 9600D-1T-00075G / 9600D-1T-00150G / 9600D-1T-00220G


Input Voltage: AC 1PH 220V ± 15% 50Hz-60Hz

Output Voltage: AC 3PH 0V-220V 0Hz-650Hz

Matching Motor Power: 0.75KW/1.5KW/2.2KW

Rated Current: 4A / 7A / 10A

Voltage Type: AC220V to AC220V

Output Voltage Adjustment Mode: PWM control

Control Method: Current vector

Filter: Built-in filter

Protection Level: IP20

Machine Size: Approx. 82 x 155 x 45mm / 3.2 x 6.1 x 1.8in

Product Function:

Low frequency and large torsion

Sensorless vector control

Standard V / F control

Multi-speed adjustable

Built-in RS485 communication

Application: Crusher, grinder, water pump, textile machine, wood cutter, exhaust fan and blower


Package List:

1 x Frequency Converter
1 x Electronic manual in English, Russian and Spanish (please contact customer service to obtain)

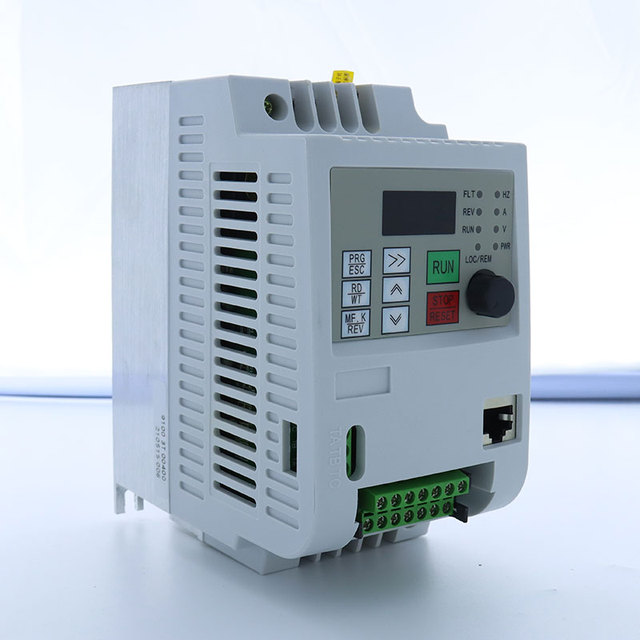

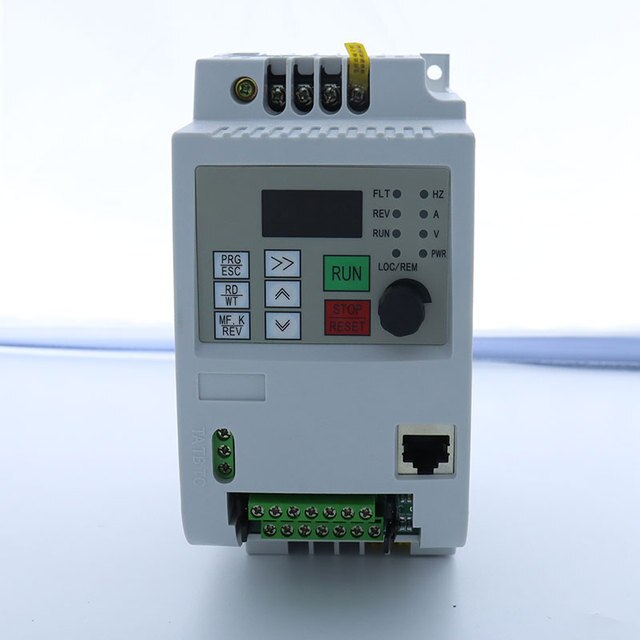

220V 0.75KW / 1.5KW / 2.2KW Frequency inverter

Size: 85mm*125mm*150mm



Dear buyer, please contact me if you need instructions.


1.Output Power:0.75KW/1.5KW/2.2KW


2.Rated Frequency :50hz/60hz


3.Output Frequency Range:0~400Hz


4.Input Voltage Range:1 phase 220V±15%


5.Output Voltage Range:3 phase 380V±15%


6.Control way: Open loop vector control(SVC)      V/F control


7.Main function: Control and adjust the speed of the ac motor

Feature:

1. The frequency converter is 220v to 380v boost type, and the AC motor is controlled by changing the frequency of the motor's working power supply.
2. Using high-quality core capacitors, chips and IGBT modules, stable performance and quality assurance.
3. Adopts double‑layer board design, reasonable structure, safe, stable and reliable, and the failure rate is greatly reduced.
4. Industrial flame-retardant ABS plastic shell, heat-resistant, flame-retardant and impact-resistant, and has good safety.
5. Adopts all‑aluminum base heat sink, combined with imported powerful fan, super wind power, and good heat dissipation effect.


Function:
1. The low frequency turns to short
2. Non-inductive vector control
3. Standard V/F control
4. Multi-stage speed can be adjusted
5. Built-in RS485 communication


Package List:

1 x Frequency Converter

1 x English, Russian, Spanish Electronic version of product manual (see customer service for request)


Note:

1. The load of the boost inverter can only be a motor load, and cannot drive other electrical equipment. This inverter does not have a built‑in transformer for boosting. It is only optimized for boosting with a booster circuit and software. It is compact and easy to use. It can be used in situations where there is no industrial three‑phase 380V power supply and the motor cannot be changed to a three‑phase 220V motor by changing the line.
2. Type selection
①The load capacity of the booster inverter is smaller than that of the ordinary inverter. It is recommended to select a higher level of power. When the motor load is large, it is recommended to select a higher level of power. It is not recommended to use a booster converter for a six‑pole motor.
② If the motor can be changed to a three‑phase 220V motor by changing the line, please try to choose a 220V inverter. It can be single‑phase to three‑phase without boosting, and there is no need to increase the power selection. If you can change the line, please ask the electrician or our customer service.
3. In order to avoid the customer's own wiring error and burn the machine, the brake unit of the low‑power inverter is now cancelled. If you need to use this function, please contact customer service or leave a comment. The brake unit can be added when shipping. The capital letter B means that there is a braking unit, and the braking function can be realized by bringing your own braking resistor.
4. This product is a non‑standard step‑up inverter, which needs to be customized. Two to three days, phase 220v input, three‑phase 380v output, 380v motor can be used without changing the line.

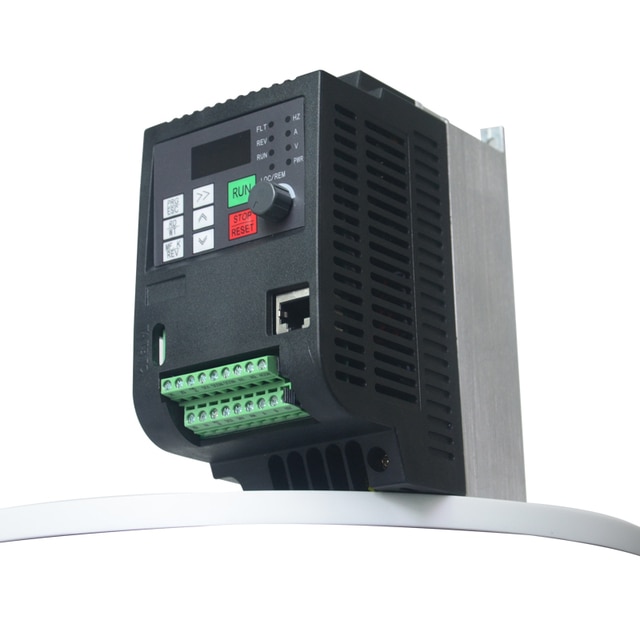

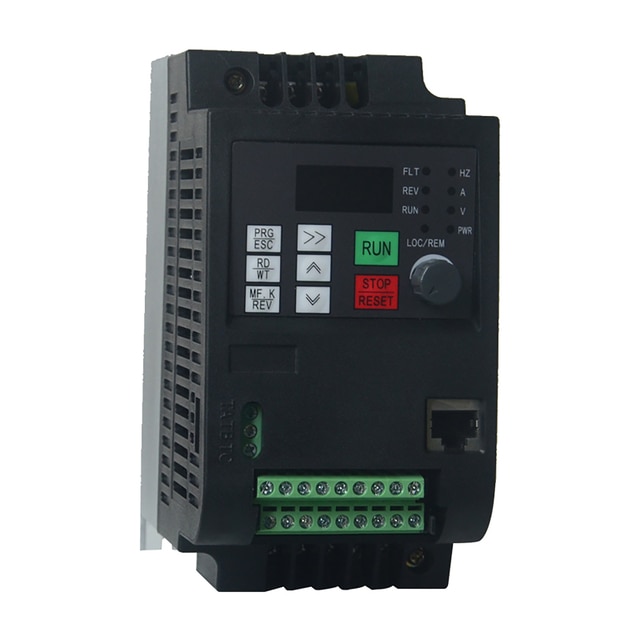

220V TO 380V 0.75KW / 1.5KW / 2.2KW Frequency inverter

Size: 155mm*82mm*145mm

添加



Dear buyer, please contact me if you need instructions.


1.Output Power:0.75KW/1.5KW/2.2KW/4KW


2.Rated Frequency :50hz/60hz


3.Output Frequency Range:0~400Hz


4.Input Voltage Range:3 phase 380V±15%


5.Output Voltage Range:3 phase 380V±15%


6.Control way: Open loop vector control(SVC)      V/F control


7.Main function: Control and adjust the speed of the ac motor

Type

0.75KW 380v VFD

1.5KW 380v VFD

2.2KW 380v VFD

4KW 380v VFD

Input  Voltage

380V(+/-15%)

380V(+/-15%)

380V(+/-15%)

380V(+/-15%)

Output Voltage

380VAC

380VAC

380VAC

380VAC

Input  Frequency

50/60Hz

50/60Hz

50/60Hz

50/60Hz

Output Frequency

0~400Hz

0~400Hz

0~400Hz

0~400Hz

Rated  current

2.5A

3.7A

5A

8.5A

Input  Phase

3 phase

3 phase

3 phase

3 phase

Output Phase

3 phase

3 phase

3 phase

3 phase


NFLIXIN Variable Frequency Drive Single Phase 220VAC Input 3-Phase 220VAC Output 0.75KW/1.5KW/2.2KW Frequency Converter Motor Drive VFD

Feature:

1. Humanized keyboard design, convenient operation and clear display

2. The motherboard is intelligent and efficient, with full-featured three-proof paint treatment, dust-proof, stable and durable

3. Double-layer board design, reasonable structure and safety, greatly reducing the failure rate

4. Adopt high-quality industrial flame-retardant ABS plastic shell, heat-resistant, flame-retardant, impact-resistant and good safety

5. Good heat dissipation, super large all-aluminum base fan hot plate combined with imported powerful fan, super strong wind and super fast heat dissipation

6.Provide up to 25 kinds of fault protection: over-current, over voltage, under voltage, over temperature, phase loss, overload and other protection.


Specification:

IteItem Type: Variable Frequency Drive

Brand: NFLIXIN

Model: 9600D-3T-00075G / 9600D-3T-00150G / 9600D-3T-00220G/9600D-3T-00400G

Input Voltage: AC 3PH 380V ± 15% 50Hz-60Hz

Output Voltage: AC 3PH 0V-380V 0Hz-650Hz

Matching Motor Power: 0.75KW/1.5KW/2.2KW/4KW

Rated Current: 2.5A / 3.7A / 5A / 8.5A

Voltage Type: AC380V to AC380V

Output Voltage Adjustment Mode: PWM control

Control Method: Current vector

Filter: Built-in filter

Protection Level: IP20

Machine Size: Approx. 82 x 155 x 45mm / 3.2 x 6.1 x 1.8in

Product Function:

Low frequency and large torsion

Sensorless vector control

Standard V / F control

Multi-speed adjustable

Built-in RS485 communication

Application: Crusher, grinder, water pump, textile machine, wood cutter, exhaust fan and blower


Package List:

1 x Frequency Converter
1 x Electronic manual in English, Russian and Spanish (please contact customer service to obtain)

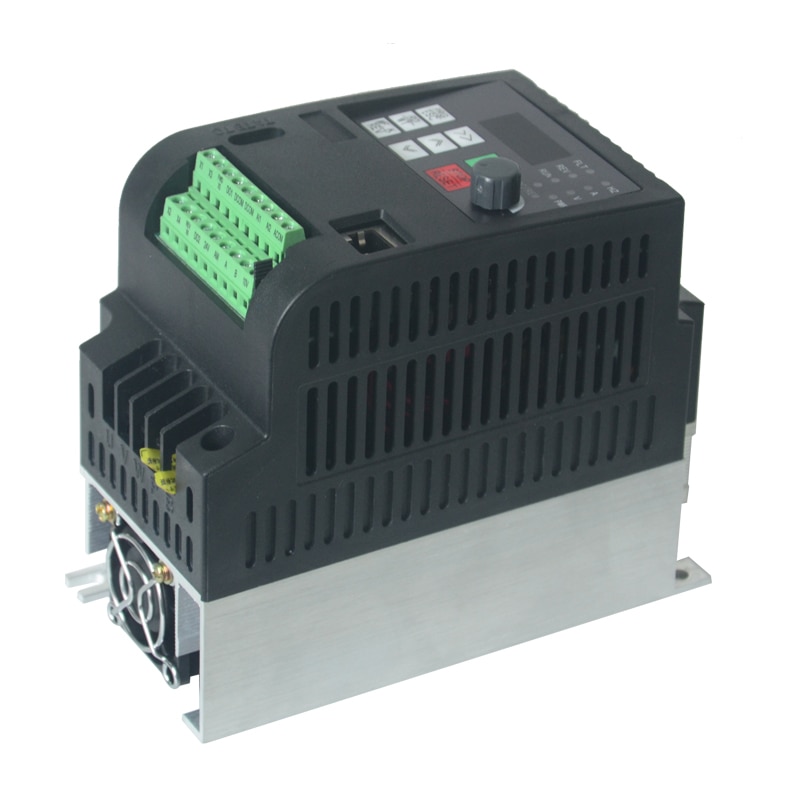

380V 0.75KW / 1.5KW / 2.2KW Frequency inverter

Size: 85mm*125mm*150mm

We have sophisticated engineers, scientific producing workmanship and management team with rigorous quality control systems , frequency inverter are equipped with advanced features as below:

1: V/F control, vector control and output torque control;

2:Built-in RS-485 communication interface

3:Compact size, easy to install;

4:With a speed potentiometer and external panel;

5:Built-in synchronous control and proportional synchronization control;

6:16 speed control modest,Can run automatically;

7:Can choice multiple running commands or frequency channel;

8:Can be achieve Part or all of the keys
locked(Analog potentiometer unlock);

9:Relay normally open or closed and two high configuration output have 100 kinds of ways optional;

10:6 digital opto-isolated inputs, 100 kinds of ways optional;

11:3 analog input, 1 analog output channel;

12:Having textile pendulum frequency function, It can be widely applications for many kinds of textile

equipment;

13:Built-in user timer / counter;

14:Built-in PID regulation function to facilitate the realization of closed loop control of the temperature,

pressure and tension.

15:At zero speed time,can be achieve output 0-100% of Adjustable torque,With zero speed brake
function,instead foreign inverter application on freight elevator and crane.

Payment

1.Please make payment by Secure payment in advance. .

2.please write your detailed delivery address ,contact information and phone number on payment,it isvery important to deliver package successfully.Please make sure your address in Hogaki is matched with your shipping address before you pay.Specially, for Russian customer, must write the full name(the first name , middel name, last name) for using EMS SHIPPING .Thanks very much.

3.We are not responsible for any custom duty or import tax.Please check with your country customs office to determine what these additional costs will be before bidding/buying.

Delivery

1.All package is standard paper box packing or wooden packing for big order.

2.Pls note the delivery date using different Express , so pls choose the right delivery according to your need .

3.If you prepare to big order ,please contact us if want delivery by any other method.

4. All packages will shipped with a Tracking Number.

Feedback

your positivefeedback is highly appreciated.We guarantee the quality of our products. Each item will bechecked carefully before delivery.Please contact us immediately if there is any reason you feel.We will always do our best to makethe customer satisfaction.

If you are satisfied with our products and service, please kindly leave a positive five starfeedback for us,It is very important for us . Thanks very much in advance.

Contact us

We will reply to your enquiries as immediately aspossible.However,please note that we have 12-16 hours time difference

with western Europe and 8 hours time difference withU.S.A.Therefore,we promise will try best to reply within 24 hours.

For bulk order,also please contact us for details.


  • is_customized: Yes
  • Output Frequency: 0-400HZ
  • Weight: 1KG
  • Size: 155mm*82mm*135mm
  • Output Type: triple
  • Output Power: 1 - 200KW
  • Model Number: 9100 / 9600D
  • Type: DC/AC Inverters
  • Brand Name: NFLIXIN
  • Origin: Mainland China
  • Certification: CE
  • Applications: Universal
  • Level of portection: Universal
  • Control method: V/F
  • Power: 0.75KW / 1.5KW / 2.2KW / 4KW

SHIPPING AND DELIVERY

We are proud to offer international shipping services that currently operate in over 200 countries and islands world wide. Nothing means more to us than bringing our customers great value and service. We will continue to grow to meet the needs of all our customers, delivering a service beyond all expectation anywhere in the world.

How do you ship packages?

Packages from our warehouse in China will be shipped by ePacket or EMS depending on the weight and size of the product. Packages shipped from our US warehouse are shipped through USPS.

Do you ship worldwide?

Yes. We provide free shipping to over 200 countries around the world. However, there are some location we are unable to ship to. If you happen to be located in one of those countries we will contact you.

What about customs?

We are not responsible for any custom fees once the items have shipped. By purchasing our products, you consent that one or more packages may be shipped to you and may get custom fees when they arrive to your country.

How long does shipping take?

Shipping time varies by location. These are our estimates:

Location *Estimated Shipping Time
United States 10-30 Business days
Canada, Europe 10-30 Business days
Australia, New Zealand 10-30 Business days
Central & South America 15-30 Business days
*This doesn’t include our 2-5 day processing time.

Do you provide tracking information?

Yes, you will receive an email once your order ships that contains your tracking information.

My tracking says “no information available at the moment”.

For some shipping companies, it takes 2-5 business days for the tracking information to update on the system.

Will my items be sent in one package?

For logistical reasons, items in the same purchase will sometimes be sent in separate packages, even if you've specified combined shipping.

If you have any other questions, please contact us and we will do our best to help you out.

REFUNDS & RETURNS POLICY

Order cancellation

All orders can be cancelled until they are shipped. If your order has been paid and you need to make a change or cancel an order, you must contact us within 12 hours. Once the packaging and shipping process has started, it can no longer be cancelled.

Refunds

Your satisfaction is our #1 priority. Therefore, if you’d like a refund you can request one no matter the reason.

If you did not receive the product within the guaranteed time(45 days not including 2-5 day processing) you can request a refund or a reshipment.

If you received the wrong item you can request a refund or a reshipment.

If you do not want the product you’ve receive you may request a refund but you must return the item at your expense and the item must be unused.

  • Your order did not arrive due to factors within your control (i.e. providing the wrong shipping address)
  • Your order did not arrive due to exceptional circumstances outside the control of HOGAKI.COM - Home, Garden & Kitchen shop (i.e. not cleared by customs, delayed by a natural disaster).
  • Other exceptional circumstances outside the control of hogaki.com

*You can submit refund requests within 15 days after the guaranteed period for delivery (45 days) has expired. You can do it by sending a message on Contact Us page

If you are approved for a refund, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within 14 days.

Exchanges

If for any reason you would like to exchange your product, perhaps for a different size in clothing. You must contact us first and we will guide you through the steps.

Please do not send your purchase back to us unless we authorise you to do so.

LARGE ORDER DEALS

Wholesale

Thank you for your interest doing business with us!

If you would like to get a discounted price for your large purchase orders, fill in the required blanks along with your email address, the product Item ID # and/or the link of the item that you want to order, item quantity (minimum of 30 pieces), shipping country and payment method is required. We will contact you with a discounted price as soon as we receive your inquiry.

You may also like these products
