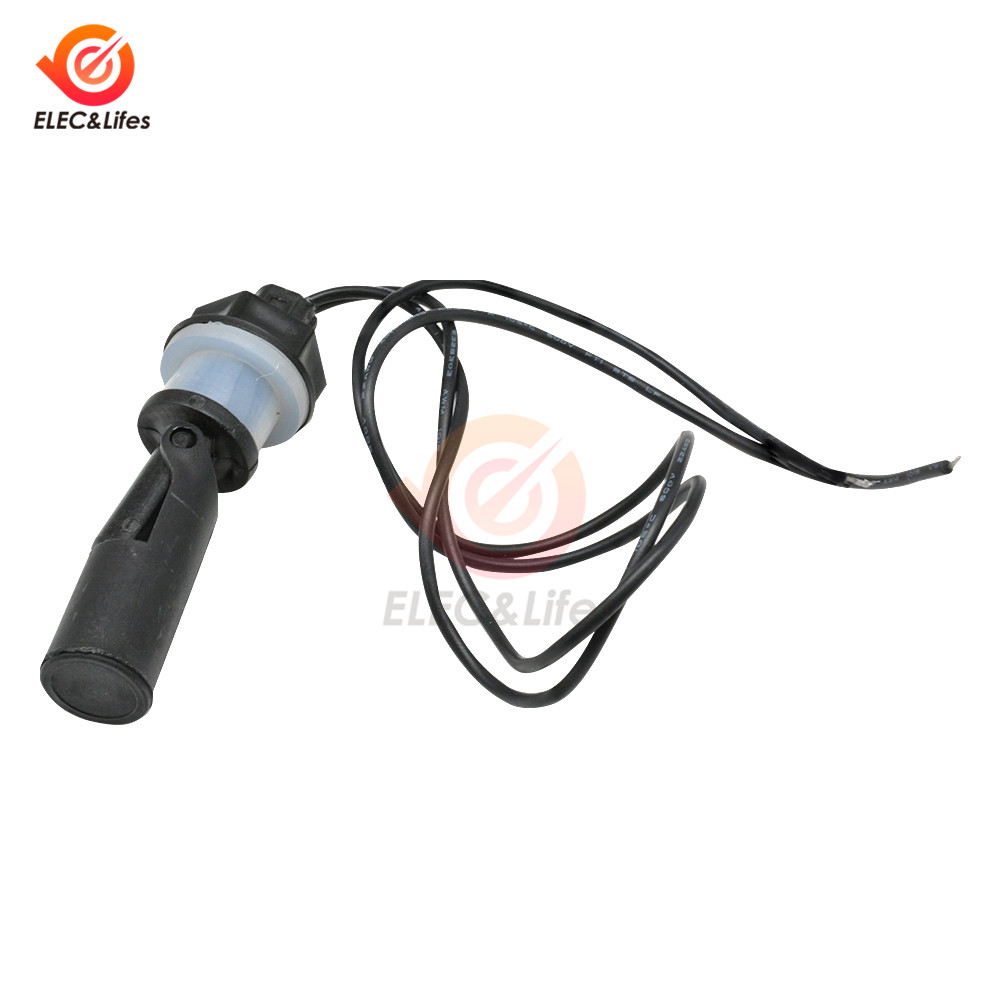

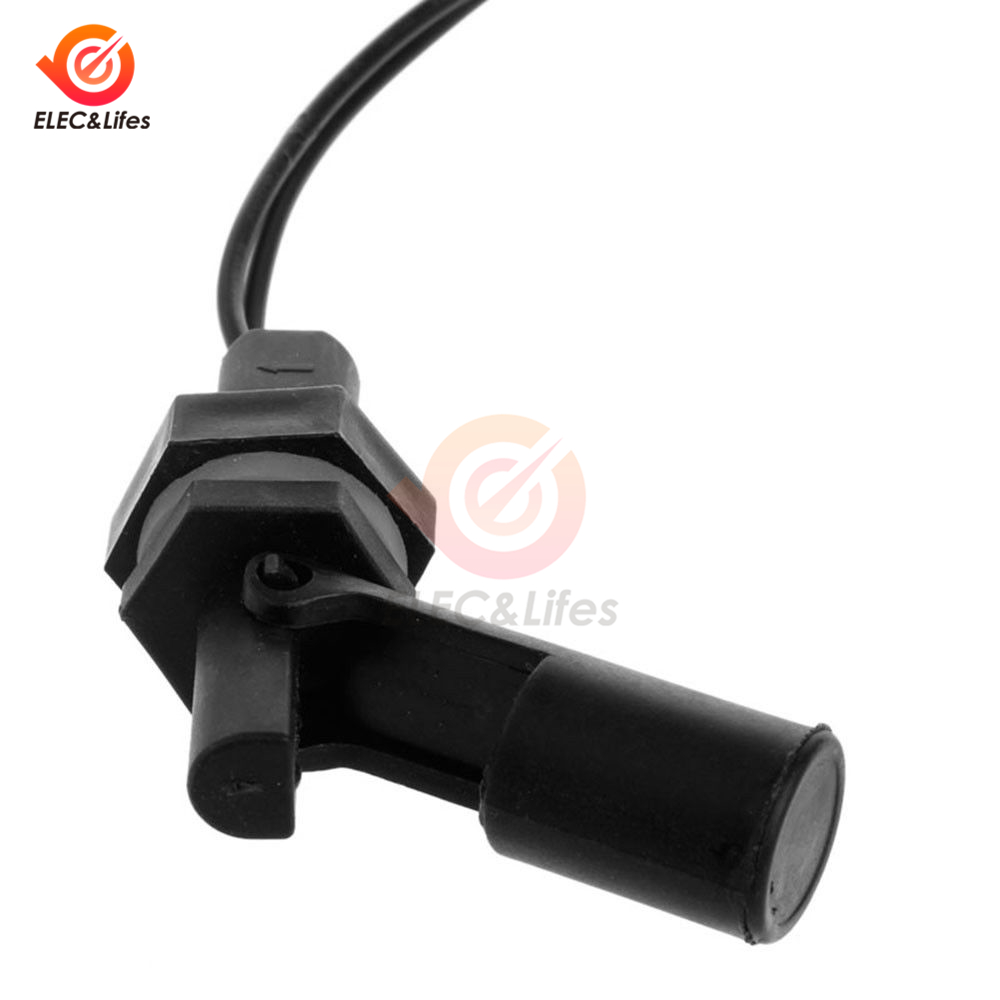

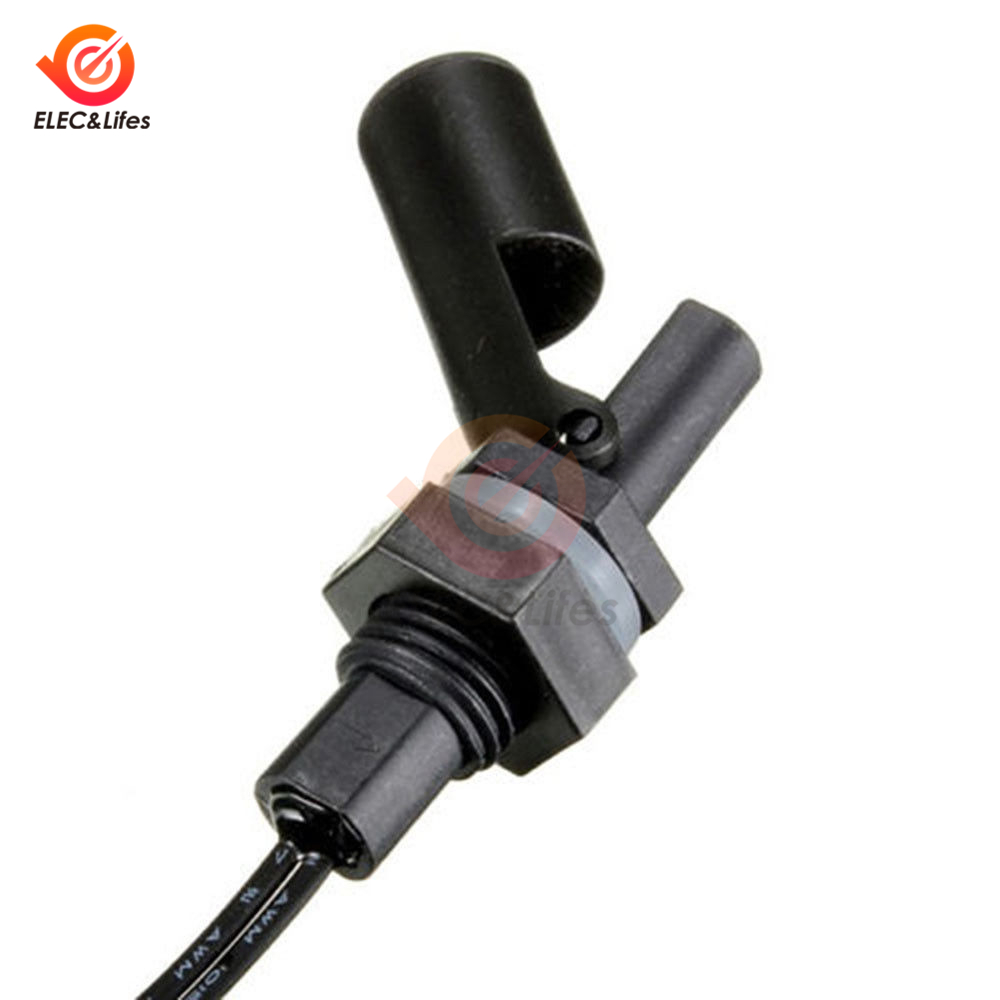

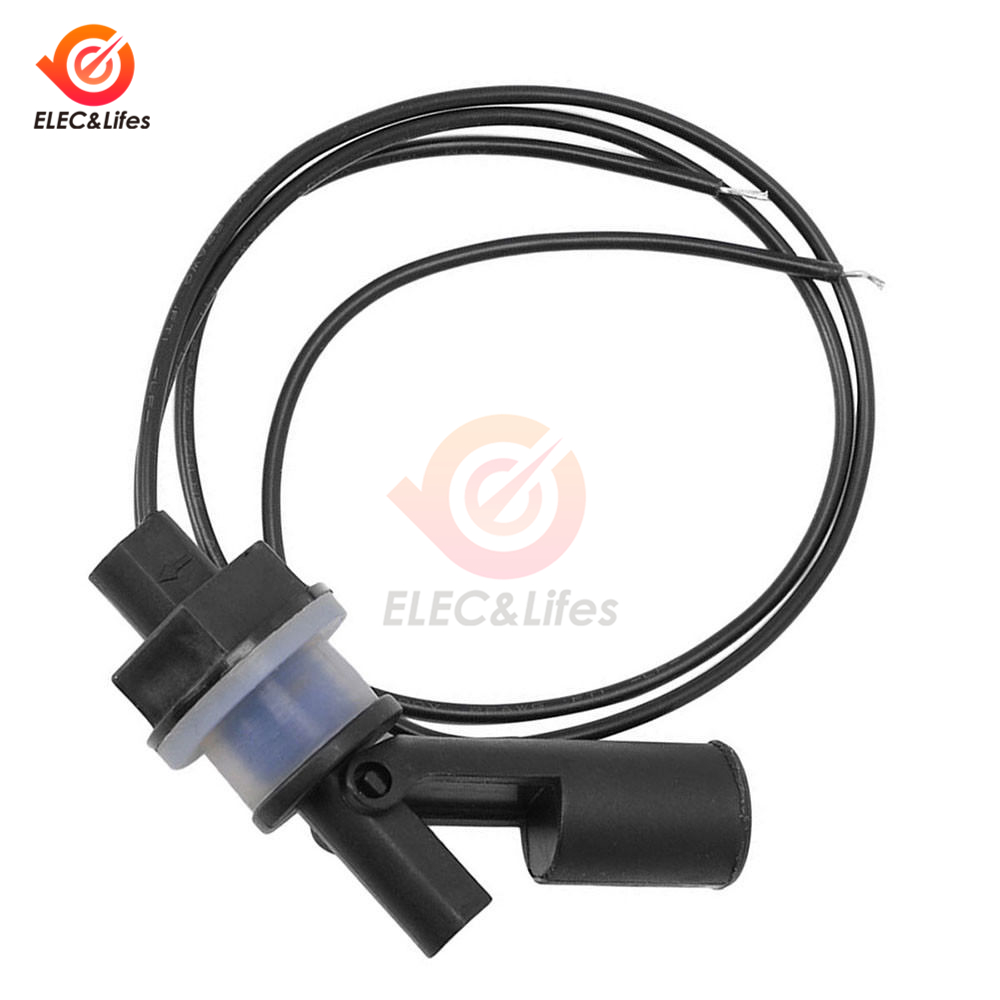

Horizontal Float Sensor Switch Side Mount Liquid Water Level Sensor Controller Automatic Water Pump switch Aquarium Tank Pool

4.8 (138 votes) | 728 orders
Price: US $10.06 - 11.44 / piece
Discount Price:
US $ 9.77 - 9.95 / piece
-3%
Color
Quantity

Descripition:

The float liquid level switch is a liquid level control device with simple structure and convenient use. It does not need to provide power supply, has no complicated circuit, and has the advantages of smaller volume and longer working life than general mechanical switches. As long as the material is selected correctly, and any liquid or pressure can be used, it can be used in the shipbuilding industry, generator equipment, petrochemical industry, food industry, water treatment equipment, dyeing and finishing industry, hydraulic machinery, etc. application.

Working principle:
The liquid level sensor is mainly composed of a reed switch and a floating ball. The floating ball has magnetic material. One or more reed switches are arranged in the closed non-magnetic metal tube or plastic tube, and then the catheter is passed through a Or a plurality of floating balls with magnetic material, and using the fixed double ring to control the floating ball and the reed switch in the relevant position, the floating ball rises or falls with the liquid, and uses the contact point in the ball near the beginning of the magnetic spring to generate opening and closing. The action is used as a level control or indication (when the float is close to the reed switch is on; when it is off the switch is off).

Features:
100% Brand New.
Material: PP
Contract rating (Max): 10W
Switching voltage (Max): 110VDC
Switching current (Max): 0.5A
Breakdown voltage (Max): 220VDC
Carry current (Max): 1A
Contract resistance (Max): 100 OHM
Temperature rating: -10 ~ +60 Celsius degree
A float switch is a device used to sense the level of liquid within a tank, it may actuate a pump, an indicator, an alarm, or other device.
Use them with hydroponics, saltwater tank, freshwater tank, gardening, aquariums for power head control, pet bowls, fish tanks, filtration, heating, or what ever your project may be
Contains no mercury
Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures. Thank you for your understanding!

Package included:
1 x Liquid Float Switch


high pressure

Product selling point:

1. Multiple specifications optional

2. The switch is small in size

3. Long working life

4. Using high-quality materials, the quality is guaranteed

5. Widely used in shipbuilding industry, generator equipment, petrochemical industry, food industry, water treatment equipment, dyeing and finishing industry, hydraulic machinery, etc.

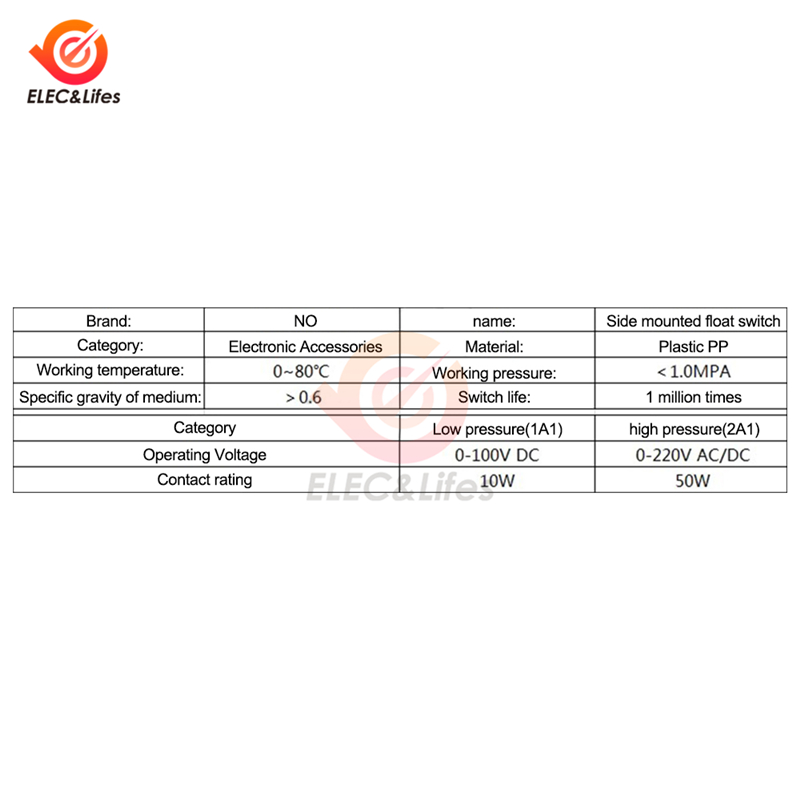

Product parameters:

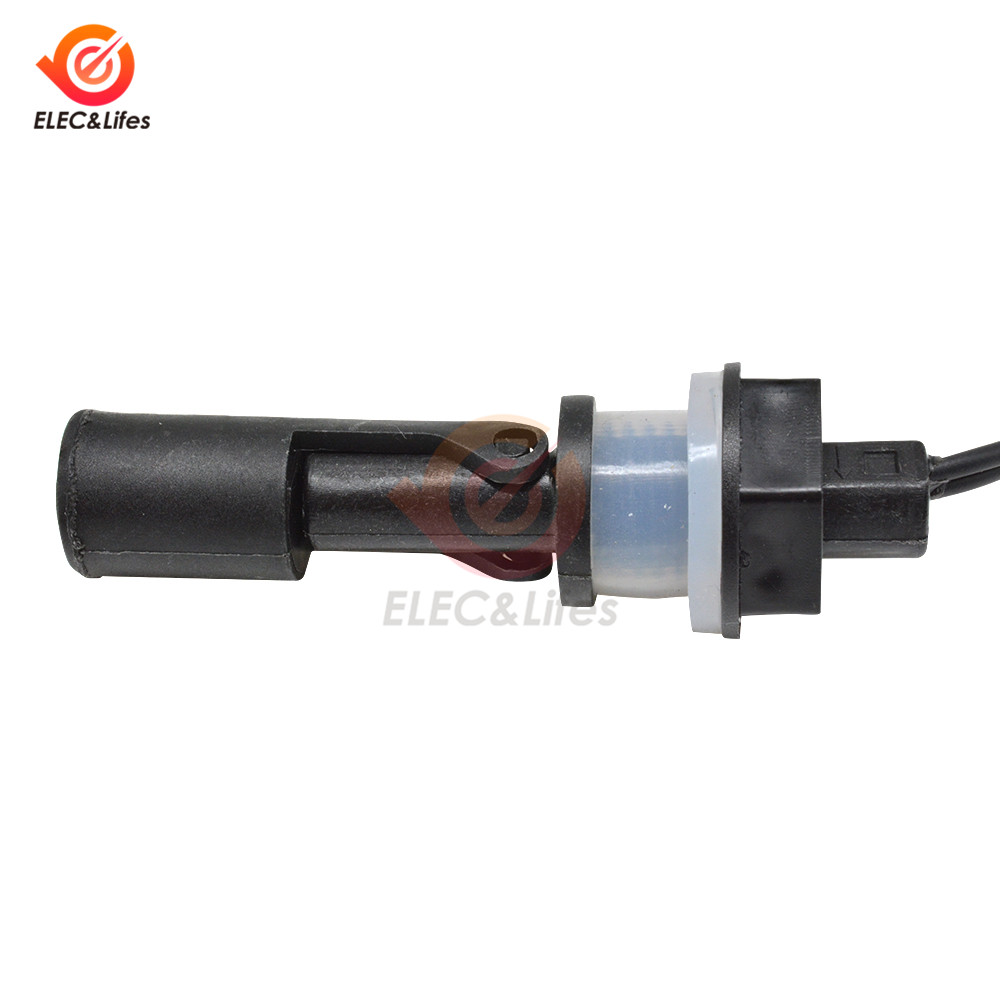

Name: side mounted float switch

Material: plastic PP

Working temperature: 0~80℃

Working pressure: <1.0MPA

Specific gravity of medium: >0.6

Switch life: 1 million times

Product Category: High Voltage (2A1)

Working voltage: 0-220V AC/DC

Contact capacity: 50W

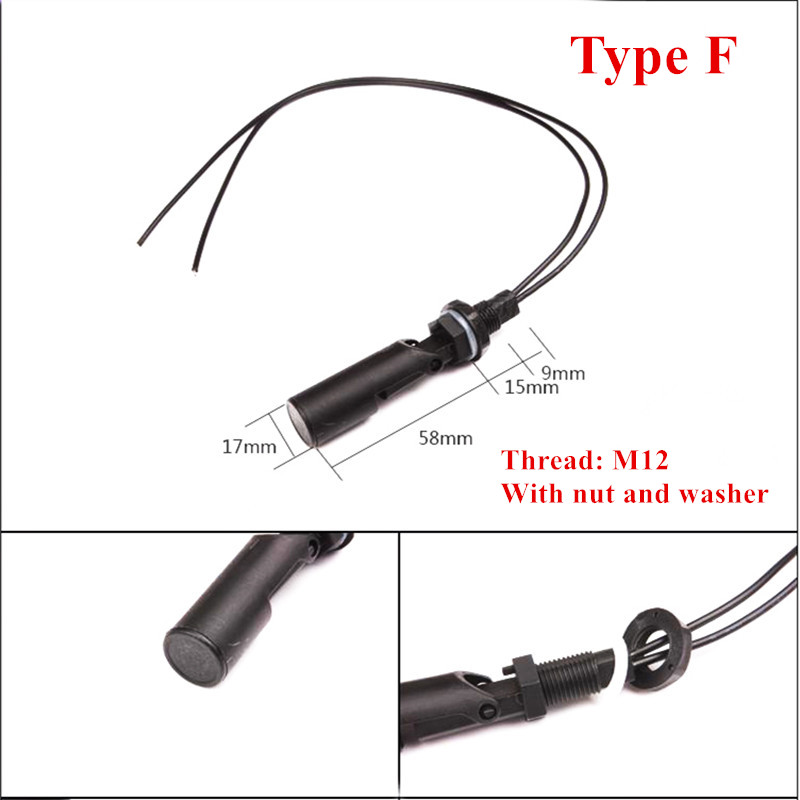

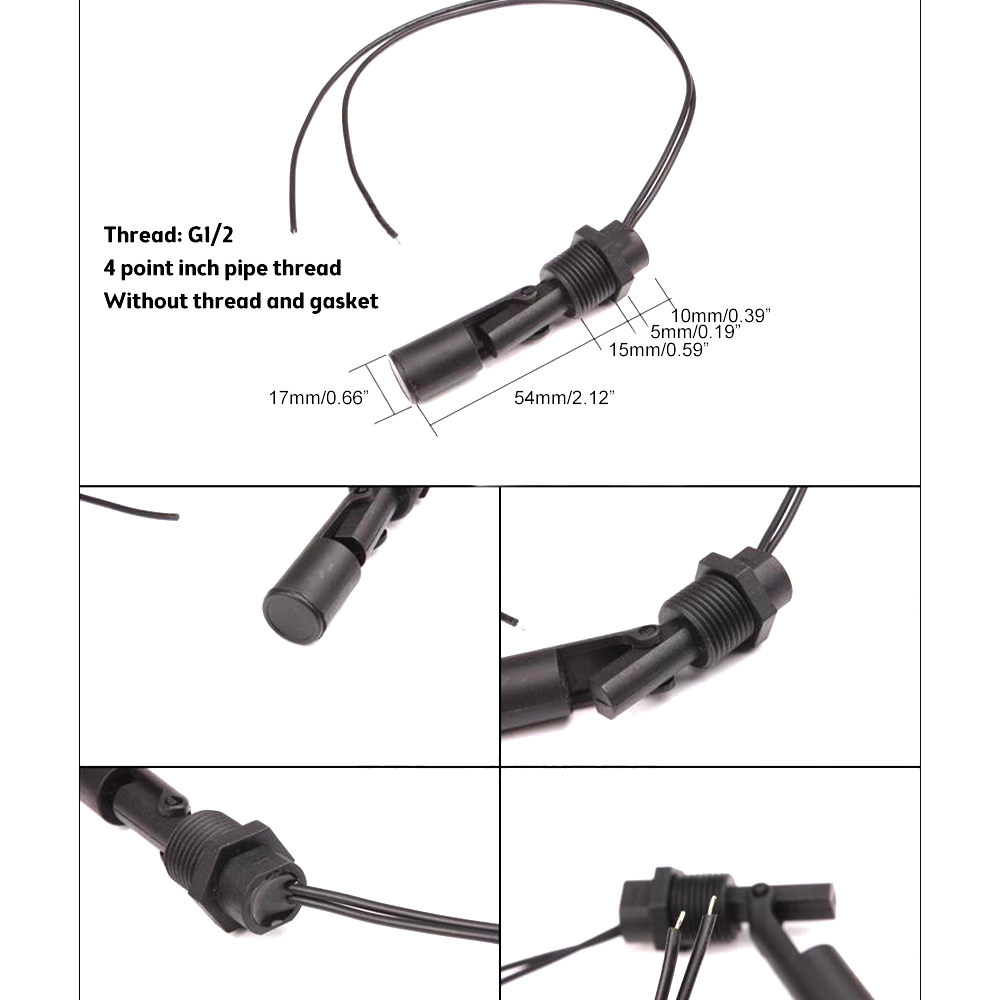

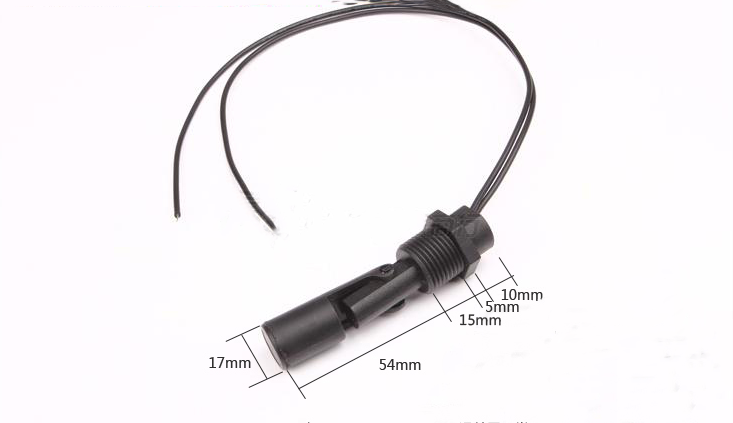

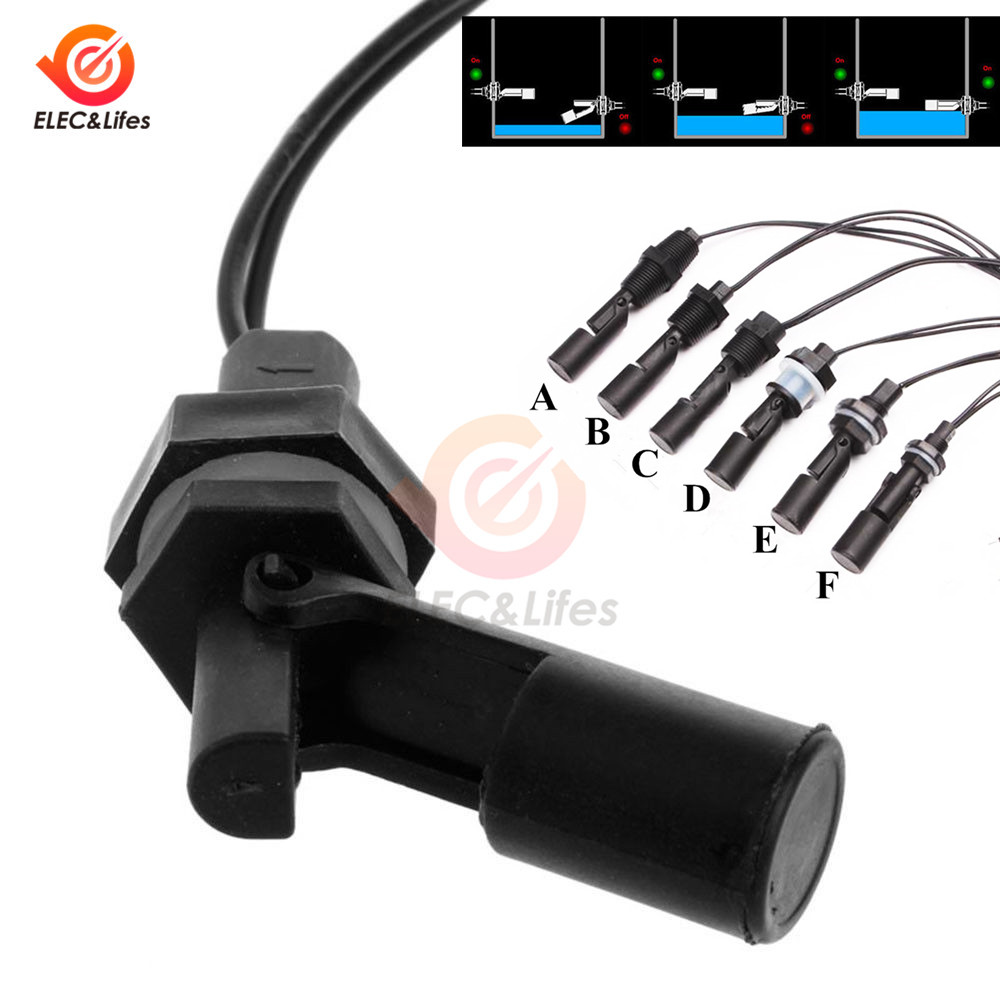

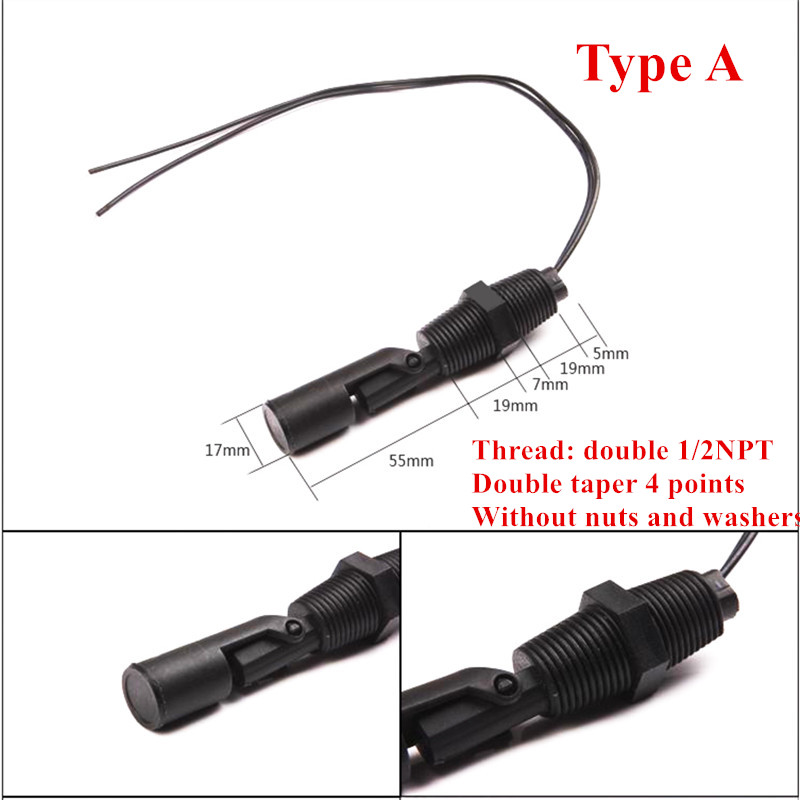

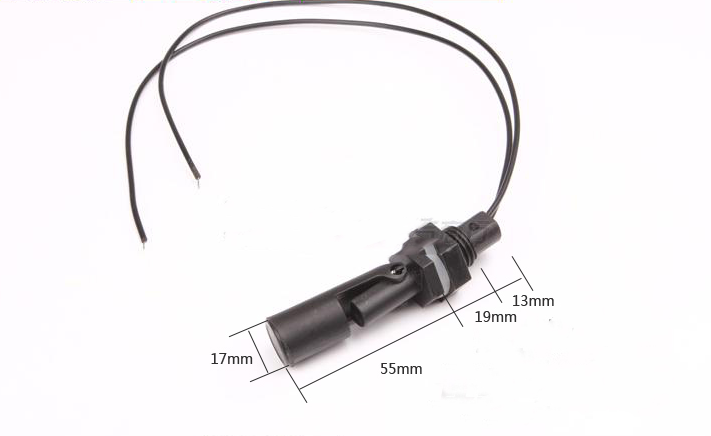

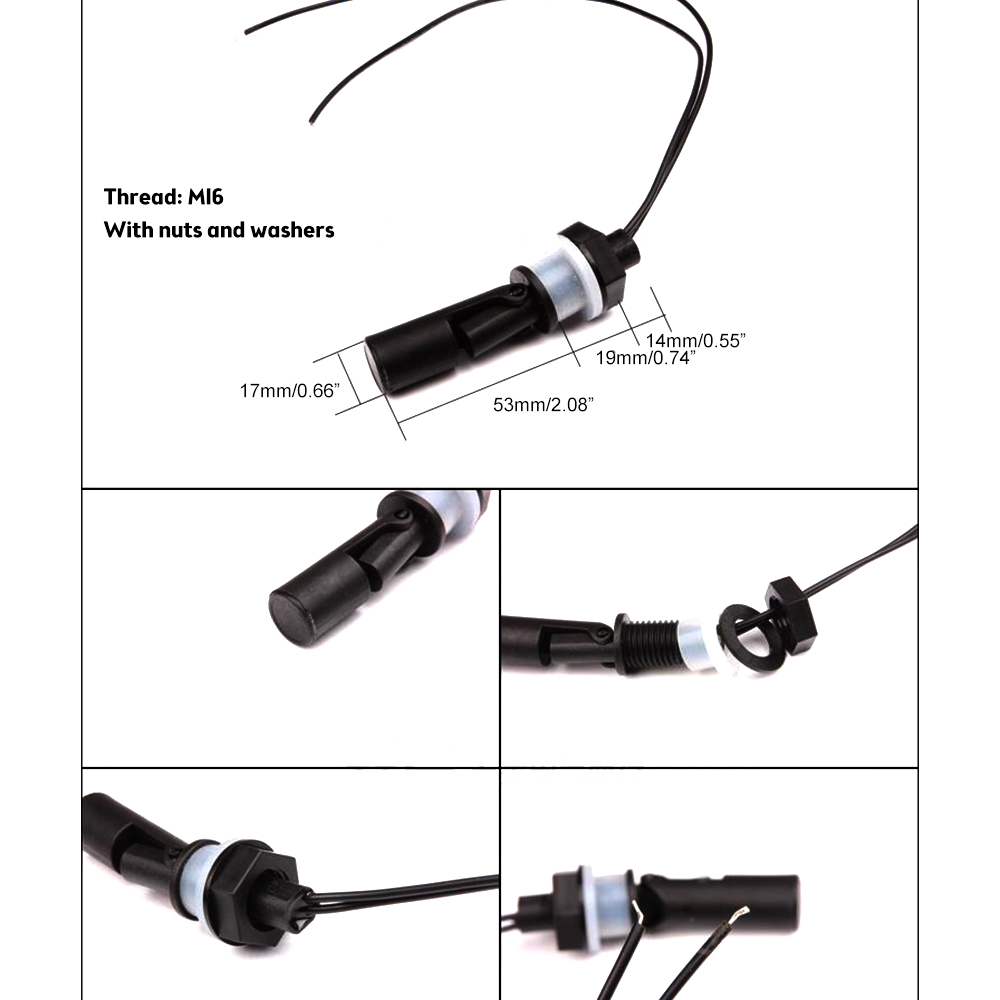

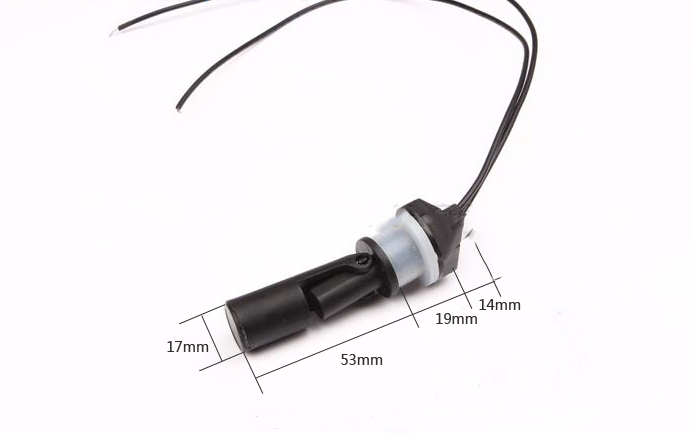

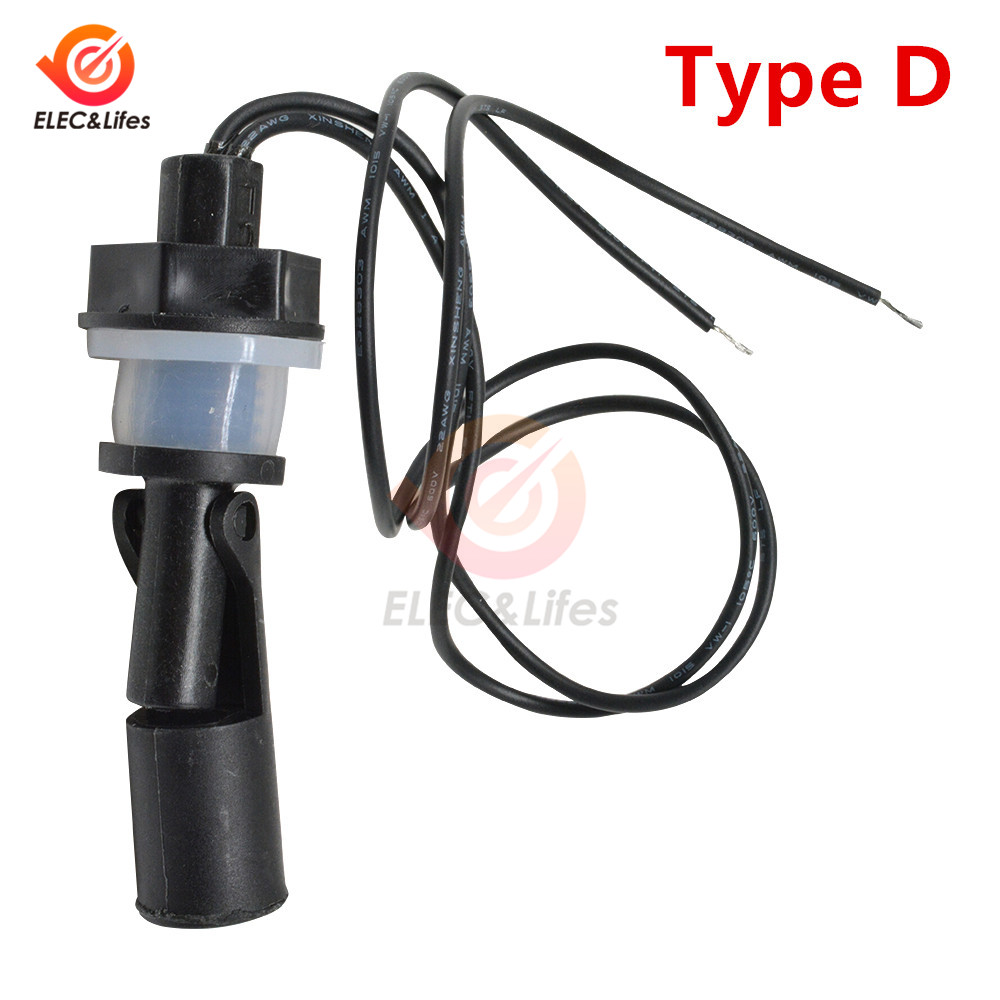

Multiple specifications are available: A, B, C, D, E, F


Shipping list:

Switch X1



Brand Story

We are a professional manufacturer that integrates design, production and sales. We have an excellent sales team to serve customers around the world. Product categories include 3C electronics, electronic components, home improvement, tools and so on!
Please follow us,we have many coupons and discount!



  • Model Number: Float Sensor Switch
  • DIY Supplies: ELECTRICAL
  • Brand Name: Aideepen
  • Origin: Mainland China
  • Certification: CE
  • Material: Plastic
  • Switch power(Max): 10W
  • Switching voltage(Max): DC 100V
  • Switching current(Max): 0.5A
  • Max Carry Current: 1.0A

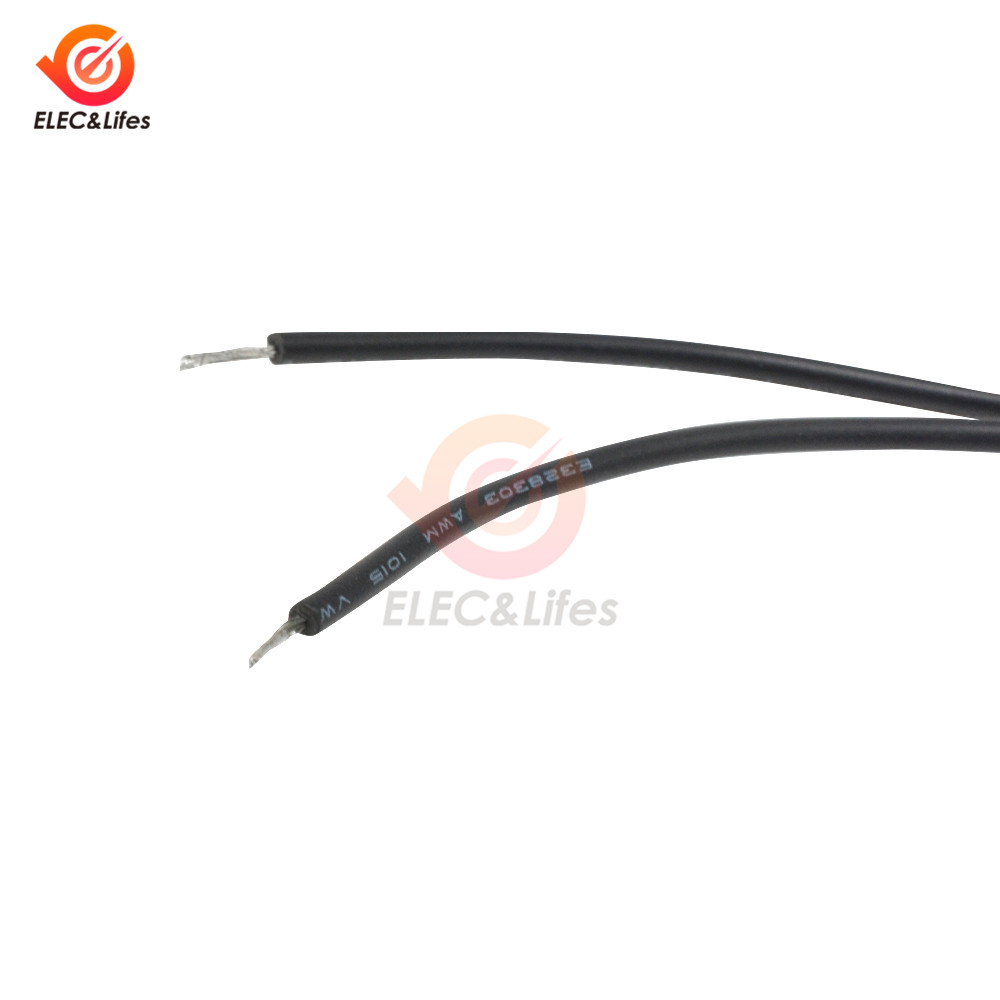

  • Cable length: About 34cm

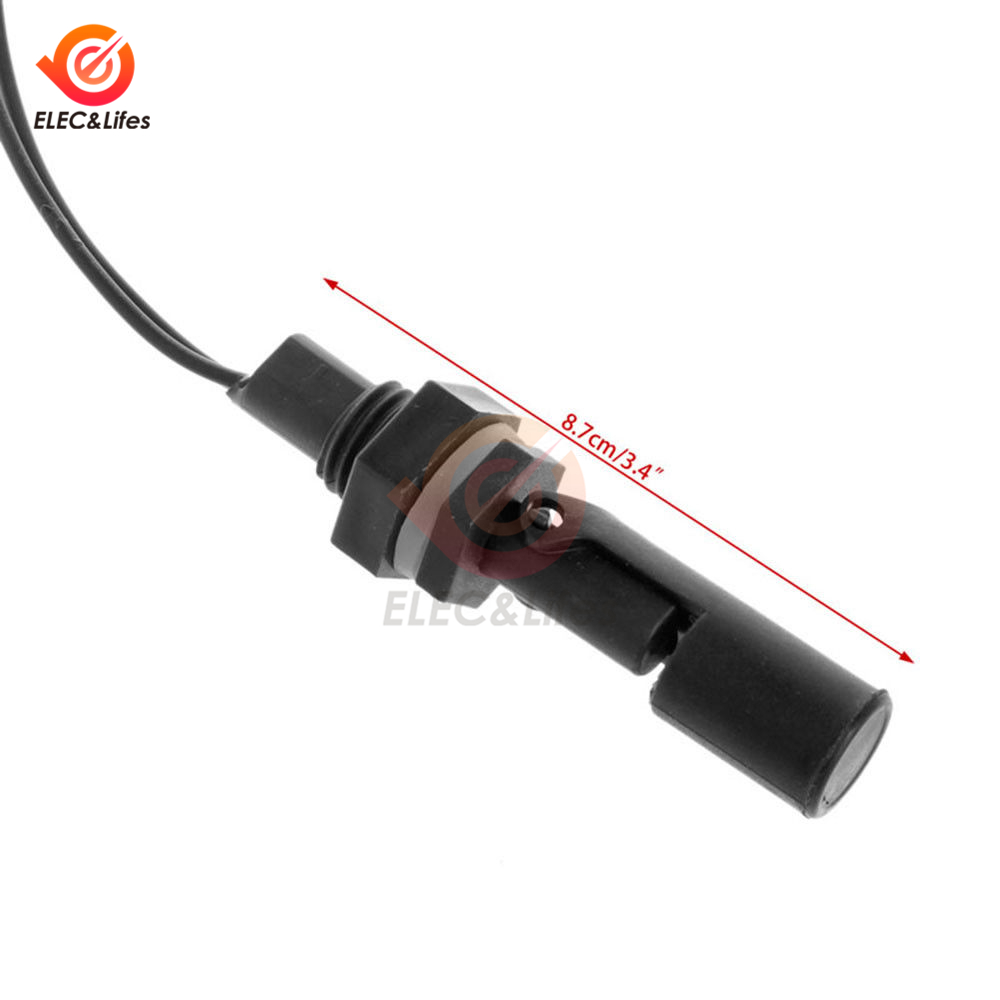

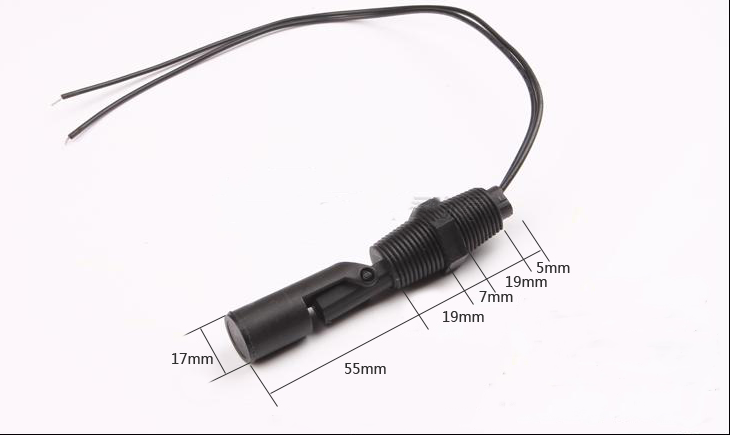

  • Float length: 8.7cm
