HomeFong Tuya WiFi Video Door Phone for Home Intercom with Lock Touch Screen 1080P Doorbell Camera Wired Access Control System

5.0 (3 votes) | 27 orders
Price: US $1156.40 - 1172.00 / piece
Discount Price:
US $ 552.47 - 559.92 / piece
-52%
Ships From
Color
Quantity


This Version Intercom Supports TUYA Smart APP / Smart Life APP

it does not support Amazon Alexa / Google Home

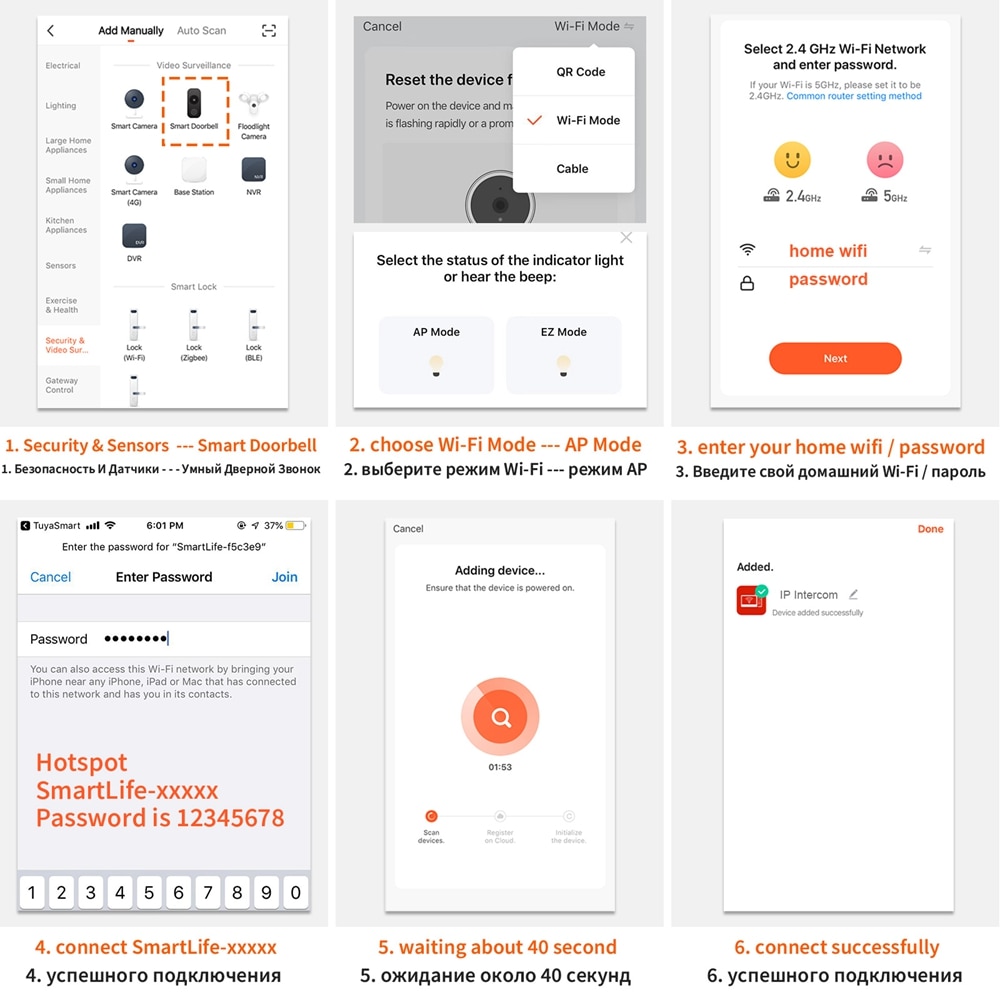

How to connect with TUYA Smart APP / Smart Life APP by AP mode

1. monitor choose AP mode
2. TUYA APP choose Smart Doorbell --- AP Mode
3. enter your home wifi and password
4. connect device hotspot smartlife-xxxxx , password is 12345678

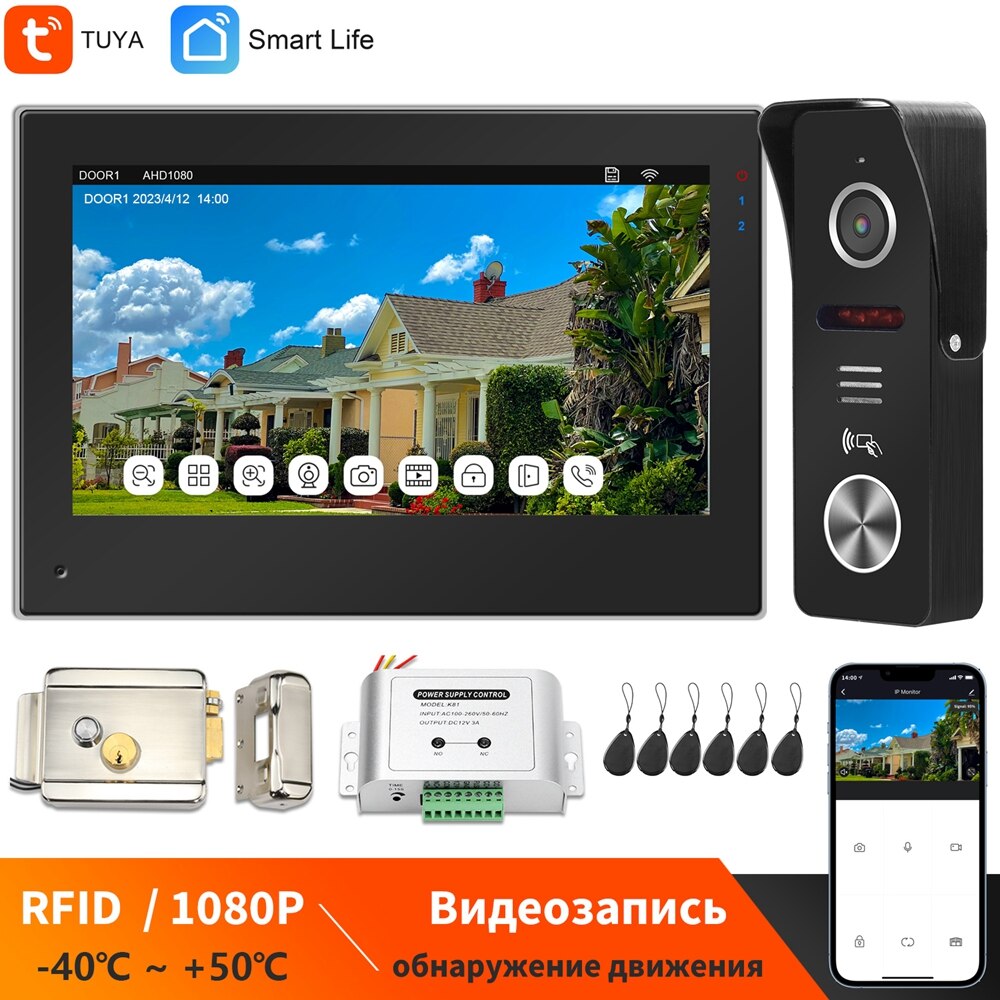

7 Inch Full Touch Screen WIFI Video Intercom System

1. 7 inch full touch screen monitor , supports 2 doorbells + 2 cameras , maximum supports 128GB memory card
2. Real-time control by smart phone , unlock , 2 way talk , snapshot , recording
3. supports TUYA Smart APP / Smart Life APP, does not support Alexa / Google Home
4. monitor system supports English / русский / français / Español / Deutsch / Italiano / Polskie / Український
5. monitor system has Standard / Android / Win10 3 menu styles
6. supports motion detection, videos record to memory card , supports 3 motion detection alarm ringtones
7. motion recording time 10s -300s
8. supports messages push to smart phone (visitor pressing call button / motion detection)
9. supports adjust doorbell volume / monitor volume / ringtones separately , monitor has 10 ringtones
10. supports clock mode
11. monitor supports connect electric lock separately, if connecting with 2 doorbells , it supports open 3 locks separately
12. maximum supports 6 monitors connected (1 master monitor + 5 slave monitors)
13. system has 10 ringtones , support custom ringtones (copy ringtones to Ring folder )
14. monitor connect to doorbell by 4 Pin cables , monitor connect to network by WIFI

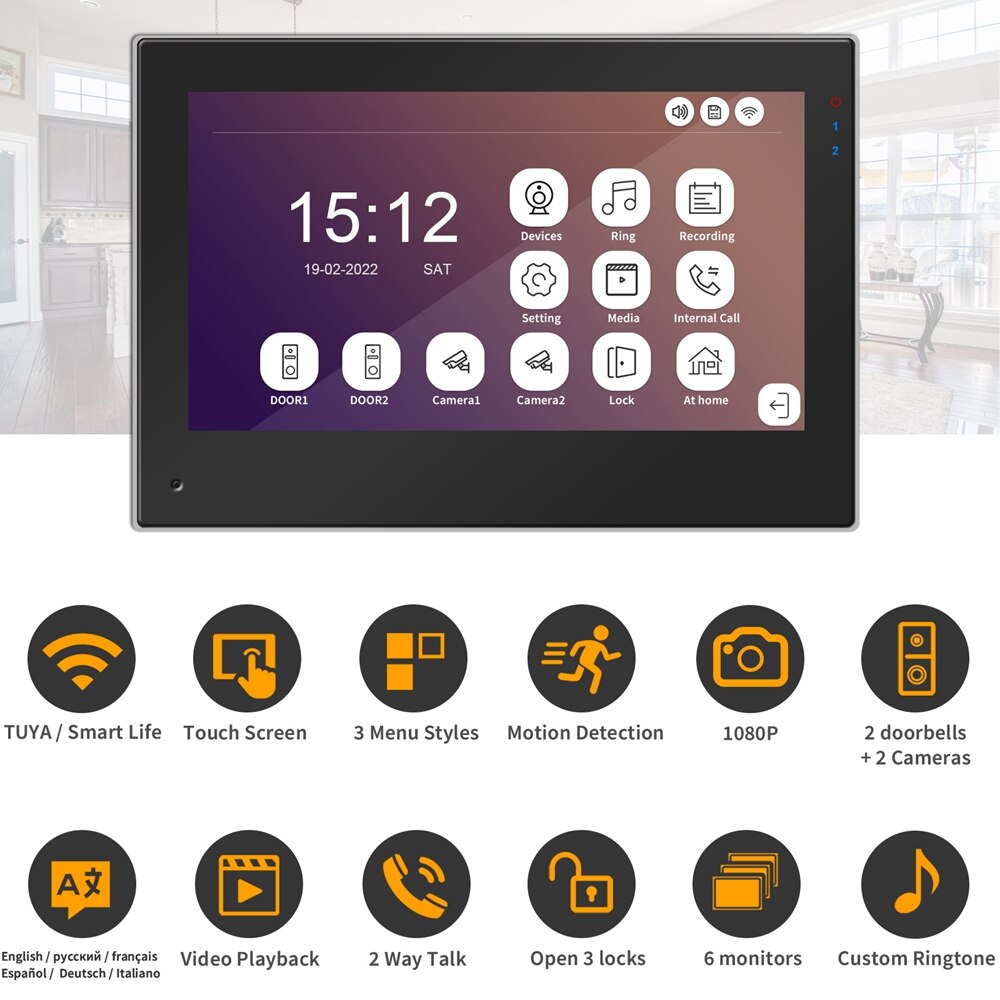

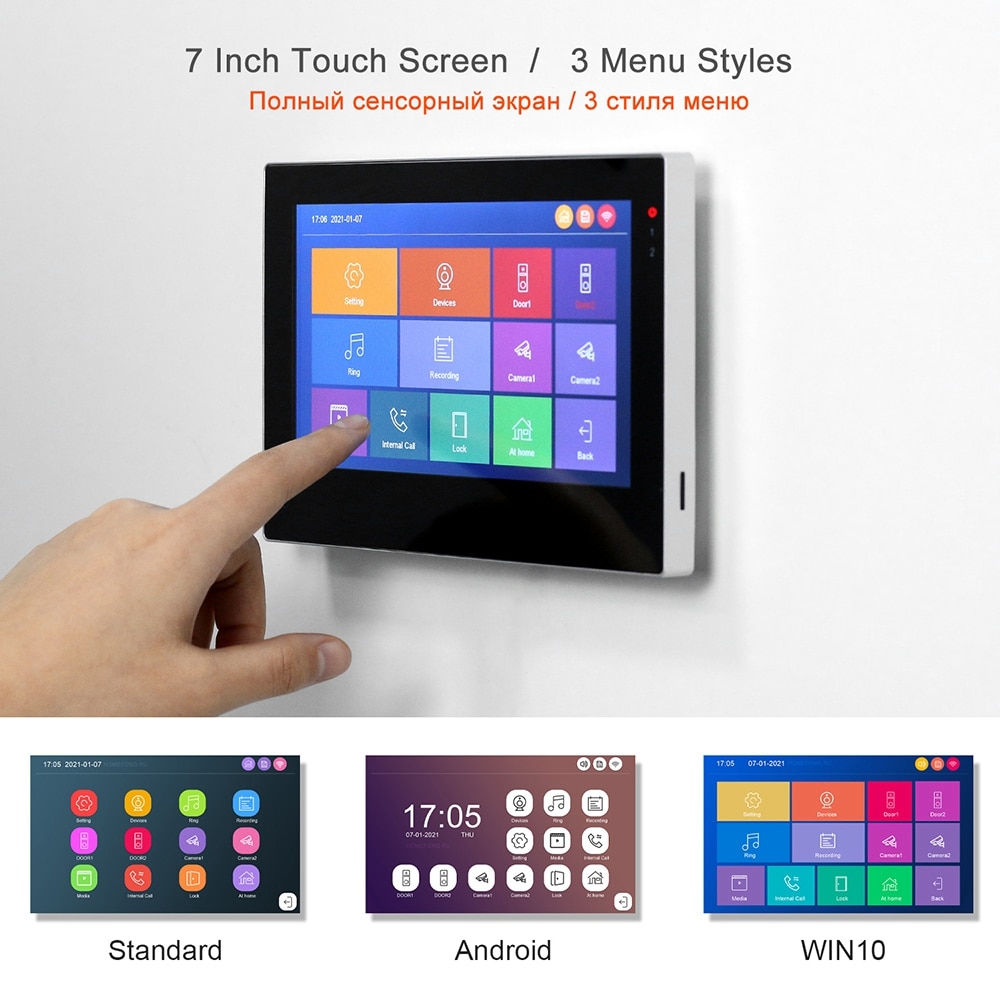

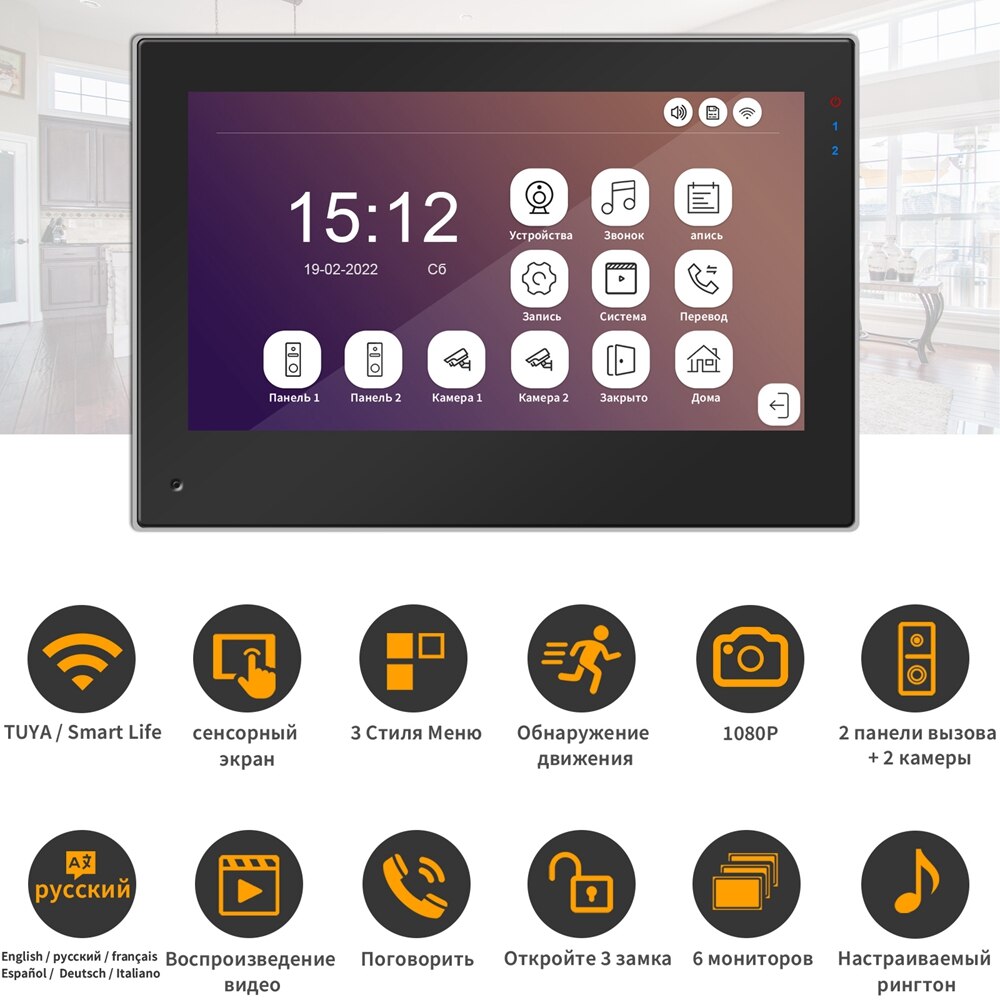

7 Inch Touch Screen / 3 Menu Style Display

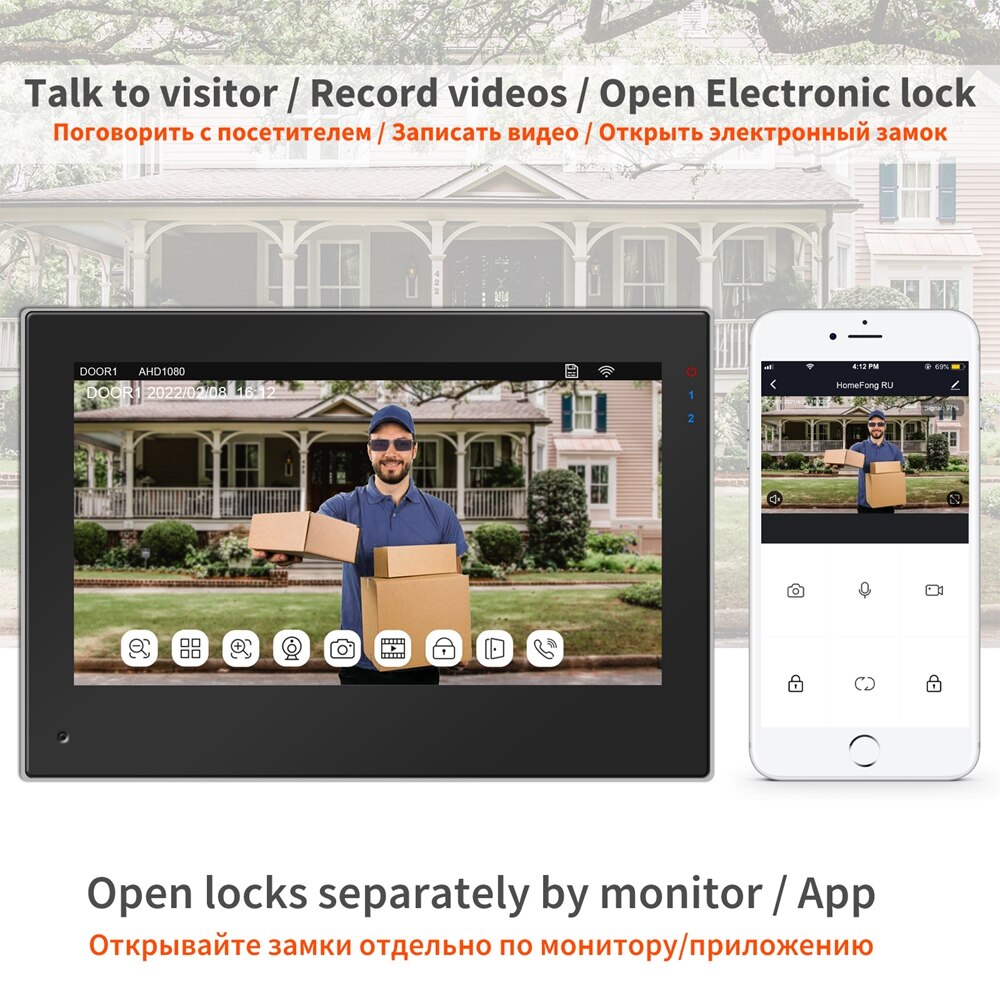

TUYA Smart APP / Smart Life APP Real Time Control

1.Monitor supports volume,brightness,contrast, saturation adjustment
3. Monitor / APP support snapshot / recording / talking / open 3 locks separately
4. Monitor / APP support monitoring 2 doorbells + 2 cameras
5. Monitor supports zoom in / out image

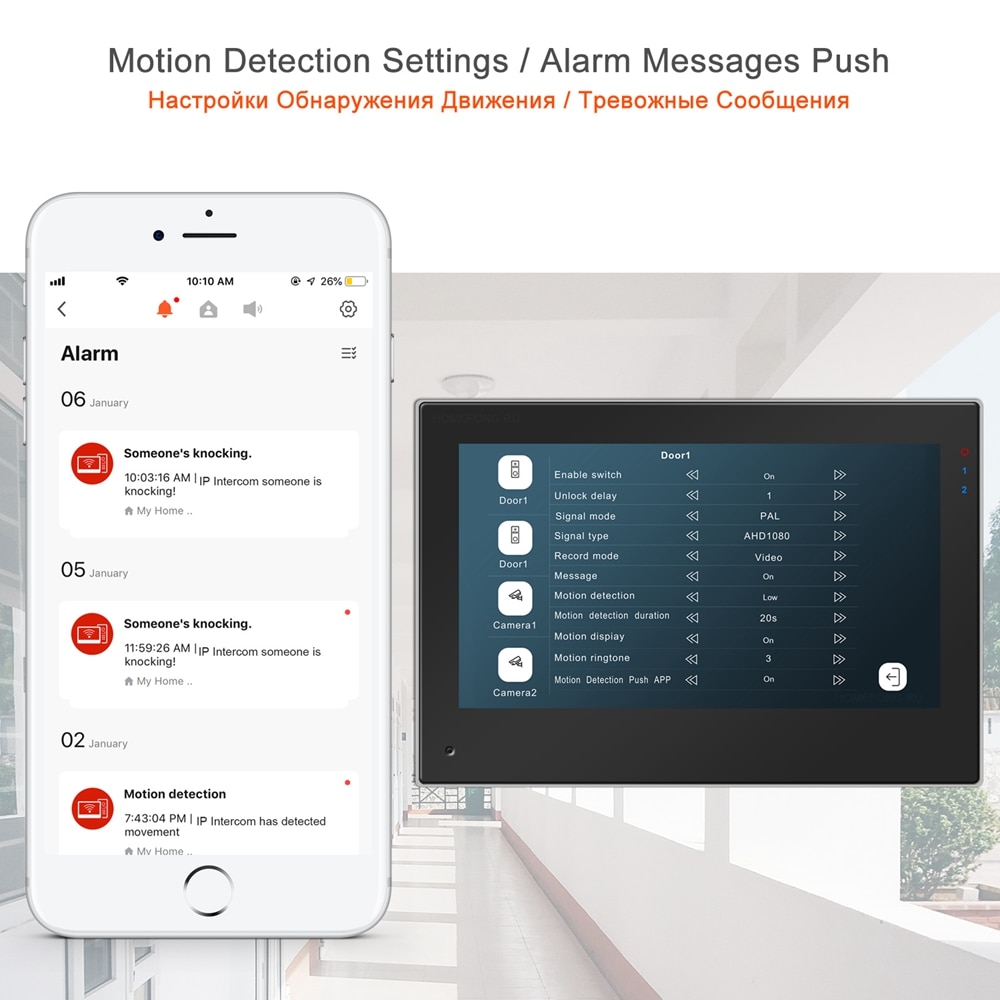

More Powerful Motion Detection Settings

1. supports 3 levels motion detection sensitivity
2. supports recording time 10s - 300s
3.supports motion display/ ringtone , when triggered motion sensor , monitor would show image ,record videos
4. supports message push to smart phone

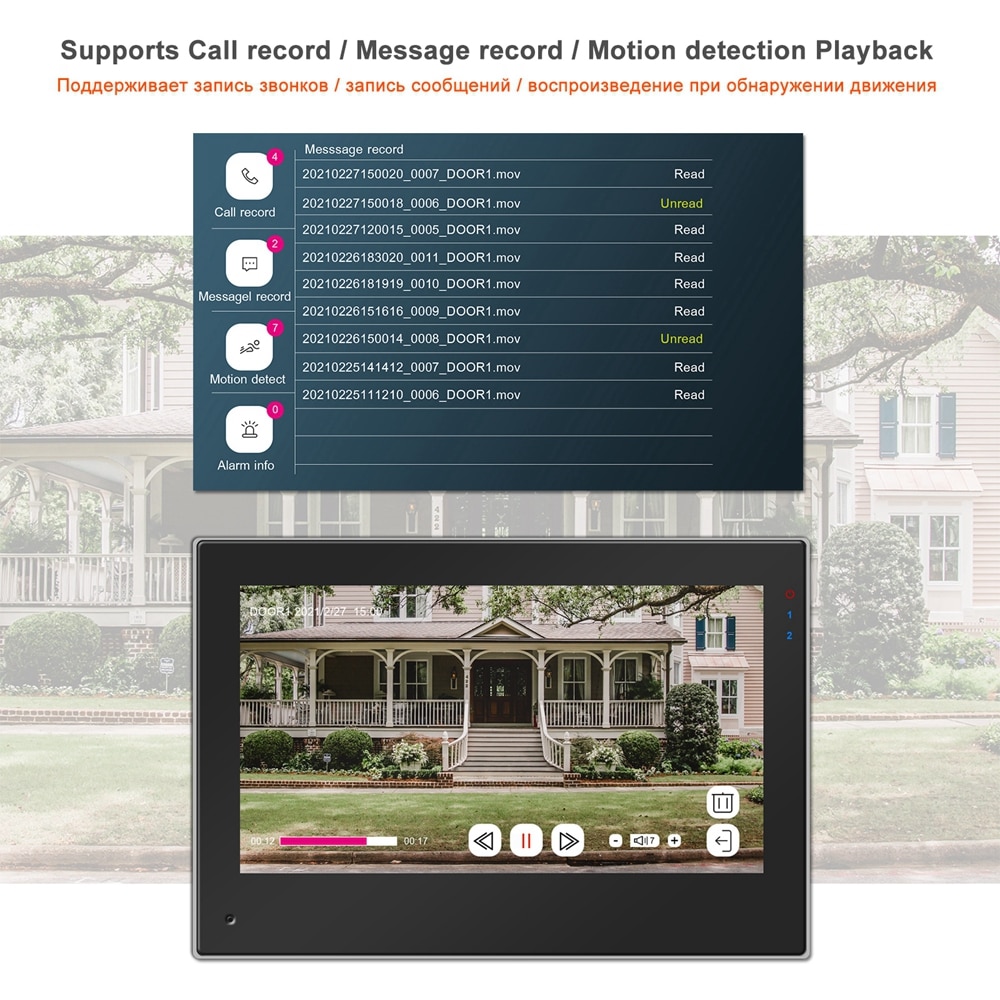

Monitor Support Call records / Message records / Motion Detection records playback

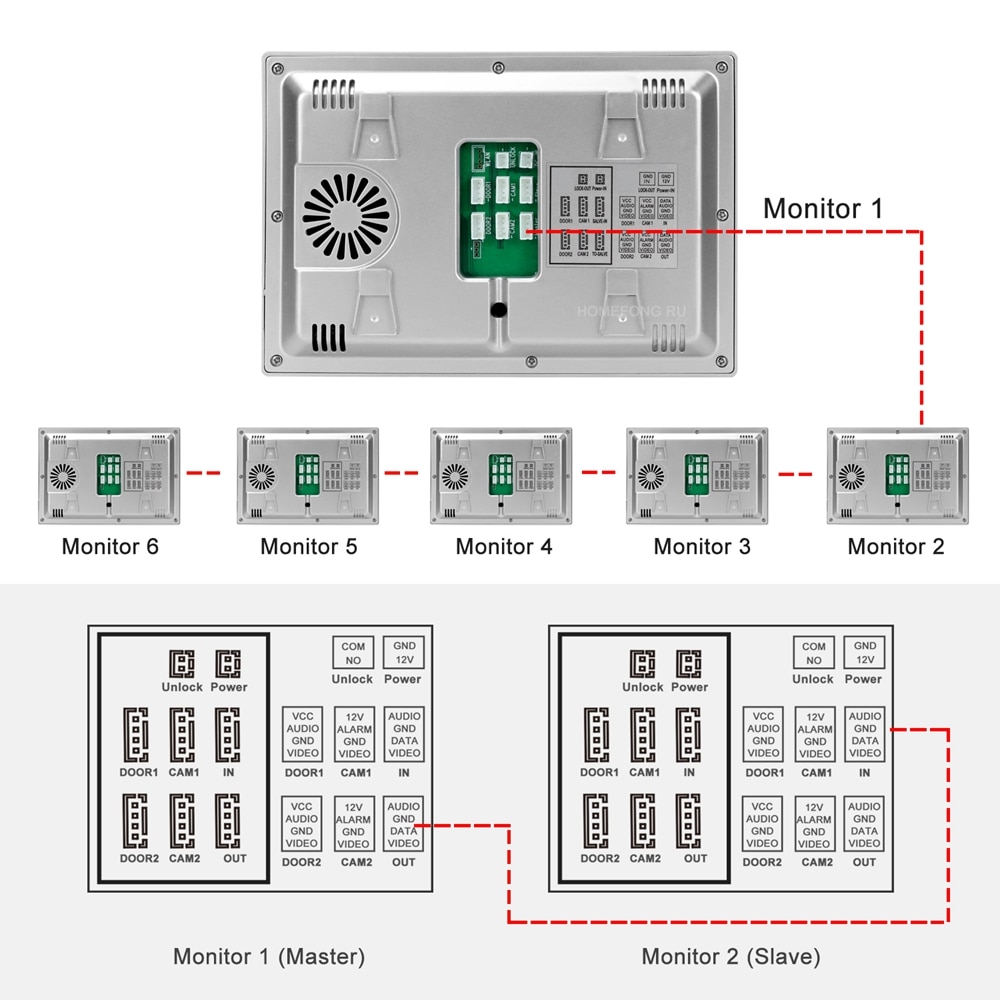

This System supports 6 Monitors Connected

monitor 1 is master monitor (Device ID select 1)
other monitors are slave monitor (Device ID select
2-6 )

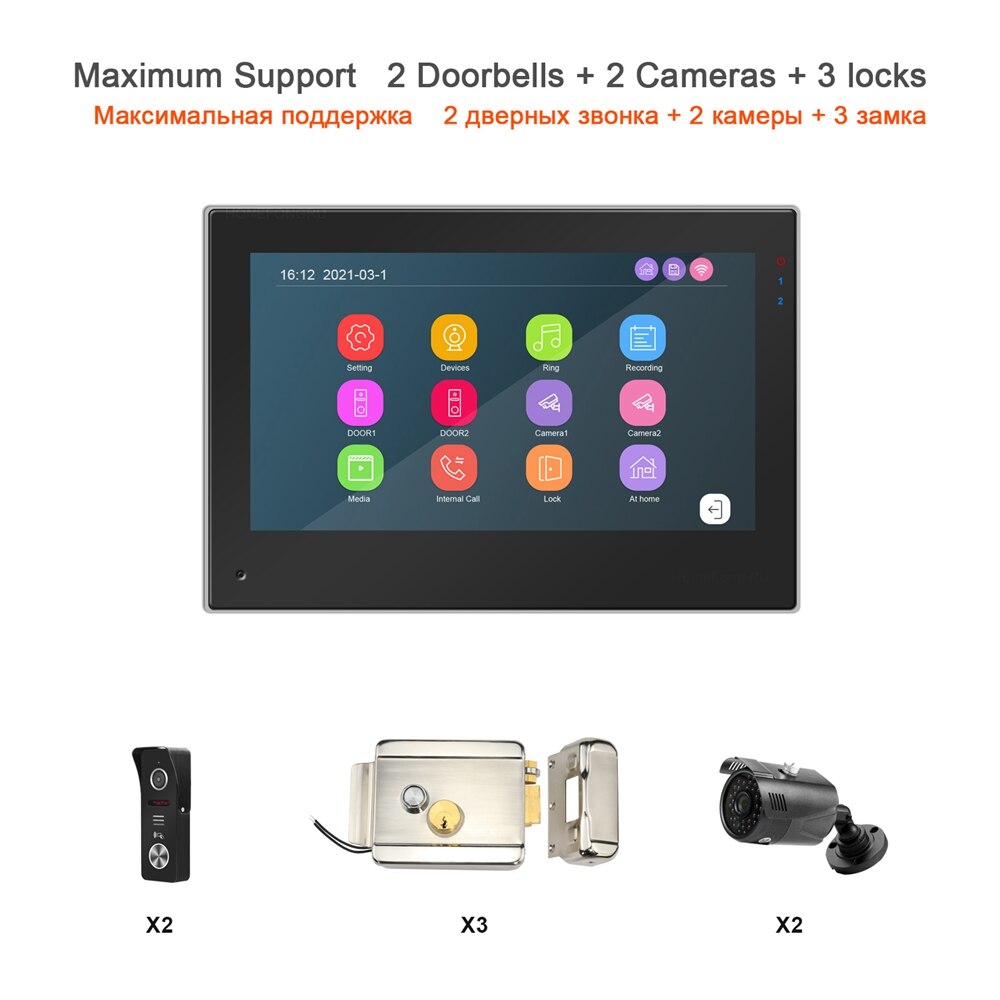

1 Monitor supports 2 doorbells + 2 cameras

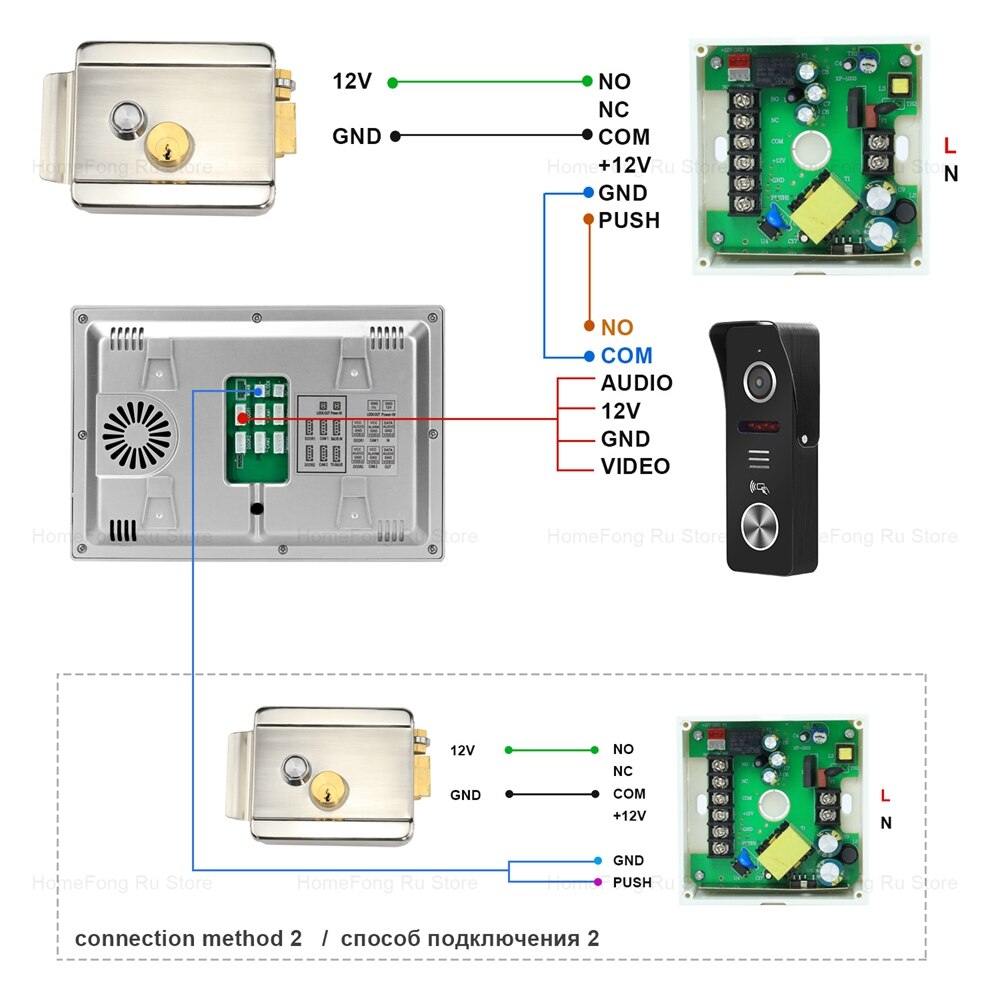

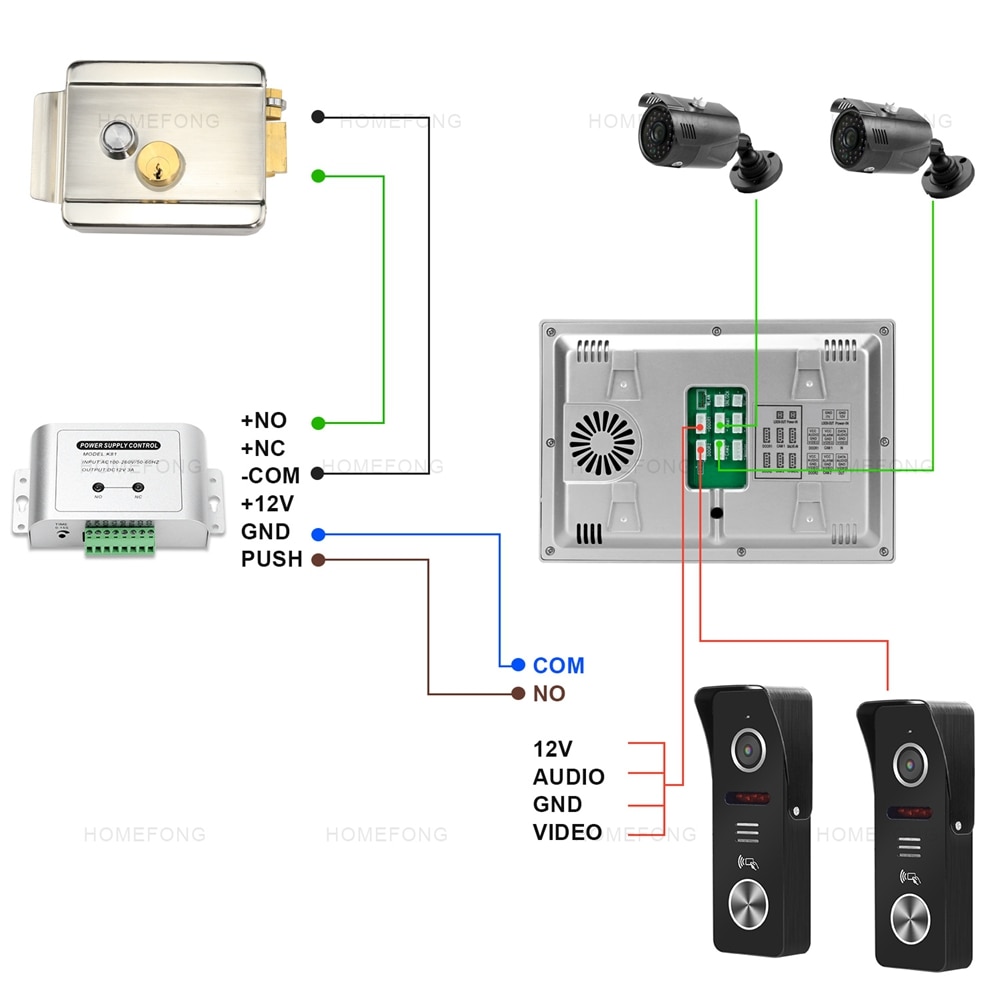

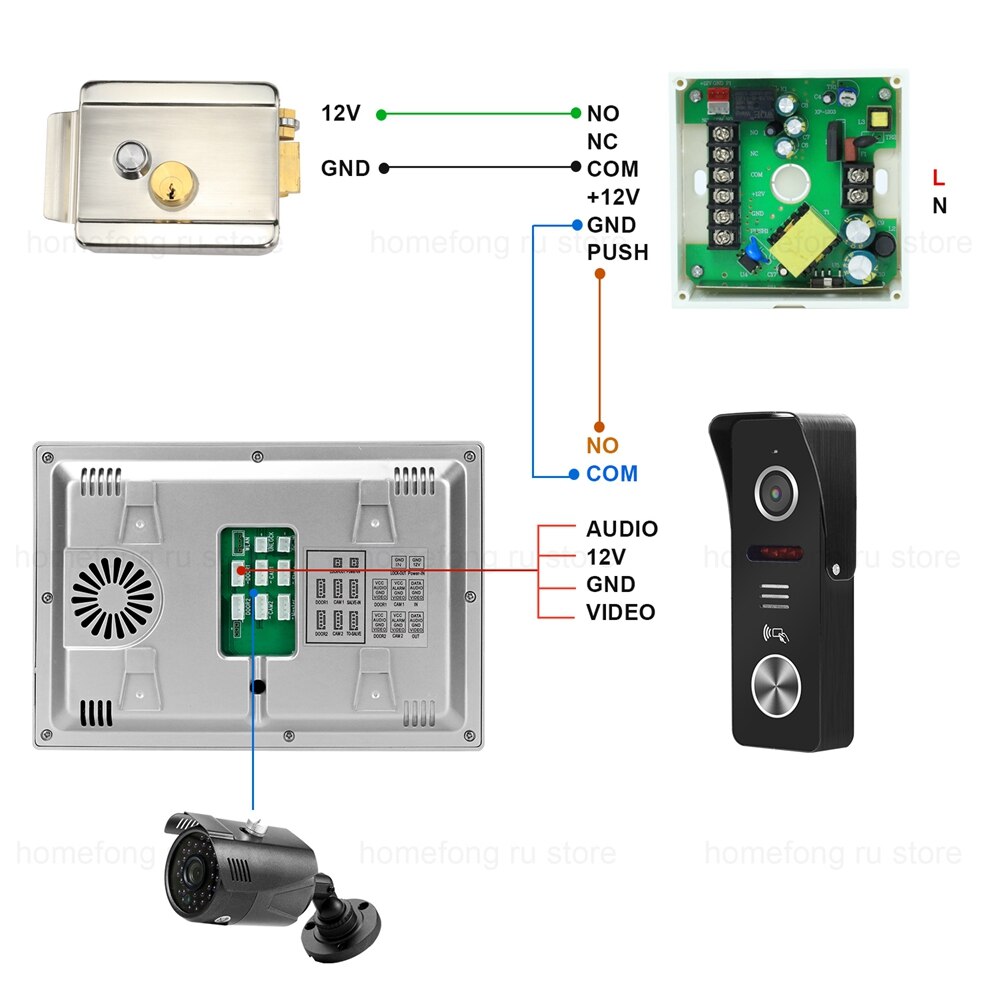

How to connect doorbell / outdoor cameras / electric lock

if you need doorbell / outdoor cameras / electric lock , welcome to contact us

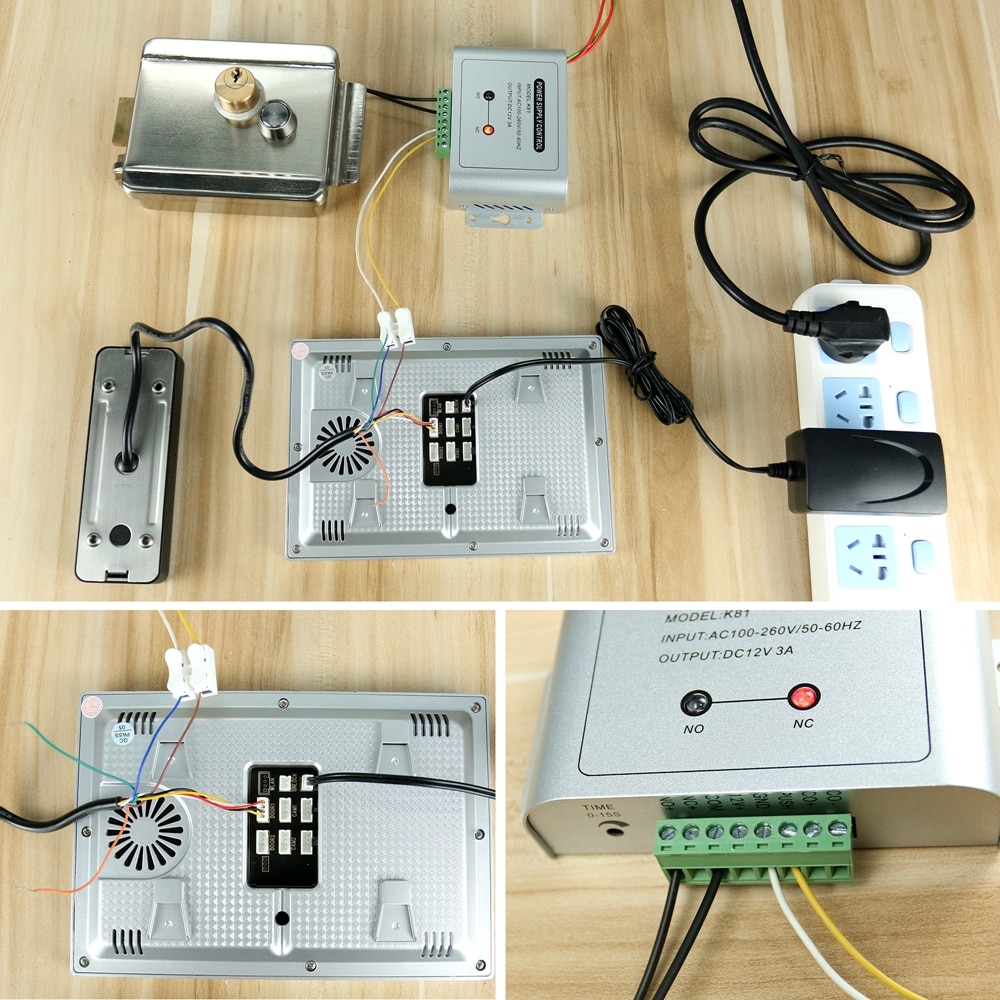

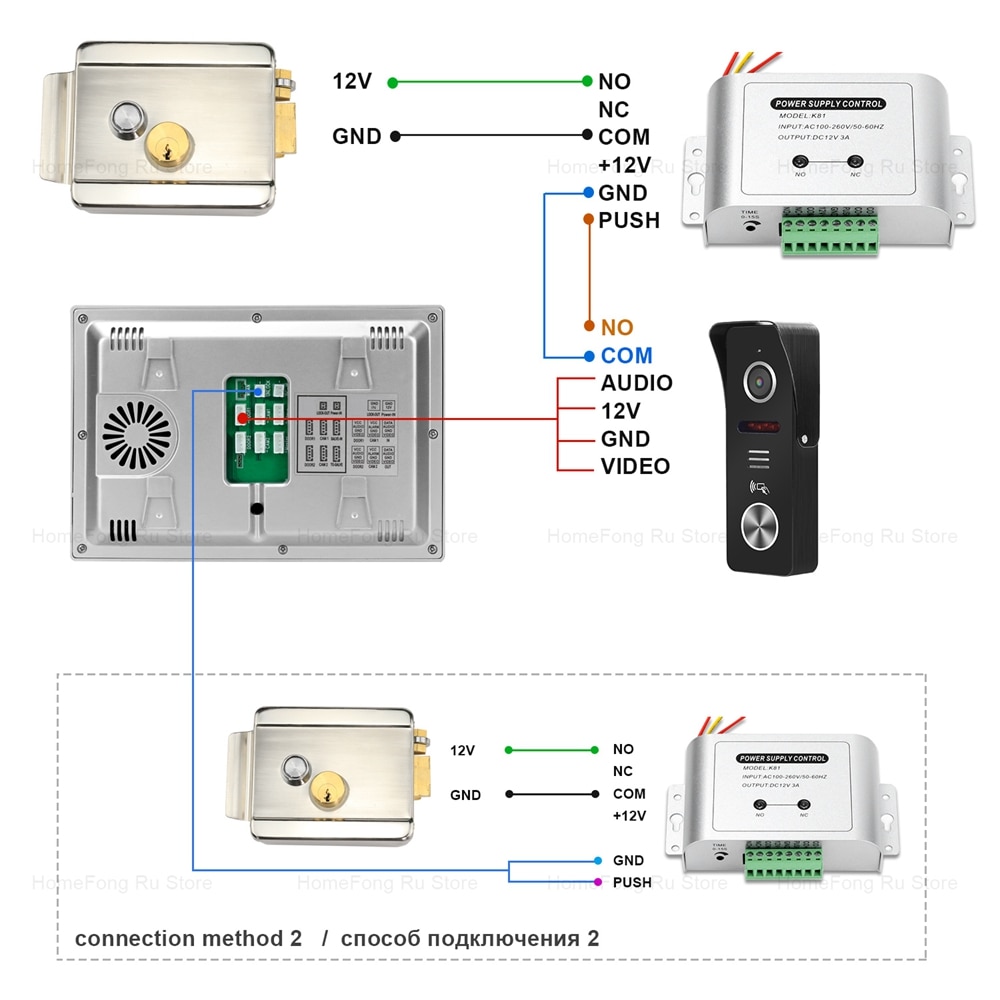

Monitor supports connect electric lock separately

1. this system maximum supports connect 3 locks , doorbell 1 connect lock 1 , doorbell 2 conenct lock 2 , monitor connect lock 3
2. it supports open locks separately by monitor / APP

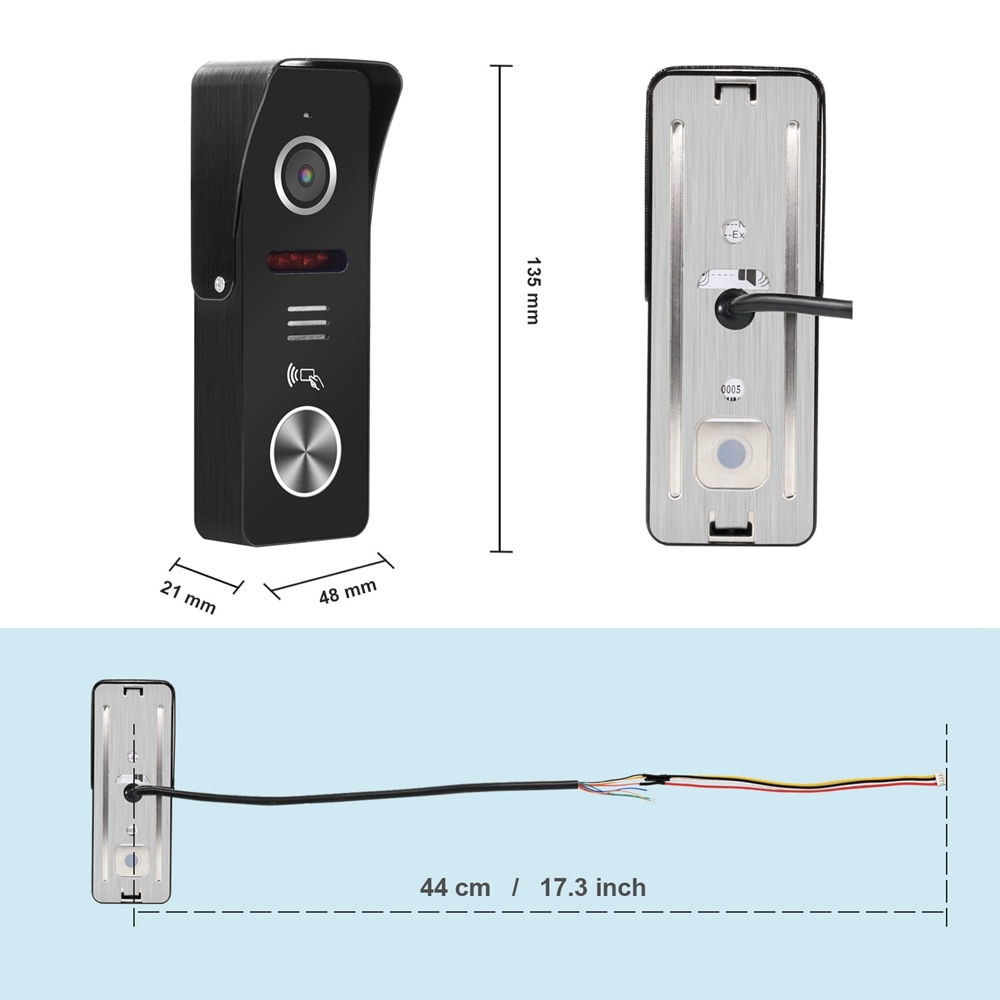

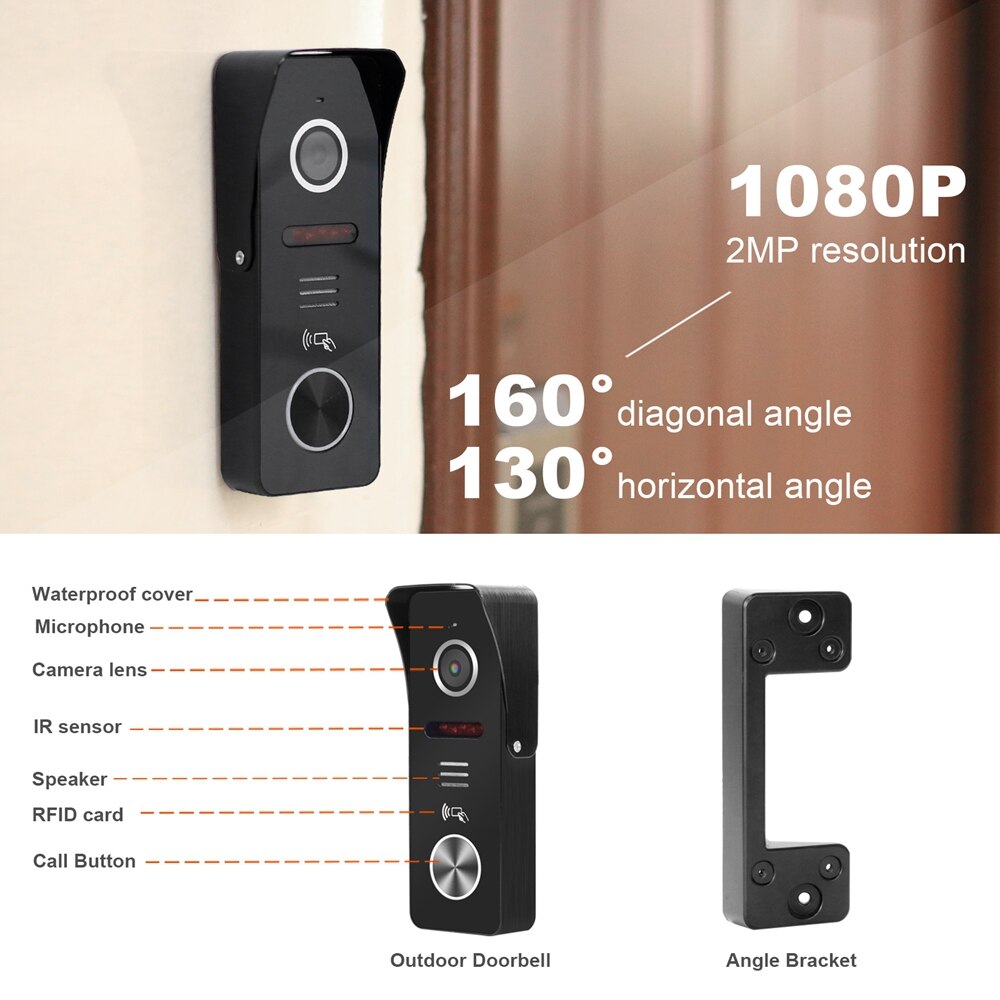

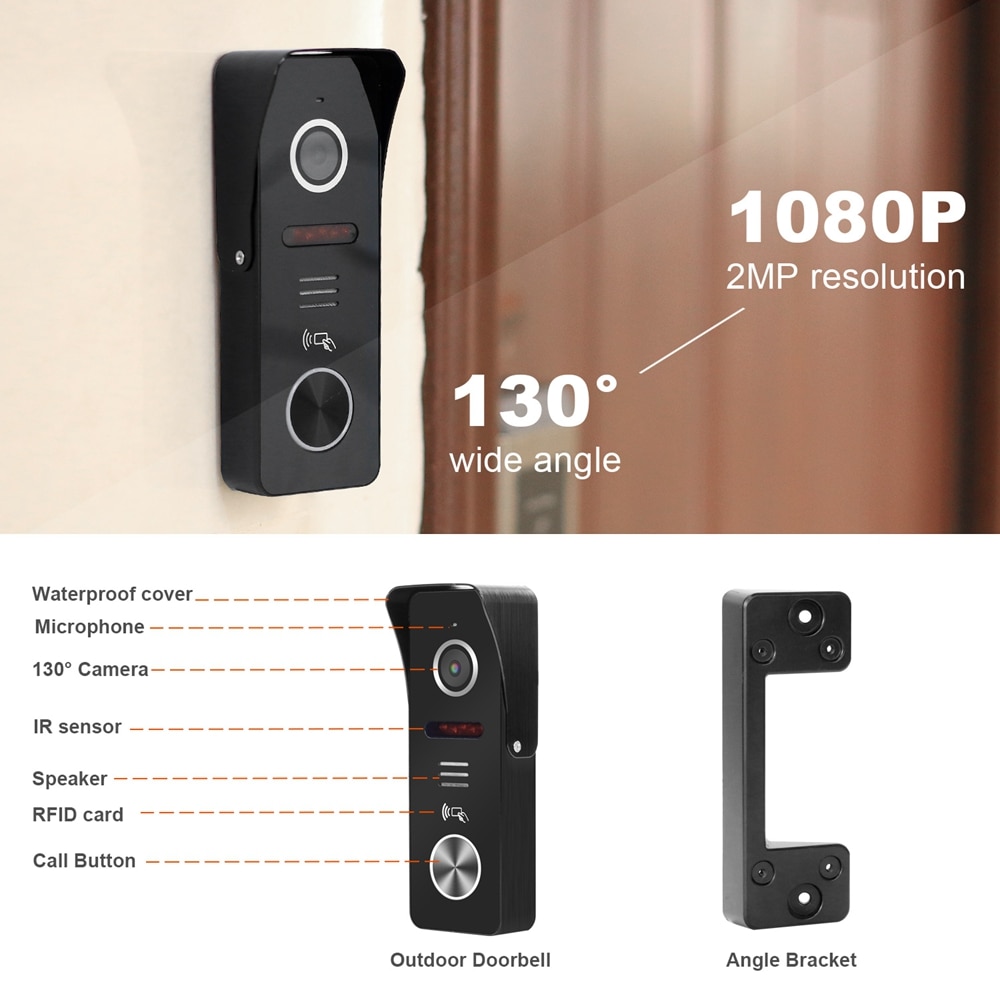

Alloy Doorbell Support Swiping IC card Unlock, 1080P 2MP

Camera sensor: 1/2.4mm CMOS , AHD 1080P
Camera angle: 130° horizontal angle , 160° diagonal angle
Night vision : infrared night vision
Features : Rainproof,Dustproof,and Anti-vandal
Power Supply: Supplied from indoor monitor
Materials: aluminum alloy

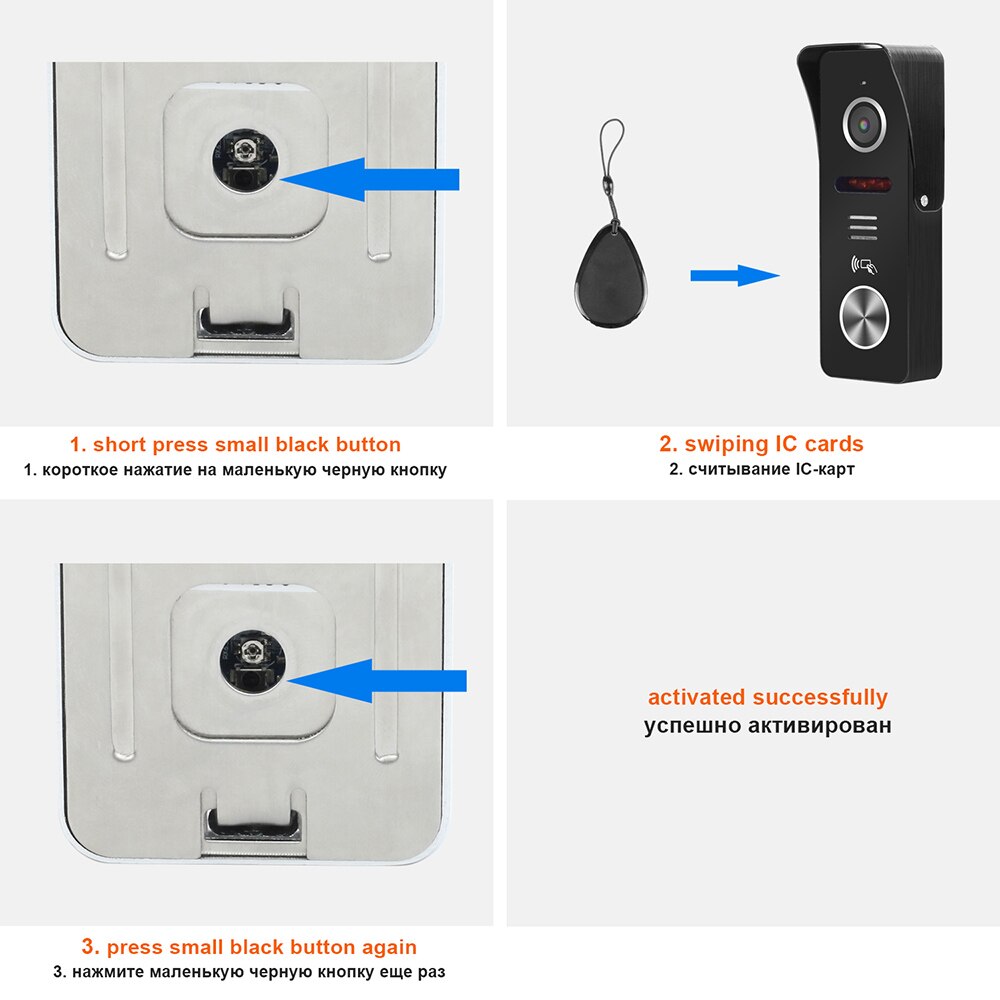

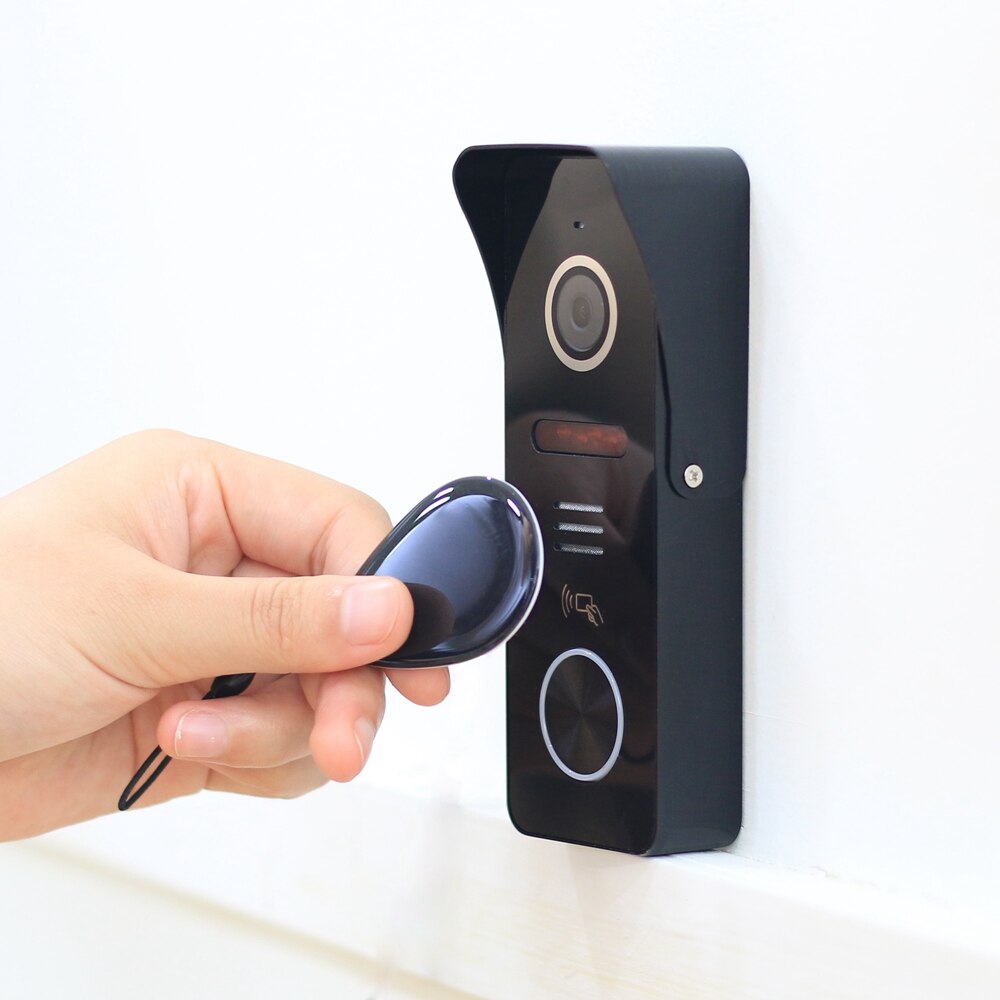

How to Activate IC cards

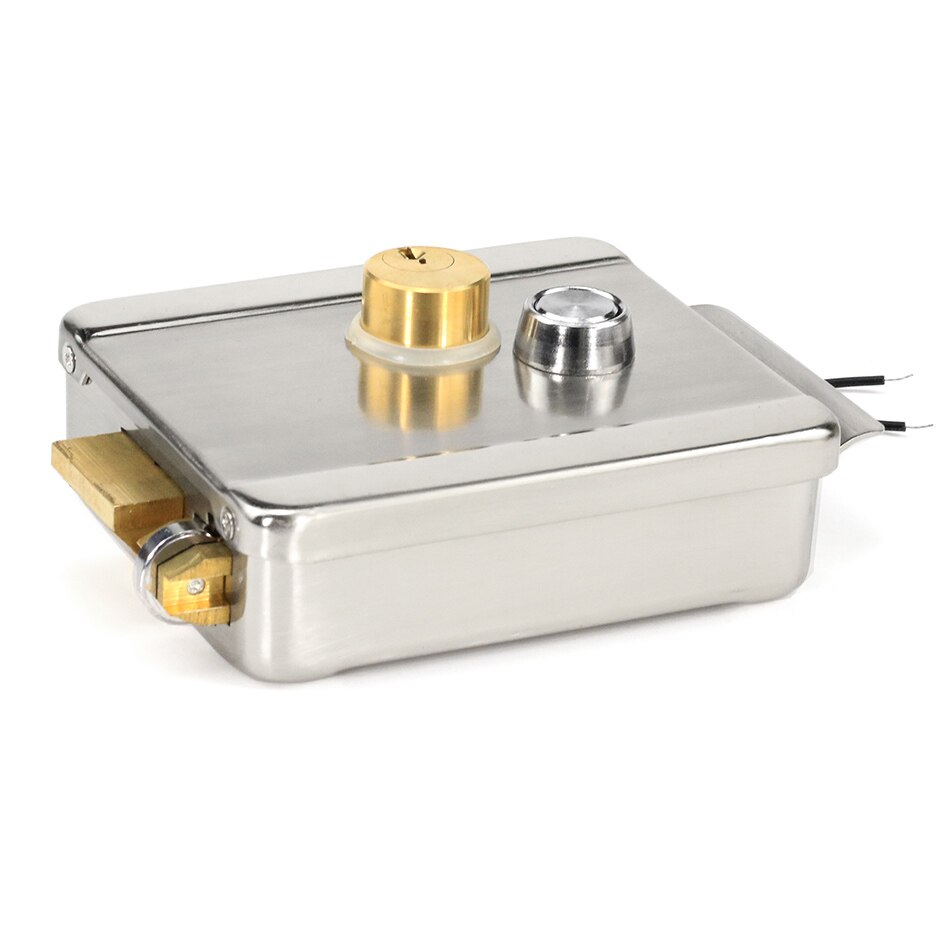

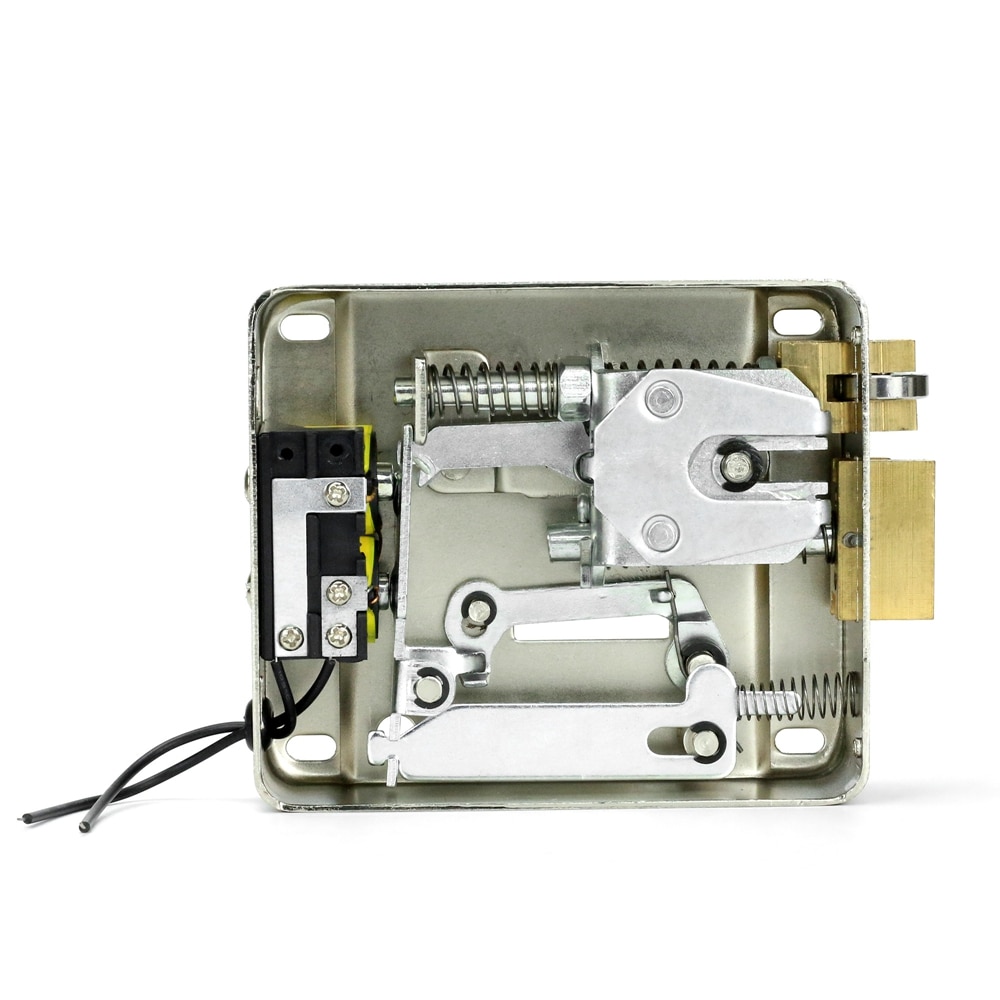

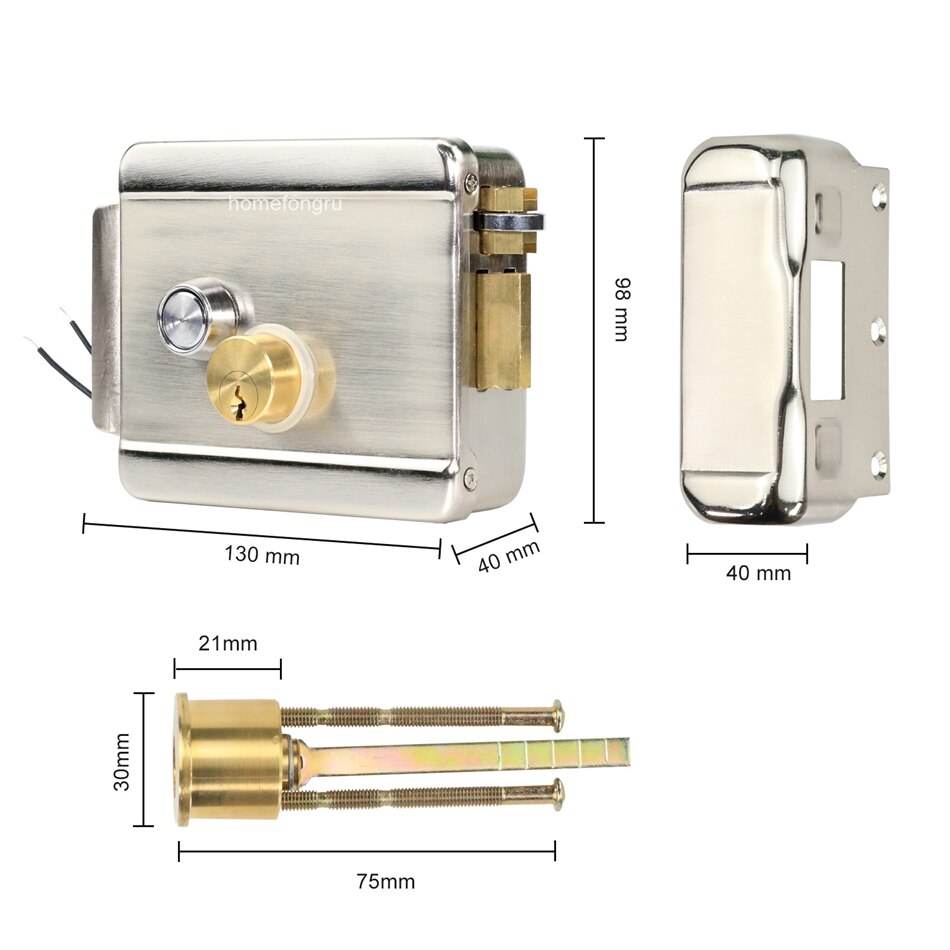

Electronic locks (Fail-Secure Electronic Lock)

1. Voltage: DV 9 ~ 12V , Current: 1.5A ~ 3A , Power: > 12W
2.this is Fail-Secure Electronic Lock
3.Applying electric current to ths lock will cause it to unlock
4. mechanical lock can used to open the door from inside
5.this lock does not support waterproof
6. this lock would be damaged if power on than 30 second
7. recommend unlock time less than 25 second

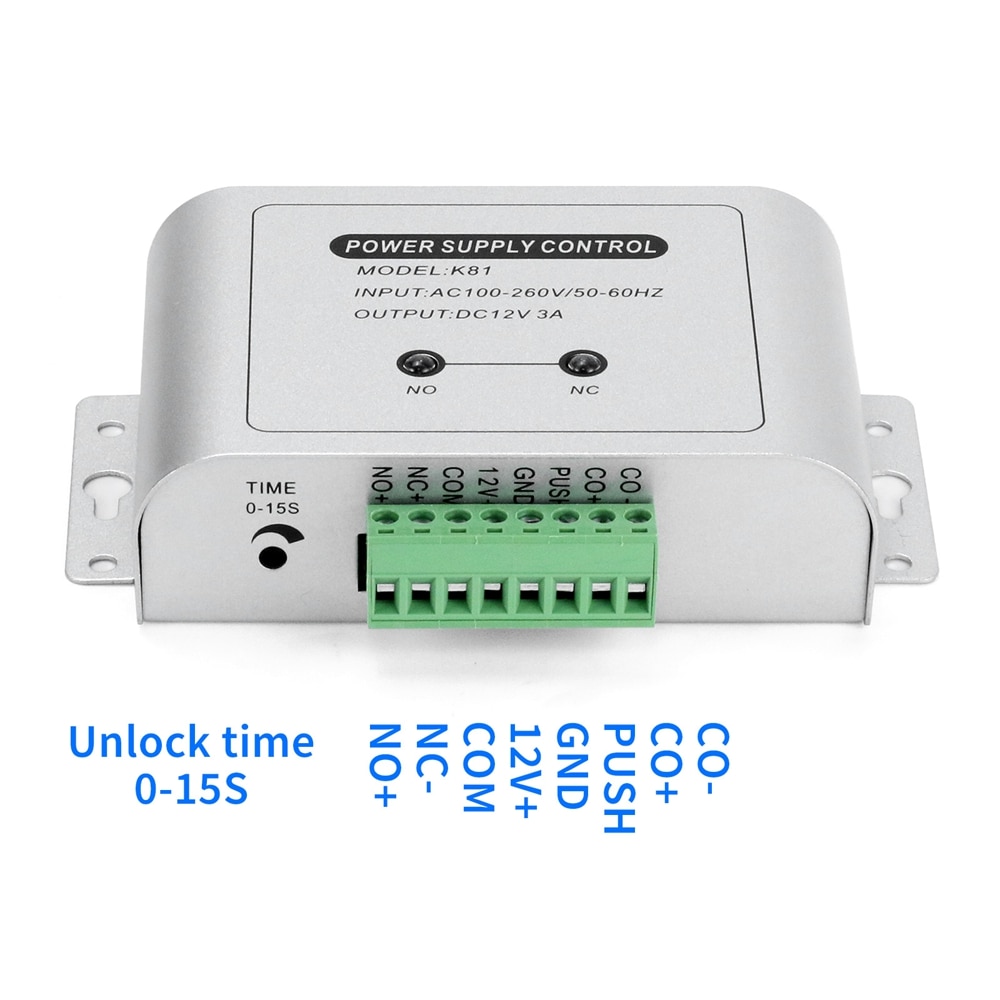

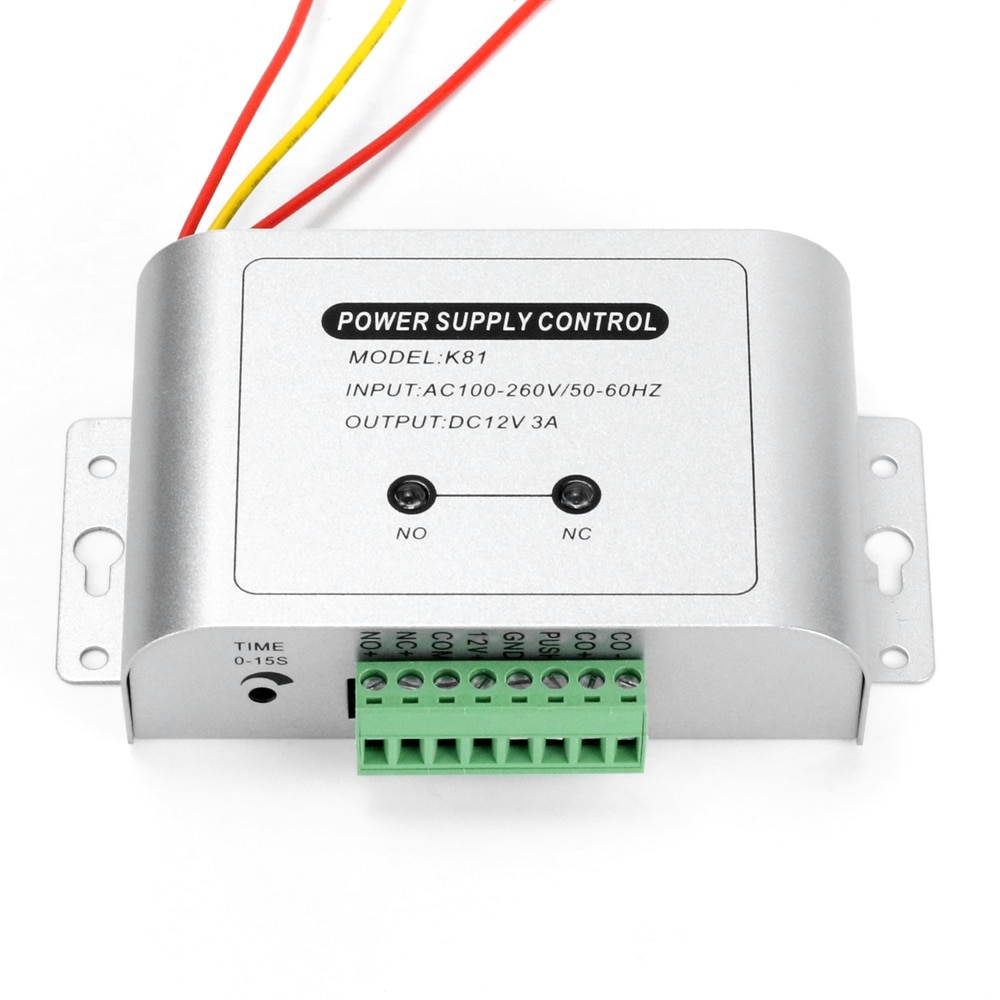

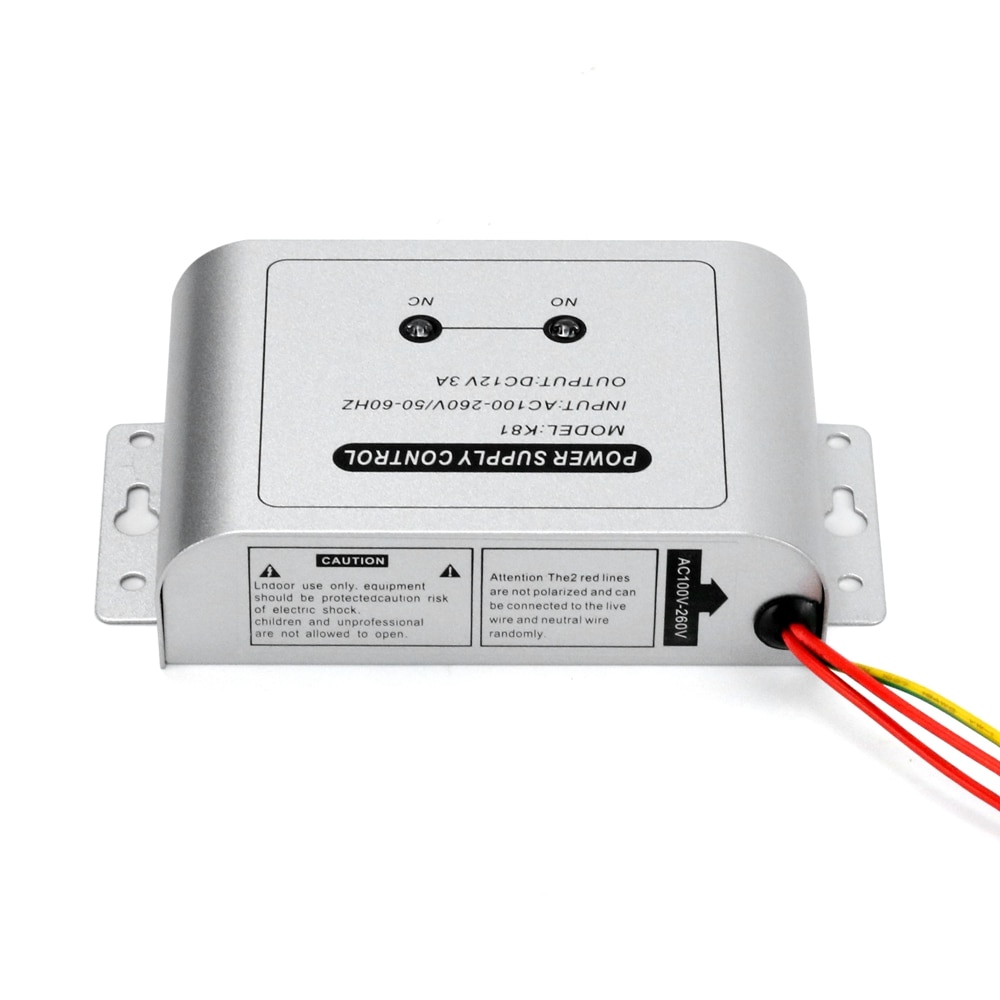

General 3A Power Supply Controller (with NO NC signal)

Input Voltage: AC 100-260V
Input Frequecy: 50-60 Hz
Output Voltage: DC 12V
Output Cureent: 3A

1. it support reduce the load of access controller, save wiring to reduc the hidden trouble
2. Set NC / NO outputs, can control various types of electric locks
3. Based delay control circuit, lock time can be in 0-15 seconds
4. Automatic protection function, unexpected situations such as
5. when the power supply short-circuit occurs, the power may be
temporarily disconnected or the fuse auto insurance line off

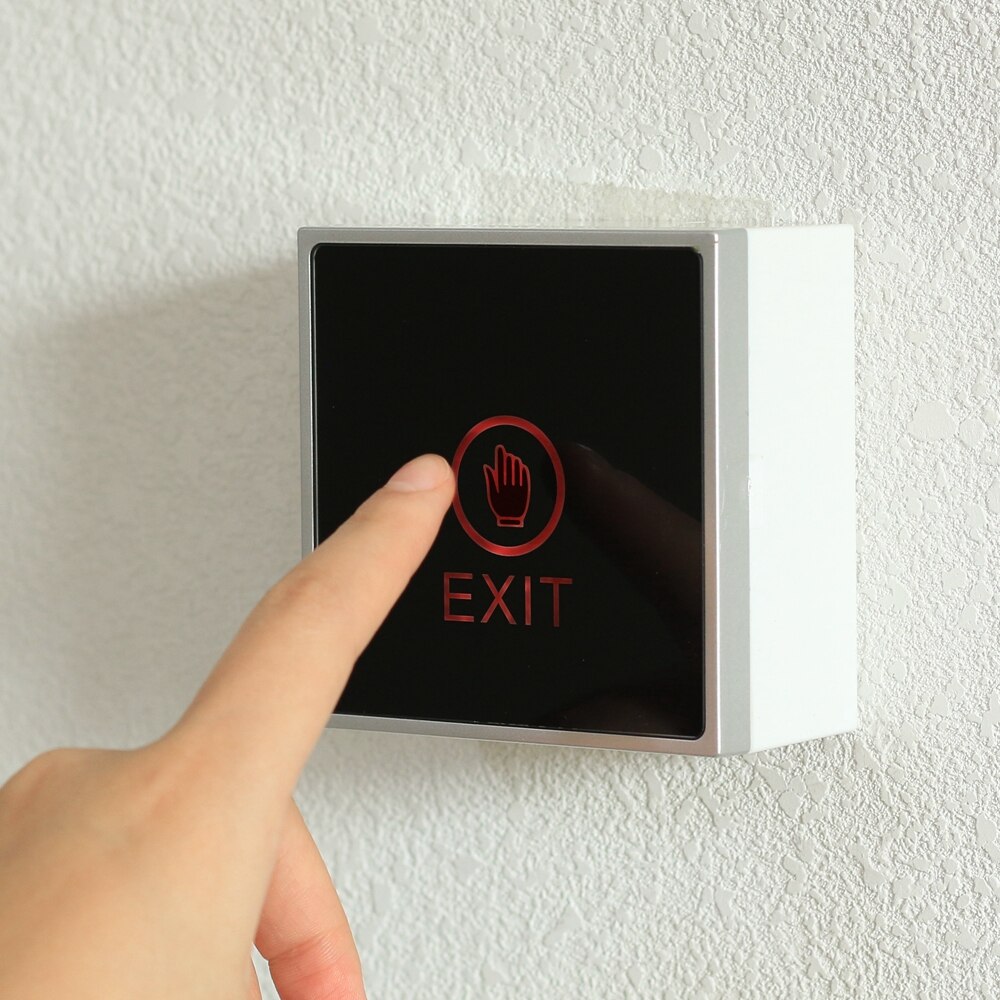

6.Operative device: E/M Lock, Access Controller, Exit Push Button

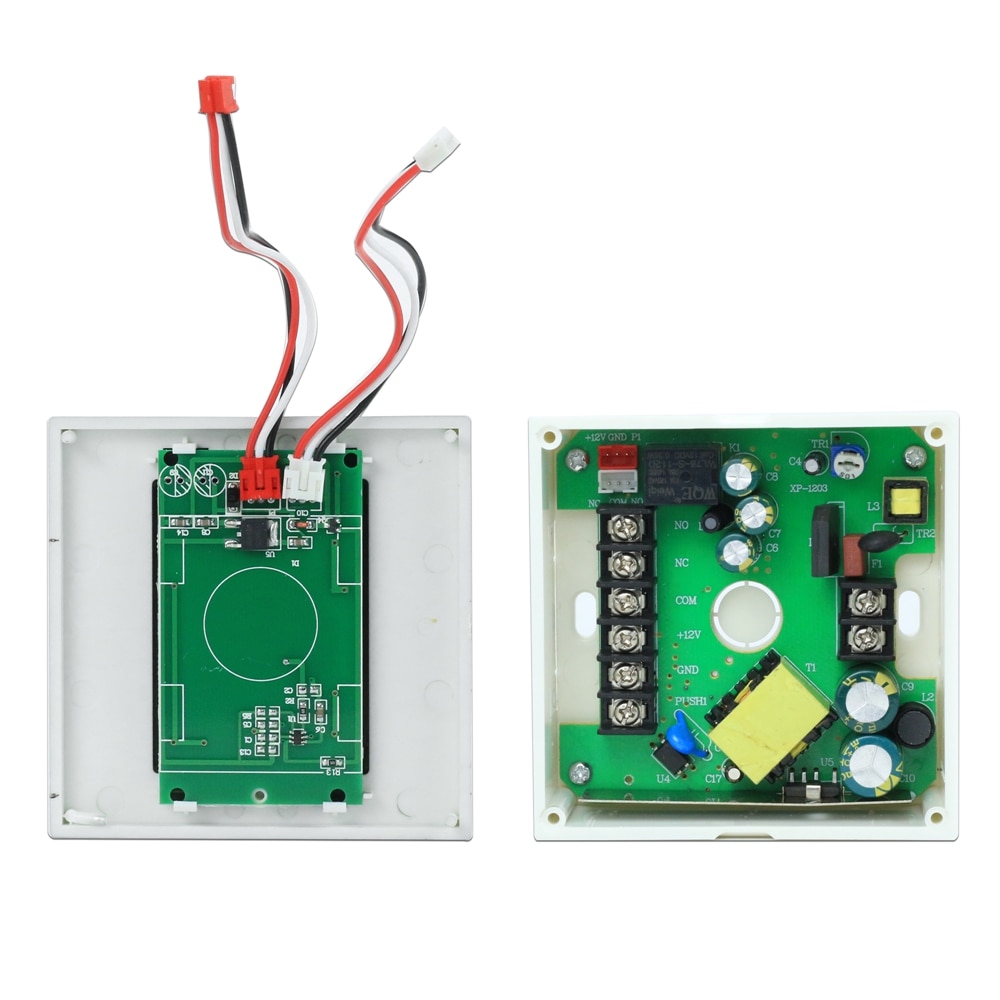

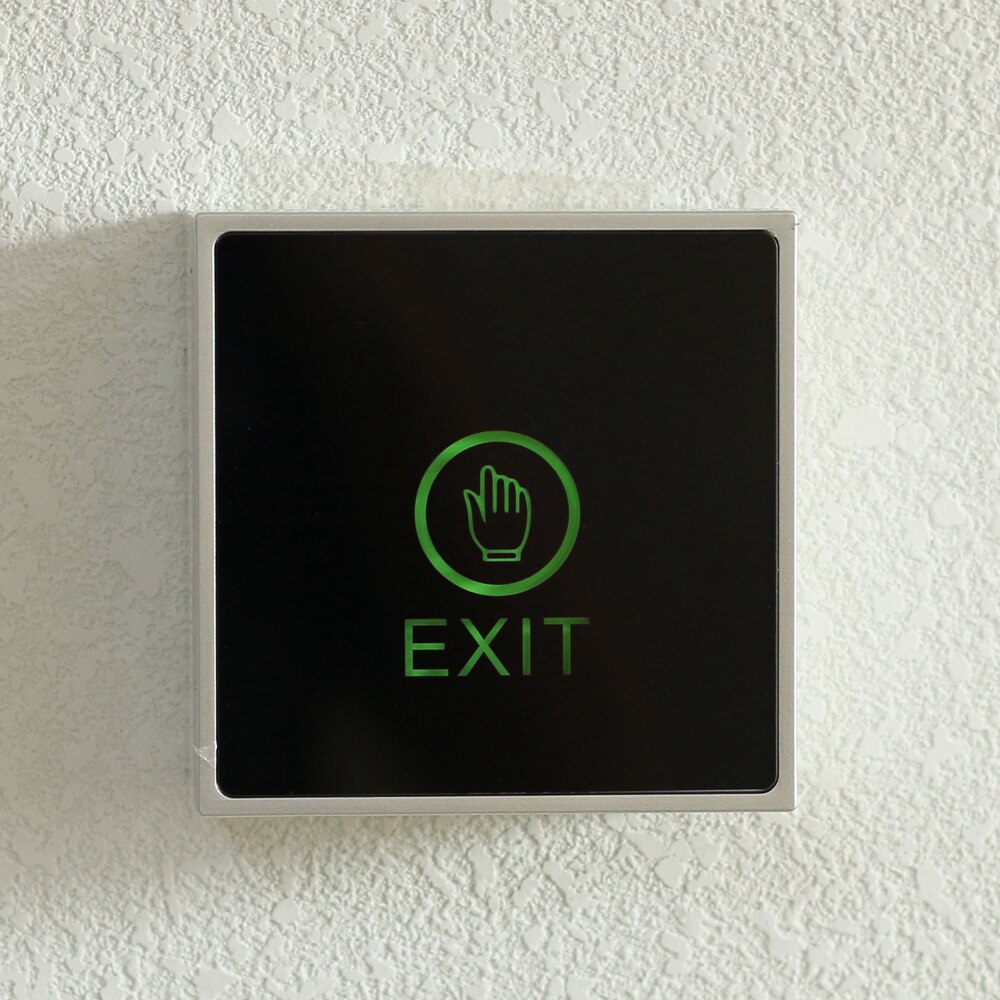

DC 12v Power Supply Controller 3A Power Supply Control with EXIT button

Voltage range input regularly from AC 110V - 240V 50~60Hz
DC output: Stabilizator DC12V/ 3A
Controls electric lock directly
Power: 36W
Output Stability: 0.5% Typical
Operating Temperature: -20C~65C
Adjustable Locking Delay: 0~15sec
Material: acrylic
Outside iron shell dimension:85mm*85 mm*42mm

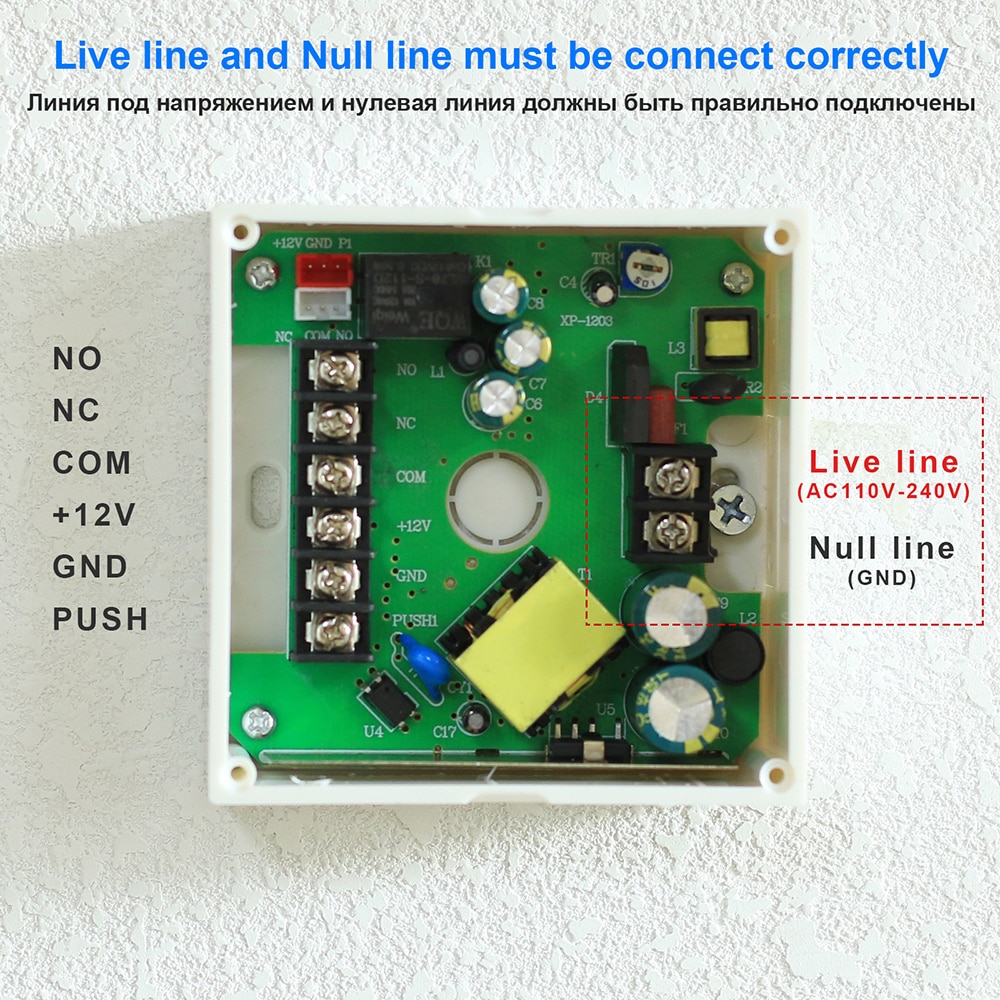

Please make sure Live line and Null line connect correctly

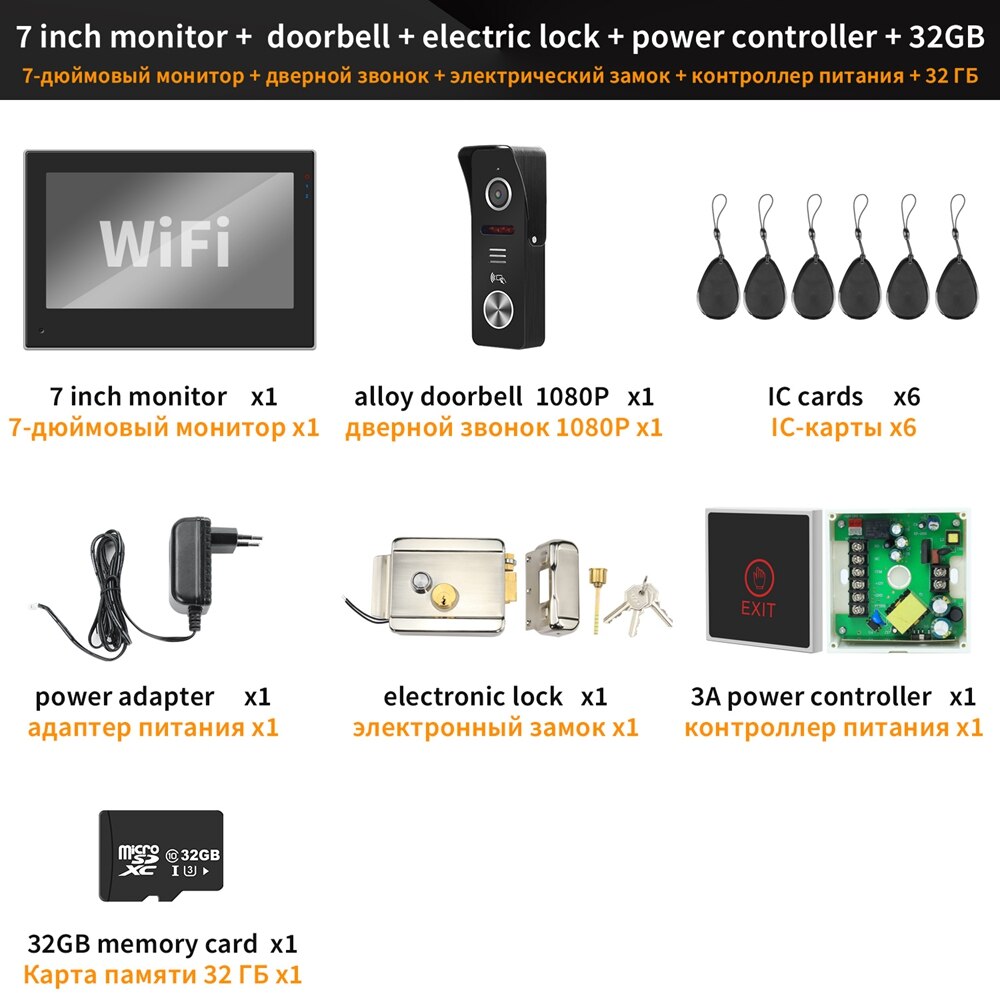

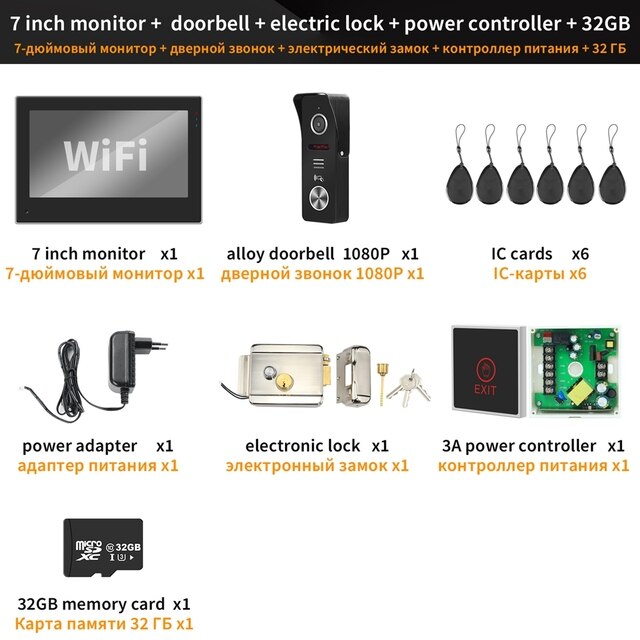

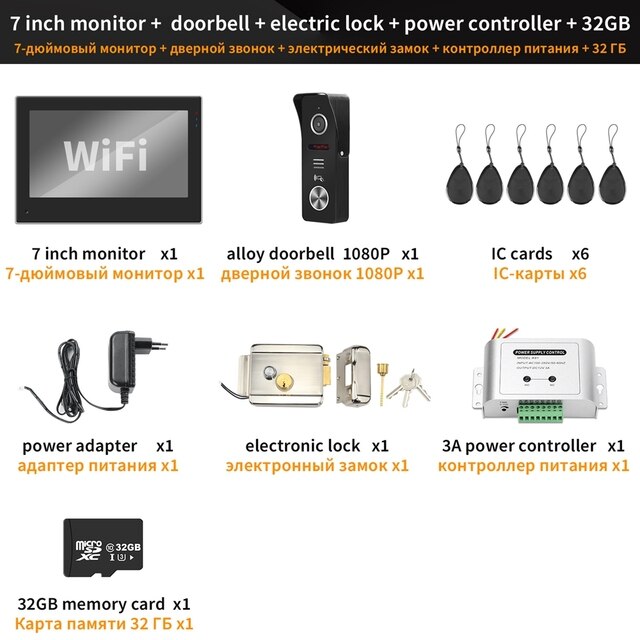

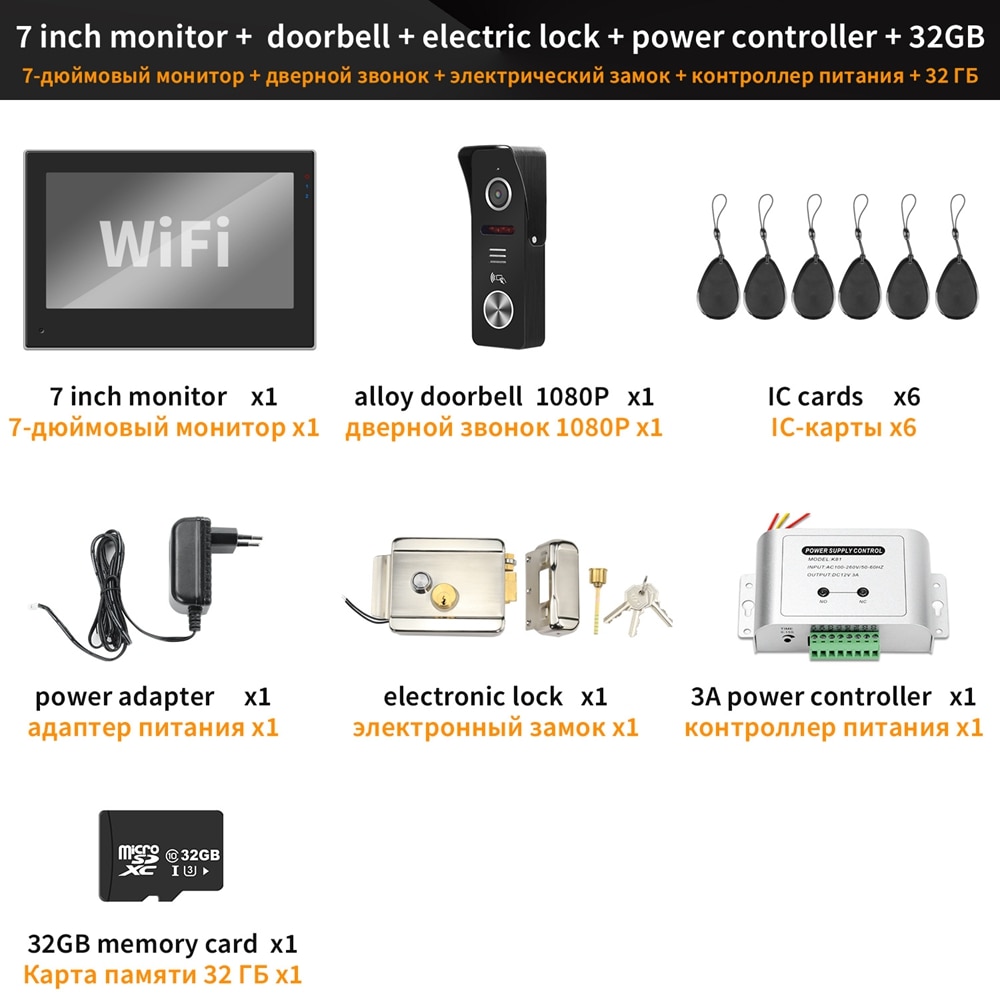

Please choose what you need

About Accessories

If you need Extended cables

please click this pictureto order

If you need outdoor cameras

please click this pictureto order




  • Plug Type: AU Plug,US plug,UK plug,EU plug

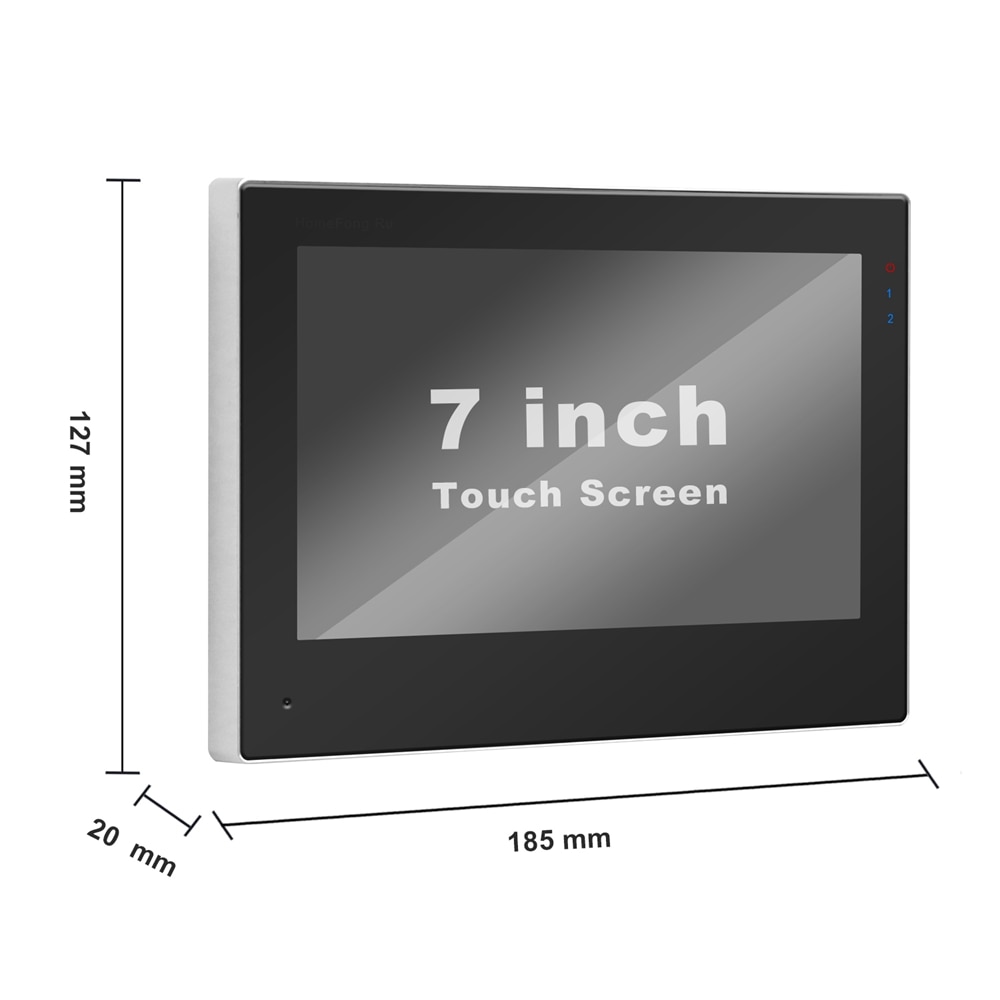

  • Size: 185X127X20MM
  • Doorbell: Yes
  • Material: Acrylic
  • Power: DC 12V/2A
  • Sensor Size(Inch): 1/4
  • Resolution: 1024x600
  • Power: 220v
  • Camera: color
  • Model Number: 703
  • IP Camera Interface: No
  • Access Control: Inductive Card
  • Waterproof: Yes
  • Samrt Home Interface: No
  • Technology: DIGITAL
  • Installation: Wall Mounting
  • Connection Type: WIRED
  • Zone Input: None
  • Display Screen Type: Color Touch Screen
  • Type: Intercom System
  • Viewing Angle (°): 160
  • Kit Configuration: One to One video doorphone
  • Display Size: 7
  • Answering Mode: Hands-free
  • Camera Sensor type: CMOS
  • Connection Method: Wired
  • Brand Name: HomeFong
  • Origin: Mainland China
  • Smart home platform: Tuya
  • Certification: CE
  • TF Card support: 4GB-128GB
  • Power Source: outdoor doorbell powered by indoor monitor
  • monitor support: 2 doorbells + 2 cameras
  • motion detection recording: support
  • infrared night vision: support
  • waterproof: IP65
  • doorbell materials: alloy
  • monitor materials: acrylic
  • lock materials: metal
  • doorbell resloution: 2MP , 1080P
  • 3A power control materials: acrylic
  • doorbell operating temperature: -40℃ ~ + 50 ℃
  • lock operating temperature: -40℃ ~ + 70 ℃
  • APP: TUYA smart APP
  • doorbell volume adjustment: support
  • Monitor Screen: 7 inch touch screen TFT LCD
  • motion recording time: 10s -300s
  • leave message function: support
  • Motion display: support
  • 3 Menu Styles: Standard / Android / Win10
  • language: English,Russian,French,Spanish,German,Italian,Polish,Ukrainian
