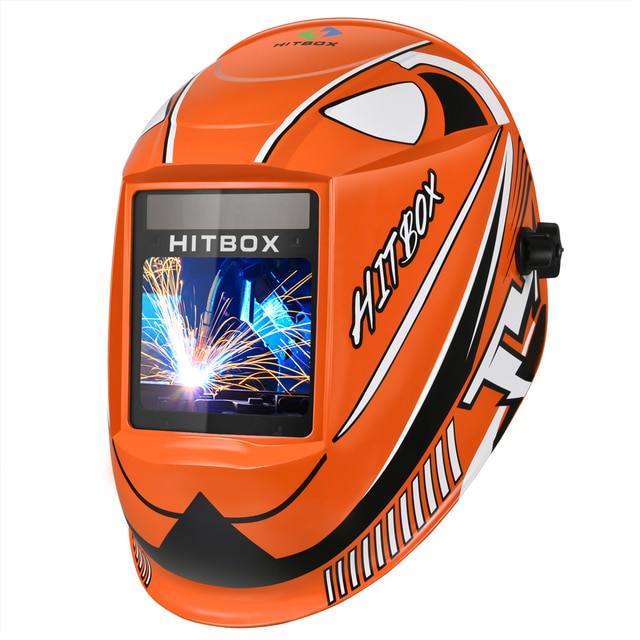

HITBOX Welding Helmet ​Auto Darkening Large Viewing Screen Hood Solar Lithium 4 Arc Sensor TIG MIG Arc Grinding Welder Mask
SALE
ID: 132946

HITBOX Welding Helmet ​Auto Darkening Large Viewing Screen Hood Solar Lithium 4 Arc Sensor TIG MIG Arc Grinding Welder Mask

4.7 (174 votes) | 306 orders
Price: US $155.40 - 224.20 / piece
Discount Price:
US $ 81.65 - 117.88 / piece
-47%
Ships From
Color

Sorry! This item is out of stock

Features of product

  • 【Super Large View 】Auto Darkening Welding Helmet Lens provides a large field of view 3.9x3.1 inches to enhanced application versatility and increases productivity. The True Color Technology upgrade to this welding helmets, improves visibility and reduces eye strain by minimizing the traditional lime green coloring in the helmet view screen. Also, The helmet will fully protect your face, neck, ears, etc

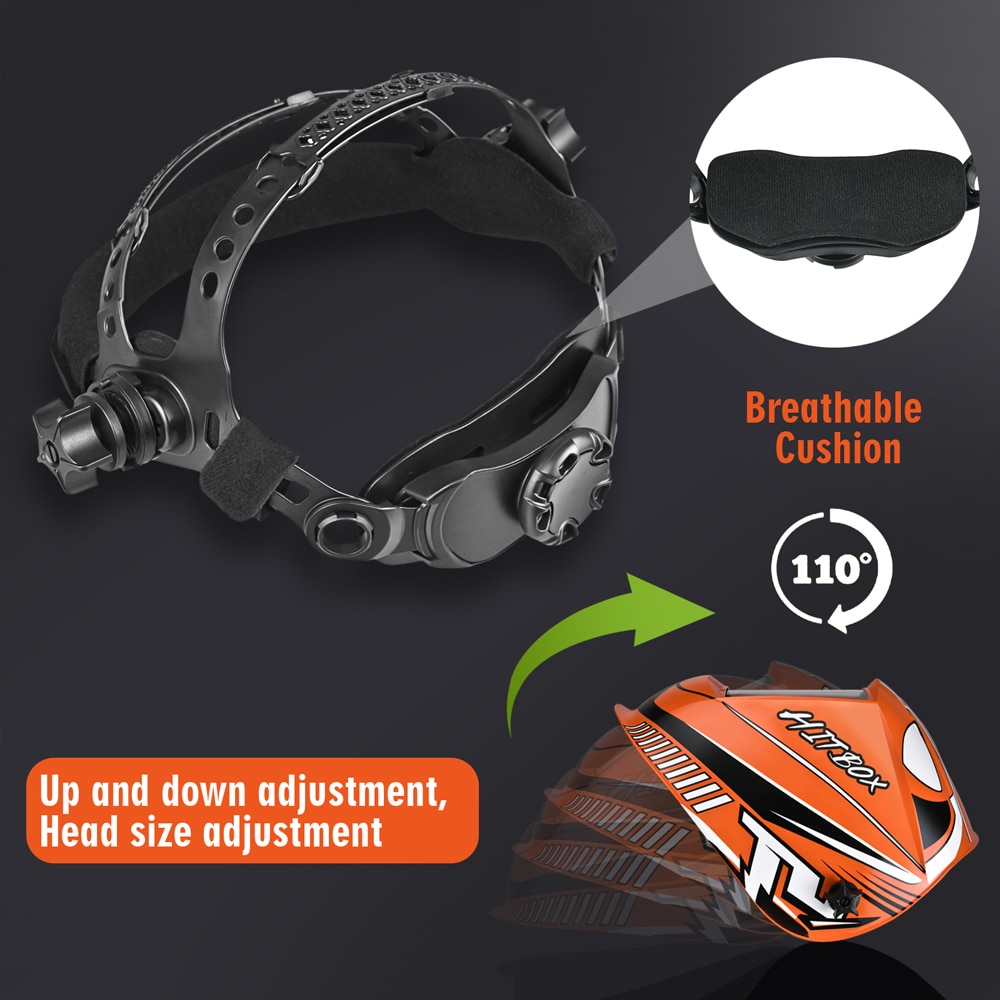

  • 【Comfortable to Wear】The design of the welding hood conforms to ergonomic principles which makes it easy to operate and comfortable to wear. Press down gear adjusting knob when using, rotate and adjust the tightness of the headband, very strong and not easy to loosen. Forehead thickened sponge to protect forehead from injury, perspiration, comfortable and non-slip

  • 【True color views】welder Helmet 1/1/1/2 Optical Clarity, true color function makes this welding helmet ideal for clearly seeing your production work. Dark Shade: DIN5～DIN9/ DIN9～DIN13, Delay Time: 0.1S～0.8S, Switching Time: ≤1/10000S, sensitivity adjustment allows for a wide range that is very responsive for ambient conditions

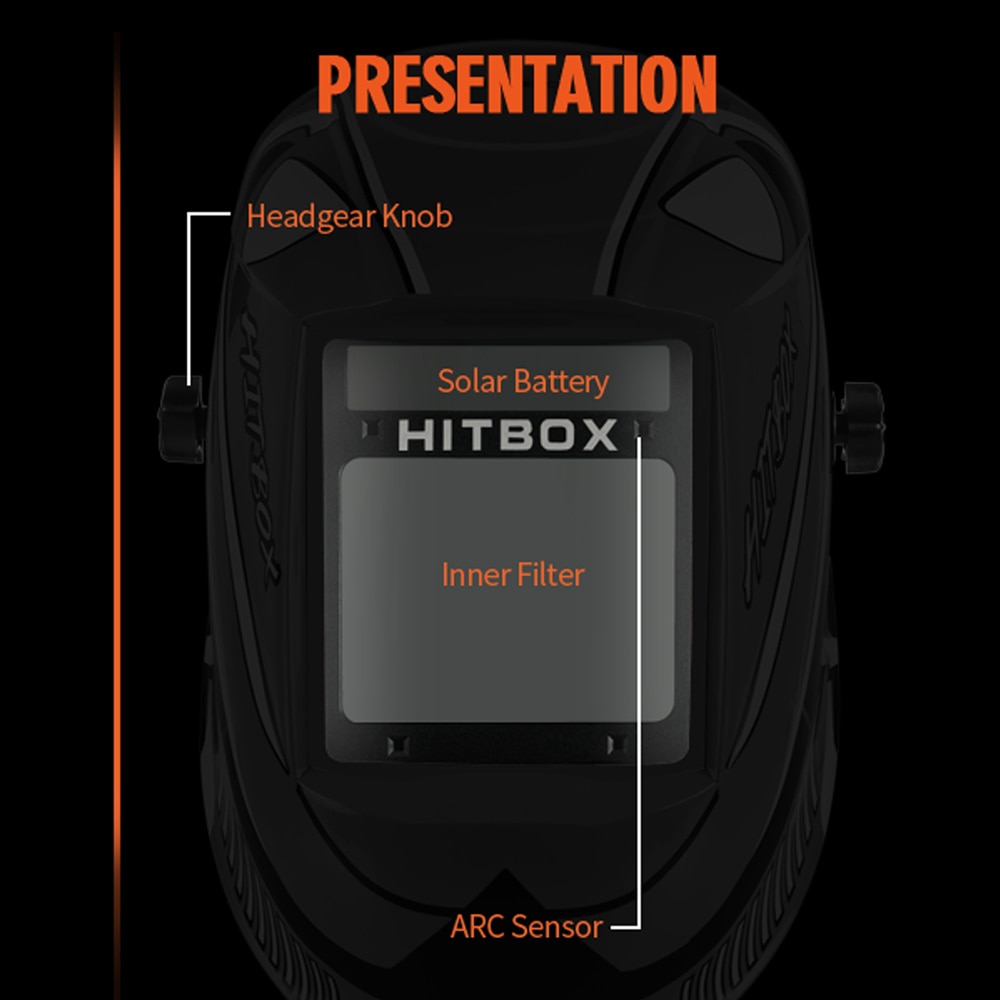

  • 【Performance】 welding clamps with 4 Premium redundant arc sensors, with highly responsive detecting and controlling units providing super-fast switching time and accurate auto shading, minimizing harmful radiant bypass, avoiding eye stress

  • 【Versatility】 A great personal protection equipment designed for industrial use that can handle multiple processes of Plasma cutting, abrasive wheel cutting/grinding, DC TIG, AC TIG, MIG/MAG, MMA welding, which are poular in metal fabrication industry, welding schools, welding shops, auto manufacturing and repair industry, ship factories as well as DIY hobbyists projects

  • 【Solar panels, replaceable batteries】Low power consumption design, solar power supplement, lasting use, low power alarm, can replace the battery, if the battery is used up, replace the battery to continue to use

  • 【Self check function】this funciton can confirm before use function can be used normally, protect face eye injury, reliable and convenient



Net weight

0.6kg

Optical Class:

1/1/1/2

Active Viewing Area:

100mm*80mm

Switching Time:

0.1ms

Light State Shade:

DIN3.5

Dark State Shade:

DIN5-9/9-13

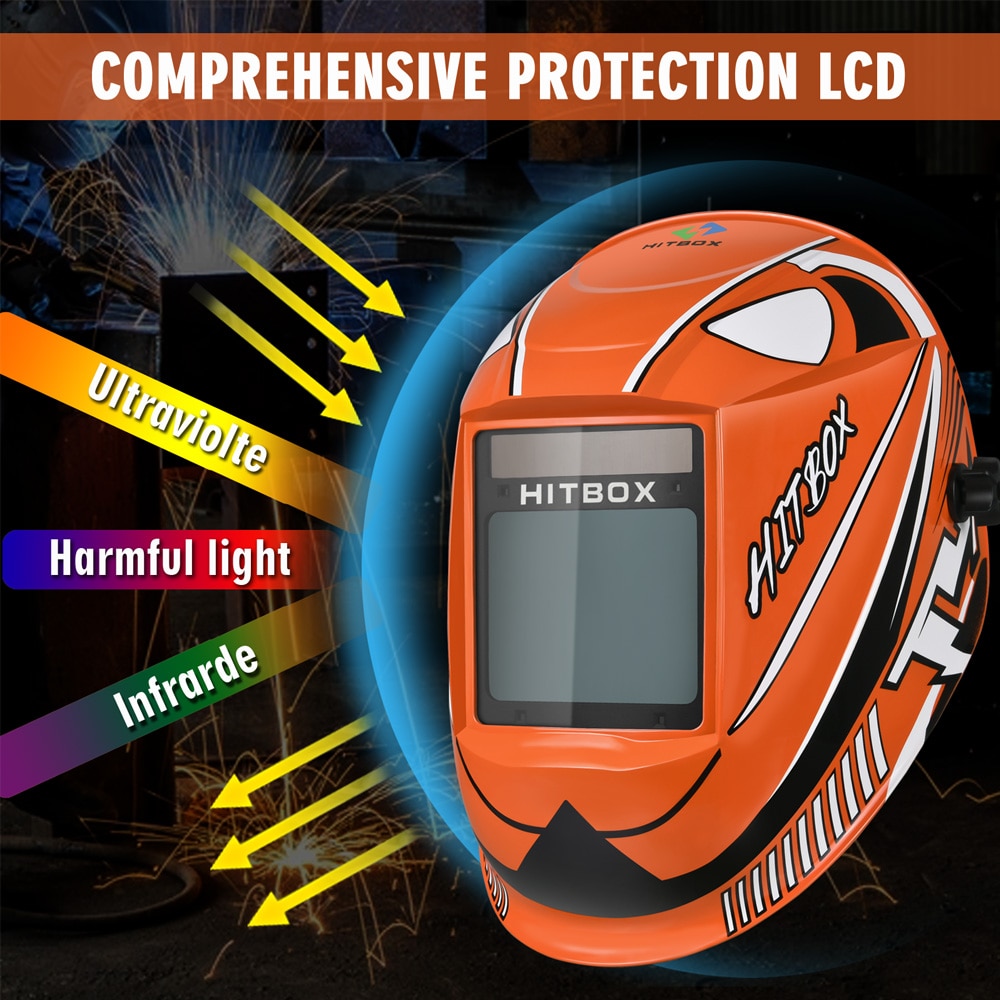

UR/IR Protection:

Shade DIN16

Power ON:

Automatic

Battery Type:

CR2032*2(Replaceable)

Battery Capacity:

420mAH

Low Battery Indicator:

LED Indication

Arc Sensors:

4 pcs

Grind:

Yes

Low Battery Indicator:

Yes

Grinding protection function

Yes

True color

Yes

Battery Capacity Test:

Yes

Operating Temperature:

-5℃ - +55℃

Storage Temperature:

-20℃ - +70℃

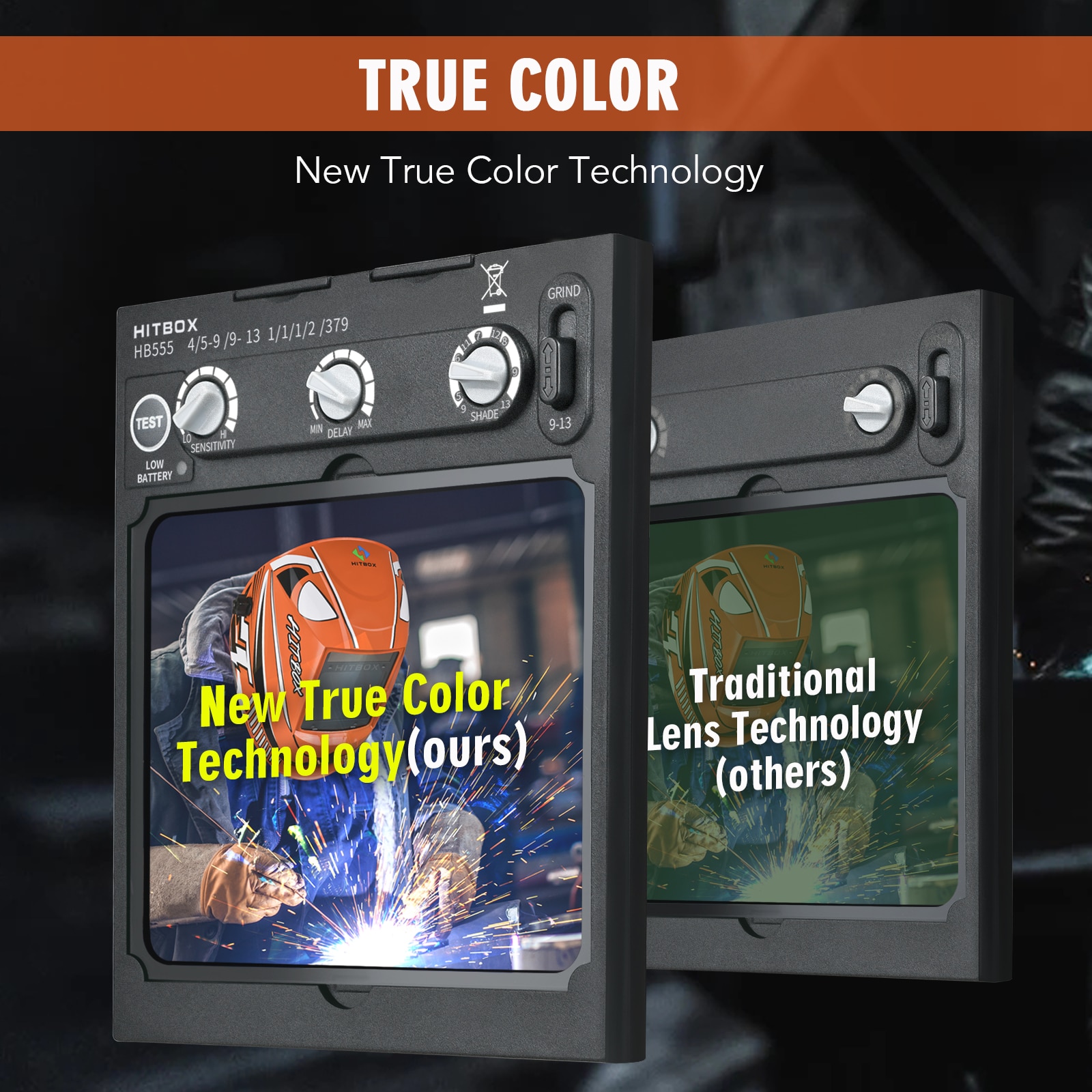

True Color technology enables you to not only see better, but also see more.

HITBOX welding helmet has super large viewing size (3.93"x3.18’’).

Not like other helmets with a narrow window, the large viewing area with gives you a full range of vision in relation to the welding area, which enhances operator control.

True Color widen lens, completely customizability and adjustable headgear.

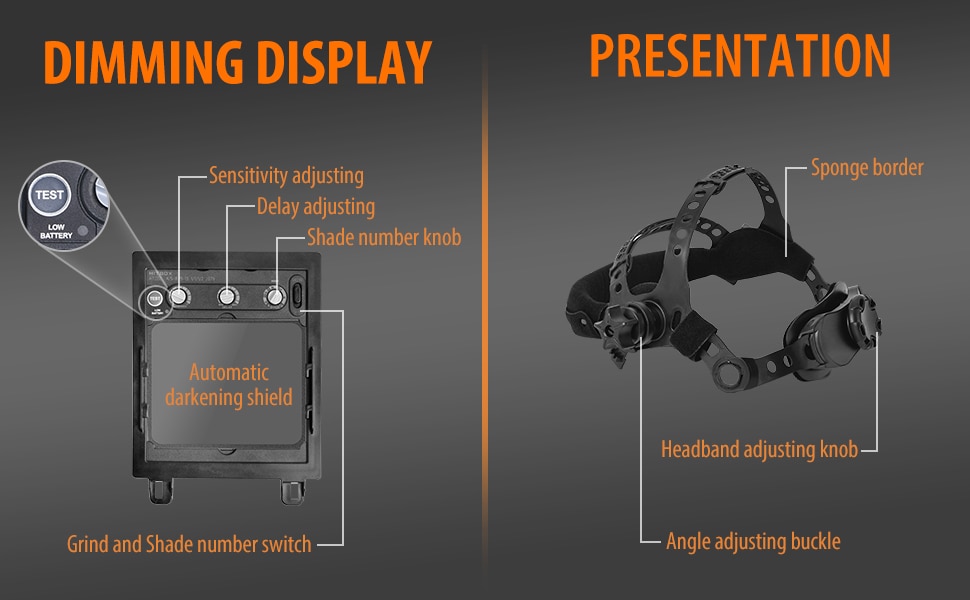

Auto darkening filter's operation instruction

  • Dark shade: DIN5～DIN9/ DIN9～DIN13

  • Sensitivity:

  1. When welding current is small, put the "sensitivity" knob to high place.

  2. When welding current is large, put the “sensitivity” knob to low place.

  3. Sensitivity is stepless control, set by hand according to actual situation.


Delay:

Delay time is time from dark to light , Stepless control.

  1. When welding current is big and the light of molten pool is very strong, put the “delay”knob to high place. I

  2. f you want to do spot welding, you need to put the “delay”knob to low place.

  3. Adjust “delay”knob to middle place is suitable for most of welding mode.








---Product Test ---

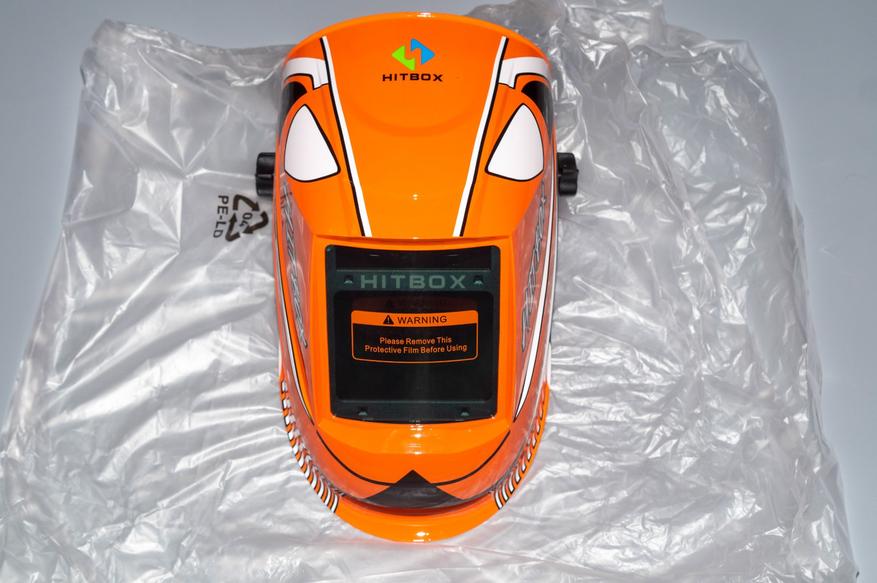

Delivery by courier from the Russian warehouse, so the box was not wrinkled and the mask is in perfect order

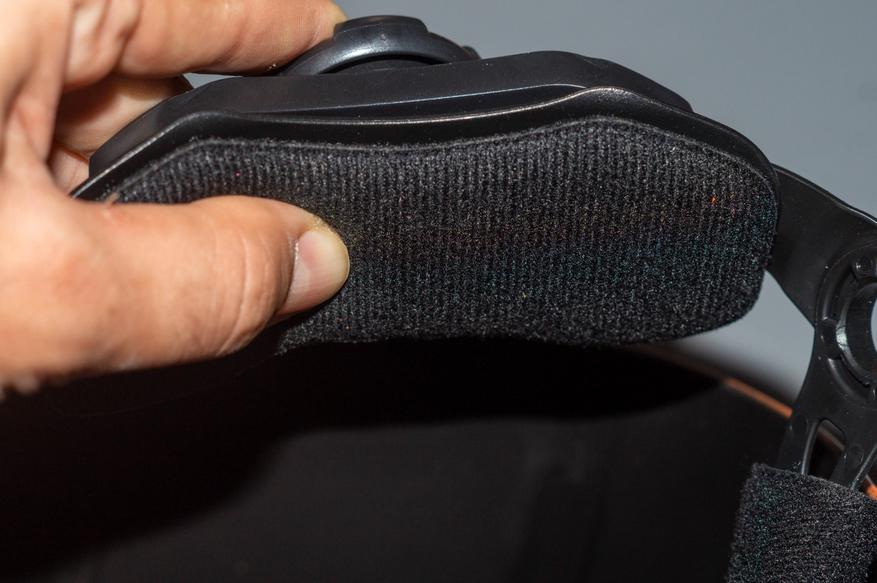

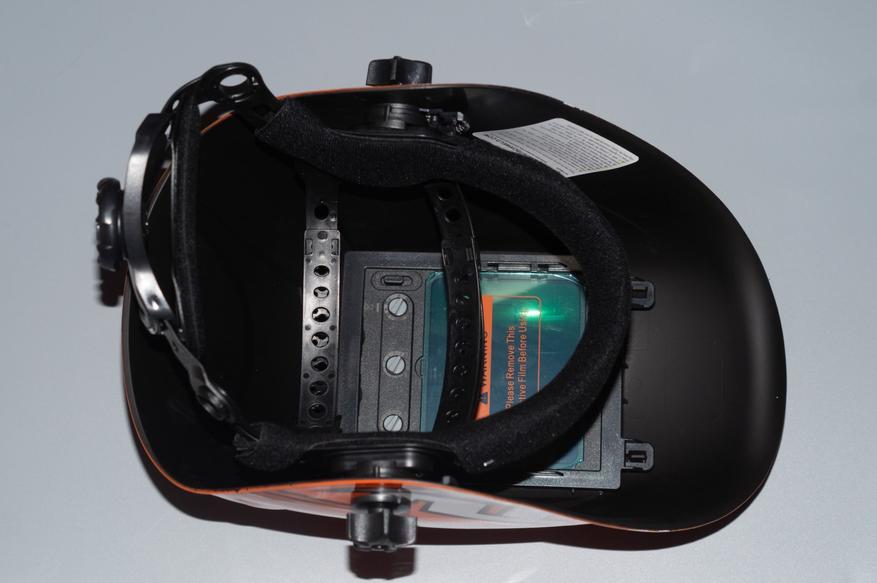

The fastening is convenient, on the main arc there is a movable soft back cushion with a ratchet for tightening and two additional arcs in the upper part, so it keeps well on the head, does not cause discomfort

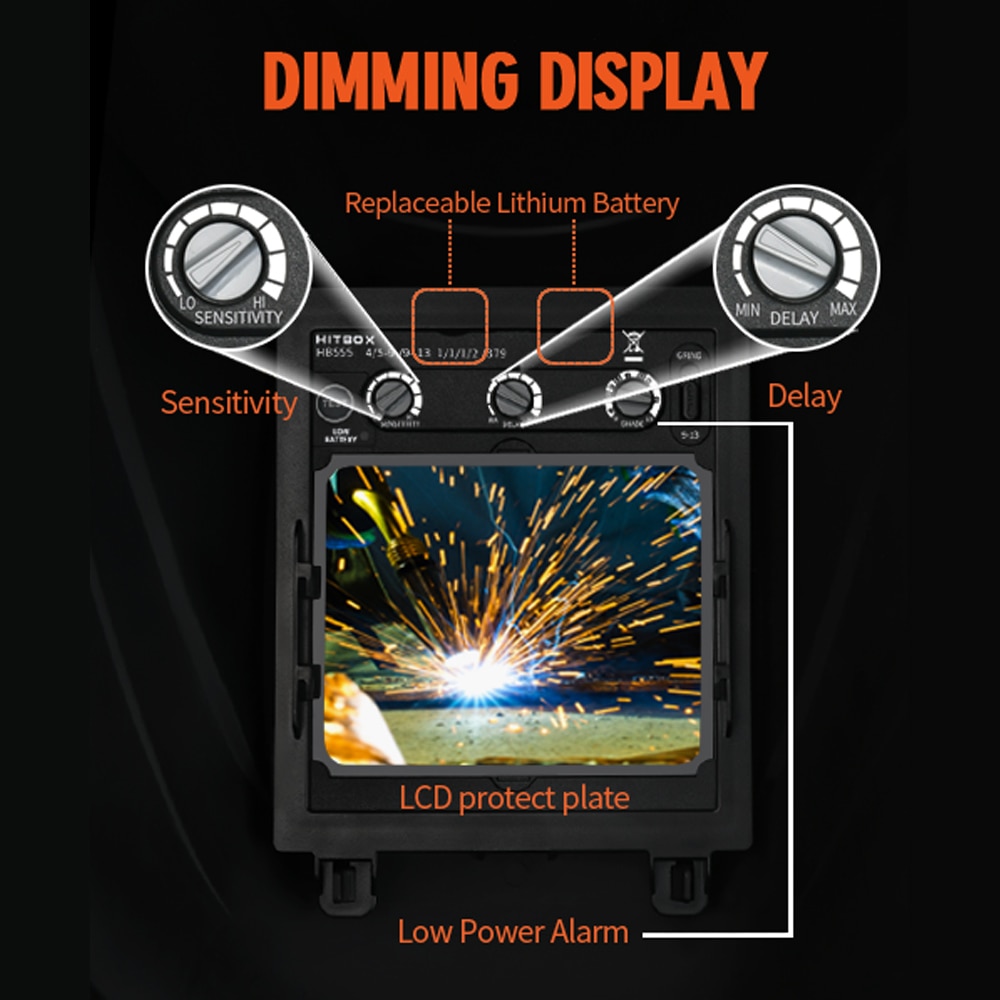

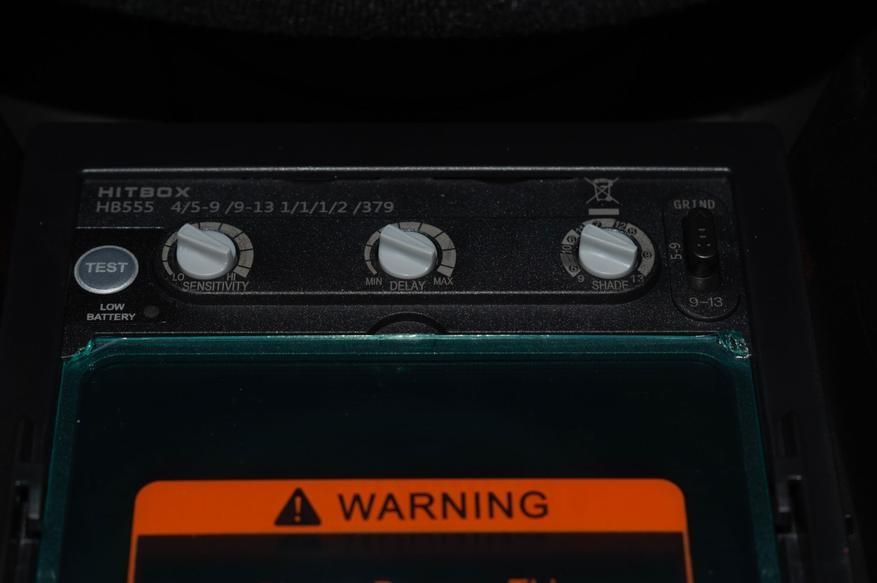

On the inside there is a blackout test button, a low battery indicator, sensitivity adjustment, enlightenment delay and darkening degree, on the right there is a range switch between grinding (off), 5-9 and 9-13 GRID. The reviews wrote that some of the masks come with batteries, some without them. I was not lucky

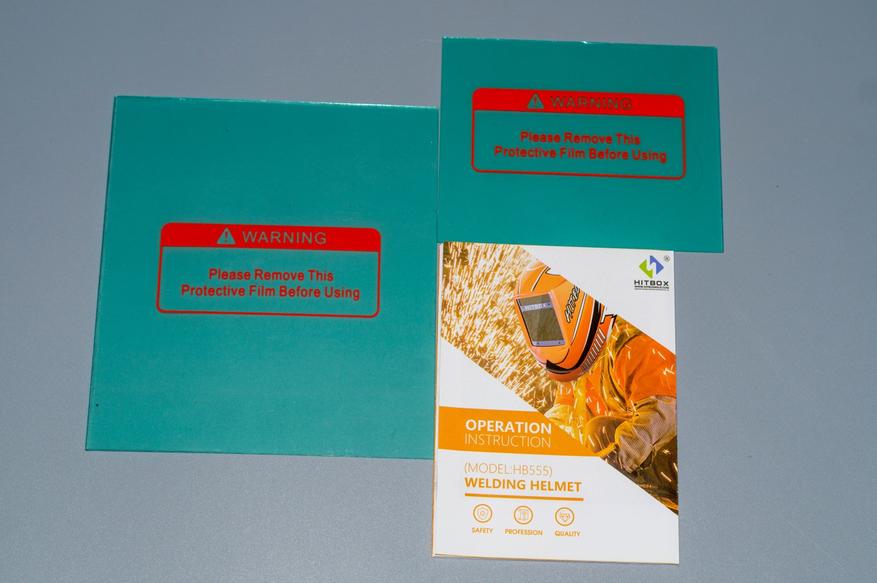

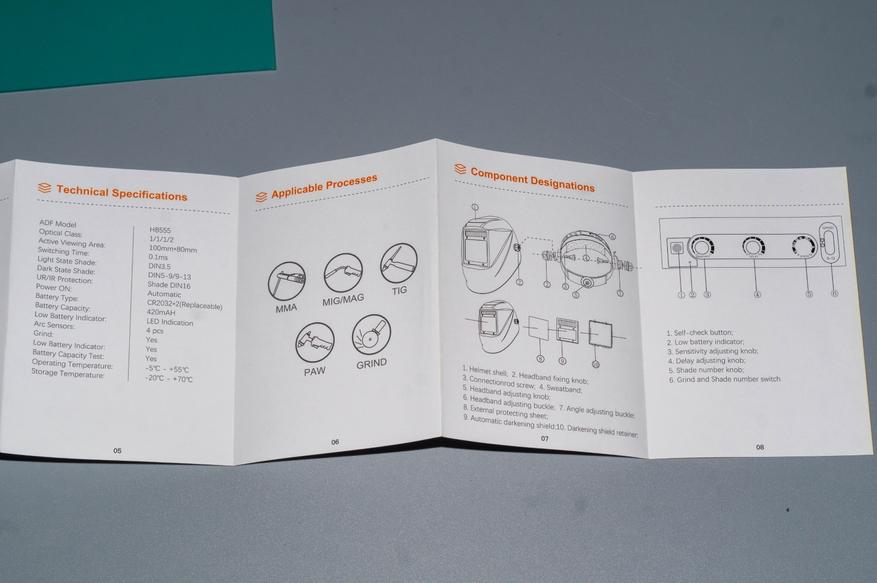

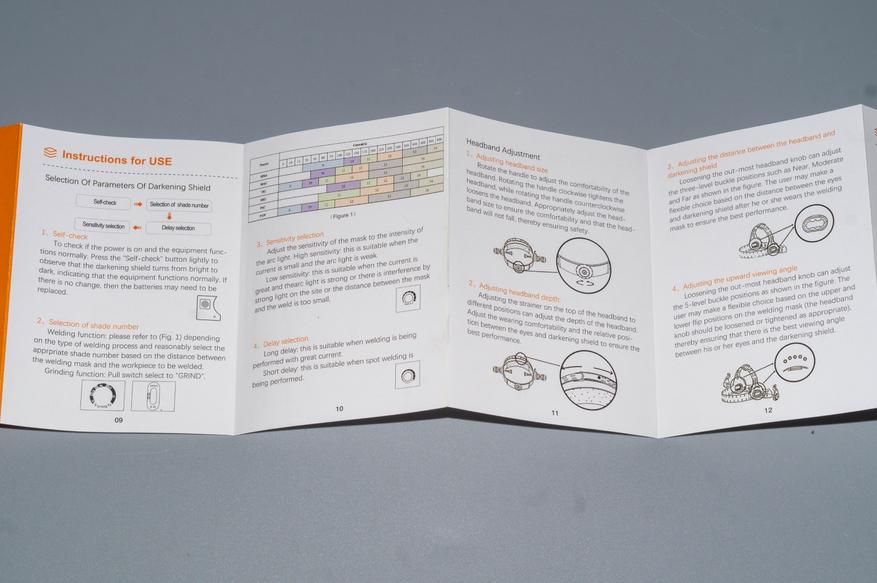

Also in the box were two spare protective inserts and detailed instructions.

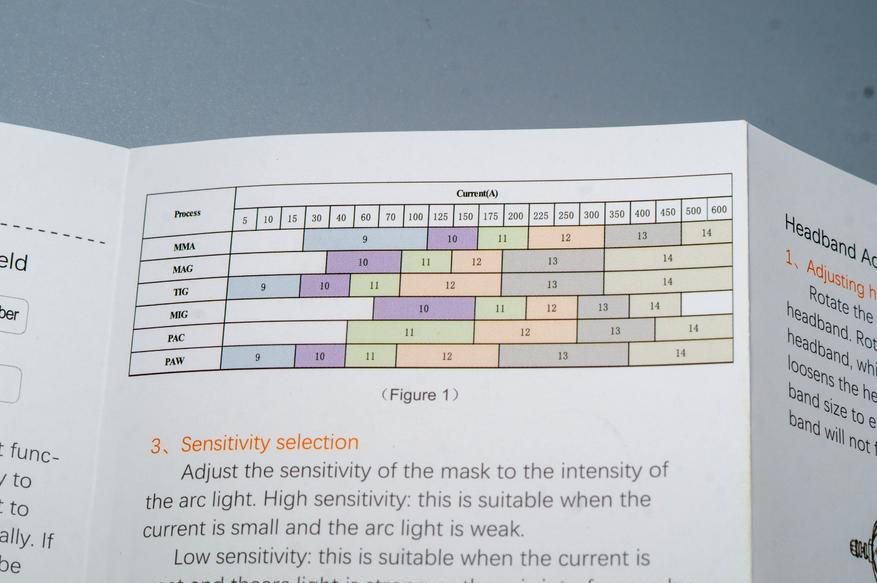

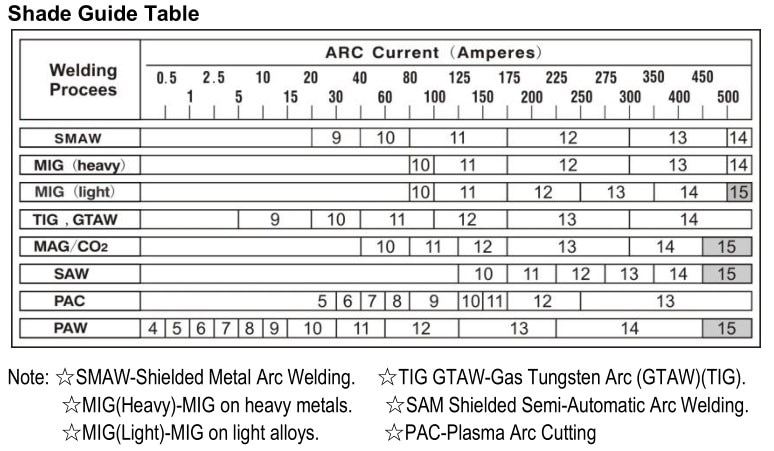

Pay attention to the recommendations for setting the correct dimming for different modes and current

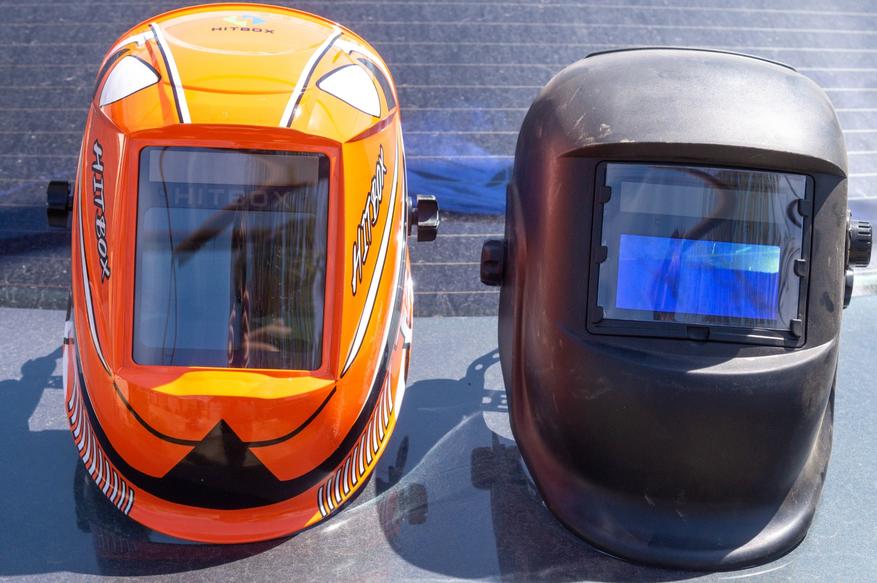

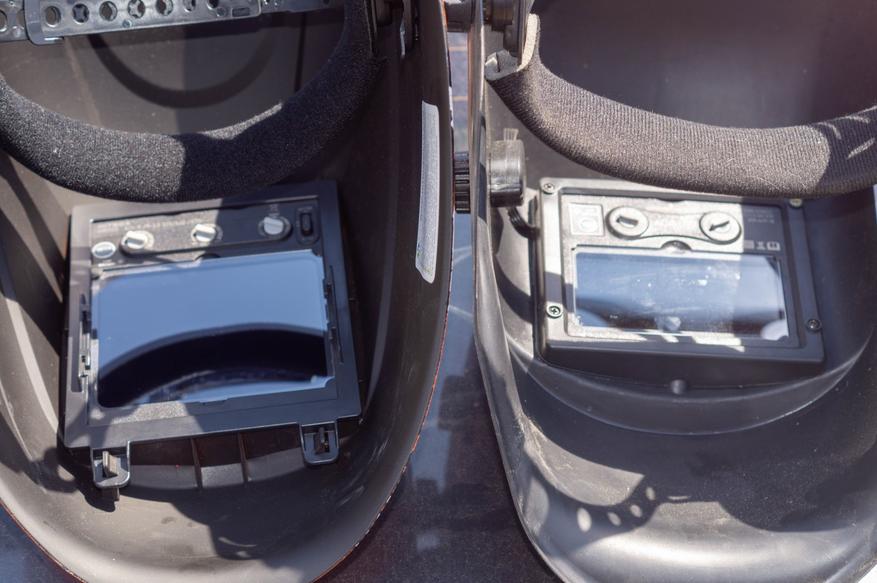

I compared HITBOX HB555 with the other mask , bought a year ago for 1500 rubles. The first difference is the size of the visors, it is noticeably larger for the reviewed one, the ASF also has two spark sensors, the hitbox has four





The second is a passive filter, for example, I took three photos with the same settings. The first without a mask, the second through HITBOX HB555 , for the third I used other helmet . In low light, the gain in brightness and detail is huge

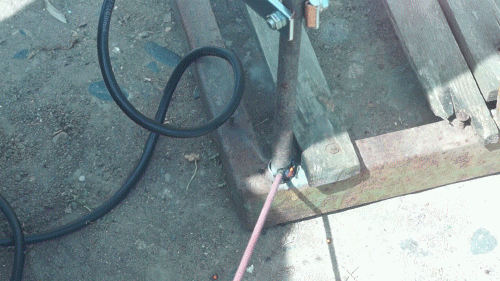

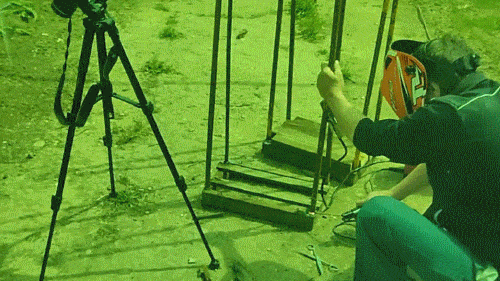

In slow motion videos, you can compare the reaction speed of the masks during arcing, HITBOX on the lef




And also the sensitivity, it constantly bothered me that in the other helmet the dimming could stop working if the weld pool started to go around the corner or if you move a meter away from the workplace, the HB555 does not have such a problem, although when the sensors are triggered by sparks from a grinder in a pair meters from you, it's also a little annoying





Finally, I turned the dimming from 9 to 5 GRID when working with a 3mm electrode with a current of 100A, although the minimum value will not cause serious harm to vision, it still blinds and it will be difficult to navigate in a dark room after that, but with 7-8 GRID you can work safely , both the arc with the bath and the workpiece itself are visible











  • Brand Name: HITBOX
  • Helmet Material: PP
  • Origin: Mainland China
  • Sensitivity: NO
  • Power Supply: YES
  • Auto-Darkening: YES
  • Certification: CE
  • Solar Powered: YES
  • Is Smart Device: YES
  • View Area: 100mm*80mm
  • Switch Time: 0.1ms
  • Cartridge Size: 220*300*220mm
  • Model Number: HB555
