Hikvision DS-KD8003-IME1(B) KD8 Series Modular Door Station 2MP fisheye Camera with IR Supplement Video Door Phone
ID: 162046

Hikvision DS-KD8003-IME1(B) KD8 Series Modular Door Station 2MP fisheye Camera with IR Supplement Video Door Phone

0.0 ( votes) | 2 orders
Price: US $666.20
Discount Price:
US $ 341.75
-49%
Quantity

Buy Now
Add to Cart

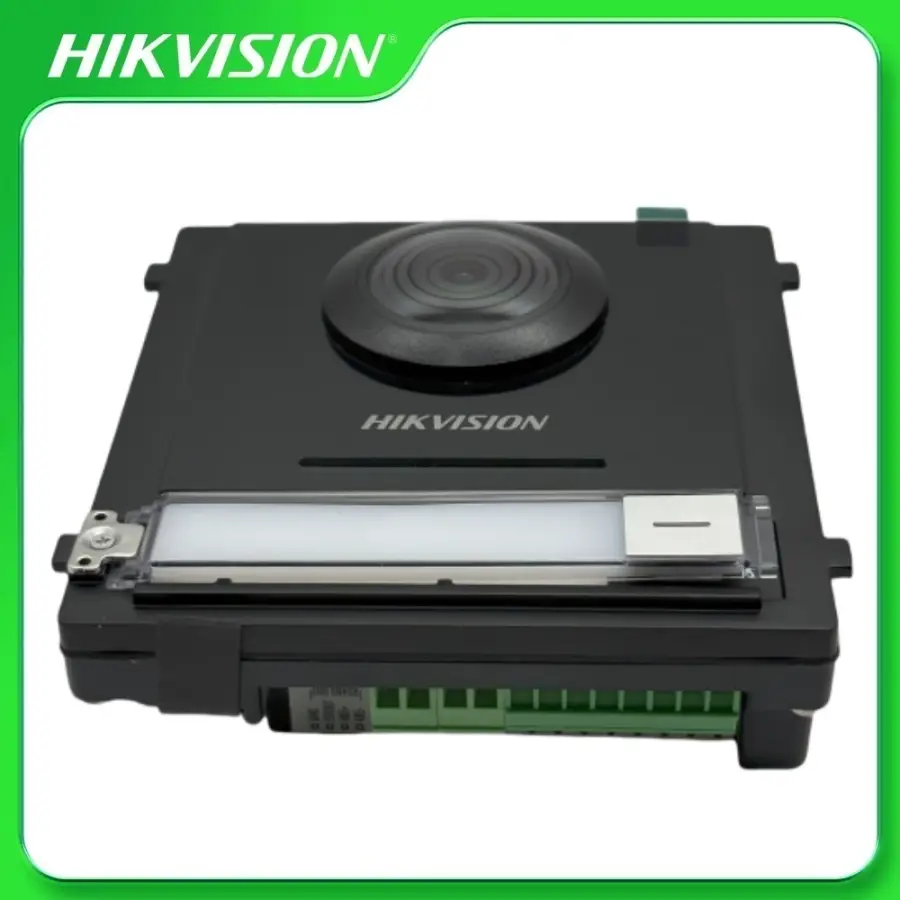

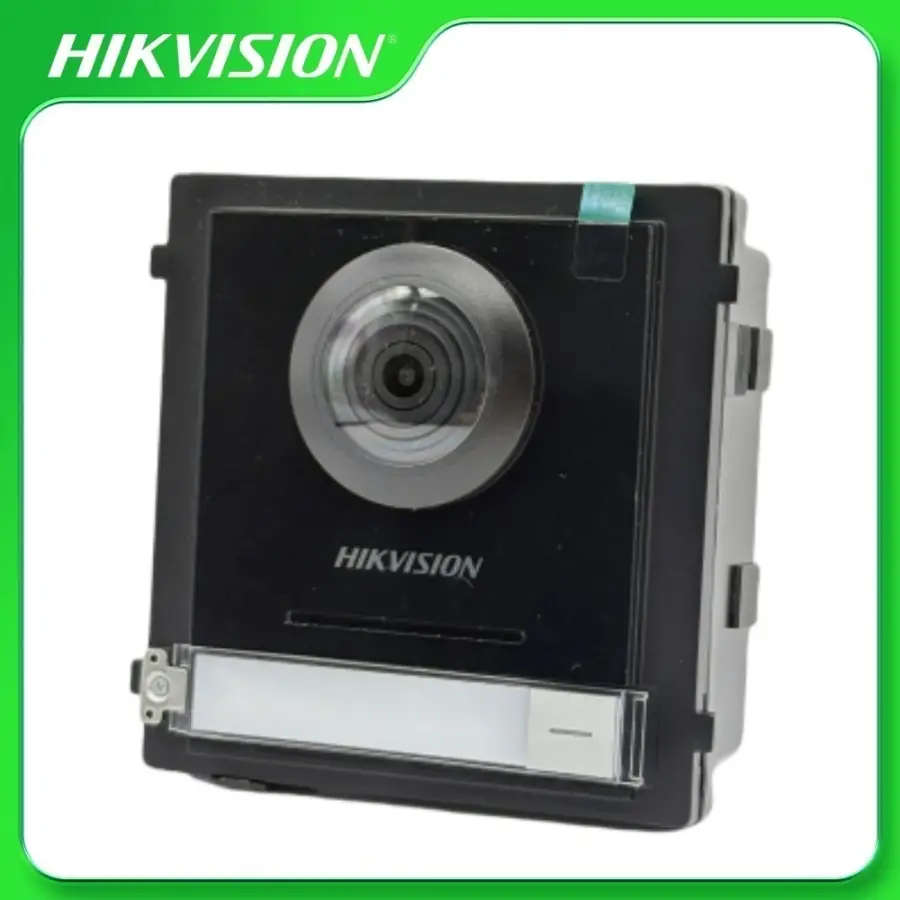

Hikvision DS-KD8003-IME1(B) KD8 Series Modular Door Station

  • Main unit of modular door station.

  • 2MP fisheye Camera with IR Supplement.

  • One call Physical Button For easier calls.

  • Two-lock control.

  • Standard PoE power supply.

  • IP65 protection level.

  • Convenient configuration via Web remotely.

  • Directly provide 12 V, 500 mA power output for one electronic lock without additional power supply.


  • System parameters

  • Operation systemLinux

  • ROM32 MB

  • RAM256 MB

  • ProcessorEmbeded high performance processor

  • Display parameters

  • Screen size/

  • Operation method/

  • Type/

  • Resolution/

  • Video parameters

  • Lens2 MP HD camera

  • Resolution2 MP

  • FOVHorizontal: 146°, Vertical: 82°

  • Wide dynamic range (WDR)Support

  • Supplement lightLow illumination, IR supplement lights

  • Video compression standardH.264; h.265; MJPEG

  • Audio parameters

  • Audio input1 built-in omnidirectional microphone

  • Audio compression standardG.711 U、G.711 A、Opus、AAC-LD、AAC-LC、G.726、G.722.1

  • Audio output1 built-in loudspeaker

  • Audio compression bitrate64 Kbps

  • Audio qualityNoise suppression and echo cancellation

  • Volume adjustmentAdjustable

  • Capacity

  • User capacity2000

  • Face capacity/

  • Fingerprint capacity/

  • Card capacity6000

  • Message capacity/

  • Linked indoor station capacity500

  • Sub door station capacity16

  • Network parameters

  • Network protocolTCP/IP, RTSP, , ipv6, onvif

  • Wi-Fi/

  • Bluetooth/

  • 3G/4GNA

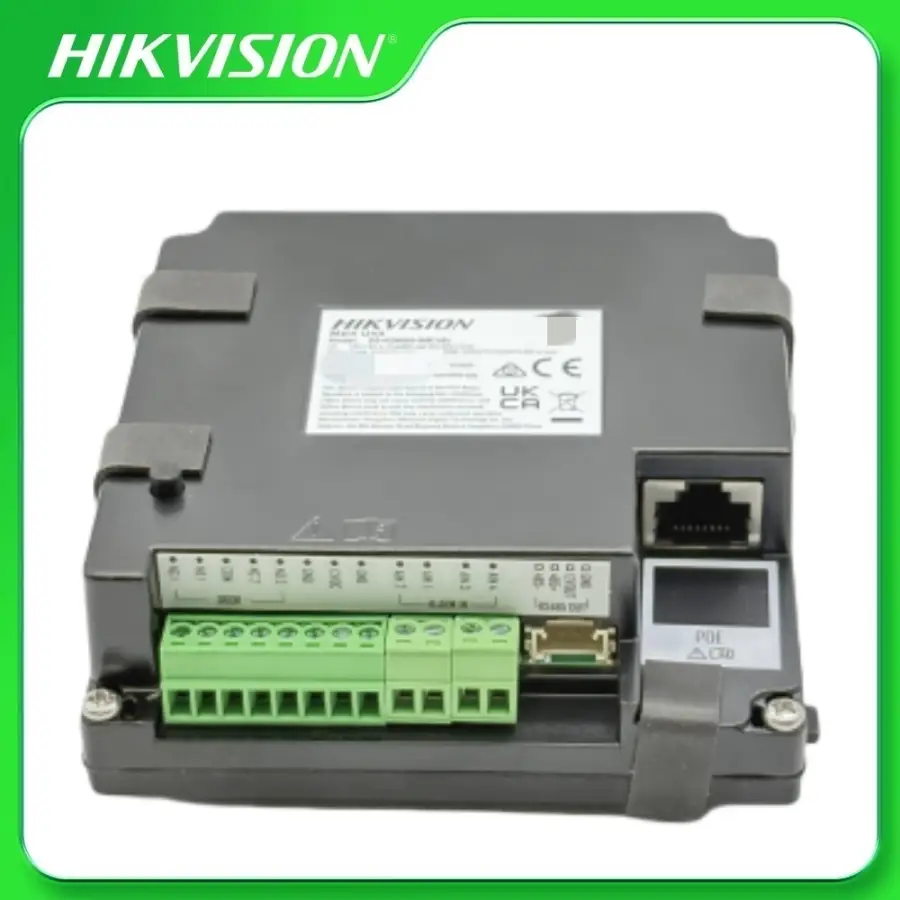

  • Device interfaces

  • Alarm input4 (2 exit buttons and 2 door contacts by default)

  • Network interface1 RJ-45, 10/100 Mbps self-adaptive

  • TAMPER1

  • Exit button2 (2 for lock control)

  • RS-4851 (1 for Hikvision's sub module communication)

  • USB/

  • Wiegand/

  • TF card/

  • Alarm output/

  • Lock control2 relays, Max. 30 VDC, 2 A

  • Door contact input2

  • Two-Wire IP interface/

  • General

  • Button1

  • InstallationSurface mounting, flush mounting

  • Indicator/

  • Weight

    Net weight: 380 g

    Gross weight: 541 g

  • Protective levelIP65

  • Working temperature-40 °C to 60 °C (-40 °F to 140 °F)

  • Battery/

  • Power supply12 VDC, 500 mA, IEEE 802.3af, PoE

  • Application environmentOutdoor

  • Power consumption≤ 5 W

  • LanguageEnglish, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish


Packaging Details

  • Unit Type:
  • Package Weight: 0.650
  • Package Size: 12x8x12

  • Brand Name: hotal
  • Hign-concerned Chemical: None
  • Origin: Mainland China
  • Smart home platform: Other
  • Certification: CE
  • Certification: FCC
  • Certification: KC
  • Model Number: DS-KD8003-IME1(B)
