High Quality Self Regulating Heating Cable 8mm Drain Water Pipe Freeze Protection 20W/m Defrost Snow Melting Wires
4.8 (10 votes) | 31 orders
Price:
US $644.92 - 5431.90
/ piece
Discount Price:
US $
498.07 -
4293.26
/ piece
-23%
High Quality Self Regulating Heating Cable 8mm Drain Water Pipe Freeze Protection 20W/m Defrost Snow Melting Wire

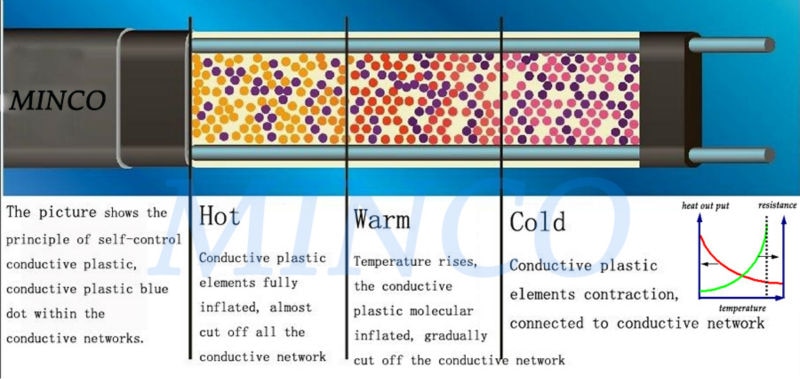

What is the self-Regulating Heating Cable, what is the advantage of the electric cable?
1.
Temperature control with tropical cable by the conductive polymer composite (plastic) and two parallel metal wire and insulated jacket.
2.
Flat ribbon cable. Its characteristics are conductive polymer composites with positive temperature coefficient "PTC" characteristics, and in parallel with each other, can.
3.
With the heating system temperature changes automatically adjust the output power, automatically limit the heating temperature.
>>
This cable is suitable for household drinking water pipe, drain pipe freeze protection in winter and other heating applications.
>>
The cable can self regulate the output power according to the temperature, it won't overheat, so the temperature controller is not necessary.
>>
The cable is with high quality PE jacket, and inner has the PE composite insulation layer, better water-proof and good quality.
Self-Regulating Heating Cable's Advantages:
1, The heating pipe temperature's uniformity, not overheating, safe and reliable;
2, saving energy;
3, intermittent operation, the temperature rise,moving fast;
4, installation and operation costs low;
5, easy installation and maintenance;
6, easy to automate management;
7, no environmental pollution;
8, suitable for complex pipeline tracing;
9, for the pipeline away from the device with heat;
10, for the instrument box and pipe antifreeze.
Description:
1.
T
his Drain Water Pipe Freeze Protection cable is suitable for household drinking water pipe, drain pipe freeze protection in winter and other heating applications.
2.
The cable can self regulate the output power according to the temperature, it won't overheat, so the temperature controller is not necessary.
3.
The cable is with high quality PE jacket, and inner has the PE composite insulation layer, better water-proof and good quality.
Technical Datas:
Cable type: self-regulating heating cable
1. Working voltage: 200~240V AC
2. Rated power: 20W/m (at 10C degrees)
3. Max maintain temperature: 65C±5C degrees
4. Max enduring temperature: 135C degrees
5. Width * Thickness: 8.1mm * 3mm
6. Min bend radius: 15mm
7. Conductor: tinned copper wire
8. Jacket: PE
9. Max circuit length: 30m
Structure:
1. Copper conductor
2. Conductive heating element
3. I nsideextra insulation
2. Conductive heating element
3. I nsideextra insulation
4. PE outer sheath

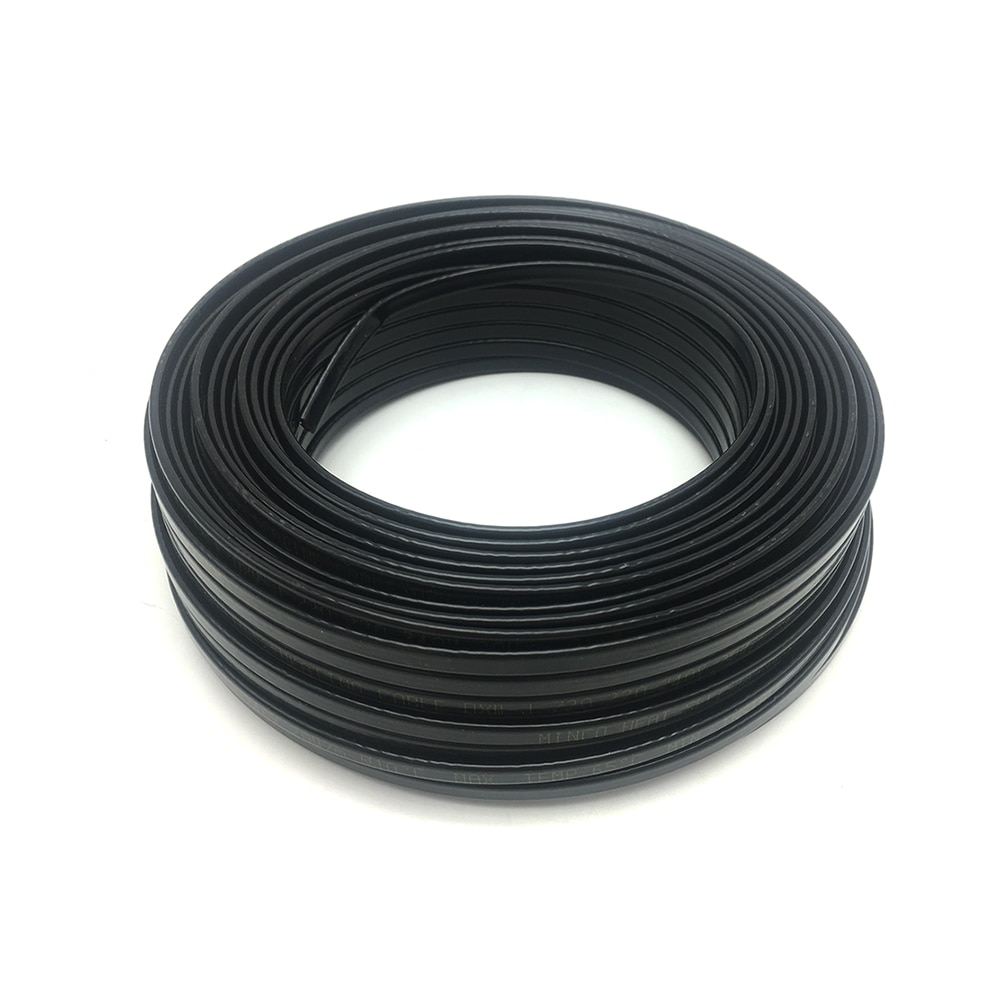

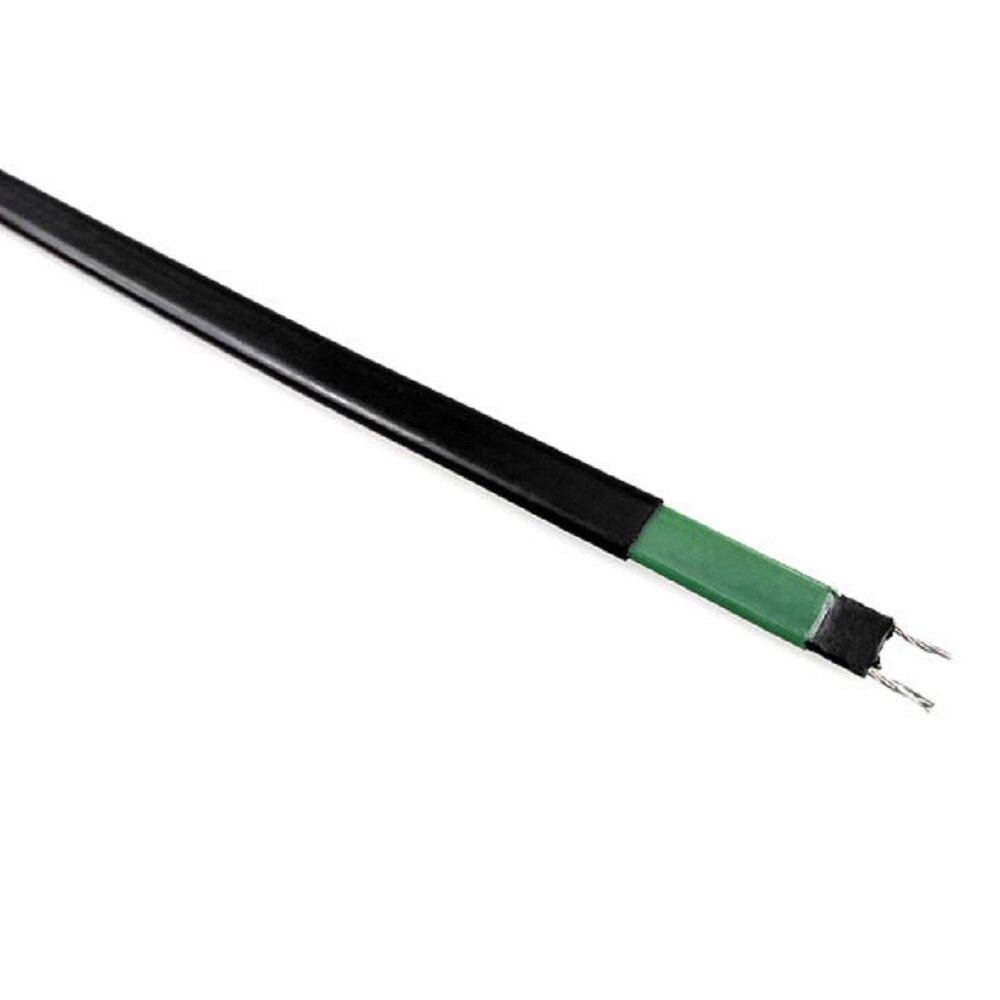

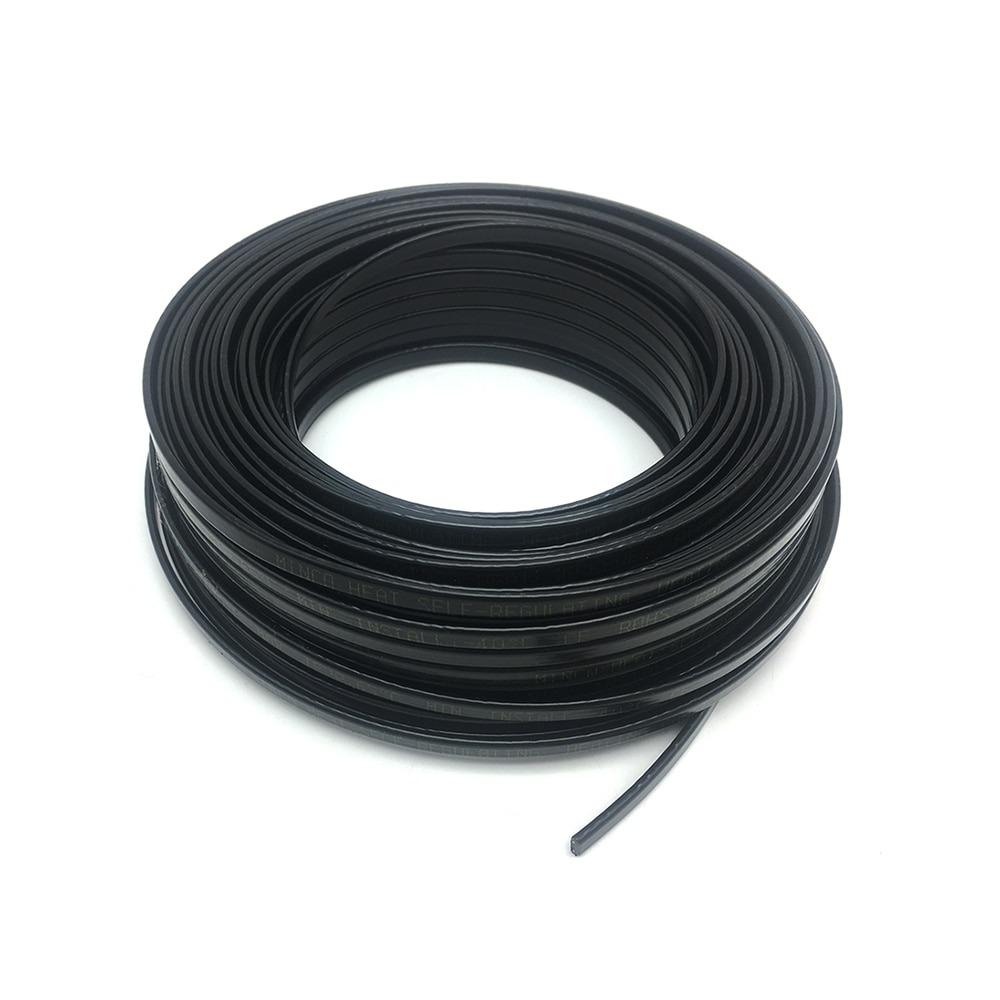

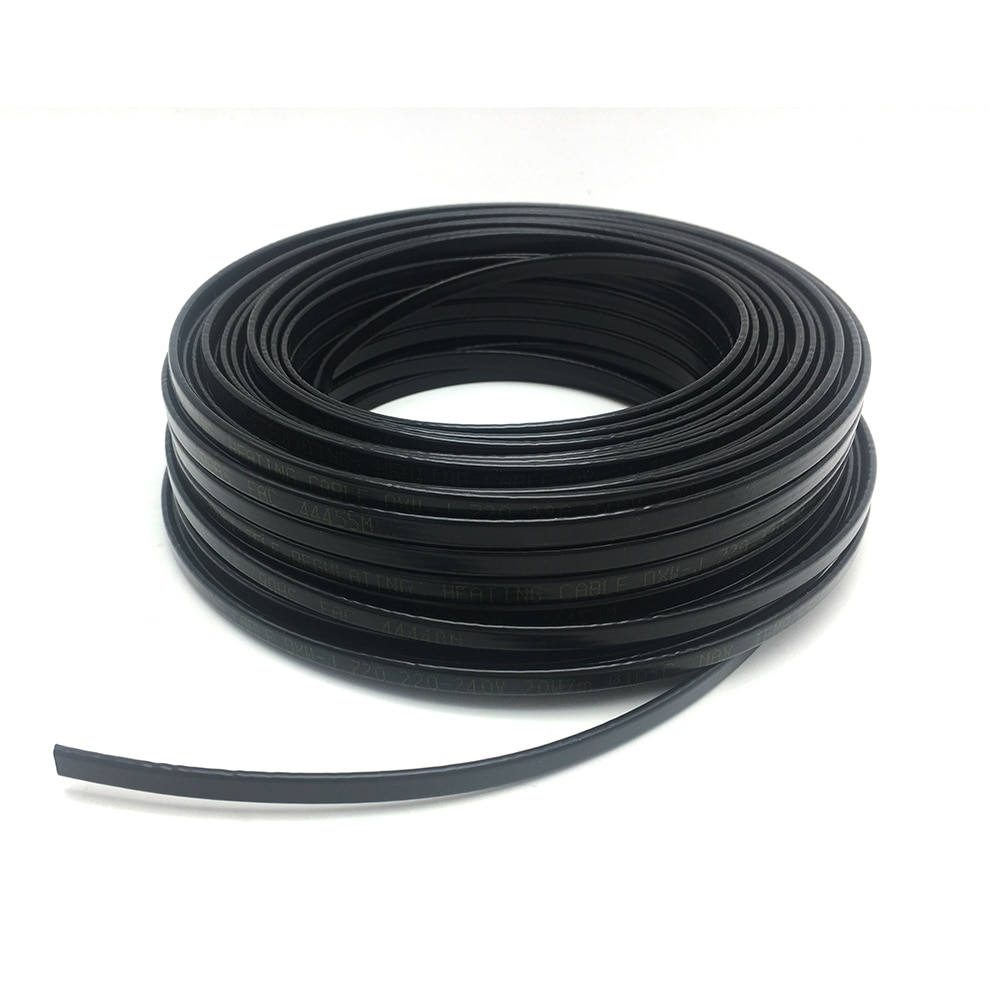

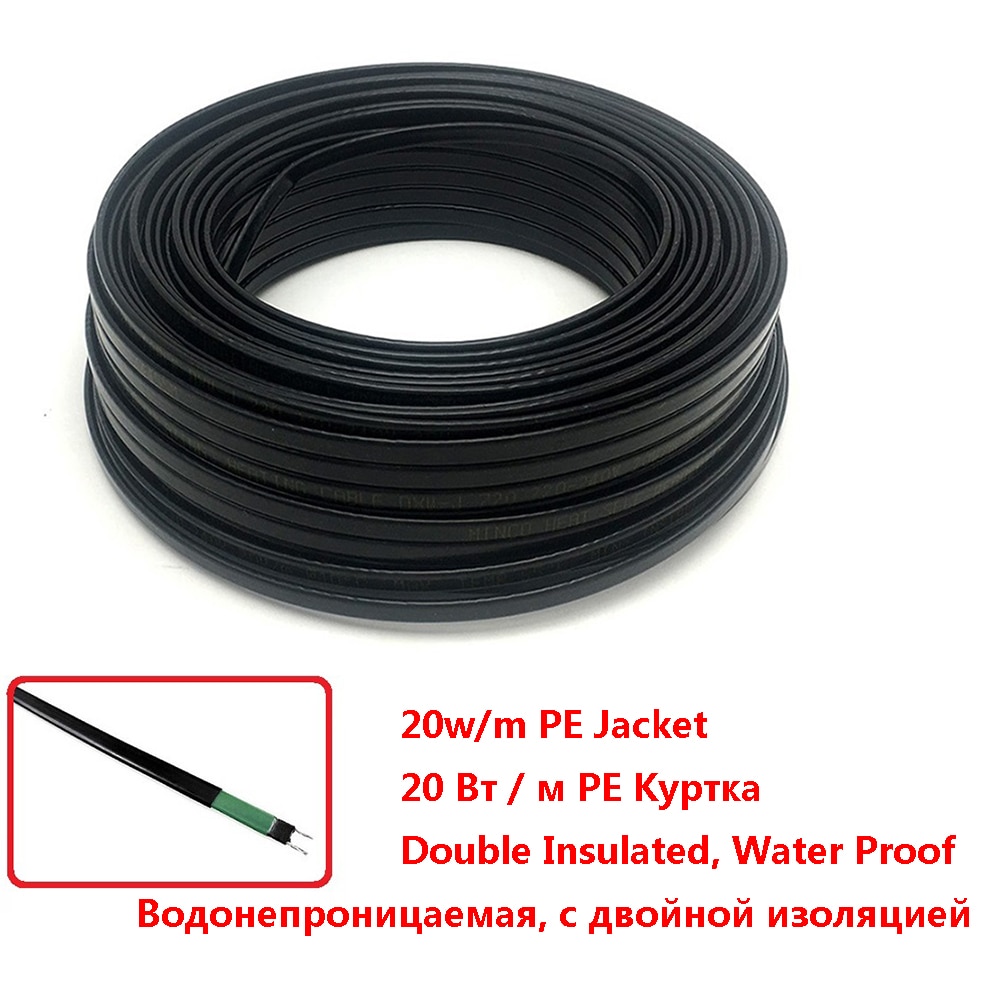

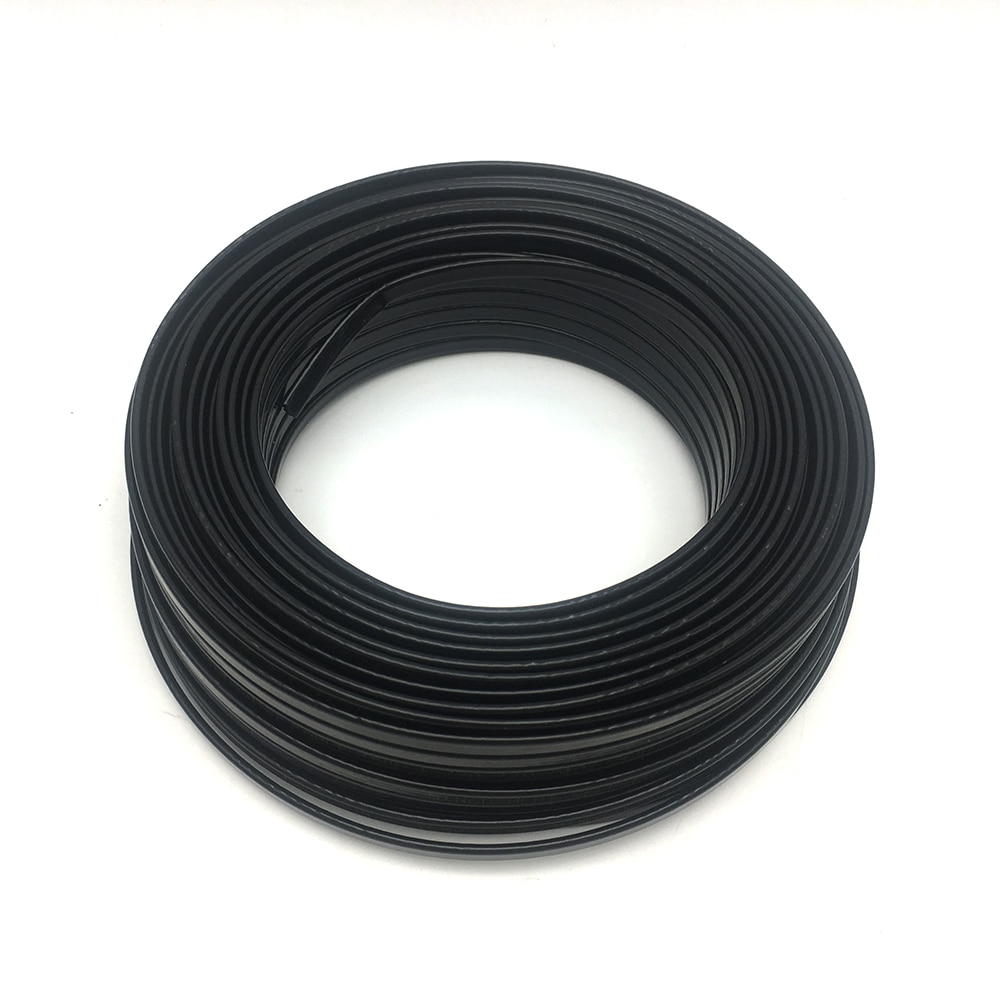

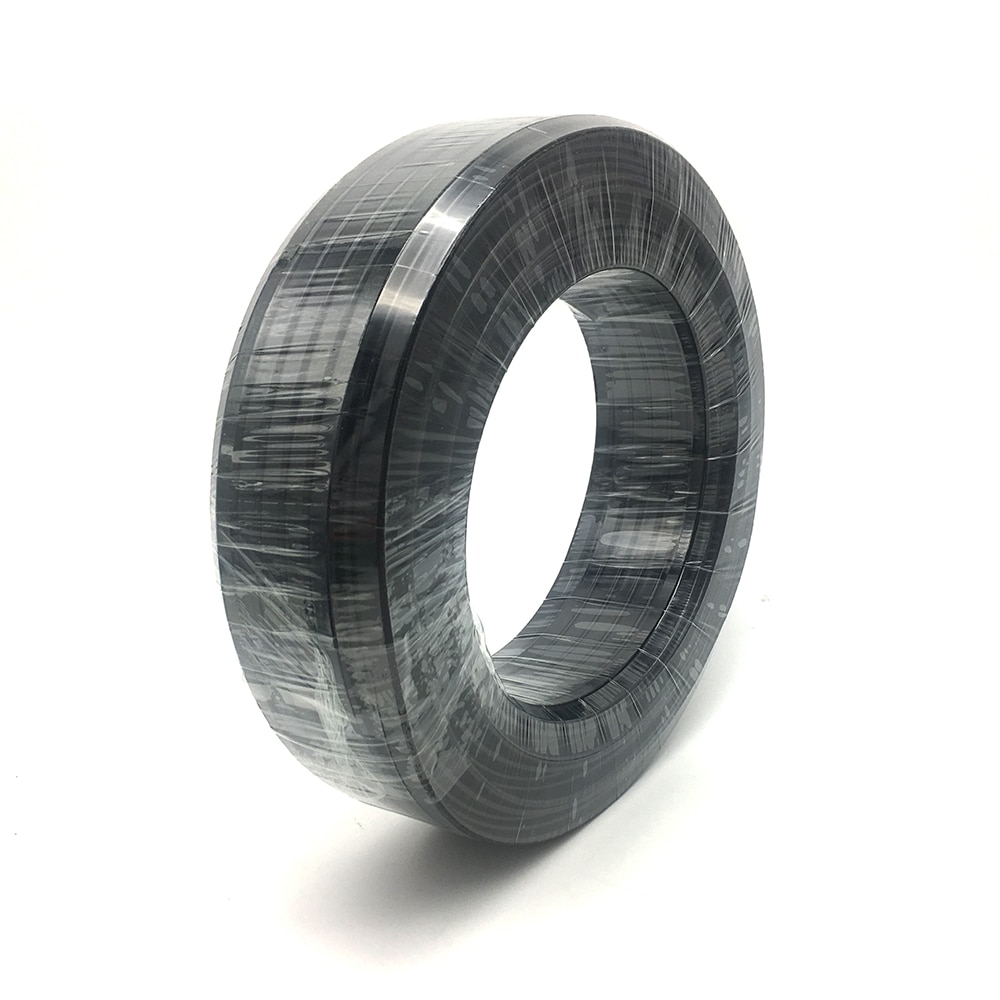

Product Pictures:
If you need the end cap 1 and 2, please click the picture to buy.

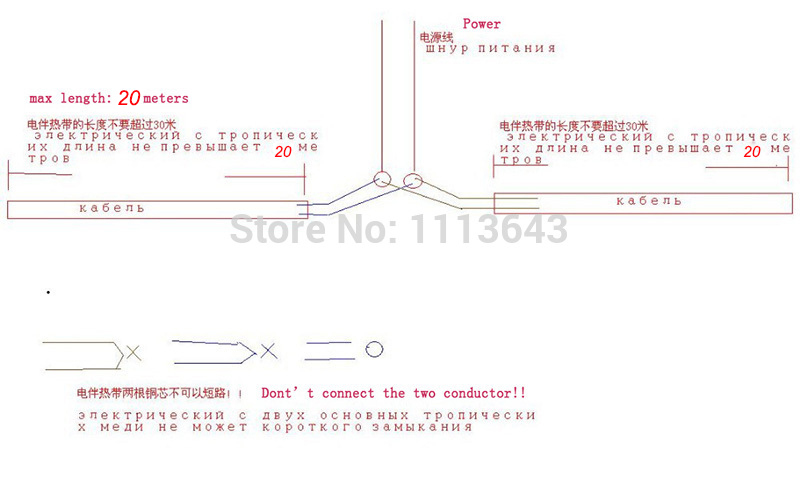

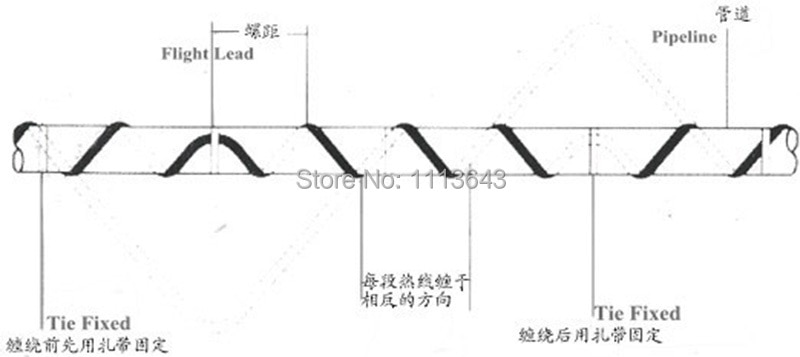

Installation diagram:
1) Seal the end of the cable with heat shrinkable tube or other electrical insulating tape.DO NOT connect the two conductors together!
2) Connect the other end with cold wire or plug (for connecting to the power supply).
3) Wrap the heating cable on water pipes or fastening straight on pipes, both are ok. Put the whole cable on the pipes and fasten it every 30~60cm with thermal tape or aluminum tape(sold in my store).
4) Suggest to wrap a layer of rubber insulation on the pipe, enhance efficiency of the heating cable and save energy, also can protect the heating cables.
5) Connect or plug into 220~240V. The heat trace system is finished.
Tips:max circuit length is 20 meters.
We are specialized in Electric Heating System, Feel free to contact us for advice.If you like our product, please bookmark and share to your whatsapp,facbook,vk and so on. Thank you!
Shipping
Items will be shipped within 1-3 business days after we verify your payment. Very fast shipping to make sure that you receive the parcel ASAP.
Delivery Time
Normally we provide Free Shipping via China Post Air Mail. Its cheaper, but slower. We will deliver the items in 3 working days (except weekends) after receiving your payment. The parcel takes 1-4 weeks to reach you.
The delivery time depends on the destinations. Remote countries and strict Customs (e.g. Brazil) will make it longer than 4 weeks, please be patient. If you cannot wait for that long. If you did not receive the order on time .then we will extend the delivery time by 10-30days for you to protect you.
Duty & Tax
Please note that buyers are responsible for all Customs duty and import taxes fee in your country. We will help you to declared the item with lower value.
Return & Exchange
All our items will be checked and packed in good condition before shipping. We will try our best to satisfy all our customers. If for any reason you are not satisfied, you may return the item to us under the original condition within 7 days of receipt for a refund or an exchange. Before return the item, please contact us for the detailed return exchange instruction. We will refund you after receiving the returned items. Buyer will pay for the shipping cost for returning the items.
Feedback
Your satisfaction and comments are very important to us. If you like our products and service, please take a minute to leave us a positive feedback and 5 stars. We will appreciate it very much. If you are not happy, Please feel free to contact us before leaving a Neutral or Negative feedback, we will try our best to work out the problems.
Feel free to contact us! Thank you.
- is_customized: Yes
- Insulation Material: PE
- Conductor Type: Stranded
- Conductor Material: Copper
- Application: Heating
- Type: Insulated
- Model Number: DXW-J 720
- Brand Name: MINCO HEAT
- Origin: Mainland China
- Certification: CE,RoHS
- Certification: CE,RoHS,EAC
- Voltage: 220v,230v,240v
- Power: 20w/m
- Thickness: 3mm
- Width: 8mm
- Core wire size: 7*0.2mm, double insulated
- Application: defrost, snow melting, heat trace, other heating applications
- Max length: 20 meters
- Warranty: 2 years
