HDMI to IP HD Video Encoder System Integration Mini SRT RTSP RTMPS UDP ONVIF 1080p H265 H264 IPTV Live Stream Board
5.0 (4 votes) | 33 orders
Price:
US $24.71 - 156.27
Discount Price:
US $
24.12 -
145.35
-2%
- Color
-
-
Accessories products are designed to facilitate customers in purchasing
parts for self-assembly. Please select the appropriate accessories. For
example, if you choose a power supply, you will only get power supply
accessories, not including the encoder board

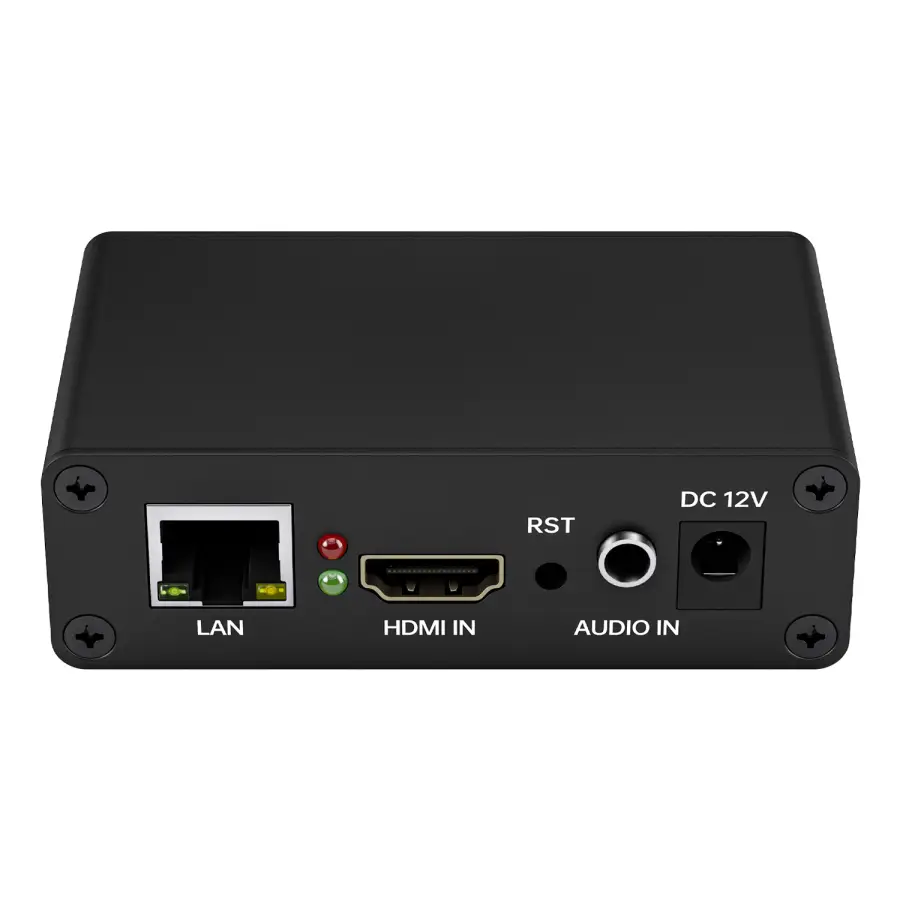

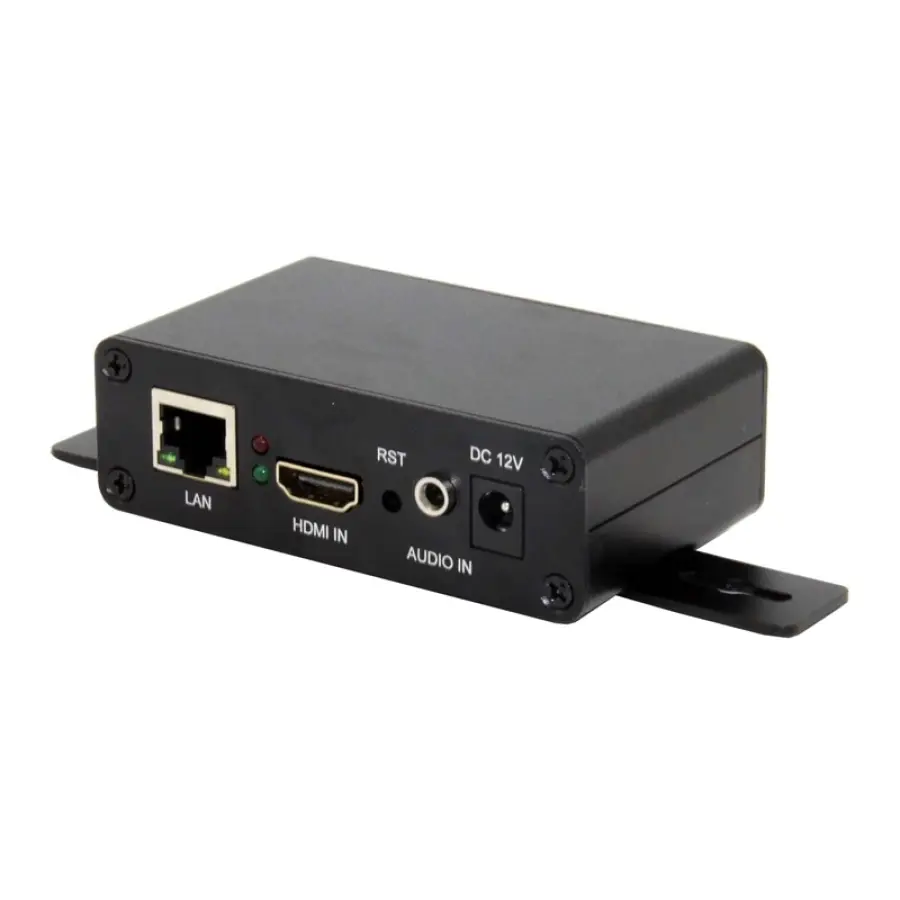

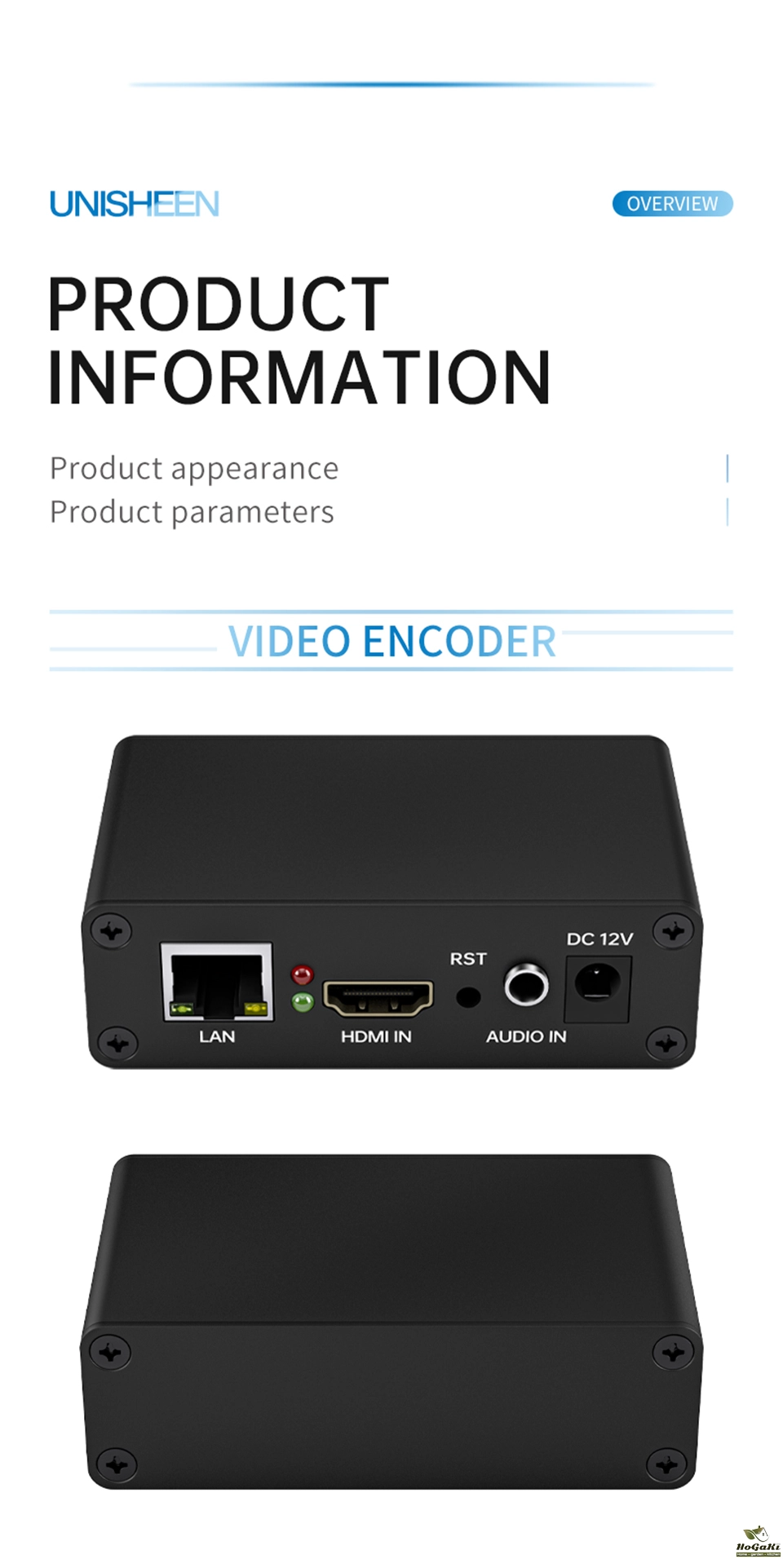

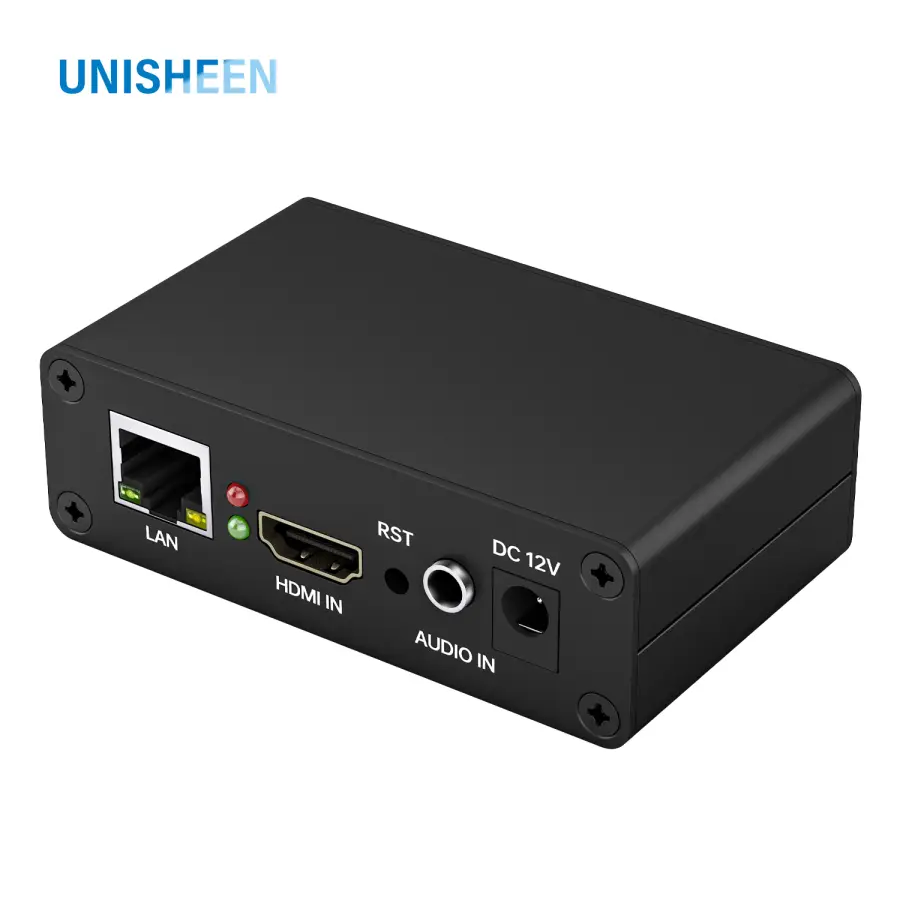

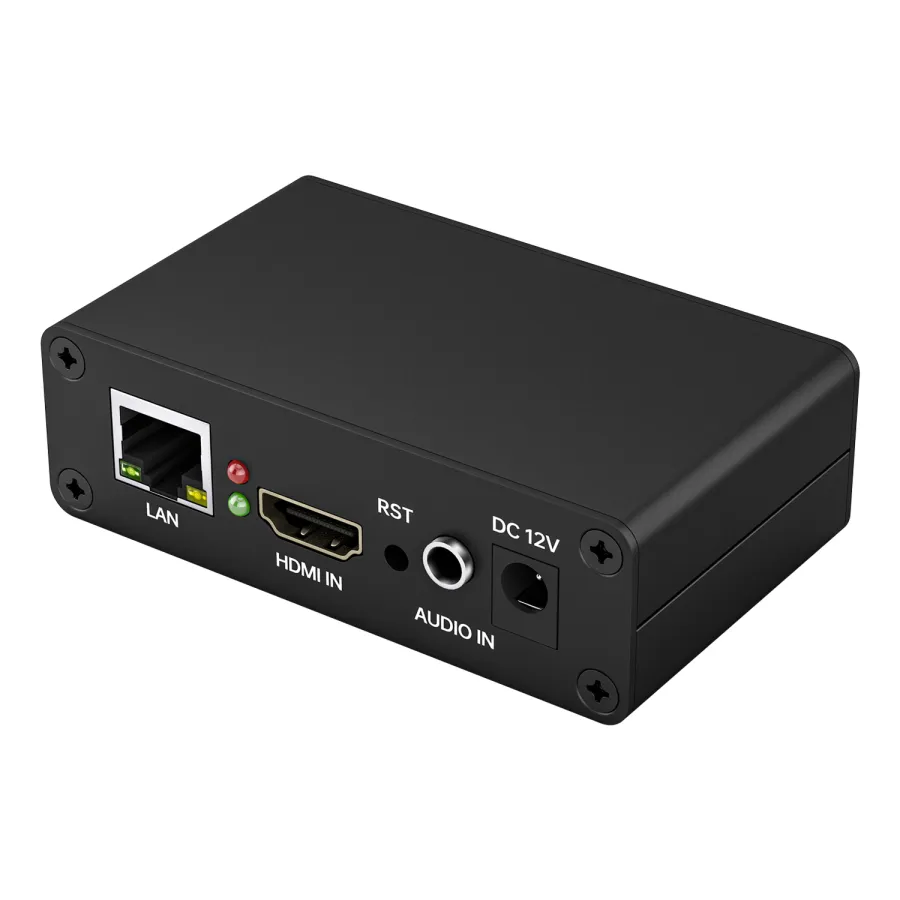

*BM1000H Device including Board&Casing&power Adapter

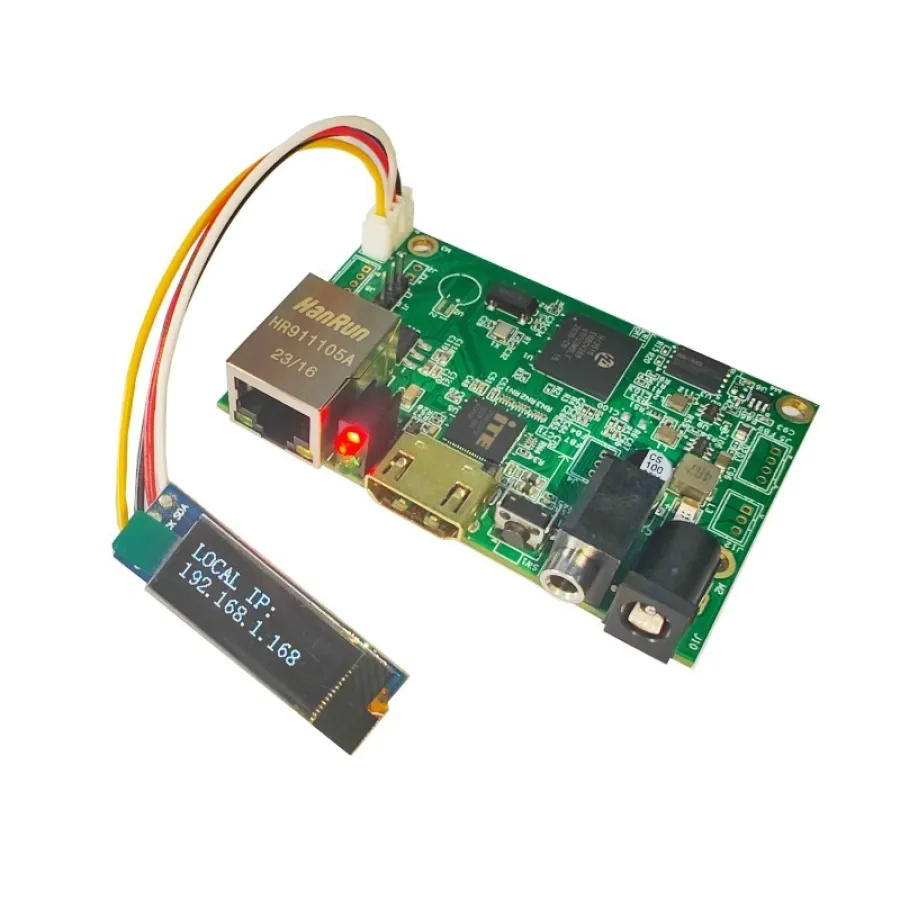

*Board&Oled 0.96 Inch only including board & 0.96inch Oled without Power supply and casing

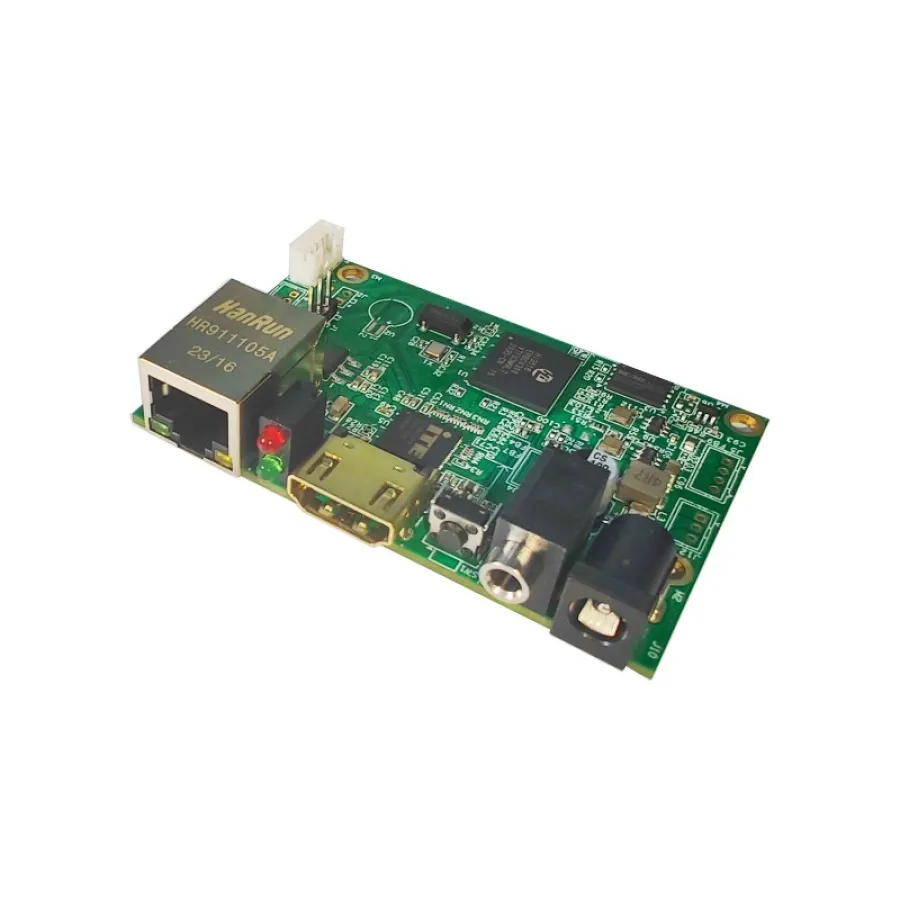

*Board only including board without others

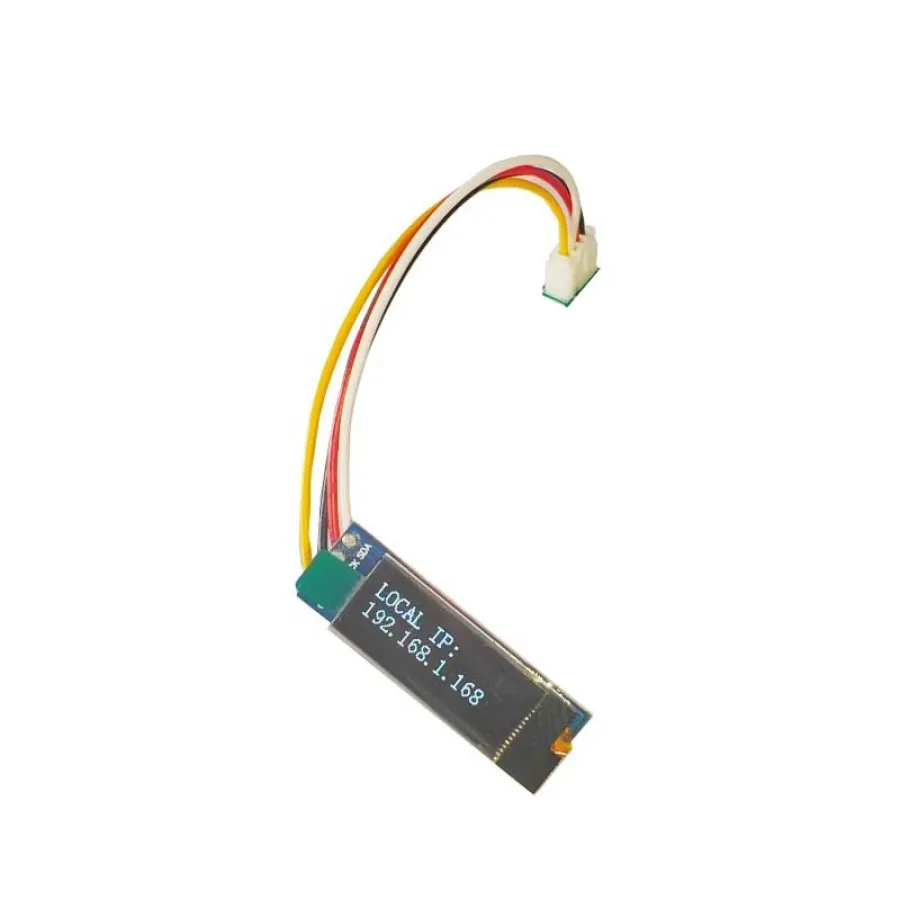

*Oled 0.96 Inch only including Oled 0.96 Inch

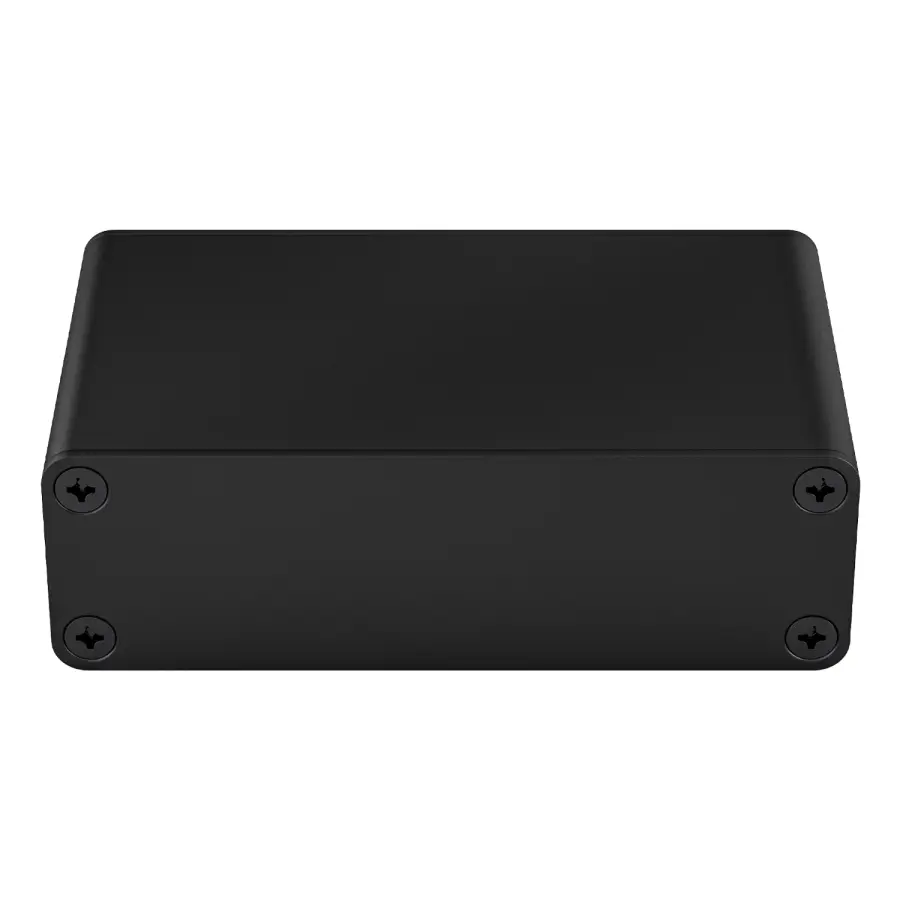

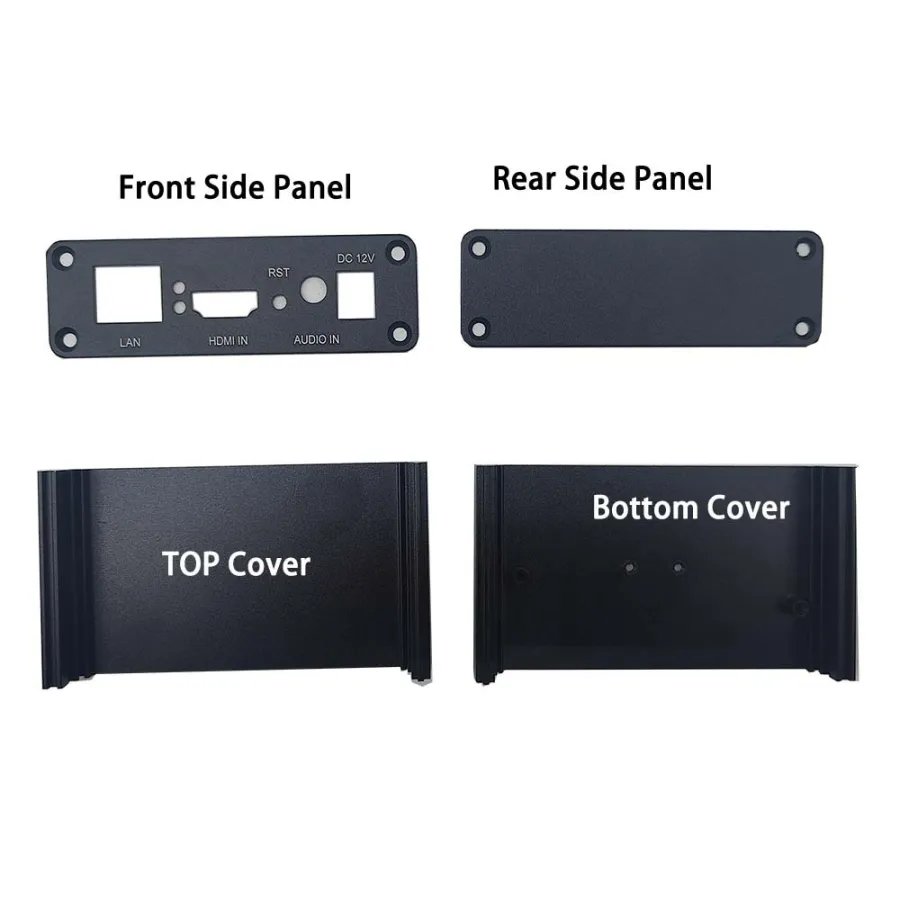

*Metal Casing is only a set casing of BM1000H, don't including Board and Power

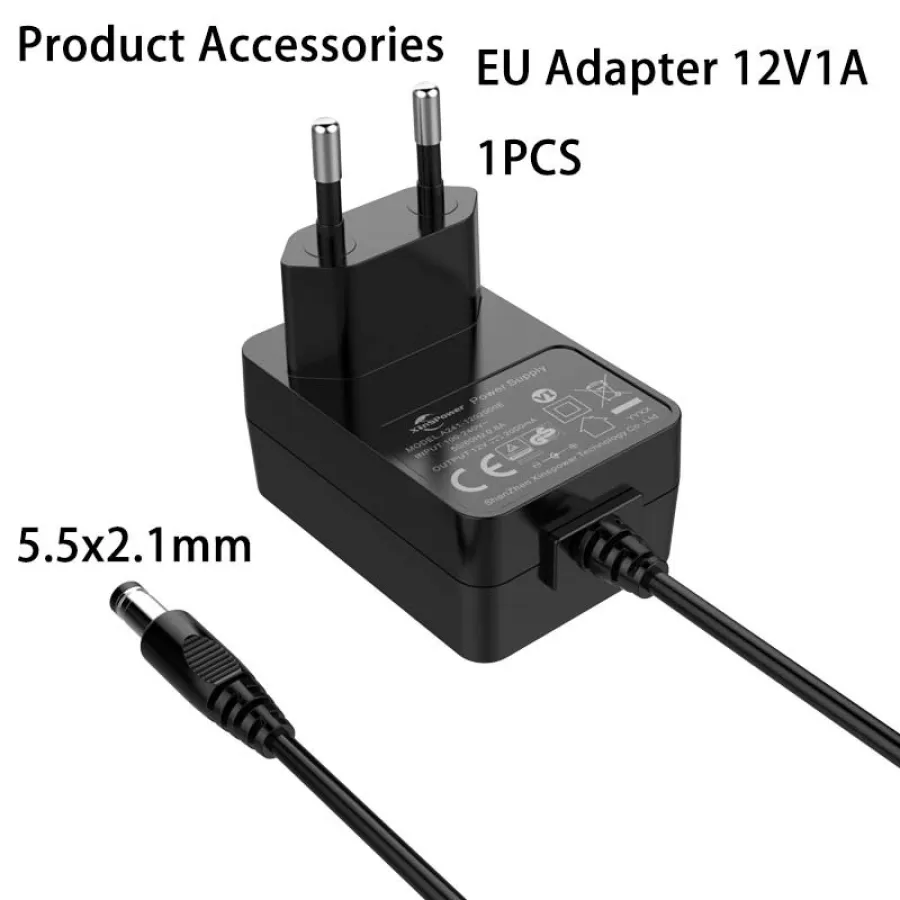

*EU adapter is one pcs 12V1A EU adapter without others

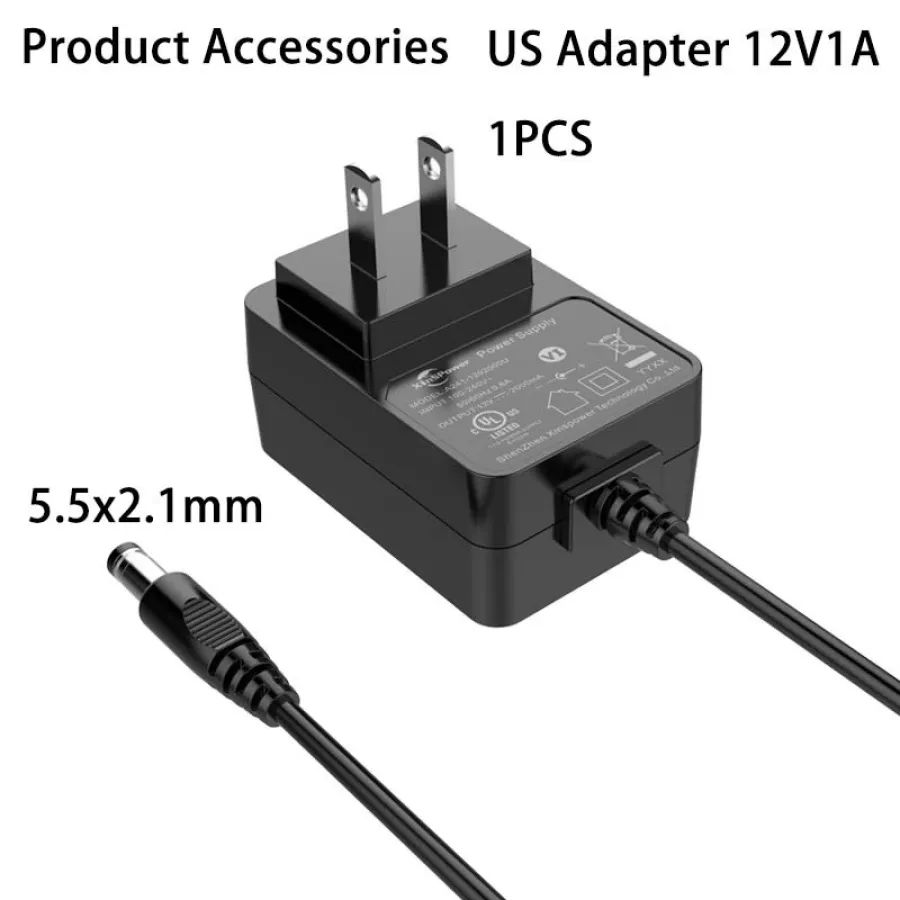

*US adapter is one pcs 12V1A US adapter without others

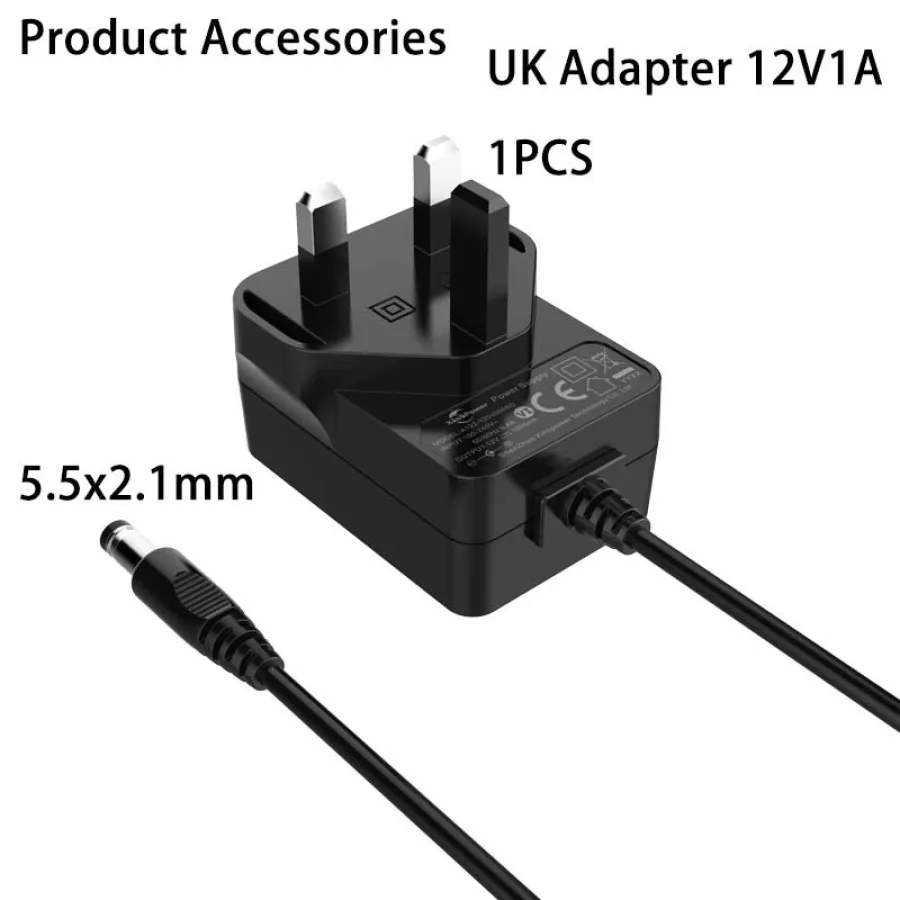

*UK adapter is one pcs 12V1A UK adapter without others

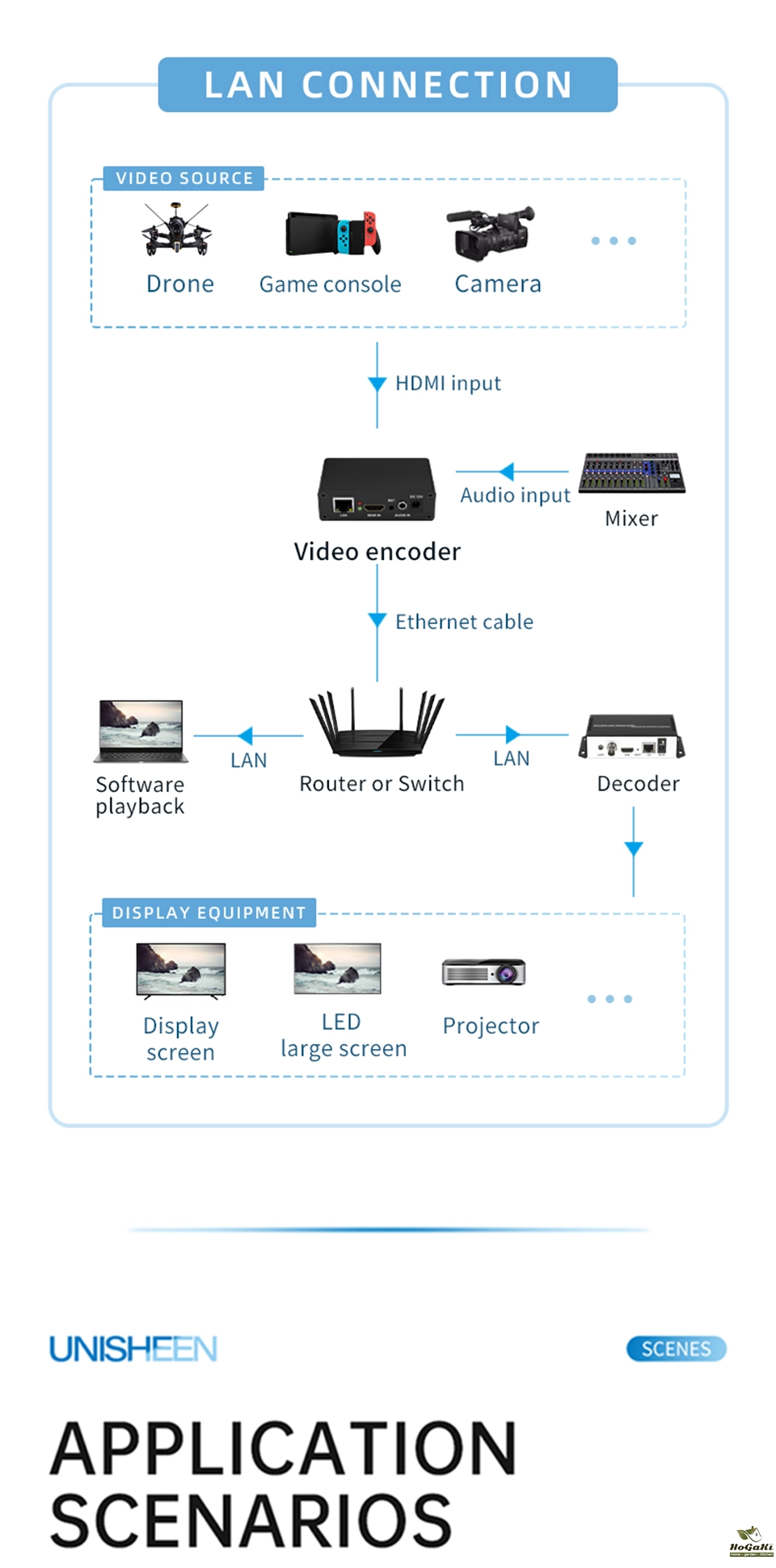

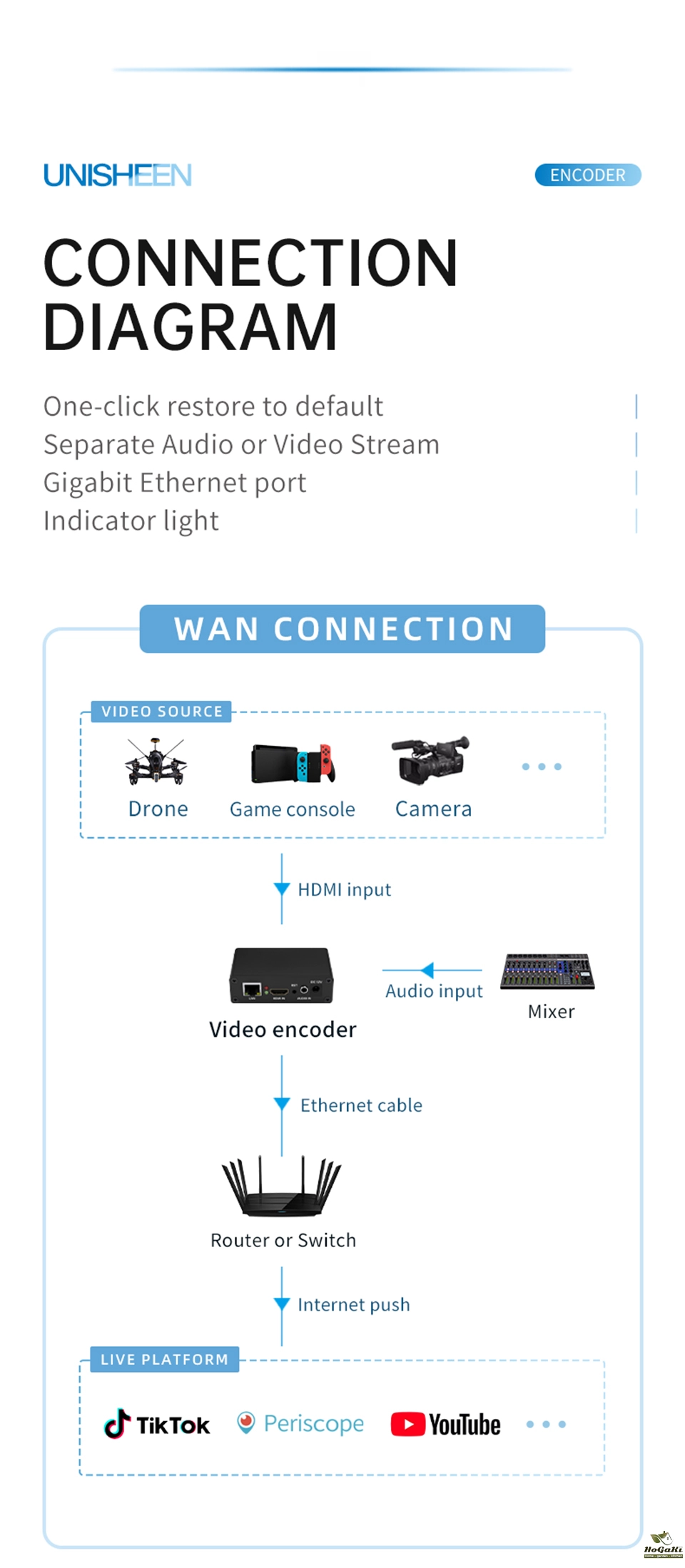

How to working Encoder & Decoder

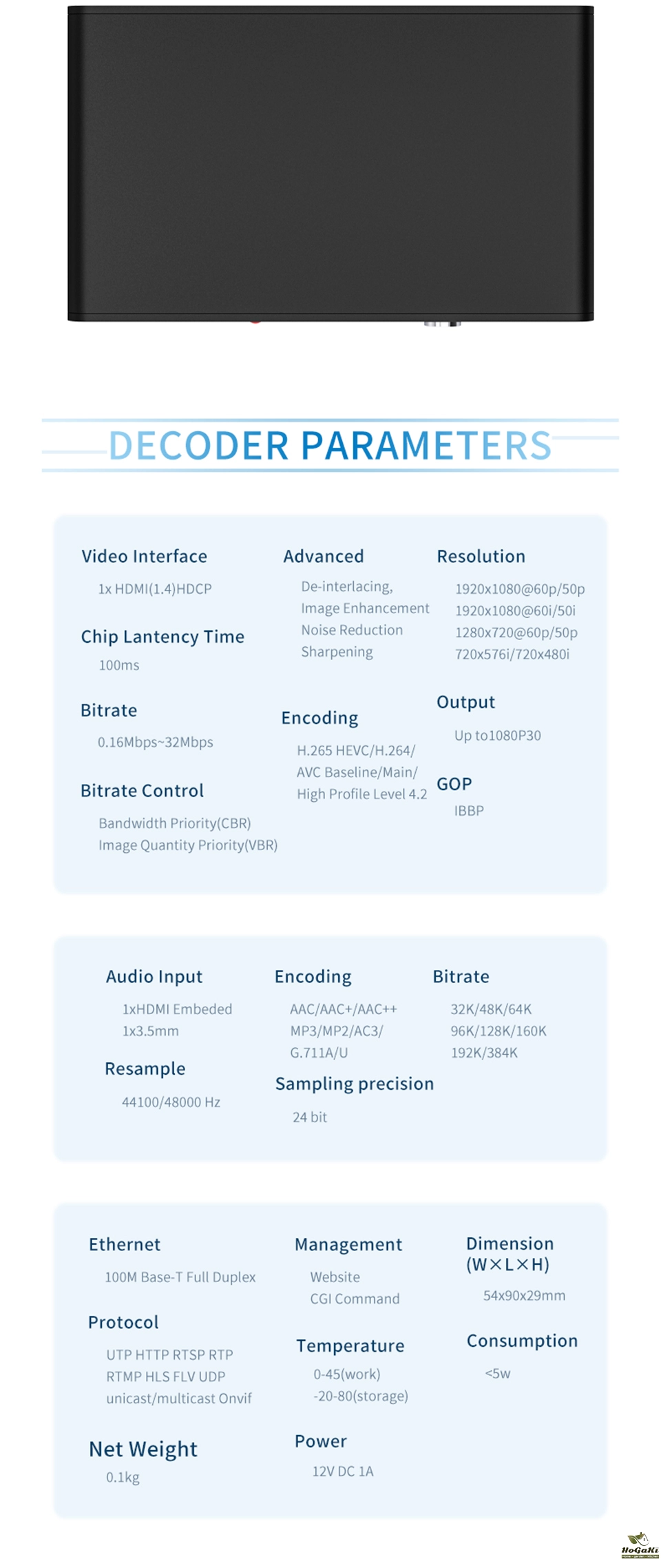

Video | |
Input | 1x HDMI( 1.4) HDCP |
Resolution | 1920x1080@60P/50p,1920x1080@60i/50i/1280x720@60p/50p 720x576i/720x480i |
Encoding | H.265 H.264/AVC Baseline/Main/High Profile Level 4.2 |
Encoding Output FPS | Up to 1080P30 |
Data Rate | 0.16Mbps~32Mbps |
Rate Control | CBR/VBR |
GOP Structure | 5-300 |
AdvancedPretreatment | De-interlacing,Image Enhancement,NoiseReduction,Sharpening |
Latency Time | 100ms |
Audio | |
Input | 1xHDMI Embeded,1x3.5mm |
Encoding | AAC/AAC+/AAC++/MP3/MP2/AC3/G.711A/U |
Audio Re-sample Rate | 44100/48000 Hz |
Bit-rate | 32K/48K/64K/96K/128K/160K/192K/384K |
Sampling precision | 24 bit |
System | |
Ethernet | 100M Base-T Full Duplex |

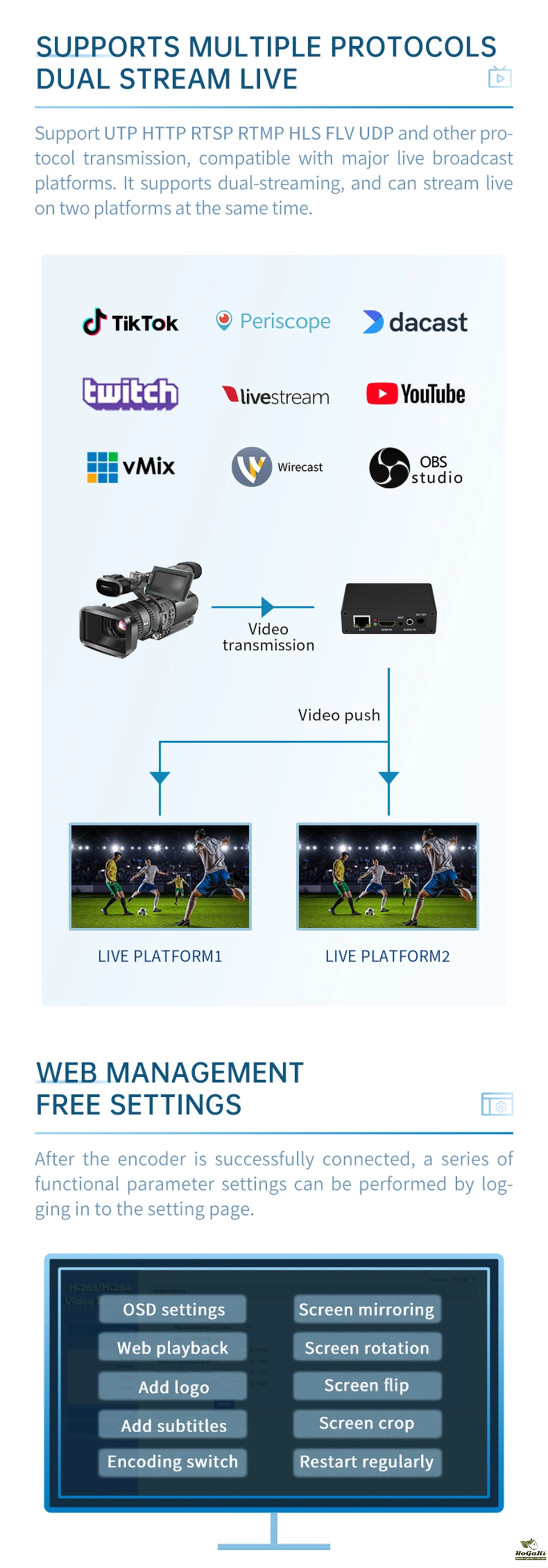

Protocol | srt/utp/http/rtsp/rtmp/udp/onvif |
controlinterface | Website or CGI command or App |
General | |
Dimension(W×L×H) | 54x90x29mm (50x75mm PCBA) |
Net Weight | 0.1kg |
Temperature | 0-45(work),-20-80(storage) |
Power | 9-12V DC 1A |
Consumption | 1.5w |
Packaging Details
- Unit Type:
- Package Weight: 0.350
- Package Size: 15x10x15
- Brand Name: unisheen
- Hign-concerned Chemical: None
- Origin: Mainland China
- Smart home platform: None
- Certification: CE
- Certification: FCC
- Certification: RoHS
- Model Number: BM1000H
- Video Input: 1xHDMI
- Audio Input: 1xHDMI Embeded/1x3.5mm Jack
- Video/Audio Codec: H.265/H.264,AAC/MP3/MP2
- Video/Audio Bitrate: 0.16-32M/16-384K
- Audio resample: 44100/48000/32000
- Ethernet Port: 100M
- Protocol: SRT/RTSP/RTMPs/UDP/HTTP
- Power: DC 9-12V 1A
- Comsumption: <5W
- Manager: Webstie/CGI Command
- Dimension: 54x90x29mm(50x75mm PCB)
- Resolution Input: Up to 1080p60
- Resolution Output: Up to 1080p30
- Choice: yes
- semi_Choice: yes
