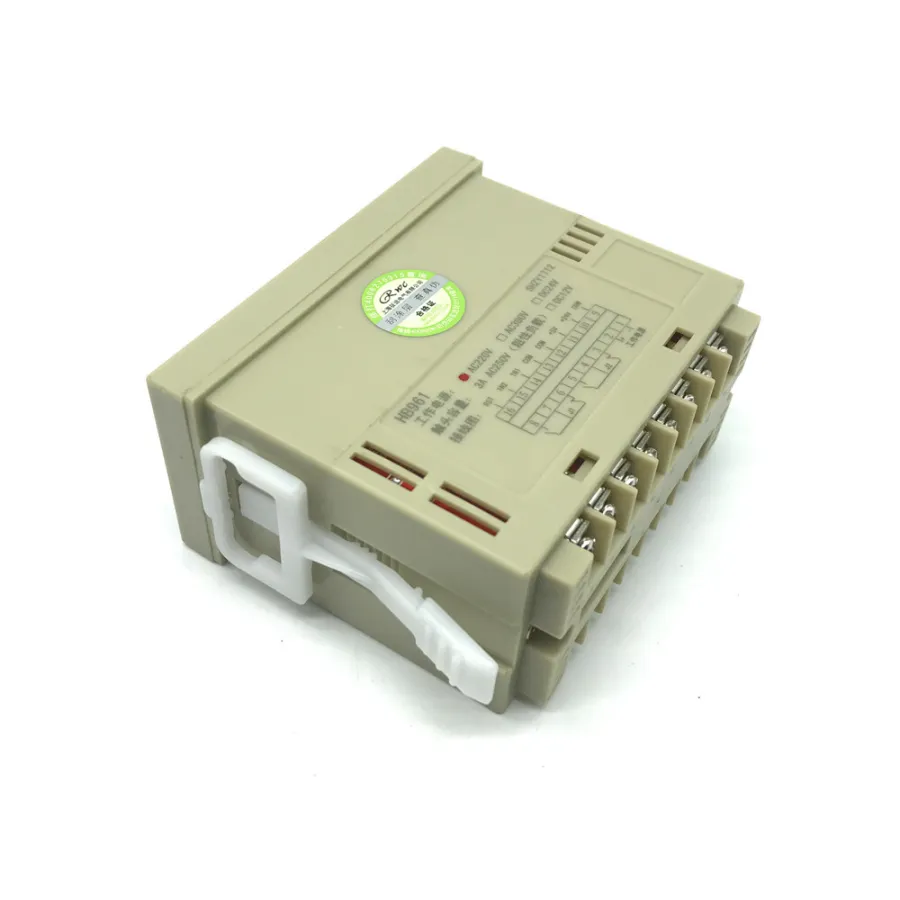

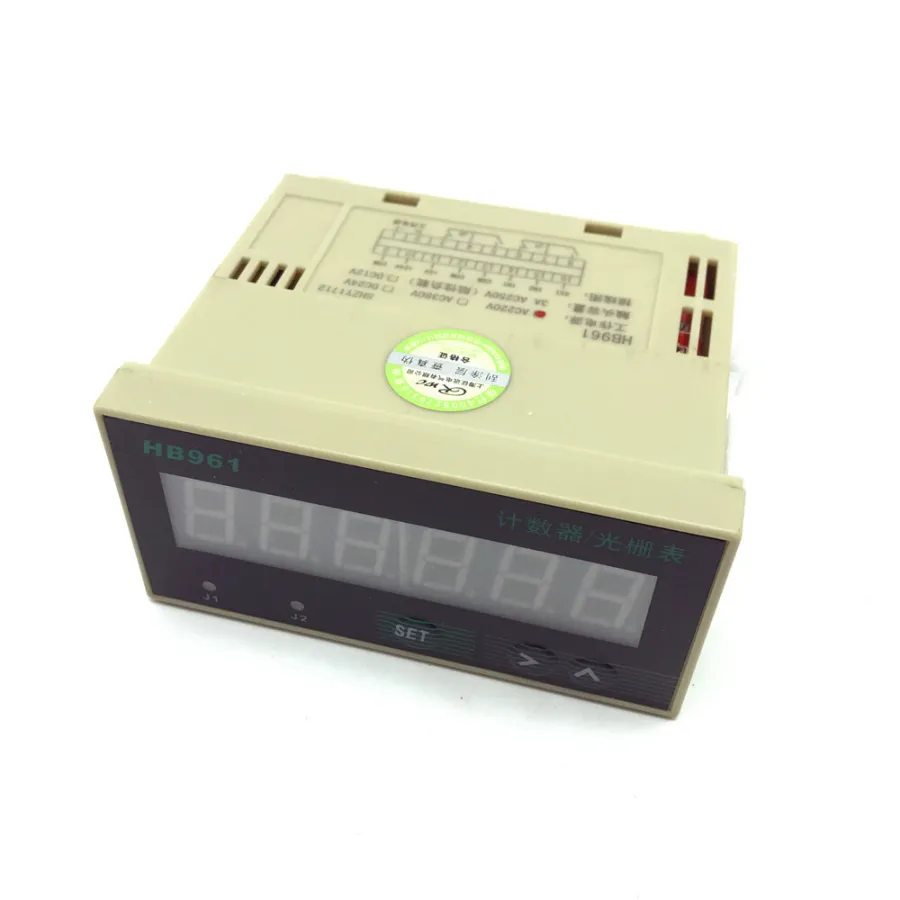

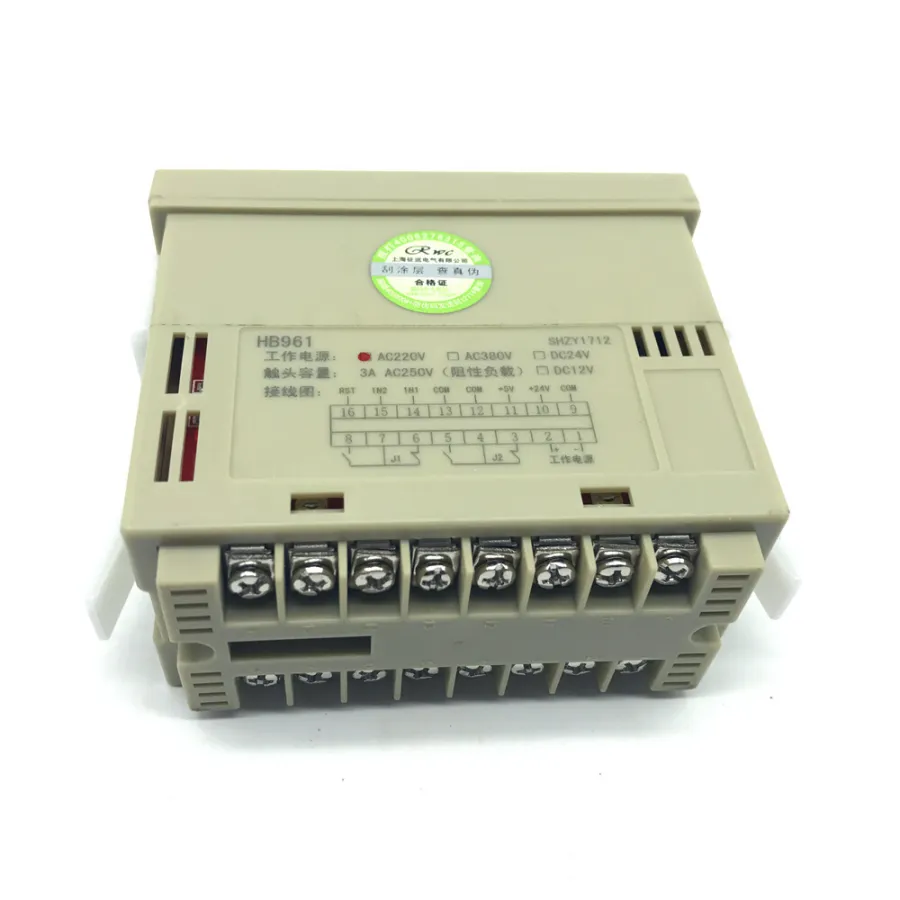

HB961Counter/Quadrature Encoder Position & Rate Panel Meter
Key Features
· Inputs: Single-ended IO, pulse or quadrature encoder signal (Low voltage: -30 to +0.6V; High voltage: +4V to 30V)
· Compatible Sensor: Accept photoelectric switch, proximity switch, hall sensor, angular and linear encoder input
· Excitation output: 5V and 24V(30mA), 30mA DC current
· User-defined linearizing parameters to display real physical quantities with A,B,C three parameters and decimal point
· Current counter, alarm value, and other parameters can be saved in non-volatile memory
· Multiple relay output modes for different control need
Specifications
· Power: AC 85-260V or DC 85-260V
· Readout: 6 LED digits, 7-segment, 14.2 mm(0.56”), red LED
· Nominal switching capacity: AC 220V 3A
· Expected life (min. operations): 105
· Nominal switching capacity: AC 220V 3A
· Max. Pulse Rate: 30KHz (15KHz with encoder input)
· Display Range: -199999 to 999999, “EEEEEE” notation beyond 999999
· Operating Environmental: –0°C to +50°C, Humidity : 5% R.H. to 85% R.H.
· Size: 96*48*82 mm
· Mechanical Assembly Hole Size: 92*45 mm
· Adjustable output with A, b, C parameters
These counters are from China, but they are in high quality.
Packaging Details
- Unit Type: piece
- Package Weight: 0.390
- Package Size: 10x10x15
- Brand Name: CHYQLY
- Origin: Mainland China
- DIY Supplies: Electrical
- Model Number: HB961
- Type: 6-digit Counters
