Hantek Official 6022BE Laptop PC USB Digital Storage Virtual Oscilloscope 2 Channels 20Mhz Handheld Portable Osciloscopio

4.9 (99 votes) | 350 orders
Price: US $146.95 - 154.57 / piece
Discount Price:
US $ 107.26 - 112.83 / piece
-27%
Ships From
Color
Quantity


Hantek 6022BE Digital Oscilloscope Portable PC Based 2 Channels 20MHz USB Oscilloscopes Handheld Osciloscopio portatil Diagnostic-tool

Cost-effectiveness, 20MHz bandwidth 2CH scope, 48MSa/s sample rate, with 2pcs probes; Standard USBXI (TM) interface, easyly inserts into USBXI (TM) housing to make up a combination instrument.

1. Characteristic

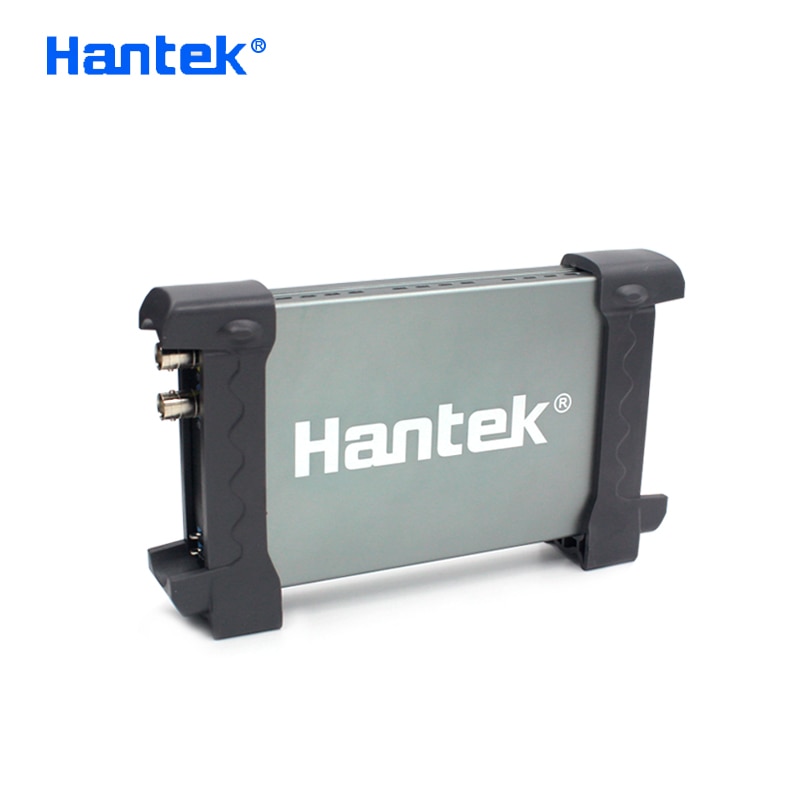

Cost-effectiveness; Excellent industrial design-the same anodised aluminium casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability.

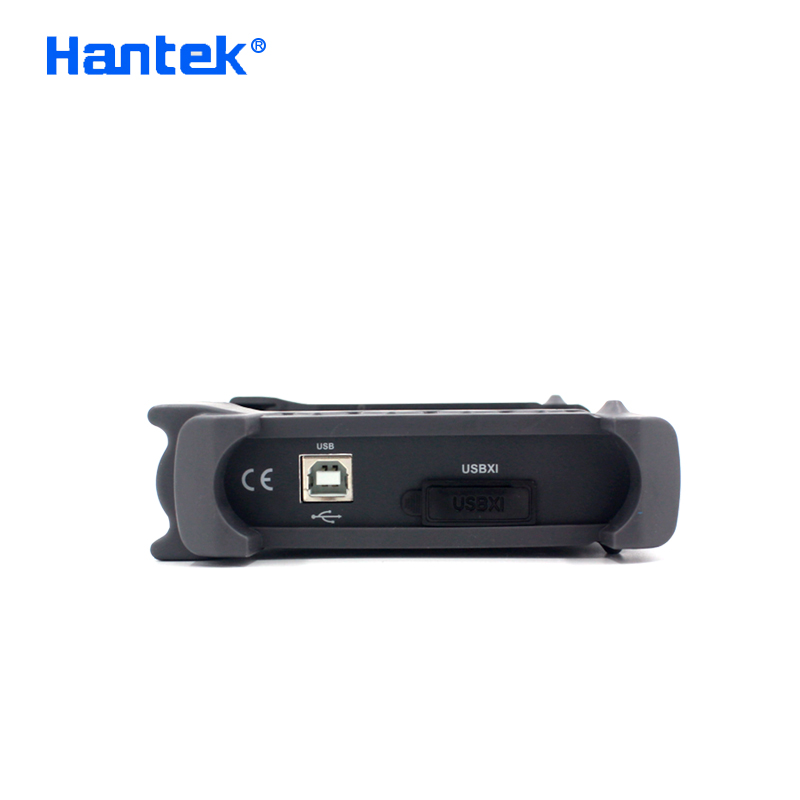

Standard USBXITM interface, easyly inserts into USBXITM housing to make up a combination instrument.

USB2.0 interface, no external power source required, easy to use.

Be suitable for notebook computer, product line maintenance,be used easily on business.

Dimensions (mm):205(L) x120(W) x35(H), be carried easily.

High performance, 48MS/s real-time sampling, 20MHz Bandwidth,

Operating System: Windows 7, Windows 8,Windows 10,

Windows NT, Windows 2000, Windows XP,VISTA.

23 measurement functions, PASS/FAIL Check, be suitable for technical application>

Waveform average, persistence, intensity,invert,addition, subtraction, multiplication, division,X-Y plot.

Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file.

FFT

One computer can connect many DSO, extend channel easily.

Labview\VB\VC\Delphi\C++Builder Second Design instance.


2. Hardware Specification

Channel

2 Channels

Bandwidth

20MHz

Input Impandence

1MΩ 25pF

Max. Sample rate

48MS/s

Vertical resolution

8Bit

Gain range

20mV-5V, 8Steps

DC accuracy

±3%

Timebase range

1ns-9000s, 39 Steps

Vertical adjustable

Yes

Input protection

Diode clamping

X-Y

Yes

Trigger Mode

Auto, Normal and Single

Trigger Slope

+/-

Trigger level adjustable

Yes

Trigger Type

Rising edge, falling edge

Trigger Source

CH1, CH2

Pre/Post trigger

0-100%

Sampling selection

Yes

Waveform Display

port/line, waveform average, persistence, intensity

Network

Open/Close

Vertical mode

CH1, CH2, Dual, ADD

Cursor measurement

Yes

Math

FFT, addition, subtraction, multiplication, division.

Cursor

Frequency, Voltage

Accessories

S/W CD, probes, manual, USB cord



3.Software

Operating system: Windows 7, Windows NT, Windows 2000,Windows XP, VISTA


4.Second Design

Supply DEMO code(VC,CVI,VB,LABVIEW) and technical support.

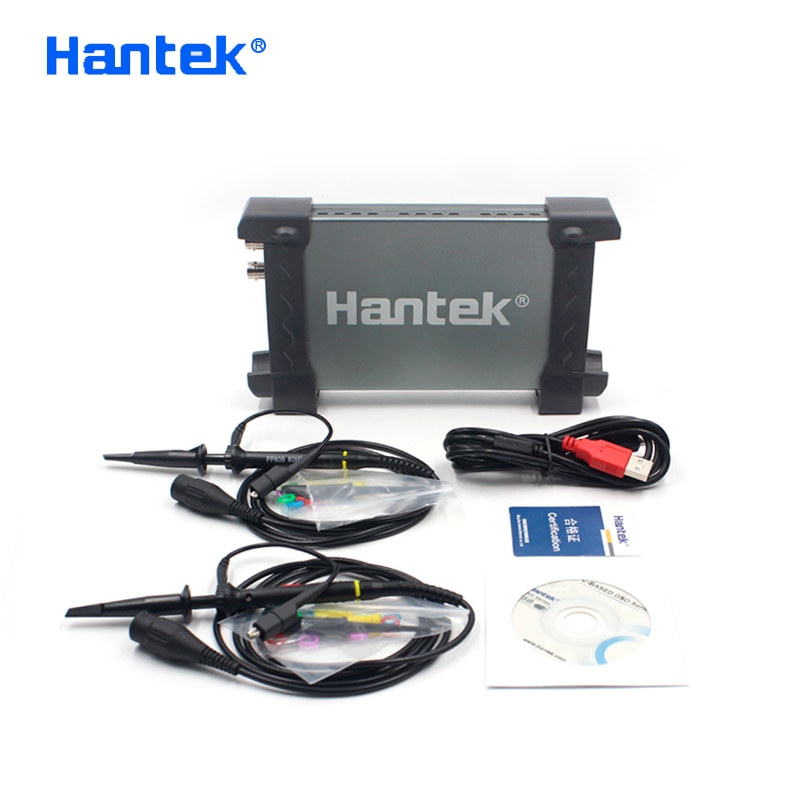

1 * Oscilloscope
1 * USB Cable
1 * CD
2 * Probes
1 * User Manual (in cd)

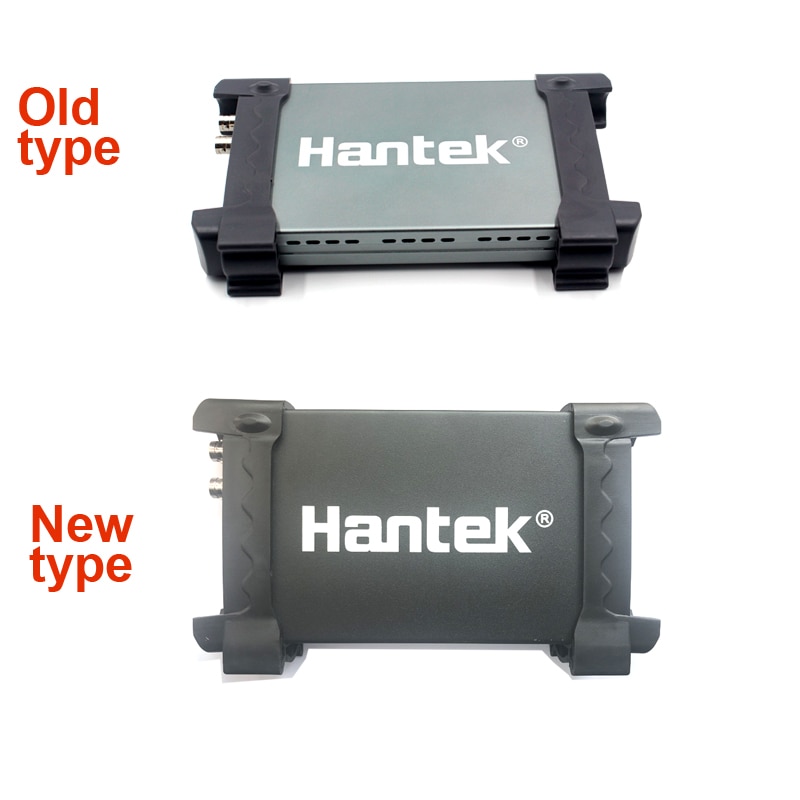

Make notice ,please: There have new design for 6022BE, New type is Black cover case, old type is gray cover case, these 2 type will ship in random, please notice that before order.






  • IS Battery Demountable: No
  • Max Waveform Capture Rate: 30,000wfm/s
  • Record Length: as description
  • Model Number: 6022be
  • Real Time Sampling Rate: as description
  • Display resolution: 0
  • Display Size: None
  • Band Width: Less than 60MHz
  • Digital Channels: 2
  • DIY Supplies: ELECTRICAL
  • Brand Name: Hantek
  • Origin: Mainland China
  • Certification: CE
