Hantek 6074BE Digital Storage Oscilloscopes PC USB Portable Oscilloscopes 4 Channels 70MHz bandwidths Support WIN10
4.5 (17 votes) | 128 orders
Price:
US $377.38 - 462.75
/ piece
Discount Price:
US $
271.72 -
324.63
/ piece
-28%
- Color
-
-
Hantek 6074BE/6074BC/6074BD

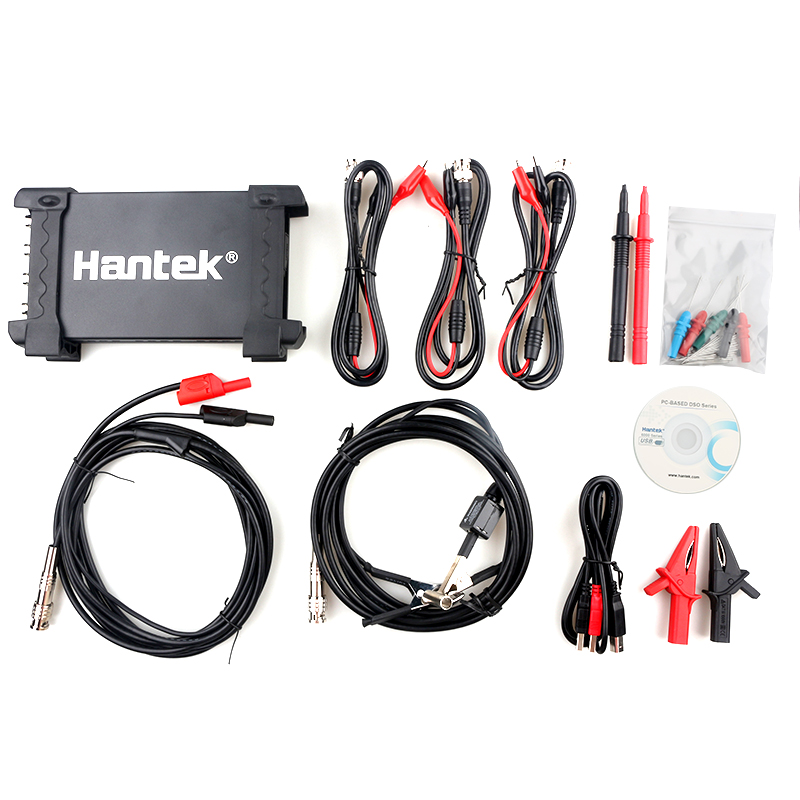

6074BE is a four channel automotive oscilloscope

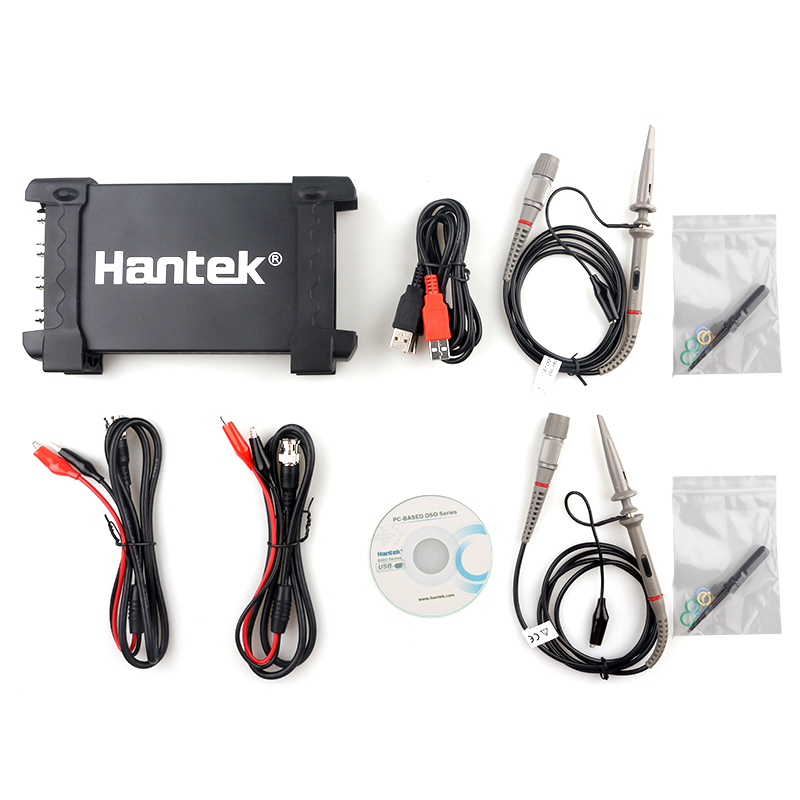

6074BC is a regular four channel oscilloscope

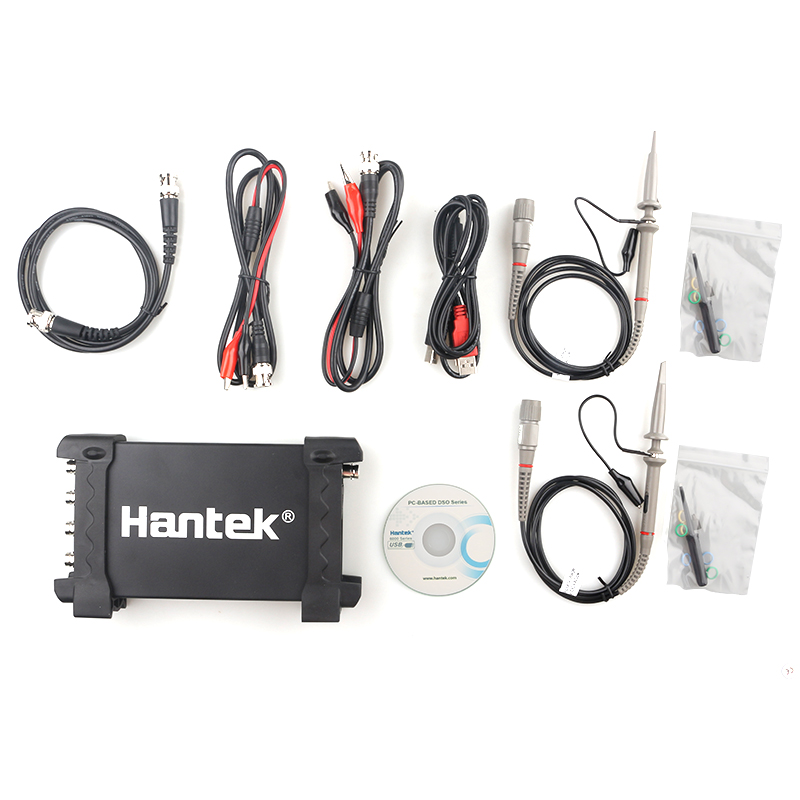

6074BD is an ordinary four channel oscilloscope with a signal generator
USB Digital storage oscilloscopes, portable oscilloscopes 4 channels 70MHz bandwidth automotive oscilloscope
Hantek6074 Series 6 top advantages：
1.Standard equipped over 80 types of automotive measurement function (Ignition Action/The Sensor/Bus Diagnosis/Performer/Startup&Charge);
2.USB 2.0 interface plug and play, and no need extra power supply;
3.Support tablet PC; Support WIN10/ WIN8/WIN7 etc.
4.Free software upgrading constantly, higher cost performance;

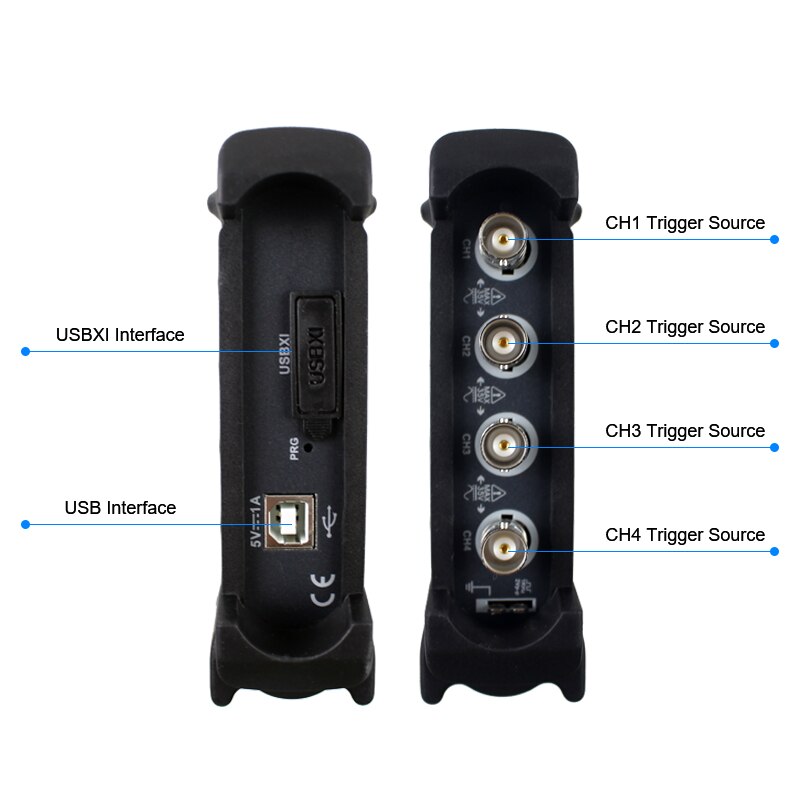

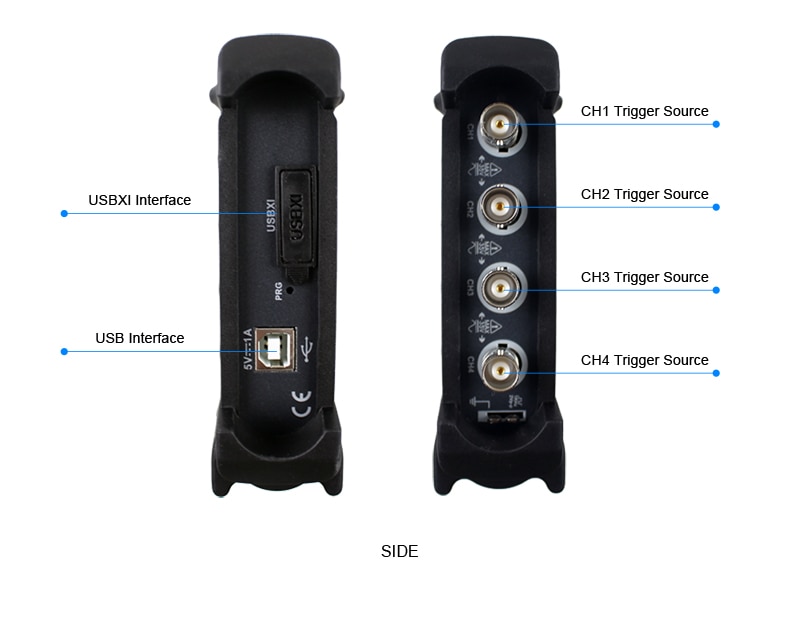

5.Support USBXI, easy to operate. 4 isolated channels oscilloscope, 1GSa/s real time sampling rate, 2mV-10V/DIV high input sensitivity and large input range, 70MHz high bandwidth, small size, easy for carrying.
6.Dynamic cursor tracking, waveform record and replay function.
As the appearance of the product is upgraded, the color may be slightly different, but it will not affect the use.
The difference is The 6074BC does not have a car test option function, and other functions are the same as the 6074BE. The 6074BD has more than one signal generator and does not have the car test option function， Other functions are the same as the 6074BE function.
Feature

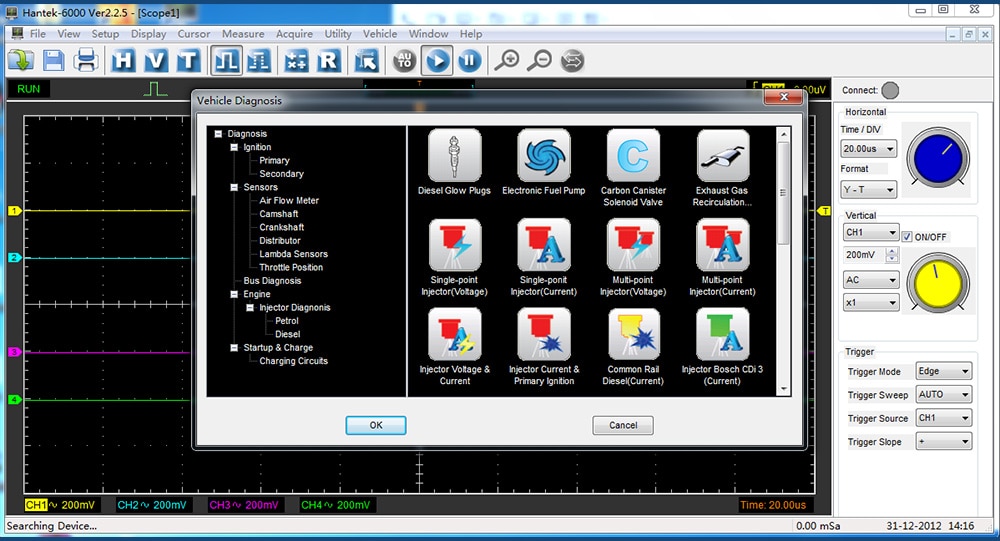

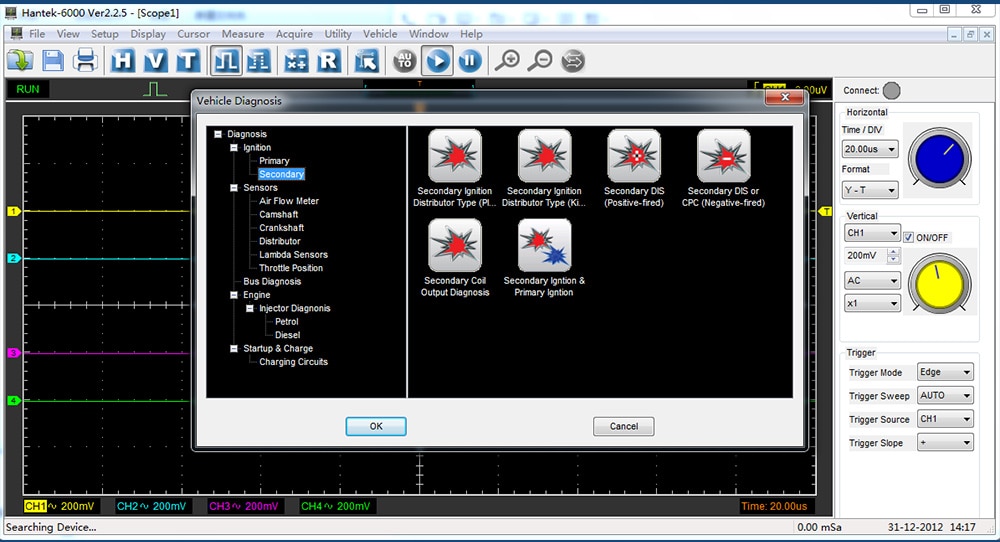

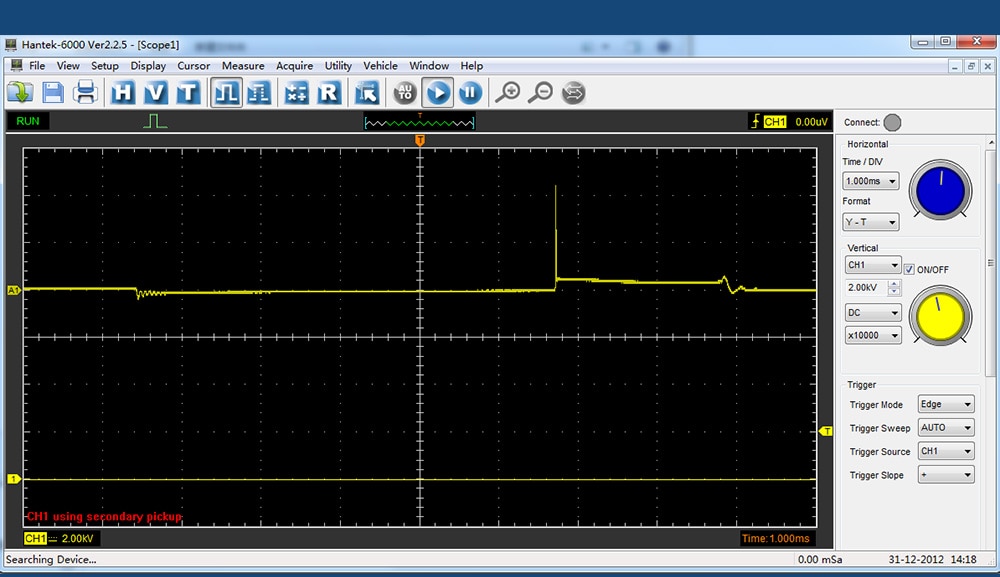

Standard equipped over 80 types of automotive measurement function;First Diagnosis: Intake manifold vacuum ignition,Petrol fumes adjusting valve vacuum ignition,Idle exhaust ignition, Starting exhaust ignition;Ignition: primary and secondary;Sensor:Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position;Bus Diagnosis:CAN bus data examine, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus;Performer: Petrol/Diesel
Fit for the portable computers, table PC, and suitable for wild mobile use and business trip use. Support WIN10/ WIN8/WIN7 etc.
USB 2.0 interface plug and play, and no need extra power supply;

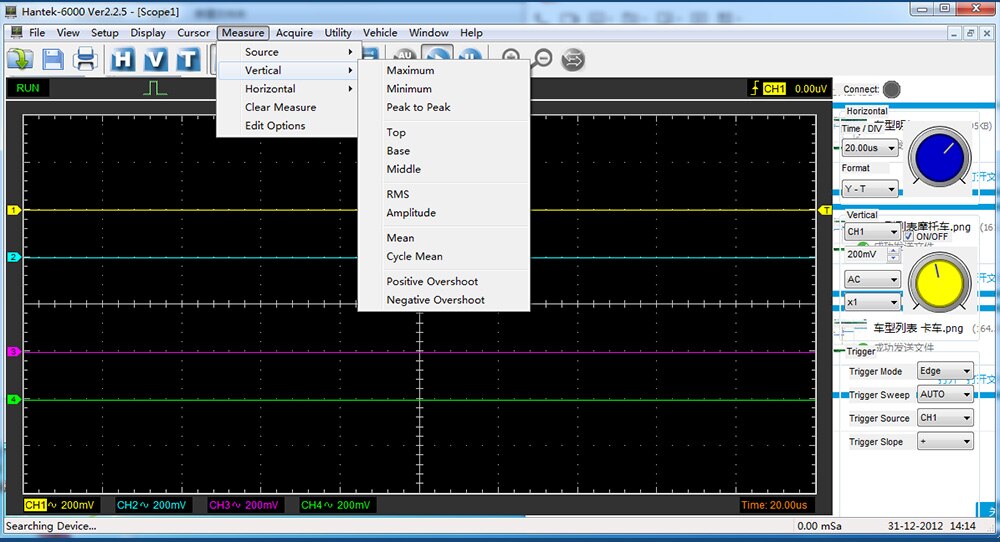

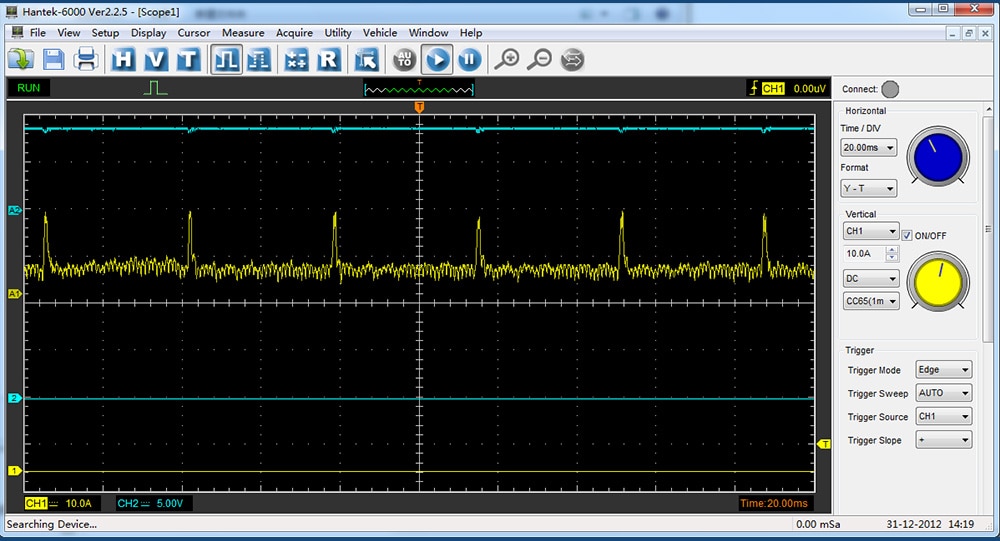

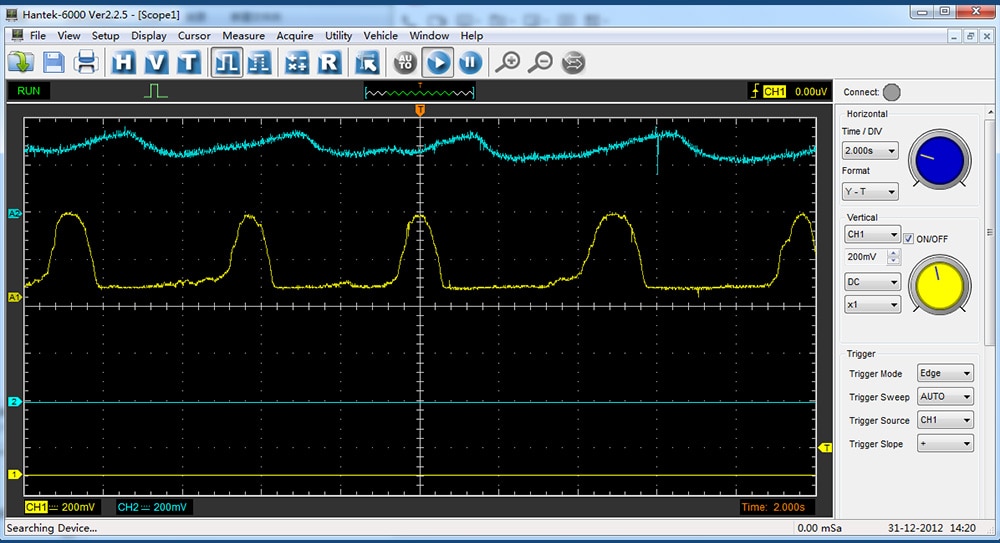

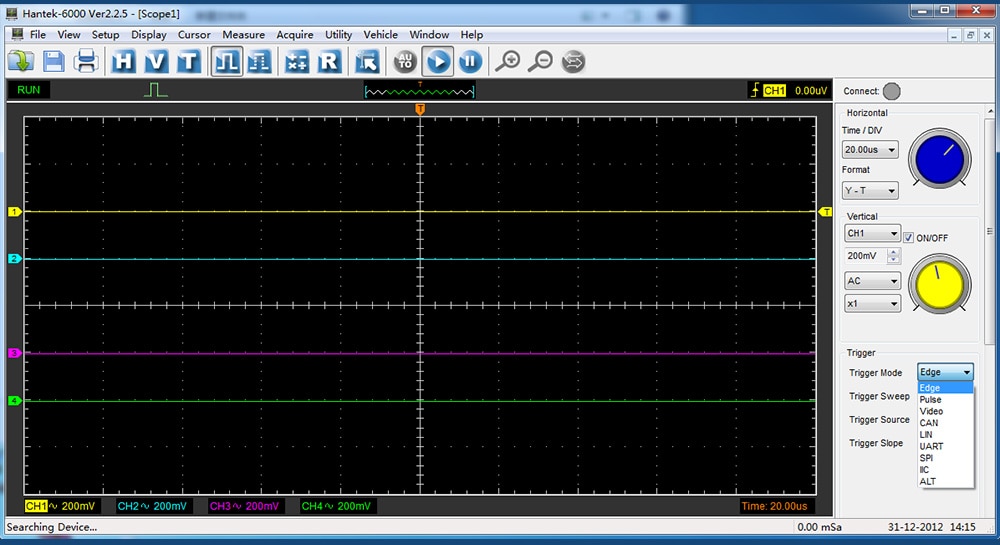

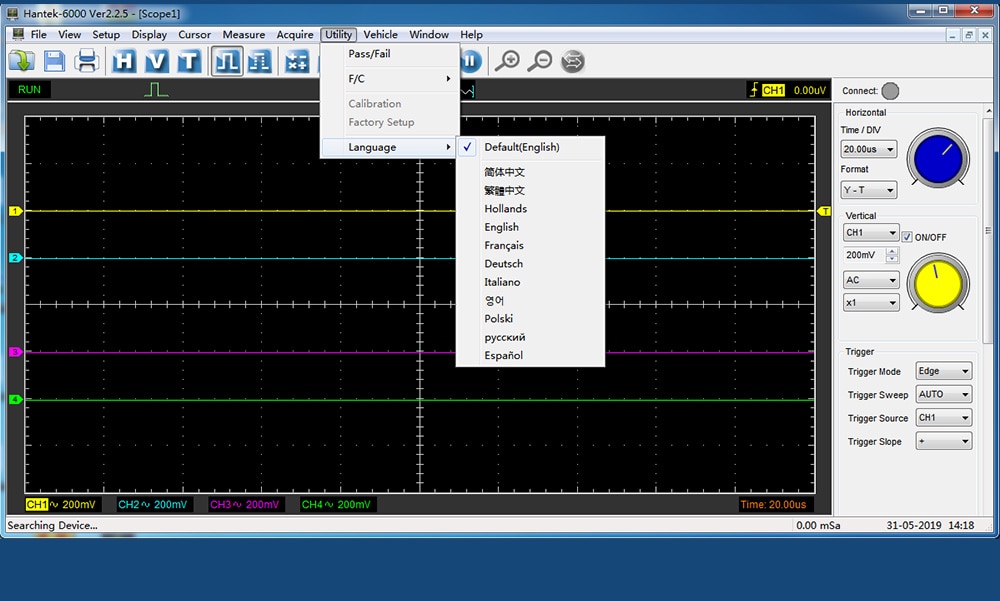

Great function, More than 20 kinds of automatic measurement function, PASS/FAIL Check function. Resourceful trigger function, dynamic cursor tracking, waveform record and replay function.

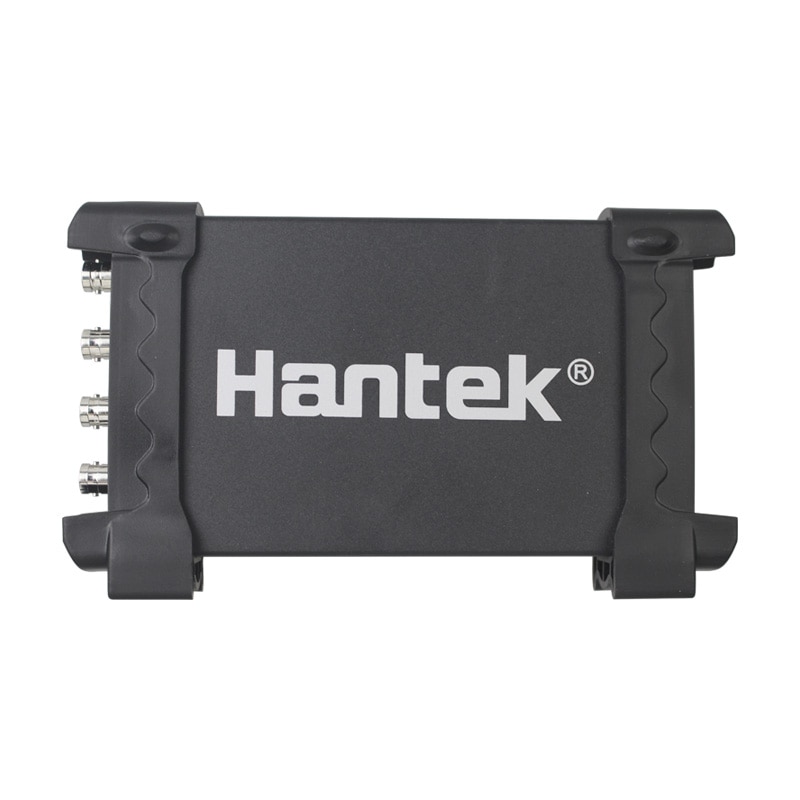

Good mechanical design with small size which is easy for carrying. The outer case is made by the same material with iPad - Anodised aluminium. It has great heat resistance and abrasive resistance with beautiful appearance. The hardness of aluminium alloy surface is greatly improved.
4 isolated channels oscilloscope, 1GSa/s real time sampling rate, 2mV-10V/DIV high input sensitivity and large input range, 70MHz high bandwidth.
The waveform data could be output to EXCEL,BMP,JPG.
Waveform averaging, afterglow,lightness control, reverse, add, subtract, multiply, divide, X-Y display.
FFT spectrum analyzer
One computer could connect with multiple oscilloscopes, expand the channel number easily.
Provide secondary development library DLL; Provide Labview\VB\VC\QT developing example

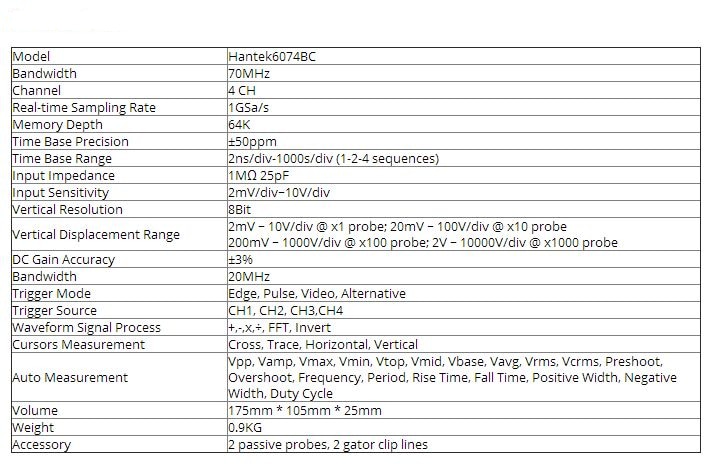

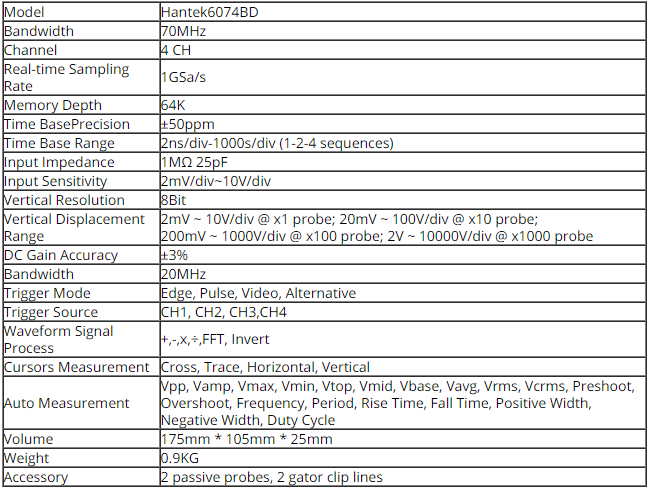

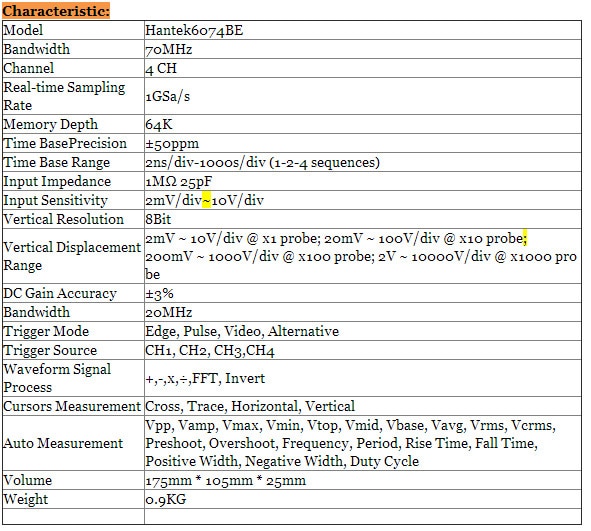

- IS Battery Demountable: No
- Max Waveform Capture Rate: 30,000wfm/s
- Record Length: 64k
- Model Number: Hantek 6074BE/6074BC/6074BD
- Real Time Sampling Rate: 1GSa/S
- Display resolution: 800*480 Pixels
- Display Size: 2.9 Inches & Under
- Band Width: 60-99MHz
- Digital Channels: 4
- DIY Supplies: ELECTRICAL
- Brand Name: Hantek
- Origin: Mainland China
- Certification: CE
- Hantek: digital oscilloscope
- oscilloscope 1: oscilloscop kit
- oscilloscope 2: digital oscilloscope portable
- oscilloscope 3: oscilloscop usb
- oscilloscope 4: sonda osciloscopio
- Oscilloscope 5: oscilloscope test leads
- Oscilloscope 6: Handheld Portable Osciloscopio
- model: 6074BE/6074BC/6074BD
