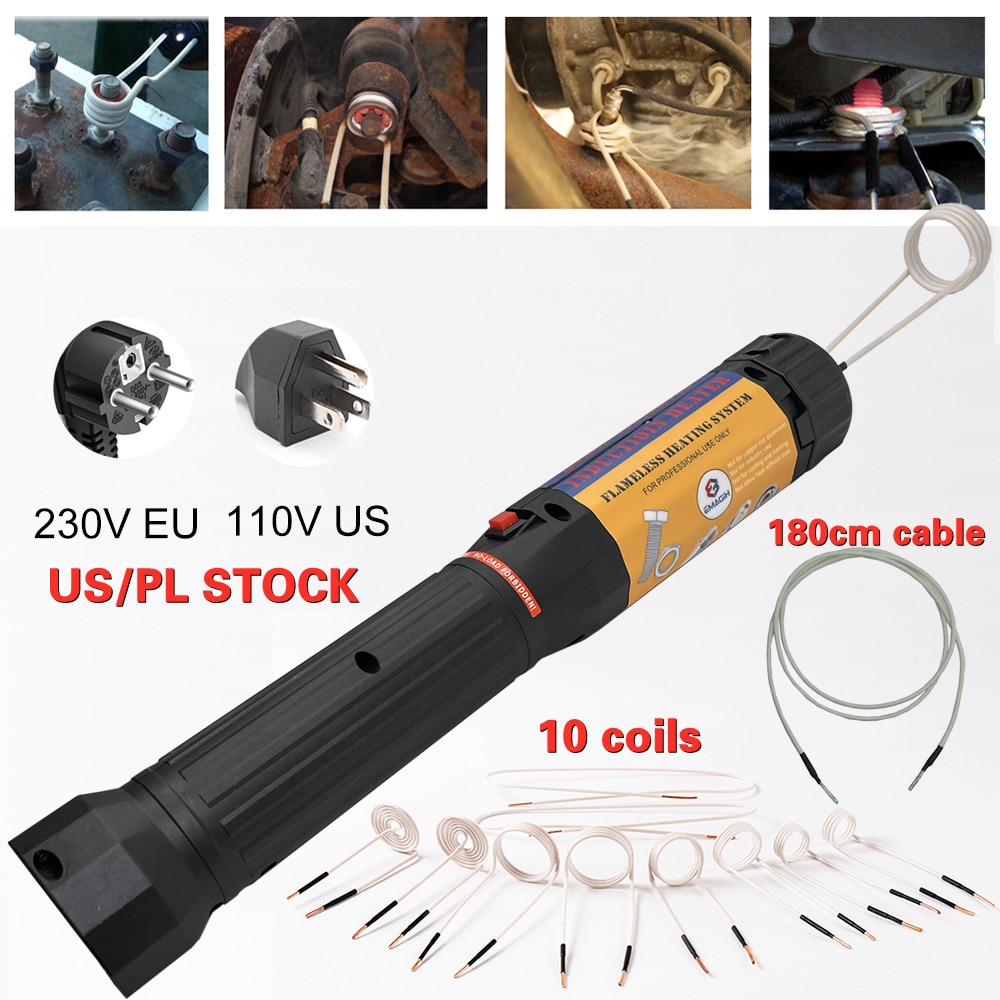

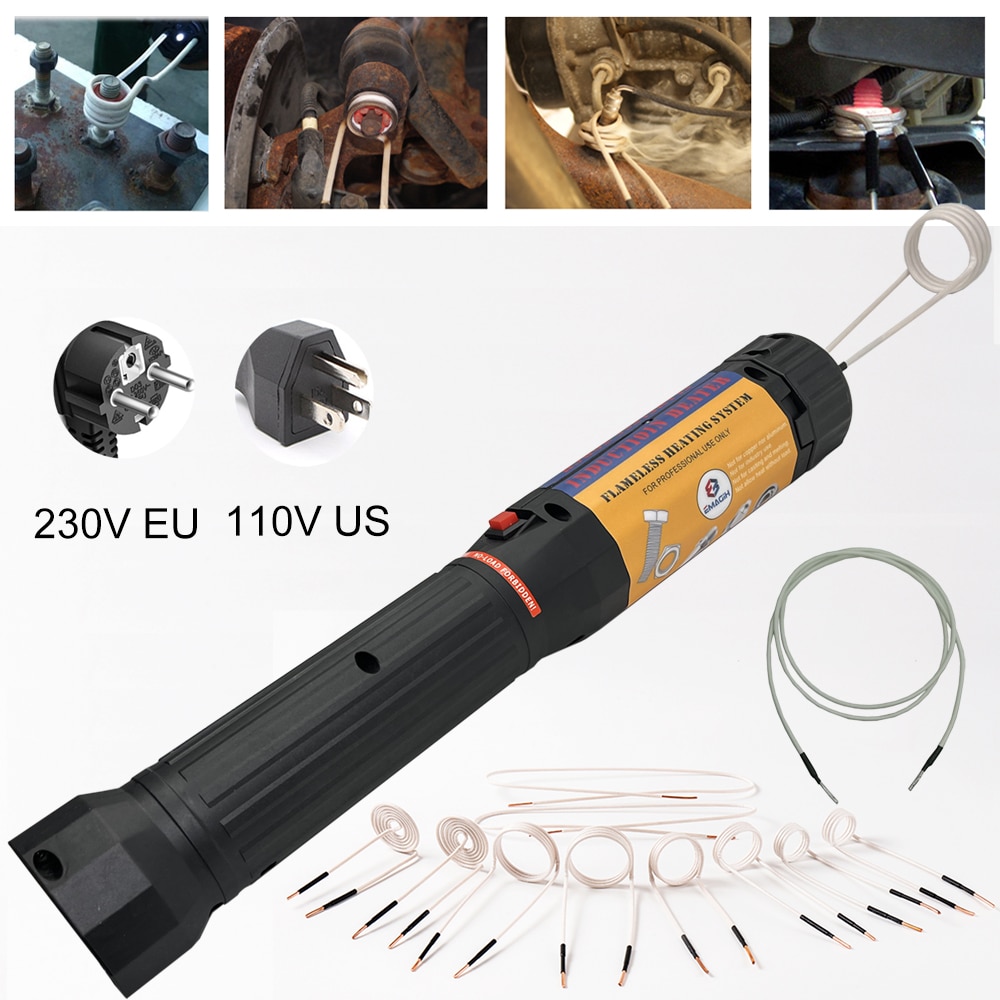

Max Power 1250 Watts Mini Flameless Magnetic Induction Heaters Car Bolt Remover Repair Tools
including 10 pieces of coil and 1 pieces Flexible cable length 1800mm.
Introduction:
The machine applies magnetic induction technology to heat treat small parts of automobiles, machinery, various metal parts, and polyethylene. It is mainly used to heat various automobile corroded bolts, nuts, gears, pulleys, pulleys, bearings, inductors, etc. .
There is no open flame, no need to avoid flammable materials such as plastic;
No need for water cooling, safe operation, easy to use and easy to carry.
Specifications:
Name: Emagih Electromagnetic Induction Heater
Main Material: Metal
Voltage: AC 220V/110V
Frequency: 50/60Hz
Rated Current: 5.7 A/ 11A
Maximum Output Current: 150A
Power: 1250W Max
Highest Heating Temperature: 800℃
Instrument-protection Temperature: 80℃
Ambient Temperature: -40℃ to 60℃
Relative Humidity: <95% RH
Atmospheric Pressure: 86KPa-100KPa

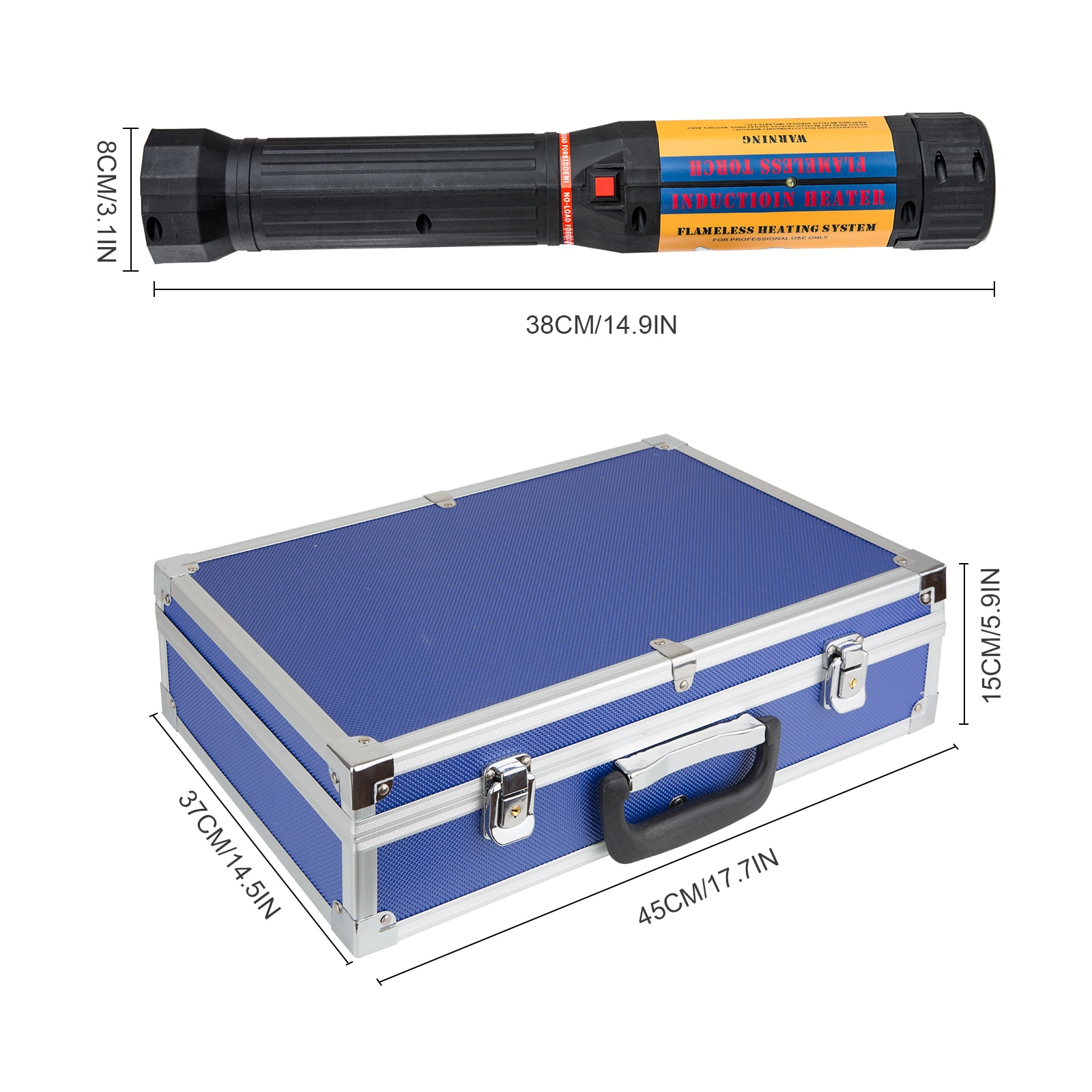

Package Size: 450 x 280 x 130 mm/17.72" x 11.02" x 5.12"
Package Weight: 3350g /6.61 lb

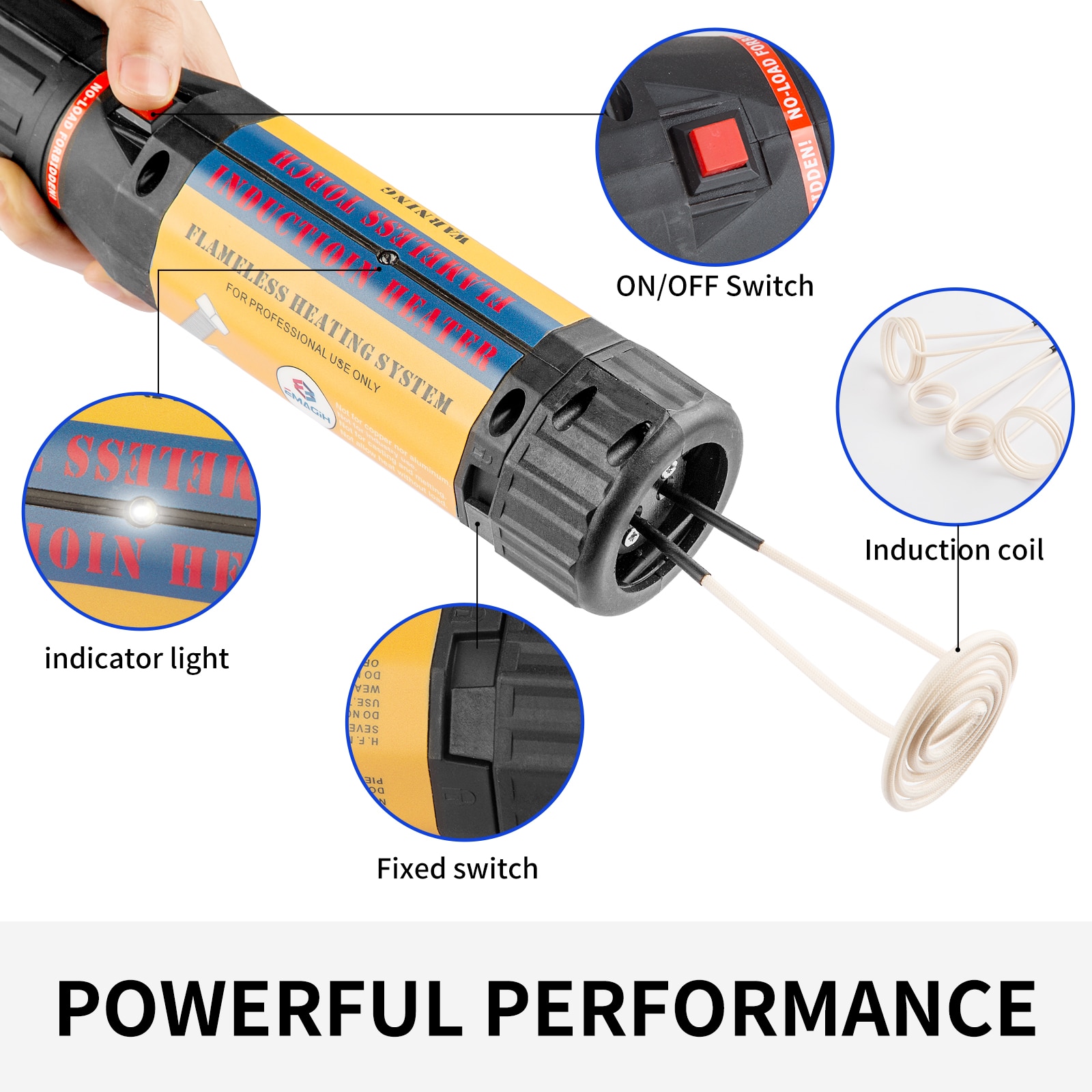

Features:
- The head can rotate to lock the coil by emagih twist design.
- With IGBT overcurrent-protection function.
- With IGBT over-temperature-protection function.
- With heating coil short-circuit-protection function.
- With heating coil open-circuit-protection function.
- Full-bridge series resonance circuit topology, with strong anti-interference ability.
- Adopts high-performance IGBT driver chip to drive, can precise drive and output waveform.
- With soft-start function, with long service life, safe and reliable, under frequent starts.
- With input and output overcurrent-protection, automatic adjustment negative feedback function.
- Several electromagnetic heating controllers are installed in parallel on the same heating tube without interference.
- Power saving, and easy installation, it can be connected to induction coils of barrel type and flat plate type, and etc..
- Automatic load identification and phase lock function, so that the load side emagih can get a higher power factor, and the circuit can be accurately controlled in the weak inductive area and work efficiently.

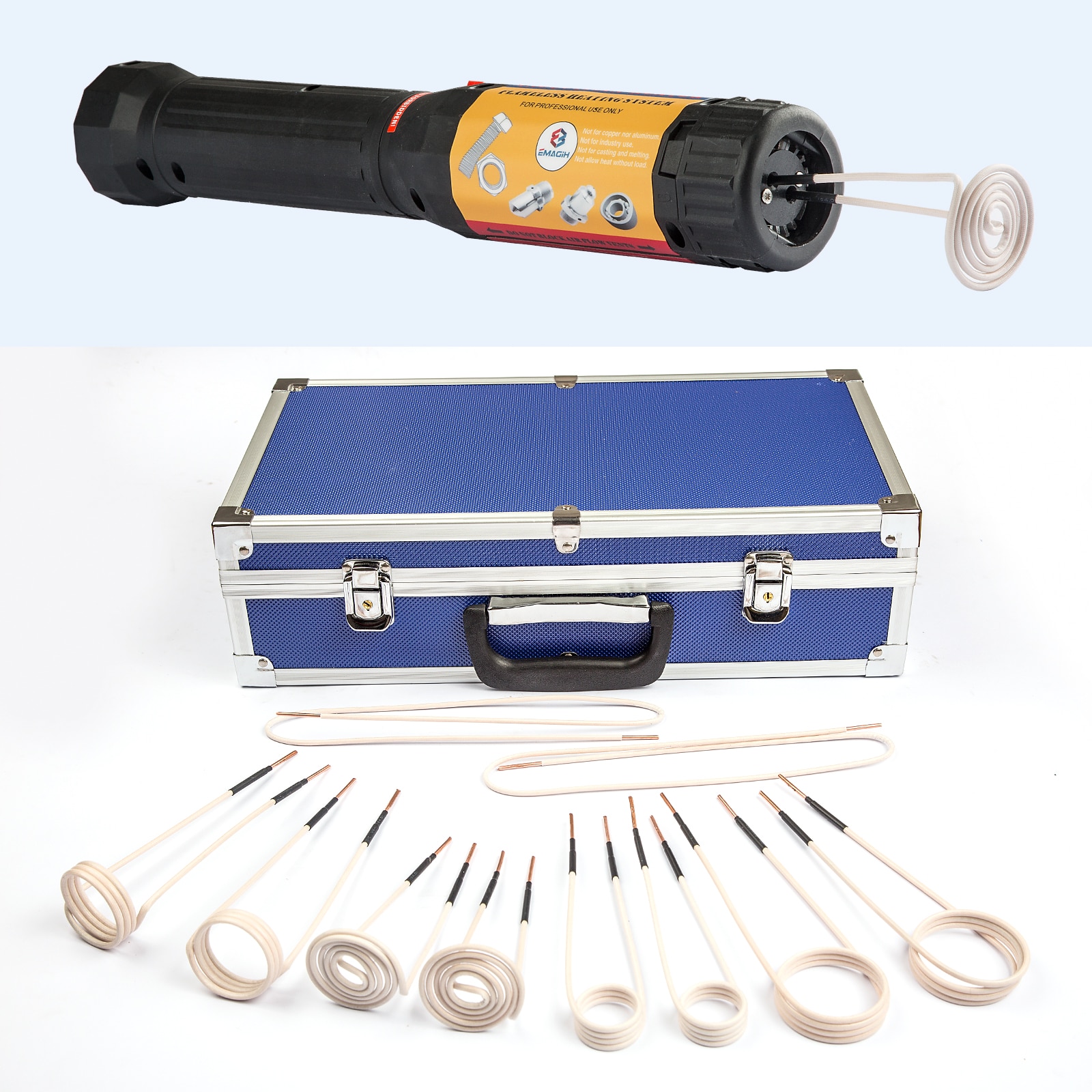

Package Included:
1 x Electromagnetic Induction Heater 220V with EU Power plug or 110V With US Power Plug
2 x Dia 30mm Coil
2 x Dia 40mm Coil
2 x Dia 50mm Coil
2 x Flat coil for remove sticker
2 x Annealed Copper Wire
1 x Flexile Cable Length 1800mm.

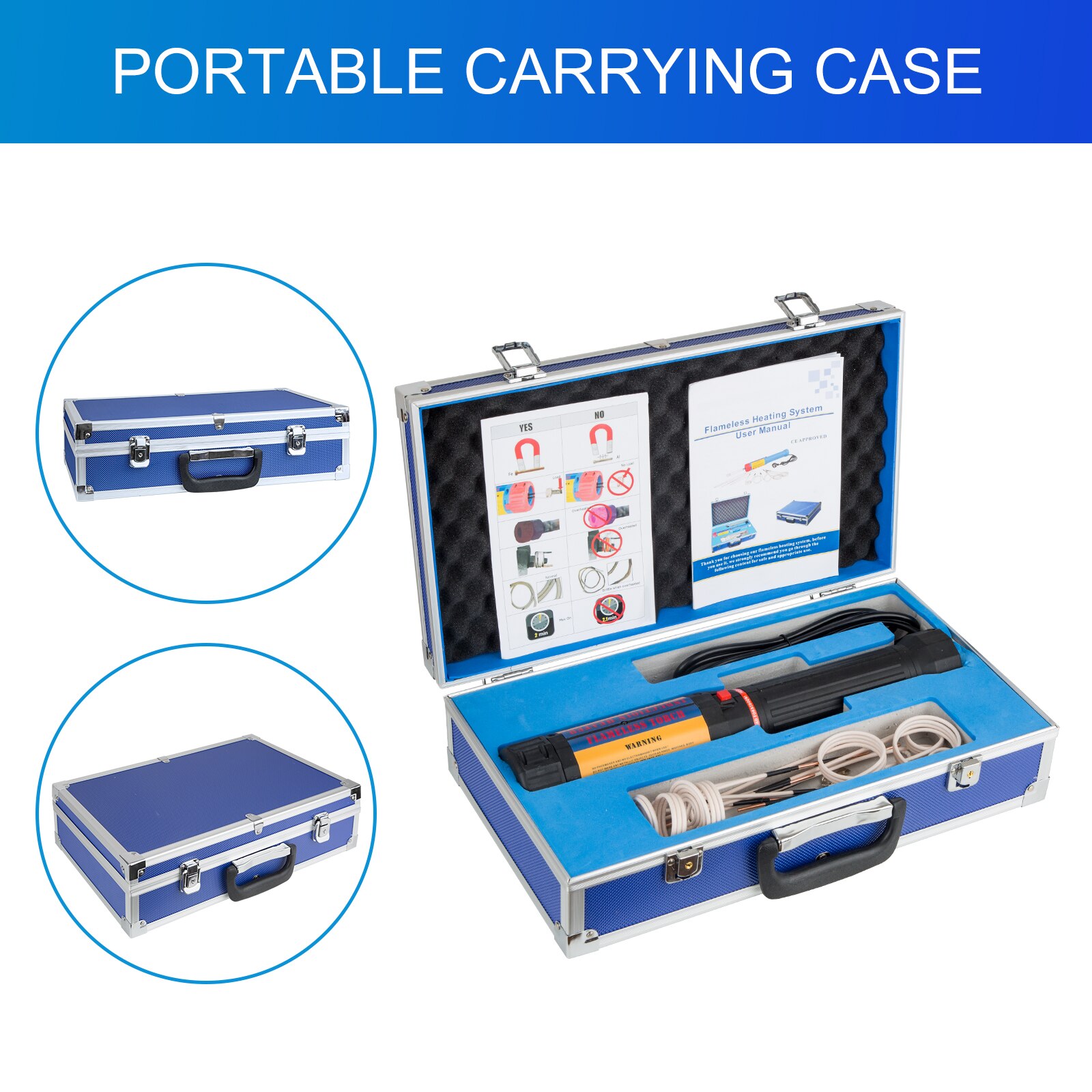

1 x Storage Box

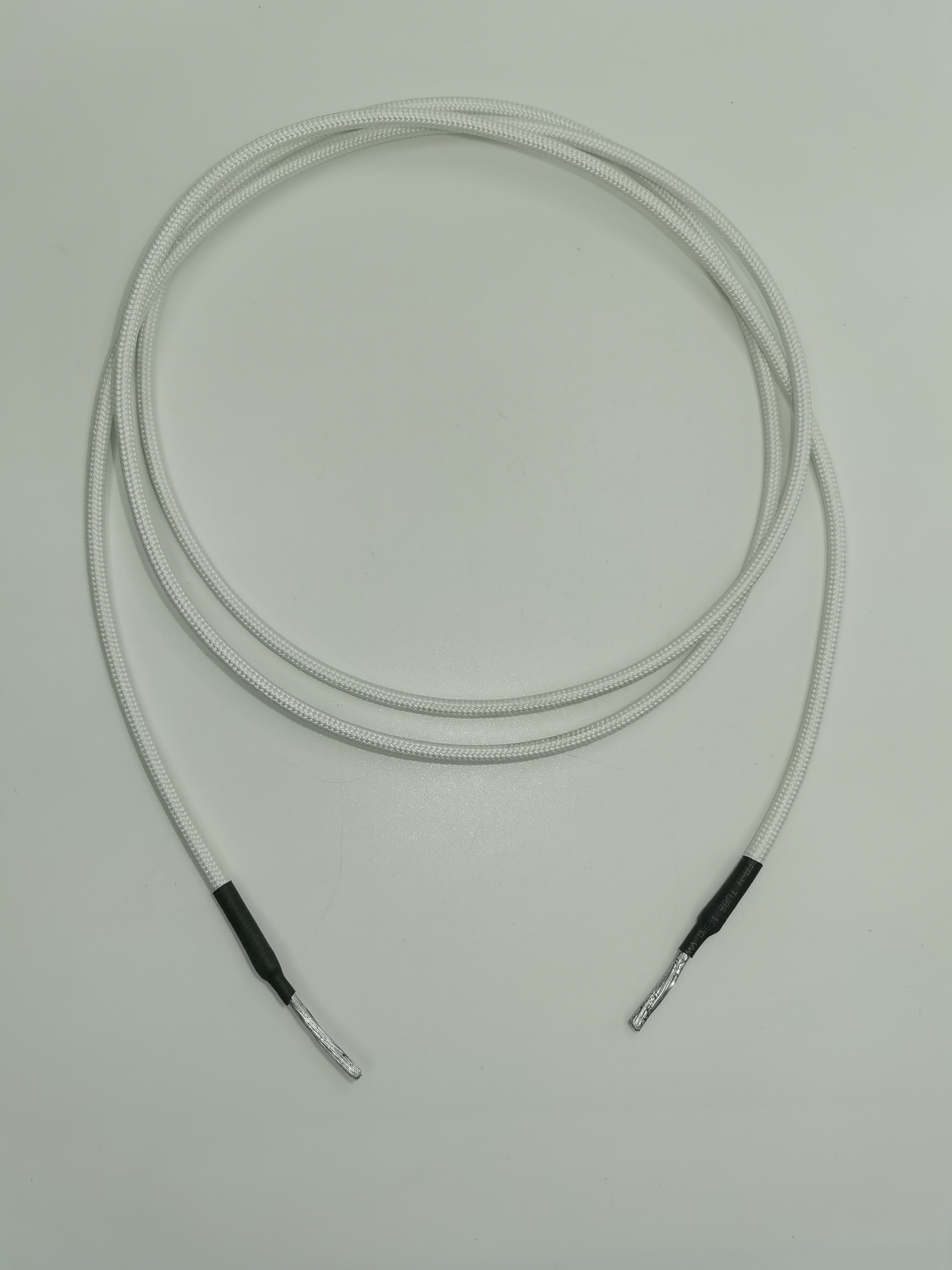

Soft copper cable length 1800mm
Suitable for Bearing inner ring heat for Motor repair and installation.
Gear heating and installation.
And other flexible induction heating.
Notes:
1.Manual measuring, please allow 1 ~ 3 cm error, thank you.
2.Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.Please understand, thank you!

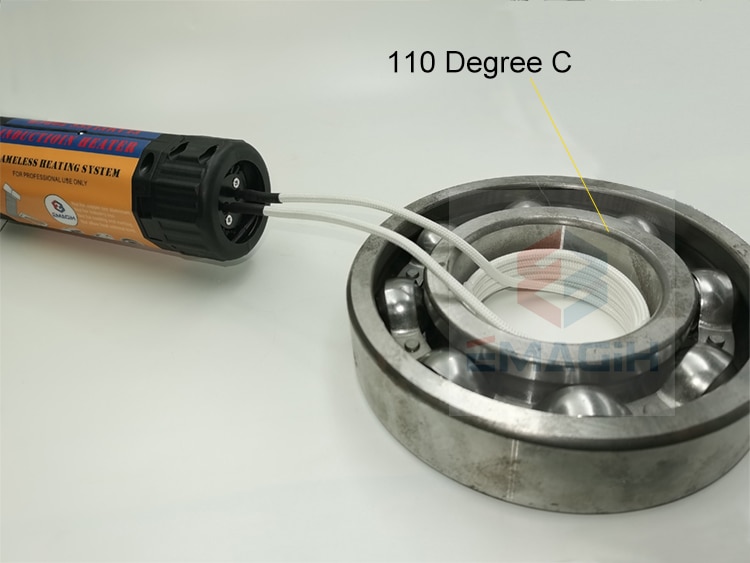

PS. Heating bearing works output power around 400Watt-500Watt. Not 1250 Watt Max.

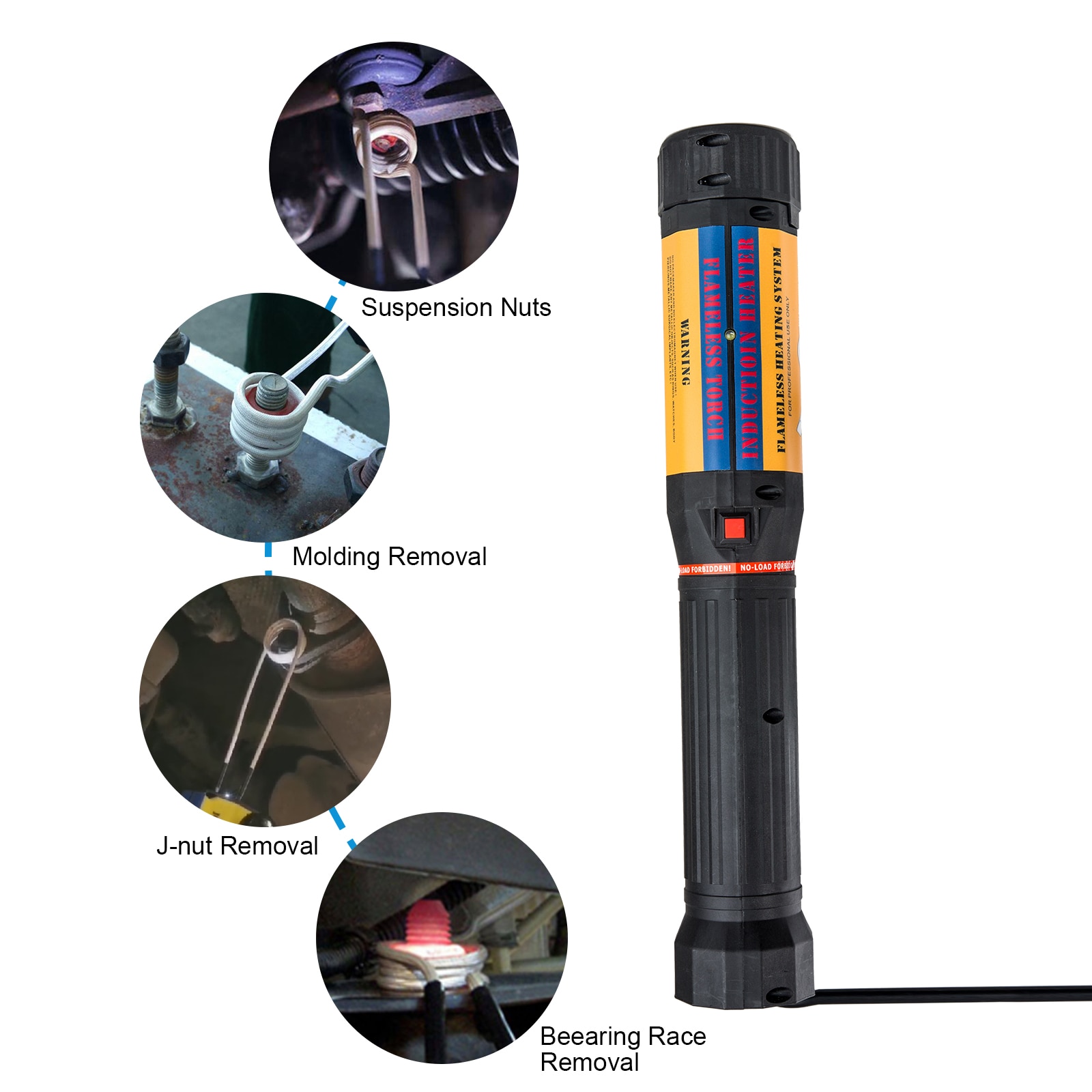

Mini Induction heater application for:

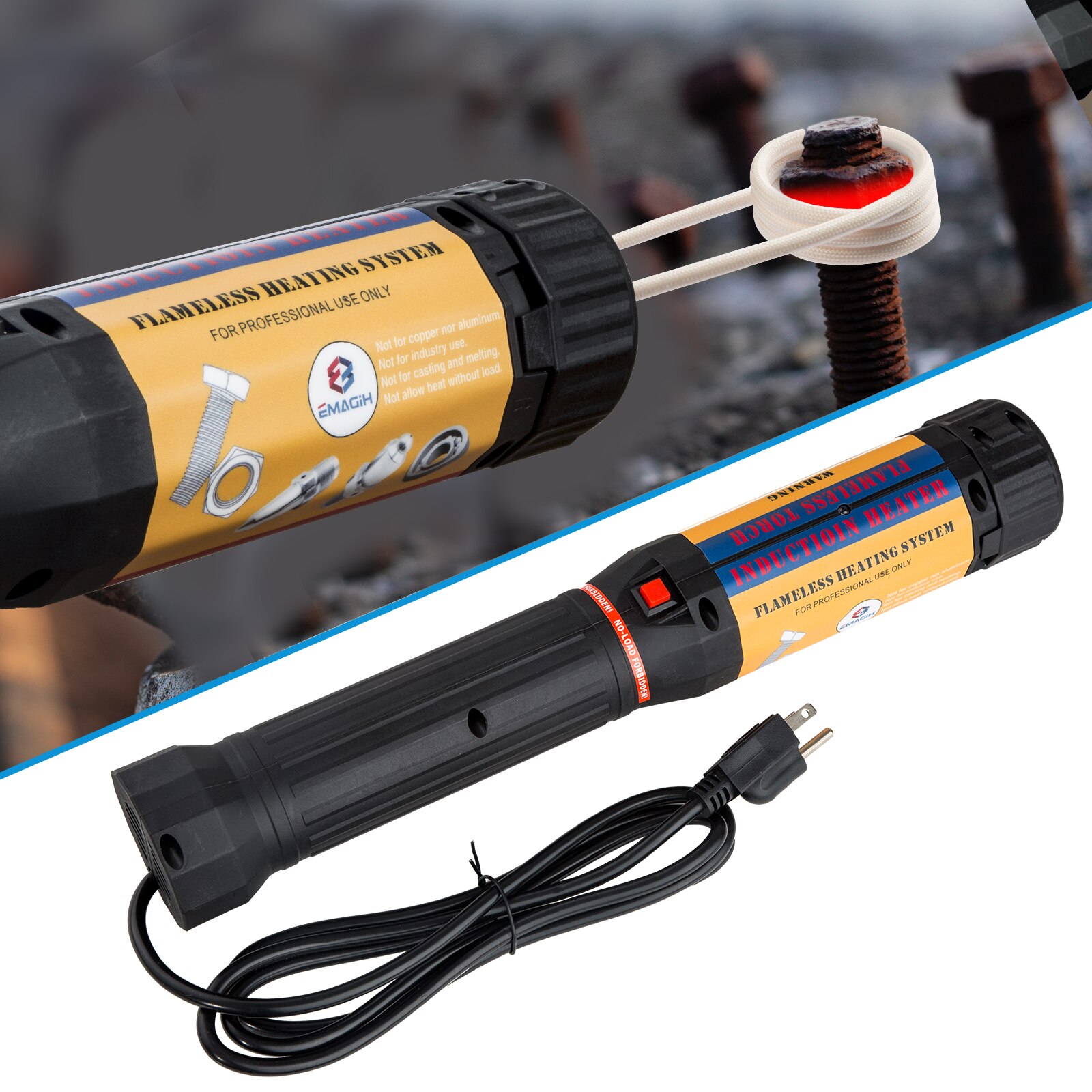

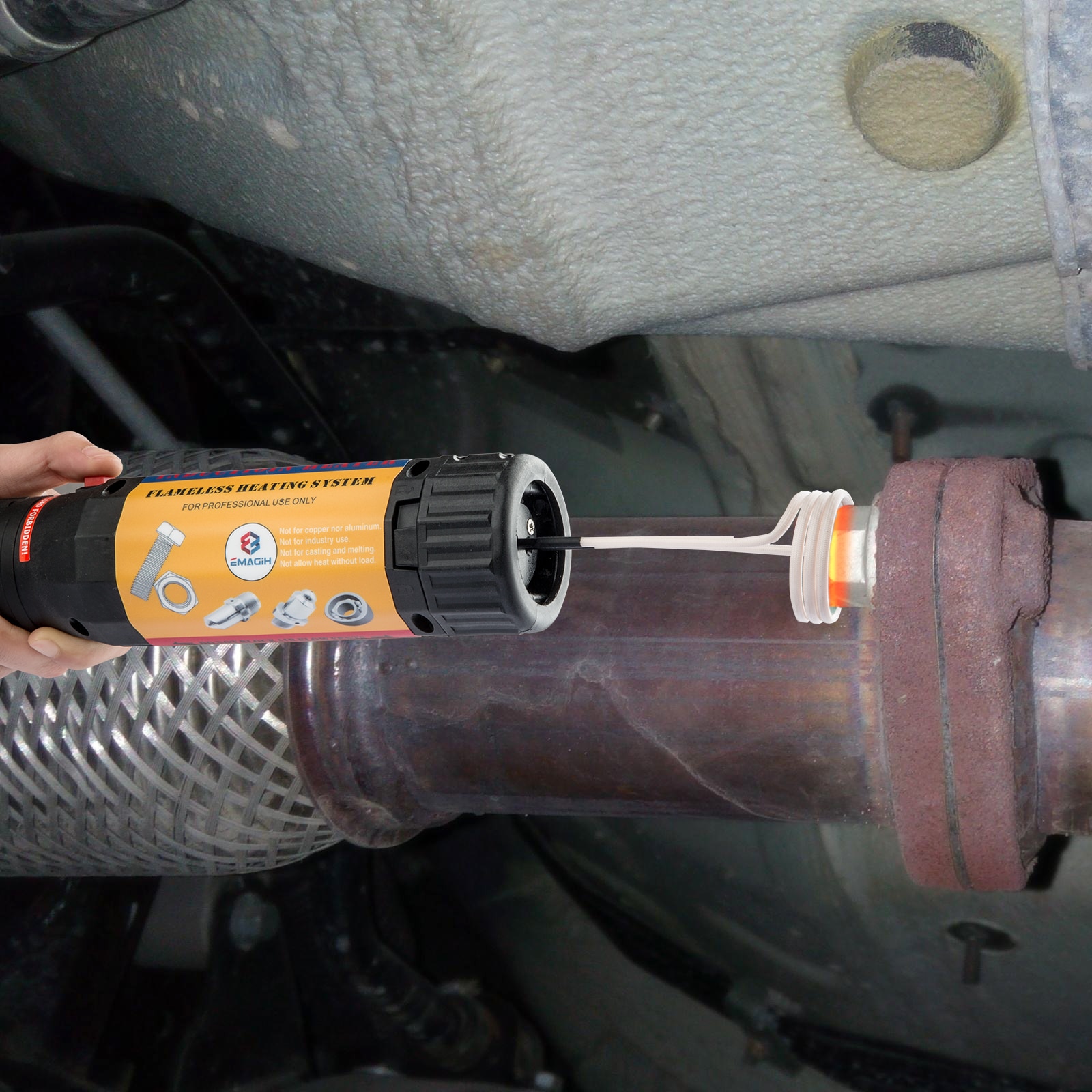

1. Preheat become attached or rusted fasteners and parts that need to be separate
2. Straighten small hail and other similar dents without painting paint layer without breaking the car, Removal of Strip on auto body parts when you restore or straightening.
3. Burning silent blocks, pressed on beams running gear or other machinery and equipment.
4. Heat treatment of metal parts, hardening, tempering, normalizing.

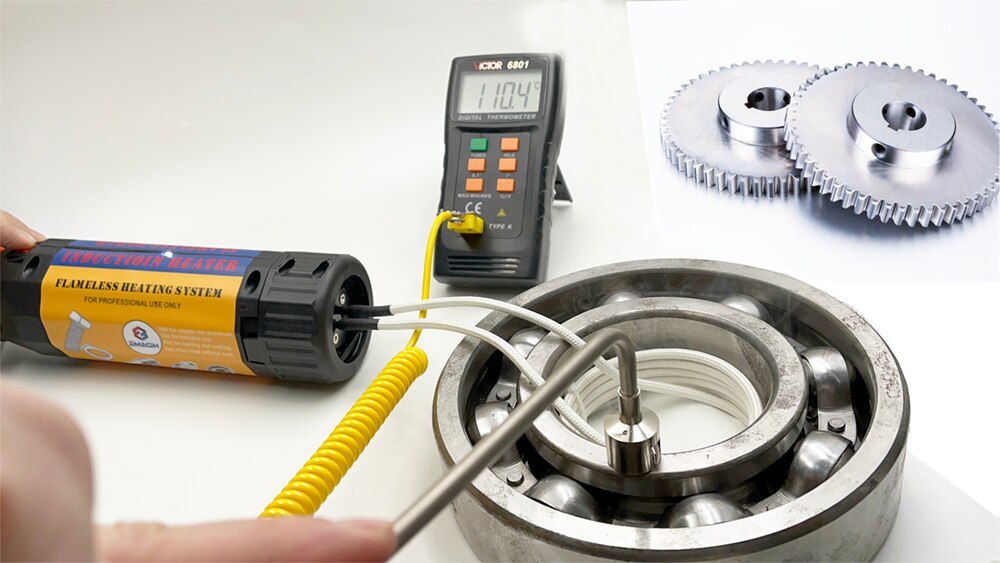

5. Pressing bearings on a hot landing, as well as flowability.
6. Snyatie small laminated glass sealants for metal.

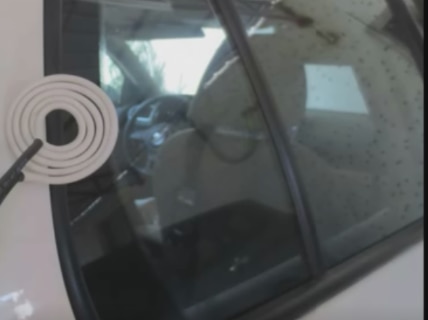

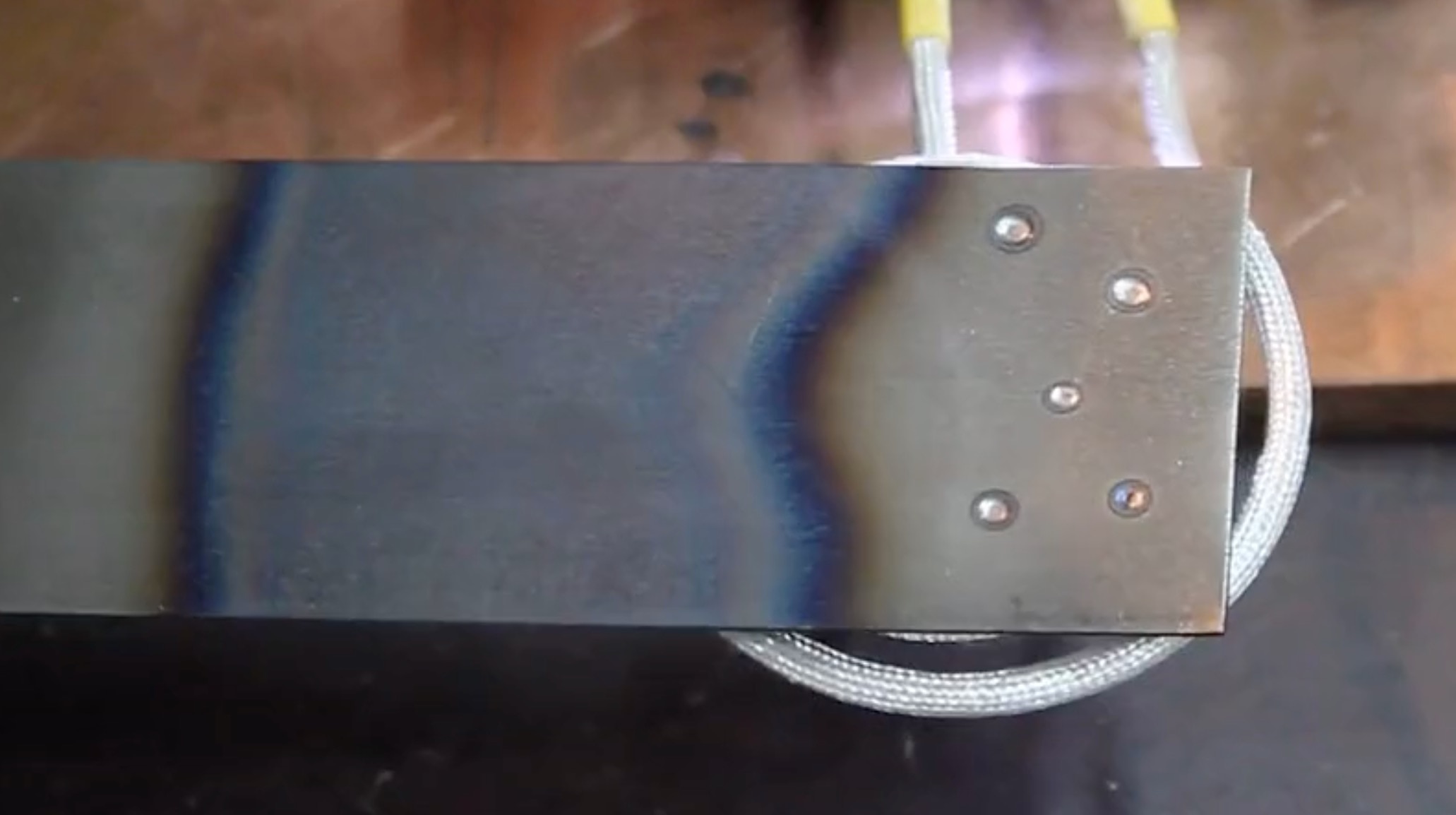

7. Removing glued on painted metal spoilers, moldings, stickers.
8. The heating of the surface of the hood or other surfaces to be coated vinyl.
9. Removing rust from metal and car body by high-speed heating parts, and flaking rust.
10. Removing paint coating to a metal surface or body cars.
Warings
Not Available For Copper tube or Aluminum Tube soldering.
