USB 2.0 Easy cap Audio Video Capture DVR Card Adapter VHS to DVD Converter for Windows 10/8/7/XP
16.38 14.59 $
SALE
ID: 79226
Quantity
H.265 1080P HDMI Video Encoder with SD Card Slot for IPTV/Video Recording/Live Broadcast to YouTube Facebook Vimeo TS RTMP RTSP
0.0 ( votes) | 1 orders
Price:
US $202.48
/ piece
Discount Price:
US $
179.41
/ piece
-11%
H.265/H.264 1080P HDMI Video Encoder W/SD Card Slot for IPTV/Live Broadcast/Conference/Video Encoding
Product Advantages of H.265/H.264 1080P HDMI Video Encoder W/SD Card Slot for IPTV/Live Broadcast
1 | Multiple Broadcasting - It's suitable for not only pulling stream to your own server via TS (H.265/H.264 supported) like IPTV, but also pushing stream via RTMP (H.264 only supported) to Wowza Streaming Engine, YouTube, Twitch, Ustream, Facebook Live, Livestream, Wirecast, vMix etc. to do broadcasting. It's also supported to push stream via dual addresses. |
2 | Multiple Applications - It's applicable for IPTV, video conference, video game, telemedicine, remote teaching, major events, WeMedia etc. live broadcasting, CCTV surveillance, NVR, recording system etc. |
3 | Multiple Protocols - TCP/IP, DHCP, DNS, DDNS(3322, Oray), HTTP, RTP, RTSP, RTMP, TS, UDP, ONVIF, Multicast etc protocols supported. It's compatible with Hikvision private prococol which make it manageable with iVMS-4200/8700 and video recorded at H.265 with Hikvision's NVR. |
4 | Cross Browsers - Real cross browers supported like IE, Microsoft Edge, Google Chrome, Firefox, Safari etc. With user-friendly UI, users can also preview live video directly over browers, set audio as AAC, bitrate as 500(recommended), insert your logo(jpg at 200x200px) and OSD text, and remote upgrade etc. |
5 | Recording & Download - Pretty easy to record real-time videos if you'd like to save them into the inserted SD card (max. 128G) in MP4, just pressing the reset/record button for one second. Just press it again and it will stop recording. Easy to preview and download the recorded videos by accessing the encoder. |
Specification of H.265/H.264 1080P HDMI Video Encoder W/SD Card Slot for IPTV/Live Broadcast
SOC | Basics | User: admin; Password: 12345; IP: 192.168.120; |
Model | ON-DMI-16E | |
Chip | Hi3516E (1080P@45fps) | |
Video Input | By HDMI, Max. 1080P@45FPS | |
Video & Audio Encoding | Video Encoding | H.265/H.264 Video Encoding |
Audio Encoding | AAC/G.711U/G.711A Audio Encoding; Audio Sampling up to 128K | |
Bit Rate | CBR & VBR; 64kbps~12Mbps [Adjustable] | |
Frame Rate | 50Hz: 1-25fps; 60Hz: 1-30fps [Adjustable] | |
Resolution | Main Sream: 1920*1080,1600*900,1440*1050,1440*900,1360*768,1280*1024,1280*720; Sub Stream: 704*576,640*480,640*352,352*288,320*240; Mobile Stream: 720*576,720*540,720*480,720*404,704*576,640*480,640*360,352*288,320*240; | |
Video Stream | UDP Multicast | UDP://@224.1.2.3:10000 |
TS Stream | http://192.168.1.120:80/ts/0 (Main Stream) http://192.168.1.120:80/ts/1 (Sub Stream) | |
RTSP Stream | rtsp://192.168.1.120:554/Iive/0 (Main Stream) rtsp://192.168.1.120:554/Iive/1 (Sub Stream) | |
Protocol | Network Protocol | TCP/IP,DHCP,DNS,DDNS,HTTP,RTP,RTSP,RTMP,RTMP,TS,UDP,ONVIF,WiFi |

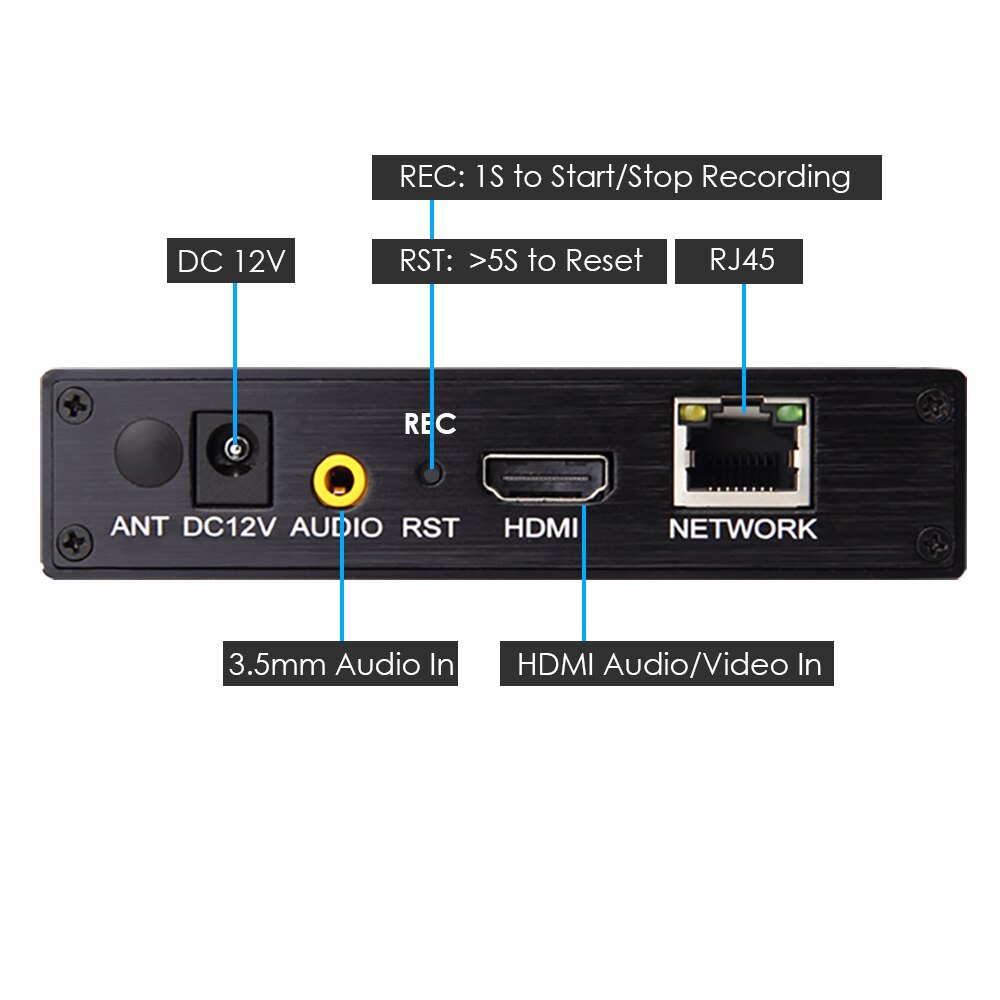

Interfaces | Network Interface | 1ch RJ45 10M/100M Self Adaptive Ethernet Port |
Audio Interface | 1ch MIC Input[Line-in], 1ch Audio Output | |
HDMI | 1ch HDMI Video Input | |
Reset | 1ch Reset/Record(Press it for one second to start/stop recording, Press it for more than 5 seconds to reset) | |

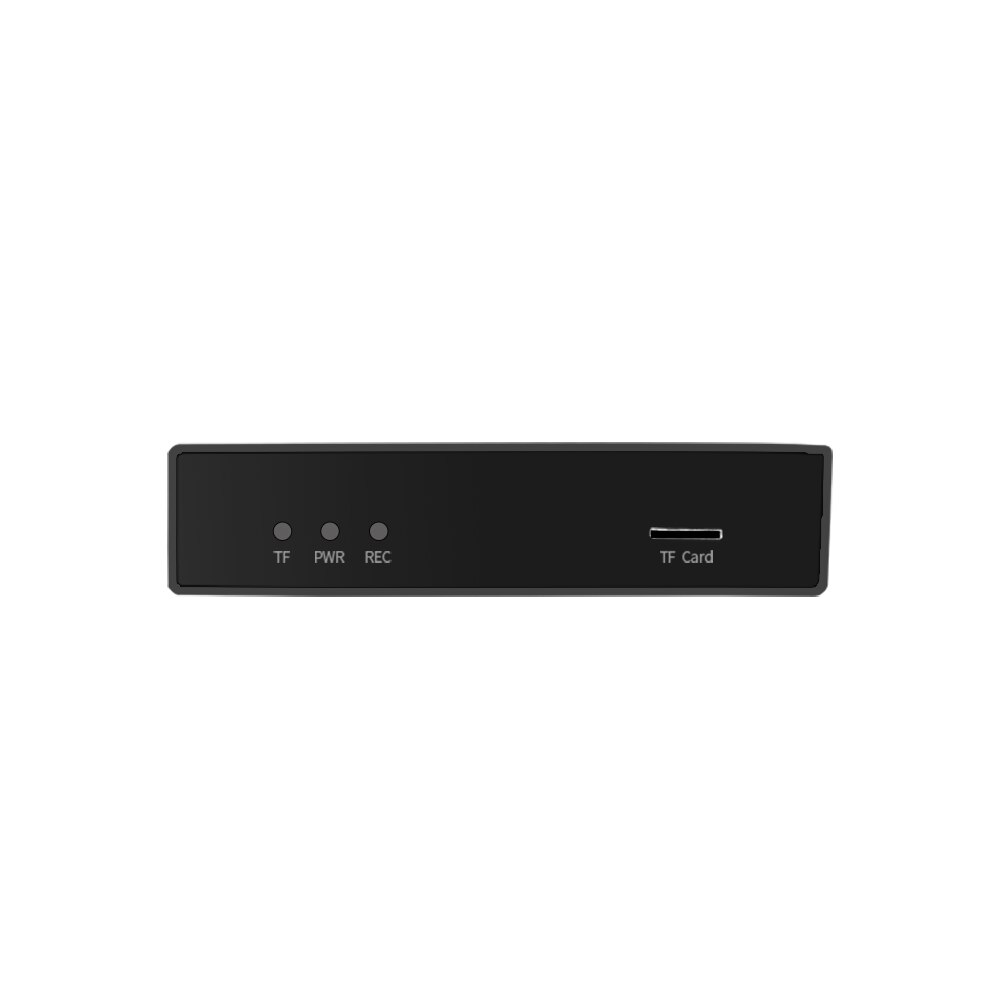

SD Card Slot | 1ch Micro SD Card Slot(Max. 128G) | |
Application | Application | IPTV/Hotel TV System Digital Signage/Video Conference Online Live Streaming Broadcast or Server Teaching/Campus Broadcast/Telemedicine Multimedia Stitching Display NVR/Recording System |
Others | Working Environment | Temparature: -10°C~55°C (-14°F~131°F); Humidity: ≤95% |
Connect to NVR | Hikvision & Dahua Private Protocol, Hikvision & Dahua's NVR H.265 Recording | |
Power Input | DC 12V 1A or Higher [Included By default] | |
Power Consumption | ≤3W | |
Unit Dimension | 109mm x 74mm x 25mm[4.29in x 2.9in x 0.98in] | |
Package Dimension | 220mm x 150mm x 60mm[8.7in x 5.9in x 2.4in] | |
Net Weight | 186g[0.41lb, 6.56oz] | |
Gross Weight | 385g[0.85lb, 13.58oz] |
It's necessary to clear cache on IE if users access the encoder from IE!!!
NOTE: If users didn't clear the cache after settings, all parameters you set will not be valid!!! That's why Google Chrome is recommended
How can we push video stream to YouTube etc.? Two ways and follow below steps:

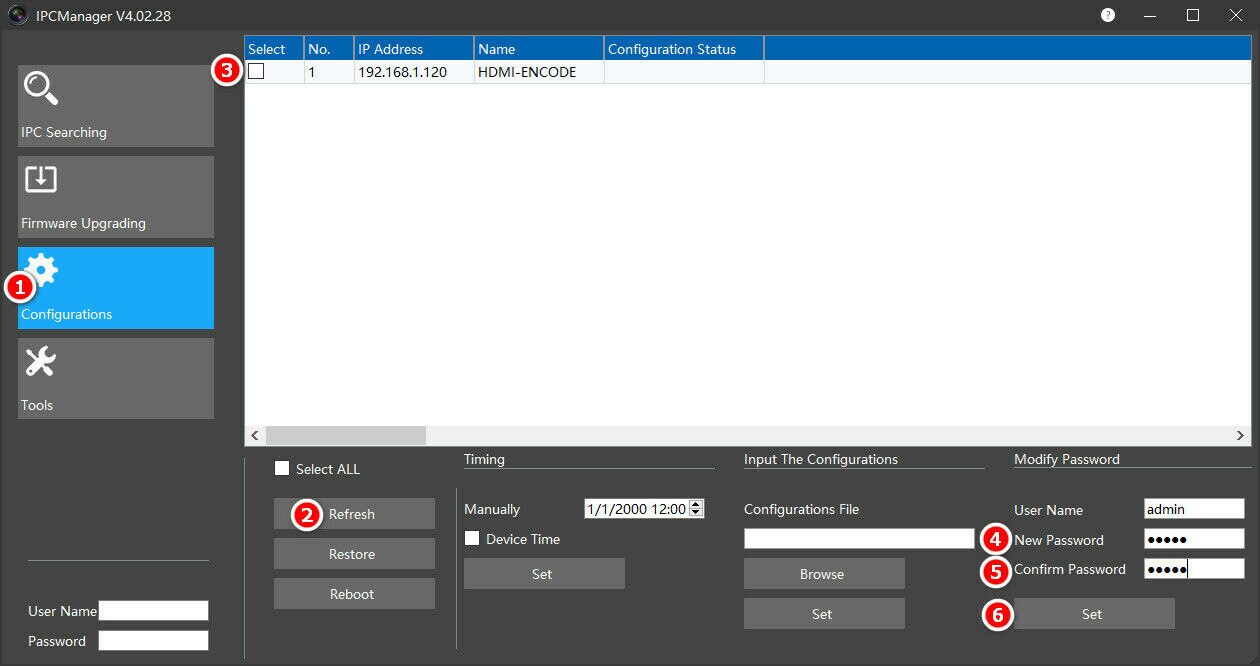

Search the online encoder from IPCManager and go to Camera Configurations->RTMP
Access the encoder from Chrome(Recommended) and go to Settings->Network->RTMP->Enter PUSH URL->Save
How can we modify the password if we forgot it?
NOTE: it's only available to modify the password via IPCManager

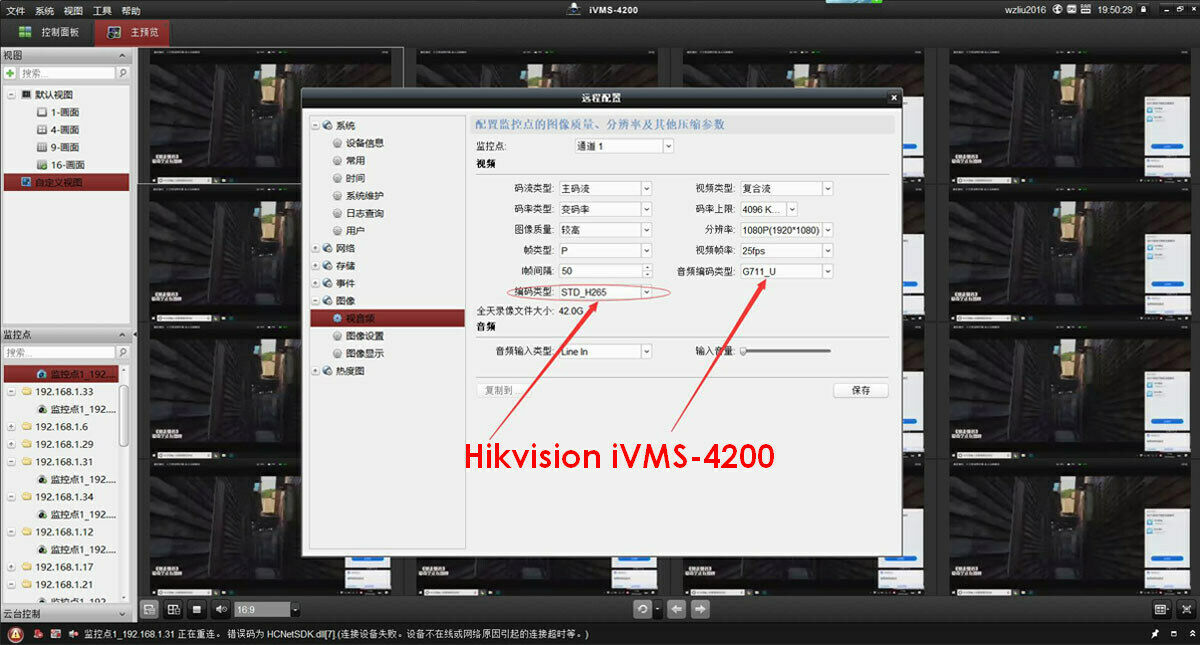

Access and control the encoder from Hikvision's iVMS-4200/8700 and NVR
Is there any technical support if we don't know how to push live video to YouTube?
Technical Support: https://www.exvist.com/pages/technical-support;
Package Contents
1x H.265 HDMI Video Encoder
1x Matched Power Adapter
- Model Number: ON-DMI-16E
- Brand Name: JTOKEN
- Origin: Mainland China
- Smart home platform: Other
- Certification: CE
- Audio Encoding: G.711A,AAC, G.711U
- Audio I/O: 1ch Audio Input(3.5mm or HDMI), 1ch Audio Output
- Audio/Video Outputs: HDMI
- Bit Rate: CBR & VBR; 64kbps~12Mbps [Adjustable]
- Browsers Supported: Firefox,Edge, Chrome(Recommended), IE etc.
- Color: Black
- Features: Firmware Upgradeable, Picture Viewing, Video Games, Web Browsing
- Frame Rate: 50Hz: 1-25fps; 60Hz: 1-30fps [Adjustable]
- HDMI: 1ch HDMI Video Input
- Live Streaming Platform/Media Server: Youtube, Wowza, Facebook Live etc., Twitch, Ustream
- Main Stream: 1600*900,1920*1080, 1280*1024 etc., 1440*900, 1360*768, 1440*1050
- Media Input Connectivity: Ethernet, HDMI
- Media Streaming: Internet TV/Video
- Mobile Stream: 704*576, 720*480, 640*480 etc.,720*576, 720*404, 720*540
- Network Port: 1ch RJ45 10M/100M Self Adaptive Ethernet Port
- Network Protocol: DNS, RTSP,TCP/IP, HTTP, UDP, RTP, DDNS, RTMP, DHCP, ONVIF, TS
- Operating Humidity: <95%(Non-Condensing)
- Operating System: Linux
- Operating Temperature: -10C~55C (-14F~131F)
- Power Supply: Powered by DC12V 1A or Higher
- Private Protocol Compatible: Dahua,Hikvision
- Processor: Dual Core
- Processor Performance: 1080p@45fps(Hi3516E)
- Recording: H.265 Recording by Hikvision or Dahua's NVR(Not Included)
- Reset: 1ch Reset/Record Button
- RTSP Stream (Main Stream): rtsp://192.168.1.120:554/Iive/0(Main Stream)
- RTSP Stream (Sub Stream): rtsp://192.168.1.120:554/Iive/1(Sub Stream)
- SD Card Slot: 1ch Micro SD Card Slot(Max. 128G)
- Sub Stream: 640*352, 640*480, 352*288,704*576, 320*240
- TS Stream (Main Stream): http://192.168.1.120:80/ts/0(Main Stream)
- TS Stream (Sub Stream): http://192.168.1.120:80/ts/1(Sub Stream)
- UDP Multicast: udp://@224.1.2.3:10000
- Video Encoding: H.265, H.264
- VMS Compatible: SmartPSS(Dahua),iVMS-4200/8700(Hikvision)
