Gsm Switch Controller Wireless Relay 220v Controle Remoto for Smart Home Automation Light Water pumps Router Motor etc.

Name:Gsm Switch Controller Wireless Relay 220v Controle Remoto for Smart Home Automation Light Water pumps Router Motor etc.

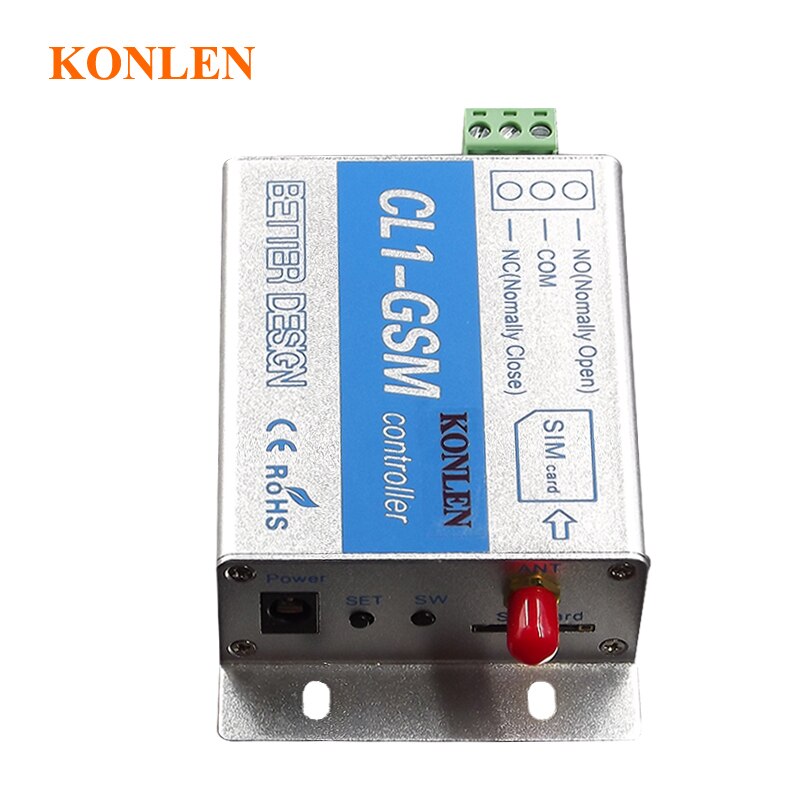

Model No: KLN-CL1

  *SMS/Free Call Control Relay On or Off  via On/Off Command

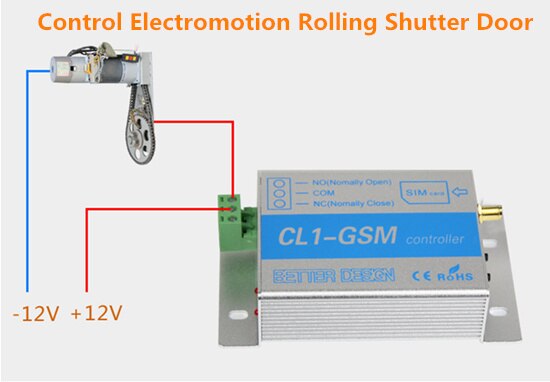

    *SMS/Free Call Control Electric Door Gate from on to off (0.5 to 9 seconds), then back to on or off to on (0.5 to 9 seconds), then back to off  via T and XL Command.

    *Timed control other electric devices from on to off (001 to 255 minutes), then back to on or off to on (from 001 to 255 minutes), then back to off via SMS L Comand

GSM controller sms or call remotely control power switch for smart home automation.

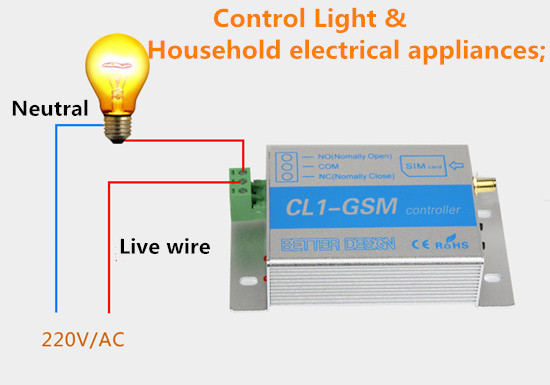

wireless light switch

Remote control light switch

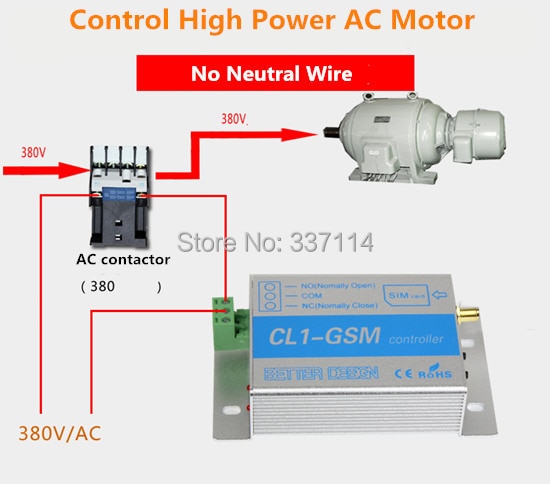

Interruptor controle remoto switches for control high power AC motor.wireless remote control switch 220v/380v

Wireless switch 380v

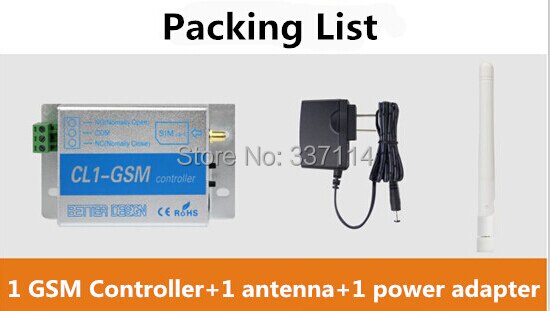

GSM cotroller+1antenna+1power adaptor

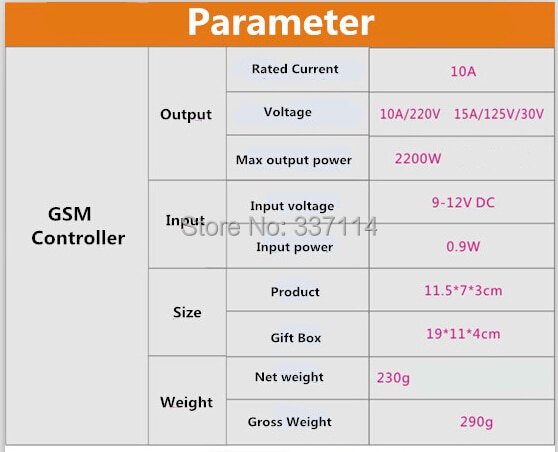

GSM power socket output voltage 10A/220V  15A/125v/30v.

Main features:
1. With password protection
2. Can set 5 groups of control master numbers
3. SMS control(ON command, Off Command, T Command)
   1)ON Command: turn the relay state to ON
   SMS Text: SN+Password+ON
   2)Off Command (Turn the relay state to off
   SMS Text: SN+Password+OFF
4. Free Call to control
   User can control the GSM controller by dial the SIM card number of GSM controller. The user may hear" You can't answer the phone call, beep, beep.......tone etc", which meanchanging changing the relay state sucessfully.
   If the controller connected, it will change to be disconnected state after a call.
   If the original state is off, it will change to be connected state after a call.

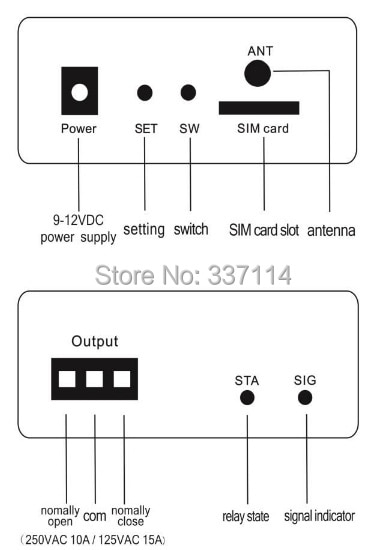

5. Button Control
   The controller state will be changed when you press the SW button at side of controller.
   If the controller connected, it will change to be disconnected state.
   If the original state is off, it will change to be connected state.
6. User can send sms to check the on/off state
   SMS text: SN+Password+CHECK
7. With Power off memory Function

8. Sms call remote control household electrical appliances, high power AC motor, Generator, remote base station, PBX switchboard, water pump, router, server etc.

   Additional Commands

T Command: Inching the relay state
SMS Text: SN + 4 digits of password(0000) +T + inching time (0 to 9)
0    means 0.5 second, 1-9 means 1 to 9seconds
For example: a. Send SMS:  SN0000T0
on-----off 0.5 seconds-----on;
off-----on 0.5 seconds------off
If the original STATE LED on, it will be off for 0.5 seconds after command, then back to be on automatically.
If the original STATE LED off, it will be on for 0.5 seconds, then back to be off automatically
b. Send SMS: SN0000T3 (on-----off 3 seconds-----on; off-----on 3 seconds------off)

L Command:
SMS Text: SN + 4 digits of password(0000) + L + 3 digits of time (from 001 to 255 minutes)
For example. a. Send SMS:  SN0000L005
on-----off 5 minutes-----on;
off-----on 5 minutes-----off
If the original STATE LED on, it will be off for 5 minutes after the command, then back to be on automatically.
If the original STATE LED off, it will be on for 5 minutes after the command, then back to be off automatically.
b.    Send SMS: SN0000L030 (on-----off 30 minutes-----on;  off-----on 30 minutes-----off)

XL Command: Set and Activate inching time of dailing control
SMS Activation Text: SN + 4 digits of password(0000) + XT + one digit of time (0 to 9seconds, 0 stand for 0.5seconds)
For example. a. Send SMS:  SN0000XT5    b. SMS reply: FUNCTION IS ON
on-----off 5 seconds-----on;
off-----on 5 seconds-----off
If the original STATE LED on, it will be off for 5 seconds after a call, then back to be on automatically.
If the original STATE LED off, it will be on for 5 seconds after a call, then back to be off automatically.
Deactivation: a. Send SMS: SN0000XTC
 b. SMS reply: FUNCTION IS OFF. The Inching time via call control is off.
