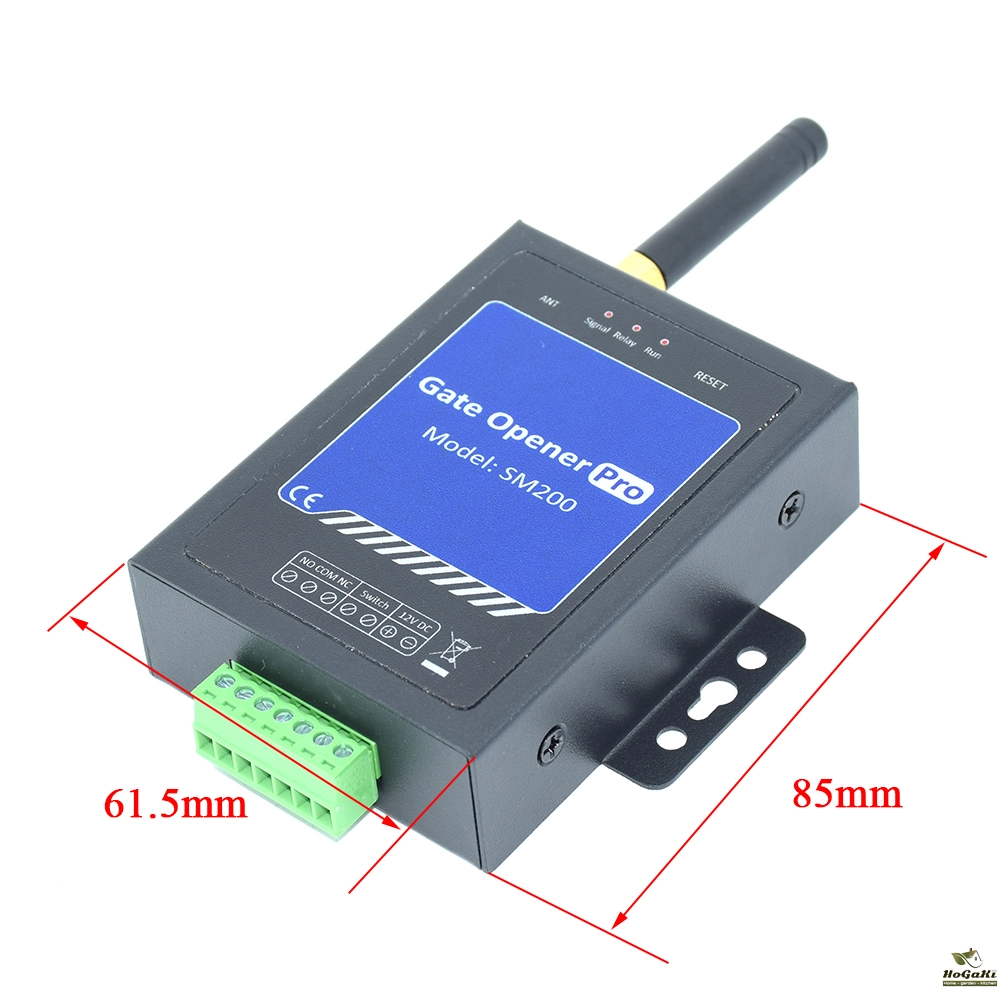

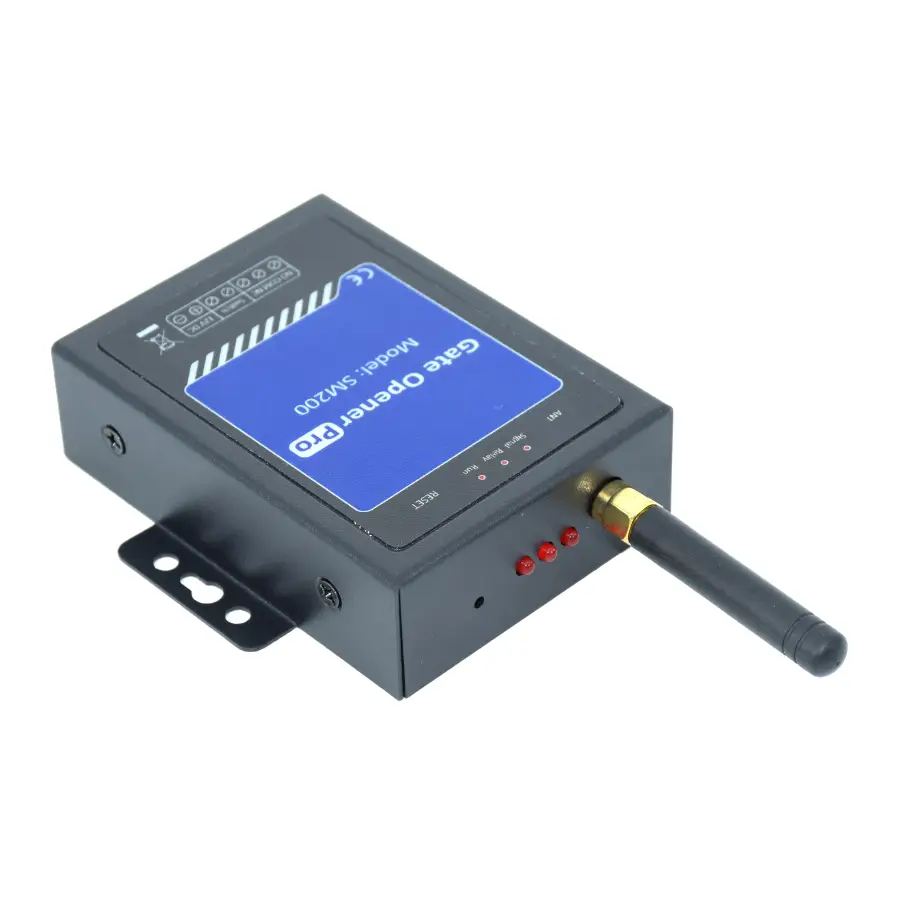

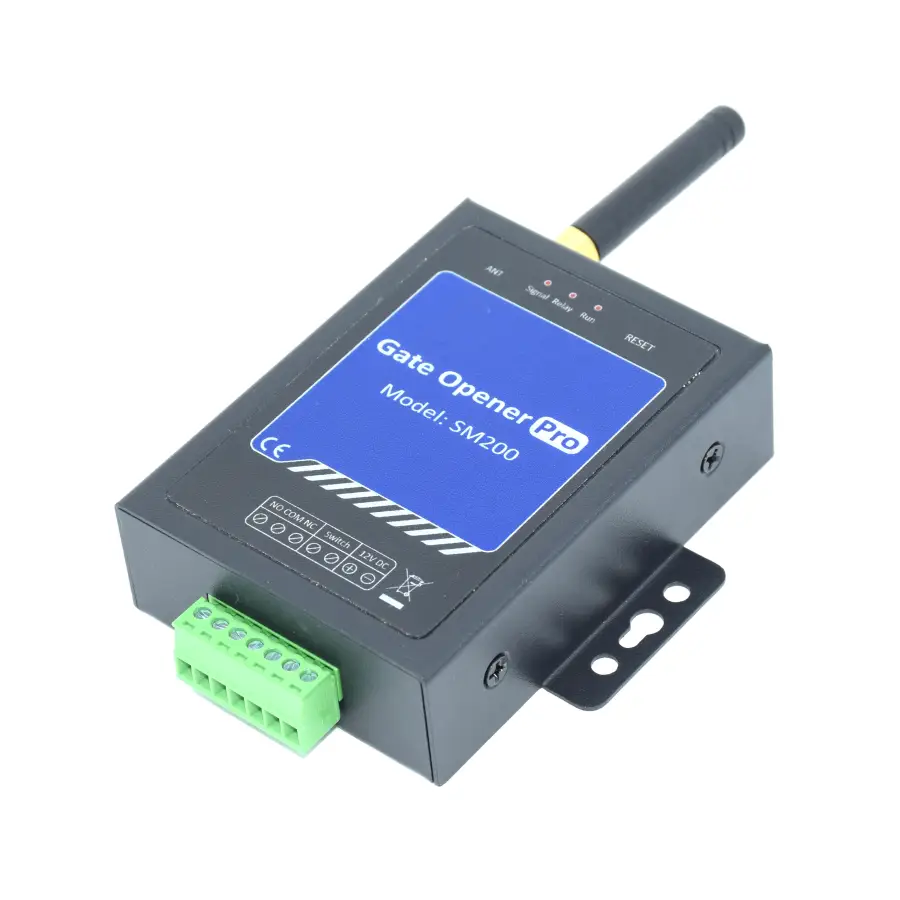

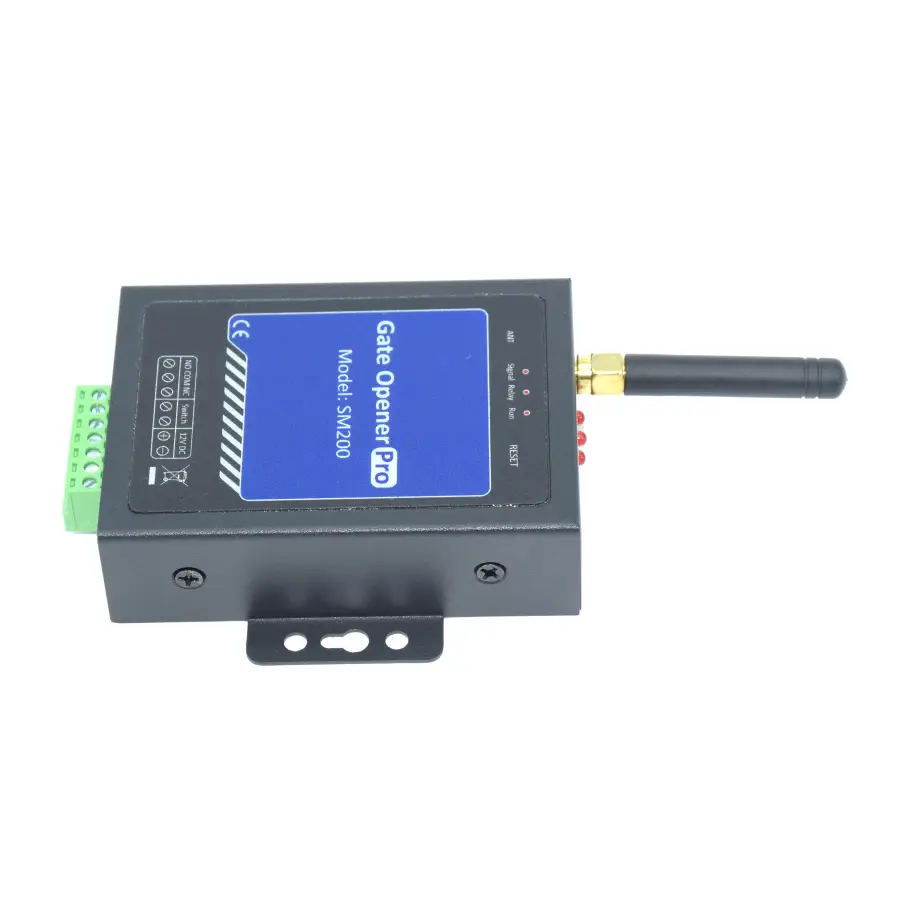

GSM 4G LTE Remote On/Off Switch Door Gate Opener Remote Control Relay Output
ID: 160872

GSM 4G LTE Remote On/Off Switch Door Gate Opener Remote Control Relay Output

4.4 (26 votes) | 159 orders
Price: US $85.19 - 94.78
Discount Price:
US $ 75.49 - 81.45
-11%
Color
Quantity

Buy Now
Add to Cart
Attention:

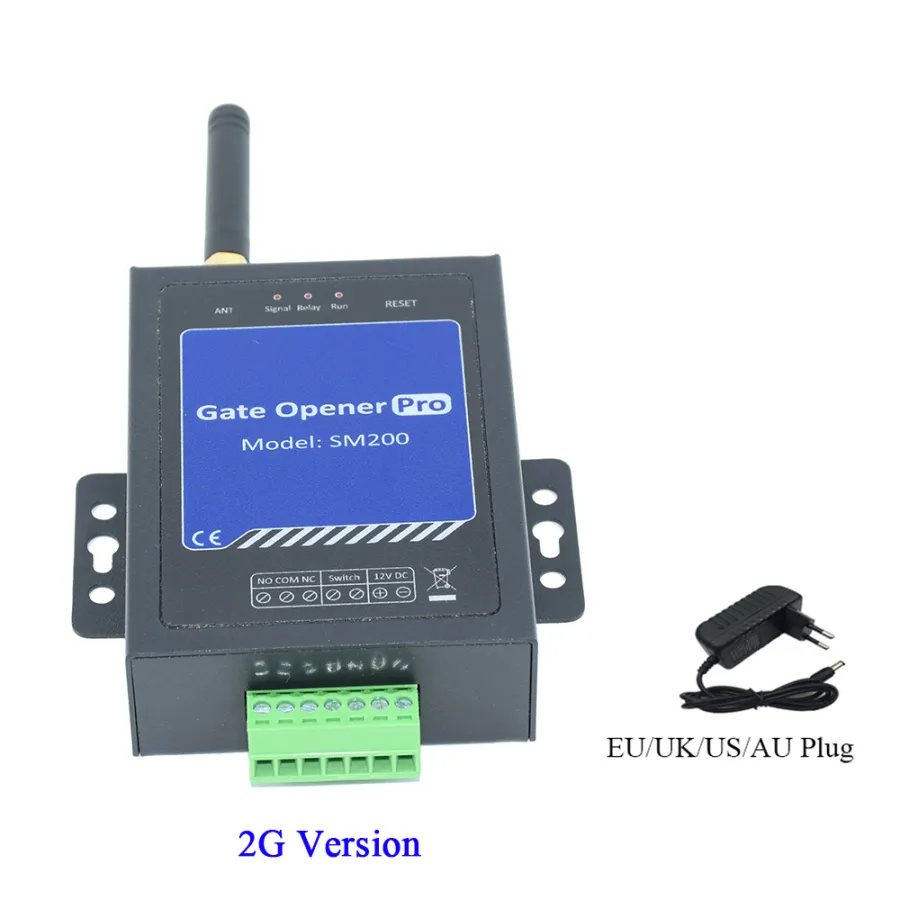

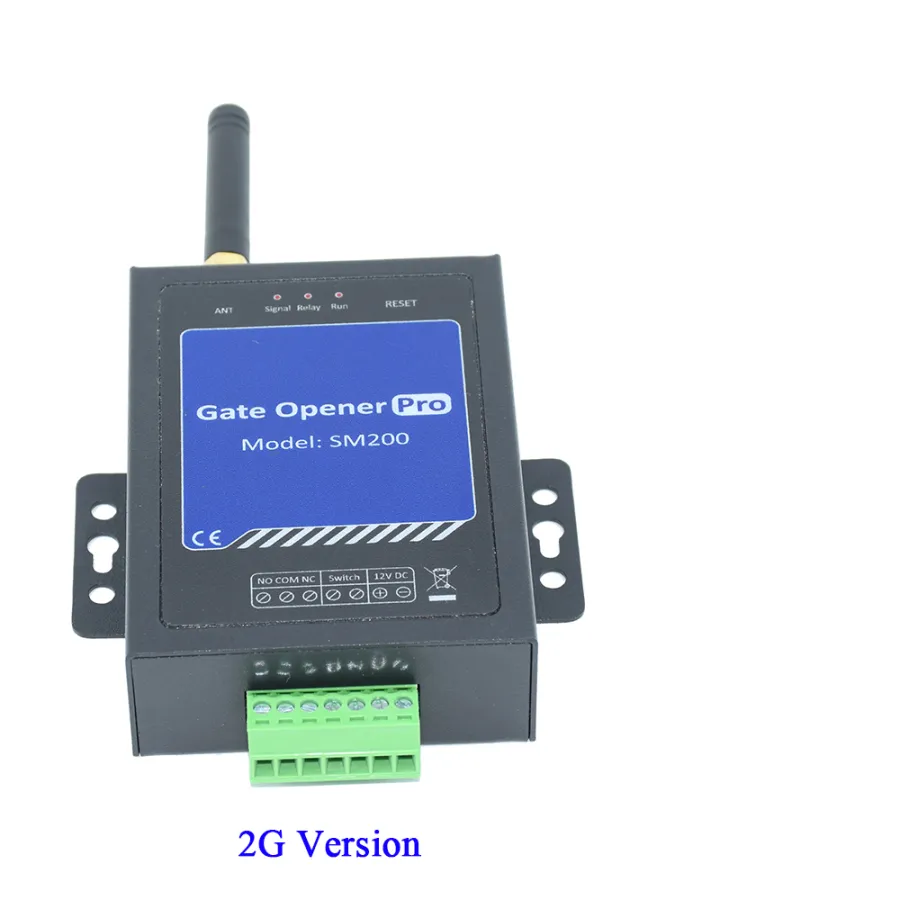

1, This device only support 2G/4G, don't support 3G.
2, This product can't work in USA and Canada, so if you from USA and Canada, please don't buy this product.
3, AU version : Suitable for New Zealand, Australia, Mexico, Columbia, Peru, Brazil, Chile, Argentina，Paraguay，Uruguay，Bolivia，Ecuador, Venezuela, Guatemala, El Salvador, Honduras, Costa Rica, Dominican Republic

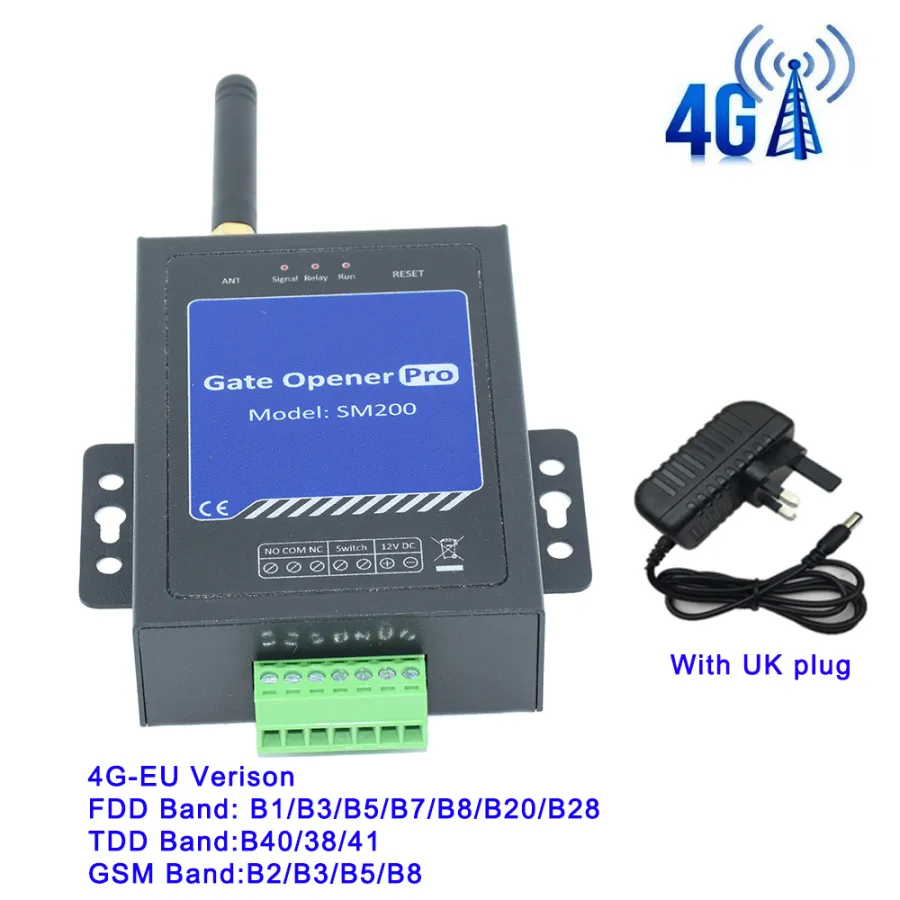

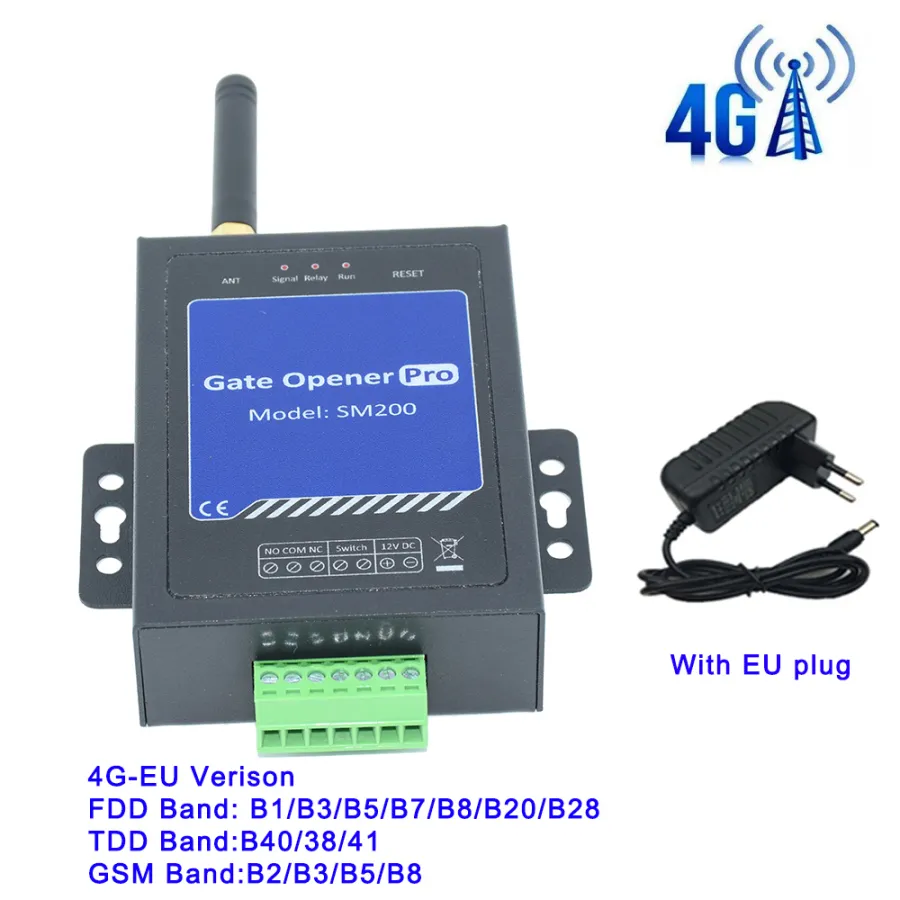

4, EU version : Suitable for another country


Technical specifications
Rated Voltage: DC 9V~30V/1A
Working temperature: -10℃～+60℃
Storage temperature: -20℃～+60℃
Relative humidity: 10-90%, No condensation
Work frequency:
4G:

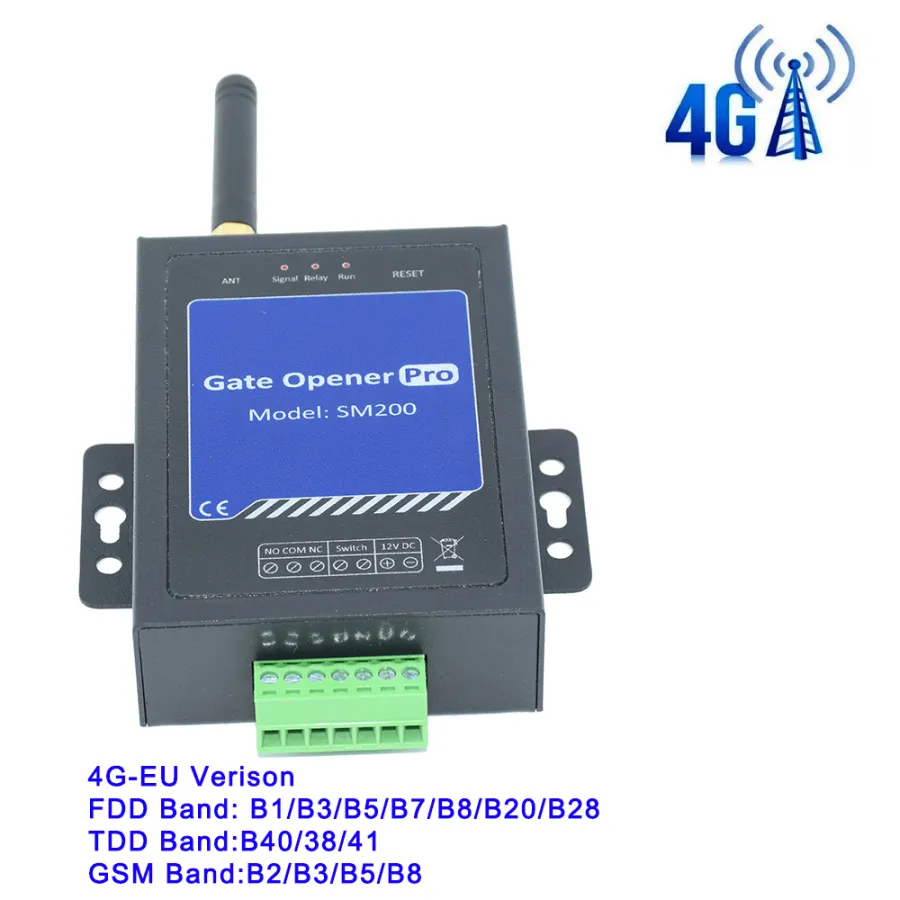

4G-EU: GSM: B2/B3/B5/B8   LTE-FDD : 1/B3/B5/B7/B8/B20/B28

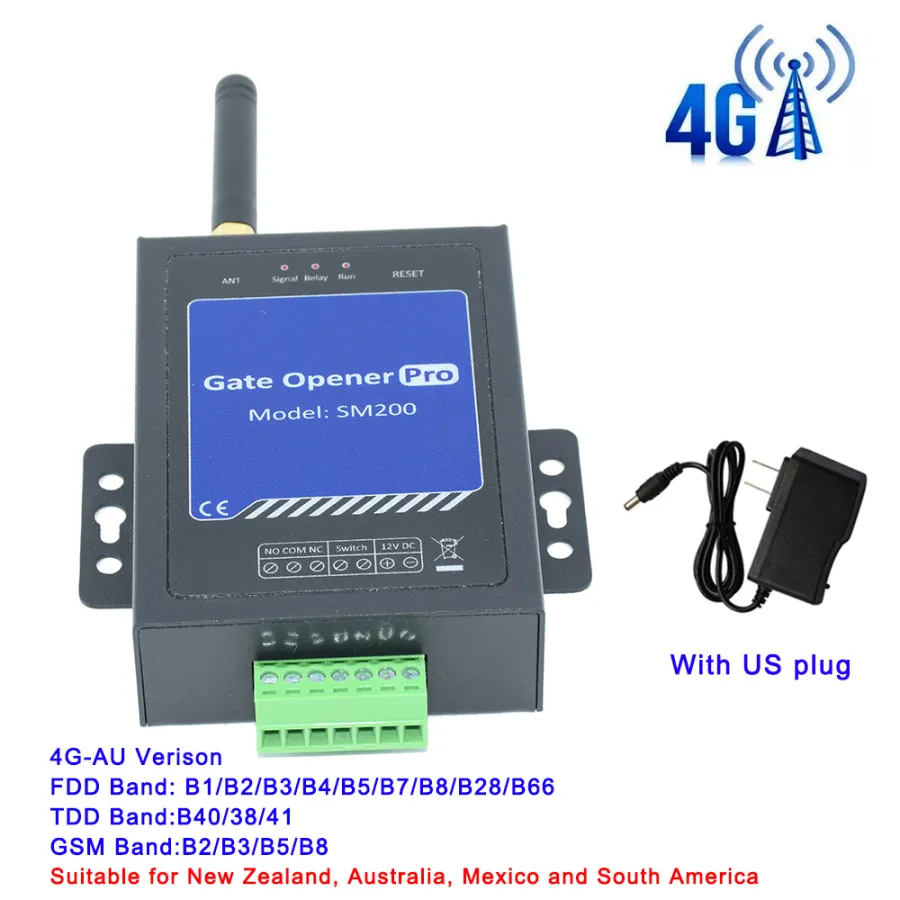

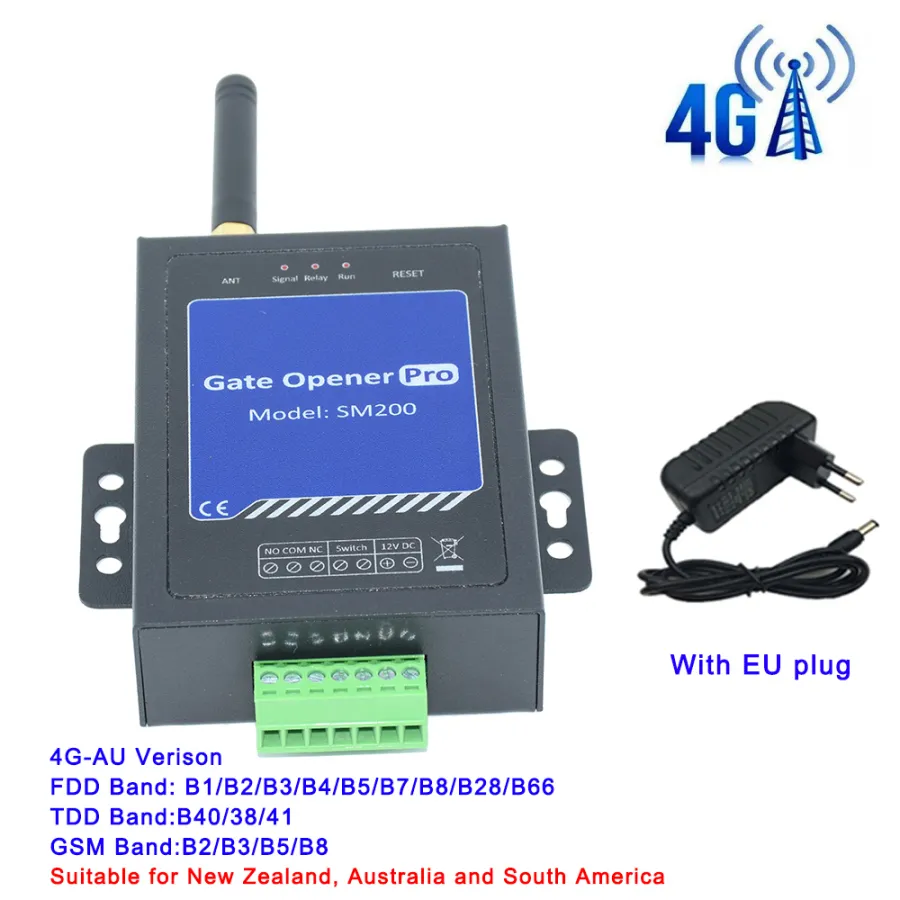

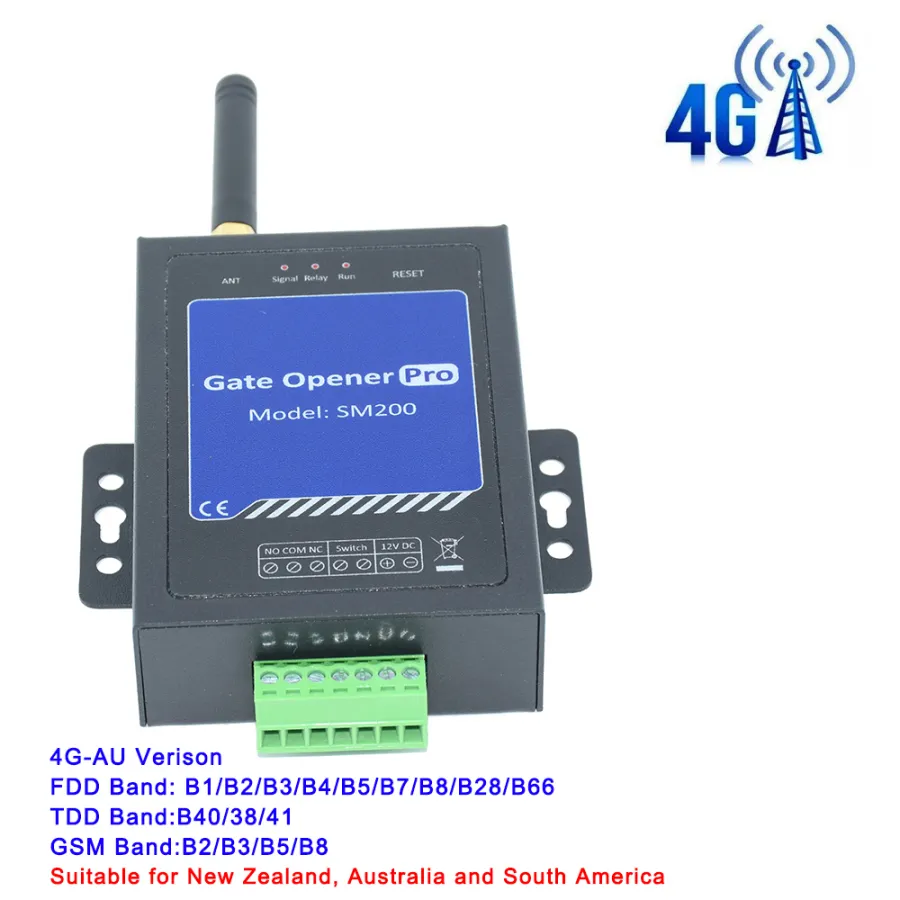

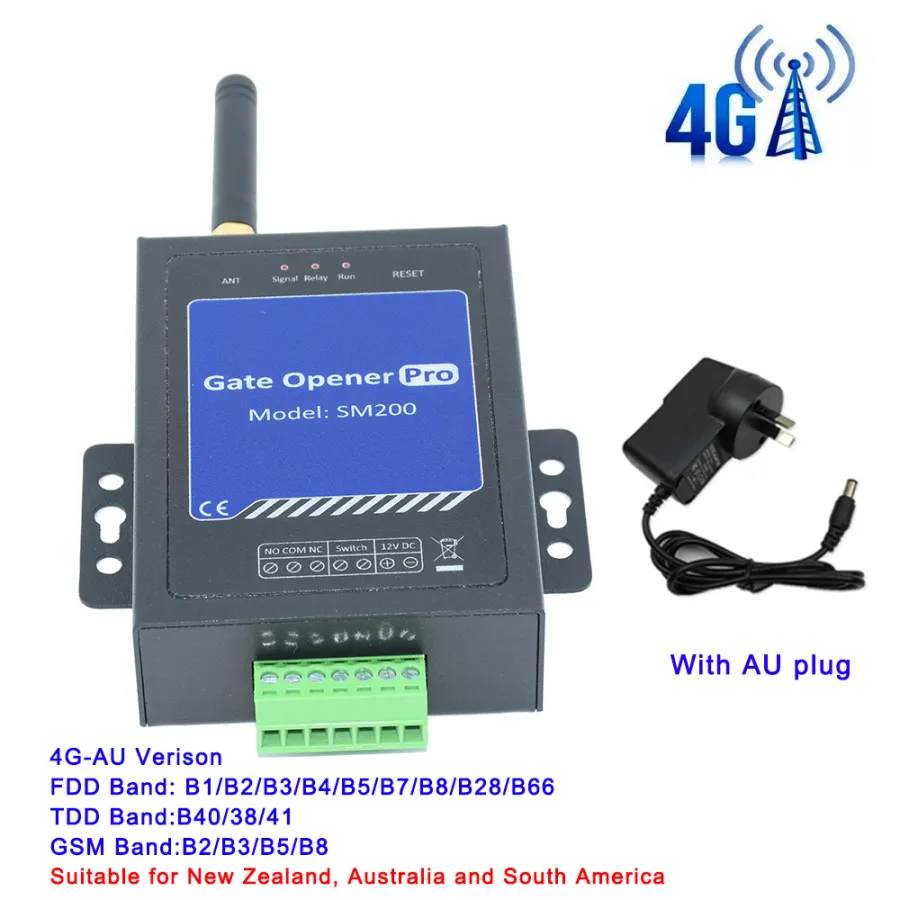

4G-AU:GSM：B2/B3/B5/B8   TDD：B40/38/41   FDD：B1/B2/B3/B4/B5/B7/B8/B28/B66
Communication protocol: GSM/4G PHASE 2/2+  (include data service)
Related Voltage of the Output Relay: 3A/250V AC
SIM Card： Nano type, 3V
Antenna: 50 Ω SMA
Wired Switch: Supports

Features

  • GSM Quad-band, can work in the worldwide GSM networks, Optional 4G

  • No call charges. The GSM Gate Opener rejects the call from authorized number, then the relay will turn ON/OFF on the first ring

  • Secure - Using caller ID for identification, unknown callers are ignored

  • Can be operated from anywhere, no distance limit

  • Add or remove users by SMS Text command

  • Up to 200 authorized phone numbers can be configured

  • Time limitation for access, user can call in to control only during the pre-set time period

  • Automatically delete expired authorized phone numbers

  • Automatically report current status by SMS or call to the 1st number

  • The relay close or open time is programmable

  • The SMS Feedback confirmation is programmable

  • Remember relay status when power failure

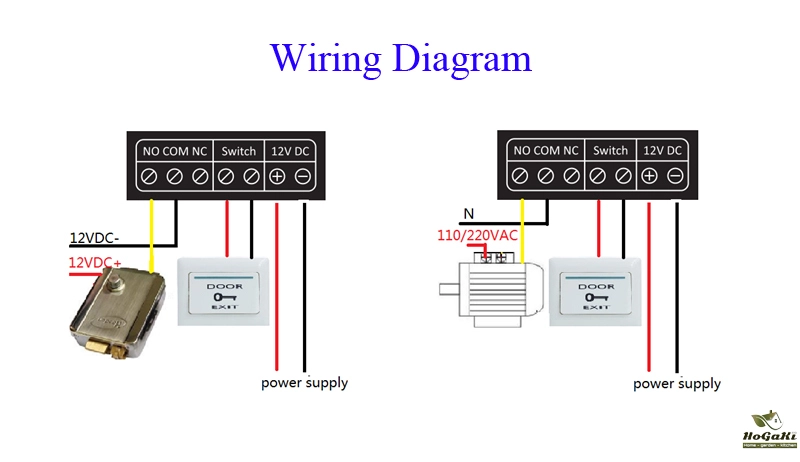

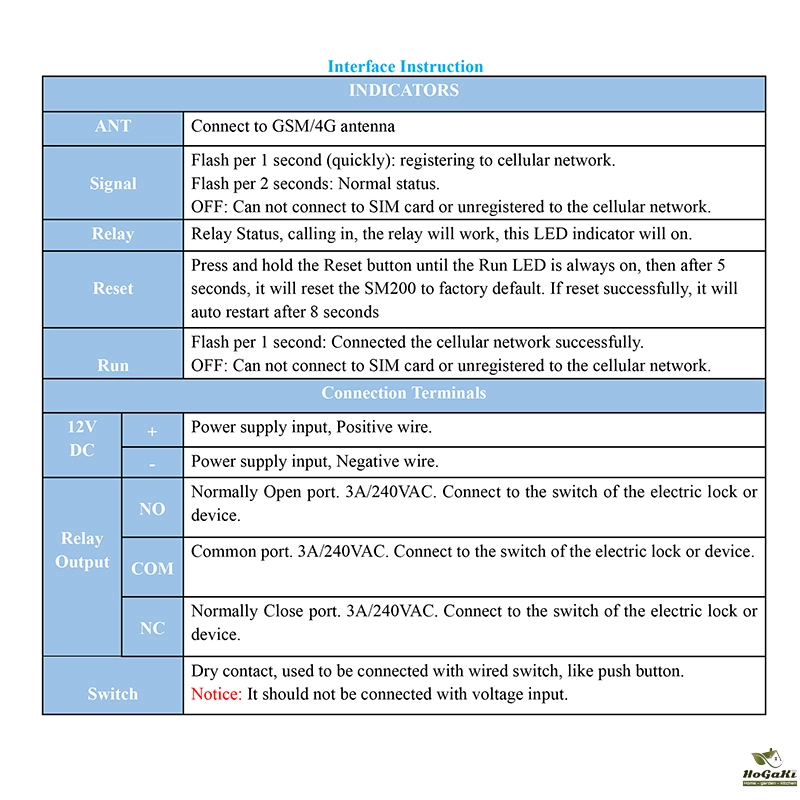

  • One output with relay （3A/240VAC）for connecting the switch of the door or machines

  • The relay action will return a SMS confirmation to the owner, this function is editable

  • One wired switch: we can control it under manual control mode

  • Based on GSM/4G Network, applied to many application(gates, bollards, barriers, garage doors, shutters and access doors or machines)

  • Relay hold on time 0~999s

  • Support Enable/Disable remember relay status when power failure







Packaging Details

  • Unit Type:
  • Package Weight: 0.300
  • Package Size: 10x10x10

  • Brand Name: BADODOSECURITY
  • Origin: Mainland China
  • Hign-concerned Chemical: None
  • Model Number: SM200
  • Direction: None
  • Certification: None
  • Smart home platform: None
  • Security Mode: Fail Secure with Signal
