GROW K215-V1.3+R503 Self-Locking Relay Output DC10-30V Fingerprint Access Control Board For Automobile Control Access control
5.0 (1 votes) | 24 orders
Price:
US $
54.36
/ piece
DC10-30V, Relay output, Relay time: Self-locking or 1-20 second
·Power supply: DC10--30V,
·Stand-by current for control board: 40mA
·Fingerprint capacity: 200
·Fingerprint capacity: 200
·Size: 36.4*70mm
·Relay Function: Self-locking or 1-20 second

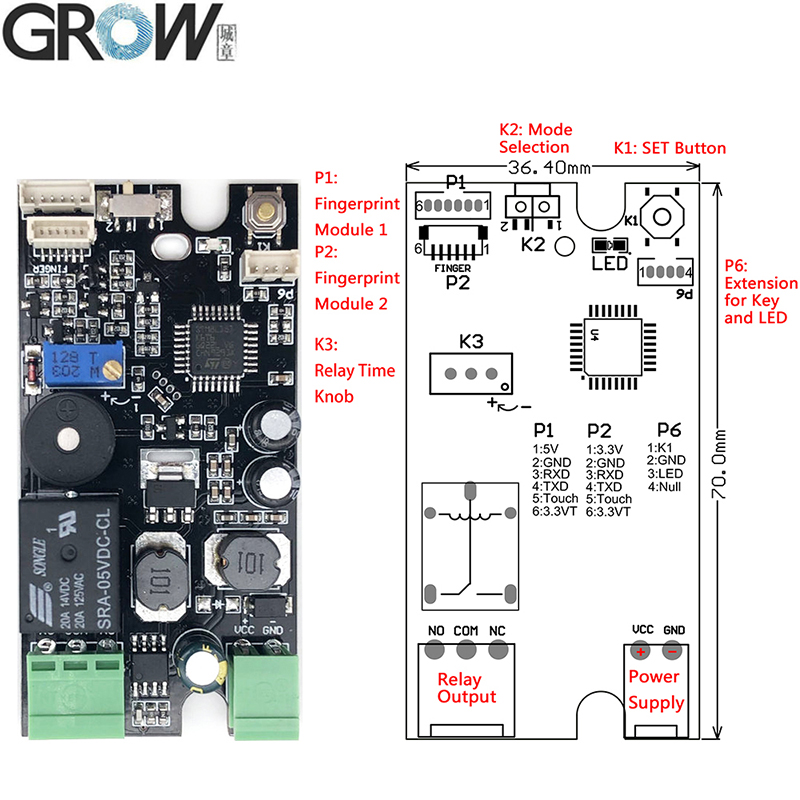

K215-V1.3 Circuit board diagram

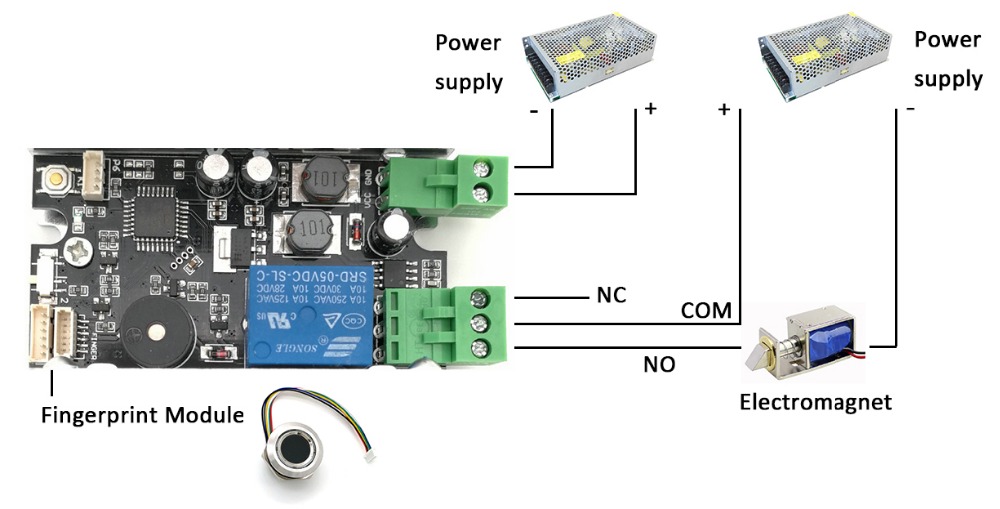

K215-V1.3 Reference Connection Diagram:
1. Press SET button shortly,system in register state and blue indicator light flash fast, place your finger in the collection area, fingerprint register successful when hearing music;Fingerprint can be registered continuously when system in register state; if no need adding fingerprint more, waiting a few seconds.
2. When back to factory default, press SET button until hear “Di” and music,means initialization operation successful.
3. Mode Selection Usage: when chose 2, operating time of the relay is 1s-20s after pass fingerprint,can adjust by knob. When chose 1, relay operated when fingerprint passed, and then relay released when fingerprint passed again, relay operated and released circularly. Relay released when power off.
Note:
●In factory status, any fingerprint can pass, after register fingerprints, this function is invalid;
K215-V1.3 has a wide range of use, which can be used in automobile control, access control and other occasions.
K215-V1.3 can be connected with R502,R502-A,R502-AW,R502-F,R503 fingerprint module.
Model | R503 |
Type | Capacitive Fingerprint Module |
Interface | UART(TTL) |
Resolution | 508 DPI |
Voltage | DC 3.3V |
Fingerprint Capacity | 200 |
Sensing array | 192*192 pixel |
Working current | 20mA |
Standby current | Typical touch standby voltage: 3.3V, Average current: 2uA |
Fingerprint module external size | Diameter 28 (mm) |
Fingerprint module inner size | Diameter 23.5 (mm) |
Fingerprint module height | 19 (mm) |
Effective collection area | Diameter 15.5 (mm) |
Connector | MX1.0-6Pin |
LED Control | YES |
LED Color | Blue and Red |
Scanning Speed | < 0.2 second |
Verification Speed | < 0.3 second |
Matching Method | 1:1; 1:N |
FRR | ≤1% |
FAR | ≤0.001% |
Work environment | -20C ---60C |
Work Humidity | 10-85% |
Anti-static capacity | 15KV |
Abrasive resistance intensity | 1 million times |
Communications baud rate (UART): | (9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps) |
R503 Upgrade to waterproof version, waterproof level: IP65
When the temperature of the use environment fluctuates greatly, it may affect the glue, thus affecting the waterproof effect.
·ProvideFree Reference SDK Files for Arduino, Android,.Net,Windows and so on.
·Provide User Manual
You can dowload the K215-V1.3 user manual from this website link:
You can download the R503 user manual from this website link:
K215-V1.2 fingerprint control board connect with R501,R502,R502-A,R502-AW,R503 video on Youtube:https://youtu.be/1Zk2bjRdRpg
K215-V1.2+R503 register fingerprint video on Youtube: https://youtu.be/_kFsBPBsgU4 and https://youtu.be/qxKj__hLyIE
K215-V1.2+R503 relay mode operation video on Youtube: https://youtu.be/TjTcx-9hIT0
If need SDK files,pls contact us.
K215-V1.3 Circuit board diagram

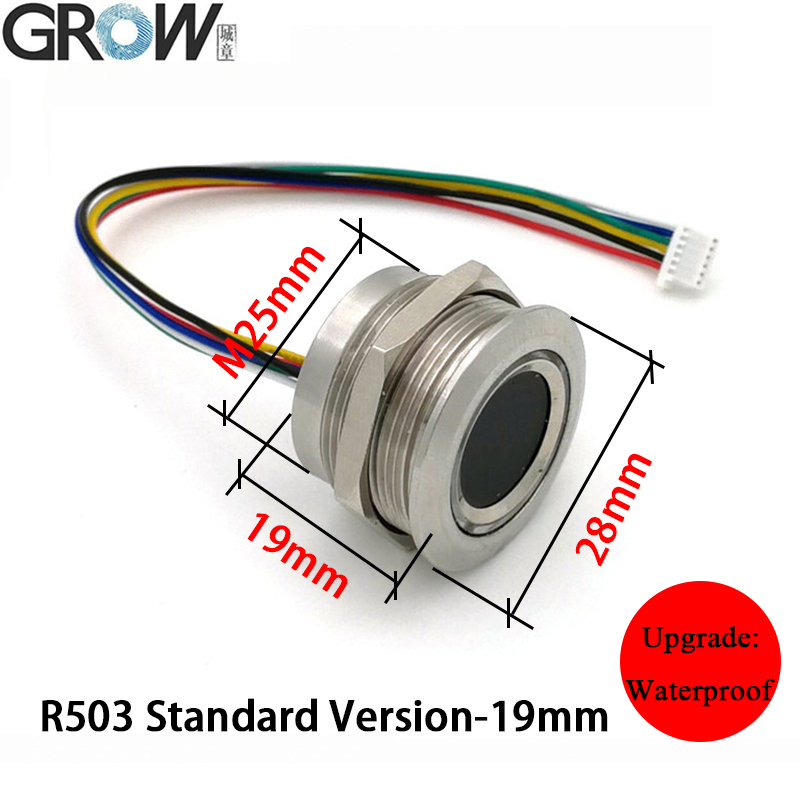

R503 Fingerprint Module
Buyer Shows:

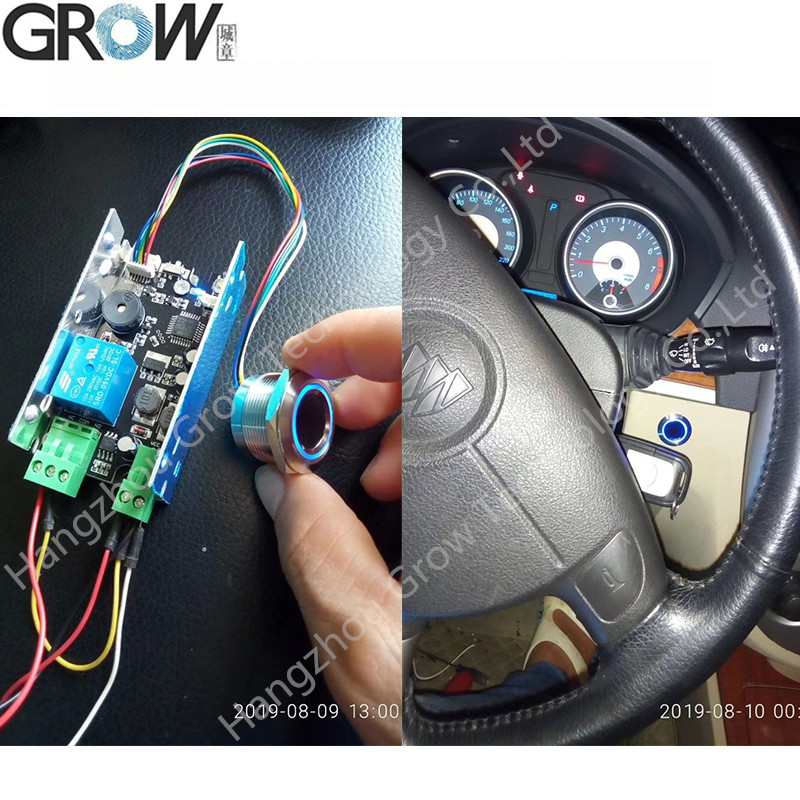

Mounted on Car

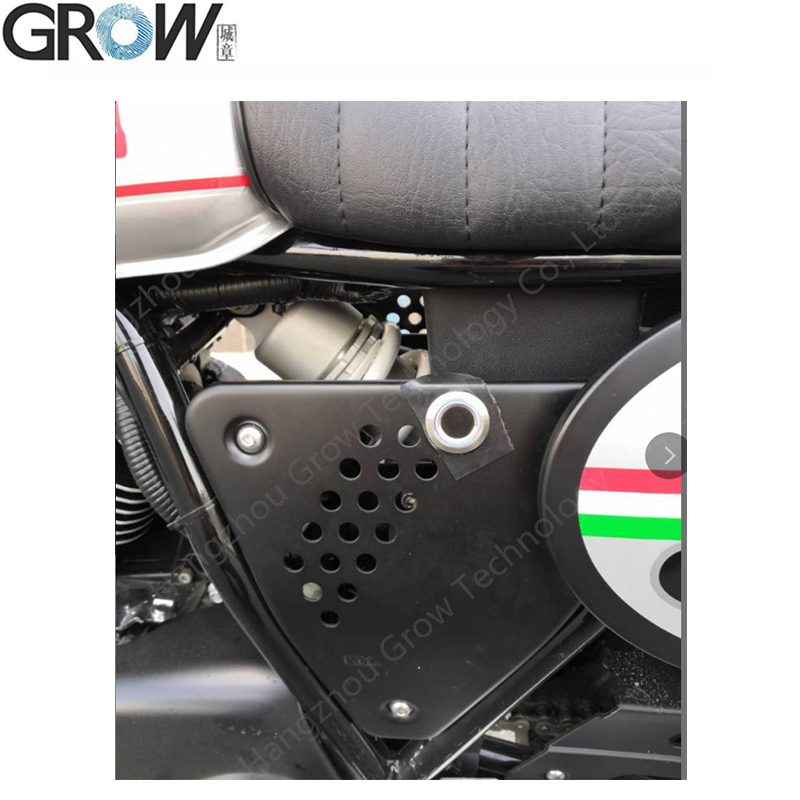

Mounted on Motorcycle

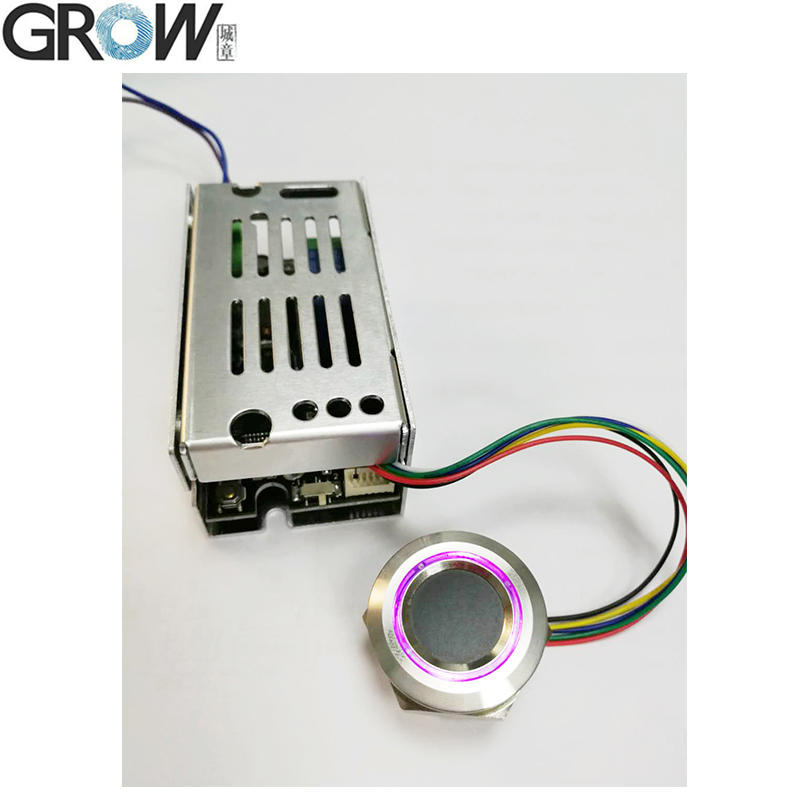

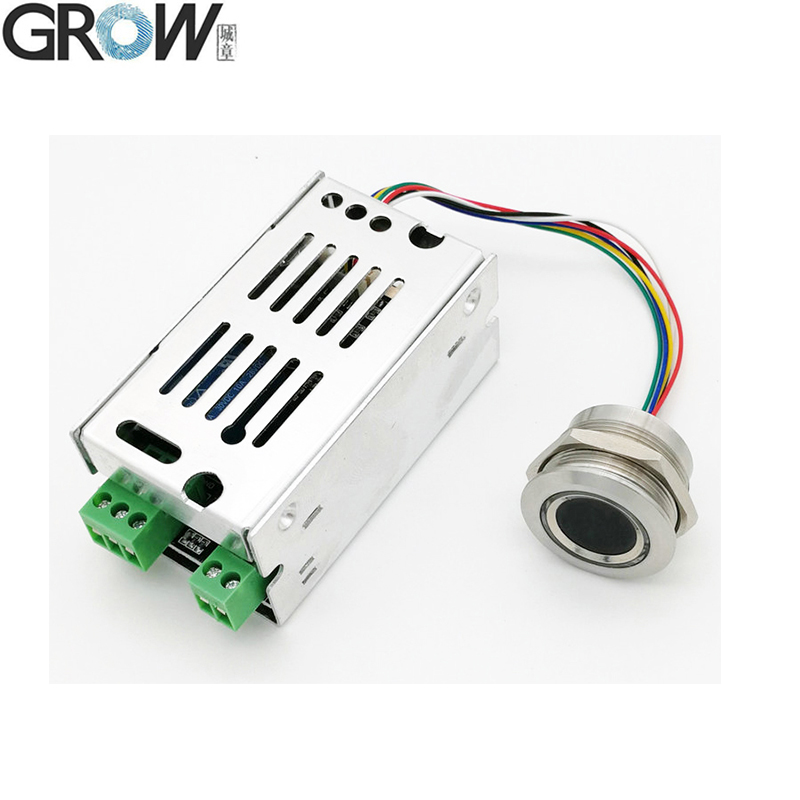

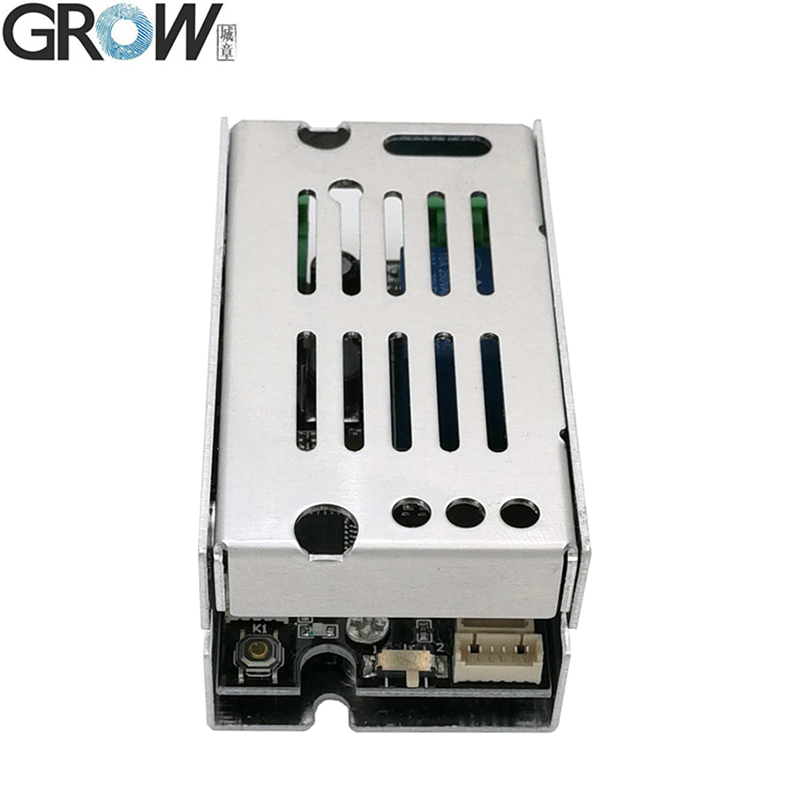

K215-V1.3 Fingerprint Control Board+R503 Fingerprint module+Nut
K215-V1.3 can be used together with R502-AW capacitive fingerprint module
K215-V1.3 can be used together with R502-A capacitive fingerprint module
K215-V1.3 can be used together with R502-F Waterproof capacitive fingerprint module
- Model Number: K215-V1.3+R503
- Brand Name: grow
- Origin: Mainland China
- Smart home platform: Other
- Certification: NONE
- Power supply: DC10V--30V
- Standby current: 40mA
- Fingerprint capacity: 200
- LED Control: No
- Relay Function: Self-Locking or 1-20 second
